INSTRUCTIONS FOR USE
Washing machine
EN
WM86L
W5114RXLW
W5XLT.U
W5XLG.U
W5XLW.U
Carefully read the instructions for use before using the washing machine.
3Introduction ................................................
4Important safety instructions ...................
14
Electrical hazard warning during
servicing .....................................................
15
Before using the appliance for the first
time ..............................................................
15Packing material ..........................................
15Transport protection ....................................
16Care and maintenance instructions .............
16Opening the Door ........................................
17Installation and connection ......................
17Selecting the room .......................................
18Positioning the washing machine ................
21Built-in ..........................................................
23
Moving the washing machine and transport
after installation ............................................
24Connection to water supply .........................
25Installing the drain hose ...............................
27Connecting to the household power ............
29
ASKO Laundry Care - Hidden helpers
(Hidden helpers) ..........................................
30Washing machine description ..................
30
Detergent compartment with Auto dose
system (ADS) ...............................................
31Initial settings before use ..........................
34
Appliance connection with the ConnectLife
application ...................................................
37Special features .........................................
37Dose ............................................................
37Manual assist ..............................................
37Auto dose system (ADS) ..............................
42Tips before washing ..................................
42Laundry sorting ............................................
42Clothing ........................................................
43Laundry symbols .........................................
44Laundry types ..............................................
44Reducing allergic reactions .........................
44Saving time and energy ...............................
44Economy and efficiency ..............................
45Detergents ...................................................
45Dosing accessories .....................................
45Stains ...........................................................
45Dyeing fabrics ..............................................
47
Operating instructions - Washing step by
step (1 – 8) ..................................................
47STEP 1: Sort the laundry ..............................
47STEP 2: Turn on the main switch .................
47
STEP 3: Open the washing machine door
and insert the laundry ..................................
47
STEP 4: Add the detergent and the
softener ........................................................
50STEP 5: Choose the program ......................
54STEP 6: Choosing the program settings ......
59STEP 7: Start the wash .................................
60STEP 8: End of program ..............................
61Appliance settings .....................................
61Additional service settings ...........................
66Cleaning and Maintenance ........................
66Cleaning the dispenser tray .........................
68Cleaning the filter .........................................
69Cleaning the exterior of the appliance .........
69Preventing odors ..........................................
69If you have hard water .................................
70Errors: what to do? ....................................
73Manual opening of washing machine door ..
74Failure display ..............................................
78Service and warranty .................................
78
Limited Warranty – Residential and
Professional Appliances ..............................
80Service ........................................................
80Before calling customer service ..................
82Technical information ................................
82Typeface License Notice .............................
83Declaration of conformity .............................
84Table of consumption values ...................
86Table options ..............................................
87DISPOSAL ...................................................
Contents
Dear Customer,
We thank you for purchasing this quality ASKO product.
We hope it meets all your expectations. Scandinavian design combines pure lines, everyday
functionality, and high quality. These are the key characteristics of all our products, and the reason
why they are highly appreciated across the globe.
We kindly recommend that you read these instructions before using the appliance for the first time.
The instruction manual also includes information on how you can help protect the environment.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – Risk of Fire
Original instructions
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
3
Introduction
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE!
WARNING!
To reduce the risk of fire, electric shock, or injury to persons
when using your appliance, follow basic precautions,
including the following:
Read all instructions before using the appliance.1.
Risk of Suffocation and Injury from Entrapment: Do
not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance
is used near children.
2.
Do not operate appliance while away from the home.3.
WARNING: Risk of Fire – Do not wash articles that
have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off
vapors that could ignite or explode.
4.
Use only detergents and softeners for machine wash.
The manufacturer may not assume responsibility for any
damage and eventual discoloring of gaskets and plastic
components as a consequence of incorrect use of bleach
and/or coloring agents.
5.
WARNING: Risk of Fire – Do not use detergents that
contain solvents as this could lead to release of
poisonous gases, damage to the washing machine, and
risk of fire and explosion.
6.
4
Important safety instructions
WARNING: Risk of Fire – Under certain conditions,
hydrogen gas may be produced in a hot-water system
that has not been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot-water system has not been
used for such a period, before using a washing machine,
turn on all hot-water faucets and let the water flow from
each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
7.
Do not add gasoline, dry-cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
8.
Before the appliance is removed from service or
discarded, remove the door to the drying compartment.
9.
Do not reach into the appliance if the tub or agitator is
moving.
10.
Do not install or store this appliance where it will be
exposed to the weather.
11.
Do not tamper with controls.12.
Do not repair or replace any part of the appliance or
attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published
user-repair instructions that you understand and have
the skills to carry out.
13.
Do not use spare parts that have not been recommended
by the manufacturer (e.g. parts made at home using a
3D printer).
14.
5
Important safety instructions
WARNING: PROPOSITION 65 FOR CALIFORNIA
RESIDENTS
Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
15.
WARNING: This appliance must be properly
grounded. This manual does not cover every possible
condition and situation that may occur. Use common
sense and caution when installing, operating, and
maintaining any appliance.
16.
WARNING: Certain internal parts are intentionally not
grounded and may present a risk of electric shock only
during servicing. Service Personnel - Do not contact the
following parts while the appliance is energized: Motor,
Pump and Control unit.
17.
GROUNDING INSTRUCTIONS
a) For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
representative or personnel if you are in doubt as to whether
the appliance is properly grounded.
6
Important safety instructions
Do not modify the plug provided with the appliance: if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
b) For a grounded, permanently connected appliance:
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
INFORMATION!
This manual does not cover every possible condition and
situation that may occur. Use common sense and caution
when installing, operating, and maintaining any appliance.
General
Carefully read the instructions for use before using the
washing machine.
Instructions for use are available on website
https://auid.connectlife.io
Please, do not use the washing machine without reading
and understanding these instructions or use first.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Failure to observe the instructions for use or inappropriate
use of the washing machine may result in damage to the
laundry or the appliance, or injury to the user. Keep the
instruction manual handy, near the washing machine.
7
Important safety instructions
Your washing machine is intended solely for household
use. If the washing machine is used for professional, for-profit
purpose or purpose exceeding normal use in a household, or
if the washing machine is used by a person who is not a
consumer, the warranty period shall be equal to the shortest
warranty period required by relevant legislation.
Follow the instructions for correct installation of the washing
machine and connection to the water and power mains (see
chapter Installation and connection).
Any repair or maintenance tasks on the washing machine
should only be done by trained experts. Unprofessional repair
may result in an accident or major malfunction.
The washing machine may only be used with the supplied
power cord.
To avoid danger, a damaged power cord may only be
replaced by the manufacturer, a service technician, or an
authorized person.
WARNING!
The washing machine may not be connected to the power
mains using an extension cord.
Do not connect the washing machine to power mains using
an external switching device such as a program timer, or
connect it to power mains that is regularly switched on and
off by the power supply provider.
WARNING!
In case of a defect, only use approved spare parts by
authorized manufacturers.
8
Important safety instructions
WARNING!
In case of incorrect washing machine connection, incorrect
use, or servicing by an unauthorized person, the user shall
bear the cost of any damage as such damage shall not be
covered by warranty.
Do not install the washing machine in a room where the
temperature can drop to below 41°F (5°C), as washing
machine parts may be damaged in case of water freezing.
Place the washing machine on a level and stable solid
(preferred on concrete) surface.
The ventilation openings in the base of washing machine must
not be obstructed by a carpet.
Before connecting the washing machine to the power
mains, wait for at least 2 hours until it reaches room
temperature.
Do not connect the washing machine to an electrical outlet
intended for an electric shaver or hair dryer.
Before the first use of the washing machine, remove all
transit bolts (see chapter Before using the appliance for the
first time/ Transport protection). Warranty shall be void in cases
of such damage.
Connection to water and power supply has to be executed by
an adequately trained technician or expert.
To connect the washing machine to water supply, make
sure to use the supplied water supply hose and gaskets. Water
pressure has to be between 14.5–145 PSI (0,1–1 MPa)
(approximately 14–142 PSI (1–10 kp/cm
2
), 1-10 bar, 14.5–145
PSI (10–100 N/cm
2
)).
Always use a new water supply hose to connect the washing
machine to water supply; do not reuse an old water supply
hose.
9
Important safety instructions
The end of the water discharge hose should reach into a water
drain line.
Before the start of the washing cycle, press the door on the
indicated spot until it locks into place. The door cannot be
opened during washing machine operation.
We recommend removing any impurities from the washing
machine drum before the first wash using the Universal
wash (extra hot) program (see Program table).
Only use the washing machine for washing laundry, as
described in the instruction manual. The machine is not
intended for dry cleaning.
Only use agents for machine washing and care of laundry.
We shall not be responsible for any damages or discoloration
of gaskets and plastic parts resulting from incorrect use of
bleaching or coloring agents.
Bleaches that contain chlorine can be replaced with
oxygen-based bleaches. Otherwise, a neutralization cycle
should be performed by running the Cotton program at the
highest temperature. For best results, use hydrogen peroxide
or oxygen-based detergents.
Excessive use of products containing chlorine compounds
increases the risk of premature failure of appliance
components. This depends on the concentration of chlorine,
exposure time, and temperature.
Do not use colorants (dyes) or bleaching substances
(substances for discoloration or removal of colorants) as they
contain sulphuric compounds that could cause corrosion.
After the washing cycle, close the water tap and pull out
the washing machine plug from the power socket.
Clean the pump filter whenever the symbol appears on the
display unit.
10
Important safety instructions
When descaling, only use descaling agents with added
anti-corrosion protection. (Only use non-corrosive descaling
agents.) Follow the manufacturer's instructions. Finish the
descaling process with several rinse cycles or by running the
(Drum Cleaning) (Drum Cleaning program) in order to remove
any residual acid (e.g. vinegar etc.).
No silver ions are released during the washing program.
The warranty does not cover consumables, minor deviations
in color, increased noise that results from appliance age and
which does not affect the functionality of the appliance, and
aesthetic defects on components, which do not affect the
functionality and safety of the appliance.
The maximum amount of laundry in lbs/kg is indicated on the
washing machine rating plate.
Child safety
WARNING!
Children of less than 3 years should be kept away unless
continuously supervised.
Children should be supervised to ensure that they do
not play with the appliance.
11
Important safety instructions
WARNING!
Keep the detergent and fabric softener out of reach of
children.
Should a child swallow detergent, give plenty to drink
immediately, i.e., one or two glasses of milk or water. Do not
try to induce vomiting. Seek medical advice immediately:
The National Poison center phone number is
1-800-222-1222.
Always close the door and start the appliance as soon as
you put in the detergent.
Always keep small children away from the machine when it
is open. There may be some detergent residue left inside
the machine.
If laundry detergent gets in someone’s eyes, rinse them with
plenty of water for at least 15 minutes.
Activate the Child lock. See chapter Appliance settings.
Before closing the washing machine door and running the
program, make sure there is nothing except laundry in the
drum (e.g. if a child climbed into the washing machine drum
and closed the door from the inside).
The washing machine is made in compliance with all
relevant safety standards.
This washing machine may be used by children aged 8 years
and above and by persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge, but
only if they are supervised during the use of the washing
machine, if they have been provided relevant instructions
regarding safe use of the washing machine, and if they
understand the hazards of inappropriate use.
Children shall not play with the appliance.
12
Important safety instructions
Children may not clean the washing machine or perform any
maintenance tasks without supervision.
Always turn the power off to the machine when it is not in use.
Danger of hot surface
HOT SURFACE!
WARNING!
If the water level in the appliance rises above normal level, then
the excess water level protection will be activated. It will shut off
the water supply and start pumping out the water. The program
is interrupted and an error is reported (see Errors: what to do?).
Water overflow protection
If the water level in the appliance rises above the normal level,
then the excessive water level protection will be activated. It
will shut off the water supply and start pumping out the water.
If the water level does not decrease in 60 seconds, the
program will be interrupted (see chapter Errors: what to do?).
Transporting/Storage during the winter
If you transport or store the appliance in vehicles or rooms
that are not heated and where the temperature could drop to
below freezing point, please do the following:
• Clean the drain pump filter. See chapter Cleaning the filter.
• Close the water supply to the washing machine, undo the
water supply hose from the water supply tap, and wait until
the water flows out of the tap and the hose.
• After the drain pump filter is emptied, there can still be a
small amount of water in the machine. This, however, does
not affect the quality and will not damage the appliance.
13
Important safety instructions
• If the washing machine is to be transported, the transport
protection has to be re-installed before transport (see
chapter Transport protection).
Electrical hazard warning during servicing
ELECTRIC SHOCK!
Certain internal parts are intentionally not grounded and
may present a risk of electric shock only during
servicing. Service Personnel – Do not contact the
following parts while the appliance is energized: motor,
pump and control unit.
14
Important safety instructions
Packing material
Remove all packaging. When removing the packaging, make sure not to damage the appliance with
a sharp object.
Please sort the materials in compliance with local waste management recommendations (see chapter
DISPOSAL).

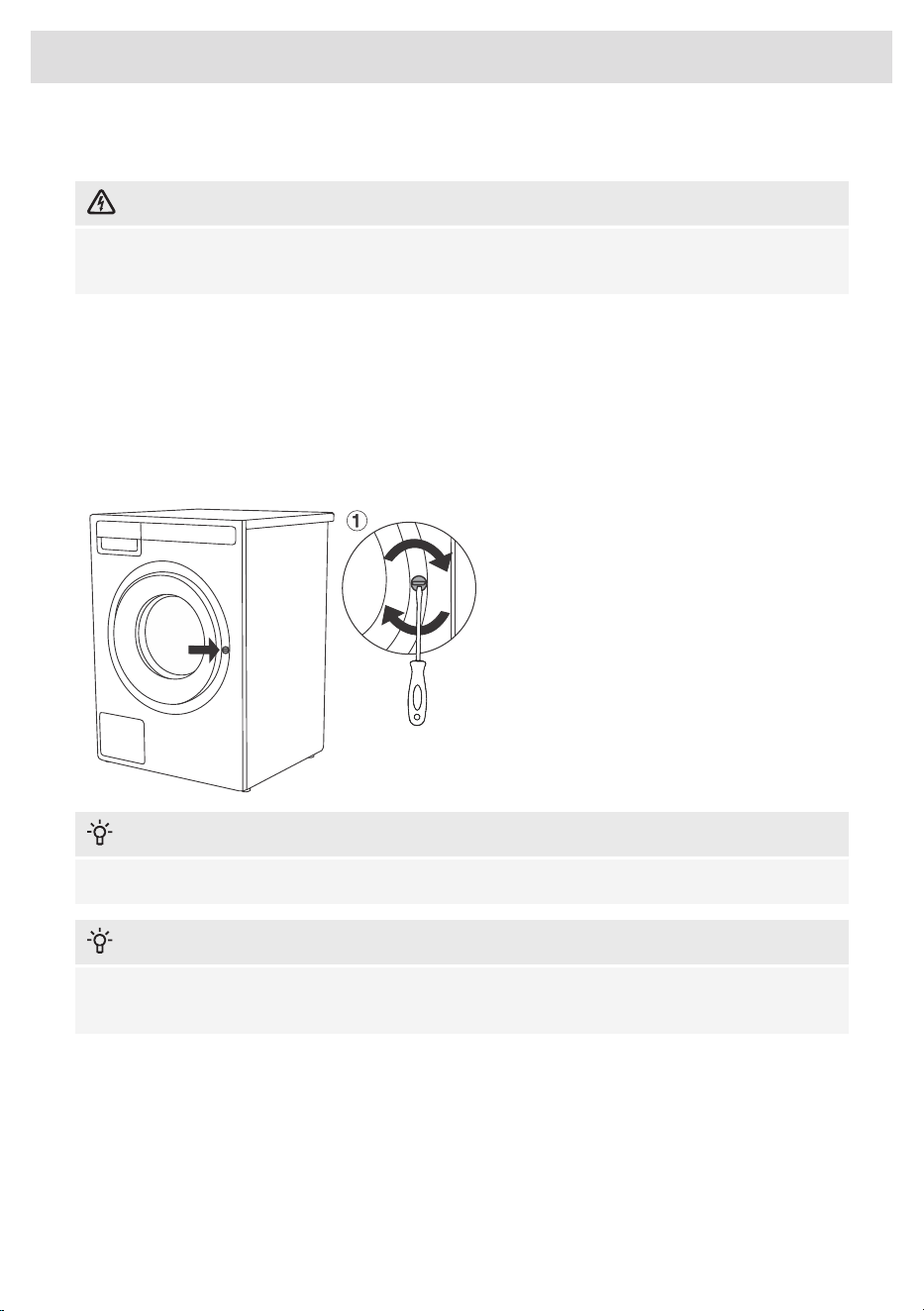

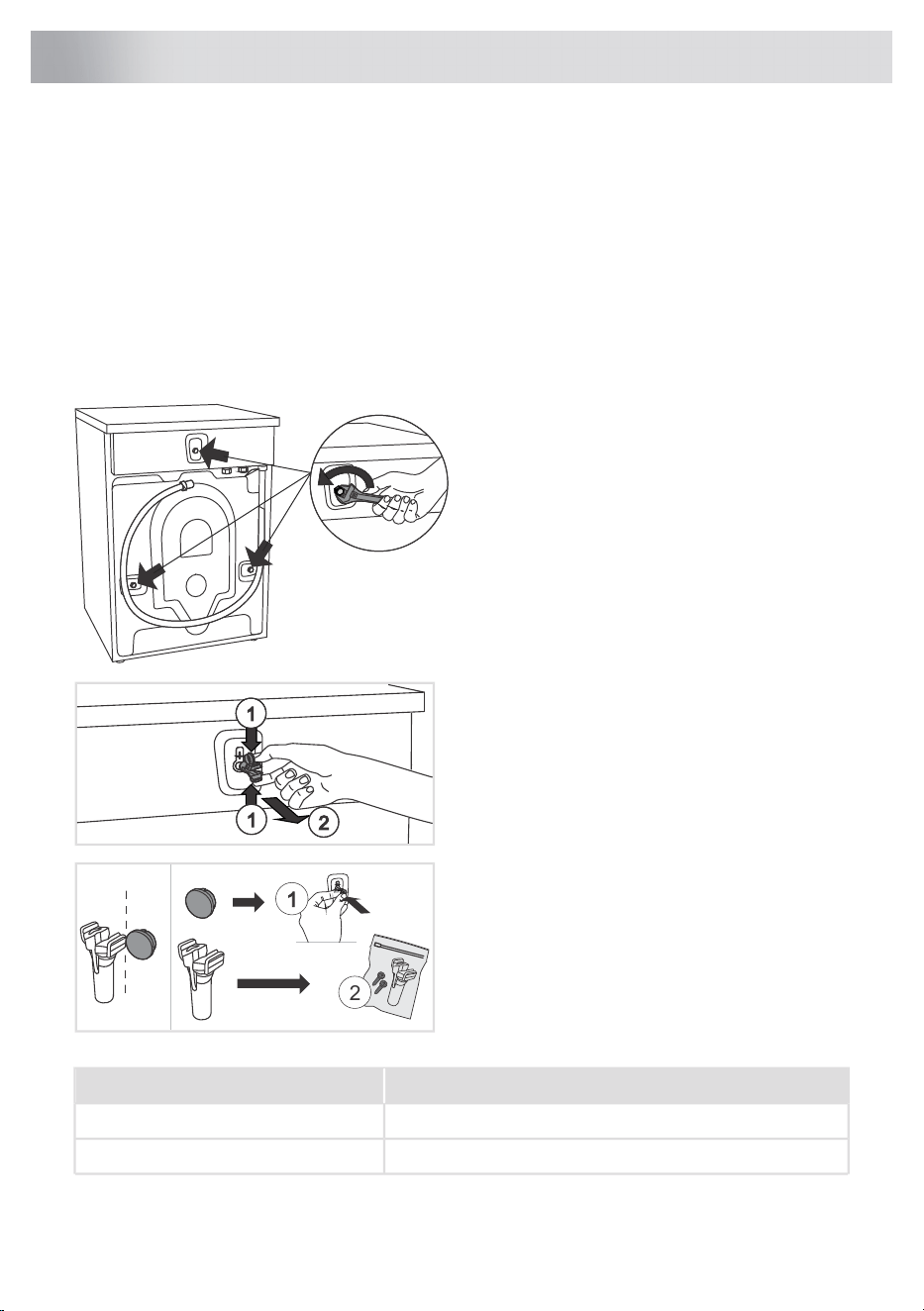

Transport protection
Before using the appliance, remove the three transport bolts and plastic plugs which protect the
appliance during transport.
Use a 9/16" (15 mm) or 11/16" (17 mm)
(depending on the model) wrench to loosen
and remove the bolts as shown in the figures.
To remove the plastic plugs holding the bolts,
squeeze them and (1) then pull them out (2).
1
1
2
Remove the caps from the plastic plugs. Push
the caps into the holes (1), in which the plastic
plugs were located. Save the bolts and plastic
plugs (2) in case you have to move your
washing machine again.
2
1
ID:Art. No.
Bolt270698
Plastic cap (transport lock)551188
Please order three pieces of each item!
15
Before using the appliance for the first time
INFORMATION!
If you wish to transport the washing machine, reinstall the bolts and plastic caps to lock the
machine. This will prevent any damage to the machine due to vibrations during transport. If you
have lost the transport bolts or plastic caps, replacements can be ordered at your dealer.
Care and maintenance instructions
Disconnect the washing machine from the
power mains and open the door. Clean the
washing machine drum with a damp cloth and
a mild detergent.
Connect the washing machine to the power
mains, close the washing machine door and
run the self cleaning program. See chapter
STEP 5: Choose the program/Program table.
WARNING!
Do not use any solvents or cleaning agents that could damage the washing machine (please
observe the recommendations and warnings provided by the cleaning agent manufacturers).
Opening the Door

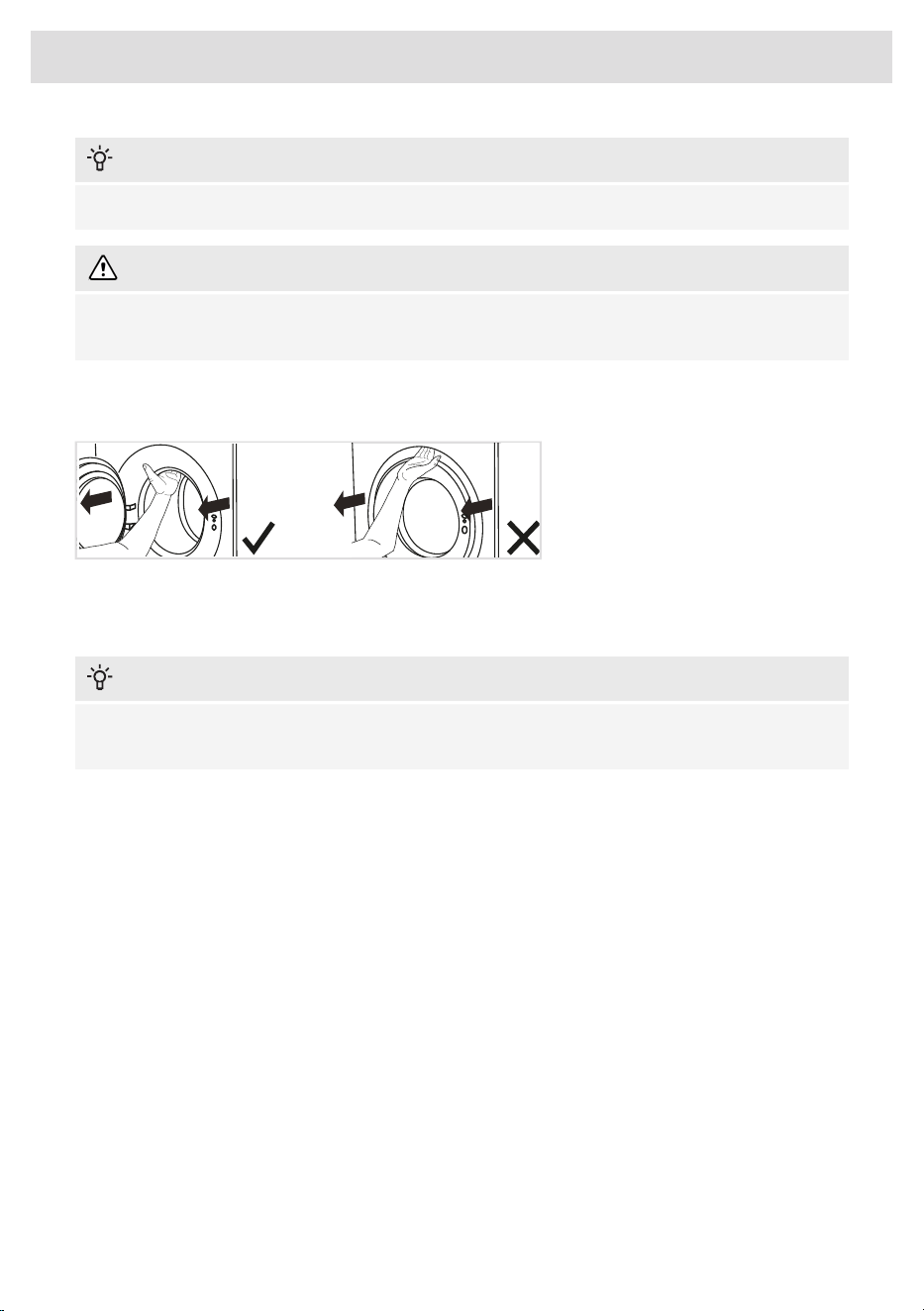

The washing machine door is designed to
open on the right side, with a visual indicator
in the form of a sticker placed on the front of
the door, clearly marking the spot for gripping
and opening.
It can be removed depending on aesthetic
preference.
16
Before using the appliance for the first time
WARNING!
To reduce the risk of severe injury or death, follow all installation instructions.
INFORMATION!
Remove all packaging. When removing the packaging, make sure not to damage the appliance
with a sharp object.
INFORMATION!
Cosmetic damage must be reported to your dealer within five days from the date of purchase.
After unpacking the washer, thoroughly check the unit for cosmetic damage.
Before connecting the washing machine to the power mains, wait for at least 2 hours until it reaches
room temperature.
WARNING!
Save these instructions.
Read these instructions carefully and completely before you install the machine.
The installation should be carried out by a qualified person who is familiar with all local codes and
ordinances for electrical and plumbing connections.
Selecting the room
WARNING!
Do not place the washing machine behind lockable or sliding door, or door with a hinge on the
opposite side of the door hinge of the washing machine. Place it in the room in such a way that
the washing machine door can be freely opened.
INFORMATION!
The floor on which the washing machine is placed must have a concrete base. It should be clean
and dry; otherwise, the washing machine may slide. Also, clean the bottom surface of adjustable
feet.
INFORMATION!
The washing machine must stand level and stable on a solid base.
17
Installation and connection
Positioning the washing machine
The washing machine can be installed as a built-in or a free-standing unit.
INFORMATION!
When installing the washing machine, the wall outlet should be freely accessible.
Necessary clearance around the washing machine for best performance
WARNING!
The washing machine may not be in
contact with a wall or adjacent structures.

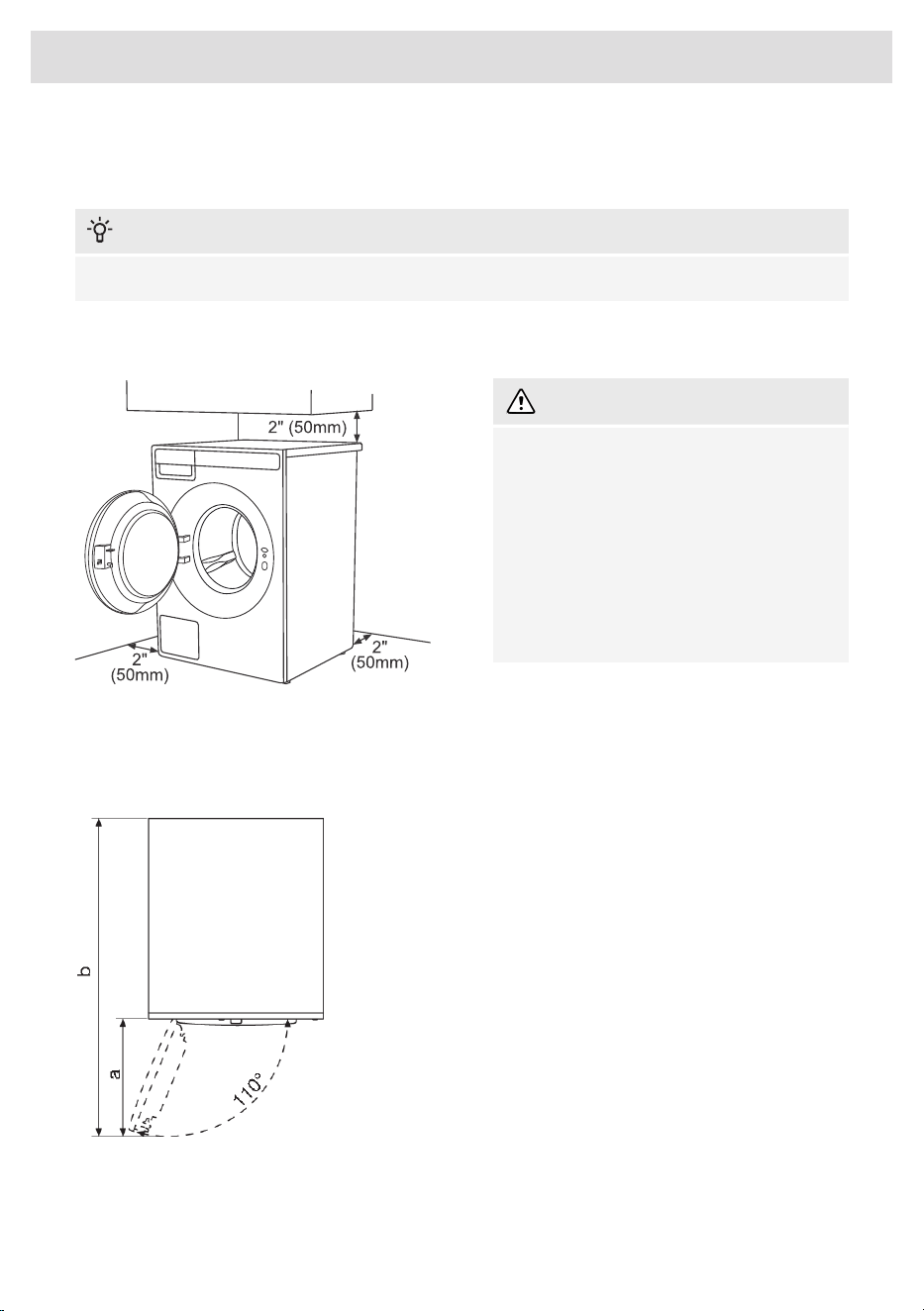

For optimum washing machine operation,
we recommend observing the clearances
from the walls as indicated in the figure. In
case of failure to observe the minimum
required clearances, safe and correct
washing machine operation cannot be
ensured. Moreover overheating can also
occur.
For safety reasons, maintain a minimum clearance of 1" (25 mm) between the back of the appliance
and the wall, and at least 1 5/8" (40 mm) between the top of the appliance and any overhead structure.
Opening the washing machine door (bird's-eye view)
The washing machine door width (a) is 17 3/4"
(450 mm).
The washing machine depth with the door
open (b) is 43 7/8" (1115 mm).
The washing machine door can be opened up
to the angle of 110°.
18
Installation and connection

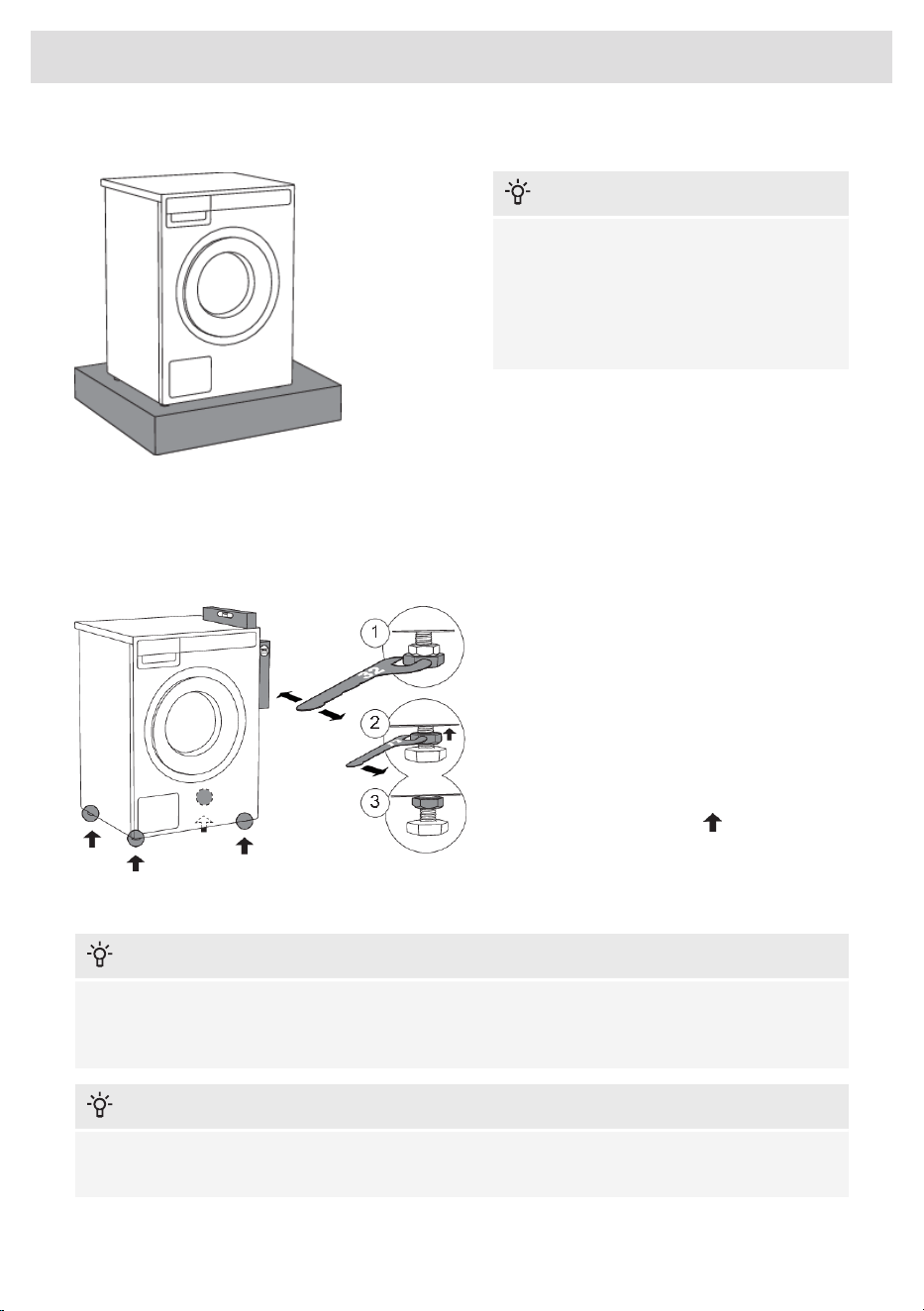

Placement on a pedestal
INFORMATION!
If the appliance is installed on a platform
or a similar structure, then the appliance
must be fixed to it, to avoid the risk of
falling. ASKO original accessories are
available for this purpose, complete with
mounting instructions.
Adjusting the washing machine feet
Place the washing machine so that it is stable. It is important that the machine is level to prevent
excessive vibrations during spin cycles. Each foot of the washer is adjustable, so you can level the
washer on any surface. Once it is level, securely tighten the lock nuts on the feet to prevent excessive
vibration during spin cycles.
1 Level the washing machine in all directions
and traverse direction by rotating the
adjustable feet (using a spanner no.1 1/4"
(32mm)).
The feet allow levelling by +/- 3/8" (1 cm).
2 When the appropriate height of feet is set,
use a wrench no.11/16" (17mm) to firmly
tighten the lock nuts (counter nuts) towards
the bottom of the machine .
3 Tighten the jam nuts (counter nuts) to the
end position.
INFORMATION!
Incorrect levelling of the washing machine with the adjustable legs may cause vibration, appliance
sliding across the room, and loud operation. Incorrect levelling of the washing machine is not
subject to warranty.
INFORMATION!
Sometimes, unusual or louder noise may appear during washing machine operation; these are
mostly the result of improper installation.
19
Installation and connection
Freestanding appliance
The washer can be placed next to the dryer. It is essential that the machine is leveled and the locknuts
are tightened to prevent excessive vibration during spin cycles. Also be sure to leave a minimum of
1/2" (25mm) of space between the washer and the dryer.
The surface on which the appliance is placed
should be clean and level.
The washing machine and the dryer can be
placed next to each other.
To stack a dryer on top of a washing machine,
use the front feet attachments and the tipping
guard. See the next section below.
Stacking an ASKO dryer on top of an ASKO washing machine
WARNING!
At least two people are required to install the tumble dryer on top of a washing machine.
WARNING!
ASKO washers should never be stacked on a counter or a dryer. You can, however, stack an
ASKO dryer on an ASKO washer. Refer to your Dryer Use and Care Guide for instructions on
how to do this.

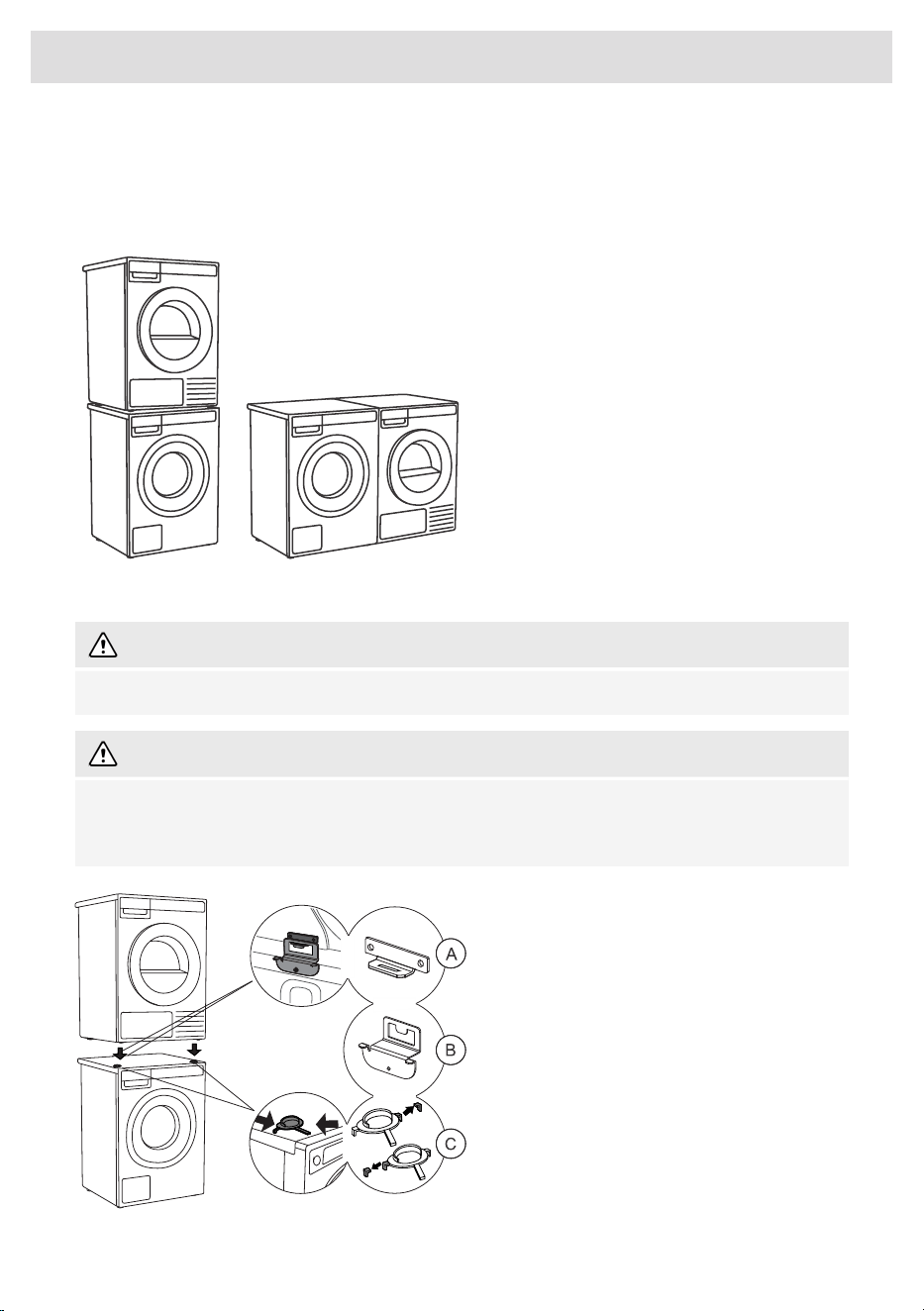

To stack a dryer on top of a washing machine,
use the front feet attachments (plastic footrests
(C)) and the tipping guard (A+B), supplied in
the dryer drum.
If the washing machine and dryer are not the
same dimensions, you can purchase a
connecting plate designed for the WM86–TD76
combination from your dealer.
20
Installation and connection
INFORMATION!
For detailed instructions on how to install the ASKO tumble dryer on the ASKO washing machine,
refer to the instructions provided with your ASKO tumble dryer.
INFORMATION!
The tipping guard (A+B) corresponds to ASKO washing machines and cannot be installed on
washing machines of other brands.
INFORMATION!
The washing machine on which you wish to install the dryer must be able to bear the weight of
the dryer (see washing machine’s rating plate or technical information).
All ASKO washing machines can bear the weight of the dryer.

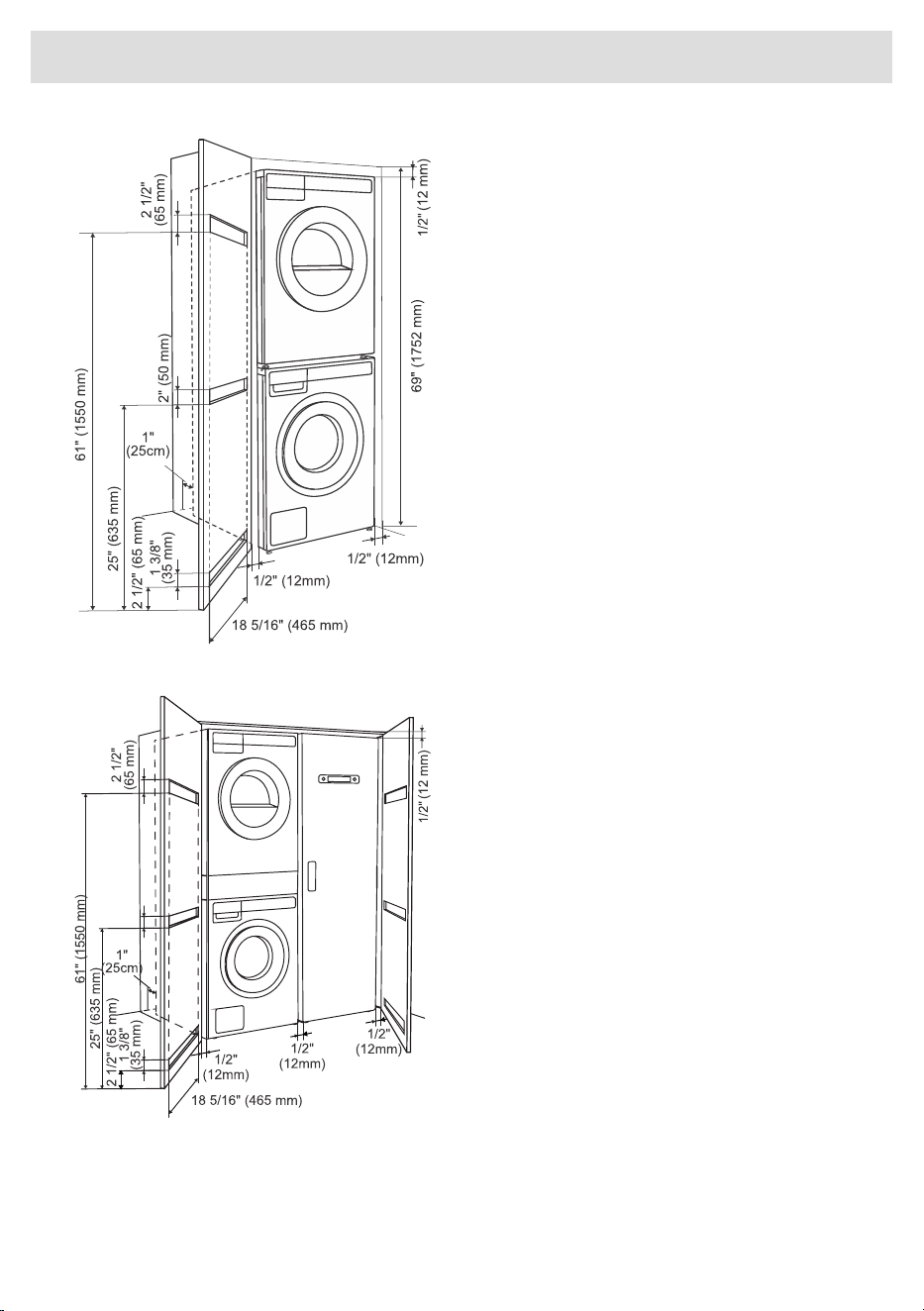

Built-in
Installation under the counter
ASKO washers can be installed beneath a
cabinet or worktop with a height of 35 1/2" to
37 1/2" (900 to 950 mm) or in a closet. There
must be a gap of about 1/2" (12 mm) all around
the machine including between the rear edge
of the machine’s top panel and the back wall.
The opening width must be at least 24 1/2"
(624 mm). Space must also be available for
the fill and drain hoses. See the illustration for
measurements and positions.
If the drain outlet is higher than 24" (610 mm),
the connections will need to be recessed.
21
Installation and connection
Closet Install- Ventilation
Requirements
ASKO's front panel controls make it possible
to install the washers and dryers in a cabinet
or closet.
Make sure that there is a minimum distance of
1/2" (12 mm) between the appliance and the
cabinet or wall, and a minimum distance of 1"
(25 mm) between the rear edge of the top
panel of the appliance and the cabinet or wall.
To provide adequate ventilation, we
recommend doors with grilles. Otherwise,
doors must have ventilation openings. See the
figure for the minimum ventilation openings.
Ventilation Requirements of ASKO
laundry concept (when installing the
appliance in a closet)
Make sure there is clearance between
appliances and cabinet or wall and 1" (25 mm)
minimum clearance between the rear edge of
the appliance top panel and the cabinet or
wall.
When the closet or cabinet is closed with a
door, we recommend using louvered doors to
ensure proper ventilation.
Otherwise, the door must have ventilation
gaps. See the figure for the dimensions of the
ventilation openings.
22
Installation and connection
INFORMATION!
Ensure that the washing machine door can be opened without hindrance after installation.
WARNING!
Failure to follow these instructions can negatively impact the appliance performance and may
also result in failure of the appliance.

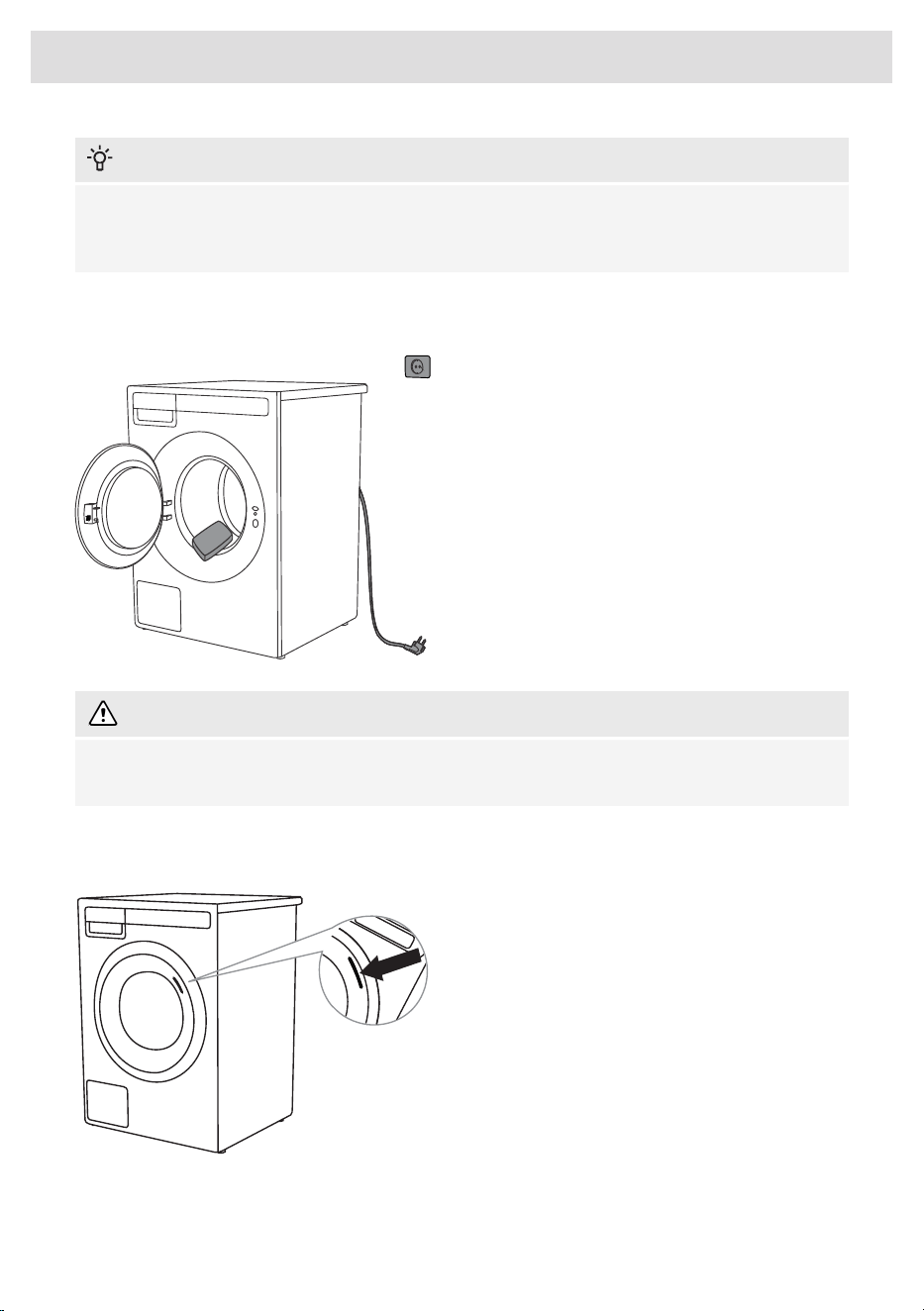

Moving the washing machine and transport after installation

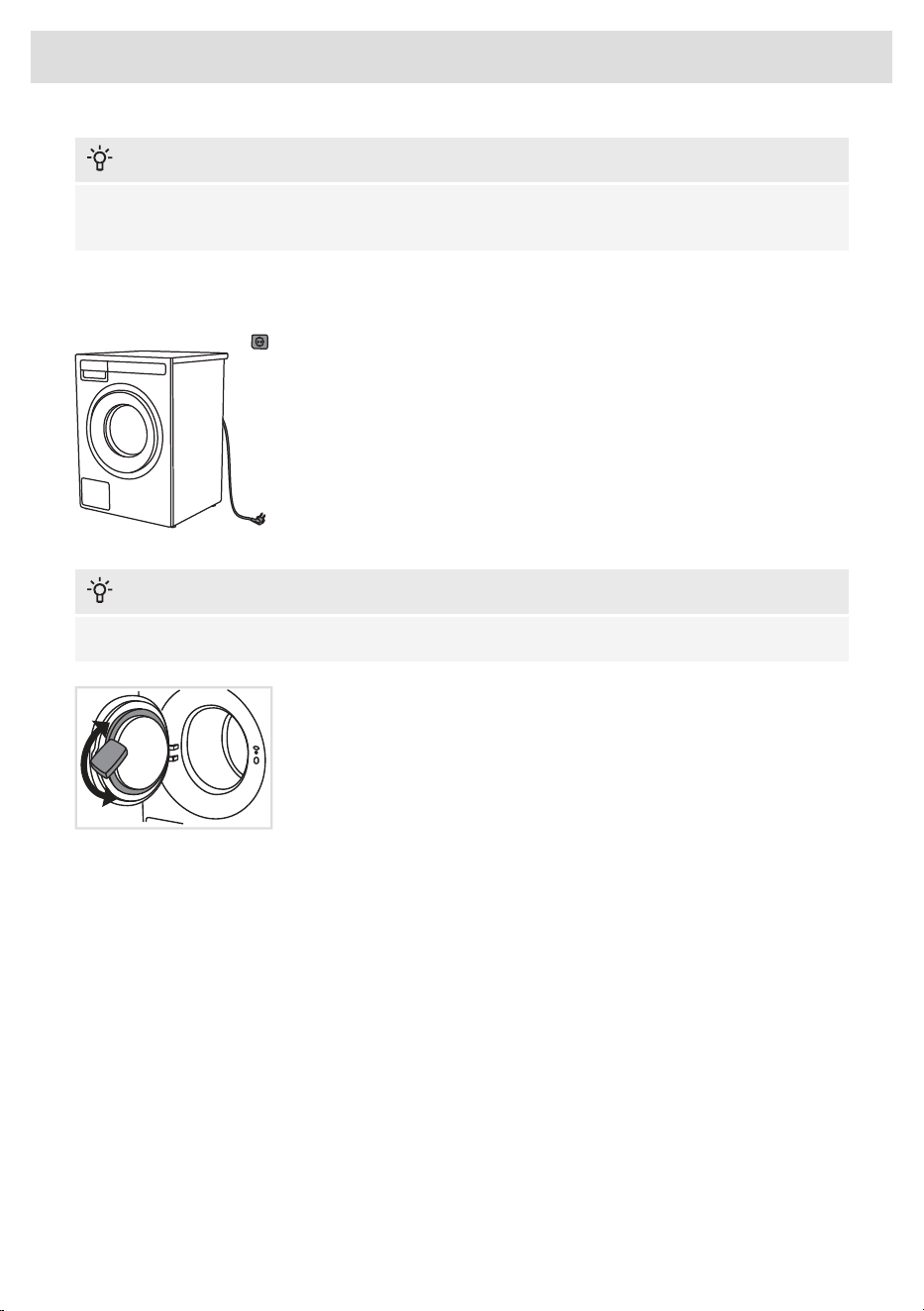

If you are moving the washing machine without packaging, open the washing machine door and
pull the appliance by holding the washing assembly, as indicated in the figure.
INFORMATION!
For any further moving of the appliance, use the transport protection (the washing machine drum
has to be blocked). See chapter Transport protection.
23
Installation and connection
Connection to water supply

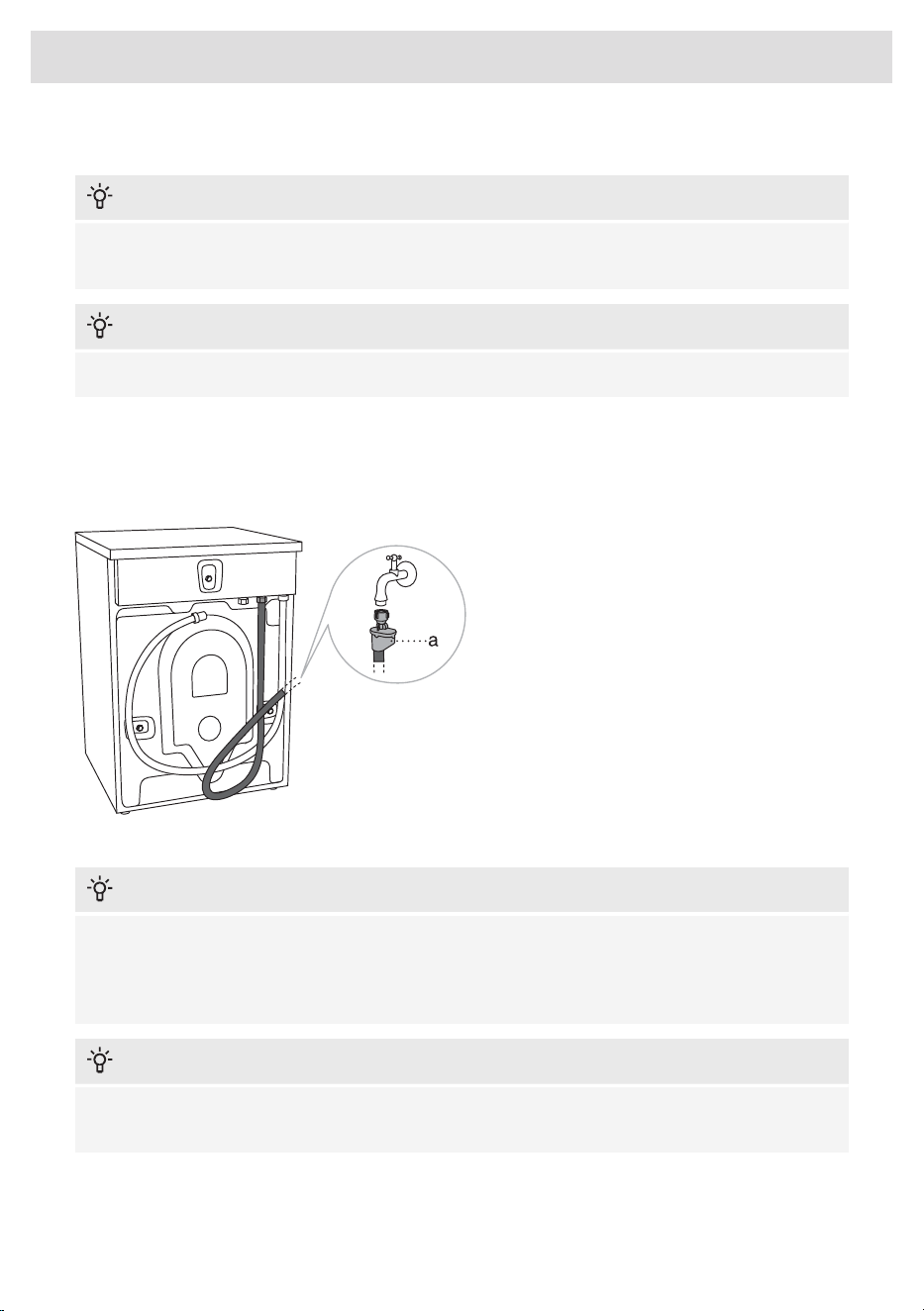

INFORMATION!
The water inlet hose is included inside the drum of the washing machine. Before use, it must be
connected to the appliance and the water supply.
INFORMATION!
The machine has to be connected to water supply by an adequately trained person.
AQUA - STOP
If an internal tube or hose is damaged, a shut-off system is activated that cuts the water supply to
the washing machine. In such case, the control glass (a) will turn red. Replace the water supply
hose.
Use the water supply hose to connect the
appliance. Water pressure has to be between
15–145 psi (approximately 0,1–1 MPa, 1–10
kp/cm
2
, 1–10 bar, 10–100 N/cm
2
).
If the hoses are newly installed, we
recommend rinsing them to remove any
impurities. Otherwise, these impurities could
clog the filter in the water connection on the
washing machine and thus cut off the water
supply.
The water intake hose has to be fastened firmly
enough for the hose to have a good seal. After
connecting the hose, the seal must be
checked for any leaks.
INFORMATION!
The washing machine has a sensor that detects water leakage. If there is water on the bottom of
the washing machine, the sensor is activated and trigger a shut-off system to cut the water supply
to the washing machine; washing process is stopped, water supply is shut off, the appliance
engages the pump, and signals an error.
INFORMATION!
Only use the water supply hose supplied with the appliance. Do not attempt to install any used
hoses or hoses not supplied by ASKO.
24
Installation and connection
INFORMATION!
If the connection on the supply hose is of different dimensions than the water tap (e.g. 3/4” (1,9
cm) → 1/2” (1,22 cm), use an adapter.
INFORMATION!
When connecting the water supply hose, make sure to connect it in a way that allows adequate
and unobstructed water supply.

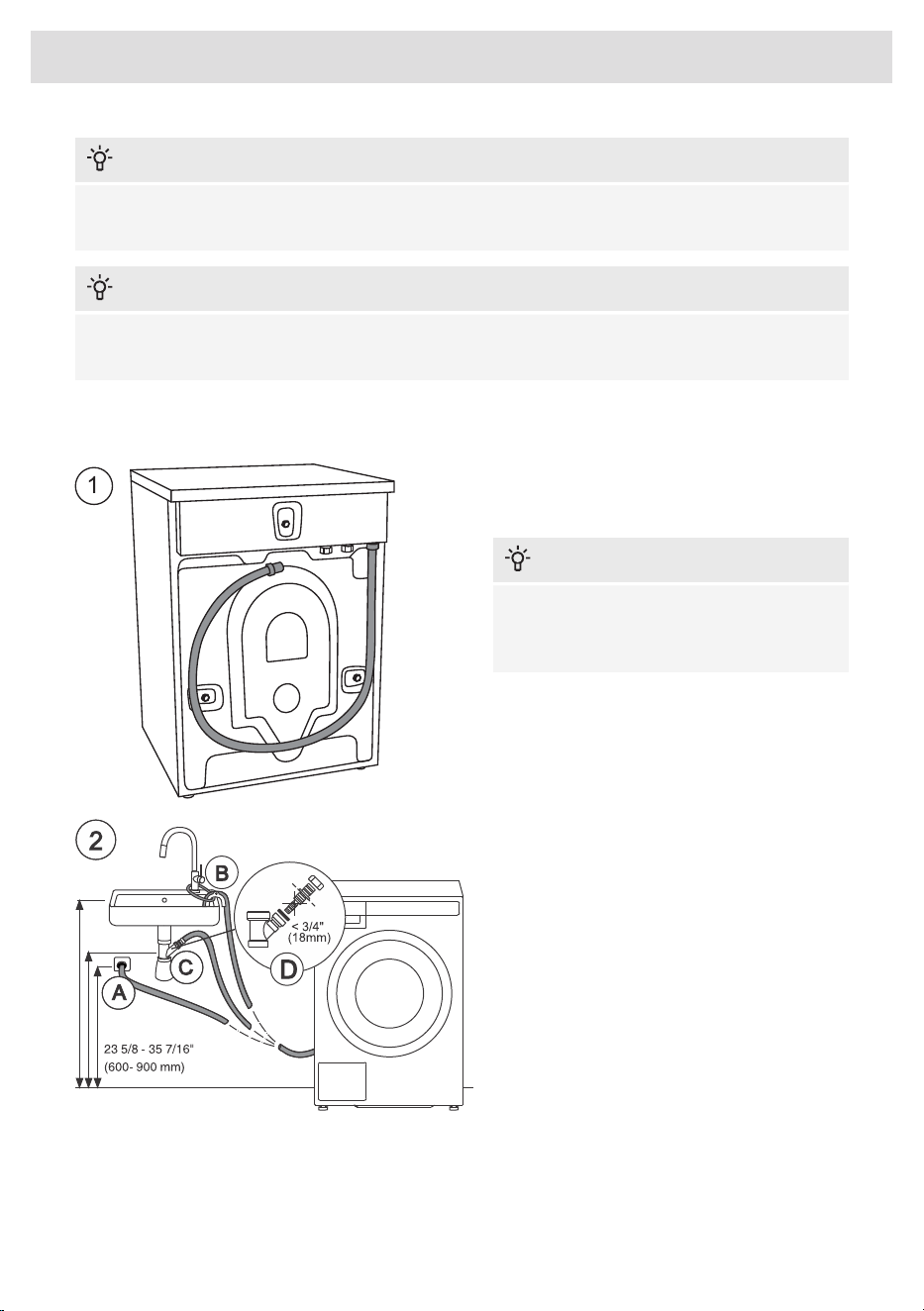

Installing the drain hose
Upon delivery, the washing machine has a
drain hose attached to the back wall (Figure
1), which must be connected to the drain.
1
INFORMATION!
If the drain hose is not correctly attached,
safe and correct washing machine
operation cannot be ensured.
The drain hose can be installed in three ways
(see Figure 2):
1 Into a wall drain with a siphon (A), which
must be properly installed so that it can be
cleaned;
2 Into a sink or bathtub (B). Use a string to
attach the hose through the opening in the
elbow so that it does not slip to the floor;
3 Directly into the sink drain (C). The diameter
of the drain hose must be at least 1 5/8" (4 cm).
The internal hose diameter should be at least
3/4" (18 mm) (D).
The end of the drain hose can be no more than 35 7/16" (900 mm) and at least 23 5/8" (600 mm)
mm from the ground. The lower position (23 5/8" (60 cm)) is always recommended. Make sure the
drain hose is not bent.
25
Installation and connection
INFORMATION!
If the hose is extended, the internal diameter of the coupling must not be less than 1/2" (12.2
mm).
WARNING!
Do not extend the drain hose higher than 35 7/16" (900 mm) from the bottom of the unit.
26
Installation and connection
Connecting to the household power
ELECTRIC SHOCK!
After installation, the washing machine should stand still for two hours before it is connected to
the power mains.
Connect the appliance to a grounded power outlet. After installation, the wall outlet should be freely
accessible. The outlet should be fitted with a ground contact (in compliance with the relevant
regulations).
Electrical connections
The machine is delivered ready-fitted with a plug and is intended for connection to an ASKO Dryer,
which is equipped with a matching receptacle. The plug supplied with the washer can only be used
with an ASKO Dryer. If the washer is used separately or with another dryer, it must be on a separate
208-240 V single-phase circuit.
If the machine is to be used in a wet area, the supply must be protected by a residual current device.
As supplied: 208–240 V, 60 Hz, 2000 W heating element, 15 A fuse required.
ELECTRIC SHOCK!
Connection to a permanently wired supply point must be made only by a qualified electrician.
Connection upon delivery

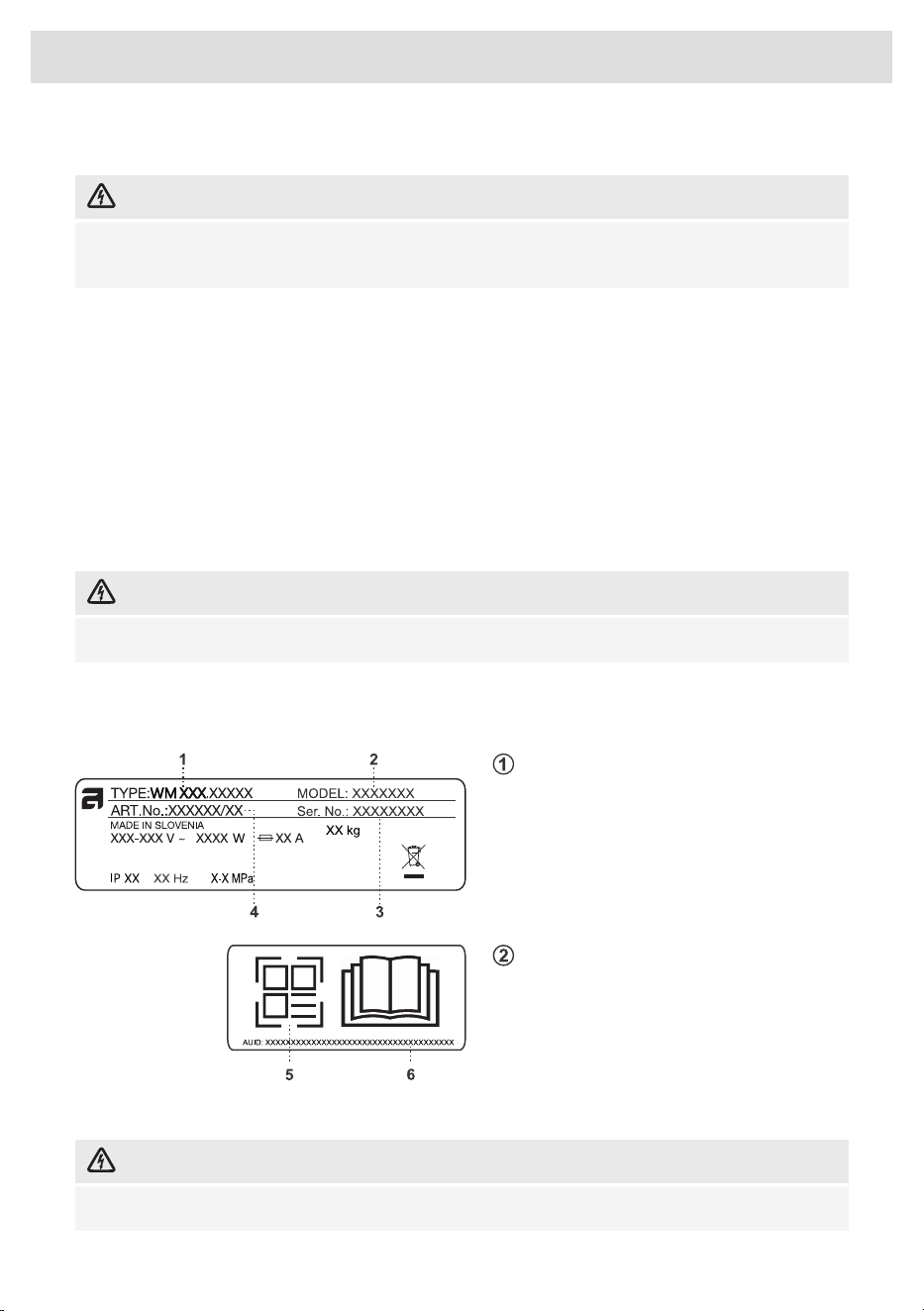

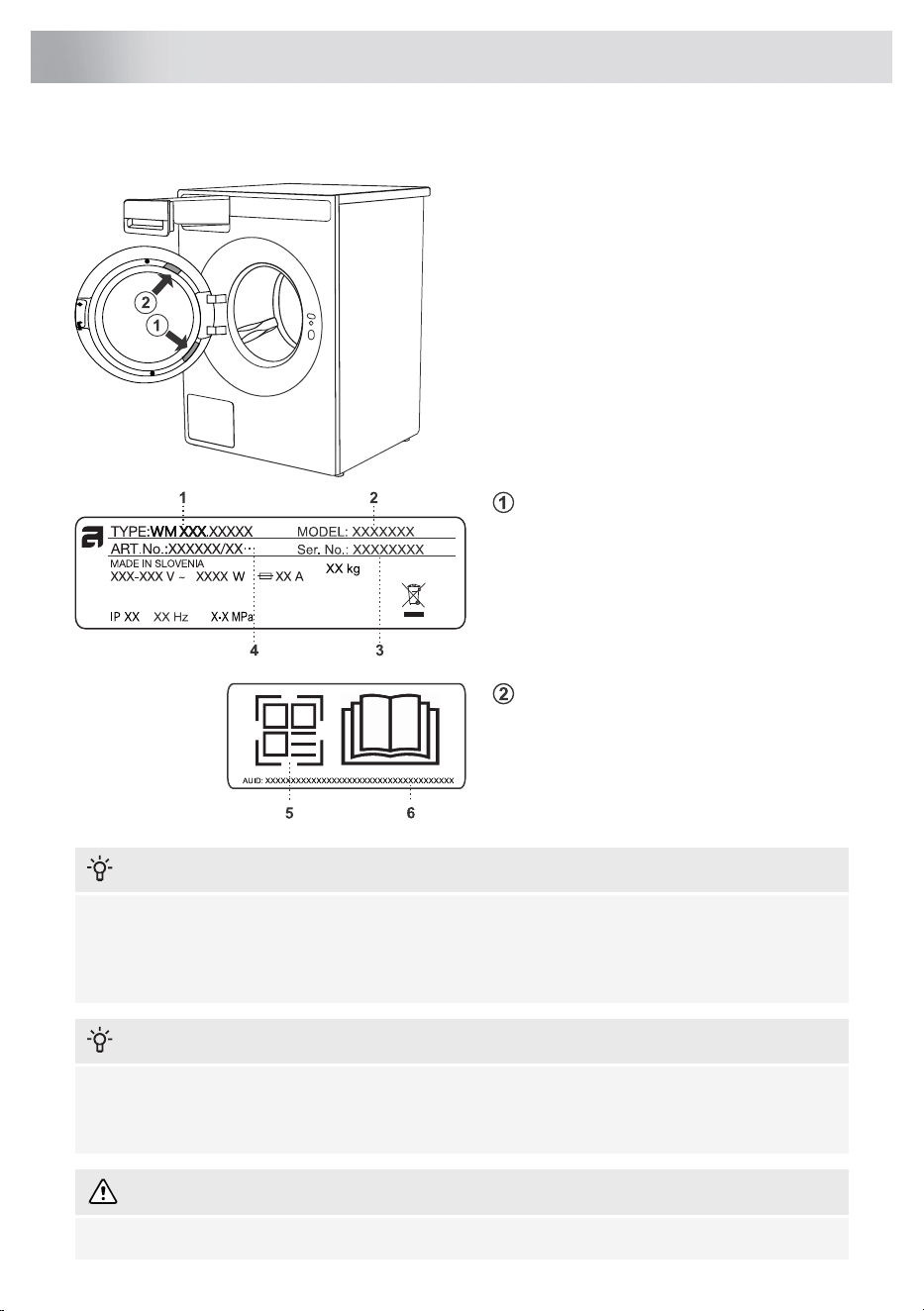

Information about your washing machine is indicated on the rating (type) plate.
1 - Model type
2 - Model
3 - Serial number
4 - Article number
5 - QR code
6 - AUID code
Use type A ground fault circuit interrupter
ELECTRIC SHOCK!
We recommend using overvoltage protection to protect the appliance in case of a lightning strike.
27
Installation and connection
WARNING!
The washing machine may not be connected to the power mains using an extension cord.
INFORMATION!
Do not connect the washing machine to an electrical outlet intended for an electric shaver or hair
dryer.
INFORMATION!
Any repair and maintenance pertaining to safety or performance should be done by trained
experts.
DANGER OF FIRE!
To reduce the risk of fire, electric shock, or injury to persons, read the chapter "IMPORTANT
SAFETY INSTRUCTIONS" before operating this appliance.
28
Installation and connection

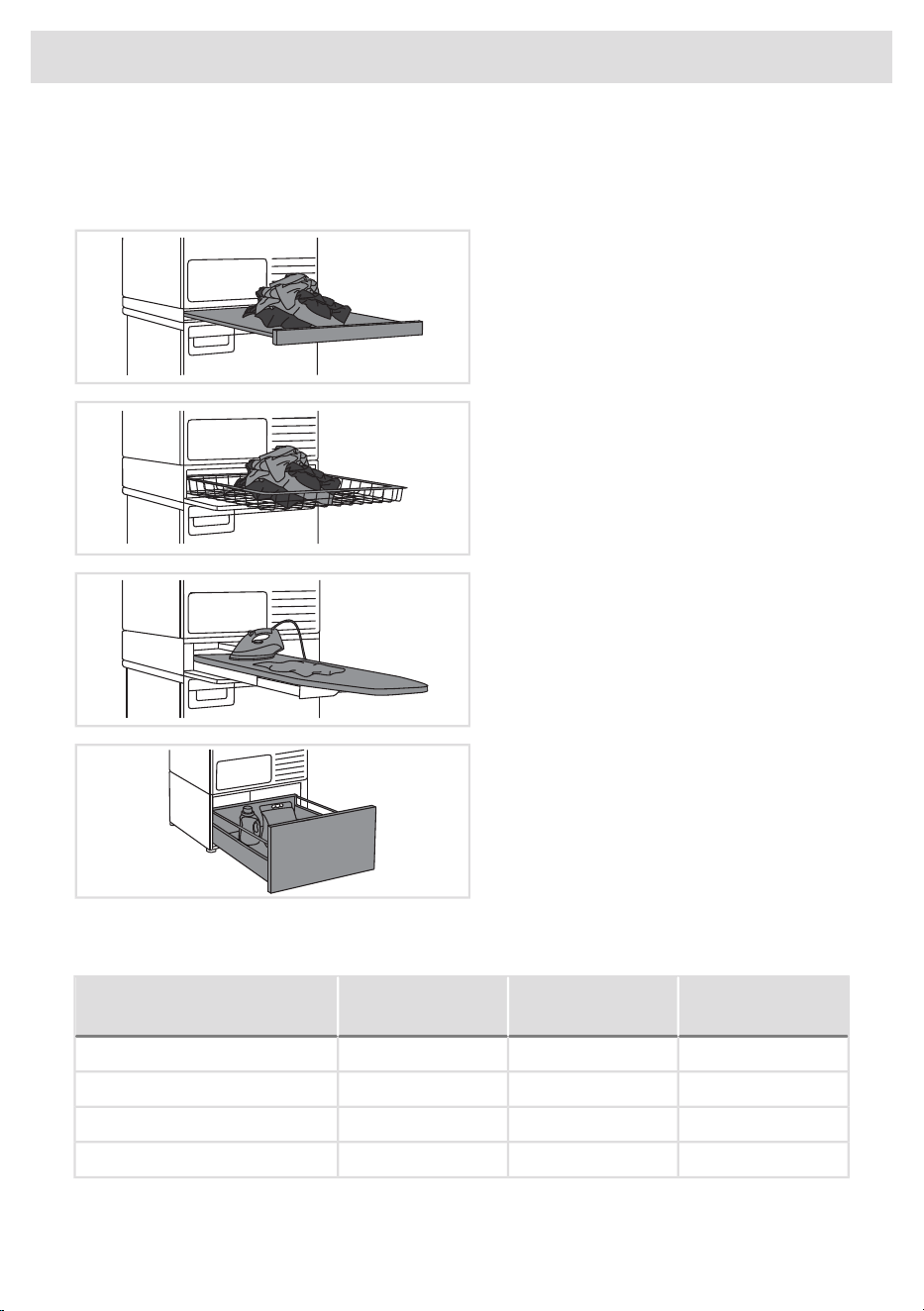

ASKO Laundry Care - Hidden helpers (Hidden helpers)
The Hidden Helper (single shelf, basket, or ironing board) can be installed between the washing
machine and the dryer, or on top of either appliance.
SLIM - Single Shelf
Pull-out shelf. It can be used as an additional
surface when folding clothes and sorting socks
or for storage. It also makes loading and
unloading your laundry much easier. It can be
installed between your washer and dryer.
BASKET
A large pull-out basket that is easily accessible
via a push-pull door opening. Useful for
removing laundry and carrying it to the
wardrobe or workbench for ironing and folding.
IRONING BOARD
The ironing board is a clever solution. It is
always handy when you need to iron your
clothes, and it can be easily, safely and
invisibly stored away when not in use.
A PEDESTAL DRAWER
A useful storage drawer with a height of 11
3/4" (30 cm). Ideal for storing your detergent,
softener, coat hangers, pegs, user manuals
and other useful items in the laundry area.
The pedestal drawer is installed under the washing machine or the dryer.
Availability depending on market
Graphite black
ART. No.
Titanium
ART. No.
White
ART. No.
DENOMINATION
HS60G - 746297HS60T - 746296HS60W - 746295SLIM
HB150G - 746300HB150T - 746299HB150W - 746298BASKET
HI150G - 746314HI150T - 746312HI150W - 746311IRONING BOARD
HP320G - 746317HP320T - 746316HP320W - 746315A PEDESTAL DRAWER
29
Installation and connection
1 2 3 4
5
6
7
8
11
10
9

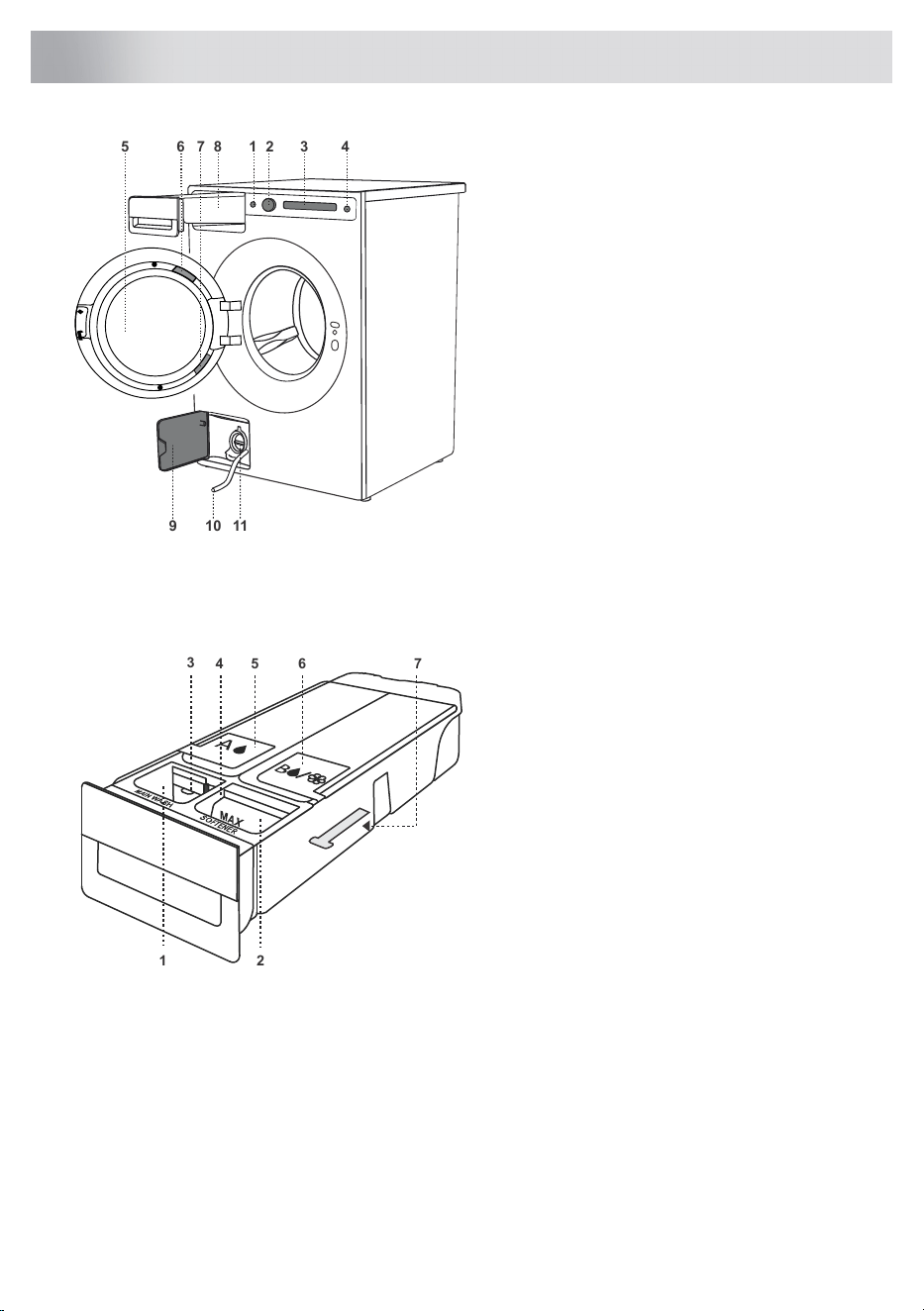

1. Main switch for turning On/Off
2. Knob for selection and confirmation
3. Touch screen
4. Button (Start/Pause)
5. Washing machine door
6. QR and AUID code (on the perimeter of
the washing machine door)
7. Rating plate with information about the
washing machine (on the inside of the
washing machine door)
8. Detergent compartment
9. Drain filter cover
10. Water drain hose
11. Drain filter pump (installed behind the
drain pump filter)
Detergent compartment with Auto dose system (ADS)
1 2
3
4
5 6 7
1. Compartment for main wash liquid and
powder detergent with the inscription
»MainWash«
2. Softener compartment with the inscription
»Softener«
3. Separator or movable barrier (3)
Use the upper position for washing
powder. Use the lower position for liquid
detergent.
4. Level gauge
The level gauge, which shows »ml« on one
side and »tbsp« on the other. Pull it
upwards and flip it to the other side.
5. Tank (A) for liquid detergent for ADS
6. Tank (B) for liquid detergent or softener
for ADS
7. Release mechanism for the detergent
compartment (on the bottom side)
30
Washing machine description
When the appliance is connected and switched on for the first time (see chapter Installation and
connection), first select the language.
Scroll left or right to navigate the list of
languages then press the desired language
to confirm your selection.
WARNING!
After the language has been selected, the appliance informs you that it is necessary to remove
all transport protection from the washing machine. If you have already done so, continue setting
up the appliance by pressing Confirm.
Now it is necessary to set the appliance to your settings. Touch OK to continue.
You can select the following settings in the next step:
Water hardness
Choose between the following water hardness
settings: Soft / Medium - Normal /Hard .
For more information, press Information.
How to determine the hardness of the water:
• use the test strip,
• contact your local water distributor.
How to use the test strip:
1. Turn on the water faucet and let the water run for a minute or so.
2. Fill a glass with cold water.
3. Remove the test strip from its packaging.
4. Dip the test strip in the water for about one second.
5. Wait one minute. Now compare the colors of the squares with the water hardness table.
Table for water hardness; see chapter Appliance settings/ Water hardness .
The amount of detergent also depends on the hardness of water. For details, see the detergent
packaging. Please contact your local water supply company to check the water hardness in your
area.
INFORMATION!
Before the product is dispatched from the factory, every appliance is tested.
As a result, there may be some residual water left in the drain pump filter. This, however, does
not affect the quality and will not damage the appliance.
31
Initial settings before use
Temperature unit
Set the unit of measurement for temperature:
• Celsius °C or
• Fahrenheit °F.
Liquid unit
Set the unit of measurement for liquids:
• Millilitres ml or
• Tablespoons tbsp.
Weight unit
Set the unit of measurement for weight:
• Kilograms kg or
• Pounds lbs.
Auto dose system
Choose between turning on or turning
off the ADS.
With this setting, you will choose which tank (A or B) the detergent will be dispensed from.
Liquid detergent for: colored, white, black, delicate or other laundry.
Liquid detergent for: colored, white, black or delicate laundry, softener or other rinse aids.
Do not pour detergents with bleach into tank B. Choose the amount of detergent according to the
liquid detergent manufacturer's recommendations on the packaging.
INFORMATION!
In models with ADS the amount of detergent dispensed also depends on the water hardness
setting.
For detailed ADS menu settings, see chapter Special features.
Wi-Fi settings
Choose between turning on or turning
off the Wi-Fi connection.
If you have turned on the Wi-Fi connection, see setup procedure in the below chapter How to enable
Wi-Fi on the device?.
32
Initial settings before use
To cancel the procedure of connecting to Wi-Fi, do so by pressing .
By pressing the last OK button, you confirm
and complete the settings before first use.
Your washing machine is now set up and ready to use.
33
Initial settings before use
Appliance connection with the ConnectLife application
The ConnectLife app is an advanced smart home platform that enables seamless connectivity
between people, devices, and services. With the ConnectLife app you can easily monitor and manage
your smart devices, receive notifications directly to your smart device and update software (available
functions depend on your appliance and region).
To connect your smart device to the ConnectLife platform, you need a home Wi-Fi network (2.4 GHz
networks are supported) and a smart device with the app ConnectLife.

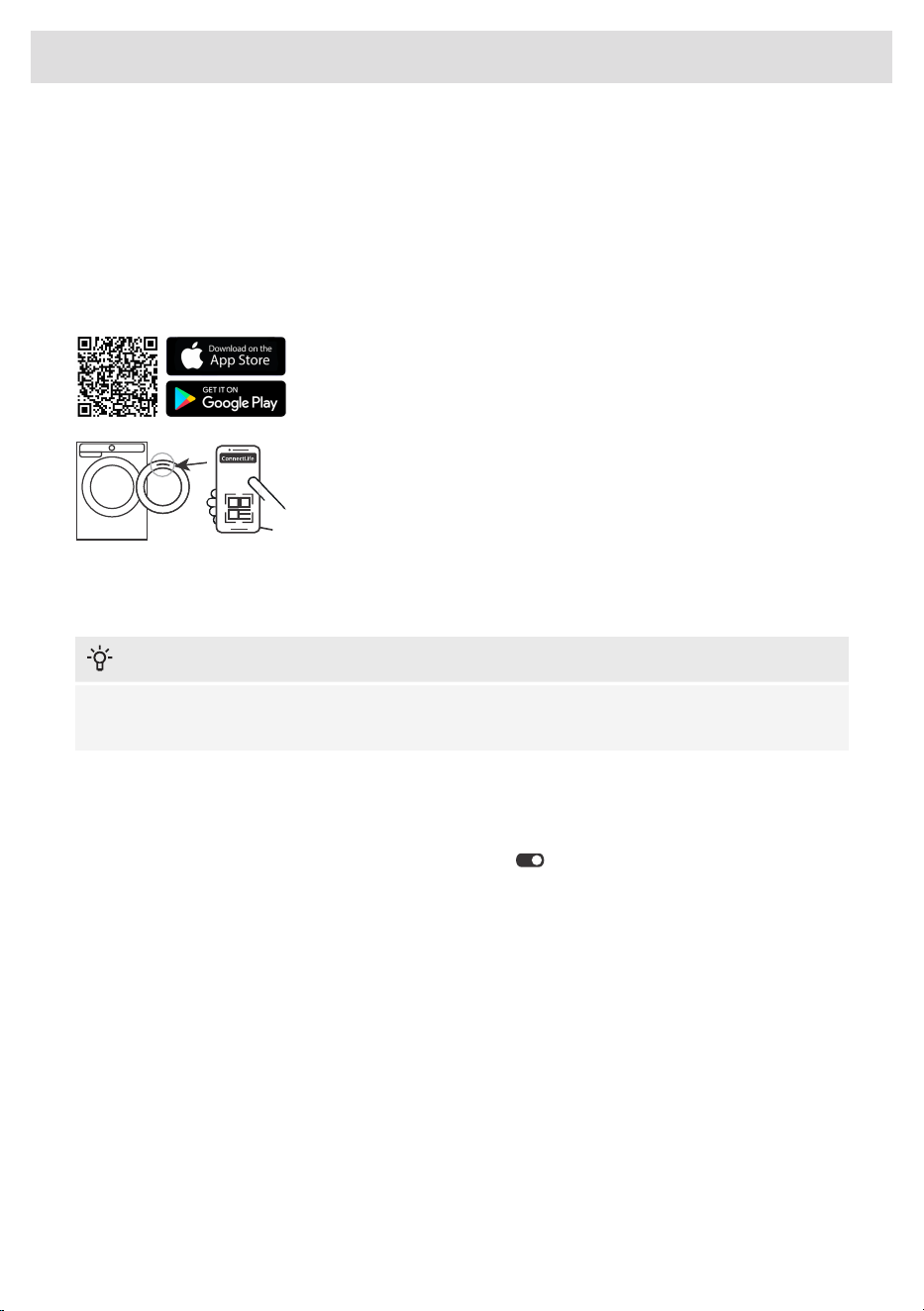

STEP 1: Download the ConnectLife app by scanning the included QR
code or searching for it in your favorite app store.
STEP 2: Install the ConnectLife app and create an account.
STEP 3: In the ConnectLife app, go to the »Add device« menu and
select the appropriate type of device. Then scan the QR code (it can
be found on the rating plate of the appliance; you can also enter the
AUID/SN number manually).
STEP 4: The application then guides you through the entire process of
connecting the appliance to your smart device.
After a successful connection, the appliance can be operated remotely via the application.
Useful tips for your smart device
INFORMATION!
The QR code of the device required by the app during the installation process can be found on
the rating plate of the appliance (see chapter: Service).
How to enable Wi-Fi on the device?
1. Turn on the appliance. In the main menu, go to the far left and select Additional service settings.
2. Select Wi-Fi settings.
3.
Make sure that the Wi-Fi setting is switched on (On) .
4. Select Connection setup.
If you do not yet have the ConnectLife app installed on your smartphone (or any other smart device),
install it now (scan the QR code on the screen), create your user account and login.
• In the ConnectLifeapp, open the add device menu.
• Follow the instructions in ConnectLife.
- Select the type of appliance.
- Scan the QR code (it can be found on the rating plate of the appliance).
• On the appliance, press Next twice.
- The 5 minute countdown will begin. During this time, connect the app to the appliance.
• In the ConnectLife app, instructions will guide you through the process of entering the appropriate
data for your appliance to connect to your home network.
34
Initial settings before use
How to enable remote start of the appliance?
In the main menu, select Remote start. To activate, press the Start/Pause button (the door must be
closed). The screen displays.
The appliance is now ready for remote control through ConnectLife app.
INFORMATION!
Remote start will remain active for the next 24 hours unless cancelled. During this time, the
appliance can enter standby mode and switch off the display. If this happens, the logo will remain
lit, which means that Remote start is still active.
How to add another user or multiple users?
See chapter How to enable Wi-Fi on the device? and observe points 1 and 2.
Select Add device (Pair device). As a new user, if you do not yet have the ConnectLife app installed,
install it on a smart device.
• In the ConnectLife app, go to the Add device menu and follow the instructions.
• On the appliance, press Next.
- The 3 minute countdown will begin. During this time, connect the app to the appliance.
• You can then complete and confirm the setting in the app.
How to remove the users?
How to remove a user [Unpair device]?
See chapter How to enable Wi-Fi on the device? and observe points 1 and 2.
Select Unpair device. Press Ok.
INFORMATION!
This step will remove all active users of the appliance. If you want to operate the appliance
remotely again you will need to repeat the process of adding a user.
Which Wi-Fi router can be used?
Only 2.4 GHz networks are supported. If the ConnectLife app cannot find your local network during
the connection set-up process, check the following:
• your router is operating at the frequency of 2.4 GHz,
• your network is not hidden, and
• your signal is strong enough.
Do you have more questions?
35
Initial settings before use
Remote software upgrade
When you receive a software update notification, you can choose to update your software from the
app menu in your settings. Upon confirmation, the update is performed, the appliance must be in
standby mode during this time (more on standby mode in chapter Table of consumption values).
Check the software update options in the ConnectLife app.
36
Initial settings before use
Dose
To enter the dose modes settings (Dose) first
select the desired washing program and press
on the third icon as shown in the image to the
left.
Choose between:
•
Assistance with manual detergent dosing if you select Manual Assist by pressing On .
•
Dosing of detergent from tanks A or B, if you have previously selected On ADS (see next
chapter Auto dose system (ADS)).
• Choose soil level (you can choose between 3 levels).
• If none of the options is selected, the washing machine will automatically pump the dispensed
detergent from the manual dosing chamber.
• The contents of reservoirs A and B do not affect the other compartments in the detergent
dispenser compartment.
Manual assist
By turning on manual assist, the washing
machine will recommend the optimum amount
of detergent according to the selected
settings.
When you select the washing program and press Start/Pause, the manual detergent dosing program
will offer the amount of detergent (left: concentrated /right: unconcentrated amount of liquid detergent).
Dose the recommended amount into the dosing container and press Start/Pause.
Assistance with manual detergent dosing must be selected each time the washing program is started.
In some programs the function is not available.
Auto dose system (ADS)
1. Choosing the settings for ADS
2. Filling the tank for ADS
3. Switching off the auto dose in the ADS menu.
1. Choosing the settings for ADS
The auto dose system (Auto Dose System) (hereinafter referred to as ADS) allows you to store and
dispense softener and liquid detergent in separate reservoirs located in the dispensing tank, in
addition to the manual detergent dispenser compartment.
When the ADS function is enabled, the appliance will automatically dispense the detergent and
softener.
37
Special features
The ADS settings can be accessed via the Program settings. Select the desired program and select
the Dose modes setting.
In the dose modes menu (Dose) enter Settings
.
Turn on ADS. With this setting, you will
determine which detergent will be dispensed
from tank A and which from tank B.
The most recent setting is stored and it can be changed for the next washing cycle. In some programs
the ADS setting is not available.
A, B. Choose the tank from which the detergent will be dispensed, depending on the type of
laundry.
Type of laundry:
Liquid detergent for: colored, white, black, delicate or other laundry.
Liquid detergent for different types of laundry, softener or other rinse aids.
WARNING!
If tank B is set to liquid detergent for colored, white, black or delicate laundry, only one tank for
ADS can be switched on at a time.
In the event that tank B is set to softener or other detergents, tanks A and B can be activated at
the same time.
WARNING!
When there is a shortage of detergent in tank A or B, refill notifications and symbols will appear.
Follow the instructions on the screen.
When selecting the Wool/Hand wash program use wool detergent and avoid using fabric softener.
By pressing back you return to the dose modes menu.
You can choose between: automatic detergent
dosing from tank A or from tank B. Confirm the
selection by turning on .
Before choosing tank A or B, you must fill the tank with liquid detergent.
38
Special features
C. Choose laundry soil level. Choose between:
• Lightly soiled laundry
• Normally soiled laundry
• Heavily soiled laundry
The washing program will choose the suitable amount of detergent depending on the setting for soil
level you choose.
Return to ADS settings
a, b. Amount (Concentration) of liquid detergent(ml/cycle from tank A or B).
Choose the amount of detergent according to the liquid detergent manufacturer's recommendations
on the packaging.
For both tanks, you can specify the amount of agent to be dosed from 0,0026–0,0264 US gal (10 ml
to 100 ml).
For this washing machine model, observe the recommendation for a half load, medium water hardness,
and medium-soiled laundry.
The amount of detergent or softener dosed will be adjusted for:
• Water hardness (available degrees are: soft, medium - normal and hard. The basic/preset
degree is medium, which can be changed by the user. For correct functioning of the ADS system,
we recommend setting the correct water hardness level (see chapter Appliance settings/ Water
hardness ).
• Selected washing programe.
• Amount of laundry (load).
• Set soil levels.
• Set value of liquid detergent.
c. Changing the liquid detergent in the ADS
We recommend changing the detergent when the tank is empty. Otherwise the tank must be emptied
and cleaned (See chapter Cleaning the dosing container).
When you change the detergent in the tank B, select the appropriate washing program based on
the type of laundry.
In the case of the following combinations:
• White laundry program + white laundry detergent + off ADS or
• Program for colored laundry + colored laundry detergent (but not selected)
then, pour a different type of liquid detergent into tank B than the one selected in tank A. For example,
if you have chosen the Black program, you will likely pour a detergent specifically designed for black
laundry into the tank. For certain programs, you will be notified to select the appropriate detergent.
INFORMATION!
If the tank is not empty, the dosing container must be removed and the tank cleaned (see chapter
Cleaning the dispenser tray).
39
Special features
2. Filling the compartment with liquid detergent
When you want to use the ADS function for the first time, you will need to fill the dosing container.
WARNING!
While the washing program is running, do not open the dosing container and do not add softener
or liquid detergent to the ADS compartment.
INFORMATION!
Start dispensing the liquid detergent into the selected tank. The tank can be filled to the MAX
mark (maximum amount of detergent that can be poured into the tank is 0,29 US gal (1,1 l).
DESCRIPTION OF THE DOSING CONTAINER
1 - Compartment for main wash liquid and
powder detergent with the inscription
»MainWash«.
2 - Compartment for softeners with the
inscription »Softener«.
3 - Separator or movable barrier.
4 - Tank (A) for liquid detergent for ADS.
5 - Tank (B) for liquid detergent or softener for
ADS.
SOFTENER
FILLING PROCESS
1 - Pull out the dosing container.
2 - Open the lid of the ADS tank A and pour liquid detergent into it up to the mark »MAX«.
3 - Open the lid of the ADS tank B and pour liquid detergent, softener or other detergent up to the
mark »MAX«.
4 - For washing without ADS, pour liquid or powder detergent into the front left compartment with
the inscription »MainWash«.
5 - Pour the softener into the front right compartment for washing without ADS.
6 - Close the detergent container.
WARNING!
Do not place any powder detergent in the ADS compartment.
40
Special features
• If the ADS system is activated, you can also add fabric softener or other liquid detergents (e.g.
stain remover) to the dispenser.
• At the beginning of the program, water will flow through the dispenser and collect all added
agents, even if the ADS system is active.
• The contents of the dispenser will be used – therefore, do not add any agents that are not
required.
• Improper use of additional detergents in the dispenser may cause excessive foaming in the
machine.
INFORMATION!
Only use liquid detergents and softeners or gels recommended by the manufacturer for use in
Auto dose.
Do not mix different liquid detergents or softeners. If you are changing the liquid detergent (type,
manufacturer...), empty the dosing container completely and clean the dosing container
compartments (see chapter Cleaning and Maintenance/Cleaning the dispenser tray).
Do not mix detergent and softener.
Do not use concentrated or strongly concentrated detergents or softeners (maximum permissible
viscosity is 800 mPa.s). You can only use them if you dilute them with water.
To prevent the dosing container from drying out, do not leave the dosing container lid open for
long periods of time.
We recommend pouring liquid detergent or softener only up to the MAX marking in the
compartments.
WARNING!
Do not use any solvent-based, corrosive or gas-emitting products (e.g. liquid bleach).
3. Switching off auto dose in the ADS menu.
In the dose modes menu (Dose) enter Settings ADS.
Switch off ADS. Thus, the system will not
automatically dose the detergent.
INFORMATION!
Prewash cannot be selected if ADS is switched off.
When using a washing program with ADS switched off or disabled, add
detergent to the manual detergent compartment.
Fill the compartment with liquid or powder detergent. Follow the
markings on the separator/movable partition for powder/liquid detergent.
When using powder detergent, lift the separator or movable partition
upwards.
MAX
41
Special features

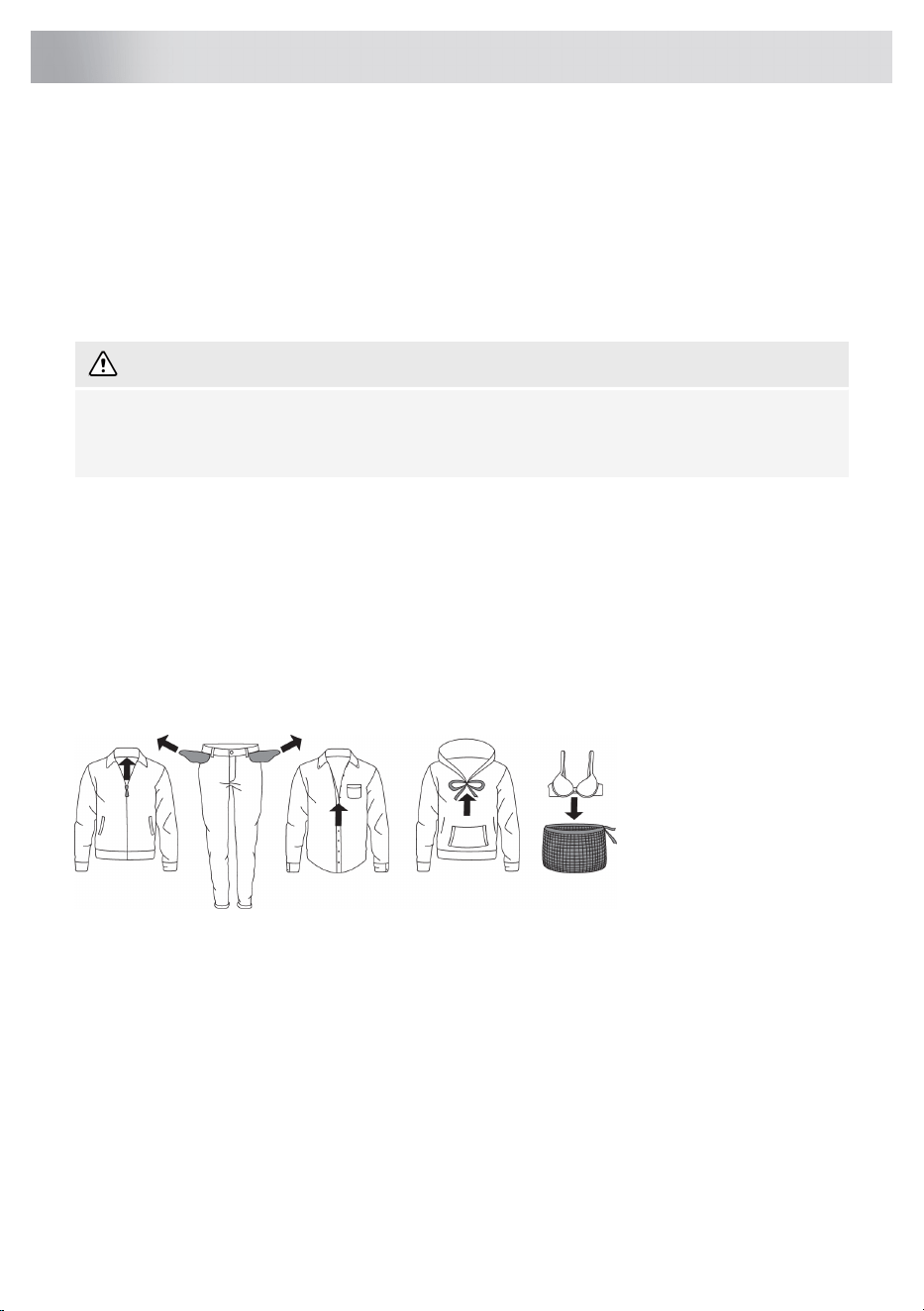

This chapter includes several tips on how to prepare the laundry for washing.
Before using the washing machine, carefully remove any solid objects and particles from the textiles
you intend to wash to prevent damage to the appliance or clogging of the pump filter. This includes
(also check all pockets and flaps):
• solid objects (e.g., screws, clips, small stones, hay, etc.),
• food residues (e.g., bones, dried dough, etc.),
• dried particles of construction materials (e.g., mortar, sand, mud, etc.).
WARNING!
The manufacturer assumes no responsibility for malfunctions resulting from failure to follow these
instructions, which may also affect the validity of the warranty. Furthermore, the manufacturer
does not cover service costs in the event of foreign objects in the pump or pump cleaning.
Laundry sorting
Sort the laundry according to:
• how soiled it is,
• color,
• material,
• recommended washing temperature.
Clothing
• Sort the laundry by type of fabric, color, soiling, and recommended washing temperature (see
Program table).
• Wash the laundry that sheds a lot of fiber or lint separately from other laundry.
• Empty the pockets. Coins, nails etc. could damage the machine and the fabric.
• Close the buttons and zippers, tie any ribbons, and turn the pockets inside out; remove any
metal clips that could damage the laundry and washing machine interior, or clog the drain.
• Turn delicate items inside out. This will decrease the risk of tear and color fading.
• Place very sensitive clothes and small items in a special-purpose laundry washing bag.
(A dedicated textile bag can be purchased separately.)
42
Tips before washing

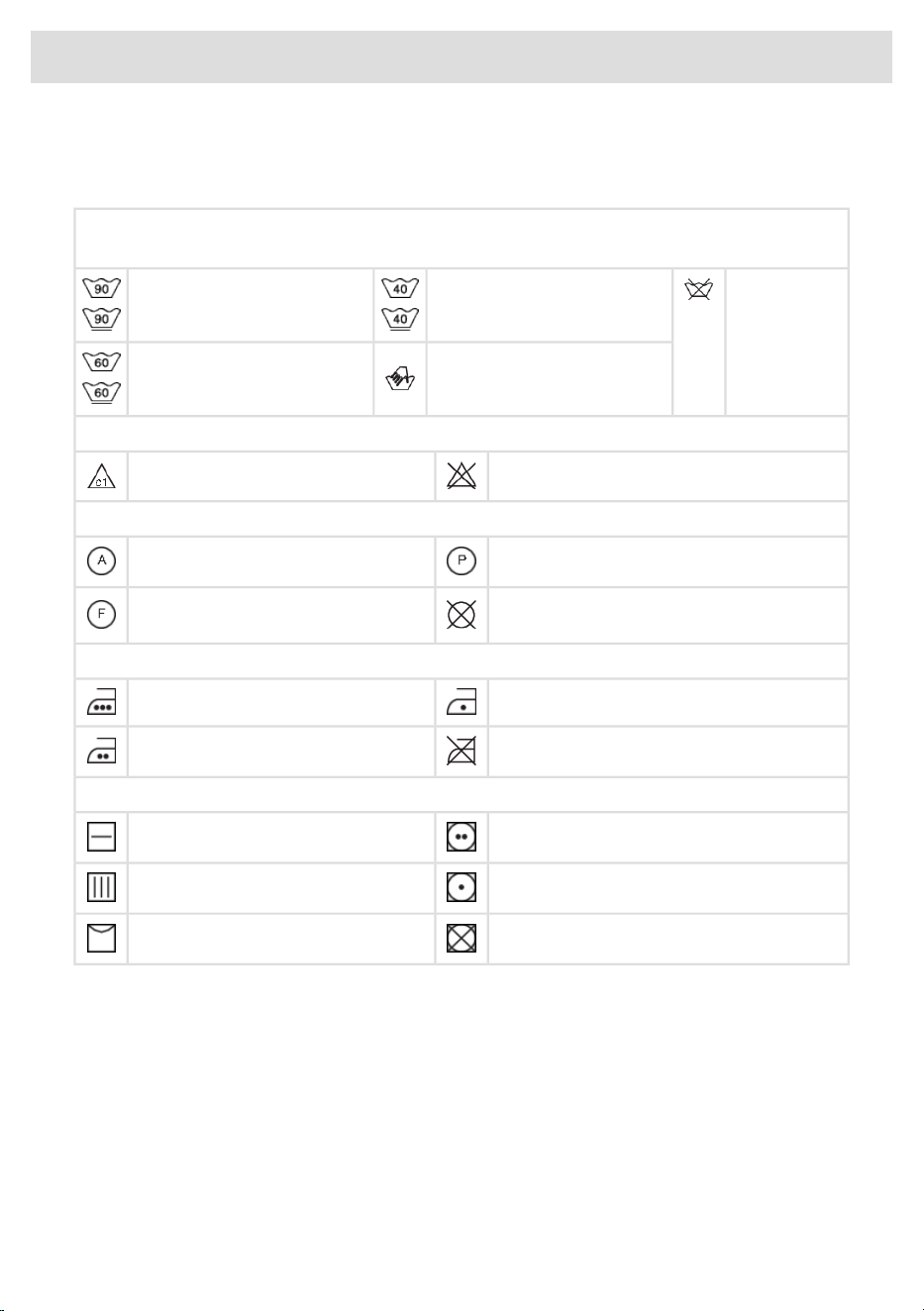

Laundry symbols
Observe the laundry symbols.
Cotton Normal wash;
Sensitive laundry;
Do not wash
Max. washing temperature
WARM
Max. washing temperature
EX. HOT
Hand wash only
Max. washing temperature
HOT
Bleaching
Bleaching not allowedBleaching in cool water
Dry cleaning
Perchloroethylene R11, R113, petroleumDry cleaning with all agents
Dry cleaning not allowed
Dry cleaning in kerosene, pure alcohol,
and R113
Ironing
Hot ironing, max. LOW temperatureHot ironing, max. HIGH temperature
Ironing not allowedHot ironing, max. MEDIUM temperature
Drying
Drying at high temperaturesDrying on a flat surface
Drying at low temperaturesDrying without prior spinning
Tumble drying not allowedDrying on a clothes line or a hanger
43
Tips before washing
Laundry types
Dyed cotton
Laundry made of dyed cotton which is to be washed at 104 °F (40 °C) should be first washed at a
temperature of 140 °F (60 °C) to remove the excess dye. If this is not done, there is danger of dye
being washed out of such items. To maintain the colour of the fabric, use bleach-free detergent.
Unbleached linen
Unbleached linen fabrics should be washed at 140 °F (60 °C) with a detergent free of bleach or
optical bleaching agents. Heavily soiled linen laundry may be occasionally washed at higher
temperatures, but do not do this too often as heat could ruin the shine and strength of linen laundry.
Wool
These fabrics are intended for either machine or hand wash. The Wool/Hand Wash program is equally
gentle or even gentler than an actual hand wash.
Wool in particular is sensitive to washing and similar procedures.
When selecting the Wool/Hand wash program use wool detergent and avoid using fabric softener.
If you do not wish to spin your clothes, select a setting without spinning (see chapter STEP 6: Choosing
the program settings). However, most clothes are able to withstand a short spinning period. Top
spinning speed available is 800 rpm.
Viscose and synthetic fibres
Materials made of viscose and some synthetic fibers are highly sensitive, and require a lot of space
in order not to crease. When washing fill the recommended load for the program and choose a
program with spinning speed of no more than 1200 rpm.
INFORMATION!
Viscose and acetates are fragile when wet.
Reducing allergic reactions
Possibility of washing with the Anti-Allergy Synthetics program. This program, program settings, and
features should be used for people with sensitive skin, such as those suffering from allergies, or
small children. We recommend turning the garments inside out as this will also thoroughly wash out
the skin residues.
Saving time and energy
Save time by using Speed mode and save power with the Eco (ecological) washing mode (Green
mode).
Economy and efficiency
You can save a lot of energy by not using the programs operating at higher temperatures.
Select the Quick program if you wish to only refresh the laundry or use the Time program (Time
program). This will save water and power.
44
Tips before washing
Selecting the maximum spinning speed will reduce power consumption if you dry the clothes in a
dryer or a drying cabinet.
Detergents
INFORMATION!
Detergents carrying the environment protection label are less harmful to the environment.
Only use detergents for machine washing.
When using thick liquid laundry care products, we recommend diluting them with water to prevent
clogging the dispenser tray drain.
Liquid detergents are intended for washing programes without a prewash cycle.
Only add the detergents in compliance with the recommendations by detergent manufacturers.
Recommended amount of washing detergent at certain loads and water hardness levels are specified
on the detergent packaging.
Dosing accessories
To correctly dose detergents, especially liquid ones, use the accessories provided by the detergent
manufacturer.
Stains
If your clothes are soiled with stubborn stains (blood, eggs, coffee, grass etc.), they should be
appropriately treated before the wash. Then, wash your laundry using the special programs (if your
washing machine has them).
Before using special-purpose stain removers, try using the natural methods that do not harm the
environment on less stubborn stains.
However, prompt action is required! Soak the stain with an absorbent sponge or a paper towel; then,
rinse with cold (lukewarm) water – but never with hot water!
When using bleaches or stain removal agents, there is danger of rust (corrosion) and discoloration.
WARNING!
To protect the environment, we advise against using powerful chemicals.
Do not use any chemical substances or agents; only use the stain removing detergents.
Dyeing fabrics
If you want to dye fabrics in the machine, choose the Cotton program with the option to select the
Super rinse function. Choose the temperature according to the dye manufacturer's recommendations.
If you dye mixed fabrics, such as polyester/cotton, choose a low spinning speed.
After dyeing use the Drum Cleaning program. Use the usual amount of detergent.
When using bleaches or stain removal agents, there is danger of rust (corrosion) and discoloration.
45
Tips before washing
WARNING!
To protect the environment, we advise against using powerful chemicals.
If you wash at low temperatures and/or with liquid detergents, there is a risk of developing
microorganisms and an unpleasant odor in the washing machine. Leave the washing machine door
open after each wash to allow the appliance to dry. If you detect an unpleasant odor, run the Drum
Cleaning programe.
To prevent and remove limescale deposits only use agents with added anti-corrosion protection.
Observe the cleaning agent manufacturer's instructions. To remove limescale deposits, we
recommend starting the Drum Cleaning programe. Add spirit vinegar (6.7 fl oz. (2 dl)).
We recommend avoiding washing very small amounts of laundry as this will lead to excessive use
of energy and less optimal washing machine performance.
You can save energy and water by filling up the washing machine to the capacity specified by the
manufacturer for each programe.
46
Tips before washing

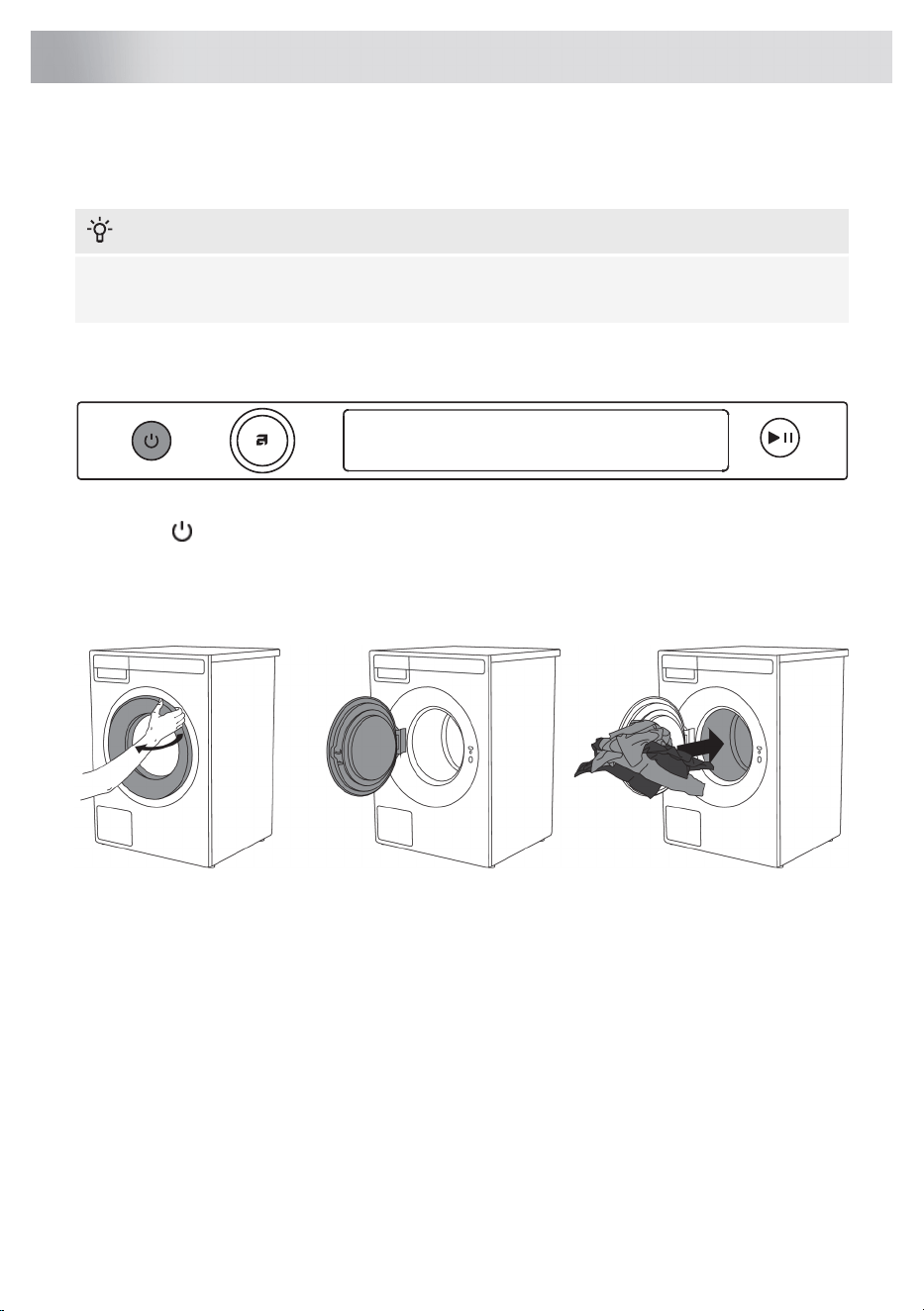

STEP 1: Sort the laundry
See chapter Tips before washing.
INFORMATION!
Use a garment bag for undergarments containing an underwire. Empty the pockets. Coins, nails
etc. could damage the machine and the fabric.
STEP 2: Turn on the main switch
On/Off
Press the on/off button.
STEP 3: Open the washing machine door and insert the laundry
Open the washing machine door by pulling the handle towards you.
Place the laundry into the washing machine drum.
Before doing so, make sure the drum is empty.
Do not overload the drum!
If the washing machine drum is too full, the laundry will not be washed as thoroughly.
STEP 4: Add the detergent and the softener
Recommended amount of detergent is usually specified on the detergent packaging. When washing
a smaller amount of laundry, the amount of detergent used can be decreased.
Observe manufacturers' recommendations regarding the type of detergent suitable for certain
temperatures, load size, and water hardness.
When using ADS, the appliance will automatically add the liquid detergent and the softener depending
on the amount of laundry and the other settings.
47
Operating instructions - Washing step by step (1 – 8)
Powder detergent
Only dispense the powder detergent into the front main wash/hand wash compartment »MainWash«.
Do not put any powder detergent in the container for ADS.
INFORMATION!
We recommend adding the powder detergent immediately before the washing cycle. Otherwise,
make sure the detergent compartment is completely dry before adding the powder detergent,
as otherwise, the powder detergent may cake before the start of the washing process.
Liquid detergent
When using liquid detergent and softeners, follow the detergent manufacturer's recommendations.
When using thick detergents, we always recommend using the laundry balls. In the detergent
compartment, use the separator (3); see figure in the chapter Description of the washing machine
Washing machine description Detergent compartment with Auto dose system (ADS).
Add the liquid detergent to the Main wash dispenser (1) or into the tank A or B for ADS.
Liquid detergent in ADS
The washing machine will automatically add the amount of liquid detergent and softener depending
on the amount of your laundry and how heavily soiled it is.
Compartment (A) for liquid detergent for: colored, white, black, delicate or other laundry.
Compartment (B) for liquid detergent for different types of laundry, softener or other rinse aids.
See chapter: Special features.
In case of excessive foaming, check the water hardness settings (see chapter Appliance settings/
Water hardness ), how heavily soiled the laundry is and the setting for the amount of liquid detergent
according to the manufacturer's recommendations (see chapter Tips before washing).
INFORMATION!
Use of other non-homogenised or homemade liquid detergents can cause malfunction of the
ADS. Any servicing required due to such problems shall not be covered by the warranty.
The ADS function is tested with liquid detergents from the world's leading manufacturers.
Do not mix different liquid detergents. When changing the liquid detergent, the tanks need to be
cleaned.
Laundry capsules, ball, or washing net
If you use laundry capsules, a ball, or a washing net, place it directly in the drum and select a program
without prewash.
INFORMATION!
An excessive amount of detergent will not improve washing results. Rather, it will lead to foaming
and increase the environmental impact. We recommend using less detergent. Only increase the
dosage if you are not satisfied with the washing results.
48
Operating instructions - Washing step by step (1 – 8)
Softener
Pour the softener into the detergent compartment, into the compartment with the symbol . Observe
the recommendation on the softener packaging.
INFORMATION!
Do not fill the softener compartment over the max. indication (maximum indicated level). Otherwise,
the softener will be added to the washing machine drum too soon, leading to a less optimal
washing effect.
49
Operating instructions - Washing step by step (1 – 8)
STEP 5: Choose the program
Washing programs and other settings can be selected and confirmed as follows:
• by rotating the selector knob in either direction and pressing it in the middle to confirm,
• by touching the screen.
Choose the program depending on the type and soil level of laundry (see chapter Tips before
washing).
Estimated program duration will appear on the screen.
On the selected program, you can touch
Information to display a brief description of
the program and the maximum load.
Extra program settings can also be selected for each program. See STEP 6: Choosing the program
settings.
Program table
Choose between the following programs:
Description
Spin Speed
(rpm)Capacity
Program
Program for normal, regular, or typical use for washing up
to a full load of normally soiled cotton clothing.
MAX
Full
load
Normal Cotton
Cold – Extra hot
Testing Method for US DOE Requirements/Ontario
Requirements/NRCan Requirements Test Result from
10CFR Part 430 Subpart B Appendix J2 / CSA C360-13
Use the Universal wash program to wash towels, sheets,
underwear, bed linen, etc. Select a lower temperature for
less soiled laundry and a higher temperature for heavily
soiled clothes.
MAX
Full
load
Universal wash
Cold – Extra hot
The MIX/Synthetic program is adapted for clothing made
of synthetic and mixed fibers or viscose and for easy care
of cotton laundry.
MED
1/2
load
Mix/Synthetics
Cold – Hot
This program is used for washing white laundry. Select
lower temperature for less soiled and higher temperature
for heavily soiled garment.
MED
1/2
load
White laundry
Cold – Extra hot
This program is used for washing colored laundry using
special purpose detergents for colored laundry. We
recommend turning dark garments inside out.
MED
1/2
load
Colored laundry
Cold – Hot
50
Operating instructions - Washing step by step (1 – 8)
Choose between the following programs:
Description
Spin Speed
(rpm)Capacity
Program
Gentle washing program for washing wool, silk, and clothes
that require manual washing. Maximum temperature is
104°F (40 °C). This program has a short spinning cycle.
Top spinning speed available is 1200 rpm.
MIN
1/4
load
Wool/Hand wash
Cold – Warm
Do not use fabric softener with this program!
Program for delicate clothing made of synthetic and mixed
fibres, and for simple care of cotton or viscose. It may also
be used for pillows, quilted jackets and similar items, as it
uses a lot of water. Carefully read the washing instructions.
If the outer layer has a membrane, do not use a conditioner.
Washing temperature can be set up to 104°F (40 °C), and
spinning speed can be set up to 1000 rpm.
MED
1/2
load
Delicates
Cold – Warm
This program is suitable for washing clothing with a
membrane, waterproof clothing, and breathable clothing
that requires simple care. It is suitable for sportswear made
of mixed materials. It combines low temperature with gentle
tumbling.
MED
1/2
load
Sportswear
Warm - Hot
Do not use fabric softener with this program!
The program is suitable for washing winter jackets, coats
and all outerwear that is heavily soiled.
MIN
1/2
load
Outerwear
Cold – Warm
Use the Time program to set the program time, from 20
minutes to 2 hours. Be sure to choose the time and
temperature appropriate to the degree of soiling of the
laundry.
MED
1/4
load
Time program
Cold – Hot
Program for washing jeans. Due to a higher water level and
an extra rinse, there will be no traces of detergent on the
jeans. It uses low temperature and 1200 rpm.
MED
1/2
load
Jeans
Cold – Warm
This program washes the collars and cuffs without wrinkling
them. The wash takes place at a low temperature, with a
greater amount of water and gentle tumbling.
MED
1/2
load
Shirts/Blouses
Cold – Hot
This program is used to wash bedding, pillows, and larger
items. Weekly wash of your bedding will remove skin
residue and mites.
MED
1/2
load
Bedding/Towels
Warm - Extra hot
Use this program to wash blankets, coats, vest or jackets.
Insert garments into the machine so that they do not touch
the rubber seal or the glass.
MED
1/2
load
Down
Cold – warm
The program allows clothes to be softened and disinfected.
Steam refresh reduces or eliminates the need for ironing.
/
1/4
load
Steam Refresh
After steam refresh the laundry may be slightly damp or
contain minor traces of water.
51
Operating instructions - Washing step by step (1 – 8)
Choose between the following programs:
Description
Spin Speed
(rpm)Capacity
Program
A quick program with high efficiency for smaller amounts
of lightly soiled laundry. The program washes with intensive
tumbling and MAX rpm.
MAX
1/2
load
Quick PRO
Warm - Hot
For impregnating garments with special agents that
increase water resistance.
MIN
1/2
load
Waterproofing
This program is used to wash normal to heavily soiled
clothes that require special care, such as clothes for people
with highly sensitive skin or skin allergies. We recommend
turning the garments inside out as this will also thoroughly
wash out the skin and other residues. You can also select
the option to wash at maximum temperature and maximum
spinning speed. Set temperature will be maintained for a
longer time period than on conventional programs in
combination with intense tumbling and extra rinses.
MED
1/2
load
Anti-allergy Cotton
Hot - Extra hot
This program is used to wash synthetics clothes that require
special care, such as clothes for people with highly
sensitive skin or skin allergies. The program is also suitable
for people sensitive to washing detergents. We recommend
turning the garments inside out as this will also thoroughly
wash out the skin and other residues. Set temperature will
be maintained for a longer time period than on conventional
programs in combination with intense tumbling and extra
rinses.
MED
1/2
load
Anti-allergy
Synthetics
Hot
The program is suitable for laundry that only needs rinsing,
and for cleaning cloths or mops.
MAX
Full
load
Rinse
Use the program when you only wish to spin the laundry.
MAX
Full
load
Spinning
If you only wish to pump out the water from the washing
machine, choose the Drain program.
/
Drain
Use the Underwear program to wash delicate underwear.
Small amounts of laundry must be washed in a protective
bag.
MED
1/4
load
Underwear
Cold – Extra hot
For your delicate swimwear, remove the salt and prolong
the fabric.
MED
1/4
load
Swimwear
Cold – warm
This program is used for washing clothes that require
special care, such as baby clothes or clothes for people
suffering from skin allergies.
MED
1/2
load
Baby clothes
cotton
Warm - Extra hot
The Textile trainers program is adapted for washing sports
shoes with gentle movements and a low spin speed.
MIN
1/4
load
Textile trainers
Cold – warm
52
Operating instructions - Washing step by step (1 – 8)
Choose between the following programs:
Description
Spin Speed
(rpm)Capacity
Program
Program for fluffy toys, gentle and effective.
MED
1/2
load
Soft toys
Cold – Hot
This programe is used for cleaning the drum and removing
the residue of detergent and bacteria. Other extra functions
cannot be selected.
The drum must be empty.Do not add detergent or
softener! You can add some spirit vinegar (approx. 2 dl)
or sodium bicarbonate (1 tablespoon or 15 g) for effective
descaling. We recommend that you use the program at
least once a month.
/
Drum Cleaning
INFORMATION!
In terms of energy and water consumption, programes that operate at lower temperatures and
last longer are generally the most efficient.
INFORMATION!
Noise and residual moisture content are affected by the spinning rate: the higher the spinning
rate in the spin cycle, the higher the noise and the lower the residual moisture content.
Recommendations for detergents under Regulation (EU) No. 1015/2010
Detergent
Program Special
For delicate
laundry and wool
For colored
laundryUniversal
Normal Cotton
Universal wash
Mix/Synthetics
White laundry
Colored laundry
Wool/Hand wash
Delicates
Sportswear
Outerwear
Time program
Jeans
Shirts/Blouses
Bedding/Towels
Down
Steam Refresh
53
Operating instructions - Washing step by step (1 – 8)
Detergent
Program Special
For delicate
laundry and wool
For colored
laundryUniversal
Quick PRO
Waterproofing
Anti-allergy Cotton
Anti-allergy synthetics
Rinse
Spinning
Drain
Underwear
Swimwear
Baby clothes cotton
Textile trainers
Soft toys
Drum Cleaning
Choice of options
STEP 6: Choosing the program settings
Using the program settings, the washing programs can be further adjusted to your wishes.
Some selected program settings will remain stored after the wash is complete and may be changed
subsequently. The following settings are saved: spinning, ADS, washing modes, temperature, extra
rinse, prewash and extra water. Other settings such as: small load, steam disinfection, rinsing and
stopping, anti-creasing, delayed start and manual assist cannot be saved.
In the selected program, you can choose between three quick access settings without entering the
program settings. By directly touching the desired setting, you can change the selection.
Quick access allows you to set:
Temperature1.
Spin2.
Dose3.
For a program that does not have any of the above settings, quick access is not possible.
54
Operating instructions - Washing step by step (1 – 8)
INFORMATION!
Some program settings may not be available for your selected program.
For the full set of program settings, select the program and enter the program settings.
Choose the program settings before pressing Start/Pause.
When a washing program is in progress, program settings cannot be changed.
The following program settings may be selected:
Set time
You can choose the duration of the washing
from 20 minutes to 2 hours in steps of 15
minutes.
This setting is only possible in the Time program.
Stain
You can choose between the following stains:
red wine, blood, grass, blueberries, grease,
chocolate, tea/coffee, egg, dairy products,
kids stains, fruit or tomatoes.
This setting is only possible in the Stains program.
Mode
Set the washing mode according to the amount
of water and the washing time.
The following washing modes are available:
• Default mode
(Basic setting)
•
(Eco) Green mode
(Wash that saves energy; lower water consumption).
•
Speed mode
(Time-saving wash; shorter washing times, higher water and energy consumption).
In the Cotton program, we recommend a half-load.
•
Intensive mode
(Wash that improves cleaning performance, with extra water and extended washing time).
55
Operating instructions - Washing step by step (1 – 8)
Temperature
The actual available temperature options, will
depend on the selected program.
The following temperatures are available for the selected program:
Cold / Warm / Hot / Extra hot
WASH / RINSETEMPERATUREWASH
No heating/Cold
Warm / Cold105 °F / 40 °CWarm
Hot / Cold140 °F / 60 °CHot
Extra hot / Cold194 °F / 90 °CExtra hot
Spin
The following spinning rates are available for
the selected program: max. (rpm) /... / no Drain
(max. rpm = depends on the model).
Default setting is Max rpm; it depends on the selected program (spin rate can be changed – reduced
or increased (only in some models)).
The actual available spin speed will depend on the selected washing program.
INFORMATION!
With the No drain option, the program will not include a spin cycle, and the water from the last
rinse will remain in the washing machine. The laundry will stay in the water from the last rinse,
which will prevent creasing. If you have selected the No Drain option, you have to select the Drain
or Spinning program after the end of the washing program to pump the water out from the machine
before you open the washing machine door.
Dose
There are several different ways to dispense
detergent:
• Manual dose,
• Manual assist,
• Auto dose (ADS) Auto Dose System (ADS).
For detailed ADS menu settings, see chapter Special features.
Small load
The small load function adjusts the use of
water and energy to ensure thorough washing
while reducing waste. The small laundry load
can be activated to show the correct time if
you add up to 5,51 lb - 2,5 kg of laundry.
56
Operating instructions - Washing step by step (1 – 8)
Steam desinfection
Steam disinfection is a low temperature
disinfection cycle.
Before the start of the main wash, steam is
supplied to the washing machine to disinfect
your clothes.
Prewash
To use prewash before the main wash, choose
the Prewash option. Use of this setting is
recommended for heavily soiled laundry or for
laundry with stubborn surface stains.
Confirm your selection by pressing the On / Off button(Off) .
In the event that the ADS is switched off, the prewash setting cannot be selected, also the prewash
is not implemented with the programs where it is preset.
Prewash cannot be selected on some programs. When Speed Mode is selected, the prewash is
automatically switched off.
Super rinse
Choose between turning on or turning
off the additional rinse phase.
The setting helps to ensure that the clothes are rinsed thoroughly without leaving behind any detergent
residue or dirt. This is recommended for persons with highly sensitive skin and/or in areas with very
soft water. The setting allows for double extra rinsing.
High water level
The High Water Level option increases the
amount of water used during the main wash
and rinsing phases and is available with
certain programs.
This setting enables more thorough washing and rinsing for heavily soiled laundry, better care of
larger or delicate fabrics, and more effective removal of stains and detergent residues.
Confirm your selection by pressing the On / Off button(Off) .
Rinse and hold
This setting does not include a final spin cycle.
If set to On , the laundry will remain in the
final rinse water after washing has finished,
awaiting your next selected step.
You can resume in the following ways:
Unlock the door: the machine drains the water and stops the program.
57
Operating instructions - Washing step by step (1 – 8)
Spin and finish: spinning is carried out and the wash is completed.
The purpose of the setting is to prevent the garments from developing a bad smell, as it allows you
to complete the program after several hours when the user determines how to resume and complete
the spin cycle.
Anti crease
To prevent creasing, select the Anti-crease
function (gentle tumbling). This function is
recommended for delicate laundry.
Confirm your selection by pressing the On / Off button(Off) .
It will be carried out after the washing cycle.
Delay start
Choose the delayed start setting when you
wish the washing program to start after a
certain period of time.
You can choose a start delay time from 30 minutes to 6 hours in 30-minute steps, and then from 6
hours to 24 hours in 1-hour steps.
Press the Start/Pause button to start. When the countdown reaches zero, the selected washing
program will start automatically.
If you do not take any action for 5 minutes, the screen will turn off.
By pressing the On/Off button you can reactivate it. The display will show the countdown to the start
of the washing cycle.
The display will activate 1 minute before the start of the washing cycle.
After the countdown, washing time will be indicated on the display.
If you want to cancel the delayed start and initiate the washing process immediately, press Skip.
When the Delayed start is already set, it can be cancelled by pressing the Start/Pause button for 3
seconds to return to initial selection.
INFORMATION!
If you have set the delayed start function and you are using liquid detergent, we do not recommend
choosing a program with a pre-wash cycle.
Add to favorite
By selecting the setting Add to favorite, you
enter the menu to add your favorite programs.
Confirm the selection by pressing Yes.
Next to the selected program, the following icon will light up . The program will be stored. By
pressing Cancel, you cancel adding the program to favorites.
You can store up to 6 favorite programs.
58
Operating instructions - Washing step by step (1 – 8)
• Removing a favorite program
When all 6 slots are taken, it is not possible to set a new program.
To add a new favorite program, you need to delete an existing one beforehand.
To remove a favorite program, select the program you want to remove. Select the setting Add
to favorite and confirm the removal of the favorite program by touching Yes. The program will
be removed.
STEP 7: Start the wash
Close the washing machine door and press the Start/Pause button.
Start (pressed briefly – start/resume)
Pause (short press of the button - pause)
Cancel (press and hold the button for 3 seconds)
Time remaining
Depending on the selected program, the anticipated washing time will be displayed in hours and
minutes.
The actual washing time will depend on the selected program, load, type of laundry, spin speed
etc.
The actual washing time may be longer or shorter than initially displayed.
The remaining time will be updated during the program duration, depending on the actual amount
of laundry and amount of water pumped into the machine. The last remaining time update takes
place before the final spinning cycle.
In case of uneven distribution of laundry, the time on the display will flash and it will not count down.
Once the laundry is evenly redistributed, the washing time will continue and it will stop flashing.
Adding or removing laundry after the start of the program
To add or remove laundry during the progress of a washing program, use the Start/Pause button to
stop the program and then select Add clothes.
The door may be opened when the water is pumped from the machine (but not completely pumped
out). Then, add or remove the laundry. Close the door and resume the program. Press Start/Pause.
The program will resume from the point at which it was interrupted.
If the door cannot be opened, it is possible that the temperature in the machine is too high, and you
won't be able to add the laundry.
Also, if the door cannot be opened, it is possible that the program has been running for too long and
any laundry added at that point would not be efficiently washed.
Pausing, stopping or changing the program
To pause the program, briefly press the Start/Pause button.
59
Operating instructions - Washing step by step (1 – 8)
To resume the program, press the Start/Pause button again.
To stop the washing program, press the Start/Pause button and hold it for 3 seconds.
Select Stop program. The program is cancelled and the water is pumped out of the machine if
necessary. Only then can you open the washing machine door. Use the program selector knob to
select a new program, add detergent if necessary, and press Start/Pause.
INFORMATION!
If the temperature in the drum is very high, then cooling procedure starts before program is
canceled.
By pressing On/Off the Washing program can be interrupted.
The washing machine will switch off.
After the appliance is switched back on, press the Start/Pause button to resume the program.
INFORMATION!
Do not open the detergent compartment while the appliance is operating.
INFORMATION!
In some cases the door may be locked although no program is in progress (e.g. in case of an
error). To unlock the door, press the Start/Pause button and hold it for a while.
STEP 8: End of program
After the end of the washing program, the display will indicate that the program has been successfully
finished.
You can open the door.
If you have additionally selected the Anti crease function, gentle tumbling will continue after the end
of the washing program in order to prevent creasing.
Open the door towards you and remove the laundry from the washing machine.
Make sure the washing machine drum is empty.
If you do not take any action within 5 minutes after the end of the program, the display will switch
off to standby mode in order to save power.
The screen will light up again if you press any of the buttons or the screen.
WARNING!
After the washing cycle, close the water tap and pull out the washing machine plug from the
power socket.
60
Operating instructions - Washing step by step (1 – 8)

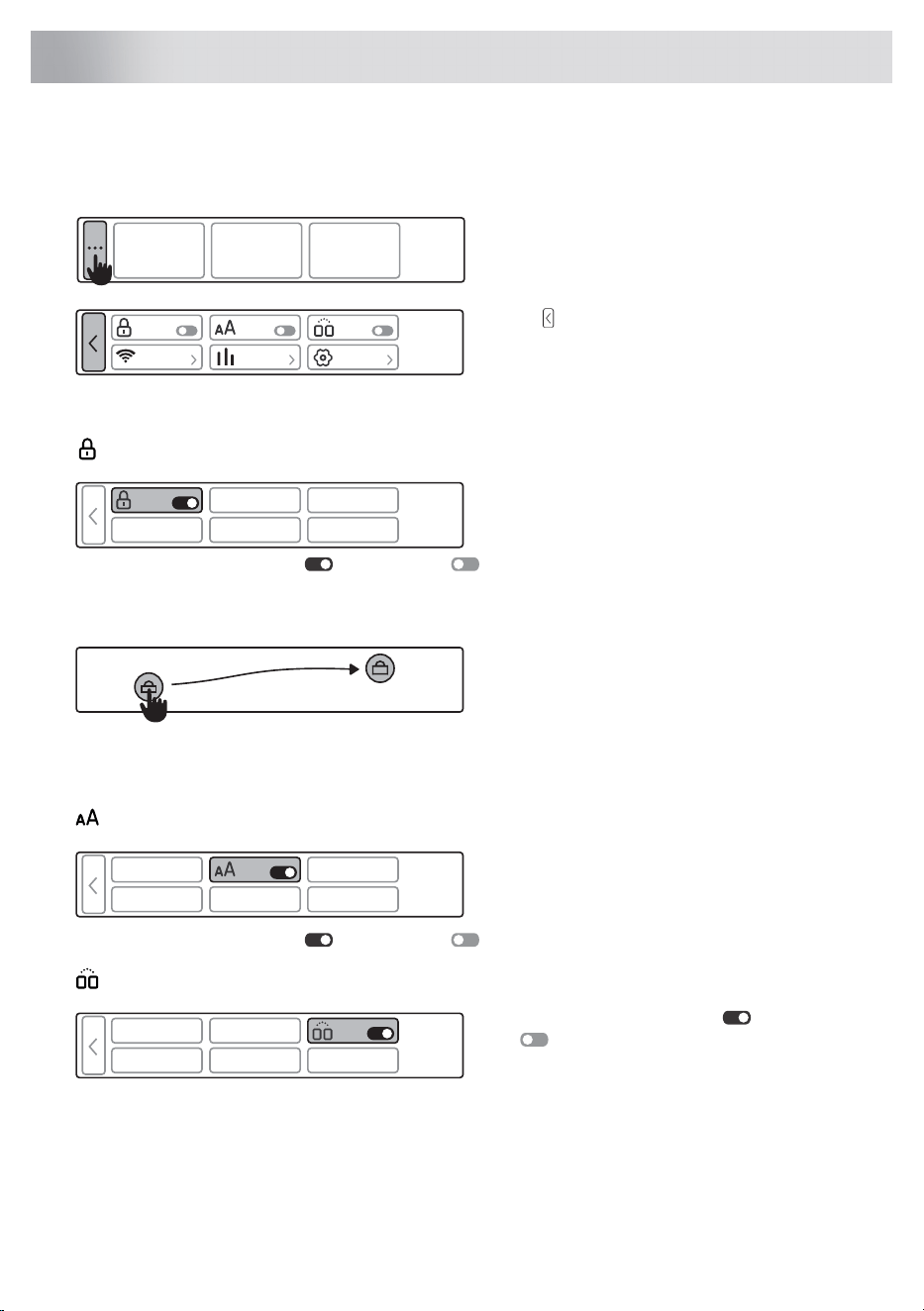

Additional service settings
In the main menu, select Additional settings.
Press in any setting to return to the Main
menu.
You can choose between the settings below:
LOCK
This setting disables the on-screen buttons to
prevent children from accidentally starting or
changing the cycle.
Choose between turning on or turning off the lock.
While the lock is activated, the washing machine will lock automatically after 1 minutes of inactivity.
The setting cannot be switched on manually.
When you want to resume using the washing
machine, touch the screen or rotate the
selection button. You can unlock the locked
screen by swiping the left icon to the right lock
icon or by pressing both icons at the same
time.
When the Lock is activated, no other function can be selected.
EASY VIEW (Easy View)
The setting allows for a more transparent
display of the menu with a reduced number of
symbols and descriptions.
Choose between turning on or turning off the easy view.
DRYER LINK
Choose between turning on or turning
off the connection with the dryer.
The setting must be enabled on both the washing machine and the dryer for operation.
In the ConnectLife app, connect the appliances. When the dryer and the washing machine are
connected, the dryer proposes an appropriate drying program according to the program that is
carried out in the washing machine.
61
Appliance settings
Wi-Fi SETTINGS
Choose between turning on or turning
off the Wi-Fi connection.
Refer to the setting procedure in the chapter Before first use How to enable Wi-Fi on the device?.
For status information, select the Status option.
ECO STATUS
Five-leaf programs have minimal environmental
impact, as they help conserve resources and
reduce energy use. These programs support
sustainable washing practices.
By washing more fabrics each time you start the program, you can optimise the energy efficiency
of the appliance and save money. For more sustainability, wash full loads.
SYSTEM SETTINGS
In the main menu, select Additional service
settings and then select System settings .
In System settings, you can check the following:
Cycle counter
Display of the number of cycles performed.
Machine status
In the appliance status settings, you can review or set the following options:
• Notifications
Choose between turning on or turning off the notifications. If the setting is turned off
after the end of washing, no cleaning notifications will be displayed.
• ADS (Auto Dose System)
Scan the QR code for instructions on how to clean the ADS system. After cleaning, confirm the
completion of the task by pressing »Cleaned«.
• Drum cleaning
To clean the drum, run the Drum cleaning program . Carry out the cleaning once a month with
distilled vinegar (2 dl) and bicarbonate solution (15 g) to remove the limescale and freshen up
the drum.
62
Appliance settings
• Cleaning the filter
Scan the QR code for instructions on how to clean the filter. After cleaning, confirm the completion
of the task by pressing »Cleaned«.
When the error code E7 or E7.1 is activated, it connects to the filter cleaning instructions screen.
• Error (Failure read out)
The last three errors shown to the user are listed in the failure read-out menu.
For more information see chapter Errors: what to do?.
Program management
The Main menu includes the entire set of
programs that you can choose from.
This setting allows only the selected programs
to be displayed in the main menu.
The program can be selected by pressing Enable and Disable display. Favorite program
and Drum Cleaning cannot be disabled. Pressing and holding the selected program for 3 seconds
allows you to arrange the order of your choice.
Reset program list
By selecting the Reset program list setting all
favorite programs and their order, if it has been
changed, will be deleted. Other settings will
not be affected.
Confirm the reset by touching the Ok button. To cancel program reset, do so by tapping the
Back button .
Display logotype
The display of the logo can be enabled or
disabled by pressing Enable or
Disable .
Sound volume
You can choose between muted sound, 25%,
50%, 75% or 100% volume.
Display brightness
You can set the Brightness on the screen.
You can choose between 25%, 50%, 75% or
100% screen brightness.
63
Appliance settings
Choose Language
You can choose between different languages.
Scroll left or right to navigate the list of
languages.
Water hardness
Choose water hardness between the following
settings: soft / normal / hard.
Water hardness can be measured with the measuring strip. Check the information on water hardness
with your local water supply company or authority.
Water hardness is determined using the following scales: the German water hardness scale (°dH)
and the French water hardness scale (°fH).
Hardness levelsWater hardness
p.p.m.°fH(°F)m mol/l°dH (°N)
< 150< 15< 1.5< 8.41 – soft
150 - 25015 - 251.5 - 2-58.4 - 142 – normal
> 250> 25> 2.5> 143 – hard
If the water hardness exceeds 50 °dH (89 °fH), we recommend the connection of an external water
softener.
Contact the local water utility, or measure the water hardness using the supplied test strip, to check
the water hardness in your area.
How to use the test strip:°fH°dHTest strip
Turn on the water faucet and let the water run for a
minute or so.
1.< 5< 34 green
Fill a glass with cold water.2.> 7> 41 red
Remove the test strip from its packaging.3.> 12> 72 red
Dip the test strip in the water for about one second.4.> 25> 143 red
Wait one minute. Now compare the colors of the
squares with the water hardness table.
5.> 37> 214 red
Temperature unit
Set the unit of measurement for temperature:
• Celsius °C or
• Fahrenheit °F.
64
Appliance settings
Liquid unit
Set the unit of measurement for liquids:
• Millilitres ml or
• Tablespoons tbsp.
Weight unit
Set the unit of measurement for weight:
• Kilograms kg or
• Pounds lbs.
Shop mode
The machine simulates the display and
operation of a standard cycle for
demonstration purposes. This setting can only
be activated in retail stores.
Choose between turning on or turning off the shop mode.
Confirm the reset by touching the Ok button. In this case, you will automatically return to the main
menu.
Factory default settings
By selecting Factory default settings you will
revert the settings to the original settings (your
own settings and all favorite programs will be
deleted).
Confirm the reset by touching the OK button.
65
Appliance settings

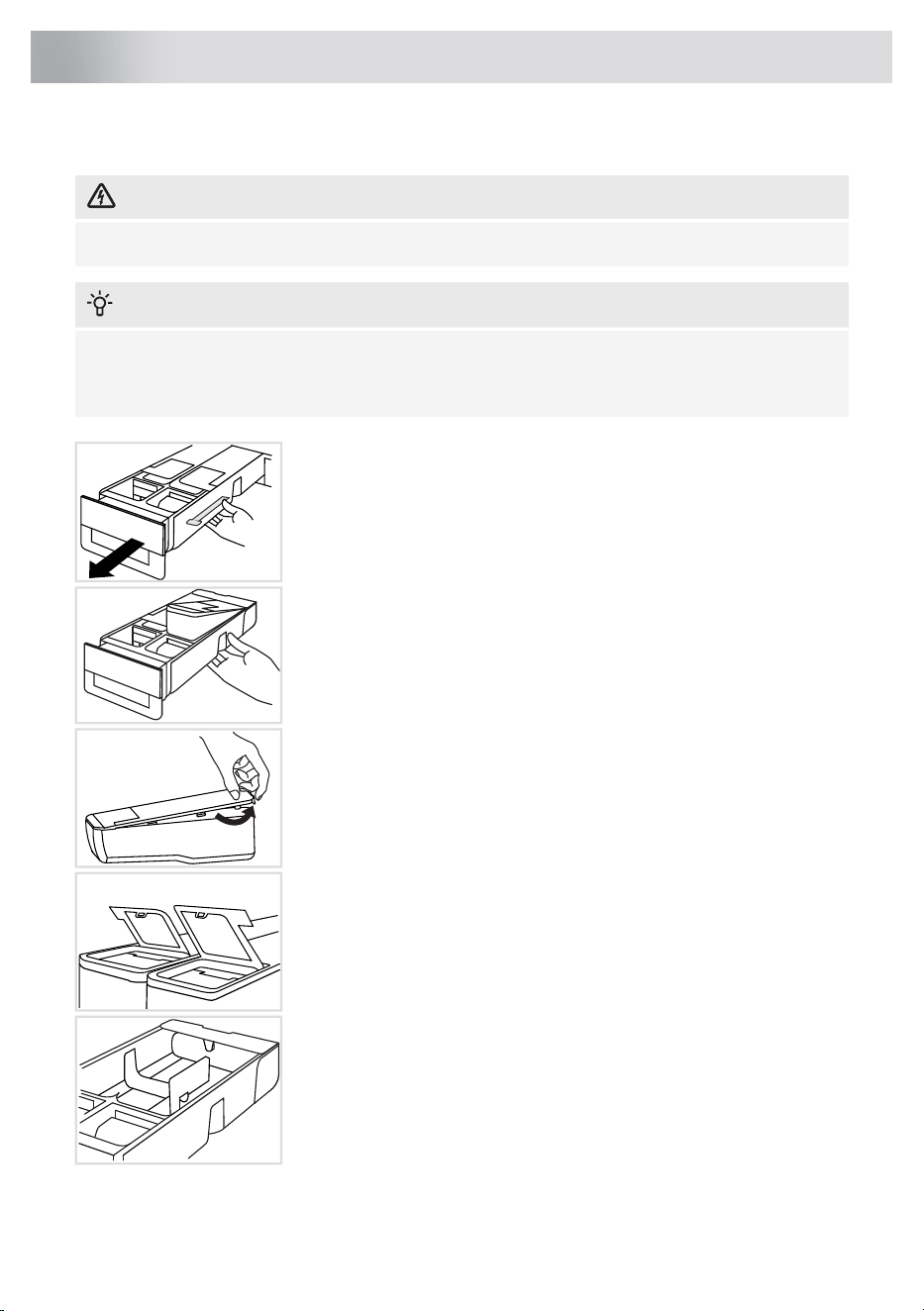

Cleaning the dispenser tray
ELECTRIC SHOCK!
Always disconnect the washing machine from the power mains before cleaning.
INFORMATION!
Cleaning the ADS system is very important for the correct operation of the appliance! Clean
the empty container of the ADS system regularly, at least once a month or with every other
filling.
1 On the right side of the lower part of the dosing container, press on
the release mechanism and completely remove the dosing container
from its housing.
2 On the underside of the dosing container, push into the opening of
the left and right compartment of the ADS to remove the tank from the
dosing container.
3 Remove the tank cover using the tab on the rear side.
Rinse the tank under water and clean thoroughly. You can help yourself
with a brush.
4
Also open the tank cap and clean it.
5
Clean the dosing container interior.
66
Cleaning and Maintenance

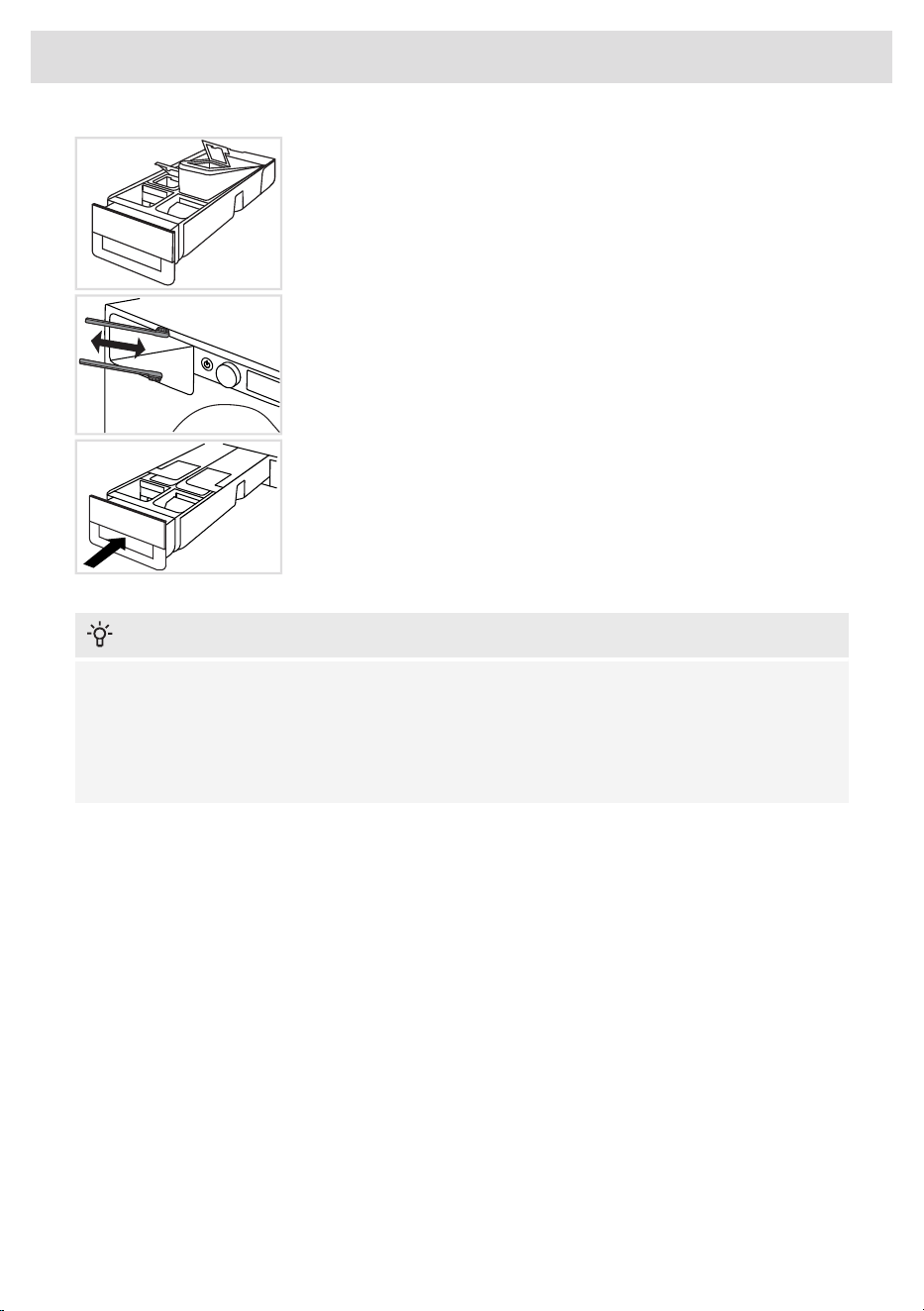

6
Reinstall the tank into the housing of the dosing container.
7 Use a brush to clean the nozzles on the upper side of the detergent
compartment housing.
Use a brush to clean the lower part of the detergent compartment
housing.
8 Put the dosing container back into its housing and close it.
INFORMATION!
When cleaning the dosing container, always remove the concentrated detergent and softener
residues. Also clean the bottom of the dosing container housing.
The dosing container can be washed in the dishwasher; before that you must remove any residues
of detergent or softener. The maximum allowed washing temperature in the dishwasher is 131°F
(55°C).
67
Cleaning and Maintenance

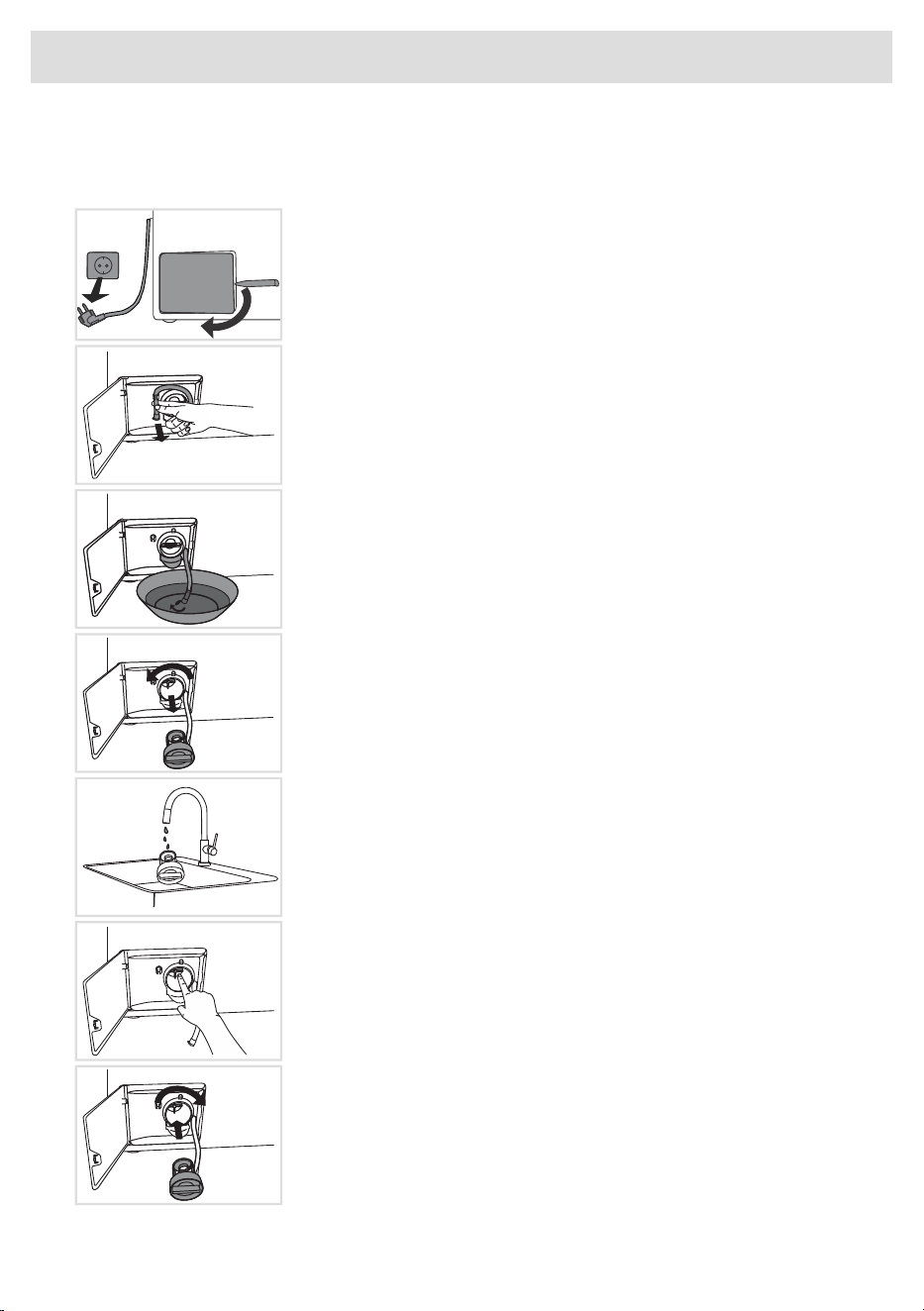

Cleaning the filter
The washing machine has a filter that will retain smaller objects such as coins, buttons, hair etc.
1 Before cleaning, drain the water from the washing machine using
the Drain program, and disconnect the washing machine from the power
mains.
Open the pump filter cover using appropriate tools (the door opening
tool is located on the front right side of the dosing container).
2 Release the water drain hose from the holder.
3 Before cleaning the filter, drain the water from the washing machine
by placing the end of the water drain hose over a large shallow container
and opening the cap on the water drain hose.
4 Gradually rotate the filter in the counter-clockwise direction and pull
it out.
5 Clean the filter thoroughly under running water.
6 Remove all objects and impurities from the filter housing and the
impeller.
7 Replace the filter as shown in the figure and fasten it by rotating in
the clockwise direction. For a good seal, the filter seal surface should
be clean.
Reattach the drain hose and close the lid.
68
Cleaning and Maintenance
INFORMATION!
We recommend regular cleaning of the pump filter once a month. When washing very fleecy,
very dirty or old laundry, do it more often.
Cleaning the exterior of the appliance
Clean the appliance exterior and the display using a soft damp cotton
cloth and water. Do not use any solvents or abrasive cleaners that
could damage the appliance (please observe the recommendations
and warnings provided by the manufacturers of the cleaning agents).
INFORMATION!
Do not clean the machine with a jet of water!
After every wash, wipe the rubber door gasket and remove any objects
that may have become stuck in the gasket to extend its useful life.
Preventing odors
Modern detergents often allow washing clothes at low temperatures. This means that residue may
accumulate in the washing machine, which in turn could cause odors.
To avoid bad odors, we recommend running the Drum Cleaning program once per month . Use a
small amount of powder detergent, without any laundry.
If you have hard water
If you are washing with hard water (high limescale content), a greyish-white coating may appear on
the washing machine drum. Remove this coating by pouring alcohol vinegar (pickling vinegar) into
the washing machine drum (approx. 2 dl) or sodium bicarbonate (1 tablespoon or 15 g) and select
any program in which the temperature reaches 90 °C or the Drum cleaning program. See chapter
STEP 5: Program table.
Repeat the process as necessary.
For the water hardness adjustment procedure see chapter Appliance settings/ Water hardness .
69
Cleaning and Maintenance
Disturbances from the environment (e.g. the power grid) may result in various error reports (see
table below: Fault/Error). In such case:
• Switch off the appliance, wait for at least 1 minute, switch on the appliance again and repeat
the washing program.
• If the error persists, call an authorized service center.
• Most interferences during operation can be resolved by the user (see table below: Fault/Error).
• Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the washing machine
shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the
user.
INFORMATION!
The warranty does not cover the errors or failures resulting from disturbances from the environment
(lightning strike, power grid failures, natural disasters etc.).
The following lists all the errors that the user can see on the user interface.
What to do?CauseProblem/error
Drain the water using the Drain program or
the Spinning program(Spinning). See chapter
STEP 5/ Program table.
Water level too high.Washing machine
door does not
open.
Wait for the water temperature to drop and
pump out the water. If you still cannot open
the door, use the emergency door opening
tool (see chapter Errors: what to do?/Manual
opening of washing machine door).
Water temperature in the
washing machine is too high.
Press the OK button to resume the program.Power supply failure.The machine will
not start.
Firmly press on the washing machine door
until you hear two clicks when it is closed.
Washing machine door is not
properly closed.
Washing program
is not in progress.
Check if the plug is connected to the power
outlet and whether there is electric current
(or voltage) in the outlet.
There is no voltage in the
power outlet.
To cancel the delayed start function, press
the OK button for three seconds.
Delayed start function has
been selected.
70
Errors: what to do?
What to do?CauseProblem/error
Program duration can be up to 60% longer
than initially anticipated in the normal
progress.
Low inlet water temperature.Washing time is
longer than
anticipated (the
time is regularly
updated on the
display unit).
Program time is extended due to the need to
redistribute the laundry in the drum.
UKS* (*unbalance system)
stability system engaged due
to unevenly distributed laundry.
Washing machine needs more time because
the power mains voltage is too low.
Low mains voltage.
Program time is extended by the duration of
the power supply failure.
Power supply failure.
Check if the plug is connected to the power
outlet and whether there is electric current
(or voltage) in the outlet.
There is no voltage in the
appliance.
Display does not
light up.
Choose the appropriate language (see
Additional settings: System settings /
Choose Language ).
You have not selected your
preferred language yet.
The wording on the
display unit is not
in your language.
Loosen and redistribute the laundry and
select the Drain program or the Spinning
program (Spinning).
A small amount of laundry will
often be unevenly distributed.
Wet laundry
("unbalance" will
appear on display)
Increase the amount of laundry in the
washing machine and restart the program
(see STEP 7/ STEP 7: Start the wash).
Wash the laundry again. When your laundry
is this heavily soiled, add more washing
powder or use a liquid detergent in
combination with a more powerful (longer)
program.
The laundry was very greasy.There are traces of
grease (or grease
rolls) on the
clothes.
Use a detergent that contains non chlorine
bleach.
You used bleach-free liquid
detergent or powder detergent
for colored laundry.
There are still
stains on the
laundry.
Use special stain removers.You selected an unsuitable
program.
Immediately rinse the laundry again.This is not due to poor rinsing
by your washing machine, but
rather due to phosphate-free
detergents which contain
ingredients (zeolites) for water
softening. These ingredients
may be deposited on the
laundry.
There are white
residues of
washing powder on
the laundry.
Use liquid detergents that do not contain
zeolites.
Try removing any residues with a brush.
71
Errors: what to do?
What to do?CauseProblem/error
Clean the filter on the water supply hose.Water pressure not high
enough.
There is powder
detergent left in the
main wash
compartment of the
detergent
compartment.
Choose High water level or Extra rinse (see
STEP 6: Choosing the program settings).
Wipe the detergent compartment before
adding the powder detergent.
Some washing powders may
stick strongly to the detergent
compartment if it is empty.
Make sure the plug cap in the softener
compartment of the detergent compartment
is positioned correctly. Clean the plug cap
(see chapter Cleaning and Maintenance/
Cleaning the dispenser tray).
The plug cap is not positioned
correctly or it is clogged.
There is fabric
softener left in the
fabric softener
compartment of the
detergent
compartment.
Check if the filter is clean.Residues of fabric, washing
detergent, and fabric softener
in the filter.
Odor in the
washing machine
drum.
Choose the Drum cleaning program (see
STEP 5/ Errors: what to do?).
Development of germs and
bacteria.
Level the feet (see chapter Installation and
connection/ Adjusting the washing machine
feet).
Feet not adjusted correctly.Machine is moving
during operation.
Remove the transport bolts (see chapter
Before using the appliance for the first time/
Transport protection).
Transport bolts not removed.
The washing machine will automatically
decrease the spin speed if vibration is too
strong.
Unevenly distributed laundry
or not enough laundry.
Machine is moving
during spinning.
Increase the amount of laundry in the
washing machine and restart the program
(see: STEP 7: Start the wash).
Make sure the drain pump filter is clean.The drain pump filter is
clogged.
Noisy (loud) drain
pump
Make sure the filter housing is clean. See
chapter Cleaning and Maintenance Cleaning
the filter.
Filter housing and drain pump
impeller are clogged.
72
Errors: what to do?
Manual opening of washing machine door
ELECTRIC SHOCK!
The washing machine door may be opened manually if the appliance is not connected to the
power mains and if the water has been pumped out of the machine.
A. Choose the program Spinning or Drain to drain the water from the machine. If this does not work,
water has to be drained from the washing machine drum manually. See chapter Cleaning and
Maintenance/Cleaning the filter.
B. Make sure the main switch is off and that the plug is disconnected from the power outlet.
C. You will need to use a flat-blade screwdriver (1) (the screwdriver is not included). Insert the
flat-blade screwdriver into the emergency door opening hole on the right side of the washing
machine door lock to push the "wheel" inwards and turn it clockwise until the washing machine
door opens. Do not use too much force to open the door with a screwdriver.
INFORMATION!
If the washing machine door still cannot be opened, call a service technician.
INFORMATION!
The door lock is motorised, which may cause noise during locking and unlocking. This is a normal
condition and no cause for concern.
73
Errors: what to do?
Failure display
In case of a failure while a program is underway, Error X is indicated on the display. Press and hold
the Ok button to display the error description on the display. Switch off the appliance and turn it
back on.
Errors indicated on the display unit (depending on the model) may include the following:
What to do?Error indication on the
display and error
description
Error
Restart the program. If the error reoccurs, call a service
technician.
Incorrect settingsE0
Inlet water too cold. Repeat the washing program.Temperature sensor
failure
E1
If the appliance reports this error again, call a service technician.
Make sure the washing machine door is closed.Door lock errorE2
Unplug the power cord from the outlet; then, plug the power cord
back into the outlet and switch on the washing machine.
If the error reoccurs call a service technician.
Check the following:Water filling errorE3
• is the water inlet valve open,
• is the filter on the water inlet hose clean,
• is the water supply hose deformed (clipped, clogged etc.),
• is the pressure in the water mains between 0.1 and 1 MPa
(1–10 bar),
• is the height of the drain hose is at the proper level (see
chapter Installing the drain hose),
and then press the OK button to resume the program.
If the error reoccurs call a service technician
Restart the program. If the error reoccurs, call a service
technician.
Water heating errorE6
Check the following:Water draining errorE7
• is the pump filter clean,
• is the drain hose clogged,
• is the drain clogged,
• if the drain hose is placed below the maximum and above
the minimum height (see chapter Installation and connection/
Connecting the water drain hose),
• if you have used too much detergent (a larger amount of
foam may form in the drum),
• and remove any objects and debris from the filter housing
and rotor.
then, press the Exit button again. If the error reoccurs, call a
service technician.
74
Errors: what to do?
What to do?Error indication on the
display and error
description
Error
Alert about reduced water flow in the pumping stage. Check
how to clean the pump filter (see chapter Cleaning and
Maintenance/ Cleaning the filter).
Water drain system alertE7.1
Too much detergent may cause excessive foaming in the drum.Excessive amount of
detergent
E7.2
Turn off the washing machine and turn it back on.
Inspect the exterior of the appliance. If you do not observe any
leaks, you can continue to use the washing machine.
Water leak detected in the
washing machine area
E9
E9.1
Close the water valve and see chapter Installation and
connection/ Connecting the water drain hose or call the service
center.
Unplug the power cord from the outlet; then, plug the power cord
back into the outlet and switch on the washing machine.
Vent the appliance. Do this by draining and cleaning the washing
machine filter and cleaning the wall-mounted trap.
If the error reoccurs call a service technician.
Water level sensor errorE10
E10.1
If there is water in the drum that exceeds a certain level, and an
error is reported on the display unit, the washing program will
be interrupted and water will be pumped out of the washing
machine. Restart the programe. If the error reoccurs, call a
service technician.
OverflowE11
If there is water in the drum that exceeds a certain level, and an
error is reported on the display unit, while the washing machine
continues to add water, close the water tap and call a service
technician.
Restart the program. If the error reoccurs, call a service
technician.
Motor error / motor control
error
E12
Imbalance detected. Manually redistribute the laundry (stuck or
tangled laundry) and repeat the washing program. If the error
reoccurs, call the service center.
Unevenly distributed
laundry
E13
Door is closed, but it cannot be locked.Error while locking the
door
E22
E22.1 Switch off the washing machine. Switch it back on and restart
the washing program.
If the error reoccurs call a service technician.
Door is closed, but it cannot be unlocked. Turn off the washing
machine, then turn it back on. If the error reoccurs, call the
service center.
Error while unlocking the
door
E23
E23.1
To open the door, see chapter STEP 7: Start the wash.
Door lock error. Restart the appliance; if the error reoccurs, call
the service center.
Error while unlocking the
door
E24
75
Errors: what to do?
What to do?Error indication on the
display and error
description
Error
Exceeded the locking current. Restart the appliance; if the error
reoccurs, call the service center.
Error while locking the
door
E26
Turn off the appliance and turn it back on. If the error reoccurs,
call a service technician.
Communication UI and
PMCU
E36
Error in UI** and PMCU
communication.
Call a service technician.PMCU/UI** software
versions are not
compatible
E37
A prolonged drop of voltage do below 180 V, or voltage in excess
of 260 V was detected, which can affect the washing machine
operation.
Warning from the system
for detecting extended
washing machine voltage
fluctuation – 180 V > U >
260 V
E40
Check the power supply network to which your washing machine
is connected.
The error only affects the option to remotely control (Remote
control) your washing program. it does not affect the washing
process on other programs.
Appliance cannot be
connected to the network.
E48
Call a service technician.
Warning - Drum cleaning
program
• clean the dosing container,
• clean the water supply hose, detergent dispenser, and
rubber door gasket,
• clean the pump filter (see chapter Cleaning the filter) and
• run the cleaning program (Drum cleaning) (see chapter
Program table).
This programe is used for cleaning the drum and removing the
residue of detergent and bacteria. Other extra functions cannot
be selected.
The drum must be empty. Do not add detergent or softener!
You can add some spirit vinegar (approx. 2 dl) or sodium
bicarbonate (1 tablespoon or 15 g) for effective descaling. We
recommend that you use the program at least once a month or
whenever the warning appears.
Wait for the process to finish. If no errors are shown after the
process, a new cycle can be run.
Preparation for unlocking
the door.
** UI = (User Interface)
Unevenly distributed laundry or lumps of laundry in the washing machine drum can cause problems
such as vibration and noisy operation. The washing machine detects such problems and the UKS*
(*stability control system) will be activated.
Smaller loads (e.g. one towel, one sweater, one bathrobe etc.) or clothes made of materials with
special geometrical properties are virtually impossible to distribute evenly across the washing
76
Errors: what to do?
machine drum (slippers, large items etc.). This results in several attempts to redistribute the laundry,
which in turn leads to longer program duration. In extreme cases of unfavorable conditions, the
program can be completed without the spinning cycle.
The UKS* (*stability control system) allows stable operation and a longer washing machine useful
life.
If the problems persist despite observing the advice above, call an authorized service technician.
INFORMATION!
Noise and vibration – make sure the appliance is levelled using the adjustable legs and that
the jam nuts are securely tightened.
INFORMATION!
The warranty does not cover consumables, minor deviations in color, increased noise that results
from appliance age and which does not affect the functionality of the appliance, and aesthetic
defects on components, which do not affect the functionality and safety of the appliance.
INFORMATION!
The warranty does not cover the errors or failures resulting from disturbances from the environment
(lightning strike, power grid failures, natural disasters etc.).
77
Errors: what to do?
Limited Warranty – Residential and Professional Appliances
This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. Service
must be provided by an authorized ASKO service company. YOUR SOLE AND EXCLUSIVE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This
Limited Warranty is valid only when the ASKO Product is used in the country in which it was
purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.
This warranty only applies to the original purchaser and is non-transferable.
Residential ASKO Products Used Exclusively for Household/Personal Purposes:
Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must
be filed with ASKO within two (2) years from date of purchase. Service will be provided during normal
business hours. ASKO Dishwashers eligible under 2024-2025 5-Year Warranty Promotion must be
registered via us.asko.com website within ninety (90) days of the date of purchase.
Residential ASKO Products Not Used Exclusively for Household/Personal Purposes or used
Commercially or used in Marine, Mobile or Aeronautical Applications:
One (1) Year limited Warranty – Any warranty service claims for ASKO Products not used exclusively
for household and personal use, or used commercially or used in marine, mobile, or aeronautical
applications must be filed with ASKO within one (1) year from date of purchase. Service will be
provided during normal business hours.
Professional ASKO Products Used In Residential or Commercial Applications:
Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must
be filed with ASKO within two (2) years from date of purchase. Service will be provided during normal
business hours.
Items excluded from warranty
This limited warranty does not cover:
1. Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent
with published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of the ASKO Product, to instruct you on how to use the
ASKO Product, to replace or repair house fuses, or to correct house wiring or plumbing.
3. Consumable items and parts, such as filters.
4. Damage resulting from accident, alteration, misuse, abuse, negligence, fire, flood, natural
disasters, improper use, improper installation, installation not in accordance with electrical or
plumbing codes, or use of products not approved by ASKO, as well as any attempted repair by
other than authorized ASKO service companies.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of the ASKO
Product, unless such damage results from defects in materials or workmanship and is reported
to ASKO within 5 days from date of purchase.
6. Pickup and delivery. The ASKO Product is intended to be repaired in your home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the ASKO Product.
8. Expenses for travel and transportation for product service if the ASKO Product is located in a
remote area where service by an authorized ASKO service company is not available.
9. The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location
or is not installed in accordance with ASKO’s published installation instructions.
10. Replacement parts or repair labor on ASKO Products with original model/serial numbers that
have been removed, altered or cannot be easily determined.
78
Service and warranty
Disclaimer
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow exclusion or limitations regarding
warranty rights. This Limited Warranty gives you specific legal rights and you may have other rights
that vary from jurisdiction to jurisdiction. Attempted repair by any person other than an authorized
ASKO service company will void this Limited Warranty.
Limitation of liability
IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS,
SUBSIDIARIES AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, EXEMPLARY,
PUNITIVE OR SPECIAL DAMAGES. IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND
THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER
THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID
FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the
exclusion or limitation of incidental, consequential or other damages, so these limitations and
exclusions may not apply to you. This Limited Warranty gives you specific legal rights. You also may
have other rights that vary from jurisdiction to jurisdiction.
ASKO Customer Care
Read the chapter Errors: what to do? before contacting the service department. If you have
encountered a problem that you cannot resolve, please contact your nearest dealer.
us.asko.com, +1-800-898-1879USA
Service after expiration of limited warranty
For information about obtaining parts and labor after expiration of this Limited Warranty or arising
outside the scope of this Limited Warranty, please contact ASKO Customer Care.
79
Service and warranty
Before calling customer service
See chapters Cleaning the filter, and Errors:
what to do? and see if you can resolve the
problem yourself.
When you contact the service center, please
state your model number (2) and type (1) and
the serial number (3) of the washing machine.
The model, type, and serial number are
indicated on the rating (type) plate located on
the interior side of the washing machine door.
The QR and AUID codes are located on the
inside of the washing machine door as well.
1 - Model type
2 - Model
3 - Serial number
4 - Article number
5 - QR code
6 - AUID code
INFORMATION!
Report any malfunction to your local call center; all information can be found in the enclosed
warranty statement. Contact details of your authorized service center are available in the warranty
statement supplied with the appliance and on the website by scanning the QR code on the rating
plate (see chapter Before calling customer service).
INFORMATION!
Some simple faults described in the chapter Errors: what to do? can be fixed by the user himself
by taking into account the instructions without risk to their own safety and without affecting the
warranty conditions.
WARNING!
In case of a failure, only use approved spare parts by authorized manufacturers.
80
Service
WARNING!
Repair or any warranty claim resulting from incorrect connection or use of the washing machine
shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the
user.
INFORMATION!
Functional spare parts for the ASKO washing machine you purchased will be available for 15
years. During this time, original spare parts will be available to ensure the correct operation of
your appliance.
A list of spare parts and repair tips in accordance with the current Ecodesign Directive can be
found by scanning the QR code located on the inside of the door of the washing machine.
Or on the following link: https://auid.connectlife.io
81
Service
Technical data
33 1/2" - 850 mmHeight
23 1/2" - 595 mmWidth
27 9/16" - 700 mmDepth
2.83 cu.ft. (80 L)Drum capacity
See the rating plateRated power
See the rating plateHeater power
14.5–145 PSI (0,1–1 MPa)Water pressure
14–142 PSI (1–10 kp/cm
2
)
14.5–145 PSI (10–100 N/cm
2
)
Stainless steelWashing drum and tub material
Hot-dip galvanized and powder coated sheet metal, or
stainless steel sheet (depending on model)
Housing material
59" (1,5 m), Aqua stop (straight)Water connection
63" (1,6 m), polypropylene hoseDrain hose
Typeface License Notice
This product includes the Noto Sans font, which is licensed under the SIL Open Font License, Version
1.1.
The full text of the license is available at: https://openfontlicense.org
Noto Sans is an open-source typeface developed by Google, and it may be used, modified, and
redistributed under the terms of the SIL Open Font License.
82
Technical information
Radio equipment type
HL3215STG(depending on the model)
HLW3215-TG
HLW3215-TG01
Wi-Fi
2.4000 GHz - 2.4835 GHzOperating frequency range
≤10 dBm/MHz (EIRP) (Antenna gain <10 dBi)Maximum output power
Gain: 0 dBiMaximum antenna gain
Bluetooth
2.400 GHz - 2.4835 GHzOperating frequency range
6 dBm (≤ 10 dBm)Carrier output
F1DEmission type
Declaration of conformity
The company declares that the device with the ConnectLife function complies with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of
Conformity can be found at the web address https://auid.connectlife.io on your device page under
additional documents.
83
Technical information
Spin speed - default LCD
(rpm)
1
Residual moisture content
(%)
1
Water consumption
(US gal/l cycle)
1
Energy consumption
(kWh/cycle)
1
Program duration
(h:min)
1
Capacity
Temperature
Program
MAX327,67/270.1000:30Full loadcoldNormal Cottonii
MAX327,67/290.1000:37Full loadwarmNormal Cotton
MAX327,67/290.1200:58Full loadhotNormal Cottoniii
MED4215,86/600.5702:351/2 loadwarmMix/Syntheticsiv
MED596,87/260.2300:451/4 loadwarmTime programv
MAX327,40/280.8301:23Full load
extra
hot
Normal Cottonvi
The cold program at the rated capacity for this programii
One cotton program at the nominal temperature of hot or higher, at the nominal capacity for
this program
iii
One program for textiles other than cotton or a textile blend, at the nominal capacity for this
program
iv
One program for quick washing of lightly soiled laundry, at the nominal capacity for this programv
One program for heavily soiled textiles, at the nominal capacity for this programvi
Due to the influence of water pressure, hardness, and inlet temperature, the type, quantity, and
soiling of the laundry, the detergent used, power supply, and selected functions, the actual
values may differ from the specified values.
1
The above table includes several examples of the use of energy, water, and time for several different
program settings. Actual consumption or duration may vary depending on the water pressure, water
hardness, water inlet temperature, room temperature, weight and type of load, changes in power
supply, and selected options or settings. In the examples specified here, the draining is set to Normal
and no additional options are selected.
Maximum or nominal load applies to laundry prepared pursuant to the IEC 60456 standard.
84
Table of consumption values
Adjustment of the displayed washing time
Advanced technology allows the appliance to sense the amount of laundry and add the required
amount of water during the washing process. Depending on the washing load, washing time can
be longer or shorter and the time displayed will be adjusted accordingly.
Moreover, displayed washing time may change due to differences in inlet water temperature. At low
inlet water temperatures, washing time can be longer; at higher temperatures, it can be shorter.
Unevenly distributed laundry or lumps of laundry in the washing machine drum can cause problems
such as vibration and noisy operation. The appliance can sense such lumps and will try to redistribute
the laundry. Smaller loads (e.g. one towel, one sweater, one bathrobe etc.) or clothes made of
materials with special geometrical properties are virtually impossible to distribute evenly across the
washing machine drum (slippers, large items etc.). This results in several attempts to redistribute
the laundry, which in turn leads to longer program duration.
85
Table of consumption values
OptionsWashing mode
Program
Start delay
Anti-crease
Rinse and hold
High water level
Super rinse
Prewash
Small load
Intensive mode
Speed mode
(Eco) Green mode
Default - Normal
Temperature
coldNormal Cotton
coldUniversal wash
warmMix/Synthetics
warmWhite laundry
warmColored laundry
warmWool/Hand wash
warmDelicates
warmSportswear
warmOuterwear
warmTime program
warmJeans
warmShirts/Blouses
warmBedding/Towels
warmDown
Steam Refresh
warmQuick PRO
Waterproofing
hotAnti-allergy Cotton
hotAnti-allergy synthetics
Rinse
Spinning
Drain
warmUnderwear
warmSwimwear
warmBaby clothes cotton
coldTextile trainers
warmSoft toys
Drum Cleaning
Choice of options
Cold wash
cold
86
Table options
Packaging is made of environmentally friendly materials that can be
recycled, disposed of, or destroyed without any hazard to the environment.
To this end, packaging materials are labelled appropriately.
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. Take the product to an
authorized collection center for waste electric and electronic equipment
processing.
When disposing of the appliance at the end of its useful life, remove all
power cords, and destroy the door latch and switch to prevent the door
from locking or latching (child safety).
Correct disposal of the product will help prevent any negative effects on
the environment and health of people, which could occur in case of
incorrect product removal. For detailed information on removal and
processing of the product, please contact the relevant municipal body in
charge of waste management, your waste disposal service, or the store
where you bought the product.
87
DISPOSAL
946955
www.us.asko.com
We reserve the right to make changes.
-a3
