User Manual: Stainless Steel CSS1 Refrigerator and FSS2 Freezer
To ensure safe operation, please read this user manual thoroughly before use.
© Husky. Husky reserve the right to change specifications at any time without notice.
Images used are for illustration only.
Husky UK CSS1 , FSS2 manual 190924.indd 1Husky UK CSS1 , FSS2 manual 190924.indd 1 24/09/2024 13:4719/09/2024 13:47
Welcome to your new Husky
2
Thank you for buying this Husky appliance. It has been designed and manufactured for many
years of trouble-free service.
Operation is very simple, but please take a few minutes to read this user manual. It contains
important safety information, and tips to ensure you receive the best possible service from your
Husky unit.
CONTENTS
Important Notes .......................................................................................................................................... 3
Warning! Risk of electrical shock hazard
............................................................................................ 3
Disposal of old appliances
................................................................................................................... 3
Users in Europe - WEEE compliance
................................................................................................... 3
Safety instructions and warnings
......................................................................................................... 3
How to minimise the energy consumption of your appliance
........................................................ 4
Before using for the first time
............................................................................................................... 4
Troubleshooting
.......................................................................................................................................... 5
Maintenance guide and how to get service assistance
.................................................................... 6
Cleaning .................................................................................................................................................. 7
Operating the electronic thermostat, and defrosting
....................................................................... 8
Fast freeze (FSS2), door open alarm and reversible door
................................................................ 9

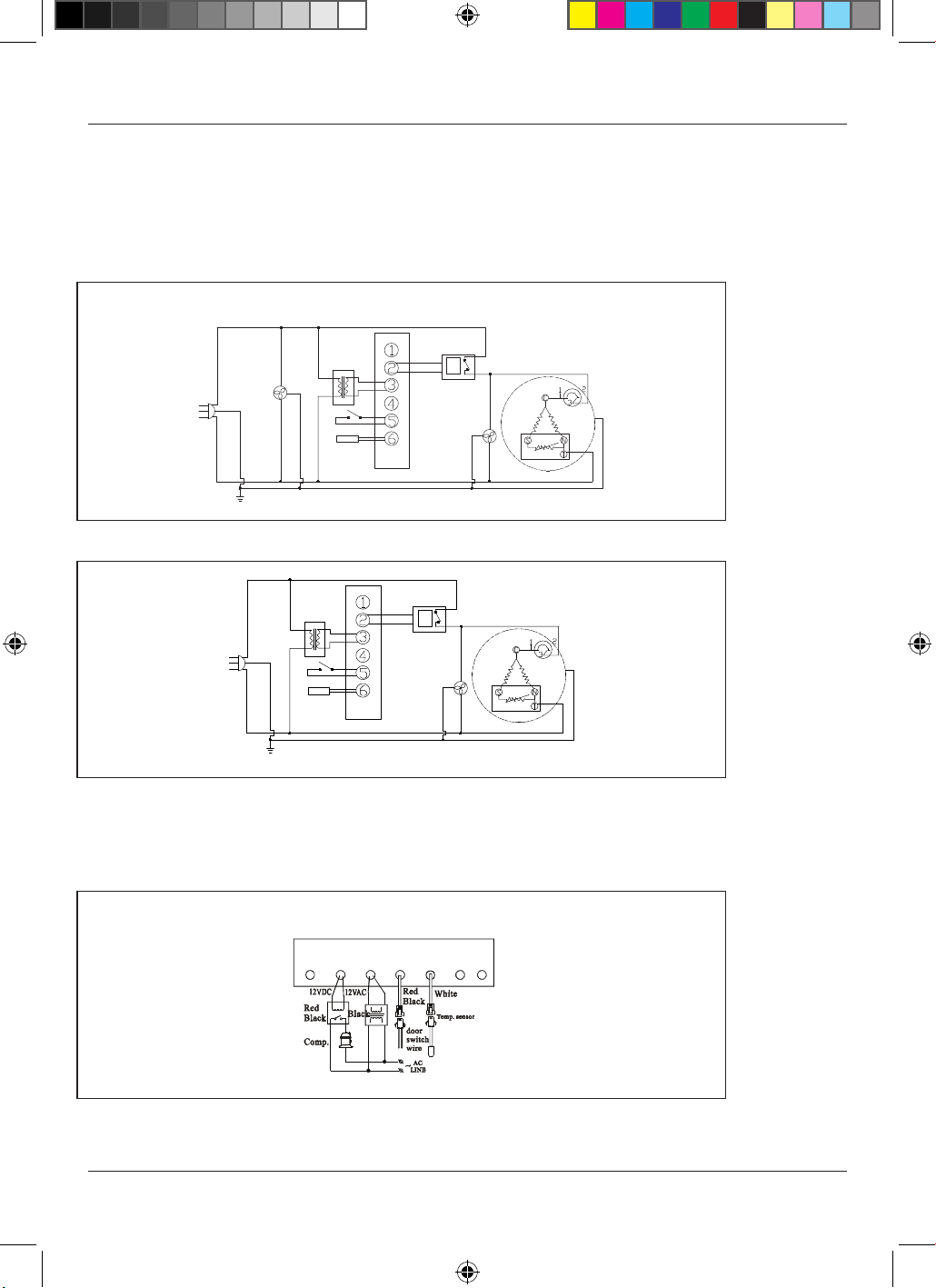

Circuit diagrams and controller wiring diagrams
............................................................................ 10
Husky UK CSS1 , FSS2 manual 190924.indd 2Husky UK CSS1 , FSS2 manual 190924.indd 2 24/09/2024 13:4719/09/2024 13:47
All models
Important Notes
WARNING: RISK OF ELECTRICAL SHOCK HAZARD
USERS IN EUROPE: This refrigeration appliance must be earthed.
If the power cable is damaged, it must be replaced by a qualified engineer to avoid shock
hazard. DO NOT ATTEMPT TO SERVICE THE ITEM YOURSELF. Ensure that the appliance is
properly earthed. Stop using the appliance immediately if an electric shock is felt when touching
the cabinet.
DISPOSAL OF OLD APPLIANCES
BE SURE TO MAKE ANY LOCKS UNUSABLE. IF POSSIBLE, REMOVE THE DOOR(S) AND
DISCARD SEPARATELY.
WARNING – CHEMICAL HAZARD: DO NOT ALLOW CHILDREN TO PLAY WITH OLD
REFRIGERATORS. CONTACT YOUR LOCAL AUTHORITY FOR PROPER DISPOSAL
PROCEDURES.
Before disposing of an old appliance, please make sure it is switched off and safe. Unplug the
appliance and break any locks in order to avoid children becoming trapped.
Please note: the refrigeration system contains gases and refrigerants which require specialist
waste disposal. The valuable materials contained in a appliance can be recycled.
Contact your local waste disposal depot for proper disposal of an old appliance and contact
your local authority or dealer if you have any questions.
Ensure the pipework of your appliance is not damaged prior to disposal. You can contribute to
the environmental awareness by insisting on an appropriate non-polluting method of disposal.
USERS IN EUROPE – WEEE COMPLIANCE
These appliances are authorised to carry the CE (Conformité
Européene) and WEEE (Waste Electrical and Electronic
Equipment Directive) symbols.
The WEEE symbol on this appliance indicates that the product
must not be disposed of with household waste. To help
prevent possible harm to health and the environment, the product must be disposed of by
recycling methods authorised as environmentally safe. For more information on how to
dispose of this product appropriately, contact your dealer or the recycling department at your
local authority.
These appliances and their components undergo strict product testing by independent
companies to comply or exceed all applicable local and international regulatory standards.
SAFETY INSTRUCTIONS & WARNINGS
Before switching on your appliance, read the information in this user manual carefully. The user
manual contains important observa tions relating to the assembly, operation and maintenance
of the appliance.
Please keep this user manual in a safe place for future reference. If you ever sell this appliance,
hand this user manual to the new owner.
3
Husky UK CSS1 , FSS2 manual 190924.indd 3Husky UK CSS1 , FSS2 manual 190924.indd 3 24/09/2024 13:4719/09/2024 13:47
4
The manufacturer does not accept responsibility for any damages that may arise due to non-
observation of these instructions.
• Do not use the appliance if it is damaged. If you are in any doubt, consult an engineer.
• Connection and installation of your appliance are to be carried out in strict compliance
with the relative instructions in this user manual.
• Make sure there is a suitable power outlet with proper grounding to power the
appliance.
• For safety, the appliance must be properly earthed in accordance with specifications.
• Always remember to unplug the unit before cleaning. Never unplug this appliance by
pulling on the power cable. Always grip plug firmly and pull straight out from the
socket.
• All electrical repairs must be carried out by a qualified engineer. Inadequate repairs
may be dangerous.
• Do not damage any parts of the appliance which carry refrigerant by piercing,
perforating, crushing, twisting or scraping. If refrigerant comes into contact with the
eyes it may cause serious eye injury.
• Do not obstruct or cover the ventilation grille.
• Do not allow children to play with the appliance, or to sit on it or hang onto the door.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabil ities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
HOW TO MINIMISE THE ENERGY CONSUMPTION OF YOUR APPLIANCE
• Energy consumption will be lower if the appliance stands in a well ventilated space and in
particular if the vents on the appliance are clear of obstruction.
• Do not place the appliance in direct sunlight or near a heat source such as ovens,
radiators, heaters, etc as this will increase energy consumption.
• Keep the appliance door closed as much as possible.
• Setting the thermostat colder means higher energy consumption, so set only as cold as
you really require.
• Do not overfill the appliance - overfilling means the cool air cannot circulate freely inside
the appliance which may slow the process of chilling/freezing the contents and make the
appliance less efficient.
• Defrost the appliance if frost can be seen building up inside - frost will increase energy
consumption and make the chilling/freezing process slower (see section ‘Defrosting’).
• Turn the appliance off completely if it is not required for a period of days (or longer) to
avoid wasting energy.
BEFORE USING FOR THE FIRST TIME
IMPORTANT: Before switching the unit on, we recommend you allow it to stand
upright for 8 hours. Failure to do this may result in damage to the appliance.
• Remove packaging.
• To ensure correct operation, it is important that the appliance is level. The cabinet may
be levelled by turning either or both of the adjustable feet in the front corners. Use a
spirit level to check.
• Before operation, we recommend that the cabinet is cleaned for reasons of hygiene
and to remove any residue left from manufacture.
• For good circulation, vents must not be blocked. Keep a minimum of 100mm of clear
space around the appliance. Your appliance should be placed on flat and firm surface
for quieter operation. Failure to do so may cause loss of performance.
• Do not expose the appliance to direct sunlight or a heat source such as ovens,
radiators, heaters, etc. Failure to do so may cause loss of performance.
• Do not under any circumstances place heated food or beverages in your appliance.
• Do not open the door more often than necessary to lessen the escape of cold air.
• For better air circulation, do not overfill the appliance.
• Adjust the thermostat according to the amount of product and the ambient
temperature.
Husky UK CSS1 , FSS2 manual 190924.indd 4Husky UK CSS1 , FSS2 manual 190924.indd 4 24/09/2024 13:4719/09/2024 13:47
Troubleshooting
Before calling Technical Support, please check the following points; you may be able to solve
any problem yourself.
5
Problem Possible Cause Action
The appliance has no power.
The appliance is not plugged
in.
Connect the plug to the power
supply.
The plug and/or the power
cable are faulty.
Call your supplier or a quali-
ed engineer.
The fuse has blown.
Replace the fuse with one of
the same rating.
The appliance’s internal tem-
perature is too high or too low.
The wrong temperature is
selected.
Check the controller and
adjust the set temperature.
The factory default settings for
the controller are incorrect.
Contact Husky for advice.
The condenser is blocked by
an accumulation of dust.
Clean using a vacuum cleaner
and soft brush attachment
(see p7).
The door is not fully closed.
Check the appliance is level
and the door seals are not
damaged or not seated
correctly.
The appliance is close to a
heat source or the ambient
temperature is too high.
Move the appliance to a better
location and check it is out of
direct sunlight.
The ventilation grille is
blocked.
Move the appliance to im-
prove free movement of air.
The appliance is noisy in
operation or makes unusual
noises.
• Note: It is normal to hear
some noises as refrigerant
ows through the com-
pressor.
The appliance is not on a level,
rm surface, or the appliance
may be touching other items.
Check location and position
using a spirit level.
The appliance is vibrating
against a neighbouring object.
Relocate the appliance or the
object.
Outer surfaces are wet
Appliance may be close to a
water source or leak.
Dry surfaces thoroughly and
move the appliance.
Inner surfaces are wet
The door may be opened too
often or kept open too long.
Door gasket may be unseated
or damaged.
Try to minimise the opening
of the door for better cooling
performance. Ensure door seal
is seated correctly and replace
if worn or damaged.
Husky UK CSS1 , FSS2 manual 190924.indd 5Husky UK CSS1 , FSS2 manual 190924.indd 5 24/09/2024 13:4719/09/2024 13:47
6
General operating instructions
Operating Instructions
EASY MAINTENANCE ACCESS
Switch the appliance off and disconnect from the mains supply. To access the compressor compartment,
simply remove the screws securing the rear access panel – see Fig 1 on page 7. Any repairs or maintenance,
other than CLEANING (see below) must be carried out by QUALIFIED ENGINEERS ONLY.
CLEANING
The condenser and the compressor compartment MUST be cleaned quarterly. Switch the
appliance off and disconnect from the mains supply. See ‘Easy Maintenance Access’ how to
access the compressor compartment. Use a vacuum cleaner fitted with a soft brush attachment
to remove dust carefully from the condenser, the components and grilles – see Fig 2 on page
7.
The external and internal surfaces of the appliance should be cleaned regularly. Switch the
appliance off and disconnect from the mains supply. Clean the external and internal surfaces
of the appliance with a mild soap solution, then wipe dry. Do NOT use cleansers containing
chlorine or other harsh cleansing agents, as these can damage the stainless steel surfaces and
components. Use mild soapy water to clean the gasket and seals.
GETTING SERVICE ASSISTANCE
The cooling system is a hermetically sealed circuit and does not require any maintenance other
than regular cleaning (see ‘Cleaning’).
If the appliance fails to work, first check the power supply. If you cannot locate the reason for
the failure, please contact your supplier, stating the model and serial number of the cabinet.
You may find this information on the rating plate, which is affixed inside the unit on the top
right-hand interior wall.
Husky UK CSS1 , FSS2 manual 190924.indd 6Husky UK CSS1 , FSS2 manual 190924.indd 6 24/09/2024 13:4719/09/2024 13:47
7

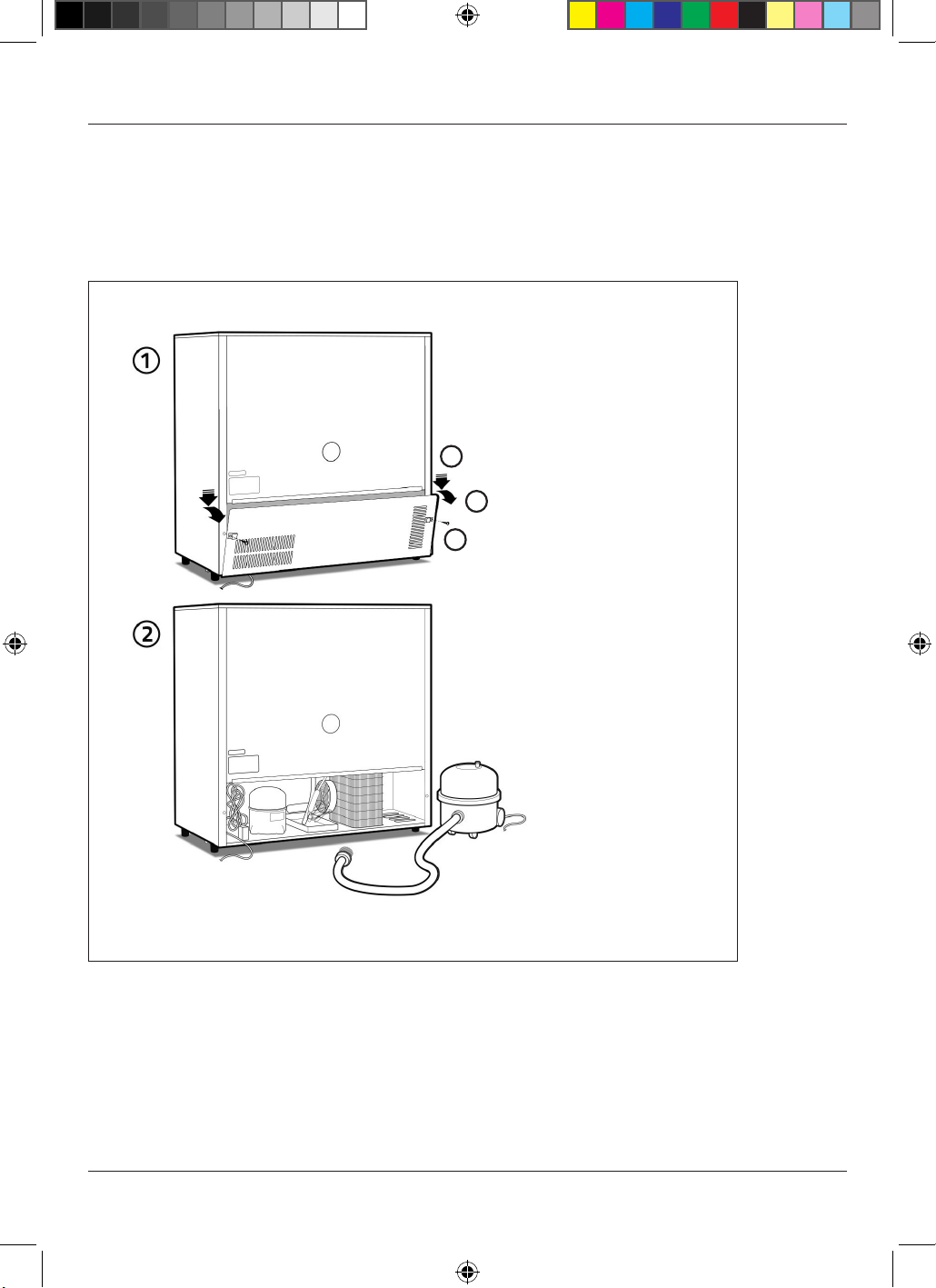

To access the compressor
compartment:
i. Remove the two screws.
ii. Push the removable panel
down slightly to free it
from the securing flange.
iii. Angle the removable panel
forwards and down to
remove it.
i
ii
iii
Cleaning
Husky UK CSS1 , FSS2 manual 190924.indd 7Husky UK CSS1 , FSS2 manual 190924.indd 7 24/09/2024 13:4719/09/2024 13:47
8
TO OPERATE THE ELECTRONIC THERMOSTAT
The thermostat has been pre-set, and in most cases it is not necessary to adjust the settings.
When the appliance is operating normally, the display will show the current temperature.
To display the set temperature press the
button. Press the button again to return to
normal operation.
To set a new temperature, press
. The display will flash and the current set temperature will
be displayed. Press the button to increase the set temperature, or press the
button
to decrease the set temperature. Press the
button to save the new setting. The display will
flash with the new value and then revert to display the cabinet temperature.
Please note:
1. When the appliance is connected to the mains for the first time there will be a short
delay before cooling starts. During this time the Refrigeration Light will flash. After
the short delay, cooling will begin and the Refrigeration Light will be illuminated.
When the appliance reaches the set temperature, the Refrigeration Light will be off.
2. If you do not press any button, after six seconds the controller will return to its normal
display.
DEFROSTING
The appliance defrosts automatically at preset intervals. If however the door is opened too
often, or if the appliance if in a location with high humidity, or if the contents are changed more
frequently, it may be necessary to defrost the appliance manually. To start or stop manual
defrosting, press the
button for six seconds. The Defrosting Light will be illuminated.
Melted water runs to a container placed in the compressor compartment and evaporates. After
defrosting is complete, the appliance will return to normal operation.
Husky UK CSS1 , FSS2 manual 190924.indd 8Husky UK CSS1 , FSS2 manual 190924.indd 8 24/09/2024 13:4719/09/2024 13:47
9
FAST FREEZE (FSS2H ONLY)
To start quick freezing: Press “Up Arrow” for 3 seconds to start the quick-freezing function. The
corresponding LED will light. The compressor will continue to run until the temperature is
reached to the one set.
DOOR OPEN ALARM
If the door remains open for 1 min or longer an alarm will be activated. The display will show
“dr” and the room temperature alternately. A buzzer will also sound to indicate the door
opening, press any button to mute the buzzer.
REVERSIBLE DOOR
As standard both CSS1 and FSS2 models are supplied with the door hinged on the right-hand
side, opening from the left hand side. Should you wish to change the opening direction follow
the steps as follows:
1. Unplug the cabinet from the mains.
2. Open the door to access the screws for the top hinge.
3. Remove the four screws from the top hinge.
4. Carefully lift door to remove from the cabinet.
5. Remove the four screws from the bottom hinge.
6. Repeat Steps 1-5 in reverse to refit the door on the opposite side.
Husky UK CSS1 , FSS2 manual 190924.indd 9Husky UK CSS1 , FSS2 manual 190924.indd 9 24/09/2024 13:4719/09/2024 13:47
10
Condenser Fan
Temperature
Controller
Relay
Compressor
PTC
Over load
Protecter
Sensor
Transformer
YL/GN
L
E
N
Power Plug
Door switch
1
Circuit Diagrams
Condenser Fan
Temperature
Controller
Relay
Compressor
PTC
Over load
Protecter
Sensor
Transformer
Evaporator Fan
YL/GN
L
E
N
Power Plug
Door switch
CSS1H REFRIGERATOR
FSS2H FREEZER
Wiring Diagram
1
2
3
4 5
6 7
ELECTRONIC THERMOSTAT SF-102SQ
CSS1H REFRIGERATOR
Husky UK CSS1 , FSS2 manual 190924.indd 10Husky UK CSS1 , FSS2 manual 190924.indd 10 24/09/2024 13:4719/09/2024 13:47
11
Notes
Husky UK CSS1 , FSS2 manual 190924.indd 11Husky UK CSS1 , FSS2 manual 190924.indd 11 24/09/2024 13:4719/09/2024 13:47
19.09.24
www.husky.co.uk
HELPLINE/TECHNICAL SUPPORT
Tel: 01455 555340 (Monday to Friday 0900 – 1700).
Email: sales@husky.co.uk
SALES
Tel: 01455 555340 (Monday to Friday 0900 – 1700).
Email: sales@husky.co.uk
OUT-OF-WARRANTY SPARES
Email: sales@husky.co.uk
Welcome to Husky, the home of smart refrigeration. We are a leading
global refrigeration specialist with over 25 years experience in
commercial refrigeration for convenience and hospitality professionals.
Whatever your requirements, we’re sure to have a good looking energy-
efficient model that’s perfect for you.
Husky UK CSS1 , FSS2 manual 190924.indd 12Husky UK CSS1 , FSS2 manual 190924.indd 12 19/09/2024 13:47
