PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
•
One Pair 6.5'' Two-Way Coaxial Speaker Systems
• Butyl Rubber Surround
• 1'' High-Temperature KSV Voice Coil
• Black Sandblasting Paper Cone
• 1'' Swivel Neodymium PEI Dome Tweeter
• Built-in Matching Crossover Network on Speaker Unit
• OE Replacement Mounting Bracket with Non-fabrication Quick Wire Connector
• Fitting HONDA Civic Lower Front Door and Rear Deck Coaxial Speaker
Upgrade Replacement
• Fitting ACURA Rear Door Coaxial Speaker Upgrade Replacement
What's in the Box:
• (2) 6.5” 2-Way Speakers
• (2) OE Replacement Mounting Brackets (Pre-Installed on Speakers)
Transmitter Technical Specs:
• Power Handling: 300 Watts MAX
• Impedance: 4 Ohm
• Sensitivity: 93 dB
• Mounting Depth: 2.24''
• Mounting Depth with Gasket: 1.54”
• Magnet Weight: 11 oz.
• Weight of Speaker with Gasket: 1.89 lbs.
• Frequency Response: 80Hz - 20KHz
• Product Dimension: 6.6'' x 6.6'' x 3.11'' -inches
• Product Dimension with Gasket: 6.77'' x 7.08'' x 3.11'' -inches
ww w.PyleUSA.com
2
ww w.PyleUSA.com
3

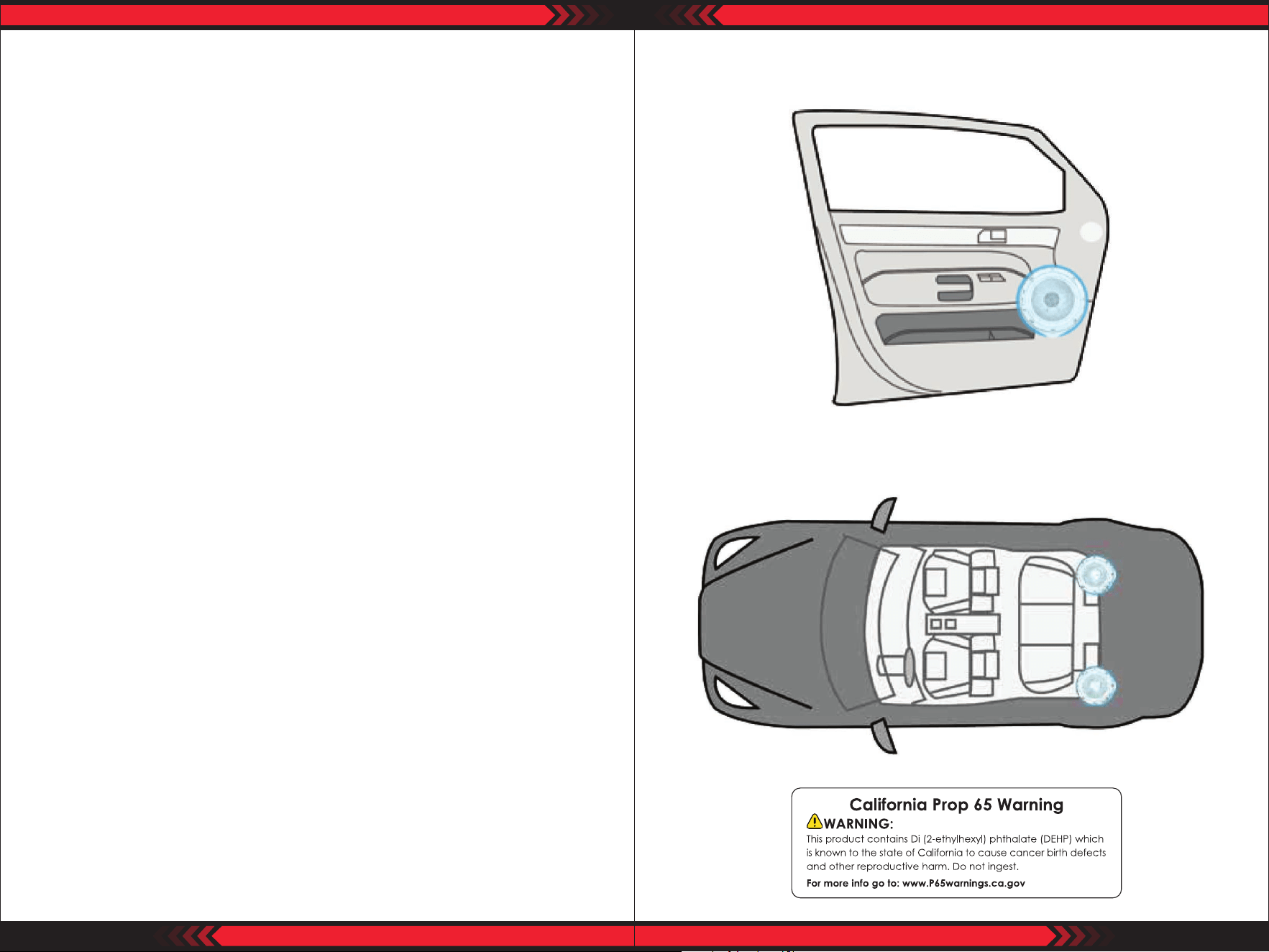

INSTALLATION MANNERS AND LOCATION:
Option 1: 6.5” Front door coaxial speaker
Option 2: 6.5” Rear deck corner coaxial speaker
