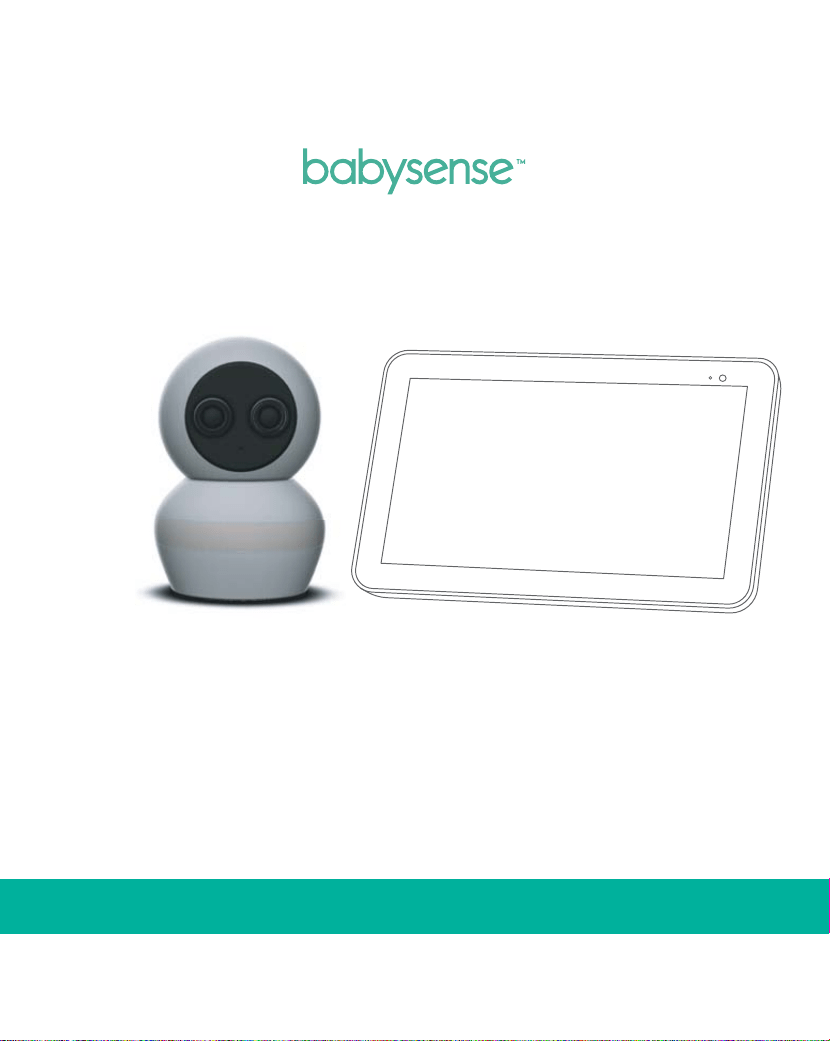

User Guide
babysense Touch+1 - 1 Camera
babysense Touch+2 - 2 Cameras
For any product related question please contact us at:
www.babysensemonitors.com
Thank you for choosing Babysense Video Monitor from Hisense Ltd.
TOUCH
7’’ Dual-mode video baby monitor
Warnings and Safety Instructions
Follow these safety precautions to prevent fire, injury or damage to the product.
Read and keep instructions: It is very important that you read all the safety and
operating instructions before the Babysense Video Monitor is operated.
Please retain your purchase receipt as you will need to produce it if warranty service is
required.
WARNINGS
STRANGULATION HAZARD: Children can become entangled in cords. Make sure the
Baby Unit, Parent Unit and mains adaptor cables are kept out of reach of your baby
and other young children at all times, at least 6 feet away.
CHOKING HAZARD: This product contains small parts which may cause choking.
Exercise care when unpacking and assembling the product and keep the small parts
away from children.
RISK OF SUFFOCATION: Keep all packaging materials and protective foils out of reach of
children.
DANGER FROM POWER CORDS: To avoid possible danger from power cords, the cords
should be secured and never be hung on or near the crib. Never place the Baby unit or
Parent unit inside your baby's crib, bed or playpen.
DO NOT HANDLE ROUGHLY, DROP OR THROW: Babysense video monitor is a high-quality
electronic device which must be handled with care.
This product is designed for INDOOR USE ONLY.
WATER AND MOISTURE: The product should not be exposed to rain, moisture, or
splashing. Never use or place the product in or near moisture or water.
Safety Instructions
2
THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION: Your video monitor is
designed to be an aid and should not be used as a substitute for responsible and
proper adult supervision of a child.
POWER SOURCE: This product should only be used with the AC power adapters
supplied by the manufacturer, as included in this package.
VENTILATION: This product should not be used on a bed, sofa, rug or similar surface
that may block the ventilation or speaker openings, or be placed in an enclosed area,
such as a bookcase or drawer that may impede air flow. Never cover the product with
clothes, towels, blankets or any other item.
• THIS PRODUCT IS NOT A TOY: It should be kept out of children's reach.
• KEEP AWAY FROM SOURCES OF HEAT: This unit should not be exposed to direct heat
sources such as a candle, stove, radiator, heat register or other appliance that emit
heat. The unit should not be left in direct sunlight.
• BATTERY: Before you use the product, we recommend you fully charge the battery of
the Parent Unit, so that it continues to work if you disconnect it from the power supply
to carry it to another location.
• INSTALLATION LOCATION: The installation location plays an important role in ensuring
proper operation. Therefore, maintain a distance of at least 5 feet from other
˘˟˘˖˧˥ˢˡ˜˖˘ˤ˨˜ˣˠ˘ˡ˧ʟ˦˨˖˛˔˦ˠ˜˖˥ˢ˪˔˩˘ˢ˩˘ˡ˦ˢ˥ˊ˜ϸʹ˜˥ˢ˨˧˘˥˦ʟˢ˧˛˘˥˪˜˦˘˧˛˘ˬ˖ˢ˨˟˗
cause interference. If this occurs, move the baby and parent units to another location.
• RANGE: Range of all baby monitors is always measured in an open space. The actual
range may be shortened due to environmental obstacles (such as concrete walls).
• DAMAGE REQUIRING SERVICE: This product should be serviced by qualified personnel only.
• DO NOT TRY TO OPEN AND REPAIR THE PRODUCT: If you have any problems with the
product, please contact the authorized distributor.
• In case of unusual noises or smells originating from the device, immediately
disconnect the product from the power outlet and contact authorized distributor.
• If the product becomes dirty, use a lightly damp soft cloth to wipe surfaces, taking
care to not allow water into any openings.
IMPORTANT: Babysense Video Monitor is designed only for hearing the baby’s voice
and seeing the images of the baby. This product is not a medical device and should
not be used as a substitute for responsible adult supervision. It is important that you
regularly check on your baby personally.
3
Safety Instructions
Safety Instructions for AC Power Adapter
The adapter should not be exposed to direct heat sources such as a candle, stove,
radiator, heat register or other appliance that emit heat.
During continual use, the power adapters may become warm to the touch. This is
normal and should not be a cause of concern.
Examine the condition of the power cord and its plug.
The adapter must be handled with care: do not handle roughly, drop or throw.
When removing the power adapter from the wall outlet, hold and pull from the
receptacle.
Do not pull on the cable itself or bend the cable as that will put additional stress on the
cable and could lead to damages.
Do not touch the power adapter with wet hands or allow liquids to spill on it.
Make sure the adaptor cables are kept out of reach of your baby and other young
children at all times. To avoid possible danger from power cords, the cords should be
secured and never be hung on or near the crib.
Do not replace the plugs or cable on your power adapter. This product should only be
used with the AC power adapters supplied by the manufacturer, as included in this
package.
Never cut, damage or bend the power cord.
Do not put any objects on top of the power cord, which could cause overheating,
damage, combustion and electrocution.
Do not leave the power adapter connected to the wall outlet when it is not plugged
into the Baby or Parent Unit.
WARNING:
Do not replace the AC power adapter with non-original substitutes. Improper
connection may cause electrocution.
Do not place the AC power adapter cable in a high wear and tear location. Never use
a frayed or compromised cord.
Intended for indoor use only.
4
Safety Instructions
Safety Instructions for Li-ion battery (Non removable pre-installed battery)
Do not attempt to repair or adjust any of the electrical or mechanical functions of the
unit.
Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries.
If a battery leaks, do not let the battery liquid touch skin or eyes. If this happens,
immediately flush the affected areas with water, and seek medical assistance.
The battery should not be exposed to direct sunlight or heat sources such as a candle,
stove, radiator, heat register or other appliance that emit heat.
Do not modify, remanufacture, attempt to insert foreign objects into the battery, or
immerse or expose it to water or other liquids. Batteries may explode if damaged.
Use only the battery pack supplied with the product or the same type, sold by the
manufacturer or its authorized distributors. Improper use or use of unapproved
batteries may present a risk of fire, explosion, or other hazards, and may invalidate the
warranty.
If you believe the battery is damaged, remove product from the charger and stop
using the product.
Never use a damaged battery.
Devices charged with non-authorized AC power adapter, may cause a possible
significant deterioration to the battery and/or may result in the battery swelling,
exploding or significant damage.
Information on disposal of product
Always dispose of your product (with the non removable pre-installed battery) at the
end of their life in an environmentally responsible way and in accordance with your
local waste disposal requirements.
All cardboard and paper packaging materials should be recycled in accordance with
your local
Safety Instructions
5
What's Included
User Guide
x 1
Screws
x 6
Camera
x 2
USB Cable A to C
x3
Mounting Bracket
x 2
Power Adapter
x 3
Wall Mount
x 2
Drywall Anchors
x 6
Monitor
x 1
Touch +2
User Guide
x 1
Screws
x 3
Camera
x 1
USB Cable A to C
x2
Mounting Bracket
x 1
Power Adapter
x 2
Wall Mount
x1
Drywall Anchors
x 3
Monitor
x 1
Touch +1
6
Overview
1
2
3
4
5
1
2
3
4
6
7
7
6
7
8
9
5
Lens
Infrared LEDs
Speaker
Reset
Power Port
Temperature & Humidity Sensor
TF Card
Microphone
Night Light
10
11
12
13
14
10
11
12 13
14
Light Sensor
Microphone
Power Port
Power Button
Speaker
8
9
7
ICONS
Night Light
Brightness
Volume 2-Way Talk
Lullabies
Display mode
Pan-Tilt-Zoom Menu
Time Battery status
Pan-Tilt
Tap to Center
Zoom
Hum.Temp.Camera StatusMonitor Status
Camera 1
Split Mode
Patrol Mode
Display mode
Connected directly
Connected via Wi-Fi
Offline
Camera Status
Camera and monitor are
connected directly
Monitor Status
Camera and monitor are
connected to Wi-Fi
8
Menu
About
System Info
Contact us
General Settings
Wi-Fi Setting
Turn on/off low battery alert tone
Turn on/off no link alert tone
Factory reset
Firmware update
Camera manage
Monitor Settings
Temperature setting
Feeding reminder setting
Sleep mode delay
Screen brightness
Time setting
Camera Settings
Turn on/off cry detection
Turn on/off face covered detection
Turn on/off auto tracking
Camera calibration
Lullabies
Play lullabies or soothing sounds.
Adjust the playback volume.
Select play mode and playback time.
Main Menu
9
Pair to Cheego Monitor
The camera is paired to the Parent Unit when supplied. There is no
need to pair the units again unless the camera loses its link with the
Parent Unit. To renew the pairing of your units or pair a new/additional
camera, Tap "Menu > Tools > Add/Remove cameras"
on the monitor
You can purchase extra cameras to add to the system, supporting up to
four cameras in total.
NOTE: Before you begin pairing, ensure the Camera and Parent Units
are side by side and turned on.
10
Camera Parent Unit
Download APP For Mobile Access
Scan QR Code
Install Babysense Smart Nursery app.
Follow app steps to complete the camera connection.
Note: Camera supports 2.4GHz network only
11
Specifications
General:
Camera:
Monitor: 7" IPS touch screen
5200mAH (pre-installed in Parent Unit)
WIFI 2.4GHz 802.11b/g/n/ax+BLE5.0
15 hours(standby)/6hours(screen on)
6 hours（power off）
7.09×4.13×2.17 inches
14.1 ounces
Display:
Rechargeable battery
Connectivity:
Duration:
Time to Full Charge:
Dimensions:
Item Weight:
Wi-Fi 2.4GHz 802.11b/g/n/ax+BLE5.0
1000 feet (open space)
Up to 4
DC5V / 2A
32°F~104°F
VDM70
Input: 100-240VAC 50 / 60Hz, 200mA Max;
Output: 5V, 2A; (Model: xxxxxxxxxxx)
Connectivity:
Transmission Range:
Camera Channels:
Power:
Working Temperature:
Product model:
Power Adapter
2560*1440
3.0mm / F2.0; 6.3mm / F2.0
110°~18° (diagonal)
240°/70°
Android 11.0/IOS 13.0 or above
WIFI 2.4GHz 802.11b/g/n/ax+BLE5.0
32GB TF Card（not for sale）
Wall Mount
2.68 x 2.56 x 4.33 inches
7.05 ounces
Resolution:
Lens :
Field of View:
Pan/Tilt Range:
Support System:
Connectivity:
Storage:
Mounting Type:
Dimensions:
Item Weight:
12
Maintenance
All of the following maintenance procedures should only be performed when Baby
and Parent Units are unplugged and off.
Clean the surfaces of the Baby and Parent Units with a soft, fluff-free cloth.
Never use cleaning agents or solvents.
If the units become dirty, use a lightly damp cloth to wipe surfaces, taking care not
to allow water into any openings.
Troubleshooting
QR Code
IMPORTANT: If the above troubleshooting guide did not help you solve your problem,
please contact our customer service via:
Email - [email protected]
Toll Free Number – (833) 568-2229 (USA ONLY)
13
FCC Statements
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Statements
14
Warranty
Warranty Terms
We take quality very seriously. This is why all of our products come with a one-year
warranty from the original purchase date against defects in workmanship and materials. If
you have warranty or support issues, please contact our customer service.
Customer Support
If you have any problems setting up or using this product, you will find useful tips and
information in the Troubleshooting section of this user guide.
If you have any further questions about using the product after reviewing the resources
above or would like to purchase replacement parts or accessories, please contact us via:
Email - [email protected]
Toll Free Number – (833) 568-2229 (USA ONLY)
NOTE: You can always find our contact details in the setting menu in your Parent Unit on the
customer service page.
IMPORTANT:
Please retain your purchase receipt and attach to the back page of this user manual as you
will need to produce this if warranty service is required.
15
BSTouch.UG.01.(US).10.25
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
FCC Warning Statement:
