ITEM #5730160
MODEL #ABB17MBK3LR
Español p. 22
ATTACH YOUR RECEIPT HERE
ABBINGDON CEILING FAN
Purchase Date
Questions, problems, missing parts? Before returning, contact us on:
800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
4007498
APPROVED FOR USE
IN DAMP LOCATIONS
2
TABLE OF CONTENTS
Safety Information
.......................................................................................................................................
2
Package Contents ..................................................................................................................................... 5
Hardware Contents .............................................................................................................................
.........
6
Preparation
.................................................................................................................................................
6
Initial Installation ........................................................................................................................................ 6
Downrod-Style Fan Mounting ................................................................................................................... 8
Closemount-Style Fan Mounting ............................................................................................................. 10
Wiring ...................................................................................................................................................... 11
Final Installation .....................................................................................................................................
.
. 14
Installing Fan Without Light Kit................................................................................................................. 16
Operating Instructions ........................................................................................................................... 17
Care and Maintenance ............................................................................................................................ 19
Troubleshooting..................................................................................................................................
........
20
Limited Lifetime Warranty .......................................................................................................................
.
21
Replacement Parts List ........................................................................................................................... 21
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
3
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or packing material. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 16.98 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing
them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
5

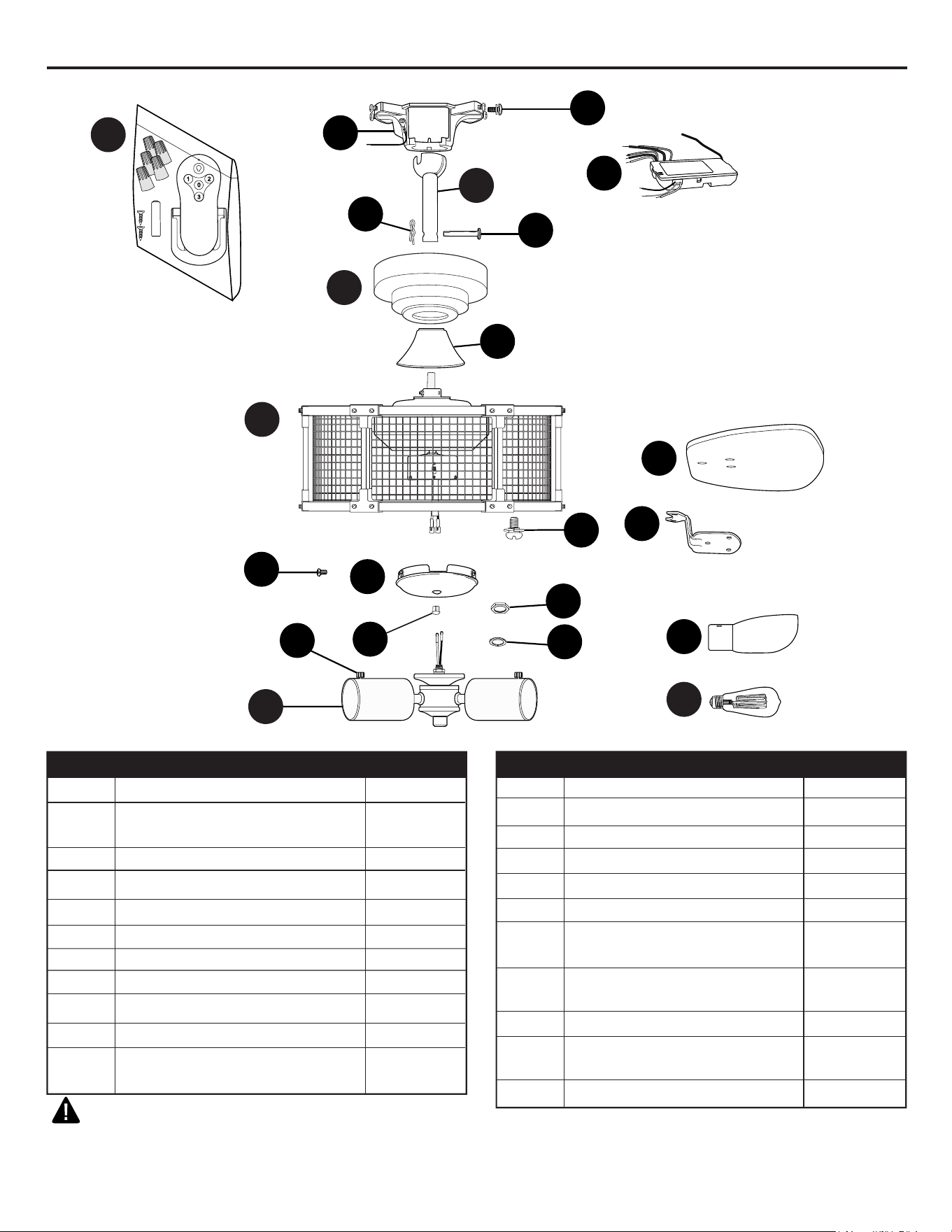

PACKAGE CONTENTS
A Mounting Bracket 1
B Canopy Mounting Screw/ 4
Lock Washer (preassembled)
C Downrod 1
D Pin (preassembled) 1
E Clip (preassembled) 1
F Canopy 1
G Remote Pack 1
H Yoke Cover 1
I Motor Housing Assembly 1
J Switch Housing Cap 1
K Switch Housing Cap Screw 3
(preassembled)
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
L Bulb Shield 3
M Light Kit Fitter 1
N Bulb 3
O Blade 3
P Remote Control Receiver 1
Q Blade Arm 3
R Motor Screw/Lock Washer 6
(preassembled) + 1 extra
S Bulb Shield Screw 3
(preassembled) + 1 extra
T Hex Nut (preassembled) 1
U Lock Washer 1
(preassembled)
V Cap (preassembled) 1
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
L
D
E
H
I
G
J
N
Q
S
M
P
O
F
K
B
A
C
T
U
R
V
6

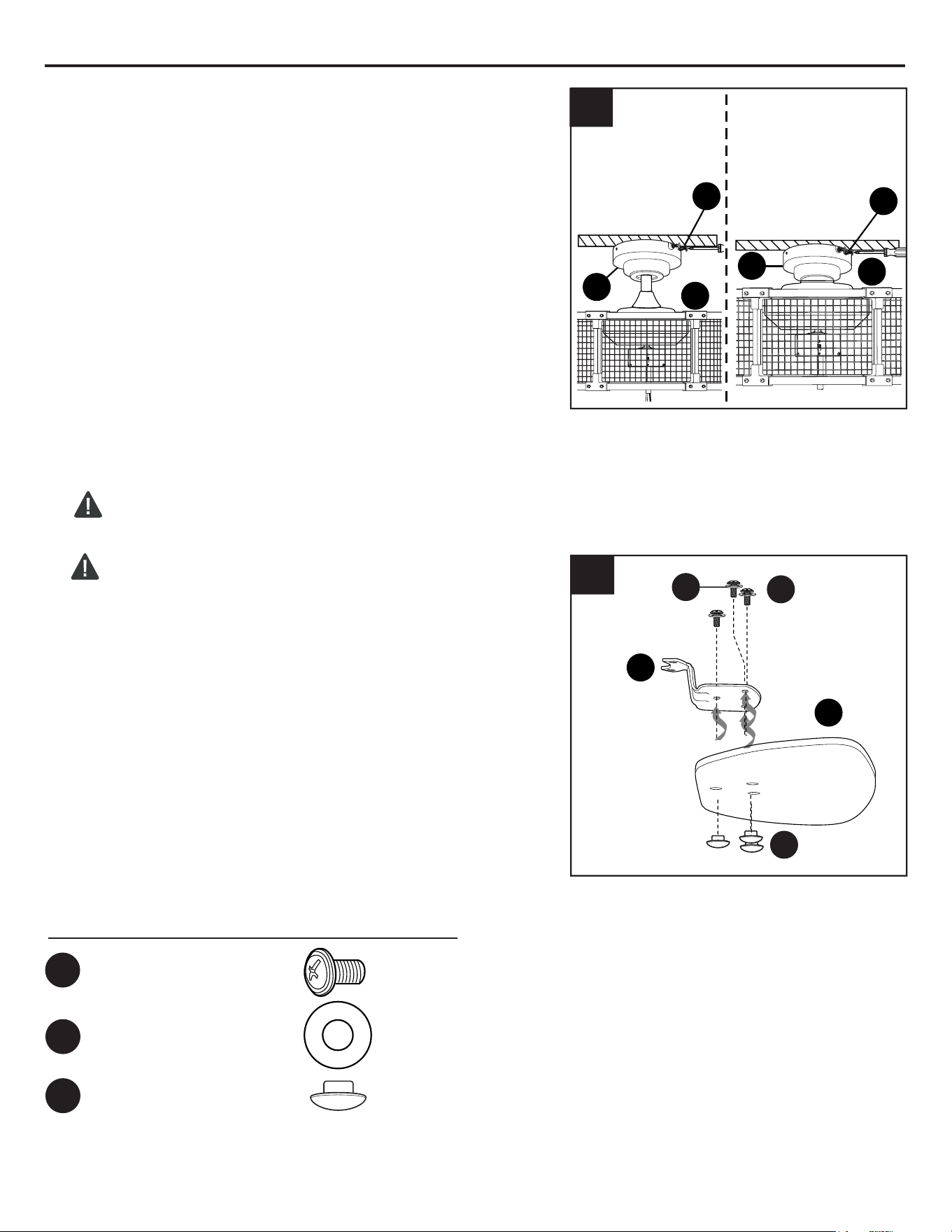

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder, Wire Strippers and Precision Screwdriver (2 in.)
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
AA
Blade
Screw
Qty. 9
+ 1 extra
Fiber
Blade
Washer
Qty. 9
+ 1 extra
BB
CC
EEDDCC
Hook
Qty. 1
Decorative
Nut
Qty. 9
+ 1 extra
Wire
Connector
Qty. 4
ON
OFF
ON
OFF
1

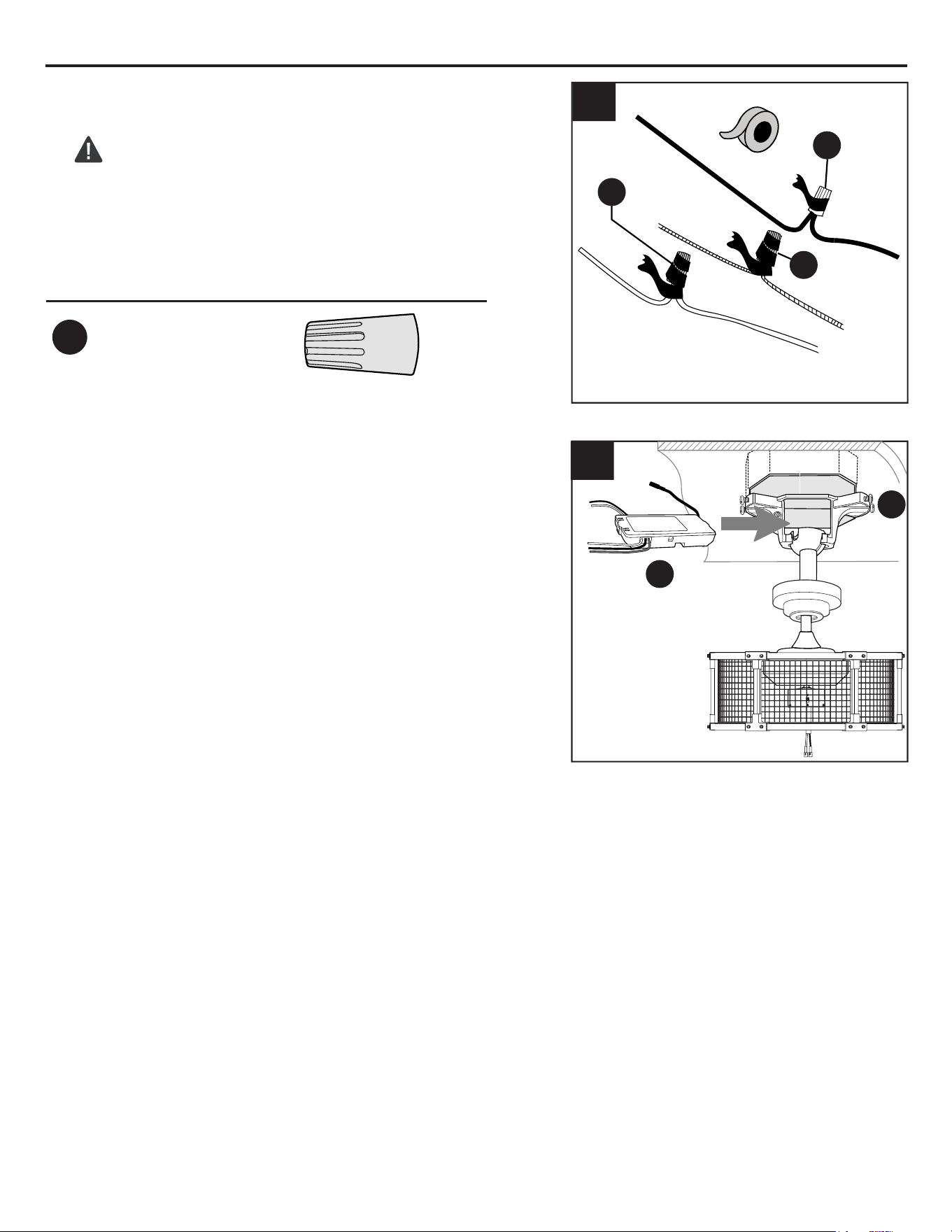

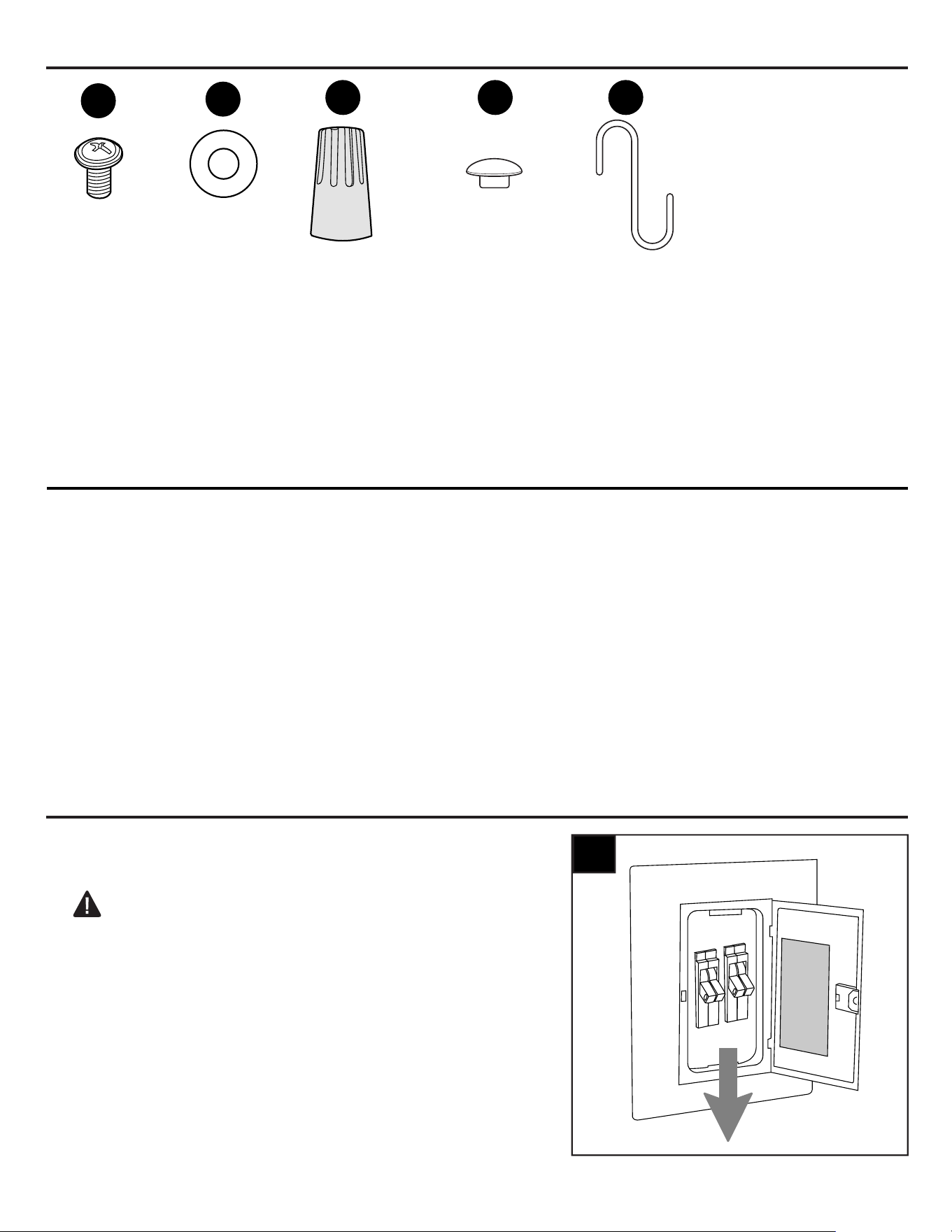

Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
INITIAL INSTALLATION
7

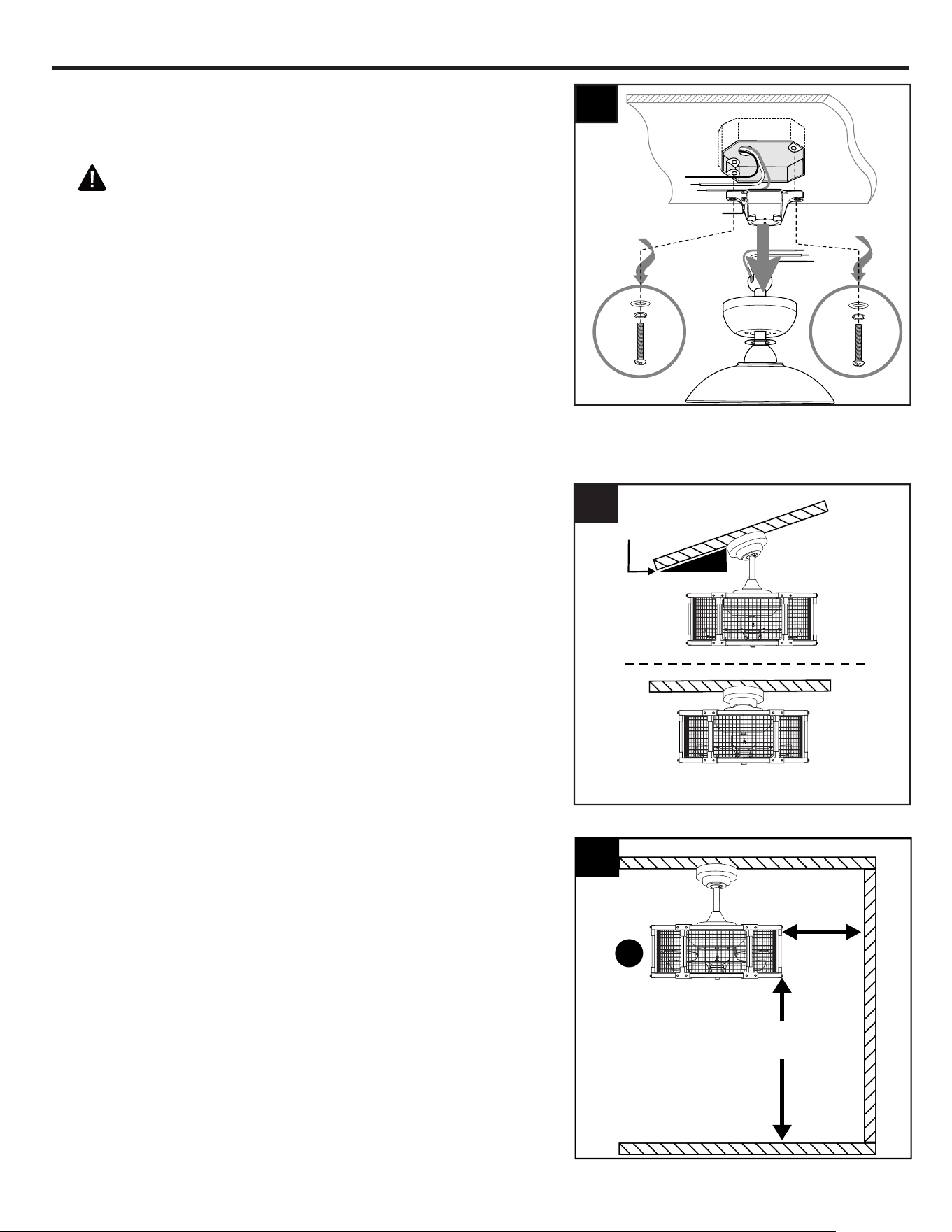

Check to make sure motor housing assembly (I)
will be at least 7 ft. above the floor and at least
30 inches from any obstruction.
3.
7 ft.
min.
30 in.
min.
4
I
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 20°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
A
B
3
20° max.
4.
2
If applicable, remove existing fan, including the
mounting bracket, from outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) to be
used for fan installation.
INITIAL INSTALLATION
8

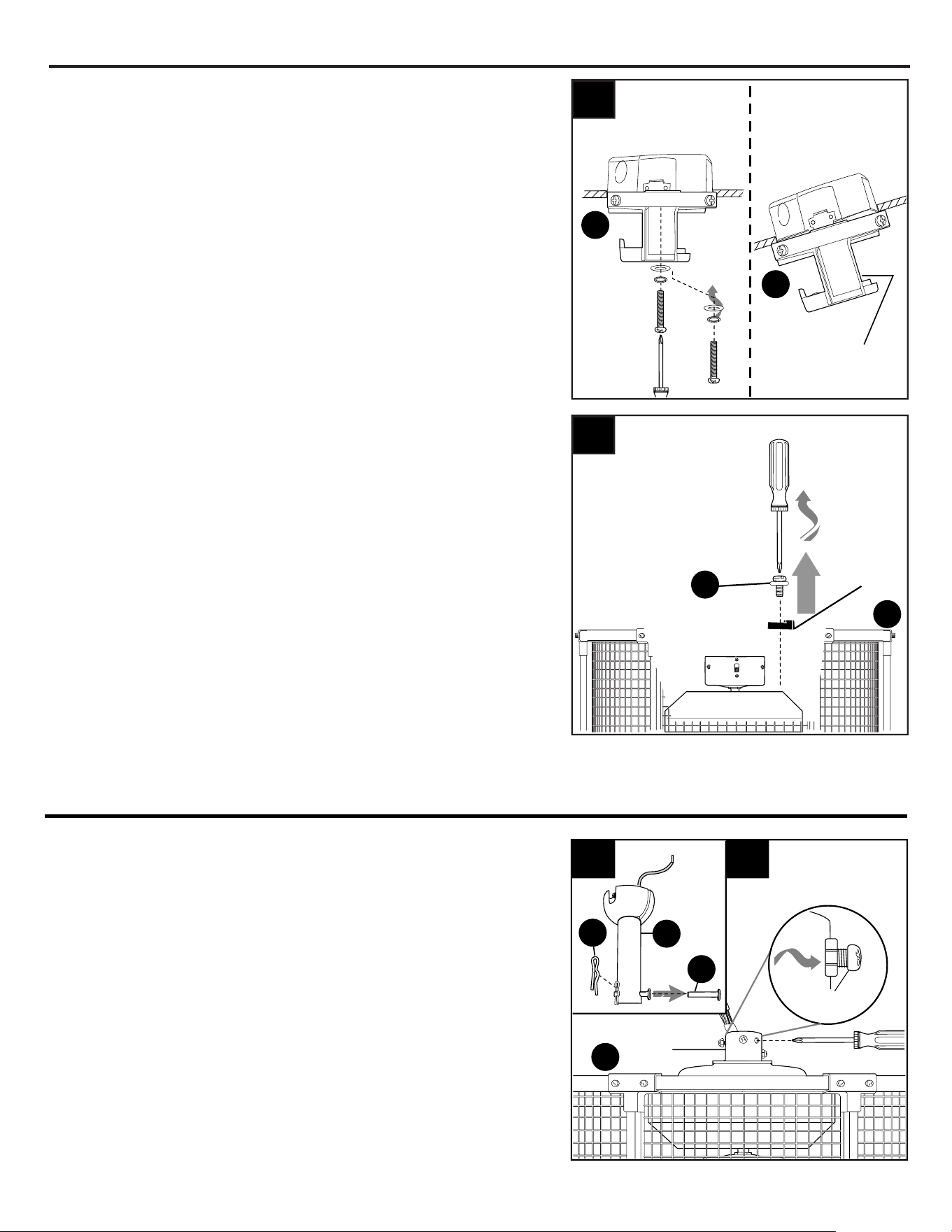

Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(A) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (A) is
installed facing the higher point of the ceiling,
and ensure the ceiling angle is not steeper than
20°.
A
A
Remove pin (D) and clip (E) from downrod (C).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing assembly (I).
1a.
1a
E
1b
C
Set Screw
Sideview
D
Yoke
1b.
I
DOWNROD-STYLE FAN MOUNTING
I
R
6
Plastic
Motor
Block
6.
5.
Remove motor screws/lock washers (R) from
underside of motor housing assembly (I) and
save for blade plate attachment later on. [If there
are plastic motor blocks installed with the motor
screws/lock washers (R), discard the plastic
motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
5
Open End
ANGLE
MOUNT
STANDARD
MOUNT
9
2.

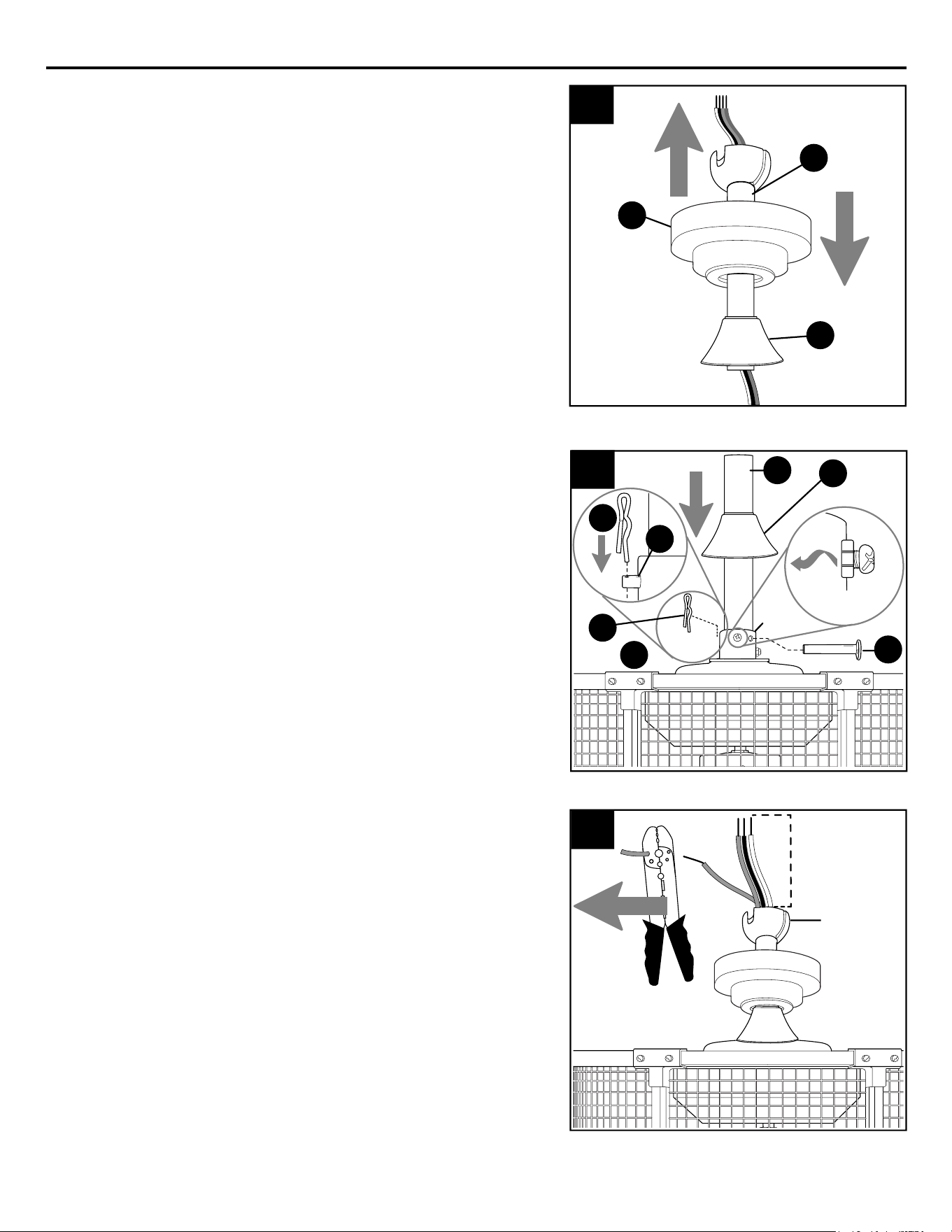

Insert downrod (C) through canopy (F) and yoke
cover (H).
Then, thread wiring from motor housing assembly
(I) through downrod (C).
2
F
H
C
3.
Slip downrod (C) into motor housing yoke, align
holes and re-install pin (D) and clip (E). Tighten
set screws in motor housing yoke and then tighten
preassembled nut on one of the set screws. Then,
slide yoke cover (H) and canopy (F) down until
they rest on top of motor housing assembly (I).
3
I
H
E
Yoke
Set Screw
and Nut
Sideview
D
E
C
DOWNROD-STYLE FAN MOUNTING
D
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
Hanging
Ball
4
8 in.
4.
10
DOWNROD-STYLE FAN MOUNTING

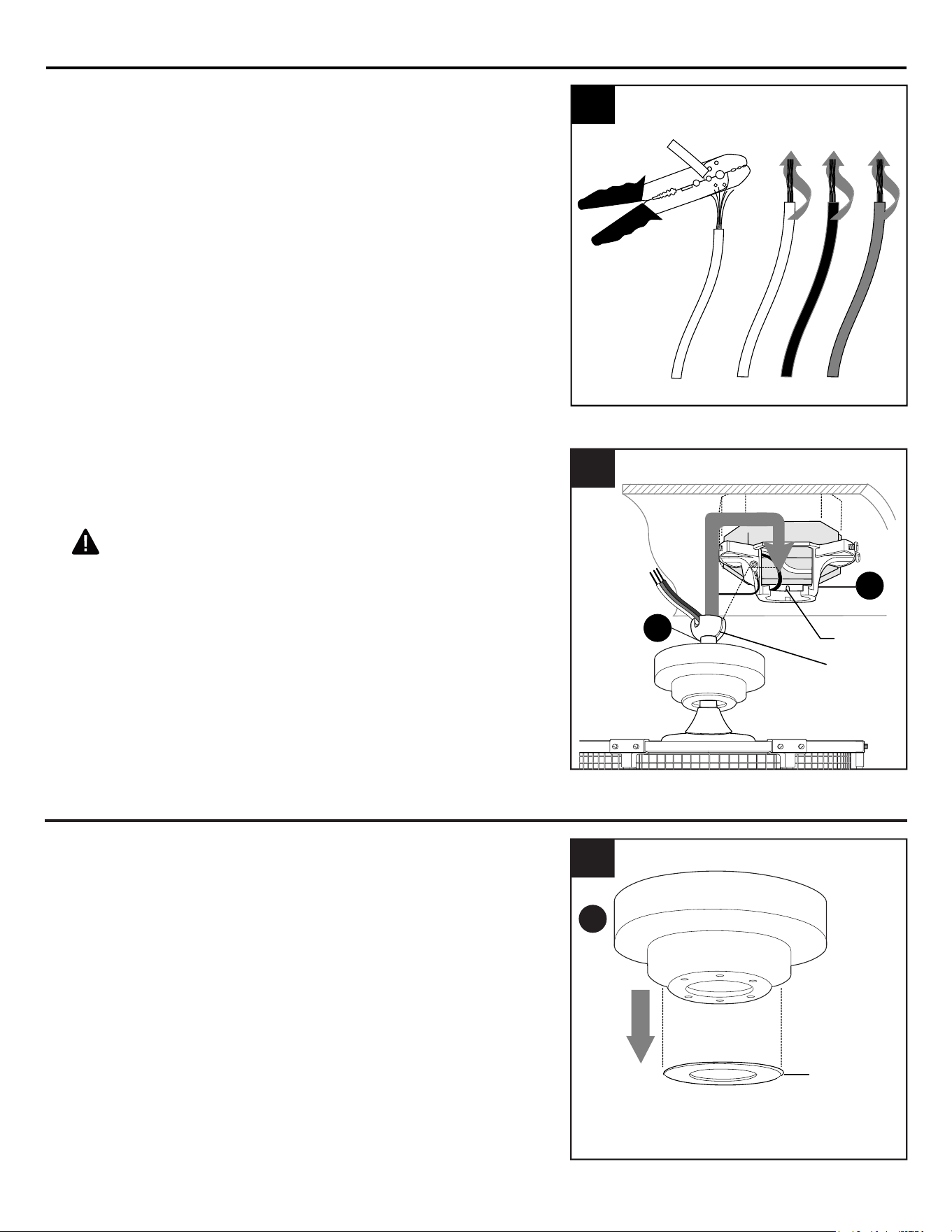

If you decided to cut back the lead wires in Step
4, strip 1/2 in. of insulation from end of each wire
-- WHITE, BLACK, GREEN and BLUE (if
applicable). Twist stripped ends of each strand
of wire within the insulation with pliers (not
included).
5.
Install hanging ball of downrod (C) into opening
of mounting bracket (A). Align slot in hanging
ball with tab in mounting bracket (A).
DANGER: Failure to align slot in the ball
with the tab may result in serious injury or death.
Continue to WIRING on page 11.
6.
6
Remove preassembled canopy cover from
bottom of canopy (F).
NOTE: To remove canopy cover, twist canopy
cover until the two small protrusions on the inner
lip of the canopy cover align with the two
notches on the bottom of the canopy (F). Pull on
canopy cover to remove.
NOTE: The downrod (C) yoke cover (H) and
canopy cover are not used in this type of
installation.
1.
1
Canopy
Cover
F
CLOSEMOUNT-STYLE FAN MOUNTING
5
A
Tab
C
Slot
EE
Hook x1
11

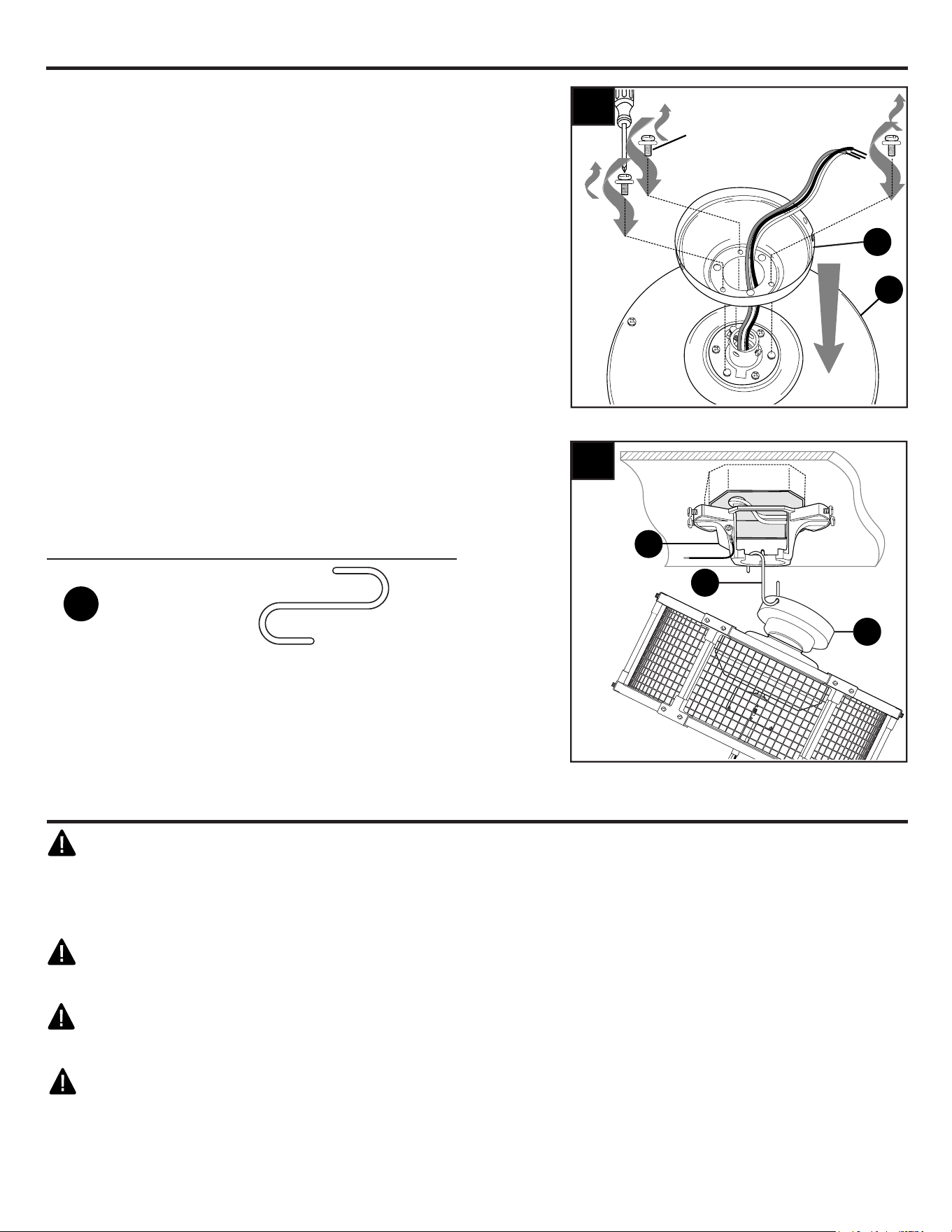

Locate the three raised, preassembled screw/lock
washers at top of motor housing assembly (I) and
remove each one.
Pull wires up through hole in the middle of the
canopy (F) and attach canopy (F) to motor
housing assembly (I) using the three previously
removed screws/lock washers.
2.
3.
A
3
Temporarily hang fan on the mounting bracket
(A) with the hook (EE) provided using one of the
NON-SLOTTED holes in the canopy (F).
2
F
I
Screw/Lock Washer
EE
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
WIRING
CLOSEMOUNT-STYLE FAN MOUNTING
F
Hardware Used
12
WIRING
Wire Connectors
G

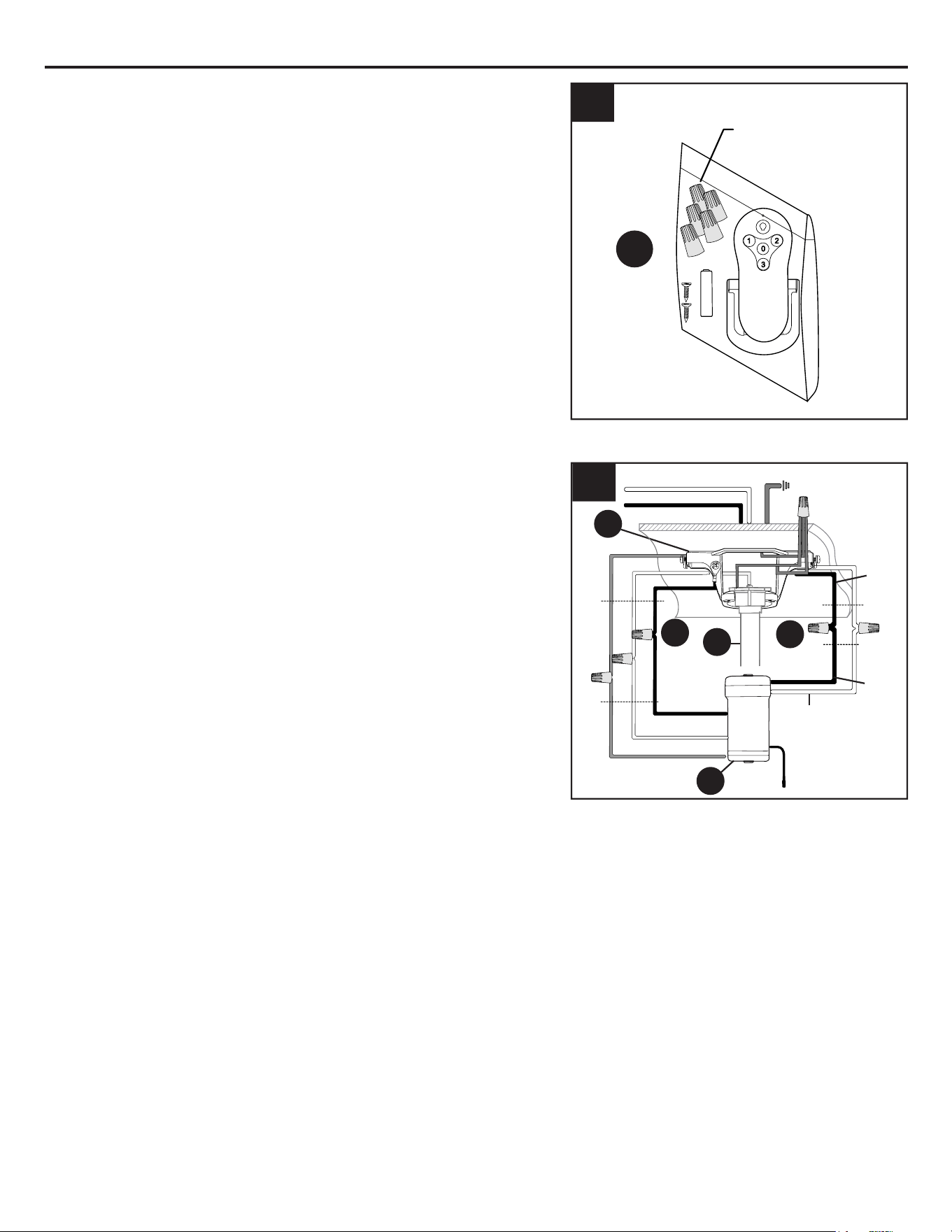

Connect all GROUND (GREEN) wires from fan
(on downrod (C), if applicable, and mounting
bracket (A)) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (P) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (P) to WHITE supply
wire from ceiling.
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (P) to BLUE wire from
motor housing assembly (I).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (P) to BLACK wire
from motor housing assembly (I).
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (P) to WHITE wire
from motor housing assembly (I).
1a.
1b.
CC
C
A
P
1b
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
IMPORTANT: Make the necessary wiring
connections for remote control operation as
detailed in Step 1b below. For each wire
connection, use one of the wire connectors
from the remote pack (G), making sure to
screw wire connector on in a clockwise
direction.
1a
CC
13
WIRING
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
3
Gently slide remote control receiver (P) flat-side
up into mounting bracket (A). Turn
spliced/taped wires upward and gently push
wires and wire connectors into outlet box. Let
antenna from remote control receiver (P) hang
to the side.
NOTE: The remote control included with this
fan meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote
control with this fan, it must also meet these
same requirements.
3.
CC
CC
CC
Hardware Used
Wire Connector
x 4
CC
Antenna
O
B
14
FINAL INSTALLATION
1.

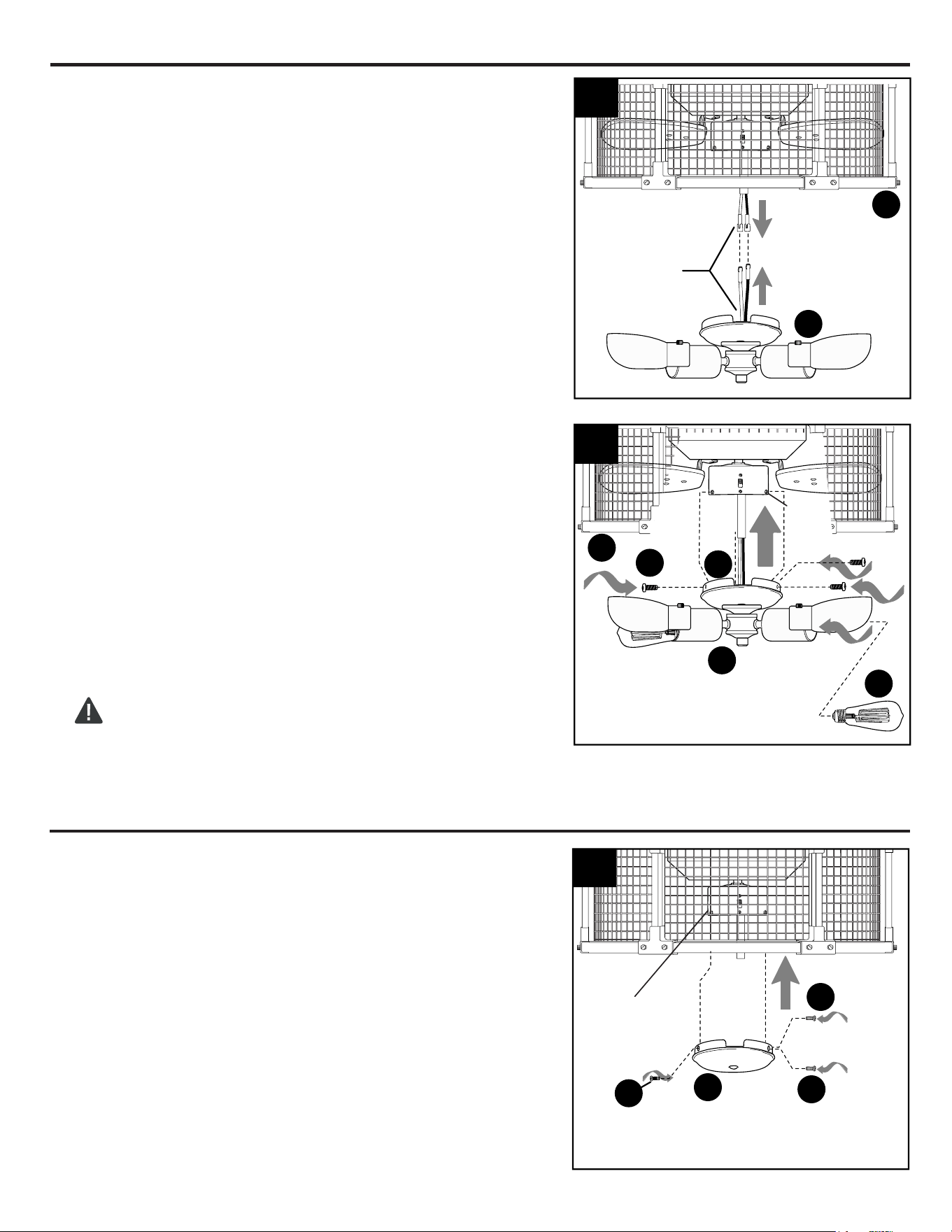

Remove motor housing assembly (I) from mounting
bracket (A) and, if necessary, remove hook (EE) from
canopy (F).
Temporarily lift canopy (F) to mounting bracket (A) to
determine which two canopy mounting screws/lock
washers (B) in mounting bracket (A) align with slotted
holes in canopy (F) and partially loosen these two
canopy mounting screws/lock washers (B). Remove
the other two canopy mounting screws/lock washers
(B). Now, lift canopy (F) to mounting bracket (A)
again, aligning slotted holes in canopy (F) with
loosened canopy mounting screws/lock washers (B)
in mounting bracket (A). Twist canopy (F) clockwise
to lock. Re-insert the two canopy mounting
screws/lock washers (B) that were just removed and
tighten all canopy mounting screws/lock washers (B)
securely.
CAUTION: Assistance from another person is
recommended for this step.
1
I
F
Downrod
Option
Closemount
Option
F
B
I
B
2.
Hardware Used
AA
Blade Screw x 9
Decorative Screw x 9
Fiber Blade Washer x 9
DD
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (O). If screws are overtightened, blades (O)
may crack and break.
Align holes in blade arm (Q) with holes on topside of
blade (O). Push one decorative nut (DD) through
blade hole from underside of blade (O). Insert blade
screws (AA) with fiber blade washers (BB) from
topside of blade (O) into the decorative nut (DD).
Partially tighten blade screw (AA). Repeat to attach
remaining decorative nuts (DD), blade screws (AA)
and fiber blade washers (BB).
Tighten all blade screws (AA) securely.
Repeat Step 2 for remaining blades (O).
3
2
BB
I
Q
I
O
DD
AA
FINAL INSTALLATION
M
L
S
S
4
I
M
4.
5.

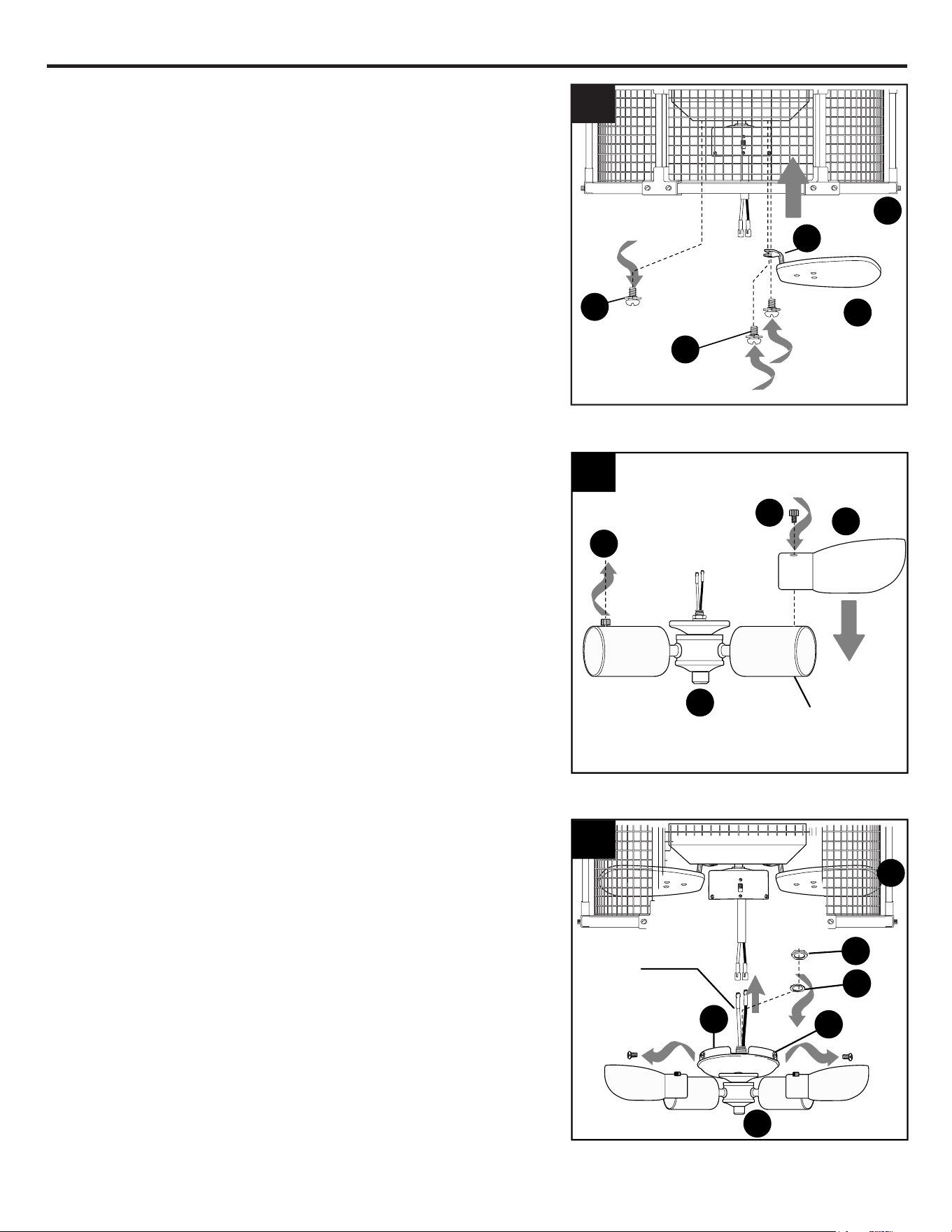

To install the fan with the light kit, remove
bulb shield screws (S) from each end of socket
cover on light kit fitter (M). Align hole in bulb
shield (L) with hole in one of the socket cover.
Re-insert bulb shield screw (S) and tighten until
secure. Repeat with two remaining bulb shields
(L).
If you do not wish to use the light kit, skip to
INSTALLING FAN WITHOUT A LIGHT KIT on
page 16.
Remove preassembled switch housing cap
screws (K) from switch housing cap (J) and save
for later use.
Remove preassembled hex nut (T) and lock
washer (U) from threaded rod at top of light kit
fitter (M). Punch center cap (V) out of switch
housing cap (J) with the handle end of a
screwdriver (not included). Gently feed molex
connections (one wire at a time) from light kit
fitter (M) through hole in middle of switch
housing cap (J), and then screw switch housing
cap (J) onto threaded rod at top of light kit fitter
(M). Replace lock washer (U) and then tighten
hex nut (T) over lock washer (U) for a secure fit.
5
15
Molex
Connections
J
T
U
3.
3
I
I
R
Align holes in blade plate (Q) with corresponding
holes on bottom of motor housing assembly (I).
Re-insert the motor plate screws/lock washers
(R) that was previously removed (Step 6, page
8) and securely tighten motor plate screws/lock
washers (R). Repeat for remaining blades (O)
and blade arms (Q).
I
R
I
O
I
Q
Socket Cover
K
J
FINAL INSTALLATION
INSTALLING FAN WITHOUT LIGHT KIT
6.
Locate BLUE and WHITE wires in switch
housing on underside of motor housing
assembly (I).
Connect WHITE wire from light kit fitter (M) to
WHITE wire from switch housing. Connect BLUE
wire from light kit fitter (M) to BLUE (or BLACK)
wire from switch housing. Make sure molex
connections are secure.
6
I
J
K
Carefully arrange wiring within switch housing on
underside of motor housing assembly (I).
Align holes in switch housing cap (J) with holes
in switch housing. Re-insert switch housing cap
screws (K) previously removed (Step 5, page 15)
and tighten until secure.
NOTE: Make sure to align gap on switch housing
cap (J) with the reverse switch on switch housing
for correct fit.
Insert light bulbs (N) into light kit fitter (M)
sockets and tighten until secure.
WARNING: When you need to replace bulb
please allow the bulb, (N) and bulb shield (L) to
cool down before touching it.
M
N
I
M
16
7.
White
White
Blue
(or Black)
Blue
Molex
Connections
1.
If you do NOT wish to use the light kit,
remove three switch housing cap screws (K)
from switch housing cap (J). Carefully arrange
wires inside switch housing. Align holes in switch
housing cap (J) with holes in switch housing and
secure switch housing cap (J) with three switch
housing cap screws (K) previously removed
(Step 5, page 15). Tighten all switch housing cap
screws (K) securely.
NOTE: Make sure to align gap on switch
housing cap (J) with the reverse switch on switch
housing for correct fit.
1
K
K
Switch
Housing
K
7
Switch
Housing
17
OPERATING INSTRUCTIONS
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.” - When
disposing of household alkaline batteries, it is best to check with your local and state recycling or household
hazardous waste coordinators concerning the specifics of the program in your area. You may also locate a
recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or
www.earth911.org for more information.
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not
desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Remove protective covering from front of remote
control transmitter and discard.
Remove battery cover from back of remote control
transmitter in remote pack (G). Install battery from
remote pack (G) with positive (+) end toward top of
remote control transmitter.
WARNING: Battery is to be inserted with correct
polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep battery away from children.
NOTE: Battery is NOT rechargeable. Remove battery
with low or no charge and dispose of properly.
1.
(back
side)
1
Battery
Cover
G
Remote
Control
Transmitter
Battery
A23
18
OPERATING INSTRUCTIONS
4.
Use the fan reverse switch, located on the bottom of the
motor housing assembly (I), to optimize the fan for
seasonal performance. A ceiling fan will allow you to
raise your thermostat setting in summer and lower your
thermostat setting in winter without feeling a difference
in your comfort.
CAUTION: Turn fan off at wall switch and let blades
(O) come to a complete stop before manually activating
the reverse switch.
4
Reverse Switch
I
2.
3.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
ON/OFF button ( ) on the remote control
transmitter for 5 seconds until light on the fan blinks
twice. Use the remote control transmitter to test the
light and fan functions to confirm the learning
process is complete.

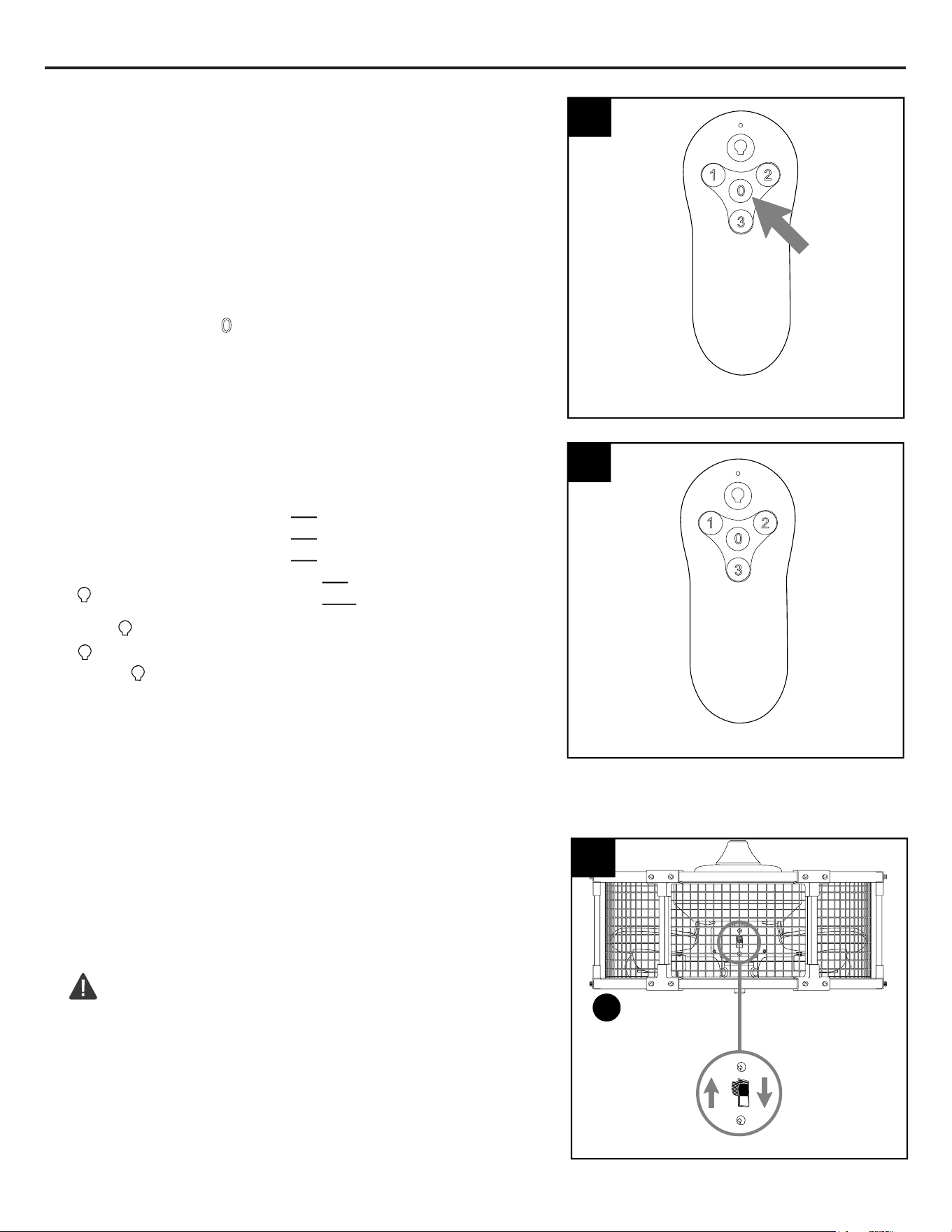

Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it becomes
a dimmer. The lights vary cyclically in 8 seconds. The
light button has an auto resume function, which keeps
the light at the same brightness as the last time it was
turned off.
2
Remote Control Transmitter
3
Remote Control Transmitter
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy (F) to check downrod (C) assembly, and then tighten all screws on
fan. Clean motor housing assembly (I) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (O) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood
blades (O) for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a damp
cloth to clean the ceiling fan.
Bulb Replacement: Use three standard-base 4-watt LED bulbs or CFL/incandescent equivalent.
19
5a
5b
5c

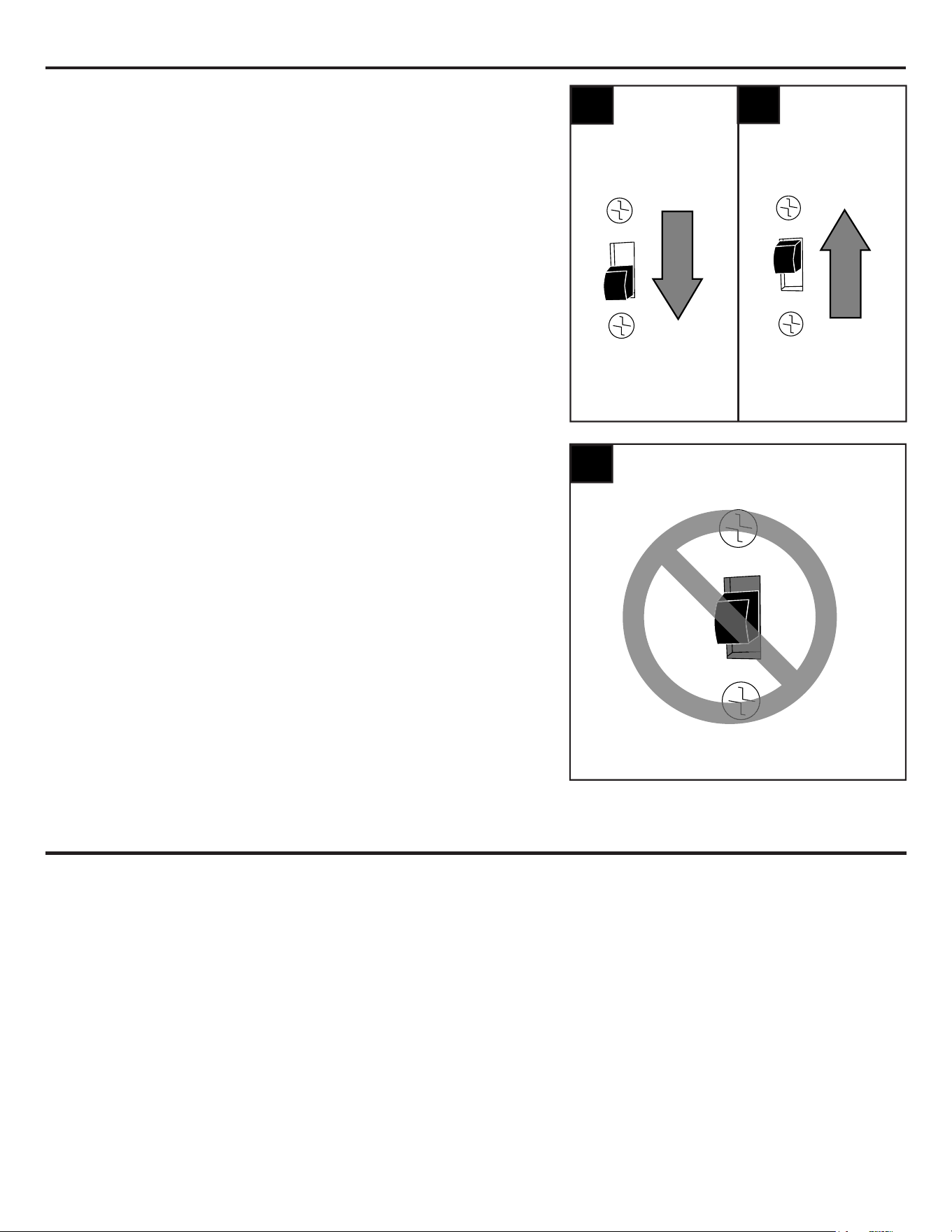

IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN
for fan to function. If the reverse switch is set in
the middle position, fan will not operate.
In warmer weather, setting the reverse
switch in the DOWN position will result in
downward airflow creating a wind chill
effect.
In cooler weather, setting the reverse
switch in the UP position will result in
upward airflow that can help move
stagnant, hot air off the ceiling area.
5a.
5b.
5c.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Reverse switch not engaged.
4. Blades are not installed.
5. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3.
Push switch firmly either up or down.
4. Install all blades (see pages 14-15).
5. Turn off power and repeat instructions
in Step 2 on page 18
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive wobbling.
1. Blades are loose.
2. Blade plates incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade plates.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan
to another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
TROUBLESHOOTING
Fan operates but
lights fail.
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from light kit fitter not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 12 - 13.
2. Make sure wall switch to fan is on.
3. Check that molex connections in light
kit fitter are connected properly
according to instructions on page 16.
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 2 on
page 18.
2. Check that battery has been installed
with correct polarity.
3. Replace battery according to
instructions on page 17.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
20
Printed in China
21
A
F
C
M
Q
O
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.

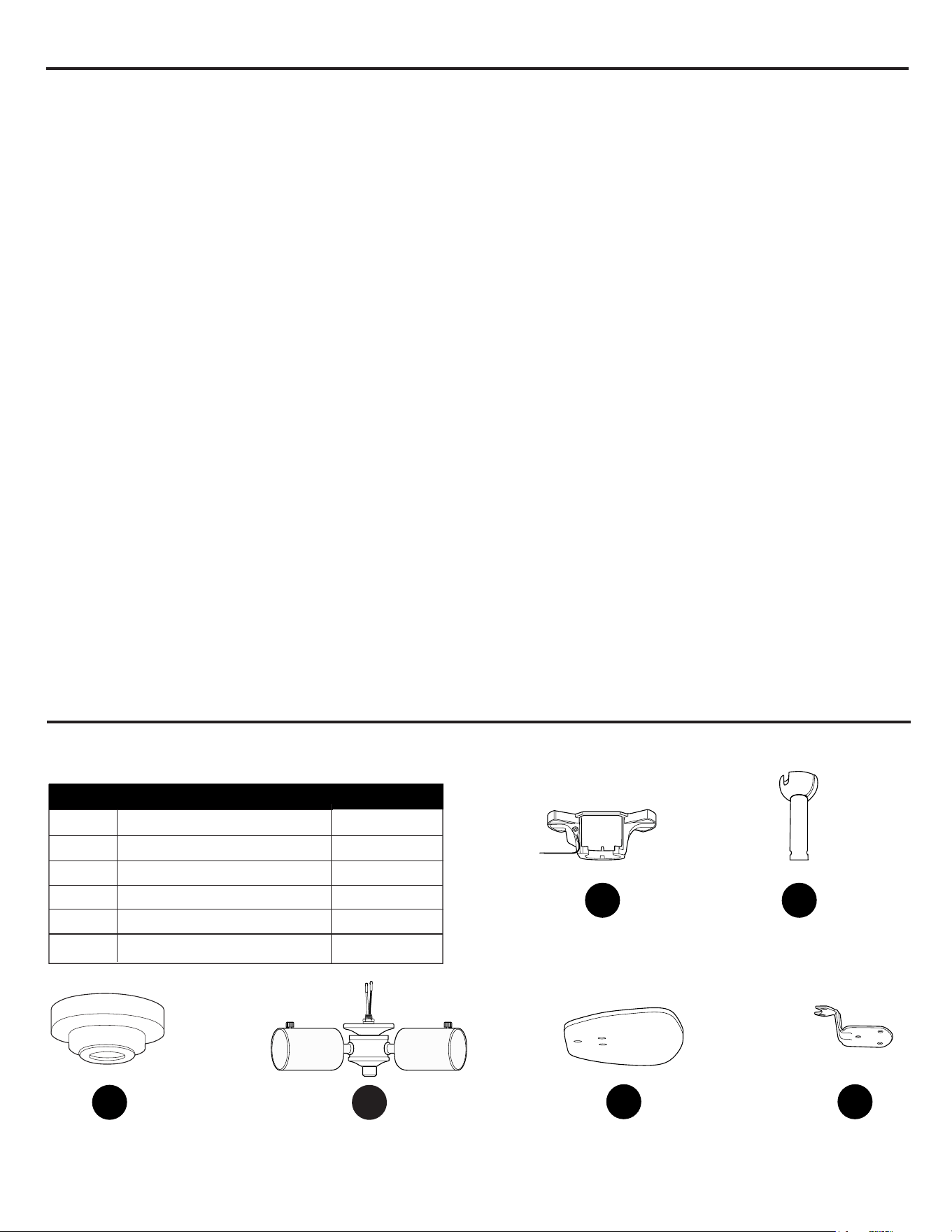

PART DESCRIPTION PART#
A Mounting Bracket
C
Downrod
F Canopy
M Light Kit Fitter
O Blade
Q Blade Arm
5730160-A
5730160-C
5730160-F
5730160-M
5730160-O
5730160-Q
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
DRLI2404
