USE AND CARE GUIDE
ELECTRIC FIREBOX
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE
HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN
ELECTRIC SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
RV48P80L-C5
RV60P80L-C5
261046
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk
of fire, electrical shock, and/or injury including the following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and
keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has
been dropped or damaged in any manner. Discard heater, or return to authorized service facility for
examination and/or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
Never locate heater where it may fall into a bathtub or other water container.
8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it
will not be tripped over.
9. To disconnect heater, turn controls to off, then remove plug from outlet.
10. Connect to properly grounded outlets only.
11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the heater.
12. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft
surfaces, like bed, where opening may become blocked.
13. This heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline,
paint, or flammable liquids are used or stored.
14. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
15. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
16. This heater, when installed, must be electrically grounded in accordance with local codes or, in
the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or for USA
installations, follow local codes and the National Electrical Code, ANSI/NFPA NO.70.
17. Under no circumstances should this heater be modified. Parts having to be removed for
servicing must be replaced prior to operating this fireplace again.
18. There is a protective thermostat limiter inside the heater. When the inner temperature over heat,
the thermostat limiter will shut off the power supply to avoid the risk of fire damage to the appliance.
19. If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or
similarly qualified persons in order to avoid a hazard.
20. Any repairs to this fireplace should be carried out by a qualified service person.
21. This heater should not be used as a drying rack for clothing. Christmas stockings or decorations
should not be hung in area of it.
22. The heaters must not be located immediately below a socket-outlet.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16

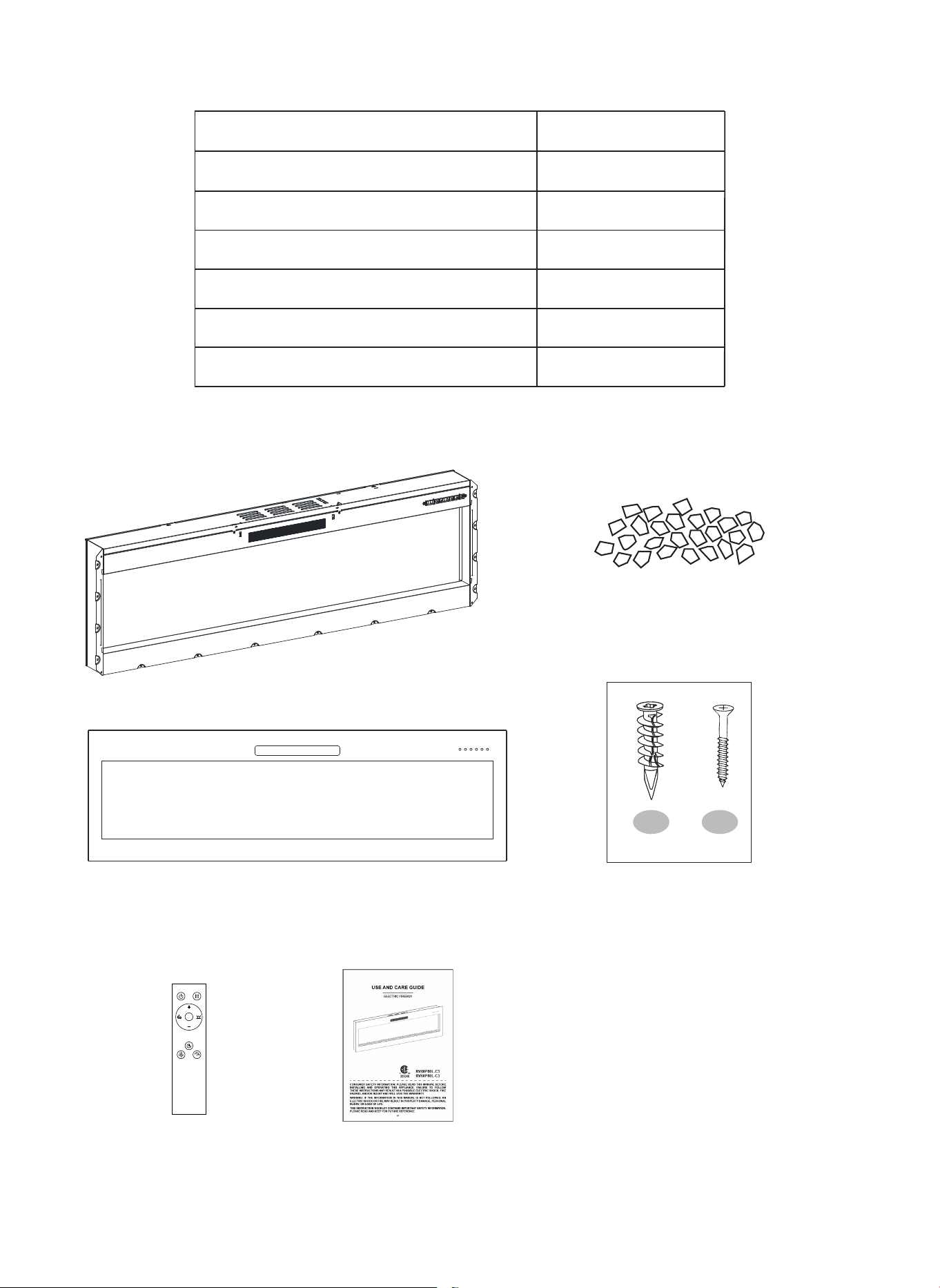

PACKAGE CONTENTS
Fireplace
Glass Front
ManualRemote Control
Acrylic Crystals
x6
A
x8
B
Hardware Screw Bag
Fireplace
DESCRIPTION QTY
Glass Front
Acrylic Crystals
Remote Control
Manual
Hardware Screw Bag
1
1
1 Bag
1 Bag
1
1
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
This heater is for use on 120 volts. The cord has
a plug as shown at (A) in figure 1. An adapter as
shown at (C) is available for connecting
three-blade grounding-type plugs to two-slot
receptacles. The green grounding lug extending
from the adapter must be connected to a
permanent ground such as a properly grounded
outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
NOTE: Adapters are NOT for use in Canada
Grounding Pin
Cover of Grounded Outlet Box
Adapter
Grounding Lug
Metal Screw
Cover of Grounded Outlet Box
B
C
A
Figure 1
SPECIFICATIONS
Voltage: 120VAC
Rating: 1400 Watts
Frequency: 60Hz
PRE-INSTALLATION
GROUNDING INSTRUCTIONS:
PLANNING INSTALLATION
Before you begin assembly, locate the instructions and hardware. Compare all parts with the
Hardware Included and Package Contents lists. Be sure you have all the parts and can identify
them. A helping hand is always good. Assemble your fireplace with an adult assistant if possible.
Some pieces are heavy and will need to be held by a helper. Assembly time will take approximately
15-30 minutes.
CAUTION: This carton includes a GLASS panel! Always use extreme caution when
handling glass. Failure to do so could result in personal injury or property damage.
WARNING: Do not install unit on shelves, raised platforms, beds, blankets, pillows etc.
Keep combustible materials such as furniture, bedding, papers, clothes and curtains at
least 3 feet (914 mm) from the fireplace.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
TOOLS REQUIRED (NOT INCLUDED)
Safety goggles Phillips screwdriver
Power drill

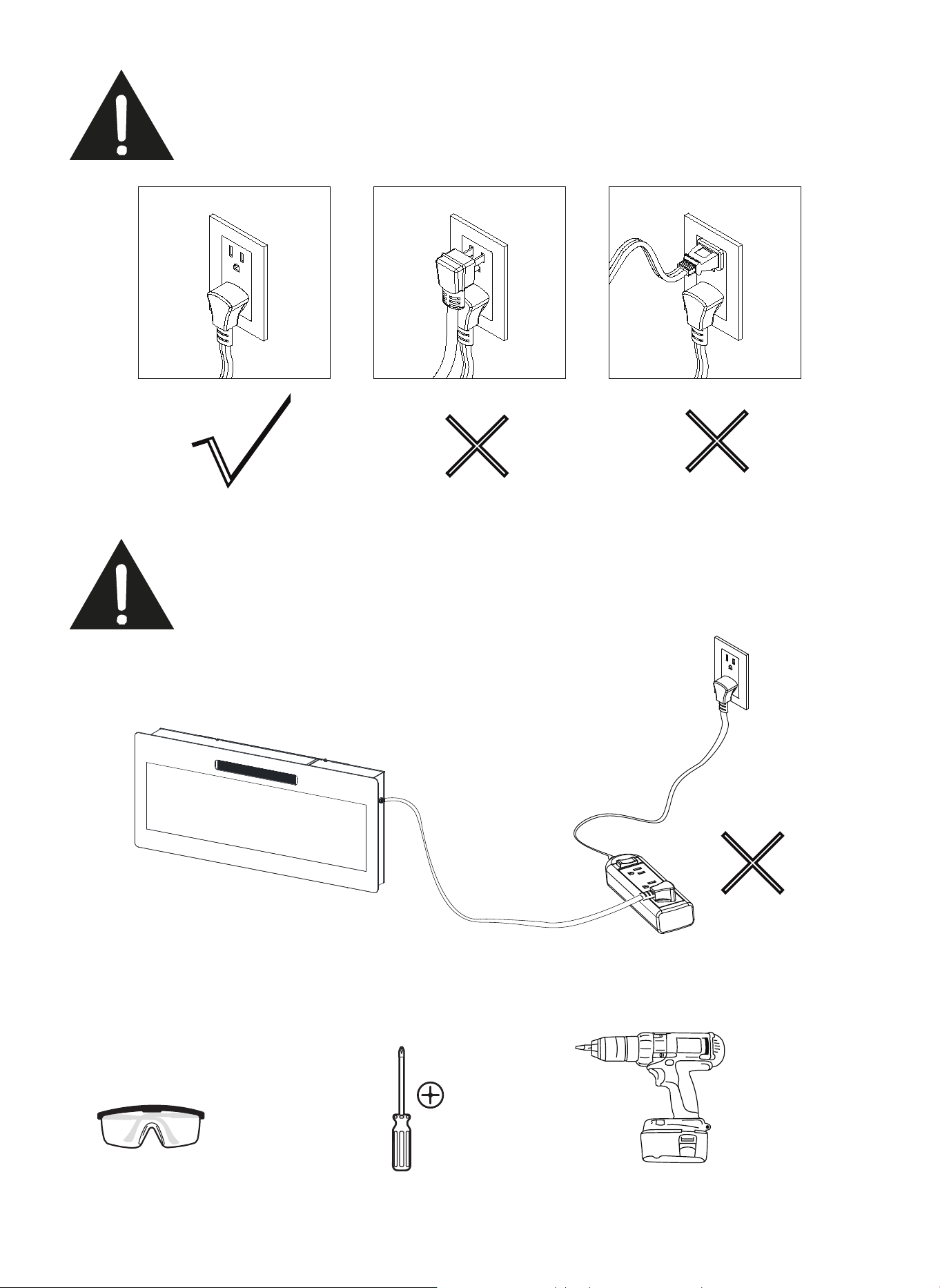

Do not share a socket with other appliances when
using electric fireplaces, please use a dedicated
socket.
Never use with an extension cord or
relocatable power tap (outlet / power strip).
√ ×
×
×
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
INSTALLATION (WALL MOUNTING)

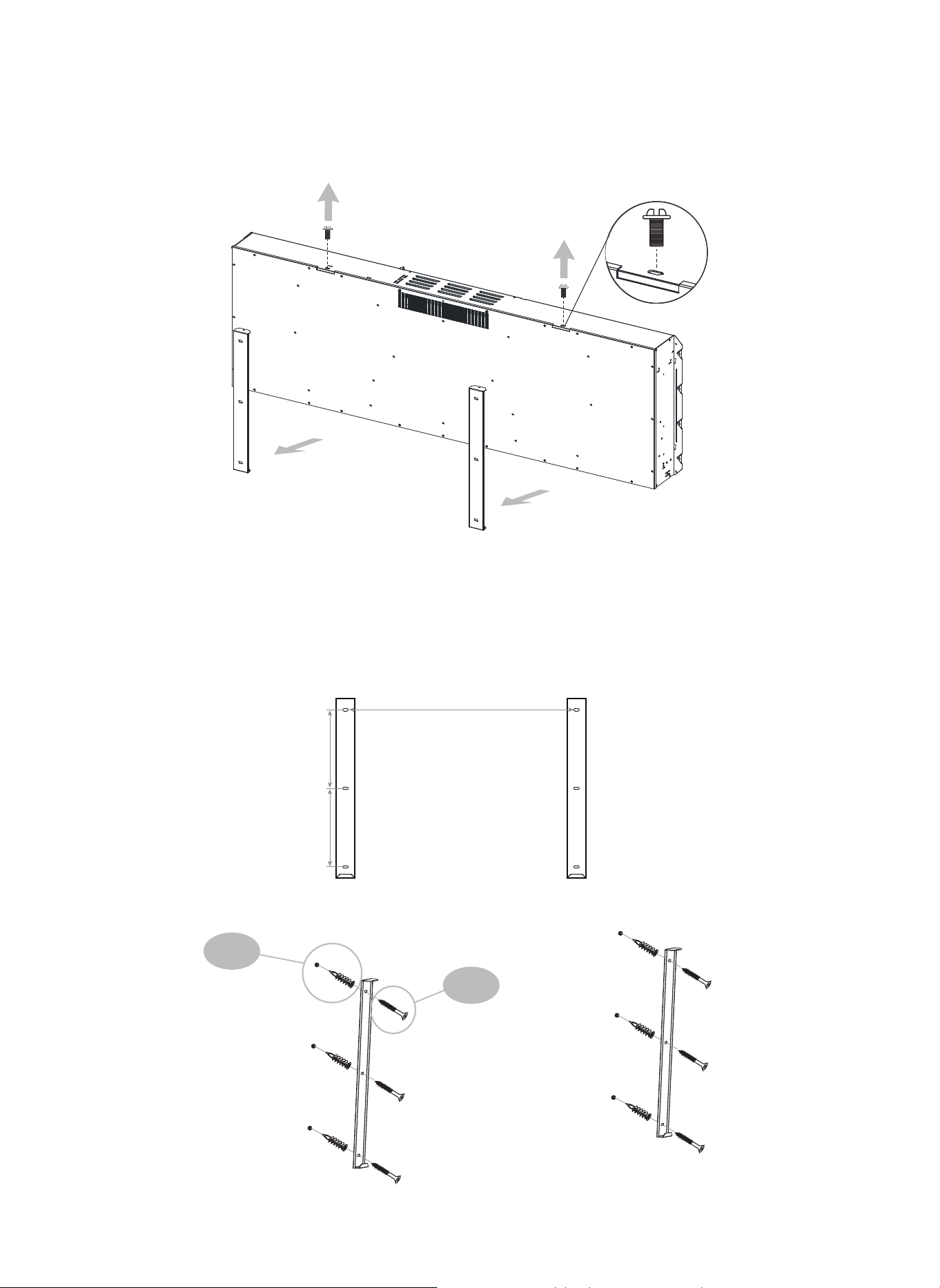

1. Remove the mounting bracket from the back of the fireplace.
2. Attach the mounting bracket to a wall.
IMPORTANT: This unit is designed to be securely attached to a wall with a fixed structure. Failure
to do, so might result in personal injury and/or property damages.
NOTE: Wall anchor is not needed if the bracket is to be mount directly on the studs.
Wall
x6
B
x6
A
32in / 81.3cm
7.9in / 20cm
7.9in / 20cm
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16

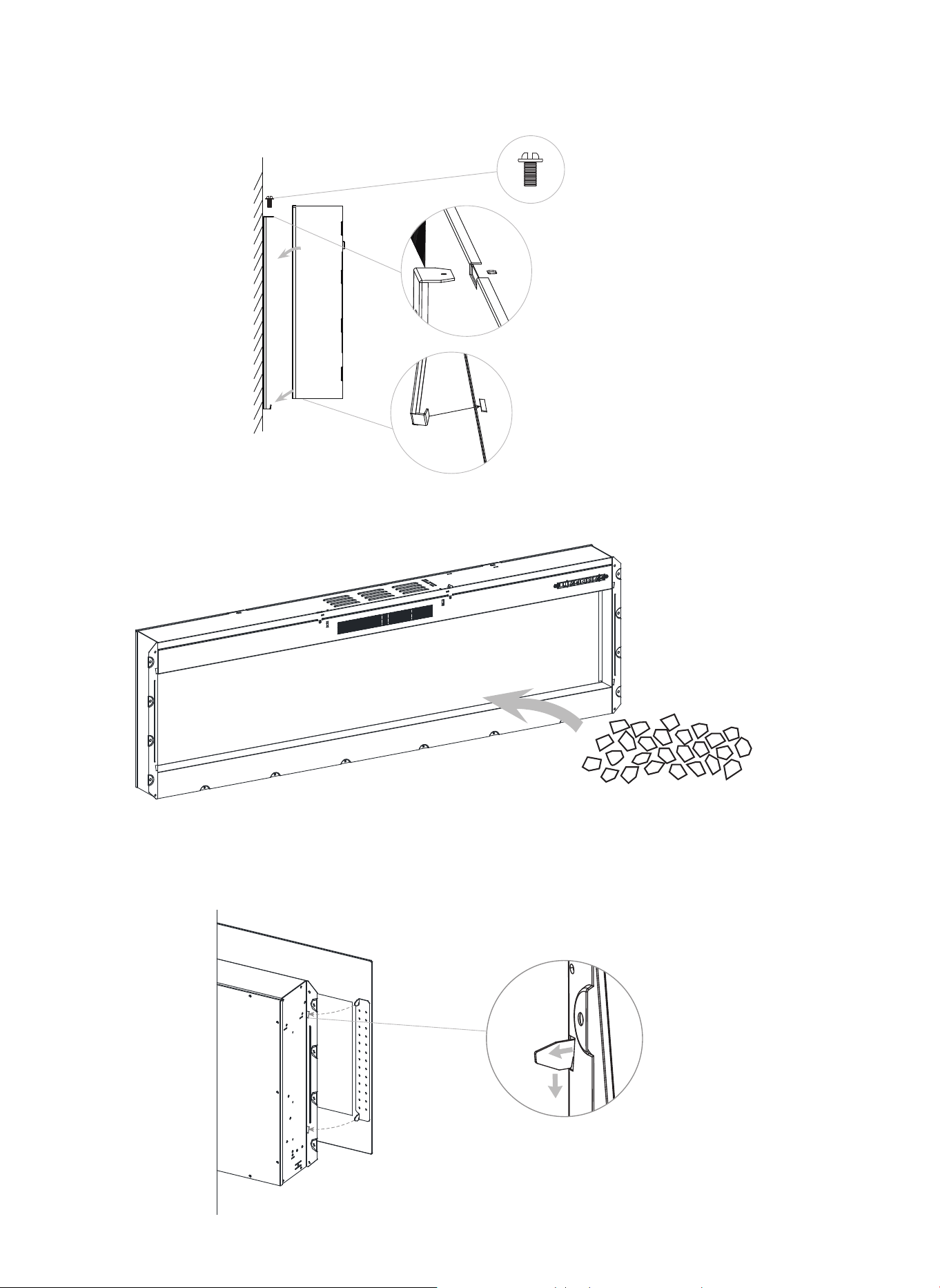

3. Hang the fireplace on the mounting bracket. Secure the fireplace to the mounting bracket
with the two screws removed in Step 1.
4. Place decorative crystals inside the fireplace.
5. Put the glass front panel on the fireplace.
CAUTION: Careful when handling glass to prevent injury or damage.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16

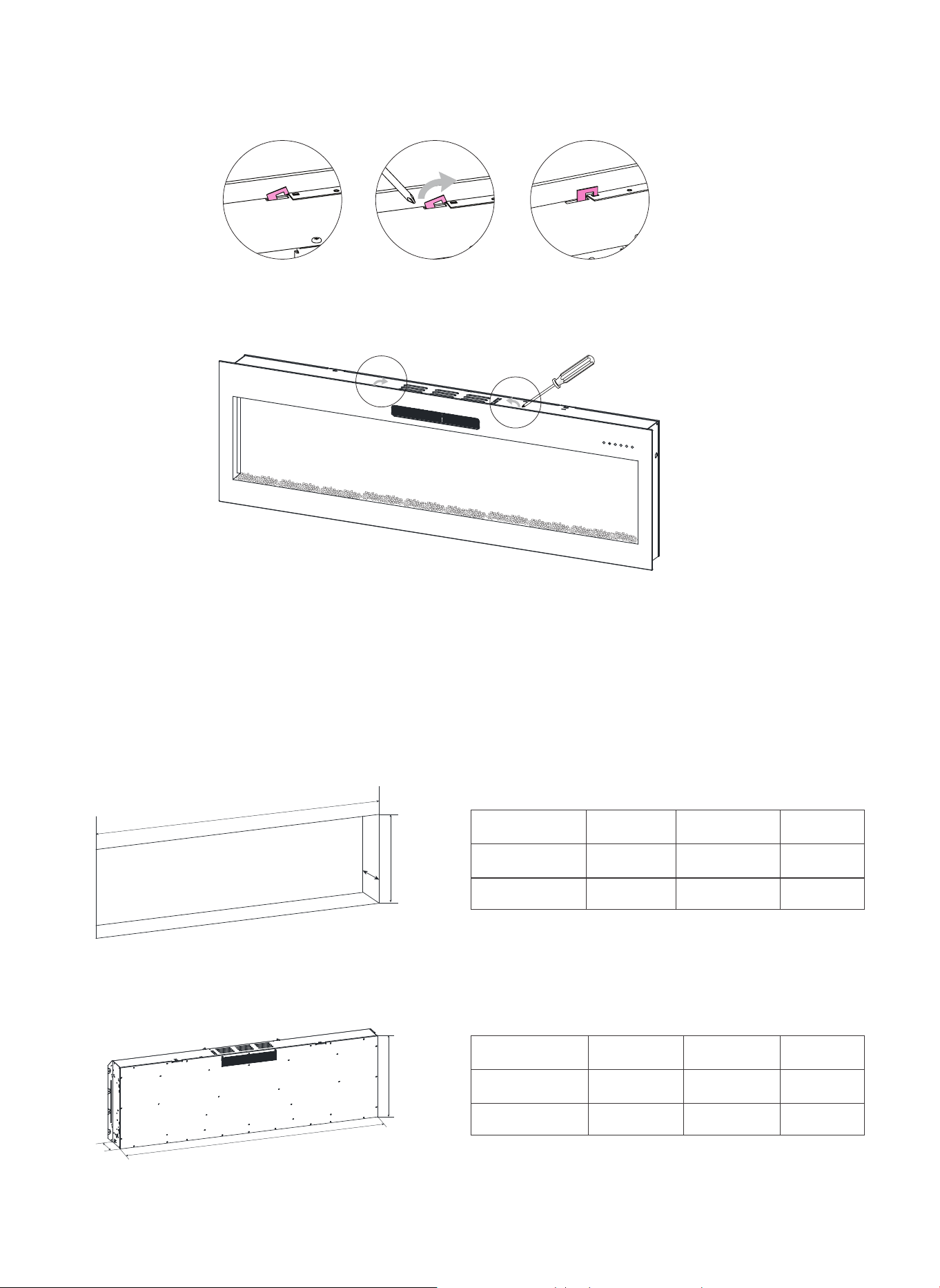

6. Lock glass in place.
Move to lock
Unlocked Locked
INSTALLATION (IN-WALL)
WARNING: Cabinet construction and electrical outlet wiring must comply with local bulding codes
regulations to reduce the risk of fire, electrical shock and injury to persons.
Cabinet - in / cm
fireplace - in / cm
Model
RV48P80L-C5
RV60P80L-C5
RV48P80L-C5
RV60P80L-C5
A
A
BC
C1
A1
B1
B C
Model A1 B1 C1
47.3/120.3 18.1/46 4.7/11.9
47.8/121.5 18.4/46.7 6.5/16.5
57.8/146.9 18.4/46.7 6.5/16.5
57.4/145.7 18.1/46 4.7/11.9
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16

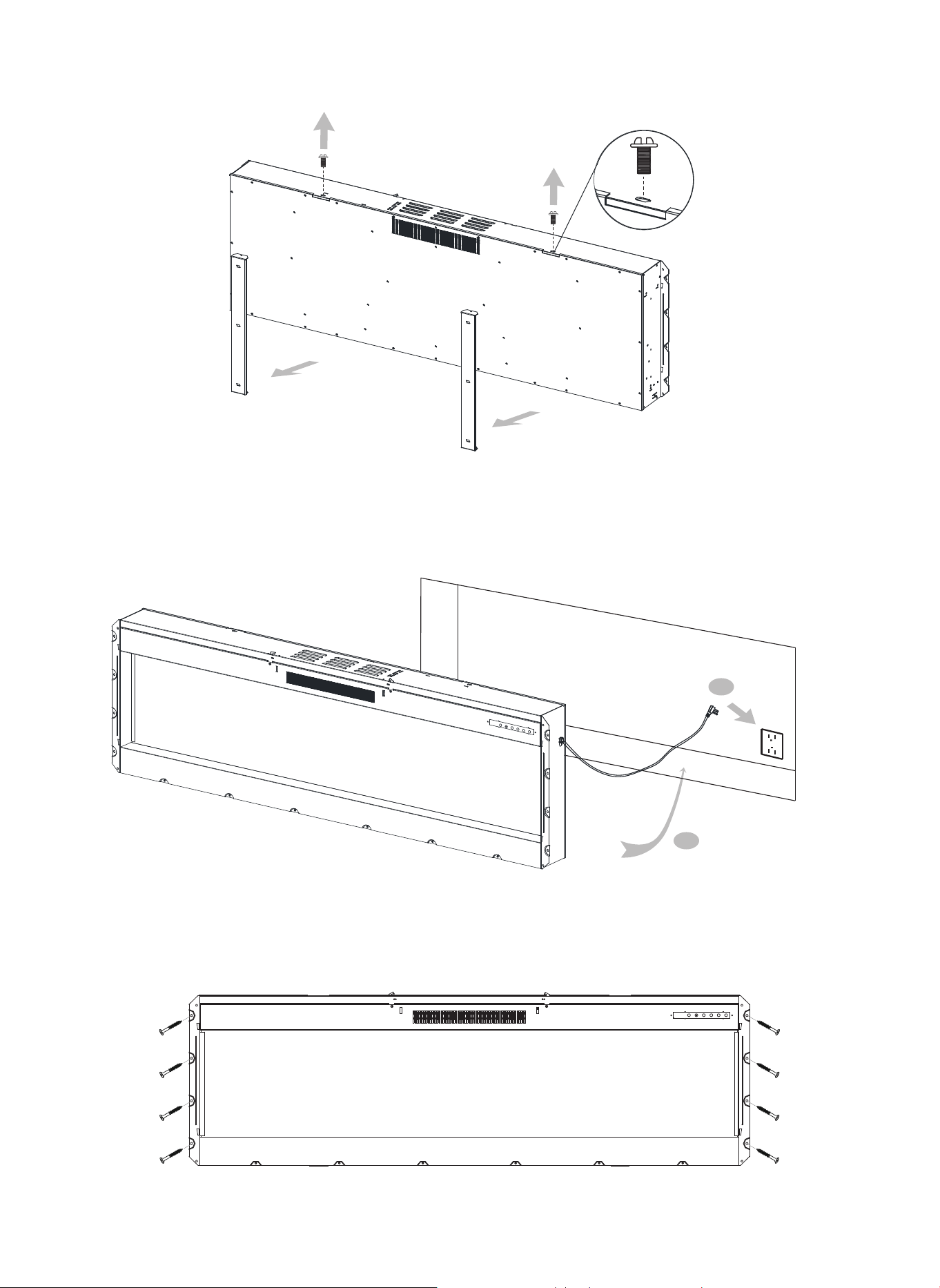

1. Remove the mounting bracket from the back of the fireplace.
2. Plug into the power supply and push the fireplace into the cabinet .
1
2
3. Use supplied screws to secure the fireplace to cabinet.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16

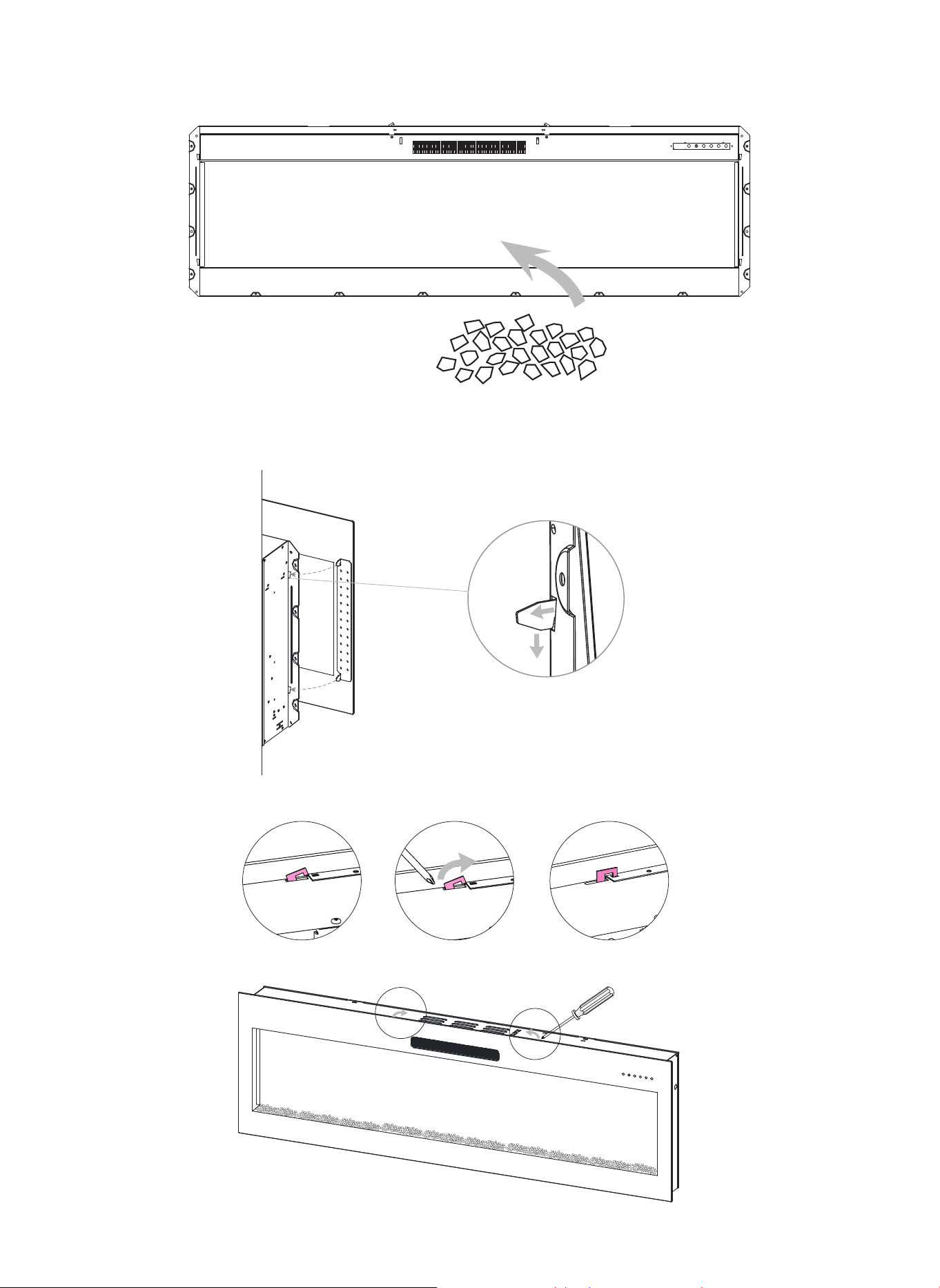

5. Put the glass front panel on the fireplace.
CAUTION: Careful when handling glass to prevent injury or damage.
6. Lock glass in place.
Move to lock
Unlocked Locked
4. Place decorative crystals inside the fireplace.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
OPERATING INSTRUCTION
The control panel is located on the top right corner of the unit.
To control the unit, touch any button to wake up the control panel. The power button will flash, and
all other buttons will light up.
The control panel will turn off after 10 seconds of inactivity.
Power ButtonHeat ButtonEmber Bed ButtonDisplay Window
Flame ButtonTimer Button
Brightness Button
Power Button
The Power Button turns the fireplace ON and OFF. When the fireplace is OFF, touch any button to
wake up the control panel, and the power button will flash.Then touch the Power Button to turn on
the fireplace. Touch the Power Button again to turn off the fireplace.
The fireplace has a built-in memory function and when turned back on it starts at the last used
settings (except timer). If the fireplace is disconnected from the main power source, it reverts to the
default settings.
Flame Button
This button is used to turn flames ON, to alter the flame color and to turn flames OFF. Press the
Flame button multiple times to cycle through color rotation option (01), 15 color options (02, 03, 04,
05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16) and flames OFF.
Heater Button
This button is used to turn heater ON, to alter the temperature. With temperature displayed and
blink, Press the heat button multiple times to cycle through：82℉ -ON - 64℉-66℉-68℉-70℉-72
℉-74℉-76℉-78℉-80℉(27℃-ON - 18℃-19℃-20℃-21℃-22℃-23℃-24℃-25℃-26℃).
ON means the heater keep working.
With temperature displayed and not blink, Press the heat button once to turn heater OFF.
Temperature unit convert function: The heater includes Celsius and Fahrenheit temperature
scales. To change the temperature unit, turn the heater on, and then press and hold the Power
Button for 5 seconds. The current temperature unit display will flash 3 times and convert to the other
temperature unit. Note: The remote control cannot convert the temperature units.
Control Panel
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
Lock and Unlock Heater Function: Press and hold the heater button for 10 seconds. The ember
bed will flash 6 times, indicating that the heater function is locked. To unlock the heater function,
press and hold the heater button for 10 seconds. The ember bed will flash 6 times, indicating the
heater function is unlocked. Note: The remote cannot set the lock and unlock heater function.
Timer Button
The TIMER has adjustable setting at range from 1 hour to 9 hours and OFF. As shown the following:
1h-2h-3h-4h-5h- 6h-7h-8h-9h-OFF. Once you have set the timer, and the timer is up, it will close all
the functions and enter standby mode. In this mode, you should touch the power button to restart
the fireplace.
Ember Bed Button
This button is used to turn ember bed ON, to alter the ember bed color and to turn ember bed OFF.
Press the Ember Bed button multiple times to cycle through color rotation option (01), 15 color
options (02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16) and ember bed OFF.
Brightness Button
This button is used to adjust the brightness of flame and ember bed.
When flame is on and ( 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16) is displayed, press
the Brightness Button to change the brightness of the flames from the available options: L5, L4, L3,
L2,L1. L5 is the brightest and L1 is the darkest.
When ember bed is on and ( 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16) is displayed,
press the Brightness Button to change the brightness of the ember bed from the available options:
d5, d4, d3, d2,d1. d5 is the brightest and d1 is the darkest.
NOTE: Brightness control is not operational when the flame setting at 01 and the ember bed light
effect setting at 01.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
WIFI OPERATION

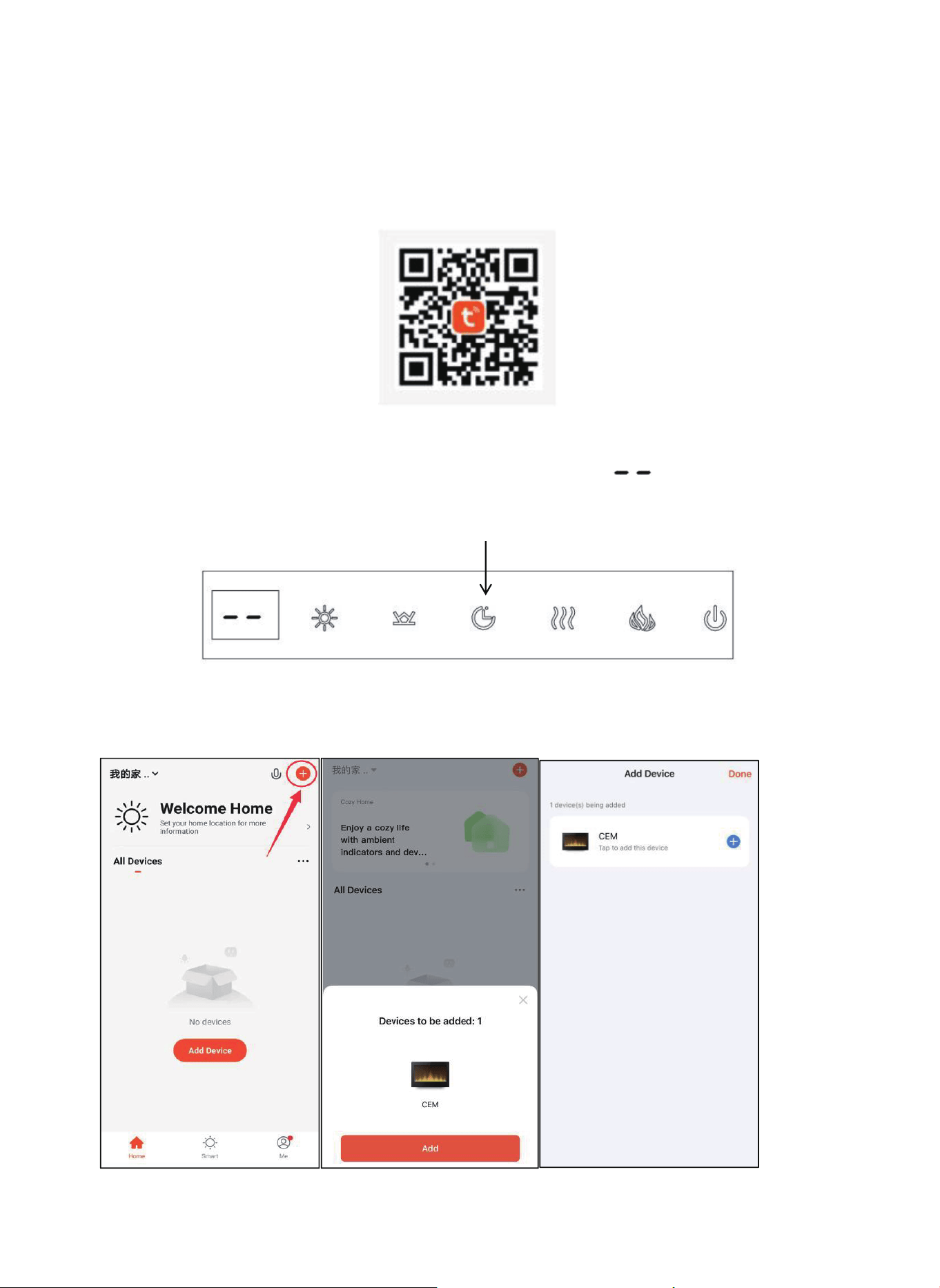

INSTALL TuyaSmart life
There are 2 ways to install TuyaSmart;
1. Search for “TuyaSmart life” in the APP store on your phone, download and install.
2. Scan the QR code below with your mobile phone.
WIFI SETTING AND FIREPLACE OPERATION
NOTE: Before log in TuyaSmart, Pressing the timer button 5 seconds until “
” blink qui ckly to activate
WiFi.
1. Create an account and log in.

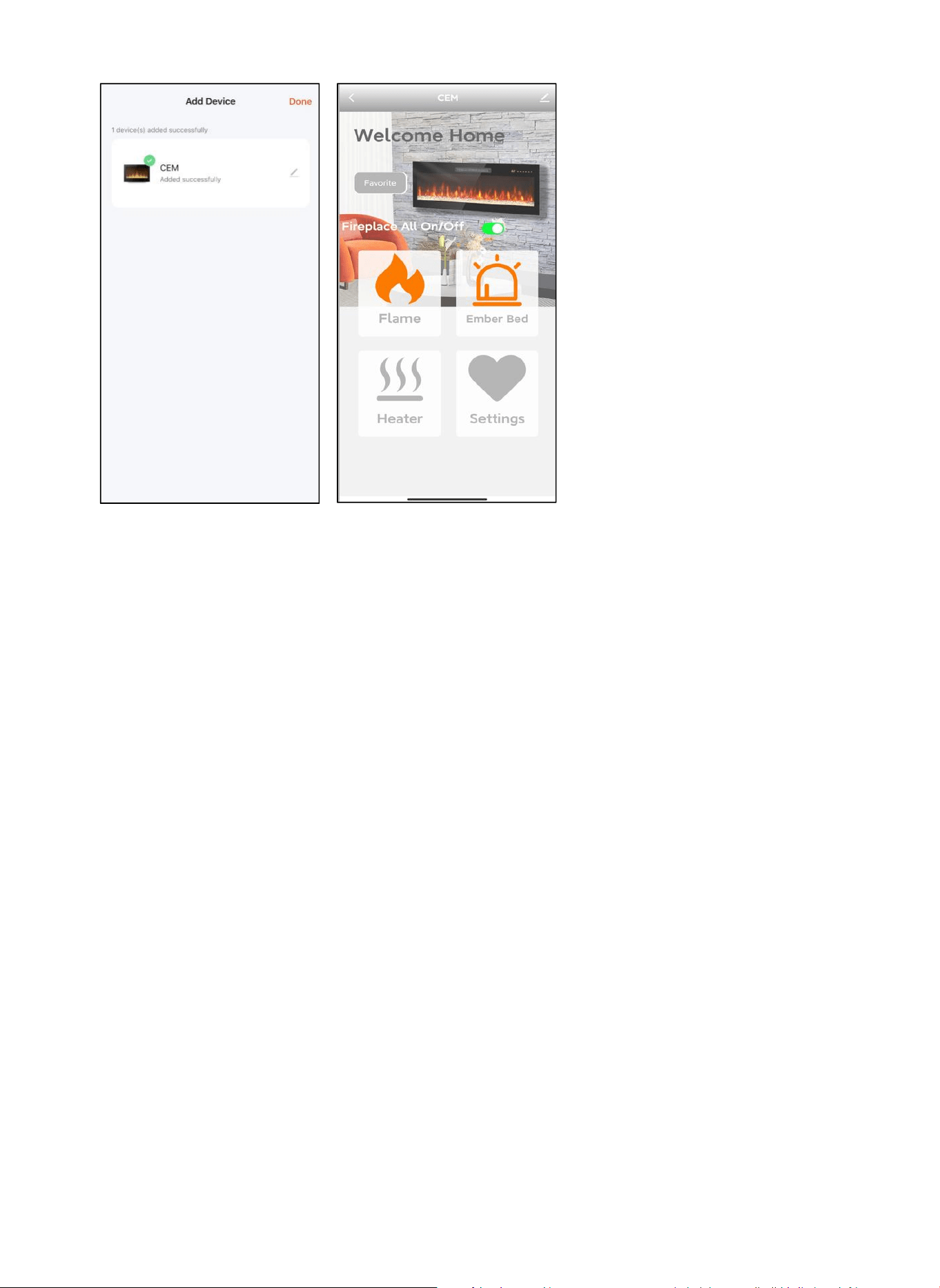

2. When you log in, the APP will sc an and add the fi replac e to APP(FIG.2) automatically. Touch“add” to enter in
FIG.3. Touch “+” to enter FIG.4. Touch “Done ” to finish Wi-fi setting.
FIG.1 FIG.2 FIG.3
timer button
01 02 03 04 05 06 07 08 09 10 11 12
13
14 15 16
&/'ϰ &/'ϱ
ϯ EŽǁ LJŽƵ ĂƌĞ ŝŶ ƚŚĞ ŝŶƚĞƌĨĂĐĞ ůŝŬĞ &/'ϱ zŽƵ ĐĂŶ ŽƉĞƌĂƚĞ ƚŚĞ ĨŝƌĞƉůĂĐĞ ǀŝĂ tŝͲĨŝ
The Speed Button is used to adjust the flame speed.

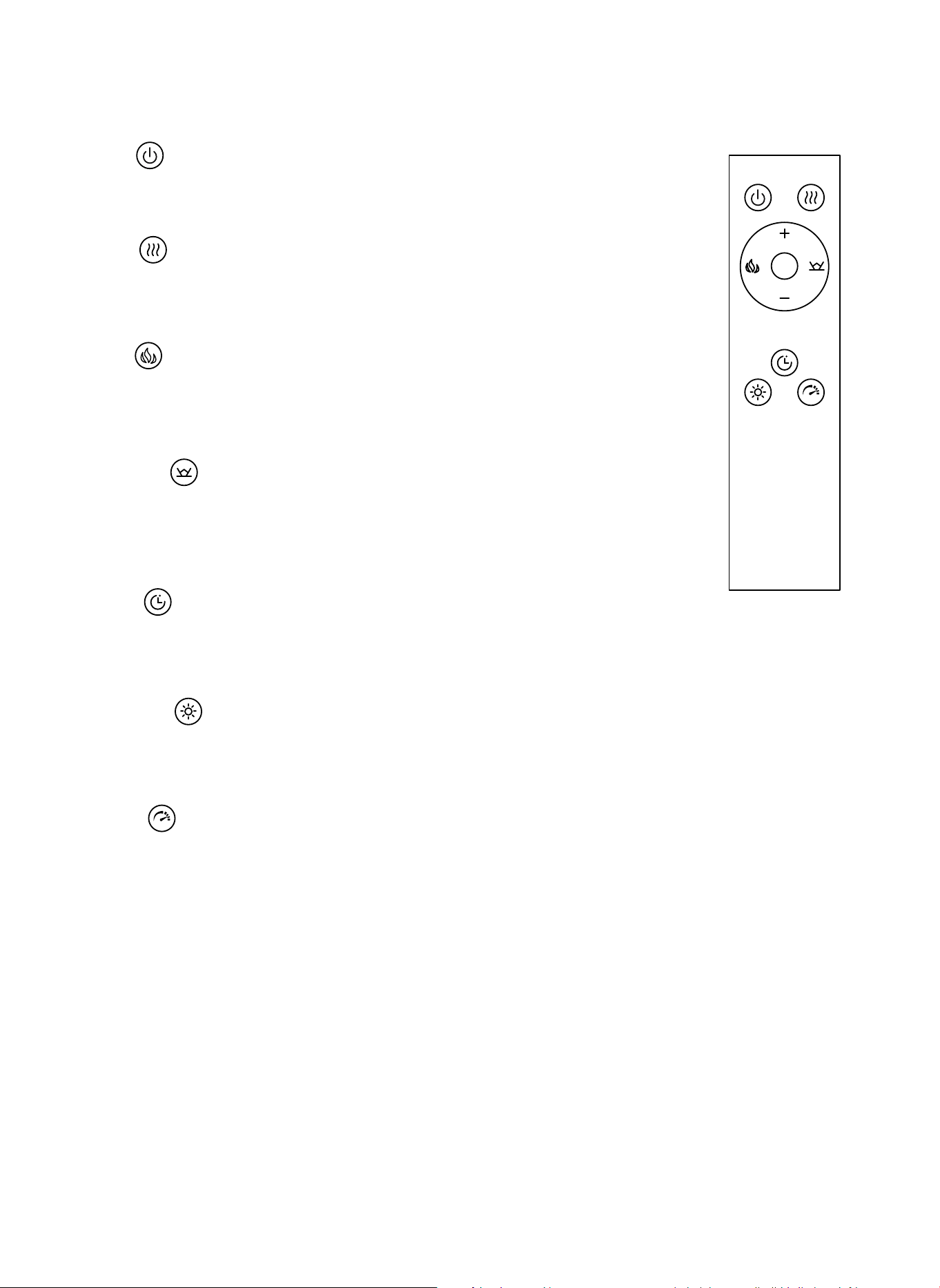

REMOTE CONTROL
Power
Heater
Flame
The Power Button turns the fireplace ON and OFF.
The Heater Button turns the heat ON and OFF. Press “+” or ”-”
button to set the temperature.
The Flame Button turns the flame ON and OFF. Press “+” or ”-”
button to set the flame color.
Ember bed
The Ember Bed Button turns the ember bed ON and OFF. Press “+” or ”-”
button to set the ember bed color.
Timer
Brightness
Speed
The Timer Button turns the timer ON and OFF. Press “+” or ”-” button to set the timer.
The Brightness Button is used to adjust the brightness of flame and ember bed.
01 02 03 04 05 06 07 08 09 10 11 12
13 14
15 16
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter-
ference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compli-
ance could void the user's authority to operate the equipment.
BATTERIES REPLACEMENT
The battery compartment is located on the back end of the remote control.
1. Press and slide the battery cover open.
2. Insert two 1.5V (AAA) batteries ensuring they are installed correctly with regard to the polarities
(+ and -) marked on the inside of the battery compartment.
3. Replace the battery cover.
NOTE: The battery should be removed if the product is to be left unused for a long time.
When replacing the batteries, replace both batteries at the same time with new batteries of the
correct type.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nicad, Nimh, etc) batteries.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15
16
TROUBLESHOOTING
Fault code Fault Cause Solution
The heater not working.
If the vents are dirty or clogged. Unplug the power,
clean the dust and debris of the vent area. Wait for 5
minutes, plug in and turn on the heater. If the heater
still don't work, please call after-sales service.
E3
MAINTENANCE
Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or
household cleaners as these products will damage the metal trim.
The motors used on the fan and the flame generator assembly are prelubricated for extended
bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the
fan/heater and air intake/output vents is recommended. The heater should be cleaned and
inspected regularly, depending on conditions, and at least at yearly intervals.
WARNING: Any electrical repairs of this unit should be carried out by a licensed electrician in
accordance with national and local codes.
WARNING: Disconnect power by unplugging the power and allowing heater to cool before
attempting any maintenance or cleaning to reduce the risk of fire, electric shock, or injury.
NOTE: When the heater is not in use, the heater should be stored in a dry location, away from
possible damage. The power cord should be stored properly to avoid contact with hot or sharp
objects.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
17
1 YEAR LIMITED WARRANTY
Our electrical fireplace is free from manufacturing and material defects for a period of one year
from date of purchase, subject to the following conditions and limitations.
1. This electric fireplace must be installed and operated at all times in accordance with the installa-
tion and operating instructions furnished with the product, Any unauthorized repair, alteration,
willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase
was made through an authorized supplier of the company.
3. The warranty is limited to the repair or replacement of parts found to be defective in material or
workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect si confirmed by the Company’s inspection.
4. The Company may, at its discretion, fully discharge all obligation with respect to this warranty
by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s),repair, replacement, or otherwise of same, will not be covered by this warranty,
nor shall the Company assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or conse-
quential loss or damage arising out of the use, or inability to use the product, except as provided
by law.
7. All other warranties-expressed of implied-with respect to the product, its components and acces-
sories, or any obligation/liabilities on the part of the Company are hereby expressly included.
8. The Company neither assumes, nor authorizes any third party to assume, on its behalf, any
other liabilities with respect to the sale of our product.
9. The warranties as outlined within this document do not apply to non our accessories used in
conjunction with the installation of this product. This warranty is void if :
a. The fireplace is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Made in China
Printed in China
Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or
household cleaners as these products will damage the metal trim.
The motors used on the fan and the flame generator assembly are prelubricated for extended
bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the
fan/heater and air intake/output vents is recommended. The heater should be cleaned and
inspected regularly, depending on conditions, and at least at yearly intervals.
WARNING: Any electrical repairs of this unit should be carried out by a licensed electrician in
accordance with national and local codes.
WARNING: Disconnect power by unplugging the power and allowing heater to cool before
attempting any maintenance or cleaning to reduce the risk of fire, electric shock, or injury.
NOTE: When the heater is not in use, the heater should be stored in a dry location, away from
possible damage. The power cord should be stored properly to avoid contact with hot or sharp
objects.
01 02 03 04 05 06 07 08 09 10 11 12
13 14 15 16
18
