INSTRUCTION MANUAL
Before using this product:
Please read this user manual carefully in order to ensure your safety
and the proper operation of this product. Keep for future reference.
TTL
TTL Li-ion Camera Flash
www. godox. com
Made in China | 705-V8603N-08
合格证
Wechat
神牛微信公众号
深圳市神牛摄影器材有限公司
地址 : 深圳市宝安区福海街道塘尾社区耀川工业区厂房2栋
电话 : 0755-29609320(8062) 传真 : 0755-25723423 邮箱 : godox@godox.com
GODOX Photo Equipment Co., Ltd.
Add.: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao'an
District, Shenzhen 518103, China Tel: +86-755-29609320(8062)
Fax: +86-755-25723423 E-mail: [email protected]
请保持干燥。
请勿私自拆卸产品，如产品出现故障须由本公司或授权的维修人
员进行检查维修。
请勿让儿童接触本产品。
禁止拆卸、撞击、挤压或投入火中，若出现严重鼓胀，请勿继续
使用。请勿放置在超过50度的高温环境中。
请勿将闪光灯头正对人眼闪光(特别是婴儿的眼睛)，否则可能会
在短时间内造成视力障碍。
请勿在化学品、可燃性气体或其他特殊物质附近使用闪光灯，这
些物质在特殊情况下可能对闪光灯发出的瞬间强光敏感，有可能
导致火灾或电磁干扰。在这些场合下，请注意相关警告标识。
本产品不能防水，在雨天及潮湿环境下请注意防水。
若发生任何故障，请立即关闭闪光灯电源。
感谢您购买神牛产品。
该型号机顶闪光灯适用于Nikon系列相机，兼容i-TTL自动闪光。
使用i-TTL闪光灯，您将获得更简单的拍摄体验，在光线变化复杂的
情况下，可以自动获得准确的闪光曝光，拍摄轻松自如。产品特点突
出表现在以下几方面：
● 具有2W LED造型灯作为补光摄影效果。
● 约GN60 (m ISO 100, @200mm)，81级调光(1/1~1/256)
● 专业锂电，优质体验
2980mAh锂电池，全功率480次闪光，1.5秒快速回电，便携
性无与伦比。
● 兼容尼康i-TTL
支持i-TTL自动闪光，可作为无线多灯闪光系统的主控或从属
单元，拍摄更简单快捷
● 点阵液晶屏
显示直观，操作更加简易
● 内置2.4G无线传输
收发一体，超远距离，创意无限
● 功能齐全，无限享用
支持手动和频闪闪光模式，高速同步/第二帘快门同步/闪光曝
光补偿等i-TTL功能
● 光学研究，输出稳定
高速连闪，每次输出亮度和色温连续一致，光线均匀分布
● 固件升级，兼容无忧
跟随原厂相机步伐，可对软件进行再升级
警告
前言
- 01 -
- 02 -
前言
警告
部件名称
机身
控制面板
LCD液晶显示屏
三种模式下的不同LCD屏显示
标配物品
可选购附件
电池
造型灯
装卸闪光灯
电源管理
闪光模式-- i-TTL自动闪光模式
闪光曝光补偿
高速同步
第二帘快门同步
闪光模式-- M: 手动闪光
闪光模式-- RPT: 频闪闪光
无线闪光拍摄：无线电(2.4G)传输
无线设置
组别模式选择
设置通讯频道
无线ID设置
扫描空闲频道设置
全自动无线闪光拍摄
手动无线闪光拍摄M:
手动无线闪光拍摄RPT:
其他应用
同步插孔触发
造型闪光
自动辅助对焦灯

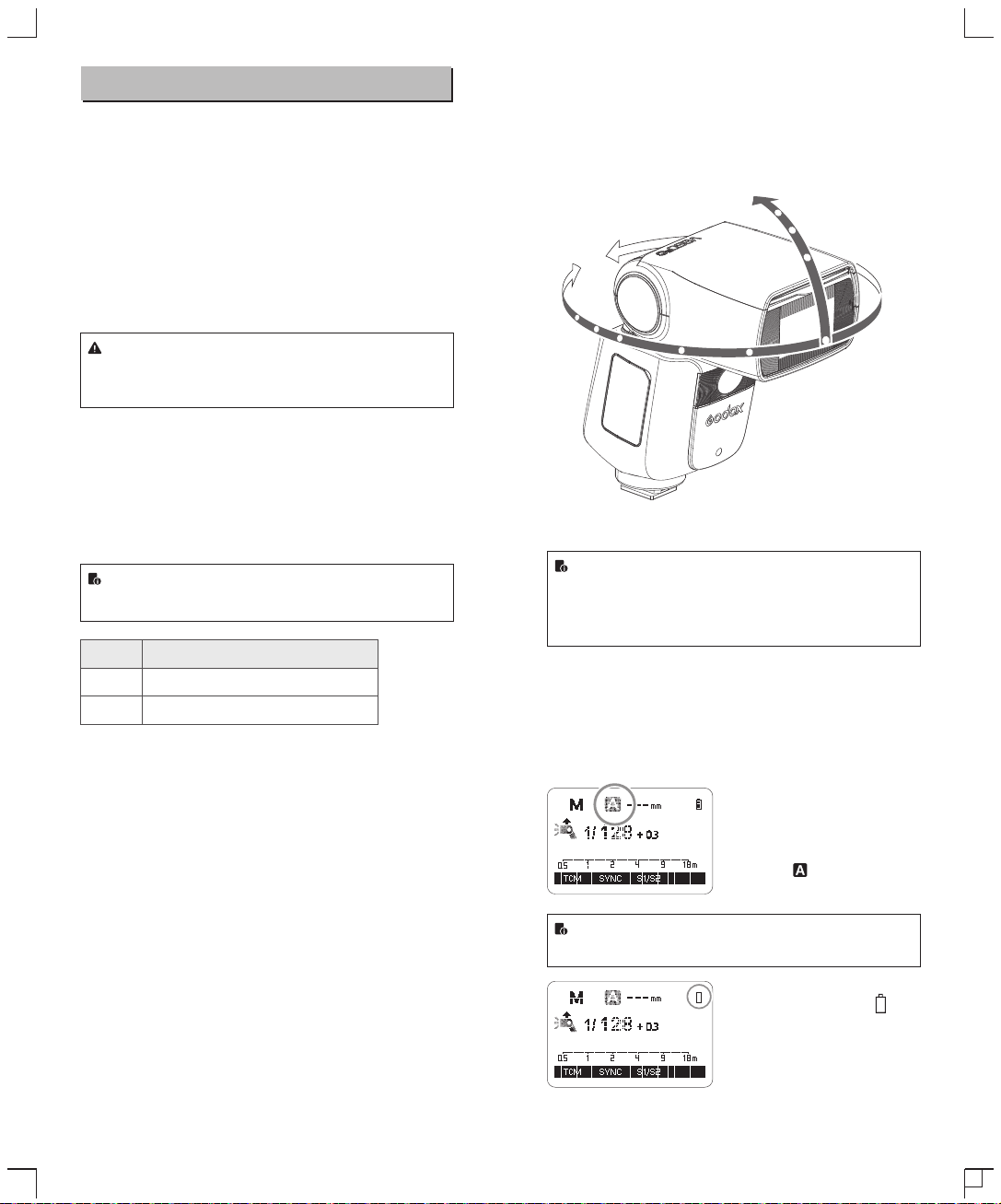

反射闪光

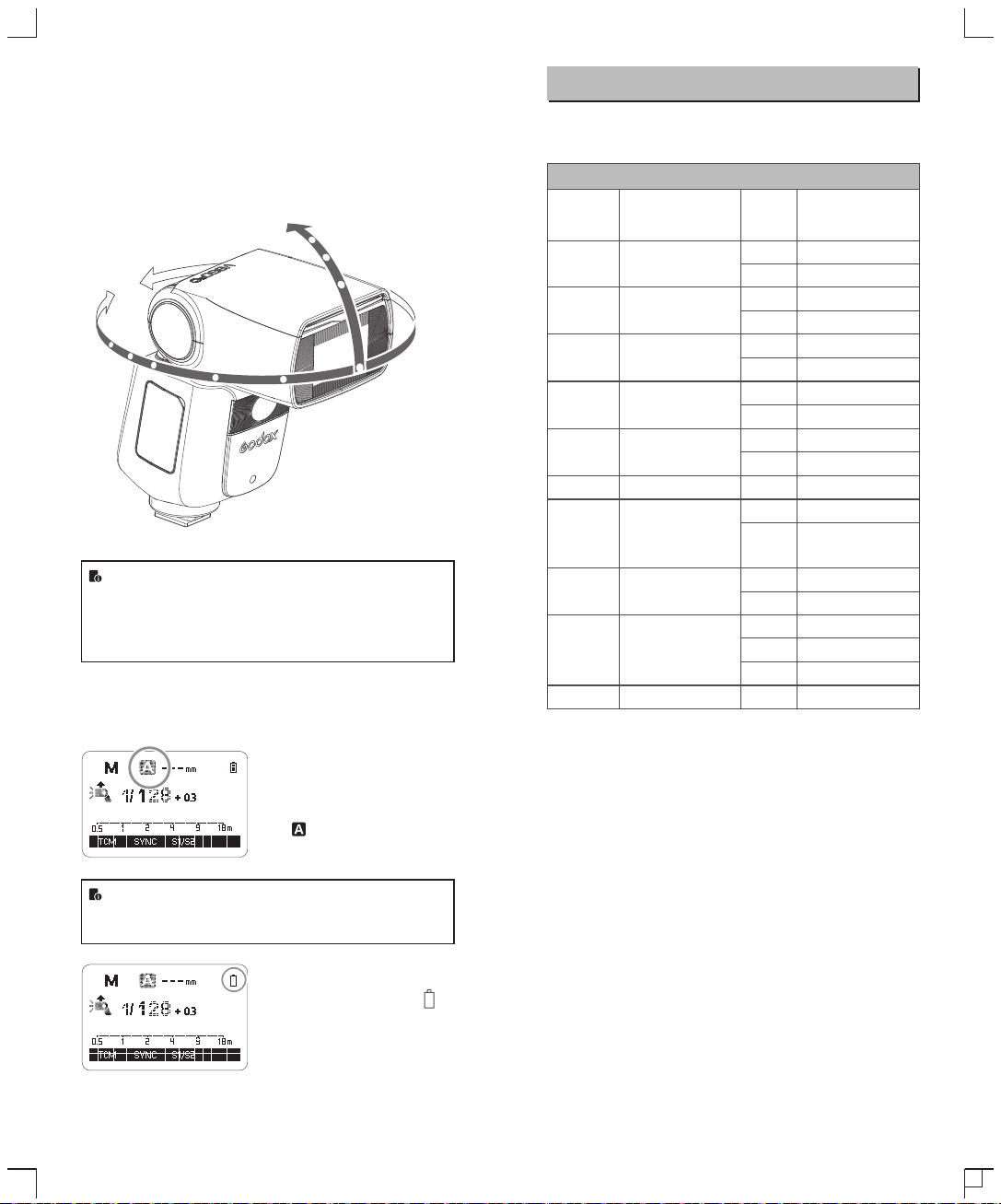

ZOOM： 设置闪光覆盖范围
电池电量低警示
C.Fn： 设置自定义功能
保护功能
规格参数
故障排除指南
固件升级
兼容相机列表
维护保养
01
02
05
08
09
09
10
10
12
13
14
21
23
24
25
26
27
27
27
目录
本说明书中使用的约定
● 此使用说明书中的操作步骤假定相机和闪光灯的电源开关已开启。
● 参考页码由(第**页)表示。
● 此使用说明书中使用以下警告符号：
该“小心”符号表示避免出现拍摄问题的警告。
该“注意”符号提供补充信息。
锂电机顶闪光灯
TTL
Pioneering Camera FlashTTL Li-ion
- 03 -
- 04 -

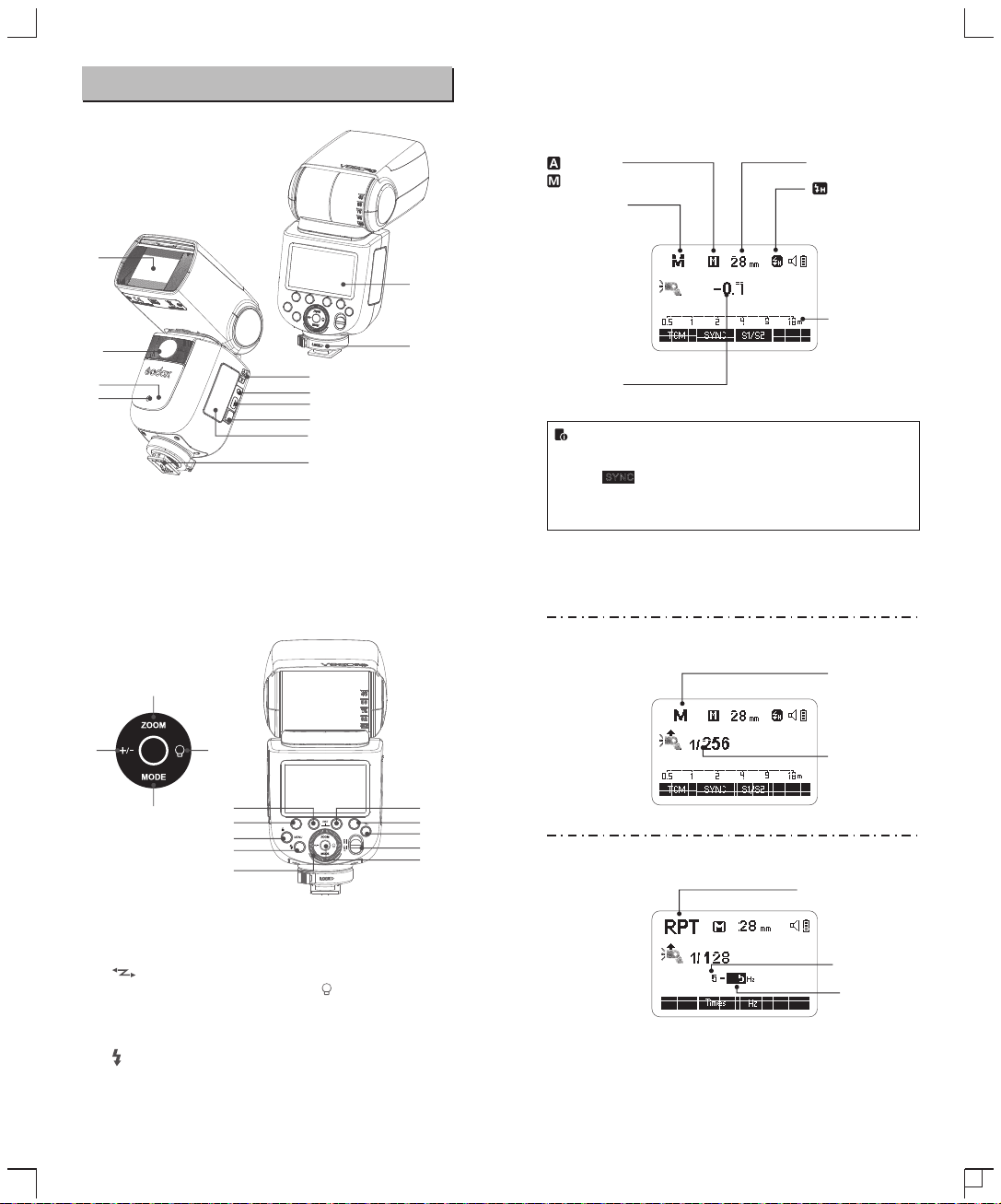

● LCD液晶显示屏
(1)i-TTL自动闪光
Zoom : 变焦显示(第22页)
: 自动
: 手动(第12页)
i-TTL : i-TTL
自动闪光
焦距(闪光覆盖/第22页)
: 高速同步
(第11页)
距离指示显示
有效闪光范围
闪光曝光补偿量
(2)M手动闪光
M : 手动闪光
手动闪光输出
(3)RPT频闪闪光
RPT : 多重(频闪)闪光
闪光次数
闪光频率
(4)无线电传输拍摄
: 无线电传输无线拍摄
● 主控单元
闪光组
频道
● 显示屏将只显示当前应用的设置。
● 在功能按钮1至功能按钮4上方显示的功能(如< >和
<M/A/B/C>)根据设置的状态发生变化。
● 当操作按钮或拨盘时，液晶显示屏点亮。
SYNC
闪光模式
- 05 -
- 06 -

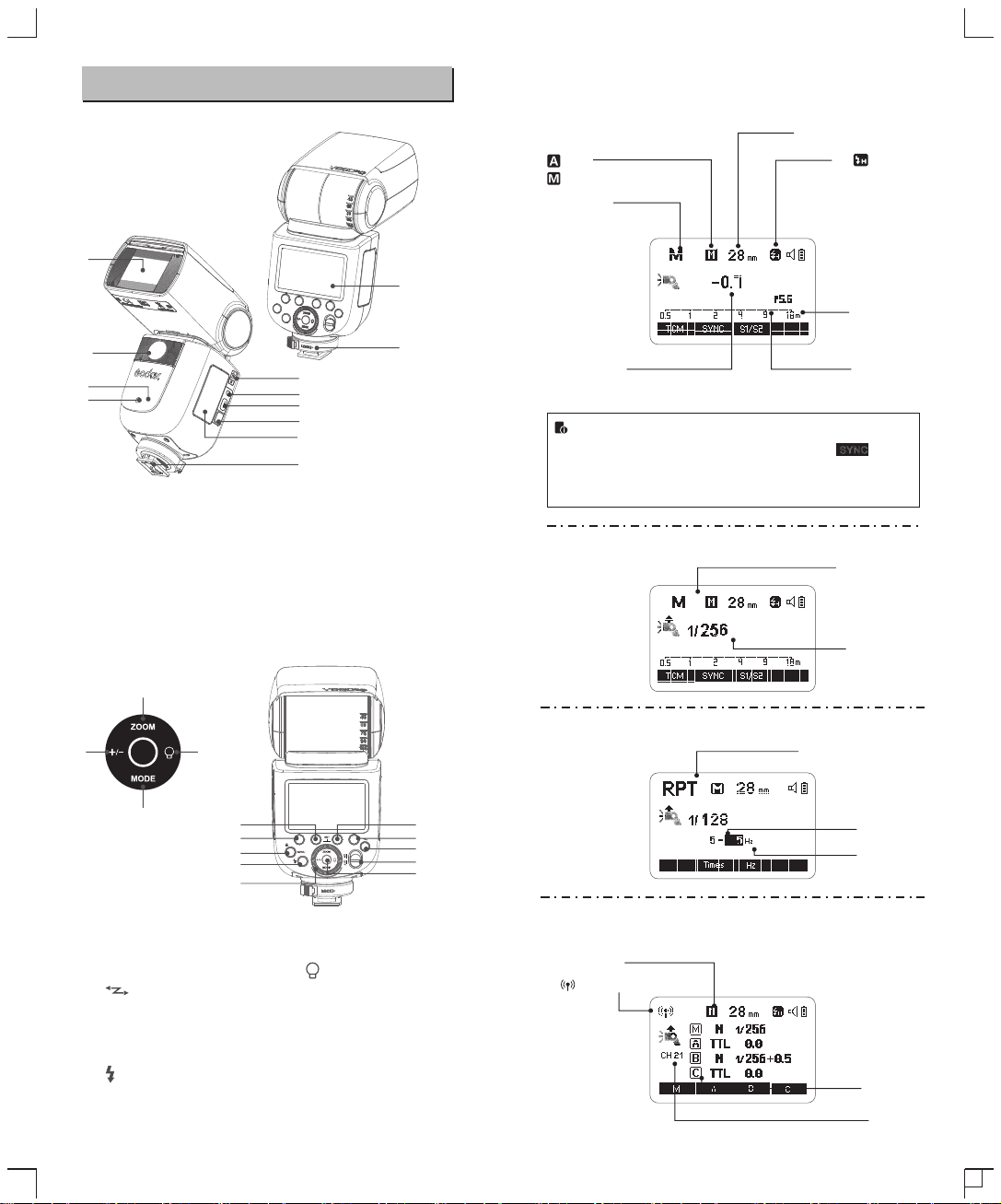

01. 闪光灯头
02. LED造型灯
03. 辅助对焦灯
04. 无线传感器
05. 同步插孔
06. Type-C USB端口
07. 取电池按钮
08. 热靴
09. 液晶显示屏
10. 固定热靴扣钮
11. 锂电池
12. TTL/M快捷开关拨钮
● 机身
● 控制面板
09
05
07
08
04
03
01
06
02
10
12
11
19
20
22 21
13. <MENU>闪光灯菜单
按钮/锁定按钮
14. < >无线按钮
15. 调节旋钮
16. 设置按钮
17. ON/OFF电源开关
18. < >试闪按钮/回电指示灯
19. <ZOOM>焦距设置
20. <MODE>闪光灯模式选择
21. < >造型灯设置
22. <+/->功率大小调节
23. 功能按钮1
24. 功能按钮2
25. 功能按钮3
26. 功能按钮4
18
24
25
16
14
13
26
17
23
15
部件名称
电池
● 从属单元
: 从属
: 从属图标

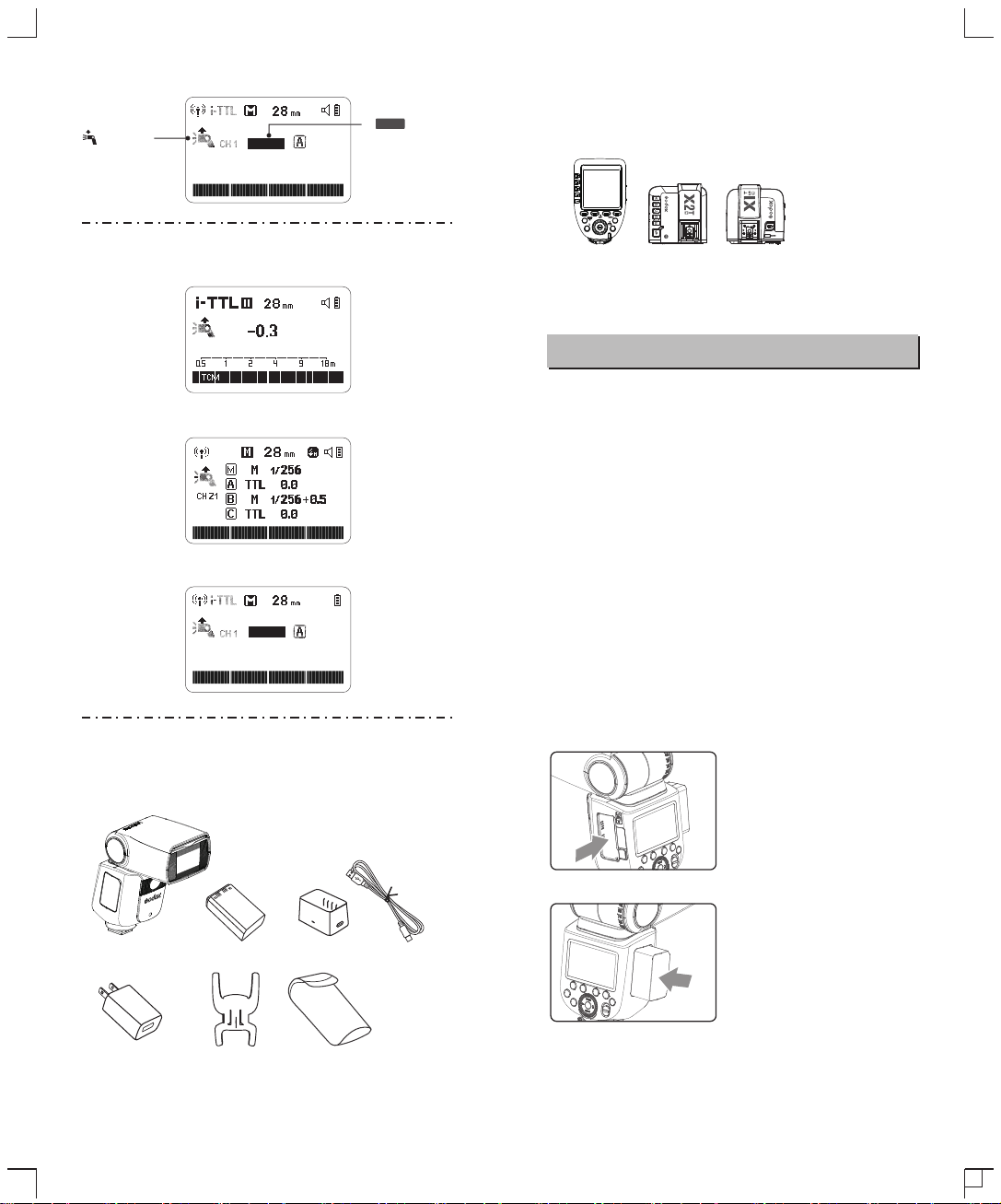

● 标配物品
1、闪光灯 2、锂电池 3、USB充电座 4、USB充电线 5、充电器
6、微型底座 7、保护包 8、说明书
● 可选购附件
● 特性
1. 本品采用锂电池，支持反复充放电480次，使用寿命长；
2. 安全可靠，内置电路有过充保护、过放保护、过流保护、短路保护；
3. 使用标配电池充电器只需3.5个小时左右。
● 注意事项
1. 避免正负极短路；
2. 电池没有防水功能，不要把电池浸泡在雾、水中；
3. 放置于儿童不易接触的地方；
4. 电池充电不要放置超过24小时；
5. 电池应放置于凉爽、干燥及通风的地方存储；
6. 电池不要靠近和放置于火中；
7. 电池使用报废后请按当地的规定处理；
8. 如果电池超过3个月不使用，请对电池进行满电充电。
9. 长期不使用，请充电至60%左右再放置。
10. 反复充放电500次以上或电池使用3年以上，建议更换新电池。

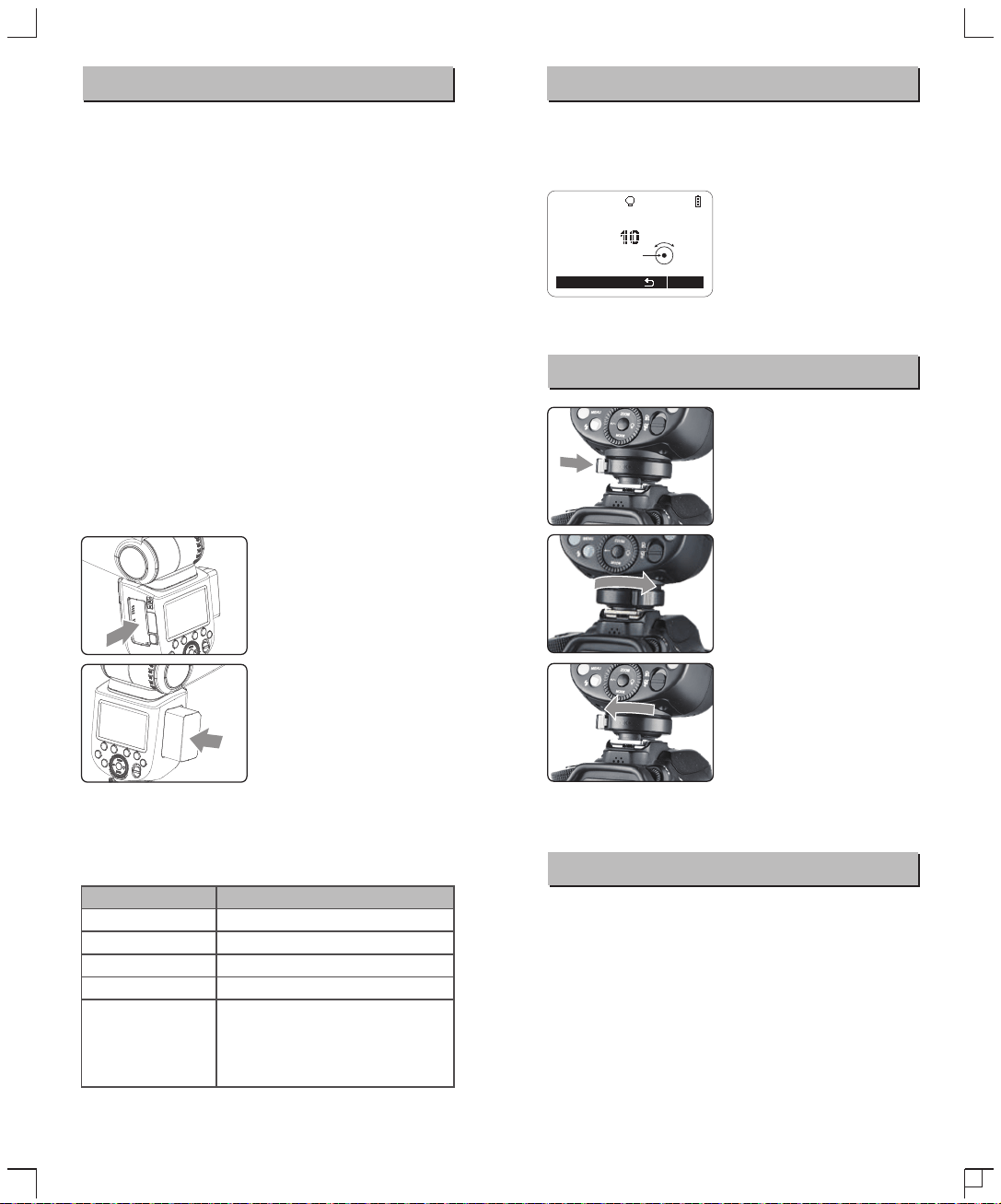

● 装卸电池
拆卸电池。
1 ● 用您的拇指按电池按钮,手
往下推电池,便可取出电
池。
安装电池。
2 ● 按电池指示方向将锂电池
插入电池仓，直至扣件卡
住即可。

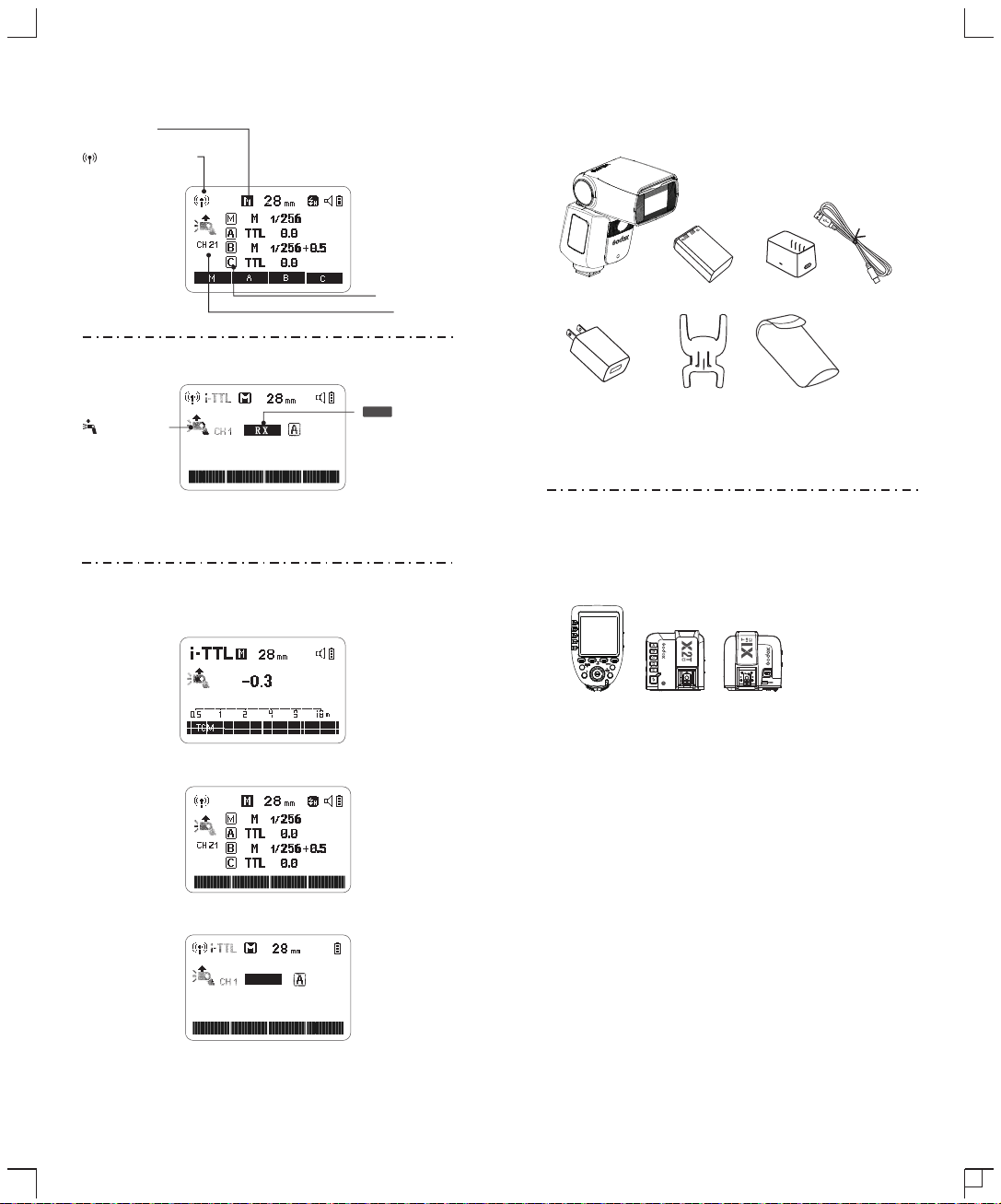

● 三种模式下的不同LCD屏显示
● 机顶模式
● 2.4G无线传输: 作为主控
● 2.4G无线传输: 作为从属
可搭配本公司以下摄影附件使用，以获得最佳的拍摄效果和使用体
验：XProN、X2T-N、X1N TTL引闪器等。
- 07 -
- 08 -
RX
RX
RX
1 2
3
4
6
7
5
Gr CH
Gr CH
M A B C
● 电池电量指示
把锂电池正确安装在闪光灯上，即可给闪光灯供电。使用时请查看闪
光灯屏幕上电池图标，即可随时掌握电量状态。
意义
满电
中电
低电
电量少，请及时充电。
电量即将用尽，此状态不支持闪光灯工作。
注：此状态请尽快(10天内)充电，才可使用或放置。
电池电量显示
3格
2格
1格
无格
无格闪烁

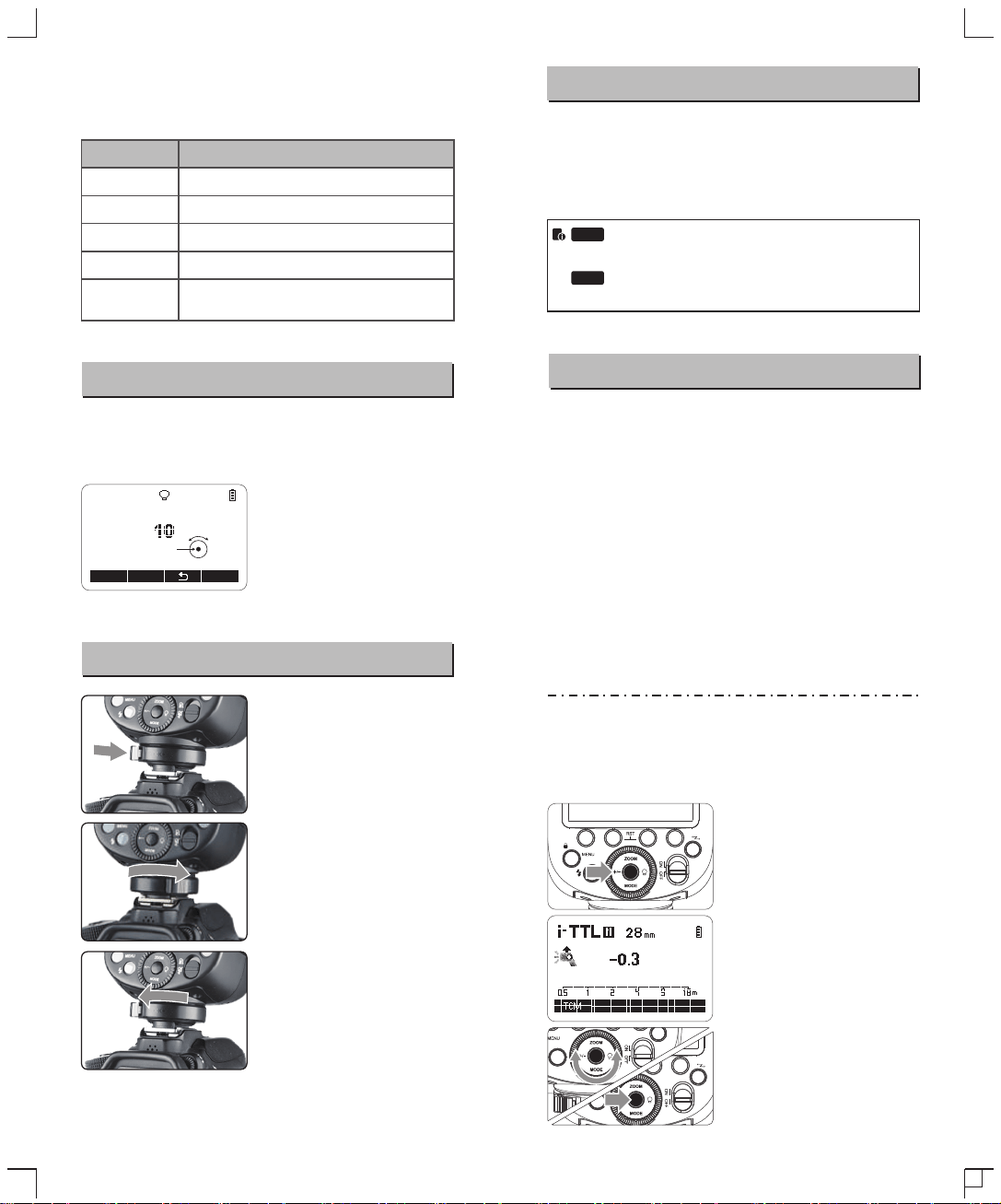

装卸闪光灯
安装闪光灯。
1 ● 转动闪光灯旋转钮到左边
便可以全插入相机的热
靴。
扣紧闪光灯。
2 ● 转动闪光灯旋转钮到右
边,便可以锁定热靴。
电源管理
闪光模式：i-TTL自动闪光模式
＊ON/OFF电源开关控制该产品的打开和关闭，长时间不使用时请关
闭电源。本产品设计有电源自动关闭功能。作为主控单元在长时间
（约90秒）无人操作时，闪光灯会自动关闭，半按快门按钮或机身任
意键唤醒；作为从属单元在60分钟（或者选择30分钟）无任何操作
时，闪光灯会进入休眠状态，此时可按机身任意键唤醒。
离机使用时，建议通过自定义功能使“自动关闭电源”
无效。(C.Fn-STBY 第23页）
“从属单元自动关闭电源计时器”出厂默认设置为60分
钟，也可自定义选择30分钟。(C.Fn-RX STBY第23页）
C.Fn
C.Fn
该闪光灯有i-TTL自动闪光，M手动闪光，RPT频闪闪光三种模式。
在i-TTL模式下，相机的测光系统会侦查从主体反射回来的闪光照
明，从而自动调节闪光输出量，使主体和背景得到均衡曝光。支持曝
光补偿、高速同步、第二帘快门同步、光圈预览造影闪光等功能。
＊按下< MODE>模式选择按钮，三种闪光模式将会依次出现在液晶
屏上。
i-TTL模式
通过按< MODE>模式选择按钮，将闪光灯设置为<i-TTL >, 可以使
闪光灯进入i-TTL模式。
● 半按相机快门按钮进行对焦，光圈值和有效闪光范围将会显示在显
示屏上。
● 在快门释放前的瞬间进行一次预闪，闪光灯接收相机信息进行主闪
光。

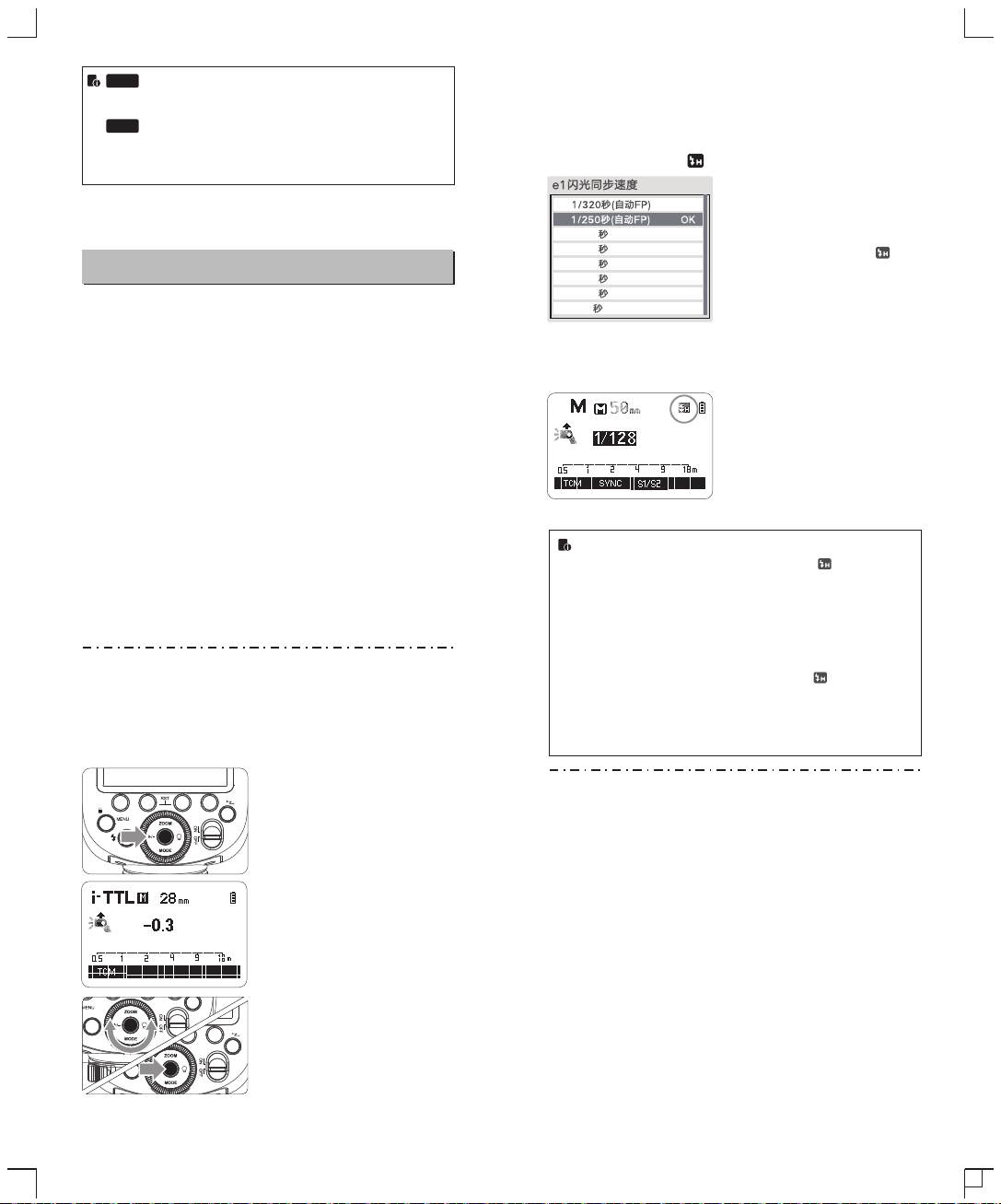

闪光曝光补偿
该闪光灯可以在±3档间以1/3档为增量调节闪光曝光补偿。由于环境
的需求而需要微调TTL系统时，这个功能非常有用。
设置闪光曝光补偿：
按下<+/->按钮，闪光曝光
1 补偿量被突出显示。
设置闪光曝光补偿量。
2 ● 转动调节旋钮设置曝光补
偿量。
● "0.3"表示1/3档，"0.7"表
示2/3档。
● 要取消闪光曝光补偿，将
闪光曝光补偿量设为
"+0"。
按下设置按钮，确定闪光曝
3 光补偿。
造型灯
通过按造型灯按钮，进入造型灯设置模式。短按设置键打开或关闭造
型灯。造型灯打开后，转动旋转键设置造型灯的亮度。有01～10个
档位调节亮度。
- 09 -
- 10 -
取下闪光灯。
3 ● 按下旋转钮上的按键，旋转
到左边，便可解除锁定热
靴。
MODEL
ON/OFF
高速同步
使用高速同步(FP闪光)，您可以在所有的快门速度下同步使用闪光
灯。高速同步闪光在使用光圈优先对人像进行填充闪光时特别方便。
选择高速同步＜ ＞。
● 如果在尼康相机机身设置中，将闪光同步速度设置为1/320秒
(自动FP)或1/250秒(自动FP)，无论实际的快门速度是多少，
闪光灯屏幕上的< >图标都会显示。
● 使用高速同步，快门速度越高，有效的闪光范围就越小。
● 请在尼康相机机身设置中,将闪光同步速度设置为非(自动
FP)选项,半按快门时,闪光灯屏幕上的< >图标会消失。
● 无法设置频闪闪光。
● 连续高速同步闪光15次后，闪光灯热保护功能可能会被激
活。

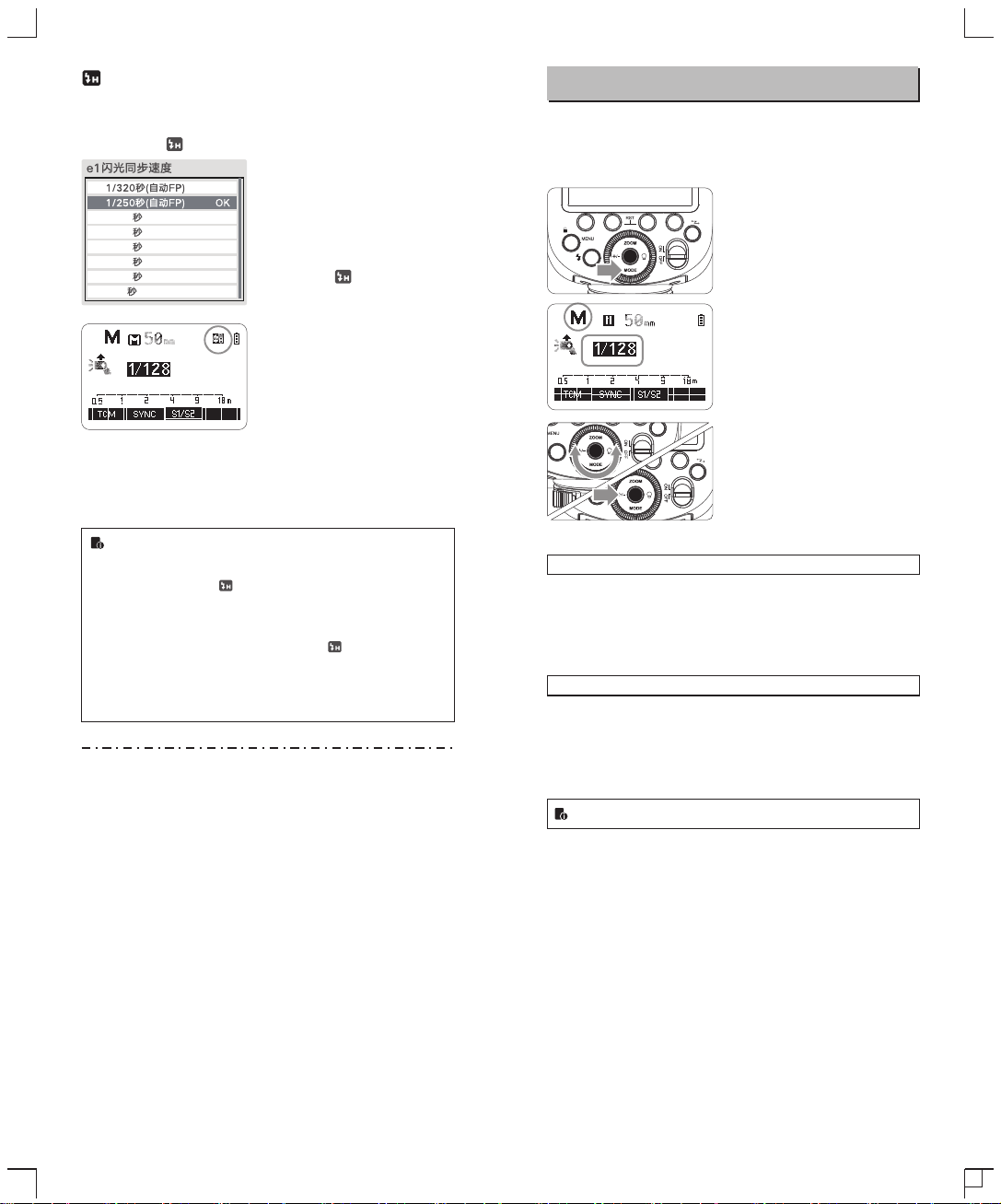

第二帘快门同步
使用慢速快门，您可以在被摄体后创建一条光线轨迹。在快门关闭前
的瞬间闪光灯闪光。
在尼康相机机身设置中，将
1 闪光同步速度设置为
1/320秒（自动FP)或
1/250秒（自动FP)，半按快
门键，闪光灯屏幕显示高速
同步< >图标。此时高速
同步功能启动。
转动相机拨盘，快门速度设
2 置为1/250秒或更高的快门
速度。
- 11 -
- 12 -
● 在尼康相机机身设置中，选择Rear闪光方式，即可实现后帘同步。
要确认目前是否正在使用
3 FP高速同步功能，通过相机
取景器检查快门速度即可判
断。如果快门速度为1/250秒
或更高，表示高速同步功能启
动。
您可以在1/256功率至1/1全功率间以1/10档为增量设置闪光输出。
为获得正确的闪光曝光，请使用手持的闪光测光表确定所需的闪光输
出。
按<MODE>模式选择按钮，
1 屏幕显示<M>。
按下<+/->按钮选中，转动
2 调节旋钮设置闪光输出功率。

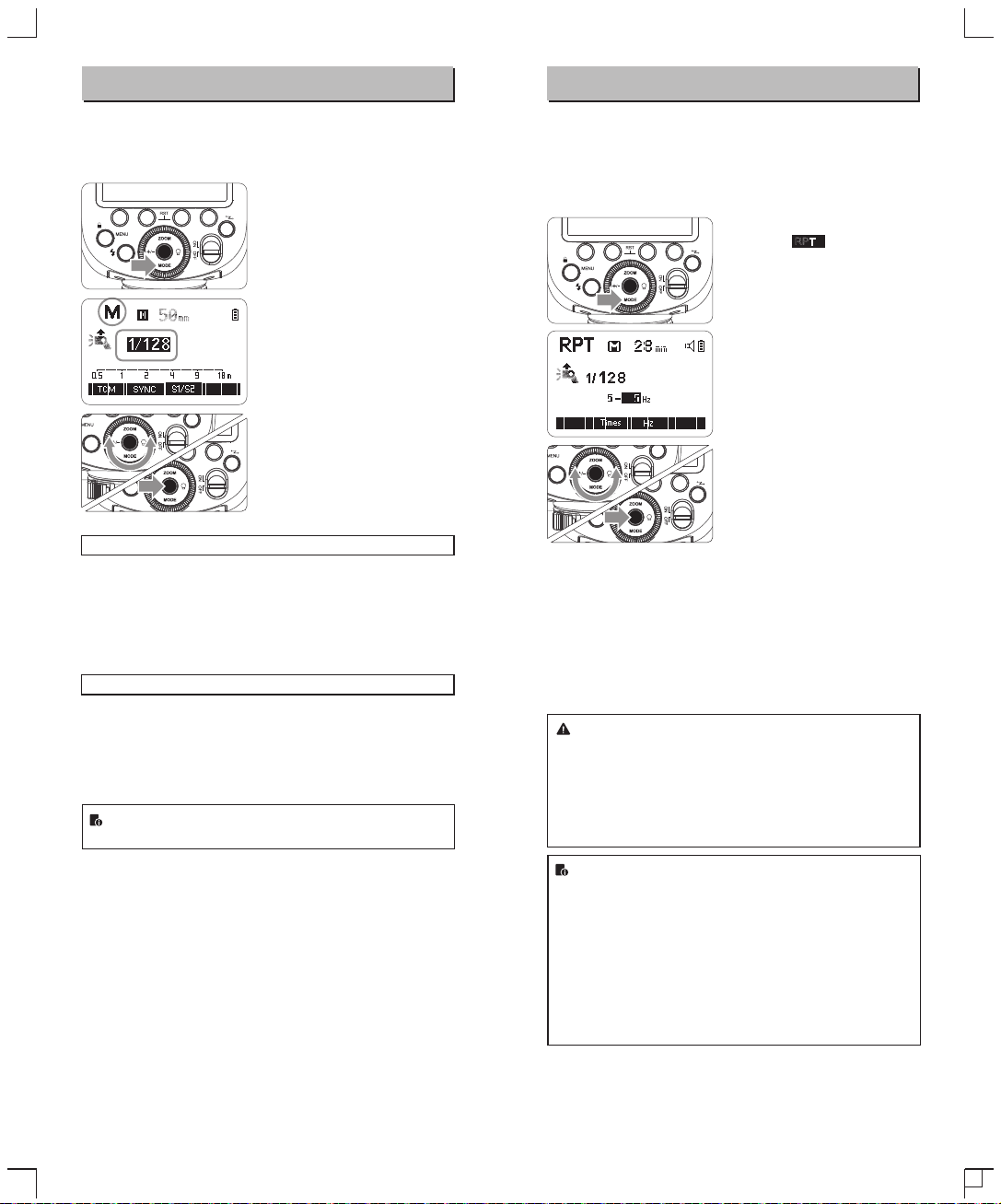

闪光模式：M 手动闪光
按下设置按钮，确定闪光曝
3 光补偿。
● 只有在M模式下才支持S1/S2光控引闪模式。
S2光控单元设置
在M手动闪光模式下，可以使用S2功能，闪光灯可作为副灯使用，
适用于TTL闪光环境。具有防预闪功能，使用带一次预闪功能的相机
能用光控实现同步拍摄。它会与主闪光灯的第二次闪光同步触发闪
光，即2次光控引闪。
S1光控单元设置
在M手动闪光模式下，可以使用S1功能，闪光灯可作为副灯使用，
创造多种照明效果，适用于手动闪光环境。它会与主闪光灯的第一次
闪光同步触发闪光，效果与使用无线引闪器一致。
1/250
1/200
1/160
1/125
1/100
1/80

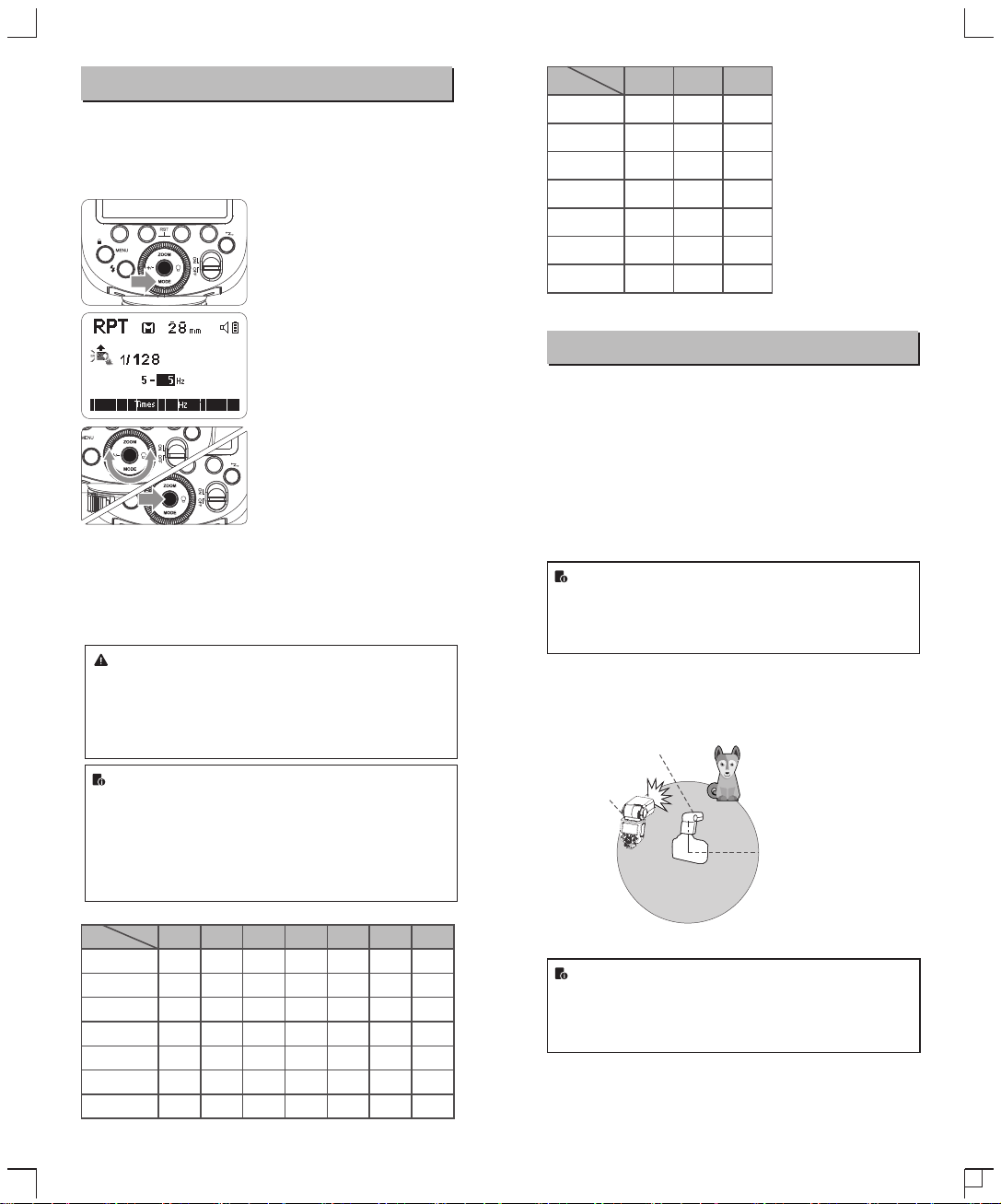

闪光模式：RPT频闪闪光
按<MODE>闪光模式选择
1 按钮，屏幕显示<RPT>
按下<+/->按钮选中，转动
3 调节旋钮设置闪光输出功率。
按下设置按钮确定，所有设置
都将显示出来。
计算快门速度
在频闪闪光过程中，到闪光停止为止快门应保持开启状态。使用下面
的公式计算快门速度，然后用相机进行设置。
闪光次数/闪光频率＝快门速度
例如，如果闪光次数是10，闪光频率是5Hz，快门速度则至少为2秒。
设置闪光频率和闪光次数。
2 ● 按功能按钮2<Times>选
择闪光次数，旋转调节旋
钮设定数字。
● 按功能按钮3<Hz>选择闪
光频率，旋转调节旋钮设
定数字。
最大频闪闪光次数
1/4
1/8
1/16
1/32
1/64
1/128
1/256
1
8
14
30
60
90
90
90
2
6
14
30
60
90
90
90
3
4
12
30
60
90
90
90
4
3
10
20
50
80
90
90
5
3
8
20
50
80
90
90
6-7
2
6
20
40
70
90
90
8-9
2
5
10
30
60
80
80
闪
光输出
Hz
使用频闪闪光，可以发出一系列快速的闪光。它可以在一张照片上拍
摄移动物体的多个图像。
您可以设置闪光频率(每秒的闪光次数，以Hz表示)、闪光次数和闪光
输出。
为防止闪光灯头过热并损坏，请勿执行连续10次以上的频闪
闪光连拍。闪光10次后，请让闪光灯至少冷却15分钟。如果
您试图执行连续10次以上的频闪闪光连拍，为防止闪光灯头
过热，闪光可能自动停止。如果发生了这种情况，请让闪光
灯至少冷却15分钟。
● 反光很强的被摄体在暗背景前使用频闪闪光更加有效。
● 推荐使用三脚架和遥控开关。
● 闪光输出为1/1和1/2时不能设置频闪闪光。
● 频闪闪光时也可以使用“buLb”。
● 如果闪光次数显示为--，则闪光灯会连续闪光，直到快门或
电池耗尽。如下表所示，闪光次数将受到限制。
- 13 -
- 14 -
闪
光输出
Hz

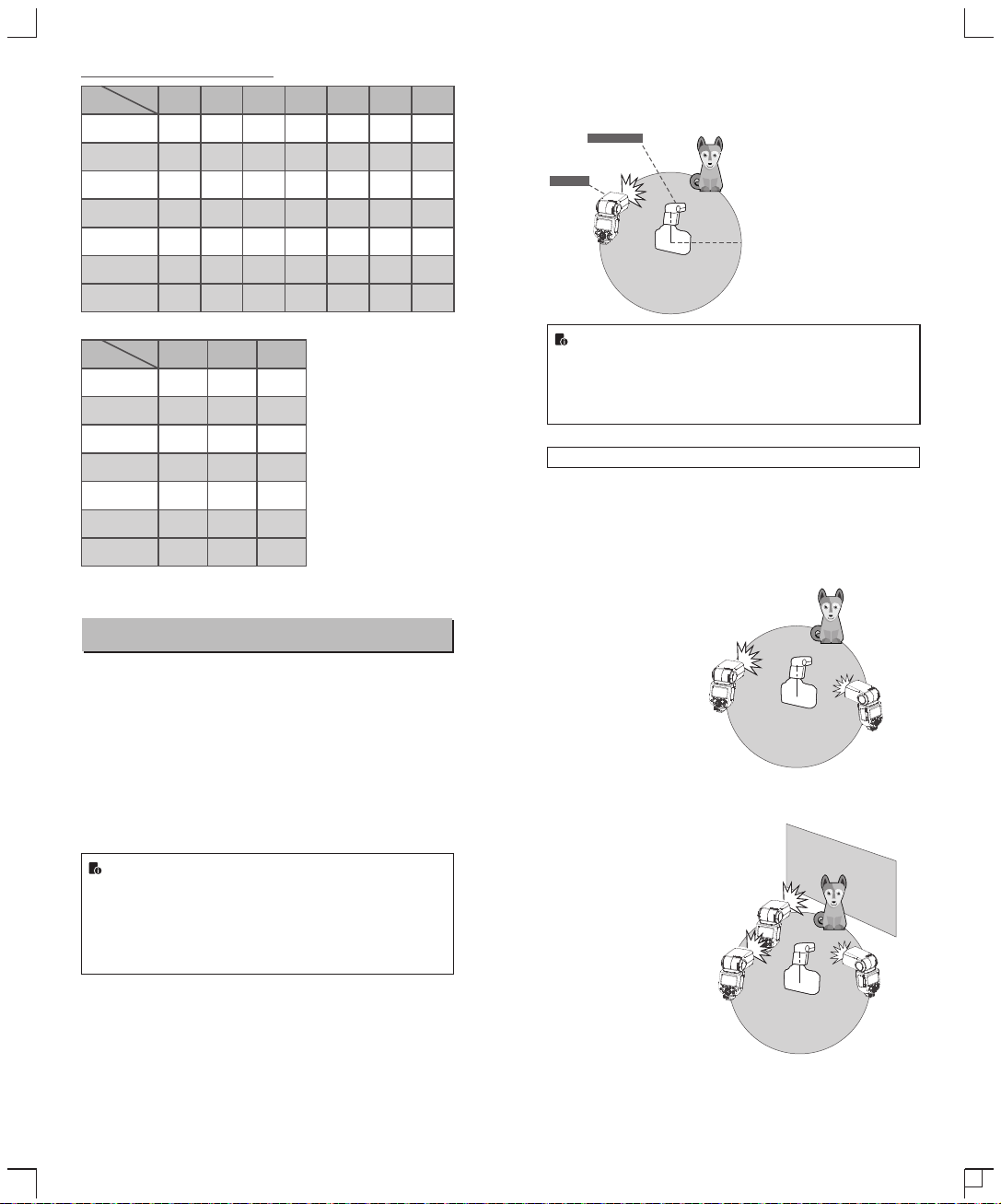

无线闪光拍摄：无线电(2.4G)传输
定位和操作范围(无线闪光拍摄的示例)
● 使用一个从属单元进行自动闪光拍摄
● 使用附带的微型支架定位从属单元。
● 开始拍摄前请进行测试闪光和试拍。
● 受从属单元的位置、周围环境、天气状况等影响，传输距离
可能更短。
● 无线电创意系统，支持创建五个从属单元组，并实现TTL自动闪
光。你可以通过TTL自动闪光轻松获取多种照明效果。
● 使用主控单元按组分别设置的任何TTL自动闪光，手动闪光和频闪
闪光设置都会被自动传输到从属单元。因此，在拍摄时无需操作从
属单元。只需在主控单元上对每个从属组进行单独设置就可以完
成。
● 将此产品设置为主控单元时，可以在i-TTL/M/RPT/OFF四种闪光模
式下工作。
备注：● 即使有多个从属单元，X系列引闪器也可通过无线控
制所有的闪光灯。
● 本说明手册中，“主控单元”指安装在相机上的闪光
灯，“从属单元”指通过无线控制的闪光灯。
1/4
1/8
1/16
1/32
1/64
1/128
1/256
10
2
4
8
20
50
70
70
20-50
2
4
8
16
30
40
40
60-100
2
4
8
12
20
40
40
(主控)
(从属)
传输距离约100米
TX
RX
RX
可以将从属单元分割为两个或三个组并在改变闪光光比(倍率)的同时
进行i-TTL自动闪光拍摄。此外，可以为各闪光组(最多5个组)设定并
用不同的闪光模式拍摄。
● 用两个从属组进行自动闪光拍摄。
● 用三个从属组进行自动闪光拍摄。

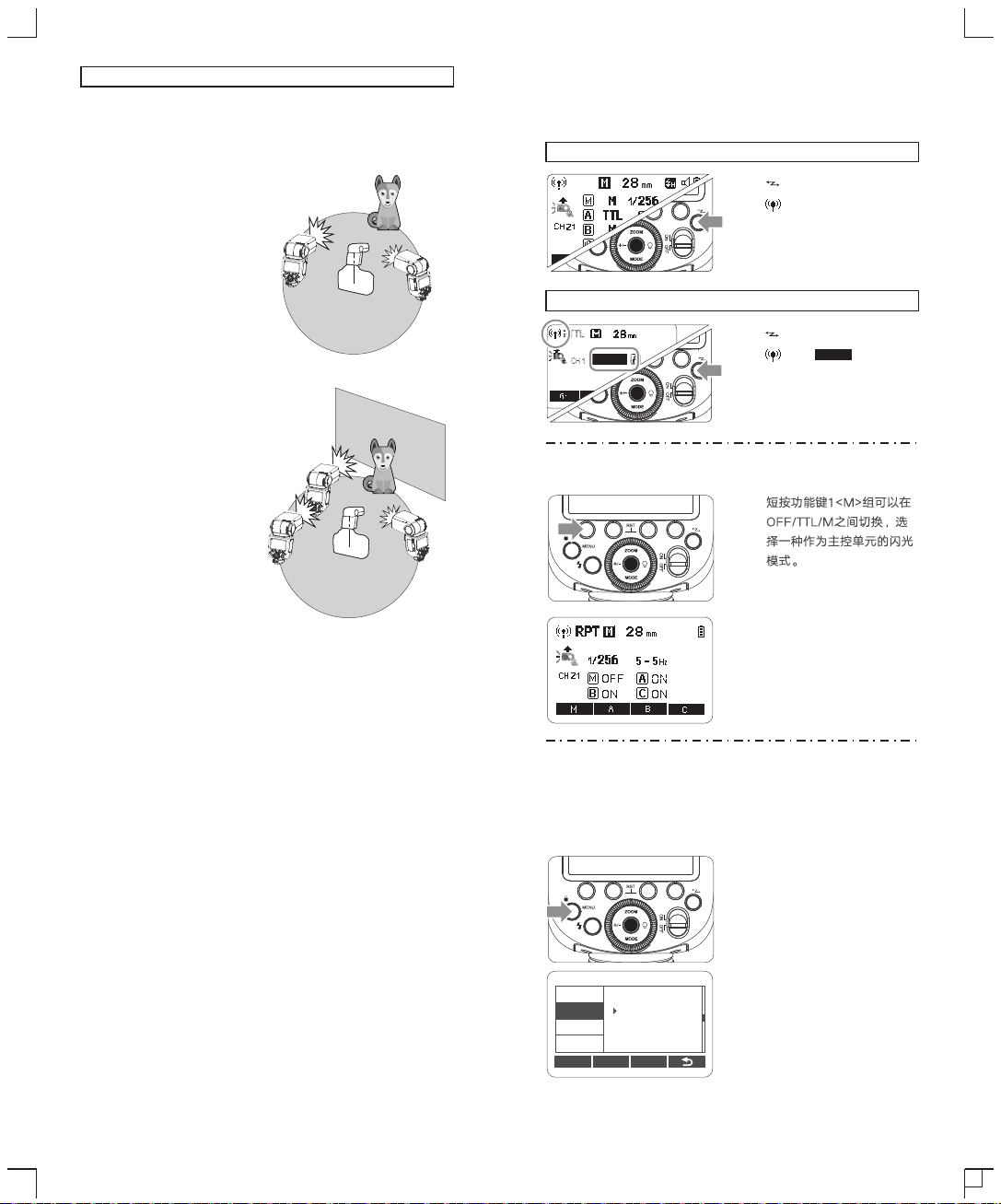

无线多重闪光拍摄
- 15 -
- 16 -
从属单元设置
主控单元设置
1、无线设置
您可以在普通闪光和无线闪光之间切换。对于普通闪光，请务必将无
线设置设为“关”。
2、组别模式选择
1
短按MODE按钮可以切换至
2 RPT模式。
按下< >无线设置按钮，令屏幕
显示< >。
按下< >无线设置按钮，令屏幕
显示< >和< >。
3、设置通讯频道
如果在拍摄现场不止一个无线闪光系统，您可以通过更改通讯频道来
防止信号干扰。保证主控单元和从属单元设置为相同的频道编号即
可。
按<MENU>菜单键进入自
1 定义CH设置。
在自定义里<CH>中，旋转
2 调节旋钮从1至32中选择频
道。
C.Fn Ver 0.5
CLEAR
CH
ID
BEEP
STBY
07
SCAN
RX
A
B
A
B
C
按下设置按钮确定。
3
6、i-TTL: 全自动无线闪光拍摄
使用一个从属单元的自动闪光拍摄
设置主控单元。
1 ● 将安装在相机上的
V860IIIN 设为主控单元。
● M/A/B/C都可以单独设置
TTL。
设置从属单元。
2 ● 将要被无线控制的
V860IIIN设为从属单元。
● 可以选择A/B/C/D/E。
检查传输频道。
3 ● 将主控单元和从属单元的频
道设为一致。(第16页)
4、无线ID设置
为了避免信号干扰，除了改变无线通讯频道还可以通过改变无线 ID来
防止干扰；主控单元和从控单元设为相同的频道和无线 ID即可。进入
C.Fn ID,选择01-99其中任意一数无线ID打开，选OFF无线ID关闭。
C.Fn Ver 0.5
CLEAR
CH
ID
BEEP
STBY
99
SCAN
定位相机和闪光灯。
4 ● 将其定位在(第15页)所示的
范围内。
- 17 -
- 18 -

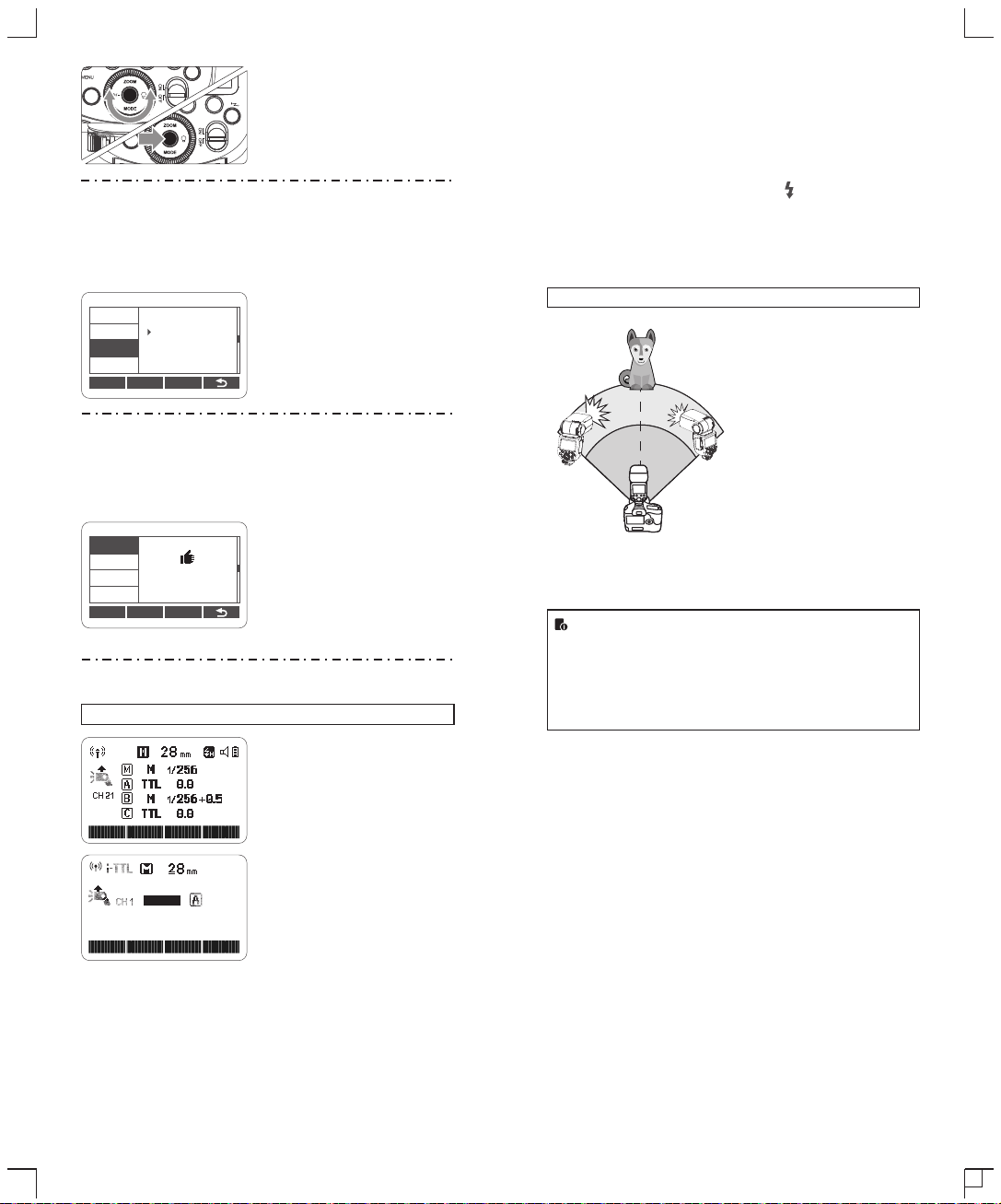

5、扫描空闲频道设置
为了避免其他人使用同样频道受到干扰，可以使用扫描空闲频道功
能：进入自定义菜单找到SCAN的选项，设置为START时显示会出现
1%到100%的扫描，扫描完成后会出现8组频道空闲频道。
C.Fn Ver 0.5
CLEAR
CH
ID
BEEP
SCAN
22 08 32 23
30 21 07 06
检查闪光灯是否准备就绪。
5 ● 检查主控闪光灯就绪指示
灯点亮。
检查操作。
6 ● 按下主控闪光灯的试闪按钮
< >。
● 从属单元闪光。如果从属单
元不闪光，检查是否将其放
置在操作范围内。

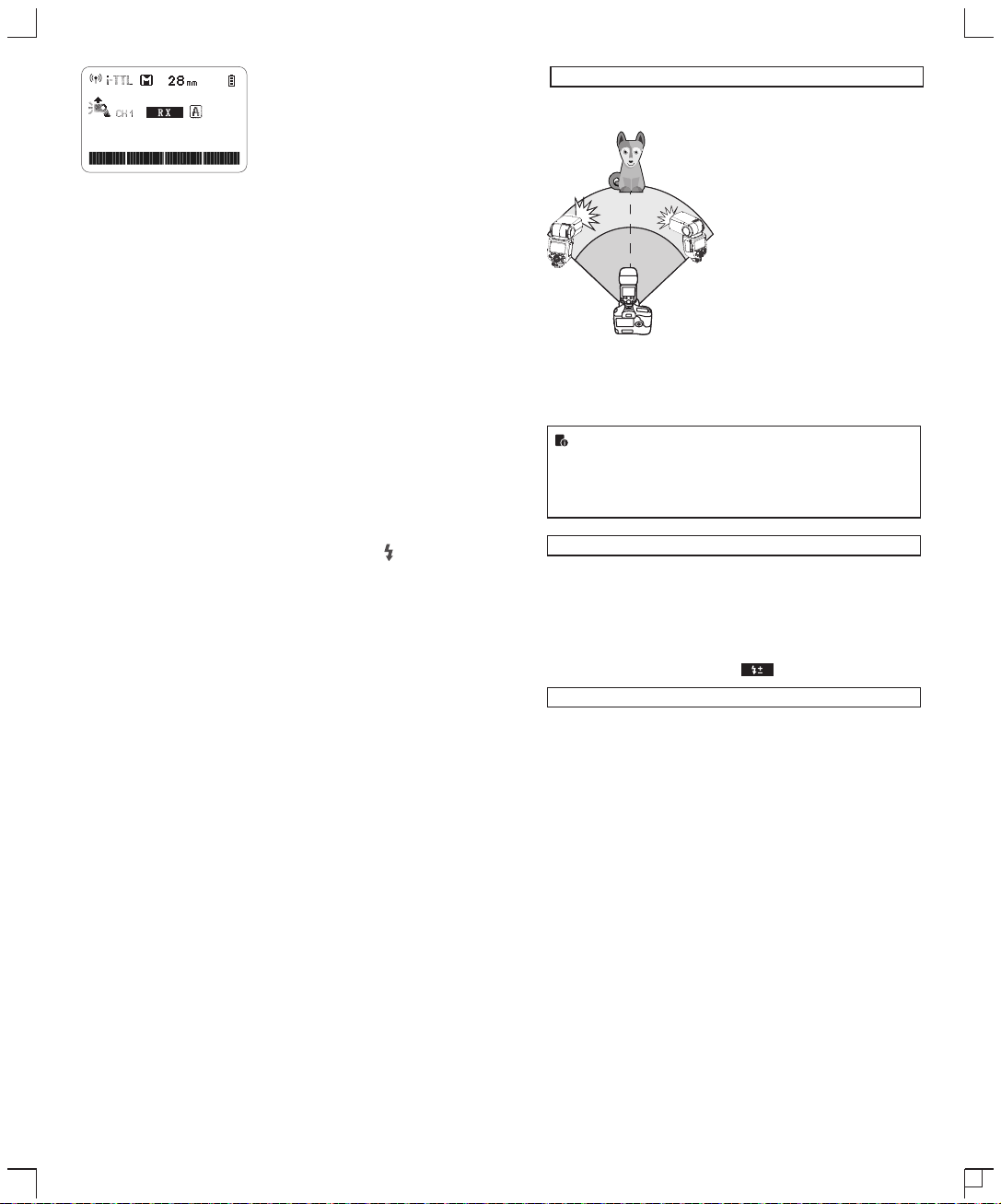

使用多个从属单元的自动闪光拍摄
当需要更大的闪光输出或想要更加
轻松地进行照明时，可以增加从属
单元的数量并将其作为单个闪光灯
闪光。
要添加从属单元，使用与“使用一
个从属单元的自动闪光拍摄”相同
的 步 骤 ， 可 以 设 定 任 何 闪 光 组
(A/B/C/D/E)。
当增加了从属单元的数量或主控闪
光灯闪光设为ON时，执行自动控
制以使所有闪光灯以相同的闪光输
出闪光并确保总闪光输出能够达到
标准曝光。
● 如果从属单元的自动关闭电源生效，按主控单元的测试闪光
按钮打开从属单元。请注意在相机的测光定时工作期间，无
法进行测试闪光。
● 可以改变到从属单元的自动关闭电源生效为止的时间(C.Fn-
RX STBY/第23页)。
RX
Gr CH
M A B C
使用全自动无线闪光
在主控单元上设定的闪光曝光补偿和其他设置也会在从属单元中自动
设定。不需要操作从属单元。可按照与普通闪光拍摄相同的方法使用
以下设置进行无线闪光拍摄。
● 闪光曝光补偿( /第10页)
关于主控单元
可以使用两个或两个以上主控单元。通过准备多台装有主控单元的相
机，可以在保持相同照明(从属单元)期间更换相机进行拍摄。
- 19 -
- 20 -

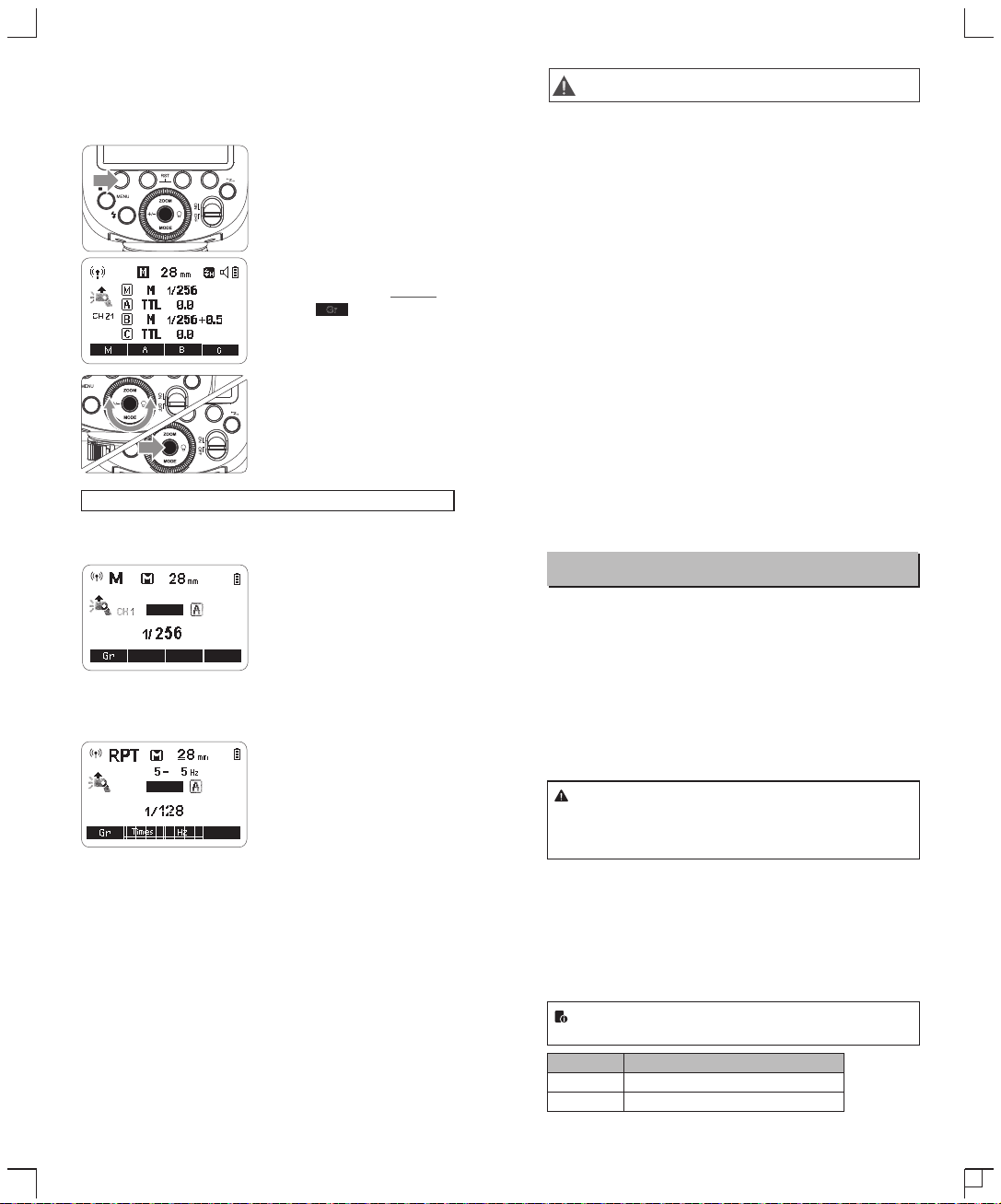

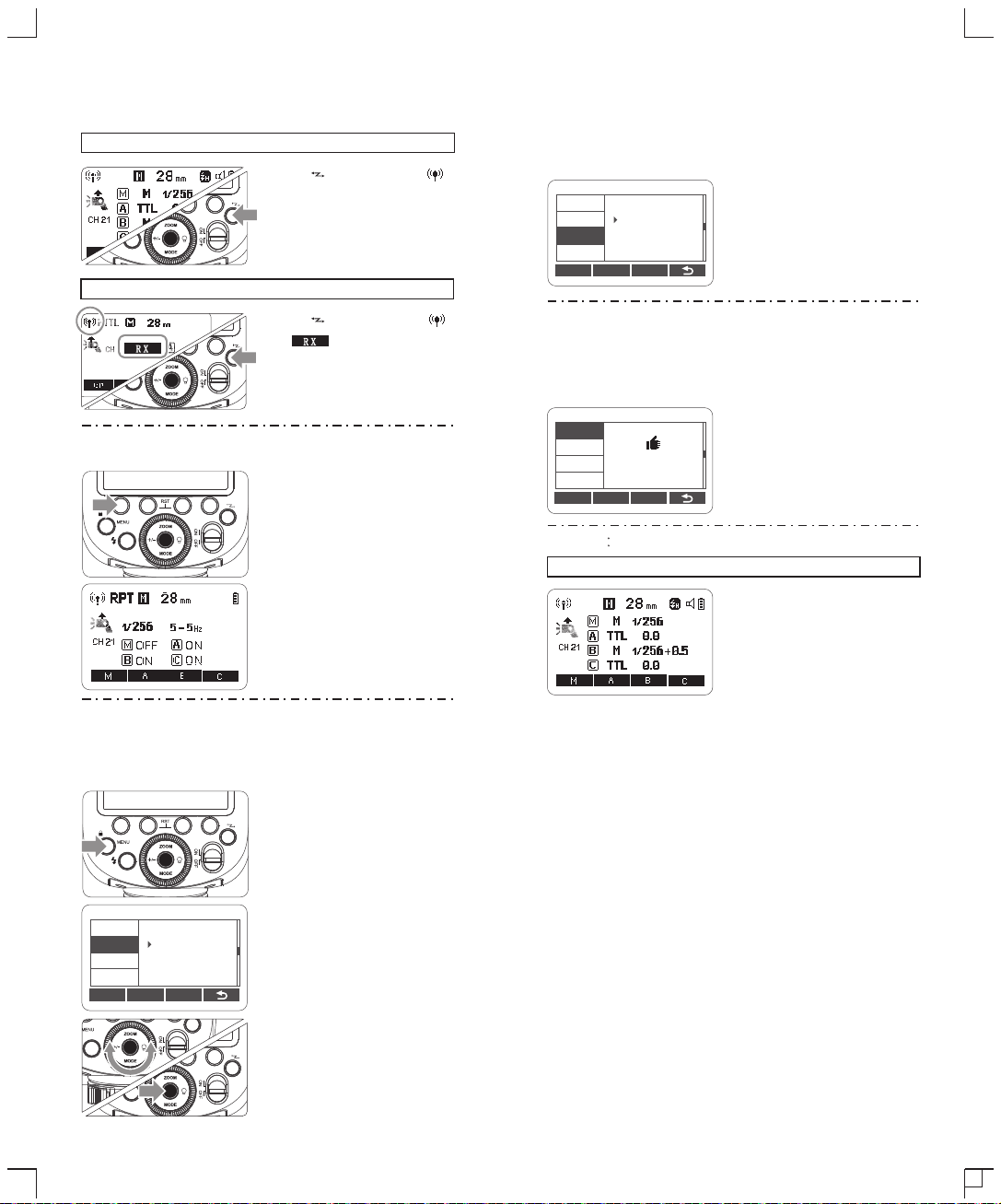

7、M:手动无线闪光拍摄
使用手动闪光的无线(多重闪光)拍摄，可以为每个从属单元(闪光组)设
定不同的闪光输出进行拍摄。在主控单元上设定所有参数。
将闪光模式设为<M>。
1
设置闪光输出
2 ● 按下功能按钮1/2/3/4
<
M/A/B/C>, 旋转调节旋钮
为闪光组设定闪光输出，
并按设置按钮确定。
拍摄照片
3 ● 各组以设定的闪光光比闪
光。
设定<M>闪光模式
可以直接操作从属单元以手动设定手动闪光或频闪闪光。
设定从属单元。(第16页)
1
设定<M>闪光模式。
2 ● 按下<MODE>模式选择按
钮令屏幕显示<M>。
● 设定手动闪光输出。(第
12页)

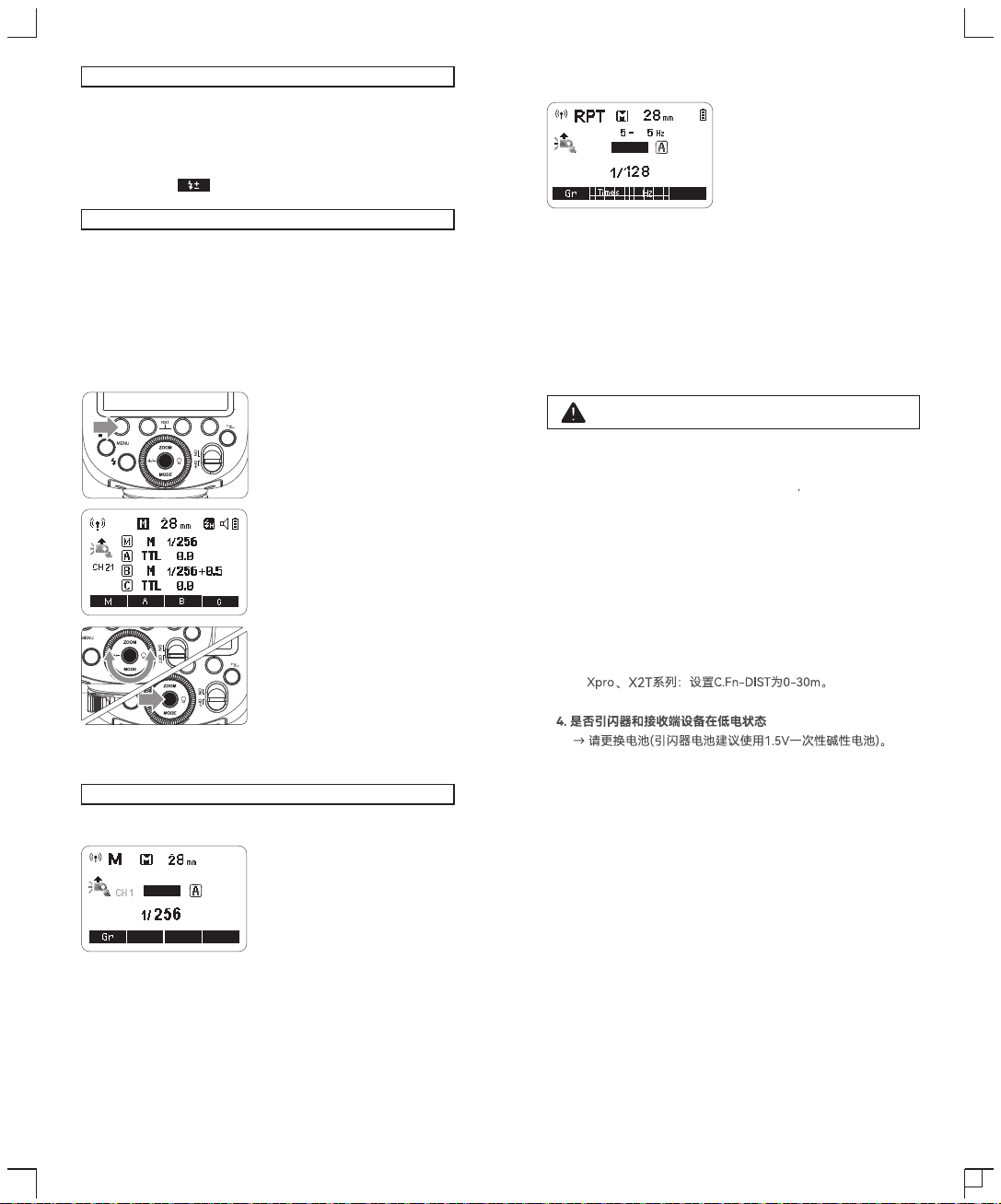

8、RPT:手动无线闪光拍摄
设定<RPT>频闪模式。
1 ● 按下<MODE>模式选择
按钮令屏幕显示<RPT>。
● 设定频闪闪光设置。(第
13页)
1. 外部环境2.4G信号干扰(如无线基站、2.4Gwifi路由、蓝牙设
备等)
→ 请调节引闪器的频道CH设置(建议+10) 找到无干扰的频道
来工作，或者在工作时关闭其他2.4G设备。
2. 请确认闪光灯是否已经回电或者回电速度已经跟上连拍速度(闪
光灯就绪指示灯已经亮起)，并且没有处于过热保护或者其他异
常状态中
→ 请下调闪光灯的档位，如是TTL模式可以尝试改为M模式
(TTL模式下需要预闪一次)。
3. 是否引闪器和闪光灯距离太近(距离<0.5m)
→ 请在引闪器上打开“近距离无线模式”:
X1系列：按住引闪按钮不放，然后开机，直至指示灯闪2次。
神牛2.4G无线漏闪原因及解决办法
CH 21
RX
RX
9、TTL/M快捷开关拨钮功能
1. 在非无线模式下，拨动TTL/M拨钮可快速切换闪光模式。
2. TTL切换到M手动模式时，默认有TCM转换。
X3 系列:设置引闪距离为 0-30m。
→请升级引闪器固件，具体固件升级请参考引闪器说明书。
5.引闪器固件为旧版本
其他应用
同步插孔触发
同步插孔规格为Φ2.5mm，此处可插入同步线或者触发器触发插头对
闪光灯进行同步引闪。
造型闪光
如果相机有景深预视按钮，按下该按钮将会进行1秒钟的连续闪光，
这种现象称之为造型闪光。您可以通过造型闪光查看被摄体上的光影
效果及照明平衡，不管是无线拍摄还是普通闪光拍摄，都可以进行造
型闪光。
● 请勿连续触发10次以上造型闪光。如果连续进行10次造型
闪光，请让闪光灯至少冷却10分钟，以防止闪光灯头过热或
损坏。
自动辅助对焦灯
在低亮度或低对比度的拍摄情况下，闪光灯内置的自动对焦辅助灯将
开启，使自动对焦更容易。当对焦困难时，红色辅助对焦灯亮起；当
对焦准确，辅助对焦灯自动熄灭。
如想关闭自动辅助对焦功能，在C.Fn设置“AF”至“OFF”。
● 用户在使用时，如发现辅助对焦灯未亮起，是因为相机已经
处于准确对焦状态。
位置
中央
边缘
有效范围
0.6~10米 / 2.0~32.8英尺
0.6~5米 / 2.0~16.4英尺
- 21 -
- 22 -
反射闪光
通过将闪光灯头指向墙壁或天花板，闪光在照亮被摄体前被墙面反
射。这可以减轻被摄物体背后的阴影，获得更自然的摄影效果。称之
为反射闪光。
旋转闪光灯头来设置反射方向。
● 如果墙壁或天花板太远，反射闪光可能太弱并导致曝光不
足。
● 墙壁或天花板应该是平坦的、白色的以利于高效的反射。如
果反射表面不是白色的，照片将出现偏色。
● 如果手动设置闪光覆盖范围，确保其覆盖镜头焦距，这样照
片就不会出现阴影边缘。
ZOOM：设置闪光覆盖范围
该闪光灯有两种变焦方式：自动变焦和手动变焦。可以设置闪光覆盖
范围以匹配20-200毫米的镜头焦距。自动变焦时，焦距会随相机变
焦镜头的改变而变化，以提供最佳闪光效果。
电池电量低时，电池符号< >会闪
烁，此时请更换电池。
手动变焦时，按下<ZOOM>
变焦按钮。
● 转动调节旋钮更改闪光覆盖范围。
● 在显示< >状态下，将自动
设置闪光覆盖范围。
330°
-7-120°
1. 热保护
● 为防止闪光灯头过热并损坏，系统做了热保护功能，当连续引闪多
次后, 内部的防过热功能可能会被激活，使充电时间变慢。如果发
生这种现象，请让闪光灯冷却约10分钟，闪光灯便会恢复正常。
● 热保护启动后，显示屏上 的符号会显示。
激活热保护功能的连续闪光次数：
高速同步模式下，激活热保护功能的连续闪光次数：
2. 其他保护
● 为了保证设备安全的工作，系统时刻进行预防保护，以下提示符号
供您参考：
C.Fn：设置自定义功能
请对照以下图表本机应用栏，使用自定义功能来完成设置。
设置符号
m
ft
ON
OFF
12sec
OFF
ON
OFF
01-99
功能
距离指示显示
蜂鸣器
背光点亮时间
无线ID
设置和说明
米
英尺
启动
关闭
12秒后自动熄灭
一直熄灭
一直点亮
关闭
选择01-99任意
一个数字打开
1. 按MENU 按钮显示C.Fn 菜单。右上角“Ver x.x“表示软件版本号。
2. 选择自定义功能符号。
旋转调节旋钮设置自定义功能符号。
3. 更改设置。
● 按设置按钮，自定义功能编号闪烁。
● 旋转调节旋钮设置想要的编号，按设置按钮确定。
● 设置自定义功能后按下 < MENU > 按钮，相机可以进
行拍摄。
4. 在C.Fn状态下，长按“Clear”按钮2秒直至出现“OK”，表示重
置C.Fn的参数。
自定义
功能符号
m/ft
ON
OFF
自动对焦辅助光闪光
启动
关闭
AF
60min
30min
从属单元自动
关闭电源计时器
60分钟
30分钟
RX STBY
BEEP
LIGHT
-
3
~+
3
液晶屏对比度
7个级别
LCD
ID
ON
OFF
自动睡眠设置
启动
关闭
STBY
OFF
扫描空闲频道
开始查找空闲频道
关闭
SCAN
START
0
1~32
频道设置 32个频道选择
CH
- 23 -
- 24 -
保护功能
警示内容
闪光灯回电系统出现问题，无法回电引闪，请重新开机，如无法
解决请维修
设备内温度过高，请停止引闪10分钟
闪光灯管两端电压过高，请维修
固件升级有误，请进行正确固件升级
LCD显示
E1
E2
E3
E9
1/1
1/2
1/4
1/8
1/16
1/32
1/64
1/128
ZOOM
40
50
100
200
300
500
1000
2000
50
60
100
200
300
500
1000
2000
50
60
100
200
300
500
1000
2000
60
75
100
200
300
500
1000
2000
60
75
120
200
300
500
1000
2000
75
100
150
200
300
500
1000
2000
75
100
150
200
300
500
1000
2000
80
100
150
200
300
500
1000
2000
80
100
150
200
300
500
1000
2000
80
100
150
200
300
500
1000
2000
20 24 28 35 50 70 80 105 135 200
1/1
1/2
1/4
1/8
1/16
1/32
1/64
1/128
ZOOM
30
30
34
40
50
50
60
60
20 - 200
(mm)
(mm)
- 25 -
- 26 -
规格参数
故障排除指南
如果遇到问题，请参阅此故障排除指南。
闪光灯不闪光。
● 闪光灯没有牢固地安装在相机上。
→将闪光灯的固定座牢固地安装在相机上。
● 闪光灯和相机的电子触点变脏。
→请清洁触点。
● <
>图标或< >图标未出现在相机取景器中。
→请等待闪光灯充电完成，闪光灯准备就绪指示灯亮起。
→如果闪光灯准备就绪指示灯已经亮起，相机取景器中的< >图
标或< >图标仍未亮起，请检查热靴连接，确保闪光灯可靠地
装配在相机热靴上。
→若等待较长时间，闪光灯准备就绪指示灯一直没有亮起，请检
查电池是否有电。如果电量低（闪光灯屏幕上电池电压不足图
标闪烁），请更换电池。
电源自动关闭。
● 当灯作为主控单元时，90秒无操作后，自动电源关闭功能生效。
→半按快门按钮或机身任意按键唤醒。
● 作为从属单元在60分钟(或者选择30分钟)无任何操作时，闪光灯会
进入休眠状态。
→可按机身任意按键唤醒。
自动变焦不工作。
● 闪光灯没有牢固地安装在相机上。
→将闪光灯的固定座牢固地安装在相机上。
闪光曝光不足或过度。
● 使用高速同步。
→使用高速同步，有效的闪光范围会更小。确保被摄体位于显示
的有效闪光范围内。
● 闪光灯使用手动曝光模式。
→改为i-TTL模式或修改闪光输出功率设置。
相片出现暗角或者被摄物体只有局部能照亮。
● 相机镜头焦距超出闪光灯的覆盖范围。
→请检查闪光灯当前的覆盖焦距。本产品的灯头变焦范围是中画
幅系统的20-200mm。
无线功能 主控单元，从属单元，关闭
主控单元组
可控制从属单元组
传输范围(约)
频道
ID
造型闪光
V860IIIN
Nikon尼康数码单镜反光相机(i-TTL自动闪光)
76Ws
GN≈60 (m ISO100)
20~200毫米
•自动变焦(自动设置适合镜头焦距和图像尺寸的闪
光覆盖范围)
•手动变焦
•闪光灯头旋转/倾斜，水平0~330°，
垂直-7°~120°(反射闪光)
1/300秒－1/20000秒
i-TTL自动闪光、手动闪光
手动，闪光包围曝光：在±3档间以1/3档为增量调节
(可以组合使用手动闪光曝光补偿和闪光包围曝光)
使用<FEL>按钮或< * >按钮
高速同步(最高1/8000秒)，前帘同步，后帘同步
具备(次数：90次；100Hz)
中央：0.6 -10米 / 边缘：0.6-5米
2w
5300K±200K
7.2V/2980mAh 锂电池
约1.5秒，闪光灯准备就绪，LED绿色指示灯亮起
约480次
闪光灯在无人操作90秒左右将会自动关闭电源。
设置为从属单元时60分钟进入休眠状态。
热靴，2.5mm同步线
195*75*59 mm
410g
530g
型号
兼容相机
功率
(1/1档位)
闪光指数(1/1档位，
200mm焦距)
闪光覆盖范围
闪光持续时间
· 曝光控制
曝光控制系统
闪光曝光补偿(FEC)
闪光曝光锁定(FEL)
同步方式
频闪闪光
· 无线闪光(无线电2.4G传输)
· 自动对焦辅助光
有效范围(约)
· LED造型灯
功率
色温
· 电源
内装锂电
回电时间
全功率闪光次数
节能
· 同步触发方式
· 尺寸
体积
净重(不含电池)
重量(含电池)
M, A, B, C
A, B, C, D, E (D/E组可使用X系列的引闪器控制)
100m
32组：01~32
01~99
使用相机的景深预视按钮进行闪光
- 27 -
固件升级
● 本产品USB接口为Type-C接口，请使用Type-C USB线。
● 产品升级固件需要Godox G3程序软件支持，升级固件前请先下载
安装“Godox G3固件升级软件”再选择相应的固件文件。
● 由于产品进行固件升级，说明书请以最新电子版为准。
兼容相机列表
本机可兼容以下NIKON尼康系列的相机型号：
注：
1. 此表格仅列举目前已测试的相机型号，未涵盖所有
NIKON尼康系列相机。其他相机型号，用户可自行测试。
2. 本公司保留未来修改此表格内容的权利。
● 闪光灯在工作时，如发现异常，应立即关掉电源，查明原因。
● 灯体应避免震动，平时注意表面除尘。
● 灯体稍有发热为正常现象，无特别需要时，勿连续引闪。
● 闪光灯的所有维修概由本厂指定可供原厂配件之维修部负责。
● 1年保修，消耗品如灯管等，不在1年保修范围。
● 经发现，擅自检修此闪光灯的，将取消闪光灯之一年保修期，维修
需要收取相关费用。
● 如果本品出现故障或者被水淋湿，在专业人员维修后方可继续使
用。
● 如有技术更改，恕不另行通知。
维护保养
D5
D4
D850 D500 D750 D810 D610 D800
D300S
D300 D7500 D5300 D5200 D5100 D5000 D3300 D3200 D3100
D3000 D200 D100
D700
D60 D90 D7100 D7000
Z7
- 28 -
Z6
D780
Always keep this product dry. Do not use in rain or in damp
conditions.
Do not disassemble. Should repairs become necessary, this
product must be sent to an authorized maintenance center.
Keep out of reach of children.
Stop using this product if it breaks open due to extrusion, falling
or strong hit. Otherwise, electric shock may occur if you touch
the electronic parts inside it.
Do not fire the flash directly into the eyes (especially those of
babies) within short distances. Otherwise visual impairment
may occur.
Do not use the flash unit in the presence of flammable gases,
chemicals and other similar materials. In certain circumstance,
these materials may be sensitive to the strong light emitting
from this flash unit and fire or electromagnetic interference may
result.
Do not leave or store the flash unit if the ambient temperature
reads over 50℃. Otherwise the electronic parts may be
damaged.
Turn off the flash unit immediately in the event of malfunction.
Thank you for purchasing this product.
This V860IIIN camera flash applies to Nikon series cameras and is
compatible with i-TTL autoflash. With this i-TTL compatible flash,
your shooting will become simpler. You can easily achieve a correct
flash exposure even in complex light-changing environments. This
camera flash features:
● With round flash head to achieve soft, even and more creative light
effects. It has a 2W LED modeling lamp, which can be used off the
camera.
● Approx. GN60 (m ISO 100, @200mm), 81 steps from 1/1 to 1/256.
● max 480Pro 2980 mAh Li-ion Battery- .1.5s recycle- full power pops.
● Fully support Nikon i-TTL camera flash. Workable as Transmitter
or Receiver unit in a wireless flash group.
● Use dot-matrix LCD panel to make clear and convenient
operations.
● With built-in 2.4GHz wireless remote system to support
transmitting and receiving.
● Provided multiple functions, include HSS (up to 1/8000s), FEC,
FEB, etc.
● Stable consistency and color temperature with good even lighting.
● Support with firmware upgrade.
Warning
Foreword
- 29 - - 30 -
Foreword
Warning
Name of Parts
Body
Control Panel
Dot-matrix LCD Panel
LCD Panel in Three Modes
What's in the Box of V860IIIN Kit?
Separately Sold Accessories
Battery
LED Modeling Lamp
Attaching to a Camera
Power Management
Flash Mode — i-TTL Autoflash
FEC (Flash Exposure Compensation)
High-Speed Sync
Second-Curtain Sync
M: Manual Flash
RPT: Stroboscopic Flash
Wireless Flash Shooting: Radio (2.4G) Transmission
Wireless Settings
Group Mode Selection
Setting the Communication Channel
Wireless ID Settings
Scan the Spare Channel
Fully Automatic Wireless Flash Shooting
M: Wireless Flash Shooting with Manual Flash
RPT: Wireless Flash Shooting with Manual Flash
Other Applications
Sync Triggering
Modeling Flash
Auto Focus Assist Beam
Bounce Flash
ZOOM: Setting the Flash Coverage
Low Battery Indicator
C.Fn: Setting Custom Functions
Protection Function
Technical Data
Troubleshooting
Firmware Upgrade
Compatible Camera Models
Maintenance
Contents
Conventions used in this Manual
● This manual is based on the assumption that both the camera
and camera flash’s power switches are powered on.
● Reference page numbers are indicated by “p.**”.
● The following alert symbols are used in this manual:
Pioneering TTL Li-ion Round Head Camera Flash
- 31 - - 32 -
29
30
33
37
38
38
38
39
41
42
43
50
51
52
53
54
55
56
56
56
The Caution symbol indicates a warning to prevent shooting problem.
The Note symbol gives supplemental information.
● LCD Panel
Name of Parts
(1)i-TTL Autoflash
Zoom : zoom display (Page 51)
: Automatic
: Manual(Page 41)
i-TTL : i-TTL
autoflash
Focus length (Page 1)5
: High-speed sync
(Page 40)
Distance indicator
display
Flash exposure
compensation amount
(2)M Manual Flash
● The display will only show the settings currently applied.
● The functions displayed above function buttons 1 to 4, such
as and <M/A/B/C> , change according to settings’
status.
● When a button or dial is operated, the LCD panel illuminated.
M : Manual flash
Manual flash output
(3) RPT Flash
RPT: Stroboscopic flash
Number of flashes
Flash frequency
SYNC
- 33 - - 34 -
01. Flash Head
02. LED Modeling Lamp
03. Focus Assist Beam
04. Wireless Sensor
05. Sync Cord Jack
06. Type-C USB Port
07. Battery Remove Button
08. Hotshoe
09. LCD Panel
10. Hotshoe Fixing Buckle
11. Lithium Battery
12. TTL/M Shortcut
● Body
● Control Panel
09
05
07
08
04
03
01
06
02
10
12
11
19
20
22 21
18
24
25
16
14
13
26
17
23
15
13. <MENU>Flash Menu
Button/Locking Button
14. < >Wireless Selection
Button
15. Select Dial
16. Set Button
17. ON/OFF Power Switch
18. < > Test Button / Flash
Ready Indicator
19. <ZOOM> Focus Length
Setting
20. <MODE>Mode Selection
Button
21. < >Modeling Lamp Setting
22. <+/->Power Output
23. Function Button 1
24. Function Button 2
25. Function Button 3
26. Function Button 4
Firing group
Flash mode
Channel
: Radio transmission
wireless shooting
(4) Radio Transmission Shooting
● Transmitter Unit (TX)
● Receiver Unit (RX)
: Receiver
: Receiver icon
● LCD Panel in Three Modes
● Attached to the Camera
● 2.4G Radio Transmission: As a Transmitter Unit
● 2.4G Radio Transmission: As a Receiver Unit
● What’s in the Box of V860IIIN Kit?
1. Flash Unit 2. Lithium Battery 3. USB Battery Charger
4. USB Cable 5. Charger 6. Mini Stand
7. Protection Case 8. Instruction Manual
● Separately Sold Accessories
The product can be used in combination with the following accessories
sold separately, so as to achieve best photography effects:
XProN, X2T-N & X1N TTL wireless flash trigger, etc.
- 35 - - 36 -
Note: The flash unit attached to the camera is referred to as the "Transmitter",
and other flash units controlled wirelessly are referred to as "Receivers".
R X
R X
RX
Gr CH
M A B C
Gr CH
1 2
3
6
7
5
● Features
1. This flash unit uses Li-ion battery which has long runtime.
The available charge-and-discharge times are 480.
2. It is reliably safe. The inner circuit is against overcharge,
overdischarge, overcurrent, and short circuit.
3. Take only 3.5 hours to fully charge the battery by using the
standard battery charger.
● Cautions
1. Do not short circuit.
2. Do not expose to rain or immerse into water. This battery is not
water proof.
3. Keep out of reach of children.
4. No over 24 hours’ continuous charging.
5. Store in dry, cool, ventilated places.
6. Do not put aside or into fire.
7. Dead batteries should be disposed according to local regulations.
8. If the battery had ceased using for over 3 months, please make a
full recharge.
9. If do not use it for a long time, please charge the battery to
approx. 60% before placing it.
10. It is recommended to use a brand-new battery after charging
and discharging over 500 times or being used over 3 years.
● Loading and Unloading the Battery
Battery
To unload the battery, hold
1 down the battery remove
button and push the battery
downwardly to take it out.
According to the triangle sign
2 on the battery pack, insert it
into the compartment until a
white knob locks the battery
with a click sound.
● Battery Level Indication
Make sure the battery pack is securely loaded in the flash. Check
the battery level indication on the LCD panel to see the remaining
battery level.
Battery Level Indication
3 grids
2 grids
1 grid
Blank grid
Blinking
Attaching to a Camera
Attach the Camera Flash.
1
● Rotate the hotshoe fixing
buckle to the left and insert
the camera flash into the
camera's hotshoe.
Secure the Camera Flash.
2
● Rotate the hotshoe fixing
buckle to the right until it
locks up.
Detach the Camera Flash.
3
● Press the button and
rotate the hotshoe fixing
buckle to the left until it is
loosened.
Power Management
Use ON/OFF Power Switch to power the flash unit on or off. Turn
off if it will not be used for an extended period of time. Setting as a
transmitter flash, it will turn the power off automatically after a
certain period (approx. 90 seconds) of idle use. Pressing the
camera shutter halfway or pressing any flash button will wake up
the flash unit. Setting as a receiver flash, it will enter sleep mode
after a certain period (adjustable, 60 minutes by default) of idle use.
Pressing any flash button will wake it up.
The battery level is going to be used out
immediately. And the flash will auto power off
in 1 minute.
Note: Please recharge the battery as soon as
possible (within 10 days). Then, the battery can be
used or be placed for long period.
Meaning
Full
Middle
Low
Lower battery, please recharge it.
Press the Modeling Lamp Setting button to set the modeling lamp.
Short press the Set Button to turn on or off the modeling lamp.
When turning the modeling lamp on, turn the select dial to set its
brightness. There are 10 levels(01~10) for choice.
- 37 - - 38 -
LED Modeling Lamp
MODEL
ON/OFF
Flash Mode — i-TTL Autoflash
This flash has three flash modes: i-TTL, Manual (M), and RPT
(Stroboscopic). In i-TTL mode, the camera and the flash will work
together to calculate the correct exposure for the subject and the
background. In this mode, multiple TTL functions are available:
FEC, HSS, second curtain sync, modeling flash.
* Press < MODE > Mode Selection Button and three flash modes
will display on the LCD panel one by one with each pressing.
i-TTL Mode
Press < MODE > Mode Selection Button to enter i-TTL mode. The
LCD panel will display.
● Press the camera release button halfway to focus. The aperture
and effective flash range will be displayed in the viewfinder.
● When the shutter button is fully pressed, the flash will fire a pre-
flash that the camera will use to calculate exposure and flash
output the instant before the photo is taken.
FEC: Flash Exposure Compensation
With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops.
It is useful in situations where minor adjusting of the TTL system is
needed based on the environment.
Setting FEC:
Set the flash exposure
2 compensation amount.
● Turn the Select Dial to set
the amount.
● “0.3”means 1/3 step,
“0.7”means 2/3 step.
● To cancel the flash
exposure compensation,
set the amount to “+0”.
Press Set Button again to
3 confirm the setting.
Press the <+/-> button. The
1 flash exposure compensation
amount will be highlighted on
the LCD panel.
C.Fn
C.Fn
Disabling Auto Power Off function is recommended when
the flash is used off camera. (C.Fn-STBY, Page 52)
Receiver Auto Power Off Timer is set to 60 minutes by
default. Another option “30 minutes” is available. (C.Fn-
RX STBY, Page 52)
● If setting the flash sync speed to 1/320s(auto FP)or
1/250s(auto FP)in Nikon camera setting,< > will always be
displayed on the panel no matter what the actual shutter
speed is.
● With high-speed sync, the faster the shutter speed, the
shorter the effective flash range.
● Set the flash sync speed to Non auto FP in Nikon camera
setting. When half pressing the shutter, < > will disappear.
● Multi flash mode cannot be set in high-speed sync mode.
● Over-temperature protection may be activated after 15
consecutive high-speed sync flashes.
High-Speed Sync
High Speed Sync (FP flash) enables the flash to synchronize with all
camera shutter speeds. This is convenient when you want to use
aperture priority for fill-flash portraits.
Second-Curtain Sync
With a slow shutter speed, you can create a light train following the
subject. The flash fires right before the shutter closes.
Set the flash sync speed to
1 1/320s (auto FP) or 1/250s
(auto FP) in Nikon camera
setting. Half press the
shutter button and < > will
be displayed on the LCD
panel. Now the high-speed
sync function gets started.
Turn the camera dial, and
2 the shutter speed can be set
to or more than 1/250s.
Choose high-speed sync
Check the shutter speed
3 through the camera viewfinder
to confirm whether the FP
high-speed function is used.
If the shutter speed is or over
1/250s, it means the high-
speed is booted up.
● In camera setting, choose REAR to achieve second curtain sync.
- 39 - - 40 -
1/ 250
1/ 200
1/ 160
1/ 125
1/ 100
1/ 80
The flash output is adjustable from 1/1 full power to 1/256th power
in 1/10th stop increments. To obtain a correct flash exposure, use a
hand-held flash meter to determine the required flash output.
M: Manual Flash
Press < MODE > button so
1 that < M > is displayed.
Press the <+/-> button and turn
2 the Select Dial to choose a
desired flash output amount.
Press Set Button again to
3 confirm the setting.
Optic S1 Secondary Unit Setting
In M manual flash mode, press <S1/S2> button so that this flash can
function as an optic S1 secondary flash with optic sensor. With this
function, the flash will fire synchronously when the main flash fires,
the same effect as that by the use of radio triggers. This helps create
multiple lighting effects.
Optic S2 Secondary Unit Setting
Press <S1/S2> button so that this flash can also function as an optic
S2 secondary flash with optic sensor in M manual flash mode. This
is useful when cameras have pre-flash function. With this function,
the flash will ignore a single “preflash” from the main flash and will
only fire in response to the second, actual flash from the main unit.
● S1 and S2 optic triggering is only available in M manual
flash mode.
Press the <+/-> button and
3 turn the Select Dial to choose
a desired flash output.
● After you finish the setting,
press Set Button and all the
settings will be displayed.
RPT: Stroboscopic Flash
With stroboscopic flash, a rapid series of flashes is fired. It can be
used to capture a multiple images of a moving subject in a single
photograph.
You can set the firing frequency (number of flashes per sec.
expressed as Hz), the number of flashes, and the flash output.
Press <MODE> button so
1 that < > is displayed.
Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing
stops. Use the formula below to calculate the shutter speed and set
it with the camera.
For example, if the number of flashes is 10 and the firing frequency is
5 Hz, the shutter speed should be at least 2 seconds.
Number of Flashes / Flash Frequency = Shutter Speed
To avoid overheating and deteriorating the flash head, do not
use stroboscopic flash more than 10 times in succession.
After 10 times, allow the camera flash to rest for at least 15
minutes. If you try to use the stroboscopic flash more than 10
times in succession, the firing might stop automatically to
protect the flash head. If this happens, allow at least 15
minutes’ rest for the camera flash.
● Stroboscopic flash is most effective with a highly reflective
subject against a dark background.
● Using a tripod and a remote control is recommended.
● A flash output of 1/1 and 1/2 cannot be set for stroboscopic
flash.
● Stroboscopic flash can be used with“buLb”.
● If the number of flashes is displayed as “--”, the firing will
continue until the shutter closes or the battery is
exhausted. The number of flashes will be limited as shown
by the following table.
RPT
Set the flash frequency and
2 flash times.
● Press the Function Button
2 <Times> to select the
flash times. Turn the Select
Dial to set the number.
● Press the Function Button
3 <Hz> to select the flash
frequency. Turn the Select
Dial to set the number.
- 41 - - 42 -
Hz
Maximum Stroboscopic Flashes:
Flash
output
Hz
Flash
output
Wireless Flash Shooting: Radio (2.4G) Transmission
● You can set up five receiver groups for TTL autoflash shooting.
With TTL autoflash, you can easily create various lighting effects.
● Any flash settings for the receiver units(auto flash, manual flash
and stroboscopic flash) on the transmitter flash in TTL mode will
be automatically sent to the receiver units. So the only thing you
need to do is to set the transmitter unit for each receiver group
without any operation for the receiver units at all during the
shooting.
● This flash can work in i-TTL /M /RPT/ OFF flash modes when set
as a transmitter unit.
Note:
● Even with multiple receiver units, the X series flash trigger
can control all of them via wireless.
● In this user manual, “transmitter unit” refers to the camera
flash on a camera and “receiver unit” will be controlled by
the transmitter unit.
1/4
1/8
1/16
1/32
1/64
1/128
1/256
1
8
14
30
60
90
90
90
2
6
14
30
60
90
90
90
3
4
12
30
60
90
90
90
4
3
10
20
50
80
90
90
5
3
8
20
50
80
90
90
6-7
2
6
20
40
70
90
90
8-9
2
5
10
30
60
80
80
1/4
1/8
1/16
1/32
1/64
1/128
1/256
10
2
4
8
20
50
70
70
20-50
2
4
8
16
30
40
40
60-100
2
4
8
12
20
40
40
Positioning and Operation Range (Example of wireless flash
shooting)
● Autoflash Shooting with One Receiver Unit
● Use the supplied mini stand to position the receiver unit.
● Before shooting, perform a test flash and test shooting.
● The transmission distance might be shorter depending on
the conditions such as positioning of receiver units, the
surrounding environment and whether conditions.
● Auto Shooting with Two Receiver Groups
● Auto Shooting with Three Receiver Groups
You can divide the receiver units into two or three groups and
perform i-TTL autoflash while changing the flash ratio (factor). In
addition, you can set and shoot with a different flash mode for each
firing group, for up to 5 groups.
Wireless Multiple Flash Shooting
- 43 -
- 44 -
Transmission distance is about 100m.
A
B
TRANSMITTER
RECEIVER
A
B
C
Press < > button so that < >
or < > are displayed on
the LCD panel.
Receiver Unit Setting
Transmitter Unit Setting
Press < > button so that < >
is displayed on the LCD panel.
2. Group Mode Selection
Short press the Function
1 Button 1 and <M> group
can be changed in
OFF/TTL/M. Choose one of
them as transmitter unit's
flash mode.
Short press the <MODE>
2 button to gain RPT mode.
1. Wireless Settings
You can switch between normal flash and wireless flash. For normal
flash shooting, be sure to set the wireless setting to OFF.
3. Setting the Communication Channel
If there are other wireless flash systems nearby, you can change the
channel IDs to prevent signal interference. The channel IDs of the
transmitter unit and the receiver unit(s) must be set to the same.
Press <MENU> Button to
1 enter C.Fn CH setting.
In C.Fn CH, turn the Select
2 Dial to choose channel ID
from 1 to 32.
Press the Set Button to
3 confirm.
4. Wireless ID Settings
Change the wireless channels and wireless ID to avoid interference
for it can only be triggered after the wireless IDs and channels of the
transmitter unit and the receiver unit are set to the same.Press the
<MENU> button to enter C.Fn ID. Press the Set Button to choose OFF
channel expansion shutdown, and choose any figure from 01 to 99.
5. Scan the Spare Channel
To avoid the interference of using the same channel by others, this
function can be used: enter the C.Fn settings and find the SCAN
option. When setting it to START, it will scan from 1% to 100%. And
the 8 spare channels will be displayed after the scan is completed.
6. i-TTL Fully Automatic Wireless Flash Shooting
Using Automatic Wireless Flash with a Single Receiver Unit
Transmitter Unit Setting
1
● Attach a camera V860IIIN
flash on the camera and
set it as the transmitter
unit.
● M/A/B/C can be set as TTL
mode independently.
C.Fn Ver 0.5
CLEAR
CH
ID
BEEP
STBY
07
SCAN
C.Fn Ver 0.5
CLEAR
CH
ID
BEEP
SCAN
22 08 32 23
30 21 07 06
C.Fn Ver 0.5
CLEAR
CH
ID
BEEP
STBY
99
SCAN
- 45 -
- 46 -
R X
R X
Receiver Unit Setting
2 ● Set the V860IIIN that to be
controlled as the wireless
receiver unit.
● The receiver unit can be
set as A/B/C/D/E.
Check the communication
3 channel.
● If the transmitter unit and
receiver unit(s) are set to a
different channel, set them
to the same channel.
(Page 45)
Check that the flash is
5 ready.
● Check that the transmitter
flash ready indicator is
lightened.
Check the flash operation.
6 ● Press the transmitter unit’s
Test Button < >.
● Then, the receiver unit will
fire. If not, adjust the
receiver unit’s angle toward
the transmitter unit and
distance from the
transmitter unit.
Position the camera and
4 flashes.
● Position the camera and
flashes as the picture
shows. (Page 44)
Using Automatic Wireless Flash with Multiple Receiver Units
When stronger flash output or
more convenient lighting operation
is needed, increase the number of
receiver units and set it as a
single receiver unit.
To add receiver units, use the
same steps as setting “automatic
wireless flash with a single
receiver unit”. Any flash group can
be set (A/B/C/D/E).
When the number of receiver units
is increased and the transmitter
unit flash firing is ON, automatic
control is implemented to make all
groups of flashes fire the same
flash output and ensure the total
flash output up is to standard
exposure.
● If the receiver unit’s auto power off function is workable, press the
transmitter unit’s test button to power it on. Please note that test firing is
unavailable during the camera’s regular metering time.
● The effective time of receiver auto power off is changeable. (C.Fn-RX
STBY Page 55)
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the transmitter unit will also
be appeared on the receiver unit automatically. The receiver unit
does not need any operation. Use the following settings to make
wireless flashes according to the same methods with normal flash
shooting.
●
Flash Exposure Compensation ( Page 39)
About Transmitter Unit
Use two or more transmitter units. By preparing several cameras
that with transmitter units flash attached, cameras can be changed
in shooting while keeping the same lighting source (receiver unit).
- 47 -
- 48 -
R X
Gr CH
7. M: Wireless Flash Shooting with Manual Flash
This describes wireless (multiple shooting) using manual flash. You
can shoot with a different flash output setting for each receiver unit
(firing group). Set all parameters on the transmitter unit.
Setting the flash mode to
1 <M>.
Taking the picture.
3
Setting <M> Flash Mode
You can directly operate the receiver unit to manually set the manual
flash or stroboscopic flash.
Setting the receiver unit.
1
Setting flash mode to <M>.
2
● Press <MODE> button so
that <M> is displayed.
● Set the manual flash
output. (Page 41)
Setting flash
2 output.1/2/3/4<M/A/B/C>
● Press Function Button 3
< >. Turn the Select
Dial to set the flash output
of the groups. Press Set
Button to confirm.
Gr
● Each group fires at the set
flash ratio.
8. RPT: Wireless Flash Shooting with Manual Flash
Setting <RPT> stroboscopic
flash.
● Press <MODE> button so that
<RPT> is displayed.
● Setting the stroboscopic flash.
(Page 42)
Other Applications
Sync Triggering
The Sync Cord Jack is a Φ2.5mm plug. Insert a trigger plug here
and the flash will be fired synchronously with the camera shutter.
Modeling Flash
If the camera has a depth-of-field preview button, pressing it will fire
the flash continuously for 1 second. This is called modeling flash.
It enables you to see the shadow effects on the subject and the
lighting balance. You can fire the modeling flash during wireless or
normal flash shooting.
● To avoid overheating and deteriorating the flash head, do
not fire the modeling flash for more than 10 consecutive
times. If you fire the modeling flash 10 consecutive times,
allow at least 10 minutes’ break for the camera flash.
Auto Focus Assist Beam
In poorly-lit or low-contrast shooting environments, the built-in auto
focus assist beam will automatically light on to make it easier for
autofocus. The beam will light up only when autofocus is difficult
and get out as soon as the autofocus becomes correct.
If you want to turn off the auto focus assist beam, set the “AF” to
“OFF” on the C.Fn settings.
● If you find the auto focus assist beam does not light up, this
is because the camera has got a correct autofocus.
Position
Center
Periphery
Effective Range
0.6~10m / 2.0~32.8 feet
0.6~5m / 2.0~16.4 feet
CH 21
- 49 - - 50 -
RX
RX
1. Disturbed by the 2.4G signal in outer environment (e.g.
wireless base station, 2.4G wifi router, Bluetooth, etc.)
→ To adjust the channel CH setting on the flash trigger (add 10+
channels) and use the channel which is not disturbed. Or turn off the
other 2.4G equipment in working.
2. Please make sure that whether the flash has finished its
recycle or caught up with the continuous shooting speed or
not(the flash ready indicator is lighten) and the flash is not
under the state of over-heat protection or other abnormal
situation.
→ Please downgrade the flash power output. If the flash is in TTL
mode, please try to change it to M mode(a preflash is needed in TTL
mode).
3. Whether the distance between the flash trigger and the flash
is too close or not
→ Please turn on the “close distance wireless mode” on the flash
trigger (＜0.5m):
X2 & X1 series: press the test button and hold on, then turning
it on until the flash ready indicator blinks for 2 times.
The Reason & Solution of Not Triggering in Godox 2.4G Wireless
9. TTL/M Shortcut Function
1. In non TTL wireless mode, push the TTL/M shortcut can
quickly change to flash mode.
2. When switching TTL to M manual mode, there is TCM switch
by default.
to 0-30m.
X3 Series: Set the triggering distance to 0-30m.
4. Whether the flash trigger and the receiver end equipment are
5. The flash trigger’s firmware is an older version
in the low battery states or not
→Please replace the battery(the flash trigger is recommended to
→ Please upgrade the firmware of the flash trigger referring to the
instruction manual for specific firmware upgrades.
use 1.5V disposable alkaline battery).
XPro and X2T series: Set the C.Fn-DIST
Bounce Flash
By pointing the flash head toward a wall or ceiling, the flash will
bounce off the surface before illuminating the subject. This can
soften shadows behind the subject for a more natural-looking shot.
This is called bounce flash.
To set the bounce direction, hold the flash head and turn it to a
satisfying angle.
● If the wall or ceiling is too far away, the bounced flash might
be too weak and result in underexposure.
● The wall or ceiling should be a plain, white color for high
reflectance. If the bounce surface is not white, a color cast
may appear in the picture.
ZOOM: Setting the Flash Coverage
The flash coverage can be set automatically or manually. It can be
set to match the lens focal length from 20mm to 200mm.
In Manual Zoom mode, press the
<ZOOM> button.
● Turn the Select Dial to change
the flash coverage.
● If < > is displayed, the flash
coverage will be set
automatically.
If you set the flash coverage manually, make sure it covers
the lens focal length so that the picture will not have a dark
periphery.
Low Battery Warning
If the battery power is low, < >
will appear and blink on the LCD
panel. Please replace the battery
immediately.
C.Fn: Setting Custom Functions
The following table lists the available and unavailable custom
functions of this flash.
m/ft
BEEP
LIGHT
LCD
ID
m
ft
ON
OFF
12sec
OFF
ON
-3~+3
OFF
01-99
Distance indicator
Beeper
Backlighting time
LCD contrast ratio
Wireless ID
C.Fn Custom Functions
Custom
Function
Signs
Function
Setting
No.
Settings & Description
m
feet
AF
ON
OFF
AF-assist beam
ON
OFF
RX STBY
60min
30min
Receiver auto power
off timer
60min
30min
ON
OFF
Off in 12 sec.
Always off
Always lighting
7 levels
Off
Choose any figure
from 01-99
1. Press<MENU> Button until C.Fn menu is displayed. The “Ver
x.x” in the top-right corner refers to the software version.
2. Select the Custom Function No.
● Turn the Select Dial to select the Custom Function No.
3. Change the Setting.
● Press Set Button and the Setting No. blinks.
● Turn the Select Dial to set the desired number. Pressing Set
Button will confirm the settings.
● After you set the Custom Function and press <MENU> button,
the camera will be ready to shoot.
4. In the C.Fn states, long press the “Clear”button for 2 seconds
until “OK”is displayed on the panel, which means the values in
C.Fn can be reset.
STBY
ON
OFF
Auto sleep setting
ON
OFF
SCAN
OFF
START
Scan the spare channel
OFF
Start to find the spare
channel
CH
01-32
Channel setting
Choose channels
from 01-32
- 51 - - 52 -
330°
-7-120°
Protection Function
1. Over-Temperature Protection
● To avoid overheating and deteriorating the flash head, there is
over-temperature protection in the system. When continuously
firing for many times, the inner over-temperature protection
function may be activated and make the recycling time slow.
If this occurs, allow a rest time of about 10 minutes, and the flash
unit will then return to normal.
● When the over-temperature protection is started, is shown on
the LCD display.
Number of flashes that will activate over-temperature
protection:
2. Other Protections
The system provides real-time protection to secure the device and
your safety. The following lists prompts for your reference:
Number of flashes that will activate over-temperature
protection in high-speed sync triggering mode:
Meaning
A failure occurs on the recycling system so that the
flash cannot fire.
Please restart the flash unit. If the problem still exists,
please send this product to a maintenance center.
The system gets excessive heat. Please allow a rest
time of 10 minutes.
The voltage on two outlets of the flash tube is too high.
Please send this product to a maintenance center.
There are some errors occurred during the upgrading
process. Please using the correct firmware upgrade
method.
Prompts on LCD Panel
E1
E2
E3
E9
Technical Data
- 53 -
- 54 -
Power
Output Level
Number
of Flashes
ZOOM
1/1
1/2
1/4
1/8
1/16
1/32
1/64
1/128
40
50
100
200
300
500
1000
2000
50
60
100
200
300
500
1000
2000
50
60
100
200
300
500
1000
2000
60
75
100
200
300
500
1000
2000
60
75
120
200
300
500
1000
2000
75
100
150
200
300
500
1000
2000
75
100
150
200
300
500
1000
2000
80
100
150
200
300
500
1000
2000
80
100
150
200
300
500
1000
2000
80
100
150
200
300
500
1000
2000
20 24 28 35 50 70 80 105 135 200
1/1
1/2
1/4
1/8
1/16
1/32
1/64
1/128
30
30
34
40
50
50
60
60
20 - 200
Power
Output Level
Number
of Flashes
ZOOM
(mm)
(mm)
V860IIIN
Nikon cameras (i-TTL autoflash)
76Ws
20 to 200mm
• Auto zoom (Flash coverage set automatically
to match the lens focal length and image size)
• Manual zoom
• Swinging/tilting flash head (bounce flash): 0 to 330°
horizontally and -7° to 120° vertically
1/300 to 1/20000 seconds
i-TTL autoflash and manual flash
Manual. FEB: ±3 stops in 1/3 stop increments
(Manual FEC and FEB can be combined.)
With <FEL> button or< * > button
High-speed sync (up to 1/8000 seconds),
first-curtain sync, and second-curtain sync
Provided (up to 90 times, 100Hz)
Transmitter, Receiver, Off
100m
32 (1~32)
Fired with camera’s depth-of-field preview button
Center: 0.6~10m / 2.0~32.8 feet
Periphery: 0.6~5m / 2.0~16.4 feet
Model
Compatible Cameras
Power
(1/1 output)
Flash Coverage
Flash Duration
• Exposure Control
Exposure control system
Flash exposure
compensation (FEC)
FE lock
Sync mode
Multi flash
• Wireless Flash
Wireless flash function
Controllable
Receiver groups
Transmission range
(approx.)
Channels
Modeling flash
• Auto Focus Assist Beam
Effective range (approx.)
ID
01~99
2W
· LED Modeling Lamp
Power
5300K±200K
Color Temperature
7.2V/2980mAh Li-ion battery
Approx 1.5 seconds. Green LED indicator will light up
when the flash is ready.
Approx. 480
Power off automatically after approx. 90 seconds
of idle operation. (60 minutes if set as Receiver)
Hotshoe, 2.5mm sync line
195*75*59 mm
410g
530g
• Power Supply
Power source
Recycle time
Full power flashes
Power saving
• Sync Triggering Mode
• Dimensions
W x H x D
Weight without battery
Weight with battery
M, A, B, C
A, B, C, D, E (D/E group can be controlled
by X series flash trigger)
Transmitter groups
Guide No.(1/1 output,
200mm)
GN≈60 (m ISO100)
2413.0MHz-2465.0MHz
5dbm
2.4G Frequency Range
Max. Transmitting Power
Troubleshooting
If there is a problem, refer to this Troubleshooting Guide.
The Camera Flash does not fire.
● The camera flash is not attached securely to the camera.
→Attach the camera’s mounting foot securely to the camera.
● The electrical contacts of the Camera Flash and camera are dirty.
→Clean the contacts.
● < > or < > is not displayed in the view finder of camera.
→Wait until the flash is fully recycled and the flash ready indicator
lights up.
→If the flash ready indicator lights up, but < > or < > is not
displayed in the view finder, check whether this flash unit is
securely attached to the camera hotshoe.
→If the flash ready indicator does not light up after a long wait,
check whether the battery power is enough. If the battery power
is low, < > will appear and blink on the LCD panel. Please
replace the battery immediately.
The power turns off by itself.
● After 90 seconds of idle operation, auto power off took effect if the
flash is set as transmitter.
→Press the shutter button halfway or press any flash button to
wake up.
● After 60 minutes (or 30 minutes) of idle operation, the flash unit
will enter sleep mode if it is set as receiver.
→Press any flash button to wake up.
Auto zoom does not work.
● The camera flash is not attached securely to the camera.
→Attach the camera flash’s mounting foot to the camera.
The flash exposure is underexposed or overexposed.
● You used high-speed sync.
→With high-speed sync, the effective flash range will be shorter.
Make sure the subject is within the effective flash range
displayed.
● You used Manual Flash mode.
→Set the flash mode to i-TTL or modify the flash output.
Photos have dark corners or only parts of the target subject
are illuminated.
● The focal length of lens exceeds the flash coverage.
→Check the flash coverage you set. This flash unit has the flash
coverage between 20 and 200mm, which fits medium-format
cameras.
Firmware Upgrade
● The USB port is a Type-C USB socket. Type-C USB connection
line is applicable.
● As the firmware upgrade needs the support of Godox G3
software, please download and install the "Godox G3 firmware
upgrade software" before upgrading. Then, choose the related
firmware file.
● As the product needs to do firmware upgrade, please refer to
instruction manual of the newest electric version as final.
Compatible Camera Models
This flash unit can be used on the following Nikon series camera
models:
This table only lists the tested camera models, not all Nikon
series cameras. For the compatibility of other camera
models, a self-test is recommended.
Rights to modify this table are retained.
● Shut down the device immediately should abnormal operation be
detected.
● Avoid sudden impacts and the product should be dedusted
regularly.
● It is normal for the flash tube to be warm when in use. Avoid
continuous flashes if unnecessary.
● Maintenance of the flash must be performed by our authorized
maintenance department which can provide original accessories.
● This product, except consumables e.g. flash tube, is supported
with a one-year warranty.
● Unauthorized service will void the warranty.
● If the product had failures or was wetted, do not use it until it is
repaired by professionals.
● Changes made to the specifications or designs may not be
reflected in this manual.
Maintenance
- 55 -
- 56 -
D5
D4
D850 D500 D750 D810 D610 D800
D300S
D300 D7500 D5300 D5200 D5100 D5000 D3300 D3200 D3100
D3000 D200 D100
D700
D60 D90 D7100 D7000
Z7 Z6
D780
( )
( )
12
3
12
0755-29609320-8062
Warranty
Dear customers, as this warranty card is an important certificate to apply for
our maintenance service, please fill in the following form in coordination with
the seller and safe-keep it. Thank you!
Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance lnformation (see
below for further information). Other products or accessories (e.g. promotional items,
giveaways and additional accessories attached, etc.) are not included in this warranty
scope.
Warranty Period
The warranty period of products and accessories is implemented according to the relevant
Product Maintenance lnformation. The warranty period is calculated from the day(purchase
date) when the product is bought for the first time, And the purchase date is considered as
the date registered on the warranty card when buying the product.
Product
Information
Model Product Code Number
Name Contact Number
Address
Customer
Information
Seller
Information
Note:
Name
Contact Number
Address
Date of Sale
If maintenance service is needed, you can directly contact the product distributor or
authorized service institutions. You can also contact the Godox after-sale service call and
we will offer you service. When applying for maintenance service, you should provide valid
warranty card. If you cannot provide valid warranty card, we may offer you maintenance
service once confirmed that the product or accessory is involved in the maintenance scope,
but that shall not be considered as
our obligation.
The guarantee and service offered by this document are not applicable in the following
cases:
. The product or accessory has expired its warranty period; . Breakage or
damage caused by inappropriate usage, maintenance or preservation, such as improper
packing, improper usage, improper plugging in/out external equipment, falling off or
squeezing by external force, contacting or exposing to the improper temperature, solvent,
acid, base, flooding and damp environments, etc;
. Breakage or damage caused by non-
authorized institution or staff in the process of installation, maintenance, alternation,
addition and detachment; . The original identifying information of product or accessory is
modified, alternated, or removed;
. No valid warranty card; . Breakage or damage
caused by using illegally authorized, nonstandard or non-public released software; .
Breakage or damage caused by force majeure or accident; . Breakage or damage that
could not be attributed to the product itself. Once met these situations above, you should
seek solutions from the related responsible parties and Godox assumes no responsibility.
The damage caused by parts, accessories and software that beyond the warranty period or
scope is not included in our maintenance scope. The normal discoloration, abrasion and
consumption are not the breakage within the maintenance scope.
How to Get the Maintenance Service
Inapplicable Cases
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the
following Product Maintenance Information:
Product
Type
Parts
Other
Items
Name
Circuit Board
Battery
Electrical parts e.g.battery
charger, power cord, sync cable,
etc.
Flash tube, modeling lamp, lamp
body, lamp cover, lockingdevice,
package, etc.
Maintenance
Period(month)
12
3
12
No
Warranty Service
Type
Customer sends
the product to
designated site
Without warranty
Customer sends
the product to
designated site
Customer sends
the product to
designated site
Godox After-sale Service Call
0755-29609320-8062
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure
requirement.
The device can be used in portable exposure condition without
restriction.
FCC Statement
Warning
Declaration of Conformity
Operating frequency:2400MHz-2483.5MHz
Maximum EIRP Power:4.73dBm
GODOX Photo Equipment Co.,Ltd. hereby declares that this
equipment are in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU. In
accordance with Article 10(2) and Article 10(10), this
product is allowed to be used in all EU member states.For
more information of DoC, Please click this web
link:https://www.godox.com/eu-declaration-of-conformity/
The device complies with RF specifications when the device
used at 0mm from your body.
