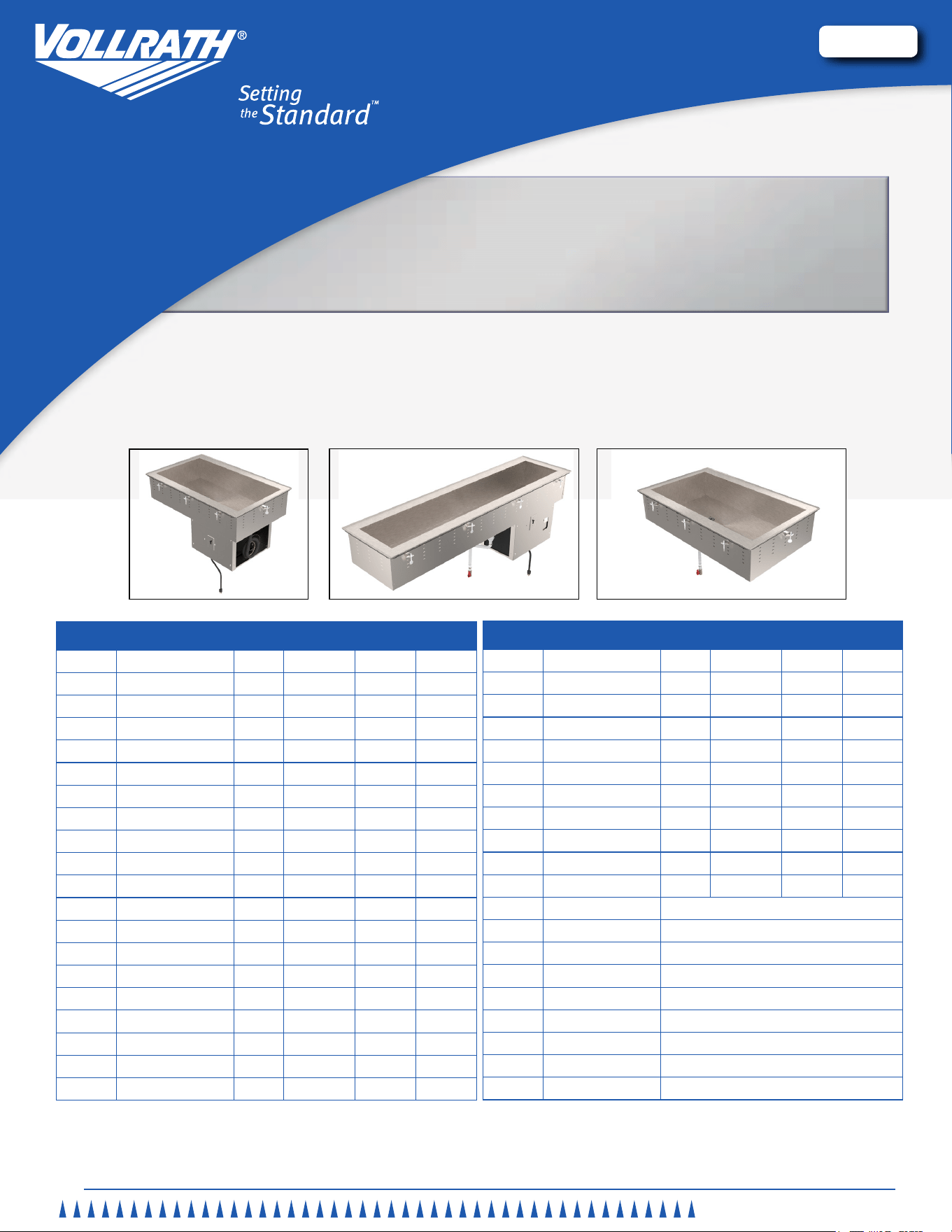

Item No. 2350083-1 en Rev 02/11
ENGLISH
Operator’s Manual
NSF7 REFRIGERATED, STANDARD REFRIGERATED,
SHORT SIDE AND NON-REFRIGERATED DROP-INS
Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this
packaging to ship the equipment if repairs are needed.
Item Description HP Voltage Amps Plug
36456 NSF7 One-pan 1/5 hp 120V 3.8 5-15P
36429 NSF7 Two-pan 1/4 hp 120V 3.8 5-15P
36430 NSF7 Three-pan 1/4 hp 120V 4.9 5-15P
36434 NSF7 Four-pan 1/3 hp 120V 7.2 5-15P
36436 NSF7 Five-pan 1/2 hp 120V 11.0 5-20P
36438 NSF7 Six-pan 1/2 hp 120V 11.0 5-20P
36490 One-pan 1/5 hp 120V 3.8 5-15P
36456R NSF7 One-pan 1/5 hp 120V 3.8 5-15P
36429R NSF7 Two-pan 1/4 hp 120V 3.8 5-15P
36430R NSF7 Three-pan 1/4 hp 120V 4.9 5-15P
36434R NSF7 Four-pan 1/3 hp 120V 7.2 5-15P
36436R NSF7 Five-pan 1/2 hp 120V 11.0 5-20P
36438R NSF7 Six-pan 1/2 hp 120V 11.0 5-20P
36490 One-pan 1/5 hp 120V 3.8 5-15P
36441 Two-pan 1/5 hp 120V 3.8 5-15P
36442 Three-pan 1/5 hp 120V 3.8 5-15P
36444 Four-pan 1/4 hp 120V 4.9 5-15P
36446 Five-pan 1/4 hp 120V 4.9 5-15P
36448 Six-pan 1/3 hp 120V 7.2 5-15P
36490R One-pan 1/5 hp 120V 3.8 5-15P
Item Description HP Voltage Amps Plug
36441R Two-pan 1/5 hp 120V 3.8 5-15P
36442R Three-pan 1/5 hp 120V 3.8 5-15P
36444R Four-pan 1/4 hp 120V 4.9 5-15P
36446R Five-pan 1/4 hp 120V 4.9 5-15P
36448R Six-pan 1/3 hp 120V 7.2 5-15P
36652 Two-pan 1/4 hp 120V 4.9 5-15P
36655 Three-pan 1/4 hp 120V 4.9 5-15P
36658 Four-pan 1/2 hp 120V 4.9 5-15P
36653 NSF7 Two-pan 1/4 hp 120V 4.9 5-15P
36656 NSF7 Three-pan 1/4 hp 120V 14.9 5-15P
36659 NSF7 Four-pan 1/2 hp 120V 14.9 5-15P
36491 One-pan Non-Refrigerated
36450 Two-pan Non-Refrigerated
36451 Three-pan Non-Refrigerated
36452 Four-pan Non-Refrigerated
36453 Five-pan Non-Refrigerated
36454 Six-pan Non-Refrigerated
36654 Two-pan Non-Refrigerated
36657 Three-pan Non-Refrigerated
36660 Four-pan Non-Refrigerated
Fabricator components
OperatOr’s Manual
2
Unpacking the eqUipment and initial SetUp
When no longer needed, dispose of all packaging and materials in an
environmentally responsible manner.
1. Remove all packing material and tape, as well as any protective plastic
from the equipment.
2. Clean any glue residue left over from the plastic or tape.
NOTE
The refrigerated models must be provided with adequate
ventilation. The minimum requirement is the equivalent of 80 square
inches (516 cm
2
) of air exhaust.
Have the unit installed only by qualied service personnel. The cutout
opening in counter must be in accordance with the chart below. All openings
must be within 1/8” of the stated dimension and have a 7/8” radius at the
corners. Use the watertight gasket provided to seal between counter and unit
to prevent water from leaking into control areas.
NOTE
All cutout openings must be within 1/8” of listed opening sizes and
have a corner radius of 7/8”. Cutout dimensions given in inches and
(cm).
3. Refer to the Cutout Dimension Chart in this Operator’s Manual for cutout
dimensions.
4. Place the watertight gasket over the cut-out and center the well.
5. Tighten the thumbscrews (C) slowly and in an alternating pattern to
evenly compress the gasket. See Figure 1. The gasket should create a
even gap between the well and the mounting surface.
FeatUreS and controlS
A
B
C

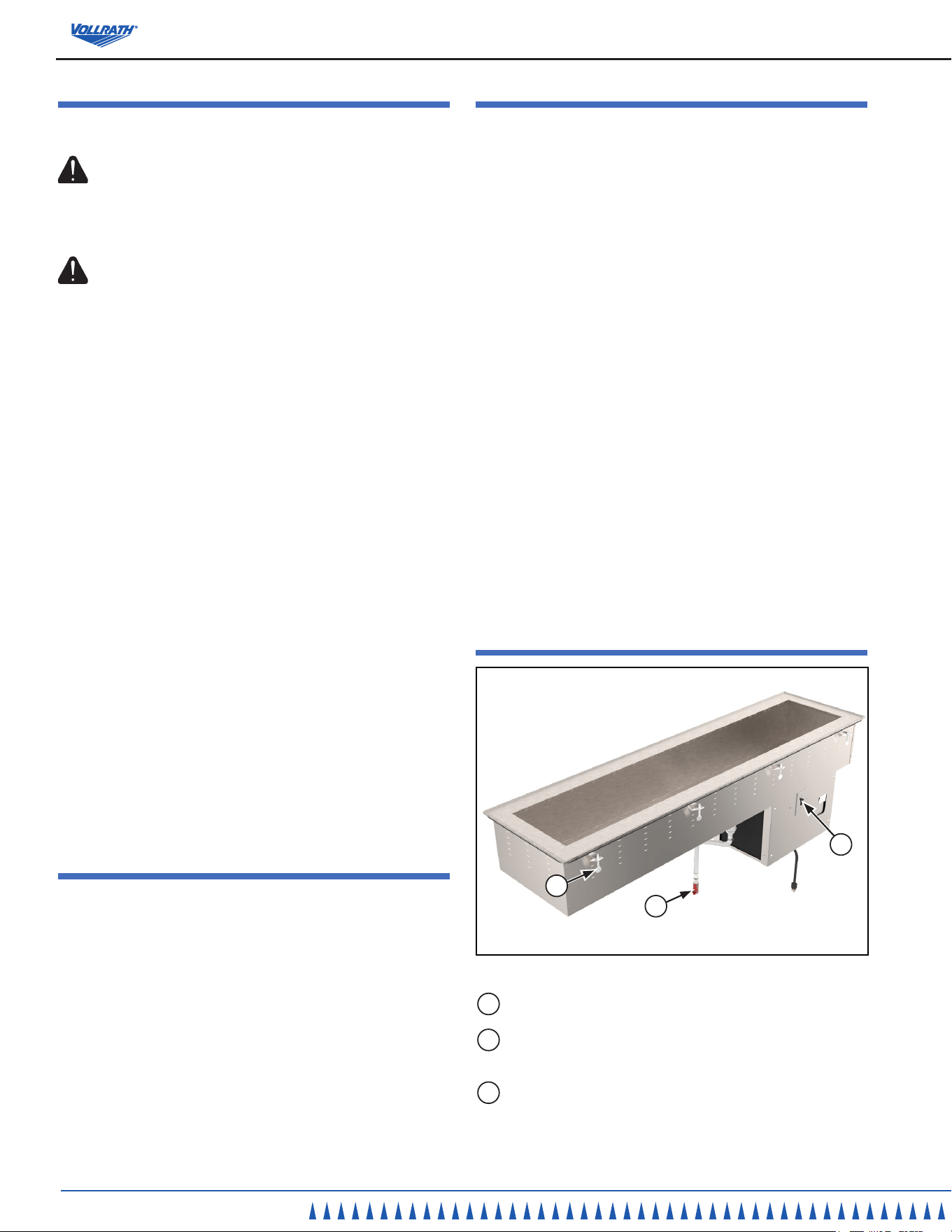

Figure 1. Features and Controls.
A
DRAIN VALVE. Used to empty water from the well(s).
B
ON/OFF SWITCH (some models). Switches the equipment power ON
or OFF.
C
THUMBSCREW. Secures the unit to the mounting surface.
SaFety precaUtionS
To ensure safe operation, read the following statements and
understand their meaning. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that can cause
severe personal injury, death, or substantial property damage if the
warning is ignored.
CAUTION
Caution is used to indicate the presence of a hazard that will or can
cause minor personal injury or property damage if the caution is
ignored.
NOTE
Note is used to notify people of installation, operation, or
maintenance information that is important but not hazard-related.
For Your Safety!
These precautions should be followed at all times. Failure to follow
these precautions could result in injury to yourself and others.
To reduce risk of injury or damage to the equipment:
Use only grounded electrical outlets matching the nameplate rated
voltage.
Have the equipment installed by qualied personnel.
Do not use an extension cord with this equipment. Do not plug this
equipment into a power strip or multi-outlet power cord.
Unit should only be used in a at, level position.
Do not spray controls or outside of equipment with liquids or cleaning
agents.
Do not clean the equipment with steel wool.
Keep equipment and power cord away from open ames, electric
burners or excessive heat.
Do not operate unattended.
Do not operate equipment in public areas and/or around children.
Do not operate if equipment has been damaged or is malfunctioning in
any way.
FUnction and pUrpoSe
This unit is intended to hold containers of pre-chilled cold food at the proper
serving temperature for service. This unit is not designed or intended to cool
hot food or cool any item not properly chilled before being placed in the unit.
Refrigerated cold pans are best used for holding periods up to four hours.
For best performance, stainless steel containers are recommended.
Before using this equipment it must be cleaned and dried thoroughly.
This equipment is not intended for household, industrial or laboratory use.
Fabricator components
3
ENGLISH
OperatOr’s Manual
operation
WARNING
Electrical Shock Hazard.
Keep water and other liquids from entering the
inside of the unit. Liquid inside the unit could cause
an electrical shock. Do not damaged power cord.
Do not over ll wells, pans or trays. Liquid could contact the
electrical components and cause a short circuit or an electrical
shock. Unplug unit before performing service, draining or removing
spillage pans and trays. Do not spray water or cleaning products.
Do not use a power cord that has been modied or damaged.
reFrigerated UnitS:
1. Check the drain valve (A) to verify it is in the CLOSED position to prevent
water from draining out. See Figure 1. The valve is in the CLOSED
position when the handle of the valve forms a “T” with the body of the
valve.
2. Plug the equipment into a properly grounded electrical supply matching
the nameplate rating. Damage to the equipment can occur if incorrect
power is supplied to equipment.
3. Turn the power switch (B) to the “ON” position. This unit does not have
an adjustable temperature setting. Allow the unit to run for approximately
30 minutes. For the best performance when using ice with this unit, allow
unit to run for approximately 2 hours before adding ice. This will help the
ice remain solid.
4. Place containers of properly chilled food into the pre-chilled unit.
5. Regularly check the food temperature.
NOTE:
Monitor food temperature closely for food safety. The United States
Public Health Service recommends that hot food be held at a maximum
of 41 ºF (5 ºC) to help prevent bacteria growth.
6. When nished using the unit turn the power switch (B) to the “OFF”
position. Remove the food containers.
7. Open the drain valve (A) and drain the water. The valve is in the OPEN
position when the handle of the valve is aligned with the body of the
valve.
8. Close the drain valve. Rotate the valve to the CLOSED position, when
the handle of the valve forms a “T” with the body of the valve.
non-reFrigerated UnitS:
1. Check the drain valve (A) to verify it is in the CLOSED position to prevent
water from draining out. The valve is in the CLOSED position when the
handle of the valve forms a “T” with the body of the valve.
1. Place ice into the non-refrigerated well. For best performance allow unit
to cool for approximately 1 hour before using.
2. Place containers of properly chilled food into the pre-chilled unit.
3. Regularly check the food temperature.
NOTE:
Monitor food temperature closely for food safety. The United States
Public Health Service recommends that hot food be held at a maximum
of 41 ºF (5 ºC) to help prevent bacteria growth.
4. When nished using the unit, remove the food containers.
5. Open the drain valve (A) and drain the water. The valve is in the OPEN
position when the handle of the valve is aligned with the body of the
valve.
6. Close the drain valve (A). Rotate the valve to the CLOSED position,
when the handle of the valve forms a “T” with the body of the valve.
cleaning
To maintain the appearance and increase the service life, clean your
equipment daily.
NOTE:
Do not use caustic cleaning chemicals, steel wool or
commercial lime removal products to clean the equipment.
Thoroughly rinse equipment with water after cleaning.
WARNING
Electrical Shock Hazard.
Keep water and other liquids from entering the
inside of the unit. Liquid inside the unit could cause
an electrical shock. Do not damaged power cord.
Do not over ll wells, pans or trays. Liquid could contact the
electrical components and cause a short circuit or an electrical
shock. Unplug unit before performing service, draining or removing
spillage pans and trays. Do not spray water or cleaning products.
Do not use a power cord that has been modied or damaged.
7. When nished using the unit turn the power switch (B) to the “OFF”
position. Remove the food containers.
8. Open the drain valve (A) and drain the water. The valve is in the OPEN
position when the handle of the valve is aligned with the body of the
valve.
9. Using a damp cloth, sponge dipped in soapy water to clean the inside of
the well and the outside of the equipment.
10. Close the drain valve (A). Rotate the valve to the CLOSED position,
when the handle of the valve forms a “T” with the body of the valve.
Fabricator components
OperatOr’s Manual
4
troUbleShooting chart
Problem It might be caused by Course of Action
Unit does not get to correct temperature.
Unit is not plugged in. Plug unit in.
Compressor defective. Have the compressor replaced.
Service and repair
There are no user serviceable parts within this appliance. To avoid serious injury or damage, never attempt to repair the equipment or replace a damaged power
cord yourself. Do not send equipment directly to the Vollrath Company. Please contact the qualied professional repair service listed below.
VOLLRATH Technical Service • 1-800-628-0832
cUtoUt dimenSionS chart For nSF7 reFrigerated, Standard reFrigerated, Short Side and non-reFrigerated drop-inS
CUTOUT dimensions given in inches and (cm).
Item Cutout Dimensions
36456 17-1/4 x 25-1/4 (43.8 x 64.1)
36429 28-1/4 x 25-1/4 (71.8 x 64.1)
36430 40-3/4 x 25-1/4 (103.5 x 64.1)
36434 54 x 25-1/4 (137.2 x 64.1)
36436 67-1/4 x 25-1/4 (170.8 x 64.1)
36438 80-1/2 x 25-1/4 (204.5 x 64.1)
36456R 17-1/4 x 25-1/4 (43.8 x 64.1)
36429R 28-1/4 x 25-1/4 (71.8 x 64.1)
36430R 40-3/4 x 25-1/4 (103.5 x 64.1)
36434R 54 x 25-1/4 (137.2 x 64.1)
36436R 67-1/4 x 25-1/4 (170.8 x 64.1)
36438R 80-1/2 x 25-1/4 (204.5 x 64.1)
36490 14-1//4 x 25-1/4 (36.2 x 64.1)
36441 28-1/4 x 25-1/4 (71.8 x 64.1)
36442 40-3/4 x 25-1/4 (103.5 x 64.1)
36444 54 x 25-1/4 (137.2 x 64.1)
36446 67-1/4 x 25-1/4 (170.8 x 64.1)
36448 80-1/2 x 25-1/4 (204.5 x 64.1)
36490R 14-1//4 x 25-1/4 (36.2 x 64.1)
36441R 28-1/4 x 25-1/4 (71.8 x 64.1)
36442R 40-3/4 x 25-1/4 (103.5 x 64.1)
Item Cutout Dimensions
36444R 54 x 25-1/4 (137.2 x 64.1)
36446R 67-1/4 x 25-1/4 (170.8 x 64.1)
36448R 80-1/2 x 25-1/4 (204.5 x 64.1)
36652 44-11/16 x 17-5/16 (113.5 x 44)
36655 66-1/8 x 17-5/16 (168 x 44)
36658 87-9/16 x 17-5/16 (222.4 x 44)
36653 44-11/16 x 17-5/16 (113.5 x 44)
36656 66-1/8 x 17-5/16 (168 x 44)
36659 87-9/16 x 17-5/16 (222.4 x 44)
36491 14-1//4 x 25-1/4 (36.2 x 64.1)
36450 28-1/4 x 25-1/4 (71.8 x 64.1)
36451 40-3/4 x 25-1/4 (103.5 x 64.1)
36452 54 x 25-1/4 (137.2 x 64.1)
36453 67-1/4 x 25-1/4 (170.8 x 64.1)
36454 80-1/2 x 25-1/4 (204.5 x 64.1)
36654 44-11/16 x 17-5/16(113.5 x 44)
36657 66-1/8 x 17-5/16 (168 x 44)
36660 87-1/2 x 17-5/16 (222.4 x 44)
Fabricator components
5
ENGLISH
OperatOr’s Manual
noteS
Fabricator components
OperatOr’s Manual
6
Warranty Statement For the vollrath co. l.l.c.
The Vollrath Company LLC warrants the products it manufactures and distributes against defects in materials and workmanship for a period of one year, except as specically
provided below. The warranty runs 12 months from the date of original installation. (End user receipt)
1. Refrigeration compressors – The warranty period is 5 years.
2. Replacement parts – The warranty period is 90 days.
3. Fry pans and coated cookware – The warranty period is 90 days
4. EverTite™ Riveting System – The warranty covers loose rivets
only, forever.
5. Cayenne® Heat Strips – The warranty period is 1 year plus an
additional 1 year period on heating element parts only.
6. Ultra and Professional Induction Ranges – The warranty period
is 2 years.
7. Mirage and Commercial Induction ranges - The warranty period
is 1 year.
8. ServeWell® Induction Workstations – The warranty period is one
year on the workstation table and 2 years on induction hobs.
9. Slicers – The warranty period is 10 years on gears and 5 years
on belts.
10. Mixers – The warranty period is 2 years.
11. Extended warranties are available at the time of sale.
12. Vollrath – Redco products – The warranty period is 2 years.
13. Optio / Arkadia product lines – The warranty period is 90 days.
14. All non-stick products (i.e. fry pans and surfaces) are 90 days for
the non stick surfaces.
All products in the Jacob’s Pride
®
collection, including
the following, have a lifetime warranty:
• NSF Certied One-Piece Dishers
• NSF Certied Spoodle
®
Utensils
• NSF Certied Heavy-Duty Spoons with
Ergonomic Handle
• NSF Certied Heavy-Duty Basting Spoons
• Heavy duty Turners with Ergonomic handle
• One-Piece Tongs*
• Heavy-Duty One-Piece Ladles*
• Nylon Handle Whips
• One-Piece Skimmers
• Tribute
®
, Intrigue
®
, and Classic Select
®
Cookware*
*Jacob’s Pride
®
warranty does not cover Kool-Touch
®
,
non stick coatings and silicone handles.
Items sold having no warranty:
• Meat Grinder Knives
• Light Bulbs in Convection Ovens and
Hot Food Merchandiser
• Oven Door Seals
• Oven Door Glass
• Hot Food Merchandisers / Display Case
Glass
• Calibration and set up of gas equipment
• Slicer / Dicer blades (table top food
prep) – Redco and Vollrath
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
As The Vollrath Company LLC’s only responsibility and the purchaser’s only remedy, for any breach of warranty, The Vollrath Company LLC will repair or, at its option, replace the
defective product or part without charge, except as otherwise provided below:
• For refrigeration compressors and the second year of the warranty on Cayenne® Heat Strips and mixers, The Vollrath Company LLC will provide the repaired
or replacement part only; and the buyer will be responsible for all labor charges incurred in performing the repair or replacement.
• To obtain warranty service, the buyer will be responsible to return to The Vollrath Company LLC any product (other than gas equipment that is permanently
installed) weighing less than 110 lbs. or located outside of a 50-mile radius of a certied technician designated by The Vollrath Company LLC to perform
warranty repairs. If a Vollrath Technician cannot be contacted check the website for service contact points. (Please refer to the Product Catalogue for weights
and sizes of product)
• No remedy will be available for products that have been damaged by accident, carelessness, improper installation, lack of proper setup or supervision
when required, neglect, improper use, installation or operation contrary to installation and operating instructions or other causes not arising out of defects in
materials or workmanship. At the buyer’s request, The Vollrath Company LLC will repair and or replace such products at a reasonable cost.
• No remedy will be available for slicers where blade has not been sharpened (Refer to owner’s manual for sharpening instructions)
• No remedy will be available for mixers damaged by changing gears while unit is running or overloading, in either case as determined by a Vollrath Certied
Technician
• Warranty work must be authorized in advance by The Vollrath Company LLC. See the operating and safety instructions for each product for detailed
warranty claim procedures.
• No remedy will be available for product returned and found to be acceptable to the product specication.
• No remedy will be available under any warranty not registered as required below.
LIMITATION OF LIABILITY:
THE VOLLRATH COMPANY LLC SHALL HAVE NO LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND,
WHETHER BASED UPON NEGLIGENCE OR OTHER TORT, BREACH OF WARRANTY, OR ANY OTHER THEORY.
Fabricator components
7
ENGLISH
OperatOr’s Manual
Warranty procedure
On all warranty calls, the following process and information is required:
• All warranty claims will start with a call to Vollrath Technical Service support line.(800-354-1970).
• A technical support professional will work to diagnose the issues, and provide the details for the service solution.
• Name and phone number of person calling
• Business name, street address, city, state and zip
• Model and serial number
• Date of purchase and proof of purchase (Receipt)
• Name of dealer where unit was purchased
NOTE: Vollrath will not accept products sent without the proper procedure being followed.
Important:
TO MAKE A CLAIM FOR ANY REMEDY UNDER THIS WARRANTY, YOU MUST REGISTER YOUR WARRANTY.
register today
ONLINE: Register your warranty on-line now at www.Vollrathco.com
NO WEB ACCESS: If you do not have access to the web, kindly register by completing the warranty registration form and faxing it to The Vollrath Co. LLC ofce in the country of
purchase.
Warranty regiStration
business name
Key contact name email
street address
city state Zip code
country phone Fax
model item number
serial number - -
operation type
R Limited Service Restaurant R Full Service Restaurant R Bars and Taverns R Supermarket
R Convenience Store R Recreation R Hotel/Lodging R Airlines
R Business/Industry R Primary/Secondary School R Colleges/University R Hospitals
R Long-Term Care R Senior Living R Military R Corrections
reason For selecting our product
R Appearance R Full Service Restaurant R Availability R Sellers Recommendation
R Ease of Operation R Versatility of Use R Price R Brand
Would you liKe to receive our Full-line catalog and remain on our mailing list? R Yes R No
www.vollrathco.com
The Vollrath Company, L.L.C.
1236 North 18th Street
Sheboygan, WI 53081-3201
U.S.A.
Main Tel: 800.628.0830
Fax: 800.752.5620
Technical Services: 800.628.0832
Service Fax: 920.459.5462
Canada Service: 800.695.8560
© 2011 The Vollrath Company, L.L.C.
