OFF-ROAD LIGHT
WIRING HARNESS
59105
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference. 23c
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2022 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 59105
Important Safety Information
Read all instructions. Failure to follow all instructions may result in
electric shock, fire, and/or serious injury.
1. Wear ANSI-approved
splash-resistant safety
goggles and heavy-duty
rubber work gloves
whenever connecting,
disconnecting, or working near
battery. Battery acid can cause
permanent blindness.
Avoid touching eyes while working
near battery.
2. NEVER smoke or allow a spark or
flame in vicinity of battery or engine.
3. If battery acid contacts skin or
clothing, wash immediately with
soap and water. If acid enters eye,
immediately flood eye with running
cold water for at least 10 minutes and
get medical attention immediately.
4. Remove personal metal items such
as rings, bracelets, necklaces,
and watches when working with a
lead-acid battery. A lead-acid battery
can produce a short-circuit current
high enough to weld a ring or the like
to metal, causing a severe burn.
5. Install only according to these
instructions. Improper installation
can create hazards.
6. Use a 30 amp fuse only.
7. Wear ANSI-approved safety goggles
and heavy-duty work gloves
during Installation.
8. Keep installation area clean and well lit.
9. Keep bystanders out of the
area during Installation.
10. Do not install when tired or when under
the influence of drugs or medication.
11. Read all instructions and safety
precautions in the vehicle’s manual onto
which the Wiring Kit will be installed.
12. Install on negative ground
12VDC systems only.
13. Do not install this product yourself
unless you are technically competent
to do so. If necessary, have a qualified
technician install the Wiring Kit.
14. If the towing vehicle has rear
turn signals separated from its
stop lights, additional hardware
and installation procedures will
be needed. Contact a qualified
technician for guidance.
15. Before installation confirm that area is
clear of fuel lines, brake lines, electrical
wires, gas tanks or any other component
which could be damaged during drilling.
16. Do not route electrical cables
near sharp edges or parts that
will move or become hot.
17. Only connect to a clean, corrosion-
free battery. Only use a 12 VDC
automotive (or equivalent)
battery, in good condition.
Page 3For technical questions, please call 1-888-866-5797.Item 59105
18. Do not lean over or come in contact
with battery while making connections.
19. Insulate all exposed wiring and
terminals after installation.
20. This product is not a toy. Do not
allow children to play with this item.
21. Use as intended only.
Not for marine use. Do not submerge.
22. Inspect before every use; do not use
if parts are loose or damaged.
23. Maintain product labels and
nameplates. These carry
important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Page 4 For technical questions, please call 1-888-866-5797. Item 59105
Installation Instructions
Risk of serious personal injury. Turn the vehicle off before
assembling or making any changes to the Wiring Kit.
Note: Use with Roadshock Edge LED Lights only. 59235, 59236 and 59237.
Note: If unsure about any aspect of installation, have
the Wiring Kit installed by a professional.
1. Disconnect vehicle battery cables,
both positive and negative.
Disconnect the ground first.
2. Install 30 amp fuse into Fuse Holder.
3. Plan a route for Wiring Harness
from light, battery and switch. This
route must be secure and out of
the way of moving parts, road
debris. Ensure Wiring Harness
does not get damaged by operation
or maintenance of vehicle.
4. Place switch in a practical
location inside vehicle.
5. Ensure no electrical wires are
behind selected area for switch.

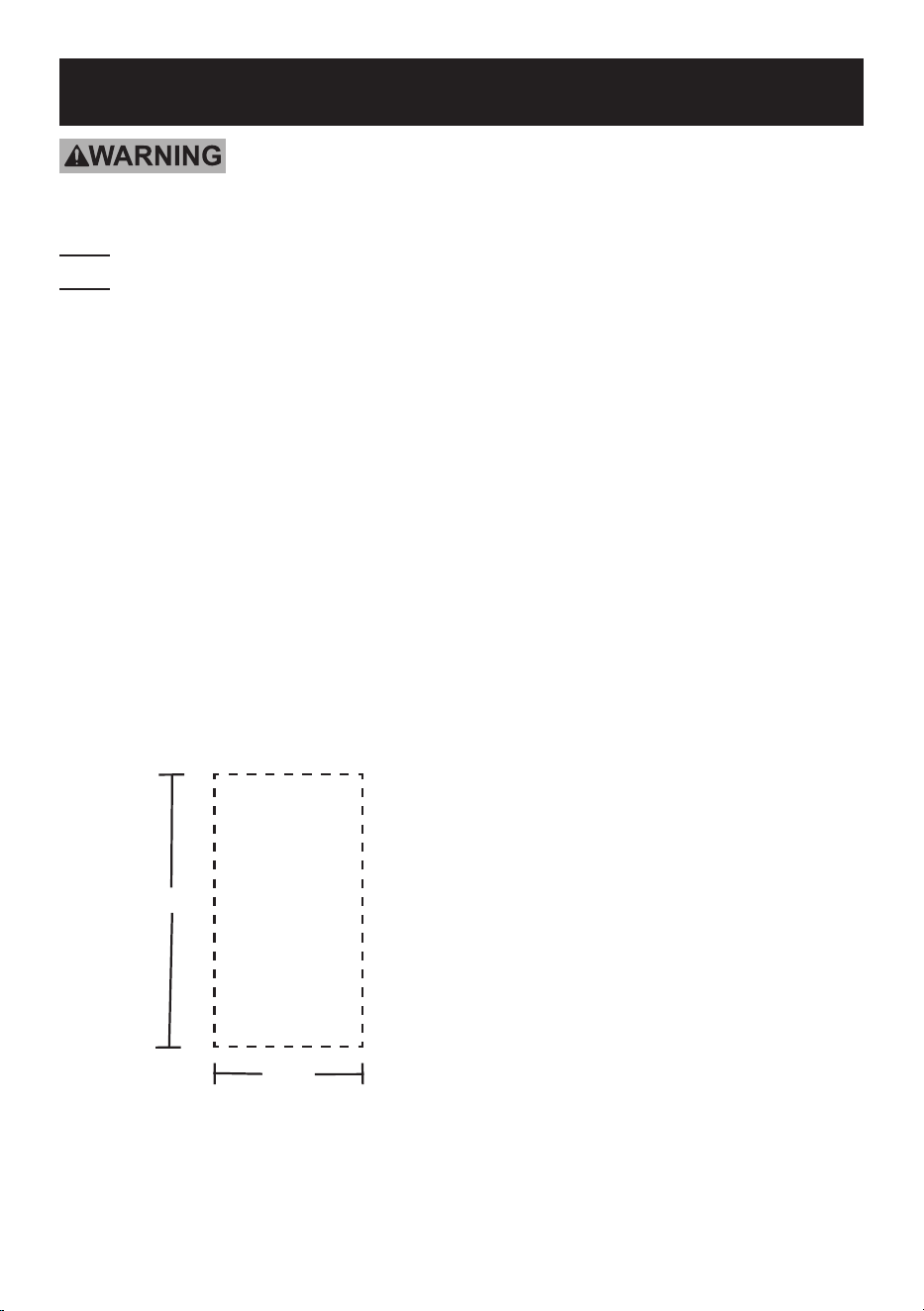

6. Cut switch opening carefully.
Mounting
Hole
1.45″
0.83″
7. Do not mount switch at this time.
8. Drill or locate a hole for the Relay.
9. Secure Relay to the hole using
a sheet metal screw (sold
separately). Tighten screw.
10. Connect Harness plug to Relay. Make
sure all connections are secure.
11. Connect Yellow Wire to Amber
Running Light Circuit.
12. Use included splice to connect
yellow wire to vehicles amber
running light circuit.
13. Connect wires to switch per “Wiring
Diagram” on page 6.
14. Attach the red wire to positive
12VDC battery terminal.
15. Attach the black wire to negative
12VDC battery terminal.
16. Turn switch to off-position.
17. Use wire ties to secure wires to
the vehicle and bundle excess
harness wire together.
18. Re-attach vehicle battery cables,
both positive and negative.
Attach the ground last.
19. Test harness functions.
20. Mount switch.
21. Verify wires do not touch any
moving parts, sharp edges and
are not near any hot surfaces.
Page 5For technical questions, please call 1-888-866-5797.Item 59105
WARNING! TO PREVENT SERIOUS
FIRE AND INJURY: Connect wires with
the correct polarity. There is reverse
polarity protection built-in to prevent
damage if incorrect polarity is used.
WARNING! TO PREVENT SERIOUS
INJURY: Do not route Wiring Harness
near or attach to exhaust system.
Note: See diagram below. Use
Wiring Harness to connect to
Light Bar or Cube Lights.
Page 6 For technical questions, please call 1-888-866-5797. Item 59105

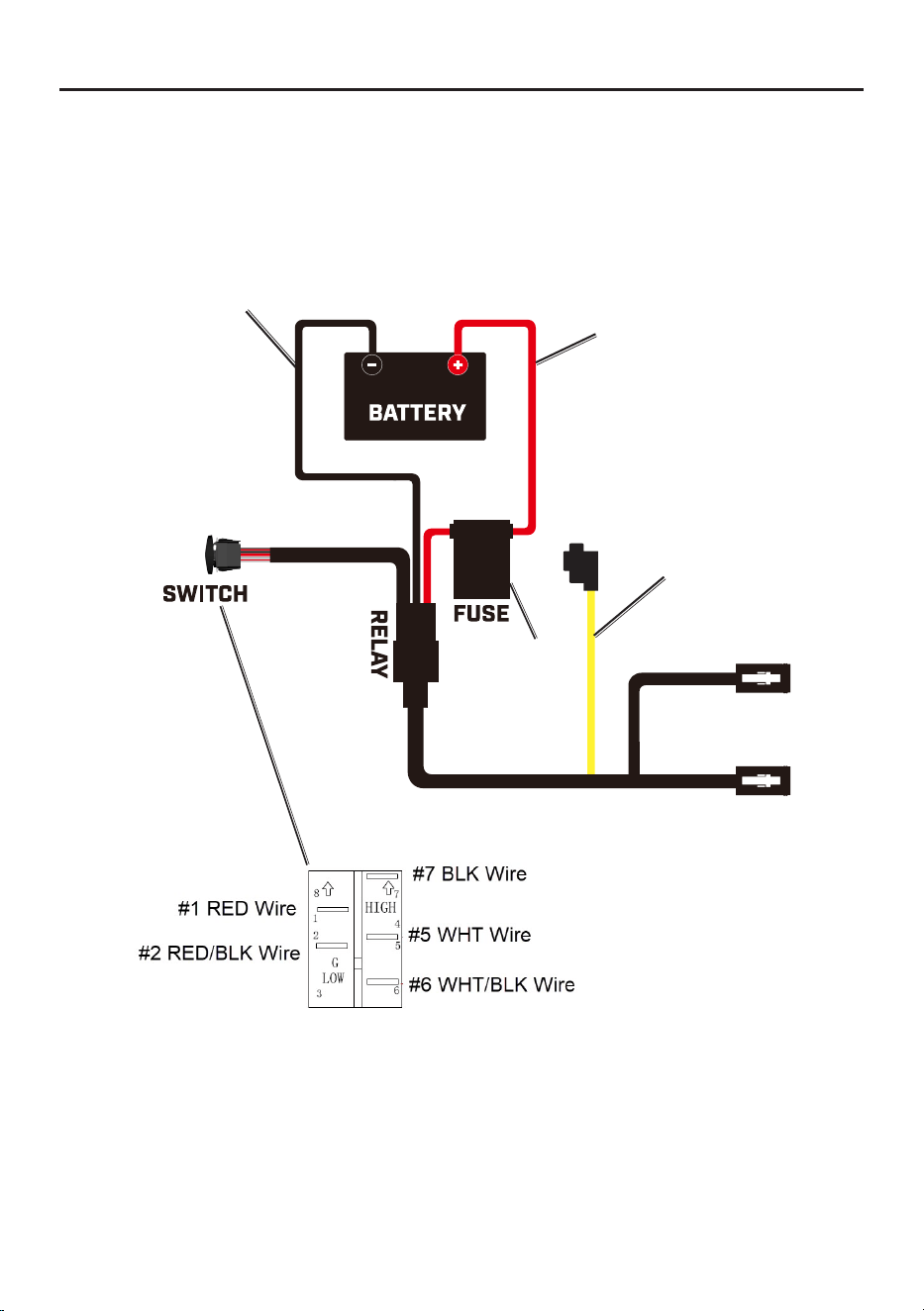

Wiring Diagram
84″ (2135mm)
156″ (3965mm)
24″ (610mm)
54″ (1375mm)
53.7″ (1365mm)53.7″ (1365mm)
Red Wire
Black Wire
Yellow Wire
(amber backlight
12VDC supply)
30 Amp
fuse
(included)
Fuse Holder
Page 7For technical questions, please call 1-888-866-5797.Item 59105
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST
AND INSTALLATION DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY.
NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR
WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE
ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR
HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR
ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts. Parts may not be
interchangeable. Specify UPC 193175454942 when ordering parts.
