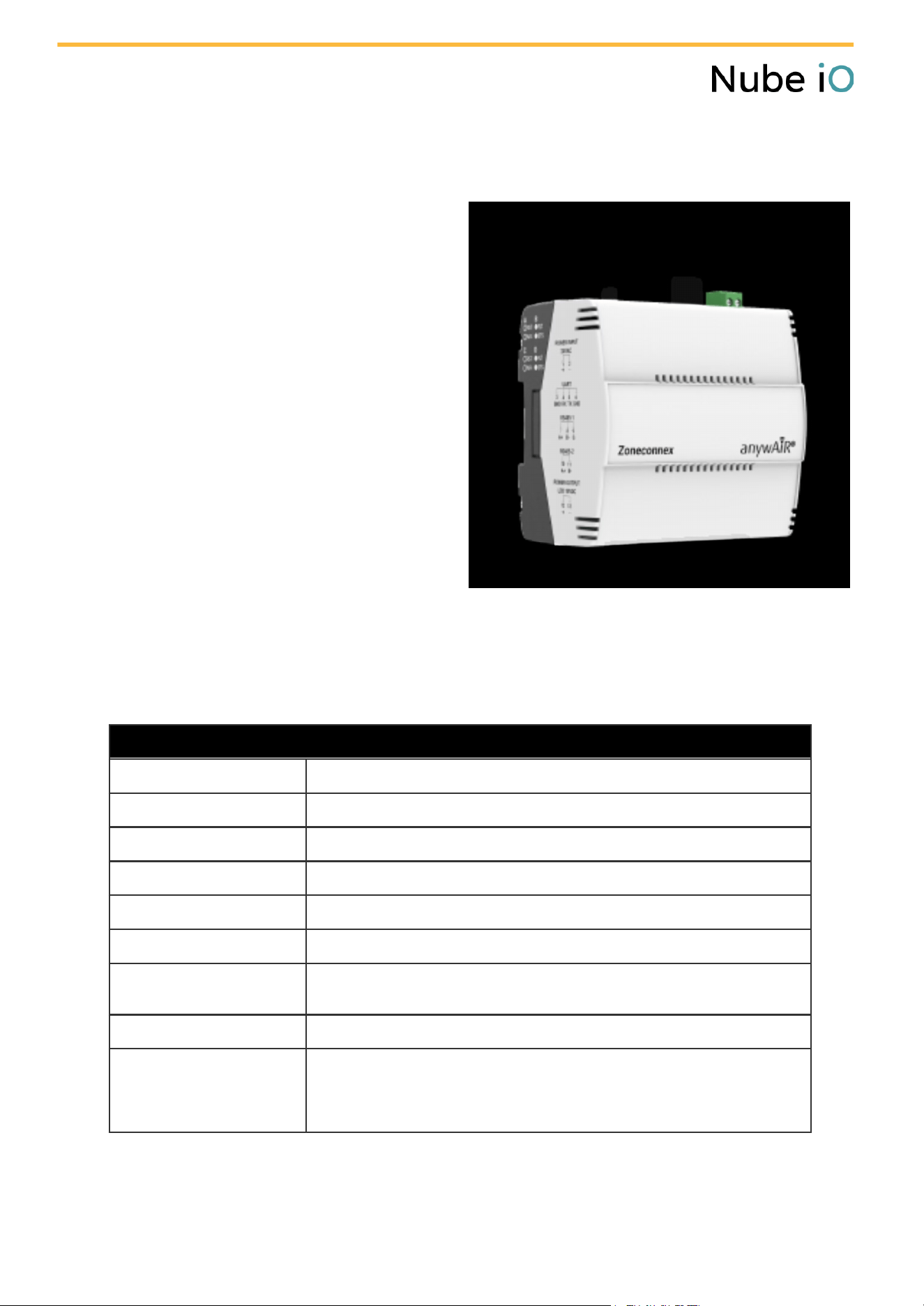

Zoneconnex
Technical Data
General
Model Number
ZC-01-N1 - Base Model (Customisable/OEM Variants available).
Dimensions
111.84 mm × 105.31 mm × 70.25 mm → 4.40 in × 4.15 in × 2.76 in
Power Supply
24V AC/DC power supply (AC required for damper control)
RTC
Onboard Real-Time Clock (RTC)
Mounting
Wall mount holes + DIN rail clip interface
Operating Temperature
0 to 60 degrees celsius
Material type
PC/ABS blend (Flame Retardant Grade, UL94 V-0)
Matte Black
IP Rating
IP2X
Compliance & Certifi
cation
RCM – Regulatory Compliance Mark
RoHS compliant
CE compliance
FCC compliance
Zoneconnex - Datasheet - Nube iO | 1
Zoneconnex is anywAiR®’s pre-programmed
HVAC zone controller, designed to provide a
local interface for monitoring and managing
split ducted air conditioning systems in
residential and light commercial
environments.
It delivers precise zone control and system
visibility through the anywAiR® Zone mobile
app or via the TouchPoint LCD screen,
allowing users to easily adjust temperature
settings, mode selections, and airflow
preferences across multiple zones.
Optimised for smart home integration and
HVAC retrofit installations, Zoneconnex
streamlines interactions between users and
connected systems — helping improve
comfort, efficiency, and overall control
flexibility.
Processor & Memory
CPU
32-bit RISC-V @ 160 MHz
MCU
ESP32-WROOM-32UE-N8
Operating Software
FreeRTOS
RAM
External flash (typical 4 MB), 512 kB SRAM
Connectivity & Communication Ports
Ethernet
2x 100 Mbps RJ45 Ethernet Ports for LAN Connection.
RS-485
1 × Isolated RS-485 (for field-bus communication)
1 × RS-485 (for touchscreen or local Modbus device).
Speeds: 9.6K, 19.2k, 38.4K, 57.6K, 115.2K bit/s
Data Bits: 8 bits
Parity: None, Even, Odd
Touchscreen Power
18V DC supply (capable of powering up to two screens)
UART
1x Four-wire connection (TX, RX, GND, +5 V/3.3 V) to interface with Fujitsu
ducted systems.
Zone Control Ports
10x RJ12 outputs rated to 24VAC dampers up to
150mA.
LoRa®
Supported Frequencies:
AU915, US915, AS923, EU863
Spreading Factor:
7-12
Bandwidth:
125 kHz, 250 kHz and 500 kHz
LoRaWan
Supported Frequencies:
AU915, US915, AS923, EU863
Spreading Factor:
7-12
Bandwidth:
125 kHz, 250 kHz and 500 kHz
Zoneconnex - Datasheet - Nube iO | 2
About Nube iO
At Nube iO, we make buildings smarter. From enterprise and industrial portfolios to light
commercial and smart homes, our scalable, data-driven technology bridges BMS and IoT to
connect devices, systems, and spaces - giving users simpler control, clearer visibility, and more
sustainable operations.
Built to scale from single sites to entire portfolios, our ecosystem — including traditional
controls, wireless sensors, protocol-ready gateways and licence-free programming software —
delivers seamless integration and efficient automation across diverse environments. Backed
by global expertise and a commitment to continuous innovation, we make building automation
smarter, simpler, and future-ready.
Smarter Buildings. Forward Thinking
Unlock smarter, more sustainable building operations — book a demo at nube-io.com
Document Code
ZC-2512
Person Responsible
BTJ
Date Last Updated
05/12/2025
Status
Revision V1.0
Location
rubix-docs/hardware/zoneconnex
Zoneconnex - Datasheet - Nube iO | 3
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirement. The device can
be used in portable exposure condition without restriction.
