HPKF 3241 W4UK
HPKF 3241 XP4UK
HPKF 3241 XR4UK
HPKF 3242 W5UK
HPKF 3243 XR5UK
Refrigerator
User Manual
EN
https://docs.emeaappliance-docs.eu/
7
6
7
9
13
13
14
17
17
17
14
14
16
16
16
18
19
20
27
28
18
18
19
20
21
25
26
26
26
26

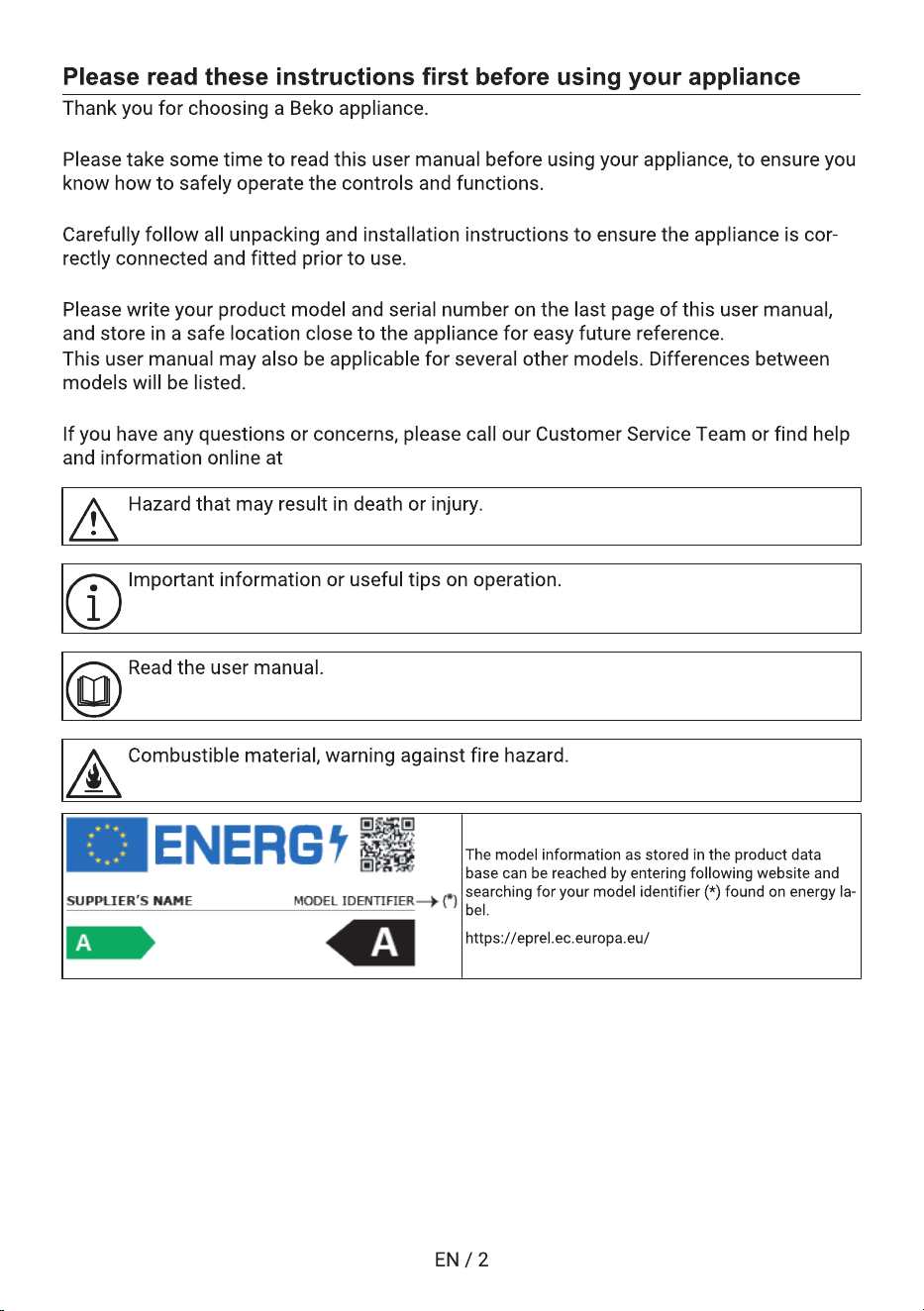

Please read this manual first!
Our valued customer,
Thank you for choosing Beko product. We want you to get the best results from your
product, which is manufactured with high quality and technology. To do this, please
read
this entire manual and the other documents provided carefully before using
the
product.Follow all the information and warnings in the user manual. This will protect
you and your product from potential hazards.
Keep the
user manual. If you give the product to someone else, include the user
manual with it.
The following symbols appear in the user manual and on the product
Danger that could result in death or injury!
Risk of electric shock!
WARNING
Danger that may result in property damage to the product or its environment
Danger that could result in burns due to contact with hot surfaces!
Risk of injury due to contact with sharp surfaces!
Important information or useful hints about usage.
Read the user manual.
Combustible material, warning against fire hazard!
Recyclable materials.
:
1-Safety Instructions
This section includes the safety instructions necessary to prevent
the risk of personal injury material damage.
Our company shall not be held responsible for damages that may
occur if these instructions are not observed.
Always have installation and repair operations performed by
•
•
•
1- Safety Instructions
EN / 4
manufacturer, authorized ervice or a person who will be
described by importer company.
Use original spare parts and accessories only.
Do not repair or replace any component of the product unle
ss
it is clearly specified in the user manual.
Do not make any technical changes to the product.
1.1. Intention of Use
This product is not suitable for commercial use and should not
be used for a purpose
other than its intended use..
This appliance is intended to be used in household and similar
applications such as: staff
kitchen areas in shops, offices and other working environments;
farm houses; by clients in hotels, motel, bed & breakfast and
other residential environments.
This product shall not be used in open or enclosed external
environments such as vessels, camper vans, balconie
s or
terraces.
Exposing the product torain, snow,sunlight and wind
may cause risk of fire
.
1. 2. Safety of Children, Vulnerable Persons and Pets
Children from 8 years old and above and persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge can use this appliance only if they are supervi-
sed or have been given instructions on safe use and understand
the hazards involved.
Young children (3-8 years) should be kept away from the a
pp-
liance and not allowed to load and unload the product unle
ss
continuously supervised.
Children and pets must not play with, climb on, or get inside the
product.
Children and pets must be kept away from the compressor
area where electrical parts are located.
.
Cleaning and user maintenance must not be carried out by
children without supervision.
•
•
•
•
•
•
•
•
•
•
•
EN / 5
If there is a lock available on the product’s door, keep the key
out of children's reach.
Keep the packaging materials away from children. Risk of injury
and suffocation!
1. 3. Electrical Safety
The product shall not be plugged into the outlet during
installation, maintenance, cleaning, repair, and transportation
operations.
.
If the power cable is damaged,it must be replaced by the
person sent by the manufacturer,authorized service provider
or the importer to prevent any potential danger.
Do not tuck the power cable under the product or to the rear
of the product. Do not put heavy items on the power cable.
The power cable should not be bent, crushed, and come into
co
ntact with any heat source.
.
Use an original cable only. Do not use cut or damaged cables.
.
Do not use an extension cord, multi-plug or adaptor to operate
your product
Extension cords, multiple plugs, adapters or portable power
supplies may overheat and cause fire. Therefore, do not place
such devices behind or near the product.
Before plugging the product into the power source, please
remove the power cable
from the condenser hook (if available)
during the installation.
Do not plug the product’s power cord in a loose or damaged
power outlet. These types of connections may overheat and
cause fire.
Do not plug the product to dirty, greasy sockets or sockets
that have come out of their seats or sockets with a risk of
water contact. These types of connections may overheat and
cause fire.
The plug shall be easily accessible. If this is not possible, a
mec
hanism that meets the electrical legislation and that
disconnects all terminals from the mains (fuse, switch, main
switch, etc.) shall be available on the electrical installation.
•
•
•
•
•
•
•
•
•
•
•
•
•
EN / 6
.
Do not use the product when your feet are bare or your body
is wet.
Do not touch the plug with wet hands.
When unplugging power cable from the outlet, pull it by the
plug, not by the cable.
Make sure that the plug is not wet, dirty or dusty.
Never connect your product to power-saving devices, supply
systems and power sources （such as portable solar-energy
power source) which may cause sudden voltage changes.
Otherwise, damage to your product may occur as a result of
the abrupt voltage fluctiation!
The product must not be operated with an external switching
device such as a timer, or a remote controlled system.
1. 4. Handling Safety
Make sure to unplug the applice and remove the water
connections (if any) before carrying the product.
This product is heavy, do not handle it by yourself. Injuries
may occur if the product falls on you.
Do not bump into places or drop the product while
transporting it.
Always close the doors and do not hold the product by its
doors while transporting it
Be careful not to damage the cooling system and the pipes
while handling the product.
Do n
ot operate the product if the pipes are damaged, and
contact an authorized service
1. 5. Installation Safety
To prepare the product for use, see the information in the user
and installation manual.
Make sure the electric and water utilities are comply with local
regulations. If they are not comply, call a qualified electrician
and plumber to arrange the utilities as necessary.
Failure to do so may result in electric shock, fire, problems
with the product, or injury It is the customer's responsibility
•
•
•
•
•
•
•
•
•
•
•
•
EN / 7
.
.
to ensure that these connections comply with local regulations.
Failure to do so may result in electric shock, fire, problems
with the product, or injury.
Before starting the installation, switch off the fuse to de-
energise the power line to which the product is connected.
This product is designed for use at a maximum altitude of
2000 metres above sea level.
Keep children away from installation area.
• Check for any damage on the product before installing it. Do
not have the product installed if it is damaged.
• Always use personal protective equipment (gloves, etc.)
during product installation, maintenance and repair. Risk of
injury!
• Do not install or leave the product in places where it may be
exposed to external ambient temperatures.
• Place the product on a clean, level and hard surface and
balance it with the adjustable legs (by rotating the front feet
to the right or left). Otherwise, the refrigerator may tip over
and cause injuries.
• The product shall be installed in a dry and ventilated
environment. Do not keep carpets, rugs or similar covers
under the product. This may cause risk of fire as a result of
inadequate ventilation!
• Do not block or cover ventilation holes. Otherwise, power
consumption increases and your product may be damaged.
• The more refrigerant a refrigerator contains, the bigger its
installation room shall be. In very small rooms, a flammable
gasair mixture may occur in case of a gas leak in the cooling
system. At least 1 m³ of volume is required for each 8 grams
of refrigerant. The amount of the refrigerant available in your
product is specified in the Type Label.
• The product must never be placed in such a way that power
cables, the metal hose of the gas stove, metal gas or water
pipes come into contact with the product's rear wall (or the
condenser).
• The installation place of the product must not be exposed to
•
•
•
EN / 8
.
1.6. 0perational Safety
direct sunlight and it shall not be in the vicinity of a heat
source such as stoves, radiators ors,etc. If you cannot prevent
installation of the product in the vicinity of a heat source, use
a suitable insulation plate and make sure the minimum
distance to the heat source is at least 30 cm away from heat
sources such as stoves, ovens, heating units and heaters, etc.,
and at least 5 cm away from electrical ovens.
• Your product has the protection class of I.
• Plug the product in a grounded socket that conforms with the
Voltage, Current and Frequency values specified in the type
label. The socket must have a 10A – 16A fuse.
Our firm will not assume responsibility for any damages due
to usage without earthing and without power connection in
compliance with local and national regulations.
• The product’s power cable must be unplugged during
installation. Otherwise, risk of electric shock and injury may
occur!
• The product must never be placed in such a way that power
cables, the metal hose of the gas stove, metal gas or water
pipes come into contact with the product's back wall (or the
condenser).
• Place the power cable and hoses (if any) of the product so
that they shall not cause a risk of tripping over.
• Penetration of humidity and liquid to live parts or to the power
cord may cause short circuit. Thus, do not use the product in
humid environments or in areas where water may splash (e.g.
garage, laundry room, etc.) If the refrigerator is wet by water,
unplug it and contact an authorized service.
• There is a risk of contact with electrical parts when removing
the electronic board cover and the compressor rear cover (if
fitted). Do not remove the electronic board cover and the
compressor rear cover (if fitted). There is a risk of
electrocution!
• Do not ever use chemical solvents on the product. These
EN / 9
.
materials contain an explosion risk.
• In case of a failure of the product, unplug it (or de-energise
the fuse to which it is connected), and do not operate until it
is repaired by the authorized service. There is a risk of electric
shock!
• Do not store explosive materials such as aerosol cans in, near,
or on the product; do not place or use gasoline or other
flammable materials (lighting candles, cigarettes, etc.) or heat
sources (iron, stove, oven, etc.); do not place or use temperature
-sensitive materials such as dry ice or other chemicals. There
is a risk of burns and explosion.
• Do not climb on the product; do not use parts such as doors
and drawers as support or steps. This may cause injury due
to the product tipping over or damage to its parts!
• Do not insert your hands, feet or metal objects under or behind
your product. This may cause pinching or personal injury due
to sharp edges
• Do not cause damage to the pipes of the cooling system
using sharp and piercing tools. The refrigerant that sprays out
in case of puncturing the gas pipes, pipe extensions or upper
surface coatings may cause irritation of skin and injury to the
eyes.
• Do not interfere with or damage the cooling circuit. Risk of
explosion!
• Do not use mechanical, electric or chemical means other than
those recommended by the Manufacturer to speed up the
defrost process.
• Take due care not to jam any parts of your hands or your body
to the moving parts inside the product. Be careful to prevent
jamming of your fingers between the refrigerator and its door.
Be careful while opening or closing the door if there are children
around.
• Do not put ice cream, ice cubes or frozen food to your mouth
as soon as you take them out of the freezer. Risk of frostbite!
• Do not touch the inner walls, metal parts of the freezer or food
kept inside the freezer with wet hands. Risk of frostbite!
EN / 10
.
• Do not place soda cans or cans and bottles that contain fluids
that may be frozen to the freezer compartment. Cans or bottles
may explode or break. Risk of injury and material damage!
• Do not place cans containing liquids, with their lids open, on or
inside the appliances. Water splashing onto an electrical
component may cause electric shock or fire.
• This product is not intended for storage and cooling of
medicines, blood plasma, laboratory preparations or similar
materials and products that are subject to the Medical
Products Directive.
If the product is used against its intended purpose, it may
cause damage to or deterioration of the products stored inside.
• If your refrigerator is equipped with blue light, do not look at
this light with optical devices. Do not stare directly at UV LED
light for a long time. Ultraviolet rays may cause eye strain.
• Do not overfill the product; ensure that the load is evenly
distributed across the shelves, door shelves, and drawers.
Otherwise, injuries or damage may occur as a result of the
contents of the refrigerator falling when the door is opened.
• Ensure that you have removed any ice or water that may have
fallen to the floor to prevent injuries.
• Change the locations of the racks/bottle racks on the door of
your refrigerator only when the racks are empty. Danger of
injury!
• Do not place objects that could fall or tip over on the product.
These items may fall when opening and closing the door and
cause injury or property damage.
• Do not hit or exert excessive pressure on glass surfaces.
Broken glass may cause injuries and/or material damages.
• The refrigerant type used in the product is specified in the type
label. The refrigerant circuit contains Isobutane (R600a):
isobutane is a natural gas without environmental impact, but
is flammable. Therefore,make sure the refrigerant circuit pipes
are not damaged and do not intervene in or damage the coolant
circuit, especially when emptying the refrigerant circuit. In case
of damage to the pipes;
EN / 11
.
- Do not touch the product or the power cable,
- Keep the product away from potential sources of fire that
may cause the product to catch fire,
- Ventilate the area where the product is placed. Do not use a
fan.
- If the product is damage and you observe gas leak, please
stay away from the gas. Gas may cause frostbite if it contacts
your skin.
- Contact Authorized Service.
• Before and when disposing of your old products that shall not
be used any more, follow the instructions below:
1. Unplug the power cable from the outlet.
2. Cut the power cable and remove it from the appliance
together with the plug.
3. Do not remove the racks and drawers from the product to
prevent children from getting inside the appliance.
4. Remove the doors.
5. Store the product so that it shall not be tipped over.
6. Do not allow children to play with the scrapped product.
7. Do not damage any part of the cooling system while
disposing of the product.
8. It may be fatal if the compressor oil is swallowed or if it
penetrates the respiratory tract
9. The R600a refrigerant used in the product and the C-
Pentane used as a blowing agent in the insulation foam are
flammable substances. Never dispose of the product in a fire.
There is a risk of explosion!
For Products with Water Dispensers/Ice Makers
• Use only drinking water. Do not fill the water tank with any other liquids
not suitable for use with the water dispenser, such as fruit juice, milk,
carbonated beverages, or alcoholic beverages. This poses a health and
safety risk!
• To prevent accidents or injury, do not allow children to play with the water
dispenser or ice maker!
• Never insert your hand, fingers, or other objects into the water dispenser
opening, ice chute, or ice maker container. This poses a risk of injury or
property damage!
EN / 12
.
Please pay attention to the following warnings to avoid food
spoilage:
• Leaving the doors open for a long time may cause the
temperature inside the product to rise.
• Regularly clean the accessible drainage systems in contact
with food.
• Clean the water tanks that have not been used for 48 hours
and mains-fed water systems that have not been used for
more than 5 days.
• Store raw meat and fish products in appropriate compartments
within the product.Thus, it does not drip on or come into
contact with other foods.
• Two-star freezer compartments are used for storing prefilled
foods, making and storing ice and ice cream.
• One, two and three-star compartments are not appropriate for
freezing fresh food.
• If the cooling product has been left empty for a long time, turn
off the product, defrost, clean, and dry the product in order to
protect the housing of the product.
• After the foods are placed, check if the compartment hatches,
and especially the freezer door, are properly closed.
• Use the refrigerator compartment for storing fresh foods, and
the freezer compartment for storing frozen goods, freezing
fresh foods and preparing ice cubes.
• Unplug the refrigerator or deenergise the fuse before cleaning
it or starting to perform maintenance.
• Do not pull by the door or door handle if you are going to move
the product for cleaning purposes. The door may cause injuries
if the handle is pulled to hard.
• Do not place hands, feet or metal objects under or behind your
product. Jamming may occur or any sharp edge may cause
personal injuries.
• Do not wash the surface or interior of the product with a pressure
1.7. Food Storage Safety
1.8. Maintenance and Cleaning Safety
EN / 13
.
washer, steam, spray water or pouring water. Risk of electric
shock and fire.
• When cleaning the product, do not use sharp and abrasive tools
or household cleaning agents, detergent, gas, gasoline,
thinner, alcohol, varnish, and similar substances.
• Use only cleaning and maintenance agents that are not harmful
for food inside the product.
• Do not use paper towels, kitchen sponges or other hard cleaning
materials
• Do not ever use steam or steamed cleaning materials for cleaning
the product and thawing the ice inside it. Steam contacts the live
areas in your refrigerator and causes short circuit or electric
shock!
• Take care to keep water away from the ventilation holes,
electronic circuits or lighting of the product. Otherwise, risk of
fire or electric shock may occur.
• Use a clean, dry cloth to wipe the dust or foreign material on the
tips of the plugs. Do not use a wet or damp piece of cloth to
clean the plug. Otherwise, risk of fire or electric shock may
occur.
• Contact an authorized service when you shall replace the LED /
bulb using for lighting.
service life.Useddevice must be returned to offical collection
point for recycling of electrical and electronic devices. To find
these collection systems please contact to your local authorit-
This product complies with EU WEEE Directive(2012/19/
EU).This product bears a classification symbol for waste
electricaand electronic equipment(WEEE).
This symbol indicates that this product shall not be
disposed with other household wastes at the end of its
1.9. Lighting
2.1. Compliance with the WEEE Dir-ective and Disposing
of theWaste Product
2-Environmental instructions
EN / 14
.
ies or retailer where the product was puchased. Each household
performs important role in recovering and recycling of old app-
liance. Appropriate disposal of used appliance helps prevent
potential negative consequences for the environment and
human health.
The product you have purchased complieswith EU RoHS
Directive(2011/65/EU).lt does not contain harmful and
prohibited materials specified in the Directive.
ronment Regulations. Do not dispose of the packaging mater-
ials together with the do-mestic or other wastes. Take themto
the packaging material collectionpoints designated by the
local authorities.
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National Envi-
Compliance with RoHS Directive
Package information
EN / 15
1
2
3
9
8
7
6
5
4
EN / 16
4.3
4.4
EN / 17
EN / 18
EN / 19
1 2 3 4
56
EN / 20

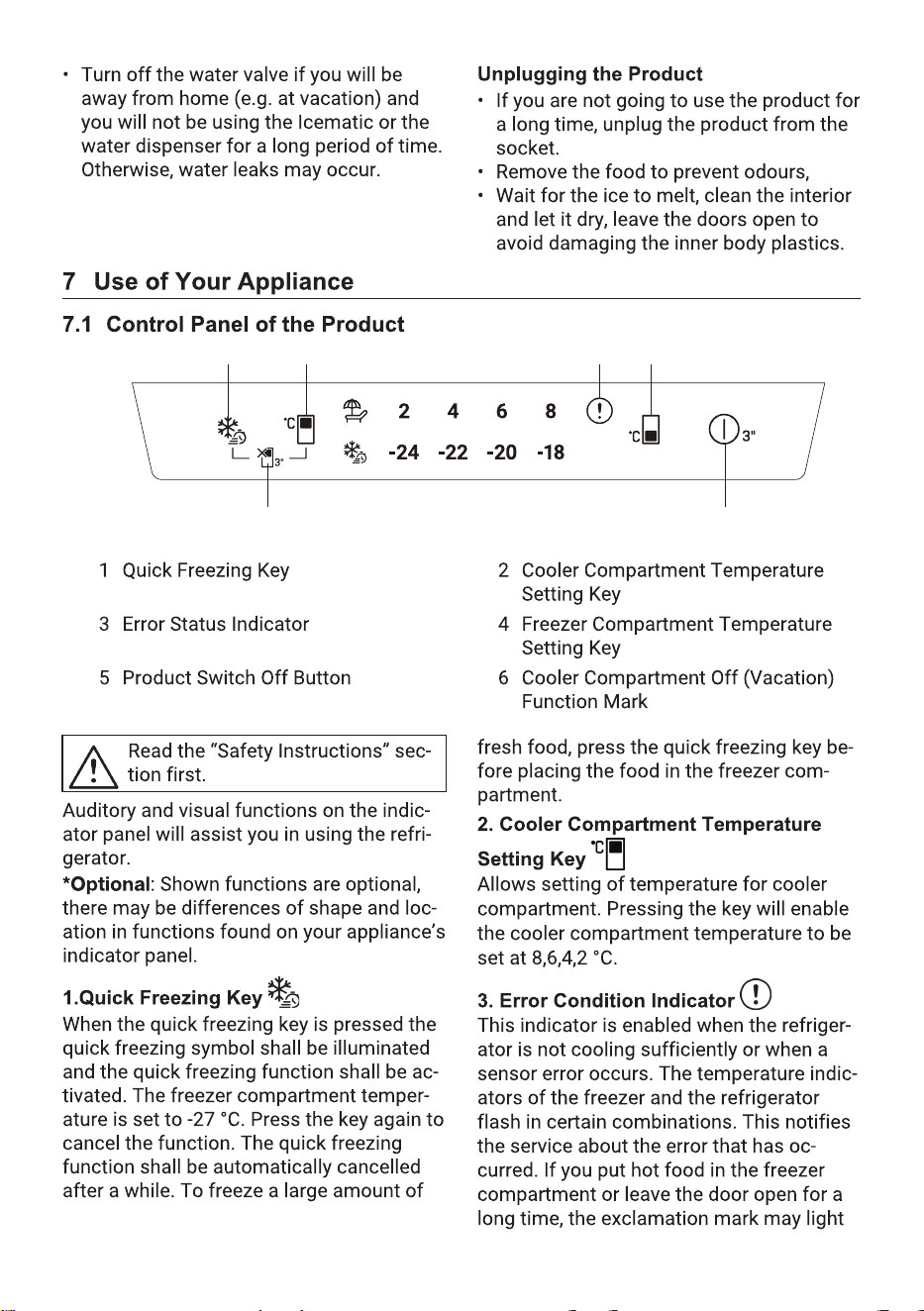

When this button is pressed for 3 seconds, the
device switches to the off state. In this state,
the refrigerator does not perform cooling;
neither the lighting lamp nor the screen will
light up. When the button is pressed again for
3 seconds, the refrigerator starts its normal
operation.
Press and hold both Quick Freezing Key ( )
and Cooler Compartment Temperature Setting
Key ( ) simultaneously for 3 seconds to
holiday function. When the holiday mode is
activated and the holiday icon ( ) lights up.
All icons on the cooler compartment
temperature indicator turn off. When this
function is activated, you are advised against
storing food in the refrigerating compartment.
The other compartments continue to cool
according to their set temperature. Press and
hold both Quick Freezing Key ( ) and Cooler
Compartment Temperature Setting Key ( )
simultaneously for 3 seconds again to cancel
this function.
EN / 21
EN / 22
EN / 23
EN / 24
EN / 25
Vitalcare
Energy efficiency class of the light source:
G.
7.4
7.5
7.6
7.7
EN / 26
Vitalcare
EN / 27
EN / 28
EN / 29
EN / 30
EN / 31
