User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Safety information and warnings......................... 3
1.1 Intended use................................................................. 3
1.2 Climate classes............................................................ 3
1.3 User group..................................................................... 3
1.4 Installation and commissioning................................ 3
1.5 Safe handling of the appliance.................................. 4
1.6 Cleaning......................................................................... 4
1.7 Faults, damage and repairs........................................ 4
1.8 Disposal......................................................................... 4
1.9 Conformity..................................................................... 4
1.10 SVHC substances in accordance with the REACH
Regulation..................................................................... 4
1.11 EPREL database........................................................... 4
1.12 Open source licences.................................................. 4
1.13 Spare parts.................................................................... 4
1.14 Symbols on the appliance.......................................... 5
1.15 Warning levels.............................................................. 5
2 Appliance at a glance............................................ 5
2.1 Scope of delivery.......................................................... 5
2.2 Overview of appliances and equipment................... 5
BluRoX...........................................................................
5
2.4 SmartDevice.................................................................. 5
3 Functionality of the Touch&Swipe display......... 6
3.1 Navigation and symbol explanation......................... 6
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 7
4 Putting into operation........................................... 7
4.1 Switching on appliance (first use)............................ 7
4.2 Starting the EasyTwist-Ice for the first time........... 7
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Freezer compartment.................................................. 8
5.3 Storage times............................................................... 8
6 Saving energy........................................................ 9
7 Controls................................................................. 9
7.1 Controls and displays.................................................. 9
7.1.1 Status display..............................................................9
7.1.2 Display symbols.......................................................... 9
7.2 Appliance functions..................................................... 9
7.2.1 Notes on the appliance functions............................9
Switching the appliance off and on........................9
WiFi............................................................................ 10
Temperature..............................................................10
Temperature unit...................................................... 11
SuperFrost................................................................. 11
Start defrosting cycle..............................................12
PartyMode ................................................................ 12
SabbathMode............................................................12
EnergySaver .............................................................13
Status light (status display)...................................13
Display brightness...................................................14
Door alarm.................................................................14
Input lock...................................................................14
Language...................................................................15
Device information...................................................15
Software....................................................................15
Demo mode............................................................... 16
Resetting to factory settings.................................16
7.3 Messages...................................................................... 17
7.3.1 Overview of warnings...............................................17
7.3.2 Ending warnings........................................................17
7.3.3 Overview of reminders............................................. 18
8 Features................................................................. 18
8.1 Drawers.......................................................................... 18
8.2 EasyTwist-Ice................................................................ 19
8.3 VarioSpace.................................................................... 20
8.4 Freezer pack.................................................................. 20
9 Maintenance.......................................................... 20
9.1 Disassembling / assembling pull-out systems...... 20
9.2 Defrosting the appliance............................................ 21
9.3 Cleaning the appliance............................................... 21
10 Customer help....................................................... 23
10.1 Technical specifications............................................. 23
10.2 Operating noises.......................................................... 23
10.3 Technical fault.............................................................. 24
10.4 Customer Service......................................................... 25
10.5 Model plate................................................................... 25
11 Shutting down....................................................... 26
12 Disposal................................................................. 26
12.1 Preparing the appliance for disposal........................ 26
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 26
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

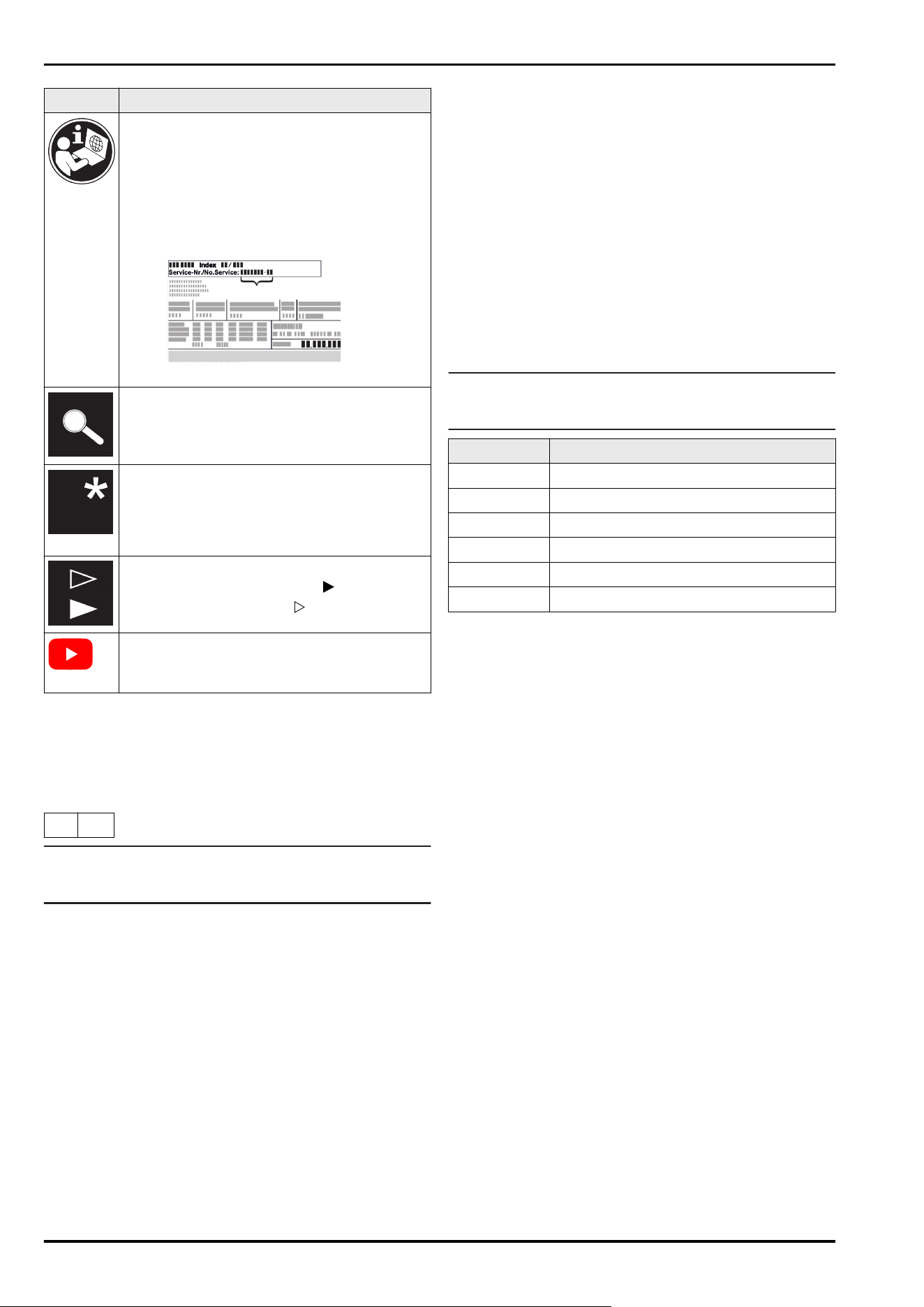

Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
2 * Depending on model and options
Symbol Explanation
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.

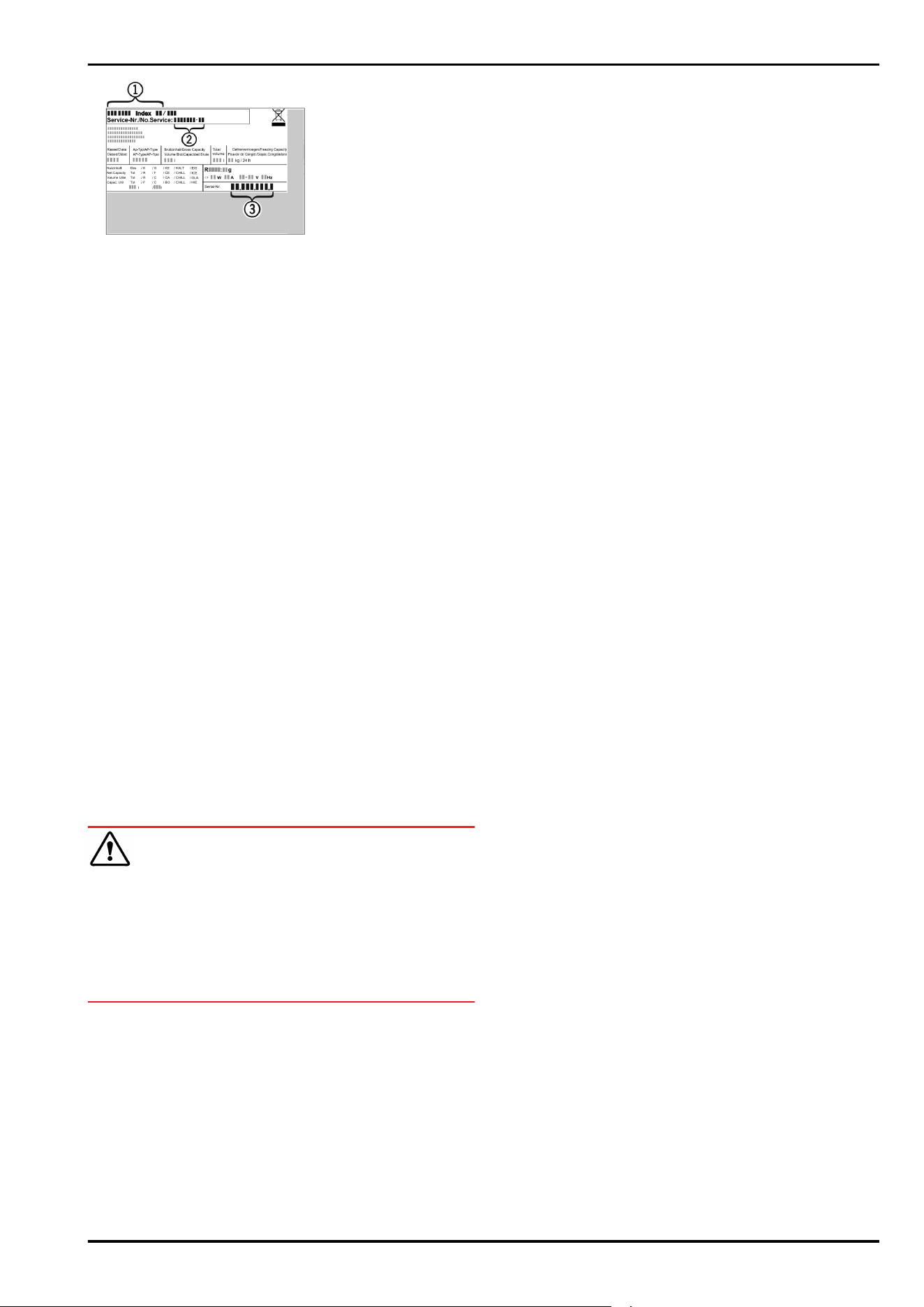

The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
This user information applies to the following appliances:
FN..
50..i
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.
1 Safety information and warnings
Keep this user information in a safe place so that you can
refer to it at any time.
If you pass on the appliance, pass this user information on
to subsequent owners.
To use the appliance properly and safely, read this user
information carefully before installation and use. Always
follow the instructions, safety instructions and warnings
contained therein. They are important so that you can install
and operate the appliance safely and properly.
1.1 Intended use
This appliance is intended for household use and similar
applications such as:
-
in staff kitchen areas in shops, offices and other work
areas
-
in agricultural environments and by guests in hotels,
motels and other accommodation
-
in bed and breakfasts
-
in catering and similar wholesale operations
All other types of application are impermissible.
1.2 Climate classes
Depending on its climate class, the appliance is designed
for operation within certain ambient temperature limits. The
climate class for your appliance is printed on the type plate.
Note
► In order to guarantee fault-free operation comply with
the specified ambient temperatures.
Climate class for ambient temperatures from
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
If your appliance does not have a fixed water connection,
the appliance is guaranteed to function properly down to a
lower ambient temperature of -15°C.
1.3 User group
-
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowl‐
edge if they have been given supervision or instruction
concerning use of the appliance in a safe way and under‐
stand the hazards involved.
-
Children must not play with the appliance.
-
Children must not carry out cleaning and user mainte‐
nance without supervision.
-
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
1.4 Installation and commissioning
-
Only set up and connect the appliance in accordance
with the instructions in the user information.
-
Do not close the ventilation openings in the appliance
housing or in the installation housing.
-
Do not damage the mains cable. The appliance must not
be operated with a defective mains cable.
-
Do not place portable multiple sockets or power supply
units at the rear of the appliance.
-
It must be easy to access the socket so that the appli‐
ance can be quickly disconnected from the power supply
in case of an emergency. It must not be behind the appli‐
ance.
Appliances with anti-tip protection:
-
Secure the appliance with an anti-tip device in accord‐
ance with the instructions in the user information to
prevent the appliance from tipping over.
Safety information and warnings
* Depending on model and options 3
1.5 Safe handling of the appliance
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. These types of aerosol can be identified by the
list of contents printed on it, or by a flame symbol. Any
leaking gas may ignite due to electrical parts.
-
Keep burning candles, lamps and other objects with
naked flames away from the appliance, so that these do
not set fire to the appliance.
-
Alcoholic beverages and other containers bearing alcohol
must be sealed tight for storage. Any leaking alcohol may
ignite due to electrical parts.
-
Avoid prolonged skin contact with cold surfaces or with
cold/frozen food. Use gloves for protection, for example.
-
The refrigerant contained (information on the type plate)
is environmentally friendly but flammable. Leaking refrig‐
erant may ignite.
•
Do not damage the refrigeration circuit.
•
Do not use any ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer service.
-
Only open the door for a short time. This prevents the
temperature inside the appliance from rising.
-
Do not reach between the door and the appliance when
opening and closing. Fingers may become trapped.
-
The temperature in the warmest part of the appliance
may be higher than the set temperature.
Appliances with water tank:
-
Only fill the EasyTwist-Ice water tank with drinking water
to avoid poisoning from contaminated water.
1.6 Cleaning
-
Regularly clean surfaces that come into contact with
food.
-
Do not use an electric heater or steam cleaner, naked
flames or defrost spray to speed up the defrosting
process.
-
Do not remove the ice with sharp objects.
1.7 Faults, damage and repairs
-
If the mains connection cable of the appliance is
damaged, replace the mains connection cable.
-
Repairs and interventions on the appliance may only be
carried out by the customer service or by other qualified
personnel trained for this purpose.
-
In the event of malfunctions and appliance faults, pull
out the mains plug or switch off the fuse. Always hold
the plug when pulling out the mains plug. Never tug on
the cable.
1.8 Disposal
-
The appliance contains valuable materials and is marked
with the appropriate symbol. (see 1.14 Symbols on the
appliance)
•
Do not dispose of the appliance in the household
waste.
•
Dispose of the appliance free of charge at your
local recycling centre using the Class 1 collection
containers.
•
When purchasing a new appliance, return the old
appliance to the retailer free of charge.
•
Provide information about return options.
-
Your appliance may contain personal data.
•
Delete personal data before disposal.
-
The appliance contains refrigerant (information on the
type plate) and oil. The refrigerant inside the appliance
is environmentally friendly, but flammable. The oil it
contains is also flammable. Escaping refrigerant and oil
can ignite in high concentrations and in contact with an
external heat source.
•
Do not damage the refrigeration circuit.
•
Only dispose of the appliance in accordance with the
instructions in the user information.
1.9 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations and
directives.
For the EU
market:
The appliance complies with Directive
2014/53/EU.
For GB market: The appliance complies with the Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The full text of the EU Declaration of Conformity is available
at the following web address: www.liebherr.com
1.10 SVHC substances in accordance
with the REACH Regulation
You can use the following link to check whether your appli‐
ance contains SVHC substances in accordance with the
REACH Regulation:
home.liebherr.com/en/en/liebherr-experience/sustaina‐
bility/environment/scip/scip.html
1.11 EPREL database
From 1 March 2021, the information on energy labelling and
eco-design requirements will be available in the European
product database (EPREL). The product database can be
accessed via the following link https://eprel.ec.europa.eu/.
Here, you are asked to enter the model identifier. You will
find the model identifier on the type plate.
1.12 Open source licences
The appliance contains software components that use open
source licences. Information on the open source licences
used can be found here:
home.liebherr.com/open-source-licences
1.13 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
Safety information and warnings
4 * Depending on model and options
1.14 Symbols on the appliance
This symbol may be found on the
compressor. It pertains to the oil in the
compressor and indicates the following
danger: Can be fatal if swallowed or with
penetration of the respiratory tract. This
information is only significant for recycling.
No risk exists with normal use. Do not
remove this symbol.
Warning: Fire hazard due to flammable
substances. This symbol is located on the
compressor and can also be found in other
places on the appliance. This symbol warns
of flammable substances. Do not remove
this symbol.
This or a similar symbol may be on the rear
of the appliance. It indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
information is only significant for recycling.
Do not remove this symbol.
This symbol is located on the type plate.
It indicates that the appliance contains
valuable materials and that you must not
dispose of it with household waste.
(see1.8Disposal)
1.15 Warning levels
DANGER
Identifies an immediately
dangerous situation that will
result in death or serious bodily
injuries if it is not prevented.
WARNING
Identifies a dangerous situation
that could result in death or
serious bodily injury if it is not
prevented.
CAUTION
Identifies an immediately
dangerous situation that could
result in slight or moderate injuries
if it is not prevented.
ATTENTION Identifies a hazardous situation
that could result in property
damage if it is not prevented.
Note Identifies useful information and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
Service Brochure
2.2 Overview of appliances and equip‐
ment

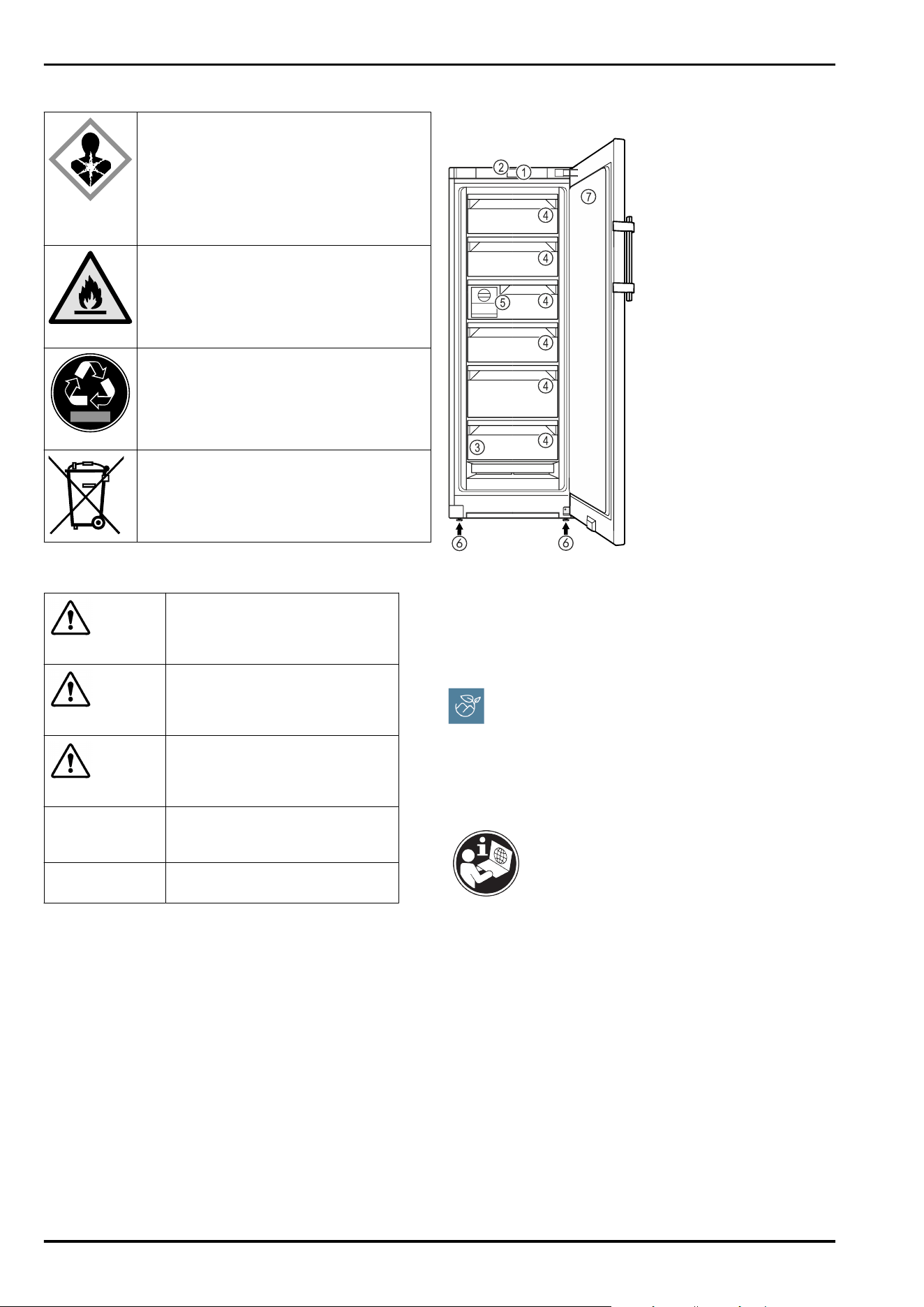

Fig. 1 Example illustration
(1)
Controls (5) EasyTwist-Ice
(2) Status light (status
display)
(6) Adjustable foot
(3) Type plate (7) Door with BluRoX tech‐
nology
(4) Drawer
BluRoX
The door to your appliance is fitted with BluRoX technology
(vacuum perlite technology). BluRoX technology means your
appliance uses less electricity. The door is recyclable. At
the end of the appliance’s service life, the perlite can be
removed and re-used.
More information on how to take your appli‐
ance for recycling can be found at:
home.liebherr.com/blurox
2.4 SmartDevice
SmartDevice is the networking solution for your freezer.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
enabled appliance:
Your appliance is capable of being a
SmartDevice. To be able to connect
your device to WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Appliance at a glance
* Depending on model and options 5
Downloading the
SmartDevice app:
After installing and configuring
the SmartDevice app, you can
connect your appliance to your Wi-Fi
(see WiFi) using the SmartDevice app
and the appliance's Wi-Fi function.
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
3 Functionality of the
Touch&Swipe display
You operate your appliance using the Touch & Swipe display.
You select appliance functions in the Touch & Swipe display
(hereafter referred to as display) by tapping them. If you
do not perform any action on the display for 10 seconds,
the display either jumps back to the higher-level menu or
directly to the status display.

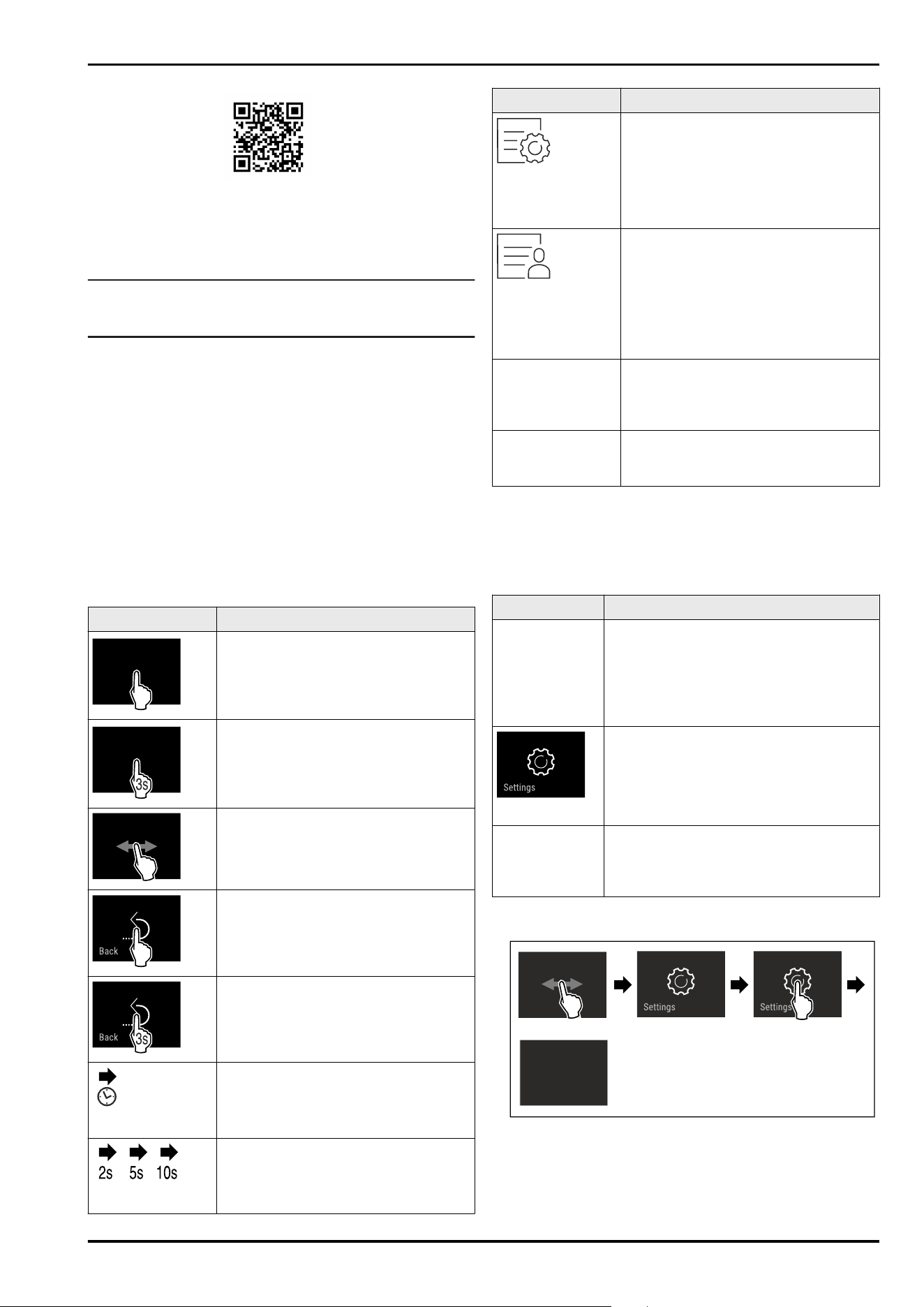

3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Briefly touch the display:
Activates/deactivates function.
Confirms selection.
Opens submenu.
Touch the display for a specified time
(e.g. 3seconds):
Activates/deactivates function or
value.
Swipe left or right:
Navigate in the menu.
Briefly touch the Back symbol:
Jumps back one menu level.
Press and hold the Back symbol for
3seconds:
Jumps back to the status display.
Arrow with clock:
It takes more than 10 seconds for the
following message to appear in the
display.
Arrow with a time indication:
It takes the specified amount of time
until the following message appears in
the display.
Symbol Description
“Open Settings menu” symbol:
Navigates to the Settings menu and
opens the settings menu.
If necessary: Navigate to the desired
function in the Settings menu.
(see 3.2.1 Opening the Settings menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu and
opens the advanced menu.
If necessary: Navigate to the desired
function in the Advanced menu.
(see 3.2.2 Opening the expanded
menu)
No action for
10seconds
If you do not perform any action on
the display for 10 seconds, the display
either jumps back to the higher-level
menu or directly to the status display.
Open door and
close it again.
If you open the door and immedi‐
ately close it again, the display jumps
directly back to the status display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions are distributed over various menus:
Menu
Description
Main menu When you switch the appliance on, you
are automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced
menu.
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
Advanced menu The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.
3.2.1 Opening the Settings menu
Fig. 2 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
Functionality of the Touch&Swipe display
6 * Depending on model and options
3.2.2 Opening the expanded menu

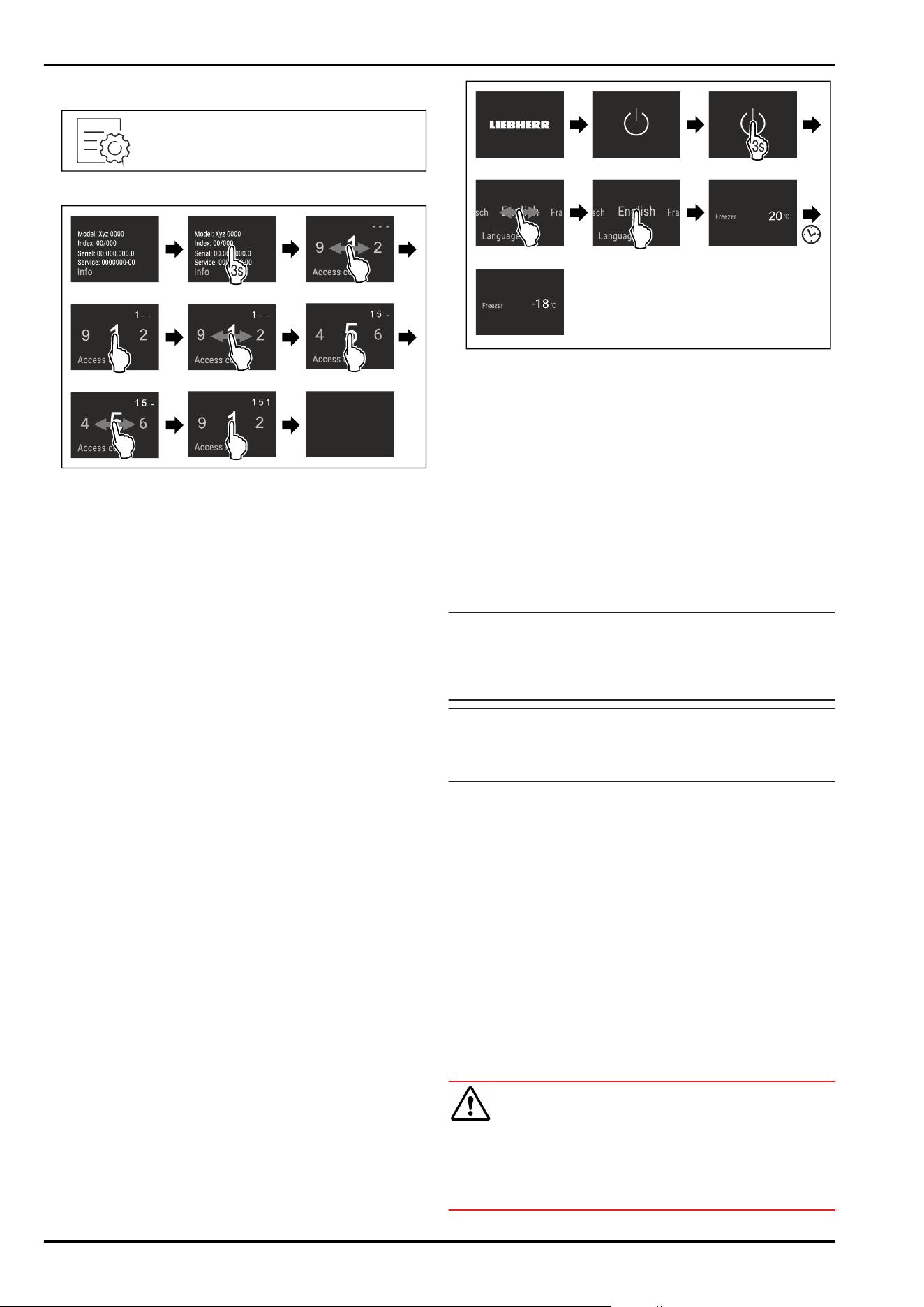

Fig.3
Fig. 4 Example illustration, access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Touch the display briefly with your finger.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance has been installed and connected in
accordance with the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the
Touch & Swipe display. (see 3 Functionality of the
Touch&Swipe display)
Switch on the appliance using the Touch&Swipe display:
► If the display is in sleep mode: Briefly touch the display.
► Carry out action steps according to the illustration.
Fig. 5 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
When you start up the appliance, the status light (status
display) is deactivated by default. Activate the status
light. (see Status light (status display))
-
Start the EasyTwist-Ice for the first time. (see4.2Starting
the EasyTwist-Ice for the first time)
-
Start the SmartDevice for the first time. (see 2.4 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
► Store frozen foods at -18°C or colder.
► Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
4.2 Starting the EasyTwist-Ice for the
first time
If your appliance is equipped with EasyTwist-Ice, you must
clean the EasyTwist-Ice before using it for the first time.
Make sure that the following requirements are fulfilled:
❑
The appliance is properly connected.
► Clean the EasyTwist-Ice. (see 9.3.5 Cleaning the Easy‐
Twist-Ice)
► Fill the water tank. (see Filling the water tank)
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Putting into operation
* Depending on model and options 7
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Package food properly.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
5.2 Freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
5.2.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the quantity to be frozen, you can activate
SuperFrost before freezing in order to achieve lower freezing
temperatures. (see SuperFrost)
► Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
As soon as the appliance automatically
deactivates SuperFrost, you can rear‐
range the food.
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
As soon as the appliance automatically
deactivates SuperFrost, you can rear‐
range the food.
Arranging your food properly
CAUTION
Risk of injury from broken glass!
Bottles and cans with beverages can burst during freezing.
This applies in particular to carbonated beverages.
► Only freeze bottles and cans with beverages if you have
activated the BottleTimer function in the SmartDevice
app.
Freezing quan‐
tity
Arranging your food properly
Small amount of
food to freeze
Place packaged food in the top drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
Maximum
amount of food
to freeze
Distribute packaged groceries
throughout all drawers, but only place
frozen food in the bottom drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
5.2.2 Defrosting food
WARNING
Risk of food poisoning!
► Do not re-freeze thawed food.
► Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In a fridge
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
► Take out only as much food as necessary.
5.2.3 Freezer tray
You can freeze berries, herbs, vegetables and other small
frozen food in the freezer tray without it all freezing
together. The frozen food is less likely to get squashed and
subsequent portioning is easier.
In addition, you can store the cold storage accumulators in
the freezer tray to save space.
► Distribute food on the freezer tray without packaging and
well spaced out.
5.3 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
Recommended storage period for various types of food
Ice cream at -18°C 2 to 6 months
Sausages, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Storage
8 * Depending on model and options
Recommended storage period for various types of food
Vegetables, fruit at -18°C 6 to 12 months
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature . A warmer ambient
temperature can increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
7 Controls
7.1 Controls and displays
7.1.1 Status display

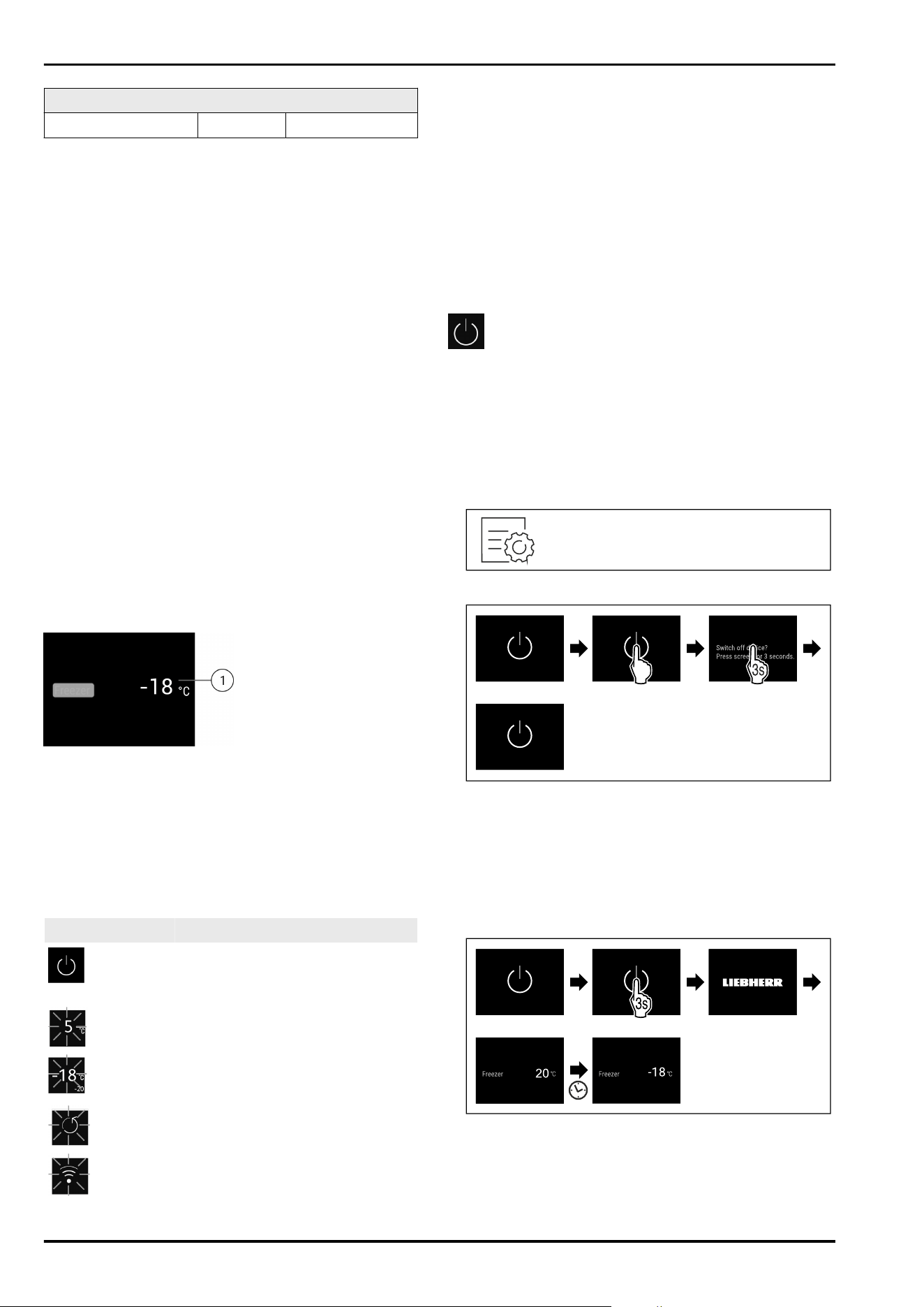

Fig. 6 The status display shows the actual temperature.
(1)
Temperature display
The status display shows the actual temperature and is the
initial display. Navigation to the functions takes place from
there.
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set temperature is
reached.
Flashing symbol
Appliance is working. Setting is
made.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of
how the display works. (see 3 Functionality of the
Touch&Swipe display)
❑
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 11 Shutting down) are carried
out.
Fig.7
Fig.8
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Briefly touch the display.
Fig. 9 Example illustration
► Carry out action steps according to the illustration.
When the appliance starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
Saving energy
* Depending on model and options 9
▷ The appliance cools to the target temperature set.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
More information on the SmartDevice: (see2.4 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.

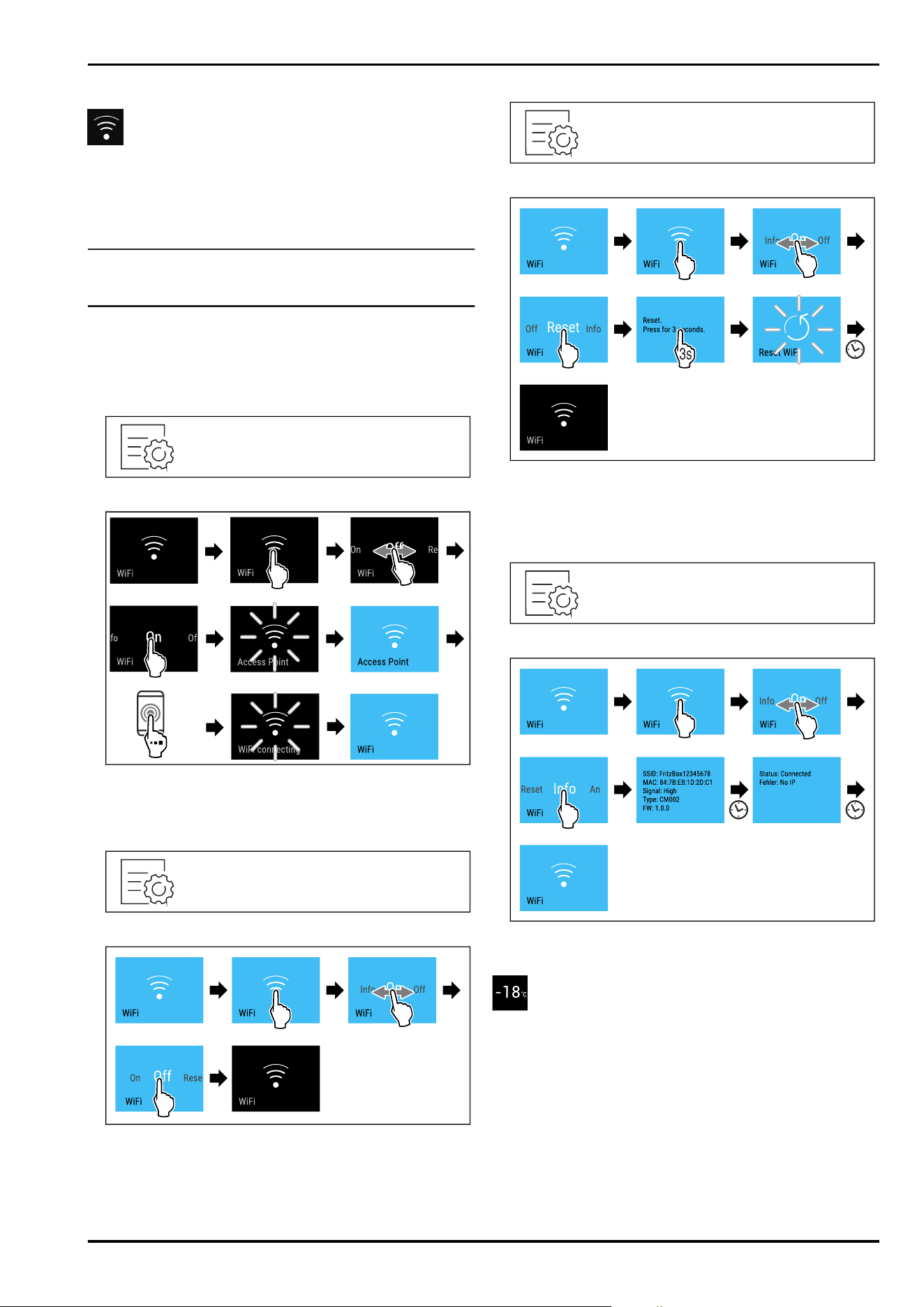

Fig. 10
Fig.11
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig.12
Fig.13
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 14
Fig. 15
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 16
Fig.17
► Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Controls
10 * Depending on model and options
Freezer compartment Factory-set
temperature
Recommended
setting
-18°C -18°C
Setting the temperature

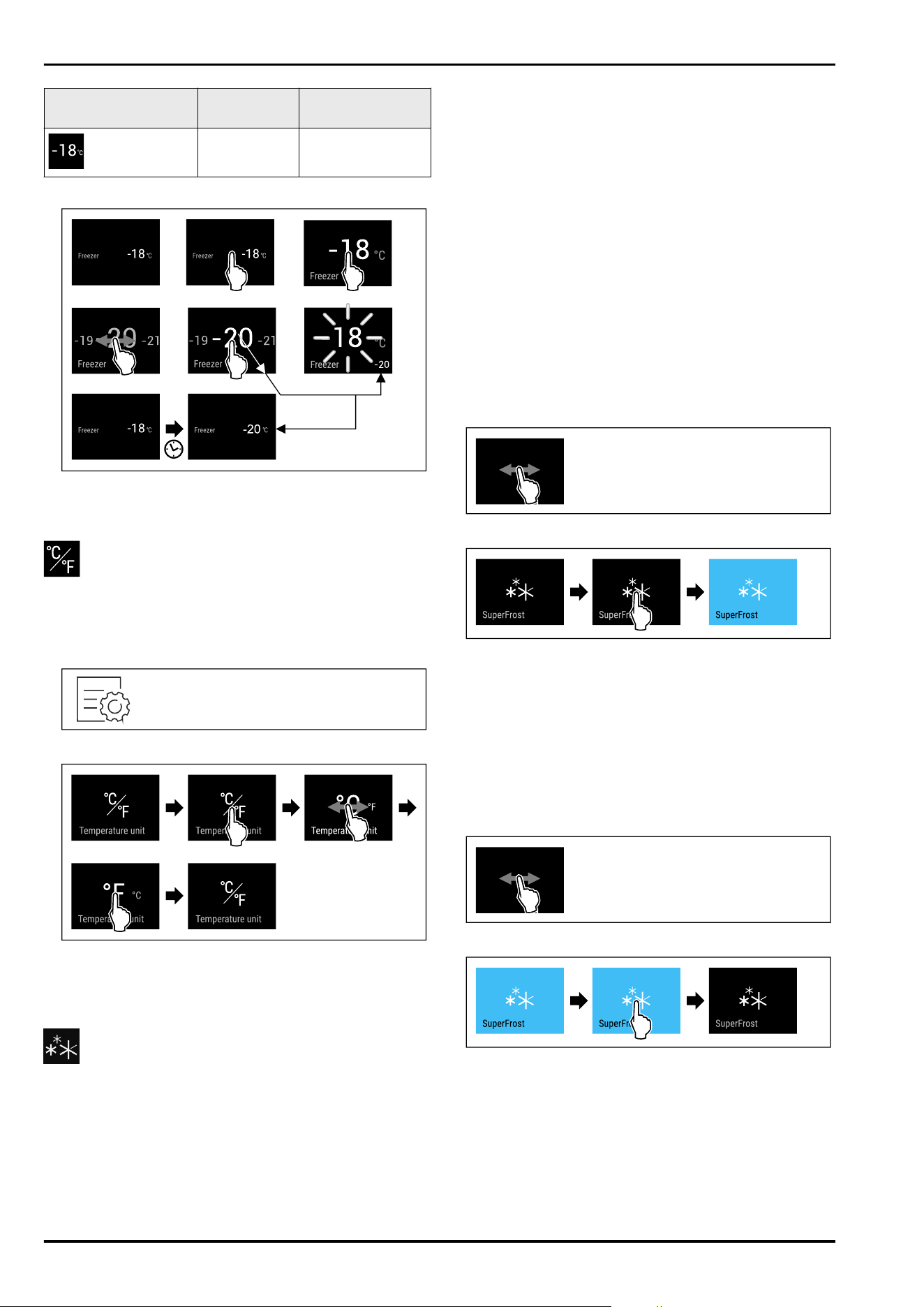

Fig. 18 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig. 19
Fig. 21 Example illustration: Switch from degrees Celsius to
degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
SuperFrost
You can use this function to activate or deactivate
SuperFrost. If SuperFrost is activated, then the appliance
increases the freezing capacity. It allows you to achieve
lower freezing temperatures.
Application:
-
Quickly freeze fresh food through to the core.
This ensures that the nutrition, appearance and taste of
frozen food is maintained.
-
Increase the cold reserve in stored frozen food before
defrosting the appliance.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
If the door is open for too long, e.g. because you are
putting food in, the appliance automatically checks whether
the actual temperature in the appliance matches the set
temperature. If the difference exceeds a certain value, the
appliance automatically cools more vigorously. As a result,
the temperature shown on the display may be higher than
the actual temperature in the appliance. This is normal and
your appliance is working correctly.
Activating SuperFrost
Make sure that the following requirements are fulfilled:
❑
Freezing quantity and time for activation of SuperFrost
are taken into account. (see Freezing food using
SuperFrost)
Fig.22
Fig.23
► Carry out action steps according to the illustration.
-or-
► Activate with the SmartDevice app.
▷ SuperFrost is activated.
▷ The temperature display turns blue.
Deactivating SuperFrost
SuperFrost is automatically deactivated after 56 to 72 hours
depending on the quantity of the food inserted. However,
you can also deactivate SuperFrost manually at any time:
Fig. 24
Fig.25
► Carry out action steps according to the illustration.
-or-
► Deactivate with the SmartDevice app.
▷ SuperFrost is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
Controls
* Depending on model and options 11

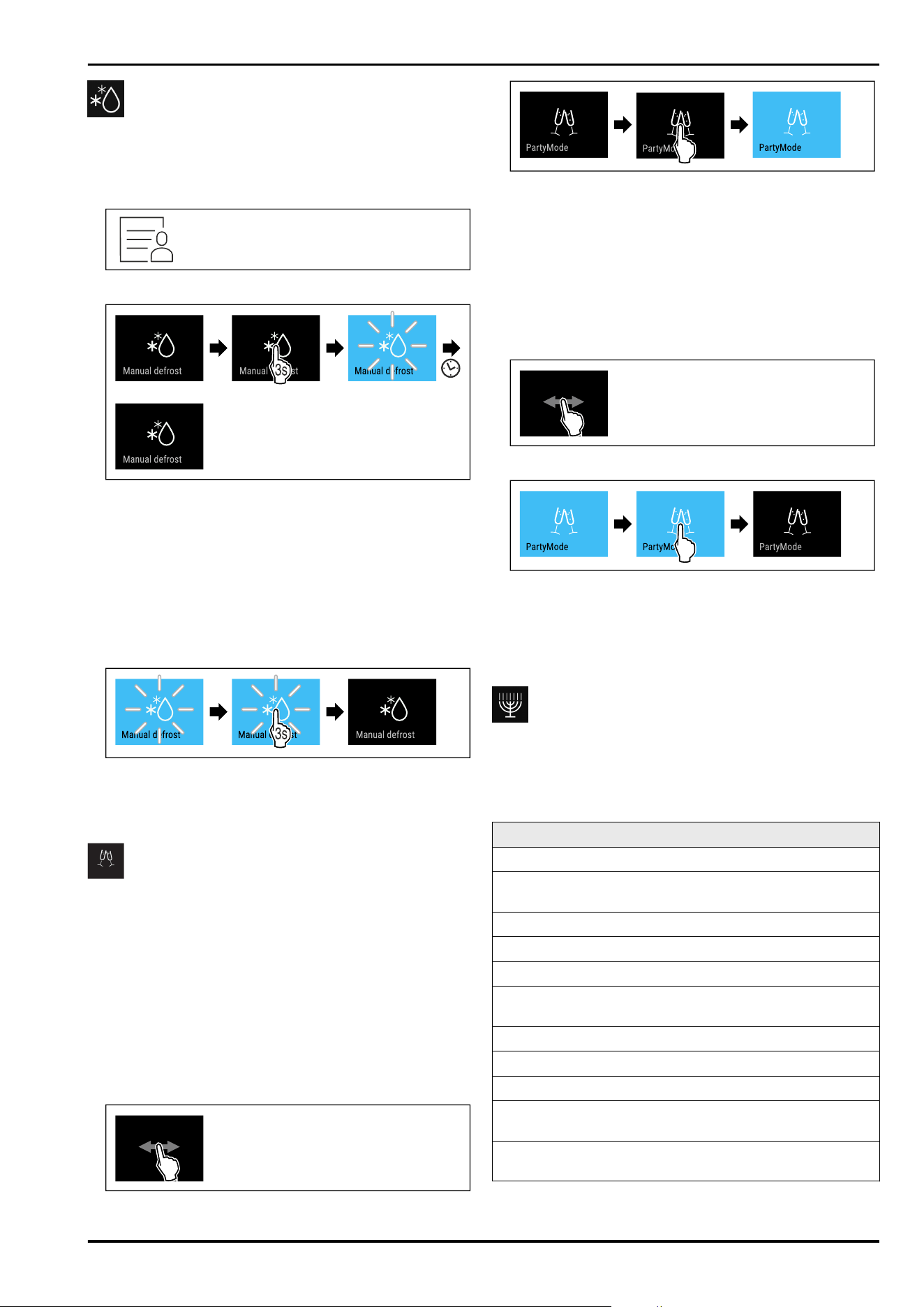

Start defrosting cycle
Use this function to start the automatic defrosting cycle
manually if it does not start automatically in the event of a
fault.
Starting defrosting cycle
Fig. 26
Fig.27
► Carry out action steps according to the illustration.
▷ Defrosting cycle has started: Icon flashes until defrosting
cycle is automatically completed.
▷ When defrosting cycle is finished: The device continues
to run in normal mode.
Cancelling defrosting cycle
The defrosting cycle will be stopped automatically. However,
you can also cancel the defrosting cycle at any time during
the defrosting process:
Fig.28
► Carry out action steps according to the illustration.
▷ Defrosting cycle is cancelled.
▷ The device continues to run in normal mode.
PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperFrost (see SuperFrost)
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Fig.29
Fig.30
► Carry out action steps according to the illustration.
▷ PartyMode and the associated functions are activated.
▷ The temperature display turns blue.
▷ The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig.31
Fig.32
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷ The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrosting cycle operates only for the specified time,
without considering the appliance consumption.
After a power failure, the appliance returns to
SabbathMode.
Device status
Controls
12 * Depending on model and options
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.

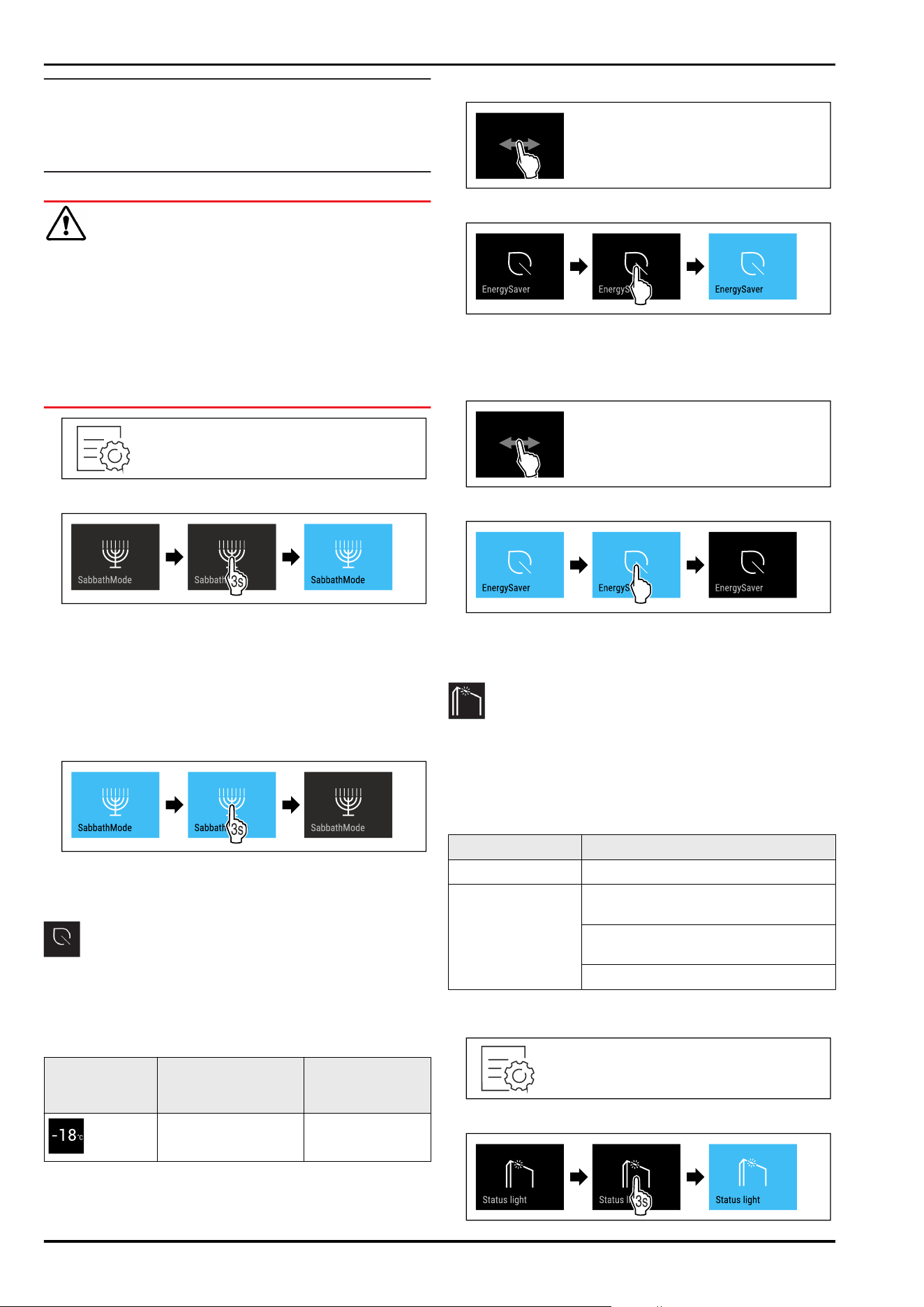

Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig.33
Fig.34
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.35
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
EnergySaver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature
zone
Recommended
setting (see Setting
the temperature)
Temperature
with active Ener‐
gySaver
-18°C -16°C
Temperatures
Activating EnergySaver
Fig.36
Fig.37
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating EnergySaver
Fig.38
Fig. 39
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
Status light (status display)
This function activates and deactivates the status light
(status display). When you start up the appliance, the
status light is deactivated by default. After you have acti‐
vated the status light, the colour of the light indicates the
status of the appliance when the door is closed. When the
door is open, the status light is inactive.
Status light
Status of the appliance
Blue light The appliance is working perfectly.
Red, pulsating light
Audible signal
Power failure (see 7.3.1 Overview of
warnings)
Temperature alarm (see 7.3.1 Overview
of warnings)
Error (see 7.3.1 Overview of warnings)
Meaning of the colour of the status light
Activating the status light

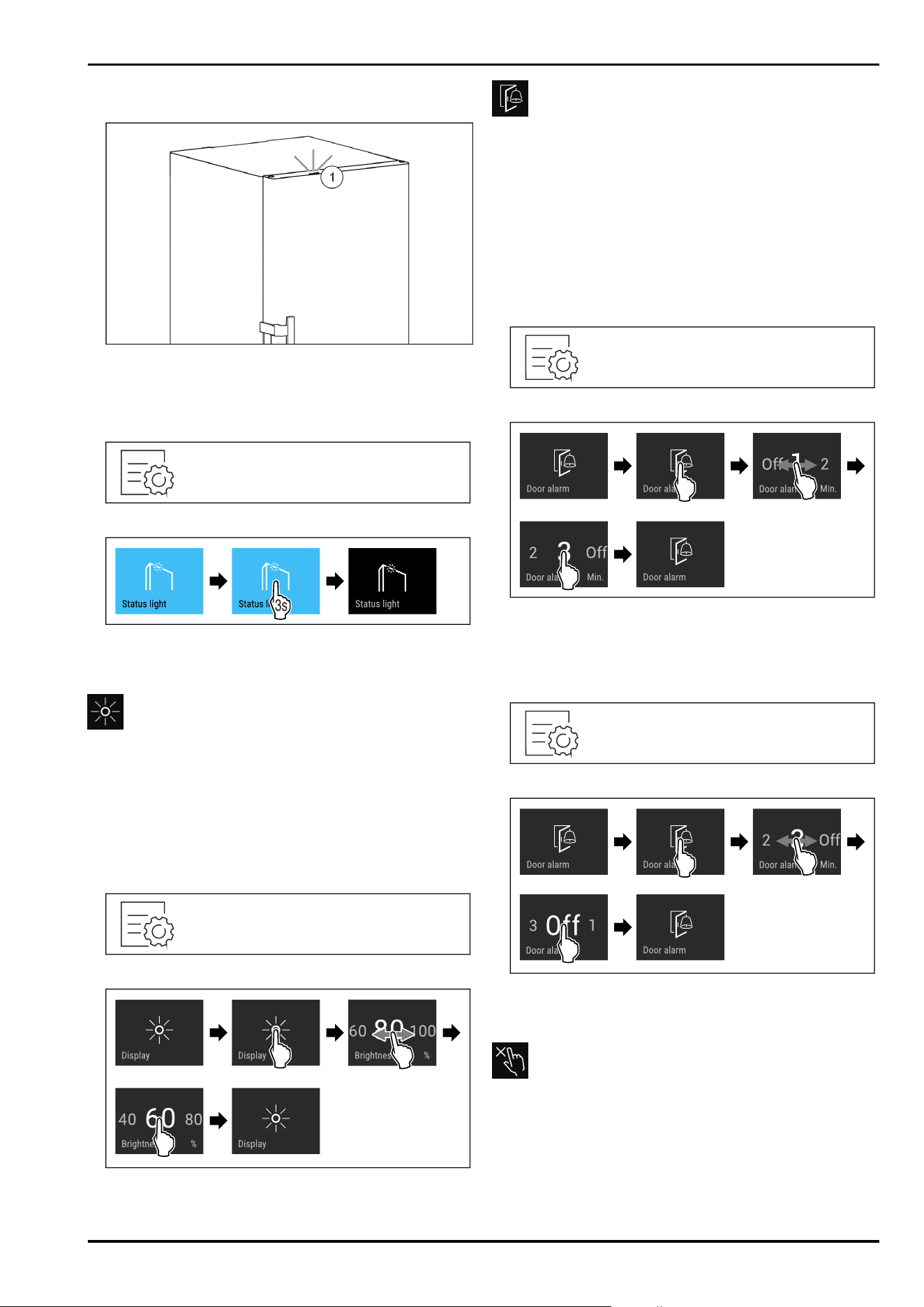

Fig.40
Controls
* Depending on model and options 13
Fig. 41
► Carry out action steps according to the illustration.
Fig. 42 Active status light when the door is closed
▷ Status light Fig. 42(1) is activated.
▷ The status light lights up blue or red when the door is
closed.
Deactivating the status light
Fig.43
Fig.44
► Carry out action steps according to the illustration.
▷ Status light is deactivated.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig.45
Fig. 46 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig. 47
Fig. 48 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.50
Fig.51
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Controls
14 * Depending on model and options

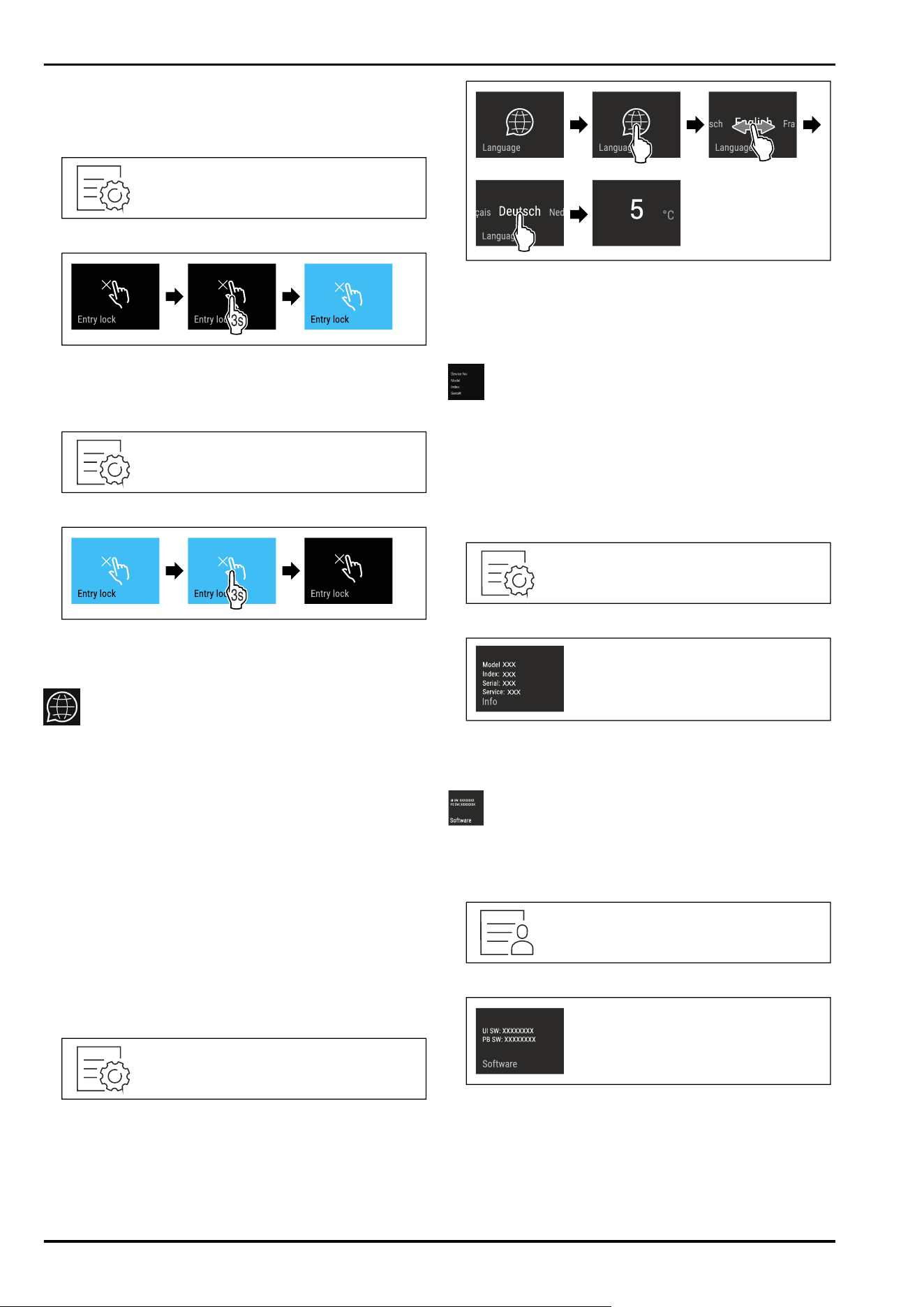

Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.52
Fig.53
► Carry out action steps according to the illustration.
▷ Input lock is activated.
Deactivating the input lock
Fig.54
Fig.55
► Carry out action steps according to the illustration.
▷ Input lock is deactivated.
Language
Use this function to set the display language.
You can select the following languages:
-
Deutsch
-
English
-
Français
-
Español
-
Italiano
-
Nederlands
-
Čeština
-
Polski
-
Português
-
Bulgarian
-
Русский
-
温度单位
Setting the language
Fig.56
Fig. 57 Example illustration depending on the language
and temperature
► Carry out action steps according to the illustration.
▷ The language is set.
▷ The display returns to the status display.
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch&Swipe display)
Indicating the device information
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Display indicates device information.
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.60
Fig.61
► Carry out action steps according to the illustration.
▷ Display indicates software version.
Controls
* Depending on model and options 15

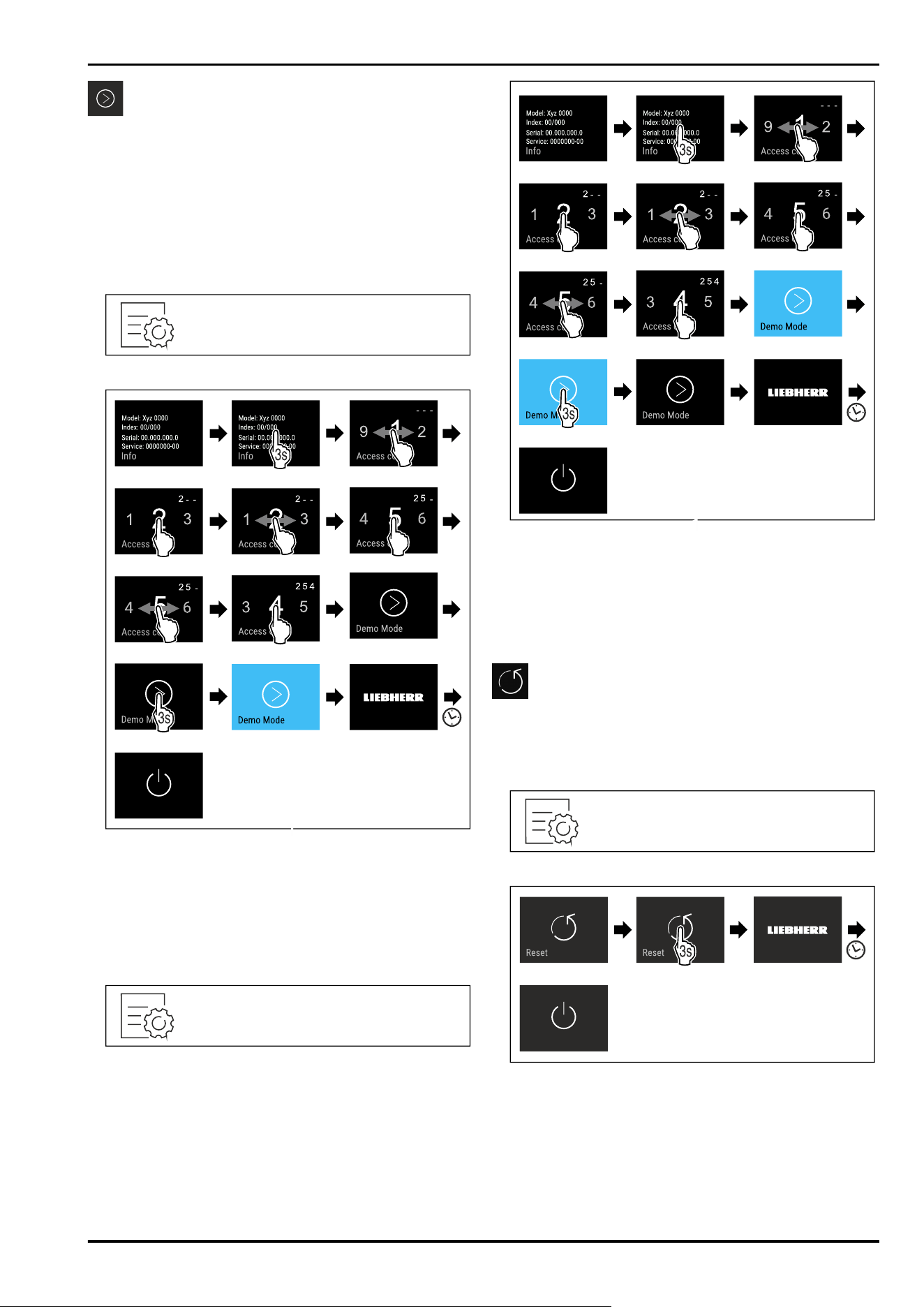

Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig. 62
Fig.63
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.64
Fig.65
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.66
Fig. 67
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))
Controls
16 * Depending on model and options

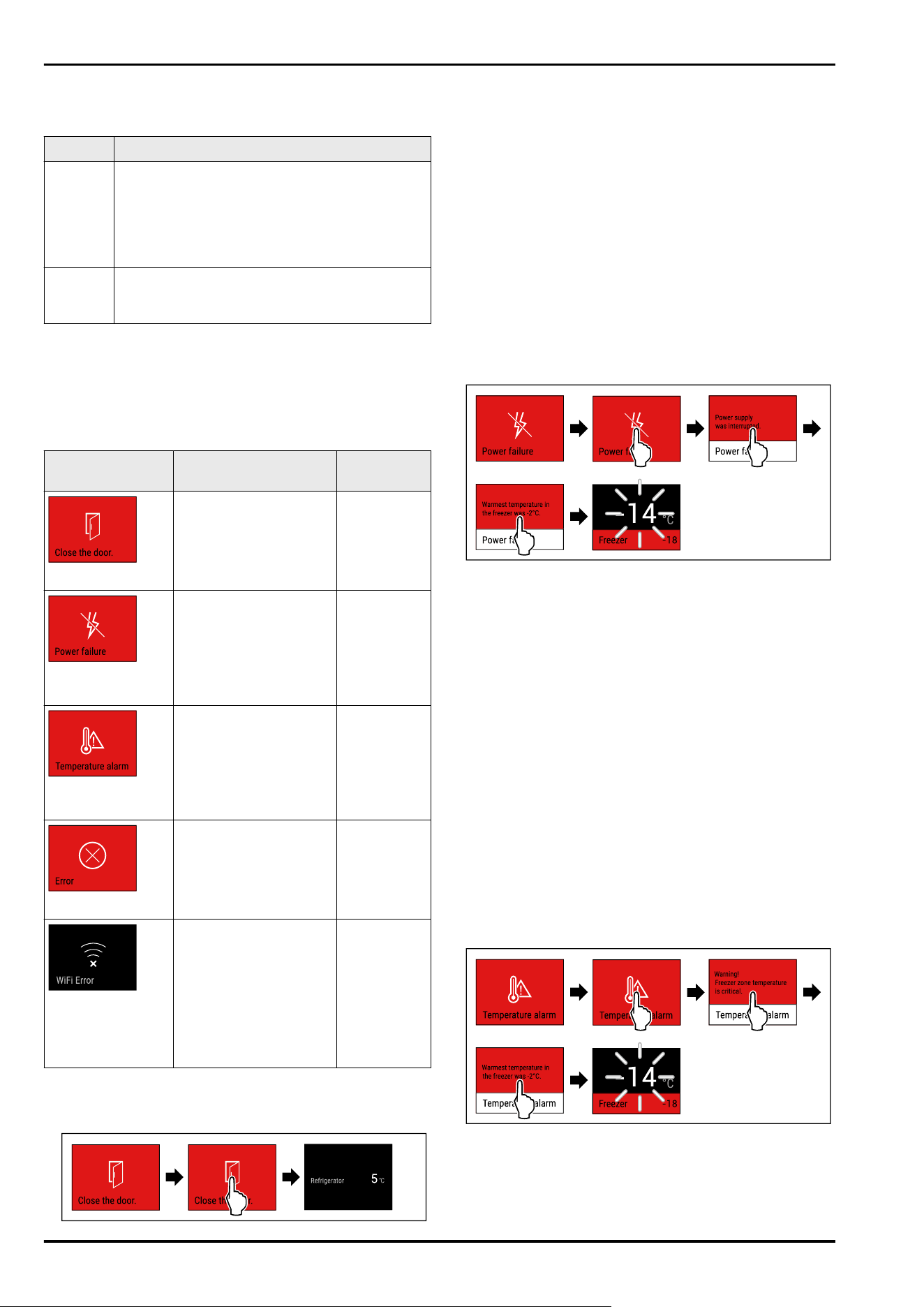

7.3 Messages
There are two categories of messages:
Category Importance
Warning Warnings appear in the event of a door alarm or
malfunction.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears in red on the display.
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the
message
Door alarm
The message appears if
the door is open for too
long.
Carry out
action steps.
(see Door
alarm)
Power outage
alarm
The message appears
if the freezing tempera‐
ture has risen due to a
power failure.
Temperature
alarm
The message appears
if the freezing temper‐
ature does not corre‐
spond to the set
temperature.
Carry out
action steps.
(see Temper‐
ature alarm)
Error
The message appears
if there is an appliance
error. A component of
the appliance has a
fault.
Carry out
action steps.
(see Error)
WLAN error
The message appears
if the appliance could
not be connected to
the WLAN. (see Estab‐
lishing the WiFi
connection for the first
time) The message
only appears during the
initial setup.
Carry out
action steps.
(see WLAN
error)
7.3.2 Ending warnings
Door alarm
Fig. 68 Example illustration
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ The display returns to the status indicator.
▷ The appliance cools more vigorously, which means that
the temperature shown on the display may be higher
than the actual temperature inside the appliance.
▷ Appliance noises can be louder.
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
Power outage alarm
When the power failure has ended, the appliance will auto‐
matically cool down to the previously set target tempera‐
ture without you having to confirm the message. However,
for the message to disappear from the display, you must
confirm it.
Fig. 69 Example illustration
► Briefly touch the display.
▷ Display shows information about the warning.
► Briefly touch the display.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Briefly touch the display.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Temperature alarm
Temperature differences can be caused by:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The appliance is faulty.
► Eliminate causes.
▷ The appliance cools to the target temperature set previ‐
ously.
Fig. 70 Example illustration
► Briefly touch the display.
▷ Display shows information about the warning.
► Briefly touch the display.
▷ Warmest freezing temperature is displayed.
Controls
* Depending on model and options 17

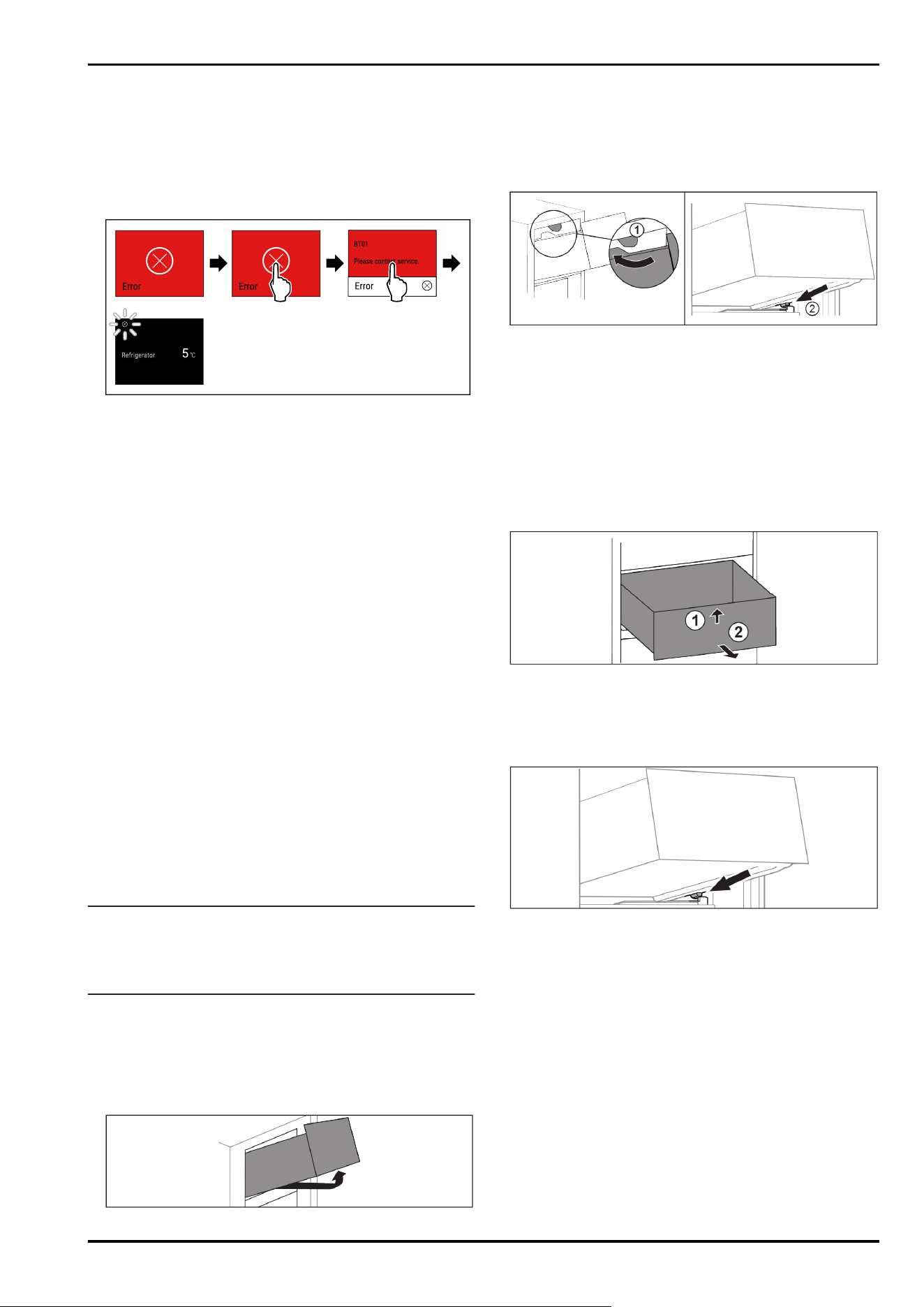

▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Briefly touch the display.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Error
Fig. 71 Example illustration
► Briefly touch the display.
▷ Error code is displayed.
► Note the error code.
► Briefly touch the display.
▷ The display returns to the status indicator.
► Contact Customer Service. (see 10.4 Customer Service)
WLAN error
► Check WLAN connection.
► Reconnect the appliance to the WLAN. (seeWiFi)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears yellow on the display.
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
The following reminders can be deactivated :
8 Features
8.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Leave the bottom drawer in the appliance!
► Always leave the fan air vents clear on the back wall!
8.1.1 Top tilting drawer
When you pull out the top drawer, it tilts forward. This gives
you a better view into the drawer. The function depends on
the height of the appliance.
Removing drawer
Fig.72
► Pull out drawer as far as it will go.
► Lift drawer at the front.
► Lift drawer from below.
► Remove drawer to the front.
Inserting drawer
Fig.73
► Guide drawer around the upper stoppers. Fig.73(1)
► Place drawer at an angle behind the lower stoppers onto
moulded rib. Fig.73(2)
► Lower drawer.
► Slide to the back.
8.1.2 Drawer on moulded rib
The drawer runs directly on the moulded rib. There are no
rails.
Removing drawer
Fig. 74
► Pull out drawer as far as it will go.
► Lift up drawer at the front. Fig. 74(1)
► Remove drawer to the front. Fig. 74(2)
Inserting drawer
Fig.75
► Place drawer at an angle behind the stoppers on the
moulded rib. (see Fig.75)
► Lower drawer.
► Slide in drawer to the back.
8.1.3 Bottom drawer
The drawer is the lowest drawer in the appliance. It runs
directly on the moulded rib. There are no rails.
Features
18 * Depending on model and options

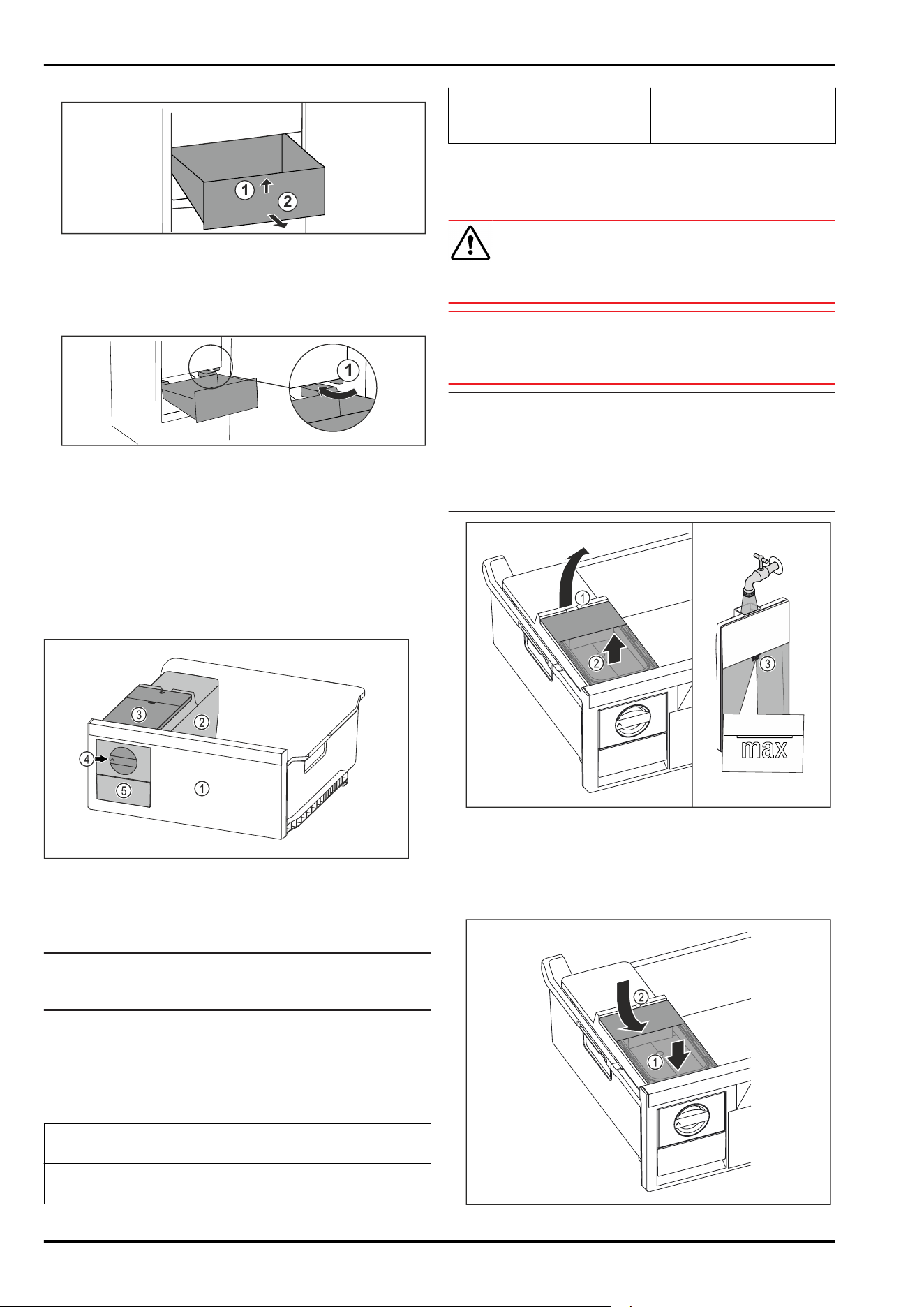

Removing drawer
1
2
Fig. 76
► Pull out drawer as far as it will go.
► Lift up drawer at the front. Fig. 76(1).
► Remove drawer to the front. Fig. 76(2).
Inserting drawer
1
Fig.77
► Guide drawer in at an angle around the stoppers
Fig.77(1).
► Lower drawer.
► Slide in drawer to the back.
8.2 EasyTwist-Ice
With the EasyTwist-Ice you can make enough ice cubes for
the whole household. The EasyTwist-Ice is supplied with
water via a water tank.
Fig. 78 Example illustration
(1)
Freezer drawer with
EasyTwist-Ice
(4) Rotary knob
(2) Body with ice cube tray (5) Ice cube drawer
(3) Water tank
Note
Do not change the position of the freezer drawer with the
EasyTwist-Ice in the appliance.
8.2.1 Making ice cubes
The amount of ice cubes you can make in a given period of
time with the EasyTwist-Ice depends on the freezer temper‐
ature of the appliance. The lower the temperature in the
appliance, the more ice cubes you can make.
Maximum number of ice
cubes in the ice cube tray:
20 ice cubes
Maximum capacity of the ice
cube drawer:
40 ice cubes (equivalent to
two ice cube batches)
More information about the
time needed for ice cube
production:
(see 10.1 Technical specifi‐
cations)
Make sure that the following requirements are fulfilled:
❑
Components of the EasyTwist-Ice have been cleaned.
Filling the water tank
WARNING
Risk of poisoning due to contaminated water!
► Only fill the water tank with potable water.
NOTICE
Sugar-content liquids!
Damage to EasyTwist-Ice.
► Only fill with cold drinking water.
Note
Using filtered, decarbonised water ensures the best-tasting
drinking water for your ice cubes.
This water quality can be achieved using a table water filter
of the kind available in trade retail outlets.
► Always fill the water tank only with filtered, decarbonised
drinking water.
Fig.79
► Pull out freezer drawer as far as it will go.
► Lift the water tank at the recess Fig.79(1).
► Remove the water tank by lifting it upwards. Fig.79(2)
► Fill the water tank with drinking water up to the mark
Fig.79(3).
Features
* Depending on model and options 19

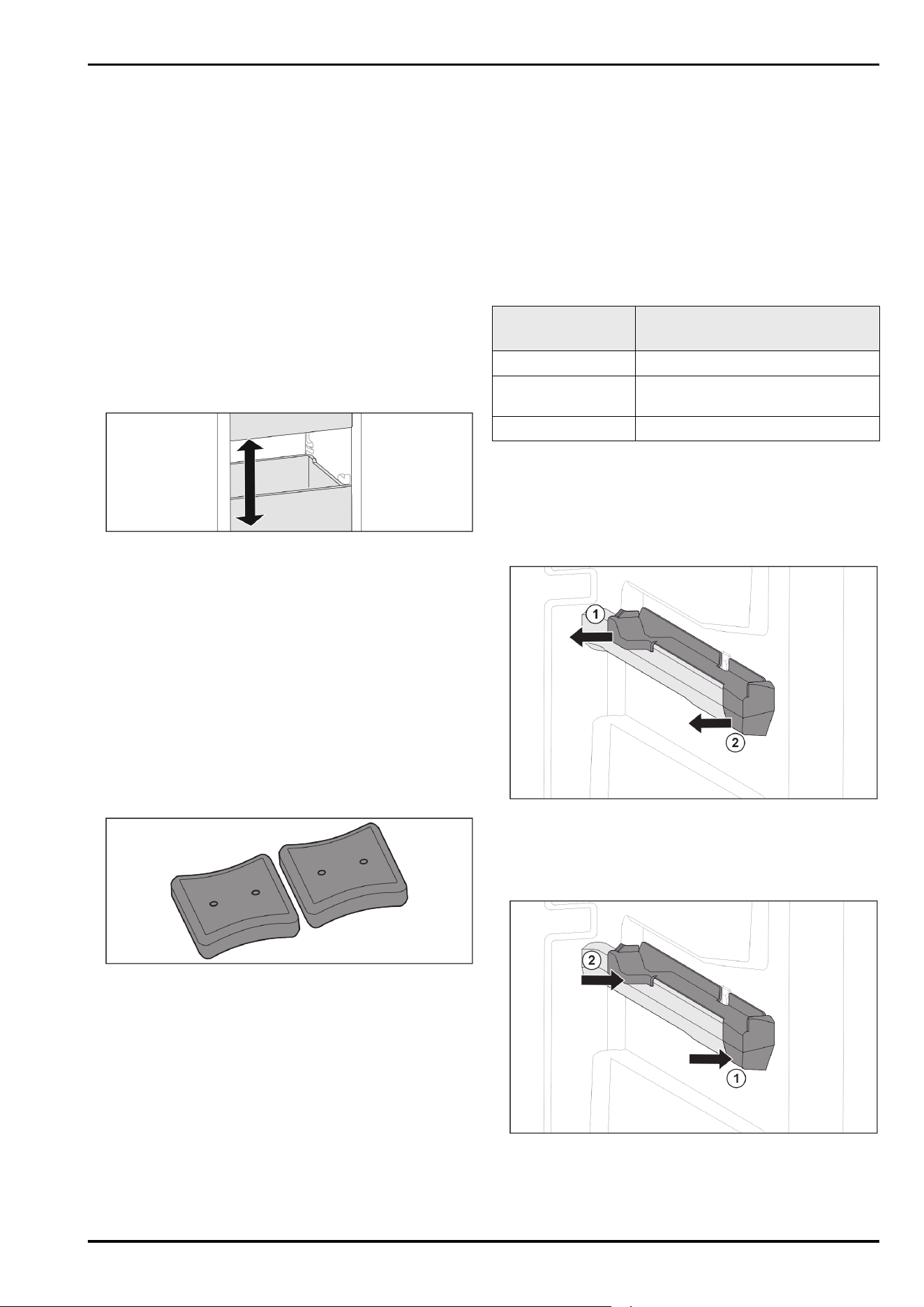

Fig.80
► Position the water tank at the front. Fig.80(1)
► Lower the water tank at the rear. Fig.80(2)
► Slide in the freezer drawer.
Releasing the ice cubes
Make sure that the following requirements are fulfilled:
❑
The required time for the production of ice cubes has
been observed. (see 10.1 Technical specifications)
❑
Freezer drawer is fully inserted.
❑
Ice cube drawer is fully inserted.
► Turn the rotary knob Fig. 78 (4) clockwise as far as it will
go.
▷ Ice cubes fall from the ice cube tray into the ice cube
drawer Fig.78(5).
If all the ice cubes do not come out of the ice cube tray:
► Turn the rotary knob clockwise several times to the stop.
8.3 VarioSpace
Fig.81
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
► Note the weight limits on the drawers and glass panels
(see 10.1 Technical specifications) .
8.4 Freezer pack
Freezer packs prevent the temperature rising too quickly
should there be a power cut.
The freezer packs are in the drawer.
You can store the freezer packs in the freezer tray.
8.4.1 Using the freezer pack
Fig.82
When the freezer packs are fully frozen:
► Place on the frozen goods in the top, front part of the
freezer.
9 Maintenance
9.1 Disassembling / assembling pull-
out systems
9.1.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Top tiltable drawer cannot be disassembled
Drawer guided on
container rib
can be disassembled
(see 9.1.2 Drawer on moulded rib)
Bottom drawer cannot be disassembled
9.1.2 Drawer on moulded rib
Disassembling pull-out system
Make sure the following prerequisites are met:
❑
Drawer has been removed. (see 8.1.2 Drawer on moulded
rib)
Fig. 83 Attachment on the right moulded rib
► Grab attachment at the back from below.
► Pull off attachment at the back sideways. Fig.83(1)
► Pull off attachment at the front sideways. Fig.83(2)
Installing pull-out system
Fig. 84 Attachment on the right moulded rib
► Position attachment on moulded rib at the front.
Fig.84(1)
► Press on attachment at the back. Fig.84(2)
Maintenance
20 * Depending on model and options

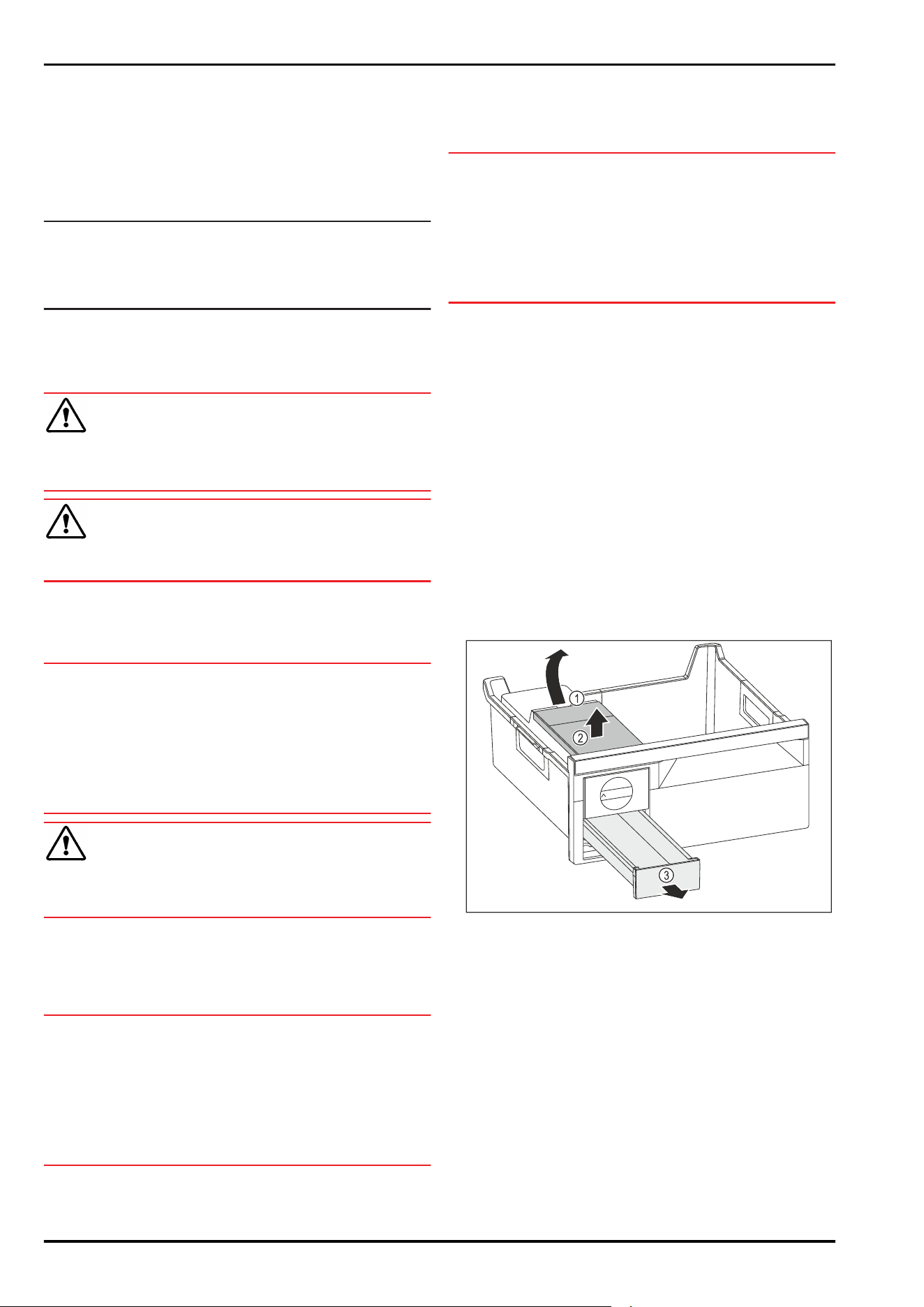

9.2 Defrosting the appliance
9.2.1 Defrosting with NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not have to be defrosted.
Note
Water droplets may collect on the bottom of the appliance.
When you take the appliance out of operation:
► Place a towel in front of the appliance to catch any water
droplets that escape. (see11Shutting down)
9.3 Cleaning the appliance
9.3.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
9.3.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
9.3.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
►
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
9.3.4 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Drawer
- Freezer tray
- Components of the EasyTwist-Ice
► To disassemble components: see the relevant section.
► Clean the components.
9.3.5 Cleaning the EasyTwist-Ice
Clean the EasyTwist-Ice in the following situations:
-
First use
-
Not using for more than 48 hours
-
When cleaning is required
Dismantling the EasyTwist-Ice
Make sure that the following requirements are fulfilled:
❑
The drawer has been removed. (see8.1 Drawers)
❑
The drawer is placed on a table.
Fig.85
► Removing the water tank: Lift the water tank by the
recess Fig.85(1).
► Remove the water tank Fig.85(2) upwards.
► Remove the ice cube drawer Fig.85(3) to the front.
Maintenance
* Depending on model and options 21

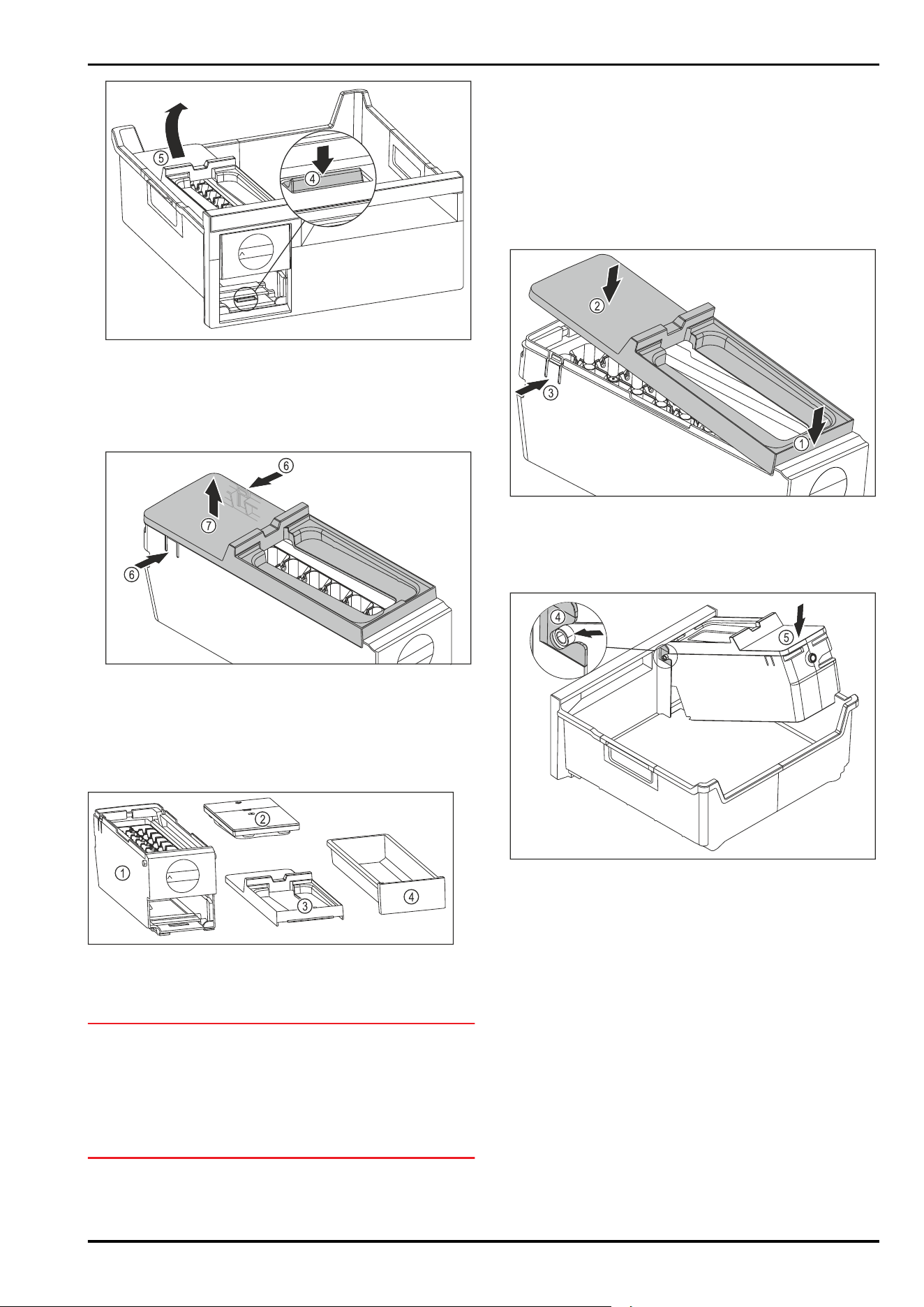

Fig.86
► Removing the EasyTwist-Ice body: Use your finger to
push the tab Fig. 86 (4) down and use your other hand
to lift the EasyTwist-Ice body Fig. 86 (5) from behind at
the same time.
► Remove the EasyTwist-Ice body from the freezer drawer.
Fig. 87
► Removing the EasyTwist-Ice body cover: Push the tabs
Fig. 87 (6) on both sides of the EasyTwist-Ice body with
one hand.
► Use the other hand to remove the cover Fig. 87 (7)
upwards.
▷ EasyTwist-Ice is dismantled into four parts. (see Fig.88)
Fig. 88 Components of the EasyTwist-Ice
(1)
EasyTwist-Ice body
with ice cube tray
(3) Cover
(2) Water tank (4) Ice cube drawer
NOTICE
Risk of damage due to improper dismantling!
Equipment breaking, jumping and cracking. If you dismantle
the EasyTwist-Ice body further, you may damage the rotary
knob or other parts of the EasyTwist-Ice body.
► Only dismantle the EasyTwist-Ice into the components
shown. (see Fig.88)
► Clean the EasyTwist-Ice body Fig.88(1) as a whole.
Cleaning the EasyTwist-Ice
Make sure that the following requirements are fulfilled:
❑
The EasyTwist-Ice is dismantled. (see Dismantling the
EasyTwist-Ice)
► Clean the ice cube drawer, water tank, cover and Easy‐
Twist-Ice body with warm water and a little detergent.
► Dry all cleaned components thoroughly with a dry cloth.
▷ The EasyTwist-Ice is clean.
Installing the EasyTwist-Ice
Fig.89
► Installing the EasyTwist-Ice body cover: Place the cover
on the front. Fig.89(1)
► Lower the cover at the rear. Fig.89(2)
▷ The cover locks into both tabs Fig.89(3) audibly.
Fig.90
► Installing the EasyTwist-Ice body: Push the axes for the
EasyTwist-Ice body into the guides Fig.90(4).
► Press the EasyTwist-Ice body Fig.90(5) down at the back.
▷ The EasyTwist-Ice body locks in audibly.
Maintenance
22 * Depending on model and options

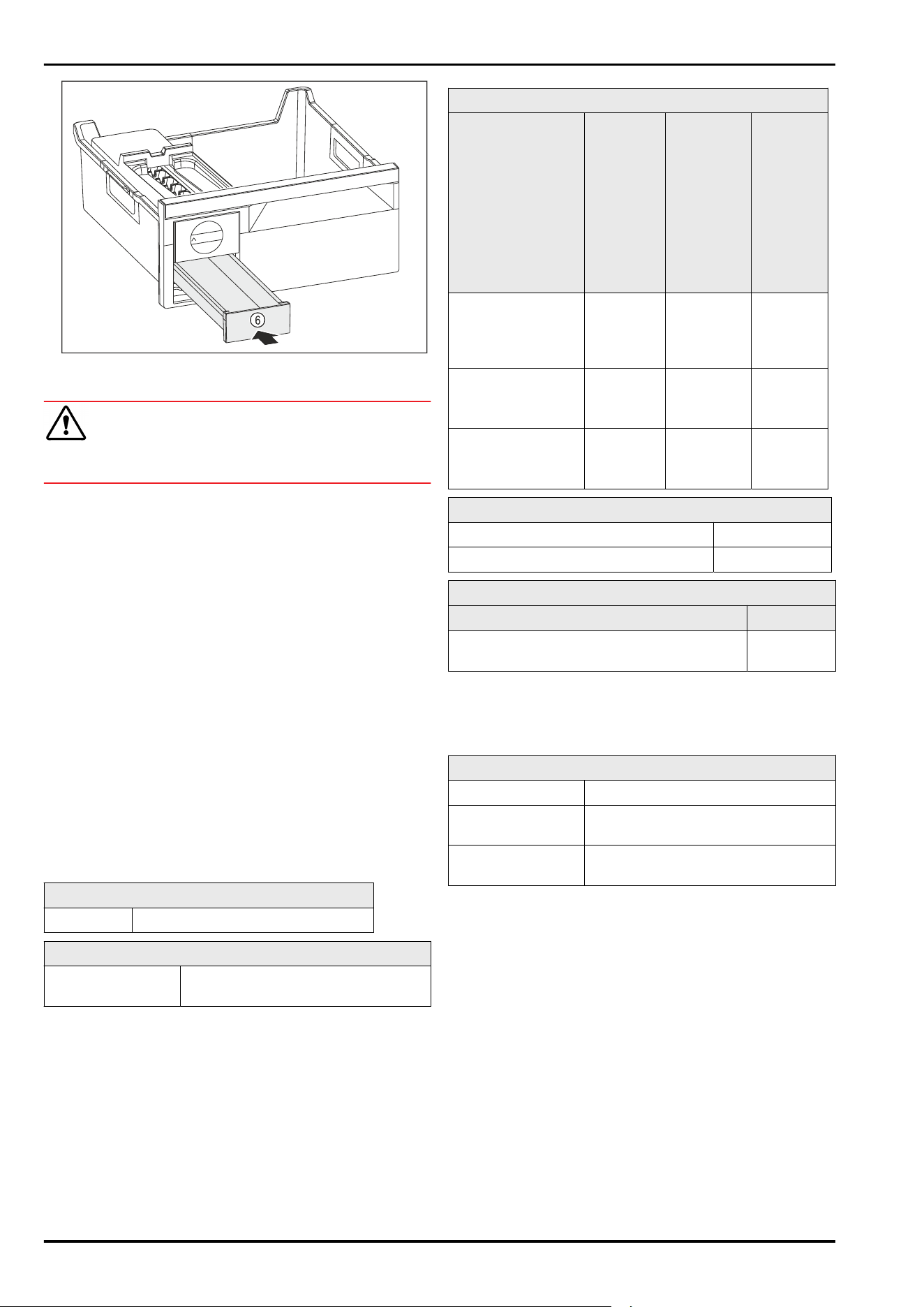

Fig. 91
► Insert the ice cube drawer Fig. 91(6).
WARNING
Risk of poisoning due to contaminated water!
► Only fill the water tank with potable water.
► Fill the water tank with water.
► Insert the water tank.
► Insert the drawer. (see8.1 Drawers)
If you are using unfiltered water:
► Dispose of ice cubes that were produced 24 hours after
initial ice cube production.
-or-
If you are using filtered water:
► Dispose of ice cubes that were produced 48 hours after
initial ice cube production.
9.3.6 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Activate SuperFrost (see 7.2Appliance functions) .
The temperature is cold enough:
► Place the food inside.
► Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Freeze -28°C to -15°C
Maximum ice cube quantity / 24 hours
Freezer compart‐
ment
see type plate under “Freezing
capacity …/ 24 h”
Maximum loading weight for the equipment
Equipment Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
device
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions,
device
dimen‐
sions)
Appliance
width
750 mm
(see
installa‐
tion
instruc‐
tions,
device
dimen‐
sions)
Drawer on
container rib
(see 8.1.2 Drawer
on moulded rib)
19 kg 25 kg --
Bottom drawer
(see 8.1.3 Bottom
drawer)
11 kg 19 kg
Top tiltable drawer
(see8.1.1 Top tilting
drawer)
19 kg 19 kg --
Ice cube production with EasyTwist-Ice
Time required at -18°C approx. 5.5 hours
Time required with SuperFrost activated approx. 3 hours
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
For appliances with a WiFi connection:
Frequency specification
Frequency band 2.4GHz
Maximum radiated
power
< 100 mW
Purpose of the
wireless equipment
Integration in the local WiFi network
for data communication
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Customer help
* Depending on model and options 23
Noise Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Faint knocking,
humming or
buzzing*
The valve is active. Normal operating
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Noise Possible
cause
Type of noise Lifting
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
► Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.
► Do not re-freeze defrosted food,
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ The ambient temperature is too
high.
► Problem solution:
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ Too much fresh food was placed
inside without SuperFrost.
► Solution: (see SuperFrost)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
Customer help
24 * Depending on model and options
Defect Cause Remedy
The temperature
shown on the
display is higher
than the actual
temperature in the
appliance.
→ Appliance door was open for a long
time and the door alarm was trig‐
gered automatically. This causes
the appliance to cool more vigo‐
rously.
► Close appliance door.
The status display
does not light up.
→ The status display is switched off. ► Switch on the status display. (see Status light (status
display))
→ The door is open. ► Close the door.
→ The appliance is switched off. ► Switch the appliance on.
→ LED is faulty. ► Contact Customer Service. (see9 Maintenance)
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
The exterior
surfaces of the
appliance are
warm.*
→ The heat of the refrigeration circuit
is used to avoid condensation.
► This is normal.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
(see Device information)
-or-
► Refer to the type plate for appliance information.
(see 10.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Customer help
* Depending on model and options 25
Fig.92
(1) Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Place a towel in front of the appliance to catch any drops
of water that may run out.
► Clean appliance. (see 9.3Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
Ensure that the following requirements are met:
❑
Meaning of the symbols on the appliance: are familiar.
(see 1.14Symbols on the appliance)
❑
Notes on disposal are familiar. (see1.8Disposal)
12.1 Preparing the appliance for
disposal
► Shutting your appliance down.
12.2 Disposing of the appliance in an
environmentally friendly manner
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Remove the appliance without damaging it.
► Dispose of appliance according to specifications.
Shutting down
26 * Depending on model and options
Disposal
* Depending on model and options 27
home.liebherr.com/fridge-manuals
freezer
Issue date:20251111
Part number index:7088548-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
