INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEF908S
DEF908A
DUAL FUEL COOKER
distributed by
ELBA Appliances Australia
(a Division of Fisher&Paykel Australia)
22
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features oered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstus. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following
codes and specications:
AS 5263.0
AS/NZS 5263.1.1
Approval Requirements for Domestic Gas cooking appliances
AS/NZS 60335.1
Household and similar electrical appliances - Safety General
requirements
AS/NSZ 60335.2.6
Safety Particular requirements for stationary cooking ranges, hobs,
ovens and similar appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements
33
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
■ This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products and it fullls all the safety requirements shown
in this manual, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
■ After having unpacked the appliance, check to ensure that it is
not damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
■ Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
■ Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
■ IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
■ Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
44
■ CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
■ Do not operate your appliance by means of an external timer or
separate remote-control system.
■ Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
■ WARNING: Ensure that the appliance is switched o before
replacing the oven lamp to avoid the possibility of electric shock.
■ Do not use a steam cleaner because the moisture can get into
the appliance thus make it unsafe.
■ Do not touch the appliance with wet or damp hands (or feet).
■ Do not use the appliance whilst in barefoot.
■ If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
■ The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
■ After use, ensure that the knobs are in the o position.
■ Children less than 8 years of age shall be kept away unless
continuously supervised.
■ This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
■ The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.
55
■ WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on
the hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept away.
■ Make sure that electrical cables connecting other appliances in
the proximity of the cooker cannot come into contact with the hob
or become entrapped in the oven door.
■ WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o the appliance and then cover ame e.g.
with a lid or a re blanket.
■ WARNING: Danger of re: do not store items on the cooking surfaces.
■ DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE
APPLIANCE STORAGE COMPARTMENT OR NEAR THIS
APPLIANCE.
■ DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
■ DO NOT MODIFY THIS APPLIANCE.
■ THIS APPLIANCE SHALL NOT BE USED AS A SPACE HEATER.
■ WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR
IN CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER.
■ WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
■ FIRST USE OF THE OVEN - it is advised to follow these
instructions:
– Furnish the interior of the oven as described in the chapter
“USE AND CARE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
66
–
Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent; then dry carefully.
■ CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
■ Do not line the oven walls with aluminium foil. Do not place baking
trays or the drip tray on the base of the oven chamber.
■ FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
■ Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
■ Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.
■ Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
■ Do not stand on the cooker or on the open oven door.
■ Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
■ SAFE FOOD HANDLING: Leave food in the oven for as short
a time as possible before and after cooking. This is to avoid
contamination by organisms which may cause food poisoning.
Take particular care during warmer weather.

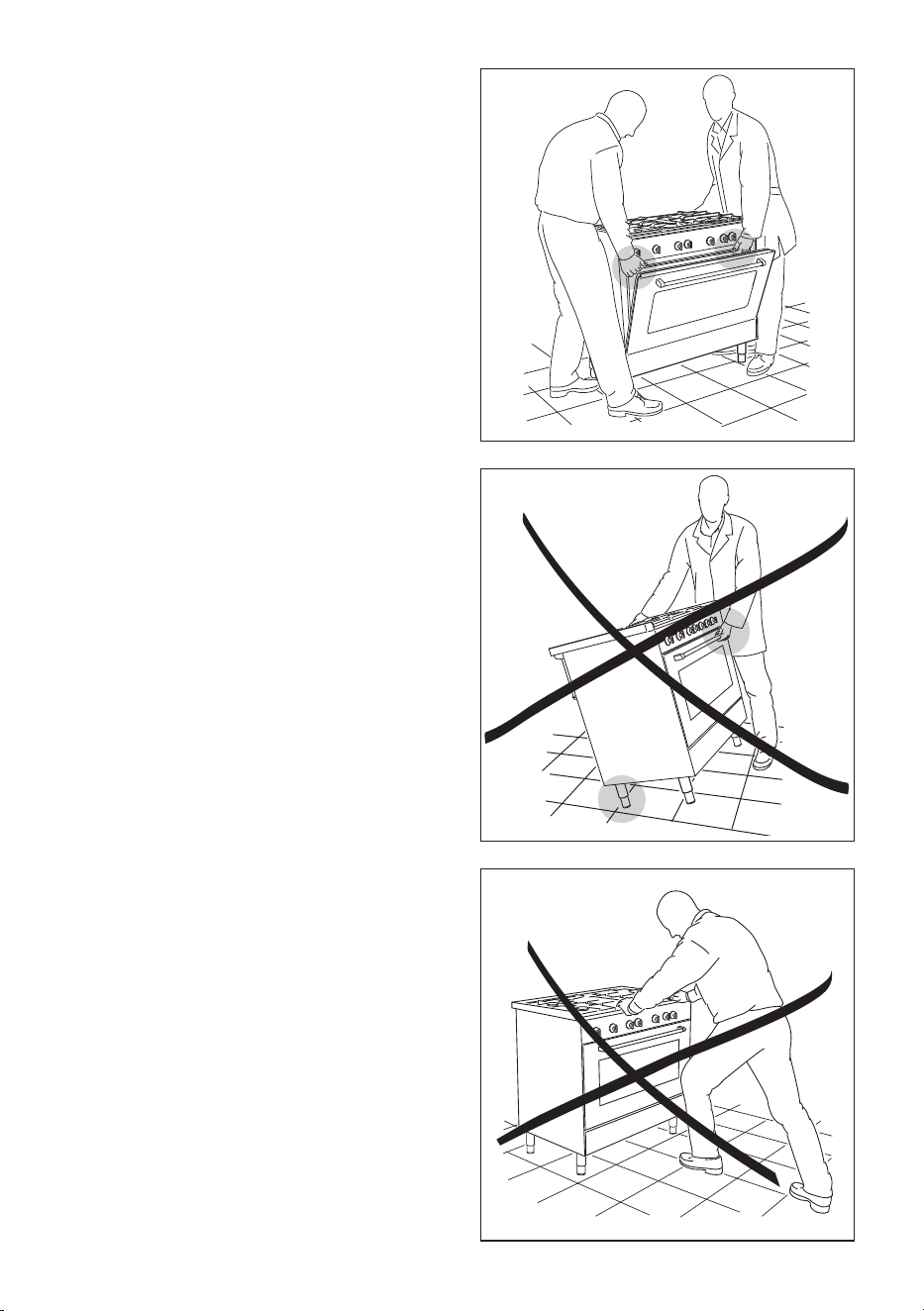

■ WARNING: Take care NOT to lift the cooker by the door handle.
■ CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
■ The appliance must not be installed behind a decorative door in
order to avoid overheating.
■ The oven accessories (e.g. oven wire rack) must be tted
correctly as indicated at page 17.
■ If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
77
INSTALLATION
CAUTION:
■ This appliance must be installed according to AS/NZS 5601.1 (latest edition).
■ This appliance must be installed in accordance with these installation instructions.
■ This appliance shall only be serviced by authorized personnel.
■ This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■ Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■ Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.
■ In the room where the cooker is installed, there must be enough air to allow the
gas to burn correctly, according to the current local regulations.
ELECTRICAL REQUIREMENTS
■ The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
■ This cooker must be connected to a suitable double pole control unit adjacent to the
cooker. No diversity can be applied to this control unit.
■ A suitable disconnection switch must be incorporated in the permanent wiring, mounted
and positioned to comply with the local wiring rules and regulations. The switch must
be of an approved type installed in the xed wiring and provide a 3 mm air gap contact
separation in all poles in accordance with the local wiring rules.
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must
be installed in the active (phase) conductor of the xed wiring.
■ Once the appliance has been installed, the switch must always be accessible.
■ To connect the cooker to the mains, do not use adapters, reducers or branching
devices as they can cause overheating and burning.
■ The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 50°C above ambient.
■ If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
WARNING: This cooker must be connected to electrical supply using V105 insulated
cable (size: 3 x 1.5 mm
2
) and appropriated rated plug or connector.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied
electrician. He should also check that the domestic electrical system is suitable for the
power drawn by the appliance.
Appliance power rating: 220-240 V 50 Hz 3500 W, 15.21 A (@230 V)
Replacing the power cord must be done by a qualied electrician in accordance with
the instructions supplied by the manufacturer and in compliance with established
electrical regulations.
88
CLEARANCES
Installation clearances and protection of combustible surfaces shall comply with the current
local regulations eg. AS/NZS5601.1 (latest edition) Gas Installations code.
Installation shall comply with the dimension in g. 1a bearing in mind that.
Overhead Clearances
In no case shall the clearances between the highest part of the cooker be less than 650
mm or for an overhead exhaust fan 750 mm. AII other downward facing combustible
surfaces less than 650 mm above the cooker surface shall be protected for the full width
of the cooking surface in accordance with the standards noted above. In no case shall the
clearance be less than 450 mm.
MAXIMUM HEIGHT OF THE TOP OF THE PAN SUPPORTS WITH RESPECT TO THE
SURFACE THAT SUPPORTS THE APPLIANCE: 873÷940 mm ±3 (depending on feet
regulation, from feet completely screwed to feet adjusted in height).
Rear and Side Clearances
Where the dimensions from the periphery of the nearest burner to any vertical combustible
surface is less than 200 mm the surface shall be protected in accordance with the standards
to a height of not less than 150 mm above the cooking surface for the full width or depth of
the cooking surface.
Where the dimensions from the periphery of the nearest burner to any horizontal combustible
surface is less than 200 mm, the horizontal surface shall be greater than 10 mm below the
surface of the hob, or the horizontal surface requirement above.
Protection of combustible surfaces
The standards above specify that where required protection shall ensure that the surface
temperature of the combustible surface does not exceed 65 °C above room temperature.
Do not install the cooker near ammable materials (eg curtains).
If the cooker is located on a pedestal it is necessary to provide safety measures to
prevent falling out.
Figure 1
Cooker overall dimensions [mm]
■ height: min 900 - max 925
■ width: 900
■ depth: 600
200 mm
750 mm
500 mm
450 mm
99
GAS AND ELECTRIC CONNECTION
Figure 2

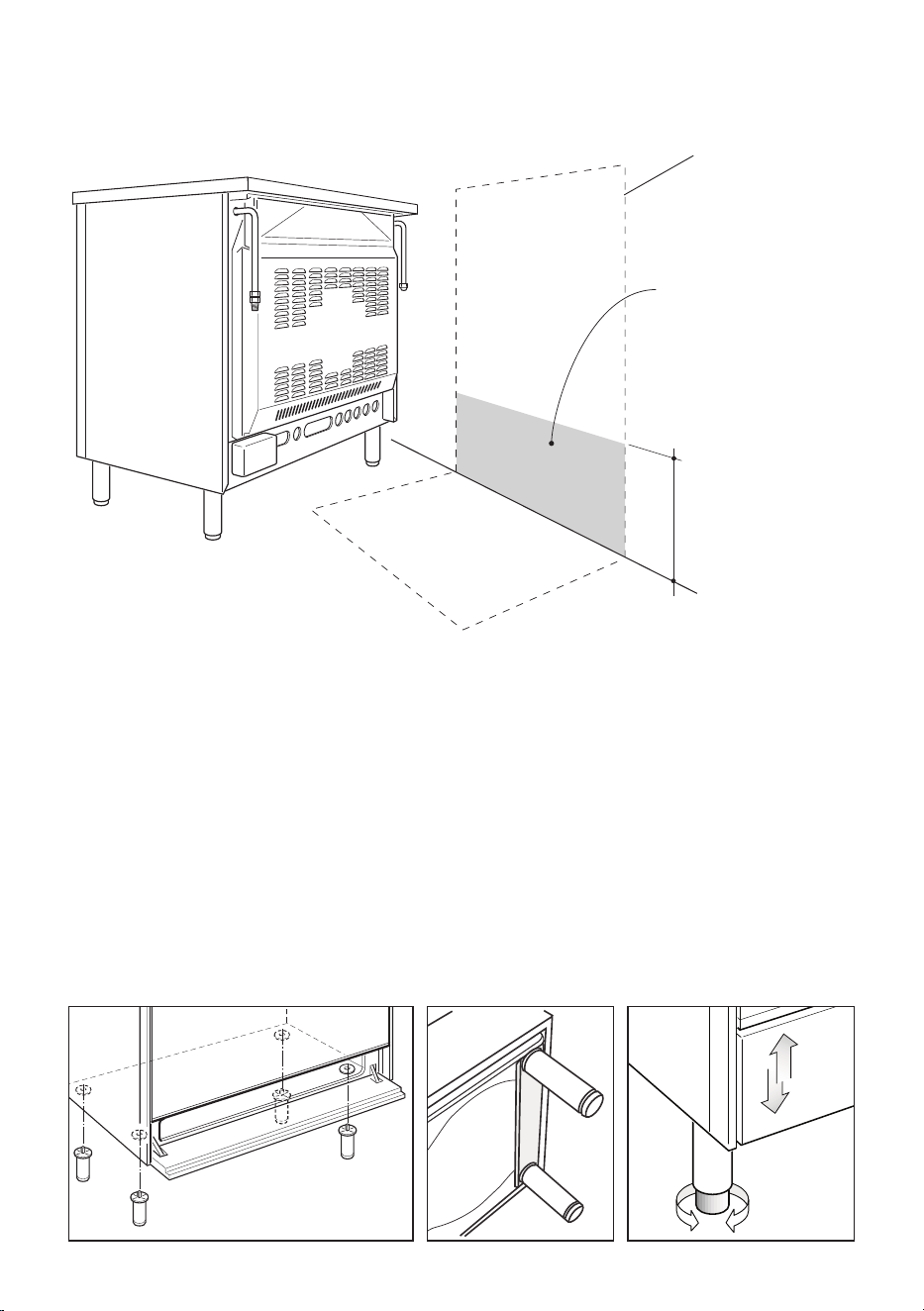

FITTING THE ADJUSTABLE FEET
The adjustable feet must be tted to the base of the cooker before use (gs. 3, 4).
Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for
the tting of the feet.
Fit the no. 4 (four) legs by screwing them tight into the support base as shown in gure 4.
LEVELLING THE COOKER
The cooker may be levelled by screwing the lower ends of the feet IN or OUT (g. 5).
Figure 4 Figure 5Figure 3
(Depending on
feet adjustment)
max 290 mm
Dotted line
showing the
position of the
cooker when
installed
Area for GAS
and ELECTRIC
connection
1010
MOVING THE COOKER
WARNING: When raising cooker to upright
position always ensure two people carry
out this manoeuvre to prevent damage to
the adjustable feet (g. 6a).
WARNING - Be carefull: Do not lift the
cooker by the door handle when raising to
the upright position (g. 6b).
WARNING: When moving cooker to its
nal position DO NOT DRAG (g. 6c). Lift
feet clear of oor (g. 6a).
Figure 6a
Figure 6c
Figure 6b
1111
ANTI-TILT BRACKET
Important!
To restrain the appliance and prevent it
tipping accidentally, t a bracket to its
rear to x it securely to the wall. Make
sure you also t the supplied lock pin to
the anti-tilt bracket.

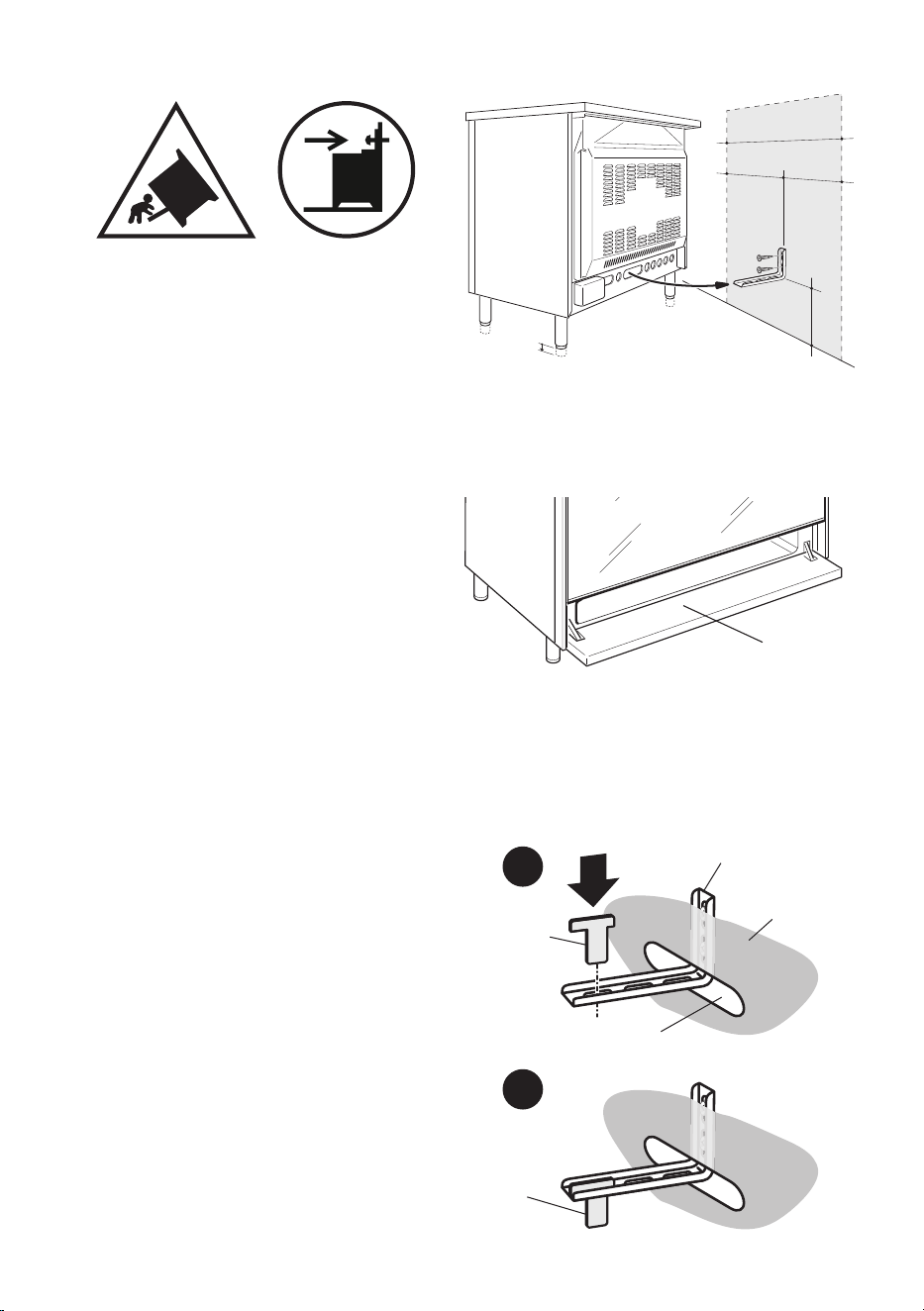

To t the anti-tilt bracket:
1. After you have located where the
cooker is to be positioned, mark on the
wall the place where the two screws
of the anti-tilt bracket have to be tted.
Please follow the indications given in
g. 7.
2. Drill two 8 mm diameter holes in
the wall and insert the plastic plugs
supplied.
Important!
Before drilling the holes, check that
you will not damage any pipes or
electrical wires.
3. Loosely attach the anti-tilt bracket with
the two screws supplied.
4. Move the cooker to the wall and adjust
the height of the anti-tilt bracket so
that it can engage in the slot on the
cooker’s back, as shown in g. 7.
5. Tighten the screws attaching the anti-
tilt bracket.
6. Push the cooker against the wall so
that the anti-tilt bracket is fully inserted
in the slot on the cooker’s back.
7. Access the bracket and t the lock pin:
■ Open the pivoting panel (g. 8).
■ Fit the lock pin through the
bracket, as shown (g. 9).
■ Close the pivoting panel.
min 220
max 245
(depending on feet adjustment)
450
450
0
+ 25
900 mm
Pivoting
panel
Lock pin
correctly
tted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1
2
min 220
max 245
(depending on feet adjustment)
450
450
0
+ 25
900 mm
Pivoting
panel
Lock pin
correctly
tted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1
2
Figure 7
Figure 8
Figure 9
min 220
max 245
(depending on feet adjustment)
450
450
0
+ 25
900 mm
Pivoting
panel
Lock pin
correctly
tted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1
2
1212

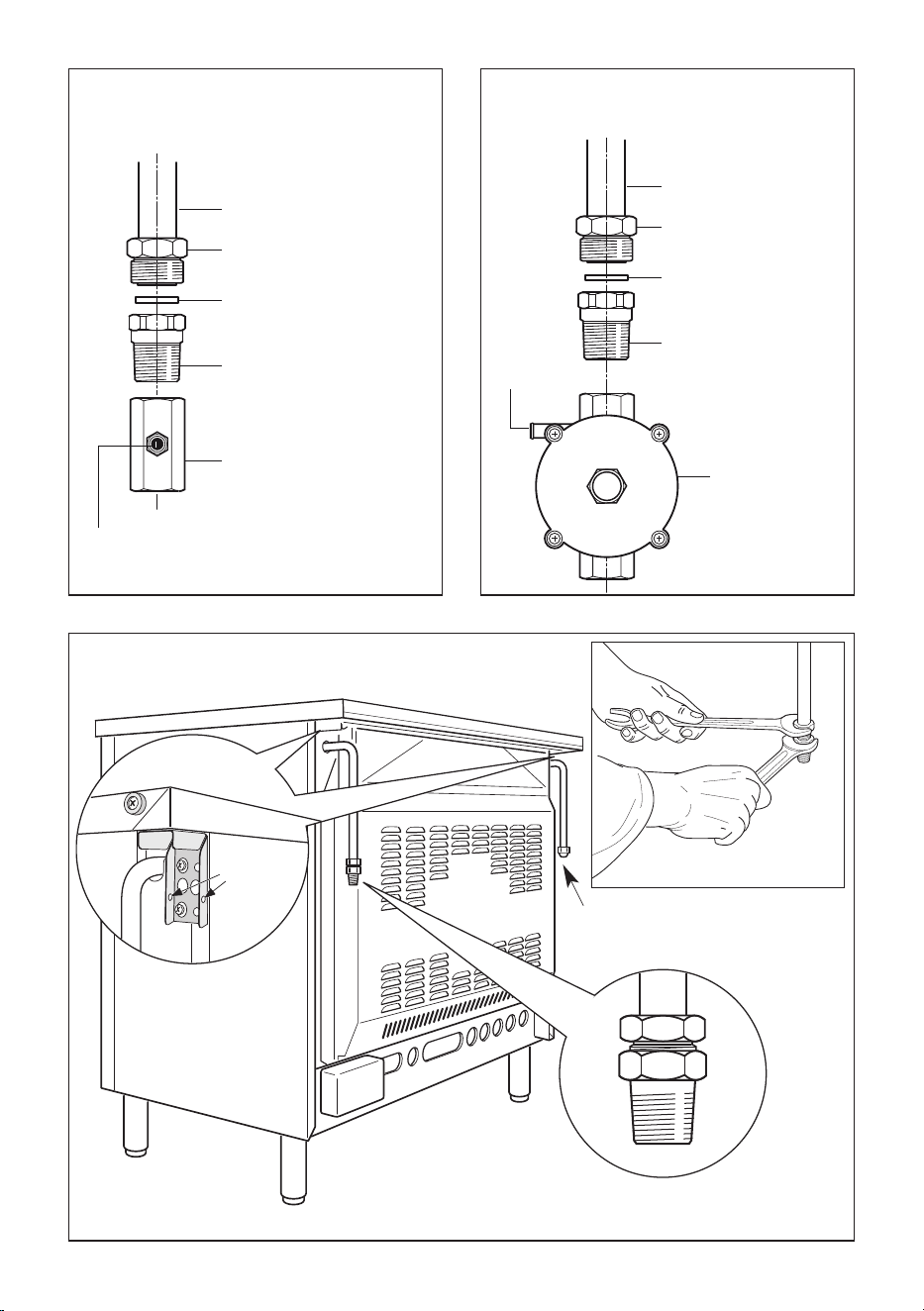

GAS SUPPLY
■ The connection must be performed by an authorised person according to the relevant
standards.
■ Before connecting the appliance to the gas main, mount the brass conical adaptor
onto the gas inlet pipe, upon which the gasket has been placed (gs. 10a - 10b).
Conical adaptor and gasket are supplied with the appliance (packed with conversion
kit for use with Natural gas or ULPG).
■ This appliance is suitable for use with Natural Gas or ULPG (Check the “gas type”
sticker attached to the appliance).
■ For Natural Gas models the gas supply is connected to the pressure regulator which
is supplied with the appliance (g. 10b). Adjust the regulator to obtain a test point
pressure of 1 kPa with the two semi-rapid (SR) burners operating at maximum.
■ For ULPG models the gas supply is connected to the test point adaptor which is
supplied with the appliance (g. 10a) and ensure that the supply pressure is regulated
to 2.75 kPa.
■ The connection must be made at the rear of appliance (left or right); the pipe does not
cross the cooker (g. 11).
■ The inlet not used must be closed o with the cap and sealing gasket supplied.
■ IMPORTANT: Use two spanners to tighten or loosen the connecting pipe (g. 12).
INSTALLATION WITH A FLEXIBLE HOSE ASSEMBLY
■ If this appliance has to be installed with a hose assembly, the installer shall refer to the
network operator or gas supplier for conrmation of the gas type, if in doubt.
■ When used with a exible hose, the connector on the wall should be between 450
mm to 500 mm from the oor and 200 mm to 300 mm from the left-hand side of the
appliance as viewed from the front. The hose connection on the appliance shall face
downwards.
■ It is important that the hose does not come in contact with the metal of the appliance
and is secured as per appropriate gas installation codes.
A chain 80% of the length of the exible gas hose must be used to prevent stress
being applied to the hose. The chain should be attached securely to the product where
shown, and on the wall.
■ Flexible hose assemblies should be AS/NZS 1869 Class B or Class D certied.
The thread connection shall be Rp ½” (ISO 7-1) male.
■ IMPORTANT WARNING: After connection the installer must check that the hose
is not kinked, subjected to abrasion or permanently deformed.
The installer must check also that the hose is not near (or in contact) with any
hot surfaces.
■ The hose assembly shall be as short as practicable and comply with relevant
AS5601 / NZS5261 requirements.
LEAK-TESTING AND FLAME-TESTING THE COOKER
1. After connecting the gas supply, check the piping and connections for leaks
using a soap and water solution. The presence of bubbles indicates a leak,
tighten or replace connections as appropriate.
Warning: Do not use any naked ame to check for leaks.
1313
Plug
Chain
security
hole
Gas connection for
ULPG
Gas inlet pipe
Nipple
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Test point adaptor
Test
point
Gas connection for
NATURAL GAS
Gas inlet pipe
Nipple
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas regulator
Test
point
Figure 10a Figure 10b
Figure 12
Figure 11
1414
2. Adjust the test point pressure or supply pressure to the value which is appropriate for
the gas type.
3. The operation of the appliance must be tested when installation is completed.
■ Turn on the appliance gas controls and light each burner individually and in
combination. Check for a well dened blue ame without any yellow tipping.
If any abnormality is evident then check that the burner cap is located properly and
the injector nipple is aligned correctly.
■ Check the minimum burner setting by quickly rotating the gas control knob from the
maximum to the minimum position, the ame must not go out.
If adjustment is required carry out the “MINIMUM BURNER SETTING
ADJUSTMENT” procedure described following.
4. If satisfacfory performance cannot be obtained, the installer shall check the installation
and notify the local gas supply authority for a gas supply problem, or if it is an appliance
problem, our Customer Service Centre should be called to obtain the nearest authorized
Elba Appl. AUS Service Agent.
CONVERSION PROCEDURE (TO CONVERT TO NATURAL GAS OR TO ULPG)
REPLACING THE INJECTORS
This appliance is suitable for use with Natural gas or ULPG (check the “gas type” sticker
attached to the appliance). A label stating the type of gas used after replacing the injectors
must be attached at the rear of the appliance, in proximity of the gas inlet connection.
The nominal gas consumption and injector size details are provided in table at page 16.
To replace the injectors proceed as follows:
■ Remove pan supports and burners from the cooktop.
■ Using a spanner, remove the injectors “J” (gs. 13a, 13b) and replace them with ones
according to the gas type (see following table - page 16).
■ Adjust the minimum burner setting (see “MINIMUM BURNER SETTING ADJUSTMENT”
procedure described following).
■ The cooktop burners are designed so that regulation of primary air is not
required.
■ Ax to the rear of the appliance, in proximity of the gas inlet connections, the warning
label (supplied with the conversion kit) stating that the cooker has been converted for
use with ULPG / Natural gas.
IMPORTANT
■ If the cooker is suitable for use with Natural gas and must be converted for use with
ULPG, before connecting to the gas mains remove the appliance gas regulator and
replace with test point adaptor (see gs. 10a - 10b).
■ If the cooker is suitable for use with ULPG and must be converted for use with Natural
gas, before connecting to the gas mains remove the appliance test point adaptor and
replace with gas regulator (see gs. 10a - 10b).
NOTE: Gas regulator and test point adaptor are supplied with the appliance (packed with
conversion kit).
1515
J
J
Auxiliary,
Semi-rapid
and Rapid
burners
MINIMUM BURNER SETTING
ADJUSTMENT
Check whether the ame spreads to all
burner ports when the burner is lit with
the gas tap set to the minimum position.
If some ports do not light, increase the
minimum gas rate setting.
Check whether the burner remains lit even
when the gas tap is turned quickly from the
maximum to the minimum position. If the
burner does not remain lit, increase the
minimum gas rate setting.
The procedure for adjusting the minimum
gas rate setting is described below.
■ Light the burner.
■ Set the gas valve to the “minimum
rate” position.
■ Remove the knob.
■ Using a screwdriver turn the screw “A”

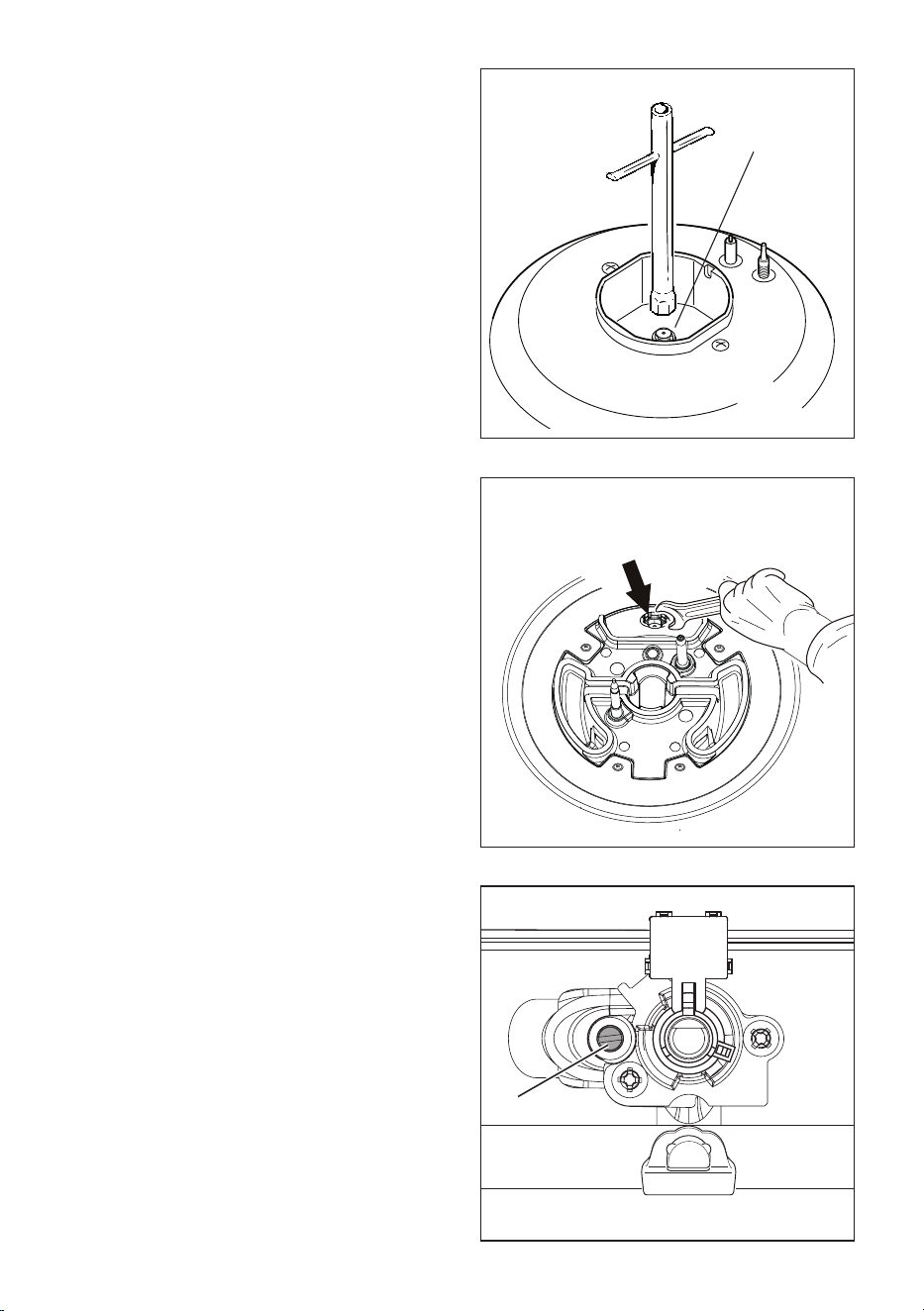

until adjustment is correct (g. 14).
Normally for ULPG, the regulation screw
is tightened up.
Figure 13a
Double-ring
compact
burner
Figure 13b
Figure 14
A
J
J
1616
TABLE FOR THE CHOICE OF THE INJECTORS
Natural gas ULPG
Test Point Pressure [kPa]
1.0 2.75
BURNER
Injector
Orice Dia.
[mm]
Gas
Consumption
[MJ/h]
Injector
Orice Dia.
[mm]
Gas
Consumption
[MJ/h]
Auxiliary (AUX) 0.90 4.00 0.53 4.00
Semi-rapid (SR) 1.18 6.60 0.69 6.60
Rapid (R)
1.55 11.30 0.90 11.30
Double-ring compact (DCC)
1.80 15.30 1.08 15.30
LUBRICATION OF THE GAS VALVES
If a gas valve becomes sti, it is necessary to dismantle it carefully and clean it with
petroleum spirit.
Specialist high temperature resistant grease should be used to lubricate the valve before
replacing.
The operations must be carried out by an authorised person/service agent.
1717
G
USE AND CARE
CAUTION:
■ This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstus. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■ Do NOT place combustible materials or products on this appliance at any time.
■ Do NOT use or store ammable materials in the appliance storage compartment or
near this appliance.
■ WARNING: Accessible parts will become
hot when in use. To avoid burns and scalds,
young children should be kept away.
■ Do NOT spray aerosols in the vicinity of
this appliance while it is in use.
■ Do NOT modify this appliance.

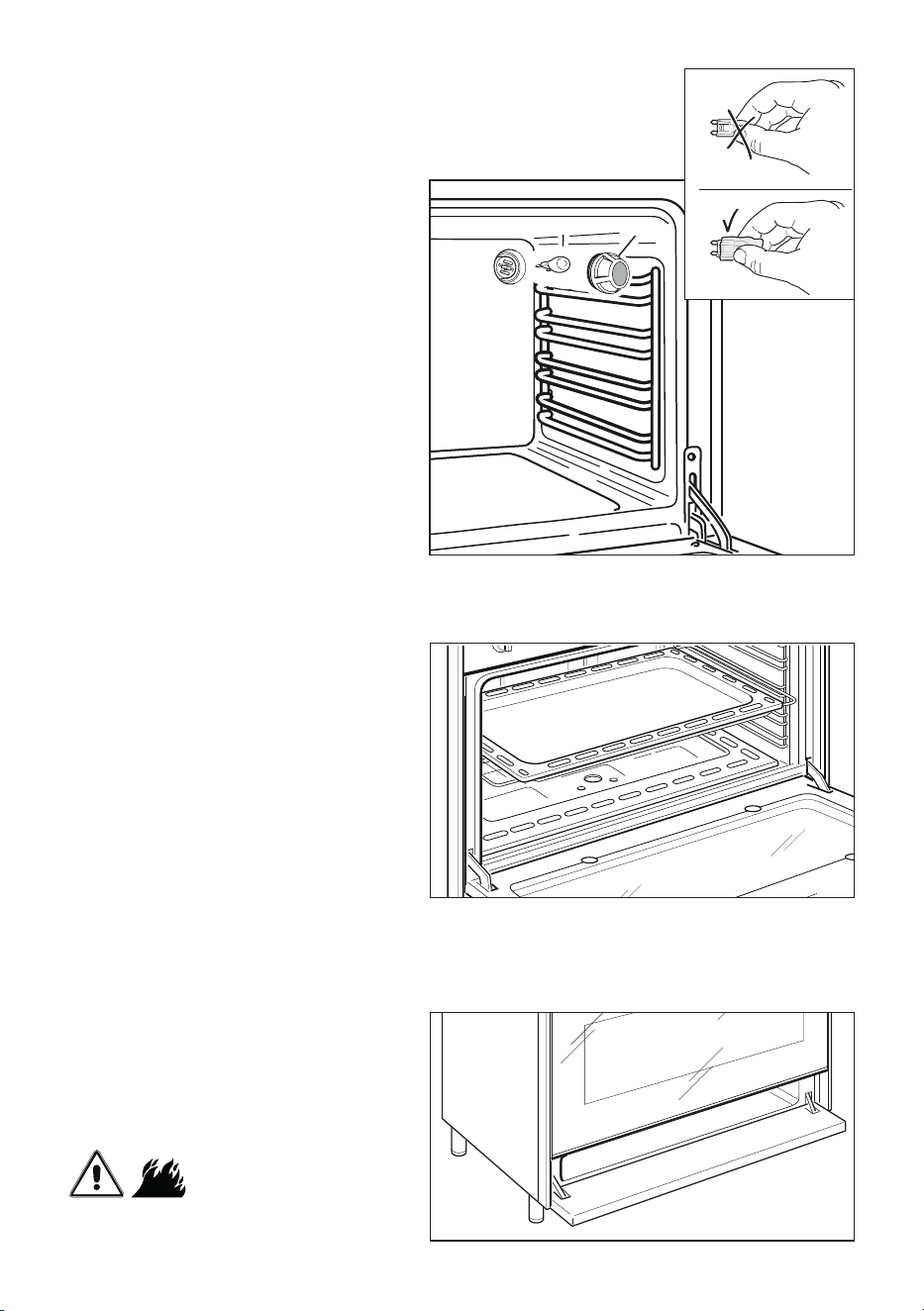

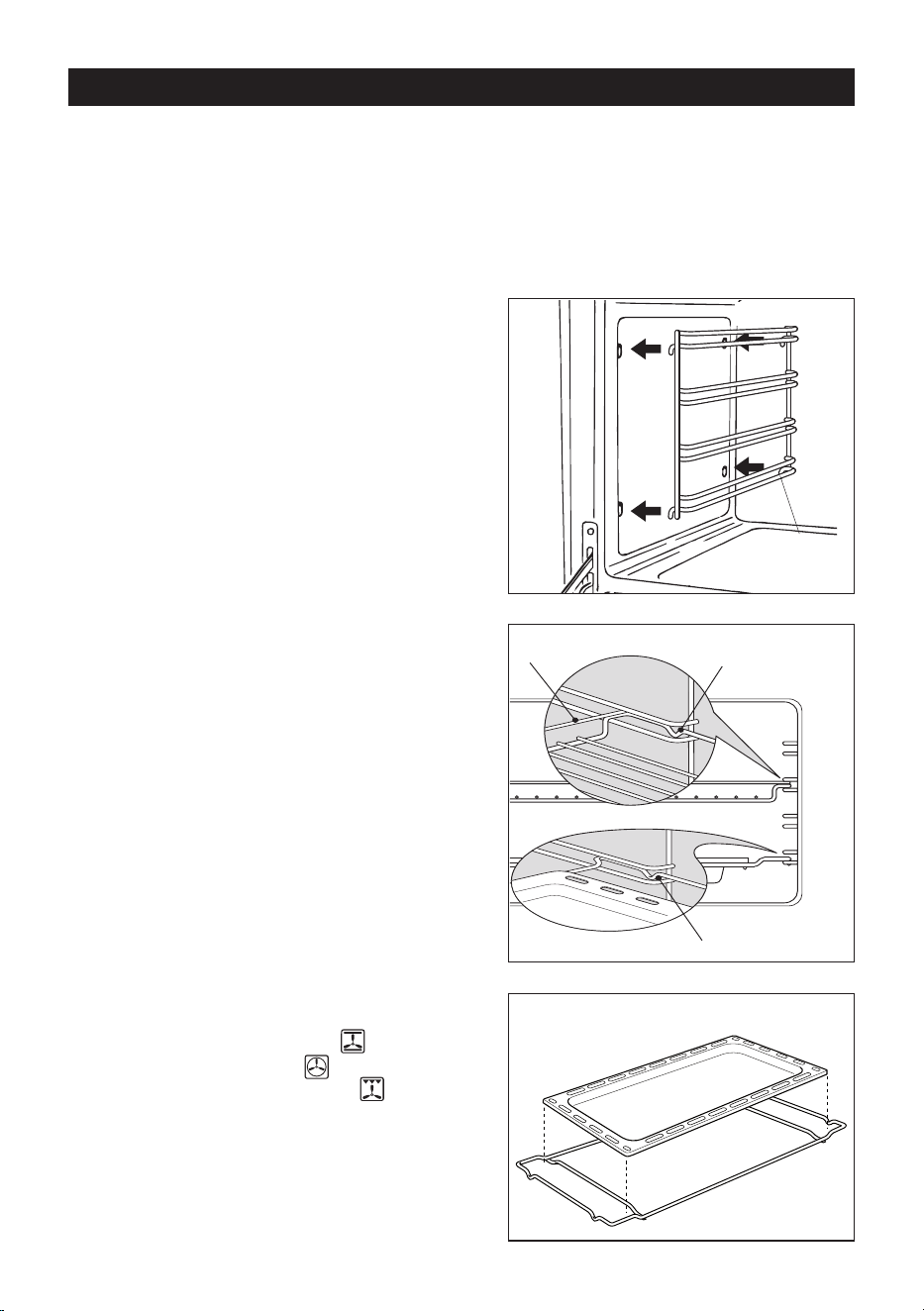

USING THE OVEN FOR THE FIRST TIME
Operate as follows:
■ Fit the side runner frames “G” into the holes
on the side walls inside the oven (g. 15).
■ If available, slide in the grease lter
on the back of the oven as in g. 18.
The grease lter is not supplied with this
appliance but can be purchased separately.
■ Slide in, on the guides, the shelf and the
tray (g. 16).
The rack must be tted so that the safety
notch, which stops it sliding out, faces the
inside of the oven; the guard rail shall be
at the back.
The oven tray must be correctly placed on
its wire shelf support (g. 17) then inserted
into the guides (g. 16). The oven tray shelf
support must be tted so that the safety
notch, which stops it sliding out, faces the
inside of the oven.
■ To eliminate traces of grease in manufacture
it is necessary to preheat the oven at the
maximum temperature:
• for 60 minutes in the
position, for
30 minutes in the
position and for
another 15 minutes in the
position.
■ Slide o the wire racks from the oven walls
as in g. 15.
■ Let the oven cool down, switch o the
electrical supply, then clean the inside of
the oven with a cloth soaked in water and
neutral detergent and dry thoroughly.
Figure 17
Figure 15
Figure 16
Guard rail
Stop notch
Stop notch
1818
Figure 18

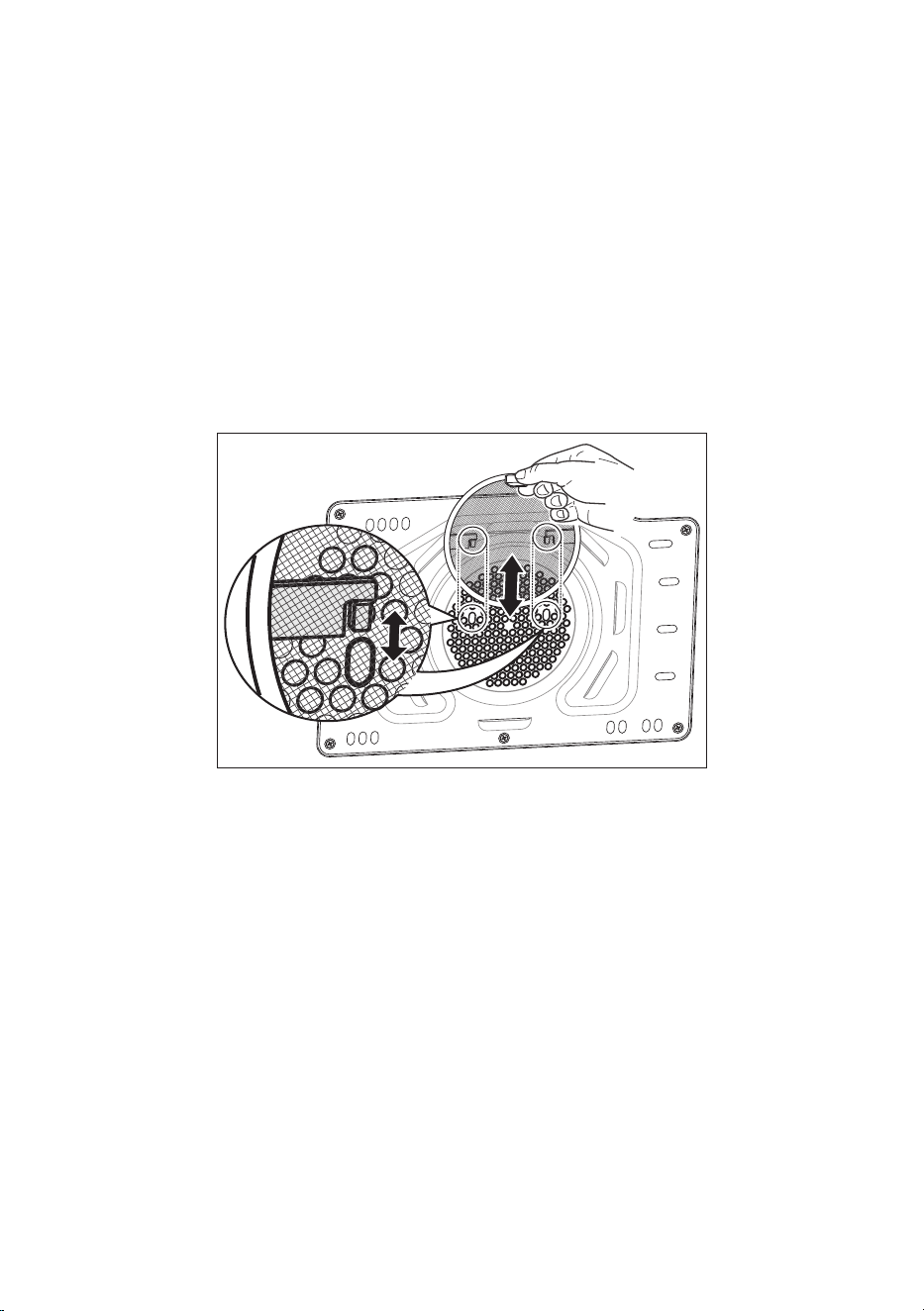

GREASE FILTER (OPTIONAL COMPONENT, CAN BE PURCHASED
SEPARATELY)
■ A special screen can be tted at the back of the oven to catch grease particles, mainly
when meat is being roasted.
Slide in the grease lter on the back of the oven as in g. 18.
■ Clean the lter after any cooking!
The grease lter can be removed for cleaning and should be washed regularly in hot
soapy water.
Always clean the lter after cooking as any solid residues on it might adversely aect
the oven performance.
■ Always dry the lter properly before tting it back into the oven.
CAUTION: When baking pastry etc. this lter should be removed.

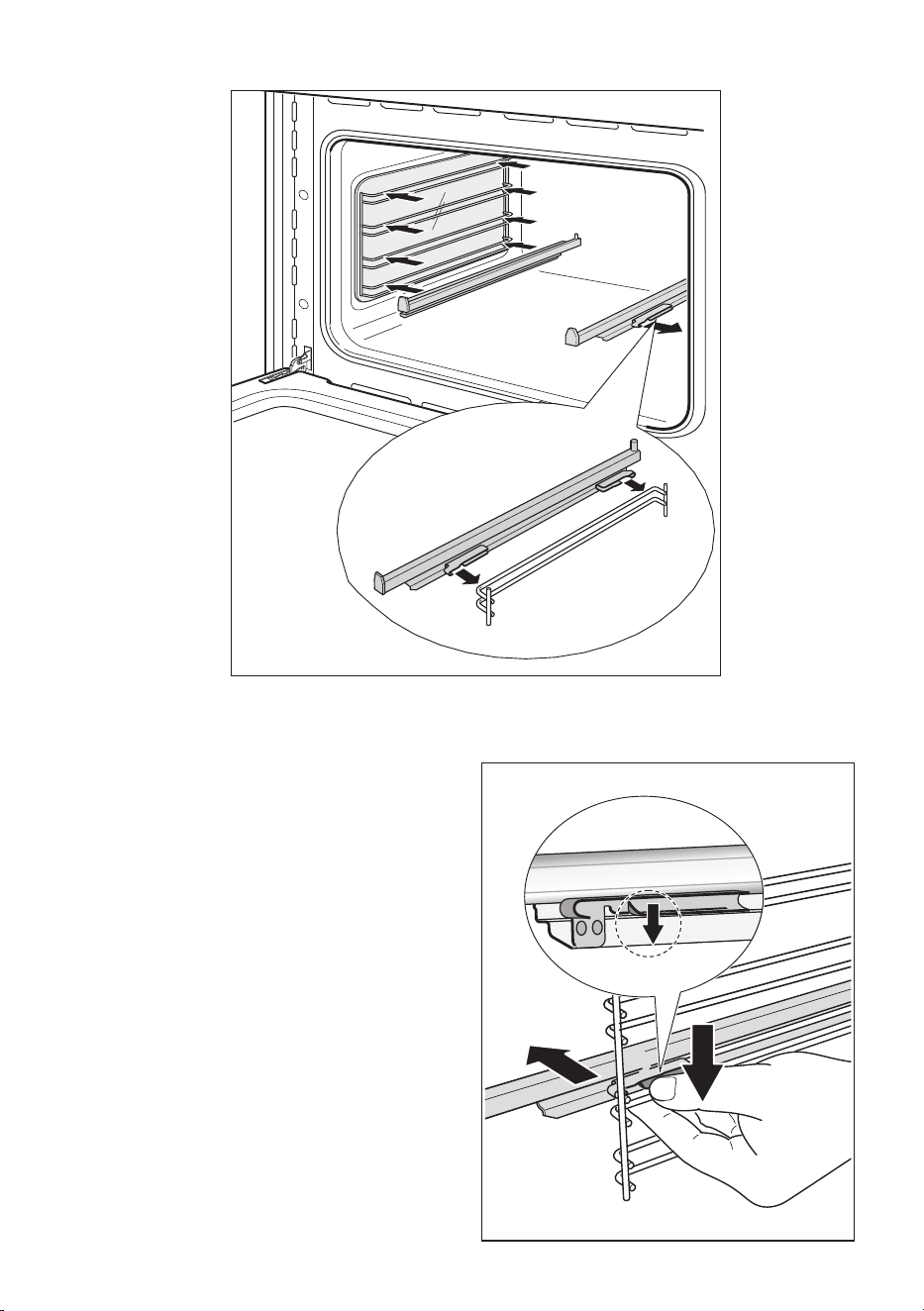

TELESCOPIC SLIDING SHELF SUPPORTS
The telescopic sliding shelf supports make it safer and easier to insert and remove the
oven shelves and trays. They stop when they are pulled out to the maximum position.
Important! When tting the sliding shelf supports, make sure that you t:
■ The slides to the top wire of a rack. They do not t on the lower wire.
■ The slides so that they run out towards the oven door.
■ Both sides of each pair of shelf slides.
■ Both sides on the same level.
To x the sliding shelf supports onto the side racks:
■ Fit the side runner frames into the holes on the side walls inside the oven (g. 15).
■ Fit the sliding shelf supports onto the top wire of a rack and press (g. 19). You will
hear a click as the safety locks clip over the wire.
1919
Left
Right
Figure 19
To remove the telescopic sliding shelf
supports:
■ Remove the side racks.
■ Lay down the telescopic sliding
shelf support and side racks, with
the telescopic sliding shelf support
underneath.
■ Find the safety locks. These are the
tabs that clip over the wire of the side
rack (arrow “1” in g. 20).
■ Pull the safety locks away from the
wire to release the wire (arrow “2” in
g. 20).
Cleaning the sliding shelf supports:
■ Wipe the supports with a damp cloth
and a mild detergent only.
■ Do not wash them in the dishwasher,
immerse them in soapy water, or use
oven cleaner on them.
1
2
1
Figure 20
2020
A
U
T
O
Controls description
1. Front right burner control knob
2. Rear right burner control knob
3. Central burner control knob
4. Rear left burner control knob
5. Front left burner control knob
6. Oven temperature control knob
7. Oven function selector control knob
8. Electronic programmer
Pilot lamp
9. Oven temperature indicator light
Figure 21
CONTROL PANEL
Note:
Your appliance has been tted with a cooling fan to achieve optimum eciency of the
controls and to ensure lower surface temperatures are maintained.
When the oven is operating the cooling fan motor switches ON/OFF depending on temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after
appliance has been switched o. The duration of this time is dependent on previous
cooking temperature and duration.
12345678
9
2121
Figure 22

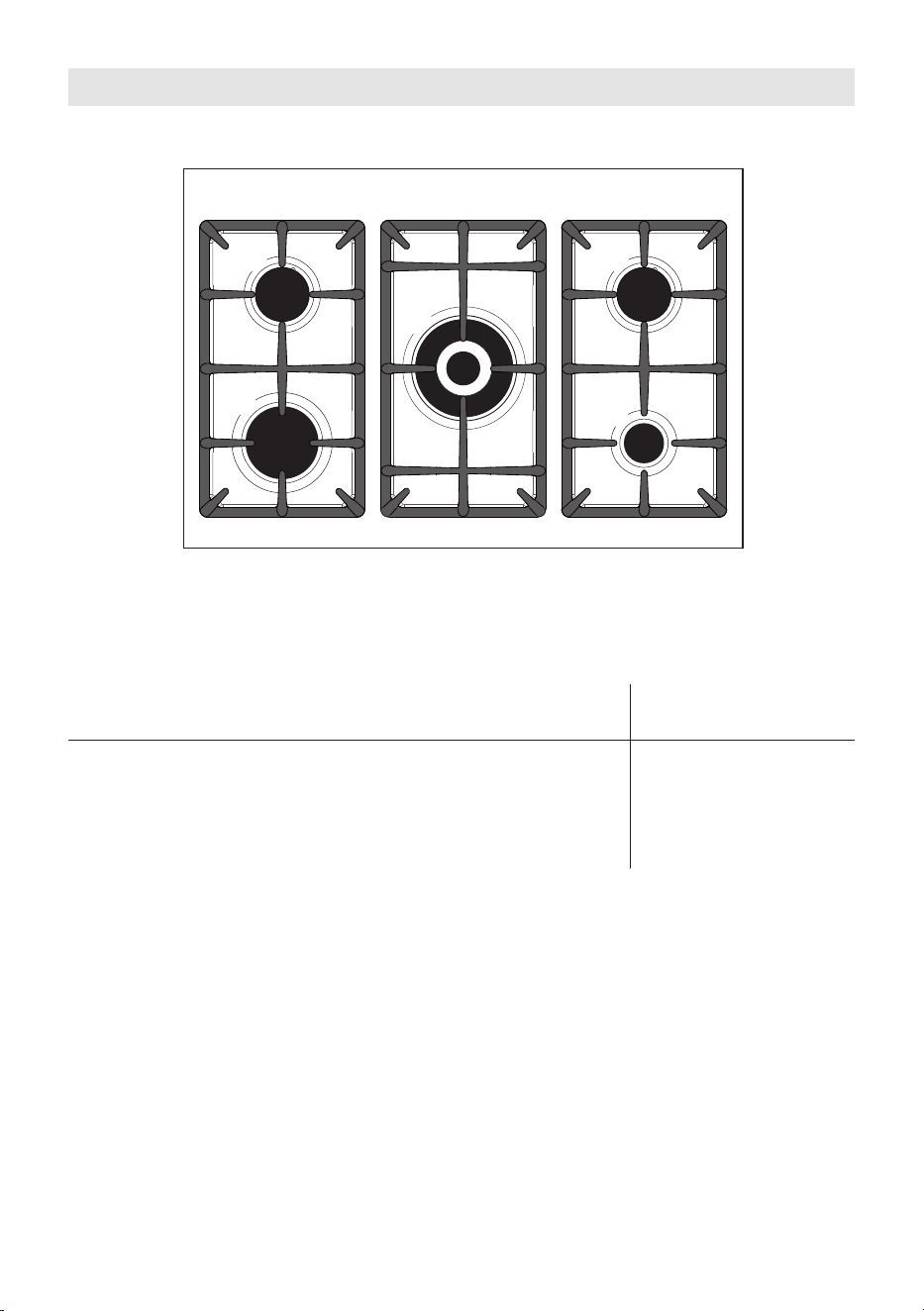

GAS HOB
GAS BURNERS Natural Gas
MJ/h
ULPG
MJ/h
1. Auxiliary burner (AUX) 4.00 4.00
2. Semi-rapid burner (SR) 6.60 6.60
3. Rapid burner (R) 11.30 11.30
4. Double ring compact (DCC) 15.30 15.30
Notes:
■ The electric ignition is incorporated in the knobs.
■ The appliance has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
CAUTION:
■ If the burner is accidentally extinguished, turn the gas o at the control knob and wait
at least 1 minute before attempting to relight.
■ Gas appliances produce heat and humidity in the environment in which they are
installed. Ensure that the cooking area is well ventilated following national/local codes.
2
1
4
2
3
2222
USING GAS BURNERS
■ Check that the electricity is switched on to allow spark ignition.
■ Make sure that all controls are turned to “
” (burner o).
■ The gas ow to the burner is controlled by a tap incorporating a safety cut-o valve.
If the burner ame should go out for some reason, the safety valve will automatically
stop the gas ow. The switch of the electric ignition is incorporated in the knobs.
■ You control the ow by turning the knob indicator to line up with the following symbols:
- Symbol
: tap closed (burner o)
- Symbol : High (maximum)
- Symbol
: Low (minimum)
■ You can control the temperature by the knob to “High” (maximum) from “Low”
(Minimum).
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
■ Other intermediate operating adjustments can be achieved by positioning the knob
between the maximum and minimum aperture positions and never between the
maximum aperture and the “
” (o) position.
■ To switch o, turn the knob clockwise until you hear the safety click (“
” o position).
■ Note that, if you are using a burner at the minimum setting, you turn the knob clockwise
past the maximum setting before reaching the o position.
■ Whenever lighting any of the burners produces an abnormal ame, switch that burner
o and relight using the minimum setting.
■ If after relighting the burner, the ame is still abnormal, turn the burner o and contact
our Customer Service Centre to obtain the nearest authorized Elba Appl. AUS Service
Agent.
■ In the case of a mains failure light the burner with a match or lighted taper.
■ Note: When the cooker is not being used, set the gas knobs to their closed position
and also close the gas shut-o valve placed on the main gas supply line.
■ Caution! The cooker becomes very hot during operation. Keep children well out
of reach.
2323
Figure 23a Figure 23b

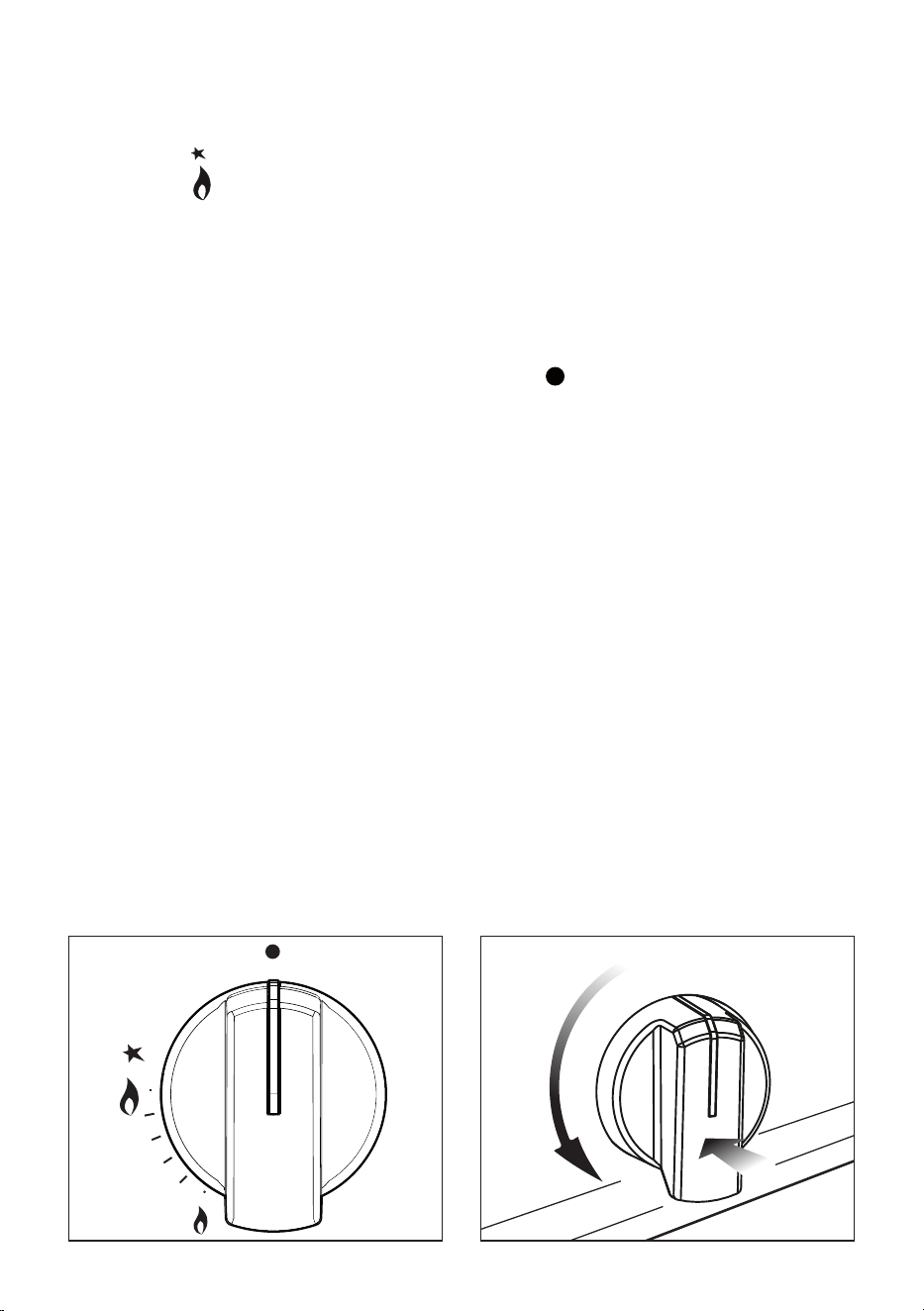

LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE SAFETY DEVICE
In order to light the burner, you must:
1. Turn the knob (gs. 23a - 23b) in anti-clockwise direction up to the maximum aperture
(symbol “
” ), push in and hold the knob; this will light the gas. If there is no mains
electrical supply, bring a lighted match close to the burner.
2. Wait for about ten seconds after the gas burner has been lit before letting go of the
knob (valve activation delay).
3. Adjust the gas valve to the desired position.
Important
■ If the burner ame should go out, the safety valve will automatically stop the gas ow.
■ To re-light the burner, return the knob to closed “
” position (burner o), wait for at
least 1 minute and then repeat the lighting procedure.
■ N.B. If your local gas supply makes it dicult to light the burner with the knob set to
maximum, set the knob to minimum and repeat the operation.
2424
CHOICE OF BURNER
The burner must be chosen according to the diameter of the pans and energy required.
For optimum eciency uso a wok or pan no smaller than 230 mm diameter.
Burners Pan diameter
Auxiliary 12 (*) - 14 cm
Semi-rapid 16 - 24 cm
Rapid 24 - 26 cm
Double-ring compact 26 - 28 cm
Wok (**) max 36 cm
(*) with grill for small cookware: minimum diameter 6 cm
(**) double-ring compact burner with wok adapter correctly tted
Saucepans with handles which are excessively heavy, in relationship to the weight of the
pan, are safer as they are less likely to tip.
Pans which are positioned centrally on burners are more stable than those which are oset.
It is far safer to position the pan handles in such a way that they cannot be accidentally
knocked.
When deep fat frying ll the pan only one third full of oil.
DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
In the unfortunate event of a re, leave the pan where it is and turn o all controls.
Place a damp cloth or correct tting lid over the pan to smother the ames.
DO NOT use water on the re.
Leave the pan to cool for at least 30 minutes.
GRATE FOR SMALL PANS (g. 25)
This grate is to be placed on top of the
(smaller) auxiliary burner when using small
diameter pans, in order to prevent them from
tipping over.
do not use pans with concave or convex bases
Figure 24
Figure 25
2525
Figure 26a Figure 26b

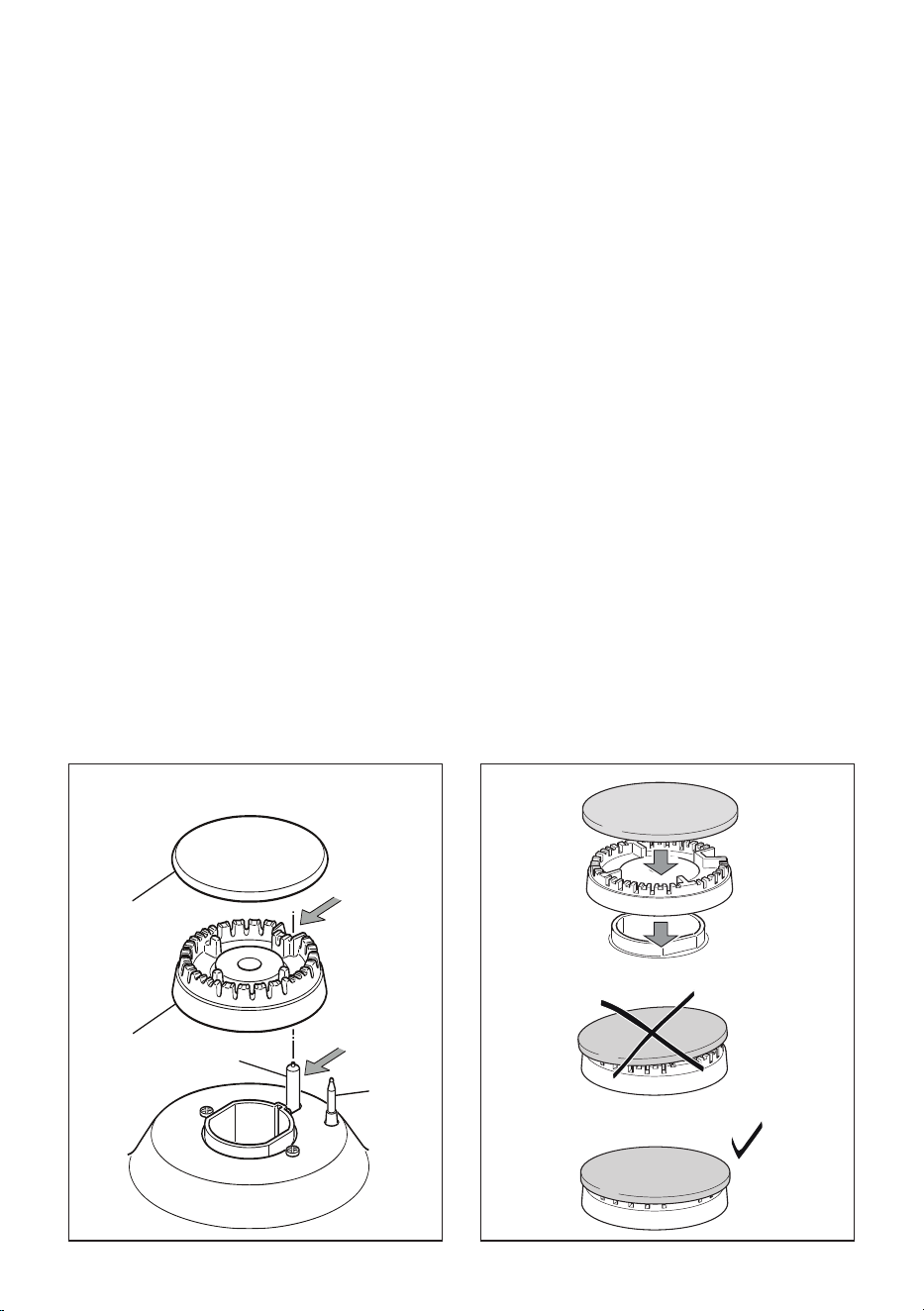

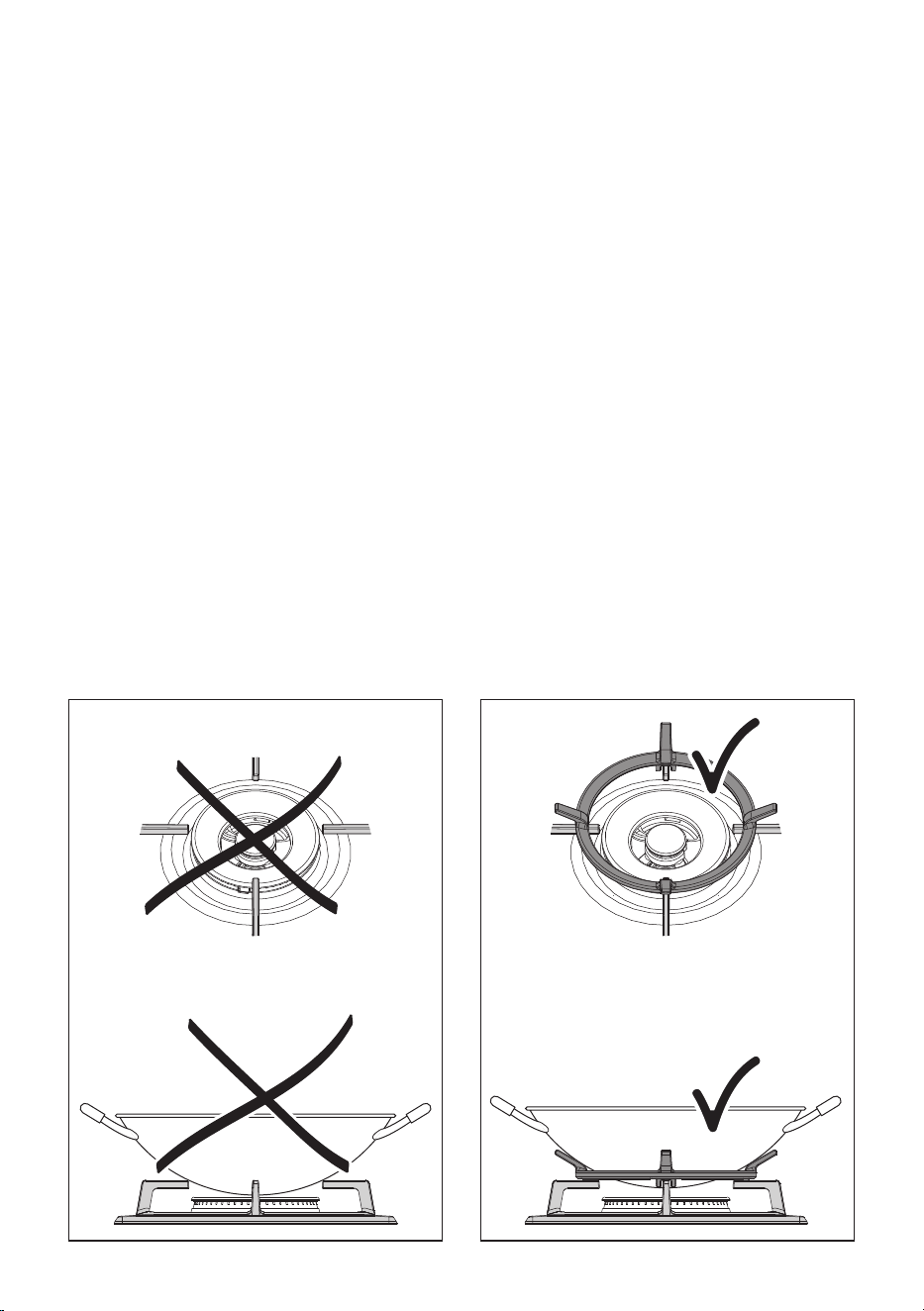

WOK STAND
CORRECT USE OF THE DOUBLE-RING COMPACT BURNER (gs. 26a, 26b)
■ The at-bottomed pans are to be placed directly onto the pan-support.
■ To use the WOK, you must place the wok stand in the CORRECT position as shown
in gs. 26a - 26b.
IMPORTANT
The special grille for wok pans (g. 26b) MUST BE PLACED ONLY over the pan-rest for
the double-ring compact burner.
WRONG CORRECT
2626
COOKING WITH MULTIFUNCTION OVEN
Attention: The oven door becomes
very hot during operation.
Keep children away.
WARNING:
The door is hot, use the handle.
During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.
Do not line the oven walls or base with aluminium foil. Do not place baking trays
or the drip tray on the base of the oven chamber.
GENERAL FEATURES
As its name indicates, this is an oven
that presents particular features from an
operational point of view.
In fact, it is possible to insert 8 dierent
programs to satisfy every cooking need.
The 8 positions, thermostatically controlled,
are obtained by 4 heating elements which
are:
■ Bottom element 1725 W (@230 V)
1878 W (@240 V)
■ Top element 1725 W (@230 V)
1878 W (@240 V)
■ Grill element 2500 W (@230 V)
2722 W (@240 V)
■ Circular element 2200 W (@230 V)
2395 W (@240 V)
NOTE:
Upon rst use, it is advisable to operate
the oven (at the maximum temperature)
for 60 minutes in the
position, for 30
minutes in the
position and for another
15 minutes in the position to eliminate
possible traces of grease on the heating
elements.
Clean the oven and accessories with warm
water and washing-up liquid.
OPERATING PRINCIPLES
Heating and cooking in the
MULTIFUNCTION oven are obtained in the
following ways:
a. by normal convection
The heat is produced by the upper and
lower heating elements.
b. by forced convection
A fan sucks in the air contained in the
oven mue, which sends it through
the circular heating element and then
sends it back through the mue.
Before the hot air is sucked back again
by the fan to repeat the described
cycle, it envelops the food in the
oven, provoking a complete and rapid
cooking.
It is possible to cook several dishes
simultaneously.
c. by semi-forced convection
The heat produced by the upper and
lower heating elements is distributed
throughout the oven by the fan.
d. by radiation
The heat is irradiated by the infra red
grill element.
e. by radiation and ventilation
The irradiated heat from the infra red
grill element is distributed throughout
the oven by the fan.
f. by ventilation
The food is defrosted by using the fan
only function without heat.
2727
A
U
T
O

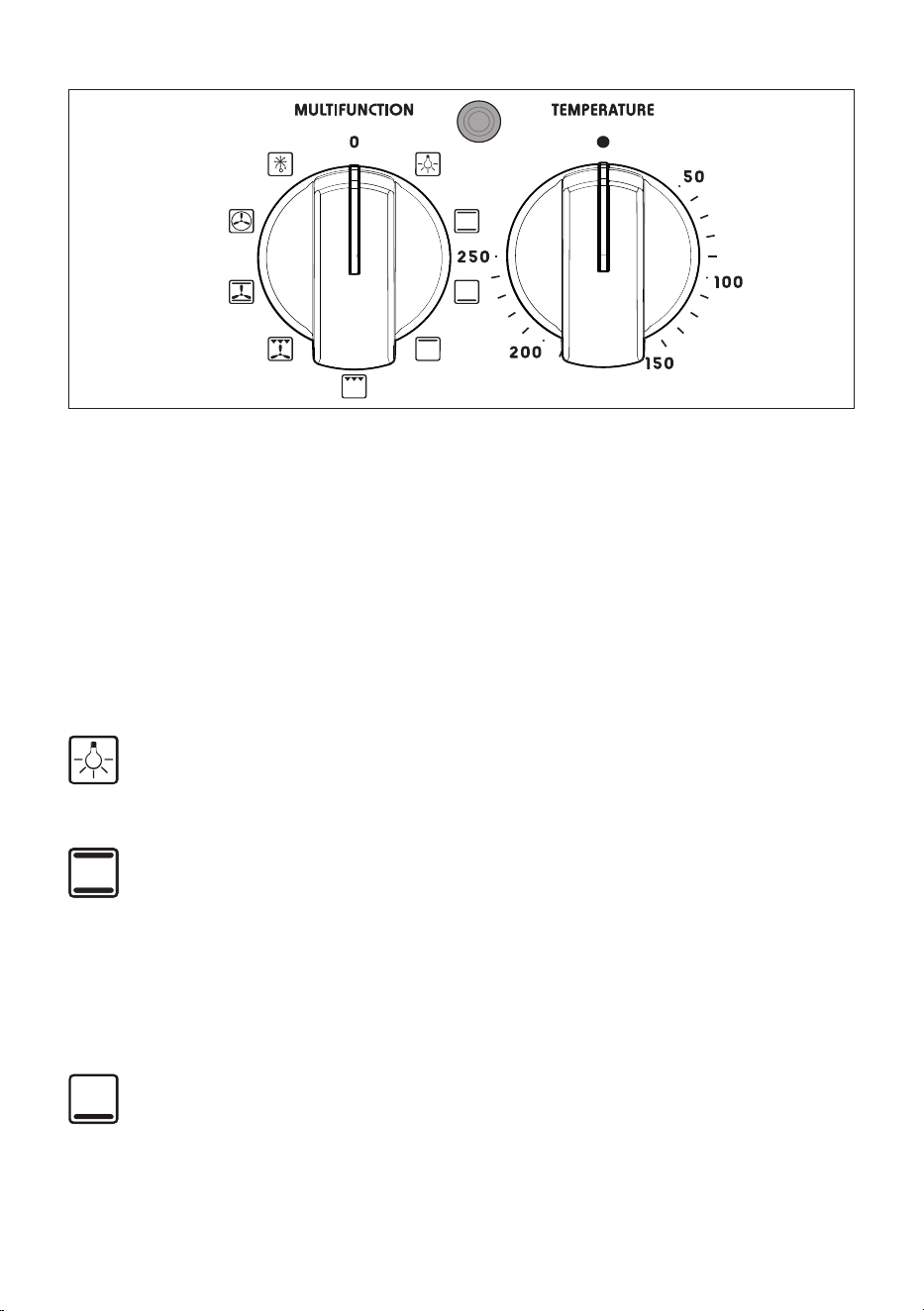

THERMOSTAT KNOB (g. 28)
To turn on the heating elements of the oven, set the function selector knob on the desired
program and the thermostat knob onto the desired temperature.
To set the temperature, it is necessary to make the knob indicator meet the chosen number.
The elements will turn On/O automatically according to the energy need which is
determined by the thermostat.
The oven temperature indicator light on the control panel will illuminate when the oven is
switched on and turns o when the oven reaches the correct temperature.
The indicator light will cycle on and o during cooking.
FUNCTION SELECTOR KNOB (g. 27)
Rotate the knob clockwise to set the oven for one of the following functions:
OVEN LIGHT
By turning the knob onto this setting we light the oven cavity.
The oven remains alight while any of the functions is on.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements are switched on.
The heat is diused by natural convection and the temperature must be regulated between
50°C and the maximum temperature with the thermostat knob.
It is necessary to preheat the oven before introducing the foods to be cooked.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i. e.
roasts, spare ribs, meringue, etc.
LOWER HEATING ELEMENT
In this position only the lower element is switched on.
Heat is distributed by natural convection.
The temperature must be regulated between 50°C and 200°C maximum with the thermostat knob.
Recommended for:
To complete cooking of dishes that require higher temperature at the bottom.
Figure 27
Figure 28
2828
UPPER HEATING ELEMENT
In this position only the upper element is switched on.
Heat is distributed by natural convection.
The temperature must be regulated between 50°C and the maximum position with the
thermostat knob.
Recommended for:
To complete cooking of dishes that require higher temperature at the top.
GRILLING
The infra-red heating element is switched on.
The heat is diused by radiation.
Use with the oven door closed and the thermostat knob must be regulated between
50°C and 225°C maximum.
For correct use see chapter “USE OF THE GRILL”.
Note: It is recommended that you do not grill for longer than 30 minutes at any one time.
Attention: The oven door becomes very hot during operation. Keep children away.
Recommended for:
Intense grilling action for cooking with a broiler; browning, crisping, “au gratin”, toasting, etc.
VENTILATED GRILL COOKING
The infra-red ray grill and the fan are on.
The heat is mainly diused by radiation and the fan then distributes it throughout the oven.
Use with the oven door closed and the thermostat knob must be regulated between
50°C and 200°C maximum.
It is necessary to preheat the oven for about 5 minutes.
For correct use see chapter “GRILLING AND AU GRATIN”.
Note: It is recommended that you do not grill for longer than 30 minutes at any one time.
Attention: The oven door becomes very hot during operation. Keep children away.
Recommended for:
For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal
steak, steak, hamburger, etc.
CONVECTION COOKING WITH VENTILATION
The upper and lower heating elements and the fan turn on.
The heat coming from the top and bottom is diused by forced convection.
The temperature must be regulated between 50°C and the maximum temperature with the
thermostat knob.
Recommended for:
For foods of large volume and quantity which require the same internal and external degree
of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.
2929
HOT AIR COOKING
The circular element and the fan are on.
The heat is diused by forced convection and the temperature must be regulated between
50°C and the maximum temperature with the thermostat knob.
It is not necessary to preheat the oven.
Recommended for:
For foods that must be well done on the outside and tender or rare on the inside, i. e.
lasagna, lamb, roast beef, whole sh, etc.
DEFROSTING FROZEN FOODS OR SLOW HEATING AND KEEPING
FOOD WARM
With the thermostat knob on “ ” only the oven fan is on.
The defrosting is done by simple ventilation without heat.
Recommended for:
To rapidly defrost frozen foods; 1 kilogram requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
SLOW HEATING AND KEEPING FOOD WARM
The temperature must be regulated between 60°C and 80°C with the thermostat knob. The
upper and lower heating elements and the fan turn on.
The heat coming from the top and bottom is diused by forced convection.
Recommended for:
To keep foods hot after cooking. To slowly heat already cooked foods.
COOKING ADVICE
The external parts of the appliance
become hot during operation.
Keep children well out of reach.
STERILIZATION
Sterilization of foods to be conserved, in
full and hermetically sealed jars, is done in
the following way:
a. Set the switch to position
.
b. Set the thermostat knob to position
185°C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan
making sure they do not touch
each other and the door and set the
thermostat knob to position 135°C.
When sterilization has begun, that is, when
the contents of the jars start to bubble, turn
o the oven and let cool.
REGENERATION
Set the switch to position and the
thermostat knob to position 150°C.
Bread becomes fragrant again if wet with
a few drops of water and put into the
oven for about 10 minutes at the highest
temperature.
ROASTING
To obtain classical roasting, it is necessary
to remember:
• that it is advisable to maintain a
temperature between 180 and 200°C.
• that the cooking time depends on the
quantity and the type of foods.
SIMULTANEOUS COOKING OF
DIFFERENT FOODS
The MULTIFUNCTION oven set on
position
and gives simultaneous
3030
heterogeneous cooking of dierent foods.
Dierent foods such as sh, cake and meat
can be cooked together without mixing the
smells and avours.
This is possible since the fats and vapors
are oxidized while passing through the
electrical element and therefore are not
deposited onto the foods.
The only precautions to follow are:
• The cooking temperatures of the
dierent foods must be as close to as
possible, with a maximum dierence
of 20°C - 25°C.
• The introduction of the dierent dishes
in the oven must be done at dierent
times in relation to the cooking times
of each one.
The time and energy saved with this type of
cooking is obvious.
USE OF THE GRILL
Preheat the oven for about 5 minutes.
Introduce the food to be cooked, positioning
the rack as close to the grill as possible.
The dripping pan should be placed under
the rack to catch the cooking juices and fats.
Grilling with the oven door closed.
Do not grill for longer than 30 minutes at
any one time.
CAUTION: The oven door becomes very
hot during operation. Keep children well
out of reach.
GRILLING AND “AU GRATIN”
Grilling may be done using the grill+fan
setting , in this setting the hot air
completely surrounds the food that is to
be cooked, to give a more even and rapid
cooking process.
Set the temperature knob between 50°C
and 200°C maximum, preheat the oven,
then simply place the food on the grid.
Close the door until grilling is complete.
Adding a few dabs of butter before the end
of the cooking time gives the golden “au
gratin” eect.
Grilling with the oven door closed.
Do not grill for longer than 30 minutes at
any one time.
CAUTION: The oven door becomes very
hot during operation. Keep children well
out of reach.
OVEN COOKING
To cook, before introducing the food, preheat
the oven to the desired temperature.
When the oven has reached the desired
temperature, introduce the food, control
the cooking time and tum o the oven
5 minutes before the theoretical time to
recuperate the stored heat.
COOKING EXAMPLES
Temperatures are approximate as they vary
depending on the quality and amount of food.
Remember to use ovenproof dishes and to
adjust the oven temperature during cooking
if necessary.
DISH TEMPERATURE
Lasagne 220°C
Baked pasta 220°C
Pizza 225°C
Creole rice 225°C
Baked onions 190°C
Spinach crêpes 185°C
Potatoes baked in milk 185°C
Stued tomatoes 180°C
Cheese soué 170°C
Roast veal 180°C
Grilled veal chops 210°C
Chicken breasts with tomato 180°C
Grilled chicken - roast chicken 190°C
Veal loaf 175°C
Roast beef 170°C
Fillet of sole 175°C
Aromatic hake 170°C
Beignets 160°C
Ring cake 150°C
Plum tart 170°C
Jam tartlets 160°C
Sponge cake 170°C
Sweet dough 160°C
Sweet pus 170°C
Plain sponge cake 170°C
3131
RECOMMENDED COOKING TEMPERATURE
Food °C °F
Gas
Mark
Shelf
Position*
Cooking
Time (approx)
CAKES
Victoria sandwich 190 375 5 2 or 3 20-25 mins
Small cakes/buns 190 375 5 1 and 2 15-20 mins
Maidera cake 180 350 4 2 or 3 20 mins
Fruit cake 170 325 3 3 1
3/4
hours
Rich fruit cake 150 300 2 3 or 4 2
1/2
hours
Scones 225 425 8 - 9 2 8-10 mins
PASTRY
Pu 225 425 8 - 9 2 10-20 mins
Short crust 200 400 6 2 20-30 mins
Plate tarts 200 - 210 400 - 410 6 1 or 2 30-35 mins
Quiches and ans 200 - 210 400 - 410 6 1 or 2 40-45 mins
YEAST
Bread loaf 225 425 7 - 8 2 35-55 mins
Bread rolls 220 425 7 1 or 2 15-20 mins
Pizza dough 230 450 8 2 20 mins
ROAST MEAT
Beef – Medium 190 375 5 2 or 3 20 mins/lb + 20 mins
Lamb 190 375 5 2 or 3
25-30 mins/b + 25 mins
Pork 190 - 200 375 - 400 5 - 7 2 or 3 30 mins/lb + 30 mins
Veal 190 375 5 2 or 3 30 mins/b + 30 mins
Chicken 190 375 5 2 or 3 30 mins/b + 30 mins
Turkey up to 10lb 180 350 4 2 or 3
18-20 mins/b + 20 mins
Stews/casseroles 150 - 170 300 - 325 2 - 3 2 or 3 1
1/2
2 hours
N.B. For fan ovens reduce the temperature
by 10-20°C. For any dish taking one hour
or over to cook, reduce the cooking time by
10 minutes per hour.
* Shelf positions have been counted from
the top of the oven to the base.
A fan oven creates more even temperature
throughout, therefore the shelf positions
are not as critical.
3232

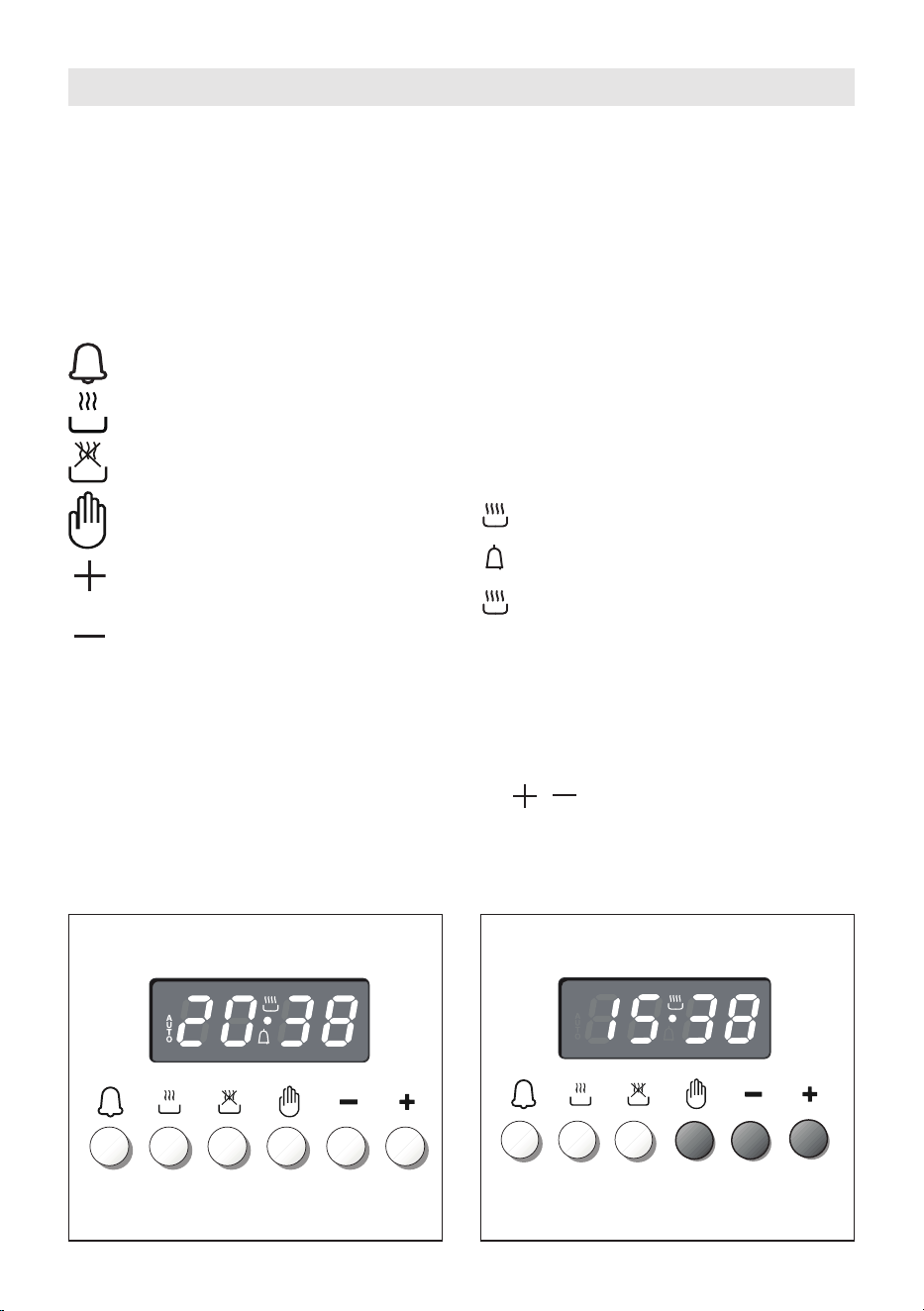

The electronic programmer is a device which groups together the following functions:
■ 24 hours clock with illuminated display.
■ Timer (up to 23 hours and 59 minutes).
■ Program for automatic oven cooking.
■ Program for semi-automatic oven cooking.
DIGITAL ELECTRONIC PROGRAMMER
Figure 29 Figure 30
Description of the buttons:
Timer
Cooking time
End of cooking time
Manual position and cancellation of
the inserted cooking program
To increase the numbers on
the digital display
To decrease the numbers on
the digital display.
Description of the illuminated
symbols:
AUTO - ashing - Programmer in automa-
tic position but not programmed
AUTO - illuminated - Programmer in auto-
matic position with program inser-
ted.
Automatic cooking taking place
Timer in operation
and AUTO - ashing - Program
error.
(The time of day lies between the
calculated cooking start and end
time).
Note:
Select a function by the respective button
and, in 5 seconds, set the required time with
the
/ buttons (“one-hand” operation).
After a power cut the display resets to zero
and cancels the set programs.
3333

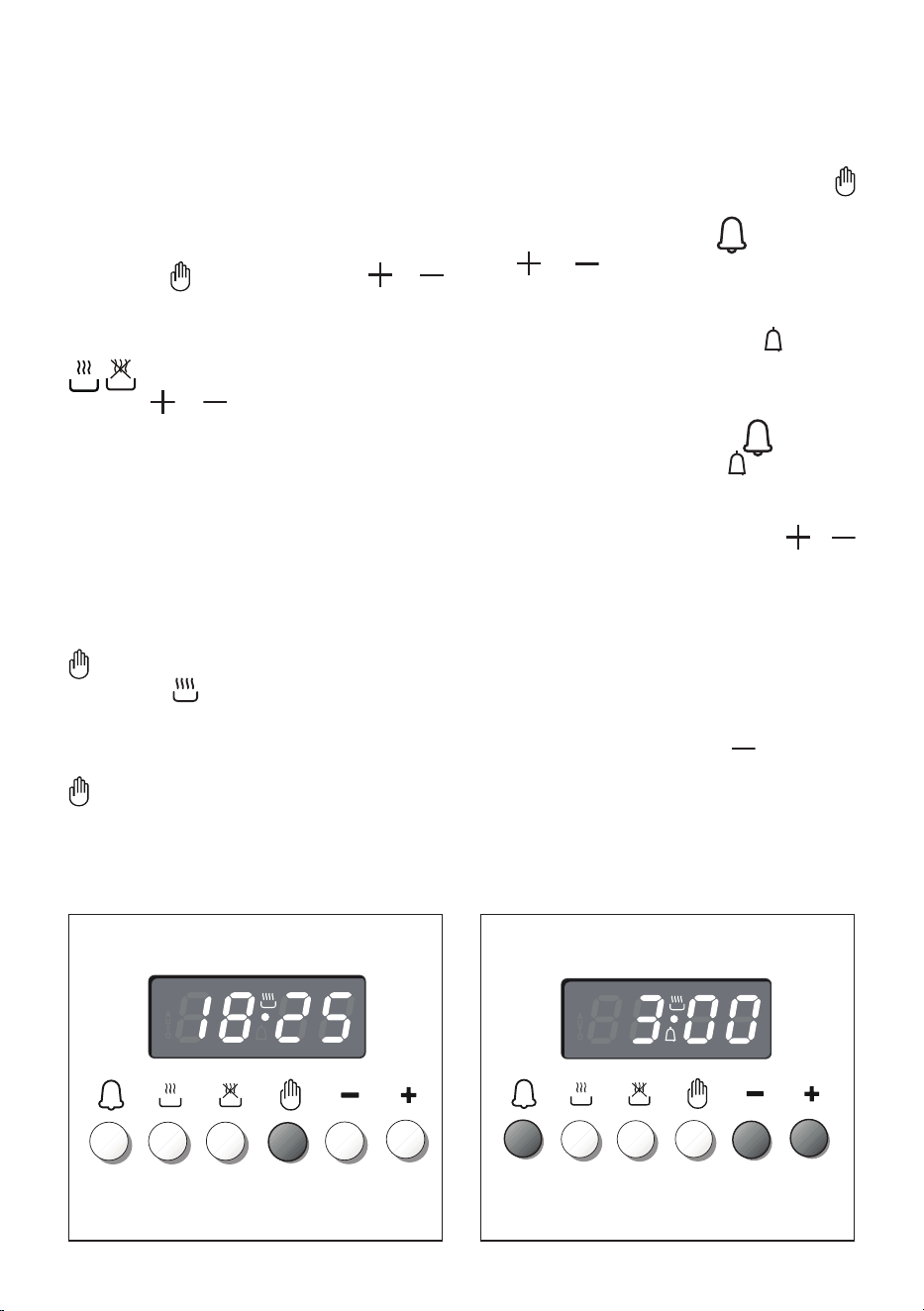

Figure 31 Figure 32
ELECTRONIC CLOCK
The programmer is equipped with an
electronic clock with illuminated numbers
which indicates hours and minutes.
Upon immediate connection of the oven or
after a power cut, three zeros will ash on
the programmer display.
To set the correct time of day it is necessary
to push the
button and then the or
button until you have set the correct time
(g. 30).
In another way push simultaneously the
two buttons and at the same time
push the
or button.
Note: If the clock is reset it deletes any
previously set programs
NORMAL COOKING WITHOUT THE
USE OF THE PROGRAMMER
To manually use the oven, without the
aid of the programmer, it is necessary to
cancel the ashing AUTO by pushing the
button (AUTO will be switched o and
the symbol
will illuminate - g. 31).
Attention: If the AUTO is illuminated (which
means a cooking program has already
been inserted), by pushing the button
you cancel the program and return to
manual operation.
If the oven is switched on, you must switch
o manually.
ELECTRONIC TIMER
The timer program consists only of a
buzzer which may be set for a maximum
period of 23 hours and 59 minutes.
If the AUTO symbol is ashing push the
button.
To set the time, push the
button and
the
or until you obtain the desired
time in the display (g. 32).
Having nished the setting, the clock hour
will appear on the panel and the symbol
will be illuminated.
The countdown will start immediately and
may be seen at any moment on the panel
by simply pressing the button
.
At the end of the time, the
symbol will
disappear and the buzzer will sound and
continue for approximatley 7 minutes or
until a button is pressed (not the
/
buttons). After a short time the display will
revert back to the time of day.
SETTING THE FREQUENCY OF THE
AUDIBLE SIGNAL
The buzzer has 3 dierent tones and can
be changed by pressing the
button, but
only when the time of day is displayed
3434

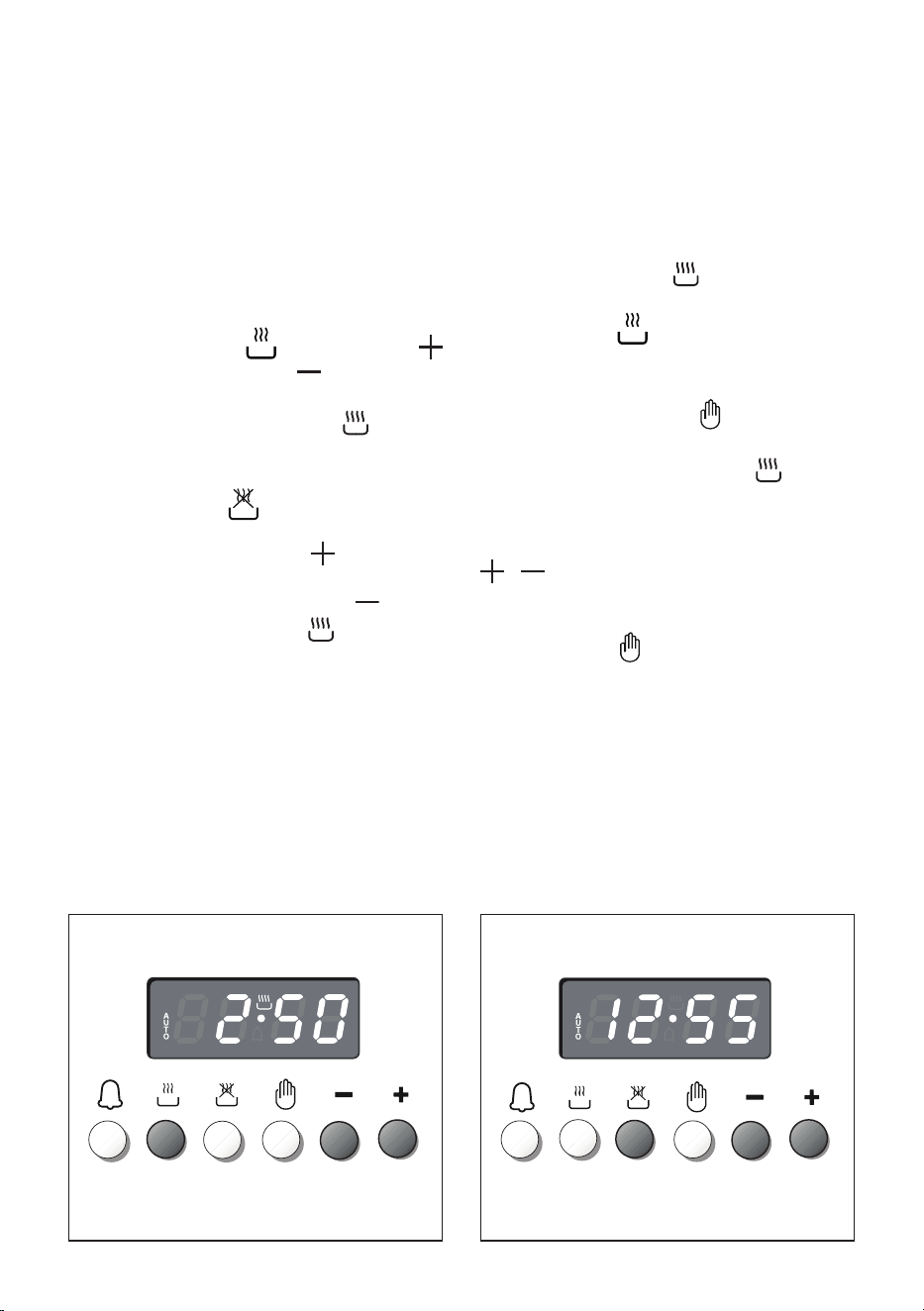

Figure 33 Figure 34
AUTOMATIC OVEN COOKING
To cook food automatically in the oven, it is
necessary to:
1. Set the length of the cooking period.
2. Set the end of the cooking time.
3. Set the temperature and the oven
cooking program.
These operations are done in the following
way:
1. Set the length of the cooking period
by pushing the
button and the
button to increase, or
to decrease if
you have passed the desired time (g.
33). The AUTO and the
symbol
will illuminate.
2. Set the end of the cooking time by
pressing the
button (the cooking
time already added to the clock time
will appear), and the
button (g.
34); if you pass the desired time you
may get back by pushing the
button.
After this setting, the symbol will
disappear. If after this setting, the
AUTO ashes on the display and a
buzzer sounds, it means there was
an error in the programming, that
is that the cooking cycle has been
superimposed on the clock. In this
case, modify the end of cooking
time or the cooking period itself by
following again the above mentioned
instructions.
3. Set the temperature and the cooking
program by using the switch and
thermostat knobs of the oven (see
specic chapters).
Now the oven is programmed and
everything will work automatically, that is
the oven will turn on at the right moment
to end the cooking at the established hour.
During cooking, the
symbol remains
illuminated.
By pushing the
button you can see the
time that remains until the end of cooking.
The cooking program may be cancelled
at any time by pushing
.
At the end of the cooking time the oven
will turn o automatically, the
symbol
will turn o, AUTO will ash and a buzzer
will be sound, which can be turned o by
pushing any of the buttons except the
/ buttons.
Turn the switch and thermostat knobs to
zero and put the programmer onto “manual”
by pressing the
button.
Attention: After a power cut the clock resets
to zero and cancels the set programs.
After a power cut, three zeros will ash on
the display.
3535

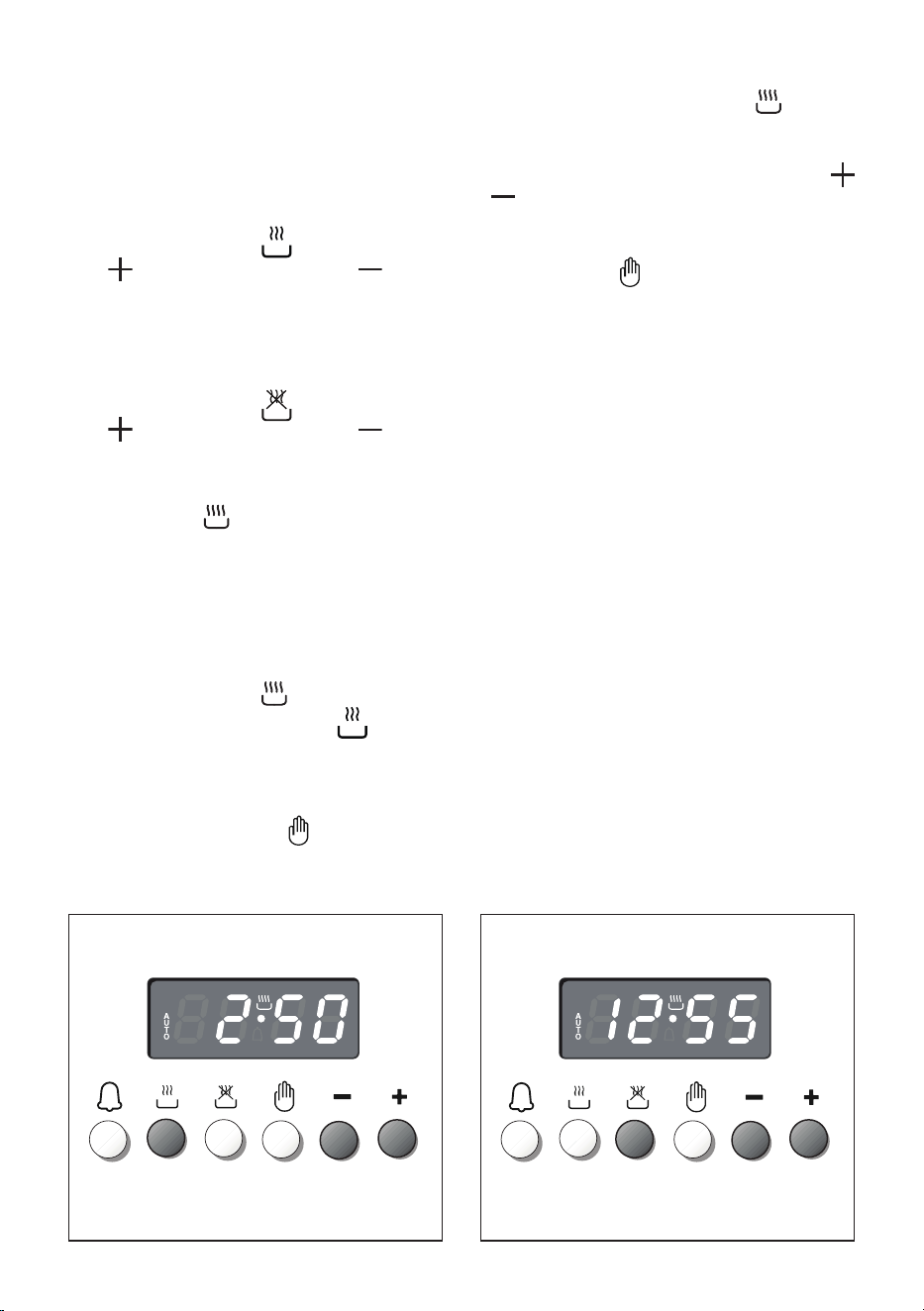

Figure 35 Figure 36
SEMI-AUTOMATIC COOKING
This is used to automatically switch o the
oven after the desired cooking time has
elapsed.
There are two ways to set your oven:
1. Set the length of the cooking time
by pushing the
button and the
button to advance, or to go
backwards if you have passed the
desired time (g.35).
or
2. Set the end of the cooking time
by pushing the
button and the
button to advance, or to go
backwards if you have passed the
desired time (g. 36).
AUTO and the
symbol will be on.
Then set the temperature and the cooking
programme using the oven switch and
thermostat knobs (see specic chapters).
The oven is switched on and it will be
switched o automatically at the end of the
desired time.
During cooking, the
symbol remains
on and by pressing the button
you can
see the time that remains till the end of the
cooking.
The cooking program may be cancelled
at any time by pushing
.
At the end of the cooking time the oven
will turn o automatically, the
symbol
will turn o, AUTO will ash and a buzzer
will be sound, which can be turned o by
pushing any of the buttons except the
/
buttons.
Turn the switch and thermostat knobs to
zero and put the programmer onto “manual”
by pressing the
button.
Attention: After a power cut the clock resets
to zero and cancels the set programs.
After a power cut, three zeros will ash on
the display.
3636
CLEANING AND MAINTENANCE
Maintenance Period Description
Daily ■ Clean gas cooktop as per instructions below
Monthly
■ Remove burner caps, burner rings & base and clean
using non abrasive detergent & rinse in cold water & dry
thoroughly before replacing back on hob
■ Clean ignitor tip & thermocouple using damp soapy cloth
and dry thoroughly
3 - 4 Yearly
■ Contact your local authorized gas Service Agent to perform
a thorough check on all gas components on the gas cooker
GENERAL ADVICE
■ When the appliance is not being used, it is advisable to keep the gas shuto
valve near the appliance closed.
■ Before you begin cleaning, you must ensure that the appliance is switched o
and disconnected from the electrical power supply.
■ Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
■ Important: The manufacturer declines all liability for possible damage caused by
the use of unsuitable products to clean the appliance.
■ It is advisable to clean when the appliance is cold and especially when cleaning the
enamelled parts.
■ Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
■ Avoid using cleaning products with a chlorine or acidic base.
■ Clean the surfaces with a damp cloth and using neutral, non-aggressive detergents.
Complete the cleaning with a dry, clean cloth.
IMPORTANT: Never use abrasive products (e.g. certain type of sponges) and/or
aggressive products (e.g. caustic soda, detergents containing corrosive substances)
that could irreversibly damage the surfaces.
■ Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
■ Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering of
the glass.
■ Under no circumstances should any external covers be removed for servicing or
maintenance except by suitable qualied personnel.
WARNING! When correctly installed, your product meets all safety requirements
laid down for this type of product category. However special care should be taken
around the rear or the underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges, that may cause injury.
3737
ENAMELLED PARTS
All the enamelled parts must be cleaned with a sponge and soapy water or other non-
abrasive products.
Dry preferably with a microbre or soft cloth.
Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if
left too long.
STAINLESS STEEL, ALUMINIUM PARTS, PAINTED AND SILK-SCREEN
PRINTED SURFACES
Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion.
You are advised to use a soft cloth and neutral soap.
CAUTION: Do not use abrasive substances or non-neutral detergents as these will
irreparably damage the surface.
INSIDE OF OVEN
The oven should always be cleaned after use when it has cooled down.
The cavity should be cleaned using a mild detergent solution and warm water.
Suitable proprietary chemical cleaners may be used after rst consulting with the
manufacturers recommendations and testing a small sample of the oven cavity.
Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface.
NOTE: The manufacturers of this appliance will accept no responsibility for damage caused
by chemical or abrasive cleaning.
Do not store ammable material in the oven.
Let the oven cool down and pay special attention no to touch the hot heating
elements inside the oven cavity.
GAS TAPS
Do not let cleaning products come into contact with the valves.
Periodic lubrication of the gas taps must be carried out by specialist personnel only.
In the event of operating faults in the gas taps, or if the gas taps are not working properly,
call our Customer Service Centre to obtain the nearest Authorized Elba Appl. AUS Service
Agent.
GRILL HEATING ELEMENT
■ The heating element is self-cleaning and does not require maintenance.
GREASE FILTER (OPTIONAL COMPONENT, CAN BE PURCHASED
SEPARATELY)
Clean the lter after any cooking!
The grease lter can be removed for cleaning and should be washed regularly in hot soapy
water (g. 18 at page 18).
Always dry the lter properly before tting it back into the oven.
3838
BURNERS
■ They can be removed. These parts must be cleaned using a sponge and soapy water
or other suitable non-abrasive products. Dry with a soft cloth.
Warning! Not dishwasher safe.
■ If left on the surface for a length of time, acidic substances such as lemon juice, tomato
sauces and passata, vinegar and other similar products will damage the surface and
dull its shine.
■ After cleaning, the burners and their ame spreaders must be well dried and correctly
replaced. It is very important to check that the burner ame spreader and the cap have
been correctly positioned. Failure to do so can cause serious problems.
■ Check that the electrode “S” (gs. 37, 39) next to each burner is always clean to
ensure trouble-free sparking.
■ Check that the probe “T” (gs. 37, 39) next to each burner is always clean to ensure
correct operation of the safety valves.
Note: Both the probe and ignition electrode must be very carefully cleaned.
To avoid damage to the electric ignition do not use it when the burners are not in
place.
Note: Continuous use may cause a change in the glaze around the burners and
grids, corresponding to the areas exposed to the heat. This is a natural phenomenon
and does not prevent the parts from working properly.
AUXILIARY, SEMI-RAPID AND RAPID BURNERS
It is essential to check that the burner ame distributor “F” and the cap “C” have been
correctly positioned (see gs. 37 - 38) - failure to do so can cause serious problems.
S
F
C
T
Figure 37 Figure 38
3939

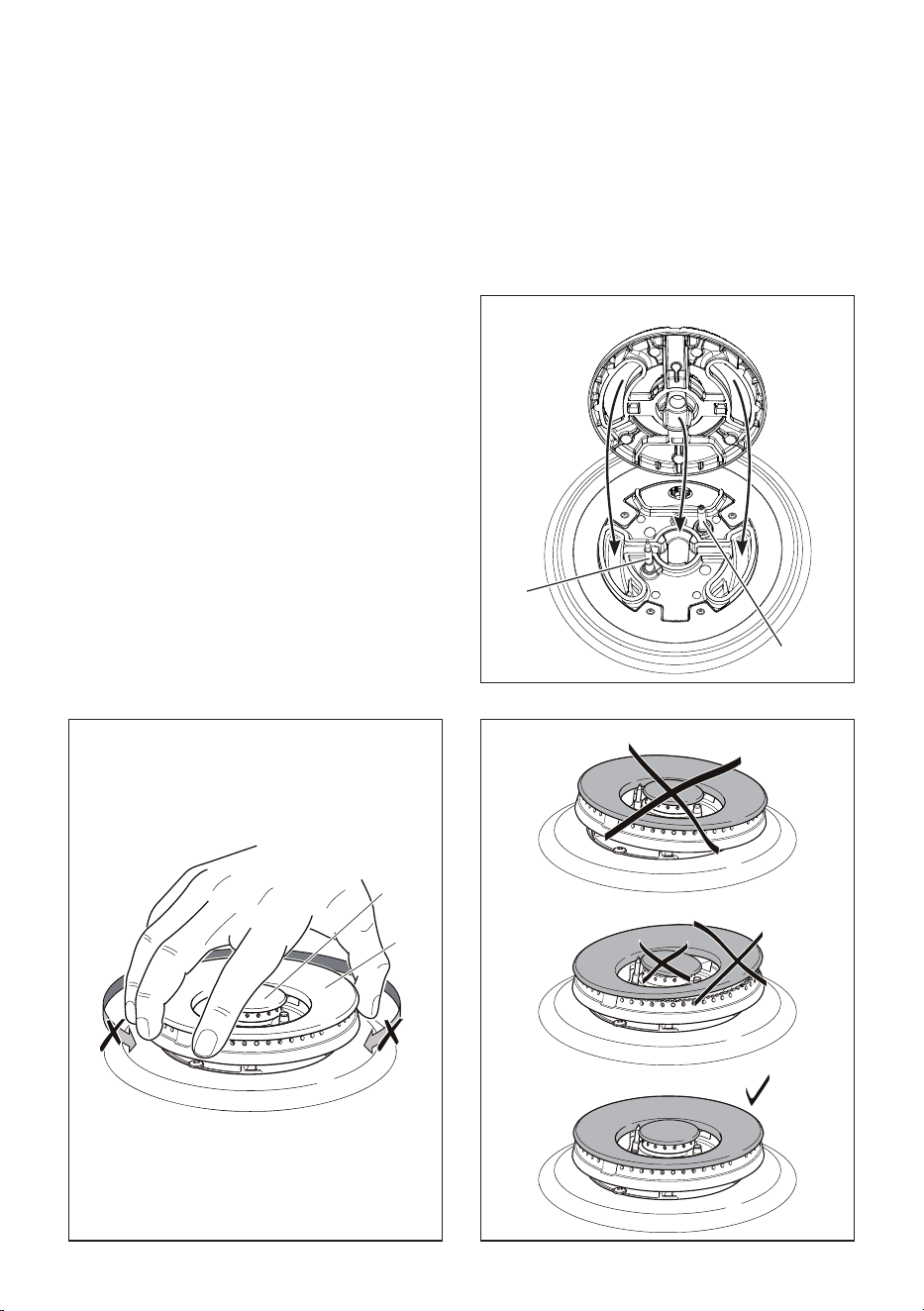

A
B
DOUBLE-RING COMPACT BURNER
The double-ring compact burner must be correctly positioned (gs. 39-41); the burner rib
must be located in position as shown by the arrows (g. 39).
The burner correctly positioned must not rotate (g. 40).
Then position the cap “A” and the ring “B” (gs. 40 - 41).
Figure 41Figure 40
T
S
Figure 39Double-ring compact
burner
4040
REPLACING THE OVEN LIGHT
WARNING: Ensure the appliance is switched o before replacing
the lamp to avoid the possibility of
electric shock.
■ Let the oven cavity and the
heating elements to cool down.
■ Disconnect the appliance from
the electrical power supply.
■ Remove the protective cover “A”
(g. 42).
■ Replace the halogen lamp “B”
with a new one suitable for
high temperatures having the
following specications 220-
240V or 230-240V, 50Hz, and
same power (check watt power
as stamped in the bulb itself) of
the replaced lamp.
IMPORTANT WARNING:
Never replace the bulb with
bare hands; contamination
from your ngers can cause
premature failure.
Always use a clean cloth or
gloves.
■ Ret the protective cover “A”.
NOTE: Oven bulb replacement is not
covered by your guarantee.
OVEN FLOOR
The oven oor “F” (g. 43) can be
easily removed to facilitate cleaning.
Remember to replace the oor
correctly afterwards.
Be careful not to confuse the tray “L”
with the oven oor “F”.
STORAGE COMPARTMENT
The storage compartment is accessible
through the pivoting panel (g. 44).
Do not store
ammable material in the storage
compartment.
L
F
Figure 44
Figure 43
Figure 42
A
B
WRONG
CORRECT
4141

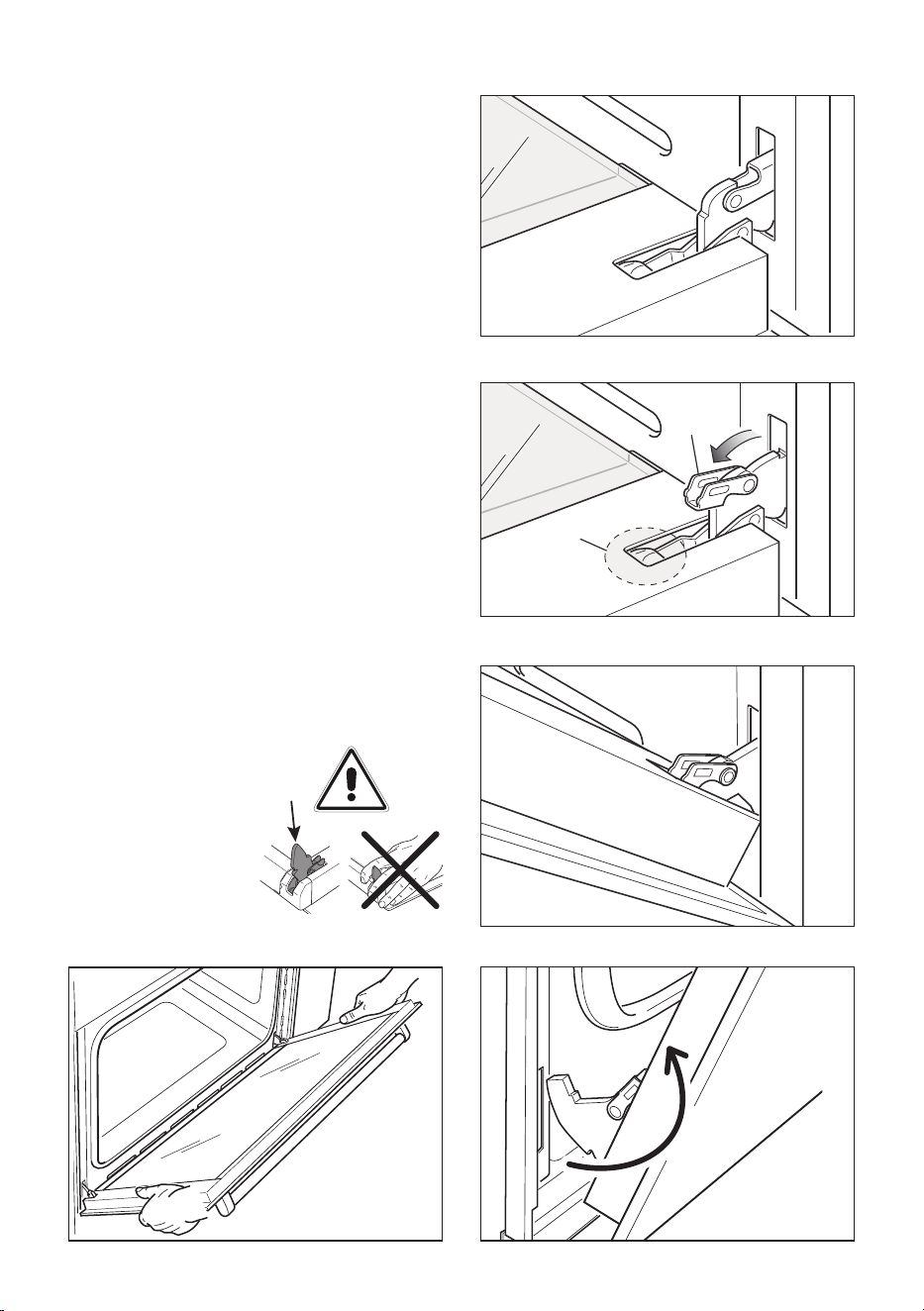

REMOVING THE OVEN DOOR
The oven door can easily be removed as
follows:
■ Open the door to the full extent (g.
45a).
■ Open the lever “A
”
completely on the
left and right hinges (g. 45b).
■ Hold the door as shown in g. 45d.
■ Gently close the door (until left and
right hinge levers “A
”
are hooked to
part “B
”
of the door (gs. 45b, 45c).
■ Withdraw the hinge hooks from their
location following arrow “C
”
(g. 45e).
■ Rest the door on a soft surface.
B
A
C
Figure 45d
Figure 45a
Figure 45b
Figure 45c
Figure 45e
Important!
Always keep a safe distance from the door
hinges, paying special attention to the
position of your hands.
If the door hinges are
not correctly hooked,
they could unhook
and close suddenly
and unexpectedly
with risk of injury.
4242

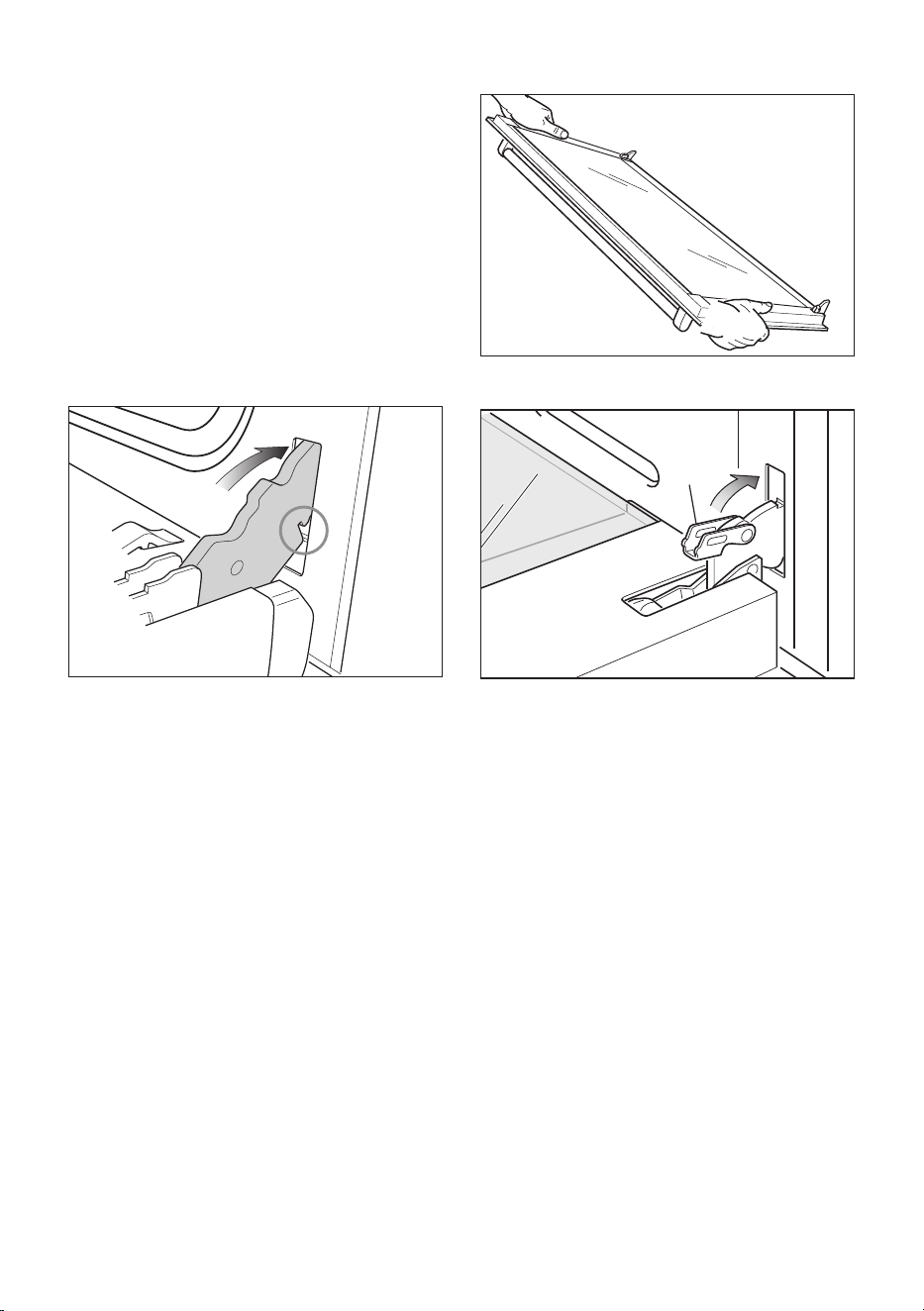

REFIT THE DOOR
1. Hold the door rmly (g. 46a).
2. Insert the hinge tongues into the slots,
making sure that the groove drops into
place as shown in the gure 46b.
3. Open the door to its full extent.
4. Fully close the levers “A” on the left
and right hinges, as shown in the
gure 46c.
5. Close the door and check that it is
properly in place.
A
REMOVING AND REPLACING THE INNER DOOR GLASS PANE FOR CLEANING
If you wish to clean the inner glass of the door, make sure you follow the precautions and
instructions very carefully.
Replacing the glass pane and the door incorrectly may result in damage to the appliance
and may void your warranty.
IMPORTANT!
■ Make sure the appliance and all its parts have cooled down. Do not attempt to handle
the parts of a hot appliance.
■ Take extreme care when handling the glass pane. Avoid the edges of the glass
bumping against any surface. This may result in the glass shattering.
■ CAUTION: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering of the glass.
■ If you notice any sign of damage on any of the glass panes (such as chipping, or
cracks), do not use the oven. Call your Authorised Service Centre or Customer Care.
■ Make sure you replace the glass pane correctly. Do not use the oven without glass
pane correctly in place.
■ If the glass pane feels dicult to remove or replace, do not force it. Call your Authorised
Repairer or Customer Care for help.
Note: Service visits providing assistance with using or maintaining the appliance are
not covered by your warranty.
Figure 46a
Figure 46b
Figure 46c
4343
SERVICE AND MAINTENANCE
If the ignition spark fails to ignite or does not light the gas, check the following items before
calling our Customer Service Centre to obtain the nearest Authorised Service Agent:
■ Burner is reassembled and located correctly.
■ Spark electrode and white ceramic are clean and dry.
■ 240 VAC power supply is connected.
Contact the local gas utility or our Customer Service Centre to obtain the nearest Authorized
Service Agent.
■ You can smell gas when all burners are turned on.
■ The burners do not remain alight at the minimum marked setting.
■ The burner ame is yellow or emits an unusual odour.
Note that a bi-annual inspection of the appliance by an authorized service agent or your
locate gas utility will ensure many years of trouble free operation of your appliance.
SERVICING THE APPLIANCE
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised ELBA APPLIANCES Service Agent shared services with Fisher and Paykel
Australia PTY LTD (ELBA Appliances AUS, a division of F&P AUS PTY LTD)
Servicing shall be carried out only by authorized personnel.
The appliance shall not be modied.
4444
ELECTRIC DIAGRAM
Figure 47
S1
TM
C
G
SV
LF
TL
TL1
TB
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
F1
N/7
1
1a
L/8
CIR
PR
PA
A
T
NL
M
CF
4545
ELECTRIC DIAGRAM KEY
F1 Oven switch
TM Oven thermostat
S1 Thermostat lamp
LF Oven lamp
CF Cooling fan motor
PR Oven programmer
S Oven bottom heating element
C Oven top heating element
G Oven grill heating element
CIR Oven circular heating element
V Oven fan motor
PA Ignition switches group
A Ignition coil
TL Thermal overload (normally closed)
TL1 Thermal overload (normally open)
M Terminal block
TB Testing block
T Earth connection
4646
4747
www.delonghicookingappliances.com.au
Rif. 1106232-ß4
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the
models described here, at any time and without notice, to make eventual necessary
modifications for their construction or for commercial needs.
