INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
RS and RSA Refrigerator Models
809-190A Rev H. 02/05/2026
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com
SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory2
WELCOME
Contents
Safety ........................................................................................................................................................................ 3
Important Information .......................................................................................................................................... 5
Product Information .............................................................................................................................................. 6
Clearance and Placement ..................................................................................................................................... 8
Unpacking and Set Up ........................................................................................................................................... 9

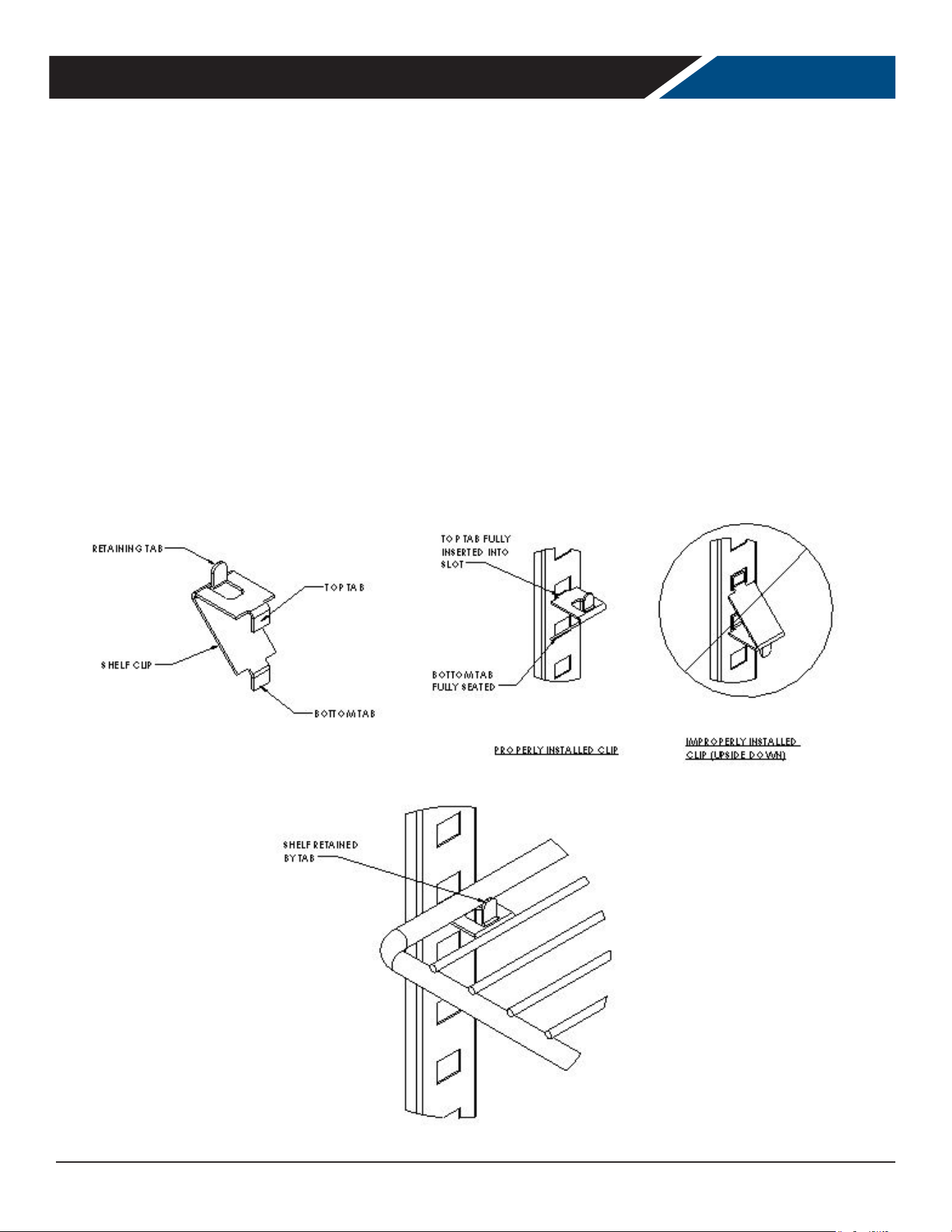

Shelf Installation ....................................................................................................................................................10
Electrical .................................................................................................................................................................. 11
Using The Unit ........................................................................................................................................................12

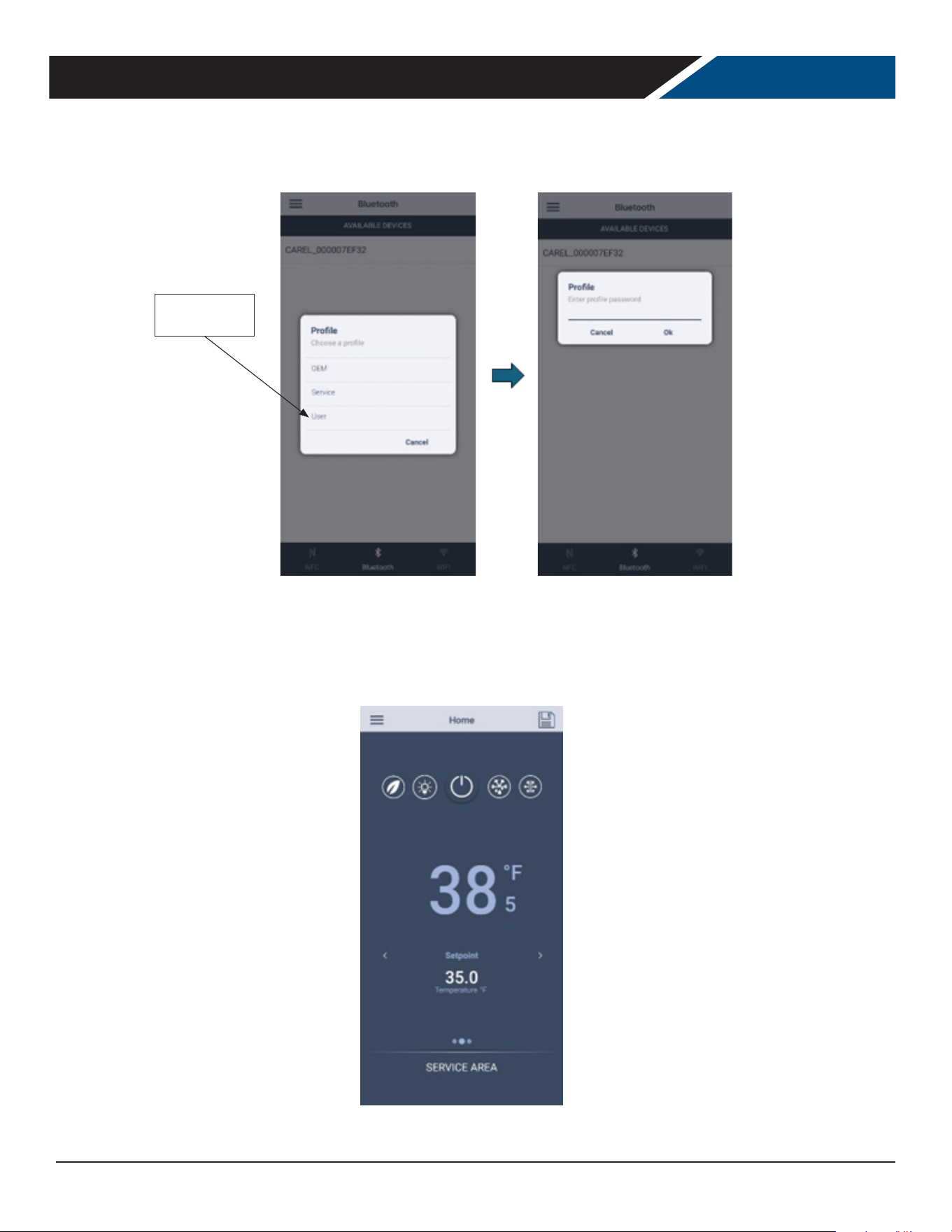

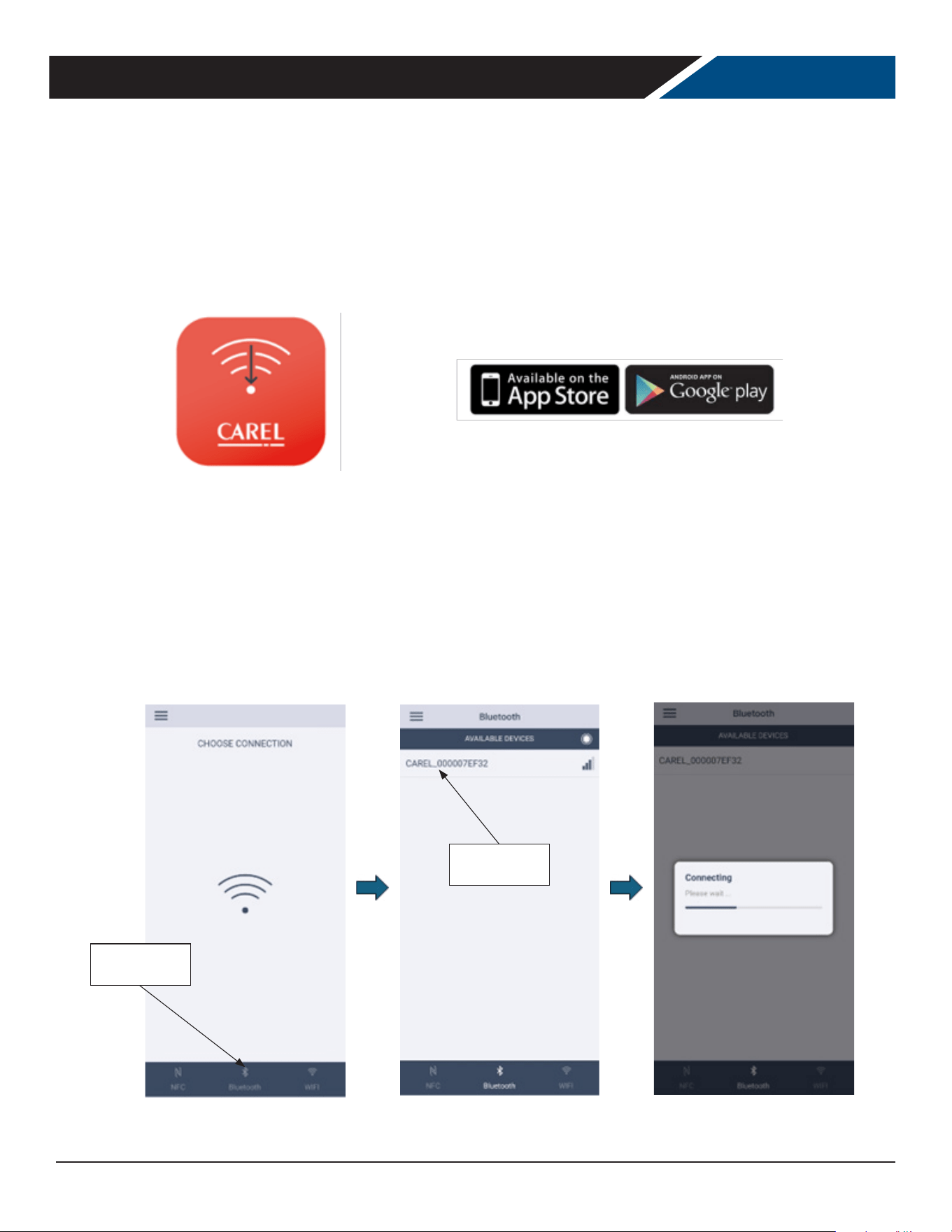

Carel Applica App ........................................................................................................................................13
Sequence of Operations .............................................................................................................................15

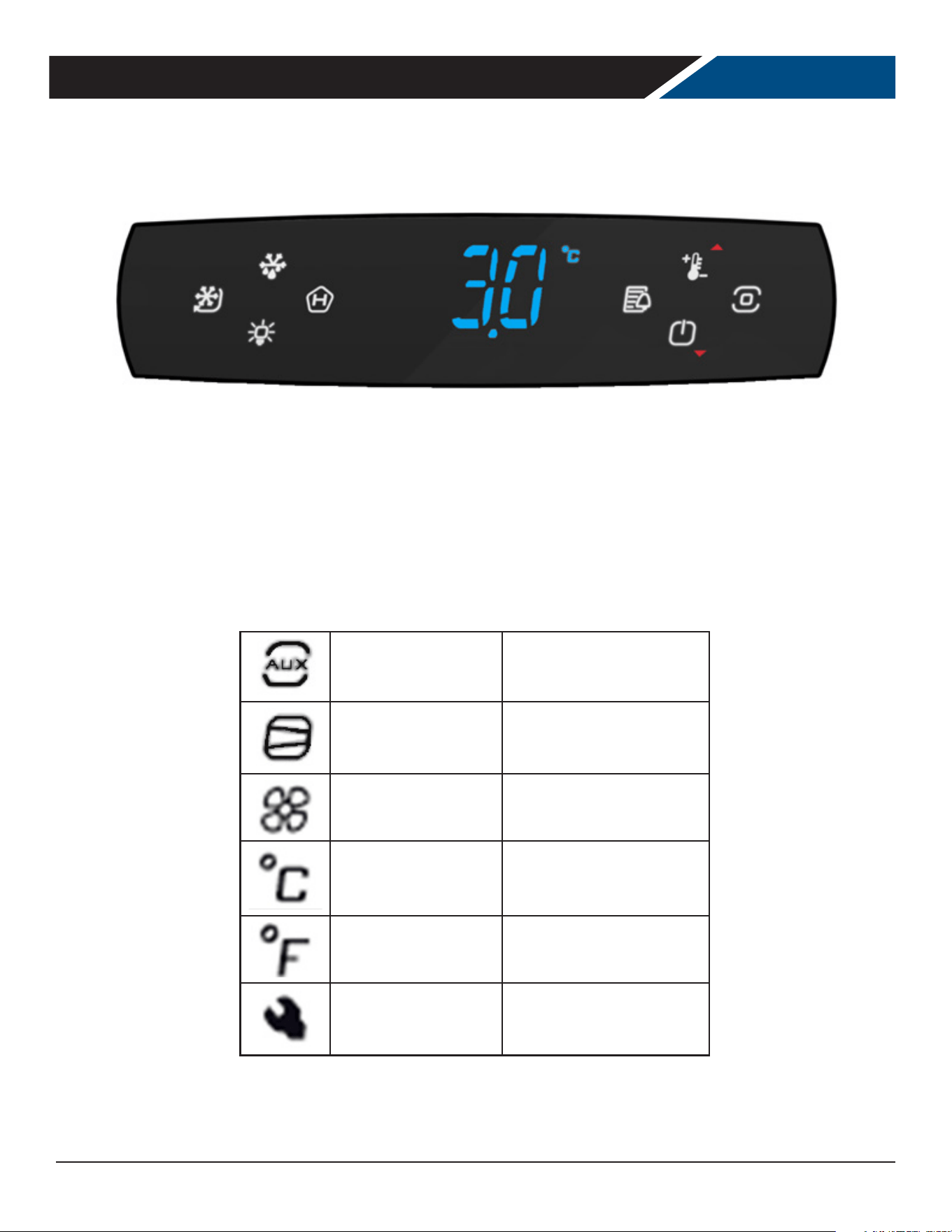

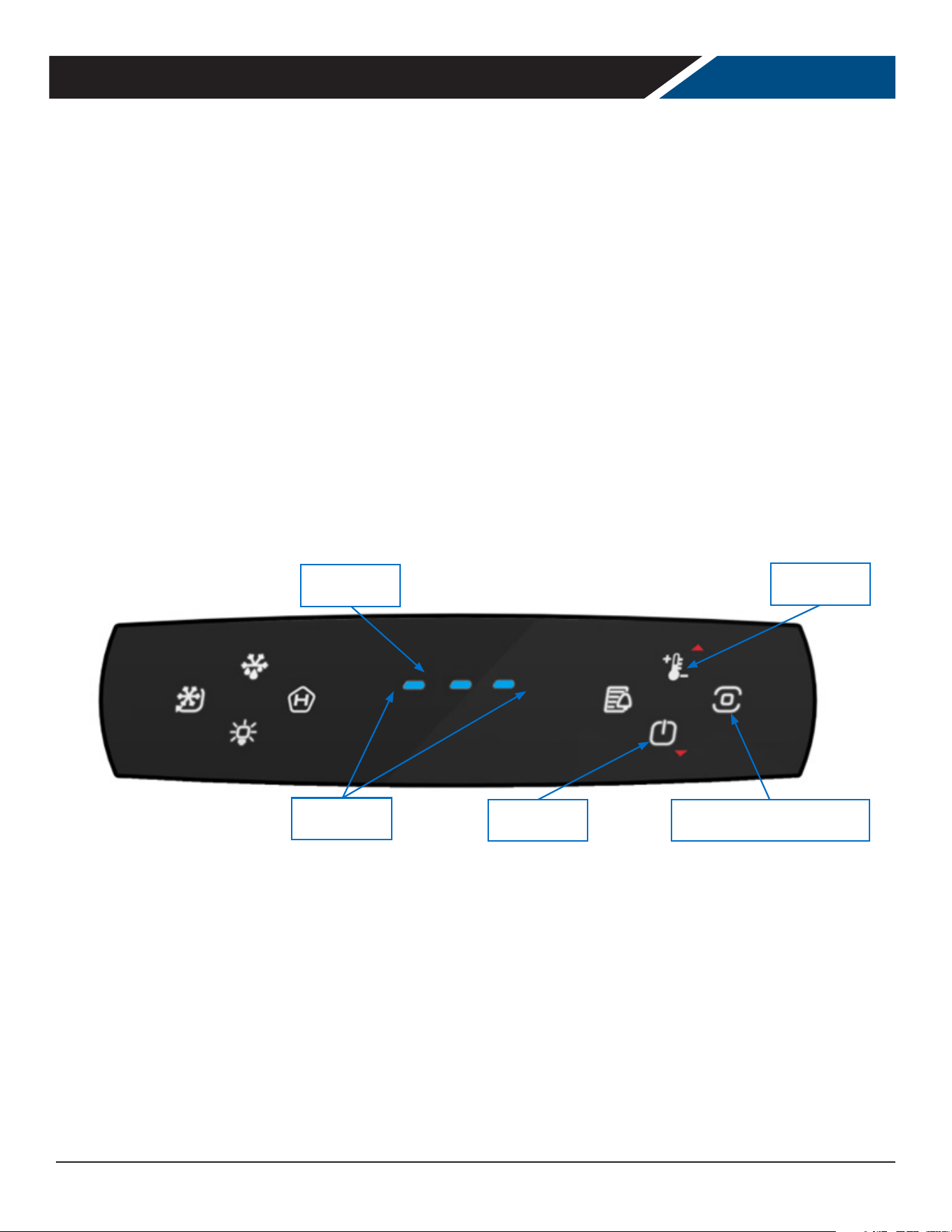

Electronic Controller Display ....................................................................................................................16

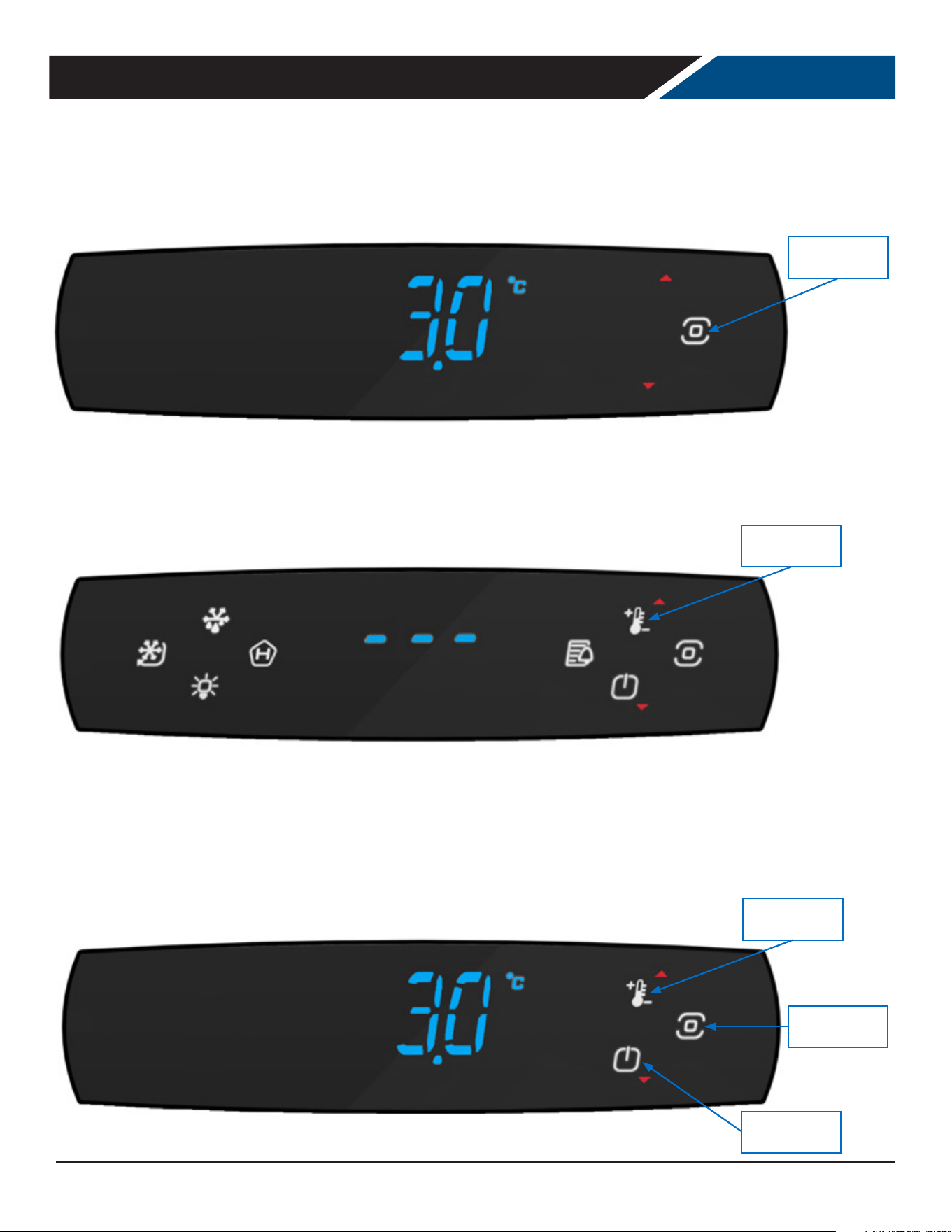

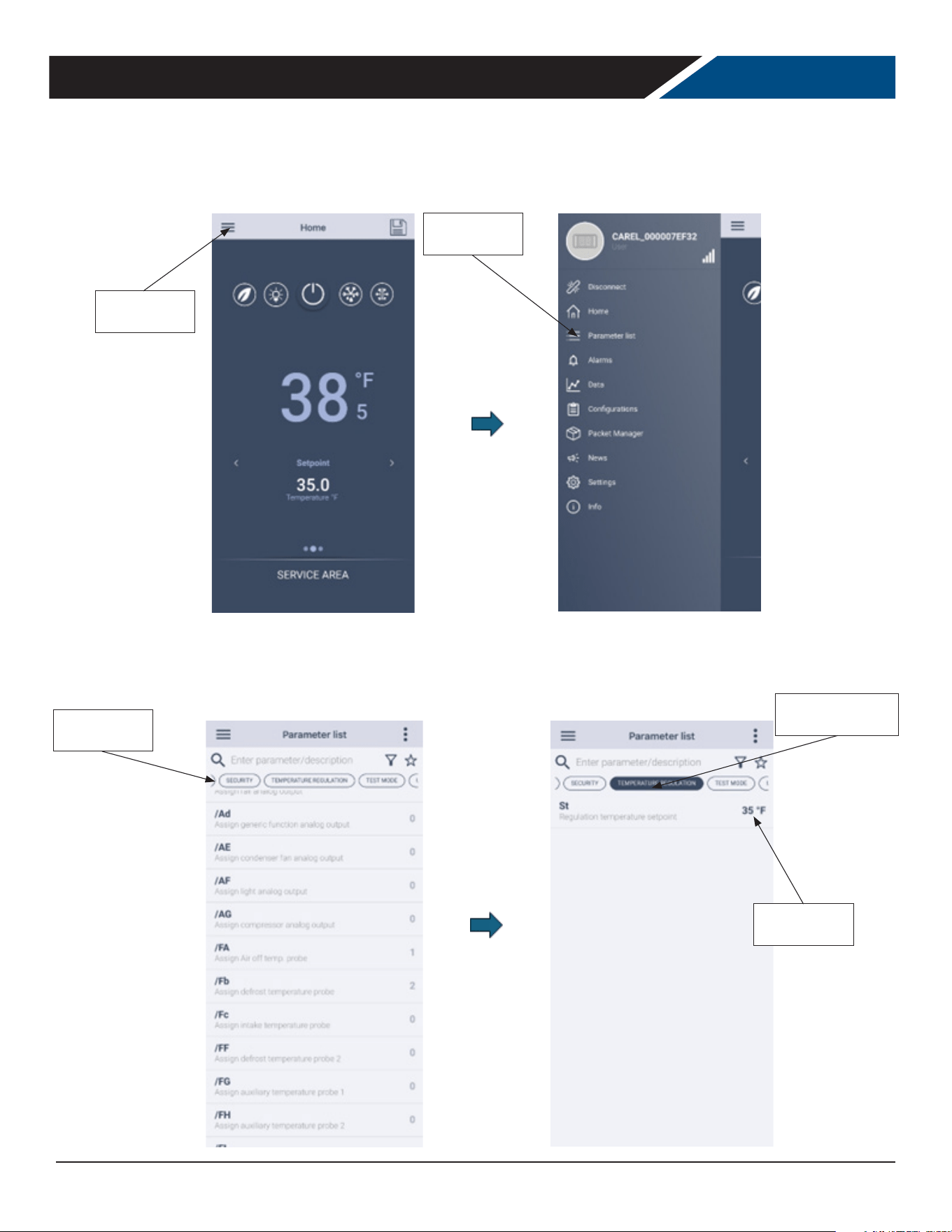

Changing the Operating Setpoint .............................................................................................................19

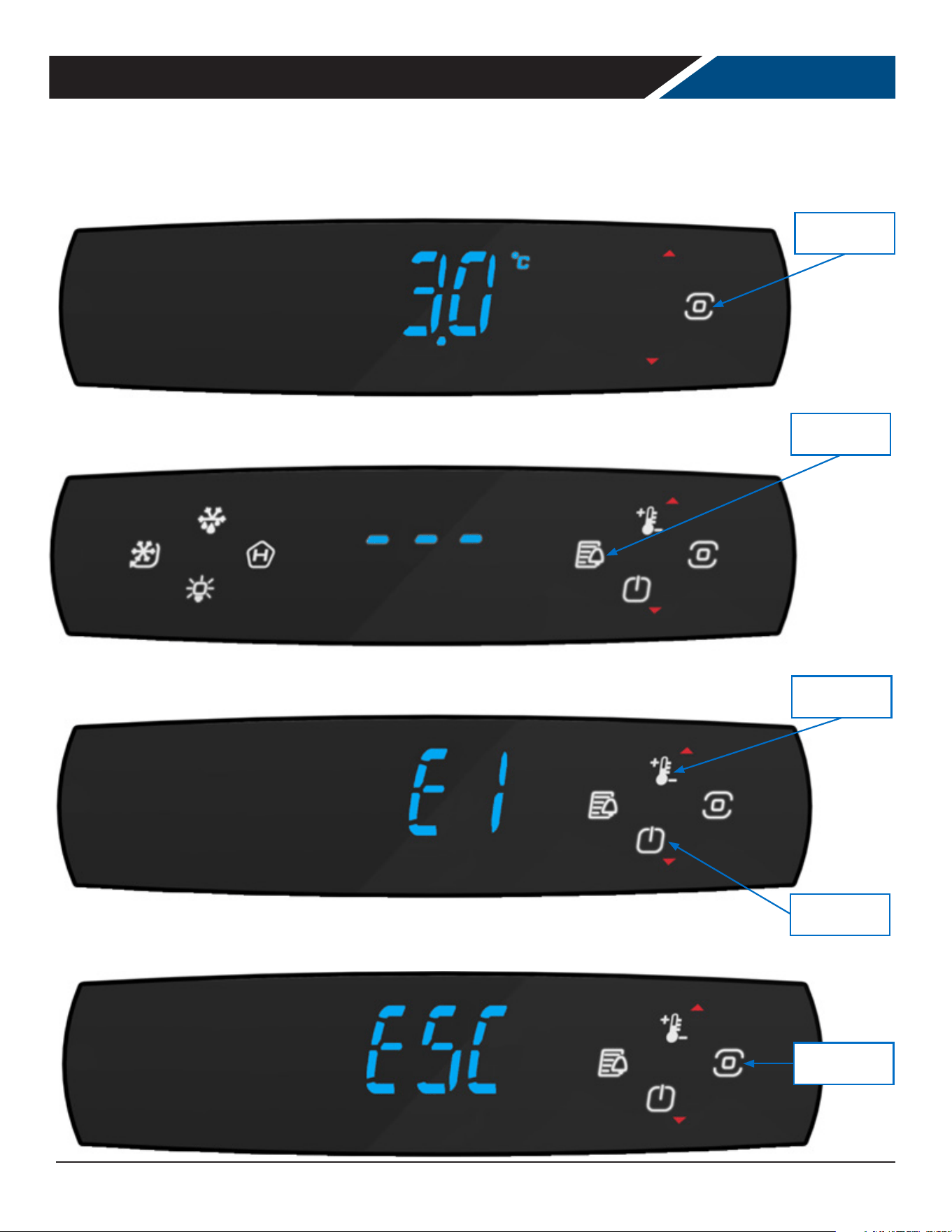

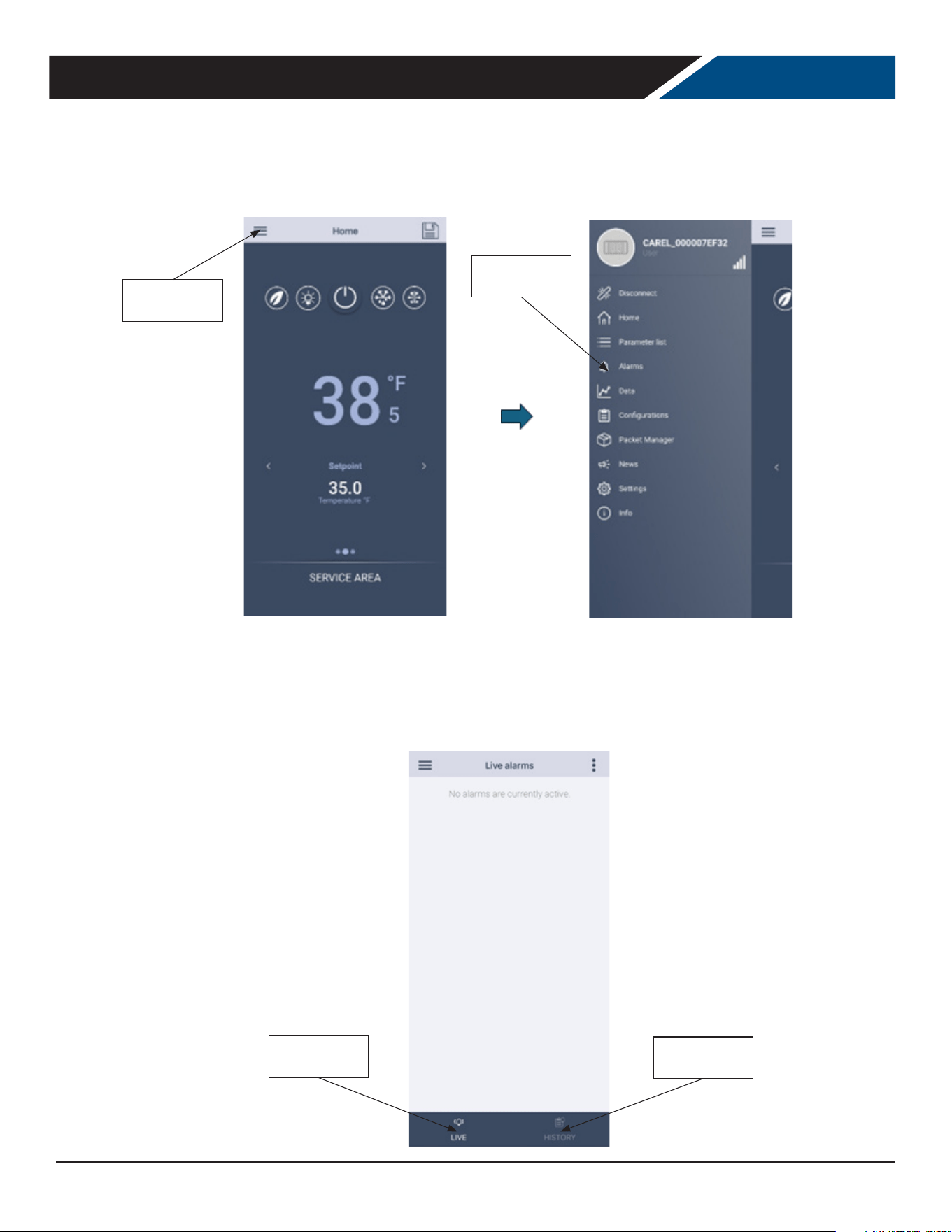

Alarm Codes ..................................................................................................................................................21
Cleaning and Maintenance ................................................................................................................................25
Condenser Cleaning ..............................................................................................................................................26
Methods For Cleaning Stainless Steel............................................................................................................. 27
Help .......................................................................................................................................................................... 28
For The Service Tech - R290 .............................................................................................................................29

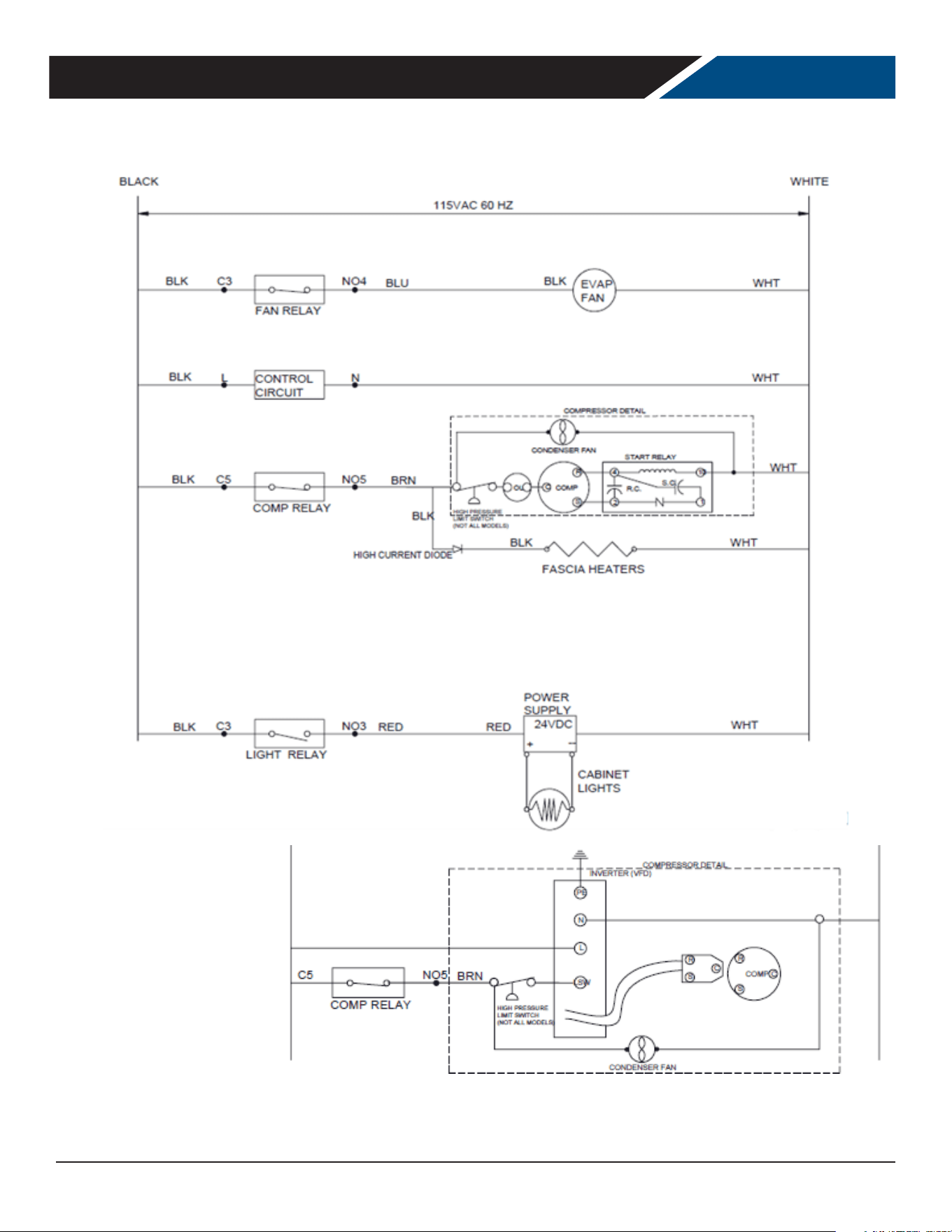

For The Service Tech - Single System Wiring Diagram ................................................................................30

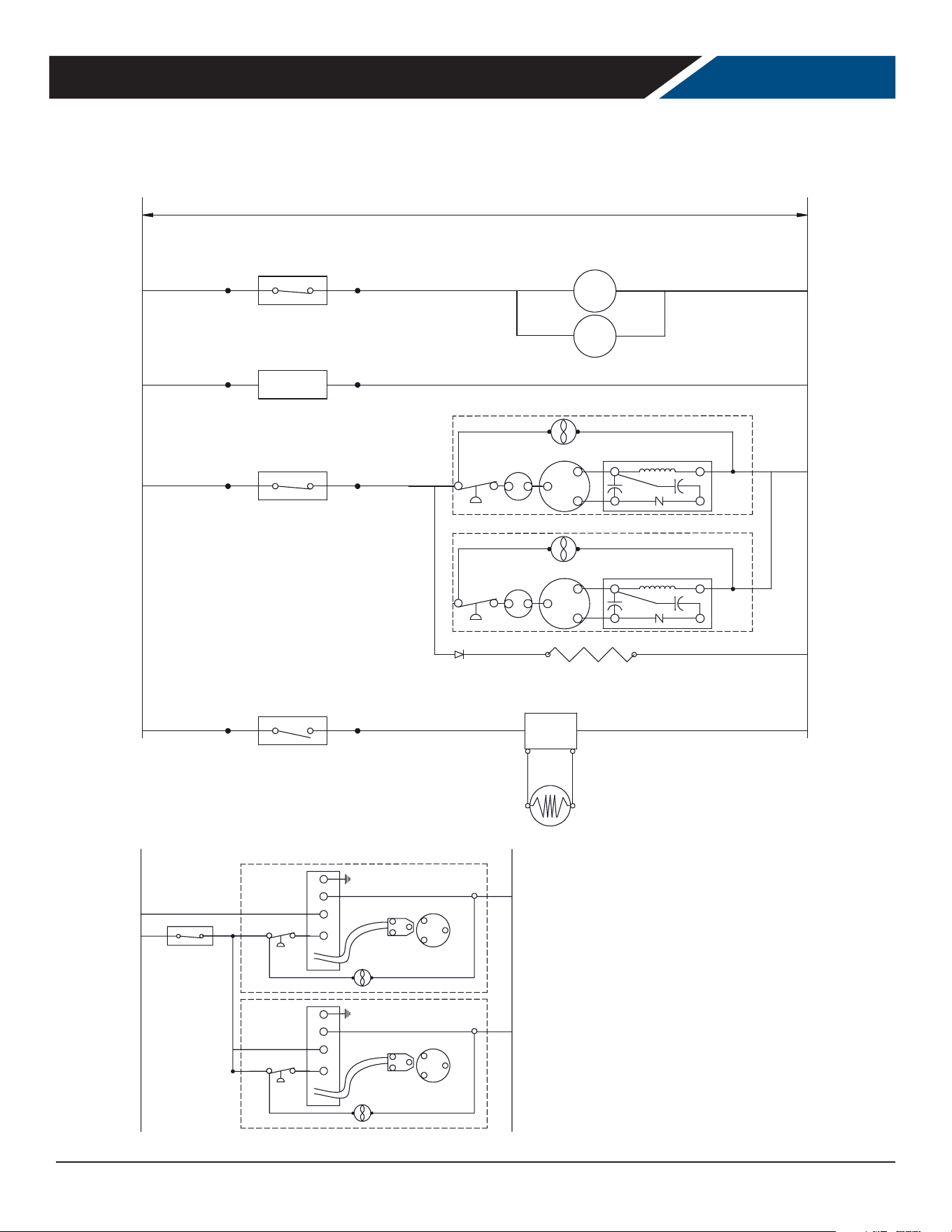

For The Service Tech - Two System Wiring Diagram ....................................................................................31
Limited Warranty .................................................................................................................................................32
Limited Warranty (continued) ........................................................................................................................... 33
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located with
this manual. Please complete the card and submit
it to Victory within TEN days of installation. Failure
to properly register equipment may limit or void the
warranty.
• Victory reserves the right to change specications
and product design without notice. Such revisions
do not entitle the buyer to corresponding changes,
improvements, additions, or replacements for
previously purchased equipment.
Thank you for purchasing a Victory cabinet. This series
has passed our strict quality control inspection and meets
the high standards set by Victory! You have made a
quality investment that with proper maintenance will give
you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Victory recommended technician certied to
repair R290 equipment.
• Use ONLY Victory factory service parts. Use of non
OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory4

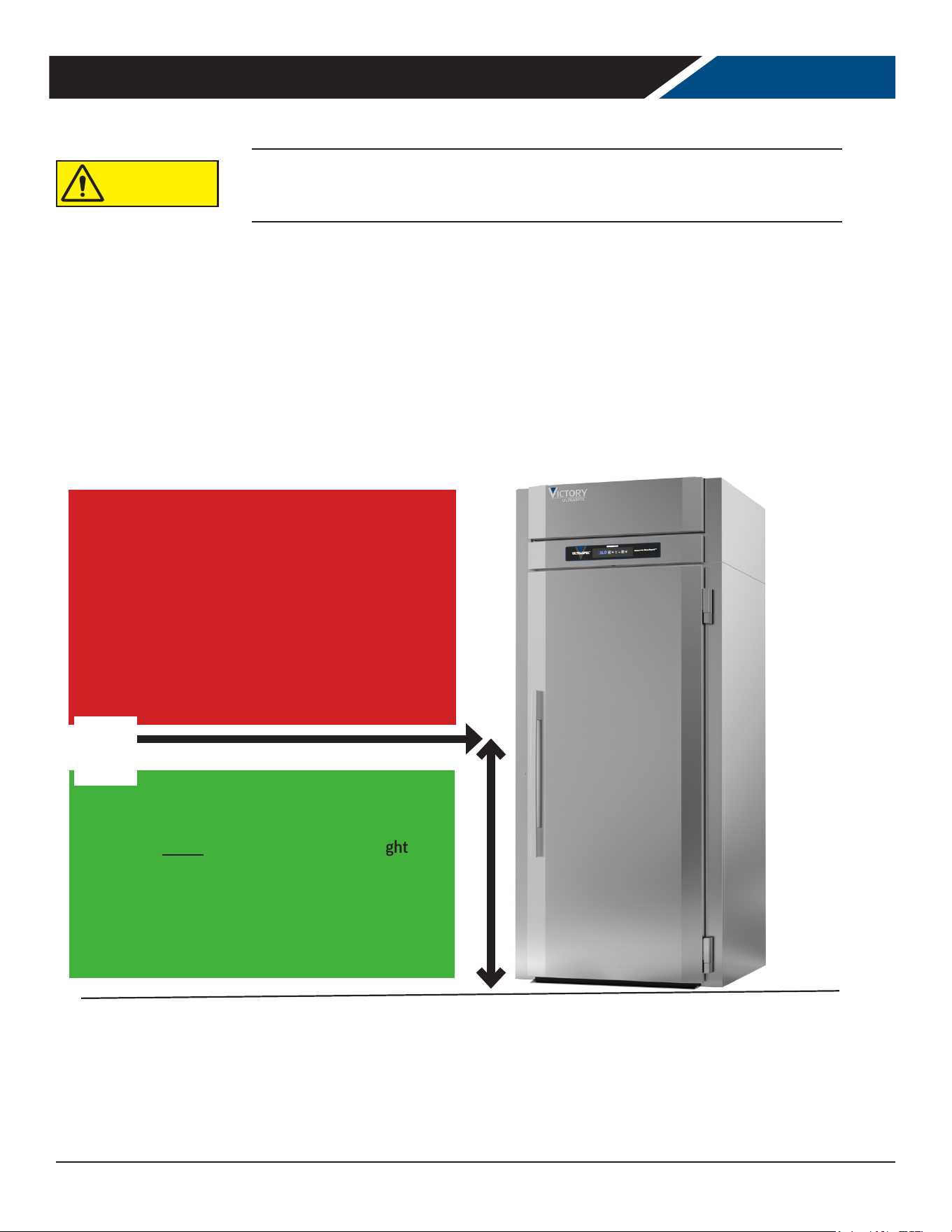

CAUTION: If it is necessary to move the Refrigerator after removal from the skid,
remove all doors and carefully push the unit at a point of no more than 36” from the
bottom to avoid damage.
CAUTION
SAFETY
Push ONLY below the 36 inch / .91 meter height
Height
will vary
by model
Do NOT push in this area.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 5

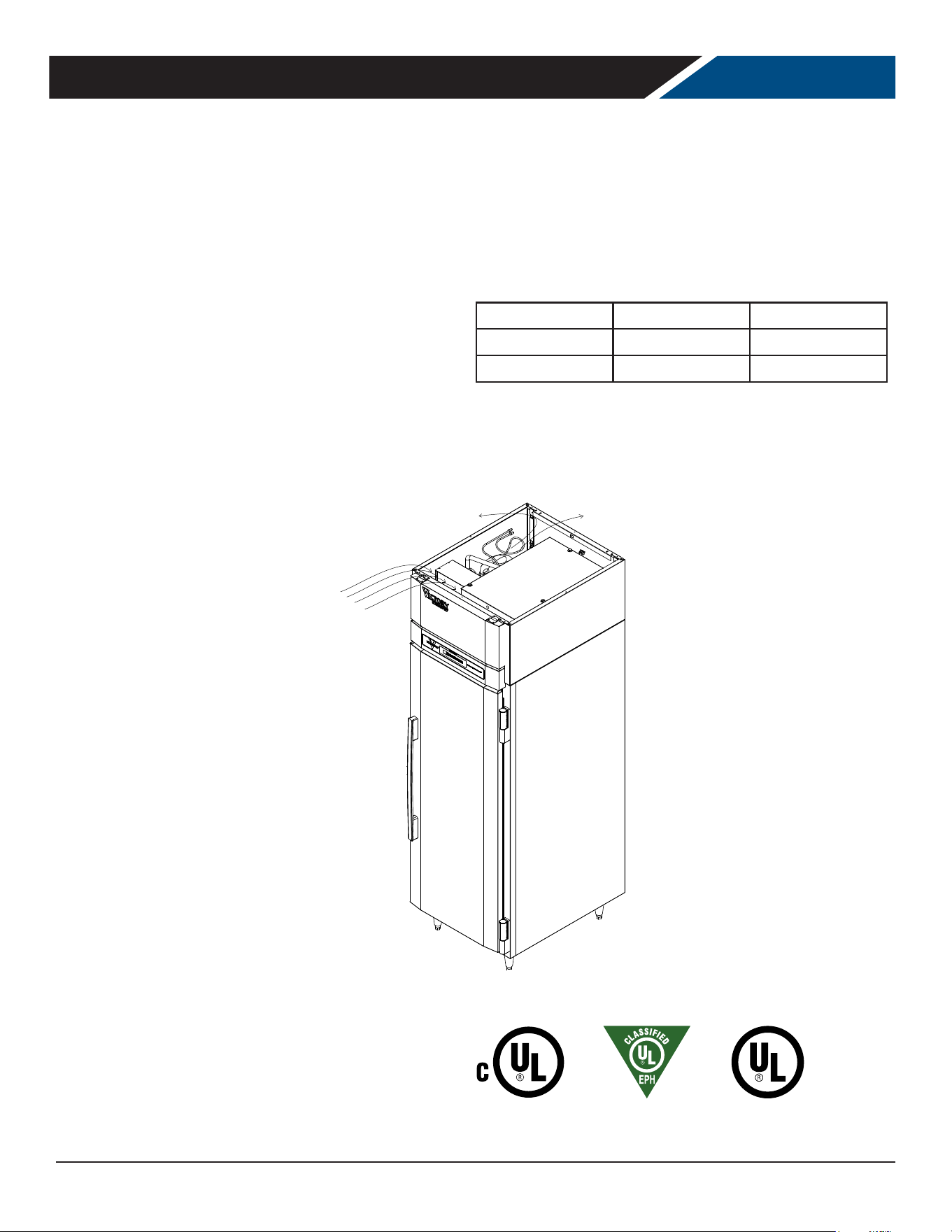

IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 60º F 100º F
Air Flow, All Models regardless of section, door count or door material.
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
ROOM AIR IN
WARM AIR OUT
OPEN TO REAR
WARM AIR OUT
WHEN BUILT IN
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory6
Model
Cabinet Dimensions
w x d x h (Inches)
Sections
Half
or Full
Door
Glass
or Solid
Door
Full
Load
Amps
Refrigerant Type /
Charge (g) / Charge (oz.)
RS(A)-1D-S1-HC 26 1/2 x 34 7/8 x 84 1/8
1
Full Solid
6.5 R-290 / 150 / 5.29
RS(A)-1D-S1-HD-HC 26 1/2 x 34 7/8 x 84 1/8 Half Solid
RS(A)-1D-S1-G-HC 26 1/2 x 33 1/2 x 84 1/8 Full Glass
RS(A)-1D-S1-HD-G-HC 26 1/2 X 34 1/4 X 84 1/8 Half Glass
RS(A)-1D-S1-EW-HC 31 1/4 x 34 7/8 x 84 1/8 Full Solid
RS(A)-1D-S1-EW-HD-HC 31 1/4 x 34 7/8 x 84 1/8 Half Solid
RS(A)-1D-S1-EW-G-HC 31 1/4 x 33 1/2 x 84 1/8 Full Glass
RS(A)-1D-S1-EW-HD-G-HC 31 1/4 x 33 5/8 x 84 1/8 Half Glass
RS(A)-1N-S1-HC 31 1/4 x 30 3/8 x 84 1/8 Full Solid
RS(A)-1N-S1-HD-HC 31 1/4 x 30 3/8 x 84 1/8 Half Solid
RS(A)-1N-S1-G-HC 31 1/4 x 29 x 84 1/8 Full Glass
RS(A)-1N-S1-HD-G-HC 31 1/4 x 29 x 84 1/8 Half Glass
RS(A)-1D-S1-PT-HC 26 1/2 x 38 3/4 x 84 1/8 Full Solid
RS(A)-1D-S1-PT-HD-HC 26 1/2 x 38 3/4 x 84 1/8 Half Solid
RS(A)-1D-S1-PT-G-HC 26 1/2 x 38 3/4 x 84 1/8 Full Glass
RS(A)-1D-S1-PT-HD-G-HC 26 1/2 x 36 1/8 x 84 1/8 Half Glass
RS(A)-1D-S1-EW-PT-HC 31 1/4 x 38 5/8 x 84 1/8 Full Solid
RS(A)-1D-S1-EW-PT-HD-HC 31 1/4 x 38 3/4 x 84 1/8 Half Solid
RS(A)-1D-S1-EW-PT-G-HC 31 1/4 x 35 3/4 x 84 1/8 Full Glass
RS(A)-1D-S1-EW-PT-HD-G-HC 31 1/4 x 36 1/8 x 84 1/8 Half Glass
RS(A)-2D-S1-HC 52 1/8 x 34 7/8 x 84 1/4
2
Full Solid
RS(A)-2D-S1-HD-HC 52 1/8 x 34 7/8 x 84 1/4 Half Solid
RS(A)-2D-S1-G-HC 52 1/8 x 33 1/2 x 84 1/4 Full Glass
RS(A)-2D-S1-HD-G-HC 52 1/8 x 33 1/2 x 84 1/4 Half Glass
RS(A)-2D-S1-EW-HC 58 3/8 x 34 7/8 x 84 1/8 Full Solid
RS(A)-2D-S1-EW-HD-HC 58 3/8 x 34 7/8 x 84 1/8 Half Solid
RS(A)-2D-S1-EW-G-HC 58 3/8 x 33 1/2 x 84 1/8 Full Glass
RS(A)-2D-S1-EW-HD-G-HC 58 3/8 x 33 1/2 x 84 1/8 Half Glass
RS(A)-2N-S1-HC 58 3/8 x 30 1/4 x 84 1/8 Full Solid
RS(A)-2N-S1-HD-HC 58 3/8 x 30 1/4 x 84 1/8 Half Solid
RS(A)-2N-S1-G-HC 58 2/5 x 28 7/10 x 85 1/5 Full Glass
RS(A)-2N-S1-HD-G-HC 58 2/5 x 28 9/10 x 84 1/5 Half Glass
PRODUCT INFORMATION
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 7
Model
Cabinet Dimensions
w x d x h (Inches)
Sections
Half
or Full
Door
Glass
or Solid
Door
Full
Load
Amps
Refrigerant Type /
Charge (g) / Charge (oz.)
RS(A)-2D-S1-PT-HC 52 1/8 x 38 5/8 x 84 1/8
2
Full Solid
6.5 R-290 / 150 / 5.29
RS(A)-2D-S1-PT-HD-HC 52 1/8 x 38 5/8 x 84 1/8 Half Solid
RS(A)-2D-S1-PT-G-HC 52 1/8 x 35 3/4 x 84 1/8 Full Glass
8.5
R-290 / 130 / 4.59
RS(A)-2D-S1-PT-HD-G-HC 52 1/8 x 36 x 84 1/8 Half Glass
R-290 / 150 / 5.29RS(A)-2D-S1-EW-PT-HC 58 3/8 x 38 3/4 x 84 1/8 Full Solid
6.5
RS(A)-2D-S1-EW-PT-HD-HC 58 3/8 x 38 3/4 x 84 1/8 Half Solid
RS(A)-2D-S1-EW-PT-G-HC 58 3/8 x 35 7/8 x 84 1/8 Full Glass
8.5 R-290 / 130 / 4.59
RS(A)-2D-S1-EW-PT-HD-G-HC 58 3/8 x 35 7/8 x 84 1/8 Half Glass
RS(A)-3D-S1-HC 77 3/4 x 34 7/8 x 84 1/4
3
Full Solid
RS(A)-3D-S1-HD-HC 77 3/4 x 34 7/8 x 84 1/4 Half Solid
RS(A)-3D-S1-G-HC 77 3/4 x 33 1/2 x 84 1/4 Full Glass
RS(A)-3D-S1-HD-G-HC 77 3/4 x 33 5/8 x 84 1/4 Half Glass
RS(A)-3D-S1-EW-HC 85 1/2 x 34 7/8 x 84 1/8 Full Solid
RS(A)-3D-S1-EW-HD-HC 85 1/2 x 34 7/8 x 84 1/8 Half Solid
RS(A)-3D-S1-EW-G-HC 85 1/2 x 33 3/8 x 84 1/8 Full Glass
RS(A)-3D-S1-EW-HD-G-HC 85 1/2 x 33 1/2 x 84 1/8 Half Glass
RS(A)-3D-S1-PT-HC 77 3/4 x 38 5/8 x 84 1/4 Full Solid
RS(A)-3D-S1-PT-HD-HC 77 3/4 x 38 5/8 x 84 1/4 Half Solid
RS(A)-3D-S1-PT-G-HC* 77 3/4 x 35 7/8 x 84 1/4 Full Glass
10.8 R-290 / 150 / 5.29
RS(A)-3D-S1-PT-HD-G-HC* 77 3/4 x 36 1/8 x 84 1/4 Half Glass
RS(A)-3D-S1-EW-PT-HC 85 1/2 x 38 3/4 x 84 1/8 Full Solid
8.5
R-290 / 130 / 4.59
RS(A)-3D-S1-EW-PT-HD-HC 85 1/2 x 38 3/4 x 84 1/8 Half Solid
RS(A)-3D-S1-EW-PT-G-HC* 85 1/2 x 35 7/8 x 84 1/8 Full Glass
10.8
RS(A)-3D-S1-EW-PT-HD-G-HC* 85 1/2 x 36 x 84 1/8 Half Glass
RS models have stainless steel liners; RSA models have aluminum liners.
Height includes casters.
* These models have two refrigeration systems, charge numbers are for each system.
• All models will maintain product temperature between 36 and 38 degrees F. at the factory setting of 38.
0
F.
• All models are 115 volts, 60 Hz AC and are equipped with a NEMA 5-15P plug.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
• Ultra Glass doors are optional - for full Ultra Glass Doors change G to UG, for Ultra Glass half doors, change HG to HD-
UG.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory8

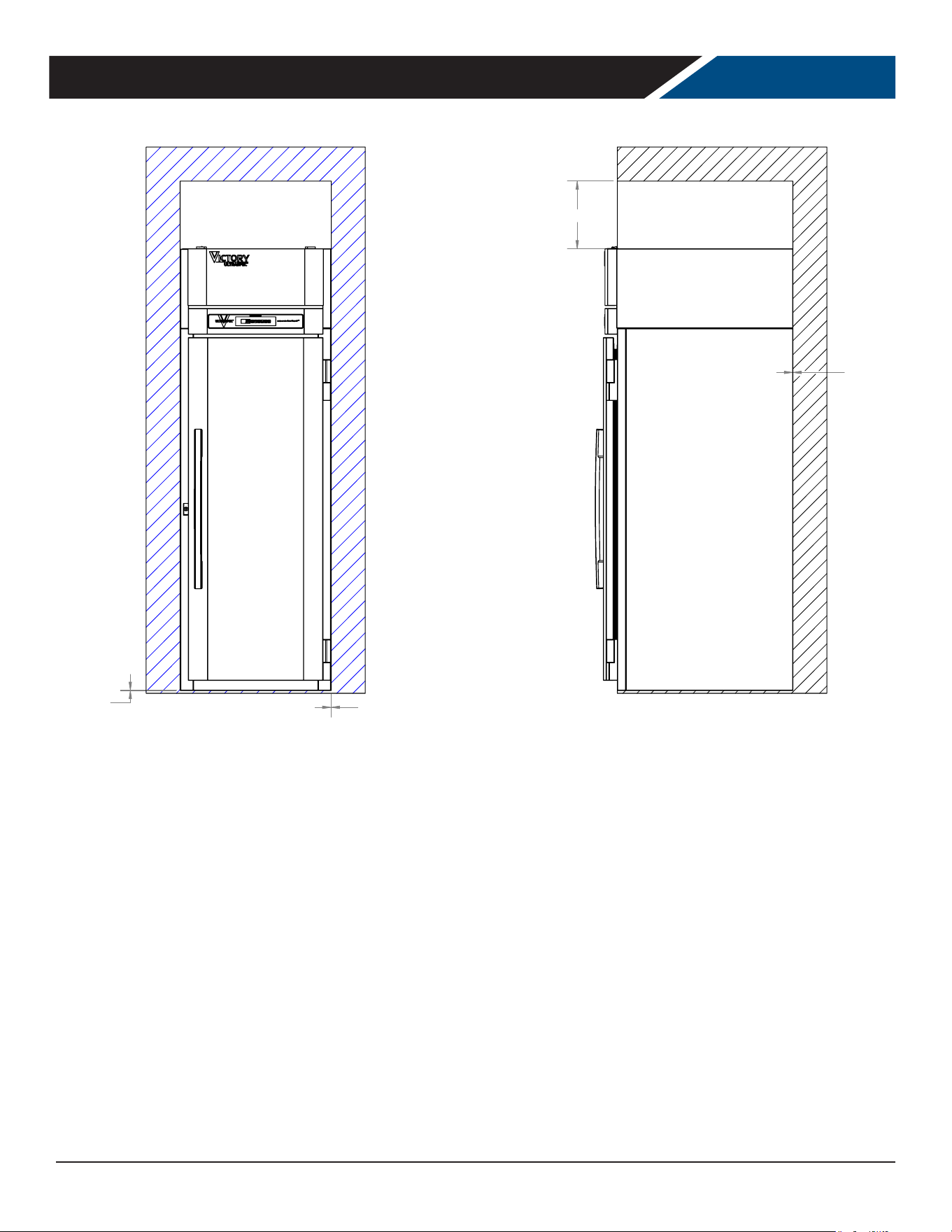

CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your Refrigerator:
Clearance:
• 12 in. at the top
• 0.0 in. at the rear,
• 0.0 in. at the left side
• 0.0 in. at the right side
Floor Load: the oor on which the Refrigerator is located must be even and level, free from vibrations, and strong enough
to support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.
0" AT SIDES
0" AT
FLOOR
12" AT TOP
0" AT
REAR
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 9
UNPACKING AND SET UP
CAUTION
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Uncrating
Tools Needed: ¾" box wrench, adjustable wrench, level, at
head screw driver, and box cutter.
1. Remove the cardboard top capping, all clear tape,
and all staples including those at the bottom of the
cardboard carton and skid.
2. Start from the top of the carton. Using the box cutter,
carefully make one continuous cut to the bottom of the
skid. Remove cardboard carton and discard.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Do NOT tip unit on its front or sides. If tipped onto the back,
unit must not be started for 3 hours.
Note: additional clear plastic protective wrap is applied
directly to any product with a glass door.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
1. Remove the shipping bolts using the ¾" box wrench
while cabinet is held in one direction. Repeat the
process while the cabinet is held in the opposite
direction.
2. Tilt the cabinet in one direction approximately 8" and
block it securely with pieces of 2x4 lumber or other
suitable material.
Note for the following: None of the threads on the leg or
caster stem should be visible once screwed in.
3. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible. Some models may already have levelers
installed. If so, then the levelers will need to rst be
removed and discarded.
4. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between the
mounting plate and the wheel of the caster until snug.
5. Repeat this procedure with unit secured in the opposite
direction so as to access the remaining legs/casters/
levelers
6. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
7. If levelers are employed, then repeat step 3 above and
thread the leveler in place. Then repeat step 5.
Leveling
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Failure to level your cabinet may result in door not sealing,
closing correctly, or condensed water not draining properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, level by placing large washers in
between the ½' stud and the holes in the bottom of the case.
Do NOT loosen casters to level the
cabinet. Casters MUST be tightly
secured to cabinet for full strength.
Install or attach any accessories that will be used Remove
any plastic covering the stainless steel.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory10
1. Determine the proper location for the shelf clips.
2. Insert the top tab of the shelf clip into the desired
hole of the pilaster. The retaining tab MUST be facing
up as shown.
3. Rotate the clip downwards and insert the bottom tab
into the matching hole in the pilaster. The clip may
need to be squeezed slightly during installation.
4. Install all remaining clips.
5. Install shelves onto clips with the product retention
bar facing up. Be careful not to dislodge clips during
installation.
6. Place shelves so that the retaining tab on the clip
captures the shelf as shown.
7. Conrm that the shelf is resting on ALL 4 clips and
that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf
and / or the product on it to fall, resulting in damage
to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to
use all shelves that are supplied in an equally spaced
manner. Contact Victory customer service if fewer
shelves or a dierent conguration to ensure shelf
overloading will not occur.
SHELF INSTALLATION
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 11
ELECTRICAL
11
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this issue
in a location that requires GFCI circuit protection, Victory
recommends using either an Eaton, SGF20, or HUBBELL
Model Number GFRST83W 20A Heavy Duty Hospital
Grade Self-Test GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
• Check for proper electrical hook-up.
• Cabinet MUST NOT SHARE A RECEPTACLE with
another piece of equipment
• Check that all clearances are in line with the
aforementioned guidelines.
• Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product. For
proper energy eciency and airow we recommend a
minimum1” clearance between product and side walls, 4”
clearance between product and ceiling, and 1” clearance
from the bottom of the unit.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory12
USING THE UNIT
Operation is simple, just keep it connected to the correct
power supply and the refrigerator will maintain the
internal temperature it has been set to. Keep the doors
closed as much as possible to avoid unnecessary run time.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
The temperature was set at the factory at 38
º
F, but you
can adjust it to your own selected temperature. See pages
19 & 20.
The Refrigerator will automatically defrost as needed,
there is no set time for defrost. Push and immediately
release the "melting" or defrost button for a manual
defrost.
The internal fan will be on when the compressor is on and
when the doors are closed.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
Increase
Display
Icons
Decrease Changes begin with Parameter Button
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 13
Open the app and select “Bluetooth” to search for your device. Select the Carel device that
appears on the screen and wait for the control to connect.
Bluetooth
Control
CAREL APPLICA APP
ACCESSING THE CONTROL VIA SMARTPHONE OR TABLET
Download the Carel APPLICA app through the App Store or Google Play Store to access
the control via Bluetooth.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory14
Arrive at the home page for the Applica App.
Select the “User” prole and type in the password: 0 and press “Ok”.
User
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 15
ON OFF
COMPONENT OPERATION CONTROLLER
ACTION
OPERATION CONTROLLER
ACTION
COMPRESSOR
Compressor turns
on when the cabinet
temperature is above
the sum of the set
point and the dead
band
The Compressor
Contact is energized
Compressor turns
o when the cabinet
temperature is equal
to or less than the set
point
The Compressor
Contact is de-
energized
IJF terminals NO5, C5 IJF terminals NO5, C5
CONDENSER FAN
The Condenser Fan
turns on when the
Compressor is running
The Condenser
Fan is wired to the
Compressor Relay on
control
The Condenser Fan
turns o when the
Compressor is not
running
The Condenser Fan is
wired directly to the
Compressor Control
Relay
IJF terminals NO5, C5
IJF terminals NO5, C5
EVAPORATOR FAN
The Evaporator Fan
runs continuously
except on door
opening.
The Evaporator Fan
Control contact is
energized.
The Evaporator Fan
turns o for 1 minute
when the door is
opened
The Evaporator Fan
Control contact is de-
energized
IJF terminals NO4, C3 IJF terminals NO4, C3
LIGHT
The light will turn on
when the door is open,
or the light button is
pressed
The Light Control
Contact is energized
The light will turn
o when the door is
closed, or the light
button is pressed
The Light Control
Contact is de-
energized
IJF terminals NO3, C3 IJF terminals NO3, C3
FACE HEATER
Face Heater is on
when condensing unit
is on
Heater is wired with
the compressor relay
The Face Heater is o
when condensing unit
is o
Heater is wired with
the compressor relay
CONDITION
CABINET TEMP > SET POINT + DEAD BAND
ON ON ON ON or OFF
CABINET TEMPERATURE <= SET POINT
OFF OFF ON ON or OFF
DEFROST
OFF OFF ON ON or OFF
SEQUENCE OF OPERATIONS
COMPRESSOR
CONDENSER FAN
EVAPORATOR FAN
LIGHTS
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory16
ELECTRONIC CONTROLLER DISPLAY
CONTROL PANEL INDICATORS
Auxiliary Output Active
Compressor Active
Evaporator Fan Active
°C Unit of Measure °C
°F Unit of Measure °F
Service Maintenance Active Alarms
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 17

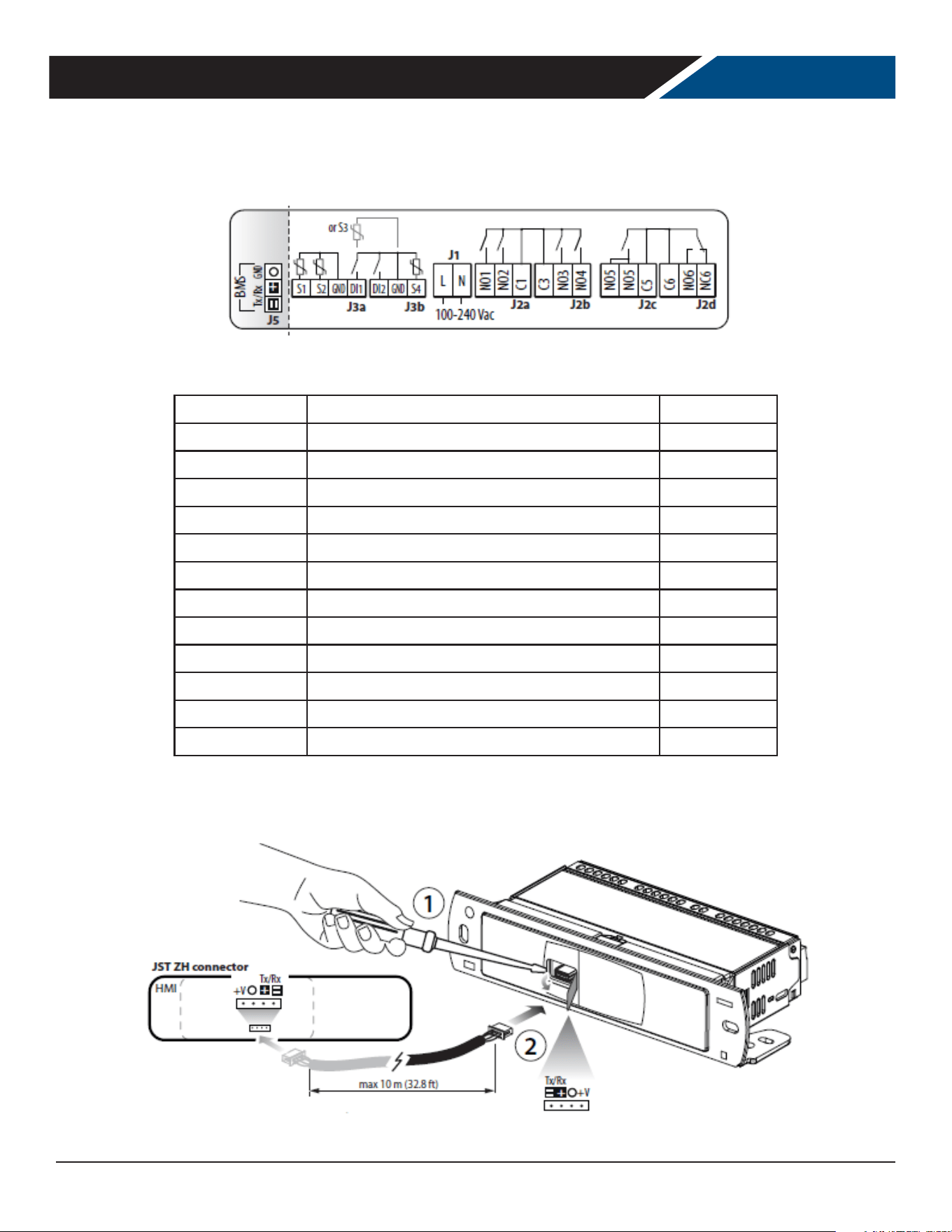

DISPLAY CONNECTION
Relay/Probe Description Terminal
NO1 NOT USED NO1, C1
NO2 NOT USED (EXTERNAL ALARM) NO2, C1
NO3 LIGHT NO3, C3
NO4 EVAPORATOR FAN NO4, C3
NO5 COMPRESSOR NO5, C5
NO6 DEFROST ELEMENT NO6, C6
NC6 NOT USED NC6, C6
S1 AIR/CONTROL PROBE S1, GND
S2 EVAPORATOR/DEFROST PROBE 1 S2, GND
DI1 DIGITAL INPUT/DOOR SWITCH DI1, GND
DI2 NOT USED DI2, GND
S4 EVAPORATOR/DEFROST PROBE 2 S4, GND
CONTROL PANEL CONNECTIONS
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory18

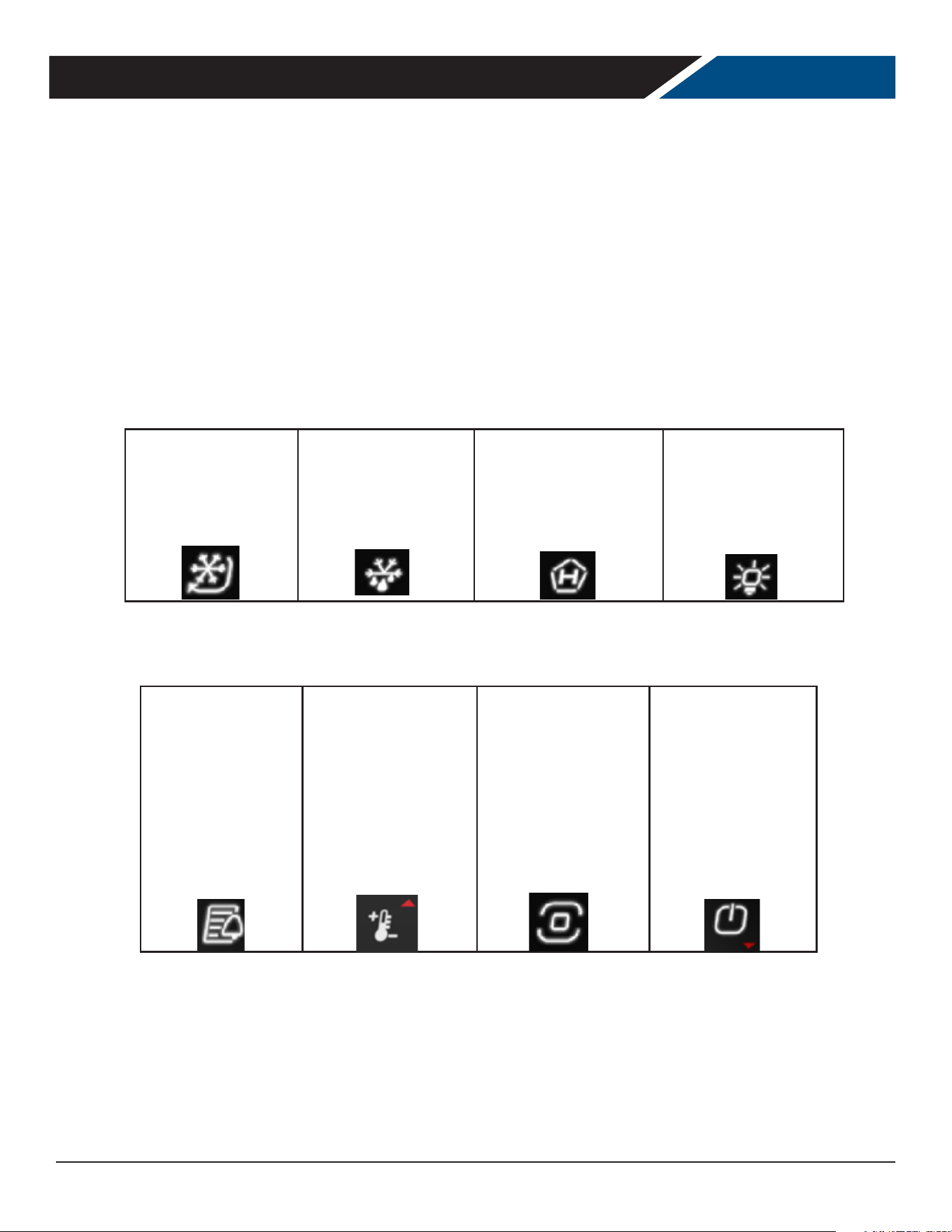

CONTINUOUS CYCLE
Press and Release
Activate/Stop
Continuous Cycle
mode
DEFROST
Press and Release
Activate/Stop Defrost
HACCP
Press and Release
View HACCP alarms
and HACCP menu
LIGHT
Press and Release
Toggle light on and o
ALARM LOG
Press and Release
View active alarms
and alarm menu
SET/ UP
Press and Release
Quickly access
setpoint adjustment.
Scrolls menus and
increases values
PROGRAM (ENTER)
Press and Release
Used as enter button.
Saves Parameter
Value
Press and Hold (3s)
Take the control out
of standby. Return to
previous parameter
POWER/ DOWN
Press and Release
Switch unit on and
o. Scrolls menus
and decreases
values
Note: Keypad has a 3 second lock feature. Press and hold the program button for 3 secs to
unlock. All icons will appear when keypad is unlocked
KEYBOARD FUNCTIONS
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 19
To change the operating set point, press and hold the parameter button for three seconds
until the other buttons appear.
Press and release the set button to view the setpoint.
Use the up and down button to change the setpoint. When adjustment is nished, press
and release the parameter button to save the change.
CHANGING THE OPERATING SETPOINT - CONTROL PANEL
Parameter Button
Set Button
Up Button
Enter Button
Down Button
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory20
Open the menu and go to the parameter list.
Parameter List
Menu
Scroll across the parameter tags and nd the one labeled "Temperature Regulation". Select
it and change the Setpoint (St).
Parameter Tags
Setpoint
Temperature Regulation
CHANGING THE OPERATING SETPOINT - CAREL APPLICA APP
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 21
VIEWING ALARM CODES - CONTROL PANEL
To view the alarm codes, press and hold the parameter button for three seconds until the
other buttons appear.
Press and release the alarm log button to view the alarm codes.
Use the arrows to scroll through the alarm code.
Scroll to "ESC" and press the enter button to exit the alarm log.
Parameter Button
Alarm Log
Up Button
Down Button
Enter Button
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory22
VIEWING ALARM CODES - CAREL APPLICA APP
Here you can view active alarm codes and a history of alarms that have gone o.
Live Alarms
Alarm History
Open the menu and open to the alarms page
Menu
Alarms
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 23
Display
Code
Log
Code
Description Icon
Display
Alarm
Relay
Buzzer Reset Eects on Control
Afr 29 Frost protection YES YES YES Automatic Compressor OFF
AtS 30 Restart in pump down NO NO NO Automatic
CE 28 Conguration write error NO NO NO Automatic
cht 17 High condensing
temperature warning
NO NO NO Automatic
CHt 18 High condensing
temperature alarm
NO NO NO Manual Compressor OFF
COM 34 VCC communication error YES YES YES Automatic
dA 14 Delayed alarm from
external contact
YES YES YES Automatic Compressor operation in
duty setting mode (par
A6); dead band, lights and
auxiliary output OFF
dor 15 Door open YES YES YES Automatic See “Door management”
E1 1 Probe 1 faulty or
disconnected
NO NO NO Automatic According to the associated
function (see below)
E2 2 Probe 2 faulty or
disconnected
NO NO NO Automatic
E3 3 Probe 3 faulty or
disconnected
NO NO NO Automatic
E4 4 Probe 4 faulty or
disconnected
NO NO NO Automatic
E5 5 Probe 5 faulty or
disconnected
NO NO NO Automatic
E6 6 Probe S1H faulty or
disconnected
NO NO NO Automatic
E7 7 Probe S2H faulty or
disconnected
NO NO NO Automatic
Ed1 10 Defrost terminated after
maximum time
NO NO NO Automatic
Ed2 11 Defrost on second
evaporator terminated
after maximum time
NO NO NO Automatic
EHI 36 High power supply voltage
alarm
YES YES YES Automatic
ELO 37 Low power supply voltage
alarm
YES YES YES Automatic
Etc 9 Clock Error NO NO NO Manual Time bands disabled
ALARM CODES
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory24
Display
Code
Log
Code
Description Icon
Display
Alarm
Relay
Buzzer Reset Eects on Control
GHI 19 Generic alarm high
threshold
YES YES YES Automatic
GLO 20 Generic alarm low threshold YES YES YES Automatic
HA 21 Type HA HACCP alarm (high
temp. during operation)
NO NO NO Manual
HF 22 Type HF HACCP alarm (high
temp. after blackout)
NO NO NO Manual
HI 24 High temperature YES YES YES Automatic
IA 13 Immediate alarm from
external contact
YES YES YES Automatic Compressor operation in duty
setting mode (par A6); dead
band OFF
LO 23 Low temperature YES YES YES Automatic
LP 32 Low pressure YES YES YES Semi-
automatic
Compressor OFF
MAn 38 Output status overridden in
manual mode
YES YES YES Automatic
Pd 26 Maximum pump down time YES YES YES Automatic
rE 12 Control probe faulty or
disconnected
YES YES YES Automatic Compressor operation in duty
setting mode (par c4); dead
band OFF
rSF 31 Refrigerant leak alarm YES YES YES Manual Switch o all actuators
SF 27 Conguration not completed
correctly
NO NO NO Manual
SrC 35 Maintenance request YES YES YES Manual
UCF 33 VCC operation error YES YES YES Automatic
ALARM CODES CONT'D
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 25
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Monthly inspection,
cleaning as required
Gaskets
Daily inspection, check
that hinges are tight to
the cabinet.
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items and shelves. Store
the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100
o
F to 110
o
F) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a safe
temperature.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory26

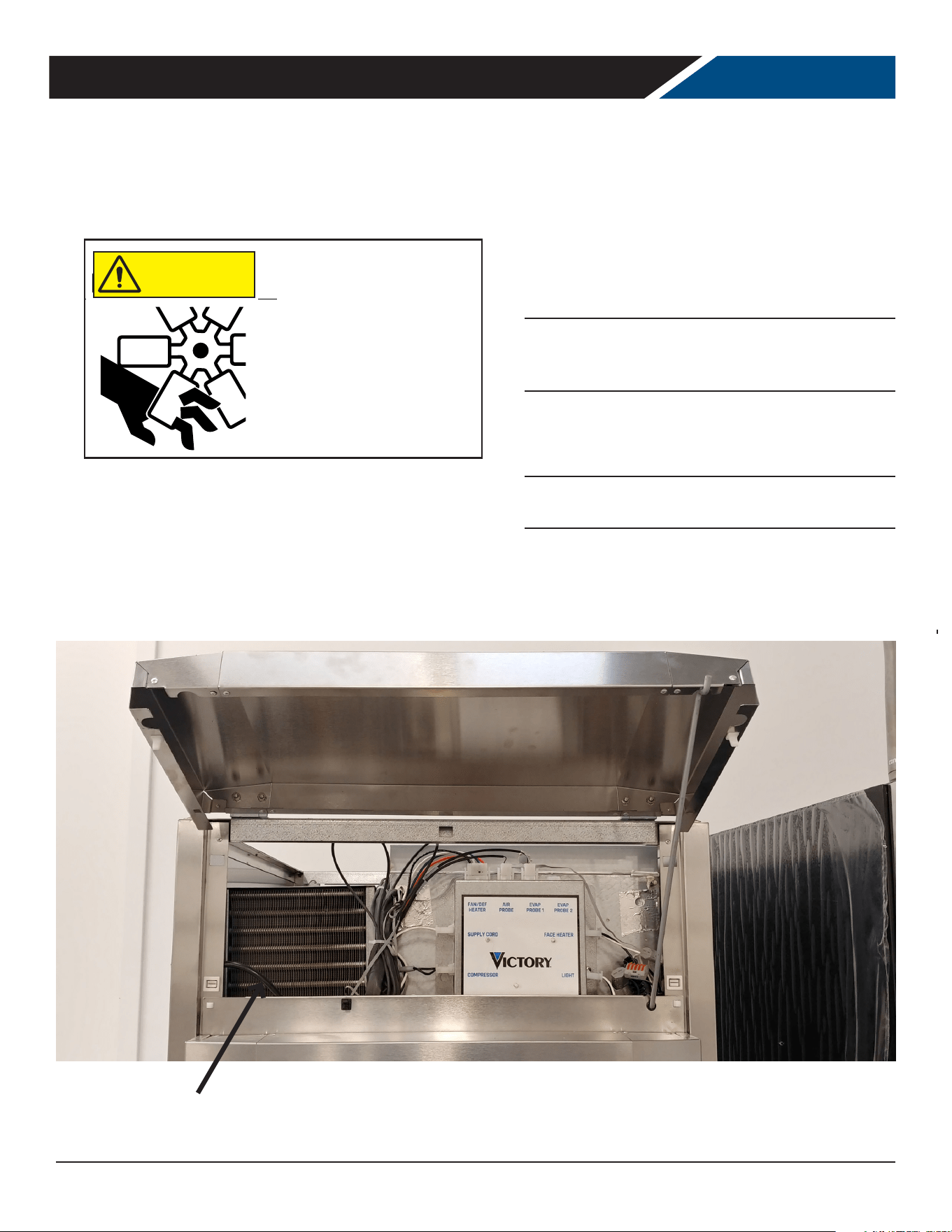

CONDENSER CLEANING
Keeping the condenser coil clean is critical to ecient
operation.
1. Unplug unit from power supply.
Rotating fan blade can cause
personal injury.
Unplug unit from power supply
before beginning to clean
condenser
CAUTION
2. Pull out on the bottom of the top panel to disengage
the locking clips
3. Raise the hinged panel
4. Remove the panel stand from its clip and secure into
the notch in the front right corner of the raised panel
5. Examine condenser surface, if dusty, brush and
vacuum the dust and lint from the surface of the
coil. Brush up and down to avoid damaging the ns.
Use care to not disturb the wires connected to the
controller.
Note: If the coil is greasy, the coil will need to be
cleaned with coil cleaner and that should be left to an
experienced technician.
6. To close, replace stand in its rest and lower panel
to the close position. Push rmly on the bottom to
engage locking clips
Note: Air lters are not recommended as they restrict
the ow of cooling air.
Condenser Surface
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 27
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, Baked-On
Splatter, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner
Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc.
Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Burnt-On Foods and
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING STAINLESS STEEL
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory28
HELP
Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent
Unit not plugged in.
Fuse or circuit breaker tripped.
Power cord plug loose in outlet.
Connect to proper voltage circuit Replace
fuse or reset breaker.
Check outlet for loose connection, replace
as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high
Dirty condenser
Evaporator iced over Unit in high
temperature environment
Clean condenser Defrost evaporator
Reduce temperature of room
Space temperature too high, two system
models RS(A)3DS1PTGHC and
RS3(A)DS1EWPTGHC
Same as above plus one compressor not
operating
Call for service
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp control stuck in open position Replace temp control.
No cooling - compressor hums but does not
start
Low voltage to unit.
Compressor starting system failure
Check voltage, correct as needed. Check
start relay and start capacitor. See next
step.
No cooling - compressor starts but shuts
o
Compressor start relay failure Compressor
start capacitor failure
Replace relay. Replace capacitor.
No cooling - compressor cycles on and o Overheating weak overload
Clean condenser, check fan motor and
blade. Check refrigerant charge. Replace
overload.
Unit cools, but is slow to pull cabinet
temperature down
Evaporator fan not turning
Check fan(s), on multiple fan units one fan
may be turning slowly and will need to be
replaced.
Unit cools but turns on and o frequently
No product in cabinet. Temperature control
defective Refrigeration issue
Fill cabinet Replace control
Have system checked
Makes excessive noise
Tubing rattle Loose parts
Bent or broken fan blade Noisy fan motor
Check tubing for routing Check for loose
components Replace fan blade
Replace fan motor
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 29
FOR THE SERVICE TECH - R290
Refrigeration service should only be attempted by a trained trade professional certied to work on R290 systems.
Here are some critical service items.
This list does not qualify anyone to service the unit. It is a
reminder and checklist for the service tech. Keep these in
mind for R290 service:
• Wire nuts are NOT to be used when changing an
electrical part.
• The switches in this product are sealed, only exact
replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components
that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during
service, the venting MUST be in an area free from
ame or spark. It must be near an opened window or
door.
• A sign noting service of a system containing propane
must be attached to the unit during refrigeration
service.
• A combustible gas leak detector must be used to
inform anyone in the area when propane is present in
the air.
Other Information:
Evacuation: It is critical that a refrigeration system be
leak free and internally dry. A thorough evacuation with
a good vacuum pump with a micron gauge attached is the
only way to ensure that the system is dry and ready for a
charge of refrigerant.
Charging: The system is critically charged and the proper
type and amount MUST be weighed in.
Overcharge symptoms: Unit will cool properly but
the suction line temperature will be unusually cold.
Compressor run time will be longer than normal.
Undercharge symptoms: Long run time, poor cooling and
a hot compressor dome are the main symptoms of an
undercharge.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory30
FOR THE SERVICE TECH - SINGLE SYSTEM WIRING DIAGRAM
Variable Speed Compressor
Wiring Diagram (not all
models)
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 31
115VAC 60 HZ
EVAP
FAN
BLU
FAN RELAY
4 5
WHT
CONTROL
CIRCUIT
1 3
COMP RELAY
10 11
BRN
WHT
WHT
BLK
BLK
WHT
FASCIA HEATERS
RED
LIGHT RELAY
13 14
RED
CABINET
LIGHTS
POWER
SUPPLY
BLACK
WHITE
+
--
24VDC
HIGH CURRENT DIODE
WHT
COMPRESSOR DETAIL
START RELAY
10
COMP
CONDENSER FAN
C
R
S
2
4
OL
1
R.C.
S.C.
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
BLK
BLK
BLK
BLK
BLK
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
S.C.
R.C.
1
OL
4
2
S
R
C
CONDENSER FAN
COMP
10
START RELAY
COMPRESSOR DETAIL
BLK
EVAP
FAN
COMPRESSOR DETAIL
INVERTER (VFD)
PE
COMP
CONDENSER FAN
C
R
S
COMP RELAY
10 11
L
LSW
N
S
C
R
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
R
C
S
N
LSW
L
S
R
C
CONDENSER FAN
COMP
PE
INVERTER (VFD)
115V REFRIGERATOR
VARIABLE SPEED
COMPRESSOR
WIRING DIAMGRAM
(NOT ALL MODELS)
FOR THE SERVICE TECH - TWO SYSTEM WIRING DIAGRAM
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26Victory32
LIMITED WARRANTY
Warranty (Continental USA & Canada Only)
SEVEN (7) YEAR PARTS, LABOR, AND COMPRESSOR
LIMITED WARRANTY
Victory® Refrigeration (Victory) warrants to the
original purchaser of Victory branded equipment,
that such equipment is free from defects in material
and workmanship, under normal use, proper
maintenance and service as indicated by Victory’s
installation and operation instructions, for a period
of SEVEN (7) years from the date of installation, or
eighty-seven (87) months from the date of shipment
from the manufacturer, whichever is earlier. In
addition, Victory® Refrigeration (Victory) warrants the
hermetically/semi-hermetically sealed compressor
(part only) for SEVEN (7) years; not to exceed eighty-
seven (87) months from the date of shipment from
Victory, provided upon receipt of the compressor,
manufacturer examination shows the sealed
compressor to be defective. This warranty does not
cover freight for the replacement compressor or
freight for return of the failed compressor. Also, this
compressor-part only warranty does NOT apply to
any electrical controls, condenser, evaporator, fan
motors, overload switch, starting relay, capacitors,
temperature control, lter/drier, accumulator,
refrigeration tubing, wiring harness, labor charges, or
supplies which are covered by the standard warranty
above.
*Units shipped after 07/1/2024. Previous warranty
applies to units shipped prior.
Exceptions:
• Warranty does not apply for units installed
in a Residential application. Units are intended for
Commercial use only.
• Blast Chillers carry a 3 year parts and labor
warranty; 2 additional years for the compressor.
Normal wear type parts, such as light bulbs/lamps,
gaskets, fuses, batteries, blast chiller/freeze probes,
thermostat or electronic controller calibration and/
or adjustment, and any normal maintenance items as
outlined in the Owner’s Manual, adjustment of door
mechanisms or freight damage are not covered by this
warranty. For this warranty, the original purchaser
shall be deemed to mean the individual or company for
whom the product was originally installed.
Proof of purchase must be supplied to Victory to
validate the warranty. This warranty is valid only
if equipment is properly installed, and started-up as
outlined in the Owner’s Manual.
Units that utilize variable speed compressor
technology can experience nuisance tripping on Class
A GFCI outlets which have a trip limit of 4 mA to 6
mA. To avoid this issue in a location that requires GFCI
circuit protection, Beverage Air & Victory recommends
using a HUBBELL Model Number GFRST83W 20A
Heavy Duty Hospital Grade Self-Test GFCI Receptacle.
Removal or alteration of the serial/ data plate from
equipment shall be deemed to release Victory from
all warranty obligations or any other obligations,
expressed or implied . The warranty does not cover
installation, start-up, normal maintenance, food
loss, or other consequential damage, and it excludes
components that are removable without tools. Our
obligation under this warranty shall be limited to
repairing or replacing, including labor, any part of such
product, which proves defective.
Victory reserves the right to examine any product
claimed to be defective. The labor warranty shall be
for self-contained units only and for standard straight
time, which is dened as normal service rate time,
for service performed during normal working hours.
Any service requested outside of a servicer’s normal
working hours will be covered under this warranty
at the normal rate and any additional overtime rate
will be the responsibility of the equipment purchaser.
Victory shall not be responsible for any costs incurred
if the work is performed by other than Victory’s
authorized service personnel. Reimbursement claims
for parts and/or labor service costs must be made in
writing. Model, cabinet serial number and installation
location must be shown on the claim. A receipted bill
from the servicing agency must accompany the claim,
together with full details of the service problems,
diagnosis and work performed. Victory reserves
sole discretion whether further documentation on a
claim is to be submitted. Any part determined to be
defective in the product should be returned to the
company within thirty (30) days under the terms of
this warranty and must be accompanied by a record
of the cabinet model, serial number, with a return
material authorization number (RMA#) issued by
Victory.
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26 Victory 33
LIMITED WARRANTY (CONT'D)
Special installation/applications, including remote
locations, are limited in coverage by this warranty.
Any installation that requires extra work, and/
or travel, to gain access to the unit for service is
the sole responsibility of the equipment purchaser.
Improper operation resulting from factors, including
but not limited to, improper or negligent cleaning
and maintenance, low voltage conditions, inadequate
wiring, outdoor use and accidental damage are
not manufacturing defects and are strictly the
responsibility of the purchaser.
Except Blast Chillers, a product is designed for
maintaining temperature and not bringing food to a
desired temperature, so cannot be held responsible for
this function under warranty.
Units must be in conditioned environments or
warranty will be void.
Condenser coils must be cleaned at regular intervals.
Failure to do so can cause compressor malfunction and
will void warranty. Although cleaning requirements
vary in accordance with the operation of various
products, Victory recommends a minimum monthly
cleaning.
NOTE: NO CLAIMS CAN BE MADE AGAINST THESE
WARRANTIES FOR SPOILAGE OF PRODUCTS,
LOSS OF SALES OR CONSEQUENTIAL DAMAGES.
THE FOREGOING WARRANTIES ARE EXPRESSLY
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE HEREBY DISCLAIMED, AND ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART, AND
WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THE SALE OF SAID
REFRIGERATION UNITS OR ANY PARTS THEREOF.
These warranties shall not be assignable and shall be
honored only in so far as the original purchaser.
These warranties do not apply outside the limits of
the USA and Canada, nor do they apply to any part
that has been subject to misuse, neglect, alteration,
accident, or to any damage caused by transportation,
ood, re, acts of terrorism, or acts of God.
LIMITATION OF LIABILITY:
Victory or its aliates shall not be liable for any
indirect, incidental, special or consequential
damages, or losses of a commercial nature arising
out of malfunctioning equipment or its parts or
components thereof, because of defects in material or
workmanship. In no event shall Victory be liable for a
sum more than the purchase price of the item.
THE ORIGINAL OWNER’S SOLE AND EXCLUSIVE
REMEDY AND VICTORY’S SOLE AND EXCLUSIVE
LIABILITY SHALL BE LIMITED TO THE REPAIR
OR REPLACEMENT OF PARTS OR COMPONENTS
CONTAINED IN THE EQUIPMENT IDENTIFIED
ABOVE WHICH UNDER NORMAL USE AND SERVICE
MALFUNCTION AS A RESULT OF DEFECTS IN
MATERIAL OR WORKMANSHIP, SUBJECT TO THE
APPLICABLE PROVISIONS AND LIMITATIONS STATED
ABOVE. 07/2024
User Manual for RS and RSA Refrigerators Victory
Rev. 02/26
Warranty Registration
Register your product online at Victory.com/parts-service or ll out and mail the form below.
Cabinet Model Number: _____________________________________________ Date Of Installation: _________________
Cabinet Serial Number: _____________________________________________
Location Of Product
Business Name: ____________________________________________________
Business Street: ____________________________________________________
Business City: ____________________________________ State: _________ Postal Code:___________
Mail to: Victory, 3779 Champion Blvd, Winston-Salem, NC 27105
