Vesper Drain Pan
Installation Instructions
Models: ODGSDP-36, ODGSDP-42,
ODGSDPFLT-36, ODGSDPFLT-42
For use with VOFB36-T, VOFB36-H, VOFB42-T,
VOFB42-H, ODCOUG-36NR, ODCOUG-36TS,
ODCOUG-42NR and ODCOUG-42TS
Silicone should be applied to the back corners of
the drain pan to completely seal pan. The bottom
of the drain pan can be installed directly on top of
enclosure or waterproof membrane. (Please note,
this pan can be modied to allow the most eective
means of getting moisture from the enclosure.)
Before You Start
The drain pan is designed to channel moisture to
the front of the enclosure. Care must be taken
to ensure there is a 1/4" slope per foot in the
enclosure to make sure water is drained away
from appliance.
TOOLS REQUIRED
Silicone suitable for outdoor use
ODGSDPFLT-36 and ODGSDPFLT-42 drain
pans are for installation on a at surface.
Installation Instructions
1. Silicone rear corners of drain pan and attach drain
pan under appliance. See Figure 1.
2. Position drain pan lip on front of enclosure so it
drains to front of enclosure. The membrane or
ashing will be under drain pan.
3. The enclosure is to be at an angle at least 1/4" per
foot slope to ensure proper drainage. See Figure
2.
4. Make sure Open area at weep holes or drainage
slots are clear of all debris.
4153-919 02/23 Rev. A

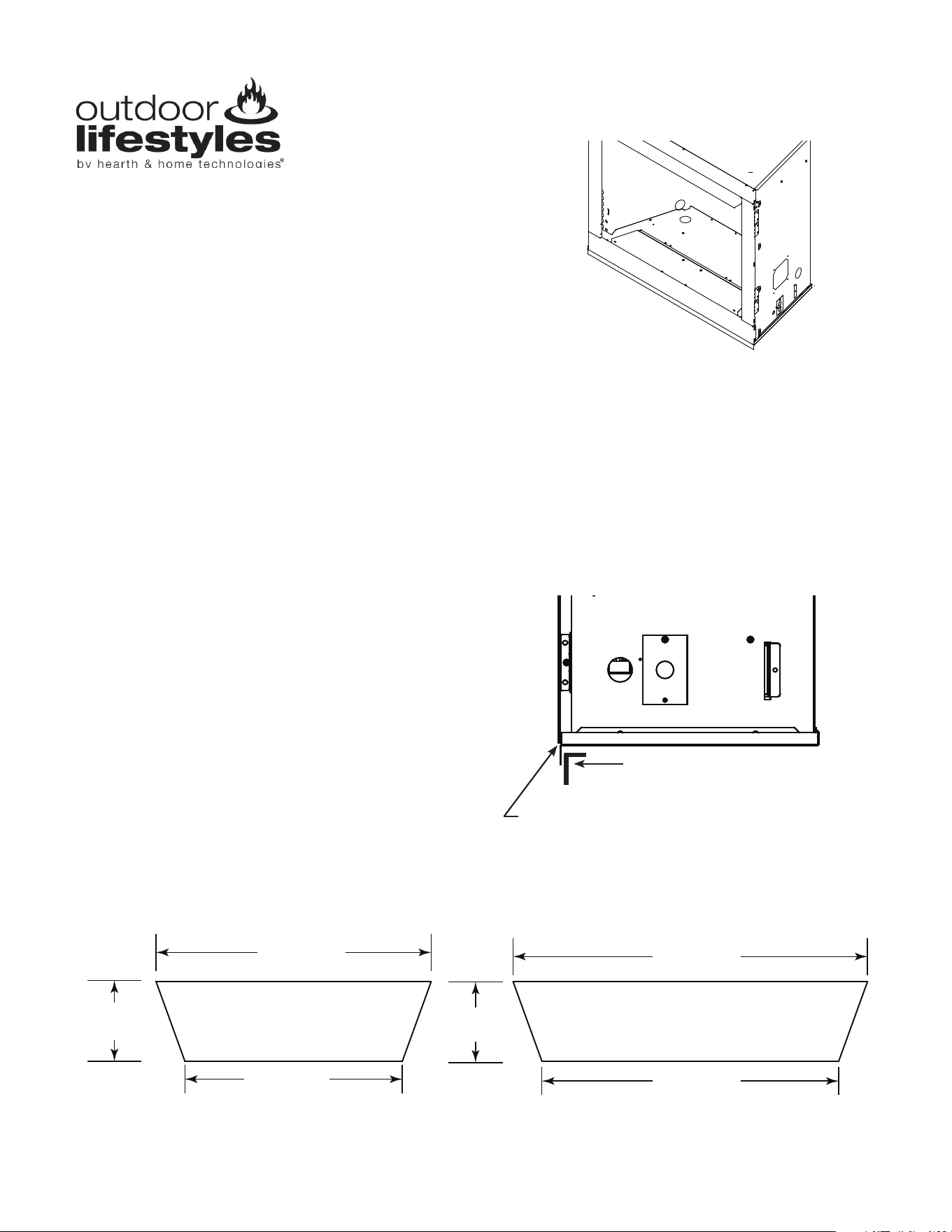

Figure 1. Attach drain pan under appliance
Membrane/Flashing behind drain pan
1/4 inch slope to front
Figure 2. Drain pan installed under appliance.
Outdoor Lifestyles, a brand of Hearth & Home Technologies
7571 215
th
Street West, Lakeville, MN 55044
www.outdoorlifestyles.com
Figure 3. Drain pan dimensions
20.25 in
(514 mm)
20.25 in
(514 mm)
42.50 in
(1078mm)
48.50 in
(1232mm)
ODGSDP-36
Outside dimensions
ODGSDP-42
Outside dimensions
37.75 in
(959mm)
31.75 in
(806mm)
