GV642D62
User manual
Dishwasher
Contents
4Your dishwasher .....................................................................................................................
5Safety instructions ..................................................................................................................
6Installation .................................................................................................................................
6Overflow guard .........................................................................................................................
6Packaging .................................................................................................................................
6Winter storage/transport ...........................................................................................................
6End-of-service appliance recycling ..........................................................................................
7Before washing for the first time ...........................................................................................
71. Water hardness ....................................................................................................................
82. Basic settings .......................................................................................................................
8Top up with rinse aid ................................................................................................................
8Top up with salt ........................................................................................................................
9Greener dishwashing ..............................................................................................................
9Save energy and water .............................................................................................................
10Loading the dishwasher .........................................................................................................
10Fragile dishes ............................................................................................................................
10Loading affects the results ........................................................................................................
10The dishwasher's baskets ........................................................................................................
10Upper basket ............................................................................................................................
11Lower basket ............................................................................................................................
12Cutlery basket ...........................................................................................................................
13Using the dishwasher .............................................................................................................
13Add detergent ...........................................................................................................................
14On/Standby mode ....................................................................................................................
14Select program .........................................................................................................................
15Select option .............................................................................................................................
15Start/Stop .................................................................................................................................
16If you want to load more dishes ................................................................................................
16Power failure .............................................................................................................................
16Once the program has finished .................................................................................................
16The best drying results .............................................................................................................
16Unloading the dishwasher ........................................................................................................
17Program chart .........................................................................................................................
18Settings ....................................................................................................................................
20Care and cleaning ...................................................................................................................
20Top up with rinse aid ................................................................................................................
20Top up with salt ........................................................................................................................
21Clean the filter ...........................................................................................................................
21Cleaning the spray arms ...........................................................................................................
22Clean the outside of the dishwasher ........................................................................................
22CLn - Run the Self-clean program ...........................................................................................
22Remove blockages ...................................................................................................................
24Troubleshooting ......................................................................................................................
2
29Installation ...............................................................................................................................
29Safety instructions ....................................................................................................................
29Setup .........................................................................................................................................
30Drainage connection .................................................................................................................
30Connection to water supply ......................................................................................................
30Electrical connection .................................................................................................................
31Service .....................................................................................................................................
31Spare parts ...............................................................................................................................
31Number of program cycles .......................................................................................................
32Technical data and energy labelling .....................................................................................
32Technical data ...........................................................................................................................
32Declaration of conformity ..........................................................................................................
32Information for consumers ........................................................................................................
32Information for test institute ......................................................................................................
3
Your dishwasher
Install the dishwasher, see the chapter Installation. Then open the door and press .
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See the chapter Before washing for the first time.

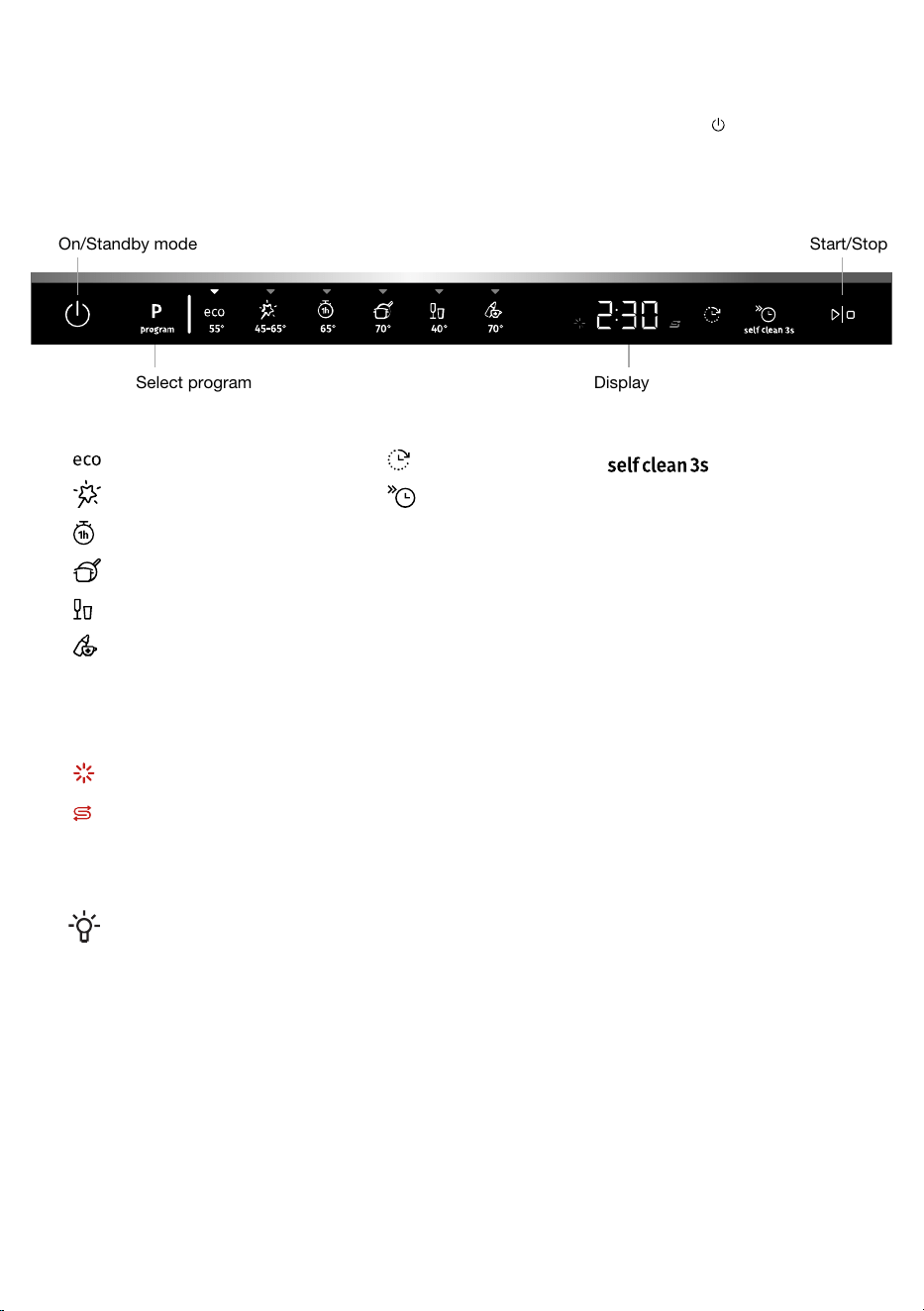

Display
Start/Stop
Select program
On/Standby mode
Special programOptionProgram
Self-clean
Delayed start
Speed wash
Eco 55°
Auto 45-65°
1h 65°
Intensive 70°
Glass 40°
Hygiene 70°
Information on the display
See the chapter Care and cleaning.
Top up with rinse aid
Top up with salt
CLn Run the Self-clean program
NOTE!
The control panel only reacts to use when the door is open.
4
Safety instructions
• Read the instructions carefully and keep them for future
reference.
• Number of standard place settings: 14
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• Never leave the dishwasher door open as someone may trip
on it. Push the baskets in to avoid risking the dishwasher
tipping over.
• Use only dishwasher detergent!
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Damaged supply cord must only be replaced by the
manufacturer's service centre or someone similarly
professionally qualified.
• Only use the dishwasher in household-type environments
for dishwashing household dishes. All other use is prohibited.
• Never place dishes with solvent residues in the dishwasher
due to the risk of explosion. Nor may dishes that contain
ash, wax or lubricants be washed in the dishwasher.
• Children must be watched. Do not allow children to use or
play with the dishwasher. Be especially vigilant when the
door is open. Some detergent may remain inside! After
adding detergent, always start the dishwasher immediately.
5
WARNING!
Knives and other pointed items must be placed with the
points down in the cutlery basket or horizontally in other
baskets.
WARNING!
Children must be supervised – dishwasher detergent is
corrosive!
Installation
See the chapter Installation.
Overflow guard
The overflow guard starts pumping out the water and turns off the water supply if the water level in
the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water)
appears on the display. Turn off the water tap and contact your nearest service centre. (To avoid water
leakage outside the dishwasher, do not remove the plug from the wall socket until the water tap on
the supply line has been turned off!)
Packaging
The outer packaging protects the appliance during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging or direct you to the nearest recycling centre. The packaging is comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
Winter storage/transport
Store the dishwasher above freezing temperature and avoid long transport distances in very cold
weather. Transport the dishwasher upright or laying on its back. Before transporting a used dishwasher,
or before prolonged storage, water must first be removed from the machine.
End-of-service appliance recycling
When the dishwasher has reached the end of its service life and is to be disposed of, it is important
to make it unusable. (to prevent accidents and facilitate recycling). Pull out the power cable and cut
it as short as possible. If you have any questions about where and how your dishwasher should be
correctly recycled, contact your local authority.
Recycle as electrical waste.
NOTE!
Follow the instructions carefully to avoid injury to persons and damage to property, and to
maintain the warranty.
6
Before washing for the first time
1. Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Water hardness is specified using German degrees of water hardness (°dH), French degrees of water
hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).
A water supply with a water hardness in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l) must be softened.
This is done automatically with the aid of the built-in water softener. In order for the water softener to
function properly, its settings must be adjusted to the hardness of the water supply. Once you have
adjusted the water softener settings, add detergent and rinse aid in doses suitable for soft water.
Contact the local waterworks to check the water hardness in your area.
Make a note of the water hardness:____________
Recommended settingmmol/l°eH°fH°dH
4:000.0-0.90-60-90-5
4:011.0-1.47-1010-146-8
4:021.5-2.011-1415-209-11
4:032.1-2.515-1821-2512-14
4:042.6-3.419-2426-3415-19
4:053.5-4.325-3035-4320-24
4:064.4-5.231-3644-5225-29
4:075.3-7.037-4953-7030-39
4:087.1-8.850-6171-8840-49
4:098.9628950
If the water hardness exceeds 50°dH (89°fH / 62°eH / 8.9 mmol/l), we recommend connecting an
external water softener.
Increased consumption during regeneration
The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration
extends the dishwashing program and increases energy and water consumption. Just how often the
dishwasher's water softener is regenerated depends on the selected setting.
Example: If the Eco 55° program is run with a water hardness of 14°dH (25°fH / 18°eH / 2.5 mmol/l),
the water softener is regenerated at regular intervals (after 7 dishwashing cycles), energy consumption
increases by 0.015 kWh, and water consumption increases by 2.3 litres, while the program time is
extended by 3 minutes. Regeneration takes place during the program’s main wash.
WARNING!
Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important
that you select the right setting for the water softener! See Water hardness in the chapter Settings.
Never run the dishwasher with an empty salt compartment if the water supply has a water
hardness in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l).
7
2. Basic settings
The first time the dishwasher is switched on, it is important that you choose the right settings to ensure
good dishwashing results. See page 18.
Set up:
• Rinse aid
• Water hardness
• TAB (All-in-one detergent)

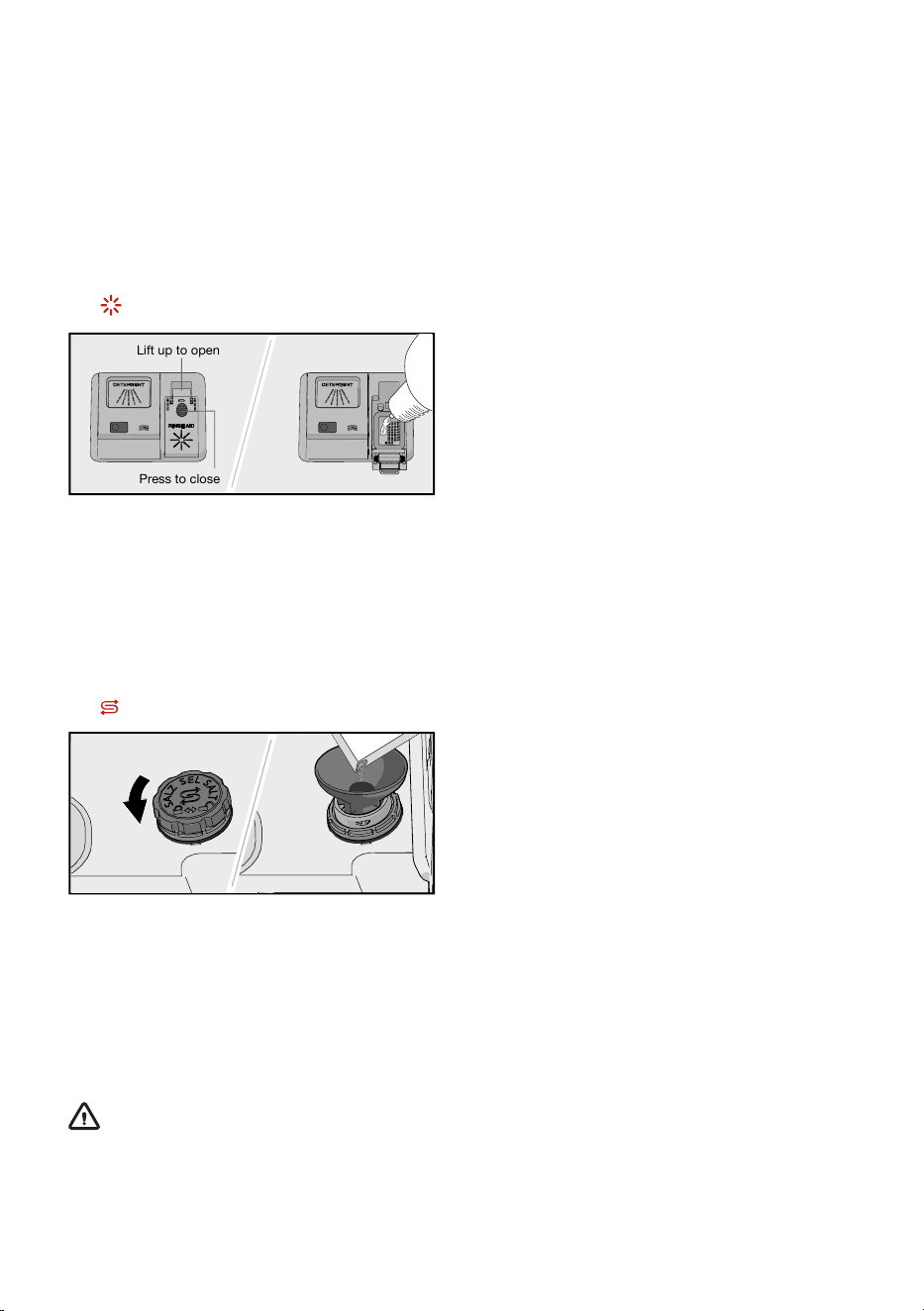

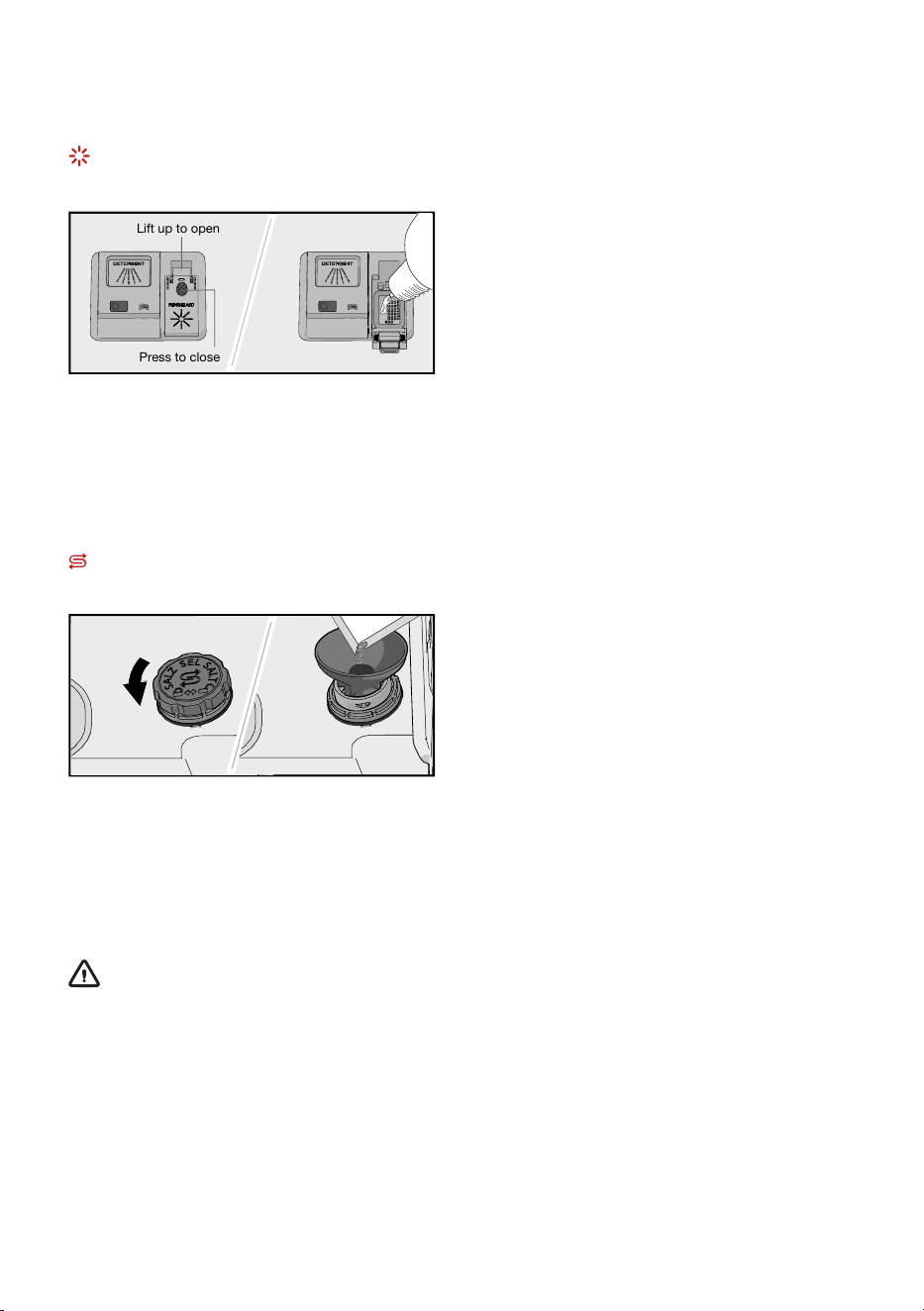

3. Top up with rinse aid
Drying is faster and a better result is achieved
if you use rinse aid. You will also achieve a
better dishwashing result with clear and
spotless dishes.
Lift up to open
Press to close
Top up the rinse aid compartment with rinse
aid if you have selected Rinse aid 3:01 - 3:05.
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
When the rinse aid needs topping up, the symbol lights on the display.
4. Top up with salt
For a water supply with a hardness above 5 °dH
(9 °fH / 6 °eH / 0.9 mmol/l), fill with salt.
Add salt to the salt compartment if you have
selected Water hardness 4:01 - 4:09.
1. Remove the salt compartment lid by turning it anticlockwise.
2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. Before washing
for the first time, pour in about 1 l of water. (Water is only needed the first time.)
3. Add enough salt to fill the salt compartment (max. 750 gram). Use special dishwasher salt.
4. Wipe away excess salt and turn the lid clockwise until in the closed position.
When the salt needs topping up, the symbol lights on the display.
WARNING!
In order to avoid rust stains a dishwashing program must be started immediately after adding
salt.
8
Greener dishwashing
Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water consumption.
Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent, rinse aid and salt can result in less effective dishwashing and also entail greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program (see number
of standard place settings). Use the 1h 65° program with the Speed wash option to rinse the
dishes if there are any unpleasant odours.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low temperature.
Select dishwashing program – Eco 55°
This program is suitable for washing normally soiled dishes and is the most effective program in terms
of combined energy and water consumption. This program is used to assess compliance with EU
legislation on ecodesign.
The dishwashing program is designed for an effective wash using as little energy and water as possible.
The program washes at a low temperature for a long time.
Activate the setting – TotalDry
A shorter dishwashing program and better drying results are achieved if you activate the TotalDry
setting, which automatically opens the dishwasher door. Wait until the dishwasher indicates that the
program has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher
is built-in, the surrounding furnishings must be resistant to any condensation from the dishwasher.)
Connect to cold water
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connect to hot water
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
9
Loading the dishwasher
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high heat, others can be damaged by dishwasher detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver,
copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy
and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as
well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Make sure small items cannot fall through the dishwasher basket; place them in the cutlery basket.
The dishwasher's baskets
The dishwasher is equipped with an upper basket and a lower basket with a cutlery basket.
The appearance of the baskets may differ depending on the dishwasher setup.

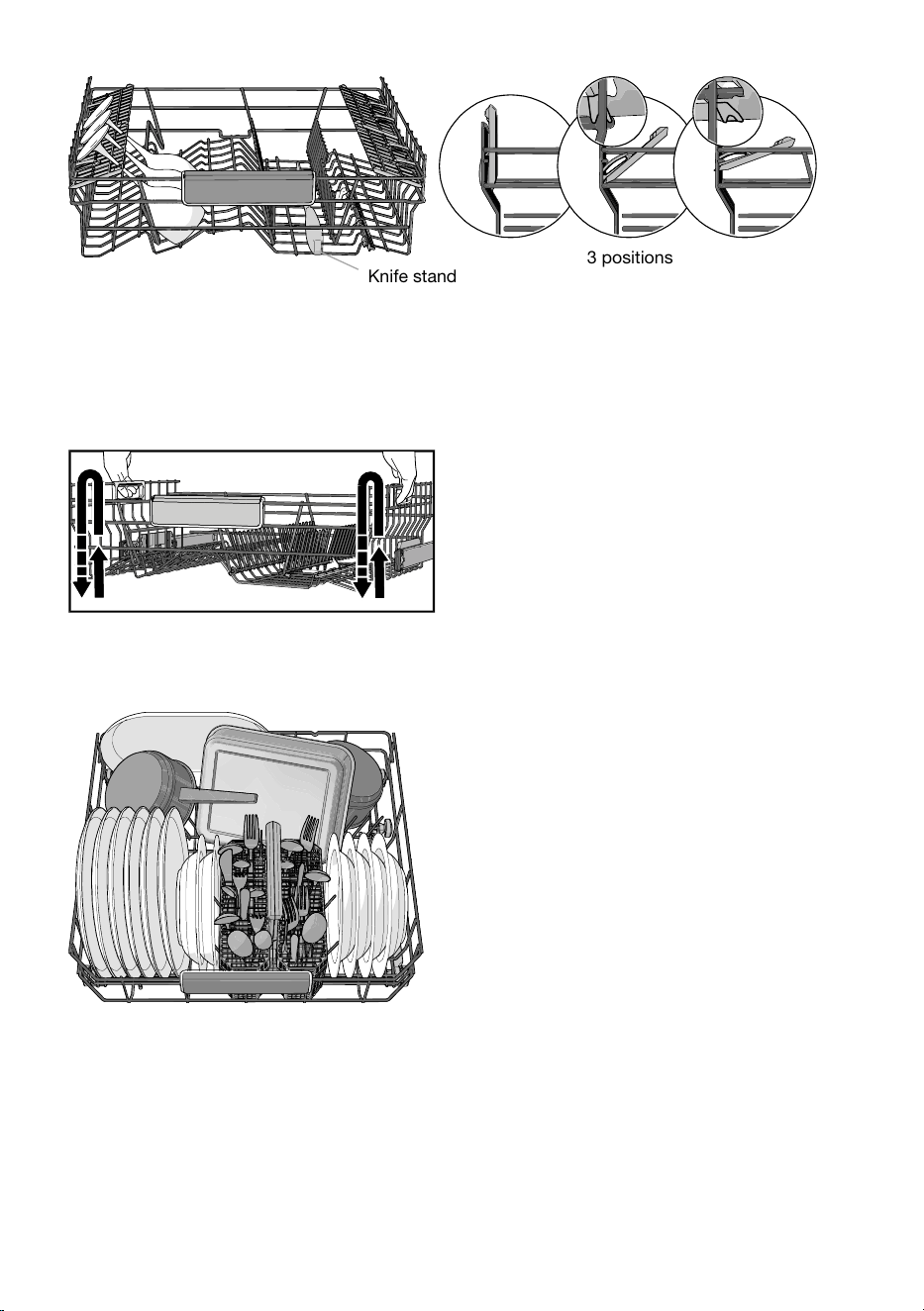

Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face
inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in
the knife stand on the right.
10
Knife stand
3 positions
Raising and lowering the upper basket
1. Pull out the upper basket.
2. Use both hands to lift the side handles.
3. In the upper position, use both hands to lift the side handles and carefully lower the basket.
Note that both sides of the basket must always be set to the same height.
Lower basket

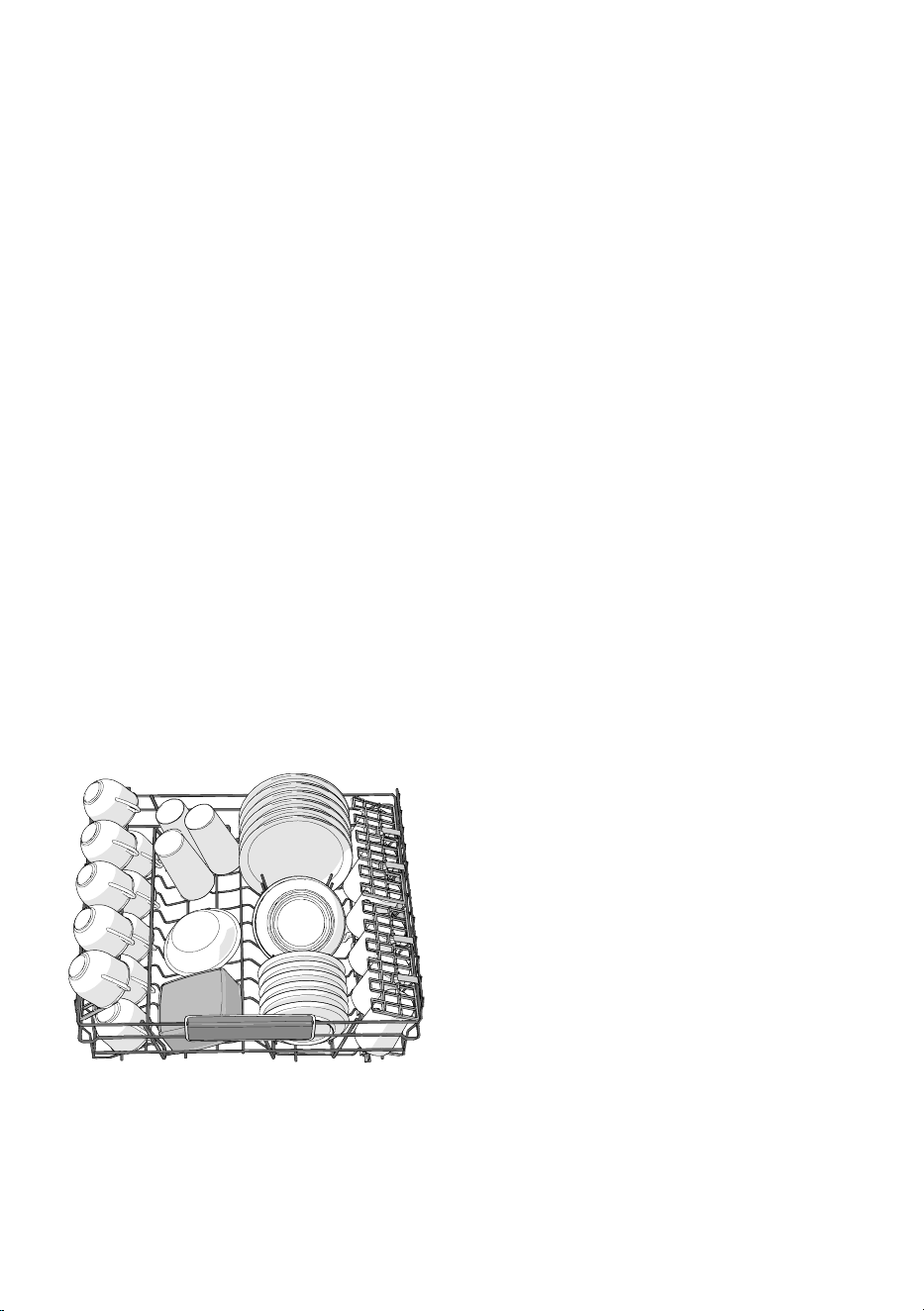

Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.
11
Adjustable plate supports
The adjustable plate supports can be folded down to make it easier to load pots and bowls.

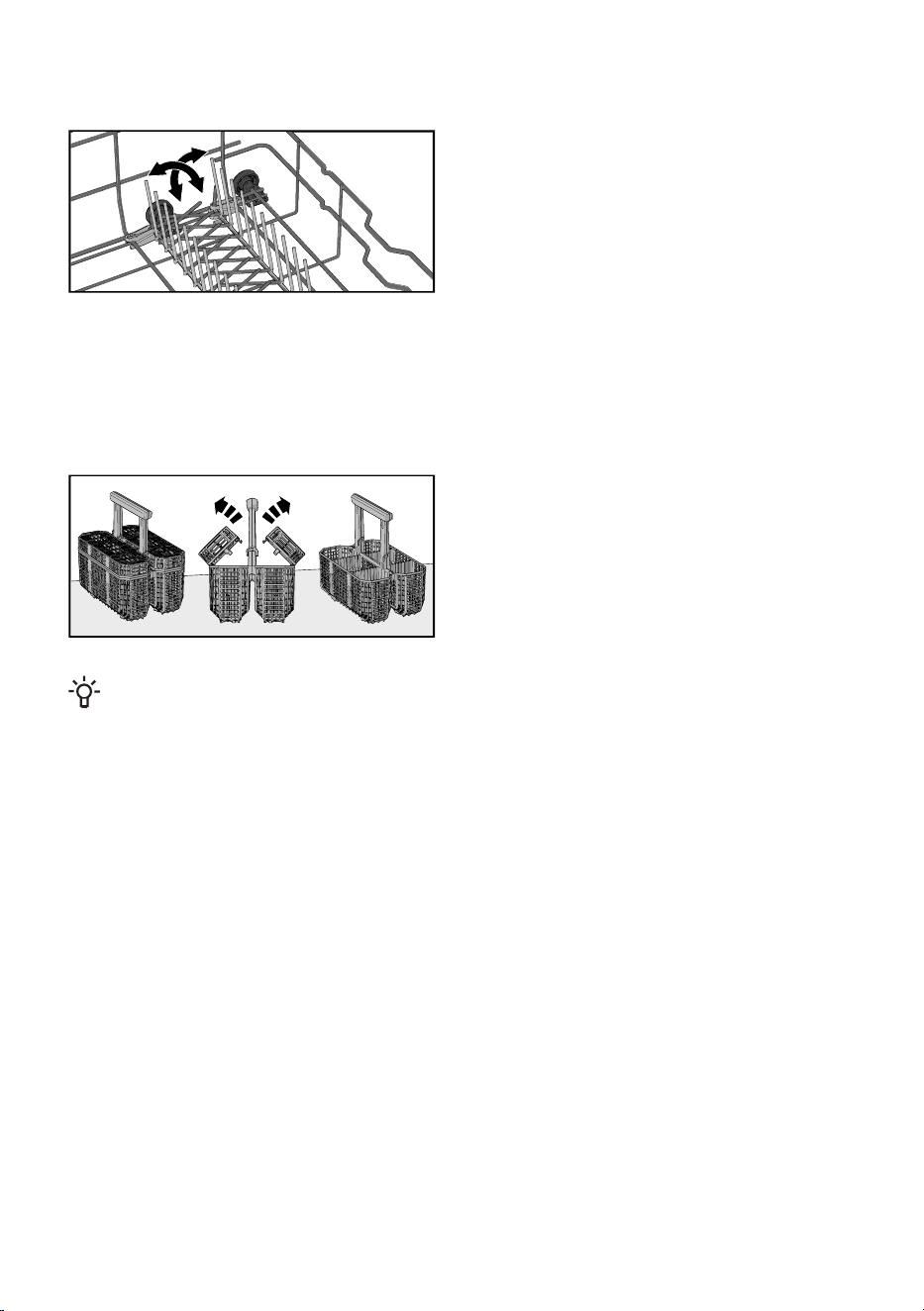

Cutlery basket
Place cutlery with the handles facing down, except for knives, and spread them out as much as
possible. Ensure that spoons do not stack inside each other.
Place the cutlery basket in the lower basket.
Cutlery basket with lid
The cutlery basket lid can be removed.
NOTE!
Check that the spray arms can rotate freely.
12
Using the dishwasher
Add detergent
Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener,
so use detergent and rinse aid doses suitable for soft water.
Too much detergent can result in less effective
dishwashing and also entails greater
environmental impact.
Press to open Close the lid

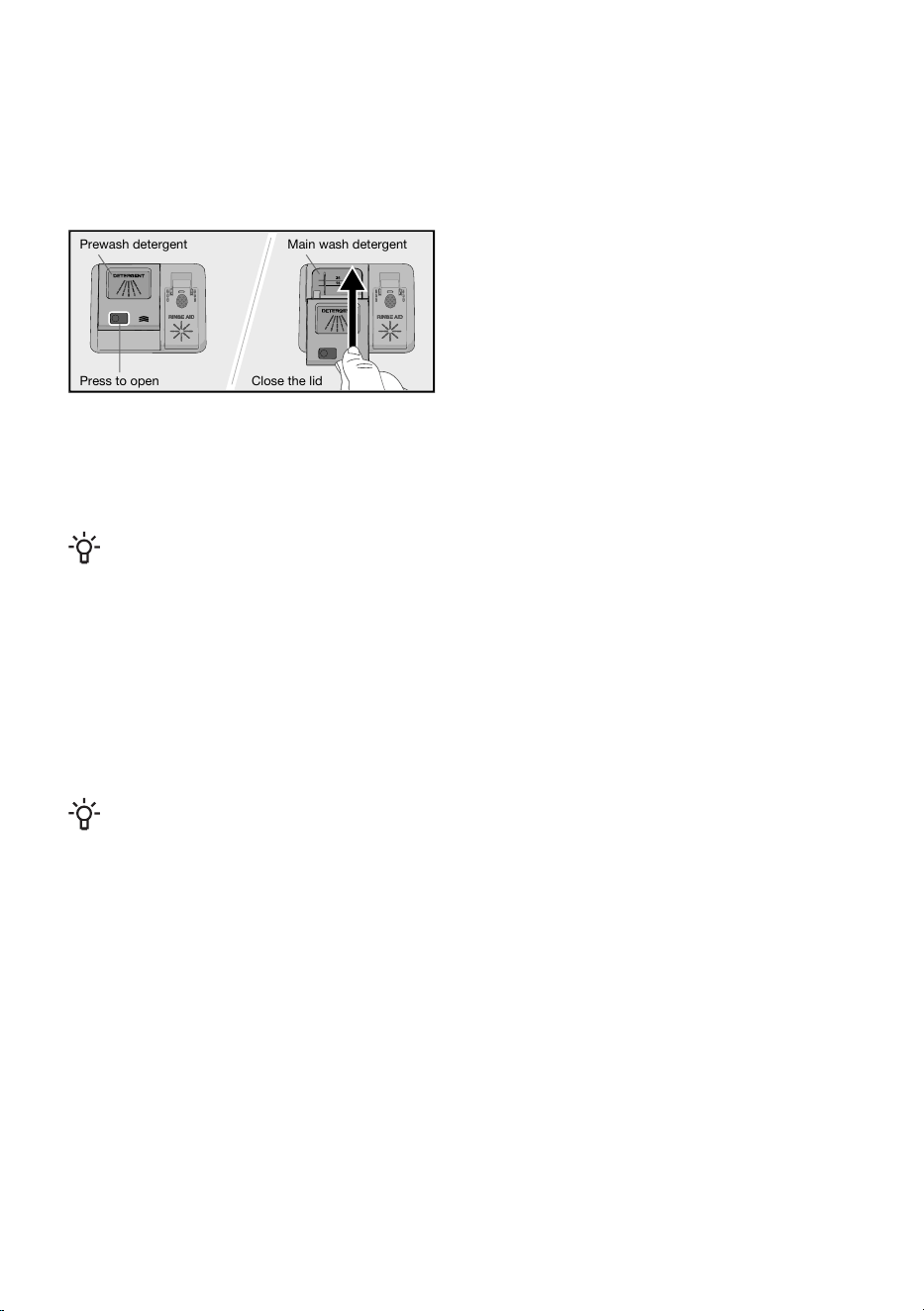

Prewash detergent
Main wash detergent
The detergent compartment must be dry when adding detergent. There is one compartment for the
prewash and one for the main wash. If dishwasher detergent powder or dishwasher detergent gel is
used, you can add a small amount of the detergent to the prewash compartment. If you have questions
about the detergent, contact the detergent manufacturer.
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms
prevents the dishwasher from operating effectively.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read through the directions for these
products carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid.
Dishwasher tablets are not recommended for programs lasting less than 75 minutes. Use dishwasher
detergent powder or dishwasher detergent gel instead.
NOTE!
Optimal washing and drying results are achieved by using dishwasher detergent together with
separately dispensed rinse aid and salt.
13
Display
Start/Stop
Select program
On/Standby mode
On/Standby mode
Open the door and press . Also turn on the water tap if it is turned off.
NOTE!
The control panel only reacts to use when the door is open.
Select program
Select a program to suit the type of dishes and how dirty they are. Eco 55° is always pre-selected.
Press one or more times until the desired program is activated, which is indicated by an indicator
light.
Eco 55°
This program is suitable for washing normally soiled dishes and is the most effective program in terms
of combined energy and water consumption. This program is used to assess compliance with EU
legislation on ecodesign.
You can read more about greener dishwashing in the chapter Greener dishwashing.
For heavily soiled dishes with a lot of grease, a program with higher temperatures should be used.
Auto 45-65°
The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature
accordingly. When newly installed, the program needs to be run five times before it is fully adapted
and can provide the best results.
1h 65°
1)
A quick program for slightly dried leftovers. (This program is not intended for burnt food, such as on
oven dishes.)
The TotalDry option is important for ensuring the best drying results.
Intensive 70°
A program with a high temperature for dissolving grease on very dirty dishes, such as pans, casserole
dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and
other dishes.
1)
When combined with Speed wash, the program is shortened (15 minutes).
14
Glass 40°
A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass.
Remember to use a small amount of detergent and to place items so that they do not touch each
other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that
has just been used without dried leftovers can also be washed using this program.
Hygiene 70°
This program is ideal to use where demands on hygiene are extra high, e.g. for baby bottles and
cutting boards. The temperature is high both in the main wash and in the final rinse.
Self-clean
Self-cleaning program for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.
This program should be run (with no dishes in the machine) using dishwasher detergent or citric acid.
Special dishwasher cleaners are also available on the market. For the removal of limescale deposits,
see Dishwasher tub in the chapter Care and cleaning.
NOTE!
CLn The dishwasher will indicate at regular intervals that Self-clean needs to be run.
Press and hold until CLn is shown on the display to select the program.
Select option
Press the options ( , ) to activate them. (The available options vary between programs.)
Delayed start
When you select Delayed start, the dishwasher will start 1-24 hours after you have pressed and
closed the door.
1.
Press once to activate Delayed start. Press several times, or hold it in, to set the desired number
of hours. The time for Delayed start is shown on the display.
2.
Press . Close the door. The timer counts down and the dishwasher starts after the selected
delay.
If you want to cancel the Delayed start option, open the door then press and hold for three seconds.
Not available for: Self-clean
Speed wash
This option shortens the program time, but uses more energy and water.
Press to activate the option. The program time is updated on the display.
Not available for: Auto 45-65°, Glass 40°, Hygiene 70°, Self-clean
Start/Stop
Press . The display will start to flash, indicating that the dishwasher is ready to start. Close the door
properly, otherwise the dishwasher will not start.
15
Stopping or changing a program
Open the door. If you want to interrupt or change the program after starting the dishwasher, press
and hold for three seconds.
Top up with new detergent if the lid of the detergent dispenser has opened. Then select a new program,
press and close the door.
Remaining time
Once you have chosen a program and options, the time the program took when last used is displayed.
If you want to load more dishes
2)
Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while,
the dishwasher continues the program.
Power failure
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
program continues when power is restored. If the power is cut during drying, the program is interrupted.
If you open the door for more than 2 minutes during drying, the program will be interrupted.
Once the program has finished
Once the program has finished, "End" appears on the display. The end of the program is also indicated
by one short signal sounding.
The dishwasher automatically enters standby mode after the program has finished. Shut off the water
tap after each use (if required by your insurance company).
The best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Top up with rinse aid or increase the rinse aid dosage setting.
• Activate the TotalDry setting. See the chapter Settings.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
2)
You should not load more dishes if the lid of the detergent dispenser has been opened.
16
Program chart
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of prewashes
OptionDetergent (ml)Program
Water cons.
(liter)
Energy
(approx. kWh)
Dishwashing
time
(approx. hrs:min)
9.70.833:1049 °C255 °C
3)
25Eco 55°
2)
12.0-19.00.9-1.42:10-3:1065 °C2-345-65 °C1-2
3)
25Auto 45-65°
13.01.11:0065 °C365 °C
3)
251h 65°
15.51.62:4570 °C270 °C2
3)
25Intensive 70°
10.00.71:3050 °C240 °C
3)
20Glass 40°
9.51.31:0570 °C270 °C
3)
25Hygiene 70°
1)
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more. The values for the Eco 55° program are accurate,
others are indicative only.
The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration extends the dishwashing program and increases energy and water consumption. Just how
often the dishwasher's water softener is regenerated depends on the selected setting.
2)
This program is suitable for washing normally soiled dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with
EU legislation on ecodesign.
3)
TotalDry. See the chapter Settings.
17

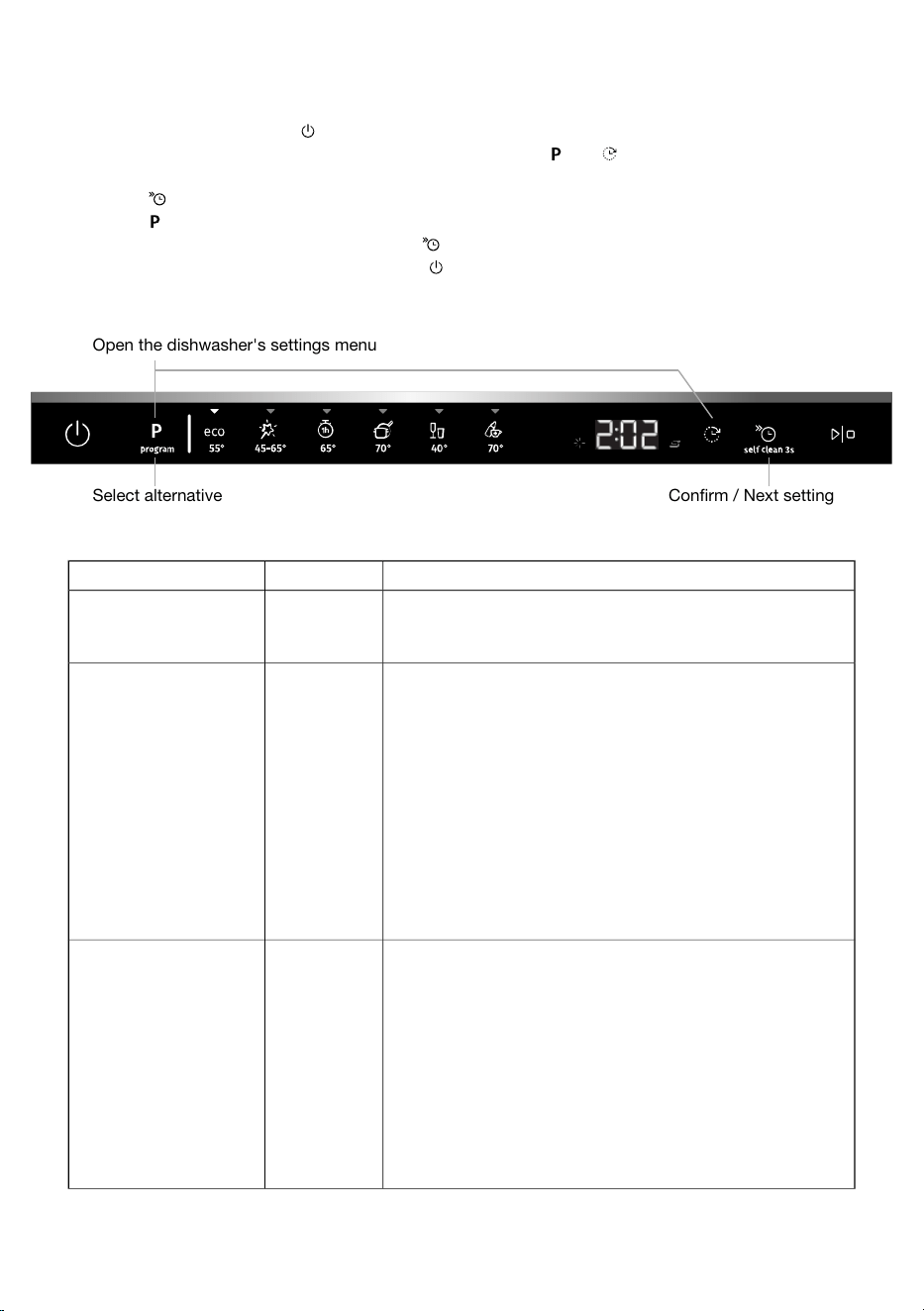

Settings
1.
Open the door and press .
2.
To open the dishwasher's settings menu, press and hold and until SEt is shown on the
display.
3.
Press to step through the settings menu.
4.
Press to step through the alternatives.
5.
Confirm the selected setting by pressing .
6.
To exit the menu, step through it or press .
Confirm / Next settingSelect alternative
Open the dishwasher's settings menu
AlternativesSettings
A beep confirms that the control panel has been pressed.2:00 - 2:03Sounds
A beep indicates when a dishwashing program has ended.(2:00 Off)
Error messages are always indicated by a loud buzzer.
Setting for rinse aid dosage. The rinse aid dispenser can
be adjusted between 3:00 (Off) and 3:05 (High dosage).
3:00 - 3:05
(3:00 Off)
Rinse aid
Increase the rinse aid dosage:
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse
aid can be diluted 50:50 with water.
Pre-selected at factory: 3:04
Adjusting the water softener. Select a setting depending
on the hardness of the water supply. It is important that
this setting is correct!
4:00 - 4:09
(4:00 Off)
Water hardness
See 1Water hardness in the chapter Before washing for the
first time.
For a water supply with a hardness above 5 °dH (9 °fH /
6 °eH / 0.9 mmol/l), fill with salt.
For a water supply with a hardness below 6°dH (10°fH /
7°eH / 1.0 mmol/l), select 4:00. The water softener is deac-
tivated and no salt needs to be added.
Pre-selected at factory: 4:04
18
AlternativesSettings
Activate this setting when using an all-in-one detergent that
contains rinse aid.
5:00 (Off)
5:01 (On)
TAB
(All-in-one detergent)
This setting reduces the rinse aid dosage and affects how
often the dishwasher's built-in softener is regenerated.
Pre-selected at factory: 5:00
The dishwasher door opens during the drying phase, which
shortens the program time and improves the drying results.
Wait until the dishwasher indicates that the program has
ended and the dishes have cooled before unloading the
dishwasher. (If the dishwasher is built-in, the surrounding
furnishings must be resistant to any condensation from the
dishwasher.)
6:00 (Off)
6:01 (On)
TotalDry
Not available for: Hygiene 70°, Self-clean
TotalDry is pre-selected and cannot be deactivated for the
Eco 55° program.
Any error messages.F--Error readout
When contacting the service department, you may be asked
to provide the most recent error messages.
Restores all settings to the factory defaults.rStRestore factory de-
faults
Select rSt and confirm by pressing .
To exit the dishwasher's settings menu, select End and
press .
EndExit
(The menu closes automatically after three seconds.)
19
Care and cleaning
Top up with rinse aid
When the rinse aid needs topping up, the above symbol lights on the display.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
After topping up, it may take a while before the symbol goes out.
Top up with salt
When the salt needs topping up, the above symbol lights on the display.
1. Remove the salt compartment lid by turning it anticlockwise.
2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. (Water is only
needed the first time.)
3. Add enough salt to fill the salt compartment (max. 750 gram). Use special dishwasher salt.
4. Wipe up any excess salt so that the lid can be screwed on firmly.
After topping up, it may take a while before the symbol goes out.
WARNING!
In order to avoid rust stains a dishwashing program must be started immediately after adding
salt.
Never pour dishwasher detergent into the salt compartment. This destroys the water softener!
20
Clean the filter
The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when
necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.

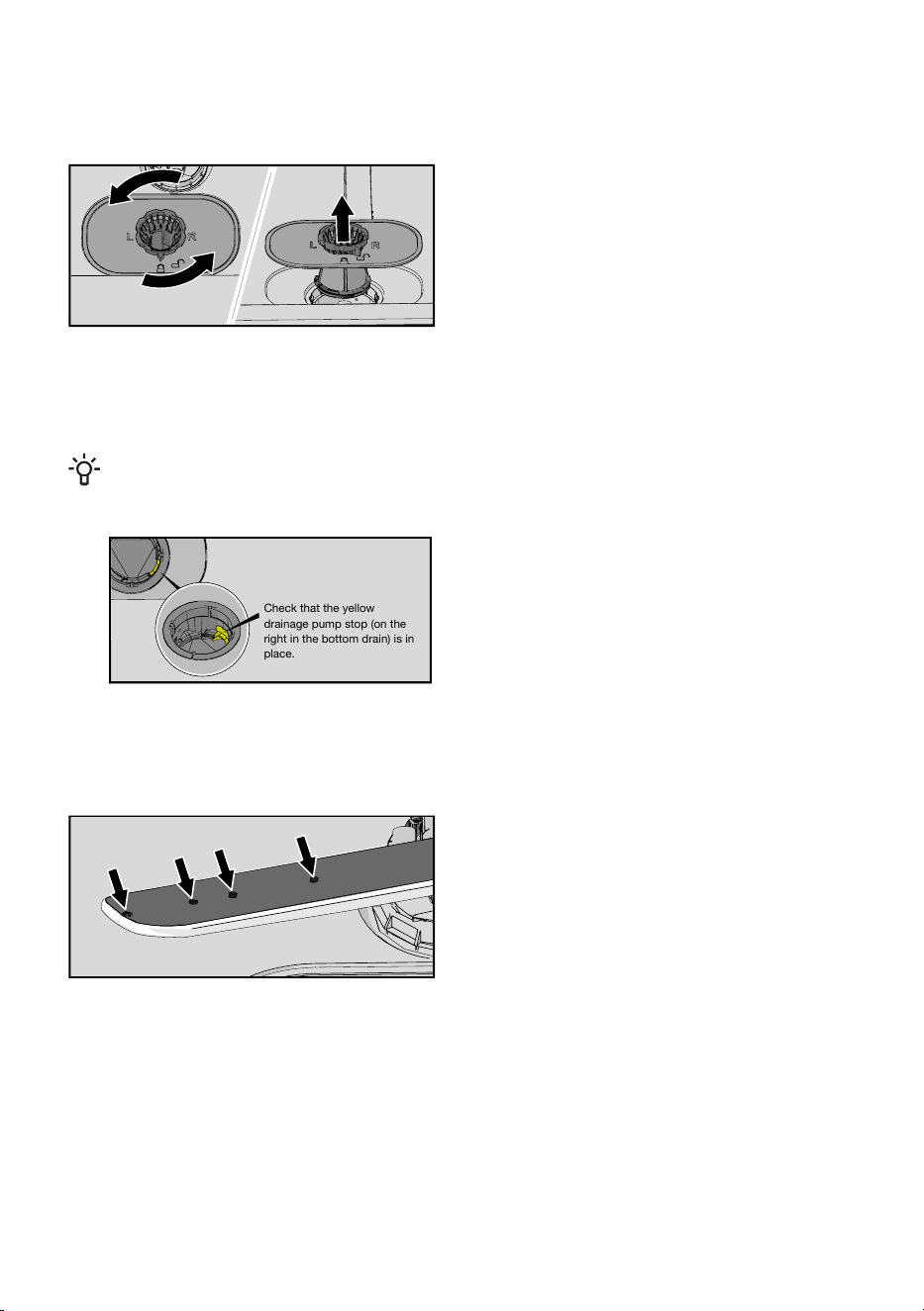

1. Turn the locking ring anticlockwise and lift the filter straight up.
2. Empty and clean the filter.
3. Refit the filter and turn the locking ring clockwise to its stop position. Check that the edges seal
properly.
NOTE!
Dishwashing results may be affected if the filter is fitted incorrectly. The dishwasher must not be
used without the filter in place!
Check that the yellow
drainage pump stop (on the
right in the bottom drain) is in
place.
Cleaning the spray arms
Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The
spray arms also have holes underneath.
To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place
afterwards.

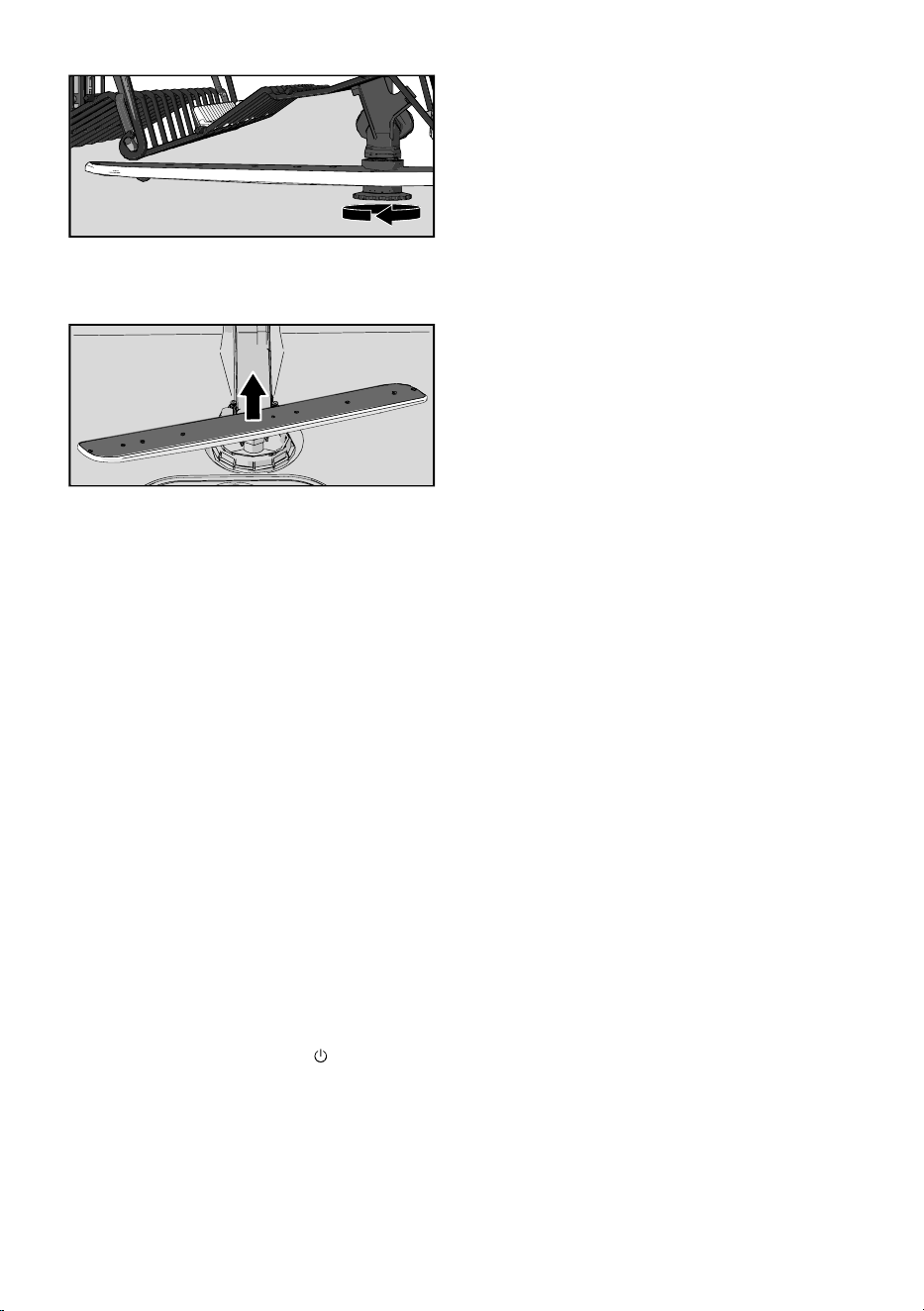

Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings anticlockwise to remove the spray arm from the upper basket.
21
Lower spray arm
• Pull the lower spray arm straight up to release it.
Clean the outside of the dishwasher
Door and door seal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Control panel
Keep the control panel clean. Use a dry or slightly damp cloth and, if necessary, a little washing up
liquid. Avoid strong or abrasive cleaners – they may damage the surface.
CLn - Run the Self-clean program
Dishwasher tub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self-clean program with two tablespoons of citric acid in the detergent compartment (with no dishes
in the machine). Special dishwasher cleaners are also available on the market.
Remove blockages
Unblocking the drainage pump
If the dishwasher still contains water after the program has finished, something may be blocking the
drainage pump, which results in the Water outlet fault error message.
1.
Turn off the machine using and remove the plug from the wall socket.
2. Remove the filter.
3. Scoop out the water from the dishwasher tub.
4. In order to inspect the drainage pump, remove the yellow drainage pump stop on the right in the
bottom drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any sharp
items, such as glass.
6. Refit the drainage pump stop. Refit the filter.
22
7. Plug the machine in again.

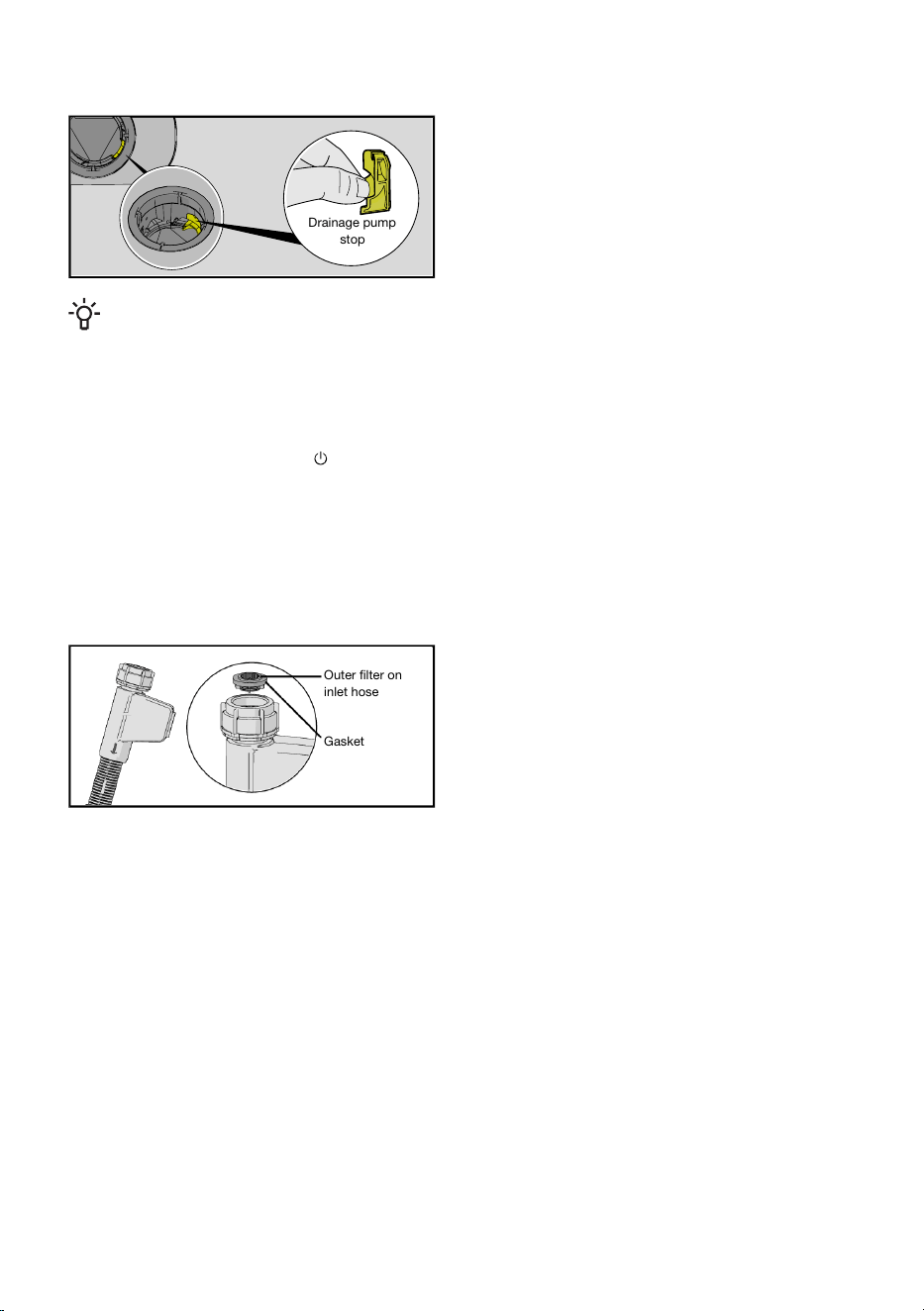

Drainage pump
stop
NOTE!
Do not forget to refit the drainage pump stop.
Unblocking the inlet hose filter
If the water supply contains small particles, the outer filter on the inlet hose may become blocked,
which results in the Water inlet fault error message.
1.
Turn off the machine using and remove the plug from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for
a while and check that the connection is watertight.
Outer filter on
inlet hose
Gasket
23
Troubleshooting
ActionError messages
Unblocking the drainage pump. See the chapter Care and cleaning.
If the problem persists, contact your nearest service centre.
Overfilling waterF10
See "Water remains in the dishwasher" under "Problem" in the
table below. If the problem persists, contact your nearest service
centre.
Water outlet faultF11
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter Care and cleaning. If the problem persists, contact
your nearest service centre.
Water inlet faultF12
Turn off the water tap and contact your nearest service centre.Inlet valve leakageF40
Turn off the water tap. Remove the plug from the wall socket and
contact your nearest service centre.
Heater fault 1F41
Turn off the water tap and contact your nearest service centre.Overfilling waterF54
To avoid water leakage outside the dishwasher, do not remove
the plug from the wall socket until the water tap on the supply line
has been turned off!
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter Care and cleaning. If the problem persists, contact
your nearest service centre.
Water inlet faultF67
Press any button to clear the error message.
ActionPossible causesProblem
Wait a moment then try again.You have pressed the control
panel too soon after opening the
door.
The control panel does not react
when pressed.
Open the door. The control
panel only reacts to use when
the door is open.
The door is closed.
Clean with a dry or slightly
damp cloth and, if necessary, a
little washing up liquid. Avoid
strong or abrasive cleaners –
they may damage the surface.
Dirt on the control panel.
Turn off the water tap. Remove
the plug from the wall socket
and wait for 60 seconds. Then
plug the appliance back into the
wall socket and turn on the wa-
ter tap.
The control panel requires calib-
ration.
Check that the baskets are cor-
rectly positioned horizontally.
The baskets are not correctly
positioned.
Cannot close door.
24
ActionPossible causesProblem
Check that the dishes are not
blocking the baskets from slid-
ing properly into place.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock does not click in-
to place and lock.
Press and hold and until
the display starts counting
down. Wait until the countdown
ends (60 seconds). Close the
door. Check that the door lock
clicks into place and locks.
Press . The display starts
counting down.
has not been pressed.
The dishwasher does not start.
Check.The door is not properly closed.
Close the door and wait. After
a while, the dishwasher contin-
ues the program.
The dishwasher has been
opened while a program is in
progress.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock has not clicked
into place and locked.
Press and hold and until
the display starts counting
down. Wait until the countdown
ends (60 seconds). Close the
door. Check that the door lock
clicks into place and locks.
Press and hold for three
seconds if you want to cancel
the Delayed start option.
Check whether the Delayed
start option has been selected.
Check.The plug is not plugged into the
wall socket.
Check.A fuse/circuit breaker has been
tripped.
Check that the dishes are not
blocking the spray arms.
The spray arms are not rotating
freely.
The dishes are not clean.
Clean the spray arms. See the
chapter Care and cleaning.
Spray arm holes or bearings
blocked.
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as In-
tensive 70°.
Unsuitable dishwashing pro-
gram.
Dose according to water hard-
ness. Far too much or far too
little detergent results in poorer
dishwashing results.
Incorrect detergent dosage.
25
ActionPossible causesProblem
Avoid large packages.Old detergent. Detergent is a
perishable product.
Do not cover porcelain with
large bowls or the like. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter Loading the dishwash-
er.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled
over during the program.
Clean the filter.The filter is clogged.
Check that the filter is fitted
correctly. See the chapter Care
and cleaning.
The filter is not fitted correctly.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and cleaning.
Drainage pump stop missing.
Rinse off these types of food-
stuffs if not starting the dish-
washer immediately. Consider
using 1h 65° with the Speed
wash option.
Some foodstuffs, such as mus-
tard, mayonnaise, lemon, vineg-
ar, salt and dressings, can
cause spots on stainless steel
if left for too long.
Spots on stainless steel or sil-
ver.
In order to avoid marks and tar-
nishing, separate dishes made
from different metals, such as
silver, stainless steel and alu-
minium.
All stainless steel can cause
spots on silver if they come into
contact during dishwashing.
Aluminium can also cause spots
on dishes.
See the chapter Settings.Incorrect rinse aid dosage set-
ting.
Spots or films on the dishes.
Switch all-in-one detergents or
deactivate the TAB setting and
top up with salt and separate
rinse aid. See Rinse aid in the
chapter Settings.
The setting TAB is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
Top up with salt. See the
chapter Before washing for the
first time.
Salt compartment empty.
See Water hardness in the
chapter Settings.
Incorrect water softener setting.
Check that the salt compart-
ment lid is tightened clockwise
to its end position. Otherwise
contact your nearest service
centre.
The water softener is leaking
salt.
26
ActionPossible causesProblem
Wash crystal at a low temperat-
ure using a small amount of de-
tergent. If you have questions
about the detergent, contact the
detergent manufacturer.
Too high temperature and/or
too much detergent can cause
etching on crystal. Unfortu-
nately, this cannot be repaired,
only prevented.
Reduce the dosage. See the
chapter Settings. If you have
very soft water, you may want
to dilute the rinse aid 50:50 with
water.
Rinse aid dosage setting too
high.
The dishes have a sticky
white/blue film.
Use a detergent with a bleach-
ing agent.
Lipstick and tea/coffee stains
can be difficult to remove.
Spots left after washing.
The detergent compartment
must be dry when adding deter-
gent.
The detergent compartment
was damp when adding deter-
gent.
Detergent residue in the deter-
gent compartment after dish-
washing.
Check that the dishes are not
preventing the detergent com-
partment from opening.
The detergent compartment has
been blocked.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can ro-
tate.
The dishes are not correctly
placed or the spray arms are not
rotating freely.
Rattling sound when dishwash-
ing.
Clean the filter.The filter is clogged.Water remains in the dishwash-
er.
Check that the filter is fitted
correctly. See the chapter Care
and cleaning.
The filter is not fitted correctly.
Clean the drainage pump. See
the chapter Care and cleaning.
Debris in the drainage pump.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and cleaning.
Drainage pump stop missing.
Check that the hose is free from
kinks and sharp bends.
Kink in drainage hose.
Disconnect the drainage hose
where it connects to the sink
unit's water trap. Check that no
debris has fastened and that the
connection has an inner diamet-
er of at least 14 mm.
Blocked drainage hose.
Clean with washing-up brush
and low foaming cleaner.
Dirt around the seals and in
corners.
Bad odour in dishwasher.
Run a program with a high tem-
perature once or twice a month.
Or run a self-cleaning program.
See Self-clean in the chapter
Using the dishwasher.
Low temperature programs
have been selected for a pro-
longed period.
27
ActionPossible causesProblem
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as In-
tensive 70°. Or run a self-clean-
ing program. See Self-clean in
the chapter Using the dishwash-
er.
Low temperature programs
have been selected for a pro-
longed period.
Grease deposits in the dish-
washer.
Activate the TotalDry setting.
See the chapter Settings.
The TotalDry setting has not
been activated.
The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully
loaded.
Top up with rinse aid or in-
crease the rinse aid dosage
setting.
Rinse aid needs topping up or
dosage is set too low.
Switch all-in-one detergents or
deactivate the TAB setting and
top up with salt and separate
rinse aid. See Rinse aid in the
chapter Settings.
The setting TAB is activated and
all-in-one detergent with insuffi-
cient drying effect is being used.
28
Installation
It is important that you read through and follow the instructions and directions below. Conduct
installation and connection in accordance with the separate installation instructions.

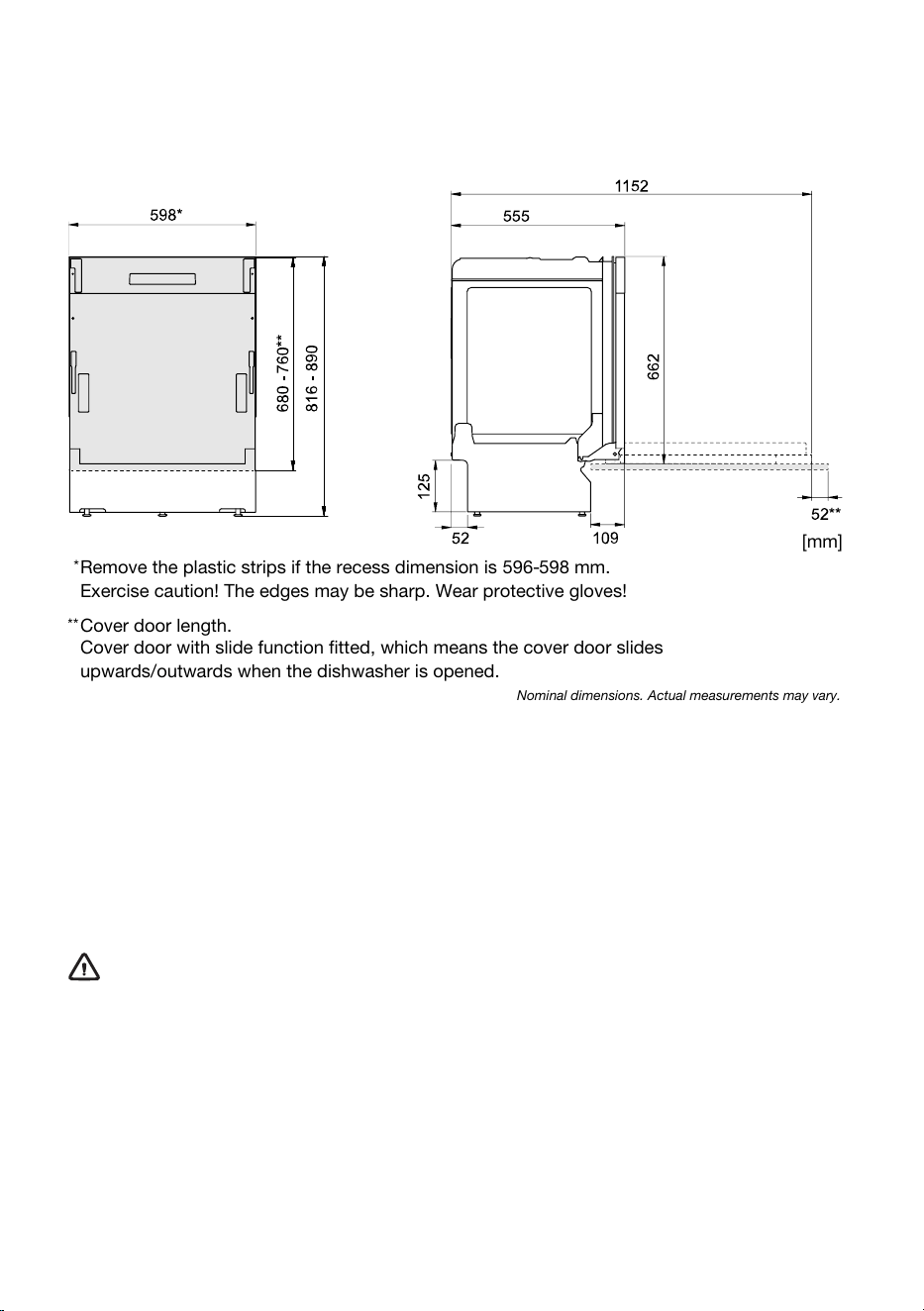

[mm]
Remove the plastic strips if the recess dimension is 596-598 mm.
Exercise caution! The edges may be sharp. Wear protective gloves!
**
Cover door length.
Cover door with slide function fitted, which means the cover door slides
upwards/outwards when the dishwasher is opened.
Nominal dimensions. Actual measurements may vary.
*
Safety instructions
• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.
• Before fastening the dishwasher, test the dishwasher by running the 1h 65° program with the
Speed wash option. Check that the dishwasher fills with water and drains. Check also that none
of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!
Setup
• The recess and connection dimensions are included in the separate installation instructions. Check
that all dimensions are correct before starting the installation. Note that the height of the cover
door can be adjusted to match other fittings.
• Make sure the area on which the dishwasher is to be installed is firm. Adjust the adjustable feet
so that the dishwasher is level.
29
• If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation
from the dishwasher.
• Mount the protective film beneath the worktop and up around the edge. The function of the
protective film is to protect the worktop from moisture. (The protective film is in the enclosed
plastic bag.)
• Check that the machine is installed such that the door opens freely, otherwise door lock functionality
may be disrupted.
• Note that the door springs may need adjusting after a cover door has been fitted. Adjust the left
and right door springs equally until the door is evenly balanced.
Drainage connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drainage hose runs to a lower level than
the bottom of the dishwasher, such as by routing it directly to a floor drain.
The drainage hose can also be connected to a cone-shaped connection pipe on the sink unit's water
trap. The connection pipe must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose must
not exceed 4.5 m). Any joints and connecting pipes must have an internal diameter of at least 14 mm.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible,
so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while.
Check that all connections are watertight.
Connection to cold water supply
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
Electrical connection
Information about the electrical connection can be found on the serial number plate. This specification
must match the electricity supply.
The dishwasher must be connected to an earthed socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after
installing the dishwasher. Do not use an extension cord!
30
Service
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a
problem that you cannot resolve, please contact your nearest service centre for professional help,
see www.gorenje.com. Our website also has information about spare part availability and what you
can repair yourself.
When making contact, provide the details on the serial number plate. Include the article number (1)
and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
1
2
Spare parts
The following spare parts are available for at least seven years after the model is no longer
manufactured: Motor, circulation and drainage pump, heating element, pipes and hoses, valves, filters
and aquastops, door attachment components, circuit boards, electronic display, pressure sensor,
thermostats and sensors, software including restore programs.
The following spare parts are available for at least ten years after the model is no longer manufactured:
Door hinges and seals, other seals, spray arms, drain filters, wire baskets and plastic accessories
such as baskets and lids.
Number of program cycles
Press and hold and for 3 seconds to show Number of program cycles on the display.
(If the dishwasher has completed more than 999 cycles, the number of thousands is displayed followed
by the number of cycles up to 999. For example: 1234 cycles is displayed as 001 followed by 234.)
31
Technical data and energy labelling
Technical data
816-890 mmHeight:
598 mmWidth:
555 mmDepth:
30 kg
1)
Weight:
14
2)
Number of standard place settings:
0.03-1.0 MPaWater pressure:
See the serial number plateElectrical connection:
See the serial number plateRated power:
1)
Weight can vary due to different specifications.
2)
In accordance with the EN 60436 standard.
Declaration of conformity
We hereby declare that this appliance is in conformity with the relevant European directives and the
requirements of the relevant standards.
Approved in accordance with the relevant EU directives.
Approved in accordance with the relevant UK legal requirements.
Information for consumers
Information about your appliance can be found at www.gorenje.com. You can also find information
in the EU Product Registration database for Energy Labelling, EPREL. Scan the QR code on the energy
label supplied with the dishwasher (or go to https://eprel.ec.europa.eu and search for the model name).
Information for test institute
Information about this appliance can be found in the European Product Database for Energy Labelling,
should include the details on the serial number plate. Include the article number (1), the serial number
(2) and the model name (3).
1
3 2
32
Your notes
33
Your notes
34
Your notes
35
We reserve the right to make changes.
www.gorenje.com
947964-a8
