LMD E3670-20 1
E3670-20
REV 0 3/13/26
FEDERAL INDUSTRIES
LMD4878, LMD7278, LMD9678
INSTALLATION & OPERATIONS MANUAL
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
FEDERAL INDUSTRIES P.O. Box 290 Belleville, WI 53508
Toll Free 1(800) 356-4206 WI Phone (608) 424-3331 Fax: (608) 424-3234
LMD E3670-20 2
Contents
A) INTRODUCTION ............................................................................................................... 5
REGISTRATION & SERIAL NUMBER ........................................................................................ 5
B) WARNING LABELS & SAFETY INSTRUCTIONS ..................................................................... 6
C) REFRIGERATION WARNING .............................................................................................. 7
INSTALLATION-REPAIR-DECOMMISSIONING ......................................................................... 7
D) BASE COMPONRNT LAYOUT ........................................................................................... 14
E) ELECTRICAL & REFRIGERATION DATA .............................................................................. 15
F) INSTALLATION ............................................................................................................... 15
Inspection For Shipping Damage ........................................................................................ 16
Locating The Display Case .................................................................................................. 16
Remote Units .................................................................................................................... 16
Maximum Releasable Charge ............................................................................................. 18
Removing Case From Shipping Skid .................................................................................... 19
Removing Packaging Material ............................................................................................. 19
Lifting and Moving Case ..................................................................................................... 20
Single Case Installation ...................................................................................................... 21
Leveling the Case .............................................................................................................. 21
Sealing Unit to The Floor ..................................................................................................... 21
Multiple Case Lineup Installation ........................................................................................ 22
Two Cases Connected to Single Remote Condenser ............................................................ 23
Floor Preparation ............................................................................................................... 24
Joining and Leveling Line Up ............................................................................................... 24
Sealing all Unit to The Floor ................................................................................................ 26
Electrical Connection ........................................................................................................ 26
Permanent Connected (Standard) ....................................................................................... 26
LMD E3670-20 3
Panel Removal for Electrical Access ................................................................................... 28
Condensate Drain Hose (Standard) ..................................................................................... 29
Condensate Pump (Optional) ............................................................................................. 29
Shelving Installation ........................................................................................................... 30
Shelf Lights ....................................................................................................................... 31
G) OPERATING INSTRUCTIONS ........................................................................................ 32
Control Description ........................................................................................................... 32
Electronic Temperature Control Operation ........................................................................... 33
Operation .......................................................................................................................... 33
Defrost Cycle .................................................................................................................... 33
Powering on control ........................................................................................................... 34
Adjusting the set point ....................................................................................................... 35
Entering manual defrost mode ............................................................................................ 35
Refrigerant detection and mitigation system ........................................................................ 37
Refrigerant Detection System (RDS) Location ...................................................................... 38
Night Curtain Operation ..................................................................................................... 39
Security Cover Operation (Optional) .................................................................................... 40
H) INITIAL START-UP ........................................................................................................ 41
Placing Product into Case .................................................................................................. 41
I) MAINTENANCE .............................................................................................................. 42
Top Light Bulb Replacement ............................................................................................... 42
cleaning Condenser Coil .................................................................................................... 42
J) CLEANING INSTRUCTIONS ............................................................................................. 43
Daily Cleaning ................................................................................................................... 43
K) SERVICE INFORMATION ................................................................................................. 46
Special Service Situations .................................................................................................. 47
Pre-Service Checklist ......................................................................................................... 48
L) SALE & DISPOSAL .......................................................................................................... 49
LMD E3670-20 4
M) REFRIGERATION OPERATION ...................................................................................... 50
Electronic Expansion Valve (EEV) ........................................................................................ 51
EEV Controller Settings ...................................................................................................... 51
N) PARTS LIST ................................................................................................................. 52
O) CASE WIRIG DIAGRAMS .............................................................................................. 54
LMD48, 72, 96 ................................................................................................................... 54
LMD E3670-20 5
A) INTRODUCTION
Thank you for purchasing a Federal Industries display case. This manual contains
important instructions for installing and servicing the LMD Models. A repair parts list and
wiring diagrams are also included in the manual. Read all of these documents carefully
before installing or servicing your case.
NOTICE
Read this manual before installing your case. Keep this manual and refer to it before doing
any service on the equipment. Failure to do so could result in personal injury or damage to
the case.
NOTICE
Installation and service of the electrical components in the case must be performed by a
licensed electrician.
The portions of this manual covering components contain technical instructions are
intended only for persons qualified to perform electrical work.
DANGER
Improper or faulty hookup of electrical components in the case can result in severe injury or
death.
All electrical wiring hookups must be done in accordance with all applicable local, regional,
or national standards.
REGISTRATION & SERIAL NUMBER
It’s important to keep a record of the model and serial number of your merchandiser for warranty
and part identification. Please write them here for your quick reference.
Register your product online! Visit our website at www.federalindustries.com and register your
product today.
Case Model__________________________ Serial Number______________________
We’re here to provide you with the best possible experience with your new product, however, we
cannot cover everything about your merchandiser in this manual, so if you have any additional
questions or issues, please see the SERVICE INFORMATION PAGE to find who you should contact.
LMD E3670-20 6
B) WARNING LABELS & SAFETY INSTRUCTIONS
This is the safety-alert symbol. When you see this symbol on your case or in the manual,
be alert to the potential for personal injury or damage to your equipment.
Be sure you understand all safety messages and always follow recommended precautions and
safe operating procedures.
NOTICE TO EMPLOYERS
You must make sure that everyone who installs, uses, or services your case is thoroughly
familiar with all safety information and procedures.
Important safety information is presented in this section and throughout the manual. The
following signal words are used in the warning and safety messages:
DANGER: Severe injury or death will occur if you ignore the message.
WARNING: Severe injury or death can occur if you ignore the message.
CAUTION: Minor injury or damage to your case can occur if you ignore the message.
NOTICE: This is important installation, operation, or service information. If you ignore the
message, you may damage your case.
The warning and safety labels shown throughout this manual are placed on your Federal
Industries case at the factory. Follow all warning label instructions. If any warning or safety
labels become lost or damaged, call our customer service department at 1(800) 356-4206
for replacements.
This label is located on removable electrical panels. This label is located below near moving
parts
CAUTION
POWER BEFORE
RISK OF ELECTRIC
SHOCK DISCONNECT
91-12340
SERVICING UNIT.
CAUTION
HAZARDOUS MOVING PARTS
DO NOT OPERATE UNIT WITH
DISPLAY PANS REMOVED.
LMD E3670-20 7
C) REFRIGERATION WARNING
INSTALLATION-REPAIR-DECOMMISSIONING
Be sure you understand all safety messages and always follow recommended precautions and
safe operating procedures.
DANGER
Risk of fire or explosion. Flammable refrigerant used. To be repaired only by
trained service personnel. Do not puncture refrigerant tubing. Dispose of
properly in accordance with federal or local regulations.
Consult repair manual/owner’s guide before attempting to service this product. All safety
precautions must be followed.
Follow handling instructions carefully in compliance with national regulations.
Auxiliary devices which may be ignition sources shall not be installed in the ductwork, other than
auxiliary devices listed for use with the specific appliance.
Do not store explosive substances (such as aerosol cans with a flammable propellant) in this
case.
Do not use an electrical appliance INSIDE the food storage compartments unless its type is
recommended by manufacturer.
Flammable refrigerant type specified on case nameplate is on the serial label.
APPLIES TO R290 REFRIGERANT MODELS ONLY! Contains a charge of R290 refrigerant with a
lower flammability limit (LFL) of .038kg/m³. See table for amount of charge.
APPLIES TO R454C REFRIGERANT MODELS ONLY! Contains a charge of R454C refrigerant with a
lower flammability limit (LFL) of .0.286kg/m³. See data plate for amount of charge.

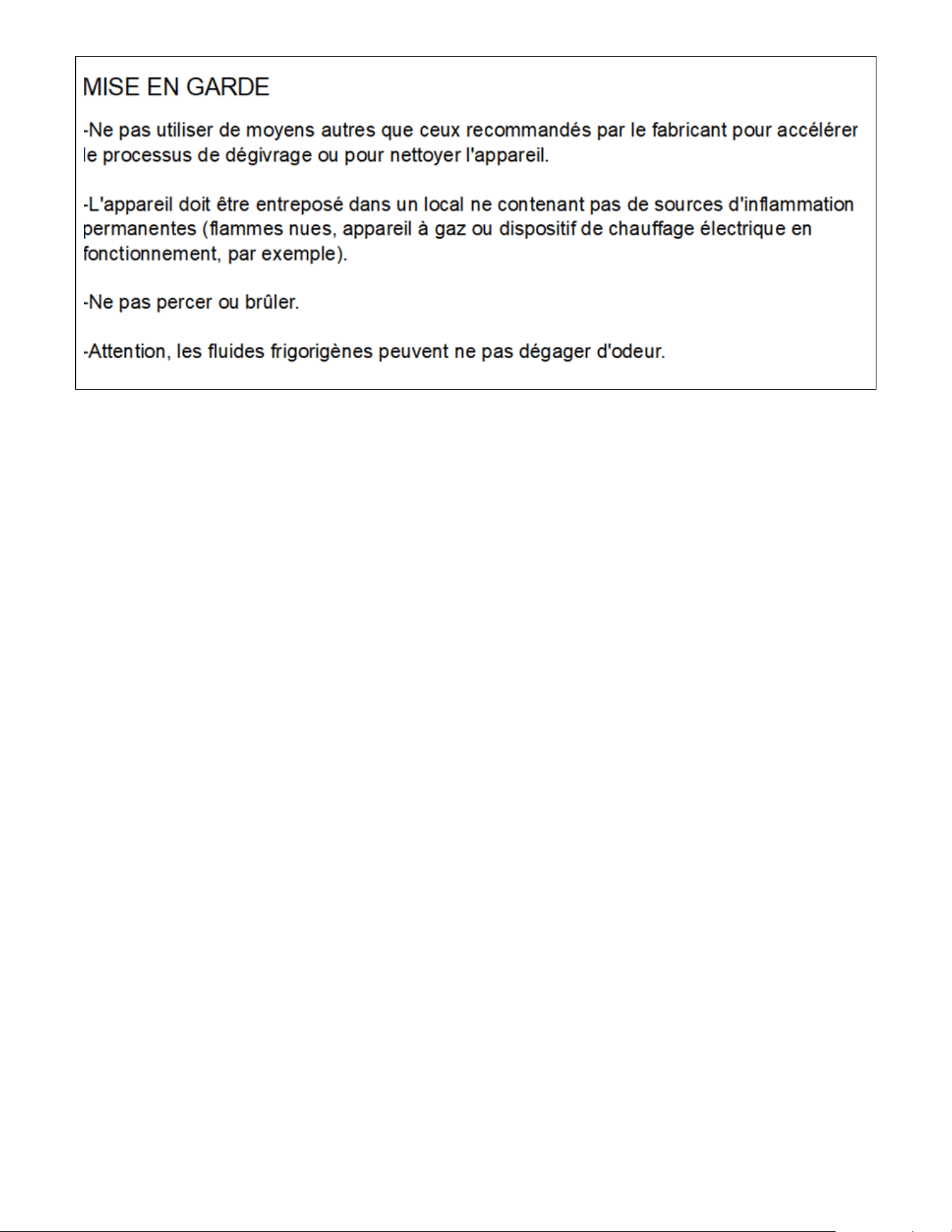

WARNING
- Do NOT use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer
- The appliance SHALL be stored in a room without continuously operating ignition sources
For example: open flames, an operating gas appliance, or an operating electric heater
- Do NOT pierce or burn.
- Be aware that refrigerants may not contain an odor
LMD E3670-20 8
Qualification:
All refrigeration and electrical maintenance, service, and repair must be performed by a Certified
Technician that is trained in the required flammable refrigerants safety procedures. Technicians
must read the entire section Error! Reference source not found. section of this manual.
Work requiring qualification includes but is not limited to the following:
a) breaking into the refrigerating circuit.
b) opening of sealed components.
c) opening of ventilated enclosures.
Required Safety Checks:
Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS, perform the following
safety checks to ensure that the risk of ignition is minimized prior to conducting work on the
system.
☐ Discharge all capacitors using safe, non-sparking method to prevent accidental arcing.
☐ Ensure no live electrical components or wiring are exposed during charging, recovering or
purging.
☐ Confirm continuity of earth bonding.
☐ Ensure all personnel (direct, contracted, etc.) in the area are informed of the nature of the work
being performed.
☐ Ensure the work area is open or adequately ventilated.
o Ensure ventilation is maintained during work.
o Ventilation should disperse any released refrigerant and preferably discharge it
externally to atmosphere.
o Work in confined spaces shall be avoided.
LMD E3670-20 9
☐ Survey the surrounding area to ensure there are NO flammable hazards, ignition sources, or
other unsafe conditions present.
o All possible ignition sources, including cigarette smoking, shall be kept sufficiently
far away from the site of installation, repairing, removing and disposal, during which
refrigerant can potentially be released to the surrounding area.
o “NO Smoking” signs shall be posted and visible.
☐ Check the area with an appropriate refrigerant detector prior to and during work to ensure the
technician is aware of potentially toxic or flammable vapors.
o Ensure that the leak detection equipment being used is suitable for use with all
applicable refrigerants (e.g., non-sparking, adequately sealed, or intrinsically safe)
o NOTE: The use of silicon sealants can inhibit the effectiveness of some types of leak
detection equipment.
☐ Work shall follow a controlled procedure that prevents release or accumulation of flammable
gas or vapor throughout the process.
☐ No person performing work to or near a REFRIGERATION SYSTEM that involves exposing any
pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire
or explosion.
☐ Verify the actual REFRIGERANT CHARGE is in accordance with the room size within which the
refrigerant containing parts are installed.
☐ Verify the ventilation machinery and outlets are operating adequately and are not obstructed.
☐ Verify markings on the equipment continue to be visible and legible.
o Markings and signs that are illegible shall be corrected.
☐ Verify refrigerating pipes and components are installed in a position where they are unlikely to
be exposed to any substance which may corrode refrigerant containing
Hot Work Controls
If any hot work is to be conducted on the refrigerating equipment or any associated parts,
☐ Recover or isolate refrigerant prior to beginning hot work (See part 0 of this section)
☐ Appropriate fire extinguishing equipment shall be made readily available before starting work.
☐ A dry chemical or CO2 fire extinguisher should be adjacent to the charging area.
☐ The area shall be adequately ventilated before and during any hot work to safely disperse any
released refrigerant.
Electrical Components
☐ Electrical components being changed shall be suitable for the purpose and to the correct
specification so as to minimize the risk of possible ignition due to incorrect parts.
o At all times, the manufacturer’s maintenance and service guidelines shall be
followed.
o If in doubt, consult the manufacturer’s technical department for assistance.
LMD E3670-20 10
☐ If a fault exists that could compromise safety, then no electrical supply shall be connected to
the circuit until it is satisfactorily resolved. If the fault cannot be corrected immediately but it is
necessary to continue operation, an adequate temporary solution should be used.
Repairs to sealed components
☐ During repairs to sealed components, all electrical supplies shall be disconnected from the
equipment being worked upon prior to any removal of sealed covers, etc.
o If it is necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical
point to warn of a potentially hazardous situation.
☐ Measures shall be taken to ensure that work on electrical components does not alter the
casing in such a way that it compromises its level of protection. This includes preventing:
o Damage to cables;
o Excessive number of connections;
o Terminals not made to original specification;
o Damage to seals;
o Incorrect fitting of glands;
o etc.
☐ Ensure that the apparatus is mounted securely.
☐ Ensure that seals or sealing materials have not degraded to the point that they no longer
prevent the egress of flammable vapors.
☐ Replacement parts shall be in accordance with the manufacturer’s specifications.
Repairs to intrinsically safe components
Note: Intrinsically safe components do not have to be isolated prior to working on them
☐ Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
☐ Replacement parts shall be in accordance with the manufacturer’s specifications to ensure
that the risk of ignition is minimized,
Safe Detection of flammable refrigerants:
Under no circumstances shall potential ignition sources be used in the searching for or detection
of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
The following leak detection methods are deemed acceptable for all refrigerant systems:
Electronic leak detectors may be used to detect refrigerant leaks but, in the case of FLAMMABLE
REFRIGERANTS, the sensitivity might not be adequate or might need recalibration.
o Detection equipment shall be calibrated in a refrigerant-free area.
o Ensure that the detector is not a potential source of ignition and is suitable for the
refrigerant used.
LMD E3670-20 11
o Leak detection equipment shall be set at a percentage of the LFL of the refrigerant
and shall be calibrated to the refrigerant employed, and the appropriate percentage
of gas (25 % maximum) is confirmed.
Leak detection fluids are also suitable for use with most refrigerants but the use of detergents
containing chlorine shall be avoided as the chlorine can react with the refrigerant and corrode
the copper pipework. Examples of leak detection fluids are
o bubble method,
o fluorescent method agents.
If a leak is suspected, all naked flames shall be removed/extinguished.
If a leakage of refrigerant is found which requires brazing, all the refrigerants shall be recovered
from the system, or isolated (by means of shut off valves) in a part of the system remote from the
leak.
Removal and Evacuation:
Prior to breaking into the refrigerant circuit for any purpose, the following procedure shall be
adhered to due to the added flammability risk:
a) Safely remove refrigerant following local and national regulations.
b) Purge the circuit with oxygen-free nitrogen (OFN).
c) Evacuate (optional for R454C).
d) Purge the circuit with oxygen-free nitrogen (OFN) (optional for R454C).
e) Open the circuit by cutting or brazing.
The refrigerant shall be recovered into the correct recovery cylinders.
Due to use of flammable refrigerants, the system shall be purged with oxygen-free nitrogen to
render the appliance safe for flammable refrigerants. This process might need to be repeated
several times.
o Compressed air or oxygen shall not be used for purging flammable refrigerant
systems.
For appliances containing flammable refrigerants, refrigerants purging shall be achieved by
breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until the
working pressure is achieved, then venting to atmosphere, and finally pulling down to a
vacuum (optional for R454C). This process shall be repeated until no refrigerant is within the
system (optional for R454C). When the final oxygen-free nitrogen charge is used, the system
shall be vented down to atmospheric pressure to enable work to take place.
Ensure that the outlet for the vacuum pump is not close to any potential ignition sources and that
ventilation is available.
LMD E3670-20 12
Charging procedures:
In addition to conventional charging procedures, the following requirements shall be followed.
☐ Ensure that contamination of different refrigerants does not occur when using charging
equipment.
☐ Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in
them.
☐ Cylinders should be kept in an appropriate position according to the instructions.
☐ Ensure that the REFRIGERATING SYSTEM is earthed prior to charging the system with
refrigerant.
☐ Label the system when charging is complete (if not already).
☐ Extreme care shall be taken not to overfill the REFRIGERATING SYSTEM.
Prior to recharging the system, it shall be pressure-tested with the appropriate purging gas. The
system shall be leak-tested on completion of charging but prior to commissioning. A follow up
leak test shall be carried out prior to leaving the site.
Decommissioning:
Before carrying out this procedure, it is essential that the technician is completely familiar with
the equipment and all its details. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in
case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical
power is available before the task commences.
a) Become familiar with the equipment and its operation.
b) Isolate the system electrically.
c) Before attempting the procedure, ensure that:
I. Mechanical handling equipment is available, if required, for handling refrigerant
cylinders.
II. All personal protective equipment is available and is being used correctly.
III. The recovery process is supervised at all times by a competent person.
IV. Recovery equipment and cylinders conform to the appropriate standards.
d) Pump down the refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f) Make sure that the cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with instructions.
h) Do not overfill cylinders (no more than 80% volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure
that the cylinders and the equipment are removed from the site properly and all
isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigerating system unless it
has been cleaned and checked.
LMD E3670-20 13
Labeling:
Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant.
The label shall be dated and signed. For appliances containing flammable refrigerants, ensure
that there are labels on the equipment stating the equipment contains flammable refrigerant.
Recovery:
When removing the refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant and
labeled for that refrigerant (i.e., special cylinders for the recovery of refrigerant). Cylinders shall be
complete with pressure-relief valve and associated shut-off valve in good working order. Empty
recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the
equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants
including, when applicable, FLAMMABLE REFRIGERANTS. In addition, a set of calibrated weighing
scales shall be available and in good working order. Hoses shall be complete with leak-free
disconnect coupling and in good condition. Before using the recovery machine, check that it is in
satisfactory working order, has been properly maintained and that any associated electrical
components are sealed to prevent ignition in the event of refrigerant release. Consult
manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have been evacuated to an
acceptable level to make certain that FLAMMABLE REFRIGERANT does not remain within the
lubricant. The evacuation process shall be carried out prior to returning the compressor to the
suppliers. Only electric heating to the compressor body shall be employed to accelerate this
process. When oil is drained from a system, it shall be carried out safely.
LMD E3670-20 14

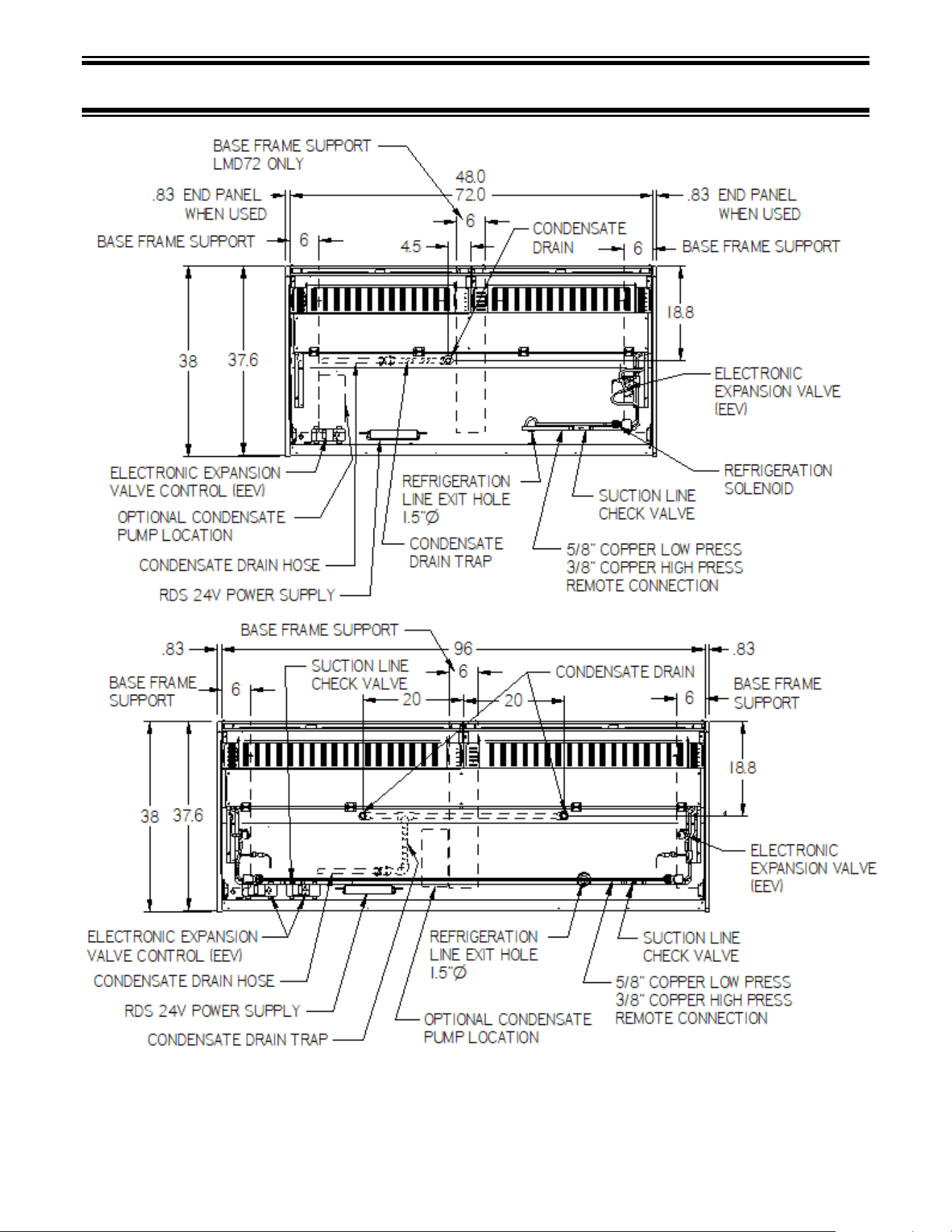

D) BASE COMPONRNT LAYOUT
LMD E3670-20 15
E) ELECTRICAL & REFRIGERATION DATA
MODELS
LMD4878R
LMD7278R
LMD9678R
REFRIGERANT
R454c
VOLTS
120 VOLTS
FREQUENCY
60 HERTZ
PHASE
1 PHASE
# OF WIRES
2 WIRE + GROUND
TOTAL AMPS
4 AMPS
4 AMPS
4 AMPS
OPTIONAL
CONENSATE PUMP
(1)1.5 AMPS
120 VOLTS
Refer to the rating plate data attached to side of base for Maximum Fuse Size
and Minimum Circuit Ampacity.
F) INSTALLATION
IMPORTANT: Read this Section of this manual located on page 7&8.
“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”
All refrigeration and electrical work must be performed by certified technicians.
The installation of the appliance and the refrigerant must only be performed by Federals approved
Service or suitably qualified person.
Appliance to be installed in accordance with safety standards ANSI/ASHREA 15.
Case meets requirements for safe operation in climate class 3 environment. (Dry bulb
temperature, 77°F; Relative humidity 60%). This is not a performance indication.
This case is designed for performance in NSF TYPE 2 environment: Maximum Ambient
Temperature cannot exceed 80°F and Maximum Relative Humidity of 55%.
LMD E3670-20 16
INSPECTION FOR SHIPPING DAMAGE
You are responsible for filing all freight claims with the delivering truck line. Inspect all
cartons and crates for damage as soon as they arrive. If damage is noted to shipping crates,
cartons, or if a shortage is found, note this on the bill of lading (all copies) prior to signing.
If damage is discovered when the case is uncrated, immediately call the delivering truck line
and follow-up the call with a written report indicating concealed damage to your shipment.
Ask for an immediate inspection of your concealed damaged item. Crating material must be
retained to show the inspector from the truck line.
LOCATING THE DISPLAY CASE
The case(s) should be located where it is not subjected to the direct rays of the sun, heating
ducts, grills, radiator, or ceiling fans, nor should it be located near open doors or main door
entrances. Also, avoid locations where there is excessive air movement or air disturbances
and avoid high humidity locations such as near cases with water misting or fogging devices.
Failure to locate this case as stated will reduce the performance of your display and will
affect temperature of interior of case and product.
If this case or cases are to be located against a wall there should be at least 6” between the
case and the wall to allow air circulation. Failure to give adequate space may cause exterior
surfaces to sweat.
REMOTE UNITS
There are special requirements for A2L refrigerants such as R454C
Piping material, pipe routing, and installation shall include protection from physical damage
in operation and service, and be in compliance with national and local codes and standards,
such as ANSI/ASHRAE 15, IAPMO Uniform Mechanical Code, ICC International Mechanical
Code, or CSA B52. All field joints shall be accessible for inspection prior to being covered or
enclosed
The installation of pipe work shall be kept to a minimum.
Federal remote units are charged with dry nitrogen only. Joints made in the installation where
any part is pre-charged shall be made in accordance with the following:
a) A brazed, welded or mechanical connection shall be made before opening the valves to
permit refrigerant to flow between the refrigerating system parts. A vacuum valve shall
be provided to evacuate the interconnecting pipe and/or any uncharged refrigerating
system part.
b) Mechanical connectors used indoors shall comply with ISO14903 or UL 207 or CSA
C22.2 No.140.3. When mechanical connectors are reused indoors, sealing parts shall
be renewed. When flared joints are reused indoors, the flare part shall be refabricated.
LMD E3670-20 17
c) Refrigerant tubing shall be protected or enclosed to avoid damage. Flexible refrigerant
connectors (such as connecting lines between the indoor and outdoor unit) that might
be displaced during normal operation shall be protected against mechanical damage.
Mechanical connections shall be accessible for maintenance purposes.
Provisions shall be made for expansion and contraction of long runs of pipes. Protection
devices, piping, and fittings shall be protected as far as possible against adverse
environmental effects, for example, the danger of water collecting and freezing in relief pipes
or the accumulation of dirt and debris.
Piping in refrigeration systems shall be designed and installed to minimize the likelihood of
hydraulic shock damaging the system
Do not use steel refrigeration lines with Federal products.
Flexible pipe elements shall be protected against mechanical damage, excessive stress by
torsion, or other forces, and that they should be checked for mechanical damage annually.
Precautions shall be taken to avoid excessive vibration or pulsation. Use vibration dampening
tubing clamps as necessary, especially near sources of vibration.
This unit requires a minimum room area size to operate in. See table below for minimum room
areas
Model
A
min
[sq meters]
A
lim
[sq ft]
LMD4878
19
200
LMD7278
22
240
LMD9678
14
150
After completion of field piping for split systems, the field pipework shall be pressure tested with
dry nitrogen and then vacuum tested prior to refrigerant charging according to the following
requirements:
1) The minimum test pressure for the low side of the system shall be the low side design
pressure and the minimum test pressure for the high side of the system shall be the high
side design pressure, unless the high side of the system cannot be isolated from the low
side of the system in which case the entire system shall be pressure tested to the low side
design pressure. See the unit data plate for applicable pressures.
2) The test pressure after removal of pressure source shall be maintained for at least 1 h
with no decrease of pressure indicated by the test gauge, with test gauge resolution not
exceeding 5 % of the test pressure.
LMD E3670-20 18
3) During the evacuation test, after achieving a vacuum level of 250 microns or less, the
refrigeration system shall be isolated from the vacuum pump, and the pressure shall not
rise above 500 microns within 10 min. The vacuum pressure level shall be the lessor of 500
microns or the value required for compliance with national and local codes and standards,
which may vary between residential, commercial, and industrial buildings.
Always follow local codes during installation.
Be sure that any refrigeration line running through an occupied space is protected against damage
by using line set covers, sleeving, etc. As little line set as possible should be run through an
occupied space. Run refrigeration line sets through building floors, ceilings, walls, or mechanical
rooms as much as possible. Be sure to follow all local codes.
Maximum Releasable Charge
The maximum releasable charge may be required to comply with local codes. This must be
calculated for the complete system as follows:
The table below shows various maximum releasable charge values for line sets.
Liquid Line Maximum Releasable Line Charge By Length
1/4" (6.35mm)
3/8" (9.53mm)
1/2" (12.7mm)
1/4" (6.35mm)
Line
Length
[ft]
Line
Length
[m]
lbs
kg
lbs
kg
lbs
kg
lbs
kg
10
3.0
0.6
0.3
0.8
0.4
1.1
0.5
0.6
0.3
50
15.2
1.1
0.5
2.1
1.0
3.5
1.6
1.1
0.5
100
30.5
1.8
0.8
3.8
1.7
6.5
3.0
1.8
0.8
250
76.2
3.8
1.7
8.8
4.0
15.6
7.1
3.8
1.7
Suction Line Maximum Releasable Line Charge By Length
1/2" (12.7mm)
5/8" (15.9mm)
3/4" (19.1mm)
7/8" (22.2mm)
Line
Length
[ft]
Line
Length
[m]
lbs
kg
lbs
kg
lbs
kg
lbs
kg
10
3.0
1.0
0.4
1.3
0.6
1.7
0.8
2.2
1.0
50
15.2
3.1
1.4
4.8
2.2
6.8
3.1
9.2
4.2
100
30.5
5.8
2.6
9.2
4.2
13.2
6.0
17.9
8.1
250
76.2
13.9
6.3
22.3
10.1
32.4
14.7
44.1
20.1
LMD E3670-20 19
REMOVING CASE FROM SHIPPING SKID
Remove the (8) 1/4” screws that secure the case to the skid. These screws are located in
the front and rear Base Rails. The (4) screws in the rear base rail are easily accessible from
the back of the case. To access the (4) screws in the front base rail the Front Kick panel will
need to be removed.
FRONT BASE RAIL
KICK PANEL
10-18 KICK
PANEL SCREWS
SKID MOUNTING SCREWS
(4) 1/4" SCREWS THROUGH FRONT BASE RAIL
(4) 1/4" SCREWS THROUGH REAR BASE RAIL
REAR
BASE RAIL
Note that the case has casters installed at factory to allow case to be moved to final
location. There are leg levelers on bottom of case, once case is off skid turn the leg levelers
up to allow case to roll on casters.
REMOVING PACKAGING MATERIAL
Remove bubble wrap and packing material for all shelves and panel, brackets, etc. If it is
necessary to remove tape residue from plastic materials, use cleaning compounds
recommended in the cleaning section of this manual.
LMD E3670-20 20

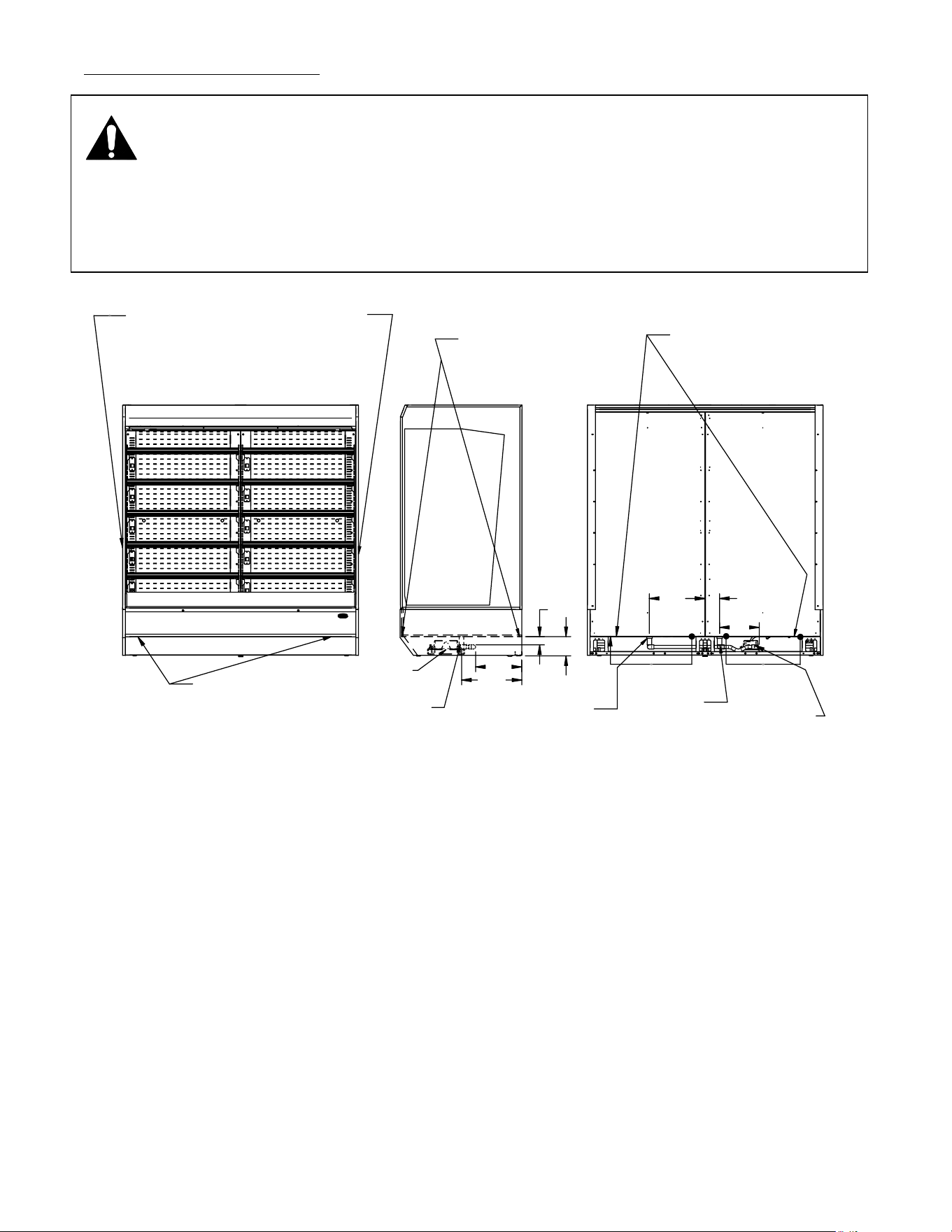

LIFTING AND MOVING CASE
IF MANUAL LIFTING,PUSHING
OR PULLIN REQUIRED.
GRAB UNDER FRONT AND REAR
LIP ON FRONT AND BACK OF CASE.
IF MANUAL LIFTING,PUSHING
OR PULLIN REQUIRED.
GRAB UNDER FRONT AND REAR
LIP ON FRONT AND BACK OF CASE.
ON FRONT OF CASE IT MAY BE EASIER
TO REMOVE FRONT KICK PLATE.
REAR FORK
LIFT AREA
REAR FORK
LIFT AREA
14.4
2.6
OPTIONAL
CONDO
PUMP.
CONDENSATE
DRAIN
OPTIONAL CONDO
PUMP.
ADDITIONAL CONDENSATE
DRAIN ON 96" UNIT ONLY
4.5 4' & 6'
16.5 9'
CONDENSATE
DRAIN, ALL
IF MANUAL LIFTING,PUSHING
OR PULLIN REQUIRED.
GRAB UNDER FRONT AND REAR
LIP ON FRONT AND BACK OF CASE.
23.5
6
18.8
IMPORTANT: NEVER PUSH OR PULL ON END GLASS.
DOING SO WILL BREAK GLASS OR STRIP END PANEL
SCREWS AND TEAR END PANEL FROM CASE.
IMPORTANT: NEVER PULL ON END PANEL.
DOING SO WILL STRIP END PANEL SCREWS AND
TEAR END PANEL FROM CASE.
12.4
- Care must be taken when lifting and moving cases from skid as well as moving case into
position.
- The case should be lifted off skid using a fork lift. The case must be lifted from rear in location
noted in picture above. Be sure case is balanced equally on forks. When sliding forks under case
someone must be watching that forks do not hit and damage refrigeration lines, drain or optional.
condensate pump.
-To prevent injury, it is not recommended to attempt lifting case manually. When lifting, pulling or
pushing is required grab under front and back lip of case.
-Case is supplied with casters and once case is off of skid and on floor it should move easily into
position. Light pushing on lower part of end near the base is fine. NEVER PUSH OR PULL ON
GLASS. DOING SO CAN BREAK GLASS. NEVER PULL ON END PANEL OR GLASS. Doing so will
strip end panel screws and tear end from case.
CAUTION: Do not push or pull against the clear acrylic deflector on front of
case. Doing so can cause the acrylic to break and may cause injury.
Do not push or pull on side glass or pull on base panel. Doing so will
break glass or pull out panel mounting screws.
Care must be taken not to damage or tip the case when removing it from
the skid or moving the case.
LMD E3670-20 21
SINGLE CASE INSTALLATION
Leveling the Case
It is important that the cases are level. This will allow for proper drainage of condensate
water from evaporator coil. Once the case is rolled to final location the case must be level
for proper drainage of defrost water to the condensate pump. A wrench is included to aid in
adjusting leg levelers
Check the level of the case along front of acrylic air deflector.
Adjust the (4) outside leg levelers as needed to level the case in each direction.
The LMD72 & LMD96 have (2) center leg levelers adjust these so that the center of base
floor is flat.
NOTE: If necessary use a wood or plastic shim under each leg leveler to avoid scratching the tile
floor.
Sealing Unit to The Floor
After the unit is positioned and the leg levelers are turned out, the unit needs to be sealed
to the floor for NSF approved installation.
LMD E3670-20 22

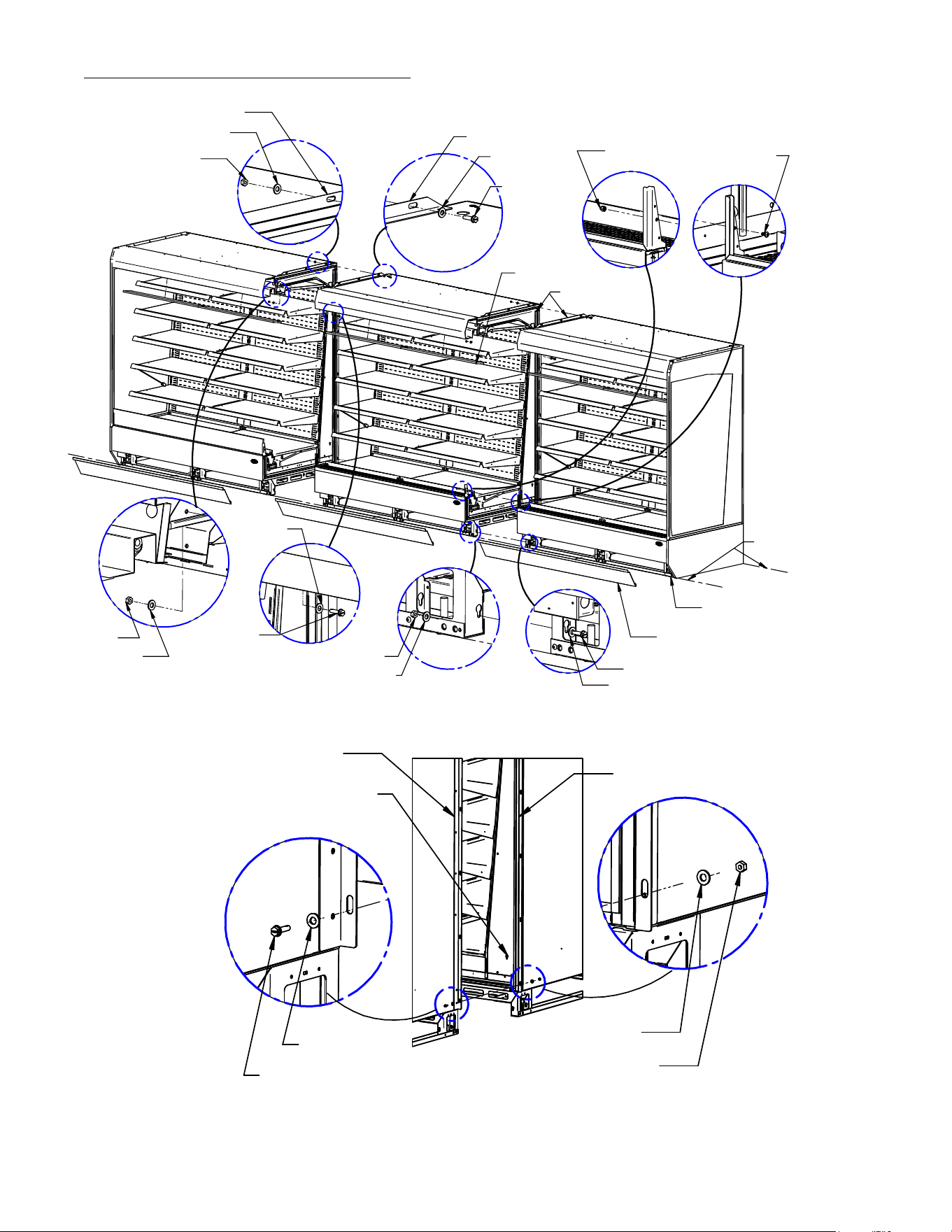

MULTIPLE CASE LINEUP INSTALLATION
RIGHT CASE
CENTER CASE
LEFT CASE
KICK PLATE
AIR DIFFUSER
CHALK
LINES
BOLT,1/4-20
WASHER,1/4
JOINING RAIL TOP
JOINING RAIL TOP
WASHER,1/4-20
NUT,1/4-20
NUT,1/4-20
NUT,1/4-20WASHER,1/4
WASHER,1/4
WASHER,1/4
WASHER,1/4
BOLT,1/4-20
BOLT,1/4-20
LEG
LEVELERS
SCREW,10-32
ACORN
NUT,10-32
END GASKETS
A
B
C
D
BASE RAIL
TOP SUPPORT
TOP JOINING RAIL
AIR DEFLECTOR
NUT,1/4-20
WASHER,1/4
WASHER,1/4
SCREW,14/20
JOIN RAIL REAR
JOIN RAIL REAR
E
ALTERNATE REAR
ATTACHMENT POINT
LMD E3670-20 23
Two Cases Connected to Single Remote Condenser
If (2) cases are ordered from factory to run on a single condensing unit, there is only one
control that will operate both units.
The cases are prewired to connect both refrigeration solenoids together. These Wires are
hanging out from joining side of each case near the top front behind canopy.
Once all prep work is complete and both cases are ready to be joined, connect the wires from
each case together. Connect the yellow wire from case 1 to yellow wire to from case 2 and
connect the white wire from case 1 to white wire from case 2.
Once connected join cases as described below. Be careful not to pinch the wires between
cases.
DANGER
HIGH VOLTAGE.
Turn power off
before servicing.
May have more than
one disconnect
switch.
"IMPORTANT"
BEFORE INSTALLING CASES TOGETHER
CONNECT YELLOW WIRE FROM CASE 1
TO YELLOW WIRE FROM CASE 2.
CONNECT WHITE WIRE FROM CASE 1
TO WHITE WIRE FROM CASE 2.
WHEN PLACING CASES TOGETHER DO
NOT PINCH WIRES BETWEEN CASES.

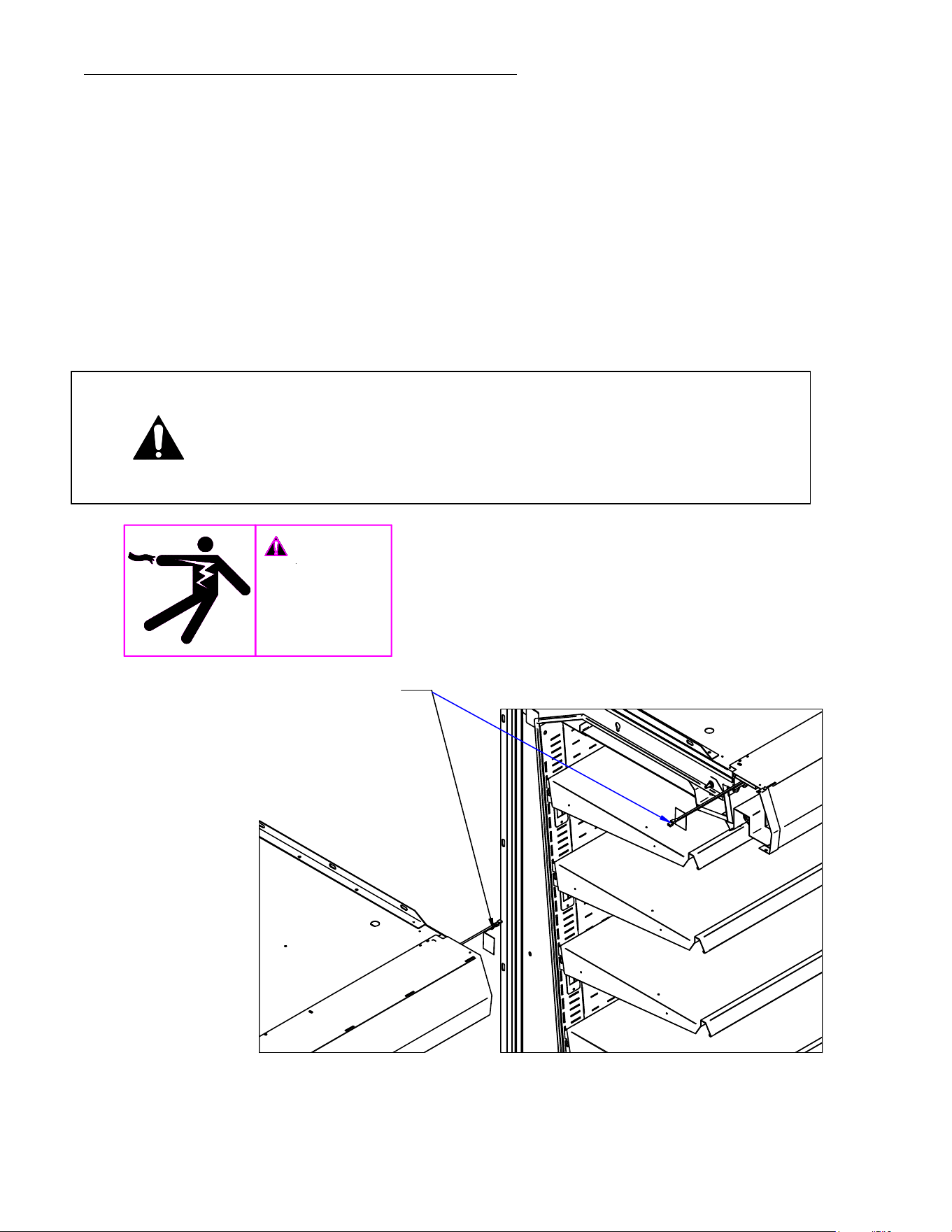

CAUTION: The refrigeration solenoid on the case that does not have a
control is powered from the case that does have the
control. When servicing cases disconnect power from
both cases to prevent electrical shock.
LMD E3670-20 24
Floor Preparation
Be sure the floor where the case line up will be located is strong enough to support cases
without sagging.
It is important that the cases are level. This will allow for proper drainage of condensate water
from evaporator coil and allow for proper alignment of cases.
Most floors are not level and the high and low spots in location of cases must be determined.
Place a chalk line in the desired position of where the back of the cases will be located. If the
back of the cases are to be along a wall there should be at least 6” clearance between wall and
the back of the cases.
Measure 33.25” from this chalk line to where the front of cases will be. This line is where the
front base rail meets the floor not the actual front of the case.
Mark the location along these lines that the outside edges of case will be. The cases without
end panels will be 48”,72”, or 96” depending on cases ordered. Add additional 1” to case end
that has an end panel.
Use a transit or line level to determine the highest point along chalk line.
Joining and Leveling Line Up
If case line up is along a wall it will make it difficult to gain access to back of case once line up
is complete. If it all possible make all connections accessible from front under side of cases,
but if necessary make any required connections at back of case as you install the cases.
-There are factory installed gaskets located on each end of all adjoining cases. Inspect all
gaskets to be sure they are properly located and not damaged.
-Remove the front kick plates from all cases as described Panel Removal section of this
manual.
-Remove all Top Air Diffuser from all cases from upper air duct track. Loosen thumb screws on
Retainers located behind air diffuser. Retainer will drop down allowing diffuser to be pulled
out of case.
RETAINER
THUMB SCREW
AIR DIFFUSER
RETAINER
THUMB SCREW
AIR DIFFUSER
-The required fasteners to join cases are installed at the factory in the location they will be
used. These fasteners are on the left side of each case. As each case is installed remove these
fasteners from the case and reuse them.
LMD E3670-20 25
-Determining highest point as described in Floor Preparation above. Install the case that will be
located over the highest point first. Once the first case is rolled to final location the case must
be level for proper drainage of defrost water to the condensate pump. A wrench is included to
aid in adjusting the leg levelers. Check the level of the case along the ledge in front of acrylic
air deflector. Adjust the (4) outside leg levelers as needed to level the case in each direction.
The LMD72 & LMD96 have (2) center leg levelers adjust these so that the center of base floor is
flat. If necessary, use a wood or plastic shim under each leg leveler to avoid scratching the tile
floor
-Place the next adjoining case into line up. Level case until case end profiles are aligned and
touching. Install fasteners in the order below as designated with corresponding letter in
detailed diagram. As cases are joined additional leg leveler adjustments may be necessary.
A) Align the front of the base rail and fasten through hole in base rail using ¼-20 bolt and ¼-20
nut, use a ¼ washer against each base support as shown in diagram.
B) Align the top front of case and fasten through hole in top support using ¼-20 bolt and ¼-20 nut,
use a ¼ washer against each top support as shown in diagram. If necessary the top valance
can be adjusted to provide better alignment. Loosen the fasteners along the top of the valance
located on top of case and adjust as needed. If a perfect alignment cannot be achieved

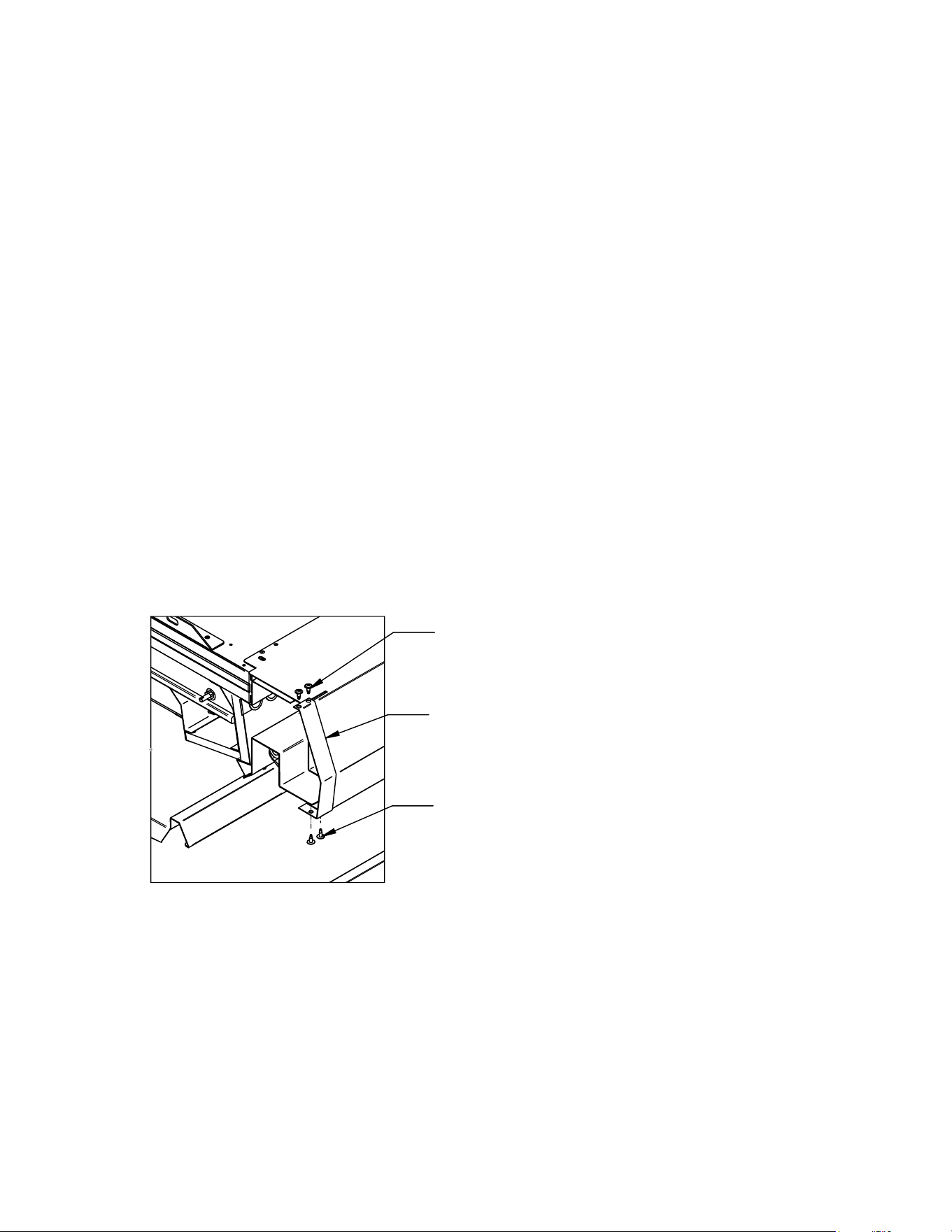

Valance Joining strap can be used only if needed. Place strap over seam and attach with self-
drilling screws provided.
VALANCE JOINING
STRAP
SELF-DRILLING
SCREWS
SELF-DRILLING
SCREWS
C) Align the holes in the air deflector supports and join with 10-32 screw and 10/32 acorn nut.
D) Align slots in top joining rail and join using ¼-20 bolt and ¼-20 nut, use a ¼ washer against
each top joining rail as shown in diagram.
E) Align slots in rear joining rail and join using ¼-20 bolt and ¼-20 nut, use a ¼ washer against
each rear joining rail as shown in diagram. Alternate rear attachment point shown in diagram is
used if it is not possible to get to back of case. Using this attachment point requires removing
all shelving and slotted back panel from both cases to gain access. See appropriate section of
this manual for shelf and slotted back panel removal.
LMD E3670-20 26
Repeat for all additional cases in line up. Once all cases are attached continue with electrical,
refrigeration and drain connections as described in appropriate section of this manual.
Reinstall Kick Panels and air diffusers as described in appropriate section of this manual.
Sealing all Unit to The Floor
After the unit is positioned and the leg levelers are turned out, the unit needs to be sealed to the
floor for NSF approved installation.
ELECTRICAL CONNECTION
DANGER: Improper or faulty hookup of electrical components in the
display case can result in severe injury or death.
Permanent Connected (Standard)
-Only a licensed electrician must perform all case electrical connections.
-All electrical wiring hookups must be done in accordance with all applicable local, regional, or
national electrical standards.
-A separate circuit for each display case is required to prevent other appliances on the same
circuit from overloading the circuit and causing malfunction.
-The Merchandiser unit and the condensing unit do not share any wiring.
-The electrical service must be grounded upon installation.
-See the electrical data plate located on the inside back wall of display case, for proper circuit size
and wire ampacity.
Standard Bottom Base Electrical Connection: Use this electrical connection when power
source is from floor or wall outlet. The electrical connection box is on the bottom left side of case
behind the bottom Front Kick Panel. The box is accessible by removing the Front Kick Panel. (See
“Panel Removal Section” of this manual for panel removal instructions). Remove electrical box
cover to access electrical connection.
FRONT KICK PANEL
FRONT KICK PANEL SCREW
PERMANENT
CONNECTION
ELECTRICAL
BOX COVER
PERMANENT
CONNECTION
ELECTRICAL BOX
WIRE CONNECTION
LMD E3670-20 27
Top Electrical Connection (OPTION): Use this optional factory installed electrical connection
when power source is from the ceiling. If equipped with this option the connection box is located
on the top back left corner of case. Remove electrical box cover to access electrical connection.
PERMANENT
CONNECTION
OPTIONAL
TOP ELECTRICAL
BOX COVER
PERMANENT
CONNECTION
OPTIONAL TOP
ELECTRICAL BOX
WIRE CONNECTION
LMD E3670-20 28

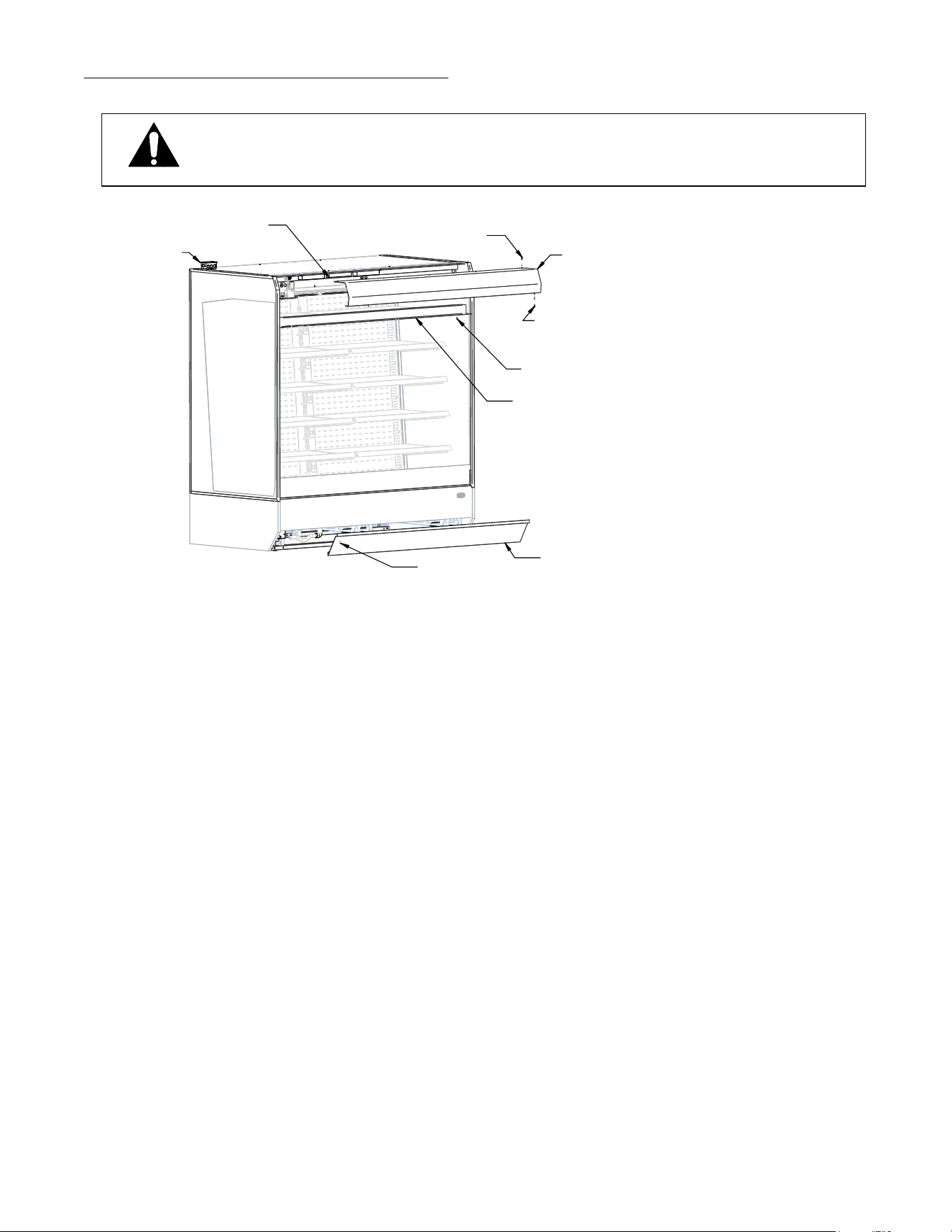

PANEL REMOVAL FOR ELECTRICAL ACCESS
POWER SUPPLY
& BALLAST LOCATION
TOP VALANCE
10-32 TOP VALNCE SCREWS
8-32 TOP VALNCE &
NIGHT CURTAIN
HOUSING SCREWS
NIGHT CURTAIN
HOUSING
OPTIONAL TOP
ELECTRICAL
CONNECTION
KICK PANEL
10-18 KICK
PANEL SCREWS
8-32 NIGHT CURTAIN
HOUSING SCREWS
Kick Panels

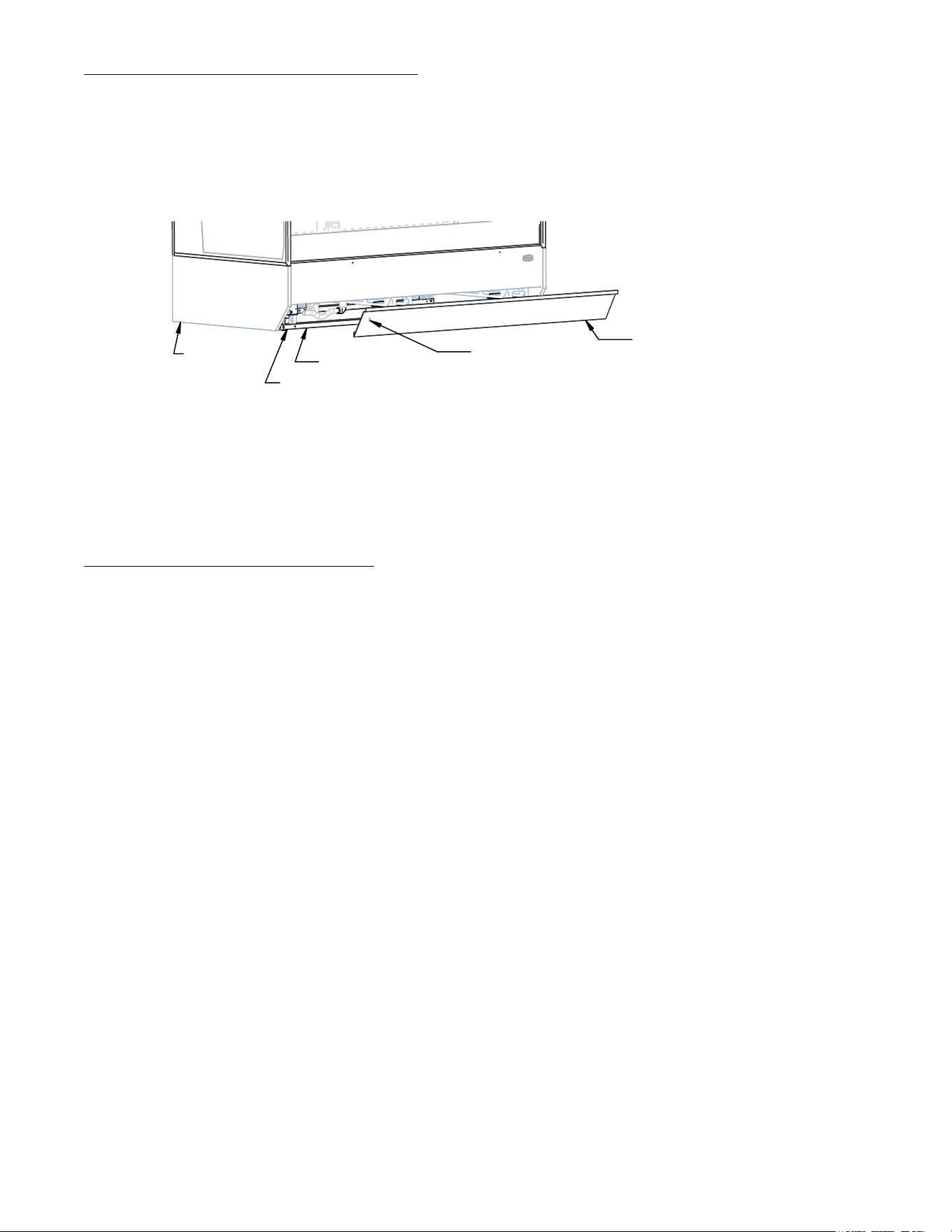

The kick panel located at the front base of unit can be removed to access electrical connection,
condensate drain trap and hose, leg levelers and casters.

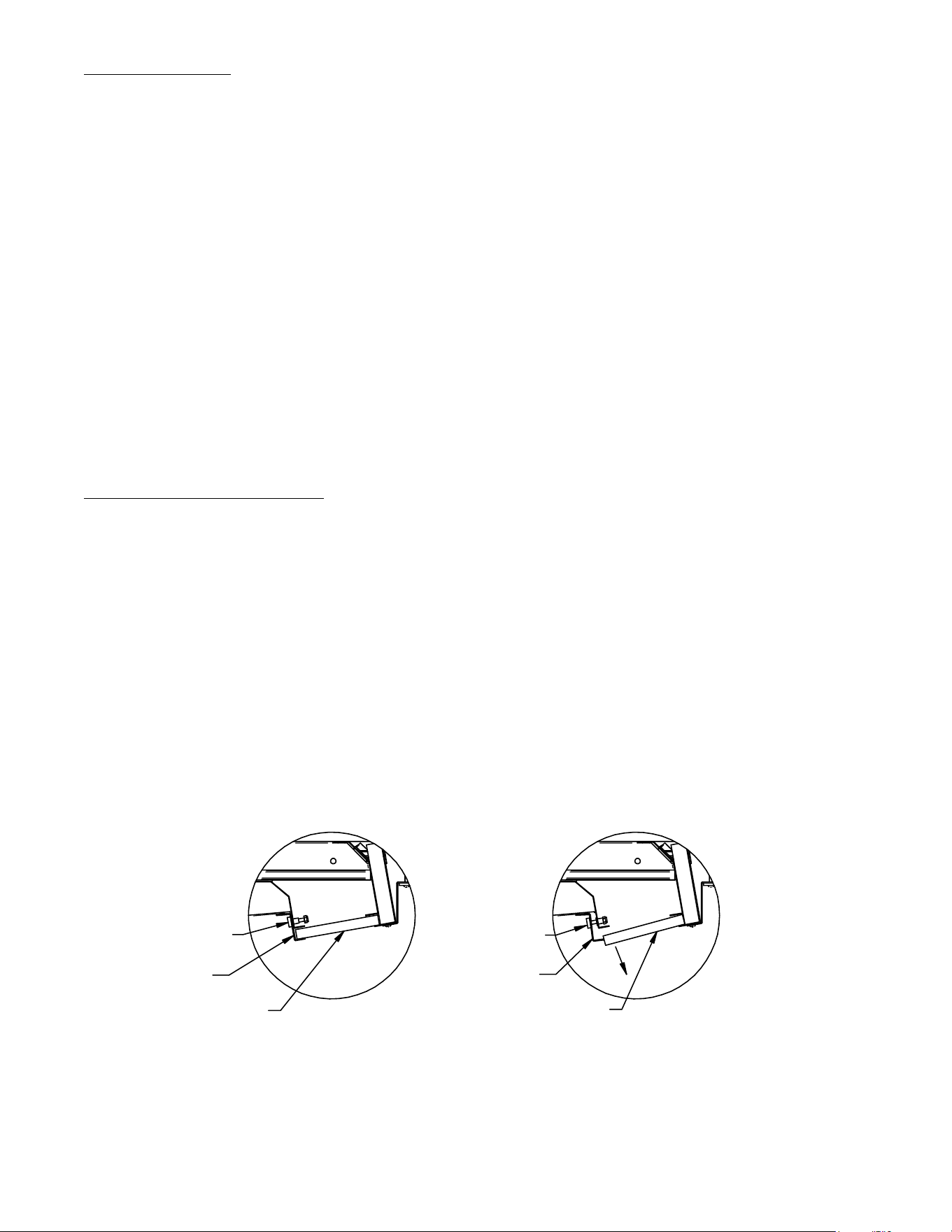

1. Loosen the 3 to 5 10-18 Kick Panel screws located under the front lip of Kick Panel.
2. Tilt the top of the Kick Panel away from the base. The bottom of Kick panel is setting on
top of a frame rail and once screws are removed the Kick Panel will drop down and out
of case
3. Set the Kick Panel and screws in safe place to prevent damage.
4. Reinstall Kick Panel in the reverse order.
Front Valance & Night Curtain Housing Removal
The Front Valance can be removed to access all lighting ballasts, power supplies and controls. If
additional access is required, the Night Curtain Housing can also be removed. The Night Curtain
Housing is located directly behind the top front valance. The night curtains are housed inside
1. Remove the front (3) to (5) 8-32 screws holding the Night Curtain to the Front Valance.
2. From top of case remove the (3) to (5) 8-32 screws holding the Front Valance to top of
case.
3. Carefully remove Front Valance from unit and set Front Valance and screws in safe
place to prevent damage.
4. If additional access is required remove the Night Curtain Housing.
Hold up on Night Curtain Housing and Remove the back (3) to (5) 8-32 Night Curtain
Housing screws.
5. Set the Night Curtain Housing and screws in safe place to prevent damage.
6. Reinstall Front Valance and Night Curtain Housing in the reverse order.
DANGER: Electric shock hazard. Do not operate unit with panels
removed.
LMD E3670-20 29
CONDENSATE DRAIN HOSE (STANDARD)
The case is furnished with a drain trap & 25’ of drain hose. The drain hose must be run to a nearby
floor drain. If draining up a slope or into a drain that is not on floor an optional pump must be used.
The drain hose is rolled up under the case for shipment. It can be accessed from the back of case
and run to nearby floor drain. The drain trap and drain hose can also be accessed from front of
case by removing the front Kick Panel. (See panel removal section of this manual)
Be sure not to kink or pinch hose when running drain line to floor drain.
CONDENSATE PUMP (OPTIONAL)
Note: There is a piece of cardboard that has to be removed from the side of the pump to free
up the float. If this is not done, the pump will not turn on and the pan will overflow.
The case is available with an optional condensate pump. The pump is located under the case and
wired to the display case electrical. It is also furnished with a drain trap & 25’ of drain hose. The
drain hose must be run to a drain. The pump can be accessed by removing the Kick Panel as
described in the Panel Removal section of this manual.
The drain hose is rolled up under the case for shipment. It can be accessed from the back of case
and run to nearby floor drain. The drain trap and drain hose can also be accessed from front of
case by removing the front Kick Panel. (See panel removal section of this manual)
Be sure not to kink or pinch hose when running drain line to floor drain.
NOTICE: This unit could be shipped with an optional condensate pump. The
pump has a float that turns the pump on automatically when needed.
The pump is mounted in the base compartment. The pump should be
cleaned and inspected every 3-4 months.
LMD E3670-20 30

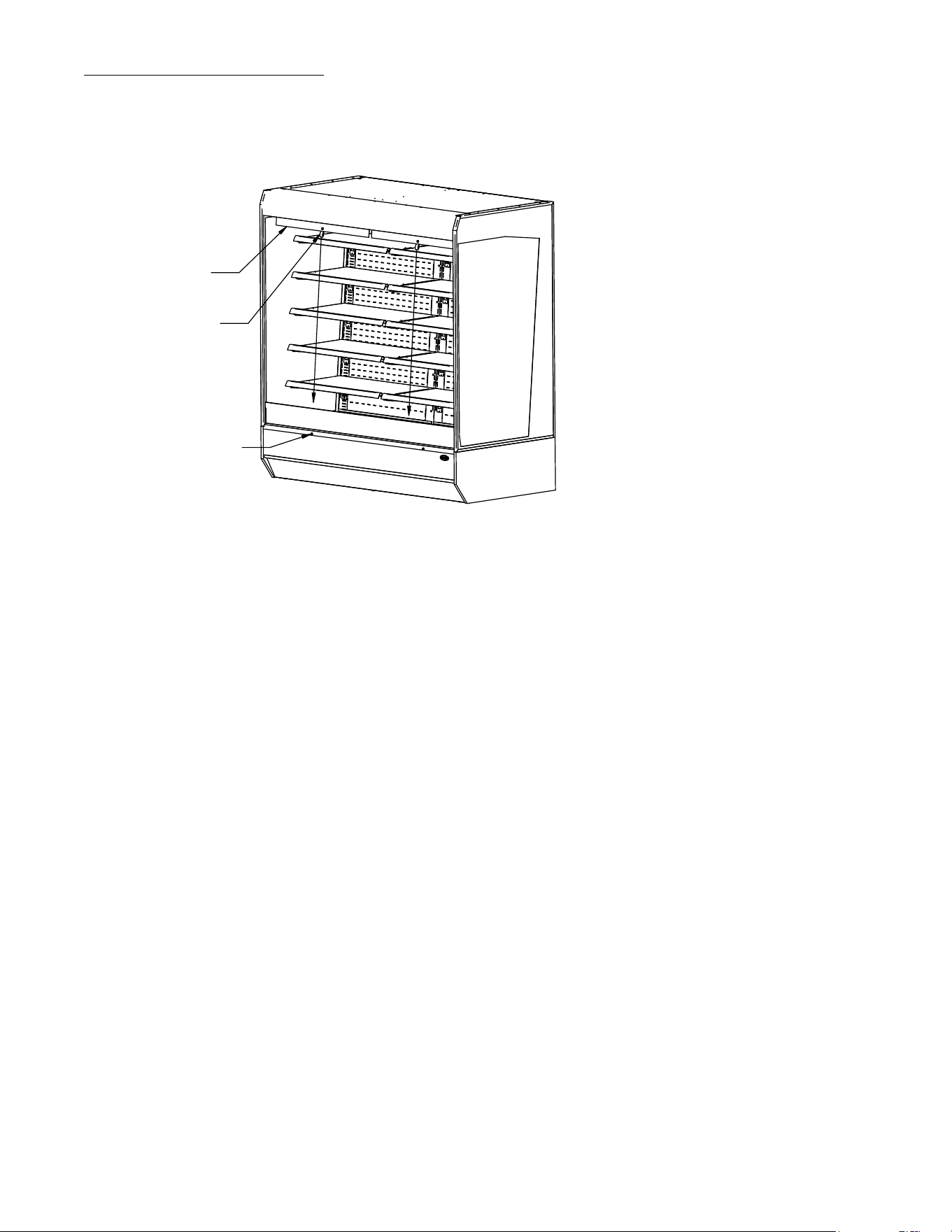

SHELVING INSTALLATION
The LMD has 5 tiers of solid metal shelves. LMD48 Models have a total of 5 shelves and the
LMD72 and LMD96 shelves are split in the middle with a total of 10 shelves. Standard Shelves
for each case are the same so any shelf will fit in any tier location. Some cases may be
provided with optional staggered shelves meaning each shelf is a different depth. If case has
optional staggered shelves the deepest shelf goes on the bottom and shallowest goes on the
top.
Cases are shipped with shelves installed in the flat straight position and with the top of the
bottom shelf 10.5” from top of the deck. The remaining shelves would be spaced 9.7” apart.
This is a good starting shelf location and then shelve can be adjusted to suit product needs.

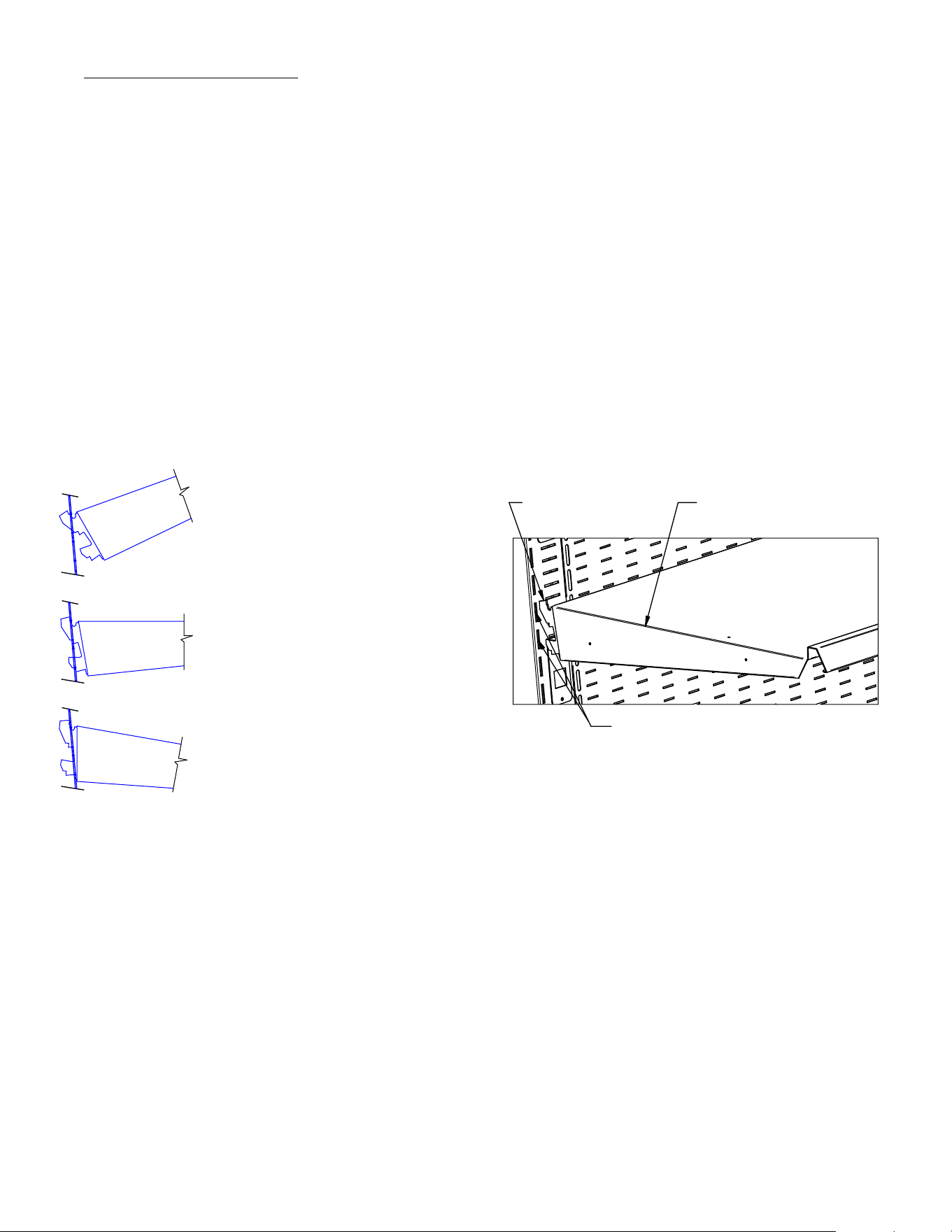

Follow the instruction in the illustration below. Start with the bottom shelf and determine
desired shelf location. The shelves are adjustable in 1 5/8” increments and can be set in either
a flat straight position or in a 10deg tilt position.
TILT SHELF AND SLIDE TOP SHELF TABS INTO
SLOTS IN SHELF STANDARDS. WITH TOP SHELF
TABS BEHIND SHELF STANDARD SLOT LOWER
SHELF TO ALLOW BOTTOM SHELF TAB SLIDES
INTO SLOTS IN SHELF STANDARDS. ADJUST
SHELF TO DESIRED POSITION EITHER FLAT
STRAIGHT OR 10 v TILT POSITION. AS SHOWN.
TOP SHELF TABS
SLOTS IN SHELF
STANDARDS
SHELF
SHELF SHOWN IN FLAT STRAIGHT POSITION
SHELF SHOWN IN 10v TILT POSITION
LMD E3670-20 31
SHELF LIGHTS

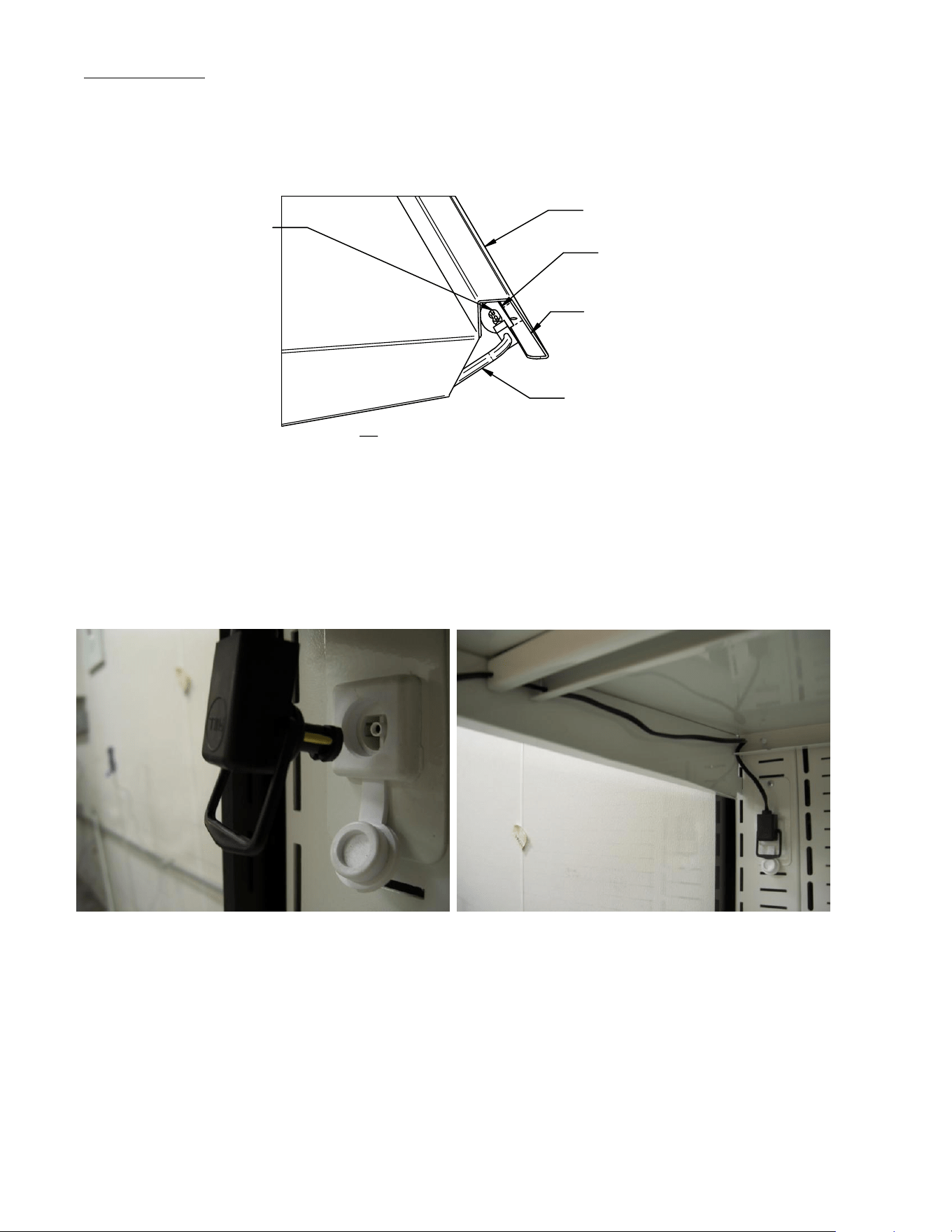

1. The shelf lights are attached with tape to the front underside of each shelf as shown below.
Place LED Light Strip under shelf as shown and center it on shelf. The LED Light Strip plug
end must be to the left side of the case.
2. Attach the Shelf Light Cord to the end of the LED light Strip as shown.
LED LIGHT STRIP
WITH MAGNETS
SHELF
SHELF LIGHT CORD
SURFACE ON
SHELF THAT LED LIGHT
STRIP ATTACHES TO
LED LIGHT STRIP
PLUG LOCATION
3. Remove the cap from the appropriate female light sockets.
If the socket is not being used for a shelf light, the cap must be plugged into socket to prevent
contamination and moisture out of the socket.
4. Plug in each shelf light by aligning the male pins on the appropriate shelf light cord plugs with
the female light sockets and push together. IMPORTANT: Do not roll plug during insertion.
5. Hook extra cord in notch on end of shelf support and notch on back flange of shelf to keep it
out of the way as shown.
LMD E3670-20 32
G) OPERATING INSTRUCTIONS
CONTROL DESCRIPTION

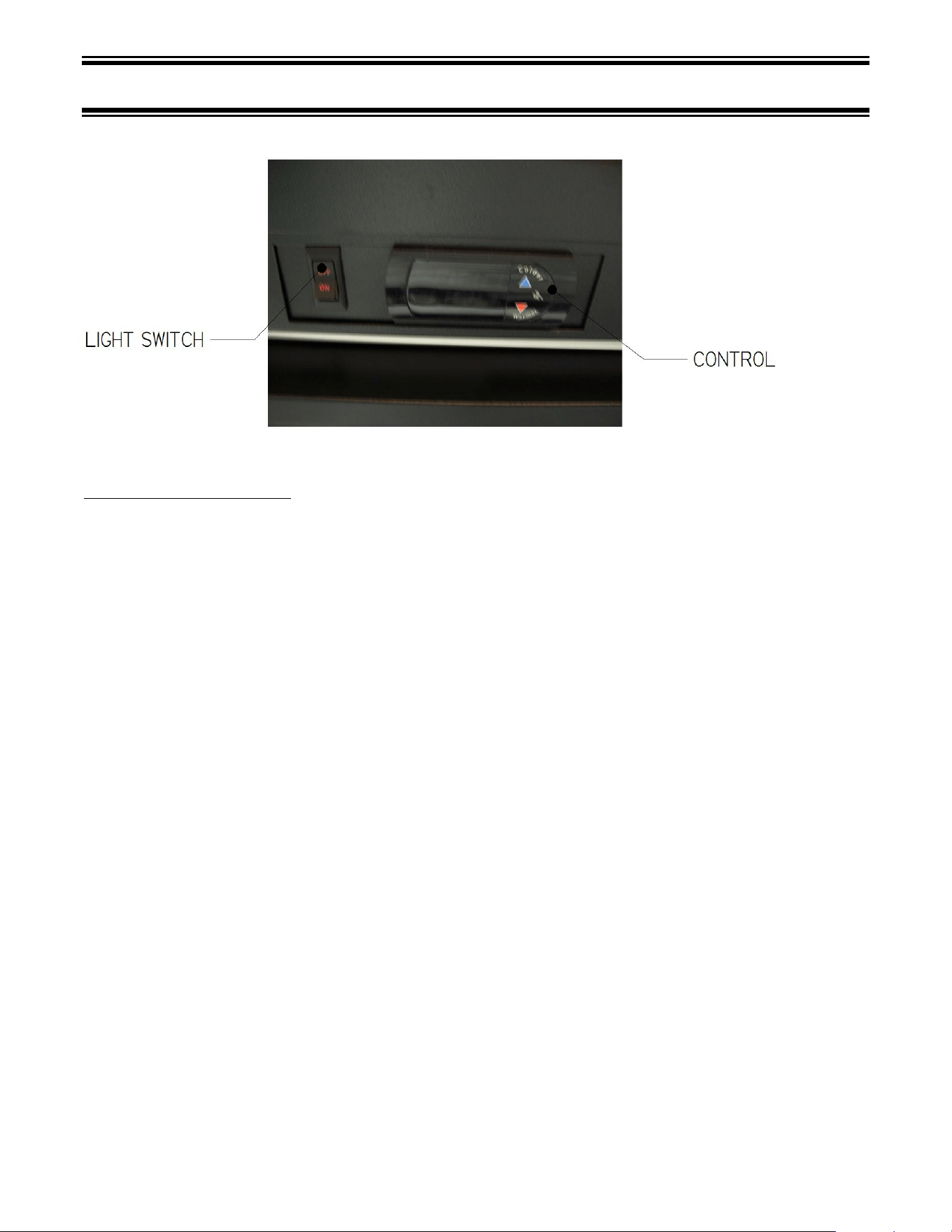

Light Switch
The unit has a light switch that turns on and off the interior lights of unit.
Electronic Temperature Control
Located in the rear grille of the display case, the temperature control allows the user to adjust the
temperature of the display merchandiser to their needs.
LMD E3670-20 33

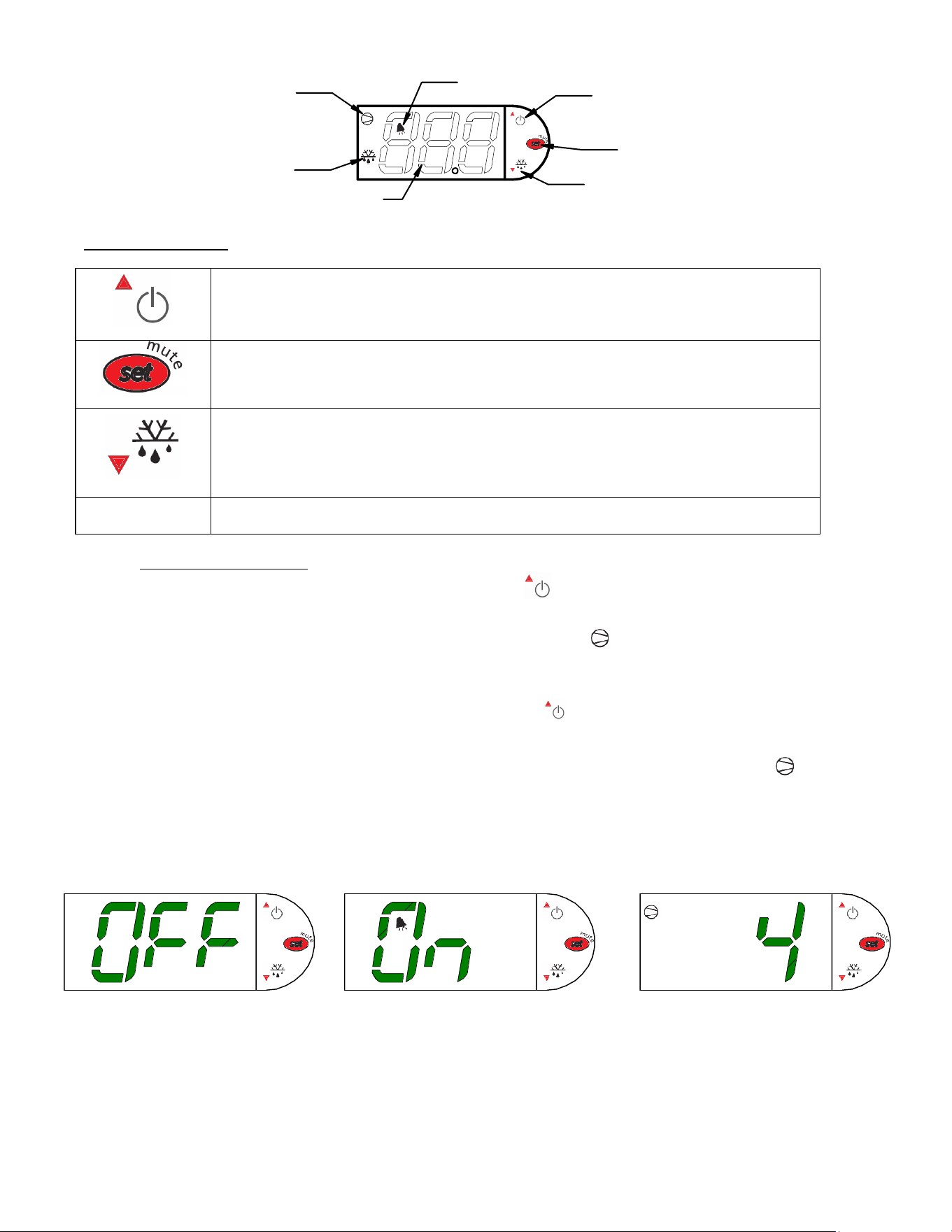

ELECTRONIC TEMPERATURE CONTROL OPERATION
This unit is equipped with an electronic temperature control. The control parameters are set at the
factory and cannot be manually changed in the field. The preset control parameters are listed on
the chart in the Settings Chart below.
Operation
The control uses two sensors, one located in the air stream and one located on the
evaporator coil. The sensor located in the air stream is referred to as the temperature
control sensor. The sensor located on the evaporator coil is referred to as the defrost
probe. The temperature control sensor is located on the plastic tub behind the evaporator
coil to the left in the cold air stream. The sensor location is critical for proper operation on
the unit. Do not move or relocate this sensor.
The coil sensor is strapped to the evaporator coil. This sensor location is critical for proper
operation of the unit. Do not move or relocate this sensor. The temperature control is set to
cut in at 39°F (3.9°C). The Temp control cuts out at 26°F (-3.3°C) at the coldest setting “9”
and 36°F (2.2°C) at the warmest setting “1”.
Defrost Cycle
The control is programmed to initiate defrost via two different methods. There are 3
programmed defrost cycles in the case which will initiate a defrost cycle every 8 hours. The
unit does not have a time clock so the defrost cycles cannot be set for any specific time of
day.
The unit also has an ‘On demand’ defrost feature that will initiate a defrost when the
temperature differential between the evaporator temperature and the air temperature is
more than 20°F (11.1°C) for 5 minutes after 30 minutes into the refrigeration cycle (e.g. if
the air stream probe measures 42°F/5.6°C or greater and the defrost probe measures
20°F/-6.7°C or lower for five minutes). Once initiated the defrost cycle will terminate when
evaporator coil sensor reaches 43°F (6.1°C).
If a manual defrost is required, one can be initiated by pressing and holding the down arrow
for three (3) seconds. This is typically unnecessary and should only be performed if special
circumstances require it.
LMD E3670-20 34
DIGITAL DISPLAY
SET POINT ADJUST MODE
POWER TO CONTROL ON/OFF
AND SET POINT UP ADJUST
MANUAL DEFROST AND
SET POINT DOWN ADJUST
COMPRESSOR RUN
INDICATOR
DEFROST MODE INDICATOR
ALARM INDICATOR
Button Overview
Press and hold this button for 3 seconds to turn system on (if off) or off (if on).
Also used to adjust set point when in set point adjust mode
Press to enter set point adjust mode, confirm set point changes, and mute
alarms.
Press and hold this button for 3 seconds to initiate a manual defrost (and
cancel defrost if initiated), also adjusts set point down when in set point
adjust mode
Powering on control
To turn refrigeration control power on, press and hold for approx. five seconds. The display
will read “On” while the button is depressed. When the control powers on, the display will read
the control set point of 1 thru 9. The compressor run indicator will illuminate on the display,
meaning that the compressor is running. (Note: the control may already be in the on mode when
shipped from factory).
To turn refrigeration control power to off, press and hold for approx. five seconds. The display
will read “Off” while the button is depressed. When the control powers off the display will flash
back and forth between the control set point and “Off”. The compressor run indicator will be
off on the display. When refrigeration control is in the off- mode cabinet lights and evaporator
fans will still operate, but the compressor will not turn on causing the case to gradually reach
room temperature.
LMD E3670-20 35

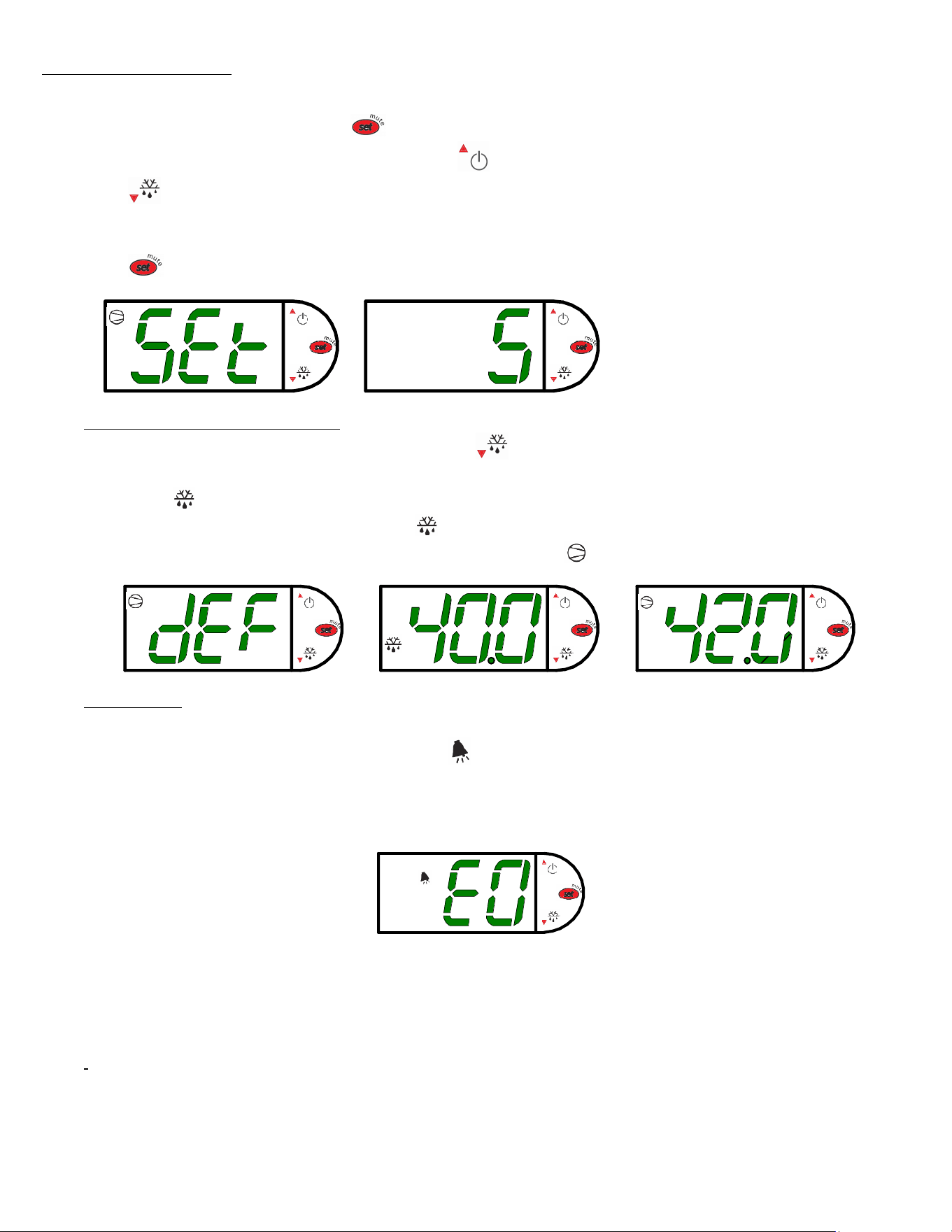

Adjusting the set point
The setpoint is what determines how cold the display case will hold food and beverage. To adjust
the setpoint press and hold the button approx. 5 seconds until the display begins to flash
the set point number. Then press the use the button to scroll number up (colder) or press
the button to scroll number lower (warmer). There are nine (9) available setpoints numbers,
the higher the number of the setpoint, the colder the display case will run, with setting “9” being
the coldest and setting “1” being the warmest. Once you have chosen your desired setting press
the button again to confirm your choice.
Entering manual defrost mode
To initiate a manual, defrost press and hold the button approx. 5 seconds. The control will
read “dEF” while the button is being held. The defrost is initiated when the defrost mode
indicator illuminates on the display. The control display will then return to reading the set
point. When the defrost mode indicator turns off the defrost is complete and the compressor
will turn back on illuminating the compressor run indicator .
Error codes
It is possible for error codes to be displayed on the control screen. In the event of a malfunction
an alarm will sound and the alarm indicator will be displayed on the display. An error code or
codes will flash intermittently on the display. If there are multiple codes, the display will
continuously cycle through them. The following photo shows error code “E0” as an example.
Mute: You may mute the alarm by pressing and releasing the wrench button. The red ringing bell
and all error codes will still be displayed. When the fault is remedied the control will return to
normal operation and will automatically clear the codes from the display.
Error codes may be encountered if either the controller or the display case is malfunctioning. The
following is a list of error codes that may be encountered.
LMD E3670-20 36
Error Codes and Resolutions
Code
Description
Cause
Resolution
E0
Temperature probe
error
Probe signal is interrupted
or short-circuited
1. Check to ensure probe wires and quick
disconnect are secure in control.
2. Check probe resistance to table below. If 0
resistance is present check wiring
insulation. If infinite resistance is present
check for breaks in wiring (meter will
likely read overload or very high in the
mega-ohm range).
3. Ensure that probes are wired per the
wiring diagram provided.
4. Replace probe if other remedies fail, or if
probe resistance deviates from “Error!
Reference source not found.” Error!
Reference source not found.
E1
Defrost probe error
See E0
EE
Unit parameter reading
error
Operating conditions
1. Remedy abnormal operating conditions.
The control is rated to operate in a range
of 14 to 122°F (-10 to 50°C) and less than
90%RH non-condensing.
2. Replace control if problem persists.
EF
Operating parameter
reading error
See EE
Temperature Probe Common Resistance Chart
Probe Temp
Maximum Resistance
[Ω]
Normal Resistance
[Ω]
Minimum Resistance
[Ω]
32°F (0°C)
27.83
27.28
26.74
77°F (25°C)
10.1
10
9.9
212°F (100°C)
1
0.97
0.94
LMD E3670-20 37
REFRIGERANT DETECTION AND MITIGATION SYSTEM
The refrigerant detection system (RDS) shuts down the operation of the refrigerator when a leak is
detected. The system is comprised of 2 or more sensors, a low voltage power supply, 1-2 safety
shutoff solenoid valves, and 1-2 refrigerant check valves.
When a leak is detected by one of the sensors, the internal sensor relay opens to shut off the
safety solenoid valve(s). The refrigeration check valve prevents any back flow from the rest of the
external system from entering the unit that would further contribute to a leak.
Please note that once a leak is detected and the flow of refrigerant is stopped, the display case
will stop cooling, and any temperature sensitive products must be removed from the unit.
This display case’s fans are a part of the leak mitigation system and are required to remain
powered on as long as there is power to the display case. In the event of a refrigerant leak, the
unit’s fans are required to run to reduce the concentration of flammable refrigerant in and around
the unit. When replacing gas detection sensors, only replace with the original model of sensor
provided by Federal.
To replace a faulty sensor, simply remove unplug the electrical quick connection and unscrew the
sensor fasteners and attach the new sensor to the original sensor location in the original
orientation.

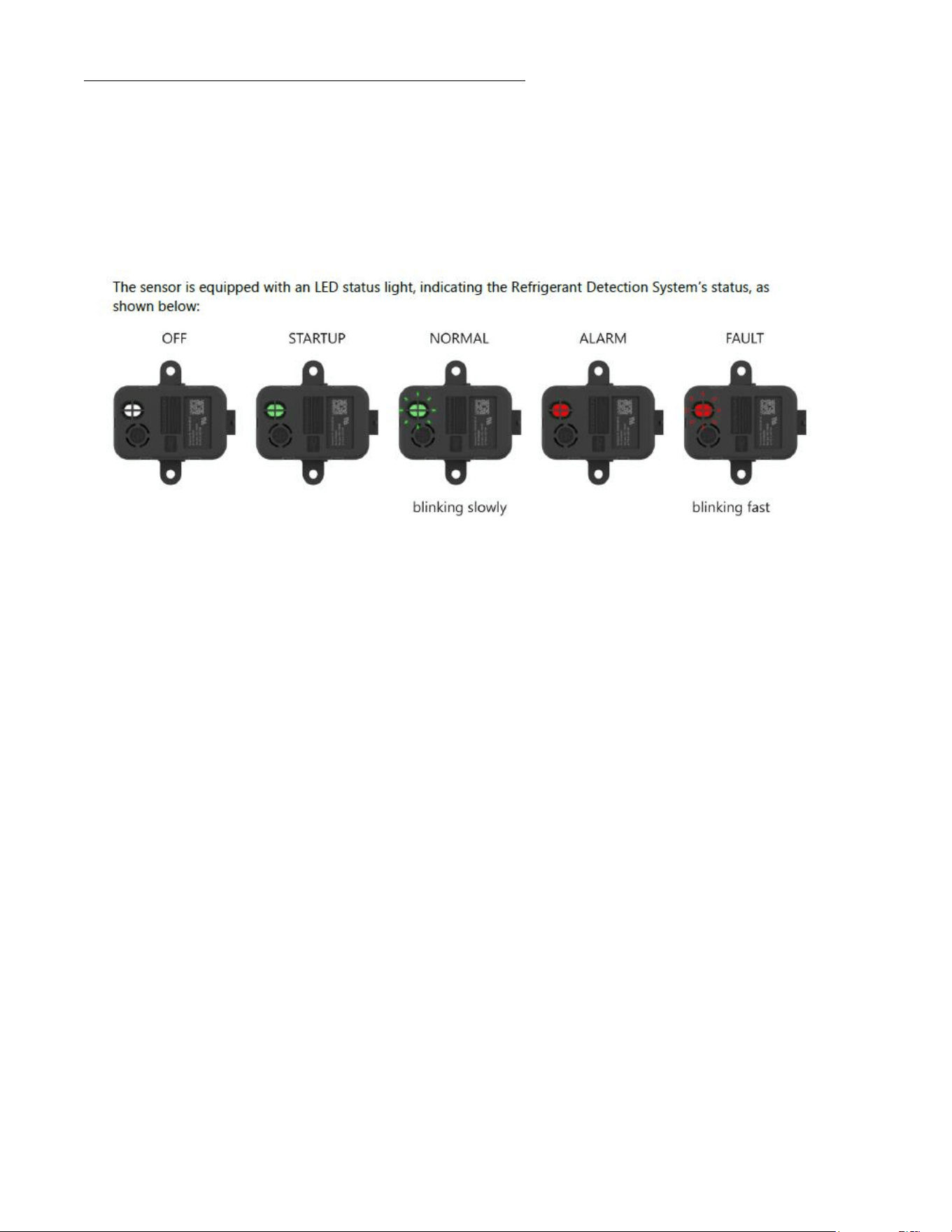

After replacing installing the new sensor, power on the display case. After a few seconds, the
sensor light will begin to blink green. See illustration above. The refrigeration system will be
allowed to run as normal.
The sensor is capable of a long life and will monitor its condition to ensure functionality. If the
sensor’s self-monitoring system detects an issue it will go into a fault state and shut off the flow of
refrigerant to the appliance. See above illustration for fault indication on LED.
The gas inlet exposes the sensing element of the sensor to surrounding gases. The opening in the
sensor housing exposes the humidity and temperature sensors inside the sensor to the
environment and makes them susceptible to pollutants such as volatile chemicals, acids, bases,
cleaning and foaming agents. Exposure to those pollutants should be avoided. Cleaning products
might damage the sensor or temporarily block its gas inlet, inhibiting or delaying the response to
the refrigerant.
LMD E3670-20 38
The use of solvent emitting materials near the sensor, such as PVC cement glues, may lead to
nuisance trips. Solvent emitting materials can lead to high concentrations of volatile gas in the
nearby environment. The gas sensor may sense these concentrations, and trigger a system
mitigate response. Please note that the safety shut-off valve system is installed at the factory. No
safety shut-off valves are required to be installed in the field on new equipment.

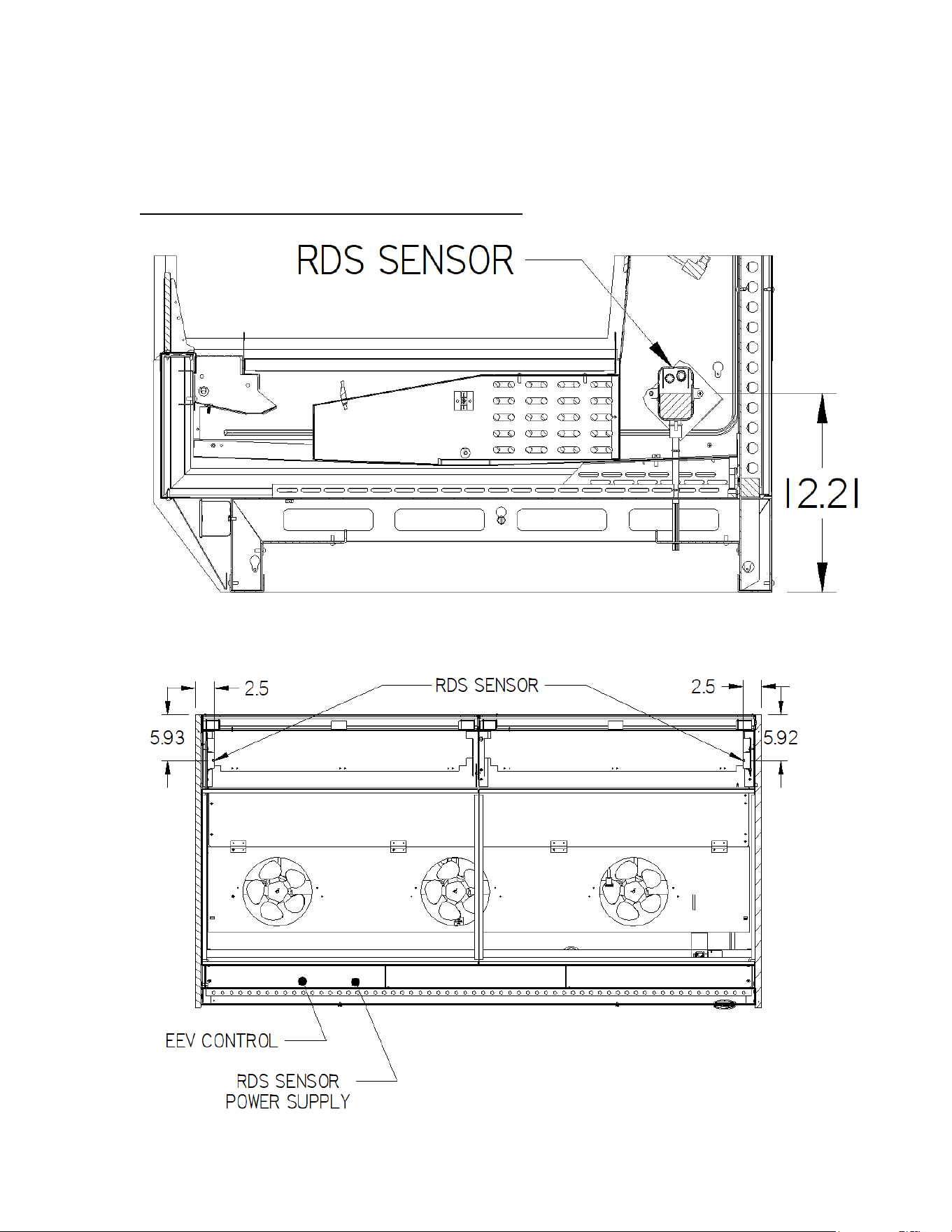

Refrigerant Detection System (RDS) Location
LMD E3670-20 39
NIGHT CURTAIN OPERATION
Night curtains are standard on all LMD models. They are provided to conserve energy when case
is not being used.
NOTE: When using optional Security Cover the Night Curtain(s) must be closed.
NIGHT CURTAIN STRAP
NIGHT CURTAIN
NIGHT CURTAIN SNAP
OPENING:
1. Grab night curtain strap located behind the top valance. Pull the night curtain down
the front of case opening.
2. Attach the snap located under the night curtain strap on to the snap located on the
front trim.
CLOSING:
1. Grab the night curtain strap and detach the snap from the snap located on the front
trim.
2. While holding the night curtain strap allow the night curtain to roll up.
Note: The LMD72 AND LMD96 models have (2) night curtains.
LMD E3670-20 40
SECURITY COVER OPERATION (OPTIONAL)
Security Covers are optional on all LMD models. They are provided to cover product and allow
case to run while unattended.
NOTE: When using optional Security Cover the Night Curtain(s) must be closed.

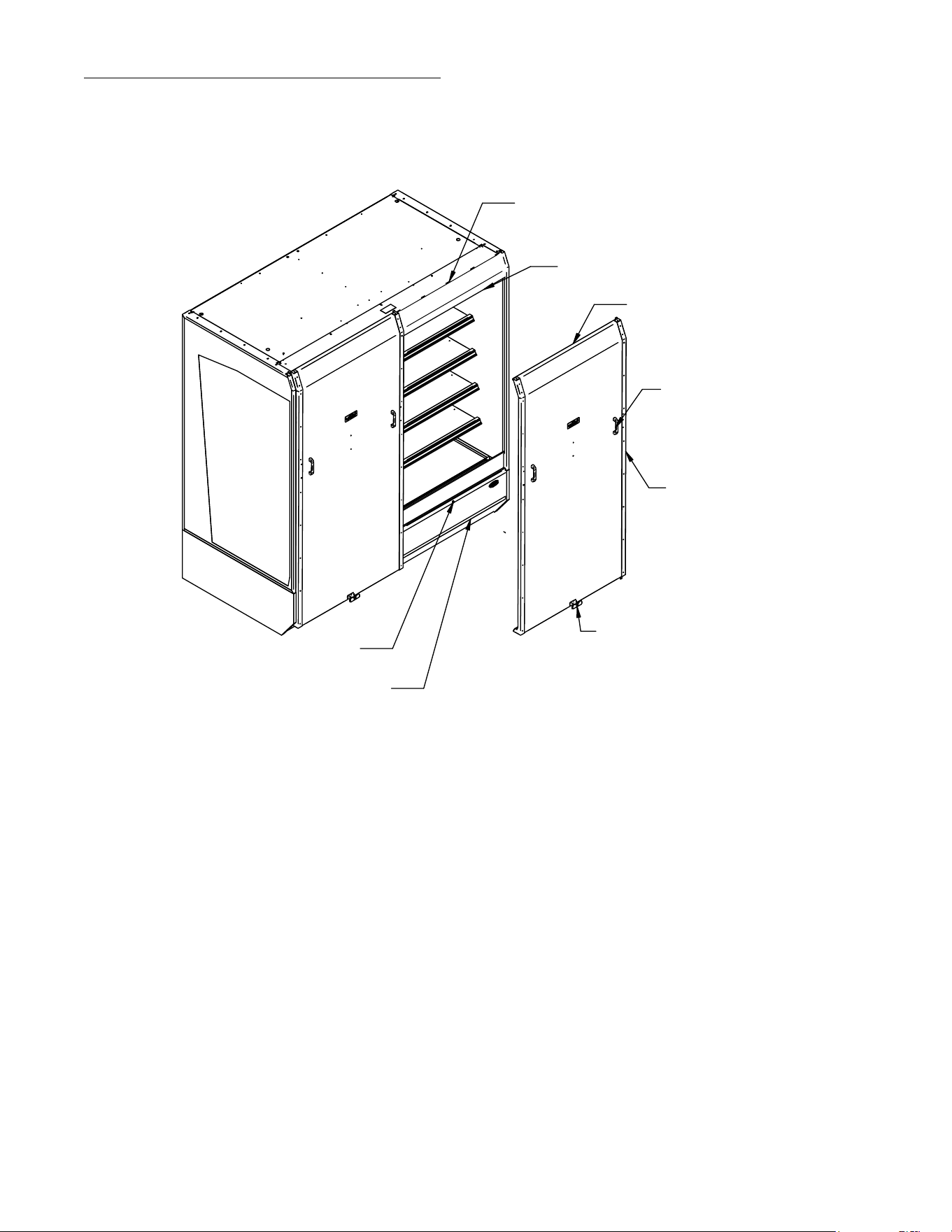

SECURITY COVER
LATCH
SECURITY
COVER
SECURITY COVER
HANDLES
NIGHTCURTAIN
LOCATION
NIGHT CURTAIN
SNAP
SECURITY COVER
HOOKS
SECURITY COVER
CATCH SLOT
SECURITY COVER
LATCH CATCH
REMOVING
1. Use key provided to unlock Latch.
2. Turn Security Cover Latch vertical to unhook it from Security Cover Latch Catch.
3. Grab Security Cover Handles and lift Security Cover up so the Security Cover
Hooks lift out of the Security Cover Catch Slots.
INSTALLING:
1. Close Night Curtain(s) as described in previous section. IMPORTANT: Night Curtain
must be closed or condensation will form on front of Security Cover.
2. Grab Security Cover Handles and lift it up so the Security Cover Hooks slide down
into the Security Cover Catch Slots located on top of case canopy.
3. Push in on bottom of Security Cover and turn Security Cover Latch Horizontal to
hook behind Security Cover Latch Catch.
4. Use key provided to lock Latch in horizontal position.
Note: The LMD72 AND LMD96 models have (2) security covers.
LMD E3670-20 41
H) INITIAL START-UP
After all the checks outlined in the installation section of this manual have been made, the
case is ready to be put into service. Turn on the Power at the breaker box and flip the Power
Switch and Light Switch on unit to the on position.
At start up from a warm unit, it is recommended that the temperature control is set at a
warm setting, such as 1 on the dial. After the unit has gone through several cycles, turn the
control to a mid-range setting, then to a colder setting if necessary to maintain desired
product temperature
NOTICE: This refrigerated display case is designed to operate
in a maximum environment of 80° F and 55% relative
humidity. Exceeding these limits will cause poor case
performance and excessive sweating.
PLACING PRODUCT INTO CASE
- Do not exceed 100 pounds of weight per shelf. Heavy product should be distributed
evenly across the entire shelving area.
- Determine desired shelving location before placing product in case. Product must be
removed to readjust shelf location.
- Allow a minimum of 2” between top of product and bottom of shelf.
- Do not overhang the front or rear of shelves with product. Improper clearance in front and
rear of shelf will block the refrigerated airflow and will cause product loss.
-Do not block the slots along the front and rear air discharge slots. Covering these slots will
block the refrigerated airflow and could cause product loss.
-The display deck is removable for cleaning and can become dislodged in shipment. To
ensure proper airflow and performance of the case, make sure that the display deck is
pushed completely down.
-Allow refrigerated models to run for at least two hours before placing pre-chilled product
into unit.
NOTICE: CASE MUST BE STOCKED WITH PRE-CHILLED PRODUCT
38° OR COLDER.
NOTICE: This refrigerated display case is designed to operate
in a maximum environment of 80° F and 55% relative
humidity. Exceeding these limits will cause poor case
performance and sweating of glass panels.
LMD E3670-20 42
I) MAINTENANCE
TOP LIGHT BULB REPLACEMENT
LIGHT DIFFUSER PANEL
LIGHTS
There are (2) top lights on the LMD4878 & LMD7278 and there are (4) on the LMD9678.
To access these lights, the top light diffuser must be removed.
1. Remove the top shelf or shelves from the case.
2. Push up on the back of the Light Diffuser Panel and slide it back over
The lip on the rear retainer until the front drops down of the front retainer.
3. Once light diffuser is removed the lights can be removed.
-LED Strip Light: Led can be removed by unplugging cord from end of led and then
unsnapping lights from the light clip. Replace LED light in reverse order
4. Reinstall light diffuser.
CLEANING CONDENSER COIL
NOTICE: Condenser coil must be cleaned a minimum of twice per month to
insure proper refrigeration performance and prevent compressor
failure. In some environments, it may be necessary to clean more
frequently. FAILURE TO CLEAN CONDENSER COIL WILL VOID
COMPRESSOR WARRANTY.
The condenser coil is remotely mounted in another location, but it is very important that
the Condenser coil is cleaned twice per month to insure proper refrigeration performance
and to prevent compressor failure. Failure to clean condenser coil will void condenser
warranty.
1. Find the remote mounted Condensing unit
2. Disconnect power to the unit.
3. Carefully vacuum the front surface of condenser coil. Take care not to bend coil fins with
vacuum cleaner nozzle.
LMD E3670-20 43
J) CLEANING INSTRUCTIONS
DAILY CLEANING
The case should be cleaned thoroughly, as described in the weekly cleaning section,
before it is used for the first time.
NOTICE: Avoid splashing or soaking any electrical components with water
to prevent electrical damage to the case.
NOTICE: Shut off lights, disconnect power and remove all products from
case. Allow sufficient time for the unit to reach room temperature
before proceeding with cleaning.
NOTICE: Remove all products from the case before proceeding with
cleaning procedure.
NOTICE: Acrylic air deflector requires special washing procedures to
prevent hazing and yellowing of material. Clean as described in
“Acrylic Air Deflector Cleaning” section of this manual.
Note: For major spills or foreign material buildup use complete weekly cleaning instructions.
Note: Detergents are not recommended and do not use abrasive cleaners or pads to prevent
scratching of surfaces.
1. Dip rag in warm soapy water and ring out thoroughly. Wipe complete interior of case
and dry with soft dry towel.
2. The remaining exterior surface should be wiped down using any ammoniated cleaners
or soapy warm water and dried with soft dry towel.
3. IMPORTANT: Cleaning the clear acrylic plastic front air deflector requires special
care to prevent hazing and yellowing of material. Clean as described in “Acrylic Air
Deflector Cleaning” section of this manual.
NEVER USE paper towels (wet or dry) for cleaning or drying and never use a dry towel.
NEVER USE glass cleaner of any kind.
Lightly dust (not wipe) surface with a damp Micro Fiber towel or chamois. The surface can
then be washed using a small amount of dishwashing detergent such as Dawn or Joy and
lukewarm water. Use a Micro Fiber towel or chamois, applying only light pressure. The cloth
or chamois must be kept free of grit by frequently rinsing. Rinse surface with clear water
and dry by blotting with a damp Micro Fiber towel or chamois.
LMD E3670-20 44
Weekly Cleaning
NOTICE: Shut off lights and disconnect power and remove all products
from case. Allow sufficient time for the unit to reach room
temperature before proceeding with cleaning.
NOTICE: Avoid splashing or soaking any electrical components with water
to prevent electrical damage to the case.
NOTICE: Remove all products from case before proceeding with cleaning
procedure.
NOTICE: Acrylic front air deflector requires special washing procedures to
prevent hazing and yellowing of material.
Note: Detergents are not recommended and do not use abrasive cleaners or pads to prevent
scratching of surfaces.

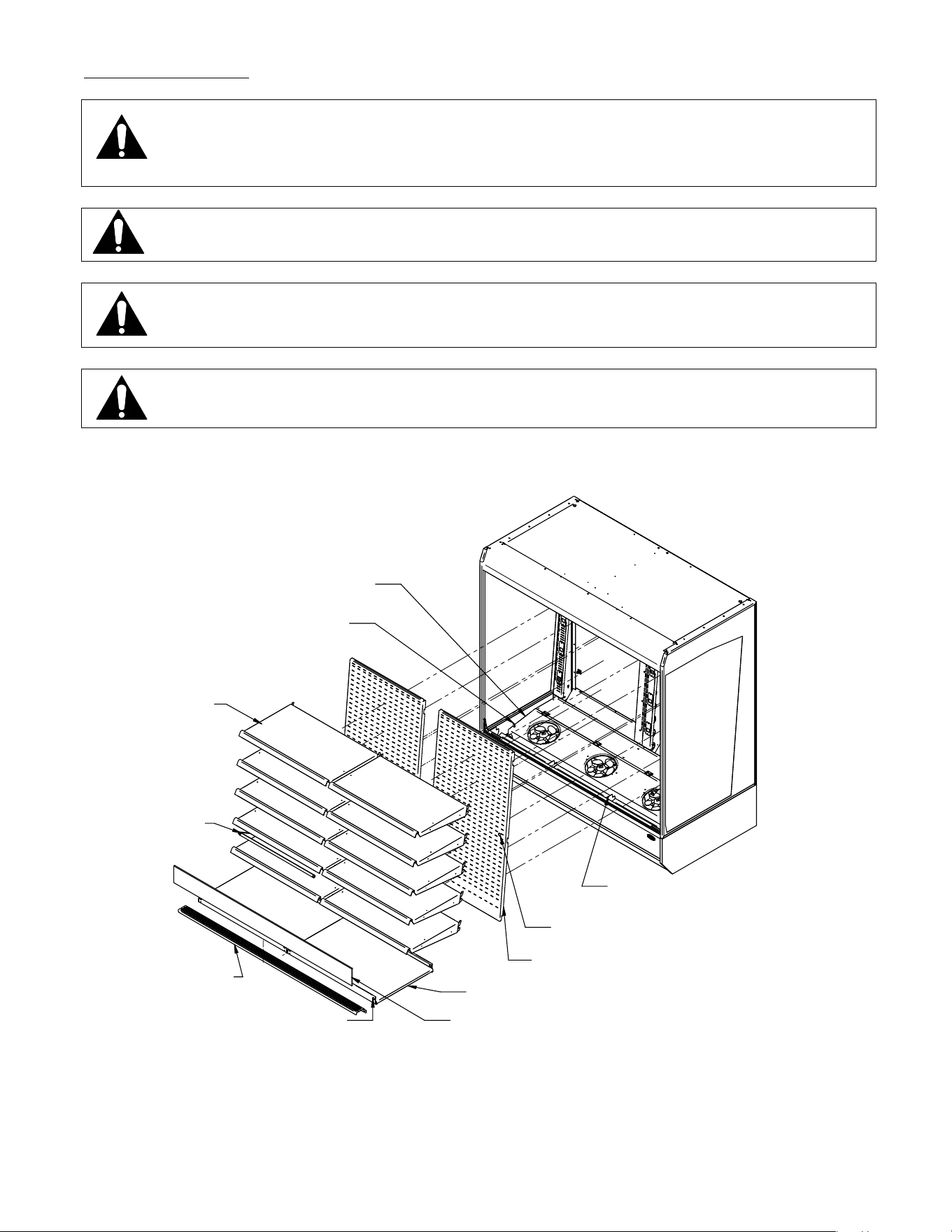

EVAPORATOR FAN
HOUSING (HINGED)
EVAPORATOR FAN
HOUSING LATCH
ONE ON EACH END
SHELVES
DISPLAY DECK PAN(S)
GRILLE AIR
RETURN
ACRYLIC AIR
DEFLECTOR
SLOTTED BACK PANEL(S)
SHELF
LIGHT
DISPLAY DECK
PAN LIFTING HOLES
GRILL AIR RETURN
BRACKETS
SLOTTED BACK PANEL
LIFTING HOLES
SOME MODELS MAY HAVE
MORE PANELS,SHELVES &
DISPLAY DECKS
LMD E3670-20 45
1. Remove the Acrylic Air Deflector by lifting it up and out of Air Deflector Retainer. Clean as
described:
IMPORTANT: Cleaning the clear acrylic plastic front air deflector requires special
care to prevent hazing and yellowing of material. Clean as described in “Acrylic Air
Deflector Cleaning” section of this manual.
NEVER USE paper towels (wet or dry) for cleaning or drying and never use a dry towel.
NEVER USE glass cleaner of any kind.
Lightly dust (not wipe) surface with a damp Micro Fiber towel or chamois. The surface can
then be washed using a small amount of dishwashing detergent such as Dawn or Joy and
lukewarm water. Use a Micro Fiber towel or chamois, applying only light pressure. The
cloth or chamois must be kept free of grit by frequently rinsing. Rinse surface with clear
water and dry by blotting with a damp Micro Fiber towel or chamois.
2. Remove interior Shelves and Shelf Lights from unit as described in the “Shelving
Installation” section of this manual.
3. Remove the Display Deck Pan(s) from unit by grabbing the lifting holes located on front lip
of Display Deck Pan(s) and lifting them up and out of unit.
4. Remove the Grill Air Return by lifting it up and off the Grill Air Return Brackets.
5. Remove the Slotted Back Panel(s) from unit. Lift the Slotted Back Panel up until the
bottom of panel clears the evaporator cover and then swing the bottom of the Slotted
Back Panel out until the top of panel clears the top light housing flange.
6. Dip rag in warm soapy water and ring out thoroughly. Clean all shelves, Display Deck(s),
Grill Air Return and Slotted Back Panel(s) and dry with soft dry towel.
7. Clean the entire interior of the case using warm soapy water. Wipe off all soapy water with
a damp cloth and allow to dry. (DO NOT use solvents such as Acetone, Benzene, Carbon
Tetrachloride, and Lacquer Thinners)
Clean under the Evaporator Fan Housing and Drain area by lifting (2) Evaporator Fan
Housing latch levers up and swinging the hinged Evaporator Fan Housing up and out of the
way.

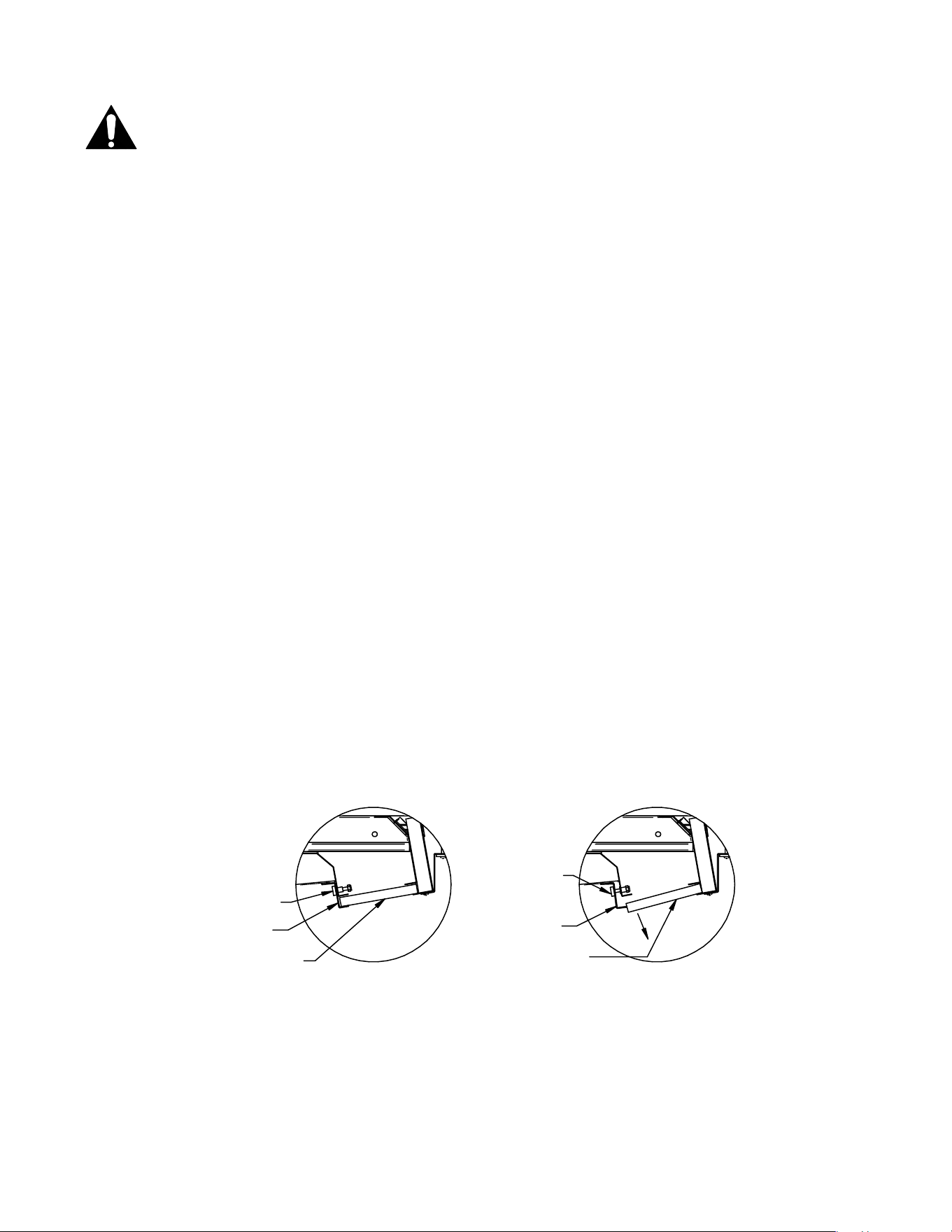

8. Remove the honeycomb air diffuser(s) from upper air duct track. Loosen thumb screws on
Retainer located behind diffuser. Retainer will drop down allowing diffuser to be pulled
out of case.
RETAINER
THUMB SCREW
AIR DIFFUSER
RETAINER
THUMB SCREW
AIR DIFFUSER
9. Clean honeycomb air diffuser with warm soapy water and a brush. Rinse thoroughly and
allow it to dry.
10. Reassemble all components in reverse order.
NOTE: Depending on the amount of usage and spillage of foreign material, some fasteners
may have to be removed, and parts disassembled to allow proper cleaning of the unit.
LMD E3670-20 46
K) SERVICE INFORMATION
Before any service work is
performed on the case, make
sure all power is disconnected to
the case.
To find a service company in your area, please visit our website at www.federalindustries.com.
There you can also find self-service tools to help you get the answers you need faster!
For Warranty Service Requests & ALL Technical Support please contact:
- Phone: (800) 356-4206 and choose the Tech Support/Warranty Option
- Email: Service@federalind.com
For Warranty Compressors please contact the Parts Department:
- Phone: (800) 356-4206 and choose the Warranty Parts Option
- Email: Parts@Federalind.com
Federal Industries has partnered with Parts Town for ALL Non-Warranty Part Identification,
Pricing, Lead Times, Orders & Freight Quotes. Please contact Parts Town directly if you need
parts:
- Website: PartsTown.com
- Email: CustomerService@PartsTown.com
- Phone: 833-809-8188
CAUTION
RISK OF ELECTRIC SHOCK
DISCONNECT POWER
BEFORE SERVICING UNIT
LMD E3670-20 47
SPECIAL SERVICE SITUATIONS
There are rare occasions when the refrigerant charge must be evacuated from a case in
order to perform service work. In those situations, Federal Industries recommends that the
refrigerant charge be evacuated into a recovery system to prevent the possibility of
hydrofluorocarbons (HFC’s) from being released into the atmosphere.
If moisture or liquid is observed around or under a Federal Industries case, an immediate
investigation should be made by qualified personnel to determine the source of the
moisture or liquid. The investigation made should determine if the case is malfunctioning
or if there is a simple housekeeping problem.
NOTICE: Moisture or liquid around or under a case is a potential slip/fall
hazard for persons walking by or working in the general area of the
case. Any case malfunction or housekeeping problem that creates
a slip/fall hazard around or under a case should be corrected
immediately.
LMD E3670-20 48
PRE-SERVICE CHECKLIST
You may avoid the cost and inconvenience of an unnecessary service call by first reviewing
this checklist of frequently encountered situations that can cause unsatisfactory case
performance.
CAUTION: Before servicing case, turn off power at the main breaker of fuse
box.
Case Does Not Operate
Check for disconnected power supply.
Check for tripped breaker on blown fuse.
Check that the thermostat display is on and that the green indicator light
is lit.
Lights Do Not Operate
Check that light switch is on.
Check for tripped breaker or blown fuse.
Check that light housing cords are plugged in correctly to sockets in the
tower
Case Temperature Too Warm
Check that the cold air inlet and outlet slots are not blocked.
Check for a blocked or dirty condenser coil.
Check for cold airflow. Lack of adequate cold airflow could indicate a defective
evaporator fan or a blocked evaporator coil. Check that paper or foreign materials
are not blocking evaporator. If the evaporator coil is blocked due to excessive frost,
put into manual defrost. Excessive frost can buildup overtime if the case is set too
cold or if there is excessive humidity in the store.
Check all the fans in the evaporator compartment and tower are running.
Case Sweating Note: Some interior sweating is normal on this case.
Check room ambient – Case is designed to operate in an environment not to exceed
75ºF and 55% relative humidity.
Check all the fans in the evaporator compartment are running.
Overflow of Condensate Pan
Check that drain in bottom of tub floor is not plugged.
Check that drain trap to the condensate pan is not plugged
Overflow of Optional Condensate Pump:
Check that drain in bottom of tub floor is not plugged.
Check that drain trap to the condensate pan is not plugged
Check that drain lines from pump is not plugged or pinched.
Check to see that pump float is operating correctly.
Verify that pump is plugged in and has power.
Replace pump if still not pumping condensate.
LMD E3670-20 49
L) SALE & DISPOSAL
If you the owner sells or gives away this Federal Industries case it is the owner’s
responsibility to make sure that all safety labels and the Installation-Service Manual are
included with it. If you need replacement labels or manuals, Federal Industries will provide
them free of charge. Contact the customer service department at Federal Industries at
(800) 356-4206.
The customer service department at Federal Industries should be contacted at the time of
sale or disposal of your case so records may be kept of its new location.
If you sell or give away your Federal Industries case, you should evacuate the refrigerant
charge before shipment. Federal Industries recommends that the charge be evacuated into
a recovery system to prevent the possibility of HCFC’s from being released into the
atmosphere.
LMD E3670-20 50
M) REFRIGERATION OPERATION
Refrigeration R454C Charge
CHARGED IN FIELD
Remote Low Press. Switch Cut In
40 psi
Remote Low Press. Switch Cut Out
15 psi
Adjustable Head Master
200 psi
Remote High Press. Switch Cut Out
400 psi
The remote models are designed to use R454C refrigerant and shipped from the factory with the
evaporator coil, expansion valve, and refrigerant solenoid valve. Drier filter must be installed in
field for proper operation. Electronic control opens and closes a refrigeration solenoid valve
located on the suction line and shuts off the refrigeration flow to the unit and initiates a pump
down cycle. This will allow the remote low-pressure switch to open and shut off remote
compressor.
The condensing unit and pressure controls are optionally supplied from the factory for remote
location installation. The condensing unit must be mounted and wired by the installer. The high
low-pressure switch must be wired in series with the compressor power supply as shown in
diagram below.
1. Mount condensing unit indoors as close to the remote display case as practical. The
refrigeration line should be as short as possible and must not exceed 30 feet.
2. All refrigeration and/or electrical materials between the condensing unit and display case are
to be supplied by installing contractor.
3. Route properly sized and designed refrigeration lines from the condensing unit to the cabinet.
Horizontal suction lines should be pitched downward towards the condensing unit at least ½”
per 10’ run to aid the oil drainage. A “P” trap must be installed in the suction line at the foot of
every riser to insure oil return. Dry nitrogen must be used to flow through tubing while brazing
refrigeration lines.
4. Suction line must be insulated the entire length with Armaflex (or equivalent). Do not run liquid
line inside insulation with suction line.
5. The remote high/low-pressure control must be installed and set pressures by the installer.
6. Leak check condensing unit, cabinet, and all connecting tubing. Cabinet and condensing unit
tubing should be checked to insure no leaks occurred during shipping or from rough handling.
Make certain all refrigeration valves are opened and evacuate system to 500 microns. Charge
the system with refrigerant type specified on the data plates.
REMOTE
HIGH LOW
PRESSURE
CONTROL
LIQUID LINE
SUCTION LINE (INSULATED)
REMOTE
CONDENSING
UNIT
EVAPORATOR
COILS
DISPLAY CASE
EXPANSION
VALVE
HIGH
LOW
LIQUID LINE
SOLENOID VALVE
SIGHT GLASS
DRIER/FILTER
FIELD CONNECTION
HOT
FUSED
POWER
SUPPLY
DEFROST
TERMINATE
PROBE
ELECTRONIC
CONTROL
AIR TEMP. CONTROL PROBE
FUSED
CASE
POWER
LMD E3670-20 51
ELECTRONIC EXPANSION VALVE (EEV)
A traditional TXV uses springs and a temperature bulb to open and close a valve port that controls
the flow of refrigerant entering the evaporator coil. An electronic expansion valve (EEV) controls
the refrigerant flow much more precisely, increasing the performance and efficiency of the
refrigeration system. The EEV controls the flow of Refrigerant by opening and closing the valve port
based on the response to signals sent to the EEV by an electronic controller. The electronic
Control bases these signals by processing information provided from a temperature sensor and
pressure transducer located on the discharge side of the evaporator coil.
These sensors monitor the evaporator superheat and protects the compressor from any liquid
flood back under low superheat conditions.

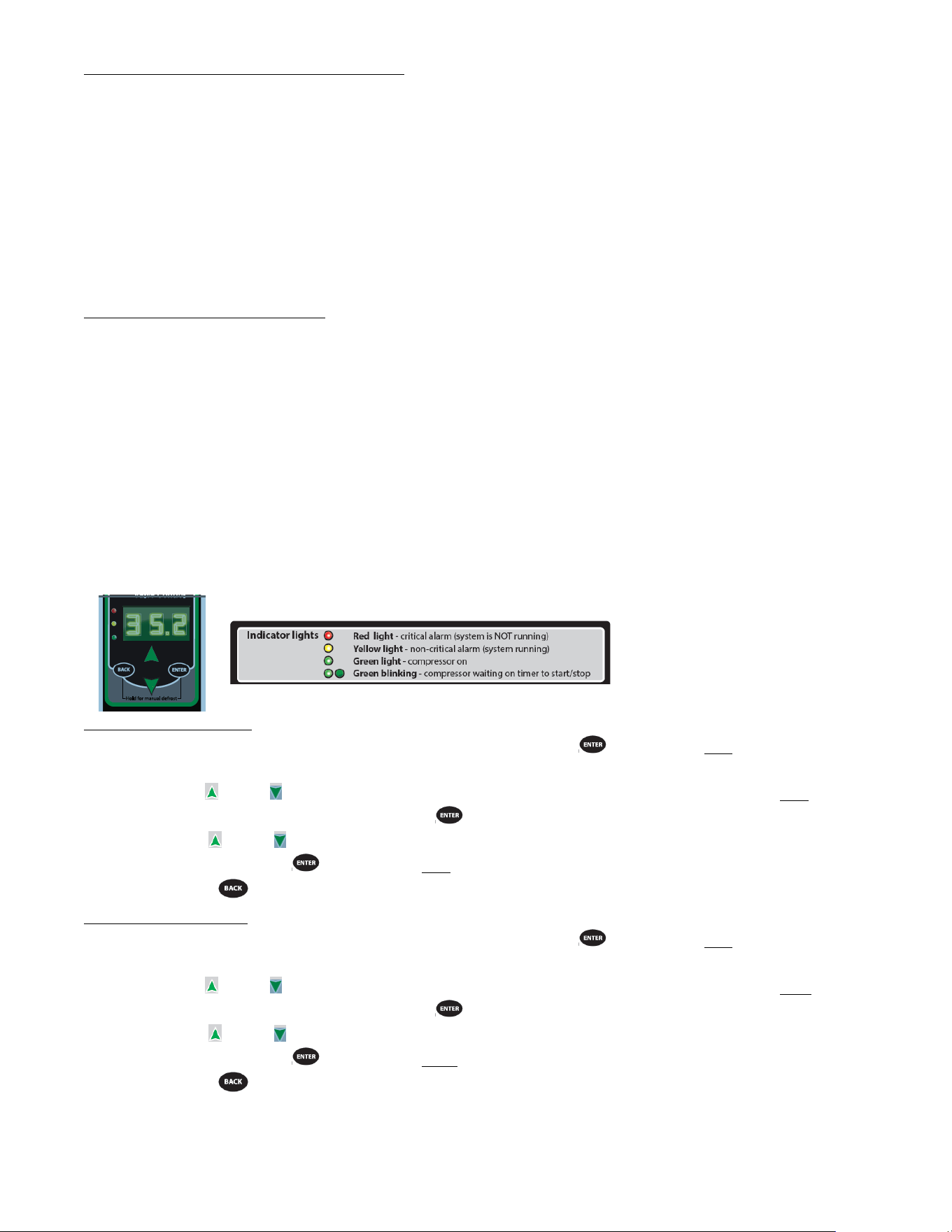

EEV CONTROLLER SETTINGS
The electronic expansion valve controller also allows the use of different types of refrigerants
without the need to change the expansion valve.
The controller is set from the factory to run on 454C refrigerant (code 54C) and will not need to be
changed unless another refrigerant is used.
NOTE: On units with older model EEV’s, the EEV is set to code 40C
Note: Check your State and Local regulations for approved refrigerants for your install
location. Federal Industries is not liable for any alternate refrigerants used.
The control is located in the front left corner of evaporator tub under the Display Deck Pan.
Note: Never change any of the other setting other than the refrigerant type. It may also be
necessary to change the superheat setting only when using a different refrigerant.
Changing Refrigerant
• Access the set point mode by pressing and holding the button until Ctl displays on the
screen.
• Use the up or down arrows to advance through the available set points until rFG
displays on the screen and press the botton.
• Use the up or down arrows until the desired refrigeration displays on the screen and
press and hold the button until rFG once again displays on the screen.
• Press the to return to escape the settings menue.
Changing Superheat
• Access the set point mode by pressing and holding the button until Ctl displays on the
screen.
• Use the up or down arrows to advance through the available set points until SSP
displays on the screen and press the botton.
• Use the up or down arrows to set the desired superheat displays on the screen and
press and hold the button until SSP once again displays on the screen.
• Press the to return to escape the settings menue.
LMD E3670-20 52
N) PARTS LIST
QTY
PART#
QTY
PART#
QTY
PART#
CAREL TEMP. CONT. 115V 1 32-19864-12 1 32-19864-12 1 32-19864-12
TEMPERATURE PROBE 2 32-19866 2 32-19866 2 32-19866
SWITCH,ROCKER 22A 1 41-11066 1 41-11066 1 41-11066
RECEPTACLE,WHITE 5 43-19080-A 10 43-19080-A 10 43-19080-A
PLATE,RECEPT SHELF LIGHT WHITE 5 M-10167-2B 10 M-10167-2B 10 M-10167-2B
POWER SUPPLY 24V 2 39-20555 2 39-20555 3 39-20555
LED CEILING, 24V 35k 2 42-20871-42C35 2 42-20871-72C35 4 42-20871-42C35
CORD CEILING LED WHITE 2 43-20867-8W 2 43-20867-8W 4 43-20867-8W
LED, 24V 35k 6 42-20871-42C35 12 42-20871-30C35 12 42-20871-42C35
CORD,SHELF LED WHITE 5 43-20862-6W 10 43-20862-6W 10 43-20862-6W
CORD,TOP LED WHITE 1 43-20868-3W 2 43-20868-3W 2 43-20868-3W
HARNESS,5 LIGHT 1 43-20147 2 43-20147 2 43-20147
LMD4878R
LMD7278R
LMD9678R
ELECTRICAL COMPONENTS
MOTOR,FAN 115V. 60Hz, 2 41-17981 3 41-17981 4 41-17981
BLADE,8" 5 BLADE, 15D SUCT 2 72-32507 3 72-14569 4 72-32507
HARNESSWIRE,DOUBLE FAN 1 43-19749 2 43-19749 3 43-19749
EEV, RSV-130 3/8X1/2ODF 1 32-21226 1 32-21226 2 32-21226
EEV CONTROL 1 32-21223 1 32-21223 2 32-21223
TEMP. SENSOR EEV 1 32-21224 1 32-21224 2 32-21224
PRESSURE TRANSDUCER 1 32-21225 1 32-21225 2 32-21225
COIL,EVAP MULTI DECK 1 33-20026-1 1 33-20026-2 1 33-20026-23
VALVE, ACCESS 5/8 COPPER 1 82-14323 1 82-14323 2 82-14323
SOLENOID VALVE 1 32-21915-6 1 32-21915-6 1 32-21915-6
COIL,SOLENOID 24V
1 39-21915-C24 1 39-21915-C24 1 39-21915-C24
SWELL LATCH 2 66-13640 2 66-13640 2 66-13640
HINGE,PLASTIC 3 66-14094 4 66-14094 5 66-14094
REFRIGERATION COMPONENTS
LMD E3670-20 53
PANEL,END GLASS 2 50-20029 2 50-20029 2 50-20029
PANEL,END GLASS REFLECTIVE LEFT 1 50-20029-1L 1 50-20029-1L 1 50-20029-1L
PANEL,END GLASS REFLECTIVE RIGHT 1 50-20029-1R 1 50-20029-1R 1 50-20029-1R
PANEL,LAMINATE FRONT (COLOR REQD) 1 W11732-1 1 W11732-2 1 W11732-3
PANEL,END LAM (COLOR REQD) 1 68-20042-L 1 68-20042-L 1 68-20042-L
PANEL,END LAM (COLOR REQD) 1 68-20042-R 1 68-20042-R 1 68-20042-R
LEG,1/2-13 X 2.5 4 65-11486 6 65-11486 6 65-11486
CASTER,2-1/2" 4 65-17352 6 65-17352 6 65-17352
ECONO COVER,56" DBL ACTION WHITE 1 65-19464 3 65-19462 2 65-19464
AIR DIFFUSER 2 W11724-1 2 W11724-2 2 W11724-3
THERMOPLASTIC DRAIN 1 84-70225 1 84-70225 2 84-70225
DRAIN ASSY,TUBE 1 SA5522 1 SA5522 1 SA5523
TUBING,3/4 ID CLEAR PVC 25' 15-19609 25' 15-19609 25' 15-19609
SHELF,WELD WHITE 5 SA5458-1 10 SA5458-2 10 SA5458-1
THERMOMETER 1 32-13662 1 32-13662 1 32-13662
DEFLECTOR,AIR FRONT 1 15-20030-1 1 15-20030-2 1 15-20030-2
NIGHT CURTAIN 1 65-19464 2 65-19462 2 65-19464
SECURITY COVER (OPTION) NAT ALUM 1 SA5658-1B 2 SA5658-2B 2 SA5658-1B
SECURITY COVER (OPTION) BLACK TEXT 1 SA5658-1 2 SA5658-2 2 SA5658-1
DECAL,CATION ELECTRICAL SHOCK 2 91-12340 2 91-12340 2 91-12340
LOGO,FEDERAL 1 91-72523 1 91-72523 1 91-72523
MISC COMPONENTS
LMD E3670-20 54

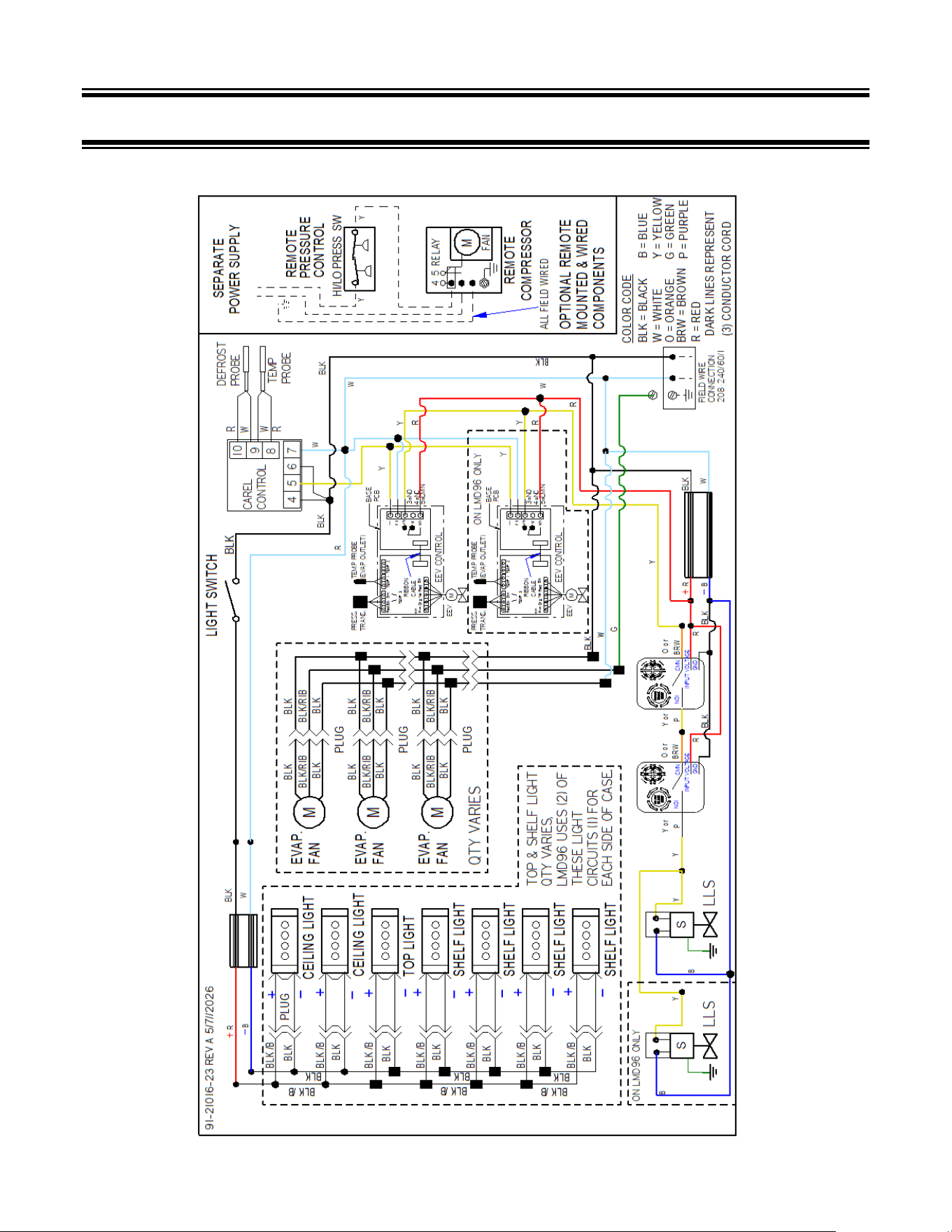

O) CASE WIRIG DIAGRAMS
LMD48, 72, 96
LMD E3670-20 56
REV
CHANGE RECORD
APP’D
DATE
ECN#
0
NEW MANUAL RELEASED W/R454C REFRIG CHG
ADC
3/13/26
3991
