P/N: G-000076-00 EN RevA
Smart Smoke Alarm (RGSDR-RW)
Smart Smoke + Carbon Monoxide Alarm (RGCUDR-RW)
1. Download the Ring app
2. Scan to start setup
3. Follow in-app instructions
QR CODE
2

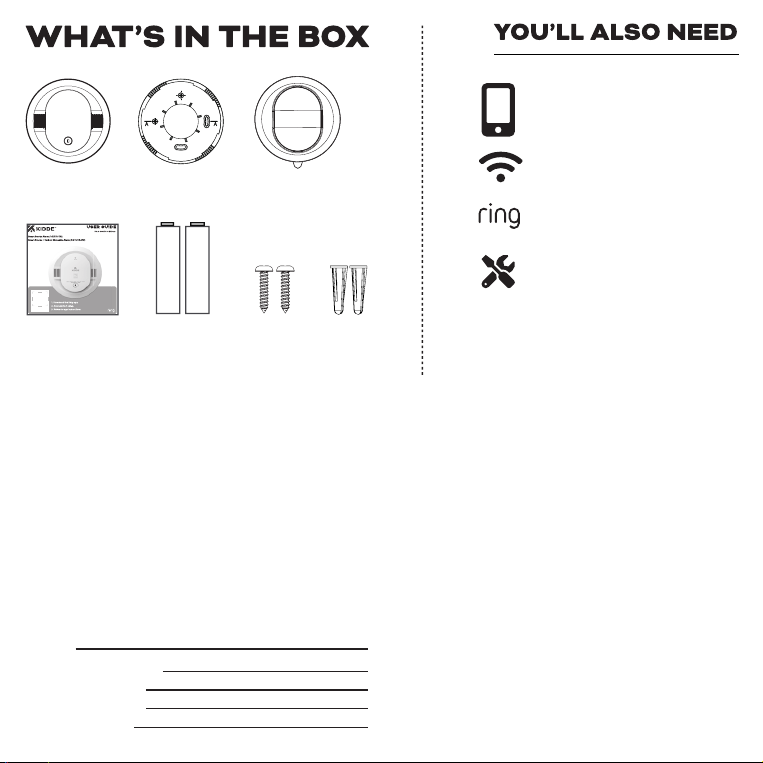

Alarm Mounting Bracket Dust Cover
User
Guide
Two (2) AA
Batteries
Mobile Phone or Tablet
1
(iOS or for Android
TM 2
)
Access to a 2.4GHz Wi-Fi
network, and a compatible
802.11b/g/n router
Additional tools such as a
ladder, and screwdriver for
installation
1 . Requires iOS 14 or later, or Android 9 and up.
2. Android is a trademark of Google LLC.
3. Download from Apple App Store or Google Play Store.
The Ring app
3
Date Code (on back):
Date of Purchase:
Where Purchased:
Date to Replace:
Model:
Register your device with Kidde for customer support and warranty information at
kidde.com/register.
The National Fire Protection Association (NFPA) and the manufacturer recommend replacing this
alarm after ten years.
For Ring app or Ring connectivity questions, visit website https://ring.com/support/contact-us
For all other questions, call Kidde Product Support: 1-877-542-5471.
Please write down the below information and have this at hand when you call.
QR CODE
Screws Wall
Anchors
3
1 . Requires iOS 14 or later, or Android 9 and up.
2. Android is a trademark of Google LLC.
3. Download from Apple App Store or Google Play Store.
Model Type AA Batteries Voice CO Detection
Low Level CO
Alert
RGSDR-RW Smoke Yes Yes No No
RGCUDR-RW Smoke / CO Yes Yes Yes Yes
Models included in this User Guide:
These models are capable of two modes of connectivity:
1. Wi-Fi: Units send notifications to a mobile device using the Ring app.
2. Wire-Free Interconnect: Units communicate with each other using RF wireless signals.
WARNING: Mobile alert services are ancillary to the product and for informational purposes only. They
are not intended or suitable for life safety or critical purposes nor do these services take the place of
third-party life safety monitoring services. This product’s smart phone or tablet notifications require a stable
Wi-Fi connection, and are only as reliable as your home Wi-Fi network.
NOTE:
The app receives regular updates. The paper or online copy of your user guide will most likely lag
behind the app’s regular updates. Visit Kidde.com to find and download or print the latest user guide.
Optional 24/7 Smoke & CO Monitoring service with Emergency Response
Trained agents can request emergency help in case of alarm.*
*A compatible Ring subscription is required for 24/7 Smoke and CO Monitoring. Service available within
the U.S. (all 50 states, but not U.S. territories). Ring does not own its monitoring center. Smoke and carbon
monoxide monitoring is not available for business or commercially zoned addresses. See Ring Alarm
licenses at: ring.com/licenses. Additional fees may be required for permits, false alarms, or Alarm Verified
Guard Response, depending on your local jurisdiction.
Teach children how to respond to the alarm and that they should never play with the unit. This alarm
is a multi-criteria device. Smoke models are designed to detect smoke, and combination smoke/CO
models are designed to detect both smoke and carbon monoxide from any source of combustion in a
residential environment. It is not designed for use in a recreational vehicle (RV) or boat.
NOTE: Please thoroughly read this user guide and save the document for future reference and to pass
on to any subsequent owner. Images are representative only. Actual product may vary slightly.
4
Contents
1. Smoke Alarm: What To Do When The Alarm Sounds . . . . . . . . .5
2. Other Alarm Visual And Audible Indicators . . . . . . . . . . . .6
3. Troubleshooting Guide . . . . . . . . . . . . . . . . . . .8
4. Introduction, Product Features And Specifications . . . . . . . . . .10
5. Limitations Of Smoke And Carbon Monoxide Alarms . . . . . . . . .12
6. Recommended Locations For Smoke And Carbon Monoxide Alarms . . . 14
7. Locations To Avoid . . . . . . . . . . . . . . . . . . . .17
8. Activation / Installation . . . . . . . . . . . . . . . . . .18
9. Setting Up Wire-Free Interconnect Network . . . . . . . . . . . .21
10. Modifying an Existing Alarm Network . . . . . . . . . . . . . .25
11. Resetting a Device’s Wireless Settings . . . . . . . . . . . . .25
12. Operation And Testing . . . . . . . . . . . . . . . . . . .26
13. Recognizing Nuisance Alarms . . . . . . . . . . . . . . . .28
14. Batteries . . . . . . . . . . . . . . . . . . . . . . . .29
15. Carbon Monoxide Alarm: What To Do When The Alarm Sounds . . . . .30
16. General Carbon Monoxide (CO) Information . . . . . . . . . . .32
17. Cleaning Your Alarm . . . . . . . . . . . . . . . . . . .34
18. Good Safety Habits . . . . . . . . . . . . . . . . . . .36
19. Service And Warranty . . . . . . . . . . . . . . . . . . .39
5
1. Smoke Alarm: What To Do When The Alarm Sounds
The smoke alarm pattern is three long beeps with voice “Fire!,” a 1.5 second pause, and three
long beeps repeating. The red LED blinks in time with the alarm pattern only on the alarm(s) that
detected the hazard (initiating alarm).
The smoke alarm takes precedence when both smoke and carbon monoxide are present.
(only combination smoke/CO models detect carbon monoxide)
• Alert small children in the home as well as anyone else that might have difficulty recognizing the
importance of the alarm sounding or that might have difficulty leaving the area without help.
• Plan two ways out! Leave immediately by your escape plan. Don’t waste time getting dressed or
picking up valuables.
• While leaving, don’t open any inside door without first feeling its surface. If hot, or if you see
smoke seeping through cracks, don’t open that door! Instead, use your alternate exit. If the inside
of the door is cool, place your shoulder against it, open it slightly and be ready to slam it shut if
heat and smoke rush in.
• If the escape route requires you to go through smoke, stay close to the floor where the air is
cleaner. Crawl if necessary, and breathe shallowly through a cloth, wet if possible.
• Once outside, go to your selected meeting place and make sure everyone is there.
• Call the fire department or 911 from your cell phone outside, or from your neighbor’s home-not
from yours!
• Don’t return to your home until the fire officials say that it is all right to do so.
NOTE: See Section RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.
6
2. Other Alarm Visual And Audible Indicators
Operational Mode Visual Indications Audible Indications Action / Note
Normal (standby)
Green LED blinks approx every 60 sec.
Test (Test/Hush button
press when no alarm
condition is present)
(Note: Test is very loud,
stand a few feet away.)
Red LED blinks in time with alarm
pattern.
Smoke Models:
• Single beep.
• 3 long beeps, voice “Fire!,” 3 long beeps.
Combination Smoke/CO Models:
• Single beep.
• 3 long beeps, voice “Fire!,” 3 long
beeps, 4 quick beeps, voice “Warning,
Carbon Monoxide,” 4 quick beeps.
Perform Test/Hush button press
once a week to verify proper
alarm operation.
Smoke or CO Alarm
Memory (unit has
experienced a smoke or CO
alarm event, or has detected
100ppm CO or greater.) (CO
only on combination smoke/
CO models)
Smoke: Red LED blinks every 15 sec.
CO (combination smoke/CO models
only): 2 red LED blinks every 15 sec.
After Test/Hush button push, voice
“Smoke previously detected” or
“Carbon monoxide previously detected.”
(combination smoke/CO models only)
NOTE: Alarm memory is only
retained for 24 hrs.
Push Test/Hush button to clear
Alarm Memory.
Smoke Alarm
HUSH
TM
Mode
Red LED blinks every 2 sec.
(only on the initiating alarm)
After button push, voice “Hush
Mode Activated.” Smoke alarm
pattern stops. If there is too much smoke
to allow HUSH, voice “Too much smoke,
alarm cannot be hushed.” (smoke alarm
pattern continues)
This feature is to be used only
when a known alarm condition,
such as smoke from cooking,
activates the alarm. Push button
during HUSH to clear HUSH and
perform a test.
CO Alarm Reset
( combination smoke/
CO models only)
None After Test/Hush button push: CO alarm
pattern stops.
Unit is confirming if CO is
present or if it experienced a
nuisance situation. Re-alarm
means danger. Exit to fresh air
and call 911.
Low Level CO Alert
(if applicable)
2 red LED blinks every 10 sec.
After 4 mins, alert occurs only once
every 60 sec.
2 chirps every 10 sec.
After 4 mins, alert occurs only once
every 60 sec.
Refer to Section 15:
“Low Level CO Alert Procedure”
Locate (only applies
to Wire-Free
Interconnected units)
None After Test/Hush button push on
non-initiating unit, only initiating unit
continues alarm pattern.
Use this to quickly locate the
alarm source and determine if
alarm is nuisance or real.
Initiating Alarm
(multiple alarms in
an interconnected
system)
Red LED blinks in time with alarm
pattern indicating that this is the unit
initiating the alarm in an interconnected,
multiple alarm, system.
NOTE: It is possible for more than one
unit to detect a hazard and become an
initiating alarm unit (Red LED blinking).
Unit in either Smoke or CO
alarm mode.
7
2. Other Alarm Visual And Audible Indicators
Operational Mode Visual Indications Audible Indications Action / Note
Wi-Fi enrollment
begins
Blue LED blinks once per second. Voice “Ready for Wi-Fi setup. Follow
quick start instructions.”
Follow the steps on the bottom
of page 1 of this User Guide.
Wi-Fi enrollment
completed
Blue LED blinks 3 times per second for
5 seconds.
Voice “Wi-Fi Setup Complete.” Repeat Wi-Fi enrollment with
each alarm.
Section 9, Step 1: Wire-Free
Interconnect standby/
ready mode
Red LED blinks every second. Voice “Ready for Wireless Interlink.
Follow quick start instructions.”
The device(s) are ready and
waiting to join a new network.
Section 9, Step 2:
Wire-Free Interconnect
temporary host
searching for other
devices
Red LED blinks twice every
two seconds.
Voice “Searching for other devices” is
announced once. Sonar ping begins.
This device is hosting a new
network for other devices
to join.
Section 9, Step 3:
Wire-Free Interconnect
device connected to
network
Red LED blinks 3 times every 2 seconds
until the network is closed.
Voice “Success, now connected” when
Wire-Free Interconnect is connected.
*The device has joined a network.
*Repeat Wire-Free Interconnect
with each alarm.
Section 9, Step 4:
Wire-Free Interconnect
network completed,
changing back to
normal operation mode
After network is closed, the red LED
stops blinking, and the green LED blinks
approx every 60 sec.
Voice “Setup complete. [number of
devices] devices connected,” when the
network is closed.
Devices are ready for normal
operation after installation.
8
3. Troubleshooting Guide
If you require further information please contact Product Support at 1-877-542-5471 or write us at: Kidde, 1016
Corporate Park Drive, Mebane, NC 27302. Our internet address is www.kidde.com.
Trouble Condition
Visual Indications
Audible Indications Action / Note
Low Battery Amber LED blinks
every 6 sec.
Chirp and voice “Low Battery”every
60 sec. After 1 hour, voice occurs
only once every 15 mins. Voice “Hush
Mode Activated” after button push
(first 7 days only).
* Push Test/Hush button once to silence for
24 hrs. (Push Test/Hush button again to clear
HUSH
TM
and perform a test.) Note: After a
maximum of 7 days after Low Battery begins,
the notifications cannot be silenced.
* Replace batteries as soon as possible.
Smoke Sensor
Fault
Amber LED blinks
every 60 sec.
3 chirps every 60 sec and voice
“Clean the Alarm.” After 1 hour, voice
occurs only once every 15 mins.
* See Cleaning Your Alarm section.
* Push Test/Hush button once to attempt to
reset the unit.
* If error continues, remove alarm, dispose unit,
and replace as soon as possible. (Remove AA
batteries before disposal)
CO Fault (combination
smoke/CO models only)
Amber LED blinks
2 times every
60 sec.
3 chirps every 60 sec and voice
“Replace Alarm.” After 1 hour, voice
occurs only once every 15 mins.
* Push Test/Hush button once to attempt to
reset the unit.
* If error continues, remove alarm, dispose unit,
and replace as soon as possible. (Remove AA
batteries before disposal)
Fatal Fault Amber LED blinks
3 times every
60 sec.
3 chirps every 60 sec and voice
“Replace Alarm.” After 1 hour, voice
occurs only once every 15 mins.
* Push Test/Hush button once to attempt to
reset the unit.
* If error continues, remove alarm, dispose unit,
and replace as soon as possible. (Remove AA
batteries before disposal)
Unsuccessful Over
The Air (OTA) firmware
update.
Amber LED blinks
3 times every
60 sec.
3 chirps every 60 sec.
* Push Test/Hush button once to attempt to
reset the unit.
* If error continues, remove alarm, dispose unit,
and replace as soon as possible. (Remove AA
batteries before disposal)
End of Unit Life Amber LED blinks
2 times every
60 sec.
2 chirps every 60 sec and voice
“Replace Alarm.” After 1 hour, voice
occurs only once every 15 mins. Voice
“Hush Mode Activated” after button
push (first 7 days only).
* Push Test/Hush button once to silence for
24 hrs. (Push Test/Hush button again to clear
HUSH and perform a test.) Note: 7 days after
End of Unit Life begins, the notifications cannot
be silenced.
* Remove alarm, dispose unit, and replace as
soon as possible. (Remove AA batteries
before disposal)
Failure to connect to Wi-Fi
router during setup due to
incorrect Wi-Fi password.
Green LED turns
off, red LED gives 3
rapid blinks every
other second,
repeated 3 times,
Green LED turns on.
Voice “Wi-Fi Not Connected” will
announce one time.
* Check your router WiFi 2.4 GHz SSID and/or
password and enter it correctly.
* If above step fails, reset wireless settings and
start over.
9
Trouble Condition
Visual Indications Audible Indications
Action / Note
Failure to connect to
Wi-Fi during setup for
any other reason.
Green LED turns off, red
and blue LEDs alternate
every second, repeated
3 times, Green LED
turns on.
Voice “Wi-Fi Not Con-
nected” will announce
one time.
* Check your router functionality and internet connection.
* Reset wireless settings and allow device to search for network.
* If above step fails, remove device from mounting bracket, rotate
90 degrees, and re-install device onto mounting bracket. Then
reset wireless settings and allow device to search for network.
Wi-Fi communication failure
(device fails to connect to a
functioning Wi-Fi router)
Green LED turns off, red
and blue LEDs alternate
blinking every 2 sec.
None * Check your router functionality and internet connection.
* Reset wireless settings and start over.
* If above step fails, remove device from mounting bracket, rotate
90 degrees, and re-install device onto mounting bracket. Then
reset wireless settings and allow device to search for network.
* Contact customer service. If error persists, or if customer service
directs, remove alarm, dispose unit, and replace as soon as
possible. (Remove AA batteries before disposal)
Loss of Wi-Fi
Connection on a
previously connected
device
Blue and amber LEDs
alternate blinking once
every minute.
None * The unit will attempt to re-connect on its own. After 10
consecutive mins of lost connection, you will receive a
notification of “Contact Lost” in your mobile App.
*
Check your router functionality and internet connection.
* Reset wireless settings and start over.
* If above step fails, remove device from mounting bracket, rotate
90 degrees, and re-install device onto mounting bracket. Then
reset wireless settings and allow device to search for network.
* Contact customer service. If error persists, or if customer service
directs, remove alarm, dispose unit, and replace as soon as
possible.
Wi-Fi setup was not
completed
Green LED will turn off
once per minute and the
blue LED will blink.
None * This is a reminder to finish setting up the Wi-Fi device.
* Reset wireless settings and start over.
Wire-Free Interconnect
connection lost or
Wire-Free Interconnect
creation failed
Amber LED blinks every
30 sec.
1 chirp every 30 sec
and voice every 60 sec
“Wire-Free Interconnect
Connection Lost.” After 1
hour, voice occurs only
once every 15 mins.
Voice “Hush Mode
Activated” after button
push.
* Push Test/Hush button to temporarily silence for 24 hrs. (Push
Test/Hush button again to clear HUSH
TM
and perform a test.)
* Remove device from mounting bracket, rotate 90 degrees, and
re-install device onto mounting bracket.
* If above step fails, reset wireless settings on the “lost connection”
device and start over.
*
If above step fails, try another location for this device, or swap it
with another Wire-Free Interconnected unit to see if the problem
continues. If yes, there could be interference or distance issues.
* Contact customer service. If error persists, or if customer service
directs, remove alarm, dispose unit, and replace as soon as
possible. (Remove AA batteries before disposal)
Searching for Wire-Free
Interconnect Network (if a
device has lost connection)
Red LED blinks
every sec.
None *
No immediate action. The device has lost connection and is
searching for the network. If the lost connection persists, follow the
steps in the row above.
MCU Failure
None Constant Tone *
Remove alarm, dispose unit, and replace as soon as possible.
(Remove AA batteries before disposal)
Depleted Battery
Notification
None Rapid continuous
chirping
*
Batteries are depleted to where they can no longer support any
features.
*
Replace batteries immediately.
Stuck Test/Hush Button
or Side Enrollment
Button
Amber LED blinks 4
times every 60 sec.
3 chirps every 60 sec. * Push button to dislodge it from being stuck.
If button cannot be unstuck, remove alarm, dispose unit,
and replace as soon as possible. (Remove AA batteries
before disposal)
10
4. Introduction, Product Features And Specifications
Introduction
This alarm detects products of combustion using a photoelectric sensor and carbon monoxide (on
combination smoke/CO models only) using an electrochemical cell. Many times throughout this User
Guide, we will refer to Carbon Monoxide as “CO.”
Ten (10) years after the unit was installed, powered up, and tested, this unit will automatically alert you
that it is time to replace the unit. This is called “End of Unit Life” mode. See Troubleshooting Guide. To
help identify the date to replace the unit, a label has been affixed to the side of the alarm. Write the
“Install date” in the space provided, and then write in the “Replace by” date (10 years from initial power
up) in an oil based permanent marker on the label prior to installing the unit. For combination smoke/
CO models, two labels have been provided that have important information on what to do in case of a
CO alarm. Place one label at eye level on a wall near the alarm after it is mounted, and one near a fresh
air source such as a door or window, where you plan to gather after the alarm indicates the presence of
carbon monoxide.
Product Features and (see list of models on page 3):
• Low Level CO Alert (model specific)
• Powered by 2 AA batteries
• Reduced nuisance alarms
• Self-testing (see Operation and Testing section)
• Voice message system
• Easy installation
• Wi-Fi Compatible to Mobile Device ( Requires 802.11b/g/n
(2.4GHz) Wi-Fi )
• Wire-Free Interconnect to other compatible alarms
• Smoke Alarm HUSH
TM
• Smoke Sensor: Photoelectric
• CO Sensor: Electrochemical (combination smoke/CO models only)
• Temperature Operating Range: 40 °F (4.4 °C) to 100 °F (37.8 °C)
• Humidity Operating Range: up to 95% (smoke models) and 10 to 95% (combination smoke/CO
models) RH, non-condensing
Figure 4
Side enrollment button
Test/Hush button
LED
11
• Audible Alarm: 85+ dB at 10 ft, 3.0 to 3.5 KHz pulsing , with voice messages “Fire!” and/or
“Warning! Carbon Monoxide”
Wire-Free Interconnect
These models have Wire-Free Interconnect capability. When one Wire-Free Interconnect unit sounds
an alarm, all other compatible Wire-Free Interconnected units will also alarm.
NOTE: Wire-Free Interconnect steps must be completed for the Wire-Free Interconnect function to
work.
The following models can be interconnected using the Wire-Free Interconnect feature: RGSDR-RW,
RGCUDR-RW.
A maximum of 24 Kidde Safety devices may be interconnected in a multiple station arrangement.
The interconnect system should not exceed the NFPA interconnect limit of 12 smoke or smoke/CO
combination alarms and/or 18 alarms total (smoke, CO, smoke/CO combination, heat, etc.). With 18
alarms interconnected, it is still possible to interconnect up to a total of 6 remote signaling devices and/
or relay modules.
Notifications to a Mobile Device
These models have Wi-Fi capability, and can send alarm signals and other notifications to a mobile
device. The Ring app is required, along with a home Wi-Fi router and internet. ( Requires 802.11b/g/n
(2.4GHz) Wi-Fi )
Over The Air (OTA) Firmware Updates
Your device has the ability to receive over-the-air (OTA) firmware updates to ensure the device is
working properly at all times. Most of these firmware updates go unnoticed and are successful. In the
event that an OTA event is unsuccessful after multiple attempts the device will alert you using chirp
patterns and LED lights - see Troubleshooting Guide for more details.
12
5. Limitations Of Smoke And Carbon Monoxide Alarms
WARNING:
PLEASE READ CAREFULLY AND THOROUGHLY
• Life safety from fire in residential occupancies is based primarily on early notification to occupants of the
need to escape, followed by the appropriate egress actions by those occupants.
• There are situations where a smoke alarm may not be effective to protect against fire as stated in the
NFPA Standard 72. For instance:
a) smoking in bed
b) leaving children home alone
c) cleaning with flammable liquids, such as gasoline
• Fire warning systems for dwelling units are capable of protecting about half of the occupants in
potentially fatal fires. A smoke alarm may not be effective in some situations, such as during incendiary
fires where the fire grows so rapidly that an occupant’s egress is blocked even with properly located
smoke alarms, or when victims are intimate with the fire (for example, when a person’s clothes catch fire
while cooking), too old or young, or physically or mentally impaired such that they cannot escape even
when warned early enough that escape should be possible. For these people, additional strategies
such as protection-in-place or assisted escape or rescue are necessary. *
• This model meets the latest residential smoke alarm standards, which includes enhanced resistance
to nuisance alarms from cooking. Industry experts recommend that both ionization and photoelectric
smoke alarms be installed to help ensure optimal detection of the various types of fires that can occur
within the home. Ionization sensing alarms may detect invisible fire particles (associated with fast flaming
fires) sooner than photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles
(associated with slow smoldering fires) sooner than ionization alarms.
• A battery powered alarm must have a battery of the specified type, in good condition and installed properly.
• Smoke alarms must be tested regularly to make sure the battery and the alarm circuits are in good
operating condition.
• Smoke alarms cannot provide an alarm if smoke does not reach the alarm. Therefore, smoke alarms may
not sense fires starting in chimneys, within walls, on roofs, on the other side of a closed door or other
obstructions.
• If the alarm is located outside the bedroom or on a different floor, it may not wake up a sound sleeper.
13
• The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm. For optimal detection,
a smoke alarm should be installed in each sleeping area on every level of a home.
This alarm is not intended to alert hearing impaired individuals.
* Reference National Fire Protection Association (NFPA) standard 72
WARNING: PLEASE READ CAREFULLY AND THOROUGHLY
IMPORTANT: Combination smoke/CO alarms are designed to detect carbon monoxide gas from ANY
source of combustion. They are NOT designed to detect any other gas.
CAUTION: Combination smoke/CO alarms will only indicate the presence of carbon monoxide gas
at the sensor. Carbon monoxide gas may be present in other areas. Never restart the source of a CO
problem until it has been fixed. NEVER IGNORE THE ALARM!
WARNING: COMBINATION SMOKE/CO ALARMS ARE INTENDED FOR USE IN ORDINARY
INDOOR LOCATIONS OF FAMILY LIVING UNITS. THEY ARE NOT DESIGNED TO MEASURE
COMPLIANCE WITH OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA)
COMMERCIAL OR INDUSTRIAL STANDARDS. THEY ARE NOT SUITABLE FOR INSTALLATION
IN HAZARDOUS LOCATIONS AS DEFINED IN THE NATIONAL ELECTRIC CODE. THEY ARE NOT
DESIGNED FOR USE IN A RECREATIONAL VEHICLE (RV) OR BOAT.
• The installation of combination smoke/CO alarms should not be used as a substitute for proper
installation, use, and maintenance of fuel burning appliances, including appropriate ventilation and
exhaust systems.
• Combination smoke/CO alarms do not prevent CO from occurring, nor can they solve any existing CO
problem.
WARNING: COMBINATION SMOKE/CO ALARMS ARE DESIGNED TO HELP PROTECT
INDIVIDUALS FROM ACUTE EFFECTS OF CARBON MONOXIDE EXPOSURE. THEY WILL NOT
FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT,
CONSULT A MEDICAL PRACTITIONER. INDIVIDUALS WITH MEDICAL PROBLEMS MAY
CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND VISUAL SIGNALS FOR
CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM. *
• The combination smoke/CO alarm has not been investigated for carbon monoxide alarm below 70 PPM.
• This device requires a continuous supply of electrical power from a healthy battery or AC connection,
depending on the model. It will not work without power.
* Reference Underwriters Laboratories (UL) standard 2034.
14
ACCEPTABLE
TOP OF ALARM
ACCEPTABLE HERE
CEILING
Note: measurements shown
are to the closest edge
of the alarm.
12’’
(30.5 cm)
MAXIMUM
SIDE
WALL
12”
(30.5 cm)
4”
(102 mm)
4”
(102 mm)
ANYWHERE ALONG
THIS BOLD SURFACE
Locations permitted for smoke
alarms and smoke detectors
on tray-shaped ceilings.
Not within 6 feet of appliances
Smoke Alarms for Required Detection
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
BEDROOM
HALL
LIVING ROOM
BEDROOM
KITCHEN
KITCHEN
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
MULTIPLE
FLOOR PLAN
NOT
IN THIS
AREA
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
ANYWHERE
IN THIS AREA
Smoke Alarms for Additional Detection
3’
(0.9 m)
3’
(0.9 m)
3’
(0.9 m)
Figure 6-A
ACCEPTABLE
TOP OF ALARM
ACCEPTABLE HERE
CEILING
Note: measurements shown
are to the closest edge
of the alarm.
12’’
(30.5 cm)
MAXIMUM
SIDE
WALL
12”
(30.5 cm)
4”
(102 mm)
4”
(102 mm)
ANYWHERE ALONG
THIS BOLD SURFACE
Locations permitted for smoke
alarms and smoke detectors
on tray-shaped ceilings.
Not within 6 feet of appliances
Smoke Alarms for Required Detection
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
BEDROOM
HALL
LIVING ROOM
BEDROOM
KITCHEN
KITCHEN
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
MULTIPLE
FLOOR PLAN
NOT
IN THIS
AREA
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
ANYWHERE
IN THIS AREA
Smoke Alarms for Additional Detection
3’
(0.9 m)
3’
(0.9 m)
3’
(0.9 m)
6.
Recommended Locations For Smoke And Carbon Monoxide Alarms
• Locate smoke alarms in all sleeping areas. Try to monitor the exit path as the bedrooms are usually
farthest from the exit. If more than one sleeping area exists, locate additional alarms in each
sleeping area.
• Locate additional alarms in stairways, because stairways act like chimneys for smoke and heat.
• Locate at least one alarm on every floor level.
• Locate an alarm in every bedroom.
• Locate an alarm in every room where electrical appliances are operated (i.e. portable heaters or
humidifiers).
• Locate an alarm in every room where someone sleeps with the door closed. The closed door may
prevent an alarm not located in that room from waking the sleeper.
• Smoke, heat, and combustion products rise to the ceiling and spread horizontally. Mounting the
smoke alarm on the ceiling in the center of the room places it closest to all points in the room.
Ceiling mounting is preferred in ordinary residential construction.
15
ACCEPTABLE
TOP OF ALARM
ACCEPTABLE HERE
CEILING
Note: measurements shown
are to the closest edge
of the alarm.
12’’
(30.5 cm)
MAXIMUM
SIDE
WALL
12”
(30.5 cm)
4”
(102 mm)
4”
(102 mm)
ANYWHERE ALONG
THIS BOLD SURFACE
Locations permitted for smoke
alarms and smoke detectors
on tray-shaped ceilings.
Not within 6 feet of appliances
Smoke Alarms for Required Detection
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
BEDROOM
HALL
LIVING ROOM
BEDROOM
KITCHEN
KITCHEN
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
MULTIPLE
FLOOR PLAN
NOT
IN THIS
AREA
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
ANYWHERE
IN THIS AREA
Smoke Alarms for Additional Detection
3’
(0.9 m)
3’
(0.9 m)
3’
(0.9 m)
ACCEPTABLE
TOP OF ALARM
ACCEPTABLE HERE
CEILING
Note: measurements shown
are to the closest edge
of the alarm.
12’’
(30.5 cm)
MAXIMUM
SIDE
WALL
12”
(30.5 cm)
4”
(102 mm)
4”
(102 mm)
ANYWHERE ALONG
THIS BOLD SURFACE
Locations permitted for smoke
alarms and smoke detectors
on tray-shaped ceilings.
Not within 6 feet of appliances
Smoke Alarms for Required Detection
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
BEDROOM
HALL
LIVING ROOM
BEDROOM
KITCHEN
KITCHEN
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
MULTIPLE
FLOOR PLAN
NOT
IN THIS
AREA
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
ANYWHERE
IN THIS AREA
Smoke Alarms for Additional Detection
3’
(0.9 m)
3’
(0.9 m)
3’
(0.9 m)
ACCEPTABLE
TOP OF ALARM
ACCEPTABLE HERE
CEILING
Note: measurements shown
are to the closest edge
of the alarm.
12’’
(30.5 cm)
MAXIMUM
SIDE
WALL
12”
(30.5 cm)
4”
(102 mm)
4”
(102 mm)
ANYWHERE ALONG
THIS BOLD SURFACE
Locations permitted for smoke
alarms and smoke detectors
on tray-shaped ceilings.
Not within 6 feet of appliances
Smoke Alarms for Required Detection
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
BEDROOM
HALL
LIVING ROOM
BEDROOM
KITCHEN
KITCHEN
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
MULTIPLE
FLOOR PLAN
NOT
IN THIS
AREA
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
ANYWHERE
IN THIS AREA
Smoke Alarms for Additional Detection
3’
(0.9 m)
3’
(0.9 m)
3’
(0.9 m)
Figure 6-B Figure 6-C
NFPA 72 states: “Smoke alarms in rooms with ceiling slopes greater than 1 ft in 8 ft (0.3m in 2.4 m)
horizontally shall be located on the high side of the room.” NFPA 72 states: “A row of detectors shall be
spaced and located within 3 ft (0.9m) of the peak of the ceiling measured horizontally.”
ACCEPTABLE
TOP OF ALARM
ACCEPTABLE HERE
CEILING
Note: measurements shown
are to the closest edge
of the alarm.
12’’
(30.5 cm)
MAXIMUM
SIDE
WALL
12”
(30.5 cm)
4”
(102 mm)
4”
(102 mm)
ANYWHERE ALONG
THIS BOLD SURFACE
Locations permitted for smoke
alarms and smoke detectors
on tray-shaped ceilings.
Not within 6ft (1.8m) of appliances
Smoke Alarms for Required Detection
BEDROOM
BEDROOM
LIVING
ROOM
BASEMENT
BEDROOM
HALL
LIVING ROOM
BEDROOM
KITCHEN
KITCHEN
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
MULTIPLE
FLOOR PLAN
NOT
IN THIS
AREA
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
ANYWHERE
IN THIS AREA
Smoke Alarms for Additional Detection
3’
(0.9 m)
3’
(0.9 m)
3’
(0.9 m)
16
• For all alarm locations, be sure to choose a flat, solid surface for mounting, with no holes or gaps
under the mounting bracket.
• For mobile home installation, select locations carefully to avoid thermal barriers that may form at
the ceiling. For more details, see MOBILE HOME INSTALLATION section.
• When mounting the alarm on the wall, use an inside wall with the top edge of the alarm at a
maximum of 12” (30.5 cm) below the ceiling.
• Put smoke alarms at both ends of a bedroom hallway or large room if the hallway or room is more
than 30ft (9.1 m) long.
• Install Smoke Alarms on sloped, peaked or cathedral ceilings at or within 3ft (0.9m) of the highest
point (measured horizontally).
• Industry experts recommend a CO alarm be installed on each level of the home-ideally on any
level with fuel burning appliances and outside of sleeping areas.
This equipment should be installed in accordance with the National Fire Protection Association’s 72
(National Fire Protection Association, Batterymarch Park, Quincy, MA 02269).
Mobile Home Installation
Modern mobile homes have been designed and built to be energy efficient. Install smoke alarms
as recommended above. In older mobile homes that are not well insulated compared to present
standards, extreme heat or cold can be transferred from the outside to the inside through poorly
insulated walls and roof. This may create a thermal barrier which can prevent the smoke from reaching
an alarm mounted on the ceiling. In such units, install the smoke alarm on an inside wall with the top
edge of the alarm a maximum of 12” (30.5 cm) below the ceiling.
If you are not sure about the insulation in your mobile home, or if you notice that the outer walls and
ceiling are either hot or cold compared to the room air temperature, install the alarm on an inside wall.
NFPA 72 (National Fire Protection Association) requires smoke alarms be installed in each sleeping area.
WARNING: TEST YOUR ALARM OPERATION AFTER MOBILE HOME HAS BEEN IN STORAGE
OR UNOCCUPIED, AND AT LEAST ONCE A WEEK DURING USE.
17
7. Locations To Avoid
（See Figures 6-A, 6-B, & 6-C for recommended locations）
• In the garage. Products of combustion are present when you start your automobile.
• Normal cooking may cause nuisance alarms. If a kitchen alarm is desired, it should have an alarm
silence feature and should not be installed within 6 ft (1.8m) of cooking appliances.
• Do not install within 6 ft (1.8m) of heating appliances.
• Less than 4” (10cm) from the peak of an “A” frame type ceiling.
• In an area where the temperature may fall below 40 °F (4.4 °C) or rise above 100 °F (37.8 °C), such
as garages and unfinished attics.
• In dusty areas. Dust particles may cause nuisance alarms or a failure to alarm.
• In very humid areas (above 95% RH, non-condensing) as moisture or steam can cause nuisance
alarms.
• In insect-infested areas.
• Smoke alarms should not be installed within 3 ft (0.9m) of the door to a bathroom containing a tub
or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating
fans, or other high air flow areas.
• Near lights. Electronic “noise” generated by the lights may cause nuisance alarms.
• Do not install near vents, flues, or chimneys.
• Do not install near fans, doors, windows or areas directly exposed to the weather.
• Avoid installing where the unit will be exposed to direct sunlight.
• Do not install DC (battery only) alarms on top of AC electrical junction boxes.
NOTE: Smoke alarms are not to be used with detector guards unless the combination (alarm and
detector guard) has been evaluated and found suitable for that purpose.
18
8. Activation / Installation
NOTE:
Do not power your smart alarm until prompted in the Ring app to ensure best Wi-Fi enrollment results.
For the easiest experience, follow these steps:
(A) install one alarm and enroll it in Wi-Fi using the app
(B) repeat install/Wi-Fi for each alarm
(C) set up the Wire-Free Interconnect network (section 9).
Refer to the Troubleshooting Guide if you have problems.
NOTE: A dust cover has been installed on the alarm. Keep the dust cover on until all construction has
been completed for at least 24 hours (drywall, painting, varnishing, mounting plate install, etc). Retain
the dust cover and re-install it to protect the alarm during future construction projects. Construction
dust and chemicals can cause contamination and false alarms.
WARNING:
DUST COVER MUST BE REMOVED FOR ALARM TO OPERATE.
NOTE: Single station alarms are units that are not connected to other alarms in any manner, including
Wire-Free Interconnect.
• Single statio
n alarms (including these models, if used as a single station alarm) CANNOT send or
receive alarm signals to other alarms in your home.
• These units will emit a series of LED blinks, tones, and voices as the unit(s) search for a Wi-Fi
alarm network. If you are intending to use these units without the Wi-Fi function, ignore these
notifications, and the Wi-Fi will turn off in about 15 minutes. You can turn the Wi-Fi functions on
again at a later date if desired (see Section Resetting a Device’s Wireless Settings).
STEP 1: Activate Battery
Pull out the battery pull tab first to activate the batteries (see
Figure 8-A). Battery activation is confirmed with a beep and
voice “Ready for Wi-Fi Setup, follow quick start instructions.” If
the beep and voice do not occur when the battery pull tab is
removed, remove the batteries and reinstall them. Confirm the
battery activation beep and voice.
Figure 8-A
19
STEP 2: Install Mounting Bracket
NOTE: Kidde alarms are not designed, agency tested or certified for recessed mounting and should
not be installed in this manner. Recessed mounting impedes smoke entry into the smoke chamber,
which may prevent the alarm from sounding in a timely manner. This could endanger the lives of
occupants in the residence. Kidde alarms are designed, tested and certified for wall (if applicable)
and ceiling surface mount only.
After selecting the proper location for your alarm, attach the mounting bracket to the wall or
ceiling. To ensure aesthetic alignment of the alarm with the hallway, or wall, the “A” line on the
mounting bracket should be parallel with the hallway when ceiling mounted, or horizontal when
wall mounted. (Figures 8-B and 8-C)
Figure 9-F
Install
Remove
Figure 8-B
When mounting
in a hallway,
the "A" line should
be parallel with the
hallway. When wall
mounting, the "A"
line should be
horizontal.
Alignment Marks
(”A” Line) on
Mounting
Bracket
Figure 8-C
Mark and drill
two 3/16" (5mm)
holes for wall
anchors.
20

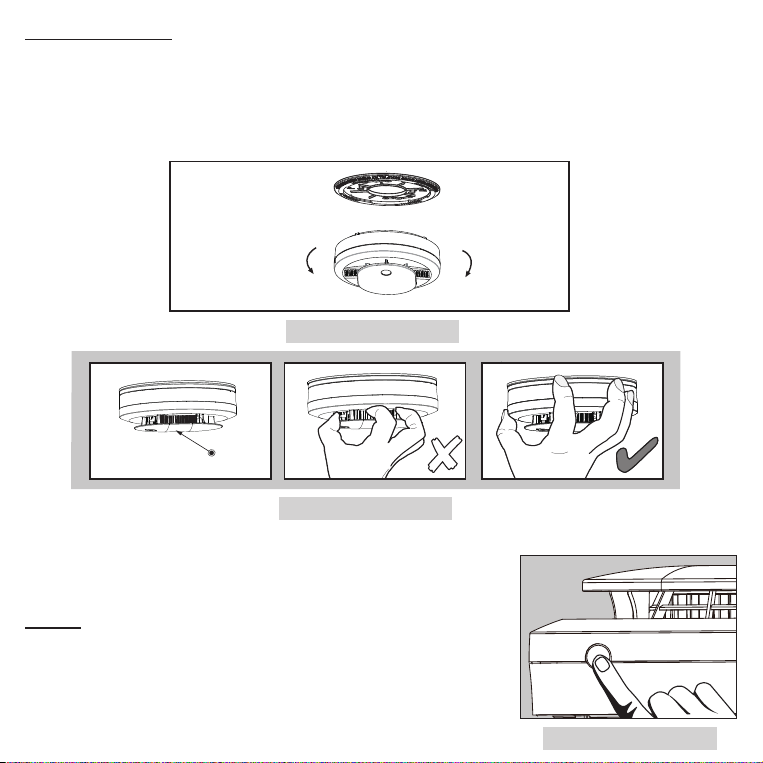

STEP 3: Install Alarm
Install the alarm fully on the mounting bracket by rotating the alarm in a clockwise direction (Figure 8-D).
NOTE: Do not grab the shield to install or remove the alarm. Grab the alarm by the outside of the enclosure
(Figure 8-E).
NOTE:
The alarm will mount to the bracket in 4 positions (every 90 degrees).
NOTE:
If either battery is missing, the alarm cannot mount on the mounting bracket.
NOTE: If you are intending to use these units without the Wi-Fi, the Wi-Fi will turn off in about 15 minutes,
or you can push the side enrollment button quickly (Figure 8-F) to exit
Wi-Fi setup. If Wi-Fi setup times out, or if Wi-Fi is skipped, a voice will
announce “Wi-Fi not connected.”
STEP 4:
Follow the in-app instructions to finish the Wi-Fi setup and installation
process. When Wi-Fi setup is complete, a voice will announce “Wi-Fi
Setup Complete,” and the blue LED will blink 3 times per second for 5
seconds.
Shield
✘
Figure 8-E
Figure 8-F
Insert the AC
Quick connector
into the slot.
Alignment Marks
(”A” Line) on
Mounting
Bracket
Remove
Install
AC Quick Connector
harness shipped
with product
AC connector
Figure 8-D
21
9. Setting Up Wire-Free Interconnect Network
CAUTION: This wireless enabled alarm is solely intended for use in ordinary indoor locations of
single-family homes. It is not designed for outdoor applications, multi-family homes, multi-apartment
buildings or other commercial building applications. The range and performance of any wireless
device will vary depending on its surroundings.
IMPORTANT: In a mixed interconnect system (hardwire and wire-free devices), loss of power or a
device fault may disrupt communication between alarms. Refer to the Troubleshooting Guide to
resolve problems and restore your interconnect network.
NOTE: Sections 9 through 11 explain the steps of how to complete Wi-Fi and Wire-Free Interconnect
enrollments. The following table shows basic scenarios you may encounter during setup, and gives
direction for each scenario.
For adding multiple devices to a Wire-Free Interconnect Network, follow Step 1 below to place all
devices into Wire-Free Interconnect start operational mode.
IMPORTANT: These Wire-Free Interconnect devices are not compatible with earlier Kidde RF/
Wireless legacy devices.
Scenario Action
Wi-Fi setup completed, Wire-Free Interconnect
setup completed.
None
Wi-Fi setup completed, Wire-Free Interconnect
setup not completed.
Section 9, Step 1
22
STEP 1: Place Devices in Standby/Ready Mode
Press the side enrollment button once on each device (one at a time) to place the devices in standby/
ready mode (see Figure 9-A). Each device will announce “Ready for Wireless Interlink, Follow Quick Start
instructions,” and the red LED will blink every second.
Tip: If you wait more than 5 minutes, the setup will time out and you’ll hear “Wireless Interlink Not
Connected.” Just press the side button once to try again.
Example setup flow showing 3 devices being enrolled:
STEP 2: Choose a Temporary Host Device
Press the side enrollment button once on any device (see Figure 9-B). This device will host a network
for other devices to connect with. The red LED will blink twice every two seconds, a voice will
announce “Searching for other devices,” and a pinging sound will start.
Device 1
One button push
Device 2
One button push
Device 3
One button push
.
Voice "Ready for Wireless Interlink.
Follow quick start instructions."
.
Red LED blinks every sec.
.
Voice "Ready for Wireless Interlink.
Follow quick start instructions."
.
Red LED blinks every sec.
.
Voice "Ready for Wireless Interlink.
Follow quick start instructions."
.
Red LED blinks every sec.

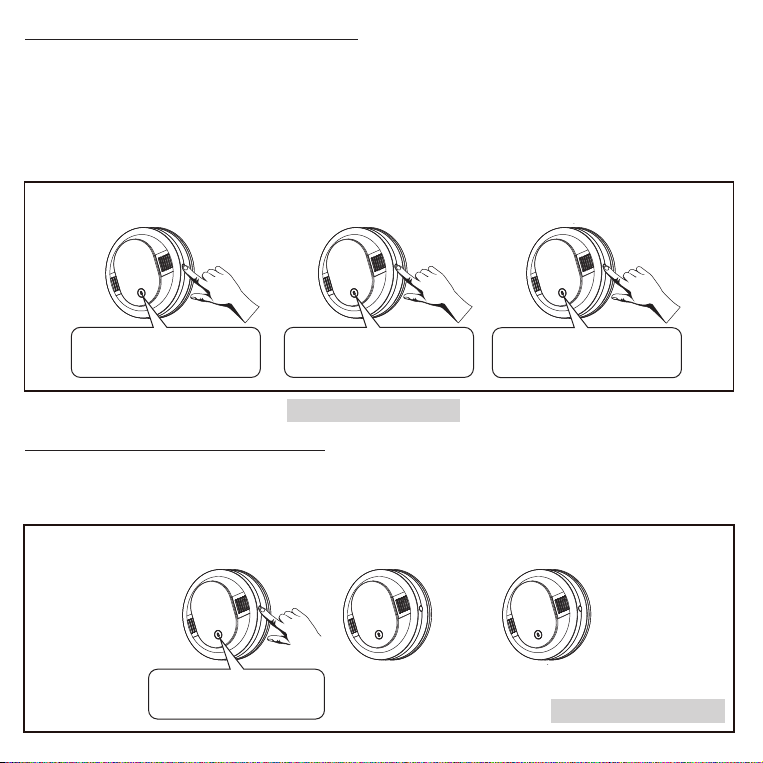

Figure 9-A
Device 1 Device 2 Device 3
One button push
Red LED blinks twice every
two seconds
.
Voice "Searching for other devices."
.
Sonar ping
.
Figure 9-B
23
STEP 3: Device(s) Connect to Network
After each device has connected to the Wire-Free Interconnect network, the red LED will blink three
times every two seconds until the network is closed, or a timeout of 5 minutes maximum. A voice will
announce “Success, now connected.” (see Figure 9-C) Continue enrolling each device to be included
in the Wire-Free Interconnect network, and confirm the voice “Success, now connected” on each
device.
Device 1 Device 2 Device 3
NOTE: The Temporary Host has a 5 min timeout that is refreshed every time a new device is joined,
so the User can connect all devices at the same time, or one by one within 5 min intervals.
After a short period, all
devices from Step 1 will
automatically start
connecting to the
network. This might
happen simultaneously or
with a small delay
between each device.
.
Red LED blinks three times
every two seconds
.
Voice “Success, now connected.”
.
Red LED blinks three times
every two seconds
.
Voice “Success, now connected.”

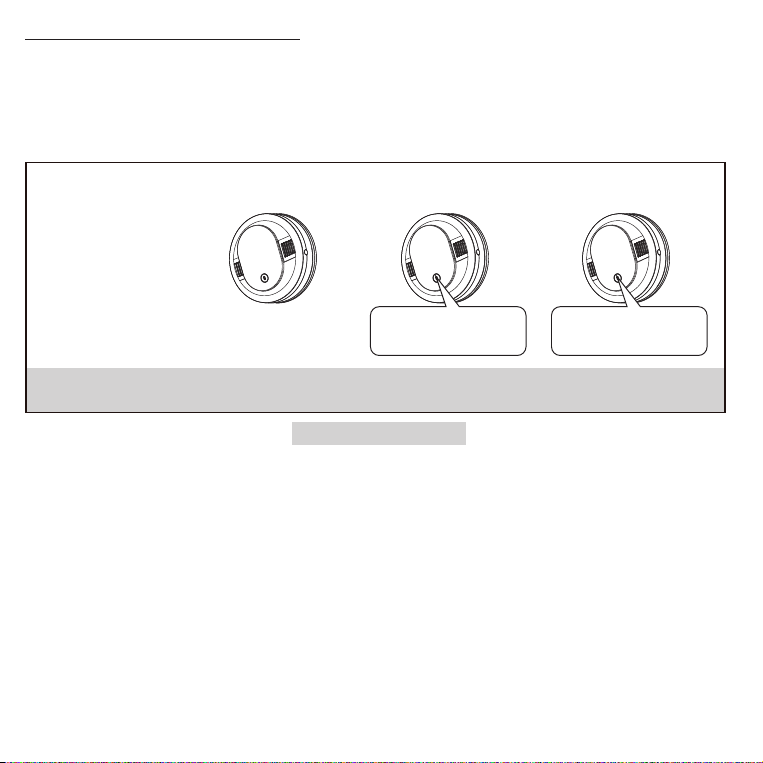

Figure 9-C
24
CAUTION: Multiple Wire-Free Interconnect networks in the same dwelling are not supported. If a device
fails to join the same (single) Wire-Free Interconnect network due to distance or other location hindrances,
relocate the device in order to form only one Wire-Free Interconnect network.
NOTE: Make sure the number of connected devices announced matches the total number of Wire-Free
Interconnect devices installed at the property. If the numbers do not match, redo the Wire-Free Interconnect
setup with two short presses the side enrollment button on any Wire-Free Interconnect device.
NOTE: After the network is created and closed, you can push the side enrollment button once on any enrolled
device and it will announce the number of devices connected in the network.
NOTE: At any time during Wire-Free Interconnect setup, if you have a problem, you can push and hold the side
enrollment button on any problem unit for about 8 seconds (you will hear 3 beeps after 8 seconds), and then
release the button. The unit will reset the unit’s wireless settings (described in Section 12) Once wireless settings
are reset, the unit will prompt the user to follow Quickstart instructions and start over.
After Wire-Free Interconnect setup, the alarm is now fully activated! Test your alarm as described in
Operation and Testing section. NOTE: For a smooth testing experience, please ensure Practice Mode is
enabled prior to testing any of your alarms. This can be found in the Monitoring section of your Ring app, if you
are subscribed to Ring’s Professional Monitoring service. For more details visit: ring.com/support
Device 1 Device 2 Device 1 Device 2
2 button pushes
.
Device 3 Device 3
.
Red LED blinks three times
every two seconds
.
“Success, now connected.”
.
Red LED blinks three times
every two seconds
.
“Success, now connected.”
.
Red LED blinks three times
every two seconds
.
“Success, now connected.”
.
Red LED stops blinking.
.
Green LED on.
.
Red LED stops blinking.
.
Green LED on.
Red LED stops blinking.
.
Sonar ping stops.
.
.
Voice "Setup complete. [number
of devices] devices connected."
Green LED on.
STEP 4: Close the Network
Press the side enrollment button twice quickly (within 4 seconds) on any one enrolled device (see
Figure 9-D). The red LED will stop blinking, and the sonar ping will stop. A voice will announce “Setup
complete. [number of devices] devices connected.” The green LED will blink every 60 seconds as the
device(s) return to normal operation mode.
NOTE: Closing the network may take up to 30 seconds.

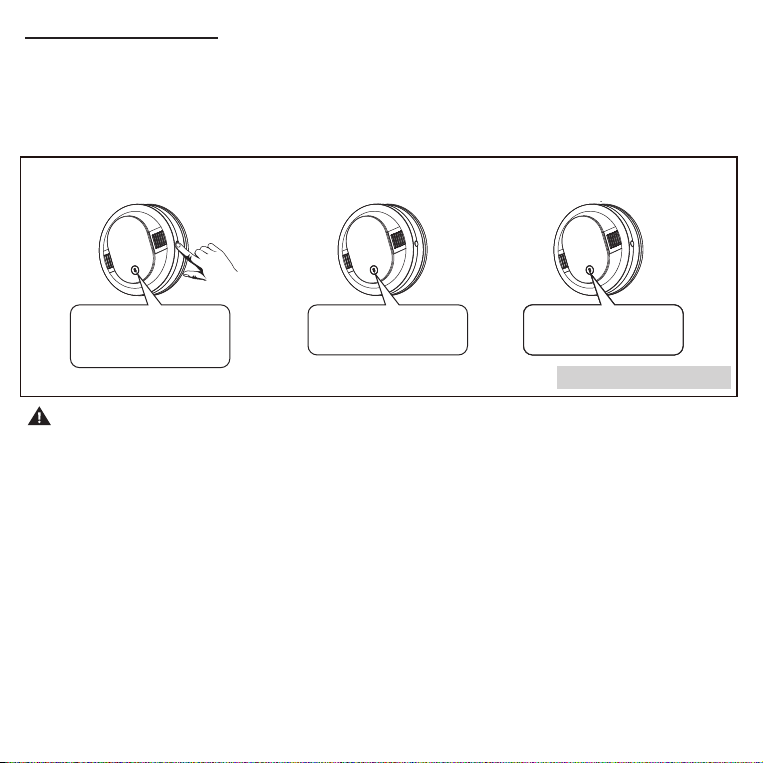

Figure 9-D
25
10. Modifying an Existing Alarm Network
Adding a Device to an Existing Network
For various reasons, you might want to add additional units to your existing alarm network. Modifying
your existing alarm network is easy and user-friendly. Be sure to start with the steps in the Activation /
Installation section, if not already completed.
• To add another unit to the alarm network, start with the instructions in the app for setting up Wi-Fi, and
then follow the steps for Wire-Free Interconnect setup described in Section 9.
Removing a Device from an Existing Network
• Choose any device in the existing network and push the side enrollment button twice within 4 seconds
to open the network.
• On the device to be removed, press and hold the side enrollment button for 8 to 12 seconds, until the device
beeps three times.
• Choose any device that is still enrolled in the network and push the side enrollment button twice within 4 sec-
onds to close the network.
This device offers the ability to update Wi-Fi Network Credentials or Factory Reset the wireless
settings if needed.
11. Resetting a Device’s Wireless Settings
This device offers the ability to update Wi-Fi Network Credentials or Factory Reset the wireless
settings if needed.
Update Wi-Fi Network Credentials:
If your home equipment (router for example), or password has changed, or for any other reason that
might be preventing Wi-Fi connectivity, use the following steps:
STEP 1:
Begin Wi-Fi Network Credentials reset
• Press and hold the side enrollment button on the device for 4 seconds.
• The device will beep once when the button is first pressed.
• After 4 seconds, the device will beep twice.
• Release button.
26
STEP 2:
The blue LED will flash once per second. A voice will announce “Ready for Wi-Fi setup, follow quick
start instructions.” Follow app instructions.
Factory Reset:
If you have troubles during Wi-Fi enrollment or if the Wire-Free Interconnect features fail to enroll
properly for some reason, it is possible to reset the device back to factory settings and start over.
STEP 1:
• Press and hold the side enrollment button on the device for 8 seconds.
• The device will beep once when the button is first pressed.
• After 4 seconds, the device will beep twice. (continue holding the button)
• After 8 seconds, the device will beep three times.
STEP 2:
Release button. A voice will announce “Resetting wireless settings.”
STEP 3:
The blue LED will flash once per second. A voice will announce “Ready for Wi-Fi setup, follow quick
start instructions.” Device has been reset to factory settings and will start over with Wi-Fi enrollment
(follow app instructions).
NOTE: If no further steps are taken within 15 minutes of starting the Wi-Fi setup process, a voice
prompt, “Wi-Fi Not Connected” will be heard once, and the Wi-Fi function will turn off.
12. Operation And Testing
This model meets the latest residential smoke alarm standards, which includes enhanced
resistance to nuisance alarms from cooking.
Operation
The alarm is operating once it is activated and testing is complete (see “TESTING” below). When
products of combustion (smoke for smoke only models, and smoke or CO for combination smoke/CO
models) are sensed, the unit sounds a loud alarm with voice messages. See Sections 1 and 2 for alarm
signal descriptions. In high levels of CO, the unit will go into alarm in a shorter period of time than at
low levels of CO (combination smoke/CO models only).
27
Figure 12
Test/Hush Button
Testing
NOTE: For a smooth testing experience, please ensure Practice Mode is enabled prior to testing any of
your alarms. This can be found in the Monitoring section of your Ring app, if you are subscribed to Ring’s
Professional Monitoring service. For more details visit: ring.com/support
WARNING: Do not attempt to test this unit with retail “canned smoke” products. Those products are
intended for use by trained professionals and produce inconsistent results when misused.
Over-application of canned smoke can permanently damage the alarm.
Self -Testing
This model is equipped with internal, self-testing components that are always checking to ensure the
device is operating as expected. (Weekly manual testing is still required. See below.)
Manual Testing
NOTE: When pushing the Test/Hush button, use only your finger
or thumb. Using any other instrument(s) (such as a broom handle) is
strictly prohibited, as it may damage the alarm.
Test your alarm weekly by pressing and releasing the Test/Hush
button quickly (Figure 12). A quick beep will confirm the Test/Hush
button has been pushed followed by the test sequence. See Other
Alarm Visual and Audible Indicators table. The alarm and voice (and
any interconnected units) will sound if the electronic circuitry, horn,
speaker, and batteries are working. If the alarm or voice does not
sound, or gives erratic or low volume sound, the unit must be replaced.
NOTE: If you push the Test/Hush button on your alarm, the app will
send you a text message.
WARNING: Due to the loudness of the alarm, always stand about 2.5 ft (0.8 m) away from the unit or
use ear protection when testing.
WARNING: Do not use an open flame to test your alarm, you could damage the alarm or ignite
combustible materials and start a structure fire.
CO Concentration CO Alarm (Mins.)
70 PPM
60-240
150 PPM
10-50
400 PPM
4-15
CO Concentration CO Alert* (Mins.)
70 PPM
≤21
150 PPM
≤ 9
400 PPM
≤ 4
* NOTE: These are not the same as CO alarm. See Section 1 for CO alarm and Low Level CO Alert descriptions.
28
13. Recognizing Nuisance Alarms
Smoke Nuisance
This model meets the latest residential smoke alarm standards, which includes enhanced resistance to
nuisance alarms from cooking.
HUSH
TM
: If you know why the alarm is sounding, and you can verify that it is not a life threatening
situation, you can push the Test/Hush button on the initiating unit (red LED blinking) to silence the alarm
for 8-10 minutes. If the smoke is not too dense, that unit, and all interconnected units will silence. After
the HUSH time period has elapsed, the smoke alarm will automatically reset and sound the alarm if
particles of combustion are still present. You can use the HUSH function repeatedly until the air has
been cleared of the condition causing the alarm.
NOTE: Dense smoke will override the HUSH function and sound a continuous alarm. If no fire is
present, check to see if one of the reasons listed in “Locations to avoid” may have caused the alarm. If
a fire is discovered, get out and call the fire department or 911.
Cigarette smoke will not normally cause the unit to alarm, unless the smoke is blown directly into the
alarm. Combustion particles from cooking may set off the alarm if it is located too close to a cooking
appliance. Large quantities of combustible particles are generated from spills or when broiling. Using
the fan on a range hood which vents to the outside (non-recirculating type) will also help prevent
nuisance alarms from occurring by removing these combustible products from the kitchen.
Carbon Monoxide (CO) Nuisance (combination smoke/CO models only)
RESET: Pushing the Test/Hush button on a combination smoke/CO unit during CO alarm allows the unit
to reset calculations and double check for the presence of CO. If the unit re-alarms within 6 minutes, it is
sensing high levels of CO which can quickly become a dangerous situation. Exit to fresh air and call 911.
LOCATE:
In a Wire-Free Interconnect system (all units will be alarming together), a unit that detects smoke or CO
and initiates an alarm is called the “initiating alarm unit.” Initiating alarm units will be flashing the red LED
during alarm. Depending on unit locations, and the location of the source of smoke or CO, it is possible
to have more than one initiating unit. If you suspect a nuisance alarm situation, you can use this feature
to help you locate the initiating alarm unit(s) in a Wire-Free Interconnected system. Push the button
Chirping
If your device begins chirping for End of Unit Life or Low Battery, you can temporarily silence
these chirps by pressing the Test/Hush button. Other fault /error chirps cannot be silenced. Take
appropriate action as described in the Troubleshooting Guide.
WARNING: REPLACE UNIT AS SOON AS POSSIBLE WHEN IN END OF UNIT LIFE. SEVEN (7)
DAYS AFTER END OF UNIT LIFE BEGINS, THE NOTIFICATIONS CANNOT BE SILENCED, AND
SMOKE AND/OR CO DETECTION CANNOT BE GUARANTEED. REPLACE IMMED
IATE LY!
29
14. Batteries
These models are powered with two replaceable AA batteries. Under normal conditions, fresh
batteries will last at least one year.
NOTE: Constant exposure to high or low humidity or temperatures, or poor Wi-Fi or Wire-Free
Interconnect signal, may reduce battery life.
WARNING: THE ALARM IS SEALED AND THE COVER IS NOT REMOVABLE.
Low Battery
This alarm is equipped with a low battery monitor circuit. If the battery capacity is nearing the point
where it can no longer provide adequate power for all alarm functions, the low battery condition
will occur. See Troubleshooting Guide. The batteries must be replaced within 7 days of the first
occurrence of the “Low Battery Warning” to provide continuous alarm detection. Replacing
batteries will not erase your Wi-Fi or Wire-Free Interconnect connections.
WARNING: Use only the batteries specified. Use of different
batteries may have a detrimental effect on the alarm. Do not mix old and
new batteries. Do not mix alkaline, standard, or rechargeable batteries.
NOTE: Do not use lithium batteries in this unit. A good safety
measure is to replace the batteries at least once a year, or at
the same time you change your clocks for daylight saving time.
A missing or improperly installed battery will render the unit
inoperable.
WARNING: Failure to install batteries in the correct orientation will
prevent proper operation of this alarm and will prevent its response to
fire and/or CO hazards.
Figure 14
Replace batteries with one of the following approved brands:
Energizer E91, Gold Peak 15A or Golden Power GLR6A.
These batteries can be purchased at your local retailer.
on any non-initiating Wire-Free Interconnect unit, and ALL Wire-Free Interconnect units EXCEPT the
initiating alarm unit(s) will silence for two minutes. You can use the LOCATE feature repeatedly until you
find the initiating alarm unit(s), or the air has been cleared of the condition causing the alarm.
NOTE: HUSH
TM
and Locate features are dependent on the type of models in your interconnect system.
Non-wireless models cannot receive the wireless Locate feature and will continue to alarm until the
initiating unit is Hushed or the Smoke/ CO condition clears.
WARNING: ALTHOUGH RESET FEATURE CAN BE USED FOR CO ALARM EVENTS, IT IS
IMPOSSIBLE TO DETERMINE THE SOURCE OF A CO ALARM USING SIGHT OR SMELL. ALWAYS
CONSIDER A CO ALARM EVENT AS DANGEROUS.
NOTE: If either battery is
missing, the alarm cannot mount
on the mounting bracket.
30
15. Carbon Monoxide Alarm: What To Do When The Alarm Sounds
NOTE: Smoke only models do not detect carbon monoxide (CO), but will receive and transmit a CO
alarm signal (with voice message) from an interconnected CO or combination smoke / CO alarm.
The carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating every
5 seconds. The red LED blinks in time with the alarm pattern only on the alarm(s) that detected the hazard (initiating
alarm). After 4 minutes in CO alarm the alarm pattern will only occur every 60s.
WARNING:
CARBON MONOXIDE (CO) IS A COLORLESS,
ODORLESS, POISONOUS GAS. YOU CAN’T TASTE, SEE, OR SMELL
CO, BUT IT CAN KILL IN JUST MINUTES. THIS ALARM WILL SOUND
IN A 4-BEEP PATTERN IF LIFE THREATENING LEVELS OF CO ARE
DETECTED. IF THE ALARM SOUNDS:
1
)
Immediately evacuate all occupants from the space and go outdoors to fresh air.
2) Call emergency responders (911 or fire department) for help; notify the building
or vehicle owner, as necessary.
EMERGENCY PHONE #: _______________________
Always consider a CO alarm to be dangerous. After emergency services responders have arrived, the premises has
been aired out, and your alarm remains in its normal condition, it is important to call a qualified appliance technician
to investigate for sources of CO from fuel burning equipment and appliances and inspect for proper operation of this
equipment. If problems are identified during this inspection, have the equipment serviced immediately. Note any
combustion equipment not inspected by the technician and consult the manufacturer’s instructions or contact the
manufacturer directly for more information about CO safety and this equipment. Make sure that motor vehicles are not
or have not been operating in an attached garage or adjacent to the residence.
NOTE: See Section RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.
Model Type AA Batteries Voice CO Detection Low Level CO Alert
RGCUDR-RW Smoke / CO Yes Yes Yes Yes
31
Model Type AA Batteries Voice CO Detection Low Level CO Alert
RGCUDR-RW Smoke / CO Yes Yes Yes Yes
Low Level CO Alert Procedure (if applicable)
The Low Level CO Alert is two quick beeps and two red LED blinks every 10 seconds, repeating. After 4 minutes the
alert pattern will only occur every 60s.
WARNING:
An early carbon monoxide (CO) alert is a
signal indicating the presence of low levels of CO. It’s designed to
prompt early awareness and action—allowing you to address the
issue before it escalates into a full alarm.
Even low levels of CO can pose health risks, particularly for individuals
with certain pre-existing medical conditions. Children, seniors, and
pets are also more susceptible and may begin experiencing symptoms
sooner.
Recommended actions:
1) Open windows to improve ventilation.
2) Attempt to identify and resolve the source of CO before an alarm is
triggered.
3) If you or a household member has a medical condition that could be
affected by the exposure of low CO levels (between 30 and 70 PPM),
consult your healthcare provider to understand any potential risks.
4) If the unit goes into full alarm, follow the Carbon Monoxide Alarm
Procedure outlined at the beginning of Section 15 for emergency
response and evacuation.
32
16. General Carbon Monoxide (CO) Information
Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when
inhaled. CO inhibits the blood’s capacity to carry oxygen.
Possible Sources of CO
Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles
and other combustion engines running in an attached garage and using a charcoal/gas grill or hibachi
in an enclosed area are all possible sources of CO. Generators running in enclosed areas, such as
garages or living spaces, will create CO. CO can be produced when burning any fossil fuel: gasoline,
diesel, propane, natural gas, oil and wood. It can be produced by any fuel-burning appliance that
is malfunctioning, improperly installed, or not ventilated correctly, such as: Furnaces/boilers, gas
ranges/stoves, gas clothes dryers, water heaters, portable fuel burning space heaters, fireplaces,
wood-burning stoves and certain swimming pool heaters. Blocked chimneys or flues, back drafting
and changes in air pressure, corroded or disconnected vent pipes, or a loose or cracked furnace heat
exchanger can also release CO into your building.
The following conditions can result in transient CO situations:
Excessive spillage or reverse venting of fuel-burning appliances caused by outdoor ambient
conditions such as: Wind direction and/or velocity, including high gusts of wind, heavy air in the
vent pipes (cold/humid air with extended periods between cycles), negative pressure differential
resulting from the use of exhaust fans, simultaneous operation of several fuel-burning appliances
competing for limited internal air, vent pipe connections vibrating loose from clothes dryers, furnaces/
boilers, or water heaters, obstructions in, or unconventional, vent pipe designs which can amplify the
above situations, extended operation of unvented fuel-burning devices (range, oven, fireplace, etc.),
temperature inversions which can trap exhaust gases near the ground, car idling in an open or closed
attached garage, or near a home.
CO Safety Tips
Every year, have the heating system, vents, chimney and flue inspected and cleaned by a qualified
technician. Always install appliances according to manufacturer’s instructions and adhere to
local building codes. Most appliances should be installed by professionals and inspected after
installation. Regularly examine vents and chimneys for improper connections, visible rust, or
stains, and check for cracks in furnace heat exchangers. Verify that the color of flame is blue on
pilot lights and burners. An amber or orange flame is a sign that the fuel is not burning completely
and may be releasing CO. Teach all household members what the alarm sounds like and how
33
to respond. Fire Departments, most utility companies and HVAC contractors will perform CO
inspections. Some contractors may charge for this service. It’s advisable to inquire about any
applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the
owner or user of this product, for any repair or dispatch calls related to the alarm sounding.
Symptoms of CO Poisoning
Initial carbon monoxide poisoning symptoms are similar to the flu with no fever and can include
dizziness, severe headaches, nausea, vomiting and disorientation. Everyone is susceptible
but experts agree that unborn babies, pregnant women, senior citizens and people with heart
or respiratory problems are especially vulnerable. If symptoms of carbon monoxide poisoning
are experienced seek medical attention immediately. CO poisoning can be determined by a
carboxyhemoglobin test.
The following symptoms are related to CARBON MONOXIDE POISONING and should be discussed
with ALL members of the household:
1. MILD EXPOSURE: Slight headache, nausea, vomiting, fatigue (often described as “Flu-like” symptoms).
2. MEDIUM EXPOSURE: Severe throbbing headache, drowsiness, confusion, fast heart rate.
3. EXTREME EXPOSURE: Unconsciousness, convulsions, cardio respiratory failure and death.
The above levels of exposure relate to healthy adults. Levels differ for those at high risk. Exposure
to high levels of carbon monoxide can be fatal or cause permanent damage and disabilities. Many
cases of reported carbon monoxide poisoning indicate that while victims are aware they are not
feeling well, they become so disoriented they are unable to save themselves by either exiting
the building, or calling for assistance. Also, young children and household pets may be the first
affected. Familiarization with the effects of each level is important.
34
✘
✘

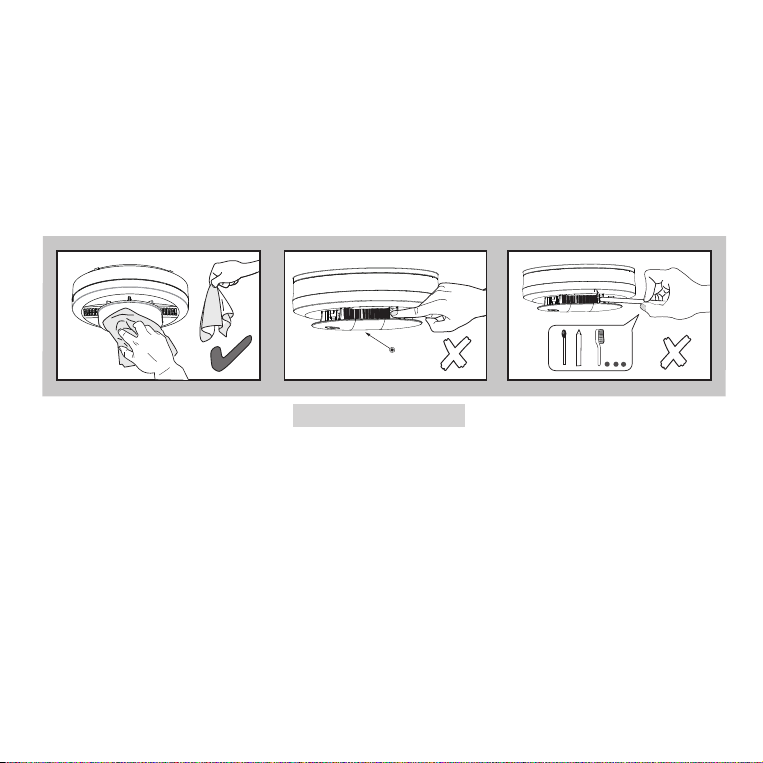

Shield
Figure 17
17. Cleaning Your Alarm
Your Alarm Should be Cleaned at Least Once a Year
You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum
cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The
outside of the alarm can be wiped with a clean, dry cloth. Do not use water, detergents or cleaners as
they may damage the alarm.
NOTE: Do not insert fingers or cleaning items under the shield during cleaning.
If the alarm is in Fault mode, the alarm may be in need of cleaning. After cleaning, press the Test/Hush
button. If the fault does not clear, the alarm needs to be replaced.
• Never use detergent or other solvents to clean the unit.
• Avoid spraying air freshener, hair spray, or other aerosols near the alarm.
• Do not use a hair dryer to clean the alarm, as it may damage the alarm and impact performance.
• Do not paint the unit. Paint will seal the vents and interfere with the sensor’s ability to detect
smoke (smoke only models) or smoke and CO (combination smoke/CO models).
• Never attempt to disassemble the unit to clean inside. This action will void your warranty.
35
For combination smoke/CO models:
The following substances can affect the CO sensor and may cause false readings and damage to the
sensor: Methane, propane, isobutane, iso-propanol, ethyl acetate, hydrogen sulfide, sulfide dioxides,
alcohol based products, paints, thinner, solvents, adhesives, hair spray, aftershave, perfume, and some
cleaning agents. Move the Alarm and place in another location prior to performing any of the following:
Staining or stripping wood floors or furniture
Painting
Wall papering
Using adhesives
Storing the unit in a plastic bag during any of the above projects will protect the sensors from damage.
When household cleaning supplies or similar contaminates are used, the area must be well ventilated.
WARNING:
REINSTALL THE ALARM AS SOON AS POSSIBLE TO ENSURE CONTINUOUS DETECTION.
36
18. Good Safety Habits
Develop and Practice a Plan of Escape
Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out
of every room (door & window) and identify a meeting place outside the home where everyone will
gather once they have exited the residence. When two people have reached the meeting place,
one should leave to call 911 while the second person stays to account for additional family members.
Establish a rule that once you’re out, you never re-enter under any circumstance!
• Make a floor plan indicating all doors and windows and at least two (2) escape routes from each
room. Stories above ground level may need a rope or chain ladder.
• Have a family meeting and discuss your escape plan, showing everyone what to do in case of fire
and where to meet after they leave the house.
• Ensure that small children hear the alarm and wake when it sounds. They must wake up in order to
execute the escape plan. Practice allows all occupants to test your plan before an emergency. You
may not be able to reach your children. It is important they know what to do.
• Familiarize everyone with the sounds of the smoke/CO alarm and train them to leave your home
when they hear it.
• Current studies have shown smoke/CO alarms may not awaken all sleeping individuals, and that it
is the responsibility of individuals in the household that are capable of assisting others to provide
assistance to those who may not be awakened by the alarm sound, or to those who may be
incapable of safely evacuating the area unassisted.
• Install and maintain fire extinguishers on every level of the home and in the kitchen, basement and
garage. Know how to use a fire extinguisher prior to an emergency.
37
Fire Prevention
Never smoke in bed or leave cooking food unattended. Teach children never to play with matches or
lighters! Train everyone in the home to recognize the smoke alarm pattern and to leave the home using
their escape plan when it’s heard. Know how to do “Stop, Drop and Roll” if clothes catch on fire, and
how to crawl low under smoke. Install and maintain fire extinguishers on every level of the home and in
the kitchen, basement and garage.
NFPA (National Fire Protection
Association)
Fire Safety in the Home: NFPA 72 is
intended to provide reasonable safety for
persons in family living units. Reasonable
fire safety can be produced through
the following three-point program: (1)
Minimizing fire hazards (2) Providing
fire-warning equipment (3) Having and
practicing an escape plan.
Smoke Detection – Are More Alarms
Desirable?
The required number of smoke alarms
might not provide reliable early warning
protection for those areas separated by
a door from the areas protected by the
required smoke alarms. For this reason,
it is recommended that the resident
consider the use of additional smoke
alarms for those areas for increased protection. The additional areas include the basement, bedrooms,
dining room, furnace room, utility room, and hallways not protected by the required smoke alarms. The
installation of smoke alarms in attics (finished or unfinished), garages, or within 6 ft (1.8m) of a heating
or cooking appliance is not normally recommended, as these locations occasionally experience
conditions that can result in improper operation. *
* Reference National Fire Protection Association (NFPA) standard 72
For your information, the National Fire Protection
Association’s Standard 72 reads: Where required
by other governing laws, codes, or standards for a
specific type of occupancy, approved single and
multiple-station smoke alarms shall be installed as
follows:
1. In all sleeping rooms and guest rooms
2. Outside of each separate dwelling unit sleeping
area, within 21 ft (6.4 m) of any door to a sleeping
room, with the distance measured along a path
of travel
3. On every level of a dwelling unit, including
basements
4. On every level of a residential board and care
occupancy (small facility), including basements
and excluding crawl spaces and unfinished attics
5. In the living area(s) of a guest suite
6. In the living area(s) of a residential board and
care occupancy (small facility)
38
California State Fire Marshal
Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms
and areas of the household as follows: A smoke alarm installed in each separate sleeping area
(in the vicinity, but outside the bedrooms), heat or smoke detectors in the living rooms, dining rooms,
bedrooms, kitchens, hallways, attics, furnace rooms, closets, utility and storage rooms, basements and
attached garages.
FCC
Contains FCC ID SAK-ESP32S3
Model RGSDR-RW: FCC ID: 2BQ4X-RGSDR-RW
Model RGCUDR-RW: FCC ID: 2BQ4X-RGCUDR-RW
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: The user is cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the
radiator and your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
39
19. Service And Warranty
Ten-Year Limited Warranty
Kidde warrants that the enclosed alarm (but not the batteries) will be free from defects in material
and workmanship or design under normal use and service for a period of ten years from the date of
purchase. The obligation of Kidde under this warranty is limited to repairing or replacing the alarm
or any part which we find to be defective in material, workmanship or design (part replacement only,
no installation), free of charge, upon receiving the alarm with proof of date of purchase, postage and
return postage prepaid, to Warranty Service Department, Kidde, 1016 Corporate Park Drive, Mebane,
NC 27302. Before shipping the product, please remove the batteries from the battery compartment.
This warranty shall not apply to the alarm if it has been damaged, modified, abused or altered after the
date of purchase or if it fails to operate due to improper maintenance or inadequate power. Any implied
warranties arising out of this sale, including but not limited to the implied warranties of description,
merchantability and fitness for a particular purpose, are limited in duration to the above warranty
period. In no event shall the Manufacturer be liable for loss of use of this product or for any indirect,
special, incidental or consequential damages, or costs, or expenses incurred by the consumer or any
other user of this product, whether due to a breach of contract, negligence, strict liability in tort or
otherwise.
The Manufacturer shall have no liability for any personal injury, property damage or any special,
incidental, contingent or consequential damage of any kind resulting from gas leakage, smoke, fire
or explosion. Since some states do not allow limitations of the duration of an implied warranty or do
not allow the exclusion or limitation of incidental or consequential damages, the above limitations or
exclusions may not apply to you. While this warranty gives you specific legal rights, you may also have
other rights which vary from state to state.
The above warranty may not be altered except in writing signed by both parties hereto. Your Kidde
Alarm is not a substitute for property, fire, disability, life or other insurance of any kind. Appropriate
insurance coverage is your responsibility. Consult your insurance agent. Opening the unit will void the
warranty. If there are any differences between this printed warranty and the online limited warranty,
then the terms of the online warranty supersede those in this user guide or other printed materials.
Visit www.kidde.com for the latest warranty statement.
QUESTIONS OR FOR MORE INFORMATION
For Ring app or Ring connectivity questions, visit website
https://ring.com/support/contact-us
For all other questions, call Kidde Product Support:
1-877-542-5471 or contact us at www.kidde.com
Kidde
1016 Corporate Park Drive, Mebane, NC 27302
©2026 Kidde. All Rights Reserved.
Smoke: Conforms to UL STD
217. Combination Smoke/CO:
Conforms to UL STDS 217
and 2034.
