MODEL:
5.1 CH BLUETOOTH SOUNDBAR+WIRED
SUBWOOFER+WIRELESS
SB-3544AA
PROSCAN, and the PROSCAN logo are trademarks used under license by CURTIS
INTERNATIONAL LTD. – www.proscan-brand.com.
HVIN:
PSB551
CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:The lighting flash with arrowhead symbol within
an equilateral triangle is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the
appliance.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG
CORD
This unit has a long cord that can be easily tripped on or pulled on, causing
injury. Please make sure it is arranged so that it will not drape over a tabletop, etc.
Where it can be pulled on by children or tripped over accidentally.
CALIFORNIA PROP 65 WARNING: “WARNING” This product contains chemicals
known to the State of California to cause birth defects or other reproductive harm. For
more information on these regulations and a list of chemicals, log on the following
website: http://www.oehha.ca.gov/prop65.html
This product meets and complies with all Federal regulations.
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
IMPORTANT SAFETY INSTRUCTIONS
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not
expressly approved by the party responsible for compliance. such modifica-
tions could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must
be at least 20 cm between the radiator and your body, and fully supported by
the operating and installation.
IC Warning
This device complies with Industry Canada’s licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
IC RF Statement:
When using the product, maintain a distance of 20cm from the body to ensure
compliance with RF exposure requirements.
Déclaration IC RF:
Lors de l'utilisation du produit, maintenez une distance de 20 cm du corps
pour garantir
conformité aux exigences d’exposition aux RF.
IMPORTANT SAFETY INSTRUCTIONS
Before using the unit, be sure to read all operating instruction carefully, please
note that these are general precautions and may not pertain to your unit. For
example, this unit may not have the capability to be connected to an outdoor
antenna.
1.Read these instructions
All the safety and operating instructions should be read before the appliance
is operated.
2.Keep these instructions
The safety and operating instructions should be kept for future reference.
3.Heed all warnings
All warnings on the appliance and in the operating instructions should be
adhered to.
4.Follow all instructions
All operation and use instructions should be followed.
5.Do not use this apparatus near water
The appliance should not be used near water; for example, near a bath tub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming
pool.
6.Clean only with dry cloth
The appliance should be cleaned only as recommended by the
manufacturer.
7.Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. Slots and openings in the cabinet and in the
back or bottom are provided for ventilation, to ensure reliable operation of
the product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or similar surface. This product should never be
placed near or over a radiator or heat source. This product should not be
placed in a built-in installation, such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have been adhered
to.
8.Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11.Only use attachments / accessories specified by the manufacturer.
12.Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care.
Quick stop, excessive fore and uneven surfaces may cause the appliance
and cart combination to overturn.
13.Unplug this apparatus during lightning storms or when unused for
long periods of time.
To protect your product from a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
14.Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15.Power source
This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your appliance dealer or local power company.
For products intended to operate from battery power, or other source, refer
to the operation instructions.
16.Power lines
An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines or
circuits as contact with them might be fatal.
17.Overloading
Do not overload wall outlets and extension cords as this can result in a risk
of fire or electric shock.
18.Object and liquid entry
Never push objects of any kind into the product through openings as they
may touch dangerous voltage points or short out parts that could result in
fire or electric shock. Never spill or spray any type of liquid on the product.

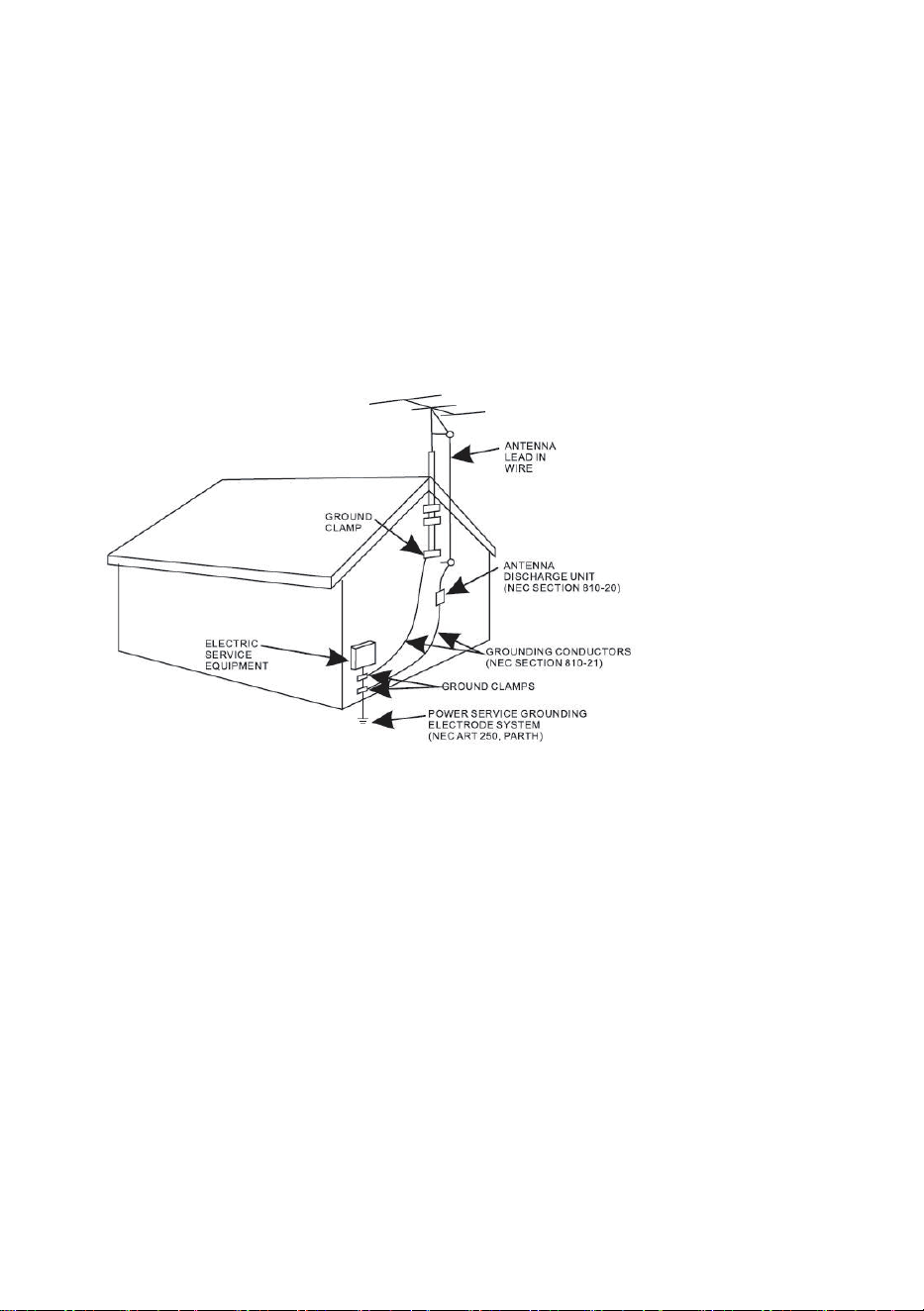

19.Outdoor antenna grounding
If an outside antenna is connected to the product, be sure the antenna system
is grounded so as to provide some protection against voltage surges and built
up static charges. Section 810 of the National Electric Code ANSI/ NFPA 70
provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead- in wire to an antenna discharge
product, size of grounding conductors, location of antenna- discharge product,
connection to grounding electrodes and requirements for the grounding
electrodes.
20.Service
Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
21.Replacement parts
When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or those that have the
same characteristics as the original parts. Unauthorized substitutions may
result in fire or electric shock or other hazards.
22.Safety check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in
proper operating condition.

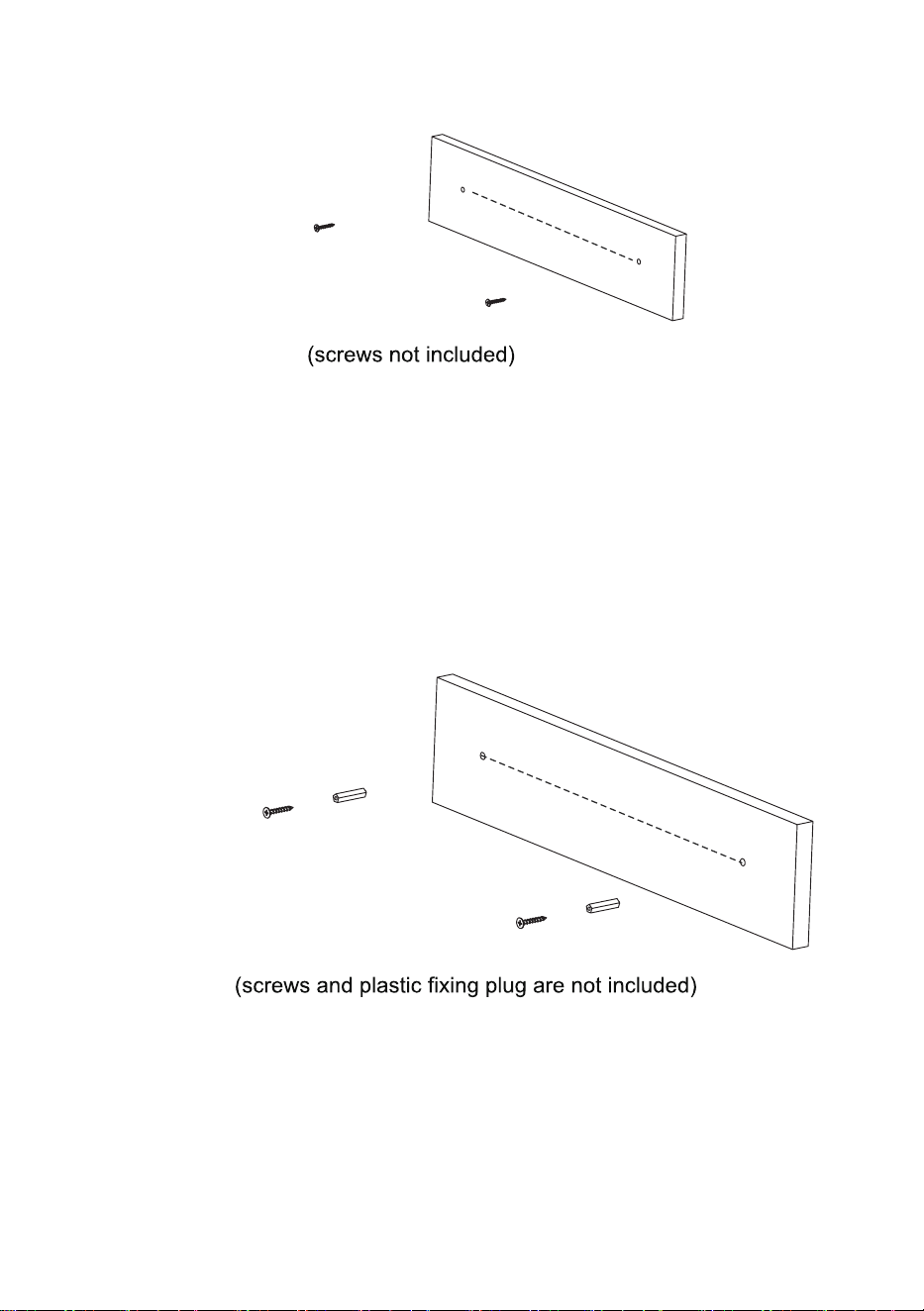

23.Wall or ceiling mounting
The product should be mounted to a wall or ceiling only as recommended
by the manufacturer.
24.Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service
personnel under the following conditions.
a)When the power- supply cord or plug is damaged.
b)If liquid has been spilled or objects have fallen into the product.
c)If the product has been exposed to rain or water.
d)If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as an adjustment of other controls may result in damage and
will require extensive work by a qualified technician to restore the product
to its normal operation.
e)If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance- this indicates
a need for service.
25. Note to CATV system installer
This reminder is provided to call the CATV system installer' s attention to
Article 820- 40 of the NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as
practical.
NOTE: Refer all servicing to qualified service personnel. Servicing is
required when the unit has been damaged in any way such as the
following: the power-supply cord or plug has been damaged, liquid has
been spilled into unit, the unit has been exposed to rain or moisture, the
unit has been dropped or the unit does not operate normally.
PRODUCT OVERVIEW
TOP VIEW
REAR VIEW
REAR VIEW OF
SURROUND BOX
1.STANDBY/SOURCE button
2.PLAY/PAUSE button
3.VOL- button
4.VOL+ button
5.HDMI ARC jack
6.USB jack
7.OPTICAL IN jack
8.AUX in jack
9.Antenna
10.SUBWOOFER jack
11.DC IN jack
12.Indicator
13.Power Indicator
14.Standby button
15.DC IN jack
1 2 3 4
5 6 7 8 9 10 11
12
13
14
15
DC 15V
BT
EQ
Mute
Scan
REC
1.Power button
2.Play/Pause button
3.Previous button
4.BT button
5.Scan button
6.Source button
7.Vol+ button
8.Next button
9.Vol- button
10.EQ(equalizer) button
11.Mute button
12.REC button
Vol+
Vol-
1.Slide and lift the battery door.
2.Install 2 (two) AAA size batteries into the battery compartment as indicated
by the polarity markings.
3.Close the battery door.
Caution:
1.Use only the size and type of battery specified.
2.Be sure to follow the correct polarity when installing the battery as indicated
in the battery compartment, a reserved battery may cause damage to the
device.
3.Do not mix different types of batteries together (e.g. Alkaline and
Carbon-zinc) or old batteries with fresh ones.
4.If the batteries in the device are consumed or the device is not to be used for
a long period of time, remove the batteries to prevent damage or injury from
possible leakage.
5.Do not try to recharge the battery not intended to be recharged; it can
overheat and rupture. (Follow battery manufacturer's instructions)
6.The batteries shall not be exposed to excessive heat such as sunshine, fire
or the like.
7.Clean the battery contacts and also those of the device prior to battery
installation.
Remote control operation range
●When there is an obstacle between the remote and the receiver, the unit may
not operate.
●When direct sunlight, an incandescent lamp, fluorescent lamp or any other
strong light shines on the REMOTE SENSOR of the unit, the operation of the
remote may be unstable.
2-3 inches
2-3 inches
1. Placing the device on a table - Ventilation
When placing the Soundbar on an entertainment center, bookshelf, or any
type of enclosed space, be sure to allow at least 2-3 inches of space around
the Sound Bar for ventilation. If the Sound Bar is enclosed in a tight space,
without ventilation, heat generated from the Sound Bar could produce a
potential heat hazard.
2. The Installation Distance
23.622 inches
2.1Mounting to a wooden wall
2.2 Mounting to a brick wall
A.Mark the position of the mounting screws on the wall using a pencil.
B.Drill the screws directly into the marks that you have made on the wall and
leave approx. 0.3 inches length to hook the sound bar.
C.Put the sound bar onto the mounting screws. Make sure they are firm and
stable.
A.Mark the position of the mounting screws on the wall using a pencil.
B.Drill 2 holes on wall with a powerful electric drill.
C.Insert the fixing plug and hammer into the holes.
D.Secure the screws into the fixing plug and leave approx. 0.3 inches length to
hook the sound bar.
E.Put the sound bar onto the mounting screws. Make sure they are firm and
stable.
23.622 inches
23.622 inches
BLUETOOTH OPERATION
1.Connect the AC/DC adapter to the unit and wall outlet.
2.Press and hold the STANDBY/SOURCE button on unit or press button
on remote control to power on the unit; press the same button to enter
standby mode.
3.Press the button on remote control or STANDBY/SOURCE button on
unit to switch to the desired mode.
4.During playback:
●Press the Mute button on remote control to turn on or off the sound.
●Press the EQ button on remote control repeatedly to change to different
EQ mode.(Normal/News/Music/Movie/Bass/Game)
●Press and hold the EQ button on remote control to change to default
normal mode.
●Press the Vol+ or Vol- button on unit or remote control to adjust the volume.
1.Power on the unit as previously explained.
2.Press the BT button on remote control or STANDBY/SOURCE button on unit
to switch to Bluetooth mode, the indicator in front of the unit will blink in blue
and you can hear a sound “Bluetooth”.
3.Power on the external Bluetooth device and activate Bluetooth mode to
search for the unit.
4.When the Bluetooth name Pro PSB551 appears, select it and make
connection.
5.A sound will be heard when the unit is successfully connected and the
indicator will stay solid blue.
6.During playback:
Press the or button on remote control to skip tracks.
Press the button on remote control or PLAY/PAUSE button on unit to play
or pause the track.
7.To disconnect the current connection, press and hold the BT button on
remote control.
Note:
●The unit will be automatically connected with the last connected
Bluetooth device if both are activated Bluetooth function and in working
range.
5.The color of indicator in front of the unit will change in different modes:
Standby mode: red USB mode: white
Bluetooth mode: dark blue AUX in mode: green
Optical mode: purple FM mode: yellow
HDMI mode: light blue
HDMI IN OPERATION
HDMI IN arc port
of the TV
Video
HDMI IN arc
Rear View
1.Connect one end of HDMI cable(not included) to the HDMI ARC jack of this
unit, the other end to the HDMI IN ARC jack of TV.
2.Power on the unit and switch to HDMI mode as previously mentioned and
you will hear a sound “HDMI”.
3.Start the playback on TV as usual.
Note:
●The TV must have ARC capability and be connected to HDMI IN ARC jack.
OPTICAL IN OPERATION
TV or DVD player etc.
1.Connect one end of Optical cable(not included) to the OPTICAL jack of this
unit, the other end to the OPTICAL OUT jack of TV or DVD player etc.
2.Power on the unit and switch to OPTICAL mode as previously mentioned
and you will hear a sound “OPTICAL”.
3.Start the playback on TV or DVD player as usual.
Rear View
AUX IN OPERATION
Mobile Phone
Connect to the Phones; AUX Out;
Line Out Jack of the external devices
(Such like MP3 Player; cell phones;
iPod/iPad ... etc)
MP3 Player
Rear View
1.Connect one end of included AUX in cable to the AUX jack of this unit, the
other end to the 3.5mm earphone jack or AUX out jack of external device.
2.Power on the unit and switch to AUX mode as previously mentioned and
you will hear a sound “AUXILIARY”.
3.Start the playback on external device as usual.
FM OPERATION
1.Power on the unit and switch to FM mode as previously mentioned, then
you will hear a sound “FM”.
2.Press and hold the Scan button on remote control to scan and store the
available stations automatically. It will play the first stored station when
scanning is finished.
3.Press the Scan button to change the stored stations.
Rear View
USB OPERATION
1.Insert the USB device(not included) into the USB jack of this unit.
2.Power on the unit as previously mentioned and you will hear a sound “USB”.
3.It will automatically play the tracks stored in USB device.
Note:
●When play music in other modes, it will be in USB mode once you insert
the USB device. If you want to change to other modes, press the
Standby/Source button on unit or button on remote control.
USB Recording
1.Insert an USB device into the USB jack of this unit.
2.Play music in Bluetooth mode.
3.Press the REC button on remote control and you will hear a sound
indicating recording starts.
4.Press the REC button on remote control to stop recording and you will hear
a sound indicating recording finished, then it will play the recording song
immediately.
Note:
●The recording function only works in Bluetooth mode.
●If you want to listen to the track recorded in USB device, turn the unit to
USB mode and press the or button on remote control to select.
SUBWOOFER CONNECTION
Rear View
Subwoofer
1.Connect the subwoofer as above illustrate.
2.Connect one end of surround adapter to outlet and other end to DC IN
jack of surround box, the Power Indicator will light red.
3.Press and hold the Standby button to power on or off the surround box.
4.The surround boxes are already paired to the unit when produced, the
Indicator on the rear of surround box will light green and you can play music
as usual.
Note:
●If you want to disconnect the surround boxes, press the Standby button
on rear of surround boxes and the Indicator will blink.
●If you want to reconnect the surround boxes, press the Standby button on
rear of surround boxes and the Indicator will stay solid green.
Input source incorrect
The paired/connected device
is not in playback mode
The external device is
too far from the unit
Remote Control
not functioning
Out of range
The battery in the remote
control is drained
Point the remote control to the
remote sensor on the unit within
16 feet, +/-30 degress.
Replace with new battery.
No sound or
sound weak
Volume level in minimum position
on remote control to power on the unit.
Raise the volume level by pressing the
VOL + Button on the unit.
The unit is in power off mode
SYMPTOM
POSSIBLE CAUSE POSSIBLE SOLUTION
No power
The adapter is not connected Connect the adapter to the unit and
wall outlet.
Press and hold the STANDBY/SOURCE
button on the unit or press the
button
Sound distortion/
rattle
Bluetooth
reception failure
Have not paired
Press the button on the remote
control or STANDBY/SOURCE button
to switch to desired mode.
Play music/movie in the paired/ connected
device as usual and make sure the
volume level of it is in high level.
Volume level too high
Reduce the volume level by pressing
the VOL- button on the unit or remote
control.
Reduce the volume level of the
paired/connected device.
SPECIFICATIONS
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
Power input of main adapter......................................AC 100-240V 50/60Hz
Power outpuPower output of main adapter.....................................DC 22V 2.7A
Speaker output ............................................................................6x15W+50W
Bluetooth effective working range in open area............................up to 32 feet
Remote effective working range....................................................up to 16 feet
ACCESSORIES
1x Instruction Manual
1x Power Adapter
1x Remote Control
1x AUX in Cable
2x Surround Adapter
2x AAA batteries
Power output of Surround adapter..............................DC 15V 0.8APower outpu
Bluetooth version..........................................................................................5.2
To make a warranty claim, please email [email protected] or call 1-800-968-9853.
90 Day Warranty
This product is warranted to be free from defects in material and workmanship for a
period of ninety (90) days from the date of original delivery to the consumer. During this
period, your exclusive remedy is repair or replacement of this product or component
found to be defective, at our option; however, you are responsible for all costs associat-
ed with returning the product to us. If the product or component is no longer available,
we will replace with a similar one of equal or greater value. Prior to a replacement being
sent, the product must be rendered inoperable or returned to us.
This warranty does not cover glass, filters, wear from normal use, use not in conformity
with the printed directions., or damage to the product resulting from accident, alteration,
abuse, or misuse. This warranty extends only to the original consumer purchaser or gift
recipient. Keep the original sales receipt, as proof of purchase is required to make a
warranty claim. This warranty is void if the product is used for other than single-family
household use or subjected to any voltage and waveform other than as on the specified
rating on the label (e.g., 120V~60Hz).
We exclude all claims for special, incidental, and consequential damages caused by
breach of express or implied warranty. All liability is limited to the amount of the
purchase price. Every implied warranty, including any statutory warranty or
condition of merchantability or fitness for a particular purpose, is disclaimed
except to the extent prohibited by law, in which case such warranty or condition
is limited to the duration of this written warranty. This warranty gives you specific
legal rights. You may have other legal rights that vary depending on where you live.
Some states or provinces do not allow limitations on implied warranties or special,
incidental, or consequential damages, so the foregoing limitations may not apply to you.
For faster service, locate the model, type, and serial numbers on your appliance.
ATTACH YOUR PROOF OF PURCHASE HERE, PROOF OF PURCHASE IS
REQUIRED TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you contact the Support Team:
● Name, address and telephone number.
● Model number and serial number.
● A clear, detailed description of the problem.
● Proof of purchase including dealer or retailer name, address and date
of purchase.
