MANITOWOC ICE MACHINES
QUICK
REFERENCE
GUIDE
Manitowoc Ice has long delivered
dependable, forward-thinking
solutions for the foodservice industry.
Our machines support cleaner
operation, reduced environmental
impact, and long term value. With the
largest ENERGY STAR® portfolio in
the industry, we continue to lead in
eciency and sustainability.
This guide highlights our full lineup—
from modular cubers to undercounters
and specialty units—each engineered
for reliable performance and lower
operating costs.
WE KNOW
GREAT ICE
Ice Types 2
Cube Machines: Indigo NXT
®
4
22" and 30" Cubers 6
48" Cubers 8
Remote Air-Cooled 9
QuietQube 10
Dispensers 12
Ice/Beverage Series 14
Large Capacity Quadzilla 15
Undercounter Cube Machines: NEO
®
16
Nugget Ice Machines 20
Flake Ice Machines 22
Gourmet Undercounter 24
Ice Machine 24
Spray Cube Machine: Sotto
™
25
Square Ice: Crystal Craft 26
Ice Storage Bins 28
Standard Bins 28
Large Capacity Bins 29
Options & Accessories 30
Luminice
®
II 30
iAuCS
®
Automatic Cleaning System 30
Arctic Pure Water Filtration 30
Vertical Discharge Remote Condensers 31
External Scoop Holder 31
Certications & Listings 32
Aftermarket Service Support 34
Ice Usage Guide 36
Warranty 37
TABLE OF CONTENTS
2 | manitowocice.com
ICE TYPES
Ice-to-Water Ratio
HALF-DICE
Hard rhomboid cube
DICE
Hard rhomboid cube
REGULAR
Hard rhomboid cube
NUGGET
Chewable, dry enough
to dispense
FLAKE
Small, soft pieces
ideal for presentation
SQUARE
Slow-melting cube
GOURMET
Octagon-shaped cube
≈100% Ice 96
3/8" x 1 1/8" x 7/8"
(0.95 x 2.86 x 2.22 cm)
High-volume dispensing,
smoothies, iced coffee,
self-service beverages
≈100% Ice 48
7/8" x 7/8" x 7/8"
(2.22 x 2.22 x 2.22 cm)
High-volume dispensing,
water service, mixed drinks
≈100% Ice 32
1 1/8" x 1 1/8" x 7/8"
(2.86 x 2.86 x 2.22 cm)
Slower melt, larger volume,
spirits on the rocks or
cocktails, shaken drinks
85% Ice Varies
3/8" to 1/2"
(0.95 to 1.27 cm)
Blended drinks, healthcare,
soft drinks
73% Ice Varies Varies
Food displays, seafood,
hand scooping
≈100% Ice Varies
1" x 1"
(2.54 x 2.54 cm)
Premium cocktails
≈100% Ice Varies
1 3/8" x 1 3/8"
(3.49 x 3.49 cm)
Upscale presentation,
individual serving
manitowocice.com | 3
Cubes per
Pound Dimensions Ideal Use
≈100% Ice 96
3/8" x 1 1/8" x 7/8"
(0.95 x 2.86 x 2.22 cm)
High-volume dispensing,
smoothies, iced coffee,
self-service beverages
≈100% Ice 48
7/8" x 7/8" x 7/8"
(2.22 x 2.22 x 2.22 cm)
High-volume dispensing,
water service, mixed drinks
≈100% Ice 32
1 1/8" x 1 1/8" x 7/8"
(2.86 x 2.86 x 2.22 cm)
Slower melt, larger volume,
spirits on the rocks or
cocktails, shaken drinks
85% Ice Varies
3/8" to 1/2"
(0.95 to 1.27 cm)
Blended drinks, healthcare,
soft drinks
73% Ice Varies Varies
Food displays, seafood,
hand scooping
≈100% Ice Varies
1" x 1"
(2.54 x 2.54 cm)
Premium cocktails
≈100% Ice Varies
1 3/8" x 1 3/8"
(3.49 x 3.49 cm)
Upscale presentation,
individual serving
4 | manitowocice.com
INDIGO NXT
®
CUBE ICE MACHINES
BIOFILM PROTECTION
Optional LuminIce II
helps inhibit viruses
and bacteria.
Indigo NXT delivers smarter ice management
with natural refrigerant, reduced water use,
and intelligent Bluetooth
®
controls—simplifying
ownership while maximizing long‑term value.
UPDATED
OPERATING SYSTEM
The new system
helps reduce water
consumption.
manitowocice.com | 5
MANITOWOC ICE APP
Scan to Download
Manage your ice machine with ease—scan
to get the Manitowoc app today!
Pair Your Indigo NXT and Access Tools at
Your Fingertips — Get the App!
Look for the Bluetooth sticker or icon in the
settings menu to conrm compatibility.
CONTAMINATION CONTROL
A tightly sealed food zone
helps reduce exposure.
INTUITIVE DISPLAY
The touchscreen
provides guided setup.
MANITOWOC BRAND
Hardworking performance.
Lasting quality.
BLUETOOTH
®
CONNECTIVITY
For quick setup and
instant machine information.
6 | manitowocice.com
INDIGO NXT
®
CUBERS
iP0420 +
D320 Bin
iP0620 +
D420 Bin
Ice Production
†
466 lbs 211 kgs 537 lbs 244 kgs
Ice Storage Capacity 264 lbs 120 kgs 383 lbs 174 kgs
Height with Bin 59.5 in 151.1 cm 71.5 in 181.6 cm
Width 22.0 in 55.9 cm 22.0 in 55.9 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm
22" WIDE
CUBERS
manitowocice.com | 7
*
Regular cube is only available with iP0620 and iP0500.
†
Half-dice pounds produced per day. Approximate ice-making capacity based on air-cooled condense unit at
70°F/21°C air and 50°F/10°C water. Ice machine and bin ordered separately.
Half-Dice
Dice
Regular
*
iP0600 +
D400 Bin
iP0800 +
D570 Bin
iP1000 +
D570 Bin
iT1200 +
D570 Bin
Ice Production
†
672 lbs 304.8 kgs 781 lbs 354 kgs 985 lbs 447 kgs 1213 lbs 550 kgs
Ice Storage Capacity 365 lbs 165 kgs 532 lbs 241 kgs 532 lbs 241 kgs 532 lbs 241.1 kgs
Height with Bin 59.5 in 151.1 cm 76.5 in 194.3 cm 79.5 in 201.9 cm 79.5 in 201.9 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm
iP0300 +
D400 Bin
iP0450 +
D400 Bin
iP0500 +
D400 Bin
Ice Production
†
325 lbs 147.4 kgs 478 lbs 216 kgs 516 lbs 234 kgs
Ice Storage Capacity 365 lbs 165 kgs 365 lbs 165 kgs 365 lbs 165 kgs
Height with Bin 54.5 in 138.4 cm 59.5 in 151.1 cm 59.5 in 151.1 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm
30" WIDE
CUBERS
8 | manitowocice.com
INDIGO NXT
®
CUBERS
48" WIDE
CUBERS
iT1500 +
D970 Bin
iT1900 +
D970 Bin
Ice Production
†
1931 lbs 876 kgs 1965 lbs 891 kgs
Ice Storage Capacity 882 lbs 400 kgs 882 lbs 400 kgs
Height with Bin 79.5 in 201.9 cm 79.5 in 201.9 cm
Width 48.0 in 121.9 cm 48.0 in 121.9 cm
Depth with Bin 34.0 in 86.3 cm 34.0 in 86.3 cm
manitowocice.com | 9
Half-Dice
Dice
Regular
*
iF0500N +
D570 Bin
iT0750N +
D570 Bin
iT0900N +
D570 Bin
Ice Production
†
525 lbs 238 kgs 720 lbs 302 kgs 731 lbs 331.6 kgs
Ice Storage Capacity 532 lbs 241.3 kgs 532 lbs 241.3 kgs 365 lbs 165.6 kgs
Height with Bin 71.5 in 181.6 cm 71.5 in 181.6 cm 76.5 in 194.3 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm
Remote Condenser JCF0500 JCT1200 JCT1200
iT1200N +
D570 Bin
iT1500N +
D970 Bin
iT1900N +
D970 Bin
Ice Production
†
1220 lbs 553 kgs 1830 lbs 830 kgs 1805 lbs 819 kgs
Ice Storage Capacity 532 lbs 241.1 kgs 882 lbs 400 kgs 882 lbs 400 kgs
Height with Bin 79.5 in 201.9 cm 79.5 in 201.9 cm 79.5 in 201.9 cm
Width 30.0 in 76.2 cm 48.0 in 121.9 cm 48.0 in 121.9 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.3 cm 34.0 in 86.3 cm
Remote Condenser JCT1200 JCT1500 JCT1500
REMOTE
AIR-COOLED
*
Regular cube is only available with iT1900.
†
Half-dice pounds produced per day. Approximate ice-making capacity based on air-cooled condense unit at
70°F/21°C air and 50°F/10°C water. Ice machine and bin ordered separately.
10 | manitowocice.com
INDIGO NXT
®
QUIETQUBE
Indigo NXT QuietQube® ice machines feature
roof-mounted compressor and fan components
to reduce noise and heat. Their patented CVD®
(Cool Vapor Defrost) technology uses cool vapor
for ice harvest, enhancing reliability, eciency,
and output. The result is an ultra-quiet system—
up to 75% quieter than standard remote or self-
contained models.
CVD Condensing Unit
†
manitowocice.com | 11
iF0600C +
D570 Bin
iF0900C +
D570 Bin
iT1200C +
D570 Bin
Ice Production
*
600 lbs 272 kgs 816 lbs 370 kgs 1155 lbs 525 kgs
Ice Storage Capacity 532 lbs 241 kgs 532 lbs 241 kgs 532 lbs 241 kgs
Height with Bin 71.5 in 181.6 cm 76.5 in 194.3 cm 79.5 in 201.9 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Bin 24.5 in 62.2 cm 24.5 in 62.2 cm 24.5 in 62.2 cm
Condensing Unit CVDF0600 CVDT1400 CVDF1200
iT1830C +
D970 Bin
iF2100C +
D970 Bin
Ice Production
*
1874 lbs 850 kgs 1800 lbs 816 kgs
Ice Storage Capacity 882 lbs 400 kgs 882 lbs 400 kgs
Height with Bin 79.5 in 201.9 cm 79.5 in 201.9 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Bin 24.5 in 62.2 cm 24.5 in 62.2 cm
Condensing Unit CVDT1800 CVDF2100
iF1400C +
D970 Bin
iT1430C +
D970 Bin
iF1800C +
D970 Bin
Ice Production
*
1425 lbs 646 kgs 1437 lbs 652 kgs 1660 lbs 753 kgs
Ice Storage Capacity 882 lbs 400 kgs 882 lbs 400 kgs 882 lbs 400 kgs
Height with Bin 75.0 in 190.5 cm 75.0 in 190.5 cm 79.5 in 201.9 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Bin 24.5 in 62.2 cm 24.5 in 62.2 cm 24.5 in 62.2 cm
Condensing Unit CVDF1400 CVDT1400 CVDF1800
Half-Dice
Dice
*
Half-dice pounds produced per day. Approximate ice-making capacity based on air-cooled condenser unit at
70°F/21°C air and 50°F/10°C water. Ice machine and bin ordered separately.
†
CVD Condensing Unit CVDF0600 to CVDT1830 34" W x 24.13" D x 25.75"H 86.4 x 61.3 x 65.4 cm.
12 | manitowocice.com
INDIGO NXT
®
DISPENSERS

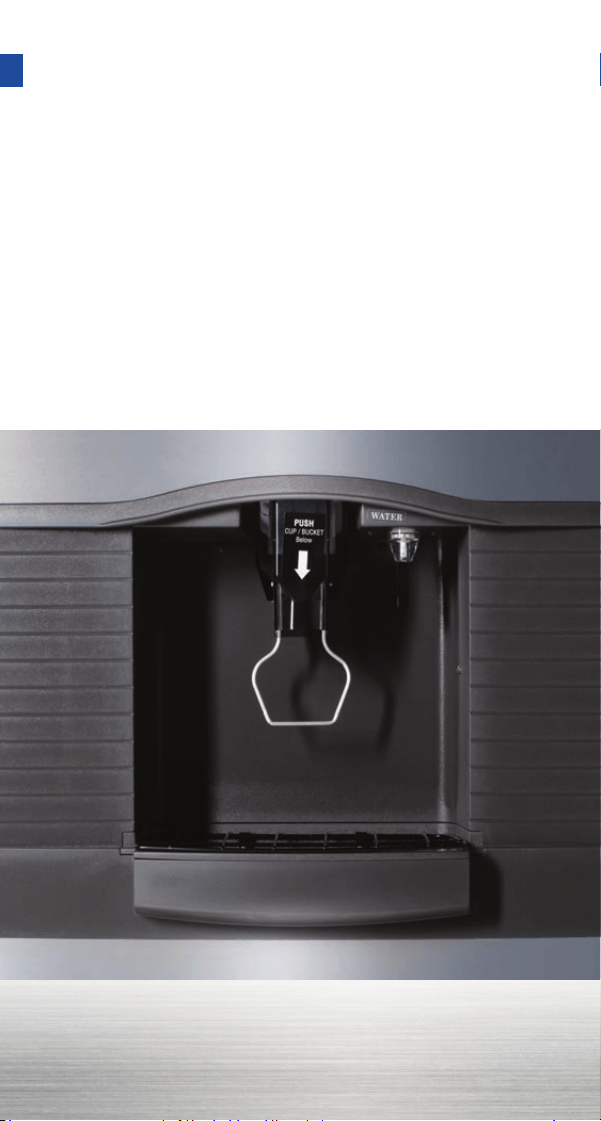

Touchless, oor-standing ice dispensers
designed for high sanitation standards in lodging,
foodservice, and healthcare.
Dispense up to 635 lbs of ice daily with a paddle
wheel delivery system and lever-activated
mechanism. SFA models include a built-in water
valve for added convenience. Clean, quiet, and
styled to t any space.
manitowocice.com | 13
iP0450
SFA-292
iP0450
SPA-312
Ice Storage Capacity 180 lbs 82 kgs 180 lbs 82 kgs
Height with Ice Machine on Dispenser 82.0 in 208.3 cm 82.0 in 208.3 cm
Width 30.0 in 76.2 cm 30.0 in 76.2 cm
Depth with Dispenser 32.0 in 81.3 cm 32.0 in 81.3 cm
iP0420
SFA-192
iP0420
SPA-162
Ice Storage Capacity 120 lbs 54 kgs 120 lbs 54 kgs
Height with Ice Machine on Dispenser 75.5 in 191.8 cm 75.5 in 191.8 cm
Width 22.0 in 55.9 cm 22.0 in 55.9 cm
Depth with Dispenser 31.0 in 78.7 cm 31.0 in 78.7 cm
Half-Dice
Dice
Regular
Ice machine and dispenser ordered separately.
14 | manitowocice.com
INDIGO NXT
®
ICE/BEVERAGE
SERIES
The Indigo NXT IB Series delivers high ice production
in a compact 22" footprint with a slim 14" depth for
easy access to beverage
dispensers. Powered by
patented CVD® technology,
it operates quietly and
eciently with minimal
heat exhaust, and installs
easily on most dispensers
using the proper adapter.
Ice/Beverage Series on
Ice/Beverage Dispenser
iBF0620C iBF0820C iBT1020C
Ice Production
*
675 lbs 306 kgs 675 lbs 306 kgs 1206 lbs 547 kgs
Height 24.0 in 61.0 cm 24.0 in 61.0 cm 30.5 in 77.5 cm
Width 22.0 in 55.9 cm 22.0 in 55.9 cm 22.0 in 55.9 cm
Depth 14.0 in 35.6 cm 14.0 in 35.6 cm 14.0 in 35.6 cm
Half-Dice
*
Half-dice pounds produced per day. Approximate ice-making capacity based on air-cooled condense unit at
70°F/21°C air and 50°F/10°C water. Beverage dispenser must be sourced separately.
manitowocice.com | 15
QUADZILLA
LARGE
CAPACITY
The S3000 Series “Quadzilla” delivers high ice output
in a compact design. It’s built for easy cleaning,
ecient service access, and long-term durability—
making it a reliable,
low-maintenance
solution for
demanding
environments.
ST3000W +
F1650 Bin
SF3000C +
F1650 Bin
Ice Production
*
3200 lbs 1451 kgs 2910 lbs 1320 kgs
Ice Storage Capacity 1494 lbs 678 kgs 1494 lbs 678 kgs
Height 103.0 in 261.6 cm 120.0 in 414.0 cm
Width 60.0 in 152.4 cm 60.0 in 152.4 cm
Depth 39.0 in 99.1 cm 34.0 in 86.4 cm
Condensing Unit
†
CVDF3000
Dice
Half-Dice
*
Half-dice pounds produced per day. Approximate ice-making capacity based on air-cooled condenser unit at
70°F/21°C air and 50°F/10°C water. Ice machine and bin ordered separately.
†
CVDF3000 53" W x 26" D x 25.75" H 134.6 x 66.0 x 65.4 cm.
Available with
Optional Remote
Condensing Unit
16 | manitowocice.com

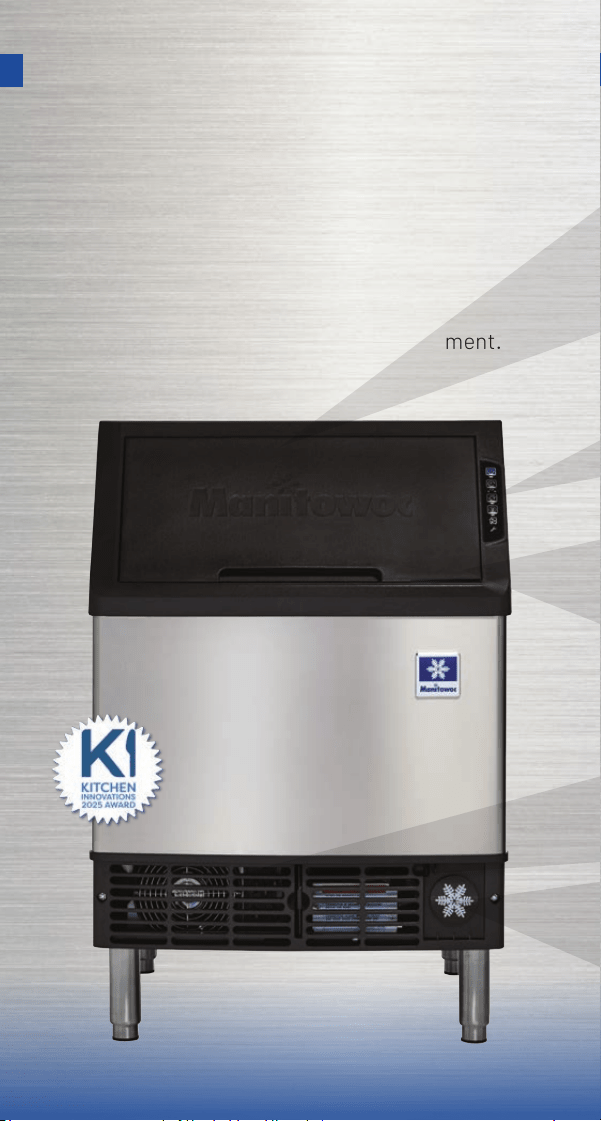

NEO
®
UNDERCOUNTER
The undercounter designed to overdeliver.
With integrated water ltration, the NEO is
crafted for quality and built for business. The
commitment to sustainability, energy eciency,
low GWP, and ENERGY STAR® certication
makes it ideal for those who want the best for
their business, customers and the environment.
manitowocice.com | 17
USER INTERFACE
Easy-to-read
touchpad with key
status indicators.

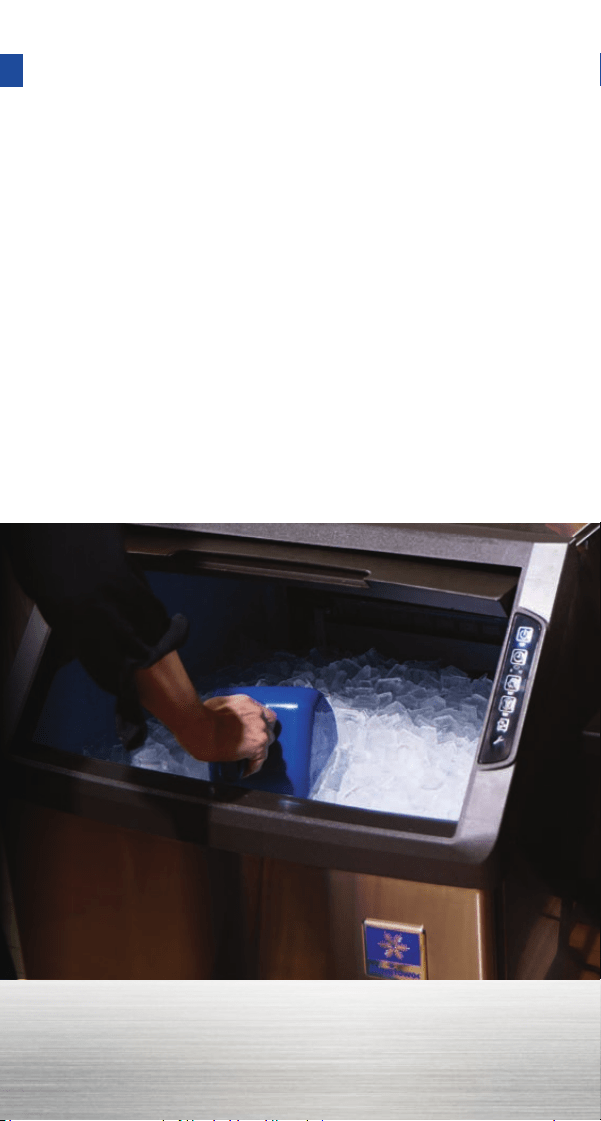

REMOVABLE BIN
Forward-sliding bin
provides easy access
for cleaning and
maintenance.
ONBOARD WATER FILTRATION
Improves machine’s
eciency and ice quality.
LUMINICE
®
II OPTION
Helps reduce bacteria,
yeast, and slime buildup.
AIRFLOW
Front ventilation
ideal for
undercounter
installation.
18 | manitowocice.com
NEO
®
UNDERCOUNTER CUBERS
These compact ice cube machines are ideal for
small-volume ice production, for limited-use
needs, or as back-ups for larger machines.
Specically designed to t beneath counters or
in areas where oor space or height restrictions
prohibit use of larger equipment.
The petite size makes any of these models ideal
for on-the-spot installations at coffee shops,
stadium boxes, refreshment/break areas, or
wherever limited ice needs require equipment
with a small footprint.
manitowocice.com | 19
Half-Dice
Dice
Regular
*
UDP0065
†
UDP0080
†
UP0140
Ice Production
‡
62 lbs 28 kgs 110 lbs 50 kgs 150 lbs 68 kgs
Ice Storage Capacity 31 lbs 14 kgs 31 lbs 14 kgs 90 lbs 40 kgs
Height 36.0 in 94.2 cm 36.0 in 94.2 cm 38.5 in 97.8 cm
Width 19.7 in 50.0 cm 19.7 in 50.0 cm 26.0 in 66.0 cm
Depth 22.3 in 56.7 cm 22.3 in 56.7 cm 28.5 in 72.4 cm
UP0190 UP0240 UP0310
Ice Production
‡
200 lbs 91 kgs 250 lbs 114 kgs 330 lbs 150 kgs
Ice Storage Capacity 90 lbs 40 kgs 90 lbs 40 kgs 119 lbs 54 kgs
Height 38.5 in 97.8 cm 38.5 in 97.8 cm 38.5 in 97.8 cm
Width 26.0 in 66.0 cm 26.0 in 66.0 cm 30.0 in 76.2 cm
Depth 28.5 in 72.4 cm 28.5 in 72.4 cm 28.5 in 72.4 cm
*
Regular cube is only available with UP0140 and UP0310.
†
Not available with onboard ltration.
‡
Pounds produced per day. Approximate ice-making capacity based on air-cooled unit at 70°F/21°C air and
50°F/10°C water. Ice storage application capacity is measured at 90% of the total volume in cu. ft x 33lbs/ft3.
20 | manitowocice.com
NUGGET
ICE MACHINES
Manitowoc nugget machines produce chewable,
high-quality ice with minimal drink dilution—ideal
for dispensing, blended beverages, and healthcare
use from hydration to cold therapy.
CNP0201 CNP0202
Ice Production
*
315 lbs 143 kgs 315 lbs 143 kgs
Ice Storage Capacity 10 lbs 4.5 kgs 20 lbs 9.1 kgs
Height 35.0 in 89.9 cm 42.0 in 106.7 cm
Width 16.3 in 41.3 cm 16.3 in 41.3 cm
Depth 24.0 in 61.0 cm 24.0 in 61.0 cm
UNP0200 UNP0300
Ice Production
*
213 lbs 97 kgs 330 lbs 150 kgs
Ice Storage Capacity 30 lbs 14 kgs 60 lbs 27 kgs
Height 33.2 in 84.2 cm 39.5 in 100.4 cm
Width 19.7 in 50.0 cm 29.1 in 73.8 cm
Depth 26.0 in 66.0 cm 27.2 in 69.0 cm
manitowocice.com | 21
Nugget
RNP1100 +
D570 Bin
RNF1020C +
D420 Bin
RNF2000C +
D570 Bin
Ice Production
*
1078lbs 489 kgs 1025 lbs 465 kgs 1915 lbs 868 kgs
Ice Storage Capacity 532 lbs 241 kgs 383 lbs 173 kgs 532 lbs 241 kgs
Height with Bin 77.4 in 196.5 cm 77.4 in 196.5 cm 77.4 in 196.5 cm
Width with Bin 30.0 in 76.2 cm 22.0 in 55.8 cm 30.0 in 76.2 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm
RNP0320 +
D420 Bin
RNP0620 +
D420 Bin
Ice Production
*
308 lbs 140 kgs 591 lbs 268 kgs
Ice Storage Capacity 383 lbs 173 kgs 383 lbs 173 kgs
Height with Bin 76.0 in 193.0 cm 76.0 in 193.0 cm
Width with Bin 22.0 in 55.8 cm 22.0 in 55.8 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm
*
Approximate ice-making capacity based on air-cooled unit at 70°F/21°C air and 50°F/10°C water. Ice machine and
bin ordered separately.
22 | manitowocice.com
FLAKE
ICE MACHINES
Manitowoc ake ice machines produce soft,
moldable ice that cools quickly, holds shape,
and won’t bruise food—ideal for fresh displays
and hand-scooped drinks.
FLAKE
UNDERCOUNTER
UFP0200 UFP0350
Ice Production
*
257 lbs 117 kgs 398 lbs 181 kgs
Ice Storage 50 lbs 23 kgs 60 lbs 27 kgs
Height 37.5 in 95.2 cm 39.5 in 100.4 cm
Width 19.7 in 50.0 cm 29.1 in 73.8 cm
Depth 26.0 in 66.0 cm 27.2 in 69.0 cm
*
Pounds produced per day. Approximate ice-making capacity based on air-cooled condenser unit at 70°F/21°C air
and 50°F/10°C water. Ice storage application capacity is measured at 90% of the total volume in cu. ft x 33lbs/ft3.
manitowocice.com | 23
Flake
FLAKE
MODULAR
RFP0320 +
D420 Bin
RFP0620 +
D420 Bin
RFF1300 +
D570 Bin
Ice Production
*
370 lbs 168 kgs 682 lbs 309 kgs 1264 lbs 573 kgs
Ice Storage Capacity 383 lbs 173 kgs 383 lbs 173 kgs 532 lbs 241 kgs
Height with Bin 76.0 in 193 cm 76.0 in 193 cm 77.4 in 196.6 cm
Width with Bin 22.0 in 55.9 cm 22.0 in 55.9 cm 30.0 in 76.2 cm
Depth with Bin 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm
RFF1220C +
D420 Bin
RFF2200C +
F1650 Bin
Ice Production
*
1092 lbs 495 kgs 2063 lbs 936 kgs
Ice Storage Capacity 383 lbs 173 kgs 1494 lbs 678 kgs
Height with Bin 76.0 in 193.0 cm 94.4 in 239.8 cm
Width with Bin 22.0 in 55.9 cm 60.0 in 152.4 cm
Depth with Bin
Snout Adds
34.0 in 86.4 cm 31.0 in
8.0 in
78.7 cm
20.0 cm
24 | manitowocice.com
GOURMET
ICE MACHINE
The UCP0050 produces octagon cubes with nearly
100% ice-to-water ratio — perfect for upscale drinks.
Compact and cabinet-ready, it features delay-start
mode, a lit oversized bin, and built-in water ltration.
UCP0050A
Ice Production* 53 lbs 24 kgs
Ice Storage Capacity 25 lbs 11 kgs
Height 33.5 in 85.0 cm
Width 14.8 in 37.5 cm
Depth 22.8 in 57.8 cm
Gourmet
manitowocice.com | 25
Gourmet
SOTTO
™
Undercounter Spray Cubers for Global Venues
Designed for international markets, Sotto™ delivers
large, octagonal cubes—ideal for restaurants, bars,
cafés, and delis. Producing 22–86 kg of ice daily with
44 kg storage, it ts seamlessly into undercounter
spaces and features a multi-function control panel,
delay-start mode, and built-in water ltration.
UGP0020 UGP0030 UPG0040
Ice Production
*
22 kgs 31 kgs 53 kgs
Ice Storage Capacity 5.5 kgs 5.5 kgs 14 kgs
Height 65.0 cm 65.0 cm 80.0 cm
Width 45.0 cm 45.0 cm 55.0 cm
Depth 47.5 cm 47.5 cm 55.0 cm
UGP0050 UGP0080
Ice Production
*
57.0 kgs 76.0 kgs
Ice Storage Capacity 14.0 kgs 30.0 kgs
Height 80.0 cm 90.0 cm
Width 55.0 cm 70.0 cm
Depth 55.0 cm 60.0 cm
*
Pounds produced per day. Approximate ice-making capacity based on air-cooled condenser unit at 70°F/21°C air
and 50°F/10°C water. Sotto Products are not available in North America.
26 | manitowocice.com
SQUARE ICE
CRYSTAL CRAFT
Boost prots with CrystalCraft — premium 1"x1"
clear cubes that melt slowly to elevate cocktail
avor and presentation. The USP0100 uses
R-290 refrigerant, features one-touch cleaning,
and comes with a 3-year warranty. High output,
sleek design — perfect for top-tier bars.
manitowocice.com | 27
USP0100A
Ice Production 100 lbs 45.5 kgs
Ice Storage Capacity 38 lbs 17.2 kgs
Height 37.5 in 92.3 cm
Width 19.7 in 50.0 cm
Depth 22.8 in 58.0 cm
Square
28 | manitowocice.com
Designed for Indigo NXT, Flake, and Nugget ice
machines, these bins feature an elevated scoop
holder for cleaner access, a patented hinge for
hands-free door use, and a PVC base that protects
against cleaning damage. The Duratech™ exterior
resists ngerprints and outlasts stainless steel for
a cleaner, longer-lasting nish.
ICE STORAGE BINS
D570 Bin D970 Bin
Application Capacity 532 lbs 241 kgs 882 lbs 400 kgs
Height 50.0 in 127 cm 50.0 in 127 cm
Width 30.0 in 76.2 cm 48.0 in 121.9 cm
Depth 34.0 in 86.4 cm 34.0 in 86.4 cm
D320 Bin D400 Bin D420 Bin
Application Capacity 264 lbs 119 kgs 365 lbs 165 kgs 383 lbs 173 kgs
Height 38.0 in 96.5 cm 38.0 in 96.5 cm 50.0 in 127 cm
Width 22.0 in 55.9 cm 30.0 in 76.2 cm 22.0 in 55.9 cm
Depth 34.0 in 86.4 cm 34.0 in 86.4 cm 34.0 in 86.4 cm
manitowocice.com | 29
F-Style bins are high-capacity ice storage solutions
with a sliding ice gate that minimizes spillage and
enhances safety. Available in 30", 48", and 60" widths,
they’re ideal for busy commercial environments.
ICE STORAGE BINS
LARGE CAPACITY
F1325 Bin
*
F1650 Bin FC1350 Bin
Application Capacity 1238 lbs 562 kgs 1494 lbs 678 kgs 1304 lbs 591 kgs
Height 56.0 in 142.2 cm 65.0 in 165.1 cm 75.0 in 190.5 cm
Width 60.0 in 152.4 cm 60.0 in 152.4 cm 60.0 in 152.4 cm
Depth
Snout Adds
31.0 in
8.0 in
78.7 cm
20.0 cm
31.0 in
8.0 in
78.7 cm
20.0 cm
40.0 in
8.0 in
101.6 cm
20.0 cm
Ice machine and adapters ordered separately. Ice storage application capacity is measured at 90% of the total
volume in cu. ft x 33lbs/ft3.
*
F1325-3030 includes K603030 adapter for two 30" ice machines.
F700 Bin F1300 Bin
Application Capacity 639 lbs 290 kgs 1194 lbs 542 kgs
Height 60.0 in 152.4 cm 65.0 in 165.1 cm
Width 30.0 in 76.2 cm 48.0 in 121.9 cm
Depth
Snout Adds
31.0 in
8.0 in
78.7 cm
20.0 cm
31.0 in
8.0 in
78.7 cm
20.0 cm
30 | manitowocice.com
ACCESSORIES
AND OPTIONS
LuminIce
®
II Virus & Bacteria
Inhibitor
• Creates “active air” to inhibit viruses,
bacteria, mold, and yeast around the
ice machine’s foodzone.
• Compatible with Indigo NXT and
NEO series.
• Runs quietly 24/7, helping maintain a cleaner foodzone
between regularly scheduled cleanings.
• Space-saving design ts inside the ice machine.
iAuCS
®
Automatic Cleaning
System
• Automates cleaning/sanitizing
based on selected intervals (1–6
months).
• Compatible with Indigo NXT
modular units.
Arctic Pure Water Filters
• Triple-stage ltration with 0.5-micron
silver carbon block and polyphosphates.
• Protects ice quality and machine
performance.
• Quick-disconnect design.
• NSF 42/53 certied.
• Use with pre-lter for maximum
eciency and cartridge life.
manitowocice.com | 31
Vertical Discharge Remote
Condensers
• Improves eciency, increases ice
output, and conserves energy.
• Compatible with Series 500–1900
ice machines.
• Includes ice maker, bin, condenser, and refrigerant lines.
• Optional “Q” sux adds coil protection for salt
spray environments.
Multi-Mount External Scoop
Holder (K00461)
• NSF-approved, tool-free assembly.
• Mounts 7 ways: bin (left/right,
horizontal/vertical) or wall
(horizontal/vertical).
• Works with D Bin scoop or LB-Style
bins (K00482 hanger).
• Optional metal scoop available (K00463).
32 | manitowocice.com
AHRI Certication
Trusted Performance You Can Count On.
Manitowoc Ice Machines and D-Bins are certied by the
American Heating and Refrigeration Institute (AHRI),
ensuring that published performance data is independently
validated to ASHRAE standards.
• Certied products are regularly tested by third-party
labs to conrm they meet published specications.
• Products carrying the AHRI label are guaranteed to
perform as rated.
• Ice machine performance is measured at 90°F ambient
and 70°F water temperature.
• Bin capacity is rated by the cubic volume of the
bin’s interior.
ENERGY STAR® Certied
Many Manitowoc ice machines proudly earn
the ENERGY STAR® label, delivering:
• Up to 15% more energy eciency
*
• Up to 10% more water eciency
*
With dozens of qualifying units, Manitowoc leads the
industry in sustainable ice production—meeting and
exceeding ENERGY STAR® guidelines to help reduce
operational costs and environmental impact.
CERTIFICATIONS
AND LISTINGS
*Compared to standard models.
manitowocice.com | 33
ISO 9001:2015 Certied Quality
At Manitowoc, quality is our top priority. We’re proud to
be the rst ice machine manufacturer in North America
to earn ISO 9001:2015 certication, a globally recognized
standard for quality management.
• Our certication reects a company-wide commitment
to excellence.
• All certied products are tested and validated to meet
ASHRAE standards.
• You can trust that our performance data is accurate and
independently veried.
Listings
Certification
9001:2015
34 | manitowocice.com
Protect Your Investment with Manitowoc Ice
Parts and Service.
You've chosen the best ice machine—keep it
performing at its peak with Manitowoc Aftermarket
Service Support.
• Every new unit includes service support tailored to
your operational needs, whether you're running a
single restaurant or managing multiple locations.
• Our team works with you to customize a service
program that covers:
• Equipment selection
• Installation and start-up
• Maintenance frequency based on factory specs
and usage
• Billing schedules
Available Service Options:
• Installations
• Start-up Services
• Service Level Agreements
• Planned Maintenance Programs
• Consumable Replenishment Programs
AFTERMARKET
ICE SUPPORT
manitowocice.com | 35
36 | manitowocice.com
ICE USAGE
GUIDE
Foodservice
• Restaurant: 1.5 lbs (0.68 kg) per person
• Cocktail Service: 3 lbs (1.4 kg) per person/seat
• Water Glass: 4 oz (118 ml) per 10 oz (296 ml) glass
• Salad Bar: 30 lbs (13.6 kg) per cubic foot
• Fast Food:
• 5 oz (148 ml) per 7–10 oz (207–296 ml) drink
• 8 oz (237 ml) per 12–16 oz (355–473 ml) drink
• 12 oz (355 ml) per 18–24 oz (532–710 ml) drink
Lodging
• Guest Ice: 5 lbs (2.7 kg) per room
• Restaurant: 1.5 lbs (0.68 kg) per person/seat
• Cocktail Service: 3 lbs (1.4 kg) per person/seat
• Catering: 1 lb (0.45 kg) per person
Convenience Stores
• Beverage Ice:
• 6 oz (177 ml) per 12 oz (355 ml) drink
• 10 oz (296 ml) per 20 oz (591 ml) drink
• 16 oz (473 ml) per 32 oz (946 ml) drink
• Cold Plate: Add 50% more ice per day
• Packaged Ice: Multiply lbs per bag × bags sold per day
Healthcare
• Cafeteria: 1 lb (0.45 kg) per person
• Patient Ice: CNF0201 model supports up to 20 beds
Beverage Service
• Drinks: Use 40% ice per drink × number of drinks served
on peak day
Need help sizing your ice machine?
Contact your local Manitowoc Ice Distributor:
manitowocice.com/Sales/Sales-Locators
manitowocice.com | 37
WARRANTIES
COMMERCIAL WARRANTY
Cube Ice Machine
• 5-year parts-and-labor coverage on Indigo NXT, S, U, QQ
and IB-model ice machine evaporators.
• 5-year parts and 3-year labor coverage on Indigo NXT, S,
U, QQ and IB-model ice machine compressor.
• 3-year parts-and-labor coverage on all dispensers,
storage bins, and Indigo NXT, S, U, QQ and IB-model ice
cube machines.
UP0065 / UP0080 Series Ice Machine
• 3-year parts-and-labor coverage on all components.
USP/UCP Series Ice Machine
• 3-year parts-and-labor coverage on all components.
UFP/RFF/RFP/UNP/RNF/RNP Ice Machines
• 3-year parts.
• 3-year labor.
• Compressor parts for 5 years and labor for 2 years.
CNP Countertop Nugget Ice Machine
• 2-year parts-and-labor coverage on all components.
• Compressor parts for 5 years and labor for 2 years.
RESIDENTIAL WARRANTY
All Ice Machines
• 1-year parts-and-labor.
All indicated Pentair trademarks and logos are property of Pentair.
Third party registered and unregistered trademarks and logos
are the property of their respective owners.
©2026 Pentair. All rights reserved. 3516ZZE AP26
2110 South 26th Street | Manitowoc, WI 54220 | United States
920.682.0161 (US Only) | 920.683.7589 Fax | manitowocice.com
