OWNER'S MANUAL
FRIDGE & FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
MFL71986468
Rev.00_073026
www.lg.com
Copyright © 2026 LG Electronics. All Rights Reserved
Scan the QR code to see the manual.
TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
CAUTION .............................................................................................................9
INSTALLATION
Before Installation...........................................................................................11
Removing the Fridge and Freezer Door........................................................11
Levelling and Door Alignment........................................................................13
Turning on the Power......................................................................................13
Moving the Appliance for Relocation ............................................................14
OPERATION
Before Use........................................................................................................15

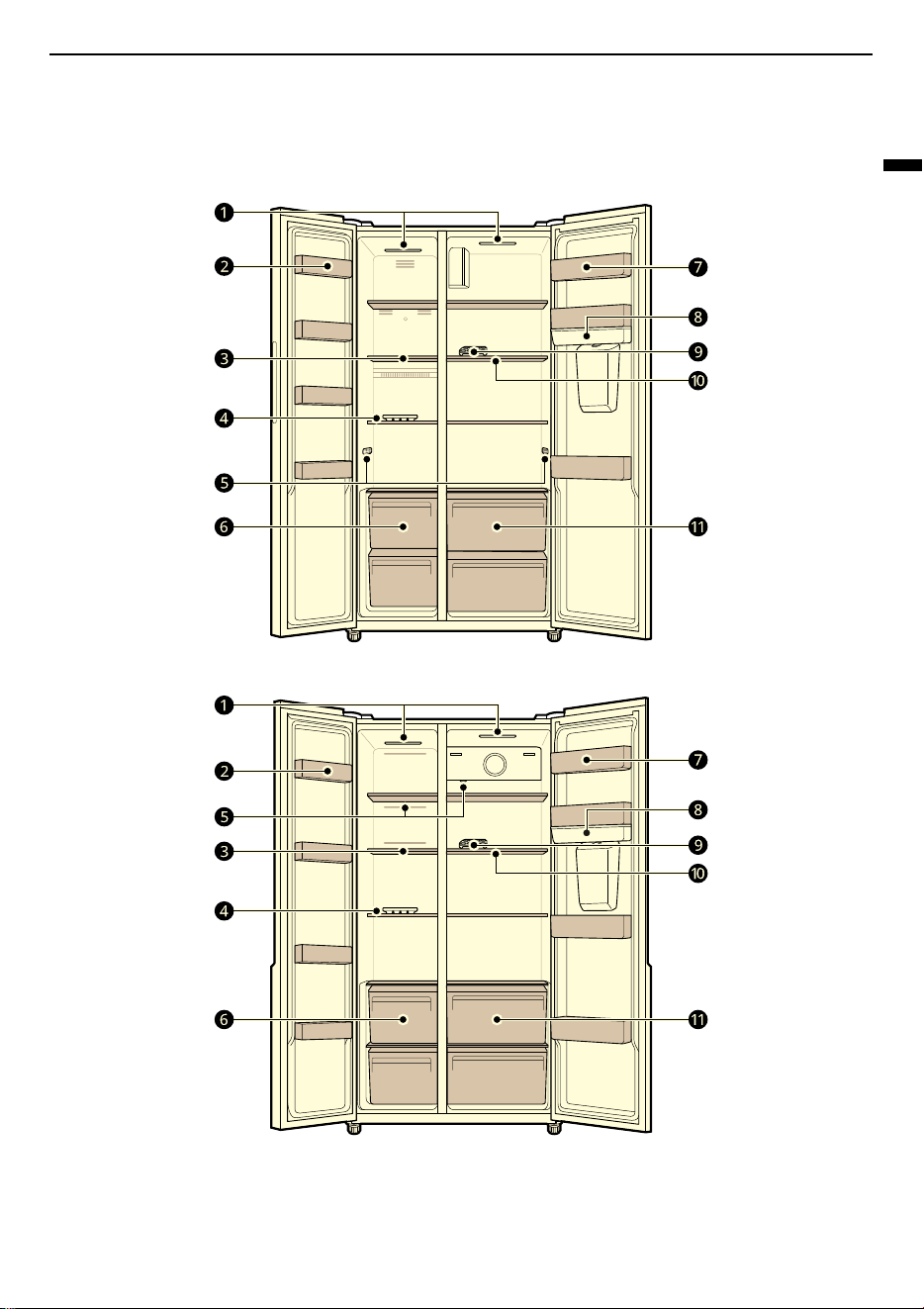

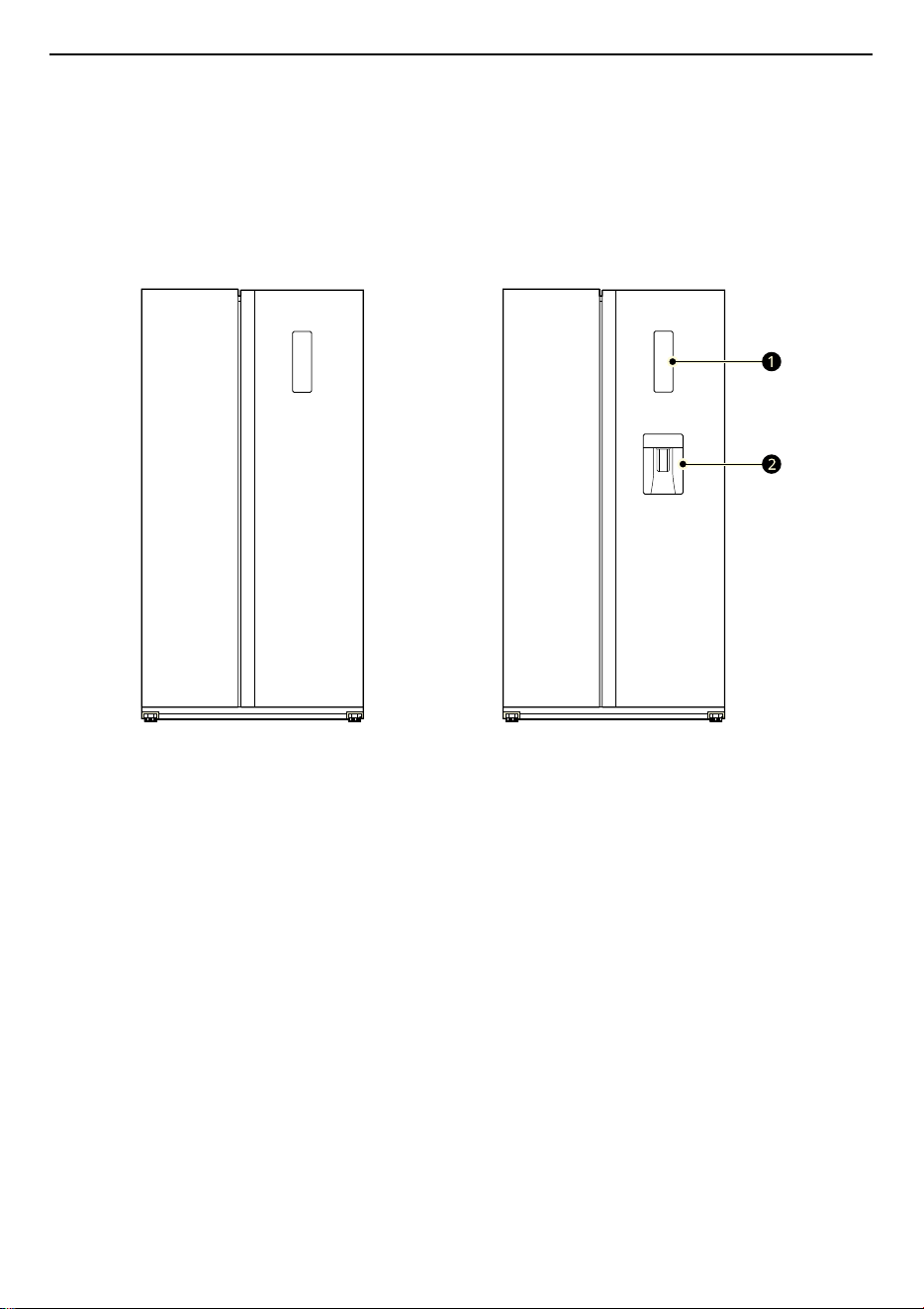

Product Features..............................................................................................18
Control Panel ....................................................................................................20
Water Dispenser...............................................................................................25
Drawer...............................................................................................................27
Shelf ...................................................................................................................27
Icemaker...........................................................................................................28
Door Basket ......................................................................................................29
MAINTENANCE
Cleaning............................................................................................................30
TROUBLESHOOTING
Before Calling for Service................................................................................32
3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into
‘WARNING’
and
‘CAUTION’
as
described below.
Safety Messages
WARNING
WARNING
To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic precautions,
including the following:
Technical Safety
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
4
SAFETY INSTRUCTIONS
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Do not damage the refrigerant circuit.
• Do not use mechanical devices or other means to accelerate the
defrosting process.
• Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction. This appliance is not for use in any
built-in or enclosed installations.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
• This appliance is intended to be used in household and similar
applications only. It should not be used for commercial, or catering
purposes, or in any mobile application such as a caravan or boat.
• This appliance is not for use in portable or mobile installations, such
as marine or RV uses, where it will be in motion while operating.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•
• This appliance contains a small amount of isobutane refrigerant
(R600a), but it is also combustible. When transporting and installing
the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• If the power cord is damaged or the hole of the outlet socket is loose,
it must be replaced. Do not use the power cord and contact an
authorized service centre in order to avoid a hazard.
This symbol alerts you to flammable materials that can
ignite and cause a fire if you do not take care.
5
SAFETY INSTRUCTIONS
ENGLISH
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
• Disconnect the power cord before cleaning the appliance interior or
exterior.
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the outlet
socket.
• Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG
Electronics customer information centre if you move and install the
appliance in a different location.
• Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
• Do not tilt the appliance to pull or push it when transporting.
• Make sure not to get a body part such as a hand or foot stuck while
moving the appliance.
• Consult with a service agent or a similarly qualified person about the
recovery of refrigerant and recycling of components on disposal of
the refrigerating appliance.
Risk of Fire and Flammable Materials
• If a leak is detected, avoid any naked flames or potential sources of
ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size of the
room in which the appliance is used should correspond to the
6
SAFETY INSTRUCTIONS
amount of refrigerant used. The room must be 1 m² in size for every
8 g of R600a refrigerant inside the appliance.
• Refrigerant leaking out of the pipes could ignite or cause an
explosion.
• The amount of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
Installation
• This appliance should only be transported by two or more people
holding the appliance securely.
• Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Install the appliance in a place where it is easy to unplug the power
plug of the appliance.
• In the event that a door needs to be removed to pass the unit through
a doorway, be careful not to let the appliance door fall during
assembly or disassembly.
• Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
• Be careful not to point the power plug up or let the appliance lean
against the power plug.
• Do not connect a plug adapter or other accessories to the power
plug.
• Do not modify or extend the power cable.
• Ensure that the outlet socket is properly grounded, and that the earth
pin on the power cord is not damaged or removed from the power
7
SAFETY INSTRUCTIONS
ENGLISH
plug. For more details on grounding, inquire at an LG Electronics
customer information centre.
• This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate outlet socket that is installed
and grounded in accordance with all local codes and ordinances.
• Never start up an appliance showing any signs of damage. If in doubt,
consult your dealer.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
• Do not plug the appliance into multiple outlet sockets, power boards,
or an extension power cable.
• Do not use an extension cord or double adapter.
Operation
• Do not use the appliance for any purpose (storage of medical or
experimental materials or temperature strict medicines) other than
any domestic household food storage use.
• If water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
• Unplug the power plug during a severe lightning or thunderstorm or
when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet
hands.
• Do not bend the power cable excessively or place a heavy object on it.
• Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour, or
smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the
cold air, covers or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the
appliance.
8
SAFETY INSTRUCTIONS
• Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects (such as candles, lamps,
etc.), or heating devices (such as stoves, heaters, etc.) on the
appliance.
• Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not
touch the appliance or power plug and ventilate the area
immediately. This appliance uses a refrigerant gas (isobutane,
R600a). Although it uses a small amount of the gas, it is still
combustible gas. Gas leakage during appliance transport, installation
or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide, air
freshener, cosmetics, etc.) near the appliance.
• This appliance incorporates an earth connection for functional
purposes.
• Connect to potable water supply only (only for models with dispenser
function needing plumbed connection).
- If connected to a water supply, connect to a potable water supply
only.
• Fill with potable water only.
- If using an icemaker or water tank, make sure to fill it with potable
water only.
Disposal
• When discarding the appliance, remove the door gasket while leaving
the shelves and baskets in place and keep children away from the
appliance.
9
SAFETY INSTRUCTIONS
ENGLISH
CAUTION
CAUTION
To reduce the risk of minor injury to persons, malfunction, or damage
to the product or property when using this product, follow basic
precautions, including the following:
Installation
• After unpacking, check the appliance for any damage that may have
occurred during transit.
• Wait for at least 3 to 4 hours in order to ensure the refrigerant circuit
is fully efficient.
• Move the appliance carefully on sensitive floors to avoid damage to
the floor.
Operation
• This appliance must only be used with a town power supply. Solar
inverters and generator power supplies could cause disruption to
performance and potentially damage the electronics.
• Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves or
ice bucket that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch it
with hands.
• Do not hang from the appliance doors, door baskets, storage
compartments or shelves, or climb up into the appliance.
• Do not store an excessive amount of water bottles or containers in
the door baskets.
• Do not open or close the appliance door with excessive force.
10
SAFETY INSTRUCTIONS
• If the hinge of the appliance door is damaged or operates
improperly, stop using the appliance and contact an authorized
service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out of
the freezer compartment.
• Make sure not to get a hand or foot stuck upon opening or closing the
appliance door or door in door.
Maintenance
• This appliance is equipped with maintenance-free LED interior light.
Do not remove cover or LED lamp in any attempt to repair or change
it. Contact an LG Electronics customer information centre.
• Do not clean glass shelves or covers with warm water when they are
cold. They may shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics
customer information centre.
• Dispose of the ice inside the ice bucket in the freezer compartment
during an extended power outage.
11
INSTALLATION
ENGLISH
INSTALLATION
Before Installation
Dimensions and Clearances
Too small of a distance from adjacent items may
result in the degradation of freezing capability and
increased electricity costs. Allow over 50 mm of
clearance between the back of the appliance and
the wall when installing the appliance.
NOTE
• You can determine what type of appliance it is by
looking at the label inside the appliance.
Ambient Temperature
• The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone.
• The internal temperatures could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening and
so on.
• The climate class can be found on the rating
label.
* Australia, India, Kenya
** Argentina
NOTE
• The appliances rated from SN to T are intended
to be used at an ambient temperature between
10 ºC and 43 ºC.
Removing the Fridge and
Freezer Door
If your entrance door is too narrow for the
appliance to pass through, remove the appliance
doors and pass the appliance laterally.
WARNING
• Disconnect the power cord, house fuse or circuit
breaker before installing, removing the doors, or
cleaning the appliance. Failure to follow these
-
Size (mm)
Type A Type B
A910910
B 1770 1770
C590730
D504644
E517657
F590730
G 1040 1177
H 1566 1566
Climate Class
Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38 / +18 - +38**
T (Tropical) +10 - +43* / +16 - +43 /
+18 - +43**
12
INSTALLATION
instructions may result in death, fire or electric
shock.
Removing the Hinge Cover
Remove the screws from the hinge cover at the top
of the appliance. Lift the hook (not visible), located
at the bottom of the front side of the cover with a
flat-head screwdriver.
Removing the Freezer Door
1
Disconnect all wire harnesses. Unscrew the
screws.
NOTE
• The number of wire harnesses may vary
depending on the model.
2
Lift the freezer door until it is free of the
bottom hinge assembly.
CAUTION
• Place the door on a non-scratching surface with
the inner side facing up.
Removing the Fridge Door
1
Disconnect all wire harnesses. Unscrew the
screws.
NOTE
• The number of wire harnesses may vary
depending on the model.
13
INSTALLATION
ENGLISH
2
Lift the fridge door until it is free of the bottom
hinge assembly.
CAUTION
• Place the door on a non-scratching surface with
the inner side facing up.
Refitting the Fridge and Freezer
Door
Refit the doors in the reverse sequence of their
removal once the appliance has been passed
through all access doors.
CAUTION
• Install the fridge door first.
Levelling and Door
Alignment
Adjusting the Levelling Leg
If the appliance seems unsteady, or the doors do
not close easily, adjust the appliance’s tilt using the
instructions below.
1
Turn the levelling leg clockwise to raise that
side of the appliance or counterclockwise to
lower it.
2
Open the doors and check to make sure that
they close easily.
NOTE
• Leveling the doors may not be possible when the
floor is not leveled, or is of weak or poor
construction.
• The refrigerator is heavy and should be installed
on a rigid and solid surface.
• Some timber flooring may cause levelling
difficulties if it flexes excessively.
Turning on the Power
Connecting the Appliance
To turn on the appliance, connect the power plug
into the outlet socket. Do not double up with other
appliances on the same outlet.
NOTE
• After connecting the power supply cord (or plug)
to the outlet, wait enough time before you put
food into the appliance. If you add food before
the appliance has cooled completely, your food
may spoil. Make sure you have removed any
clear protective film where it has been applied to
the door.
• To turn off the appliance, disconnect the power
plug from the outlet socket.
14
INSTALLATION
Moving the Appliance for
Relocation
Moving the Appliance
1
Remove all food from inside the appliance.
2
Fix the power plug.
• Models with a power plug hook:
Pull the power plug out, insert and fix it into
the power plug hook at the rear or on top of
the appliance.
• Models without a power plug hook:
Pull the power plug out and fix the power
supply cable with a tape to the side of the
appliance where the power socket is located
at the installation site.
3
Tape parts such as shelves and the door handle
to prevent from falling off while moving the
appliance.
4
Move the appliance with more than two people
carefully. When transporting the appliance
over a long distance, keep the appliance
upright.
CAUTION
• Move the appliance carefully on sensitive floors
to avoid damage to the floor.
- Use cardboard, floor mat or carpet to prevent
scratches on the floor when installing or
moving the appliance.
- Do not move the appliance in zigzags.
5
After installing the appliance, connect the
power plug into a mains outlet socket and
switch it on.
15
OPERATION
ENGLISH
OPERATION
Before Use
Notes for Operation
• Users should keep in mind that frost can form if
the door is not closed completely or if the
humidity is high during the summer.
• Ensure there is sufficient space between food
stored on the shelf or door basket to allow the
door to close completely.
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• If the refrigerating appliance is left empty for
long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould
developing within the appliance.
• Note that a temperature rise after defrosting has
a permissible range in the appliance
specifications. If you wish to minimise the impact
on the food storage due to a temperature rise,
seal or wrap the stored food in several layers.
• You can remove fridge/freezer drawers, water
tank
*1
, or ice bucket
*1
to create more space
inside the appliance if you desire.
*1 This feature is only available on some models.
Door Open Alarm
This feature is only available on some models.
The alarm sounds if the door is left open or not
completely closed. The door alarm feature cannot
be disabled.
NOTE
• Contact the LG Electronics customer information
centre if the alarm sound continues even after
closing all doors.
Failure Detection
The appliance can automatically detect problems
during the operation.
NOTE
• If a problem is detected, the appliance may not
operate and an error code is displayed even
when any button is pressed.
• If an error code is indicated on the display, do
not turn off the power. Immediately contact the
LG Electronics customer information centre and
report the error code. If you turn off the power,
the repair technician from the our information
centre may have difficulty finding the problem.
Suggestion for Energy Saving
• For the most efficient use of energy, keep all
inner parts (e.g. door baskets, drawers and
shelves) on their original location. Altering their
positions may result in less efficient energy
consumption or performance.
• Ensure there is sufficient space between stored
foods. This allows cold air to be circulated evenly
and lowers electricity bills.
• Store hot food only after it has cooled in order to
prevent dew or frost.
• When storing food in the freezer compartment,
set the freezer temperature lower than the
temperature indicated on the food.
• Do not set the temperature of the appliance
lower than needed.
• Do not put food near the temperature sensor of
the fridge compartment. Keep a distance of at
least 3 cm from the sensor.
Storing Foods Effectively
• Food may freeze or spoil if stored at the wrong
temperature. Set the refrigerator to the correct
temperature for the food being stored.
16
OPERATION
• Store frozen food or refrigerated food inside
sealed containers.
• Check the expiration date and label (storage
instructions) before storing food in the
appliance.
• Do not store food for a long period of time if it
spoils easily at a low temperature.
• Do not place unfrozen food in direct contact with
food that is already frozen. It could be necessary
to reduce the quantity to be frozen if freezing
every day is anticipated.
• Place the refrigerated food or frozen food in
each fridge or freezer compartment
immediately after purchasing.
• Store raw meat and fish in suitable containers in
the refrigerator, so that it is not in contact with or
drip onto other food.
• Refrigerated foods and other food items can be
stored on top of the vegetable drawer.
• Avoid refreezing any food which has been
completely thawed. Freezing any food which has
been completely thawed again will lower its taste
and nutrition.
• Do not overfill the appliance. Cold air can not
circulate properly if the appliance is overfilled.
• Cool hot food before storing. If too much hot
food is placed inside, the internal temperature of
the appliance can increase and negatively affect
other foods stored in the appliance.
• If you set an excessively low temperature for
food, it may become frozen. Do not set a
temperature lower than the required
temperature for the food to be stored correctly.
• If there are chill compartments in the appliance,
do not store vegetables and fruits with higher
moisture content in the chill compartments as
they may freeze due to the lower temperature.
• In the event of a blackout, call the electricity
company and ask how long it is going to last.
- You should avoid door openings while the
power is off.
- When the power supply gets back to normal,
check the condition of the food.
Maximum Freezing Capacity
• For maximum freezing capacity, set the freezer
temperature to the coldest temperature setting.
•
Express Freeze
function will allow the freezer to
reach its maximum freezing capacity. This
generally takes up to 50 hours and automatically
switches off.
•
Express Freeze
must be switched on for 24
hours before fresh products are placed in the
freezer compartment.
• To freeze food items quickly, store the food on
the left side of the top shelf. If you need to store
more food, store it on the shelves in order
starting from the top shelf. Food items will freeze
most quickly in the zone.
• To get better air circulation, insert all inner parts
like baskets, drawers, and shelves.
Freezing the Maximum Amount
of Food
If large quantities of food are to be stored, all the
freezer drawers should be taken out of the
appliance and the food should be stacked directly
on the freezer shelves in the freezer compartment.
CAUTION
• To remove the drawers, first remove the food
from drawers and then pull out the drawers
carefully. Not doing so could cause injury or
damage to the drawers.
NOTE
• The shape of each drawer may be different,
insert in the right position.
Two Star Compartment
• Two star (
a
) basket or drawer can be used to
store ice and food from -12 °C to -18 °C for short
periods.
17
OPERATION
ENGLISH
• Two star frozen food compartments are suitable
for storing pre-frozen food, storing or making
icecream and making ice cubes.
• Two star compartments are not suitable for the
freezing of fresh food.
• Two star compartment(s) are available in
selected models and in accordance with
standard IEC 62552.
19
OPERATION
ENGLISH
Interior
*1 This feature is only available on some models.
a
LED Lamp
The LED lamps inside the appliance light up when you open the door.
b
Freezer Door Basket
20
OPERATION
Stores small packages of frozen food. Do not store ice cream or food which will be stored for a long
period of time.
c
Freezer Shelf
Stores frozen food such as meat, fish, and ice cream.
d
Ice Tray
This is where ice is manually produced.
• For more space, you can remove the ice tray.
e
Temperature Sensor
This sensor senses the temperature of the fridge compartment and the freezer compartment.
• Maintain the distance between the sensor and food to accurately sense the temperature.
f
Freezer Drawer
Stores frozen food for longer storage.
g
Fridge Door Basket
Stores small packages of refrigerated foods, drinks and sauce containers.
h
Water Dispenser Tank
*1
Stores water to supply the dispenser. It requires manual filling.
i
Movable Egg Tray
This is where eggs are stored.
• You can move it to and use it at a desired position as needed. However, do not use it as the ice bin or
place it on the shelf on top of the fridge or the vegetables drawer.
j
Fridge Shelf
Stores refrigerated foods and fresh foods.
• Stores the foods with higher moisture content at the front of the shelf.
• The shelf height can be adjusted by inserting the shelf in another groove of different height.
k
Fridge Drawer
Keeps fruits and vegetables fresh.
Control Panel
The actual control panel may differ from model to model.
Control Panel and Functions
*1 This feature is only available on some models.
21
OPERATION
ENGLISH

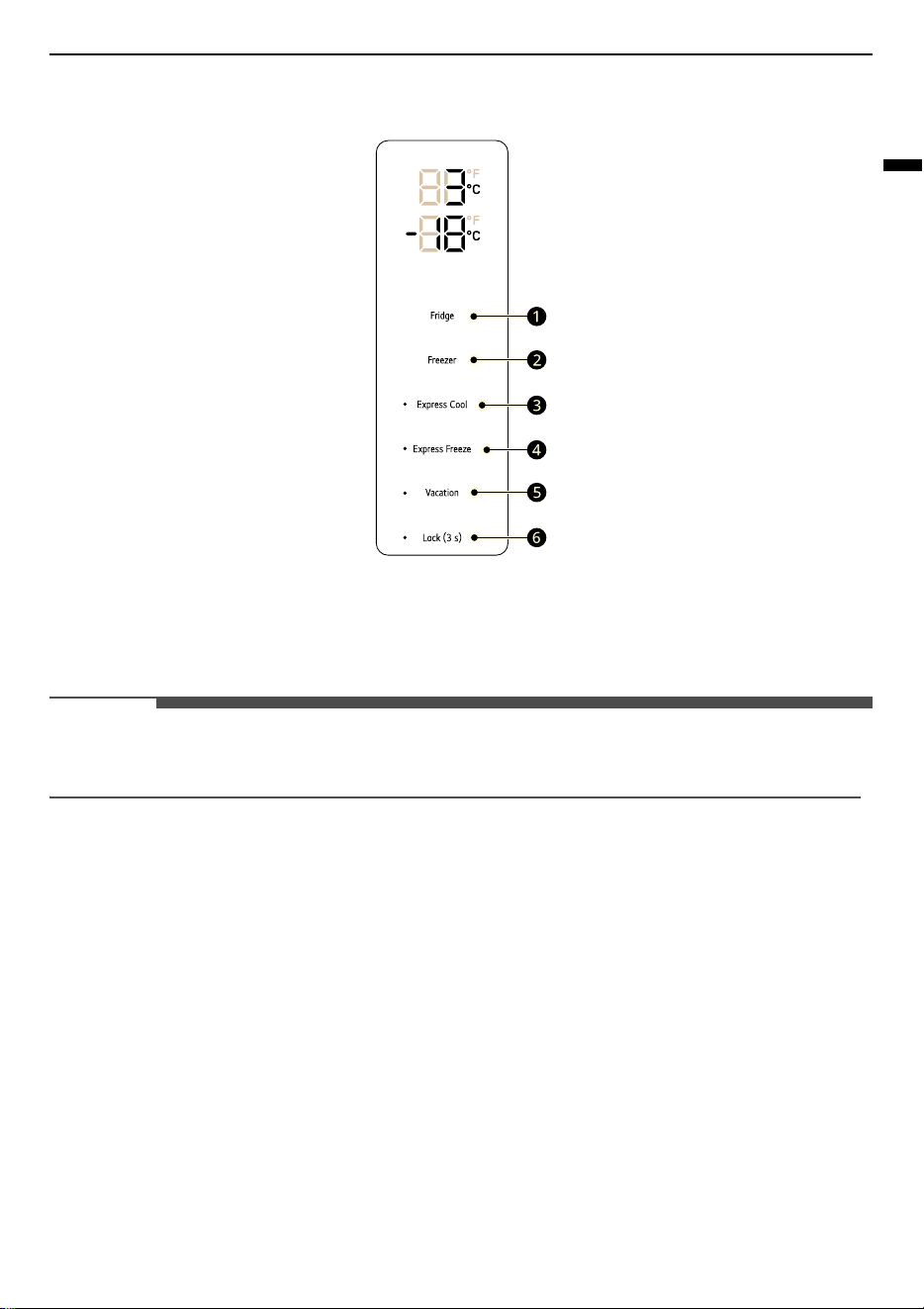

Type A
a
Fridge
Press this button repeatedly to select a desired temperature between 2
7
and 8
7
.
• The default fridge temperature is 5
7
.
NOTE
• The actual inner temperature varies depending on the food status, as the indicated setting temperature
is a target temperature, not actual temperature within the appliance.
b
Freezer
Press this button repeatedly to select a desired temperature between -22
7
and -14
7
.
• The default freezer temperature is -18
7
.
c
Express Cool
This function can quickly cool a large amount of foods such as vegetable, fruit and so on.
• This function is enabled and disabled in turn each time you press the button.
• This function automatically shuts off after 2.5 hours.
d
Express Freeze
This function can quickly freeze a large amount of ice or frozen foods.
• Press the
Express Freeze
button to activate the function for 50 hours. The function automatically
shuts off after 50 hours.
• This function is enabled and disabled in turn each time you press the button.
• This function automatically terminates after a specific period has passed.
e
Vacation
22
OPERATION
• Press the
Vacation
button to choose the vacation mode. The vacation icon lights up after flashing for
5 seconds to enter the vacation mode.
• The temperature of the vacation mode is fixed at 17
7
in the fridge, the
Fridge
button is inactive,
and the vacation icon will flash three times as an alarm.
• The temperature of the freezer is adjusted freely.
• Press the
Vacation
button to exit the vacation mode, then after 5 seconds enter the selected mode.
f
Lock
This locks the buttons on the control panel.
• To lock the control panel buttons, press and hold the
Lock
button for 3 seconds until the function is
activated.
• To disable the function, press and hold the
Lock
button for 3 seconds until the function is
deactivated.
23
OPERATION
ENGLISH
Type B
a
Auto
(Auto Adjust)
You can use this mode when you do not need a high degree of cooling, such as going on vacation. When
activated, this mode adjusts the temperature of the fridge and freezer sections according to the
ambient temperature to optimize energy consumption.
• Press the
Mode
button to choose the
Auto
(Auto Adjust) mode. The
Auto
(Auto Adjust) icon lights up
after flashing for 5 seconds to enter the
Auto
(Auto Adjust) mode.
• The
Fridge
and
Freezer
buttons will not work in the
Auto
(Auto Adjust) mode.
• Press the
Mode
button to exit the
Auto
(Auto Adjust) mode.
• The temperature of the fridge and freezer is set according to the following guidelines.
b
Vacation
Ambient
Recommended With Auto (Auto Adjust) Mode
Fridge Freezer Fridge Freezer
T
1
13
7
4
7
-18
7
3
7
-18
7
13
73
T
1
20
7
4
7
-18
7
20
73
T
1
27
7
5
7
-18
7
27
73
T
1
34
7
6
7
-16
7
T
4
34
7
8
7
-15
7
24
OPERATION
• Press the
Vacation
button to choose the vacation mode. The vacation icon lights up after flashing for
5 seconds to enter the vacation mode.
• The temperature of the vacation mode is fixed at 17
7
in the fridge, the
Fridge
button is inactive,
and the vacation icon will flash three times as an alarm.
• The temperature of the freezer is adjusted freely.
• Press the
Vacation
button to exit the vacation mode, then after 5 seconds enter the selected mode.
c
Express Cool
This function can quickly cool a large amount of foods such as vegetable, fruit and so on.
• This function is enabled and disabled in turn each time you press the button.
• This function automatically shuts off after 2.5 hours.
d
Express Freeze
This function can quickly freeze a large amount of ice or frozen foods.
• Press the
Express Freeze
button to activate the function for 50 hours. The function automatically
shuts off after 50 hours.
• This function is enabled and disabled in turn each time you press the button.
• This function automatically terminates after a specific period has passed.
e
Freezer
Press this button repeatedly to select a desired temperature between -22
7
and -14
7
.
• The default freezer temperature is -18
7
.
f
Fridge
Press this button repeatedly to select a desired temperature between 2
7
and 8
7
.
• The default fridge temperature is 5
7
.
NOTE
• The actual inner temperature varies depending on the food status, as the indicated setting temperature
is a target temperature, not actual temperature within the appliance.
g
Mode
You can select the
Auto
(Auto Adjust) mode, vacation mode, super freeze mode and user defined mode
by pressing this button consecutively. A 5-second flash confirms the selection.
h
Lock
This locks the buttons on the control panel.
• To lock the control panel buttons, press and hold the
Lock
button for 3 seconds until the function is
activated.
• To disable the function, press and hold the
Lock
button for 3 seconds until the function is
deactivated.
NOTE
• The displayed temperature is the target temperature, and not the actual temperature inside the
appliance.
25
OPERATION
ENGLISH
• The actual temperature inside the appliance depends on the following factors: room temperature, the
amount of food and how often the doors are opened, where the appliance is. Set the temperatures by
considering these factors.
• If there is any finger or skin contacts to the control panel while cleaning it, the button function may
operate.
Water Dispenser
This feature is only available on some models.
Before Using the Water
Dispenser
CAUTION
• Keep children away from the dispenser to
prevent children playing with or damaging the
controls.
• If water dispenses unexpectedly, turn off the
water supply and contact an LG Electronics
Customer Information Centre.
NOTE
• The first water dispensed may include particles
or odour from the water supply line or the water
tank. This is also necessary if the appliance has
not been used for a long time.
• If the cup rim is small, water may splash out of
the glass or miss it completely.
• Use a cup with a rim of over 68 mm in diameter
when dispensing water.
Using the Water Dispenser
Press the dispenser paddle
a
with a glass or other
container to dispense water.
Some dripping may occur after dispensing if the
water in the water tank is below the minimum level.
• Hold a cup beneath the dispenser for a few
seconds after dispensing to catch all of the
drops.
• Make sure to keep enough water in the water
tank above the minimum level.
• Wipe up any spilled water nearby with a clean
cloth.

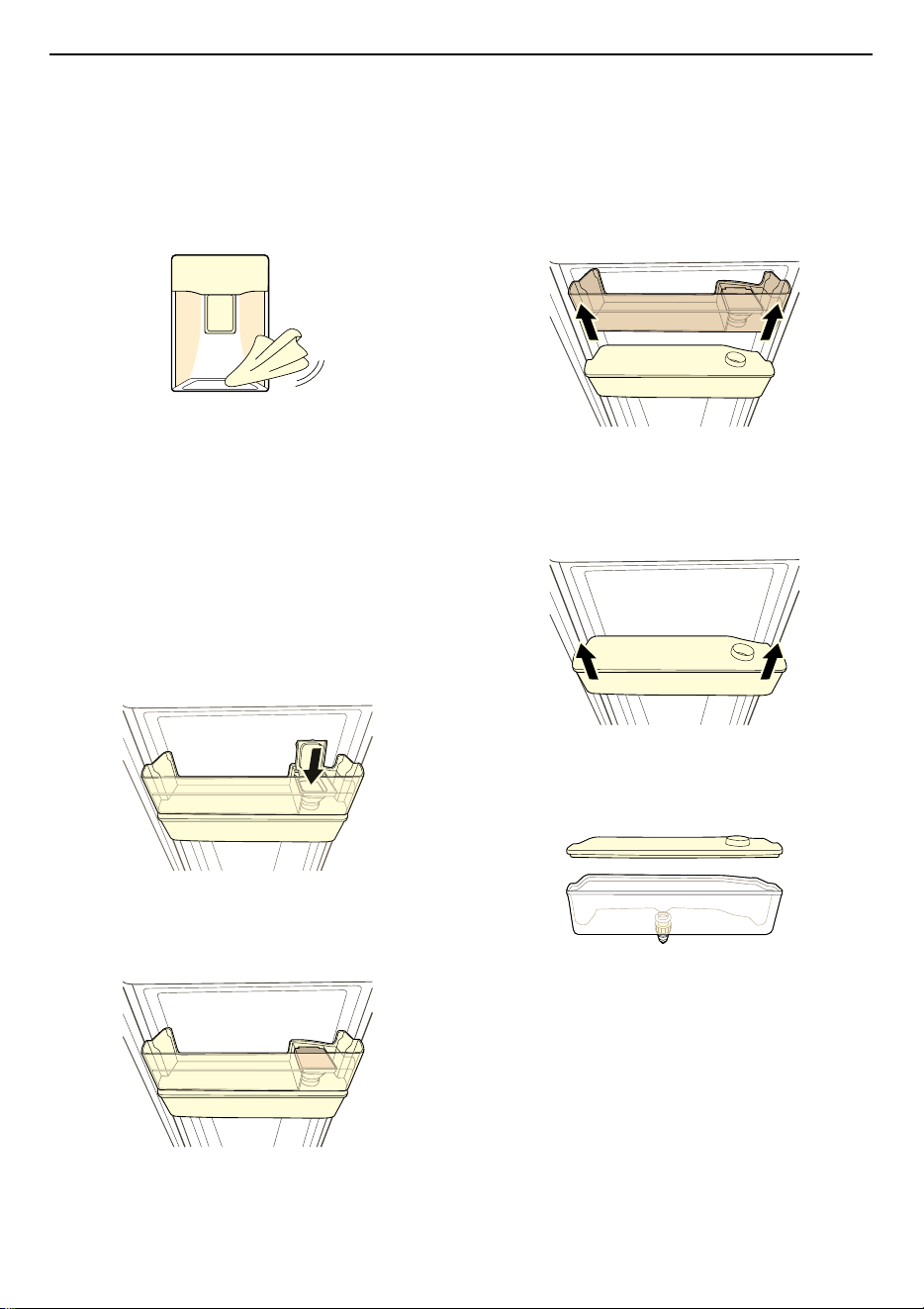

Cleaning the Water Outlet
Wipe the water outlet frequently with a clean, lint
free cloth as it may get dirty easily.
NOTE
• Lint from a cloth may adhere to the outlets.
26
OPERATION
Cleaning the Dispenser Tray
Wipe the entire area with a damp cloth. The
dispenser tray may become wet easily due to
spilled water. Water or ice spillages must be dried
immediately with a dry cloth or paper towel to
maintain the integrity of the door finish.
Filling the Water Tank with
Water
This feature is only available on some models.
Filling the Water Tank
1
Open the water tank cap and fill the tank with
potable water.
2
Close the water tank cap.
Cleaning the Water Tank
Clean water tanks if they have not been used for 48
hours.
1
Hold both sides of the upper basket and lift it
upwards.
2
Hold both sides of the water tank and lift it
upwards.
3
Remove the water tank cover.
4
Empty the water tank.
27
OPERATION
ENGLISH
5
Remove the water valve
a
in the water tank by
turning it clockwise.
6
Clean the water tank and the water valve in
running water. Wipe the inside and outside of
the water tank and the fridge door with a clean
cloth.
7
Mount the water tank in the reverse order of
the removal process.
WARNING
• Fill with potable water only.
• Do not fill the water tank with drinks other than
water and never fill with hot water.
CAUTION
• Do not apply excessive force or impact when
removing or assembling the water tank. Doing
so can cause appliance damage or injury.
• Children should not be allowed near the tank.
NOTE
• Before using the water tank after installing the
appliance, it should be washed before filling it
with water.
• Check if the water tank has been placed on the
appliance correctly. If it is not assembled
correctly, water may leak from the tank into the
appliance.
• If there is no water in the water tank, the cold
water dispensing function of the cannot be used.
Check if there is water in the water tank and then
fill it with water if there is not.
Drawer
CAUTION
• Always empty the drawers before removing
them, and use both hands when removing and
refitting them.
• Make sure that the fridge doors are fully open
before removing and refitting the drawers.
Removing/Refitting Drawers
1
Remove the contents of the drawer. Hold the
handle of the vegetable drawer and gently pull
it out.
2
Lift the vegetable drawer up and remove it by
pulling it out.
3
Refit the drawer in the reverse order of the
removal process.
Shelf
CAUTION
• Glass shelves are heavy. Use special care when
removing them.
• Do not clean glass shelves with warm water
while they are cold. Shelves may break if
exposed to sudden temperature changes or
impact.
28
OPERATION
Removing/Refitting the Shelf
1
Tilt up the front of the shelf and then lift the
shelf straight up.
2
Pull the shelf out.
3
Mount the shelves in the reverse order of the
removal process.
CAUTION
• Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf
falling or food spilling.
Icemaker
Before Using the Icemaker
WARNING
• Fill with potable water only into icemaker or
dispenser water tank.
NOTE
• The icemaker produces ice normally once
approximately 48 hours have passed after the
appliance is initially installed.
• If half-frozen ice is put into the ice storage bin, it
will cause the exiting ice cubes to lump together.
It takes about 4 hours at - 20 °C for ice
production.
• If the freezer door is frequently opened, warm
air enters the freezer compartment. It may take
a longer time to freeze ice.
• Be careful not to twist the ice maker with force
since it can break.
• Do not freeze the ice in the ice storage bin. This
could break it and cause appliance damage or
injury.
Using the Ice Tray
This is where ice is manually produced. You can
remove the ice tray if you do not use it to create
more space inside the freezer.
1
Fill the ice tray with potable water and place it
in the freezer.
2
After the water is frozen, hold the ice tray at its
ends and twist gently.
CAUTION
• Be careful not to twist the ice tray with force as it
can be broken.
• If you open and close the freezer door
frequently, it may take longer for water to be
frozen.
NOTE
• If the ice tray is overfilled, the ice cubes may stick
together and be difficult to remove.
29
OPERATION
ENGLISH
• Ice can be removed more easily by pouring
water on the ice tray.
Door Basket
Removing/Refitting the Door
Basket
1
Hold both edges of the basket and remove it by
lifting it upward.
2
Refit the door baskets in the reverse order of
the removal process.
30
MAINTENANCE
MAINTENANCE
Cleaning
General Cleaning Tips
• Performing manual defrosting, maintenance or
cleaning of the appliance while food is stored in
the freezer can raise the temperature of the food
and reduce its storage life.
• Regularly clean any surfaces that can come in
contact with food.
• When cleaning the inside or outside of the
appliance, do not wipe it with a rough brush,
toothpaste, or abrasive pads. Do not use any
chemical cleaners that contain or are blended
with solvents or flammable substances or
caustic based detergents. These include but are
not limited to:
- Flammable substances: alcohol (ethanol,
methanol, isopropyl alcohol, isobutyl alcohol,
etc.), thinner, bleach, benzene, flammable
liquid, abrasive, etc.
- This may cause discolouration or damage to
the appliance's internal parts and wall lining.
• After cleaning, check if the power cable is
damaged.
Cleaning the Exterior
• With models that have vents and rear covers
fitted, the outside air vents and rear lower cover
should be cleaned periodically to remove dust
buildup. Failure to do so could cause the
appliance to lose its cooling ability and cause the
compressor to overheat and malfunction,
resulting in food loss. We strongly recommend
this be done every 12 months or less, depending
on the environment.
• When cleaning the side vents and rear lower
cover by vacuuming, then the power cord must
be unplugged from the outlet to avoid any static
discharge that can damage the electronics or
cause an electric shock. Regular cleaning of the
rear and side ventilation covers is also necessary
to maintain reliable and economical operation of
the unit.
• Failure to keep the air vents on the exterior of
the appliance clean can also cause overheating,
appliance damage or property damage if the
defrosted water cannot evaporate from the rear
drain pan.
• For the appliance exterior, use a clean sponge or
soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry
thoroughly with a soft dedicated cloth. Do not
use contaminated cloths when cleaning the
stainless steel doors. Always use a dedicated
cloth and wipe in the same direction as the grain.
This helps reduce surface staining and
tarnishing.
Cleaning the Interior
• Before removing a shelf or drawer from inside
the appliance, remove all stored foods from the
shelf or drawer to prevent injury or damage to
the appliance. Otherwise, injury may occur due
to the weight of stored foods.
• Detach the shelves and drawers and clean them
with water and a mild detergent, and then dry
them sufficiently, before replacing them.
• Regularly wipe the door gaskets and door seals
with water and a mild detergent. Never use
solvent or acidic based chemicals to clean the
interior. Doing so will alter its integrity.
• Door basket spills and stains should be cleaned
as they can compromise storage ability of the
basket and could even be damaged.
• Never clean the shelves, door baskets, or
containers in the dishwasher or in hot water. The
parts may become deformed, and glass may
shatter due to the heat.
• The automatic defrosting system in the
appliance ensures that the compartment
remains free of ice buildup under normal
operating conditions. Users do not need to
defrost it manually.
31
MAINTENANCE
ENGLISH
Cleaning the Condenser Cover
Use a vacuum cleaner with a brush to clean the
condenser cover and vents. Do not remove the
panel covering the condenser coil area.
We strongly recommend that this be done every 12
months to maintain operating efficiency. Failing to
do so could cause loss of cooling, higher energy
usage and compressor overheating.
32
TROUBLESHOOTING
TROUBLESHOOTING
Before Calling for Service
Cooling
Symptoms Possible Cause & Solution
There is no
refrigeration or
freezing.
Is there a power interruption?
• Check the power of other appliances.
Appliance is unplugged.
• Plug the power plug in the outlet properly.
A fuse in your home may be blown or the circuit breaker tripped. Or the
appliance is connected to a GFCI (Ground Fault Circuit Interrupter)
outlet, and the outlet's circuit breaker has tripped.
• Check the main electrical box and replace the fuse or reset the circuit
breaker. Do not increase fuse capacity. If the problem is a circuit overload,
have it corrected by a qualified electrician.
• Reset the circuit breaker on the GFCI. If the problem persists, contact an
electrician.
There is poor
refrigeration or
freezing.
Is the fridge or freezer temperature set to its warmest setting?
• Set the fridge or freezer temperature to a colder setting.
Is the appliance in direct sunlight, or is it near a heat generating object
such as cooking oven or heater?
• Check the installation area and reinstall it away from heat generating
objects.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
Did you put in too much food?
• Maintain an appropriate space between food.
Are the appliance doors completely closed?
• Completely close the door and make sure that stored food is not
obstructing in the door.
Is there enough space around the appliance?
• Adjust the installation position to make enough space around the
appliance.
The appliance contains
a bad smell.
Is the fridge or freezer temperature set to its warmest setting?
• Set the fridge or freezer temperature to a colder setting.
33
TROUBLESHOOTING
ENGLISH
Condensation & Frost
The appliance contains
a bad smell.
Did you put in food with a strong smell?
• Store foods with strong smells in sealed containers.
Vegetables or fruit may have spoiled in the drawer.
• Throw away rotten vegetables and clean the vegetable drawer. Do not
store vegetables too long in the vegetable drawer.
Symptoms Possible Cause & Solution
There is condensation
inside the appliance or
on the bottom of the
vegetable drawer
cover.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it inside the fridge or freezer.
Did you leave the appliance door open?
• Although the condensation will disappear soon after you close the
appliance door, you can wipe it with a dry cloth.
Do you open and close the appliance door too frequently?
• Condensation can form due to the temperature difference from the
outside. Wipe out the dampness with a dry cloth.
Did you put warm or moist food inside without sealing it in a container?
• Store food in a covered or sealed container.
Frost has formed in the
freezer compartment.
Doors may not be closed properly.
• Check if the food item inside the appliance is blocking the door and make
sure that the door is tightly closed.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
Is the air entry or exit of the freezer compartment blocked?
• Make sure that air entry or exit is not blocked so that the air can circulate
inside.
Is the freezer compartment overfilled?
• Maintain an appropriate space between items.
Frost or condensation
has formed inside or
outside the appliance.
Did you open and close the appliance door frequently or is the appliance
door improperly closed?
• Frosts or condensation can form if the outside air penetrates inside the
appliance.
Symptoms Possible Cause & Solution
34
TROUBLESHOOTING
Parts & Features
Frost or condensation
has formed inside or
outside the appliance.
Is the installation environment humid?
• Condensation can appear on the exterior of the appliance if the installation
area is too humid or on a humid day such as a rainy day. Wipe off any
moisture with a dry cloth.
The side or front of the
appliance is warm.
There are anti condensation pipes fitted to these areas of the appliance
to reduce condensation forming from around the door area.
• The heat releasing pipe to prevent condensation is installed on the front
and side of the appliance. You may feel it particularly hot right after the
appliance is installed or during the summer. You can be assured that this
is not a problem and is quite normal.
There is water inside or
outside of the
appliance.
Is there water leakage around the appliance?
• Check if the water has leaked from a sink or another place.
Is there water on the bottom of the appliance?
• Check if the water is from the thawed frozen food or a broken or dropped
container.
Symptoms Possible Cause & Solution
The appliance door is
not closed tightly.
Is the appliance leaning forward?
• Adjust the front feet to raise the front side slightly.
Were the shelves properly assembled?
• Refit the shelves if needed.
Did you close the door with excessive force?
• If you apply too much force or speed when closing the door, it may remain
briefly open before closing. Make sure that you do not slam the door
closed. Close the door gently.
It is difficult to open
the appliance door.
Did you open the door right after you closed it?
• If you try to open the appliance door within one minute after you closed it,
you may have difficulties because of the pressure inside the appliance. Try
to open the appliance door again in a few minutes so that the internal
pressure stabilizes.
The inside lamp in the
appliance does not
turn on.
Lamp failure
• Close the door and re-open. If the lamp does not turn on, please contact
the LG Electronics customer information centre. Do not attempt removal
of the lamp.
Symptoms Possible Cause & Solution
35
TROUBLESHOOTING
ENGLISH
Noises
Symptoms Possible Cause & Solution
The appliance is noisy
and generates
abnormal sounds.
Is the appliance installed on a weak floor or improperly levelled?
• Install the appliance on a solid and flat area.
Does the rear of the appliance touch the wall?
• Adjust the installation position to allow enough clearance around the
appliance.
Are objects scattered behind the appliance?
• Remove the scattered objects from behind the appliance.
Is there an object on top of the appliance?
• Remove the object on top of the appliance.
Clicking noises The defrost control will click when the automatic defrost cycle begins
and ends. The thermostat control (or appliance control on some models)
will also click when cycling on and off.
• Normal Operation
Rattling noises Rattling noises may come from the flow of appliance, the water line on
the back of the unit (for plumbed models only), or items stored around
the appliance.
• Normal Operation
Appliance is not resting evenly on the floor.
• Floor is weak or uneven or levelling legs need to be adjusted. See the Door
Alignment section.
Appliance with a compressor was moved while operating.
• Normal operation. If the compressor does not stop rattling after three
minutes, turn the power to the appliance off and then on again.
Whooshing noises Evaporator fan motor is circulating air through the fridge and freezer
compartments.
• Normal Operation
Air is being forced over the condenser by the condenser fan.
• Normal Operation
Gurgling noises Appliance flowing through the cooling system.
• Normal Operation
Popping noises Contraction and expansion of the inside walls due to changes in
temperature.
• Normal Operation
36
TROUBLESHOOTING
Vibrating If the side or back of the appliance is touching a cabinet or wall, some of
the normal vibrations may make an audible sound.
• To eliminate the noise, make sure that the sides and back do not make any
contact with any wall or cabinet.
Symptoms Possible Cause & Solution
Memo
Memo
Memo
