User Manual
32PHS5500
43PFS5500
Television
5500 Series
Content
1 Get Support 4
1.1 Identify and Register your TV 4
1.2 TV Help and User Manual 4
1.3 On-line Help and User Manual 4
1.4 Consumer Care / Repair 4
2 Software 5
2.1 Update Software 5
2.2 Software Version 5
3 Quick Guide 6
3.1 Remote Control 6
3.2 IR sensor 7
4 Setting Up 8
4.1 Read Safety 8
4.2 TV Placement 8
4.3 Turn on TV 8
5 Connections 10
5.1 Connectivity guide 10
5.2 Antenna 10
5.3 Satellite 10
5.4 Video Device 10
5.5 Audio Device 11
5.6 CAM with Smart Card - CI+ 11

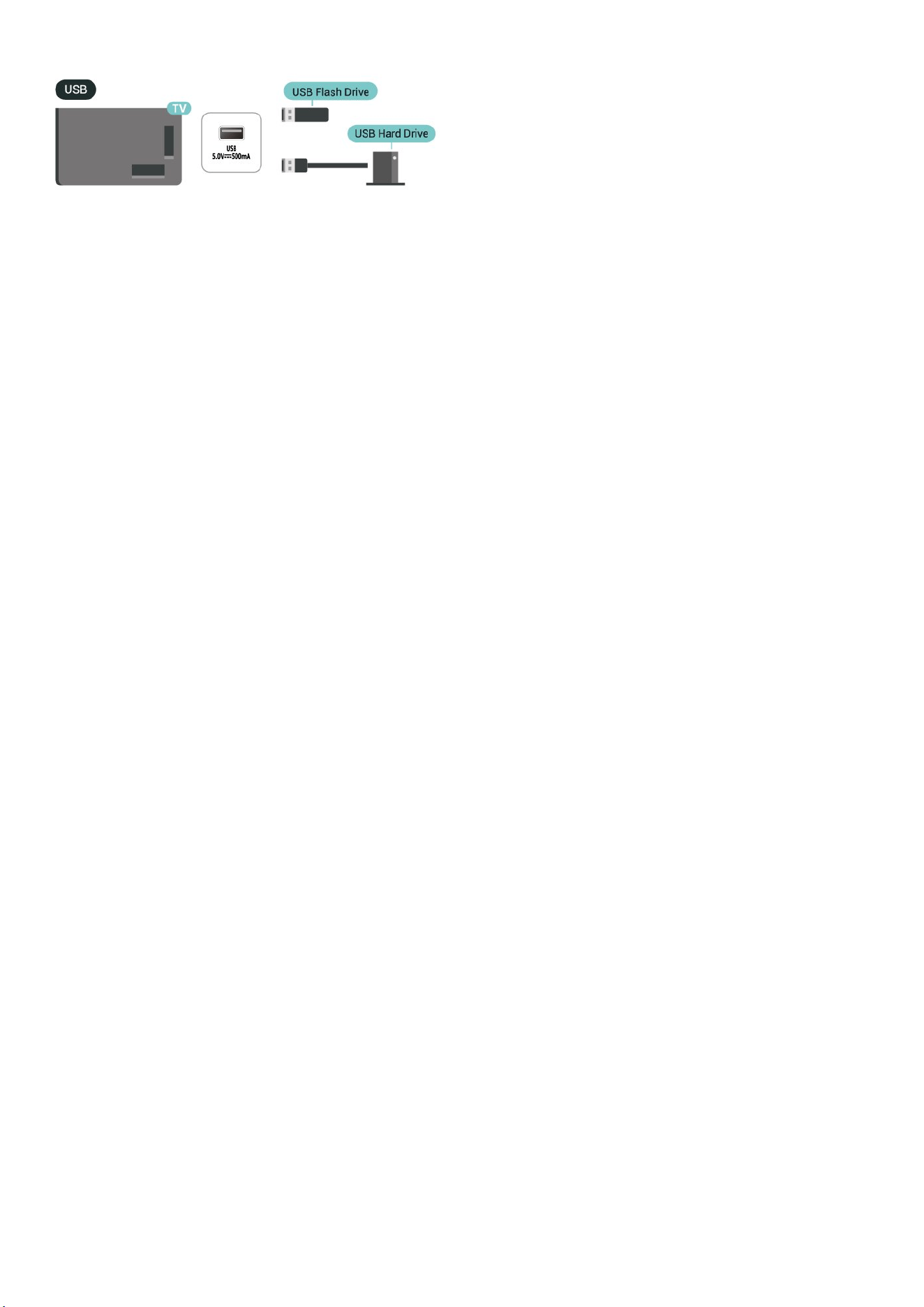

5.7 USB Device 12
6 Switch Source 14
6.1 Source List 14
6.2 Rename Device 14
7 Channels 15
7.1 About Channels and Switch
Channels
15
7.2 Install Channel 15
7.3 Channel List 20
7.4 Select Channel Filter 21
7.5 Favourite Channels 21
8 TV Guide 23
8.1 What You Need 23
8.2 Using the TV Guide 23
9 Recording and Pause TV (Not applied
to Turkey models)
25
9.1 What You Need 25
9.2 Recording 25
9.3 Pause TV 26
10 Videos, Photos and Music 27
10.1 From a USB Connection 27
10.2 Photos 27
10.3 Videos 27
10.4 Music 28
11 Open TV Setting Menus 29
11.1 Home Menu Overview 29
11.2 Utilities Menu 29
11.3 Quick Settings and All Settings 29
11.4 All Settings 29
12 Environmental 36
12.1 European Energy Label 36
12.2 EPREL Registration Number 36
12.3 End of Use 36
13 Specifications 37
13.1 Power 37
13.2 Reception 37
13.3 Display Resolution 37
13.4 Supported Input Resolution 37
13.5 Sound 37
13.6 Multimedia 38
13.7 Connectivity 38
14 Troubleshooting 39
14.1 Tips 39
14.2 Switch On 39
14.3 Remote Control 39
14.4 Channels 39
14.5 Picture 40
14.6 Sound 40
14.7 HDMI 40
14.8 USB 40
15 Safety and Care 42
15.1 Safety 42
15.2 Screen Care 43
15.3 Terms of Use 43
16 Copyrights 45
16.1 HDMI 45
16.2 HEVC Advance 45
2
1. Get Support
1.1. Identify and Register your
TV
Identify your TV - TV model number and serial
number
You might be asked to provide the TV product model
number and serial number. Find these numbers on the
packaging label or on the type label on the back or
bottom of the TV.
Register your TV
Register your TV and enjoy a range of benefits
including full support (including downloads), privileged
access to information about new products, exclusive
offers and discounts, the chance to win prizes and even
participate in special surveys about new releases.
Go to www.philips.com/TVsupport
1.2. TV Help and User Manual
Press Settings > Help
In Help menu, you can easily get software updated,
reset TV to default settings, and read user manual.
- Update software: Check available software updates.
- User manual: Read the user manual for TV
information.
- Troubleshooting: Find a solution for frequent ask
questions.
- Factory settings: Reset all settings to factory settings.
- Reinstall TV: Reinstall and redo the complete TV
installation.
- Contact info: Show the telephone number or web
address for your country or region.
1.3. On-line Help and User
Manual
To solve any Philips TV related problem, you can consult
our online support. You can select your language and
enter your product model number.
Go to www.philips.com/TVsupport.
On the support site you can find your country's
telephone number to contact us as well as answers to
frequently asked questions (FAQs). In some countries,
you can chat with one of our collaborators and ask your
question directly or send a question by email.
You can download new TV software or the manual to
read on your computer.
TV Help on your tablet, smartphone or computer
To carry out extended sequences of instructions more
easily, you can download the TV Help in PDF format to
read on your smartphone, tablet or
computer. Alternatively, you can print the relevant Help
page from your computer.
To download the Help (user manual) go
to www.philips.com/TVsupport
1.4. Consumer Care / Repair
For support and repair, call the Consumer Care hotline
in your country. Our service engineers will take care of a
repair, if necessary.
Find the telephone number in the printed
documentation that came with the TV.
Or consult our
website www.philips.com/TVsupport and select your
country if needed.
TV model number and serial number
You might be asked to provide the TV product model
number and serial number. Find these numbers on the
packaging label or on the type label on the back or
bottom of the TV.
Warning
Do not attemp to repair the TV yourself. This may cause
severe injury, irrepairable damage to your TV or void
your warranty.
4
2. Software
2.1. Update Software
Search for Updates
(Home) > Settings > Update software > Search for
updates.
You need a computer and a USB memory device to
upload the software on the TV. Use a USB memory
device with 256MB free space. Make sure that write
protection is switched off.
1. Start the update on TV
-
(Home) > Settings > Update software > Search for
updates.
2. Identify the TV
- Insert the USB memory into one of the USB
connections of the TV.
Select Start and press OK. An identification file is
written on the USB memory device.
3. Download the TV software
- Insert the USB memory into your computer.
- On the USB memory device, locate the
file update.htm and double click it.
- Click on Send ID.
- Select your region
- If new software is available, download the .zip file.
After the download, unzip the file and copy the
file autorun.upg onto the USB memory device.
4. Update the TV software
- Insert the USB memory into the TV again. The update
starts automatically.
The TV switches itself off for 10 seconds and then back
on again. Please wait.
Do not . . .
- remove the USB memory device from the TV
If a power cut occurs during the update, never remove
the USB memory device from the TV. When the power
returns, the update will continue.
Local Updates
For dealers and expert users…
(Home) > Settings > Update software > Local
updates.
Look for OAD updates (Over-the-air
Download)
Scan to search for an Over-the-air software update.
(Home) > Settings > Update software > Look for
OAD updates.
* The availability of OAD updates is dependent on your
country.
2.2. Software Version
To view the current TV software version…
(Home) > Settings > Update software > Current
software Info
5
3. Quick Guide
3.1. Remote Control
Batteries and Cleaning
Replace batteries
Refer to the Quick Start Guide in your product package
for detailed information about the remote control
batteries.
If the TV does not react on a key press on the remote
control, the batteries might be empty.
To replace the batteries, open the battery compartment
on the back of the remote control.
1 - Slide the battery door in the direction shown by the
arrow.
2 - Replace the old batteries with new batteries. Make
sure the + and the - ends of the batteries line up
correctly.
3 - Reposition the battery door and slide it back until it
clicks.
• Remove the batteries if you are not using the remote
control for a long time.
• Safely dispose of your old batteries according to the
end of use directions.
• Check the condition of the remote control batteries
regularly to prevent corrosion of the contacts.
For more information, check on Help > User manual >
End of use.
Cleaning
Your remote control is treated with a scratch-resistant
coating.
To clean the remote control, use a soft damp cloth.
Never use substances such as alcohol, chemicals or
household cleaners on the remote control.
Never expose the remote control to water or liquids.
Key Overview
Top
1. Standby / On
To switch the TV on or back to Standby.
2. Playback keys
- Play , to playback
- Pause , to pause playback
- Stop , to stop playback
- Rewind , to rewind
- Fast forward , to go fast forward
- Record , to record now
* Turkey models do not support record and pause TV.
3. TV GUIDE
To open or close the TV Guide.
4. FORMAT
To open or close the Picture format menu.
5. SETUP
To open the Settings menu.
Middle
1. HOME
To open or close the home menu.
2. SOURCES
To open or close the Sources menu - the list of
connected devices.
3. Colour keys
The buttons function follow the on-screen instructions.
6
4. INFO
To open or close programme infomation.
5. BACK
To switch back to the previous channel you selected.
To close a menu without changing a setting.
6. EXIT
To switch back to watching TV.
7. OPTIONS
To open or close the Options menu.
8. OK key
To confirm a selection or setting.
9. Arrow / navigation keys
To navigate up, down, left or right.
10. LIST
To open or close the channel list.
Bottom
1. Mute
To mute the sound or to restore it.
2. Volume
To adjust the volume level.
3. Number keys
To select a TV channel directly.
4. SUBTITLE
To switch subtitles on, off or Automatic.
5. Channel
To switch to the next or previous channel in the channel
list. To open the next or previous page in Text/Teletext.
To start the next or previous chapter on a disc.
6. TEXT
To open or close Text / Teletext.
3.2. IR sensor
The TV can receive commands from a remote control
that uses IR (infrared) to send commands. If you use
such a remote control, always make sure you point the
remote control at the infrared sensor on the front of
the TV.
Warning
Do not put any objects in front of IR sensor of the TV, it
may block the IR signal.
7
4. Setting Up
4.1. Read Safety
Read the safety instructions first before you use the TV.
To read the instructions, in User manual, see
chapter Safety and Care.
4.2. TV Placement
Tips on Placement
- Position the TV where light does not shine directly on
the screen.
- Position the TV up to 15 cm away from the wall.
- The ideal distance to watch TV is 3 times its diagonal
screen size. When seated, your eyes should be level with
the centre of the screen.
Note:
Please keep the TV away from dust-producing sources
such as stoves. It is suggested to clean the dust regularly
to avoid getting dust into the TV.
TV Stand
You can find the instructions for mounting the TV stand
in the Quick Start Guide that came with the TV. In case
you lost this guide, you can download it
from www.philips.com.
Use the model number of the TV to look for the Quick
Start Guide to download.
Wall Mounting
Your TV is also prepared for the wall
mount bracket (sold separately).
The wall mount size may vary depending on different
type of back cases; refer to the Quick Start Guide in
your product package to see which size is applied to
your TV.
Use the following wall mount dimension when
purchasing the wall mount.
• 32PHS5500
200x150, M4 (min.: 8 mm, max.: 10 mm)
• 43PFS5500
200x100, M6 (min.: 9 mm, max.: 10 mm)
Caution
Wall mounting the TV requires special skills and should
only be performed by qualified personnel. The TV wall
mounting should meet safety standards according to
the TVs weight. Also read the safety precautions before
positioning the TV.
TP Vision Europe B.V. bears no responsibility for
improper mounting or any mounting that results in
accident or injury.
4.3. Turn on TV
Connect Power Cable
- Insert the power cable into the POWER connector on
the back of the TV.
- Make sure the power cable is securely inserted in the
connector.
- Make sure that the power plug, in the wall socket, is
accessible at all times.
- When you unplug the power cable, always pull the
plug, never pull the cable.
8
Although this TV has a very low standby power
consumption, unplug the power cable to save energy if
you do not use the TV for a long period of time.
Switch On or Standby
Before you switch on the TV, make sure you plugged in
the mains power in the POWER connector on the back
of the TV.
Switch On
Press the power button (if available) on the side or the
back of the TV. Or press on the remote control.
Switch to standby
To switch the TV to Standby, press on the remote
control.
To switch off the TV completely, disconnect the power
plug.
When disconnecting the power plug, always pull the
power plug, never the cord. Ensure that you have full
access to the power plug, power cord and outlet socket
at all times.
9
5. Connections
5.1. Connectivity guide
Always connect a device to the TV with the highest
quality connection available. Also, use good quality
cables to ensure a good transfer of picture and sound.
When you connect a device, the TV recognizes its type
and gives each device a correct type name. You can
change the type name if you wish. If a correct type
name for a device is set, the TV automatically switches
to the ideal TV settings when you switch to this device
in the Sources menu.
5.2. Antenna
Insert the antenna plug firmly into the Antenna socket
at the back of the TV.
You can connect your own antenna or an antenna
signal from an antenna distribution system. Use an IEC
Coax 75 Ohm RF antenna connector.
Use this antenna connection for DVB-T and DVB-C input
signals.
5.3. Satellite
Attach the satellite F-type connector to the satellite
connection SAT at the back of the TV.
5.4. Video Device
HDMI
An HDMI connection has the best picture and sound
quality.
For best signal quality transfer, use a High speed HDMI
cable and do not use an HDMI cable longer than 5 m,
and also connect devices supporting HDR on any one of
HDMI connections.
Copy protection
HDMI ports support HDCP (High-bandwidth Digital
Content Protection). HDCP is a copy protection signal
that prevents copying content from a DVD disc or Blu-
ray Disc. Also referred to as DRM (Digital Rights
Management).
HDMI-CEC Connection - EasyLink
Connect HDMI CEC-compatible devices to your TV, you
can operate them with the TV remote control. EasyLink
HDMI CEC must be switched on on the TV and the
connected device.
10
Switch on EasyLink
(Home) > Settings > General
settings > EasyLink > EasyLink > On
Operate HDMI CEC-compatible devices with TV remote
control
(Home) > Settings > General
settings > EasyLink > EasyLink remote control > On
Note:
- EasyLink might not work with devices from other
brands.
- The HDMI CEC functionality has different names on
different brands. Some examples are: Anynet, Aquos
Link, Bravia Theatre Sync, Kuro Link, Simplink and Viera
Link. Not all brands are fully compatible with EasyLink.
Example HDMI CEC branding names are property of
their respective owners.
5.5. Audio Device
HDMI ARC
Only HDMI 1 on the TV have HDMI ARC (Audio Return
Channel).
If the device, typically a Home Theatre System (HTS),
also has the HDMI ARC connection, connect it to HDMI
1 connection on this TV. With the HDMI ARC
connection, you do not need to connect the extra audio
cable that sends the sound of the TV picture to the HTS.
The HDMI ARC connection combines both signals.
Digital Audio Out - Optical
Audio Out - Optical is a high quality sound connection.
This optical connection can carry 5.1 audio channels. If
your device, typically a Home Theatre System (HTS), has
no HDMI ARC connection, you can use this connection
with the Audio In - Optical connection on the HTS. The
Audio Out - Optical connection sends the sound from
the TV to the HTS.
Headphones
You can connect a set of headphones to
the connection on the side of the TV. The
connection is a mini-jack 3.5mm. You can adjust the
volume of the headphones separately.
11
5.6. CAM with Smart Card -
CI+
About CI+
This TV is ready for the CI+ Conditional Access.
With CI+ you can watch premium HD programmes, like
movies and sports, offered by digital TV operators in
your region. These programmes are scrambled by the
TV operator and descrambled with a prepaid CI+
module.
Digital TV operators provide a CI+ module (Conditional
Access Module - CAM) and an accompanying smart
card, when you subscribe to their premium
programmes. These programmes have a high level of
copy protection.
Contact a digital TV operator for more information on
terms & conditions.
Smart Card
Digital TV operators provide a CI+ module (Conditional
Access Module - CAM) and an accompanying smart
card, when you subscribe to their premium
programmes.
Insert the smart card into the CAM module. See the
instruction you received from the operator.
To insert the CAM in the TV…
1. Look on the CAM for the correct method of insertion.
Incorrect insertion can damage the CAM and TV.
2. While looking at the back of the TV, with the front of
the CAM facing towards you, gently insert the CAM into
the slot COMMON INTERFACE.
3. Push the CAM in as far as it will go. Leave it in the slot
permanently.
When you switch on the TV, it may take a few minutes
before the CAM is activated. If a CAM is inserted and
subscription fees are paid (subscription methods can
differ), you can watch the scrambled channels
supported by the CAM smart card.
The CAM and smart card are exclusively for your TV. If
you remove the CAM, you will no longer be able to
watch the scrambled channels supported by the CAM.
Watch Channel on Smart Card
You can watch channels which are installed from
CI/CAM cards.
1. While watching a TV channel, press LIST to open
the channel list.
2. Select: CI+ Channel list.
Set Passwords and PIN Codes
For some CAMs, you must enter a PIN code to watch its
channels. When you set the PIN code for the CAM, we
recommend you to use the same code you are using to
unlock the TV.
To set the PIN code for the CAM…
(Home) > Settings > Child lock > CAM PIN
5.7. USB Device
USB Storage Device
You can view photos or play your music and videos
from a connected USB flash drive. Insert a USB flash
drive in the USB connection on the TV while the TV is
switched on.
The TV detects the flash drive and opens a list showing
its content.
If the contents list does not appear automatically,
press SOURCES and select USB.
12
If you connect a USB Hard Drive, you can pause or
record digital TV broadcasts (DVB broadcasts or similar).
Minimum Disk Space
- To pause a broadcast, you need a USB compatible
Hard Drive with a minimum of 4GB disk space.
- To pause and record a broadcast, you need a
minimum of 32GB disk space.
Before you can pause or record a broadcast, you must
connect and format a USB Hard Drive. Formatting
removes all files from the USB Hard Drive.
* Turkey models do not support record and pause TV.
Warning
The USB Hard Drive is formatted exclusively for this TV,
you cannot use the stored recordings on another TV or
PC. Do not copy or change recording files on the USB
Hard Drive with any PC application. This will corrupt
your recordings. When you format another USB Hard
Drive, the content on the former will be lost. A USB
Hard Drive installed on your TV will need reformatting
for use with a computer.
13
6. Switch Source
6.1. Source List
- To open the sources menu, press SOURCES.
- To switch to a connected device, select the device with
the arrows (up) or (down) and press OK.
- To close the Source menu without switching to a
device, press SOURCES again.
6.2. Rename Device
- Only HDMI source can be renamed or replace device
icon
1. Press SOURCES, and select HDMI.
2. Press Edit and press OK.
3. Select one of the device icons and press OK, the
preset name appears in the typing field.
4. Select Rename, then enter new name using on-
screen keyboard.
- Press (red) key to enter with lower-case
- Press (green) key to enter with upper-case
- Press (yellow) key to enter number and symbol
- Press (blue) key to delete a character
5. Select Done when complete the editing.
14
7. Channels
7.1. About Channels and
Switch Channels
To watch TV channels
- Press . The TV tunes to the TV channel you last
watched.
- Press (Home) > Channels and press OK.
- Press + or - to switch channels.
- If you know the channel number, type in the number
with the number keys. Press OK after you entered the
number to switch channels.
- To switch back to the previously tuned channel,
press BACK.
To switch to a channel from a channel list
- While watching a TV channel, press LIST to open
the channel lists.
- The channel list can have several pages with channels.
To view the next or previous page, press + or -.
- To close the channel lists without switching channels,
press LIST again.
Channel icons
After an Automatic channel update of the channel list,
newly found channels are marked with a (star).
If you lock a channel, it will be marked with a (lock).
Radio channels
If digital broadcasting is available, digital radio stations
are installed during installation. Switch to a radio
channel just like you switch to a TV channel.
This TV can receive digital television standard DVB. TV
may not work properly with some operators of digital
television , non-compliance with requirements of the
standard in full.
7.2. Install Channel
Antenna and Cable
Manually Search for Channels and Channel Settings
Search for Channels
Update existing channel list
(Home) > Settings > Antenna/cable
installlation > Search for channels > Update channels
Re-install all channels
(Home) > Settings > Antenna/cable
installlation > Search for channels > Re-install channels
1. Select the country where you are now and press OK.
2. Select Antenna (DVB-T) or Cable (DVB-C), and select
one item you need to re-install.
3. Select Digital and analogue channels, Only digital
channels, or Only analogue channels.
4. Select Start and press OK to update channels. This
can take a few minutes.
Channel Settings
(Home) > Settings > Antenna/cable
installlation > Search for channels > Re-install channels
1. Select the country where you are now and press OK.
2. Select Antenna (DVB-T) or Cable (DVB-C), and select
one item you need to re-install.
3. Select Digital and analogue channels, Only digital
channels, or Only analogue channels.
4. Select Settings and press OK.
5. Press (red) to reset, or press (green) when
complete the settings.
Frequency scan
Select the method of searching for channels.
- Quick: select the faster method and use the
predefined settings used by most cable providers in
your country.
- Full: If this results in having no channels installed or if
some channels are missing, you can select the
extended Full method. This method will take more time
to search for and install channels.
- Advanced: If you received a specific network
frequency value to search for channels, select
Advanced.
Network frequency mode
If you intend to use the fast Quick method in Frequency
scan to search for channels, select Automatic. The TV
will use 1 of the predefined network frequencies (or HC
- homing channel) as used by most cable providers in
your country.
If you received a specific network frequency value to
search for channels, select Manual.
Network frequency
With the Network frequency mode set to Manual, you
can enter the network frequency value received from
your cable provider here. To enter the value, use the
number keys.
Symbol rate mode
If your cable provider did not give you a specific symbol
rate value to install the TV channels, leave the Symbol
rate mode setting on Automatic.
If you received a specific symbol rate value,
select Manual.
15
Symbol rate
With the Symbol rate mode set to Manual, you can
enter the symbol rate value by using the number keys.
Free / Scrambled
If you have a subscription and a CAM - Conditional
Access Module for pay TV services, select Free +
scrambled. If you did not subscribe to pay TV channels
or services, you can select Free channels only.
Automatically Search for Channels
(Home) > Settings > Antenna/cable installlation >
Automatic channel update
If you receive digital channels, you can set the TV to
automatically update the list with new channels.
Alternatively, you can start a channel update yourself.
Automatic channel update
Once a day, at 6 AM, the TV updates the channels and
stores new channels. New channels are stored in the All
channels list but also in the New channels list. Empty
channels are removed.
If new channels are found or if channels are updated or
removed, a message is shown at TV start up. The TV
must be in standby to automatically update channels.
Channel Update Message
(Home) > Settings > Antenna/cable
installlation > Channel update message
When new channels are found or if channels are
updated or removed, a message is shown at TV start up.
To avoid this message to appear after every channel
update, you can switch it off.
Digital: Reception Test
(Home) > Settings > Antenna/cable
installlation > Digital: Reception test
The digital frequency is shown for this channel. If the
reception is poor, you can reposition your antenna. To
check the signal quality of this frequency again,
select Search and press OK.
To enter a specific digital frequency yourself, use the
remote control digit keys. Alternatively, select the
frequency, position the arrows on a number
with and and change the number with and .
To check the frequency, select Search and press OK.
If you use DVB-C to receive channels, the option Symbol
rate mode is available. For Symbol rate mode,
select Automatic, unless your cable provider gave you a
specific symbol rate value. To enter the symbol rate
value, select Symbol rate, and use the number keys
or and .
Analogue: Manual Installation
(Home) > Settings > Antenna/cable
installlation > Analogue: Manual Installation
Analogue TV channels can be manually installed,
channel by channel.
System
To set up the TV system, select System.
Select your country or the part of the world where you
are now and press OK.
Search Channel
To find a channel, select Search channel and press OK.
You can enter a frequency yourself to find a channel or
let the TV search for a channel. Press OK,
select Search and press OK to search for a channel
automatically. The found channel is shown on screen
and if the reception is poor, press Search again. If you
want to store the channel, select Done and press OK.
Fine tune
To fine tune a channel, select Fine tune and press OK.
You can fine tune the channel with or .
If you want to store the channel found, select Done and
press OK.
Store
You can store the channel on the current channel
number or as a new channel number.
Select Store and press OK. The new channel number is
shown briefly.
You can redo these steps until you have found all
available analogue TV channels.
Satellite
About Installing Satellites
Up to 4 Satellites
You can install up to 4 satellites (4 LNBs) on this TV.
Select the exact number of satellites you wish to install
at the start of the installation. This will speed up the
installation.
Unicable
You can use a Unicable system to connect the antenna
dish to the TV. You can select Unicable for 1 or for 2
satellites at the start of the installation.
MDU - Multi-Dwelling-Unit
The built-in satellite tuners support MDU on the Astra
satellites and for Digiturk on the Eutelsat satellite. MDU
16
on Türksat is not supported.
Start the Installation
Update Channels
(Home) > Settings > Satellite installlation > Search
for satellite > Update channels
You can always start a channel update manually, new
channels will be added, and unavailable channels will
be removed.
Enter PIN code if necessary.
Re-install Channels
(Home) > Settings > Satellite installlation > Search
for satellite > Re-install channels
You can search satellites and channels again manually.
1. Select one option you need to re-install.
2. Select Settings or select Start to update channels.
Settings Menu
Press Reset to reset, or press Done when
complete the settings.
- Connection type
Select the number of satellites you want to install. The
TV sets the appropriate connection type automatically.
• Up to 4 Satellites - You can install up to 4 satellites (4
LNBs) on this TV. Select the exact number of satellites
you wish to install at the start of the installation. This
will speed up the installation.
• Unicable - You can use a Unicable system to connect
the antenna dish to the TV. You can select Unicable for
1 or for 2 satellites at the start of the installation.
- LNB settings
In some countries, you can adjust the expert settings for
homing transponder and each LNB. Only use or change
these settings when a normal installation fails. If you
have non-standard satellite equipment, you can use
these settings to overrule the standard settings. Some
providers might give you some transponder or LNB
valeus which you can enter here.
• LNB Power - By default, LNB Power is set to On.
• 22 kHz Tone - By default, the Tone is set to Auto.
• Low LO Frequency / High LO Frequency - The local
oscillator frequencies are set to standard values. Adjust
the values only in case of exceptional equipment that
needs different values.
Enter PIN code if necessary.
Add Satellite or Remove Satellite
(Home) > Settings > Satellite installlation > Search
for satellite > Add satellite or Remove satellite
(Home) > Settings > Satellite installlation > Search
for satellite > Add satellite
• You can add an additional satellite to your current
satellite installation. The installed satellites and their
channels remain untouched. Some satellite operators
do not allow adding a satellite.
• The additional satellite should be seen as an extra, it is
not your main satellite subscription or not the main
satellite of which you use its channel package. Typically,
you would add a 4th satellite when you have 3 satellites
already installed. If you have 4 satellites installed, you
might consider removing one first to be able to add a
new satellite.
• If you currently have only 1 or 2 satellites installed, the
current installation settings might not allow adding an
extra satellite. If you need to change the installation
settings, you must redo the complete satellite
installation. You cannot use Add satellite if a change of
settings is needed.
(Home) > Settings > Satellite installlation > Search
for satellite > Remove satellite
You can remove one or more satellites from your
current satellite installation. You remove the satellite
and its channels. Some satellite operators do not allow
removing a satellite.
Satellite Channel List
(Home) > Settings > Satellite installlation > Satellite
channel list
You can select your preferred satellite channel list when
press LIST to open satellite channels.
Satellites can offer channel packages that bundle free
channels (free-to-air) and offer a sorting that suits a
country. Some satellites offer subscription packages - a
collection of channels you pay for.
Select From a sorted channel package to install the
channels of the package only or select All channel
unsorted to install the package and all other available
channels too. We recommend a Quick installation for
subscription packages. If you have additional satellites
that are not part of your subscription package, we
recommend a full installation. All installed channels are
put in the channels list.
17
Automatically Search for Channels
(Home) > Settings > Satellite
installlation > Automatic channel update
If you receive digital channels, you can set the TV to
automatically update the list with new channels.
Alternatively, you can start a channel update yourself.
Automatic channel update
Once a day, at 6 AM, the TV updates the channels and
stores new channels. New channels are stored in the All
channels list but also in the New channels list. Empty
channels are removed.
If new channels are found or if channels are updated or
removed, a message is shown at TV start up. The TV
must be in standby to automatically update channels.
Channel Update Message
(Home) > Settings > Satellite installlation > Channel
update message
When new channels are found or if channels are
updated or removed, a message is shown at TV start up.
To avoid this message to appear after every channel
update, you can switch it off.
Manual Installation
(Home) > Settings > Satellite installlation > Manual
installtion
Manually install satellite.
- LNB - Select the LNB for which you want to add new
channels.
- Polarisation - Select the polarisation you need.
- Symbol rate mode - Select Manual to enter symbol
rate.
- Frequency - Enter the frequency for the transponer.
- Search - Search for transponder.
Troubleshooting
The TV cannot find the satellites I want or the TV
installs the same satellite twice
- Make sure that the correct number of satellites is set in
Settings at the start of the installation. You can set the
TV to search for One, Two or 3/4 satellites.
A dual head LNB cannot find a second satellite
- If the TV finds one satellite but cannot find a second
one, turn the dish a few degrees. Align the dish to get
the strongest signal on the first satellite. Check the
signal strength indicator of the first satellite on screen.
With the first satellite set at the strongest signal, select
Search again to find the second satellite.
- Make sure the settings are set to Two Satellites.
Changing the installation settings did not solve my
problem
- All settings, satellites and channels are only stored at
the end of the installation when you finish.
All satellite channels are gone
- If you use a Unicable system, make sure you assigned
two unique user band numbers for both built-in tuners
in the Unicable settings. It might be that another
satellite receiver in your Unicable system is using the
same user band number.
Some satellite channels seem to have disappeared
from the channel list
- If some channels seem to be gone or displaced, the
broadcaster might have changed the transponder
location of these channels. To restore the channel
positions in the channel list, you can try an update of
the channel package.
I cannot remove a satellite
- Subscription packages do not allow removing a
satellite. To remove the satellite, you have to do a
complete installation again and select another package.
Sometimes the reception is poor
- Check if the satellite dish is solidly mounted. Strong
winds can move the dish.
- Snow and rain can degrade the reception.
Channel List Copy
Introduction
Channel list copy is intended for dealers and expert
users.
With Channel list copy, you can copy the channels
installed on one TV onto another Philips TV of the same
range. With Channel list copy, you avoid the time-
consuming channel search by uploading a predefined
channel list on a TV. Use a USB flash drive of minimum 1
GB.
Conditions
- Both TVs are from the same year range. Check the TV
model name with the last number. (For example:
xxPxx4xx4, 4 stands for 2019 product)
- Both TVs have compatible software versions.
18
Copy a Channel List, Check Channel List Version
To copy a channel list…
1. Switch on the TV. This TV should have channels
installed.
2. Plug in a USB flash drive.
3. Press (Home) > Settings > General
settings > Channel list copy.
4. Select Copy to USB and press OK. You might be asked
to enter the Child Lock PIN code to copy the channel
list.
5. When copying is done, unplug the USB flash drive.
6. Press (left) repeatedly if necessary, to close the
menu.
Now you can upload the copied channel list onto
another Philips TV.
Check the current version of the channel list...
1. Press (Home) > Settings > General
settings > Channel list copy.
2. Select Channel list copy and select Current version,
then press OK.
3. Press (left) repeatedly if necessary, to close the
menu.
Upload a Channel List
To not installed TVs
Depending on whether your TV is already installed or
not, you must use a different method to upload a
channel list.
To a TV that is not yet installed
1. Plug in the power plug to start the installation and
select language and country. You can skip the channel
search. Finish the installation.
2. Plug in the USB flash drive that holds the channel list
of the other TV.
3. To start the channel list upload,
press (Home) > Settings > General settings > Channel
list copy > Copy to TV and press OK. Enter your PIN
code if necessary.
4. The TV notifies you if the channel list is copied to the
TV successfully. Unplug the USB flash drive.
To Installed TVs
Depending on whether your TV is already installed or
not, you must use a different method to upload a
channel list.
To an already installed TV
1. Verify the country setting of the TV. (To verify this
setting, see chapter Re-install channels. Start this
procedure until you reach the country setting. Press
BACK to cancel the installation.)
If the country is correct continue with step 2.
If the country is not correct, you need to start a
reinstallation. See chapter Re-install channels and start
the installation. Select the correct country and skip the
channels search. Finish the installation. When done,
continue with step 2.
2. Plug in the USB flash drive that holds the channel list
of the other TV.
3. To start the channel list upload,
press (Home) > Settings > General settings > Channel
list copy > Copy to TV and press OK. Enter your PIN
code if necessary.
4. The TV notifies you if the channel list is copied to the
TV successfully. Unplug the USB flash drive.
Channel Options
Open Options
While watching a channel, you can set some options.
Depending on the type of channel you are watching
(analogue or digital) or depending on the TV settings
you made, some options are available.
To open the options menu…
1. While watching a channel, press OPTIONS.
2. Press OPTIONS again to close.
Subtitles
To switch on Subtitles, press SUBTITLE.
You can switch subtitles Subtitle on or Subtitle off.
Alternatively you can select Automatic.
Automatic
If language information is part of the digital broadcast
and the broadcasted programme is not in your
language (the language set on TV), the TV can show
subtitles automatically in one of your preferred subtitle
languages. One of these subtitle languages must also
be part of the broadcast.
You can select your preferred subtitle languages
in Subtitle language.
Subtitles Language
If none of the preferred subtitle languages are
available, you can select another subtitle language if
available. If no subtitle languages are available, you
cannot select this option.
19
Audio Language
If none of the preferred audio languages are available,
you can select another audio language if available. If no
audio languages are available, you cannot select this
option.
Dual I-II
If an audio signal contains two audio languages but
one language or both has no language indication, this
option is available.
Common Interface
If prepaid premium content is available from a CAM,
you can set the provider settings with this option.
Mono / Stereo
You can switch the sound of an analogue channel to
Mono or Stereo.
To switch to Mono or Stereo…
1. Tune to an analoge channel.
2. Press OPTIONS, select Mono/Stereo and
press (right).
3. Select Mono or Stereo and press OK.
4. Press (left) repeatedly if necessary, to close the
menu.
Status
Select Status to view technical information on the
channel.
Clock
Display time on the corner of the TV screen.
7.3. Channel List
Open Channel List
To open the current channel list…
1. Press , to switch to TV.
2. Press LIST to open the current channel list.
3. Press OPTIONS > Select channel list, and select
one channel list you want to watch.
4. Press LIST again to close the channel list.
Channel List Options
Open Option Menu
To open the channel list option menu...
1. Press , to switch to TV.
2. Press LIST to open the current channel list.
3. Press OPTIONS, and select one of options.
4. Press LIST again to close the channel list.
Rename Channel
1. Press , to switch to TV.
2. Press LIST to open the current channel list.
3. Select one channel you want to rename.
4. Press OPTIONS > Rename channel, and press OK.
5. In the typing field, press OK to open on-screen
keyboard, or select Hide to hide the on-screen
keyboard.
6. Use navigation keys to select a character, then press
OK.
- Press (red) key to enter with lower-case
- Press (green) key to enter with upper-case
- Press (yellow) key to enter number and symbol
- Press (blue) key to delete a character
7. Select Done when complete the editing.
8. Press LIST again to close the channel list.
Create or Edit Favourites Channel List
LIST > OPTIONS > Create favourites list
Select a channel then press OK to add in a favourites
channel list, once completed, press Done.
LIST > OPTIONS > Edit favourites
Select a channel then press OK to add in or remove
from a favourites channel list, once completed, press
Done.
Select Channel Range
LIST > OPTIONS > Select channel range
Select a range of channels in a favourites channel list,
once completed, press OK.
Select Channel List
LIST > OPTIONS > Select channel list
Select a range of channels in a favourites channel list,
once completed, press OK.
20
Lock, Unlock Channel
LIST > OPTIONS > Lock channel, Unlock channel
To prevent children from watching a channel, you can
lock a channel. To watch a locked channel, you must
enter the 4 digit Child Lock PIN code first. You cannot
lock programmes from connected devices.
The locked channel will have next to the channel
logo.
Search Channels
LIST > OPTIONS > Search channel
You can search for a channel to find it in a long list of
channels.
1. Press , to switch to TV.
2. Press LIST to open the current channel list.
3. Press OPTIONS > Search channel, and press OK.
In the typing field, press OK to open on-screen
keyboard, or press BACK to hide the on-screen
keyboard.
Use navigation keys to select a character, then press OK.
- Press (red) key to enter with lower-case
- Press (green) key to enter with upper-case
- Press (yellow) key to enter number and symbol
- Press (blue) key to delete a character
4. Select Done when complete the editing.
5. Press LIST again to close the channel list.
7.4. Select Channel Filter
LIST > OPTIONS > Select channel filter
Select one of channel combinations showing in the
channel list.
7.5. Favourite Channels
About Favourite Channels
You can create a favourite channel list that only holds
the channels you want to watch. With the Favourite
channel list selected, you will only see your favourite
channels when you switch through channels.
Create a Favourites List
1. While watching a TV channel, press LIST to open
the channel list.
2. Select the channel, and press Mark as
favourites to mark as favourite.
3. The selected channel is marked with a .
4. To finish, press BACK. The channels are added to
the Favourites list.
Remove Channel from the Favourites
List
To remove a channel from the favourites list, select the
channel with , then press Unmark as
favourite again to unmark as favourite.
Reorder Channels
You can reorder, reposition channels in the Favourite
channel list.
1. While watching a TV channel,
press LIST > OPTIONS > Select channel list.
2. Select Antenna - Favourite channels, Cable -
Favourite channels or Satellite - Favourite channels*,
and press OK.
3. Press OPTIONS, and select Reorder channels.
4. Select the channel to reorder and press OK.
5. Press the Navigation buttons to move the
highlighted channel to another location and press OK.
6. Once completed, press OK.
* Satellite channel only can be searched on xxPxSxxxx
TV models.
Favourites List on TV Guide
You can link the TV Guide for your Favourite List.
1. While watching a TV channel,
press LIST > OPTIONS > Select channel list.
2. Select Antenna - Favourite channels, Cable -
Favourite channels or Satellite - Favourite channels*,
21
and press OK.
3. Press TV GUIDE to open it.
With the TV Guide you can view a list of the current and
scheduled TV programmes of your favourite channels.
Along with your favourite channels, the first 3 most
used channels from the broadcasters’ default list will be
appended after your favourite channels for your
preview. You need to add these channels into your
favourite list to enable its operation (refer to "TV
Guide" chapter).
On each page of TV Guide, there is a "Did you know"
grid inserted on your favourite channel list. The "Did
you know"-channel provides useful tips to improve the
way you use your TV.
* Satellite channel only can be searched on xxPxSxxxx
TV models.
Text / Teletext
Text Pages
To open Text/Teletext press TEXT, while you are
watching TV channels.
To close Text, press TEXT again.
Select a Text page
To select a page . . .
1. Enter the page number with the number keys.
2. Use the arrow keys to navigate.
3. Press a colour key to select a colour-coded subject at
the bottom of the screen.
Text sub-pages
A Text page number can hold several subpages. The
subpage numbers are shown on a bar next to the main
page number.
To select a subpage, press or .
T.O.P. Text pages
Some broadcasters offer T.O.P. Text.
To open T.O.P. Text pages within Text,
press OPTIONS and select T.O.P. overview.
* The teletext can only be reached when the channels
are installed directly on the TV’s internal tuner and the
set is on TV mode. If a set-top box is being used, the
teletext will be unavailable via TV. In that case, the set-
top box’s teletext can be used instead.
Text Options
In Text/Teletext, press OPTIONS to select the
following…
- Freeze page
To stop the automatic rotation of subpages.
- Dual screen / Full screen
To show the TV channel and Text alongside each other.
- T.O.P. overview
To open T.O.P. Text.
- Enlarge
To enlarge the Text page for comfortable reading.
- Reveal
To unhide hidden information on a page.
- Cycle subpages
To cycle subpages when these are available.
- Language
To switch the group of characters that Text uses to
display correctly.
Text Setup
Text language
Some digital TV broadcasters have several Text
languages available.
To set your primary and secondary Text language . . .
1. Press , select Setting > Region and Language and
press
(right) to enter the menu.
2. Select Languages and press (right) to enter the
menu.
3. Select Primary teletext or Secondary teletext, and
press OK.
4. Select the language you need and press OK.
5. Press (left) repeatedly if necessary, to close the
menu.
22
8. TV Guide
8.1. What You Need
With the TV guide you can view a list of the current and
scheduled TV programmes of your channels.
Depending on where the TV guide information (data) is
coming from, analogue and digital channels or only
digital channels are shown. Not all channels offer TV
guide information.
The TV can collect TV guide information for the
channels that are installed on the TV (e.g the channels
you watch with Watch TV). The TV cannot collect the TV
guide information for channels viewed from a digital
receiver.
8.2. Using the TV Guide
Open the TV Guide
To open the TV guide, press TV GUIDE.
Press TV GUIDE again to close.
The first time you open the TV guide, the TV scans all TV
channels for programme information. This may take
several minutes. TV guide data is stored in the TV.
Tune to a Programme
Switch to a programme
From the TV guide, you can switch to a current
programme.
To select a programme, use the arrow keys to highlight
the programme name.
Navigate to the right to view programmes scheduled
later that day.
To switch to the programme (channel), select the
programme and press OK.
View programme details
To call up the details of the selected programme,
press INFO.
Change Day
If the TV guide information comes from the
broadcaster, you can press + to view the schedule of
one of the next days. Press - to go back to the
previous day.
Alternatively, you can press OPTIONS and
select Change day.
Set a Reminder
You can set a reminder for a programme. A message
will alert you at the start of the programme. You can
tune to this channel immediately.
In the TV Guide a programme with a reminder is
marked with a (clock).
To set a reminder…
1. Press TV GUIDE and select an upcoming
programme.
2. Press Set reminder and press OK.
To clear a reminder…
1. Press TV GUIDE and select a programme with the
reminder, which is marked with a (clock).
2. Press Clear reminder, and select Yes, then
press OK.
Search by Genre
If the information is available, you can look up
scheduled programmes by genre like movies, sports,
etc.
To search for programmes by genre,
press OPTIONS and select Search by genre.
Select a genre and press OK. A list with the found
programmes appears.
List of Reminders
You can view a list of the reminders you have set.
List of Reminders
To open the list of reminders…
1. Press TV GUIDE.
2. Press OPTIONS and select All reminders.
3. In the list of reminders, select the reminder you want
to remove, the selected reminder is marked as .
4. Press , select Clear selected and press OK.
5. Select Close to close the list of reminders.
23
Set a Recording (Not applied to Turkey
models)
You can set a recording in the TV Guide.
In the TV Guide, a programme set to be recorded is
marked with .
To see the recording list, press Recordings, a
programme set to be recorded is marked with a (red
dot) on the front of the programme name.
To record a programme…
1. Press TV GUIDE and select a future or ongoing
programme.
2. Press the colour key Record.
To cancel a recording…
1. Press TV GUIDE and select the programme set for
recording.
2. Press the colour key Clear recording.
24
9. Recording and
Pause TV (Not
applied to Turkey
models)
9.1. What You Need
If you connect a USB Hard Drive, you can pause or
record digital TV broadcasts (DVB broadcasts or similar).
Minimum Disk Space
- To pause a broadcast, you need a USB compatible
Hard Drive with a minimum of 4GB disk space.
- To pause and record a broadcast, you need a
minimum of 32GB disk space.
Before you can pause or record a broadcast, you must
connect and format a USB Hard Drive. Formatting
removes all files from the USB Hard Drive.
To Pause and Record
1. Connect the USB Hard Drive to one of
the USB connections on the TV. Do not connect another
USB device to the other USB ports when formatting.
2. Switch on the USB Hard Drive and the TV.
3. When the TV is tuned to a digital TV channel,
press (Pause). Trying to pause will start the formatting.
Follow the instructions on screen.
When the USB Hard Drive is formatted, leave it
connected permanently.
Warning
The USB Hard Drive is formatted exclusively for this TV,
you cannot use the stored recordings on another TV or
PC. Do not copy or change recording files on the USB
Hard Drive with any PC application. This will corrupt
your recordings. When you format another USB Hard
Drive, the content on the former will be lost. A USB
Hard Drive installed on your TV will need reformatting
for use with a computer.
Note:
Recording function is only for digital TV broadcast. It is
not possible to record content from external devices
(e.g. HDMI).
9.2. Recording
What You Need
You can record a digital TV broadcast and watch it
later.
To record a TV programme you need…
- a connected USB Hard Drive formatted on this TV
- digital TV channels installed on this TV
- to receive channel information for the on screen TV
Guide
- a reliable TV clock setting. If you reset the TV clock
manually, recordings may fail.
You cannot record when you are using Pause TV.
In terms enforcement of copyright legislation, some
DVB providers can apply different restriction by means
of DRM (Digital Right Management) technology. In case
of broadcasting protected channels, recording, record
validity or number of views may be restricted.
Recording may be completely prohibited. In case of
trying to record a protected broadcasting or play back
an expired recording, an error message can appear.
Record a Programme
Record Now
To record the programme you are watching right now,
press (Record) on the remote control. The recording
will start immediately.
To stop the recording, press (Stop).
When TV Guide data is available, the programme you
are watching will be recorded from the moment you
pressed the recording key until the programme ends. If
no TV Guide data is available, the recording will only
last 30 minutes. You can adjust the end time of the
recording in the list of Recordings.
Schedule a Recording
You can schedule a recording of an upcoming
programme for today or a few days from today
(maximum of 8 days away). The TV will use the data
from the TV Guide to start and end the recording.
To record a programme…
1. Press TV GUIDE.
2. On the TV guide, select the channel and programme
you wish to record. Press (Right) or (Left) to scroll
through the programmes of a channel.
3. With the programme highlighted, press the colour
key Record. The programme is scheduled for
25
recording. A warning will show automatically when
overlapping recordings are scheduled. If you plan to
record a programme in your absence, remember to
leave the TV switched to Standby and the USB Hard
Drive switched on.
List of Recordings
You can view and manage your recordings in the list of
recordings. Next to the list of recordings, there is a
separate list for scheduled recordings and reminders.
To open the list or recordings…
1. Press TV GUIDE.
2. Press the colour key Recordings.
3. With a recording selected in the list, you can remove
the recording with the colour key Remove. You can
rename a recording with the colour key Rename. Or
you can press the colour key Adjust time to change
the recording start time and end time.
Watch a Recording
To watch a recording…
1. Press TV GUIDE.
2. Press the colour key Recordings.
3. In the list of recordings, select the recording you need
and press OK to start watching.
4. You can use the
keys (pause), (play), (rewind), (fast forward)
or (stop).
5. To switch back to watch TV, press EXIT.
9.3. Pause TV
What You Need
You can pause a digital TV broadcast and resume
watching it a bit later.
To pause a TV programme you need…
- a connected USB Hard Drive formatted on this TV
- digital TV channels installed on this TV
- to receive channel information for the on screen TV
Guide
With the USB Hard Drive connected and formatted, the
TV continuously stores the TV broadcast you are
watching. When you switch to another channel, the
broadcast of the former channel is cleared. Also when
you switch the TV to standby the broadcast is cleared.
You cannot use Pause TV when you are recording.
Pause a Programme
To pause and resume a broadcast…
To pause a broadcast, press (Pause). A progress bar at
the bottom of the screen appears briefly.
To call up the progress bar, press (Pause) again.
To resume watching, press (Play).
With the progress bar on screen, press (Rewind) or
press (Forward) to select from where you want to
start viewing the paused broadcast. Press these keys
repeatedly to change speed.
You can pause a broadcast for a maximum time span of
90 minutes.
To switch back to the live TV broadcast, press (Stop).
Replay
Since the TV stores the broadcast you are watching, you
can mostly replay the broadcast for a few seconds.
To replay a current broadcast…
1. Press (Pause)
2. Press (Rewind). You can press repeatedly to
select from where you want to start viewing the paused
broadcast. Press these keys repeatedly to change speed.
At one point you will reach the start of the broadcast
storage or the maximum time span.
3. Press (Play) to watch the broadcast again.
4. Press (Stop) to watch the broadcast live.
26
10. Videos, Photos
and Music
10.1. From a USB Connection
You can view your photos or play your music and videos
from a connected USB flash drive or USB Hard Drive.
With the TV switched on, plug in a USB flash drive or a
USB Hard Drive to the USB connection.
Press SOURCES, then select USB, you can browse
your files in folder structure you have organised on the
USB Hard Drive.
Warning
If you try to pause or record a programme with a USB
Hard Drive connected, the TV will ask you to format the
USB Hard Drive. This formatting will delete all current
files on the USB Hard Drive.
10.2. Photos
View Photos
Open photo folder
1. Press SOURCES, select USB and press OK.
2. Select USB Flash Drive and press (right) to select
the USB device you need.
3. Select Photos, you can press List to have list view
or press again
Thumbnails for thumbnail view.
View a photo file
1. Press SOURCES, select USB and press OK.
2. Select USB Flash Drive and press (right) to select
the USB device you need.
3. Select Photos and select one of photos, you
can press OK to view the selected photo.
Photo Options
With a photo on screen, press OPTIONS to…
Start slideshow, Stop slideshow
Start or stop slideshow.
Slideshow transitions
Set the transition from one picture to the next.
Slideshow frequency
Select the display time for each photo.
Repeat, Play once
View the pictures repeatedly or once only.
Shuffle off, Shuffle on
View the pictures in sequential order, or at random.
Rotate image
Rotate photo.
Start music, Stop music
Start or stop the music playing in the background.
* Note: the music file is loaded from USB root directory,
please add music files to USB root directory.
10.3. Videos
Play Videos
To play a video on TV…
Select Videos, and select the file name and press OK.
- To pause the video, press OK. Press OK again to
continue.
- To rewind or go fast forward, press or . Press the
keys several times to speed up - 2x, 4x, 8x, 16x, 32x.
- To jump to the next or previous video in a folder, press
+ or -.
- To stop the video playback, press (Stop).
- To go back to the folder, press .
Open video folder
1. Press SOURCES, select USB and press OK.
2. Select USB Flash Drive and press (right) to select the
USB device you need.
3. Select Videos, you can press List to have list view
or press again
Thumbnails for thumbnail view.
Play a video file
1. Press SOURCES, select USB and press OK.
2. Select USB Flash Drive and press (right) to select the
USB device you need.
3. Select Videos and select one of video, you
can press OK to play the selected video or press Play
all to play all video files in the video folder.
Video Options
During the video playback, press OPTIONS to…
Subtitles
Display the subtitles if available, select On, Off, or On
during mute.
Subtitle language
Play the subtitle language if available.
27
Charater set
Select one of system for charater.
Audio language
Play the audio language if available.
Shuffle on, Shuffle off
Play videos in sequence or at random.
Repeat, Play once
Play videos repeatedly or once.
Show info
Display file information, like sound mode.
Subtitle settings
Set subtitle colour, font size, position, time sync offset if
available.
10.4. Music
Play Music
Open music folder
1. Press SOURCES, select USB and press OK.
2. Select USB Flash Drive and press (right) to select
the USB device you need.
3. Select Music, you can see music files in list.
Play a music file
1. Press SOURCES, select USB and press OK.
2. Select USB Flash Drive and press (right) to select
the USB device you need.
3. Select Music and select one of music, you
can press OK to play the selected music or press Play
all to play all music files in the music folder.
Music Options
Options for playing music...
Repeat, Play once
Play songs repeatedly or once.
Shuffle on, Shuffle off
Play songs in sequence or at random.
28
11. Open TV Setting
Menus
11.1. Home Menu Overview
Press (Home) to select one of below menus, then
press OK.
Channels
This row contains all channles.
- Press OK to open TV guide.
- Press (left) to view channels with channel logos, or
select see all to view all channels.
Sources
This row contains available sources in this TV.
Utilities
This row contains TV functions which are available for
user.
Settings
This row contains settings which are available for user.
11.2. Utilities Menu
TV guide
Open TV guide. For more information, in User manual,
see chapter TV Guide.
Recordings (Not applied to Turkey models)
For more information, in User manual, see
chapter Recording and Pause TV.
Channels
View channel list.
Update software
For more information, in User manual, see
chapter Software.
Demo Me
View Demo Me for demo on this TV.
11.3. Quick Settings and All
Settings
Quick settings menu:
Press SETUP key on the remote control to find
frequently used settings in Quick settings menu.
- Picture style: Select one of preset picture styles for
ideal picture viewing.
- Picture format: Select one of preset picture format
which fits the screen.
- Sound style: Select one of preset sound styles for ideal
sound settings.
- Headphone volume: Adjust the volume of a
connected headphone.
- Audio out: Set the TV to play the sound on TV or on
the connected audio system.
- Clock: Display clock on the right-top corner TV screen.
- Sleep timer: Set the TV to switch to standby
automatically after a preset time.
- All settings: View all settings menu.
- Help: Easily get software updated, reset TV to default
settings, and read user manual.
All settings menu:
Press (home) key on the remote control,
select Settings, and press OK.
11.4. All Settings
Picture Settings
Picture Style
Select a style
For easy picture adjustment, you can select a preset
picture style.
(Home) > Settings > Picture > Picture style
The available Picture styles are:
• Personal - The picture preferences you set during the
first start up.
• Crystal Clear - Ideal for daylight viewing.
• Home Cinema - Ideal for daily movie home
entertainment experience.
• ECO - Most energy conscious setting
29
• Movie - Ideal for watching movies with original studio
effect.
• Game - Ideal for playing games.
Custom a style
You can adjust and stored picture settings in in the
currently selected picture style, like Colour,
Contrast or Sharpness.
Restore a style
To restore the style to its original setting, select back
to Picture style, then press Restore style.
Colour, Contrast, Sharpness, Brightness
Adjust the picture colour
(Home) > Settings > Picture > Colour
Press the arrows (up) or (down) to adjust the
colour saturation value of the picture.
Adjust the picture contrast
(Home) > Settings > Picture > Backlight contrast
Press the arrows (up) or (down) to adjust the
contrast value of the picture.
You can decrease contrast value to reduce power
consumption.
Adjust the picture sharpness
(Home) > Settings > Picture > Sharpness
Press the arrows (up) or (down) to adjust the
sharpness value of the picture.
Adjust the picture brightness
(Home) > Settings > Picture > Brightness
Press the arrows (up) or (down) to adjust the
brightness value of the picture.
Advanced Picture Settings
Computer
(Home) > Settings > Picture > Advanced > Computer
Set to On to have the ideal picture setting for use your
TV as a computer monitor.
* Only available for HDMI source.
Colour Settings
(Home) > Settings > Picture > Advanced > Colour
Adjust the colour enhancement
(Home) > Settings > Picture > Advanced >
Colour > Colour enhancement
Select Maximum, Medium, or Minimum to set the level
of the colour intensity and the details in bright colours.
Select the preset colour temperature
(Home) > Settings > Picture > Advanced >
Colour > Colour temperature
Select Normal, Warm, or Cool to set the colour
temperature for your preference.
Customise colour temperature
(Home) > Settings > Picture > Advanced >
Colour > Custom colour temperature
Select Custom in Colour temperature menu
to customise a colour temperature yourself. Press the
arrows (up) or (down) to adjust the value.
Contrast Settings
Contrast Modes
(Home) > Settings > Picture
> Advanced
>
Contrast
> Contrast mode
Select Normal, Optimized for picture, Optimized for
energy saving to set the TV automatically reduces the
contrast, for best power consumption or for best
picture experience, or select Off to switch off the
adjustment.
Dynamic Contrast
(Home) > Settings > Picture > Advanced >
Contrast > Dynamic contrast
Select Maximum, Medium, or Minimum to set the level
at which the TV automatically enhances the details in
the dark, middle and light areas of the picture.
Video Contrast, Gamma
Video contrast
(Home) > Settings > Picture > Advanced >
Contrast > Video contrast
30
Press the arrows (up) or (down) to adjust the video
contrast level.
Gamma
(Home) > Settings > Picture > Advanced >
Contrast > Gamma
Press the arrows (up) or (down) to set a non-linear
setting for picture luminance and contrast.
Super Resolution
(Home) > Settings > Picture > Advanced > Sharpness
> Super Resolution
Select On to have a superior sharpness in line edges and
details.
Picture Clean
(Home) > Settings > Picture > Advanced > Picture
clean
Noise reduction
(Home) > Settings > Picture > Advanced > Picture
clean > Noise reduction
Select Maximum, Medium, Minimum to set the level for
removing the noise in video content.
Noise is mostly visible as small moving dots in on-screen
picture.
MPEG Artefact Reduction
(Home) > Settings > Picture > Advanced > Picture
clean > MPEG artefact reduction
Select On to smoothen the digital transitions in the
picture.
MPEG artefacts are mostly visible as small blocks or
jagged edges in on-screen images.
Format and Edges
(Home) > Settings > Picture > Format and edges
Picture format
(Home) > Settings > Picture > Format and
edges > Picture format
If black bars appear on top and bottom or on both sides
of the picture, you can adjust the picture format to a
format that fills the screen.
Screen Edges
(Home) > Settings > Picture > Format and
edges > Picture format > Screen edges
With Screen edges, you can slightly enlarge the picture
to hide distorted edges.
Sound Settings
Sound Style
Select a style
For easy sound adjustment, you can select a preset
sound style.
(Home) > Settings > Sound > Sound style
The available sound styles are:
- Personal - The sound preferences you set during the
first start up.
- Original - Most neutral sound setting
- Movie - Ideal for watching movies
- Music - Ideal for listening to music
- Game - Ideal for gaming
- News - Ideal for speech
Custom a style
You can adjust and stored sound settings in the
currently selected sound style, like Bass or Treble.
Restore a style
To restore the style to its original setting, select back
to Sound style, then press Restore style.
Bass, Treble
Bass
(Home) > Settings > Sound > Bass
Press the arrows (up) or (down) to adjust the level
of low tones in the sound.
Treble
(Home) > Settings > Sound > Treble
Press the arrows (up) or (down) to adjust the level
of high tones in the sound.
31
Headphone Volume
(Home) > Settings > Sound > Headphone volume
Press the arrows (up) or (down) to adjust the
volume of a connected headphone separately.
Surround Sound
(Home)
> Settings
> Sound
> Surround mode
Select the surround sound effect for the internal TV
speakers.
TV Placement
(Home)
> Settings
> Sound
> TV placement
Select On a TV stand or On the wall to have best sound
reproduction according to the setting.
Advanced Sound Settings
Volume Control
Auto volume levelling
(Home) > Settings > Sound > Advanced > Auto
volume levelling
Select On to automatically level out sudden volume
differences. Typically when you are switching channels.
Delta volume
(Home) > Settings > Sound > Advanced > Delta
volume
Press the arrows (up) or (down) to adjust the delta
value for TV speaker volume.
Audio Out Settings
(Home) > Settings > Sound > Advanced > Audio out
Set the TV to play the sound on TV or on the connected
audio system.
You can select where you want to hear the TV sound
and how you want to control it.
- If you select TV speakers off, you permanently switch
off the TV speakers.
- If you select TV speakers, the TV speakers are always
on.
With an audio device connected with HDMI CEC,
select HDMI sound system. The TV will switch off the TV
speakers when the device is playing the sound.
Clear Sound
(Home) > Settings > Sound > Advanced > Clear
sound
Select On to improve the sound for speech. Ideal for
news programmes.
Digital Output Settings
Digital output settings are available for optical and
HDMI ARC sound signals.
Digital out fomat
(Home) > Settings > Sound > Advanced > Digital out
format
Set the audio out signal of the TV to fit the sound
capabilities of the connected Home Theatre System.
- If you have a Home Theatre System (HTS)
with multichannel sound processing capabilities,
set Digital out format to Multichannel. With
Multichannel, the TV can send the compressed
multichannel sound signal from a TV channel or
connected player to the Home Theatre System.
- If you have a Home Theatre System without
multichannel sound processing, select Stereo.
Digital out levelling
(Home) > Settings > Sound > Advanced > Digital out
levelling
Adjust the loudness level from device which is
connected to digital audio output (SPDIF) or HDMI.
- Select More to have louder volume.
- Select Less to have softer volume.
Digital out delay
(Home) > Settings > Sound > Advanced > Digital out
delay
For some Home Theatre Systems you might need to
adjust the audio sync delay to synchronise the audio to
the video. Select Off if a sound delay is set on your
Home Theatre System.
Digital out offset (Only available when Digital out
delay set to On)
(Home) > Settings > Sound > Advanced > Digital out
offset
If you cannot set a delay on the Home Theatre System,
you can set the TV to sync the sound.
You can set an offset that compensates for the time
necessary for the Home Theatre System to process the
32
sound of the TV picture.
You can set the value in steps of 5ms. Maximum setting
is 60ms.
Eco Settings
Set energy saving level
(Home) > Settings > Eco settings > Energy saving
Select Minimium, Medium, or Maximium to have
different degress for energy saving, or select Off to
switch off energy saving mode.
Set screen off to save energy consumption
(Home) > Settings > Eco settings > Screen off
Select Screen off, the TV screen is switched off, to
switch the TV screen back on, press any key on the
remote control.
Set TV switch off timer
(Home) > Settings > Eco settings > Switch off timer.
Press the arrows (up) or (down) to adjust the
value. The value 0 (Off) deactivates the automatic
switch off.
Select Switch off timer, the TV switches off
automatically to save energy.
* TV switches off if receiving a TV signal but you don't
press a key on the remote control during a 4 hour
period.
* TV switches off if not receiving a TV signal nor a
remote control command for 10 minutes.
* If you use the TV as a monitor or use a digital receiver
to watch TV (a Set-Top Box - STB) and you do not use
the remote control of the TV, you should deactivate this
automatic switch off, to set the value to 0.
General Settings
Connection Related Settings
USB Hard Drive
(Home) > Settings > General settings > USB Hard
Drive
You need to set up and format* a USB Hard Drive
before you record a channel.
* Not applied to Turkey models.
CAM Operator Profile
(Home) > Settings > General settings > CAM
Operator Profile
To switch on operator profile for CI+/CAM for easy
channel installation and updates.
HDMI-CEC Connection - EasyLink
Connect HDMI CEC-compatible devices to your TV, you
can operate them with the TV remote control. EasyLink
HDMI CEC must be switched on on the TV and the
connected device.
Switch on EasyLink
(Home) > Settings > General
settings > EasyLink > EasyLink > On.
Operate HDMI CEC-compatible devices with TV remote
control
(Home) > Settings > General
settings > EasyLink > EasyLink remote control > On.
Note:
- EasyLink might not work with devices from other
brands.
- The HDMI CEC functionality has different names on
different brands. Some examples are: Anynet, Aquos
Link, Bravia Theatre Sync, Kuro Link, Simplink and Viera
Link. Not all brands are fully compatible with EasyLink.
Example HDMI CEC branding names are property of
their respective owners.
Location - Home or Shop
Select the location of your TV
(Home) > Settings > General settings > Location
Select Shop, the picture style is switched back to Crystal
Clear, and can adjust shop settings.
Shop mode is for in-store promotion.
Reset TV Settings and Reinstall TV
Reset all settings value to original TV settings
(Home) > Settings > General settings > Factory
settings
Redo full TV installation , and set TV status back to the
first time you switch on
33
(Home) > Settings > General settings > Reinstall TV
Enter PIN code and select Yes, the TV will reinstall
completely. All settings will be reset and installed
channels will be replaced. The installation can take a
few minute
Region and Language Settings
Language
(Home) > Settings > Region and
language > Language
Change the language of the TV menu and messages
(Home) > Settings > Region and
language > Language > Menu language
Set audio preference language
(Home) > Settings > Region and
language > Language > Primary audio language,
Secondary audio language
Digital TV channels can broadcast audio with several
spoken languages for a programme. You can set a
preferred primary and secondary audio language. If
audio in one of these languages is available, the TV will
switch to this audio.
Set subtitle preference language
(Home) > Settings > Region and
language > Language > Primary
subtitle language, Secondary subtitle language
Digital channels can offer several subtitle languages for
a programme. You can set a preferred primary and
secondary subtitle language. If subtitles in one of these
languages are available, the TV will show the subtitles
you selected.
Set teletext preference language
(Home) > Settings > Region and
language > Language > Primary text, Secondary text
Some digital TV broadcasters have several Text
languages available.
Clock
(Home) > Settings > Region and language > Clock
Correct clock automatically
(Home) > Settings > Region and
language > Clock > Auto clock mode
- The standard setting for the TV clock is Automatic.
The time information comes from the broadcasted UTC
- Coordinated Universal Time information.
- If the clock is not correct, you can set the TV clock
to Country dependent.
Correct clock manually
(Home) > Settings > Region and
language > Clock > Auto clock mode > Manual
(Home) > Settings > Region and
language > Clock > Date, Time
Go to previous menu, and select Date and Time to
adjust the value.
Note:
- If none of the automatic settings display the time
correctly, you can set the time manually.
- If you schedule recordings from the TV Guide, we
recommend not to change the time and date manually.
Set time zone or set a time offset for your region
(Home) > Settings > Region and
language > Clock > Time zone
Select one of the time zones.
Set the TV to switch to Standby automatically after a
preset time
(Home) > Settings > Region and
language > Clock > Sleep timer
Set the TV to switch to Standby automatically after a
preset time. With the slider bar you can set the time to
up to 180 minutes in increments of 5 minutes. If set to 0
minutes, the sleep timer is switched off. You can always
switch off your TV earlier or reset the time during the
countdown.
Universal Access Settings
(Home) > Settings > Universal access
With Universal Access switched on, the TV is prepared
for use for the deaf, hard of hearing, blind or partially
sighted people.
Switch on universal access settings
(Home) > Settings > Universal access > Universal
34
access > On.
Universal access for hearing impaired people
(Home) > Settings > Universal access > Hearing
impaired > On
- Some digital TV channels broadcast special audio and
subtitles adapted for the hard of hearing or deaf
people.
- Switched on, the TV automatically switches to the
adapted audio and subtitles, if available.
Universal access for blind or partially sighted people
(Home) > Settings > Universal access > Audio
description > Audio description > On
Digital TV channels can broadcast special audio
commentary describing what is happening on screen.
(Home) > Settings > Universal access > Audio
description > Audio description > Mixed volume,
Audio effects, Speech
- Select Mixed volume, you can mix the volume of the
normal audio with the audio commentary. Press the
arrows (up) or (down) to adjust the value.
- Set Audio effect to On for extra audio effects in the
commentary audio, like stereo or fading sound.
- Select Speech to set speech
preference, Descriptive or Subtitles.
Lock Settings
Set Code and Change Code
Set new code or reset change code
(Home) > Settings > Child lock > Set code, Change
code
The child lock code is used to lock or unlock channels or
programmes.
Note: If you forgot your PIN code, you can override the
current code use 8888 and enter a new code.
Lock for Programme
(Home) > Settings > Child lock > Parental rating
Set a minumum age to watch rated programmes.
CAM PIN
(Home) > Settings > Child lock > CAM PIN
Set CAM PIN for recording.
35
12. Environmental
12.1. European Energy Label
The European Energy Label informs you on the energy
efficiency class of this product. The greener the energy
efficiency class of this product is, the lower the energy it
consumes.
On the label, you can find the energy efficiency class,
the average power consumption of this product in use.
You can also find the power consumption values for
this product on the Philips website for your country
at www.philips.com/TVsupport.
12.2. EPREL Registration
Number
EPREL registration number
32PHS5500 : 2302419
43PFS5500 : 2302448
12.3. End of Use
Disposal of your old product and batteries
Your product is designed and manufactured with high
quality materials and components, which can be
recycled and reused.
When this crossed-out wheeled bin symbol is attached
to a product it means that the product is covered by the
European Directive 2012/19/EU.
Please inform yourself about the local separate
collection system for electrical and electronic products.
Please act according to your local rules and do not
dispose of your old products with your normal
household waste. Correct disposal of your old product
helps to prevent potential negative consequences for
the environment and human health.
Your product contains batteries covered by the
European Regulation (EU) 2023/1542, which cannot be
disposed with normal household waste.
Please find out for yourself about the local rules on
separate collection of batteries because correct disposal
will help to prevent negative consequences for the
environment and human health.
36
13. Specifications
13.1. Power
Product specifications are subject to change without
notice. For more specification details of this product,
see www.philips.com/TVsupport
Power
- Mains power : AC 100-240V
- Ambient temperature : 5°C to 35°C
13.2. Reception
- Aerial input : 75 ohm coaxial (IEC75)
- Tuner bands : Hyperband, S-Channel, UHF, VHF
- DVB : DVB-T2, DVB-C (cable) QAM
- Analogue video playback : SECAM, PAL
- Digital video playback : MPEG2 SD/HD (ISO/IEC
13818-2), MPEG4 SD/HD (ISO/IEC 14496-10), HEVC*
- Digital audio playback (ISO/IEC 13818-3)
- Satellite aerial input : 75 ohm F-type
- Input frequency range : 950 to 2150MHz
- Input level range : 25 to 65 dBm
- DVB-S2 QPSK, symbol rate 2 to 45M symbols, SCPC and
MCPC
- LNB : DiSEqC 1.0, 1 to 4 LNBs supported, Polarity
selection 14/18V, Band selection 22kHz, Tone burst
mode, LNB current 300mA max
* Only for DVB-T2, DVB-S2
13.3. Display Resolution
Diagonal screen size
• 80 cm / 32 inch
• 108 cm / 43 inch
Display resolution
• PHS: 1366 x 768
• PFS: 1920 x 1080
13.4. Supported Input
Resolution
For PHS series TV
Video formats
Resolution — Refresh rate
- 480i - 60Hz
- 480p - 60Hz
- 576i - 50Hz
- 576p - 50Hz
- 720p - 50Hz, 60Hz
- 1080i - 50Hz, 60Hz
- 1080p - 24Hz, 25Hz, 30Hz
Computer formats
Resolutions (amongst others)
- 640 x 480 - 60Hz
- 800 x 600 - 60Hz
- 1024 x 768 - 60Hz
- 1360 x 768 - 60Hz
- 1920 x 1080 - 60Hz
For PFS series TV
Video formats
Resolution — Refresh rate
- 480i - 60Hz
- 480p - 60Hz
- 576i - 50Hz
- 576p - 50Hz
- 720p - 50Hz, 60Hz
- 1080i - 50Hz, 60Hz
- 1080p - 24Hz, 25Hz, 30Hz
Computer formats
Resolutions (amongst others)
- 640 x 480 - 60Hz
- 800 x 600 - 60Hz
- 1024 x 768 - 60Hz
- 1280 x 1024 - 60Hz
- 1360 x 768 - 60Hz
- 1920 x 1080p - 60Hz
37
13.5. Sound
• Output power (RMS) : 32" - 12W; 43" - 16W
• Dolby Audio
• DTS 2.0+ Digital out ™
• Incredible Surround
• Bass/Treble
• AVL
13.6. Multimedia
Supported USB file systems
- USB (FAT / NTFS): only connect USB devices that
consume 500 mA of power or less.
Playback formats
- Image Codec : JPEG, GIF, PNG, BMP
- Audio Codec: MP3, WAV, AAC, FLAC
- Video Codec: H.264/MPEG-4 AVC, MPEG1, MPEG2,
MPEG4, HEVC
- Subtitle: SRT, SMI, SSA, SUB, ASS, TXT
13.7. Connectivity
TV Side
• Common Interface slot: CI+/CAM
• Antenna (75 ohm)
• Satellite tuner
• USB - USB 2.0
TV Bottom
• Headphones - Stereo mini-jack 3.5mm
• HDMI 1 input - ARC
• HDMI 2 input
• Audio out - Optical Toslink
38
14. Troubleshooting
14.1. Tips
If you can't find a solution for your TV problem
in Troubleshooting, you can
press Settings > Help > User manual to find the
information you are looking for.
If the User manual doesn't answer your question, you
can go to the support website of Philips.
To solve any Philips TV related problem, you can consult
our online support. You can select your language and
enter your product model number.
Go to www.philips.com/TVsupport.
On the support site you can find your country's
telephone number to contact us as well as answers to
frequently asked questions (FAQs). In some countries,
you can chat with one of our collaborators and ask your
question directly or send a question by email.
You can download new TV software or the manual to
read on your computer.
TV Help on your tablet, smartphone or computer
To carry out extended sequences of instructions more
easily, you can download the TV Help in PDF format to
read on your smartphone, tablet or
computer. Alternatively, you can print the relevant Help
page from your computer.
To download the Help (user manual) go
to www.philips.com/TVsupport
14.2. Switch On
The TV does not switch on
- Disconnect the power cable from the power outlet.
Wait for one minute then reconnect it. Make sure that
the power cable is securely connected. Try switching on
again.
- Connect the TV to another wall mains socket and try
switching on.
- Disconnect all connected devices from the TV and try
switching on.
- If the standby light on TV is on, the TV might not
respond to the remote control.
Creaking sound at startup or switch off
When you are turning the TV on, off or to standby, you
hear a creaking sound from the TV chassis. The creaking
sound is due to the normal expansion and contraction
of the TV as it cools and warms up. This does not affect
performance.
The TV goes back to standby after showing the Philips
startup screen
When the TV is in standby, a Philips startup screen is
displayed, then the TV returns to standby mode. This is
normal behaviour. When the TV is disconnected and
reconnected to the power supply, the startup screen is
displayed at the next startup. To switch on the TV from
standby, press (Standby / On) on the remote control
or on the TV.
The standby light keeps on blinking
Disconnect the power cable from the power outlet.
Wait 5 minutes before you reconnect the power cable.
If the blinking reoccurs, contact Philips TV Consumer
Care.
TV switches off by itself
If the TV switches off suddenly, the setting Switch off
timer might be switched on. With Switch off timer the
TV switches off after 4 hours if no remote control
signals were received. To avoid this automatic switch
off, you can deactivate this switch off.
Also, if the TV does not receive a TV signal nor a remote
control command for 10 minutes, the TV switches off
automatically.
14.3. Remote Control
TV does not respond to the remote control
• The TV requires some time to start up. During this
time, the TV does not respond to the remote control or
TV controls. This is normal behaviour.
• The batteries of the remote control might be empty.
Replace the batteries with new ones.
14.4. Channels
No digital channels found during the installation
See the technical specifications to make sure that your
TV supports DVB-T or DVB-C in your country.
Make sure that all cables are properly connected and
that the correct network is selected.
Previously installed channels are not in the channel
list
39
Make sure that the correct channel list is selected.
14.5. Picture
No picture / distorted picture
- Make sure that the antenna is properly connected to
the TV.
- Make sure that the correct device is selected as the
display source.
- Make sure that the external device or source is
properly connected.
Sound but no picture
- Make sure that the picture settings are set correctly.
Poor antenna reception
- Make sure that the antenna is properly connected to
the TV.
- Loud speakers, unearthed audio devices, neon lights,
high buildings and other large objects can influence
reception quality. If possible, try to improve the
reception quality by changing the antenna direction or
moving devices away from the TV.
- If reception on only one channel is poor, fine-tune this
channel with Manual Installation.
Poor picture from a device
- Make sure that the device is connected properly.
- Make sure that the picture settings are set correctly.
Picture settings change after a while
- Make sure that Location is set to Home. You can
change and save settings in this mode.
A commercial banner appears
- Make sure that Location is set to Home.
Picture does not fit the screen
- Change to a different picture format.
Picture format keeps changing with different
channels
- Select a non 'Auto' picture format.
Picture position is incorrect
- Picture signals from some devices may not fit the
screen correctly. Check the signal output of the
connected device.
Computer picture is not stable
- Make sure that your PC uses the supported resolution
and refresh rate.
14.6. Sound
No sound or poor sound quality
If no audio signal is detected, the TV automatically
switches the audio output off — this does not indicate
malfunction.
- Make sure that the sound settings are correctly set.
- Make sure that all cables are properly connected.
- Make sure that the volume is not muted or set to zero.
- Make sure that the TV audio output is connected to
the audio input on the Home Theatre System.
- Sound should be heard from the HTS speakers.
- Some devices may require you to manually enable
HDMI audio output. If HDMI audio is already enabled,
but you still do not hear audio, try changing the digital
audio format of the device to PCM (Pulse Code
Modulation). Refer to the documentation
accompanying your device for instructions.
14.7. HDMI
HDMI
- Note that HDCP (High-bandwidth Digital Content
Protection) support can delay the time taken for a TV to
display content from an HDMI device.
- If the TV does not recognise the HDMI device and no
picture is displayed, switch the source from one device
to another and back again.
- If there are intermittent sound disruptions, make sure
that output settings from the HDMI device are correct.
- If you use an HDMI-to-DVI adapter or HDMI-to-DVI
cable, make sure that an additional audio cable is
connected to AUDIO IN (mini-jack only), if available.
EasyLink does not work
- Make sure that your HDMI devices are HDMI-CEC
compatible. EasyLink features only work with devices
that are HDMI-CEC compatible.
No volume icon shown
- When a HDMI-CEC audio device is connected this
behaviour is normal.
40
14.8. USB
Photos, videos and music from a USB device do not
show
- Make sure that the USB storage device is set to Mass
Storage Class compliant, as described in the storage
device's documentation.
- Make sure that the USB storage device is compatible
with the TV.
- Make sure that the audio and picture file formats are
supported by the TV.
Choppy playback of USB files
- The transfer performance of the USB storage device
may limit the data transfer rate to the TV which causes
poor playback.
41
15. Safety and Care
15.1. Safety
Important
Read and understand all safety instructions before you
use the TV. If damage is caused by failure to follow
instructions, the warranty does not apply.
Risk of Electric Shock or Fire
• Never expose the TV or the remote control to rain or
water. Never place liquid containers, such as vases, near
the TV or the remote control.
If liquids are spilt on or into the TV, disconnect the TV
from the power outlet immediately.
Contact Philips TV Consumer Care to have the TV
checked before use.
• Never expose the TV, remote control or batteries to
excessive heat. Never place them near burning candles,
naked flames or other heat sources, including direct
sunlight.
• Never insert objects into the ventilation slots or other
openings on the TV.
• Never place heavy objects on the power cord.
• Avoid force coming onto power plugs. Loose power
plugs can cause arcing or fire. Ensure that no strain is
exerted on the power cord when you swivel the TV
screen.
• To disconnect the TV from the mains power, the
power plug of the TV must be disconnected. When
disconnecting the power, always pull the power plug,
never the cord. Ensure that you have full access to the
power plug, power cord and outlet socket at all times.
Risk of Injury or Damage to the TV
• Two people are required to lift and carry a TV that
weighs more than 25 kg or 55 lbs.
• If you mount the TV on a stand, only use the supplied
stand. Secure the stand to the TV tightly.
Place the TV on a flat, level surface that can support the
weight of the TV and the stand.
• When wall mounted, ensure that the wall mount can
safely bear the weight of the TV set. TP Vision bears no
responsibility for improper wall mounting that results in
accident, injury or damage.
• Parts of this product are made of glass. Handle with
care to avoid injury or damage.
Risk of damage to the TV !
Before you connect the TV to the power outlet, ensure
that the power voltage matches the value printed on
the back of the TV. Never connect the TV to the power
outlet if the voltage is different.
Stability Hazards
This product is designed and intended for consumers
and personal use in a domestic home environment,
unless agreed otherwise with the manufacturer in
writing. Failure to follow this recommendation or the
instructions provided in the product user manual and
the product supportive documentation can cause
damage to the product and will void the warranty for
such cases.
A television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
• ALWAYS ensure the television set is not overhanging
the edge of the supporting furniture.
• ALWAYS use cabinets or stands or mounting methods
recommended by the manufacturer of the television
set.
• ALWAYS use furniture that can safely support the
television set.
• ALWAYS educate children about the dangers of
climbing on furniture to reach the television set or its
controls.
• ALWAYS route cords and cables connected to your
television so they cannot be tripped over, pulled or
grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for
example, cupboards or bookcases) without anchoring
both the furniture and the television set to a suitable
support.
• NEVER place the television set on cloth or other
materials that may be located between the television
set and supporting furniture.
• NEVER place items that might tempt children to climb,
such as toys and remote controls, on the top of the
television or furniture on which the television is placed.
If the existing television set is going to be retained and
relocated, the same considerations as above should be
applied.
Risk of Batteries
• Do not ingest the battery. Chemical burn hazard.
• The remote control may contains a coin/button cell
battery. If the coin/button cell battery is swallowed, it
can cause severe internal burns in just 2 hours and can
lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely,
stop using the product and keep it away from children.
• If you think batteries might have been swallowed or
42
placed inside any part of the body, seek immediate
medical attention.
• Risk of fire or explosion if the battery is replaced by an
incorrect type.
• Replacement of a battery with an incorrect type that
can defeat a safeguard (for example, in the case of
some lithium battery types).
• Disposal of a battery into fire or a hot oven, or
mechanically crushing or cutting of a battery, that can
result in an explosion.
• Leaving a battery in an extremely high temperature
surrounding environment that can result in an
explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that
may result in an explosion or the leakage of flammable
liquid or gas.
Risk of Overheating
Never install the TV in a confined space. Always leave a
space of at least 20 cm or 8 inches around the TV for
ventilation. Ensure curtains or other objects never cover
the ventilation slots on the TV.
Lightning Storms
Disconnect the TV from the power outlet and antenna
before lightning storms.
During lightning storms, never touch any part of the TV,
power cord or antenna cable.
Risk of Hearing Damage
Avoid using earphones or headphones at high volumes
or for prolonged periods of time.
Low Temperatures
If the TV is transported in temperatures below 5°C or
41°F, unpack the TV and wait until the TV temperature
reaches room temperature before connecting the TV to
the power outlet.
Humidity
In rare occasions, depending on temperature and
humidity, minor condensation can occur on the inside
of the TV glass front (on some models). To prevent this,
do not expose the TV to direct sunlight, heat or extreme
humidity. If condensation occurs, it will disappear
spontaneously while the TV is playing for a few hours.
The condensation moisture will not harm the TV or
cause malfunction.
15.2. Screen Care
• Never touch, push, rub or strike the screen with any
object.
• Unplug the TV before cleaning.
• Clean the TV and frame with a soft damp cloth and
wipe gently. Never use substances such as alcohol,
chemicals or household cleaners on the TV.
• To avoid deformations and colour fading, wipe off
water drops as quickly as possible.
• Avoid stationary images as much as possible.
Stationary images are images that remain onscreen for
extended periods of time. Stationary images include
onscreen menus, black bars, time displays, etc. If you
must use stationary images, reduce screen contrast and
brightness to avoid screen damage.
15.3. Terms of Use
2025 © TP Vision Europe B.V. All rights reserved.
This product was brought to the market by TP Vision
Europe B.V. or one of its affiliates, hereinafter referred
to as TP Vision, which is the manufacturer of the
product. TP Vision is the warrantor in relation to the TV
with which this booklet was packaged. Philips and the
Philips Shield Emblem are registered trademarks of
Koninklijke Philips N.V.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V
or their respective owners. TP Vision reserves the right
to change products at any time without being obliged
to adjust earlier supplies accordingly.
The written material packaged with the TV and the
manual stored in the memory of the TV or downloaded
from the Philips
website www.philips.com/TVsupport are believed to be
adequate for the intended use of the system.
The material in this manual is believed adequate for the
intended use of the system. If the product, or its
individual modules or procedures, are used for
purposes other than those specified herein,
confirmation of their validity and suitability must be
obtained. TP Vision warrants that the material itself
does not infringe any United States patents. No further
warranty is expressed or implied. TP Vision cannot be
held responsible neither for any errors in the content of
this document nor for any problems as a result of the
content in this document. Errors reported to Philips will
be adapted and published on the Philips support
website as soon as possible.
Terms of warranty - Risk of injury, damage to TV or void
43
of warranty!
Never attempt to repair the TV yourself. Use the TV and
accessories only as intended by the manufacturer. The
caution sign printed on the back of the TV indicates risk
of electric shock. Never remove the TV cover. Always
contact Philips TV Customer Care for service or repairs.
Find the telephone number in the printed
documentation that came with the TV. Or consult our
website www.philips.com/TVsupport and select your
country if needed. Any operation expressly prohibited
in this manual, or any adjustments and assembly
procedures not recommended or authorised in this
manual, shall void the warranty.
Pixel characteristics
This TV product has a high number of colour pixels.
Although it has effective pixels of 99.999% or more,
black dots or bright points of light (red, green or blue)
may appear constantly on the screen. This is a structural
property of the display (within common industry
standards) and is not a malfunction. Therefore, please
note this is not subjected to repair, exchange or refund
within and/or out of the warranty period.
Backlight characteristics
All Philips TV have gone through stringent tests and
checks before shipping to you. You can be rest assured
that we place the quality of our TVs the utmost
importance so that you do not suffer any viewing
displeasure while watching your TV. However, please
note that backlight bleeding (“Mura effect”) and /or
unevenness of background light that can only be
observed in dark images or in a very dark and dim room
are considered to be within TV specifications. Such
occurrences do not represent a deterioration nor shall
be regarded as a defect of the TV. Hence, we regret
that claims of this nature for warranty, free of charge
service, replacement or refund cannot be accepted
within and/or out of the warranty period.
CE compliance
Hereby, TP Vision Europe B.V. declares that this
television is in compliance with the essential
requirements and other relevant provisions of
Directives 2014/53/EU (RED), 2011/65/EU (RoHS), and
ESPR Regulation (EU) 2024/1781 (Regulation (EU)
2019/2021).
UKCA compliance
Hereby, TP Vision Europe B.V. declares that this
television is in compliance with the essential
requirements and other relevant provisions of the
Radio Equipment Regulations 2017, Ecodesign for
Energy-Related Products and Energy Information
(Amendment) (EU Exit) Regulations 2019, and
Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment Regulations
2012.
Compliance with EMF
TP Vision manufactures and sells many products
targeted at consumers which, like any electronic
apparatus, in general have the ability to emit and
receive electromagnetic signals. One of TP Vision’s
leading business principles is to take all necessary
health and safety measures for our products, to comply
with all applicable legal requirements and to stay well
within the Electro Magnetic Field (EMF) standards
applicable at the time of producing the products.
TP Vision is committed to developing, producing and
marketing products that cause no adverse health
effects. TP Vision confirms that, as long as its products
are handled properly for their intended use, they are
safe to use according to scientific evidence available
today. TP Vision plays an active role in the development
of international EMF and safety standards, enabling TP
Vision to anticipate further developments in
standardisation for early integration in its products.
44
16. Copyrights
16.1. HDMI
The terms HDMI, HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator,
Inc.
16.2. HEVC Advance
Covered by one or more claims of the HEVC patents
listed at patentlist.accessadvance.com.
Future proof with advanced HEVC decoding.
16.3. Dolby Audio
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are
registered trademarks of Dolby Laboratories Licensing
Corporation.
16.4. DTS 2.0 + Digital Out ™
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, DTS and the Symbol together,
DTS 2.0+Digital Out, and the DTS 2.0+Digital Out logo
are registered trademarks or trademarks of DTS, Inc. in
the United States and/or other countries. © DTS, Inc.
ALL RIGHTS RESERVED.
16.5. Other Trademarks
All other registered and unregistered trademarks are
the property of their respective owners.
45
17. Open Source
17.1. Open Source Software
This television contains open source software. TP Vision
Europe B.V. hereby offers to deliver, upon request, a
copy of the complete corresponding source code for
the copyrighted open source software packages used in
this product for which such offer is requested by the
respective licences.
This offer is valid up to three years after product
purchase to anyone in receipt of this information.
To obtain the source code, please write in English to . . .
17.2. Open Source License
About Open Source License
README for the source code of the parts of TP Vision
Netherlands B.V. TV software that fall under open
source licenses.
This is a document describing the distribution of the
source code used on the TP Vision Netherlands B.V. TV,
which fall either under the GNU General Public License
(the GPL), or the GNU Lesser General Public License (the
LGPL), or any other open source license. Instructions to
obtain copies of this software can be found in the
Directions For Use.
TP Vision Netherlands B.V. MAKES NO WARRANTIES
WHATSOEVER, EITHER EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, REGARDING
THIS SOFTWARE. TP Vision Netherlands B.V. offers no
support for this software. The preceding does not affect
your warranties and statutory rights regarding any TP
Vision Netherlands B.V. product(s) you purchased. It
only applies to this source code made available to you.
Open Source
uboot (201106)
U-Boot, a boot loader for Embedded boards based on
PowerPC, ARM, MIPS and several other processors,
which can be installed in a boot ROM and used to
initialize and test the hardware or to download and run
application code.
Source: http://www.denx.de/wiki/U-Boot
vmlinux (3.1.10)
linux kernel
Source:
http://git.kernel.org/cgit/linux/kernel/git/stable/linux-
stable.git
busybox (v1.23.2)
BusyBox is a multi-call binary that combines many
common Unixutilities into a single executable. Most
people will create a link to busybox for each function
they wish to use and BusyBox will act like whatever it
was invoked as.
Source: http://www.busybox.net/
dlmalloc (2.8.4)
A Memory Allocator
Source:
http://g.oswego.edu/dl/html/malloc.html
ftp://gee.cs.oswego.edu/pub/misc/
iniparser (3.0)
stand-alone ini parser library in ANSI C
Source: http://ndevilla.free.fr/iniparser/
jpeg (6b.)
Libjpeg is a widely used C library for reading and
writing JPEG image files.
Source: http://www.ijg.org
png (1.2.32)
libpng is the official PNG reference library. It supports
almost all PNG features.
Source:
http://www.libpng.org/pub/png/src/libpng-
LICENSE.txt
http://www.libpng.org/pub/png/
46
freetype (2.5.3)
FreeType is a freely available software library to render
fonts.
Source: http://www.freetype.org/license.html
libc (2.16)
The GNU C Library is used as the C library in the GNU
systems and most systems with the Linux kernel.
Source: http://www.gnu.org/software/libc/
cares (1.7.3)
c-ares is a C library for asynchronous DNS requests
(including name resolves).
Source: https://c-ares.haxx.se/
curl (7.21.3)
curl is used in command lines or scripts to transfer data.
It is also used in cars, television sets, routers, printers,
audio equipment, mobile phones, tablets, settop boxes,
media players and is the internet transfer backbone for
thousands of software applications affecting billions of
humans daily.
Source: https://curl.haxx.se/
iconv (1.13.1)
Other programs internally store strings in Unicode, to
facilitate internal processing, and need to convert
between internal string representation (Unicode) and
external string representation (a traditional encoding)
when they are doing I/O. GNU libiconv is a conversion
library for both kinds of applications.
Source: http://www.gnu.org/software/libiconv/
Xml2 (2.7.7)
Libxml2 is the XML C parser and toolkit developed for
the Gnome project (but usable outside of the Gnome
platform), it is free software available under the MIT
License.
Source: http://xmlsoft.org/
neon (0.30.1)
neon is an HTTP and WebDAV client library, with a C
interface.
Source: http://www.webdav.org/neon/
openssl-0.9.8 (1.0.0)
OpenSSL is a robust, commercial-grade, and full-
featured toolkit for the Transport Layer Security (TLS)
and Secure Sockets Layer (SSL) protocols.
Source: http://www.openssl.org/source/license.html
sqlite (3.7.11)
SQLite is a self-contained, high-reliability, embedded,
full-featured, public-domain, SQL database engine.
Source: https://www.sqlite.org/
zlib (1.2.8)
interface of the 'zlib' general purpose compression
library.
Source: http://www.zlib.net/zlib_license.html
cairo (1.10.2)
Cairo is a 2D graphics library with support for multiple
output devices.
Source: https://cairographics.org/download/
libnl (3.2.24)
The libnl suite is a collection of libraries providing APIs
to netlink protocol based Linux kernel interfaces.
Source: https://github.com/tgraf/libnl
alsa (1.0.23)
The Advanced Linux Sound Architecture (ALSA)
provides audio and MIDI functionality to the Linux
operating system.
Source: https://www.alsa-
project.org/main/index.php/Main_Page
fontconfig (2.7.1)
Fontconfig is a library for configuring and customizing
font access.
Source:
https://www.freedesktop.org/wiki/Software/fontconfi
g/
47
icu (4.2.1)
ICU is a mature, widely used set of C/C++ and Java
libraries providing Unicode and Globalization support
for software applications.
Source: http://site.icu-project.org/home
pixman (0.19.6)
Pixman is a low-level software library for pixel
manipulation, providing features such as image
compositing and trapezoid rasterization.
Source: http://www.pixman.org/
pango (1.28.1)
Pango is a library for laying out and rendering of text,
with an emphasis on internationalization.
Source: https://www.pango.org/
glib (2.24.2)
GLib provides the core application building blocks for
libraries and applications written in C.
Source: https://directory.fsf.org/wiki/Glib
DFB (1.4.2)
DirectFB is a thin library that provides hardware
graphics acceleration, input device handling and
abstraction, integrated windowing system with support
for translucent windows and multiple display layers, not
only on top of the Linux Framebuffer Device. It is a
complete hardware abstraction layer with software
fallbacks for every graphics operation that is not
supported by the underlying hardware. DirectFB adds
graphical power to embedded systems and sets a new
standard for graphics under Linux.
Source: http://directfb.org/
48
Index
A
Add Satellite 17
Advanced Picture Contrast Settings 30
Advanced Picture Settings 30
Antenna Connection 10
Audio Description 34
Audio Effects 34
Audio Language 34
Auto Clock Mode 34
Auto Volume Levelling 32
B
Bass 31
Batteries 6
C
CAM Operator Profile 33
CAM PIN 35
Change PIN Code 35
Channel, Channel Filter 21
Channel, Rename Channel 20
Channels 15
Child Lock 35
CI Card 12
Colour 30
Colour Enhancement 30
Colour Settings 30
Colour Temperature 30
Computer Picture Setting 30
Connect Device 10
Consumer Care 4
Contact Info 4
Contrast 30
D
Date 34
Daylight Saving 34
Delta Volume 32
Digital Out Delay 32
Digital Out Format 32
Digital Out Levelling 32
Digital Out Offset 32
Dynamic Contrast 30
E
EasyLink 10
End of Use 36
Energy Saving 33
F
Favourite Channels 21
G
Gamma 30
H
HDMI - CEC Connection 10
HDMI ARC 11
HDMI Connection 10
Headphone Connection 11
Headphone Volume 32
Hearing Impaired 34
Help Menu 4
Home Menu 29
I
Identify TV 4
Install Channel 15
Install Channel - Antenna 15
Install Channel - Cable 15
Install Channel - Satellite 16
L
Language Settings 34
M
Menu Language 34
Mixed Volume 34
MPEG Artefact Reduction 31
N
Noise Reduction 31
O
On-line User Manual 4
P
Philips Support 4
Picture Clean 31
Picture Contrast Mode 30
Picture Format 31
Picture Style 29
Picture, Colour 30
Picture, Contrast 30
Picture, Sharpness 30
Power Cable 8
Problems 39
Q
Quick Settings Menu 29
R
Re-install Satellite Channels 17
Register TV 4
Remote Control 6
Remote Control and Batteries 6
Remove Satellite 17
Rename Device 14
Reorder Channels 21
Repair 4
Reset TV Settings 33
S
Safety and Care 42
Satellite Channel List 17
Search Channels 21
Set PIN Code 35
Sharpness 30
Sleep Timer 34
Software Version 5
Sound Settings 31
Sound Style 31
Source List 14
Speakers or Headphones 34
49
Standby Mode 9
Subtitle Language 34
Super Resolution 31
Surround Sound 32
Switching On 9
T
Teletext 22
Text 22
Text Language 34
Time 34
Time Settings 34
Time Zone 34
Troubleshooting 39
TV placement 8
U
Universal Access 34
Update Satellite Channels 17
Update Software 5
Update Software - Local Updates 5
Update Software - OAD 5
USB Hard Drive, Format 33
USB Storage Device 12
User Manual 4
Utilities Menu 29
V
Video Contrast 30
Videos, Photos and Music 27
Viewing Distance 8
50
