EN
TOOTHBRUSH
WITH INDUCTIVE CHARGING
Translation of the original manual
SOC 4200BL / SOC 4201GD
SOC 4200BL / SOC 4201GD
A
B
45
o
- 1 -
05/2023
2023, .
EN Toothbrush with inductive charging
Important safety instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
GENERAL WARNINGS
• Toothbrushes may be used by children and persons with
reduced physical or mental capabilities or with alack of
experience and knowledge, if they are supervised or have
been instructed to use the appliance in asafe manner and
understand the potential dangers.
• Children must not play with the appliance. Cleaning
and maintenance performed by the user must not be
performed by unsupervised children.
• In the event that the power cable is damaged, have it
repaired at aprofessional service centre to prevent causing
adangerous situation. It is forbidden to use the appliance if
it has adamaged power cable.
• The parts of the appliance that need to be mounted or
stood upright, must be mounted or stood upright in such
away that they cannot fall into water.
• Use the supplied original charging base to charge the
toothbrush. Before connecting the charging base to
apower socket, make sure the voltage stated on its rating
label corresponds to the voltage in your power socket.
- 2 -
05/2023
2023, .
ELECTRICAL SAFETY
• Before connecting the charging base to an el. power socket, make sure the voltage stated on its rating label corresponds to the voltage in your
power socket.
• Connect the appliance only to aproperly grounded socket. Do not use an extension cord.
• Do not connect and disconnect the power cord of the charging base to and from the power socket with wet hands.
• Ensure that the power plug contacts do not come into contact with water or any other liquid. If precisely this happens, carefully dry the power plug
before using it again.
• Do not disconnect the charging base from the power socket by pulling on the power cord. This could damage the cord or the el. power socket.
Disconnect the power cord from the power socket by pulling on the plug.
• Do not place heavy items on the power cord. Make sure the power cord does not hang over the edge of atable and that it is not touching ahot
surface or sharp objects.
• Keep the power cord dry.
• If the power cord, the USB power cable or the USB adapter is damaged, it must be replaced by the manufacturer, its service technician or by
asimilarly qualified person, as this will prevent adangerous situation from arising. It is forbidden to use adamaged power cord, USB power cable
or USB adapter.
• Do not wind the power cord around the charging base.
• The appliance is equipped with abuilt-in long-life battery that can only be removed at aprofessional service centre. Never attempt to remove it
from the appliance yourself.
Attention:
Never disassemble the appliance for the purpose of removing the battery. Never short circuit the appliance or throw it into afire.
Incorrect use, risks releasing toxic substances or causing afire or explosion.
• Do not repair the appliance yourself or make any adjustments to it. Have all repairs or adjustments of the appliance performed at an authorised
service centre. Tampering with the appliance during the warranty period may void the warranty.
• To prevent the risk of injury by electrical shock, never submerge the charging base and its power cord, the USB charging cable and USB adapter in
water or any other liquid, or wash these parts under running water.
• If the charging base falls into water, under no circumstances continue using it, but rather hand it over to an authorised service centre for inspection.
SAFETY DURING USE
• This toothbrush serves to clean teeth and gums in the household. Do not use it for commercial purposes or for purposes other than those for which
it is intended.
• Do not expose the toothbrush or its accessories to the effects of the outdoor environment, extreme temperatures, direct sunlight or locate it in the
vicinity of an open flame, heating elements and other equipment or appliances that could be potential sources of heat.
• Always locate the charging base on an even and stable surface.
• Keep the power cord plug of the charging base dry.
• Charge, use and keep the toothbrush at room temperature.
• For hygiene reasons, toothbrush heads should be used by only asingle user. Regularly replace the toothbrush head every 3 months, or sooner if it
shows signs of wear. Use only original replacement toothbrush heads.
• When the toothbrush is used by children, supervise them while they are brushing their teeth until they acquire the proper tooth brushing technique.
• In the event that dental work or oral surgery was performed in the past two months, consult the use of asonic toothbrush with your dentist.
• In the event that gum bleeding occurs when the toothbrush is used and if bleeding does not stop even after aweek of its use, contact your dentist.
• If your toothpaste contains peroxide, sodium bicarbonate or another bicarbonate (frequently used in whitening toothpastes), then thoroughly clean
the brush and the handle after use.
• In the event that using the toothbrush causes unpleasant or painful feelings, stop using the toothbrush and consult this situation with your dentist.
• In the event that you have apacemaker or another implanted device, consult the use of the toothbrush with your doctor or manufacturer of the
implant.
• Perform cleaning and maintenance according to the instructions in chapter Cleaning and maintenance. Do not wash the toothbrush or its
accessories in adishwasher.
• Do not make any modifications to the toothbrush or its accessories. By tampering with the product you risk voiding your legal rights arising from
unsatisfactory performance or quality warranty.
- 3 -
05/2023
2023, .
• Thank you for purchasing aSENCOR brand product and we hope that
you will be happy with it.
• Prior to using this appliance, please read the user'smanual
thoroughly, even in cases, when one has already familiarised
themselves with previous use of similar types of appliances. Only use
the appliance in the manner described in this user’smanual. Keep this
user'smanual in asafe place where it can be easily retrieved for future
use. In the event that you hand this appliance over to somebody else,
make sure to also include this user'smanual.
• Carefully unpack the appliance and take care not to throw away any
part of the packaging before you find all its parts. We recommend
saving the original cardboard box, packaging material, purchase
receipt and responsibility statement of the vendor or warranty card for
at least the duration of the legal liability for unsatisfactory performance
or quality. In the event of transportation, we recommend that you pack
the appliance in the original box from the manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

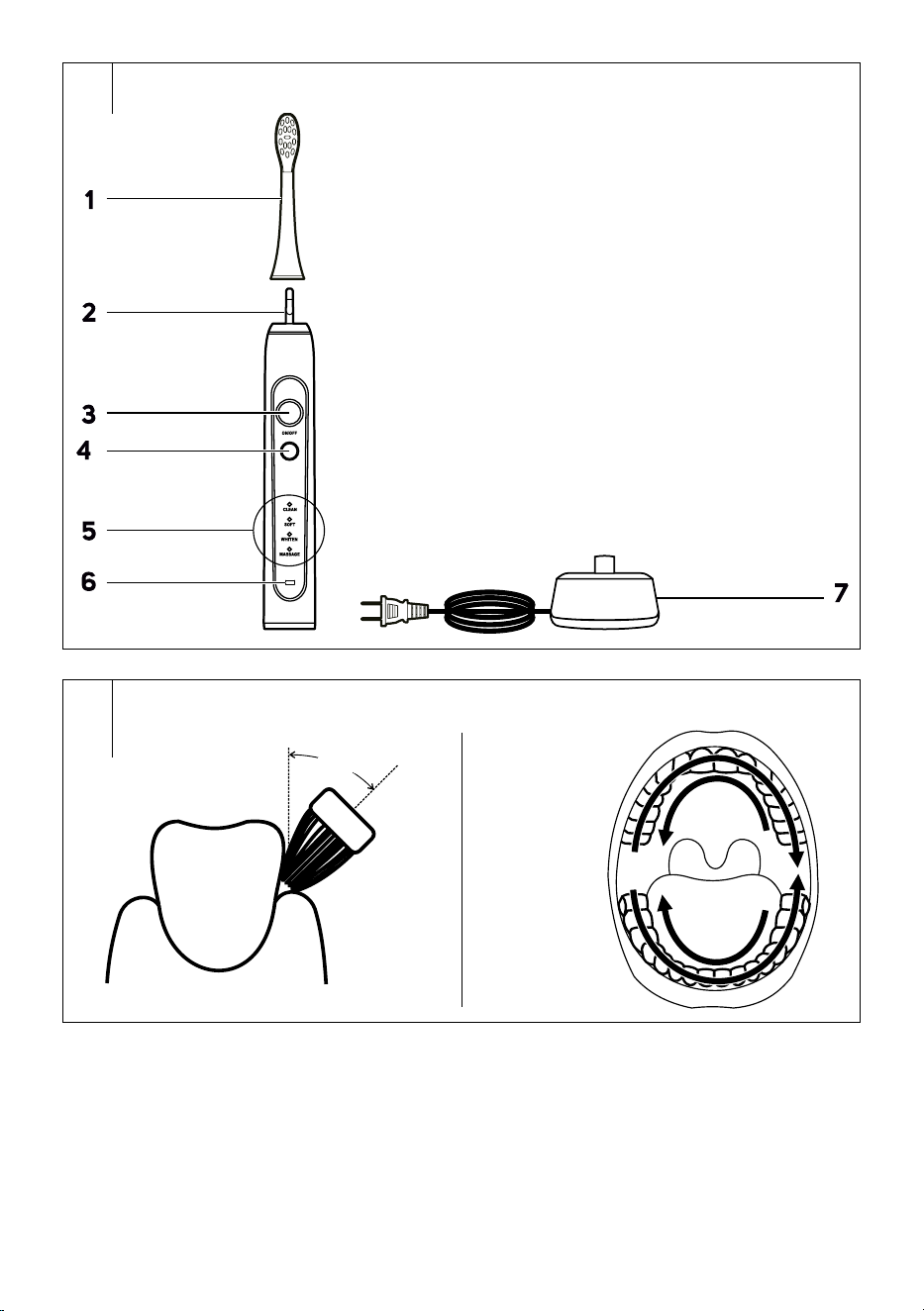

DESCRIPTION OF THE APPLIANCE
A1 Toothbrush head with
acoloured ring
A2 Connecting pin
A3 Main switch
A4 Mode toggle switch
A5 LED mode indicators:
CLEAN – standard cleaning
mode
SOFT – gentle cleaning mode
for sensitive gums
WHITEN – whitening mode
MASSAGE – gum massaging
mode
A6 Battery indicator
A7 Charging base
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Before first use, rinse the heads of the toothbrush with clean warm
water.
• Wipe the body of the toothbrush with adry or avery lightly dampened
wiping cloth. Never submerge the charging base and its power cord
in water, do not clean these under running water or wash them in
adishwasher.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHARGING
• Place the charging base on an even and stable surface and connect
the power cord to apower socket.
• Place the turned off toothbrush on the charging base. Charging will
commence automatically and the battery LED indicator on the body of
the toothbrush will light up.
• When the battery is fully charged, the LED indicator will turn off.
Note:
When charging the toothbrush for the first time after
purchase or when it has not been used for more than three
months, it is necessary to charge it for 24 hours.
The toothbrush may heat up during the charging process.
This is normal and does not indicate amalfunction.
• When the charging process is complete, we recommend
disconnecting the charging base from the power socket.
• The toothbrush is designed to regularly run for up to 3 weeks after
being charged.
• Although it is possible to recharge the toothbrush after it is fully
discharged, in order to maintain the optimal lifetime of the battery,
we recommend charging it at regular intervals (e.g. after 2-3 weeks
of use).
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION
• Slide the toothbrush head on to the connecting pin on the toothbrush
body. Asmall gap shall remain between the toothbrush body and
the coloured ring on the toothbrush head, which does not constitute
adefect. To remove the toothbrush head, proceed in the reverse
sequence.
• Wet the toothbrush and apply asmall amount of toothpaste on to it.
Turn on the toothbrush by pressing the main switch.
• Use the toggle switch to select acleaning mode:
CLEAN – mode for standard cleaning of healthy teeth;
SOFT – gentle mode for sensitive teeth or gums, we recommend
using this mode when teeth are more sensitive, when tooth necks are
exposed, periodontosis, implants and other dental substitutes,
WHITEN – mode suitable for whitening teeth
MASSAGE – pulse mode for gently massaging gums
LED indicator of the selected mode will be lit.
Note:
The toothbrush remembers the last used mode and
therefore it is not necessary to reactivate it by pressing the
mode toggle button.
If you press the mode toggle button while cleaning your
teeth, the toothbrush will switch to the new mode and the
respective light will be lit.
• Place the toothbrush bristles on to the teeth at an angle of 45° in
line with the gum, see figure B. Using short slow motions, move the
toothbrush to the other teeth. Once the outer side of the upper right
dental arch is brushed, move the toothbrush to the inner side of the
dental arch. Again, proceed from back to front. Adjust the toothbrush
angle to the tooth arrangement. When brushing the inner side of
the front teeth, hold the toothbrush handle vertical so that the tip of
the toothbrush head points upwards. Finally, brush the upper tooth
surfaces.
• In the same way, brush the right half of the lower dental arch, the left
half of the lower dental arch and finally also the left half of the upper
dental arch. When brushing the inner side of the front teeth of the
lower dental arch, hold the toothbrush handle vertical so that the tip of
the toothbrush head points downwards.
Note:
The automatic shut-off timer automatically turns the
toothbrush off after 2 minutes of operation. This is the tooth
brushing time recommended by dentists for the sonic
toothbrush.
• When you have finished using it, turn off the toothbrush using the
main switch and clean it out according to the instructions contained in
the chapter Cleaning and maintenance. Then place it into the storage
glass or into the case.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
Warning:
Prior to cleaning, the toothbrush must always
be turned off and the charging base must be
disconnected from the el. power source.
For cleaning the toothbrush, never use cleaning
products with an abrasive effect, solvents etc.
Otherwise, the surface of the appliance may be
damaged.
EN
Toothbrush with inductive charging
User'smanual
- 4 -
05/2023
2023, .
• For hygiene reasons, regularly clean the toothbrush after every use.
• Thoroughly rinse the toothbrush head under lukewarm running
water to remove any toothpaste or other remains. If whitening pastes
are used when brushing teeth, it is recommended to apply adrop of
soap on to the toothbrush head and then to thoroughly wash it under
running lukewarm water. Remove the toothbrush head from the
handle at least once per week and clean it under running water in the
location where it is attached to the handle.
• Rinse the toothbrush handle under running lukewarm water and then
dry it.
• In the event that the charging base is soiled, wipe it with aclean
dampened cloth and then wipe it dry. Ensure that the power plug
contacts do not come into contact with water or moisture.
• Never dry parts of the toothbrush over heat sources such as wood
stoves, electric or gas stoves, etc.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACING THE TOOTHBRUSH HEADS
• Regularly replace the toothbrush head every 3 months, or sooner if it
shows signs of wear. Use only original replacement toothbrush heads.
Replacement heads are available from you vendor both in online and
brick&mortar stores.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STORAGE
• When not using the toothbrush for an extended period of time,
disconnect the charging base from the power socket and put the
cleaned toothbrush and toothbrush head in adry, clean place. Do
not expose the stored toothbrush to extreme temperatures, direct
sunlight and excessive humidity and do not store it in an overly dusty
environment.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL SPECIFICATIONS
Toothbrush
Battery ................................................................................ Li-Ion / 3.7 V/ 650 mAh
Operating time when fully charged .........................................up to 100 minutes
Noise level ........................................................................................................ 65 dB(A)
Protection class level against damaging entry of water ............................. IPX7
Charging base
Input ............................................................. 100-240 VAC, 50/60 Hz, 0,8-1,6 W
Electrical shock protection class ............................................................................... II
Protection class level against damaging entry of water ............................. IPX7
The declared noise emission level of the appliance is 65 dB(A), which
represents alevel Aof acoustic power with respect to areference acoustic
power of 1 pW.
Explanation of technical terminology
Safety class for electrical shock protection:
Class II – Electrical shock protection is provided by
double or heavy-duty insulation.
Protection class level against damaging entry of water:
IPX7 – The appliance is protected against damaging entry of water when
submerged at adepth of 1 metre for 30 minutes.
Changes to text and technical parameters are reserved.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF
USED PACKAGING MATERIALS
Dispose of used packaging material at asite designated for waste in your
municipality.
DISPOSAL OF USED BATTERIES
Prior to handing over the appliance at aspecialised collection facility, it is
necessary to ensure that the built-in battery is removed. Battery removal
will be performed at the authorised service centre. In the event that the
product has been disassembled for the purpose of ecological disposal
then it must not be reassembled.
This symbol indicates that the used battery does not
belong in ordinary municipal waste. Hand over the used
battery to designated collection points for proper disposal.
Correct disposal of the battery will help prevent negative
impacts on the environment and human health.
Disposal in other countries outside the European Union.
This symbol is valid in the European Union. If you wish to dispose of this
product, request the necessary information about the correct disposal
method from the local council or from your retailer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF
USED PACKAGING MATERIALS
Dispose of used packaging material at asite designated for waste in your
municipality.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that
used electric or electronic products must not be added to
ordinary municipal waste. For proper disposal, renewal and
recycling, hand these appliances over to determined
collection points. Alternatively, in some European Union
states or other European countries you may return your
appliances to the local retailer when buying an equivalent
new appliance. Correct disposal of this product helps save
valuable natural resources and prevents potential negative effects on the
environment and human health, which could result from improper waste
disposal. Ask your local authorities or collection facility for more details. In
accordance with national regulations penalties may be imposed for the
incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electrical or electronic equipment, ask your
retailer or supplier for the necessary information.
Disposal in other countries outside the European Union.
This symbol is valid in the European Union. If you wish to dispose of this
product, request the necessary information about the correct disposal
method from the local council or from your retailer.
This product meets all the basic requirements of EU
directives related to it.
FAST ČR, a.s.
U Sanitasu 1621
CZ-251 01 Říčany
www.sencor.eu
