Stock No.
20098, 20100, 20104, 20106
21260, 21278, 21262
Installing 6 Drawer /
5 Drawer / 13 Drawer
Roller Cabinet

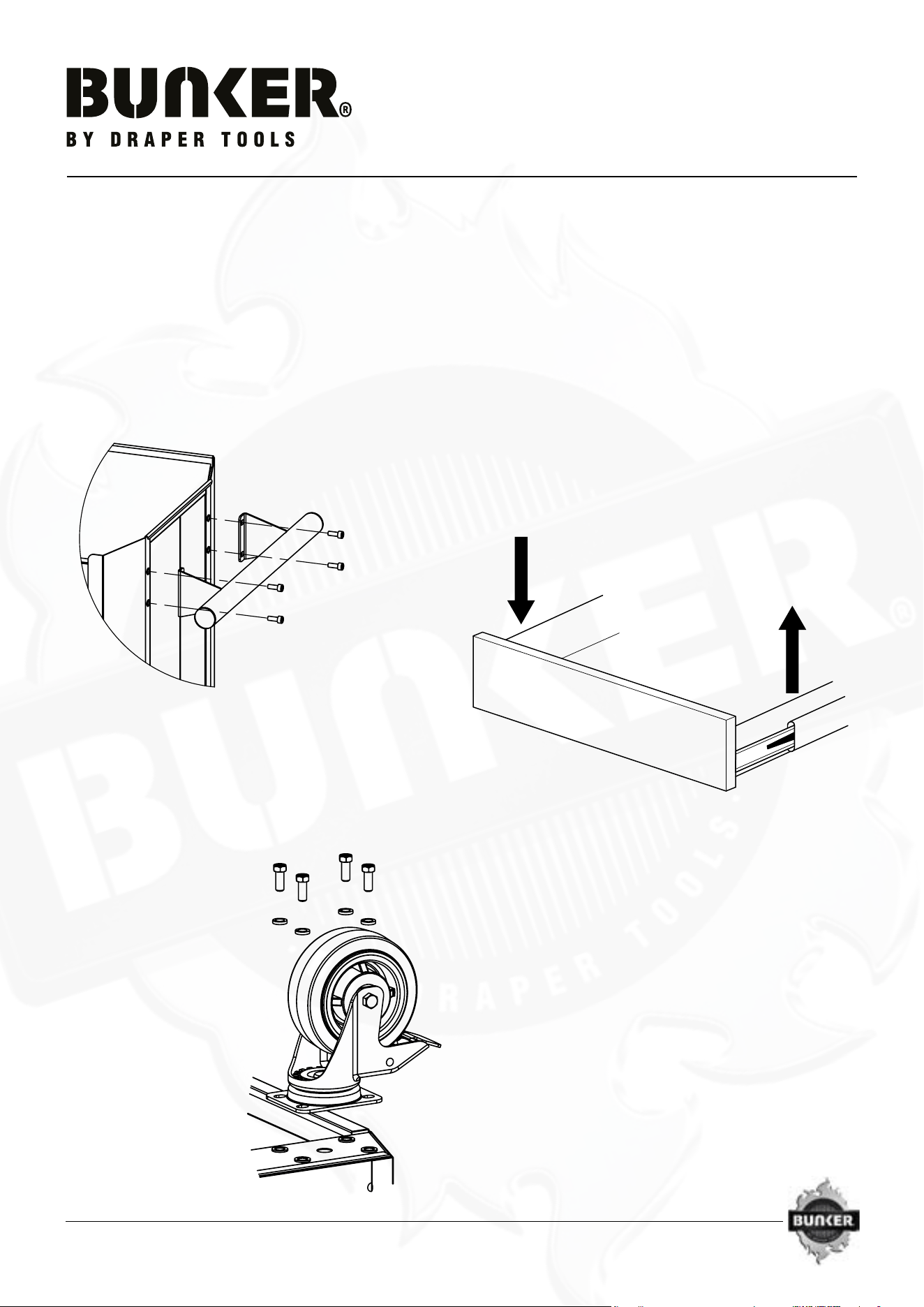

STEP 1: ATTACH CABINET HANDLE
• Position the cabinet handle over the
holes on the cabinet.
• Attach with (4) M6 x 15mm bolts and
tighten with supplied hex key.
Note: the cabinet handle should be mounted on the
same side as the swivel castors with brake.
REMOVING AND REPLACING THE
DRAWERS:
• Pull the drawer completely out.
• Press down on the left tab and lift up the right tab.
• Pulldrawerosliders.
• To reinstall the drawer, realign with the internal
slider and push in until locked in place.
CASTOR MAINTENANCE
Grease the castors annually using high quality
bearing grease
CARE AND CLEANING
Periodically the surfaces should be cleaned with
a mild detergent and water. Grease and oil can be
removedwithmoststandardcleaninguids.For
safetyuseanon-ammablecleaninguid.
Autowaxwillpreservetheunit’slustrenishand
protects against scratches.
STEP 2: ATTACH CASTORS
• Be sure the drawers are locked and place the cabinet
upside down.
• Secure castors to the unit using the (4) M8 x 25mm
bolts and spring washers and
tighten with supplied
hex key.
• Repeat this process on
the opposite of
the cabinet.
To make assembly easier we recommend having two
persons aid one another in assembly.
