SVS SoundPath Speaker Level Subwoofer Adapter
Thank you for choosing SVS. The following instructions will assist you in connecting and using the Sound-
Path Speaker Level Subwoofer Adapter. More information and details can be found at:
www.svsound.com/products/soundpath-speaker-level-subwoofer-adapter

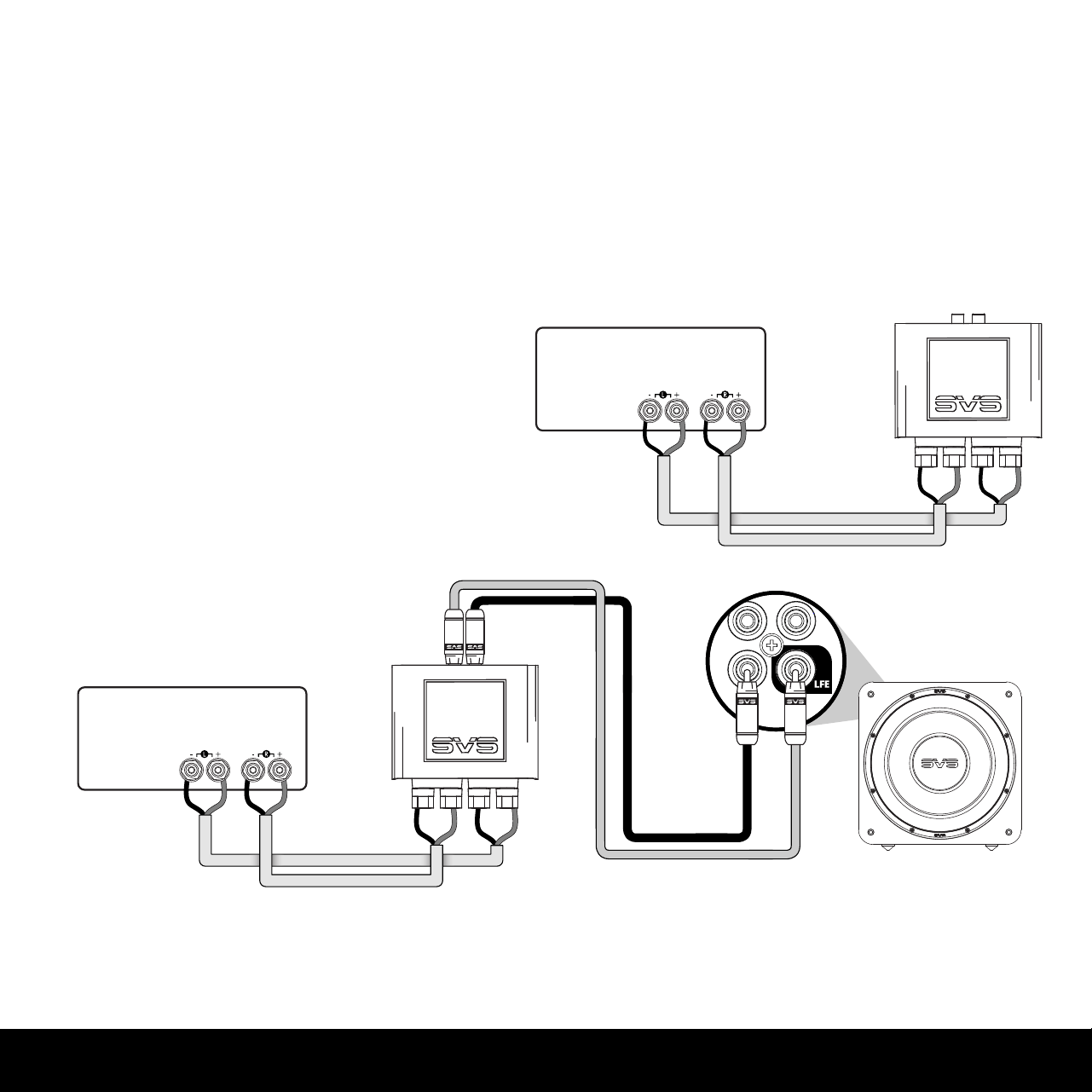

Connecting to a Receiver or Amplifier
• Make sure all connected components are switched off.
• Connect the Positive and Negative speaker level connections from the Left and Right speaker outputs of your
Amplifier or Receiver to the corresponding binding posts of the SoundPath Speaker Level Subwoofer Adapter.
• The binding posts accept bare wire, banana, or
spade connectors. Be sure to follow the
correct channel and polarity markings.
• Your adapter will power on as soon as it’s
connected to the AV receiver or amplifier.
Connecting to a Subwoofer
• Using a conventional RCA (Line Level) cable, connect the
RCA outputs of the Adapter to the RCA inputs of the subwoofer.
• You may now power-on other electronics in your system.
RECEIVER / POWER AMPLIFIER
SPEAKER LEVEL
OUTPUTS
RECEIVER / POWER AMPLIFIER
SPEAKER LEVEL
OUTPUTS
INPUT OUTPUT
LFE
NEED HELP?
(877) 626-5623 | [email protected] | www.svsound.com
If you require assistance, please contact our Customer Service team by clicking the Support widget on our website to call, chat or email.
NOTE: This product is not recommended for use with Differential Amplifiers.
These types of amplifiers are very rare, but if you are unsure, please contact us.
5-year Unconditional Warranty
SVS offers the industry's most comprehensive warranty on all our products. SVS warrants the SoundPath Speaker
Level Subwoofer Adapter to be free from defects in the workmanship for five years from date of purchase.
This warranty and the SVS customer Bill of Rights can be viewed online at www.svsound.com/bill-of-rights.
Share Your Thoughts
At SVS, we strive to deliver products that surpass every expectation. After you have had an opportunity to install
and audition your SoundPath Speaker Level Subwoofer Adapter, please feel free to share your comments and
feedback at any of the below links.
Input Stereo 5-Way Speaker Level Binding Posts
Input Impedance 4.85 kohm
Output Stereo RCA
Output Impedance 150 ohm
Attenuation -30dBV step down
Power 500W RMS / 1,000W Peak
Frequency Response 10Hz - 80kHz (+/- 0.01dB)
THD+N @ 10V <0.03% (10Hz - 80kHz)
Dimensions 1.5” (37.3mm) H x 3.9”(98.8mm) W x 4.1” (103.1mm) D
Product Weight 0.6 lbs (0.28 kgs)
Packaged Weight 1.0 lbs (0.46 kgs)
SoundPath Speaker Level Subwoofer Adapter Features and Specifications:
