English
Item No. 2350008-1 Rev 08/11
English
Operator’s Manual
InstaslIce
tM
Series 15100
15200
Thank you for purchasing this Vollrath Food Processing Equipment. Before operating the equipment, read and familiarize yourself with
the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and
packaging. Use this packaging to ship the equipment if repairs are needed.
Manual Food Processing equiPMent
OperatOr’s Manual
2
Safety PrecautionS
To ensure safe operation, read the following statements and
understand their meaning. This manual contains safety precautions
which are explained below. Please read carefully.
WARning
Warning is used to indicate the presence of a hazard that can cause
severe personal injury, death, or substantial property damage if the
warning is ignored.
CAUTiOn
Caution is used to indicate the presence of a hazard that will or can
cause minor personal injury or property damage if the caution is
ignored.
nOTE
Note is used to notify people of installation, operation, or
maintenance information that is important but not hazard-related.
For Your safety!
These precautions should be followed at all times. Failure to follow
these precautions could result in injury to yourself and others or
damage the equipment.
To reduce risk of injury or damage to the equipment:
To reduce risk of injury or damage to the equipment:
Check equipment before each use to insure the equipment is clean.
Check for broken, nicked or dull blades and if found, replace blade
assembly.
Check to insure that the pusher head sits down completely on the
rubber bumpers. The suction cups on each rear leg will hold the
equipment securely to smooth surfaces.
If necessary, lubricate guide rods using a light coating of mineral oil,
Petro Gel, or food grade lubricant. DO NOT USE COOKING OIL AS
IT WILL BECOME STICKY AND MAY PERMANENTLY DAMAGE THE
PUSHER HEAD BEARINGS
function and PurPoSe
Intended for slicing of tomatoes.
oPeration
WaRnInG
sharp Blade hazard.
Blades are sharp and can cause cuts and
amputation.
To avoid injury from sharp blades, handle with caution. Only trained
personal should operate equipment or preform maintenance.
Prior to rst use, it is important to clean the equipment. Wash new blades
with warm soapy water and rinse thoroughly to remove the thin protective oil
lm.
1. Place slicer on a table or counter. Position the InstaSlice Table Stop over
a table edge to hold the equipment in place
2. Before each use, always check for proper blade tightness and equipment
cleanliness. Check for broken, nicked or dull blades and if found, replace
blade assembly.
3. This equipment should be used to slice soft vegetables such as
tomatoes, mushrooms, strawberries, etc. Hard foods such as onions,
potatoes, lemons, etc. will cause blades to break. Use a Tomato King
Scooper to remove the stem scar of the tomato. For best results, the
tomatoes should be clean and wet before slicing them in the equipment.
4. Spray the plastic platform and blades with water to reduce friction and
repeat as needed during use.
5. Place the tomato top down on the platform of the slicer against the
pusher head. Place one hand on the pusher head handle and one hand
on the knob on top of the slicer. With a quick push of the pusher head,
push the tomato through the blades catching the slices into a pan placed
at the end of the slicer.
6. Repeat this process until you have prepared enough food for your daily
needs.
7. Rinse blades immediately. Failure to do so will shorten the life of the
blades.
cleaning
WaRnInG
sharp Blade hazard.
Blades are sharp and can cause cuts and
amputation.
To avoid injury from sharp blades, handle with caution. Only trained
personal should operate equipment or preform maintenance.
To maintain the appearance and increase the service life, clean your daily.
1. Place Pusher Head Assembly in its most “open” position by retracting the
handle.
2. Rinse or spray off equipment thoroughly with HOT water. You may want
to immerse the complete equipment in warm soapy water rst. Use
caution when handling the equipment - blades are sharp.
3. Do not wipe across blades or use scrub pads on this equipment. Wiping
across the sharp edge of the blade can cause injury and will dull the
blades.
4. Do not put this equipment in a dishwasher or dish machine with soaps,
detergents, or other alkaline chemicals that can harm the equipment.
5. After cleaning, let the equipment air dry.
6. Lubricate sliding parts with mineral oil or Petro Gel after each use.
Do not use cooking oil as it will become sticky and may permanently
damage the equipment.
nOte:
Food acids will make blades dull and corrode the metal.
always clean this food preparation equipment immediately
after every use.
Manual Food Processing equiPMent
3
English
OperatOr’s Manual
rePlacing Blade aSSemBly
WaRnInG
sharp Blade hazard.
Blades are sharp and can cause cuts and
amputation.
To avoid injury from sharp blades, handle with caution. Only trained
personal should operate equipment or preform maintenance.
Individual blades cannot be replaced. Replacement blades are available in
assemblies only.
The notches on the blade assembly t in groves on the bottom front of the
frame.
1. Loosen the two thumbscrews on the top of the equipment.
2. Push the top of the blade assembly from the back towards the front
and lift out. Replace in the opposite manner and tighten the two
thumbscrews.
3. Dispose of used blade assemblies properly.
Blade and PuSher head maintenance
1. Examine the pusher head ngers. If they are nicked or burred, smooth
the rough edges with a small at le. The spaces between the ngers
must be uniform. Straighten any bent ngers.
2. Check the clearance between the pusher head ngers and the blades.
Make sure they do not rest on or touch the blades at any point when you
move the head through its full travel. If there is contact, adjustments must
be made. Pusher head ngers must never contact blades.
3. Adjust pusher head nger spacing by placing a screwdriver between
pusher head ngers and gently rotate up/down. You may also adjust the
entire pusher head assembly by loosening the set screws underneath
and rotating the guide rod as needed - tighten set screws.
Preventative maintenance
4. Clean the equipment after every use.
5. Use for intended purposes only.
6. Change the blades regularly - based on usage.
trouBleShooting
If the equipment no longer slices tomatoes cleanly or without damage to the tomato, the blades could be dull and be in need of replacement. Broken, bent, or
nicked blades must be replaced immediately.
Problem It might be caused by course of action
Broken Blade. Wrong food used in equipment. Slice only what is recommended.
Fingers are misaligned. Readjust ngers.
Blades are dull. Replace blade assembly as needed.
Service and rePair
Please contact the qualied professional repair service listed below.
VOllRATh induction Repair service • 1-800-825-6036 (UsA) or www.vollrathco.com
When contacting the Authorized Professional Service Center, please be ready with the model number, serial number, and proof of purchase showing the date
the equipment was purchased.
Manual Food Processing equiPMent
OperatOr’s Manual
4

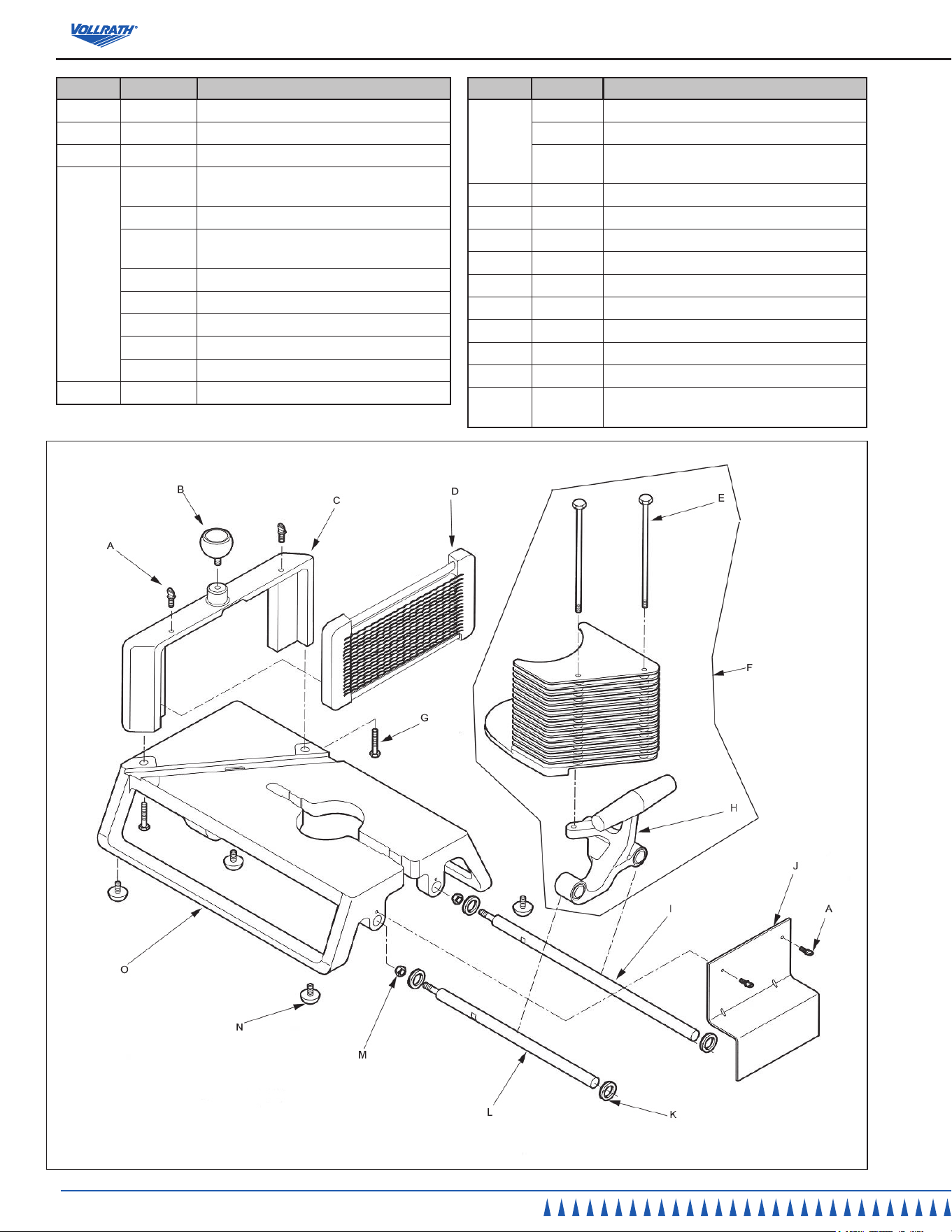

letteR PaRt # DescRIPtIOn
A 369211 Thumb screw
B 0304 Knob
C 379064 Bridge casting
D
15112
Blade assembly, 7/32” (scalloped
blade)
15113 Blade assembly, 1/4” (scalloped blade)
15115
Blade assembly, 3/16” (scalloped
blade)
15114 Blade assembly, 3/8” (scalloped blade)
15206 Blade assembly, 7/32” (straight blade)
15207 Blade assembly, 1/4” (straight blade)
15209 Blade assembly, 3/16” (straight blade)
15208 Blade assembly, 3/8” (straight blade)
E 379069 Pusher head assembly bolt
letteR PaRt # DescRIPtIOn
F
379070 Pusher head assembly (complete) 7/32”
379071 Pusher head assembly (complete) 1/4”
379072
Pusher head assembly (complete) 3/16”
& 3/8”
G 379073 Shoulder bolt
H 379074 Handle assembly
I 379075 Guide rod (long)
J 379076 Table top
K 379049 RUBBER washer - guide rod
L 379077 Guide rod (short)
M 353 Nut - guide rod
N 2319 Rubber foot
O 379079 Base
Not
Shown
379065
Guard
Manual Food Processing equiPMent
5
English
OperatOr’s Manual
noteS
Manual Food Processing equiPMent
OperatOr’s Manual
6
Warranty Statement for the vollrath co. l.l.c.
The Vollrath Company LLC warrants the products it manufactures and distributes against defects in materials and workmanship for a period of one year, except as specically
provided below. The warranty runs 12 months from the date of original installation. (End user receipt)
1. Refrigeration compressors – The warranty period is 5 years.
2. Replacement parts – The warranty period is 90 days.
3. Fry pans and coated cookware – The warranty period is 90 days
4. EverTite™ Riveting System – The warranty covers loose rivets
only, forever.
5. Cayenne® Heat Strips – The warranty period is 1 year plus an
additional 1 year period on heating element parts only.
6. Ultra and Professional Induction Ranges – The warranty period
is 2 years.
7. Mirage and Commercial Induction ranges - The warranty period
is 1 year.
8. ServeWell® Induction Workstations – The warranty period is one
year on the workstation table and 2 years on induction hobs.
9. Slicers – The warranty period is 10 years on gears and 5 years
on belts.
10. Mixers – The warranty period is 2 years.
11. Extended warranties are available at the time of sale.
12. Vollrath – Redco products – The warranty period is 2 years.
13. Optio / Arkadia product lines – The warranty period is 90 days.
14. All non-stick products (i.e. fry pans and surfaces) are 90 days for
the non stick surfaces.
All products in the Jacob’s Pride
®
collection, including
the following, have a lifetime warranty:
• NSF Certied One-Piece Dishers
• NSF Certied Spoodle
®
Utensils
• NSF Certied Heavy-Duty Spoons with Ergo-
nomic Handle
• NSF Certied Heavy-Duty Basting Spoons
• Heavy duty Turners with Ergonomic handle
• One-Piece Tongs*
• Heavy-Duty One-Piece Ladles*
• Nylon Handle Whips
• One-Piece Skimmers
• Tribute
®
, Intrigue
®
, and Classic Select
®
Cook-
ware*
*Jacob’s Pride
®
warranty does not cover Kool-Touch
®
,
non stick coatings and silicone handles.
items sold having no warranty:
• Meat Grinder Knives
• Light Bulbs in Convection Ovens and
Hot Food Merchandiser
• Oven Door Seals
• Oven Door Glass
• Hot Food Merchandisers / Display Case
Glass
• Calibration and set up of gas equipment
• Slicer / Dicer blades (table top food
prep) – Redco and Vollrath
This WARRAnTY is in liEU OF AnY OThER WARRAnTiEs, EXPREss OR iMPliED, inClUDing AnY iMPliED WARRAnTY OF
MERChAnTABiliTY OR FiTnEss FOR A PARTiCUlAR PURPOsE
As The Vollrath Company LLC’s only responsibility and the purchaser’s only remedy, for any breach of warranty, The Vollrath Company LLC will repair or, at its option, replace the
defective product or part without charge, except as otherwise provided below:
• For refrigeration compressors and the second year of the warranty on Cayenne® Heat Strips and mixers, The Vollrath Company LLC will provide the repaired
or replacement part only; and the buyer will be responsible for all labor charges incurred in performing the repair or replacement.
• To obtain warranty service, the buyer will be responsible to return to The Vollrath Company LLC any product (other than gas equipment that is permanently
installed) weighing less than 110 lbs. or located outside of a 50-mile radius of a certied technician designated by The Vollrath Company LLC to perform
warranty repairs. If a Vollrath Technician cannot be contacted check the website for service contact points. (Please refer to the Product Catalogue for weights
and sizes of product)
• No remedy will be available for products that have been damaged by accident, carelessness, improper installation, lack of proper setup or supervision when
required, neglect, improper use, installation or operation contrary to installation and operating instructions or other causes not arising out of defects in materi-
als or workmanship. At the buyer’s request, The Vollrath Company LLC will repair and or replace such products at a reasonable cost.
• No remedy will be available for slicers where blade has not been sharpened (Refer to owner’s manual for sharpening instructions)
• No remedy will be available for mixers damaged by changing gears while unit is running or overloading, in either case as determined by a Vollrath Certied
Technician
• Warranty work must be authorized in advance by The Vollrath Company LLC. See the operating and safety instructions for each product for detailed war-
ranty claim procedures.
• No remedy will be available for product returned and found to be acceptable to the product specication.
• No remedy will be available under any warranty not registered as required below.
liMiTATiOn OF liABiliTY:
ThE VOllRATh COMPAnY llC shAll hAVE nO liABiliTY FOR inCiDEnTAl OR COnsEQUEnTiAl DAMAgEs OF AnY KinD,
WhEThER BAsED UPOn nEgligEnCE OR OThER TORT, BREACh OF WARRAnTY, OR AnY OThER ThEORY.
Manual Food Processing equiPMent
7
English
OperatOr’s Manual
Warranty Procedure
On all warranty calls, the following process and information is required:
• All warranty claims will start with a call to Vollrath Technical Service support line.(800-628-0832).
• A technical support professional will work to diagnose the issues, and provide the details for the service solution.
• Name and phone number of person calling
• Business name, street address, city, state and zip
• Model and serial number
• Date of purchase and proof of purchase (Receipt)
• Name of dealer where unit was purchased
NOTE: Vollrath will not accept products sent without the proper procedure being followed.
important:
TO MAKE A CLAIM FOR ANY REMEDY UNDER THIS WARRANTY, YOU MUST REGISTER YOUR WARRANTY.
register today
ONLINE: Register your warranty on-line now at www.Vollrathco.com
NO WEB ACCESS: If you do not have access to the web, kindly register by completing the warranty registration form and faxing it to The Vollrath Co. LLC ofce in the country of
purchase.
Warranty regiStration
Business naMe
Key contact naMe eMail
street address
city state ZiP code
country Phone Fax
Model iteM nuMBer
serial nuMBer - -
oPeration tyPe
R Limited Service Restaurant R Full Service Restaurant R Bars and Taverns R Supermarket
R Convenience Store R Recreation R Hotel/Lodging R Airlines
R Business/Industry R Primary/Secondary School R Colleges/University R Hospitals
R Long-Term Care R Senior Living R Military R Corrections
reason For selecting our Product
R Appearance R Full Service Restaurant R Availability R Sellers Recommendation
R Ease of Operation R Versatility of Use R Price R Brand
Would you liKe to receive our Full-line catalog and reMain on our Mailing list? R Yes R No
www.vollrathco.com
The Vollrath Company, L.L.C.
1236 North 18th Street
Sheboygan, WI 53081-3201
U.S.A.
Main Tel: 800.628.0830
Fax: 800.752.5620
Technical Services: 800.628.0832
Service Fax: 920.459.5462
Canada Service: 800.695.8560
© 2011 The Vollrath Company, L.L.C.
