PRODUCT STANDARDS
AND USE INFORMATION
• Sink Bowl Standards
• Drain Flows
• Grease Trap Sizing
• NSF Requirements For Sinks
• Stainless Steel Corrosion Prevention & Cleaning
• Work Table Load Capacities
• Calculating Cubed Ice Volume & Weight
ADVANCE TABCO is constantly engaged in a program of improving our products. Therefore, we reserve the right to change specifications without prior notice. © ADVANCE TABCO, JUNE 2021
Customer Service Available To Assist You
Call 1-800-645-3166
8:30 am - 8:00 pm E.S.T.
For Orders & Customer Service:
Email: [email protected] or Fax: 631-242-6900
For Smart Fabrication™ Quotes:
Email: [email protected] or Fax: 631-586-2933

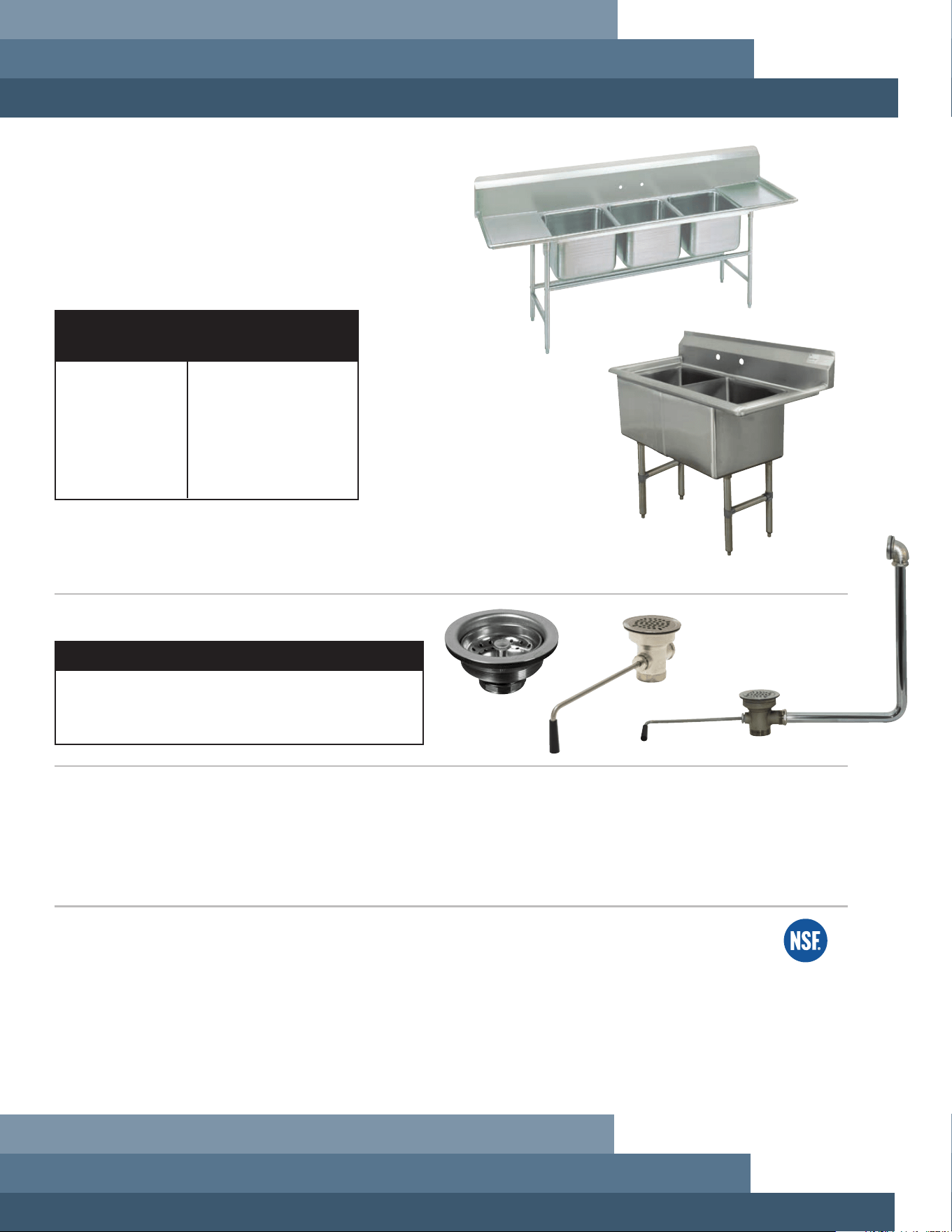

SINK BOWL STANDARDS
STANDARDS
One Gallon of Water = 8.34 lbs.
One Gallon of Water = 231 Cubic Inches
One Cubic Foot = 7.49 Gallons
One Cubic Foot Of Water = 62.43
10” x 14” x 5” 2.75
10” x 14” x 10” 5.50
14” x 16” x 10” 9.35
14” x 16” x 12” 11.25
16” x 20” x 12” 15.70
16” x 20” x 14” 18.40
Capacity In Gallons
Per Compartment
BOWL SIZE
DRAIN FLOW
DRAIN MODEL # I.P.S. DRAIN FLOW
K-6 (Basket Type) 1-1/2” 7 gpm
K-5 (Twist) 1-1/2” 15 gpm
K-15 (Twist) 2” 15 gpm
CAPACITY - Deep Drawn Bowls
CAPACITY - FC, FS & FE Series Fabricated Sinks
L x W x D
÷ 231 = Gallons
(Inches)
GREASE TRAP SIZING
Grease Trap Sizing is determined by the total volume of water that will drain from a sink unit in one minute.
SIZE IN POUNDS = 1.50 x number of compartments x drain flow.
1.50 = 75% Water Volume of Sink x 2 (K Factor of Volume to Weight)
SIGNIFICANT NSF REQUIREMENTS FOR SINKS
• Drainboards, when provided, must have a splash and must be integrally welded to the sink.
• Drainboards are to be sized such as that the LEFT TO RIGHT dimension of the drainboard is equal to or greater
than the SMALLER DIMENSION OF THE SINK BOWL OPENING.
• Sinks are considered as FOOD ZONE. Therefore, ONLY 300 Series, 200 Series and Type 430 Stainless Steel
are the approved materials. (Type 400 & 409 Stainless Steel are not acceptable)
1
K-6
K-5
K-15
TABLE TOP LOAD CAPACITIES
2
Weight Capacity For Distributed Load In Lbs.
For Flat Top Work Table
With Undershelf
Up To 60”
In Length
61” To 84”
In Length
Over 84” With
Center Leg
14 Gauge Table Top 1000 800 1500
16 Gauge Table Top 800 600 1200
18 Gauge Table Top 400 300 500
14 Gauge Equipment Stand
(ES/EG Series)
1000 1000 1500
Special Value Equipment
Stand (ES-LS/ EG-LG Series)
600 600 N/A
Standard Undershelf
(Stainless Or Galvanized)
300 300 450
ADJUSTMENTS TO THE ABOVE VALUES:
• Table Tops With 5” Tall Or 10” Tall Rear Splash With 1” Or 2” Return
Increases capacity of top by 10% (Multiply by 1.1)
• Table Tops With Open Base Instead Of Undershelf (With Rear Cross Brace Installed)
Reduces capacity of top by 20% (Multiply by 0.8)
• Adding An Extra Set Of Legs In The Center Of A Table (Not Available On All Table Series)
Increases top and undershelf capacity by 50% (Multiply by 1.5)
• TA-366A Reinforced Understructure Under Table Top (Not Available On All Table Series)
Increases the capacity of a table top by 30% (Multiply by 1.3)
• TA-366 Reinforced Understructure On Undershelf (Not Available On All Table Series)
Increases capacity of the undershelf by 30% (Multiply by 1.3)
• Upgrade Stainless Undershelf To 16 Gauge (TA-94) (Not Available On All Table Series)
Increases undershelf capacity by 20% (Multiply by 1.2)
• Upgrade Stainless Undershelf To 14 Gauge (TA-94A) (Not Available On All Table Series)
Increases undershelf capacity by 30% (Multiply by 1.3)
PLEASE NOTE:
MAXIMUM LOAD On Table (Top And Undershelf Combined)
With all adjustments above cannot exceed 1800 pounds
Tables With Casters Are Limited By The Capacity Of The Selected Caster As Well
3
USE THE FOLLOWING FORMULA:
1. Calculate Cubic Area of Ice Liner - Multiply Length x Width x Depth x 1728 = Total Cubic Feet
(i.e, 12” x 12” x 12” ÷ 1728 = 1 Cu Ft.)
2. Cubed Ice = 40 Lbs. Per Cubic Foot.
3. Multiply Volume (Ice Liner Cubic Feet) x 40 Lbs./Cu Ft. = Total Weight
CALCULATING
ICE VOLUME AND WEIGHT
