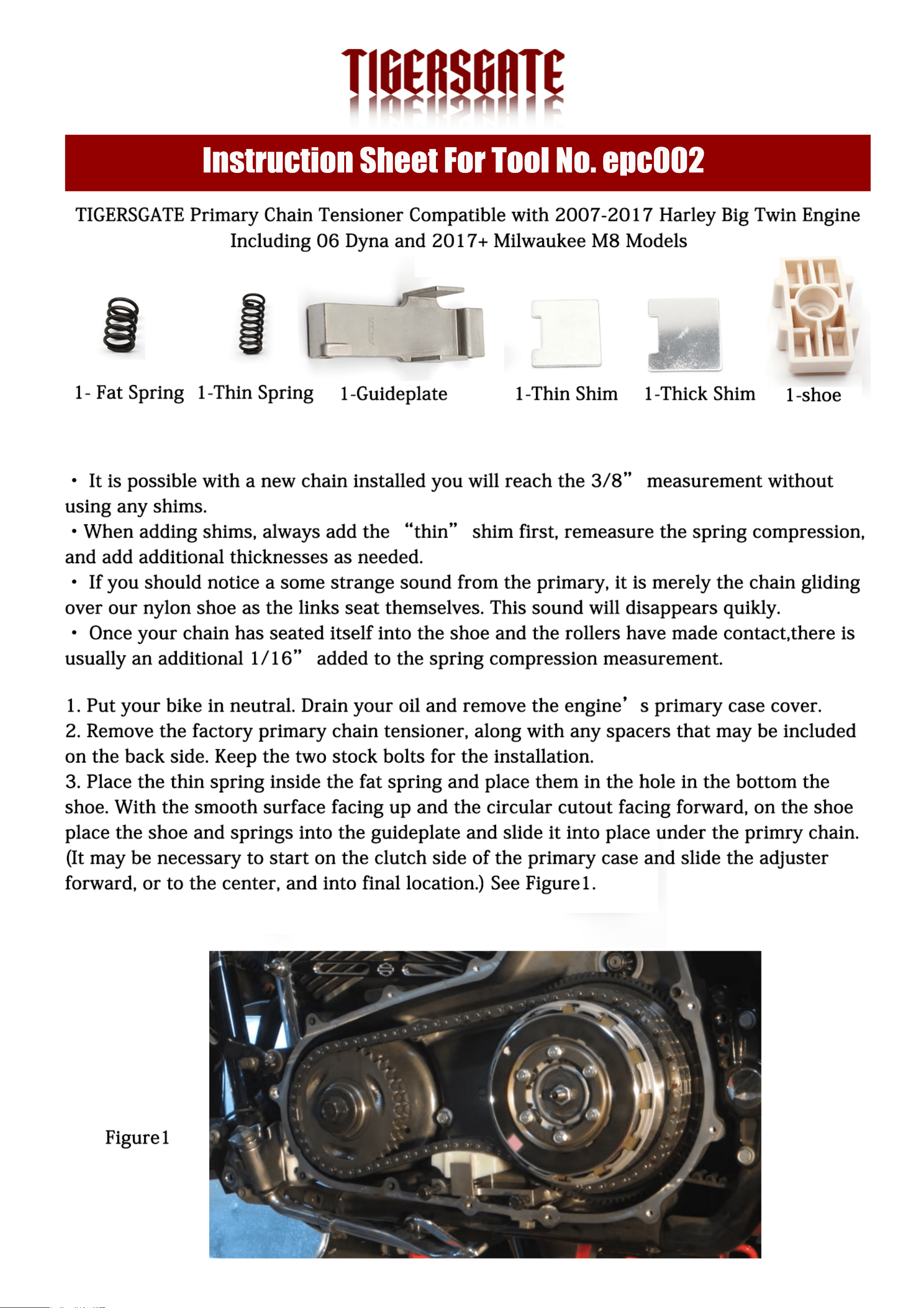

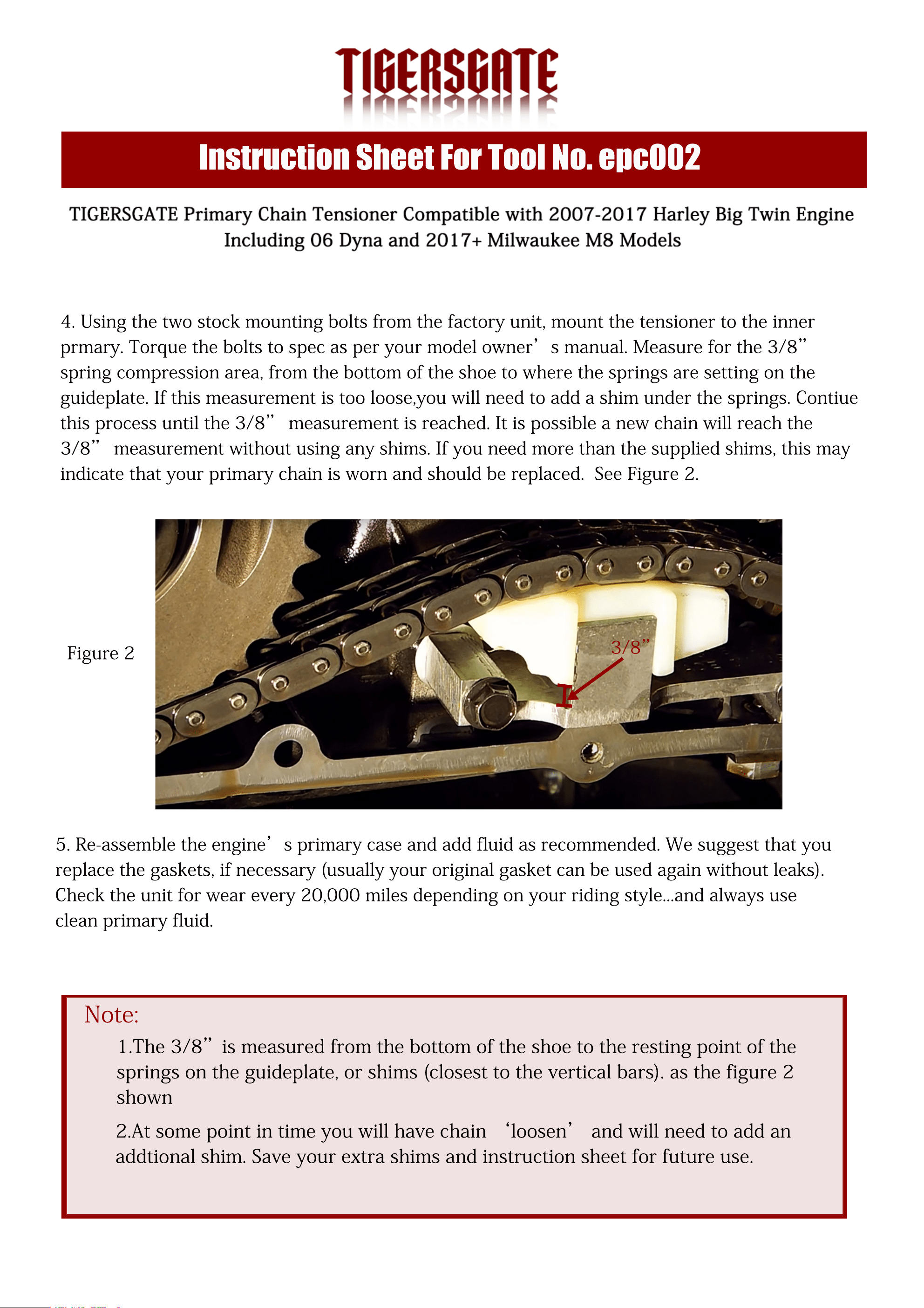

Figure 2
4. Using the two stock mounting bolts from the factory unit, mount the tensioner to the inner
prmary. Torque the bolts to spec as per your model owner’s manual. Measure for the 3/8”
spring compression area, from the bottom of the shoe to where the springs are setting on the
guideplate. If this measurement is too loose,you will need to add a shim under the springs. Contiue
this process until the 3/8” measurement is reached. It is possible a new chain will reach the
3/8” measurement without using any shims. If you need more than the supplied shims, this may
indicate that your primary chain is worn and should be replaced. See Figure 2.
5. Re-assemble the engine’s primary case and add fluid as recommended. We suggest that you
replace the gaskets, if necessary (usually your original gasket can be used again without leaks).
Check the unit for wear every 20,000 miles depending on your riding style...and always use
clean primary fluid.
Note:
2.At some point in time you will have chain ‘loosen’ and will need to add an
addtional shim. Save your extra shims and instruction sheet for future use.
1.The 3/8”is measured from the bottom of the shoe to the resting point of the
springs on the guideplate, or shims (closest to the vertical bars). as the figure 2
shown
3/8”
