R20
Operator's Manual and Technical Specifications
SHENZHEN MINDRAY ANIMAL MEDICAL TECHNOLOGY
CO., LTD.
1. Product Overview
R20 backup mainly includes:
(R20) Purpose: To receive the parameter data of the animal vital signs
monitor and send them to the monitor.

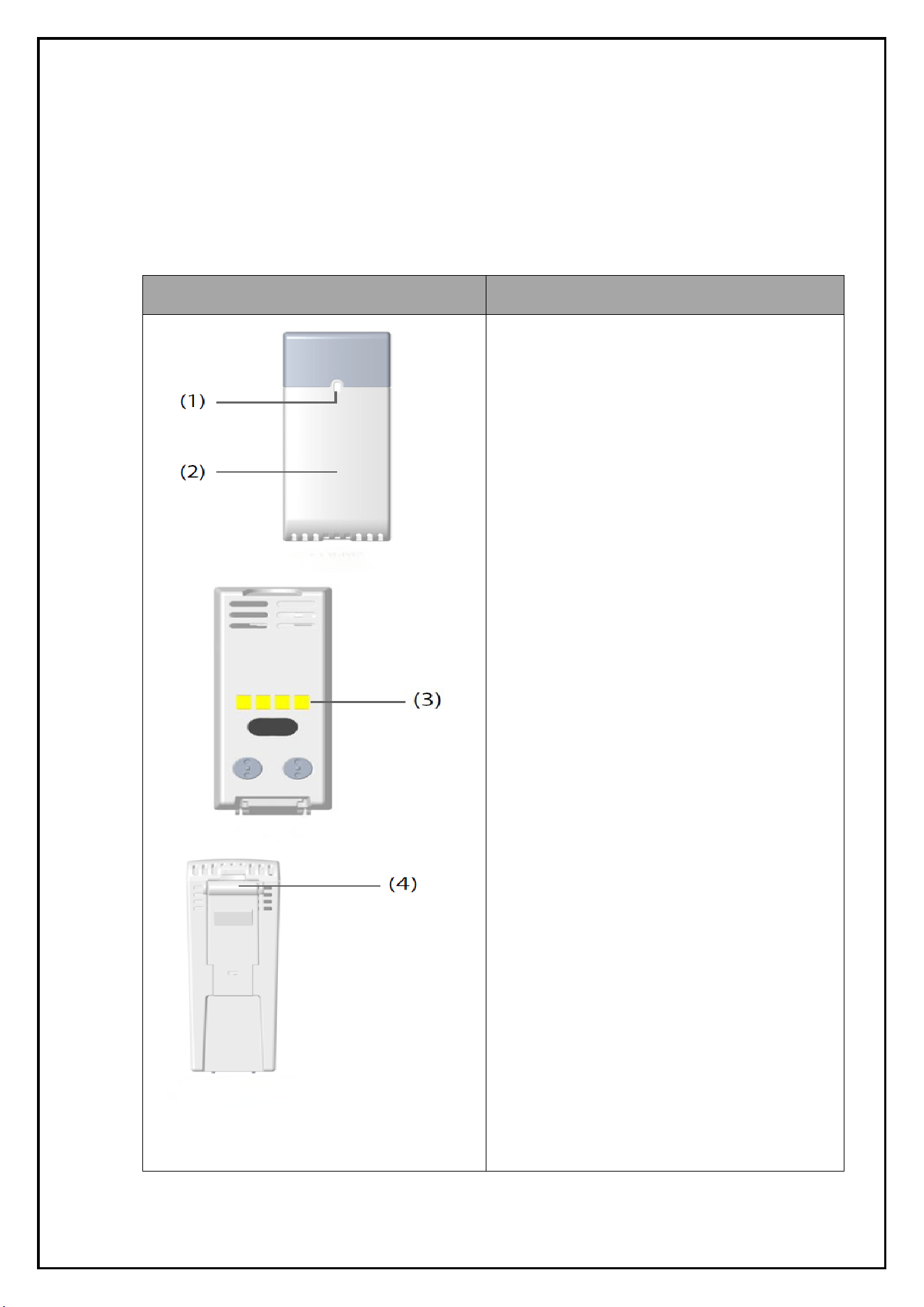

Host View
Function
(1) Status indicator:
■ Lit constantly: The main
unit is paired with the ePM
modular monitor (hereinafter
referred to as "ePM monitor")
successfully.
■ flashing: The wireless
receiving module works
normally, but it is not paired
with the host.
■ Off: The wireless receiving
module is not properly
connected or goes wrong.
(2) Pairing sensor area: The
main unit is paired with the
ePM monitor close to the
sensor area.
(3) Metal contact: Used for
data transmission or charging.
Avoid touching during
operation.
(4) Unlock button: Press this
button to unlock the
connection between the
wireless receiving module and
the ePM monitor.
2. Hardware Specifications
1-1
Protocol
Support of Bluetooth 5
1-2
Operating
frequency
2400MHz – 2483.5MHz
1-3
Modulation mode
GFSK
1-4
Transmission power
≤20dBm (EIRP)
1-5
Occupied
bandwidth
≤2MHz
1-6
Product Size
150mm(L)X120mm(W)X50mm(H)
1-7
Operating
temperature
0°C ~ +40°C
1-8
Storage
temperature
-20 ºC ～ 60ºC
1-9
Relative Humidity
15% ~ 95%, non-condensing
1-10
Atmospheric
pressure
57.0 kPa ～ 107.4 kPa
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not expressly approved by
the party responsible for compliance. such modifications could void the user's authority to operate
the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20cm
between the radiator and your body, and fully supported by the operating and installation
IC Warning
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
(1)This device may not cause interference.
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux normes
CNR exemptes de licence d’Innovation, Sciences et Développement économique Canada. Son
fonctionnement est assujetti aux deux conditions suivantes :
(1)Cet appareil ne doit pas causer d’interférences.
(2)Cet appareil doit accepter toute interférence, y compris celles qui peuvent entraîner un
fonctionnement indésirable de l’appareil.
The device has been evaluated to meet general RF exposure requirement. To maintain compliance
with RSS-102 -Radio Frequency (RF) Exposure guidelines, this equipment should be installed and
operated with a minimum distance of 20cm between the radiator and your body.
le dispositif de a été évalué à répondre général rf exposition exigence.pour maintenir la conformité
avec les directives d'exposition du RSS-102-Radio Fréquence (RF). ce matériel doit être installé et
exploité à une distance minimale de 20cm entre le radiateur et votre corps.
