HCR-Z54C-B-A667-01 Amazon Basics Smart Dimmer Switch User Manual

User Manual

Smart Wireless Dimmer Switch and

Remote for Music and Routines,

Works with Alexa

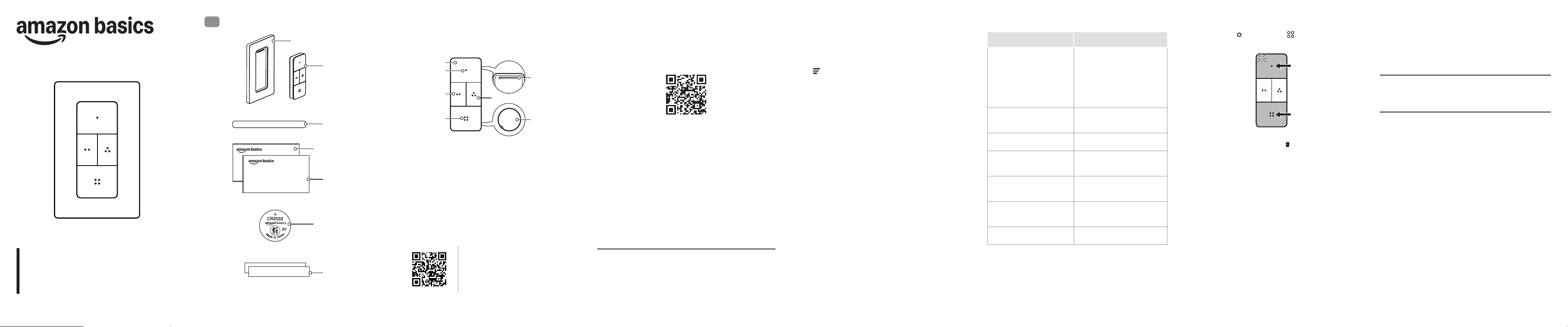

What’s in the Box

User Manual

Guide de l’utilisateur

Manual del usuario

CR2032 battery (1)

(Installed)

Mounting tape (4)

Pry tool (1)

User Manual (1)

Smart remote (1)

Wall plate (1)

Safety Manual (1)

B0D8KF4HRQ (HCR-Z54C-B-A667-01)

Getting to Know Your

Smart Remote

Smart remote

For more product details, help, and

video resources, refer to the product

webpage on amazon.com or scan the

QR code.

Horizontal

bar

Battery

cover

LED indicator

Button 1

Button 2

Button 3

Button 4

Smart remote back

Know Before You Set Up Your

Smart Remote

This smart remote is designed to work with compatible

Amazon Echo devices.

1. Scan the QR code for a list of compatible Echo devices.

Notice: The following Echo devices are not compatible: Amazon

Echo (1st Gen), Amazon Echo Dot (1st Gen), Amazon Echo Link,

Amazon Echo Link Amp, Amazon Echo Plus (1st Gen), Amazon Echo

Show (1st Gen, 2nd Gen), Amazon Echo Spot (1st Gen), Amazon

Echo Sub, and Amazon Echo Tap.

2. Update your Echo device to the latest rmware by saying

Alexa, check for software updates.

3. When using your smart remote, stay within a

32.81ft (10m) radius of a compatible Echo device.

4. Before rst use, pull out the battery tag to turn on the

smart remote, then press any button to enter setup

mode.

Things to Try with Your Smart Remote

You can control lighting, music, temperature,

announcements, multiple device types, and more.

Use the Alexa app to set up routines for your remote

buttons.

Setup in the Alexa App

NOTICE: You must use a compatible Echo device with

updated rmware to set up the smart remote.

1. Download the latest version of the Alexa app.

2. Tap More, then + on the top right, then select Device.

3. Tap Remote, then choose Amazon Basics.

4. Follow the in-app instructions to setup the device.

Understanding the LED indicator

LED Status Description

LED blinks GREEN quickly

for 60 seconds

» The device is in setup

mode.

» A button was pressed

while the smart remote is

unregistered.

» The smart remote was

factory reset.

LED blinks RED quickly

three times

The smart remote failed

to nd a compatible Echo

device while in setup mode.

LED lights GREEN for two

seconds

The smart remote is

registered to Alexa.

LED blinks GREEN once

A button was pressed, and its

command was received by an

Echo device.

LED blinks RED once

A button was pressed, and its

command was not received

by any Echo device.

LED blinks ORANGE

quickly once after previous

normal LED behavior

A button was pressed while

the battery is low.

LED is o

The smart remote is in sleep

mode.

Resetting to Factory Defaults

1. Press and hold (button 1) and (button 4) for 10

seconds until the LED indicator blinks green quickly.

2. Delete your remote in the Alexa app. Go to Devices, tap

on your remote name, then tap Delete.

Mount Your Smart Remote on a

Flat or Magnetic Surface

Do not place the smart remote higher than 6.6ft (2m)

above the ground.

On a Flat Surface (Standalone)

Place the smart remote with its back resting on any at

surface without the wall plate.

On a Magnetic Surface

Place the back of the smart remote on a magnetic surface.

Magnets hold the smart remote in place.

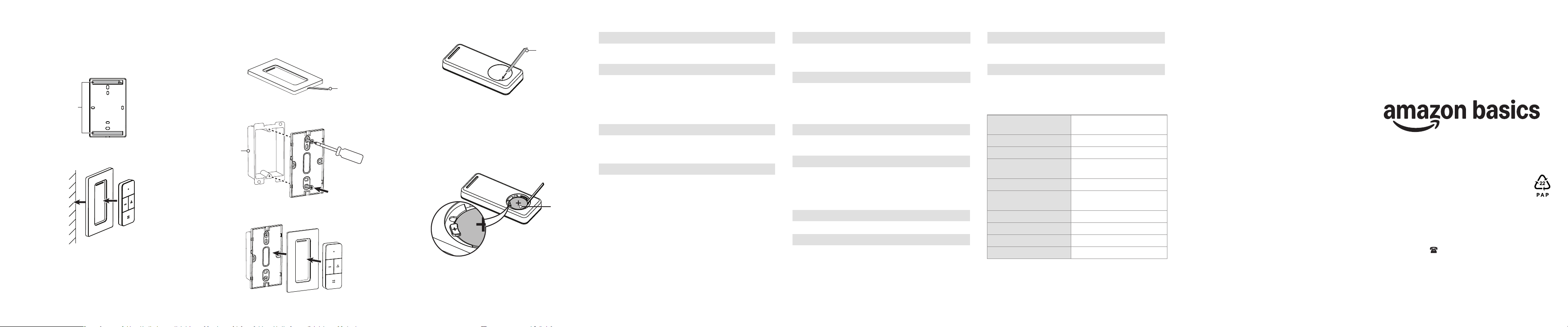

Mount Your Smart Remote on

the Wall Plate

Using Mounting Tape

1. Attach the mounting tape to the the wall plate’s tape

guides, then push the wall plate onto your mounting

surface.

2. Place the smart remote in the wall plate with the

horizontal bar at the top.

Mounting

tape

Using Screws (not provided)

You’ll need: Two countersunk screws (3x10mm or 3x15mm)

and Phillips screwdriver.

1. Pull the wall plate apart using the pry tool.

2. Mount the back of the wall plate to your

outlet box.

3. Attach the wall plate cover, then place the smart remote

in the wall plate with the horizontal bar at the top.

Pry tool

Outlet

box

Replacing the Battery

1. Use the pry tool to open the battery cover.

Notice: Before rst use, pull out the battery tag to turn on

the smart remote.

2. Remove the battery with the pry tool and replace with a

new CR2032 battery. Make sure that the battery’s polarity

(+ and –) matches the indication inside the smart remote.

Place the side with the text facing up and rst insert the

battery into the compartment at the position marked with

a + sign.

3. Push the battery cover back onto the smart remote.

Pry tool

Battery +

Troubleshooting

Problem 1

The smart remote isn’t working, and there is no

indication on the LED.

Solutions

1. If you are using your smart remote for the rst time,

make sure that you remove the battery tag protecting

the battery.

2. Make sure that the battery is installed correctly or try

replacing the battery.

Problem 2

The smart remote LED blinks RED quickly three times

while in setup mode and fails to nd a compatible

Echo device.

Solutions

1. Make sure a compatible Echo device is powered on and

set up in your Alexa account. If you have a compatible

Echo device and haven’t set it up, you can do it now.

For a compatibility list, see “Know Before You Set Up

Your Device.”

2. Make sure that your Echo device is updated to the

latest rmware version. See “Know Before You Set Up

Your Device” for information about how to update

your Echo device.

3. Make sure the green LED indicator on the smart

remote is blinking in the setup mode.

4. Make sure your smart remote is within 32.81ft (10m)

of a compatible Echo device.

Problem 3

The smart remote LED blinks RED once when a button

is pressed and the smart remote command fails to

reach the Echo device.

Solutions

1. Try to move the smart remote closer to your Echo

device. The remote should be within 32.81ft (10m) of

the Echo device.

2. Power o and power on the Echo device.

Problem 4

The smart remote LED blinks Green when a button is

pressed, but no routine is executed.

Solutions

1. Make sure you have routines set up in the Alexa app.

2. Make sure the device controlled by the routine is

powered on and connected.

3. Power o and power on the Echo device.

Problem 5

The smart remote is indicating low battery.

Solutions

1. Replace your device battery with a new 3V CR2032

battery. For convenient battery ordering, see

“Supplies” in your smart remote’s settings in the Alexa

app. See “Replacing the Battery.”

Problem 6

My Echo device takes some time to respond when

using my smart remote to control music.

Solutions

1. Allow time for your Echo device to buer music after

pressing your remote button.

Specications

Dimensions (L x W x H)

3.35in x 1.42in x 0.43in

(85mm x 36mm x 11mm)

Power supply 3V (CR2032)

Battery life 1.5 years

Control distance

32.81ft (10m)

in an open area

Ambient temperature -4° to 122°F ( -20° to 50°C)

Storage temperature

-40° to 185°F

(-40° to 85°C )

Bluetooth version BLE5.3

Radio frequency 2.4GHz

Protection class IP30

Authentication FCC ID, IC ID

Feedback and Help

We would love to hear your feedback. Please consider leaving

a rating and review through your purchase orders. If you

need help with your product, log in to your account and

navigate to the customer service / contact us page.

amazon.com/pbhelp

V06-09/25
