FCD OWNER'S MANUAL
FCD ASSEMBLY INSTRUCTIONS
FCD-072007
Page 1

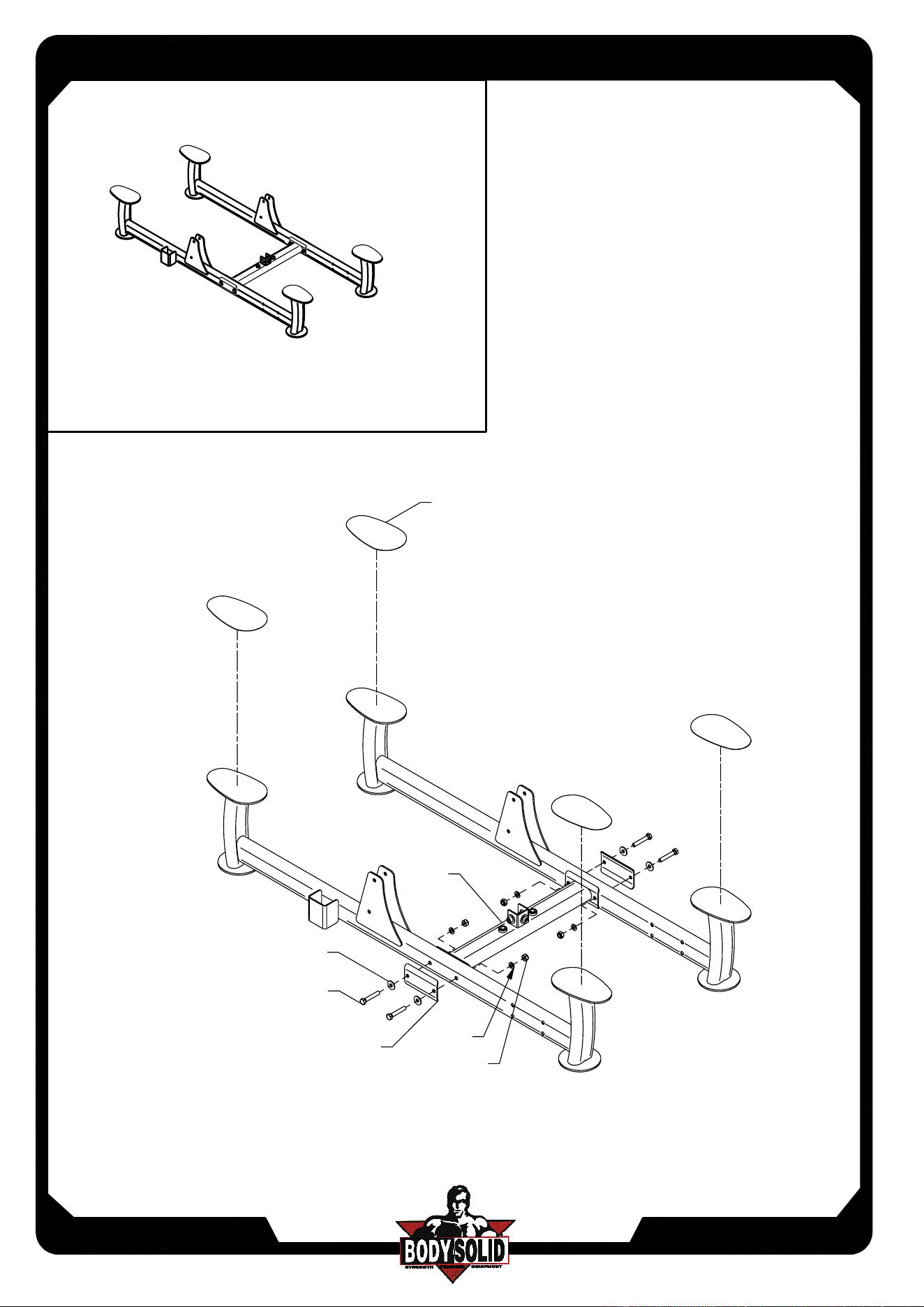

Above shows STEP1
assembled and completed
A1 X 4
C1 X 4
B1X 4
D1X4
TX2
D
C2X4
FCD ASSEMBLY INSTRUCTIONS
FCD-072007
Page 2

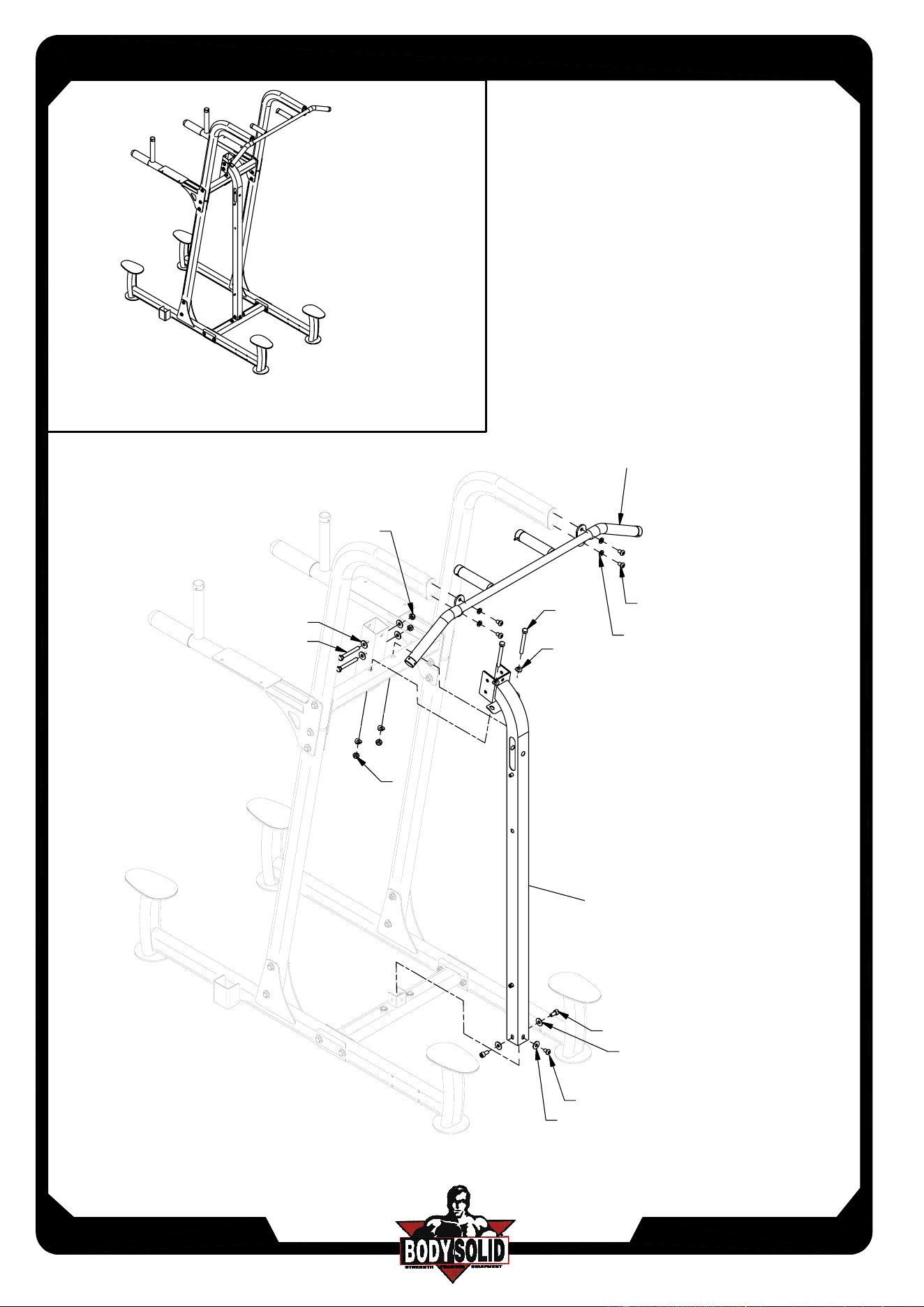

Above shows STEP2
assembled and completed
C1X10
A2X6
F
E
CX2
H
A1X4
C1X8
B1X4
B1X4
FCD ASSEMBLY INSTRUCTIONS
FCD-072007
Page 3

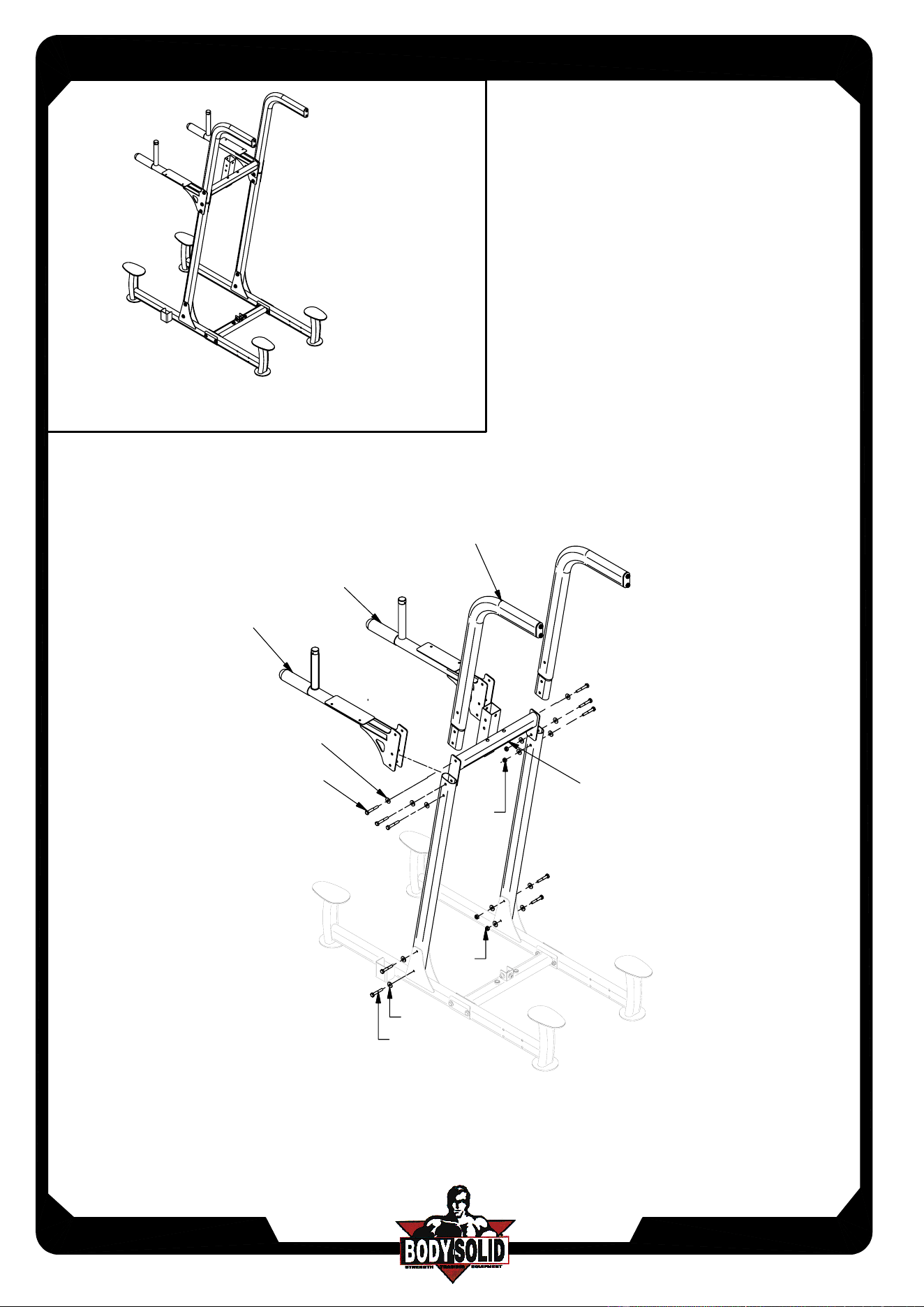

Above shows STEP3
assembled and completed
G
I
B1X2
A3X2
C1X4
B1X2
A5X2
C3X4
M10X15L ROUND INNER X 4
M10 WASHER (Ø19) X 4
M10X20L SOCKET HEAD BOLT X 2
M10 WASHER X 2
M10 WASHER
M10X15L ROUND INNER
FCD ASSEMBLY INSTRUCTIONS
FCD-072007
Page 4

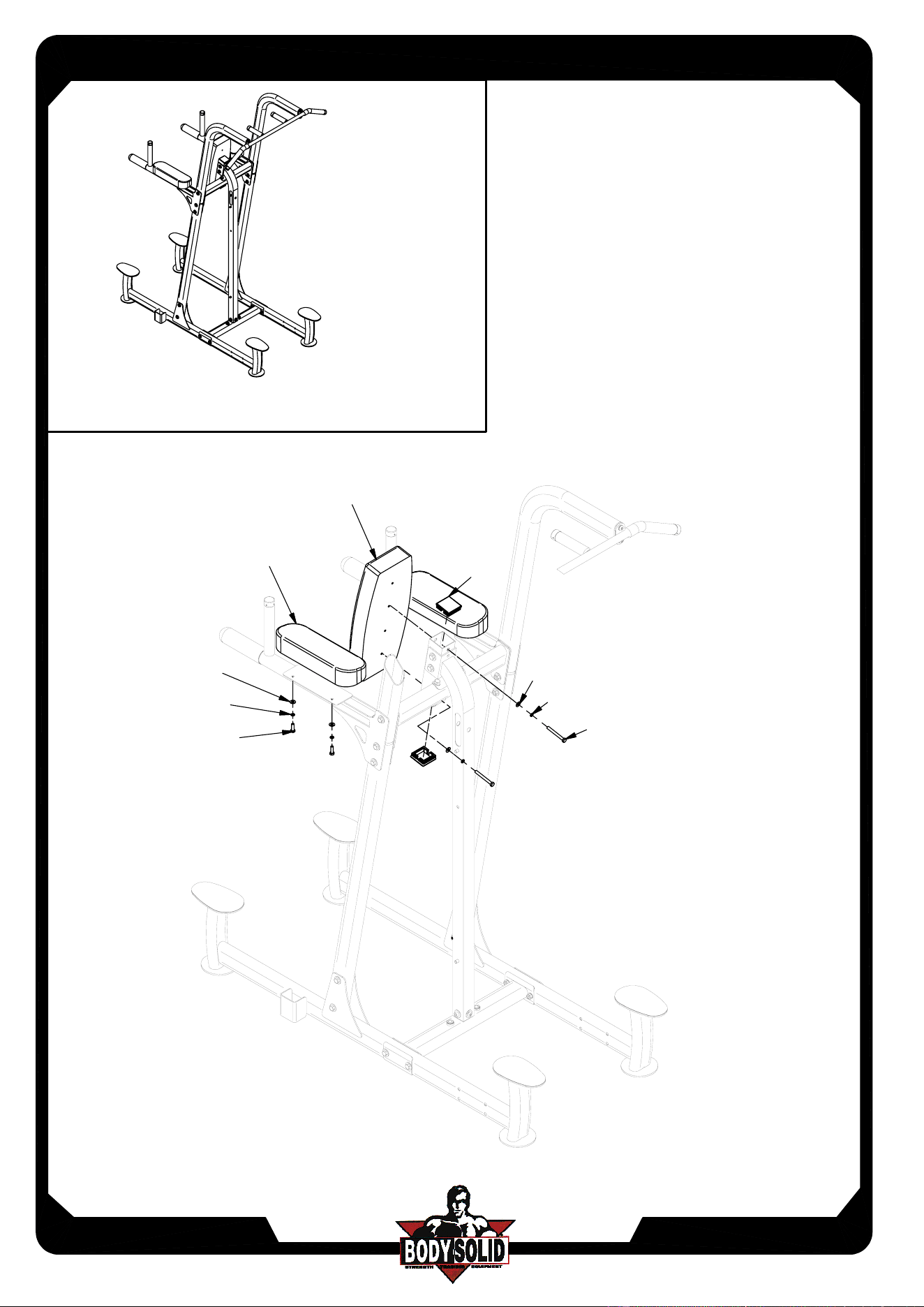

Above shows STEP4
assembled and completed
D2X2
A4X4
C4X4
C5X4
NX2
M
C4X2
C5X2
A6X2
FCD HARDWARE ILLUSTRATION SHEET
FCD-072007
Page 0-1

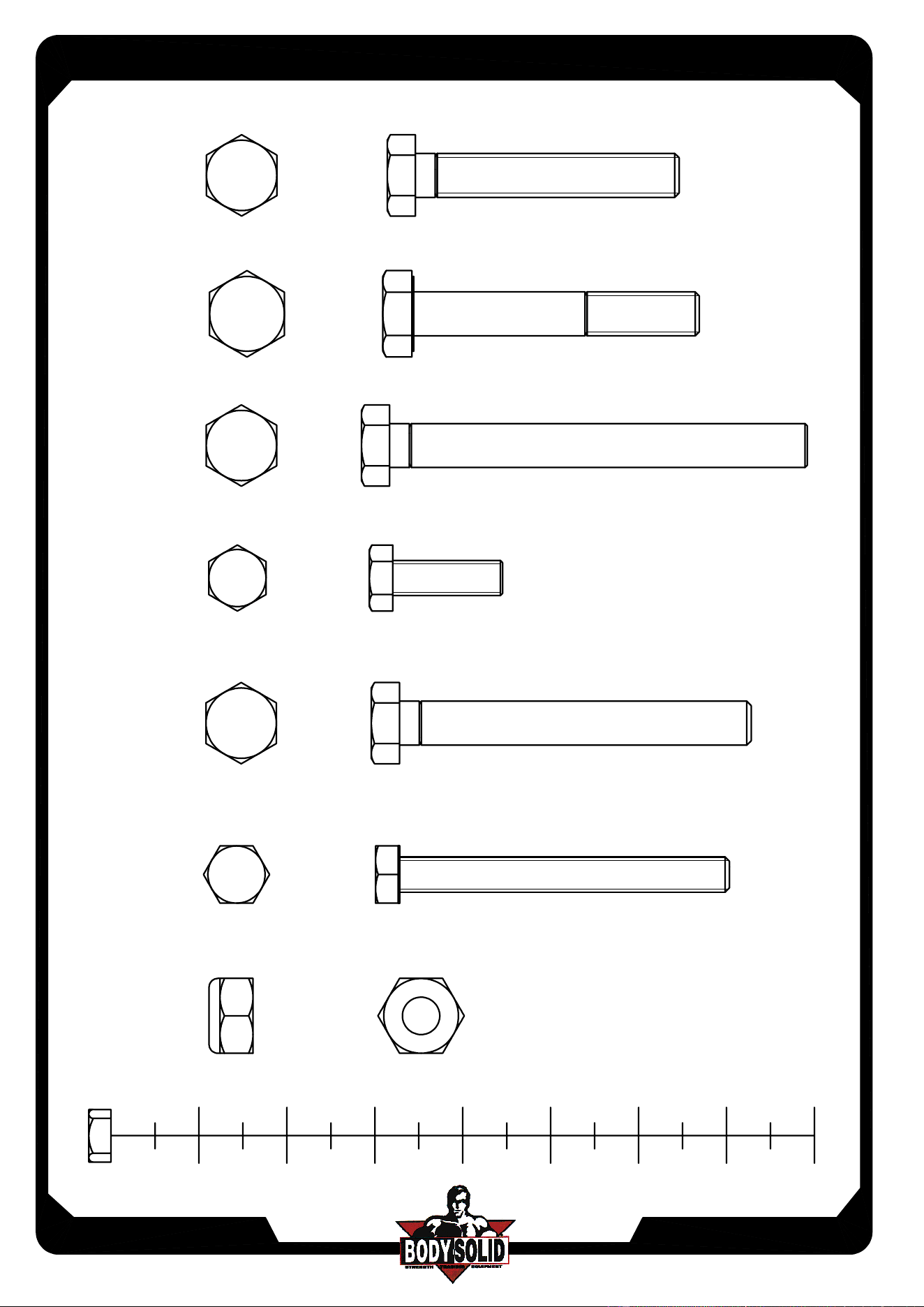

A1.M10X60L HEX HEAD BOLT-------------------------------------------------[8PCS]
A2.M10X65L HEX HEAD BOLT-------------------------------------------------[6PCS]
A3.M10X95L HEX HEAD BOLT-------------------------------------------------[2PCS]
A4.M8X25L HEX HEAD BOLT---------------------------------------------------[4PCS]
40
20
60
80
100 140
160
120
A5.M10X80L HEX HEAD BOLT-------------------------------------------------[2PCS]
A6.M8X75L HEX HEAD BOLT---------------------------------------------------[2PCS]
B1.M10 NYLON LOCK NUT------------------------------------------------------[16PCS]
FCD HARDWARE ILLUSTRATION SHEET
C5.M8 WASHER---------------------------------------------------------------------[6PCR]
C4.M8 SPRING LOCK WASHER-----------------------------------------------[6PCR]
C3.M10 ARC WASHER-------------------------------------------------------------[4PCS]
FCD-082007
Page 0-2
40
20
60
80
100 140
160
120

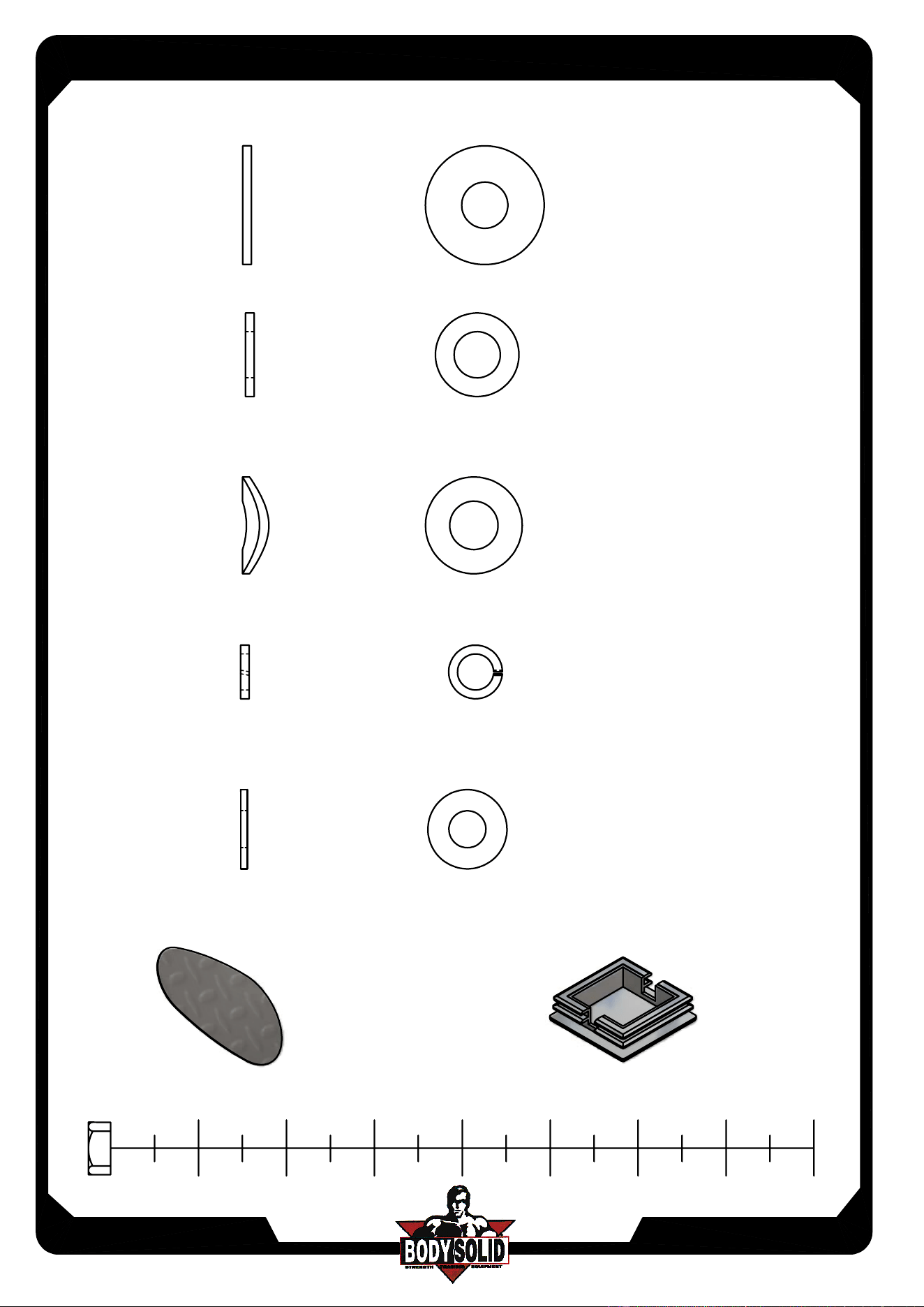

D2.END CAP-----------------[2PCS]
C1.M10 WASHER------------------------------------------------------------------[26PCS]
C2.M10 WASHER (Ø19)----------------------------------------------------------[4PCS]
D1.NON SKID TAPE ----------[4PCS]
FCD PARTS ILLUSTRATION SHEET

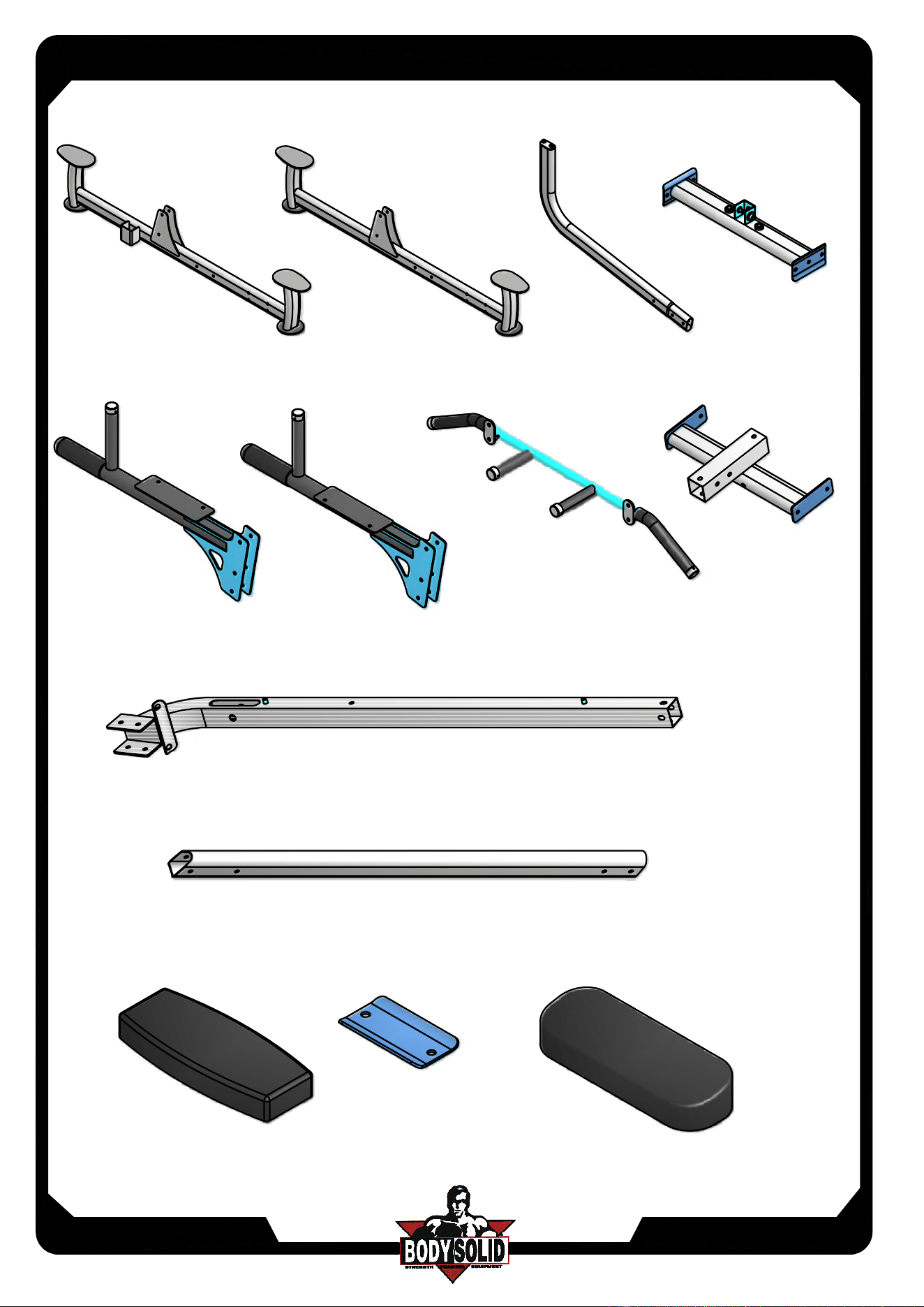

A[1PCS]
B[1PCS]
D[1PCS]
H[1PCS]
E[1PCS]
F[1PCS]
C[2PCS]
G[1PCS]
I[1PCS]
Y[2PCS]
M[1PCS]
T[2PCS]
N[2PCS]
FCD-072007
Page 0-3
