METAL DOOR AWNING
USER MANUAL
MODEL:CGW-56INCH
Technical Support and E-Warranty Certificate
www.vevor.com/support
1
MODEL: CGW-56INCH
This is the original instruction, please read all manual instructions carefully
before operating. VEVOR reserves a clear interpretation of our user
manual. The appearance of the product shall be subject to the product you
received. Please forgive us that we won't inform you again if there are any
technology or software updates on our product.
METAL DOOR AWNING
2
SAFETY INSTRUCTIONS
WARNING:
Read this material before using this product. Failure to do so can
result in serious injury.
Assembly precautions
1. Assemble only according to these instructions. Improper assembly can
create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves
during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, drugs
or medication.
6. The product capabilities apply to properly and completely assembled
products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely
supporting the Metal Door Awning.
8. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap
and separate all parts in a clean work area.
Use precautions
1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this
item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely
support a fully loaded Metal Door Awning.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.
7. Spare parts such as screws are available.
SAVE THIS MANUAL
3

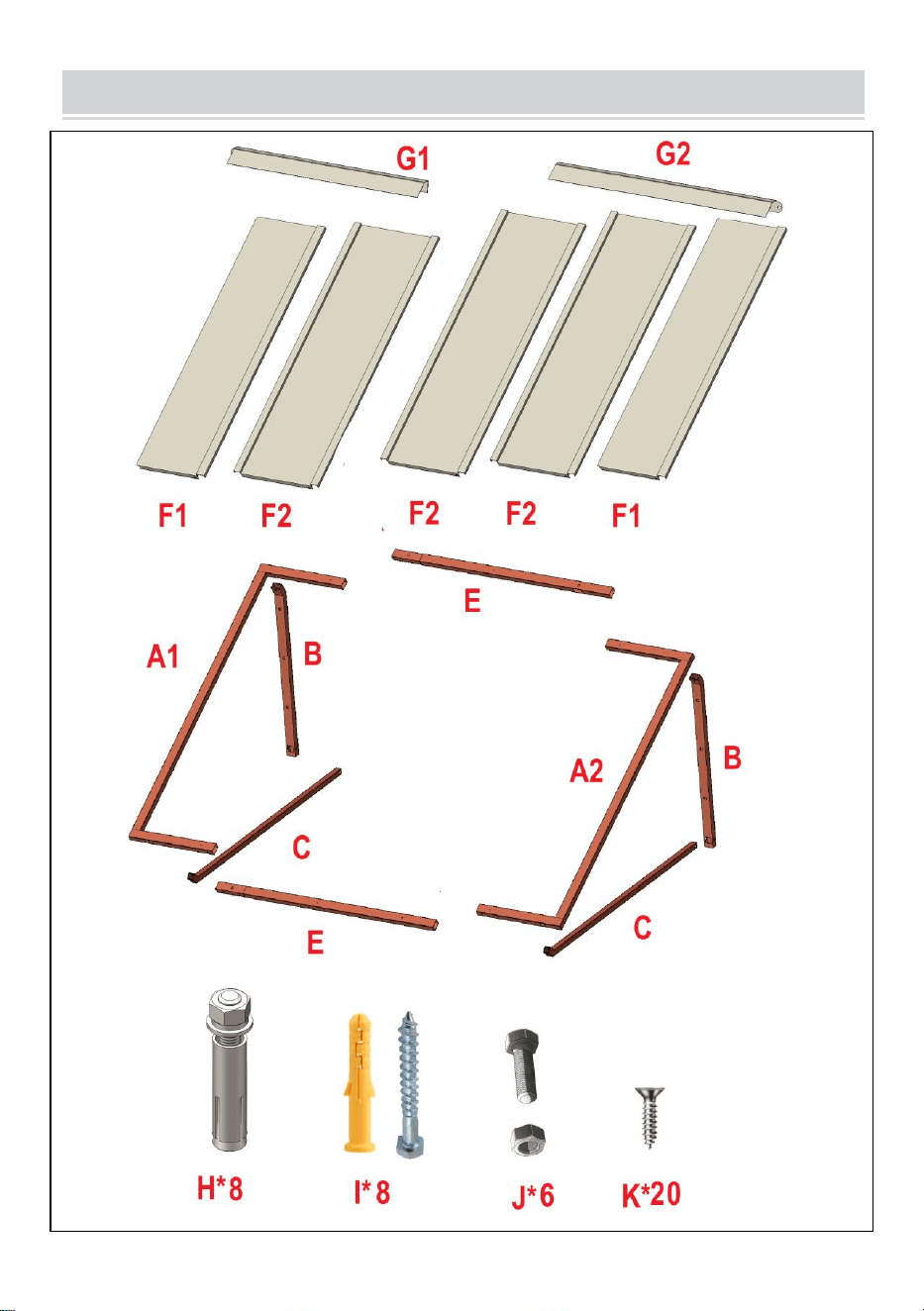

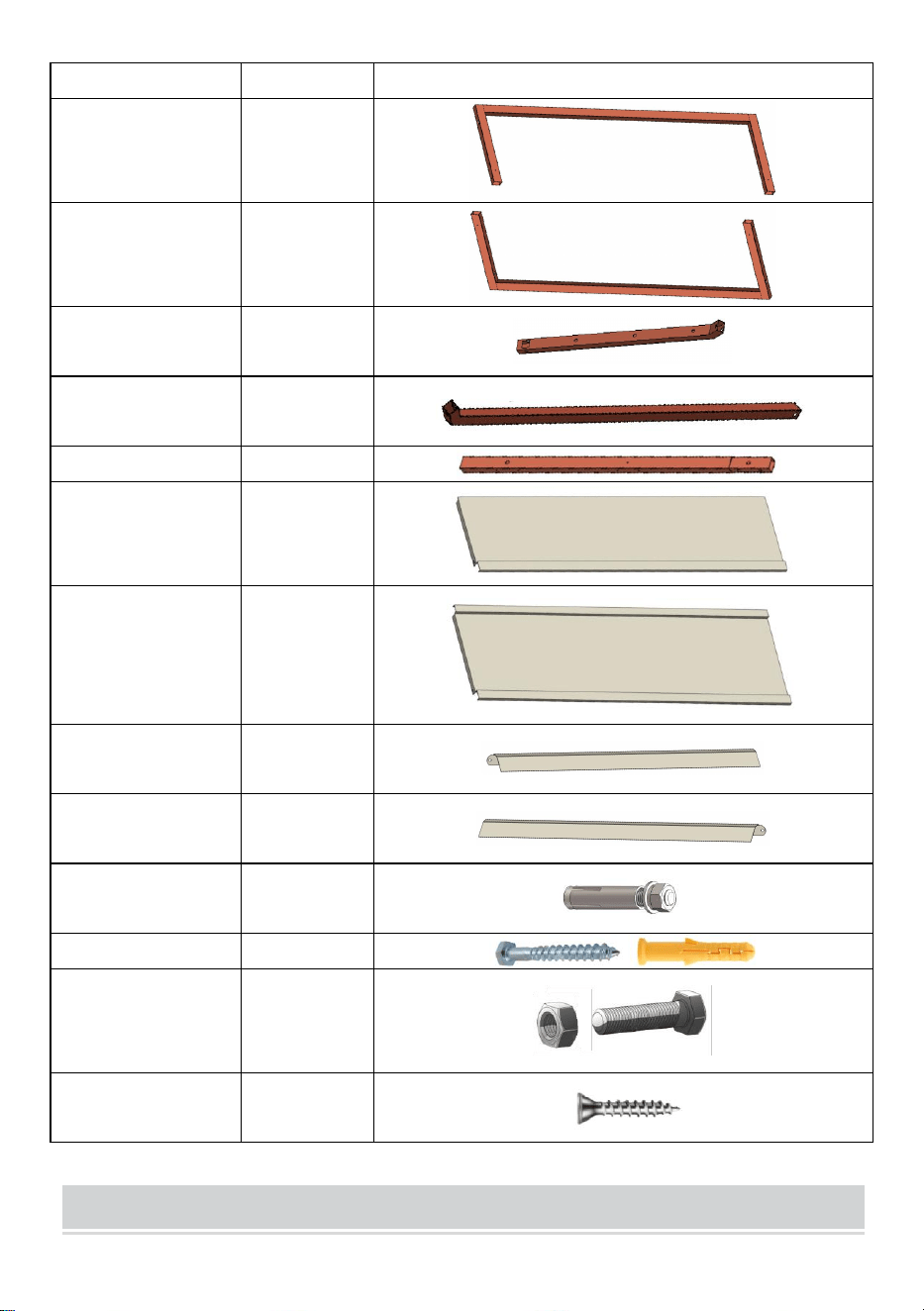

PARTS LIST
4
Serial number
Quantity
Part picture
A1
1
A2
1
B
2
C
2
E
2
F1
2
F2
3
G1
1
G2
1
H
8
I
8
J
6
K
20

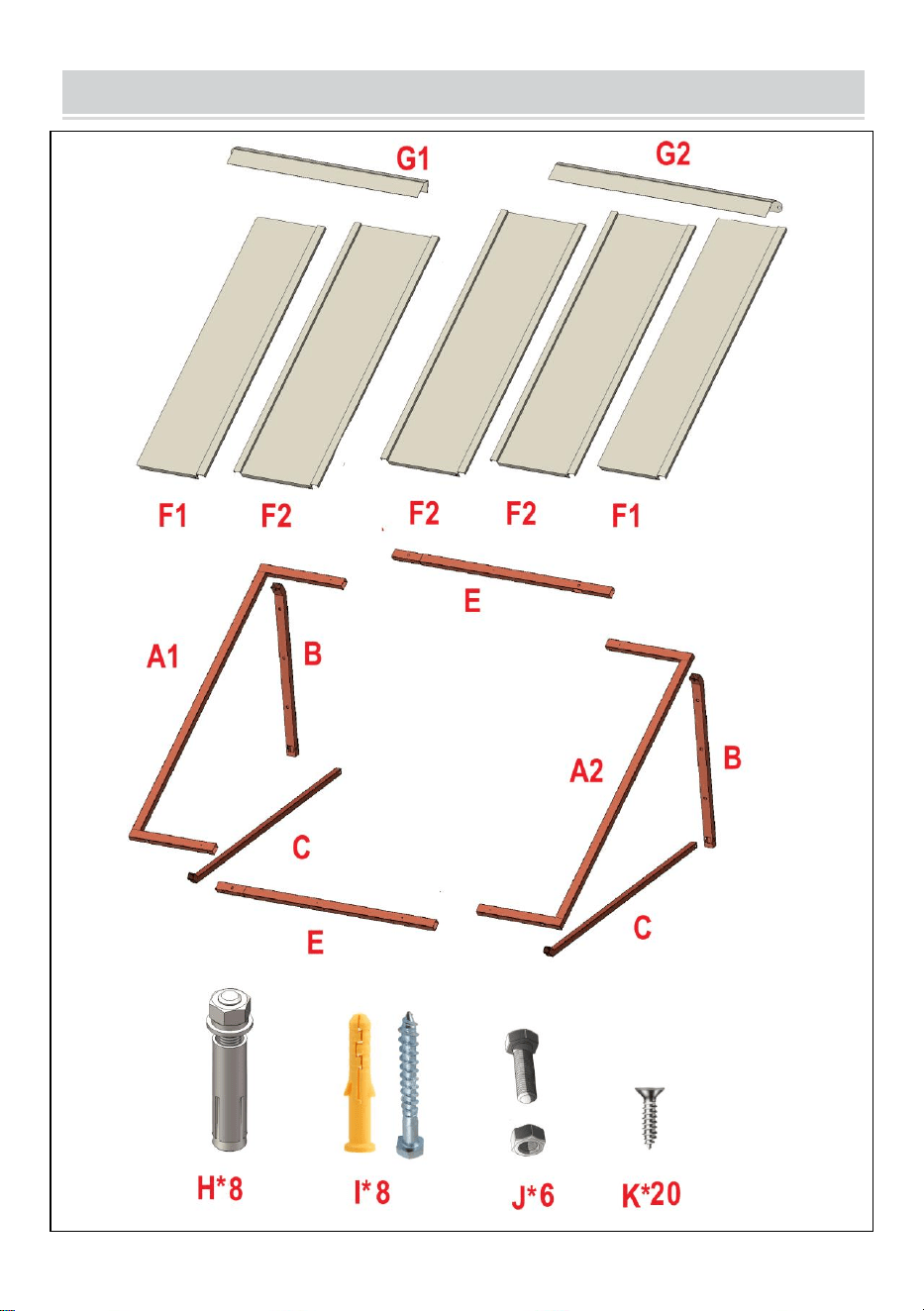

ASSEMBLY STEP
5

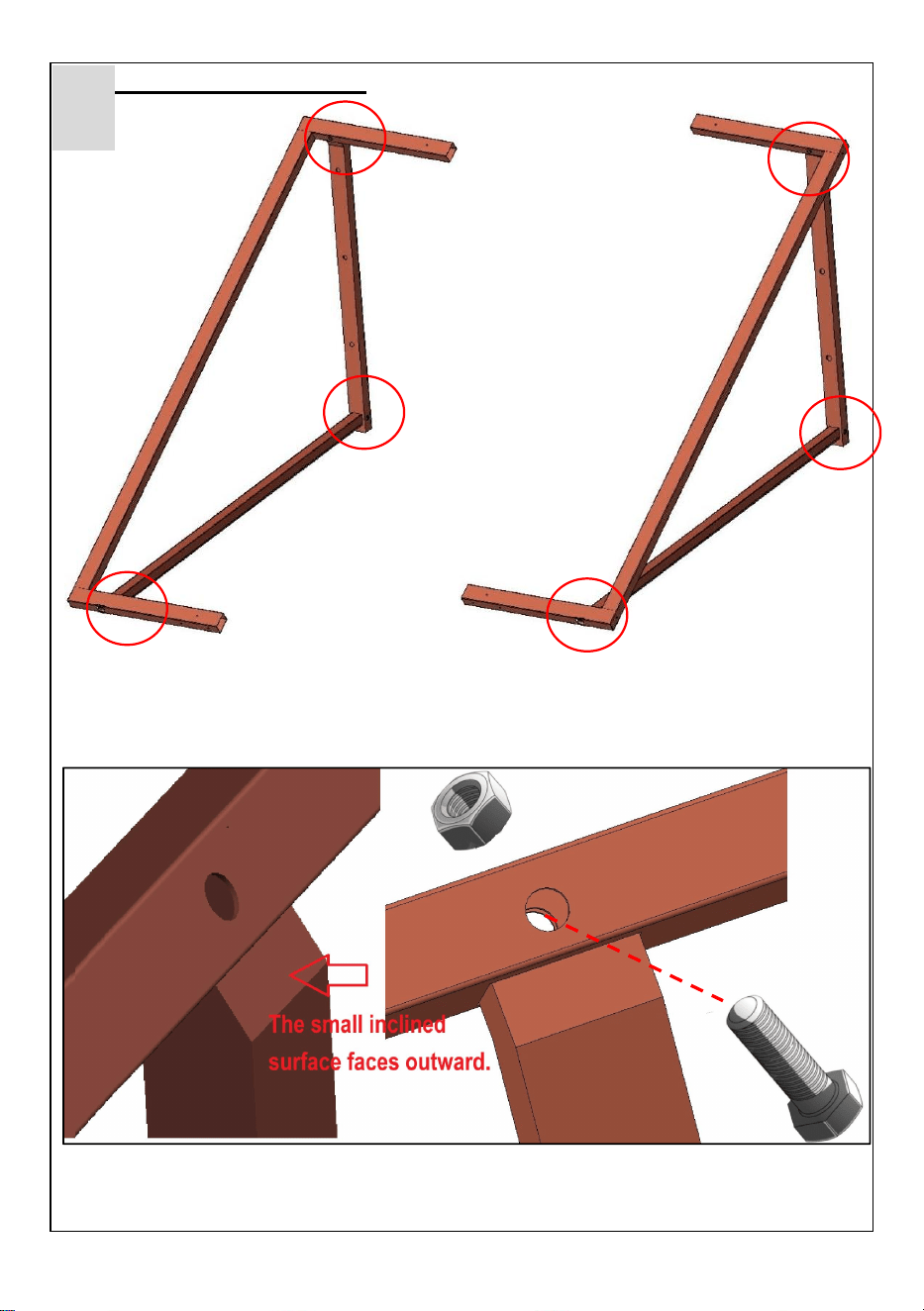

Assemble the frame.
Use screws(J*6) to assemble the support tripods on both sides.
A1
A2
B
C
B
C
J*6
1
6
Assemble the frame.

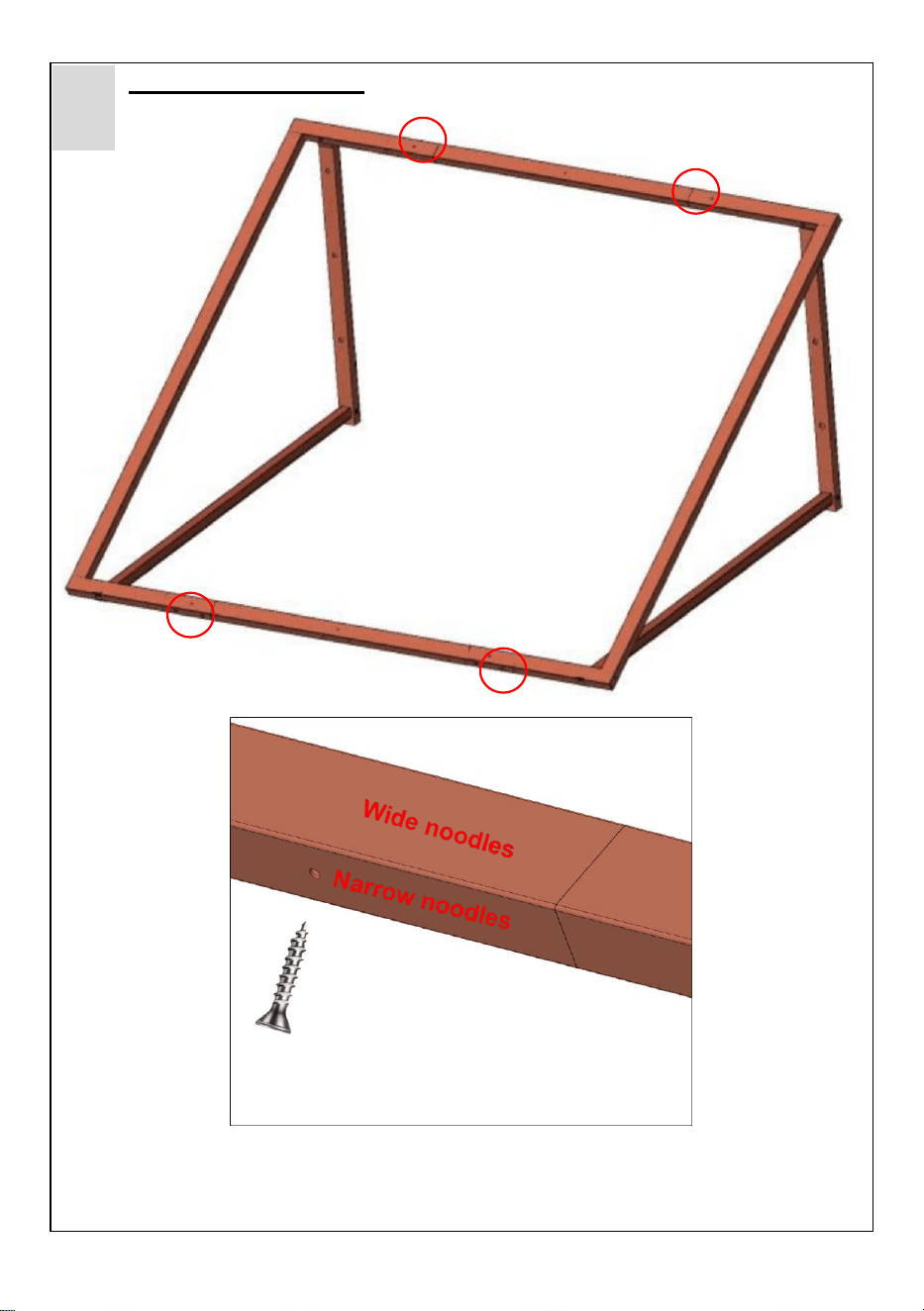

Assemble the frame using screws(K*4).
E
K*4
E
2
7

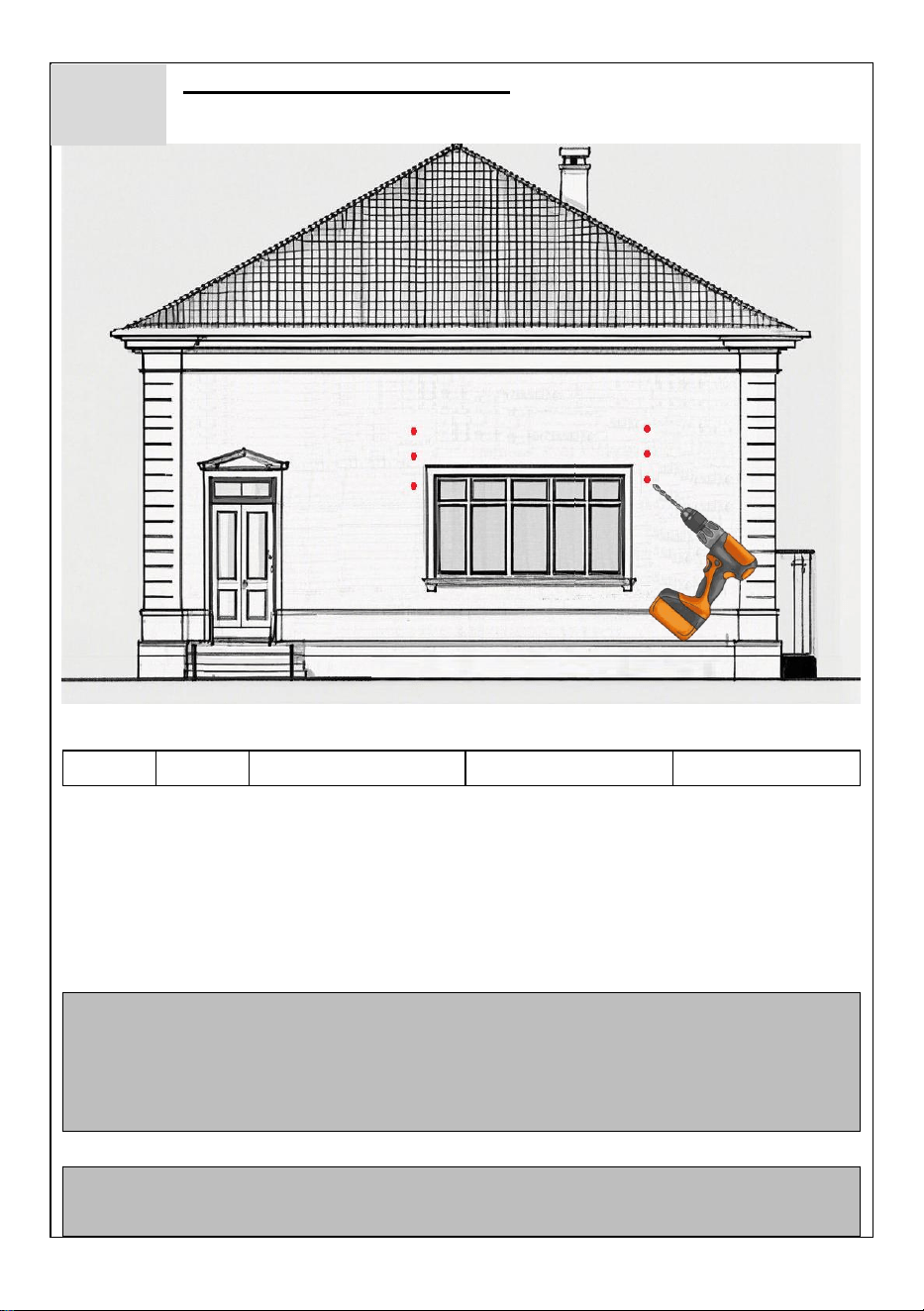

Mount the frame on the wall.
Parts Required
Drill
Level
Measuring Tape
Chalk/Graphite
Step-Ladder
1.The installation drawings are on the next page.
2.Mark the location of the mounting holes measured onto your
mounting surface using chalk/graphite. Use a level as needed.
3.Drill pilot holes onto the specific markers. Select the size of the
drilled hole according to the following different types of walls.
Plan 1(Suitable for hard walls): Install with expansion screws(H*10),
using a drill bit with a diameter of ø12mm.
Plan 2(Suitable for wooden walls): Install with wall nails(I*10), using
a drill bit with a diameter of ø6mm.
4.Fix the whole assembled frame to the wall.
Note: Check whether the frame is firmly installed on the wall to
prevent it from falling off in the later stage.
3-1
8

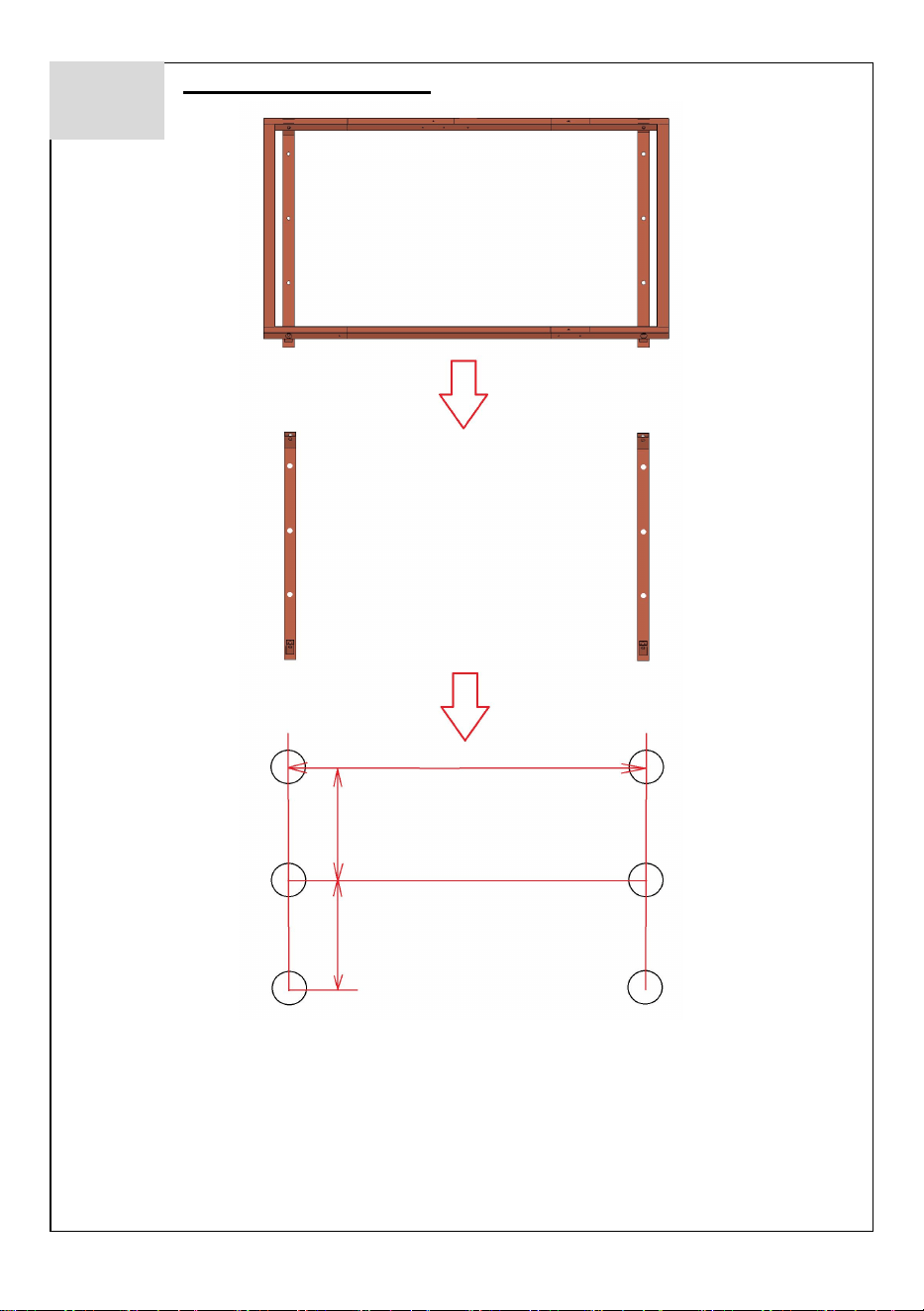

Installation drawings.
Mark 6 fixing hole positions on the wall according to the drawing, and
then drill 6 holes.
50.94in/1294mm
7.72in/196mm
7.72in/196mm
3-2
9
Installing the metal tiles.
1.Fix the shelf to the wall.

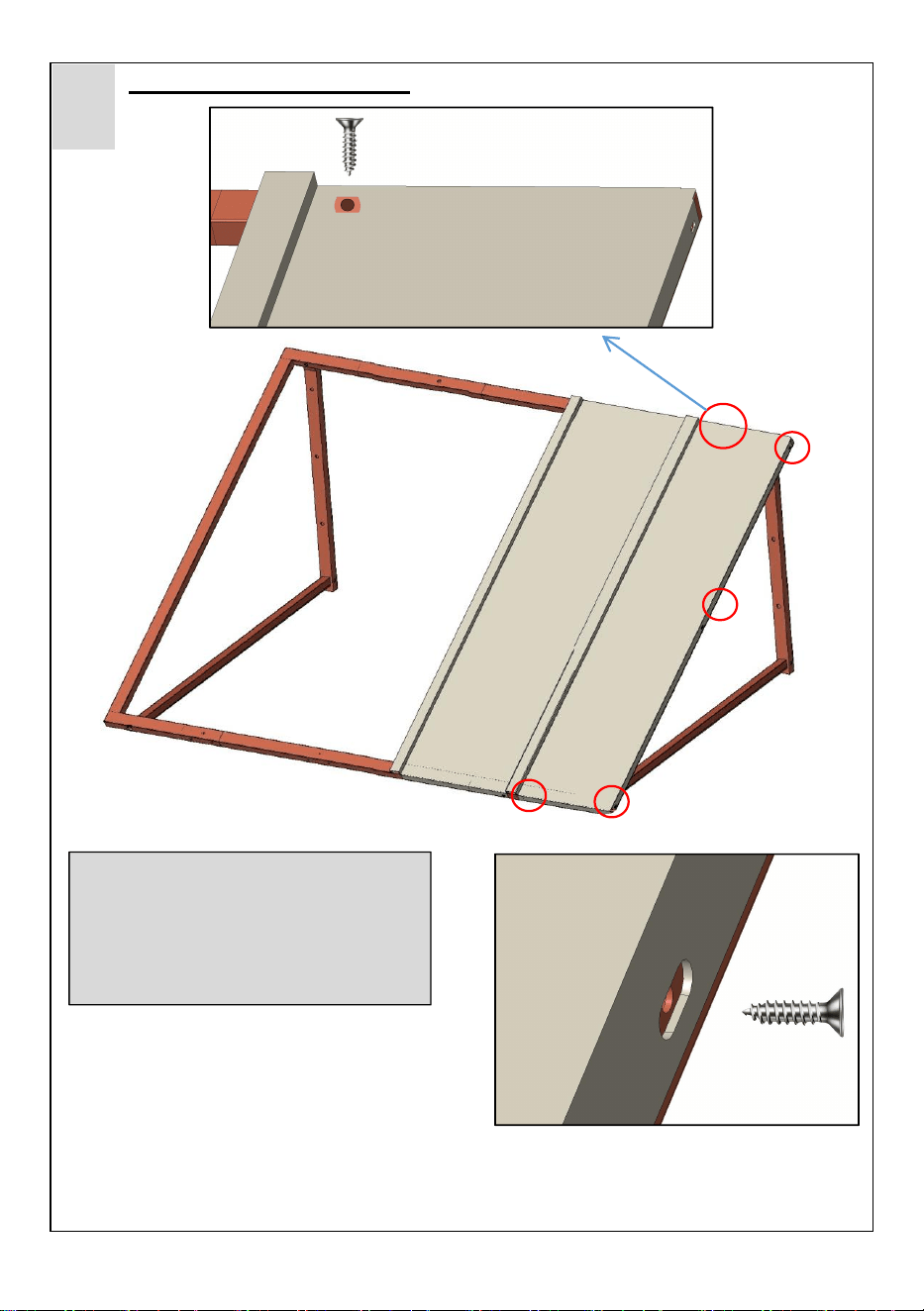

2.Start installing the first metal tiles F1 and F2 from the right side of
the product. Let F1 overlap F2, and then fix F1 with screws (K*5).
F1
K
K
F2
4
NOTE: After the frame is
installed on the wall,
install the metal tiles one
piece by one.
10
Installing the metal tiles.

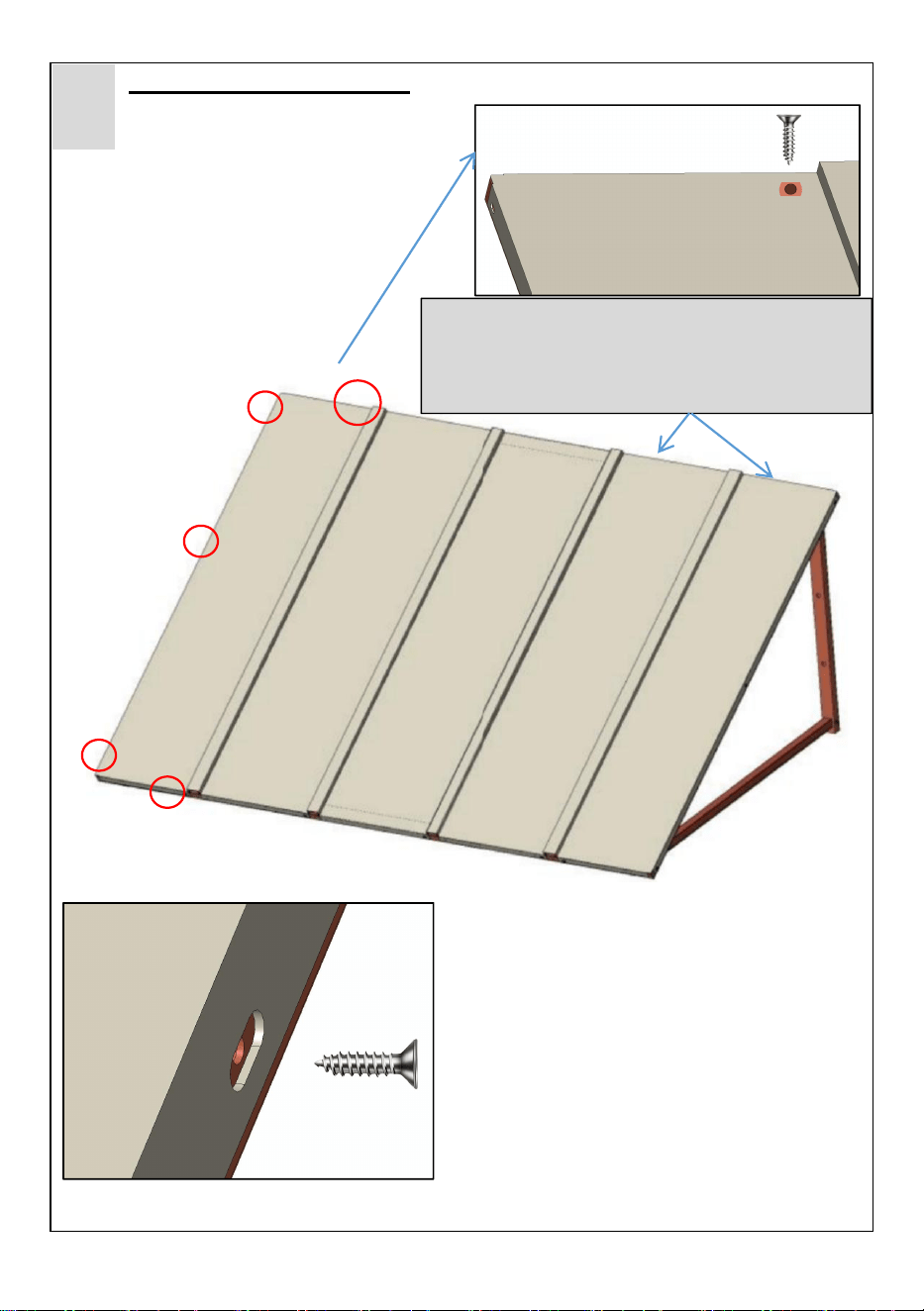

Install the metal tiles(F2) sequentially from the right side of the
product and secure them with screws(K*6).
F2
F2
F2
K
K
5
11
Installing the metal tiles.

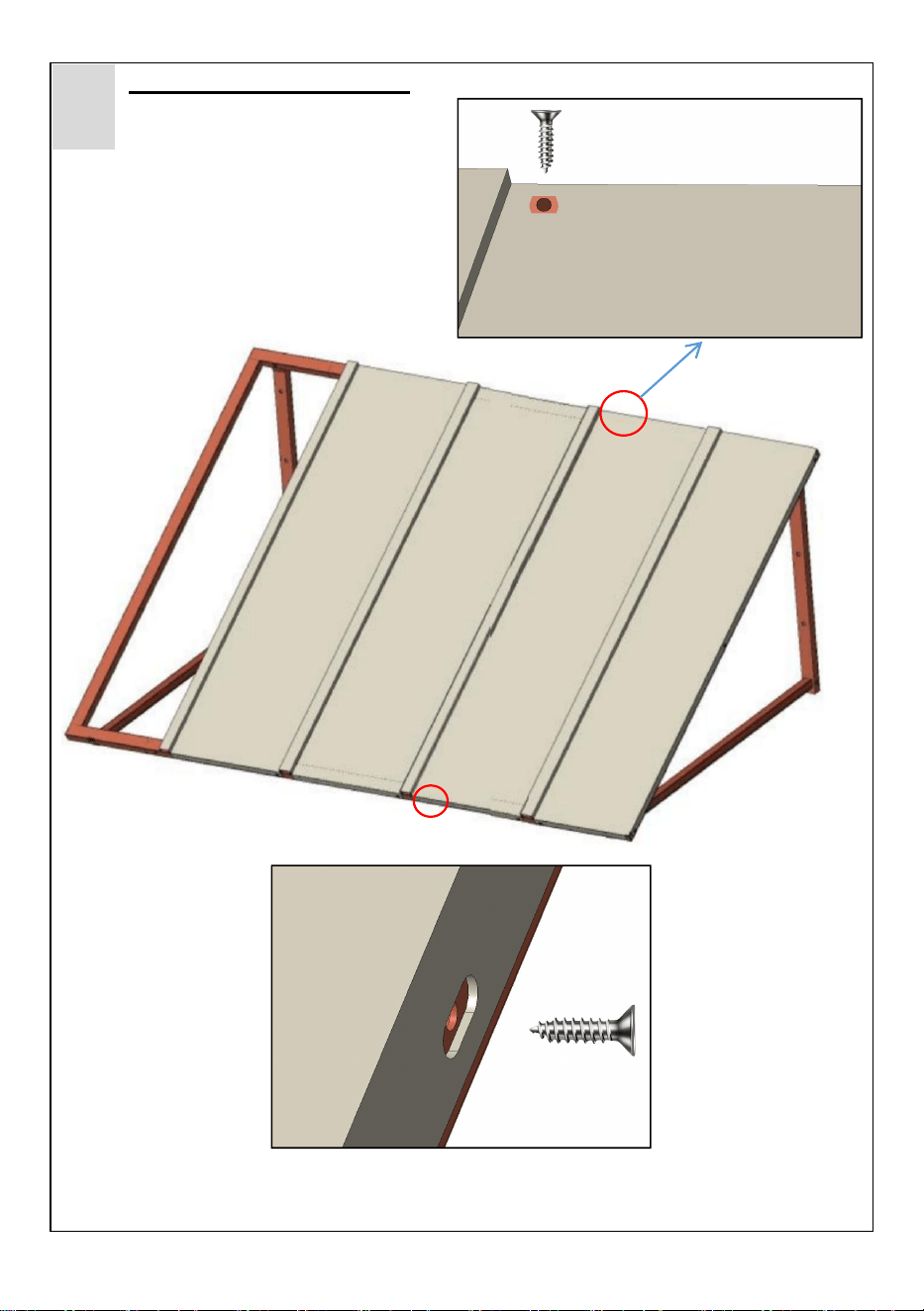

Install the last tile F1 and fix it with screws(K*5).
F1
K
K
6
NOTE: There is a screw hole position on
each metal tile at the top and on the side,
and there is no need to fix them with screws.

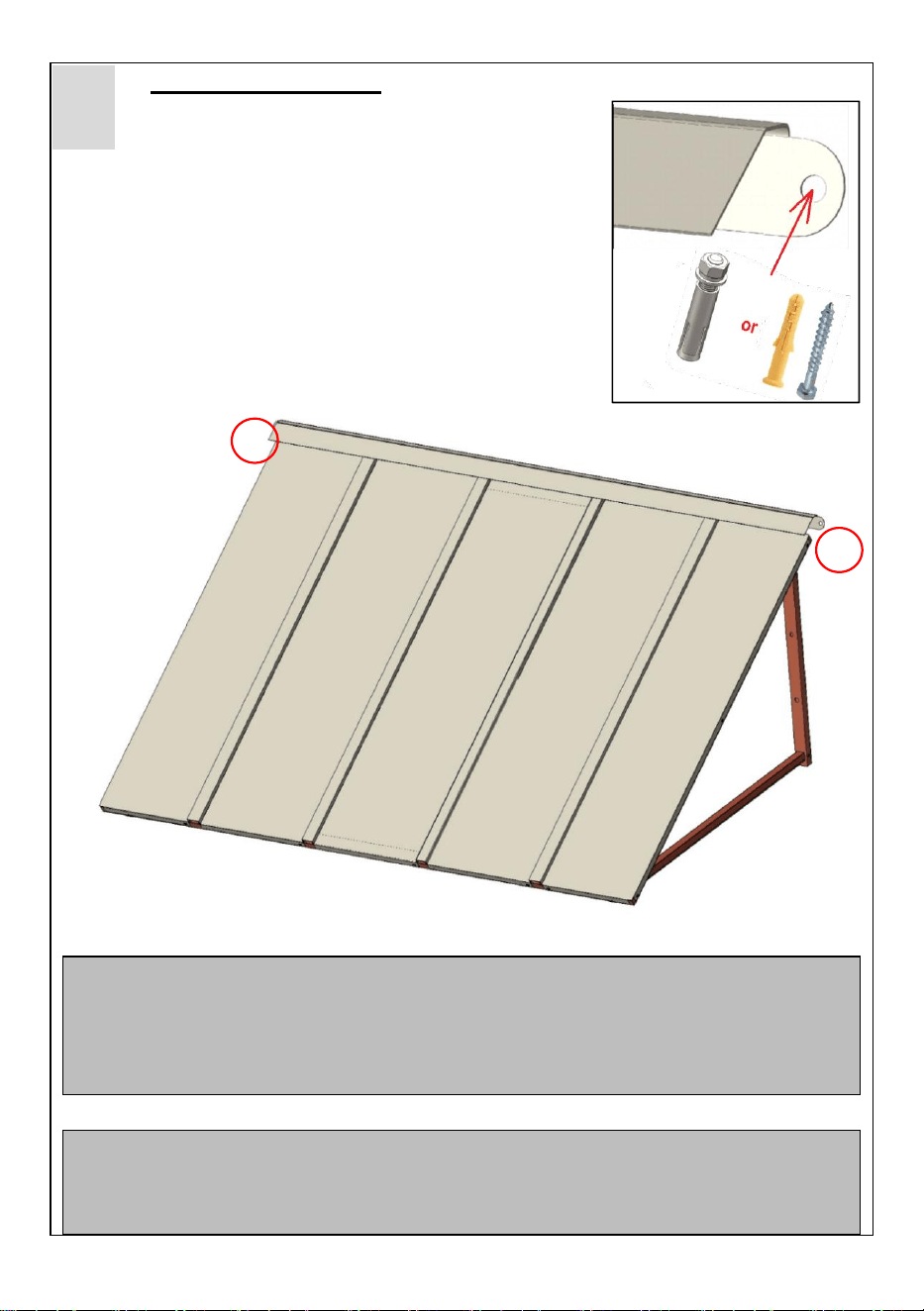

12
Fix the metal plates.
Fix the metal plates G1 and G2 with screws(H or I).
Plan 1(Suitable for hard walls): Install with expansion screws(H*2),
using a drill bit with a diameter of ø12mm.
Plan 2(Suitable for wooden walls): Install with wall nails(I*2), using
a drill bit with a diameter of ø6mm.
Metal plates (G1 G2): The height of the awning does not take the
Metal plates into consideration. The metal plates can be mounted at
any distance above the solid frame of the awning.
G1
G2
7
H*2
I*2
14
Snow Loads
The aluminum door canopies are manufactured
from the highest - quality components available
on the market today. They are designed to
withstand normal weather conditions, including
rain, sleet, snow, and wind. However, they are
not designed to endure winds exceeding 30
miles per hour, snow loads of more than 12
inches of heavy, wet snow, or 24 inches of light
snow. Additionally, they cannot withstand the
impact force of snow and ice falling from an
upper roof or piling up. This product will deliver
excellent performance as long as it is installed
correctly and used within its designed load -
bearing limits.
Please remove snow promptly during use.
15
Manufacturer:Shanghaimuxinmuyeyouxiangongsi
Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,
shanghai200000CN.
ECREP:E-CrossStuGmbH.
MainzerLandstr.69,60329FrankfurtamMain.
UKREP:YHCONSULTINGLIMITED.
C/OYHConsultingLimitedOffice147,CenturionHouse,LondonRoad,
Staines-upon-Thames,Surrey,TW184AX
ImportedtoAUS:SIHAOPTYLTD.
1ROKEVASTREETEASTWOODNSW2122Australia
ImportedtoUSA:SanvenTechnologyLtd.
Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
