5/22/2018 PT Page 1 of 2 529004I
Blade Quick Connect Harness Installation Instructions
Congratulations on your purchase of a high quality PUTCO product. Should you
need any application or technical assistance, feel free to call us at: 1-800-247-3974
Monday-Friday 8:00 a.m. - 5:00 p.m. (Central Standard Time)
Contact your PUTCO dealer for other quality accessories.
Please read all instructions before installation and to check to see that all parts are included.
Blade Quick Connect Harness Installation
1. Unplug the factory 7 pin trailer connector from the truck, then plug it into the Blade Quick
Connect Harness. Plug the other end of the Quick Connect Harness into the 7 pin plug on
the bumper. Refer to Figure 1.

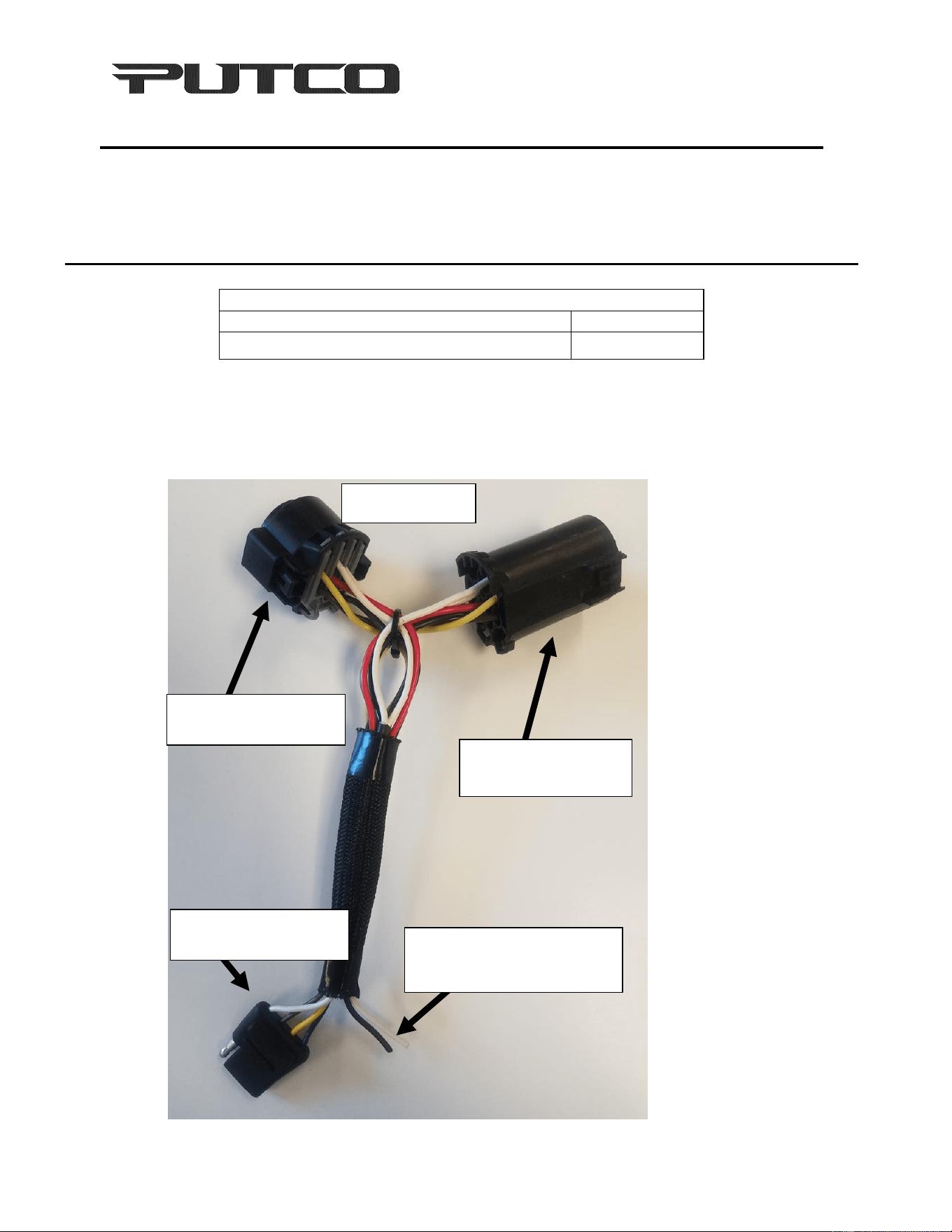

KIT CONTENTS:
Description
Qty
Blade Quick Connect Harness
1
Connects With
Factory 7 Pin Plug
Plugs Into Bumper
4 Pin Trailer Plug
White Wire = Reverse
Black Wire = 12 V Power
Figure 1
5/22/2018 PT Page 2 of 2 529004I
2. Connect the 4 Pin Trailer Plug to the Blade Tailgate Lightbar or other accessory.
3. Solder or use crimp terminals to connect the white (reverse) wire of the Blade Quick Connect
Harness to the Blade Tailgate Lightbar’s white (reverse) wire.
4. Solder or use crimp terminals to connect the black (power) wire of the Blade Quick Connect
Harness to your Blade Tailgate Lightbar’s red (power) wire.
5. If the reverse or power wire on the Blade Quick Connect Harness are not being used in your
application, be sure to insulate the ends with heat shrink or electrical tape to prevent a short.
