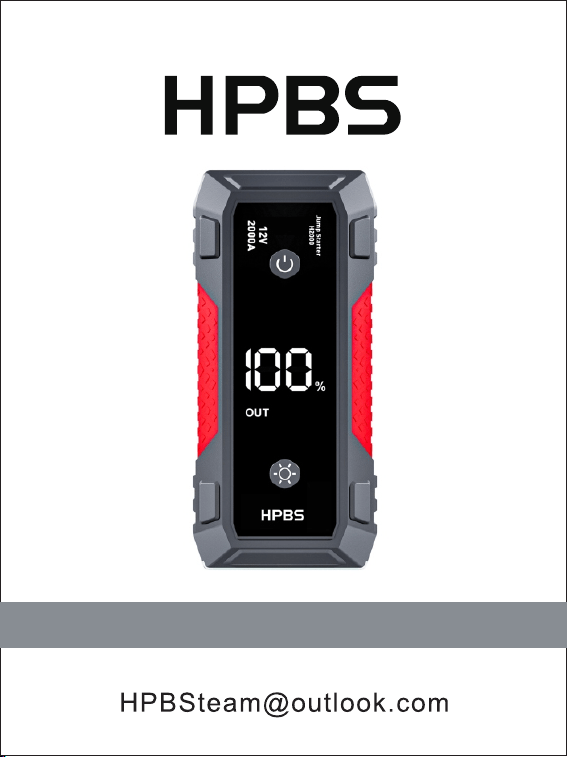

2000A Jump Starter
Instruction Manual
Introduction-------------------------------------- -----1
Safety Precautions------------------------- ---------2
Product Features-------------------------------------2
Product Components--------------------------------2
Getting Started-----------------------------------------3
Charging the Jump Starter-------------------- -----3
Turn On Your Jump Starter----------------- --------3
Using the LED Flashlight----------------------------3
Dual USB Outputs------------------------------------4
Jump Starting a Vehicle-----------------------------4
Notes on Charging Your Car Battery--------------5
Troubleshooting--------------------------------------5
Maintenance and Storage--------------------------5

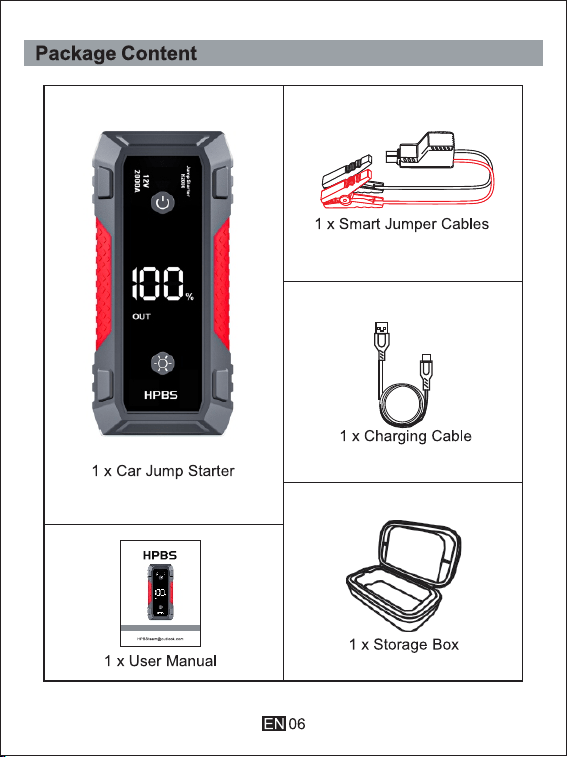

Package Content---------------------------------------6
Know Your Product-------- -- --------------------------7
Warranty--------------------------------------------------8
Contact US-----------------------------------------------8
Table of Contents
-4°F to 140°F
5V/3A 9V/2A 12V/1.5A
Safety Precautions
To ensure your safety and the safety of others, please follow these
guidelines:
Always wear appropriate eye protection when working around a
vehicle's battery.
Keep away from children.
Do not use the jump starter if it is damaged or malfunctioning.
Keep away from heat, fire, and water.
Do not jump start a frozen or damaged battery.
Always connect the jump starter to the battery first, then to the
vehicle's ground.
Product Features
2000A peak current for jump starting 12V vehicles
Compatible with gasoline engines up to 8.0L and diesel engines
up to 6.5L
Built-in LED flashlight with multiple modes
USB port for charging electronic devices
Compact design for easy storage and transport
Product Components
The 2000A Jump Starter package includes:
1.Jump Starter unit
2.Jumper cables with smart clamps
3.USB charging cable
4.Carrying case
5.Instruction manual
Charging the Jump Starter
Before using the jump starter, make
sure it is fully charged. To charge the
jump starter:
1.Connect the USB charging cable to
the jump starter's input port.
2.Connect the other end of the USB
charging cable to a USB charger or
a computer.
Note: It is recommended to charge the
jump starter every three months if not
in use.
Turn On Your Jump Starter
Short press the power switch to turn on the device, and the LCD screen
will illuminate. To conserve energy, the system will enter standby mode
if there is no operation within 20 seconds.
Using the LED Flashlight
At first, press the power switch to turn on the device, Long press the
LED switch for more than 3 seconds to turn on the light mode. There
are three modes which are illumination,SOS,and flash, simply short
press the LED switch button to change the lighting modes. And you
can also press the LED switch button for more than 3 times to turn off
the light mode.
Jump Starting a Vehicle
This portable jump starter is also equipped with two smart USB outputs
that provide the fastest charging speed (Output 1: 5V2.4A, Output 2:
5V/3A 9V/2A 12V/1.5A, for your portable electronic devices, such
as phones, tablets, Bluetooth earphones, etc.
To jump start a vehicle:
1.Make sure the jump starter is fully
charged.
2.Turn off the vehicle's ignition and all
electronic devices.
3.Connect the red clamp to the positive
(+) terminal of the vehicle's battery.
4.Connect the black clamp to the negative
(-) terminal or a suitable vehicle ground.
5.Turn on the jump starter by pressing the
power button.
6.Start the vehicle's engine.
7.Once the engine starts, disconnect the black
clamp first, then the red clamp.
8.Turn off the jump starter.
Troubleshooting
If the jump starter does not start the vehicle, check that the clamps are
connected correctly and that the jump starter is fully charged. Wait a few
minutes and try again.
If the jump starter is not charging, check that the USB charger is functioning
and that the charging cable is connected securely.
If the jump starter still does not work, please contact our After-sales
Department
Maintenance and Storage
Keep the jump starter clean and dry.
Store in the provided carrying case when not in use.
Keep away from heat, fire, and water.
Charge the jump starter every three months if not in use.
2000A Jum p St ar te r
Instruction Manual
USB1 Output
USB2 Output
For any quality-related issue, we provide 180-days warranty with
replacement or refund.
HPBS supports 7 x 24h customer service
