INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
FS and FSA Freezer Models
809-191A Rev E. 02/05/2026
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com
SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory2
WELCOME
Contents
Safety ........................................................................................................................................................................ 3
Important Information .......................................................................................................................................... 5
Product Information .............................................................................................................................................. 6
Clearance and Placement ..................................................................................................................................... 8
Unpacking and Set Up ........................................................................................................................................... 9
Shelf Installation ....................................................................................................................................................10
Electrical .................................................................................................................................................................. 11
Using The Unit ........................................................................................................................................................12
Sequence of Operations Freezer ..............................................................................................................13

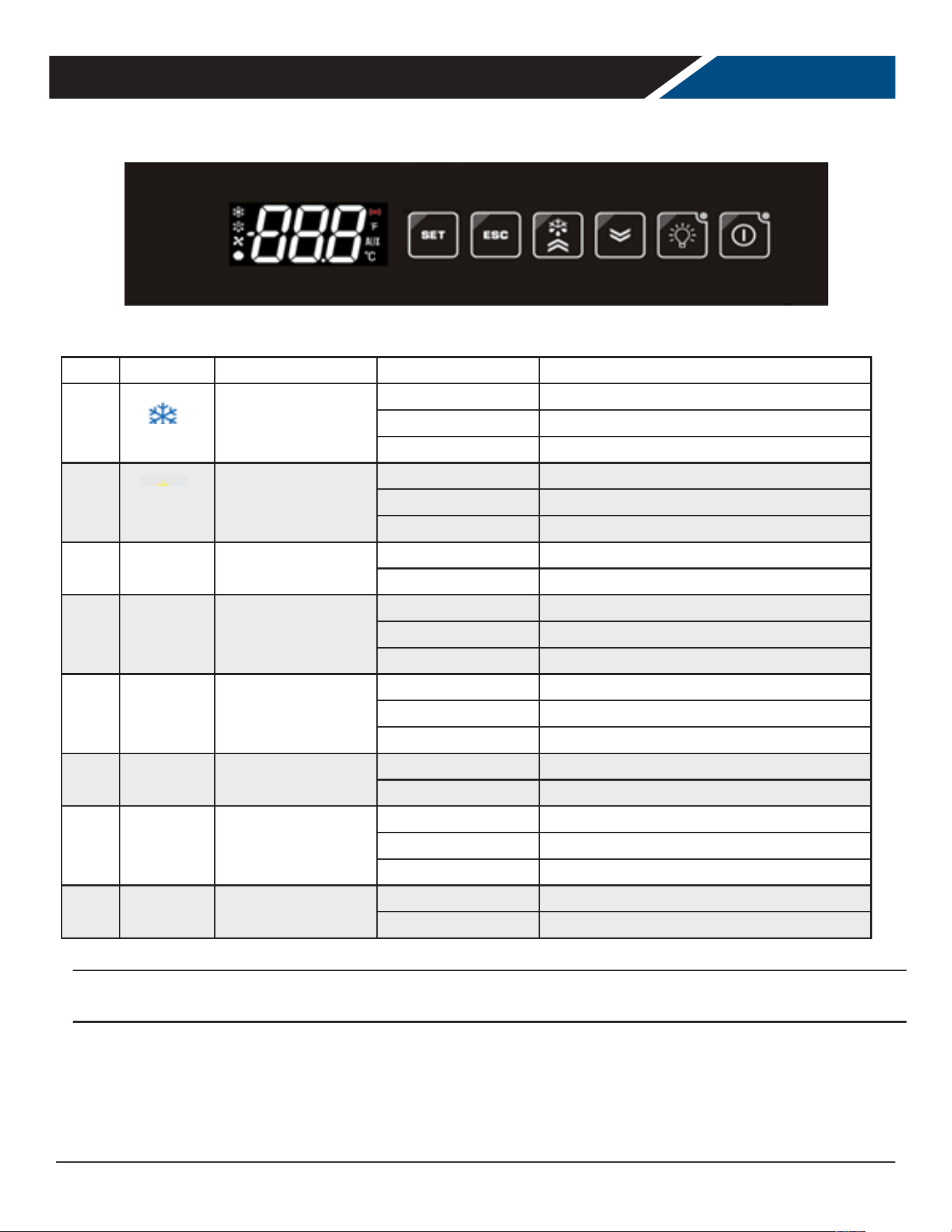

Control Panel Display .................................................................................................................................14

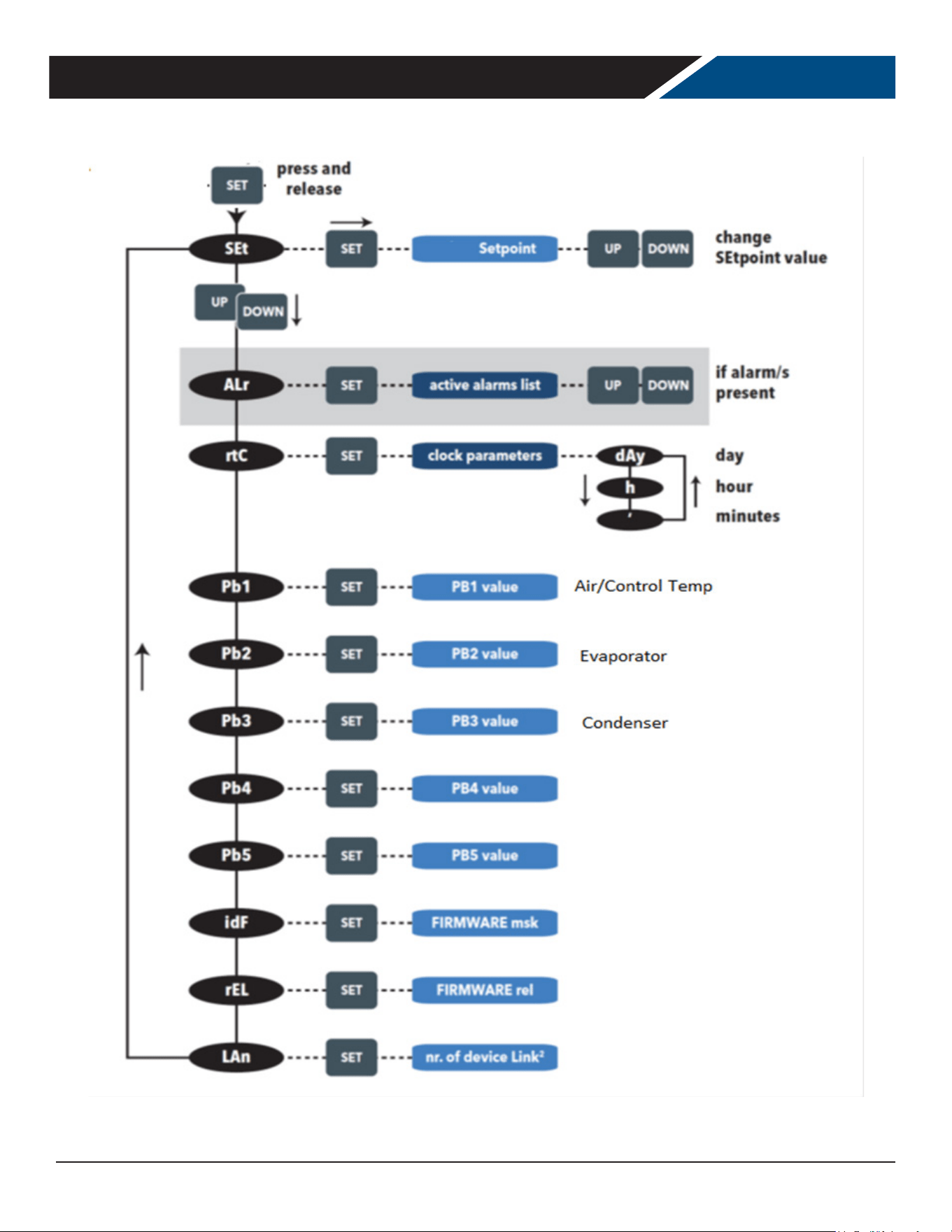

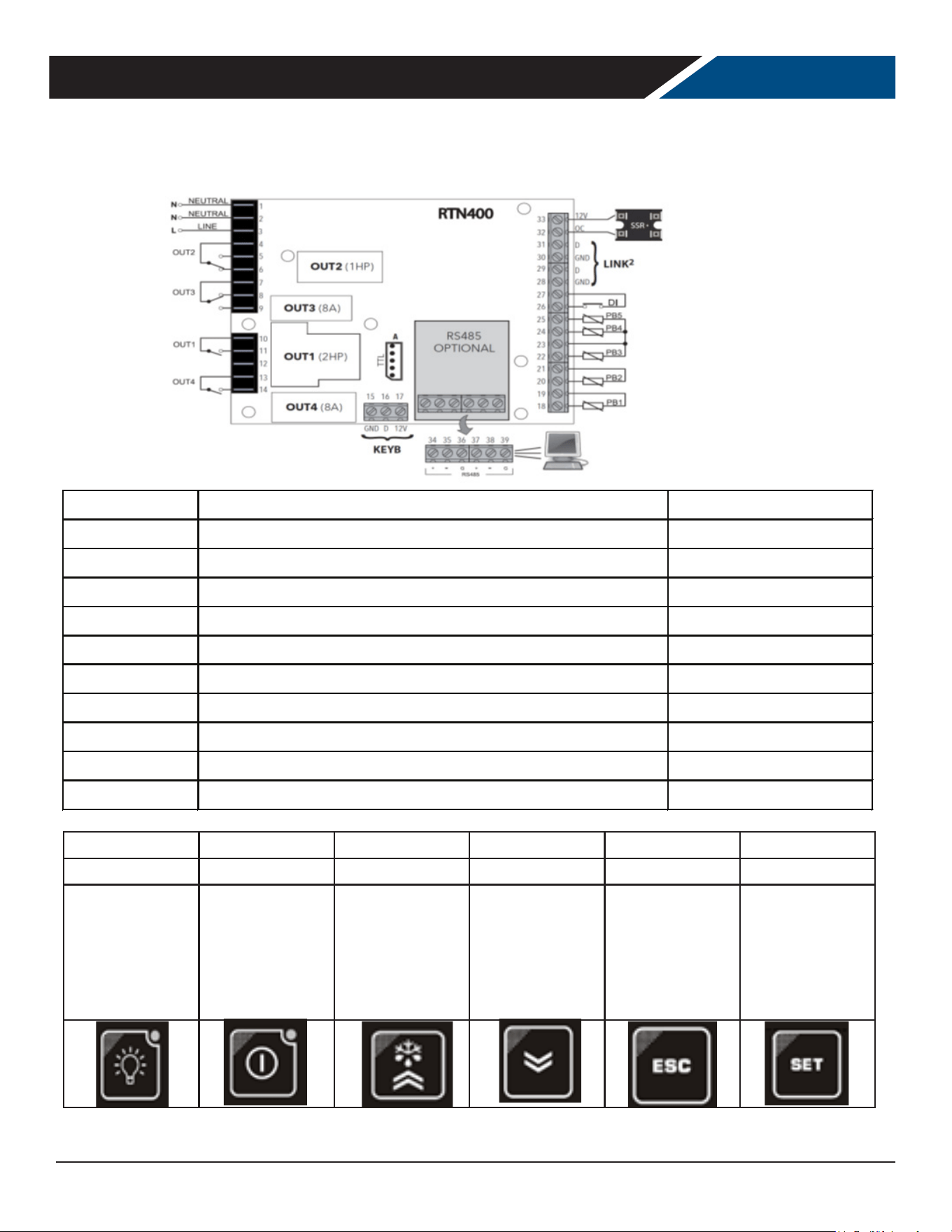

Electronic Controller Parameter Changes .............................................................................................16

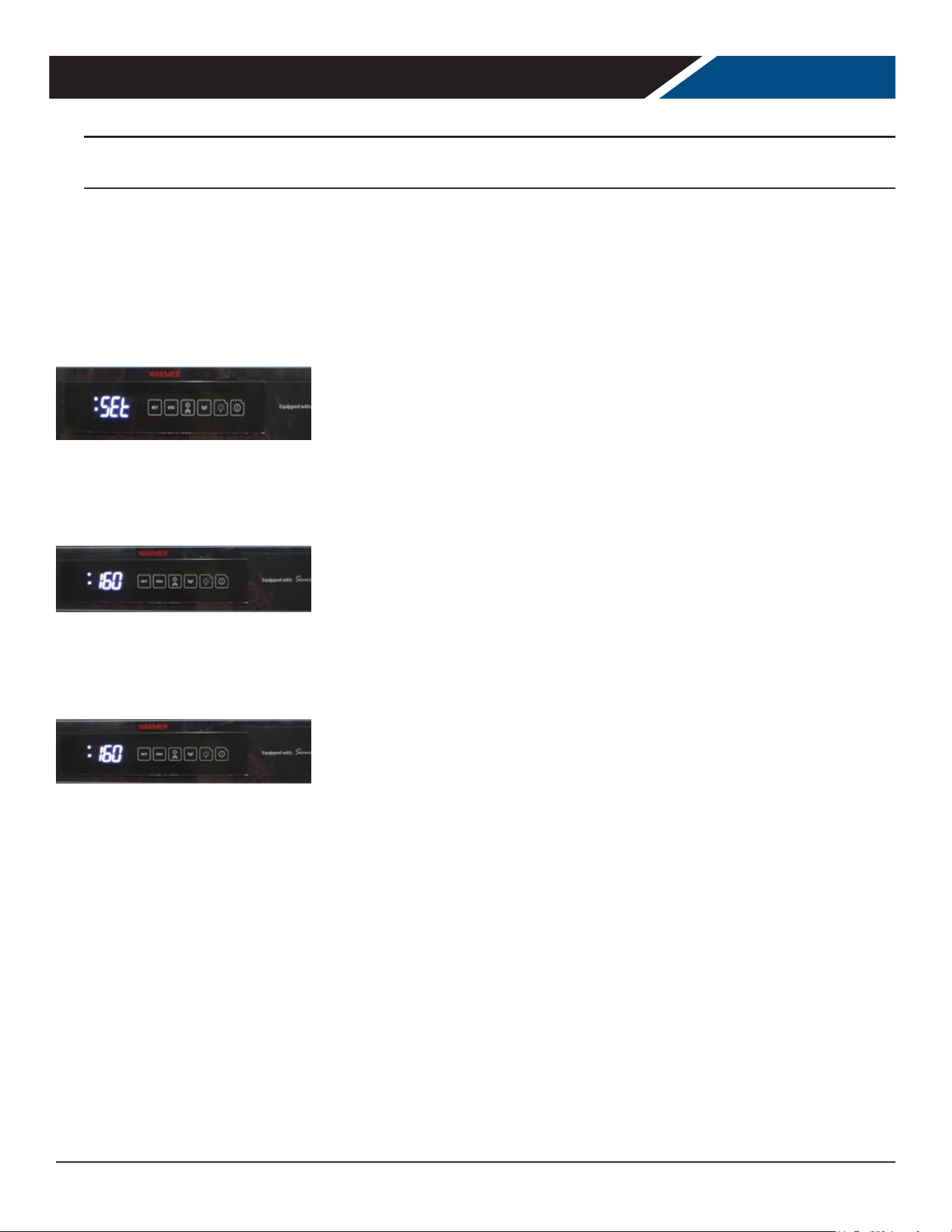

Setting the Real Time Clock ......................................................................................................................17
Cleaning and Maintenance ................................................................................................................................20

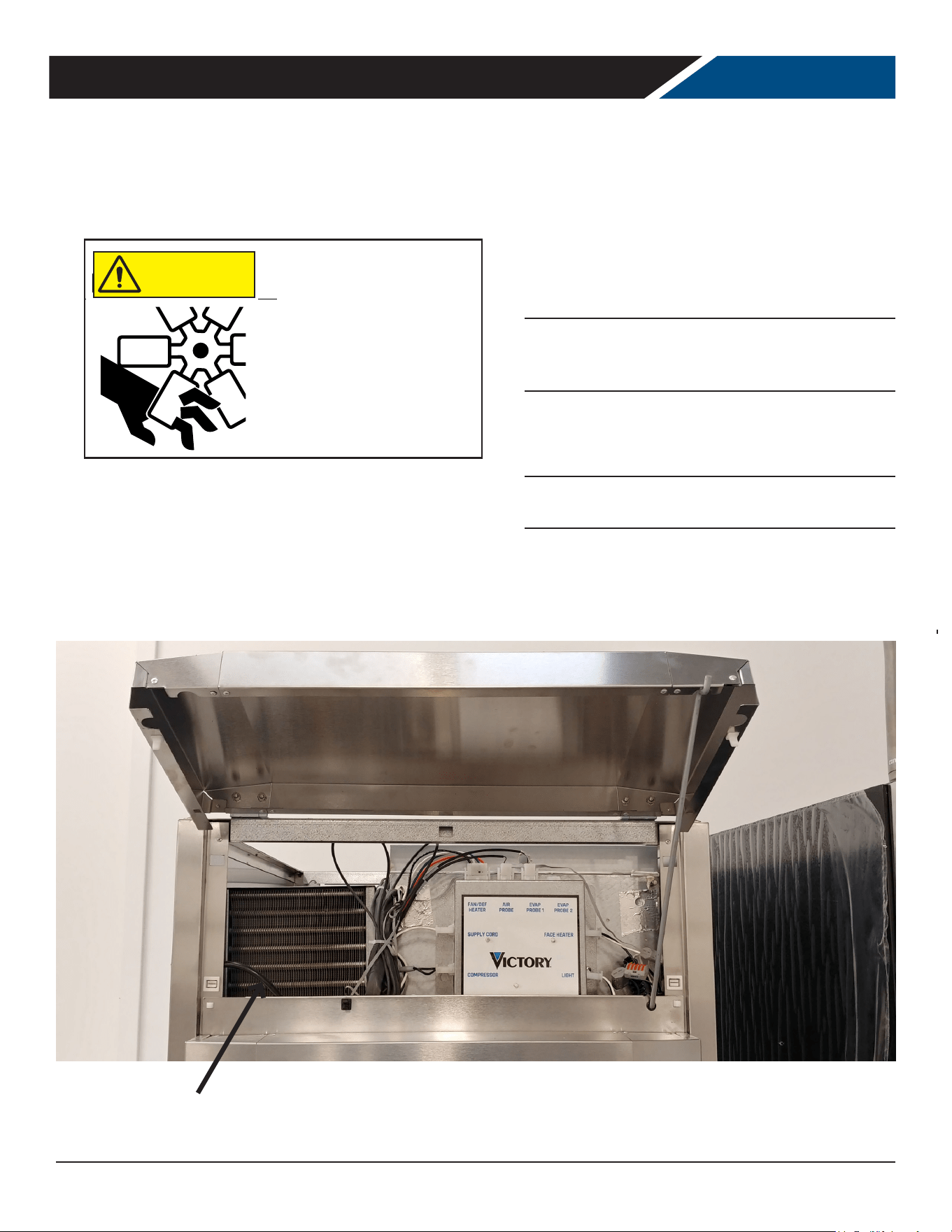

Condenser Cleaning ...............................................................................................................................................21
Methods For Cleaning Stainless Steel.............................................................................................................22
Help .......................................................................................................................................................................... 23
For The Service Tech - R290 .............................................................................................................................24
For The Service Tech - Single System Wiring Diagram ................................................................................25
For The Service Tech - TWO System Wiring Diagram ..................................................................................26
Limited Warranty ................................................................................................................................................. 27
Limited Warranty (continued) ........................................................................................................................... 28
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located with
this manual. Please complete the card and submit
it to Victory within TEN days of installation. Failure
to properly register equipment may limit or void the
warranty.
• Victory reserves the right to change specications
and product design without notice. Such revisions
do not entitle the buyer to corresponding changes,
improvements, additions, or replacements for
previously purchased equipment.
Thank you for purchasing a Victory cabinet. This series
has passed our strict quality control inspection and meets
the high standards set by Victory! You have made a
quality investment that with proper maintenance will give
you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Victory recommended technician certied to
repair R290 equipment.
• Use ONLY Victory factory service parts. Use of non
OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory4

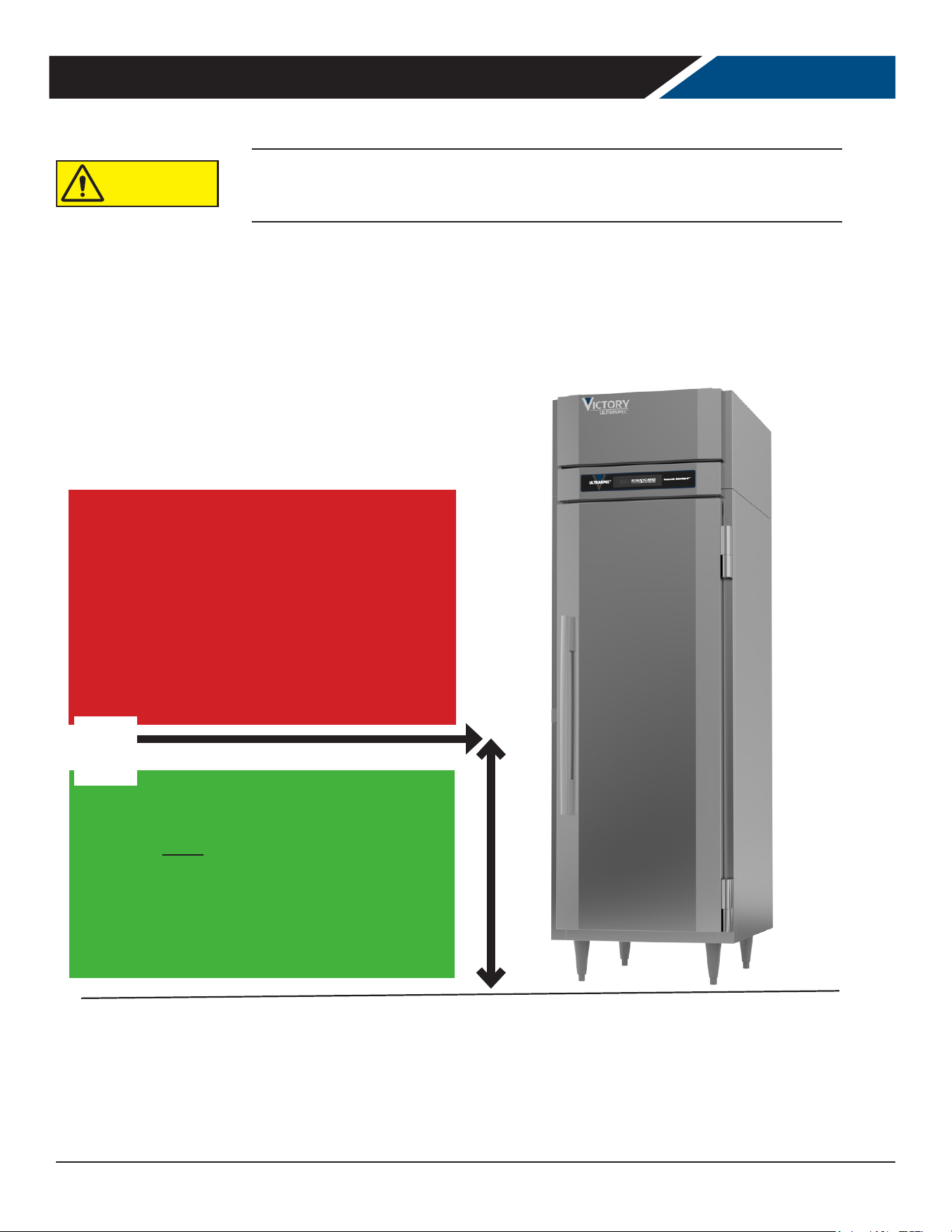

CAUTION: If it is necessary to move the Freezer after removal from the skid, remove
all doors and carefully push the unit at a point of no more than 36” from the bottom to
avoid damage.
CAUTION
SAFETY
Push ONLY below the 36 inch / .91 meter height
Height
will vary
by model
Do NOT push in this area.
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 5
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 60º F 100º F
Air Flow, All Models regardless of section, door count or door material.
Agency Approvals

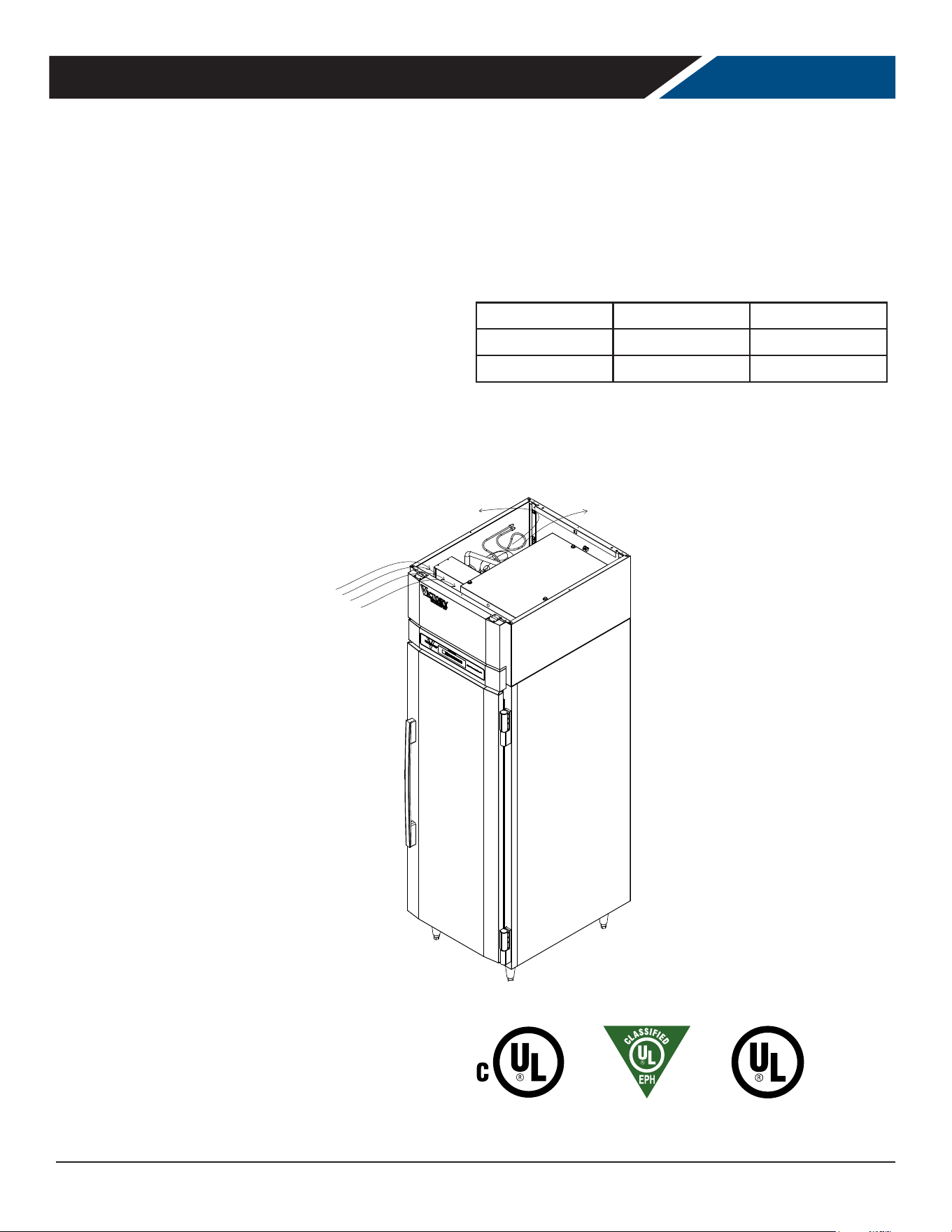

These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
ROOM AIR IN
WARM AIR OUT
OPEN TO REAR
WARM AIR OUT
WHEN BUILT IN
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory6
Model
Cabinet Dimensions
w x d x h (Inches)
Sections
Half or
Full Door
Glass
or Solid
Door
Full
Load
Amps
Refrigerant Type / Charge
(g) / Charge (oz.)
FS(A)-1D-S1-HC 26 1/2 x 34 7/8 x 84 1/8
1
Full Solid
9.1
R-290 / 130 / 4.59
FS(A)-1D-S1-HD-HC 26 1/2 x 34 7/8 x 84 1/8 Half Solid
FS(A)-1D-S1-G-HC 26 1/2 x 33 1/2 x 84 1/8 Full Glass
FS(A)-1D-S1-HG-HC 26 1/2 x 34 1/4 x 84 1/8 Half Glass
FS(A)-1D-S1-EW-HC 31 1/4 x 34 7/8 x 84 1/8 Full Solid
FS(A)-1D-S1-EW-HD-HC 31 1/4 x 34 7/8 x 84 1/8 Half Solid
FS(A)-1D-S1-EW-G-HC 31 1/4 x 33 1/2 x 84 1/8 Full Glass
FS(A)-1D-S1-EW-HG-HC 31 1/4 x 33 5/8 x 84 1/8 Half Glass
FS(A)-1N-S1-HC 31 1/4 x 30 3/8 x 84 1/4 Full Solid
FS(A)-1N-S1-HD-HC 31 1/4 x 30 3/8 x 84 1/8 Half Solid
FS(A)-1N-S1-G-HC 31 1/4 x 29 x 84 1/8 Full Glass
FS(A)-1N-S1-HG-HC 31 1/4 x 29 x 84 1/8 Half Glass
FS(A)-1D-S1-PT-HC 26 1/2 x 38 3/4 x 84 1/8 Full Solid
FS(A)-1D-S1-PT-HD-HC 26 1/2 x 38 3/4 x 84 1/8 Half Solid
FS(A)-1D-S1-PT-G-HC 26 1/2 x 38 3/4 x 84 1/8 Full Glass
FS(A)-1D-S1-PT-HG-HC 26 1/2 x 36 1/8 x 84 1/8 Half Glass
FS(A)-1D-S1-EW-PT-HC 31 1/4 x 38 5/8 x 84 1/8 Full Solid
FS(A)-1D-S1-EW-PT-HD-HC 31 1/4 x 38 5/8 x 84 1/8 Half Solid
FS(A)-1D-S1-EW-PT-G-HC 31 1/4 x 35 3/4 x 84 1/8 Full Glass
FS(A)-1D-S1-EW-PT-HG-HC 31 1/4 x 36 1/8 x 84 1/8 Half Glass
FS(A)-2D-S1-HC 52 1/8 x 34 7/8 x 84 1/8
2
Full Solid
10.5
FS(A)-2D-S1-HD-HC 52 1/8 x 34 7/8 x 84 1/4 Half Solid
FS(A)-2D-S1-G-HC* 52 1/8 x 33 1/2 x 84 1/4 Full Glass
13.9
FS(A)-2D-S1-HG-HC* 52 1/8 x 33 1/2 x 84 1/4 Half Glass
FS(A)-2D-S1-EW-HC 58 3/8 x 34 7/8 x 84 1/8 Full Solid
10.5
FS(A)-2D-S1-EW-HD-HC 58 3/8 x 34 7/8 x 84 1/8 Half Solid
FS(A)-2D-S1-EW-G-HC* 58 3/8 x 33 1/2 x 84 1/8 Full Glass
13.9
FS(A)-2D-S1-EW-HG-HC* 58 3/8 x 33 1/2 x 84 1/8 Half Glass
FS(A)-2N-S1-HC 58 3/8 x 30 1/4 x 84 1/8 Full Solid
10.5
FS(A)-2N-S1-HD-HC 58 3/8 x 30 1/4 x 84 1/8 Half Solid
FS(A)-2N-S1-G-HC* 58 2/5 x 28 7/10 x 84 1/5 Full Glass
13.9
FS(A)-2N-S1-HG-HC* 58 2/5 x 28 9/10 x 84 1/5 Half Glass
PRODUCT INFORMATION
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 7
Model
Cabinet Dimensions
w x d x h (Inches)
Sections
Half or
Full Door
Glass
or Solid
Door
Full
Load
Amps
Refrigerant Type / Charge
(g) / Charge (oz.)
FS(A)-2D-S1-PT-HC* 52 1/8 x 38 5/8 x 84 1/8 Full Solid
13.9
FS(A)-2D-S1-PT-HD-HC* 52 1/8 x 38 5/8 x 84 1/8 Half Solid
FS(A)-2D-S1-PT-G-HC* 52 1/8 x 35 3/4 x 84 1/8 Full Glass
FS(A)-2D-S1-PT-HG-HC* 52 1/8 x 36 x 84 1/8 2 Half Glass 9.1
FS(A)-2D-S1-EW-PT-HC* 58 3/8 x 38 3/4 x 84 1/8 Full Solid
13.9 R-290 / 130 / 4.59
FS(A)-2D-S1-EW-PT-HD-HC* 58 3/8 x 38 3/4 x 84 1/8 Half Solid
FS(A)-2D-S1-EW-PT-G-HC* 58 3/8 x 35 7/8 x 84 1/8 Full Glass
FS(A)-2D-S1-EW-PT-HG-HC* 58 3/8 x 36 1/8 x 84 1/8 Half Glass
FS(A)-3D-S1-HC* 77 3/4 x 34 7/8 x 84 1/4
3
Full Solid
FS(A)-3D-S1-HD-HC* 73 3/4 x 34 7/8 x 84 1/4 Half Solid
FS(A)-3D-S1-G-HC* 77 3/4 x 33 1/2 x 84 1/4 Full Glass
FS(A)-3D-S1-HG-HC* 77 3/4 x 33 5/8 x 84 1/4 Half Glass
FS(A)-3D-S1-EW-HC* 85 1/2 x 34 7/8 x 84 1/8 Full Solid
FS(A)-3D-S1-EW-HD-HC* 85 1/2 x 34 7/8 x 84 1/8 Half Solid
FS(A)-3D-S1-EW-G-HC* 85 1/2 x 33 3/8 x 84 1/8 Full Glass
FS(A)-3D-S1-EW-HG-HC* 85 1/2 x 33 1/2 x 84 1/8 Half Glass
Height includes casters.
• FS models have stainless steel liners; FSA models have aluminum liners.
• * These models have two refrigeration systems, charge numbers are for each system.
• Freezer Capable Of Maintaining Product Temperature 0ºF and below.
• All models are 115 volts, 60 Hz AC, and are equipped with a NEMA 5-15P or 5-20P plug, depending upon model.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE
FOR THE MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
• Ultra Glass doors are optional - for full Ultra Glass Doors change G to UG, for Ultra Glass half doors, change HG
to HD-UG.
2
R-290 / 130 / 4.59
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory8
CLEARANCE AND PLACEMENT
Placement

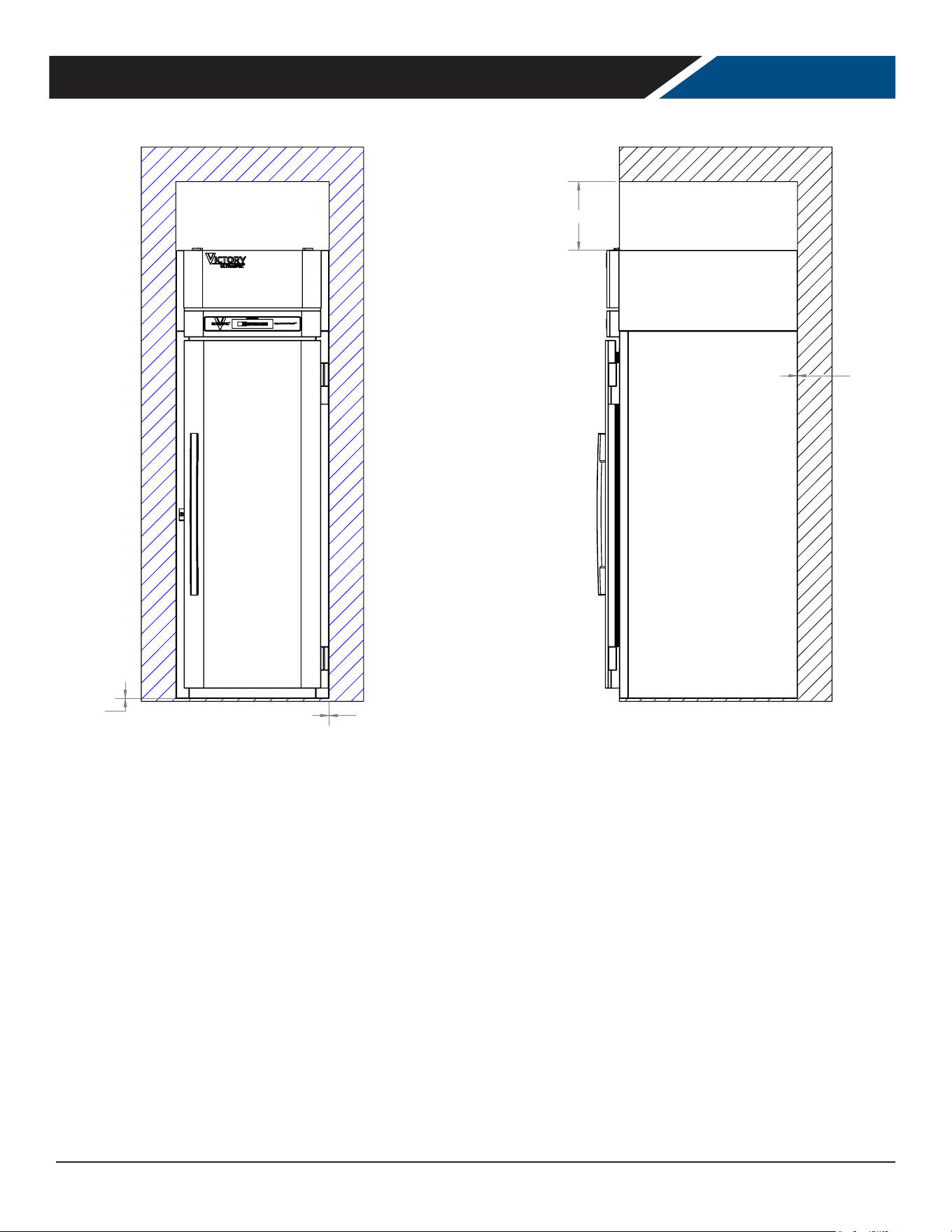

Consider the following when selecting a location for your Freezer:
Clearance:
• 12 in. at the top
• 0.0 in. at the rear,
• 0.0 in. at the left side
• 0.0 in. at the right side
Floor Load: the oor on which the Freezer is located must be even and level, free from vibrations, and strong enough to
support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.
0" AT SIDES
0" AT
FLOOR
12" AT TOP
0" AT
REAR
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 9
UNPACKING AND SET UP
CAUTION
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Uncrating
Tools Needed: ¾" box wrench, adjustable wrench, level, at
head screw driver, and box cutter.
1. Remove the cardboard top capping, all clear tape,
and all staples including those at the bottom of the
cardboard carton and skid.
2. Start from the top of the carton. Using the box cutter,
carefully make one continuous cut to the bottom of the
skid. Remove cardboard carton and discard.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Do NOT tip unit on its front or sides. If tipped onto the back,
unit must not be started for 3 hours.
Note: additional clear plastic protective wrap is applied
directly to any product with a glass door.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
1. Remove the shipping bolts using the ¾" box wrench
while cabinet is held in one direction. Repeat the
process while the cabinet is held in the opposite
direction.
2. Tilt the cabinet in one direction approximately 8" and
block it securely with pieces of 2x4 lumber or other
suitable material.
Note for the following: None of the threads on the leg or
caster stem should be visible once screwed in.
3. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible. Some models may already have levelers
installed. If so, then the levelers will need to rst be
removed and discarded.
4. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between the
mounting plate and the wheel of the caster until snug.
5. Repeat this procedure with unit secured in the opposite
direction so as to access the remaining legs/casters/
levelers
6. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
7. If levelers are employed, then repeat step 3 above and
thread the leveler in place. Then repeat step 5.
Leveling
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Failure to level your cabinet may result in door not sealing,
closing correctly, or condensed water not draining properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, level by placing large washers in
between the ½' stud and the holes in the bottom of the case.
Do NOT loosen casters to level the
cabinet. Casters MUST be tightly
secured to cabinet for full strength.
Install or attach any accessories that will be used Remove
any plastic covering the stainless steel.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory10

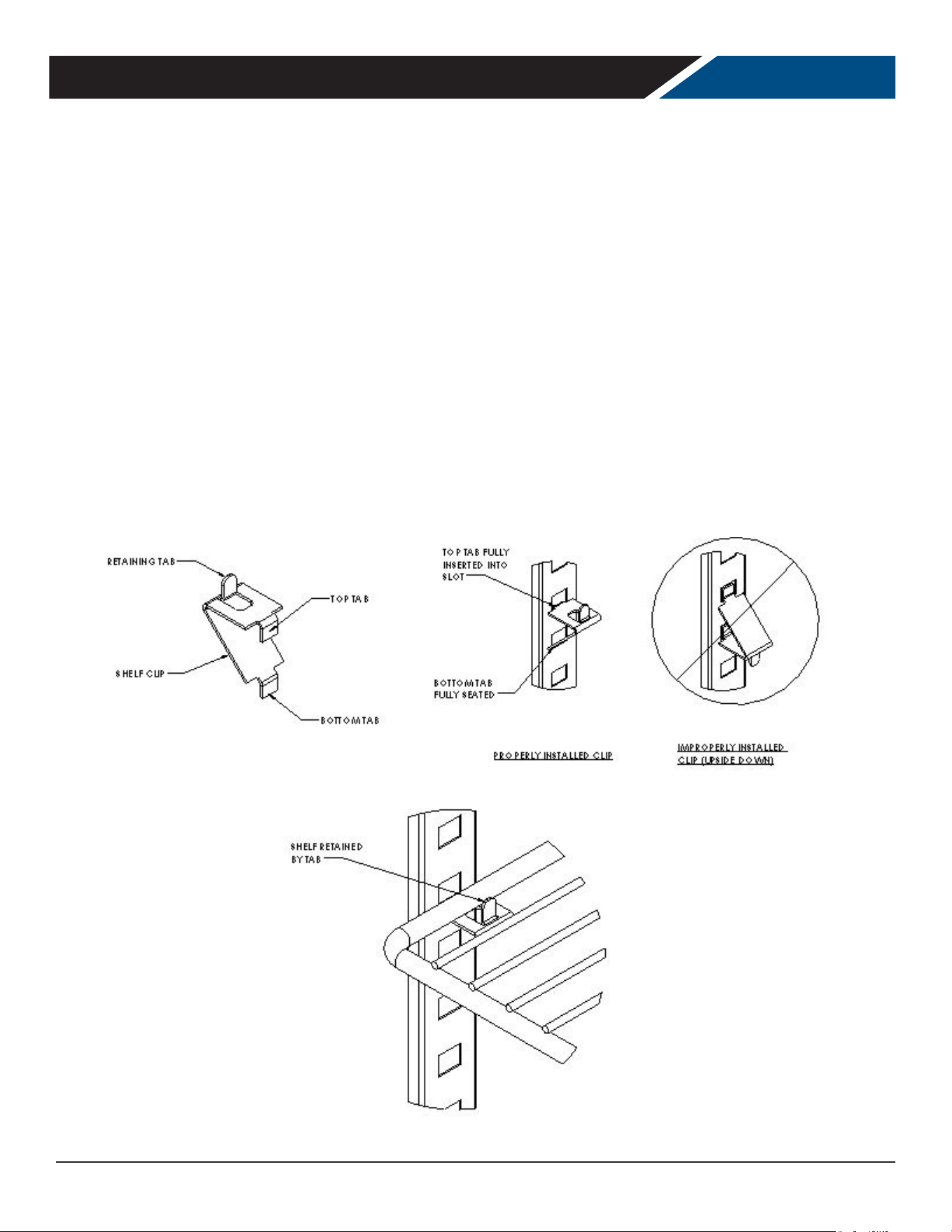

1. Determine the proper location for the shelf clips.
2. Insert the top tab of the shelf clip into the desired
hole of the pilaster. The retaining tab MUST be facing
up as shown.
3. Rotate the clip downwards and insert the bottom tab
into the matching hole in the pilaster. The clip may
need to be squeezed slightly during installation.
4. Install all remaining clips.
5. Install shelves onto clips with the product retention
bar facing up. Be careful not to dislodge clips during
installation.
6. Place shelves so that the retaining tab on the clip
captures the shelf as shown.
7. Conrm that the shelf is resting on ALL 4 clips and
that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf
and / or the product on it to fall, resulting in damage
to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to
use all shelves that are supplied in an equally spaced
manner. Contact Victory customer service if fewer
shelves or a dierent conguration to ensure shelf
overloading will not occur.
SHELF INSTALLATION
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 11
ELECTRICAL
11
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P or 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this issue
in a location that requires GFCI circuit protection, Victory
recommends using either an Eaton, SGF20, or HUBBELL
Model Number GFRST83W 20A Heavy Duty Hospital
Grade Self-Test GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
• Check for proper electrical hook-up.
• Cabinet MUST NOT SHARE A RECEPTACLE with
another piece of equipment
• Check that all clearances are in line with the
aforementioned guidelines.
• Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product. For
proper energy eciency and airow we recommend a
minimum 1” clearance between product and side walls, 4”
clearance between product and ceiling, and 1” clearance
from the bottom of the unit.
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
ELECTRICAL
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory12

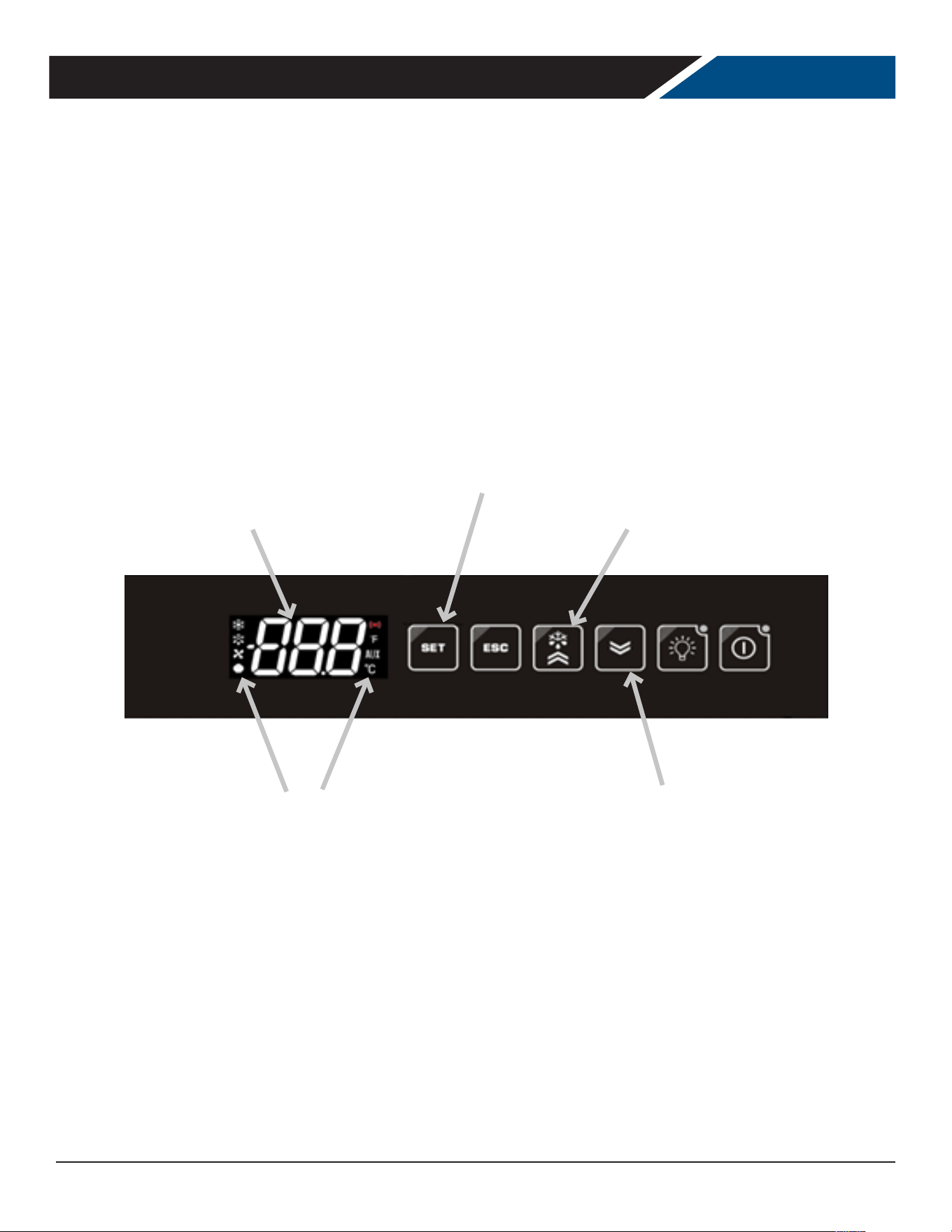

Icons
Increase
Decrease
USING THE UNIT
Operation is simple, just keep it connected to the correct
power supply and the Freezer will maintain the internal
temperature it has been set to. Keep the doors closed as
much as possible to avoid unnecessary run time.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
The temperature was set at the factory at 0
º
F, but you can
adjust it to your own selected temperature. See page 15.
The Freezer will automatically defrost as needed, there is
no set time for defrost. Push and immediately release the
"melting" or defrost button for a manual defrost.
The internal fan will be on when the compressor is on and
when the doors are closed.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
Display
Changes begin with SET
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 13
Condition Compressor Condenser
Fan
Evaporator
Fan
Defrost
Heater
Face/Door
Heater
Drain Lights
Cabinet Temp > Set point + Dead band ON ON ON OFF ON ON ON or OFF
Cabinet Temperature <= Set point OFF OFF ON OFF OFF ON ON or OFF
Defrost OFF OFF OFF ON OFF ON ON or OFF
SEQUENCE OF OPERATIONS
ON OFF
COMPONENT OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION
COMPRESSOR Compressor turns
on when the cabinet
temperature is above
the sum of the set
point and the dead
band
The Compressor
Contact is energized
Compressor turns
o when the cabinet
temperature is equal
to or less than the set
point
The Compressor
Contact is de-
energized
RTN400 terminals
10, 11
RTN400 terminals
10, 11
CONDENSER FAN The Condenser Fan
turns on when the
Compressor is running
The Condenser Fan
is wired directly to
the Compressor, not
through the controller
The Condenser Fan
turns o when the
Compressor is not
running
The Condenser Fan
is wired directly to
the Compressor, not
through the controller
EVAPORATOR FAN The Evaporator
Fan runs when
the evaporator
temperature is below
35°F and the door is
closed
The Evaporator Fan is
connected to control
relay.
The Evaporator
Fan is o when
the evaporator
temperature is above
35°F or the door is
opened
The Evaporator Fan is
connected to control
relay.
RTN400 terminals 4, 5 RTN400 terminals 4, 5
DEFROST HEATER The Defrost Heater
is on at least once
every 8 hours or if the
evaporator is -35°F or
below
The Defrost Heater
Contact is energized
When either the
defrost is not
scheduled or the
coil has reached the
defrost termination
temperature (37°F)
The Defrost Heater
Contact is de-
energized
RTN400 terminals 7, 9 RTN400 terminals 7, 9
FACE/DOOR HEATERS The Face/Door
Heaters turn on when
the Compressor is
running
The Compressor
Contact is energized
The Face/Door
Heaters turn o when
the Compressor is not
running
The Face/Door Heater
are wired to the
Compressor Contact
RTN400 terminals
10, 11
RTN400 terminals
10, 11
LIGHT The light will turn on
when the door is open
(solid door
models only) or
light button is
pressed
The Light Contact is
energized
The light will turn o
when the door is
closed (solid door
models only) or
the light button
is pressed
The Light Contact is
de-energized
RTN400 terminals
13,14
RTN400 terminals
13,14
DRAIN TUBE HEATER The drain tube heater
is always on
Wired to direct power,
not through the
control
The Face & Door
Heaters run
continuously
Wired to direct power,
not through the
control
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory14
NOTE: When switched on, the instrument panel performs a lamp test and for a few seconds, the display and LEDs ash to
verify their condition and proper operation.
No Icon LED Operation Meaning
1 Compressor Permanently On Compressor On
Blinking Delay, protection or start-up blocked
OFF Otherwise
2 Defrost Permanently On Defrost active
Blinking Activated manually or from Digital input
OFF Otherwise
3 Fans Permanently On Fans active
OFF Otherwise
4 Reduced SET /
Economy
Permanently On Energy saving active
Blinking Reduced setpoint active
OFF Otherwise
5 Alarm Permanently On Alarm active
Blinking Alarm acknowledged
OFF Otherwise
6
o
F readout Permanently On
o
F setting (dro = 1)
OFF Otherwise
7 AUX Permanently On Aux output active and/or light on
Blinking Deep cooling on
OFF Otherwise
8
o
C readout Permanently On
o
C setting (dro = 0)
OFF Otherwise
CONTROL PANEL DISPLAY
Control Panel Indicators
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 15
LIGHT STANDBY UP DOWN ESC SET (Enter)
Press and Hold Press and Hold Press and Release Press and Release Press and Release Press and Release
Long press (>5
sec) Toggles light
on and o. If
LED is on, light is
activated
Places unit in
Standby Mode. If
LED is on. Device
is o.
Scrolls the menu
items Increases
the values. Long
press (>5 sec)
starts manual
defrost
Scrolls the menu
items Decreases
the values. Long
press (> 5 sec)
Starts deep
cooling cycle
Returns up one
level with respect
to the current
menu. Conrms
the parameter
value
Accesses
the machine
status menu
and displays
any alarms (if
present)

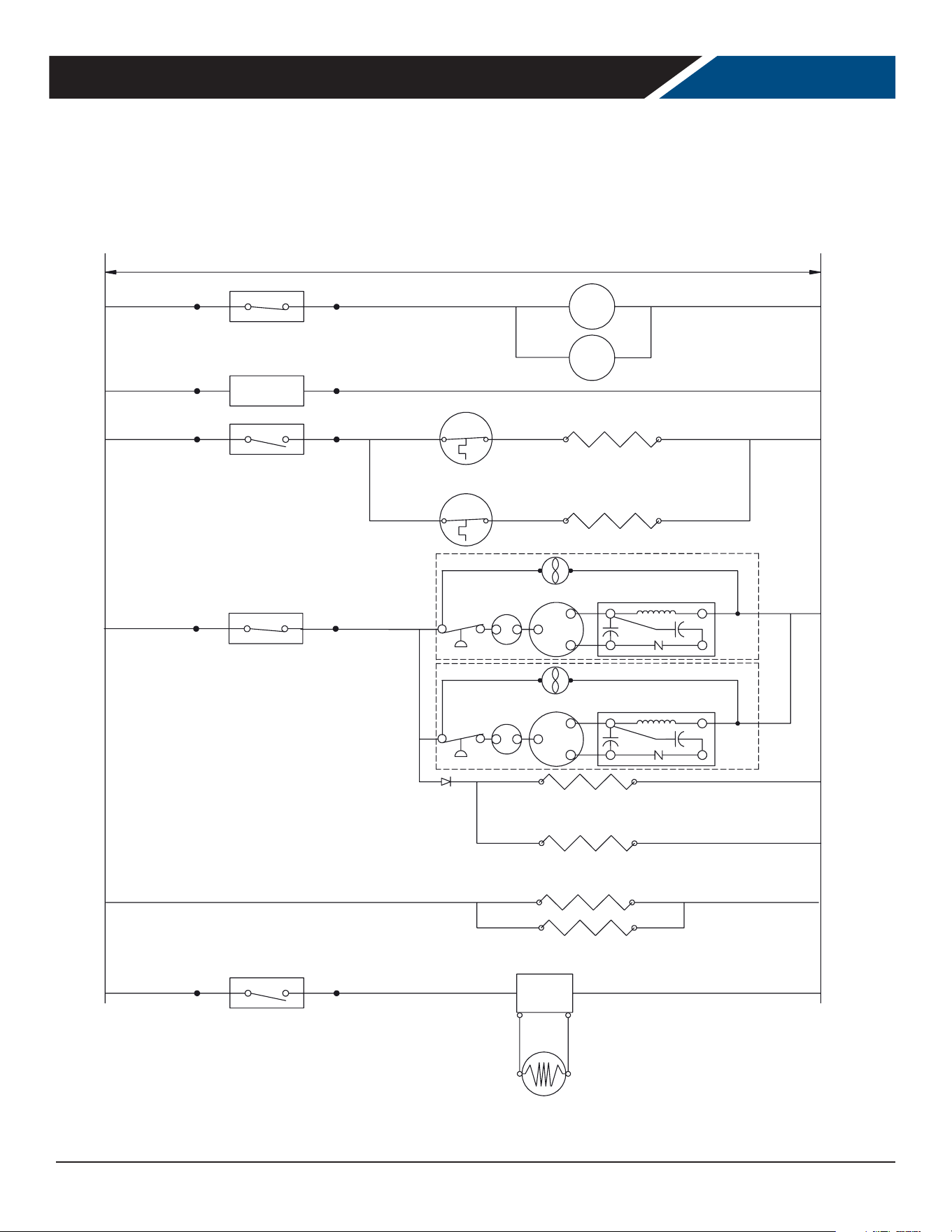

Relay/Probe Descrip�on Terminal
Out 1
Compressor 10,11
Out 2
Evaporator Fan 4, 5
Out 3
Defrost Element 7, 9
Out 4
Light (or alarm relay if electronic Lock model) 13, 14
PB1 –
Air/control probe 18, 19
PB2
Evaporator/defrost probe 20, 21
PB3
Evaporator 2 probe 22, 23
PB4&5
not used
DI
digital input/Door switch 26, 27
KEYB
Display connec�on 15, 16, 17
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory16
ELECTRONIC CONTROLLER PARAMETER CHANGES
Note: Key pad has a 3 second lock feature. Set key must be pressed for 3 seconds and released before keys will
become active. Key pad will beep when unlocked and normal key pad operations performed.
Setting the Operating Set Point
To change the operating set point, press and release the set button to enter the machine menu. “set” will appear on the
display.
Press and release the set button again to view the set point.
Use the up and down button to change the set point. When adjustment is nished, use the escape button to exit out of the
machine status menu.
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 17

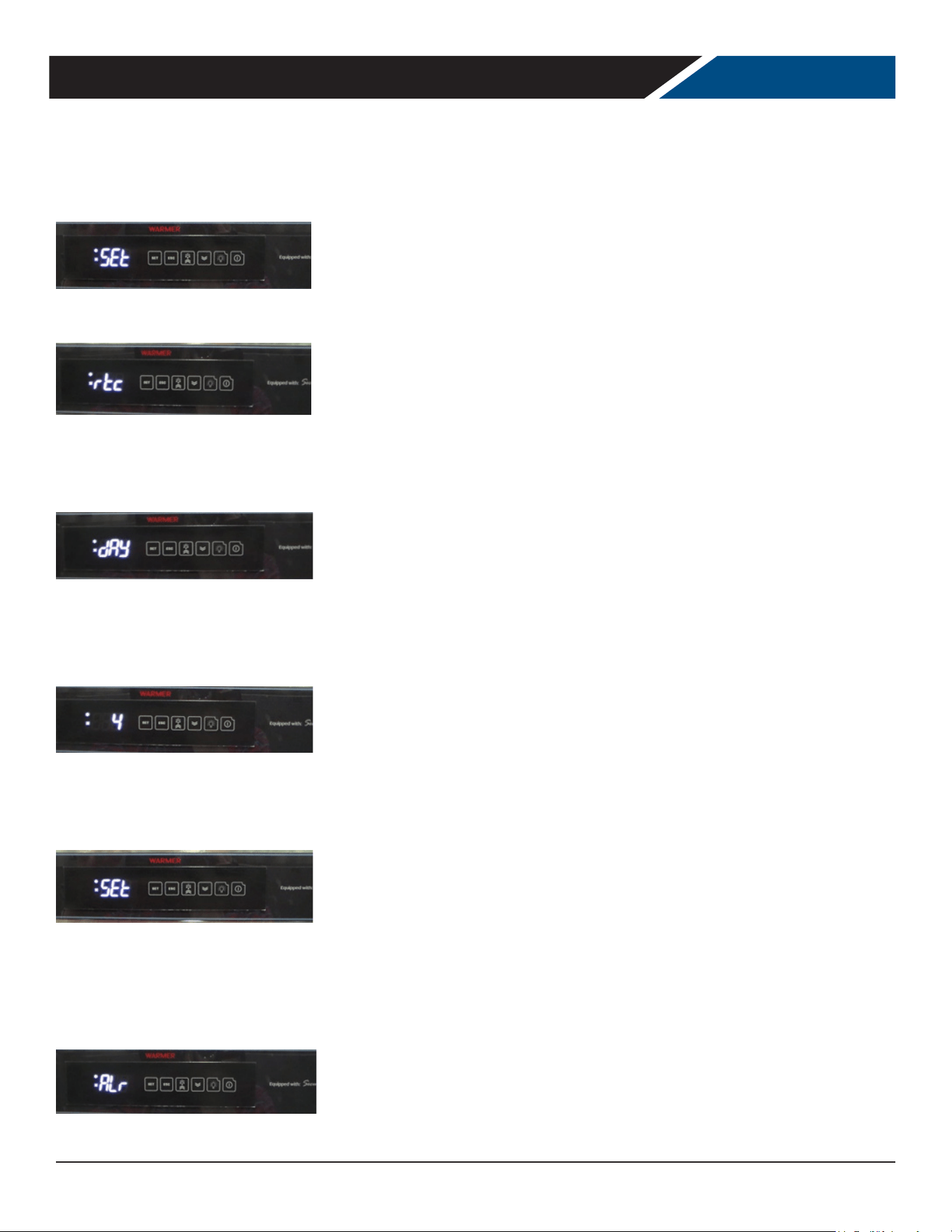

SETTING THE REAL TIME CLOCK
To set the real time clock, press and release the set button to enter the machine status menu. “Set will appear on the
menu.
Use the up and down button to scroll to the real time clock menu folder. “Rtc” will appear on the display.
Press the set button to enter into the clock setup menu. “Day” will appear on the display. Use the up and down buttons to
scroll to the hour (h), minute (‘) or day (day) that needs to be changed.
Press the set button to display the value and use the up or down button to change the value. Once the value has been
selected, use the escape button to conrm the new value and return the pervious menu level. Repeat the previous steps to
change the remaining parameters.
Viewing Alarm Codes
To view the alarm codes, press the set button to enter the machine status menu. “Set” will appear on the display.
Use the up and down button to scroll the alarm folder in the menu. ALr will appear on the display.
Press the set button to enter into the list of active alarms. Use the up and down button to scroll thru the alarms. Once
alarm codes have been viewed, use the escape button to exit out the menu and view set point.
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory18
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 19
Code Description Description LED Relay Reset Parameters involved to Enable alarm
E1 Probe Pb1 failure ON Active Automatic Ont, Oft
E2 Probe Pb2 failure ON Active Automatic Ont, Oft
E3 Probe Pb3 failure ON Active Automatic Ont, Oft
E4 Probe Pb4 failure ON Active Automatic Ont, Oft
E5 Probe Pb5 failure ON Active Automatic Ont, Oft
EL LINK2 probe
failure
ON Active Automatic Ont, Oft
Ei Virtual probe
failure
ON Active Automatic Ont, Oft
AH1 HIGH temperature
1 alarm
ON Active Automatic SP1, Att,Afd,HA1,PAO,dAO,OAO,tA1
AL1 LOW temperature
1 alarm
ON Active Automatic SP1, Att,Afd,HA1,PAO,dAO,OAO,tA1
AH2 HIGH temperature
2 alarm
ON Active Automatic SP2, Att,Afd,HA2,PAO,dAO,OAO,tA2
AL2 LOW temperature
2 alarm
ON Active Automatic SP2, Att,Afd,HA2,PAO,dAO,OAO,tA2
EA External alarm ON Active Automatic PEA, EAL
OPd Door open alarm ON not active Automatic PEA, tdO
Ad2 End of defrost due
to time-out
ON not active Automatic dE1, dE2, dAt
Prr Preheating alarm ON not active Automatic
E10 Clock alarm ON not active Automatic
HiP HIGH voltage
alarm
ON not active Automatic SPH, SPL, dFL, SoU
LoP LOW voltage
alarm
ON not active Automatic SPH, SPL, dFL, SoU
nPA General pressure
switch alarm
ON not active Automatic PEn, PEi
LPA High pressure
switch alarm
ON not active Automatic PEn, PEi
HPA Low pressure
switch alarm
ON not active Automatic PEn, PEi
PA General pressure
switch alarm
ON not active Manual PEn, PEi
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory20
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Monthly inspection,
cleaning as required
Gaskets
Daily inspection, check
that hinges are tight to
the cabinet.
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items and shelves. Store
the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100
o
F to 110
o
F) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a safe
temperature.
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 21
CONDENSER CLEANING
Keeping the condenser coil clean is critical to ecient
operation.
1. Unplug unit from power supply.
Rotating fan blade can cause
personal injury.
Unplug unit from power supply
before beginning to clean
condenser
CAUTION
2. Pull out on the bottom of the top panel to disengage
the locking clips
3. Raise the hinged panel
4. Remove the panel stand from its clip and secure into
the notch in the front right corner of the raised panel
5. Examine condenser surface, if dusty, brush and
vacuum the dust and lint from the surface of the
coil. Brush up and down to avoid damaging the ns.
Use care to not disturb the wires connected to the
controller.
Note: If the coil is greasy, the coil will need to be
cleaned with coil cleaner and that should be left to an
experienced technician.
6. To close, replace stand in its rest and lower panel
to the close position. Push rmly on the bottom to
engage locking clips
Note: Air lters are not recommended as they restrict
the ow of cooling air.
Condenser Surface
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory22
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, Baked-On
Splatter, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner
Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc.
Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Burnt-On Foods and
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING STAINLESS STEEL
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 23
HELP
Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent
Unit not plugged in.
Fuse or circuit breaker tripped.
Power cord plug loose in outlet.
Connect to proper voltage circuit Replace
fuse or reset breaker.
Check outlet for loose connection, replace
as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high
Dirty condenser
Evaporator iced over Unit in high
temperature environment
Clean condenser Defrost evaporator
Reduce temperature of room
Space temperature too high, two system
models
Same as above plus one compressor not
operating
Call for service
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp control stuck in open position Replace temp control.
No cooling - compressor hums but does not
start
Low voltage to unit.
Compressor starting system failure
Check voltage, correct as needed. Check
start relay and start capacitor. See next
step.
No cooling - compressor starts but shuts
o
Compressor start relay failure Compressor
start capacitor failure
Replace relay. Replace capacitor.
No cooling - compressor cycles on and o Overheating weak overload
Clean condenser, check fan motor and
blade. Check refrigerant charge. Replace
overload.
Unit cools, but is slow to pull cabinet
temperature down
Evaporator fan not turning
Check fan(s), on multiple fan units one fan
may be turning slowly and will need to be
replaced.
Unit cools but turns on and o frequently
No product in cabinet. Temperature control
defective Refrigeration issue
Fill cabinet Replace control
Have system checked
Makes excessive noise
Tubing rattle Loose parts
Bent or broken fan blade Noisy fan motor
Check tubing for routing Check for loose
components Replace fan blade
Replace fan motor
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory24
FOR THE SERVICE TECH - R290
Refrigeration service should only be attempted by a trained trade professional certied to work on R290 systems.
Here are some critical service items.
This list does not qualify anyone to service the unit. It is a
reminder and checklist for the service tech. Keep these in
mind for R290 service:
• Wire nuts are NOT to be used when changing an
electrical part.
• The switches in this product are sealed, only exact
replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components
that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during
service, the venting MUST be in an area free from
ame or spark. It must be near an opened window or
door.
• A sign noting service of a system containing propane
must be attached to the unit during refrigeration
service.
• A combustible gas leak detector must be used to
inform anyone in the area when propane is present in
the air.
Other Information:
Evacuation: It is critical that a refrigeration system be
leak free and internally dry. A thorough evacuation with
a good vacuum pump with a micron gauge attached is the
only way to ensure that the system is dry and ready for a
charge of refrigerant.
Charging: The system is critically charged and the proper
type and amount MUST be weighed in.
Overcharge symptoms: Unit will cool properly but
the suction line temperature will be unusually cold.
Compressor run time will be longer than normal.
Undercharge symptoms: Long run time, poor cooling and
a hot compressor dome are the main symptoms of an
undercharge.
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 25
FOR THE SERVICE TECH - SINGLE SYSTEM WIRING DIAGRAM
115VAC 60 HZ
EVAP
FAN
BLK
FAN RELAY
4 5
WHT
CONTROL
CIRCUIT
1 3
BLU
ORG
WHT
DEFROST HEATERS
DEF RELAY
7
9
HEATER SAFETY
THERMAL SWITCH
BLU
BLACK
WHITE
ORG
COMP RELAY
10 11
BRN
BLK
BLK
WHT
FASCIA HEATERS
RED
LIGHT RELAY
13 14
RED
CABINET
LIGHTS
POWER
SUPPLY
+
--
24VDC
HIGH CURRENT DIODE
WHT
BLK
GLASS DOOR HEATERS
(GLASS DOOR MODELS ONLY)
WHT
COMPRESSOR DETAIL
START RELAY
10
COMP
CONDENSER FAN
C
R
S
2
4
OL
1
R.C.
S.C.
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
BLK
DRAIN TUBE HEATER
WHT
WHT
BLACK
BLK
BLK
BLK
BLK
BLK
BLK
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory26
115VAC 60 HZ
EVAP
FAN
BLK
FAN RELAY
4 5
WHT
CONTROL
CIRCUIT
1 3
BLU
ORG
WHT
DEFROST HEATERS
DEF RELAY
7 9
HEATER SAFETY
THERMAL SWITCH
BLU
BLACK
WHITE
ORG
COMP RELAY
10 11
BRN
BLK
BLK
WHT
FASCIA HEATERS
RED
LIGHT RELAY
13 14
RED
CABINET
LIGHTS
POWER
SUPPLY
+
--
24VDC
HIGH CURRENT DIODE
WHT
BLK
GLASS DOOR HEATERS
(GLASS DOOR MODELS ONLY)
WHT
COMPRESSOR DETAIL
START RELAY
10
COMP
CONDENSER FAN
C
R
S
2
4
OL
1
R.C.
S.C.
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
BLK
DRAIN TUBE HEATERS
WHT
WHT
BLACK
BLK
BLK
BLK
BLK
BLK
BLK
BLK
EVAP
FAN
S.C.
R.C.
1
OL
4
2
S
R
C
CONDENSER FAN
COMP
10
START RELAY
COMPRESSOR DETAIL
HIGH PRESSURE
LIMIT SWITCH
(NOT ALL MODELS)
115V FREEZER
FOR THE SERVICE TECH - TWO SYSTEM WIRING DIAGRAM
User Manual for FS and FSA Freezers Victory
Rev. 02/26 Victory 27
LIMITED WARRANTY
Warranty (Continental USA & Canada Only)
SEVEN (7) YEAR PARTS, LABOR, AND COMPRESSOR
LIMITED WARRANTY
Victory® Refrigeration (Victory) warrants to the
original purchaser of Victory branded equipment,
that such equipment is free from defects in material
and workmanship, under normal use, proper
maintenance and service as indicated by Victory’s
installation and operation instructions, for a period
of SEVEN (7) years from the date of installation, or
eighty-seven (87) months from the date of shipment
from the manufacturer, whichever is earlier. In
addition, Victory® Refrigeration (Victory) warrants the
hermetically/semi-hermetically sealed compressor
(part only) for SEVEN (7) years; not to exceed eighty-
seven (87) months from the date of shipment from
Victory, provided upon receipt of the compressor,
manufacturer examination shows the sealed
compressor to be defective. This warranty does not
cover freight for the replacement compressor or
freight for return of the failed compressor. Also, this
compressor-part only warranty does NOT apply to
any electrical controls, condenser, evaporator, fan
motors, overload switch, starting relay, capacitors,
temperature control, lter/drier, accumulator,
refrigeration tubing, wiring harness, labor charges, or
supplies which are covered by the standard warranty
above.
*Units shipped after 07/1/2024. Previous warranty
applies to units shipped prior.
Exceptions:
• Warranty does not apply for units installed
in a Residential application. Units are intended for
Commercial use only.
• Blast Chillers carry a 3 year parts and labor
warranty; 2 additional years for the compressor.
Normal wear type parts, such as light bulbs/lamps,
gaskets, fuses, batteries, blast chiller/freeze probes,
thermostat or electronic controller calibration and/
or adjustment, and any normal maintenance items as
outlined in the Owner’s Manual, adjustment of door
mechanisms or freight damage are not covered by this
warranty. For this warranty, the original purchaser
shall be deemed to mean the individual or company for
whom the product was originally installed.
Proof of purchase must be supplied to Victory to
validate the warranty. This warranty is valid only
if equipment is properly installed, and started-up as
outlined in the Owner’s Manual.
Units that utilize variable speed compressor
technology can experience nuisance tripping on Class
A GFCI outlets which have a trip limit of 4 mA to 6
mA. To avoid this issue in a location that requires GFCI
circuit protection, Beverage Air & Victory recommends
using a HUBBELL Model Number GFRST83W 20A
Heavy Duty Hospital Grade Self-Test GFCI Receptacle.
Removal or alteration of the serial/ data plate from
equipment shall be deemed to release Victory from
all warranty obligations or any other obligations,
expressed or implied . The warranty does not cover
installation, start-up, normal maintenance, food
loss, or other consequential damage, and it excludes
components that are removable without tools. Our
obligation under this warranty shall be limited to
repairing or replacing, including labor, any part of such
product, which proves defective.
Victory reserves the right to examine any product
claimed to be defective. The labor warranty shall be
for self-contained units only and for standard straight
time, which is dened as normal service rate time,
for service performed during normal working hours.
Any service requested outside of a servicer’s normal
working hours will be covered under this warranty
at the normal rate and any additional overtime rate
will be the responsibility of the equipment purchaser.
Victory shall not be responsible for any costs incurred
if the work is performed by other than Victory’s
authorized service personnel. Reimbursement claims
for parts and/or labor service costs must be made in
writing. Model, cabinet serial number and installation
location must be shown on the claim. A receipted bill
from the servicing agency must accompany the claim,
together with full details of the service problems,
diagnosis and work performed. Victory reserves
sole discretion whether further documentation on a
claim is to be submitted. Any part determined to be
defective in the product should be returned to the
company within thirty (30) days under the terms of
this warranty and must be accompanied by a record
of the cabinet model, serial number, with a return
material authorization number (RMA#) issued by
Victory.
User Manual for FS and FSA Freezers Victory
Rev. 02/26Victory28
LIMITED WARRANTY (CONTINUED)
Special installation/applications, including remote
locations, are limited in coverage by this warranty.
Any installation that requires extra work, and/
or travel, to gain access to the unit for service is
the sole responsibility of the equipment purchaser.
Improper operation resulting from factors, including
but not limited to, improper or negligent cleaning
and maintenance, low voltage conditions, inadequate
wiring, outdoor use and accidental damage are
not manufacturing defects and are strictly the
responsibility of the purchaser.
Except Blast Chillers, a product is designed for
maintaining temperature and not bringing food to a
desired temperature, so cannot be held responsible for
this function under warranty.
Units must be in conditioned environments or
warranty will be void.
Condenser coils must be cleaned at regular intervals.
Failure to do so can cause compressor malfunction and
will void warranty. Although cleaning requirements
vary in accordance with the operation of various
products, Victory recommends a minimum monthly
cleaning.
NOTE: NO CLAIMS CAN BE MADE AGAINST THESE
WARRANTIES FOR SPOILAGE OF PRODUCTS,
LOSS OF SALES OR CONSEQUENTIAL DAMAGES.
THE FOREGOING WARRANTIES ARE EXPRESSLY
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE HEREBY DISCLAIMED, AND ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART, AND
WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THE SALE OF SAID
REFRIGERATION UNITS OR ANY PARTS THEREOF.
These warranties shall not be assignable and shall be
honored only in so far as the original purchaser.
These warranties do not apply outside the limits of
the USA and Canada, nor do they apply to any part
that has been subject to misuse, neglect, alteration,
accident, or to any damage caused by transportation,
ood, re, acts of terrorism, or acts of God.
LIMITATION OF LIABILITY:
Victory or its aliates shall not be liable for any
indirect, incidental, special or consequential
damages, or losses of a commercial nature arising
out of malfunctioning equipment or its parts or
components thereof, because of defects in material or
workmanship. In no event shall Victory be liable for a
sum more than the purchase price of the item.
THE ORIGINAL OWNER’S SOLE AND EXCLUSIVE
REMEDY AND VICTORY’S SOLE AND EXCLUSIVE
LIABILITY SHALL BE LIMITED TO THE REPAIR
OR REPLACEMENT OF PARTS OR COMPONENTS
CONTAINED IN THE EQUIPMENT IDENTIFIED
ABOVE WHICH UNDER NORMAL USE AND SERVICE
MALFUNCTION AS A RESULT OF DEFECTS IN
MATERIAL OR WORKMANSHIP, SUBJECT TO THE
APPLICABLE PROVISIONS AND LIMITATIONS STATED
ABOVE. 07/2024
User Manual for FS and FSA Freezers Victory
Rev. 02/26
Warranty Registration
Register your product online at Victory.com/parts-service or ll out and mail the form below.
Cabinet Model Number: _____________________________________________ Date Of Installation: _________________
Cabinet Serial Number: _____________________________________________
Location Of Product
Business Name: ____________________________________________________
Business Street: ____________________________________________________
Business City: ____________________________________ State: _________ Postal Code:___________
Mail to: Victory, 3779 Champion Blvd, Winston-Salem, NC 27105
