USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1005 806 050
Model #52111
UL Model #52-LION
EVERAINE 52-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
2
Table of Contents ................................................................ 2
Safety Information ............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation ............................................................................ 6
Assembly .............................................................................. 7
Operation ........................................................................... 13
Care and Cleaning ............................................................. 14
Troubleshooting .................................................................14
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9 kg) or less”.
4. CAUTION: The fan must be mounted with a minimum of 7 ft (2.1
m) clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL-listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, “this fan should only be used with fan speed
control part no. DP-51R, manufactured by DAWNSUN
ELECTRONIC TECHNOLOGY CO LTD ZHONGSHAN.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.
3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.
The supplier also warrants that other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the
time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as
by accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions
this warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give
their longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered
a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators
Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the
extent permitted by law. The duration of any implied warranty, which cannot be disclaimed, is limited to the time period as specied in the express
warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may
otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation
may not apply to you. This warranty gives specic legal rights, and you may also have other rights that vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

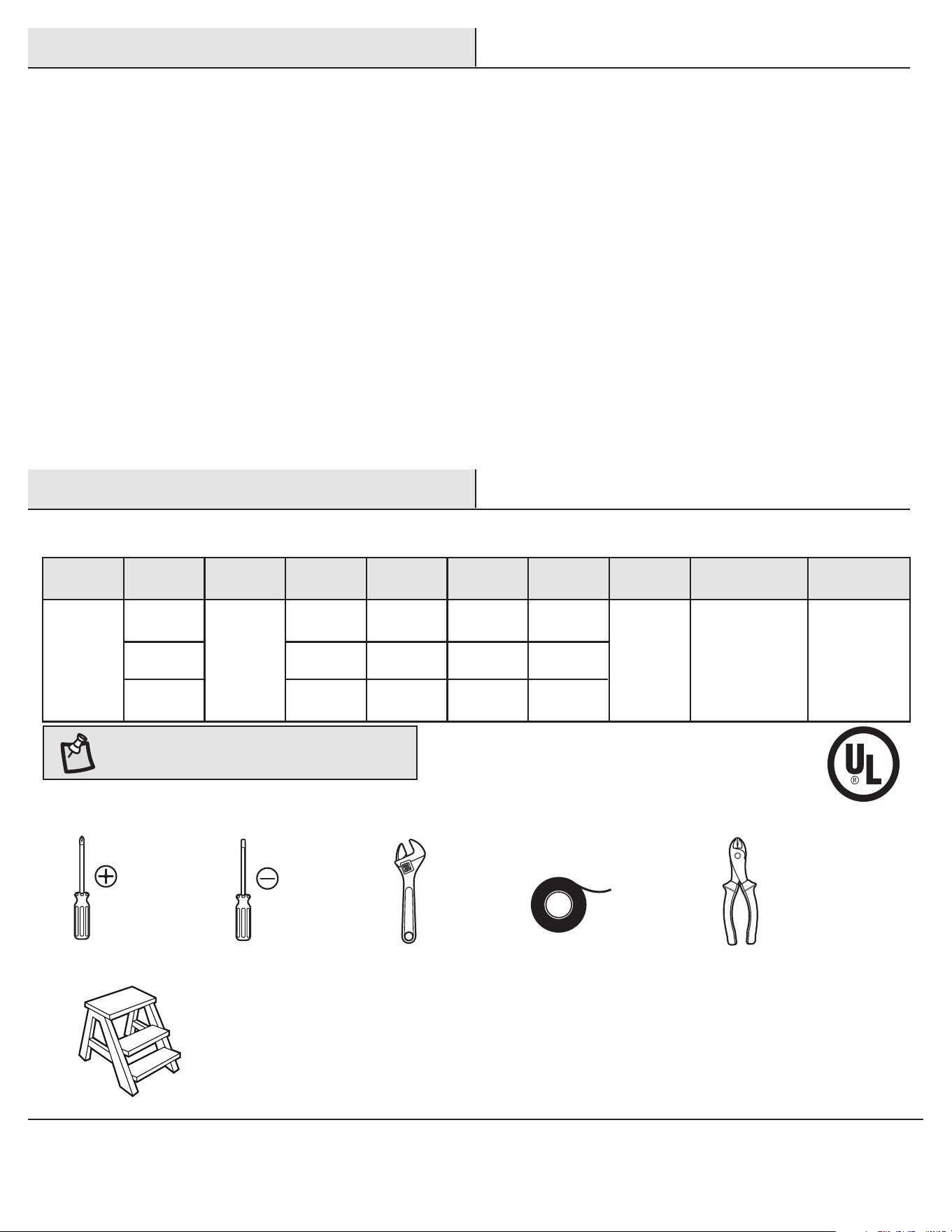

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM
Net
Weight
Gross
Weight
Cubic Feet
52 in.
Low
Medium
High
120
0.09
0.17
0.40
4
10
25
60
116
170
2394
3957
5367
11.79 lbs
(5.35 kg)
17.81 lbs
(8.08 kg)
2.0 cu.ft.
4
Part Description Quantity
AA Blade attachment screws 7
BB Plastic wire connector 3
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
BB
5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

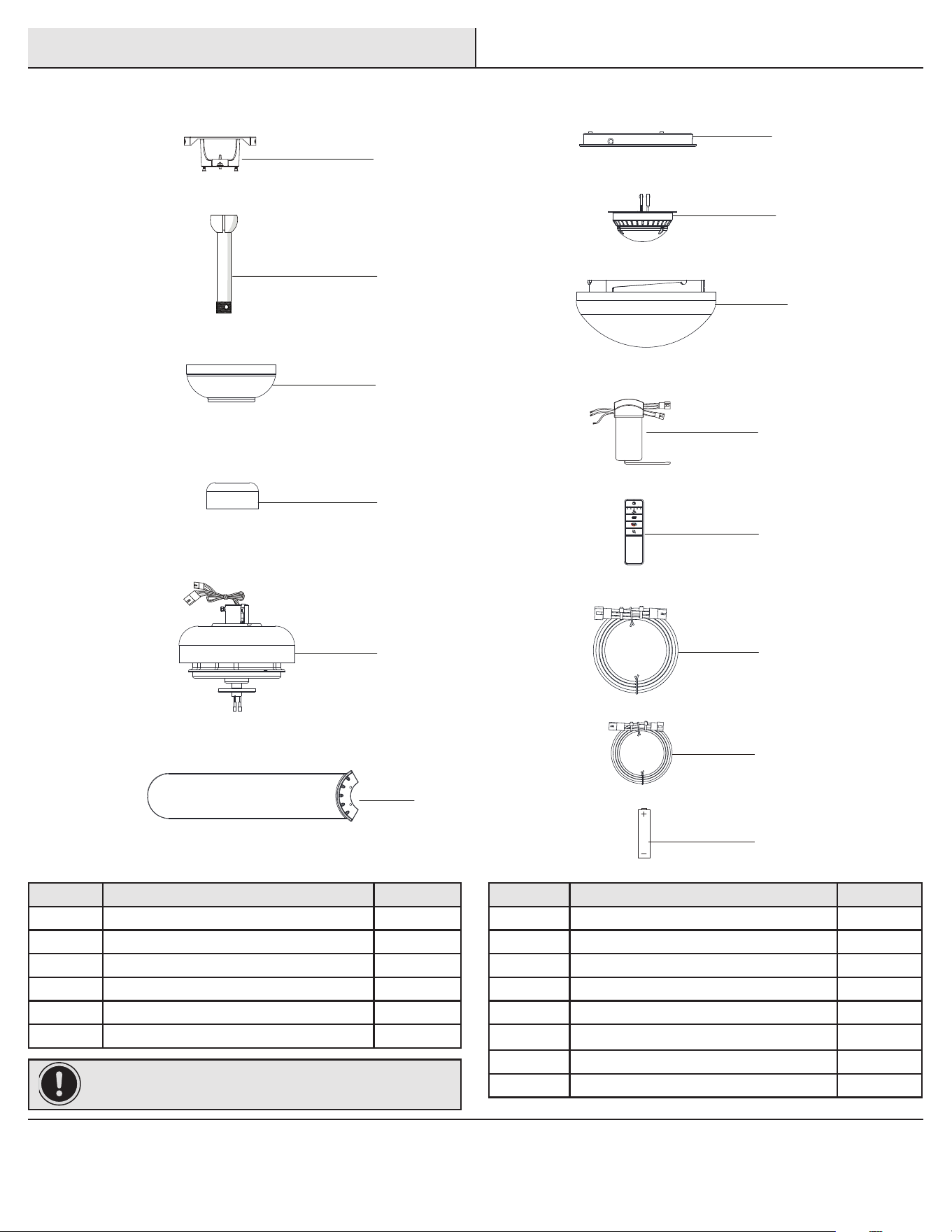

Part Description Quantity
A Slide-on mounting bracket (inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
F Blade 3
Part Description Quantity
G Light kit pan 1
H Light kit tter assembly 1
I Shatter resistant bowl 1
J Receiver 1
K Remote control 1
L 3-pin extension wire 1
M 2-pin extension wire 1
N Battery 2
IMPORTANT: This product and/or components are governed by
one or more of the following U.S. Patents: 5,947,436; 5,988,580;
6,010,110; 6,046,416, 6,210,117 and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
G
D
K
J
F
E
L
I
H
M
N
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the screws provided with
the outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

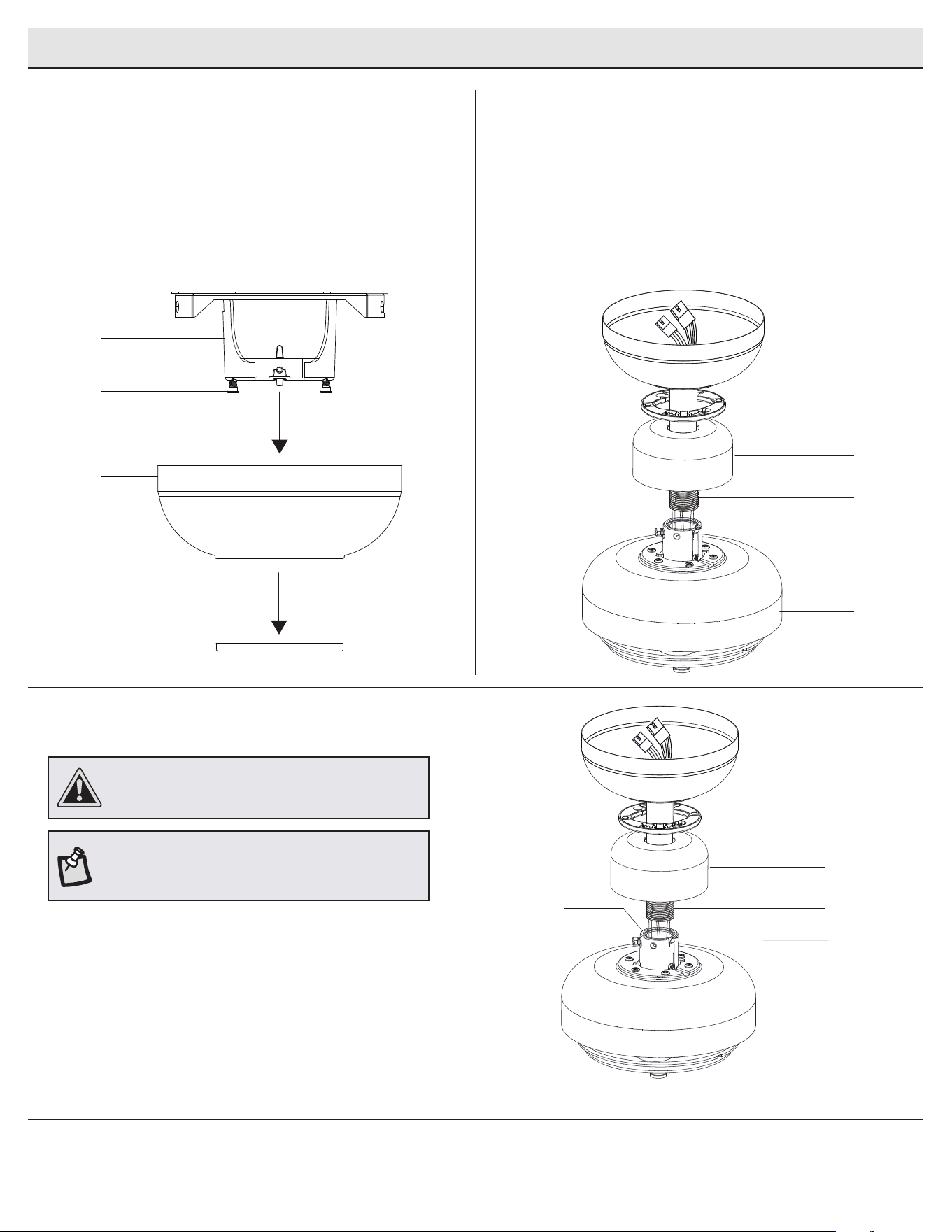

Assembly - Standard Ceiling Mount
Routing the wiresPreparation for standard mounting
□ Route the wires exiting the top of the fan motor assembly
(E) through the decorative motor collar cover (D) and then
the center of the canopy bottom cover (DD).
□ Make sure the opening of canopy (C) is on top and insert
the ball/downrod (B) through the canopy (C).
□ Route the wires exiting the top of the fan motor assembly
(E) through the downrod as shown.
21
□ Remove the magnetic canopy bottom cover (DD) from the
canopy (C) by pulling it off.
□ Loosen the two canopy screws (CC) located in the bottom of
the mounting bracket (A).
□ Turn the mounting bracket (A) counterclockwise and lift it up
to remove the mounting bracket from the canopy (C).
Assembling the fan
□ Loosen, but do not remove, the setscrew (EE) on the collar (II)
on top of the fan-motor assembly (E).
□ Install the downrod (B) by inserting it into the motor collar (II),
and turning it clockwise until it is tight.
□ Re-tighten the setscrew (EE) on the collar (II) on top of the fan
motor assembly (E).
3
NOTE: This fan is equipped with a safety tab (GG).
Should the setscrew (EE) ever become loose while
the fan is running in reverse, the safety tab (GG) will
engage and stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(EE) must be completely tightened.
C
A
CC
DD
C
D
E
B
GG
EE
II
C
D
E
B
8

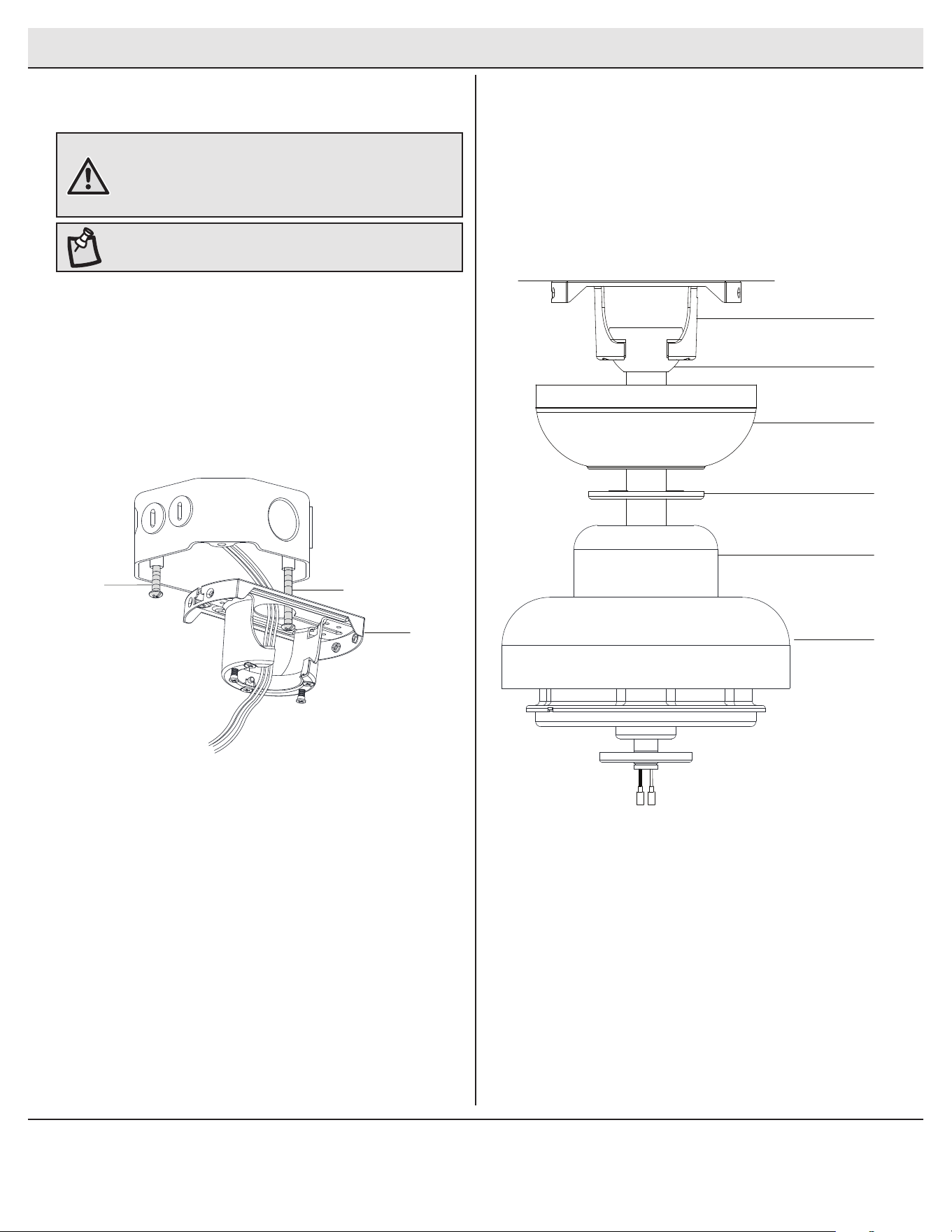

Assembly - Hanging the Fan
Attaching the fan to the electrical
box
Hanging the fan
□ Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□ Install the ceiling slide-on mounting bracket (A) on the outlet box
by sliding the slide-on mounting bracket (A) over the two screws
(HH) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
□ Securely tighten the two mounting screws (HH).
□ Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□ Seat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
1 2
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box or supporting
system marked “Acceptable for fan support of 35 lbs.
(15.9kg) or less” and use the mounting screws provided
with the outlet box.
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (HH).
A
HH
HH
E
D
A
B
C
DD
9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

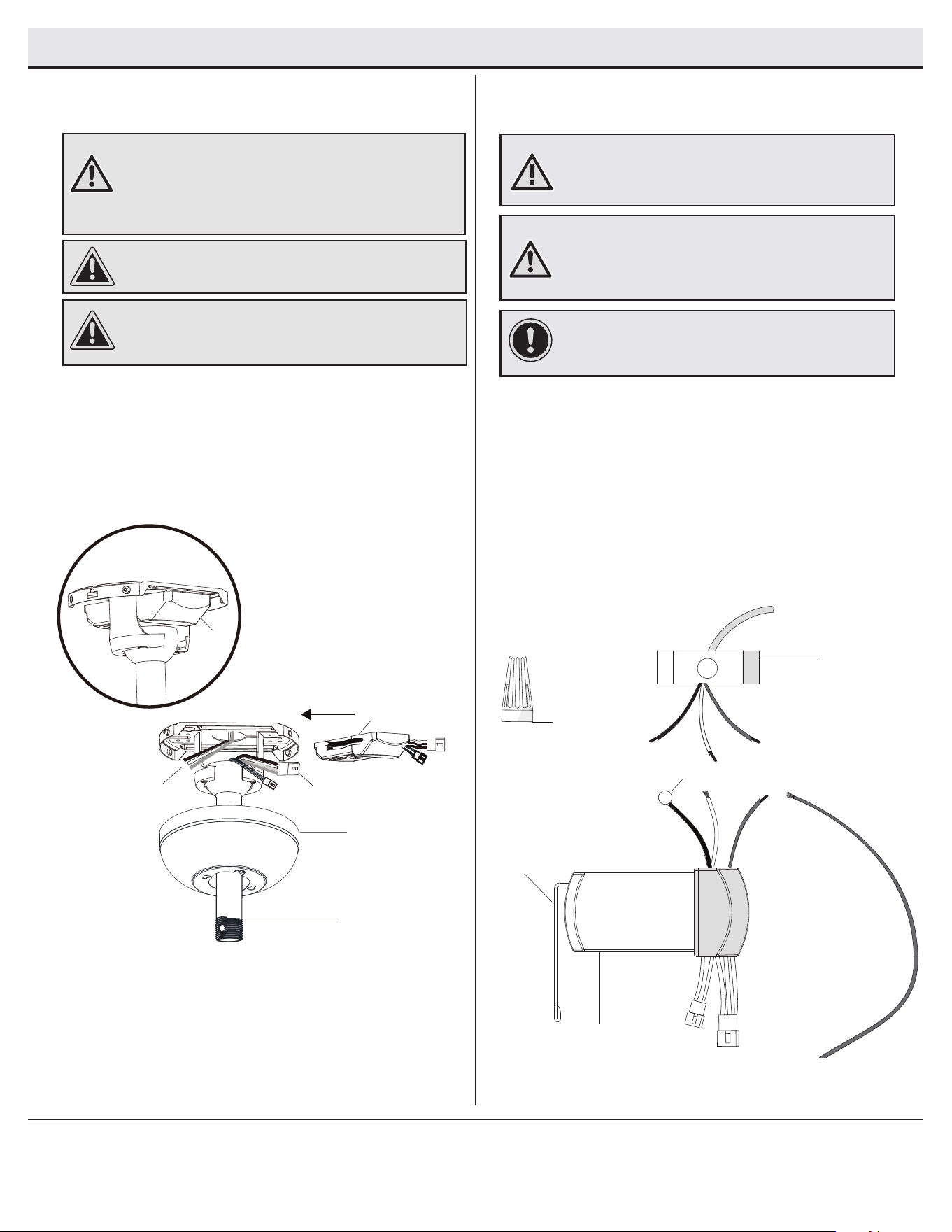

Assembly - Hanging the Fan (continued)
3
Installing the receiver
□ Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
□ Insert the narrow end of the receiver (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
4
Wiring the receiver to the household
wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied
with your fan. Secure the connectors with electrical tape
and ensure there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed
to accept up to one 12-gauge house wire and two wires
from the fan. If you have larger than 12-gauge house wiring
or more than one house wire to connect to the fan wiring,
consult an electrician for the proper size wire nuts to use.
□ Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□ Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□ Connect the receiver (J) black wire to the household black
(hot) wire using a wire connecting nut (BB).
□ Connect the receiver (J) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□ Secure each wire connecting nut using electrical tape.
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Black
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (J)
BB (x3)
Green
J
AAA
J
BBB
B
C
10

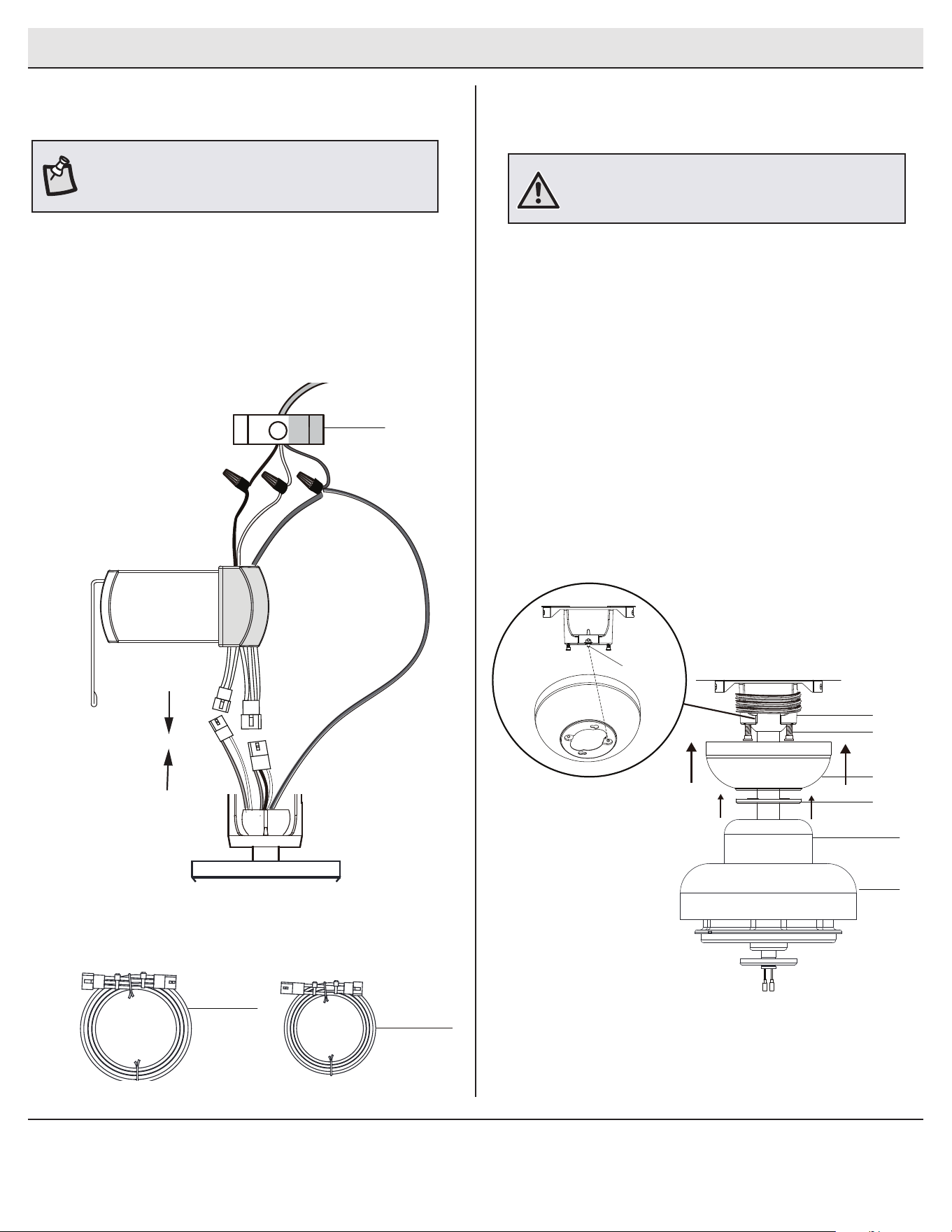

Assembly - Hanging the Fan (continued)
Wiring the fan to the receiver
□ If using the 6 in. ball downrod assembly (B) provided, wire
the receiver to the fan wires by connecting the molded
adaptor plug from receiver (J) with molded adaptor of the
fan motor assembly (E) together.
□ If you wish to use longer downrod, you can use the
extension lead wire (L or M) provided by connecting the
molded adaptor together.
5
NOTE: The fan comes with 12 in. lead wires for use with the
provided 6 in. ball downrod assembly (B), if you wish to use
longer downrod, you can use the extension lead wire (42 in.) (M)
provided.
Outlet box
in the ceiling
(MM)
Green
L
N
Mounting the fan-motor assembly
□ Align the locking slots of the canopy (C) with the two
screws (CC) and alignment post (KK) in the mounting
bracket (A).
□ Push up the canopy (C) and turn it clockwise until the
alignment post (KK) engages to the round hole and the
screws (CC) engage to the key slots.
□ Firmly tighten the two mounting screws (CC).
□ Align the oval shape on the canopy (C) with canopy bottom
cover (DD).
□ Push up the canopy bottom cover (DD) until the screw (CC)
heads engage to the slots on the canopy bottom cover (DD)
so that the magnetic canopy bottom cover (DD) can be
attached to the bottom of the canopy (C) properly.
6
WARNING: When using the standard ball/downrod mounting,
the tab in the ring at the bottom of the mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove could cause damage to the wiring.
E
D
DD
C
A
CC
KK
11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

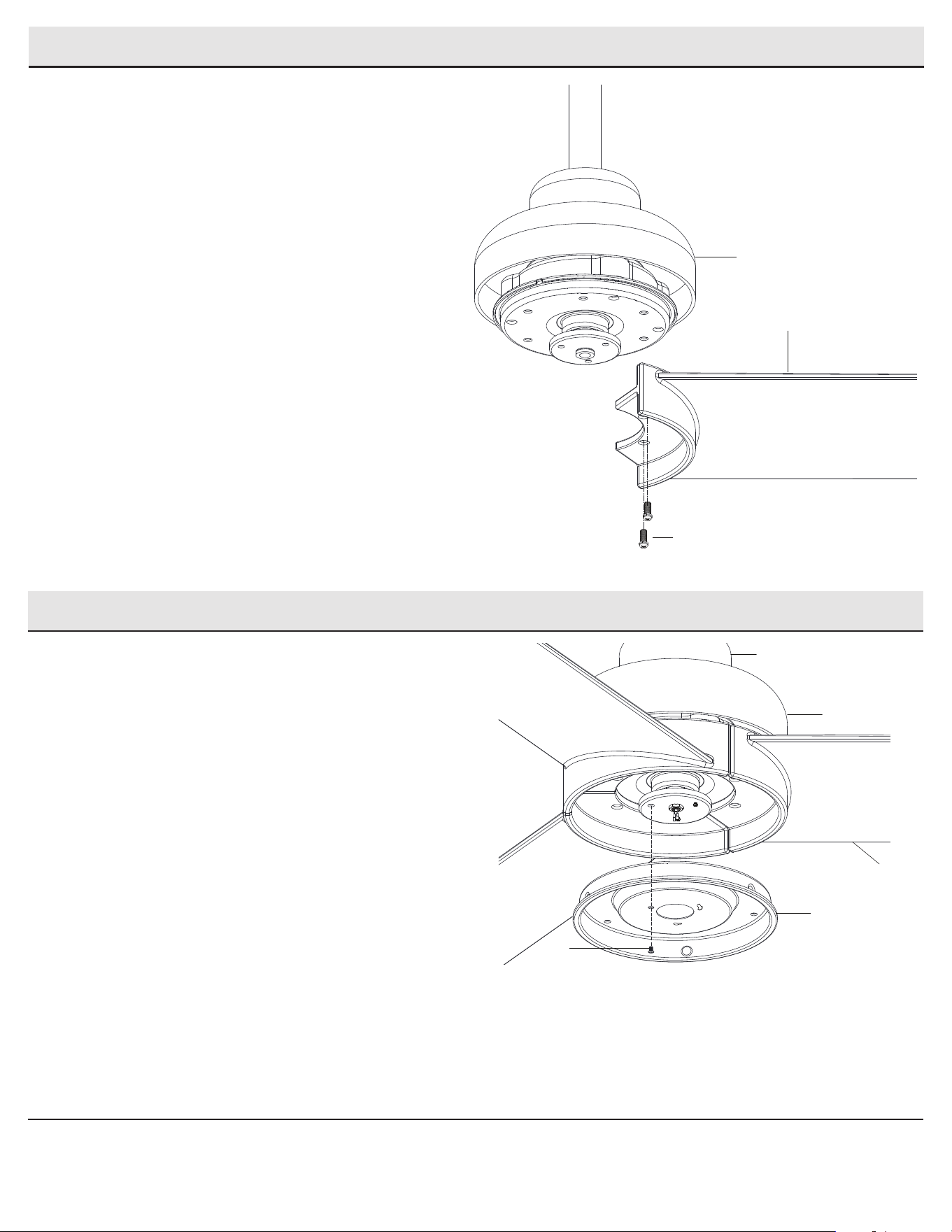

Assembly - Attaching the Blades
Attaching the fan blades
1
□ To attach the blade (F) to the the fan motor assembly (E),
align the two screw holes in the blade with the screw
holes on the motor assembly (E) and secure the blades
with blade attachment screws (AA).
□ Repeat this step for the remaining the blades.
F
AA
E
Assembly - Attaching the Light Kit
1
Installing the light kit pan
□ Remove one screw (RR) from the fan motor assembly (E)
and loosen but do not remove the other two screws.
□ Push the light kit pan (G) up to the fan motor assembly (E)
so that the two loosened screw heads t into the keyhole
slots. Turn the light kit pan (G) clockwise to secure.
□ Re-install the screw (RR) that was removed in step 1.
□ Make sure all the screws are rmly tightened.
E
D
G
F
RR
12

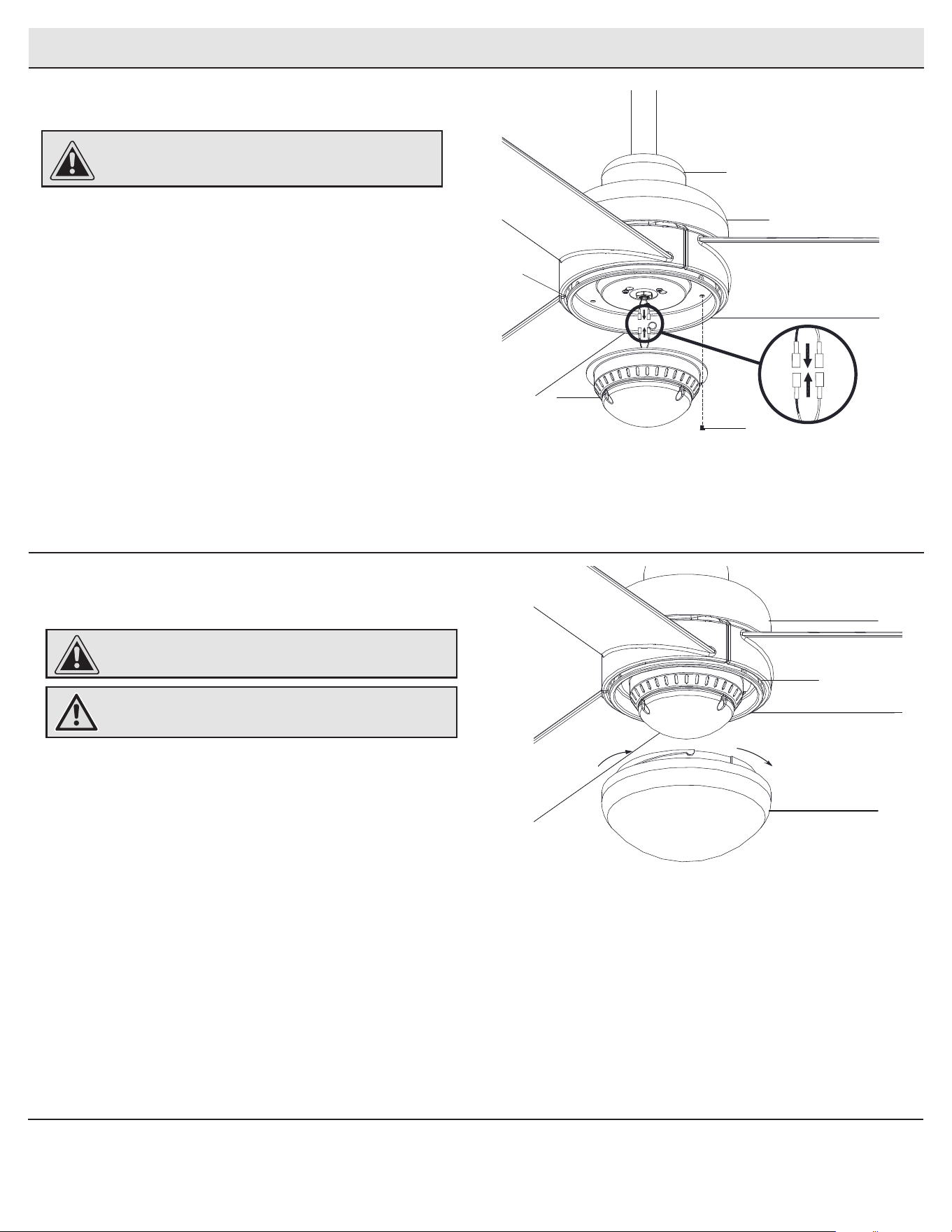

Assembly - Attaching the Light Kit
Attaching the light kit tter assembly
2
□ Remove the three screws (SS) from the light kit pan (G).
□ Connect the wires from the light kit tter assembly (H) to
the wires from the fan motor assembly (E) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□ Attaching the light kit tter assembly (H) to the light kit pan
(G) by aligning the three screws holes on the light kit pan (G)
with the three holes on the light kit tter assembly (H).
□ Re-install the three screws (SS) that were removed in step 1.
□ Make sure all the screws are rmly tightened.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit pan.
Installing the shatter resistant bowl
3
□ Place the shatter resistant bowl (I) into the light kit pan (G),
aligning the three at areas on the top ange of the shatter
resistant bowl (I) with the three raised dimples in the light
kit pan.
□ Turn the shatter resistant bowl (I) clockwise until it stops.
CAUTION: Make sure the power is off before attaching or
removing the shatter resistant bowl.
WARNING: Allow the shatter resistant bowl to cool completely
before removing.
D
E
G
H
SS
I
G
E
13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

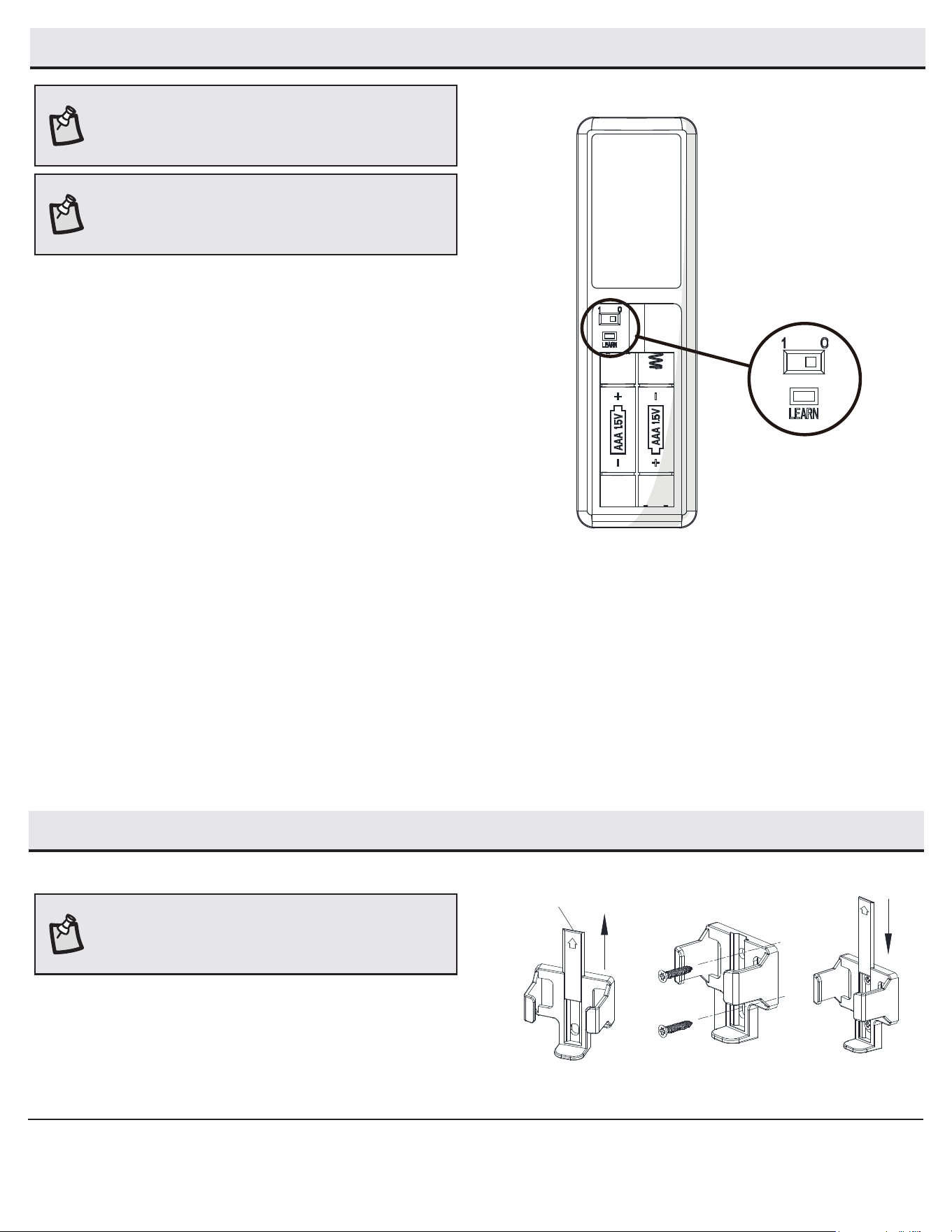

Assembly - Attaching the Wall Bracket (optional)
Mounting the remote control holder
□ Slide the screw cover plate up to remove it from the wall cradle.
□ Position the wall cradle in the desired position and attach it to the
wall using the included wall mount screws.
□ Slide the screw cover plate back onto the wall cradle to conceal
the screws.
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
Sc
rew cover plate
Preparing the Remote Control
NOTE: The remote control has already been paired to the ceiling
fan for your convenience. If you have two of the same model fans
in your home, please follow the steps below to control each fan
independently.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will
damage the remote control. Dispose of used battery properly and
keep the battery out of the reach of children.
□ Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
□ Install two 1.5V AAA batteries (N) (included).
□ Slide the dip switch in the battery compartment to the “1”
setting.
□ Conrm that the power to the fan is off at either the wall
switch or breaker box.
□ Return power to the fan at the wall switch or breaker box.
□ Press and release the “Learn” button located in the remote’s
battery compartment within 30 seconds of turning on the
power.
□ If pairing is successful, the fan’s light kit will ash and the
blades will begin to spin.
□ Replace the battery cover on the remote control.
14

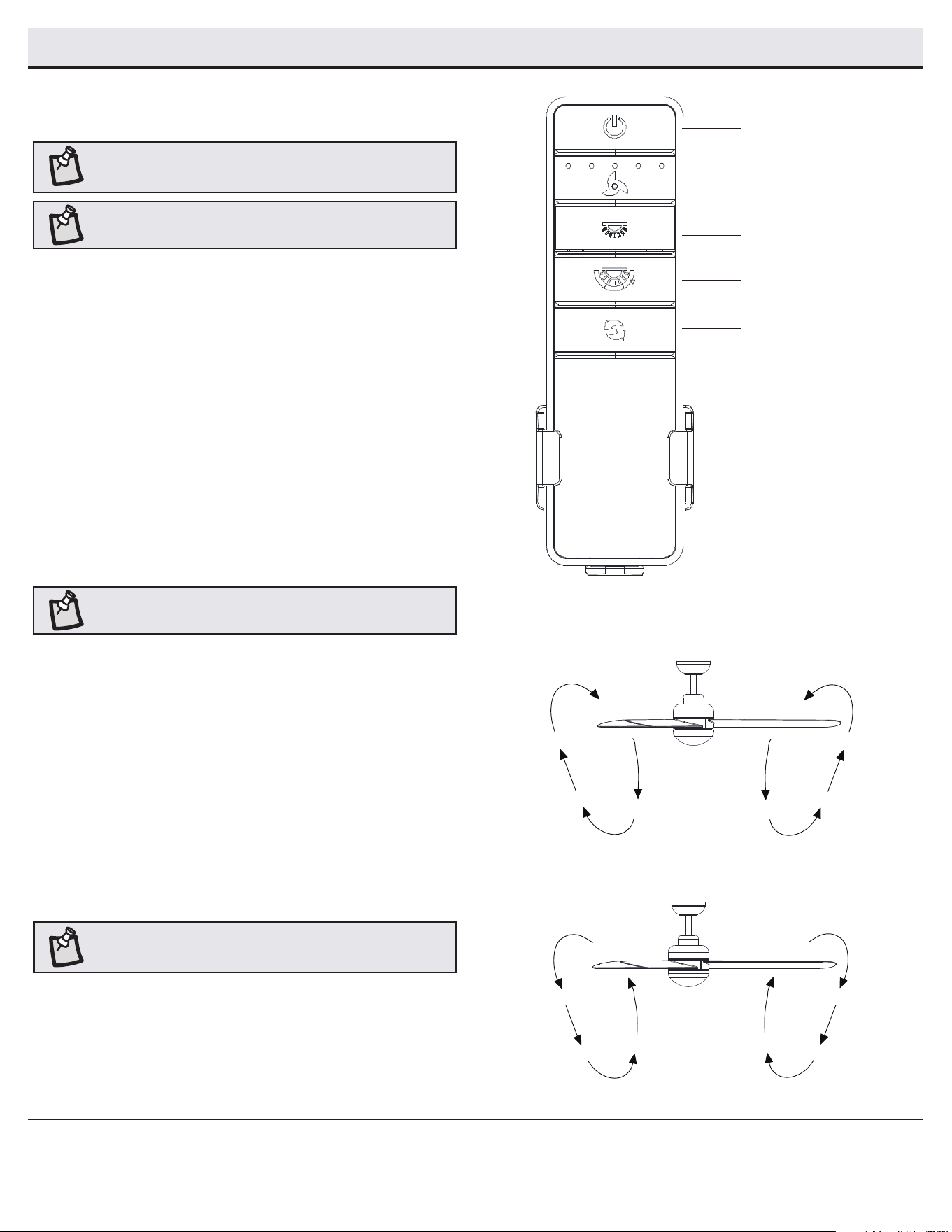

Operating Your Fan and Remote Control
POWER ON/OFF
Press and release the power button to turn the fan and light on or off.
LIGHT ON/OFF/DIMMING
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
CORRELATED COLOR TEMPERATURE (CCT) CHANGING
Push and release the button to cycle through the six color temperature
options.
Option 1: 2700K (Warm White).
Option 2: 3000K (Soft White).
Option 3: 3500K (Neutral White).
Option 4: 4000/4100K (Cool White).
Option 5: 5000K (Daylight).
Option 6: 6500K (Cool Daylight).
NOTE: The default temperature of the ceiling fan light is 3000K
(Soft White).
Power
(fan and light on/off)
Light on/off/dimming
Fan speed
CCT changing
Fan reverse
FAN SPEED
LEDs on the fan speed button will illuminate to the corresponding speed.
Press and release 1 time: turns the fan speed to 5.
Press and release 2 times: turns the fan speed to 4.
Press and release 3 times: turns the fan speed to 3.
Press and release 4 times: turns the fan speed to 2.
Press and release 5 times: turns the fan speed to 1.
Press and release 6 times: turns the fan off.
NOTE: The remote receiver includes a memory function that will
return the fan to its last setting when turned on via the power
button.
FAN REVERSE
Press and release the power button to reverse the rotation of your
ceiling fan.
A. Warm weather (Forward) - A downward airow creates a cooling
effect. This allows you to set your air conditioner on a higher setting
without affecting your comfort.
B. Cool weather (Reverse) - An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting without
affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse
button. The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
NOTE: On start up your ceiling fan will oscillate back and forth.
This is NORMAL OPERATION for DC ceiling fans as it goes
through its calibration cycle. The fan is NOT DEFECTIVE.
15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □ Check the main and branch circuit fuses or breakers.
□ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check the battery in the transmitter.
□ Ensure you are in the normal range of 10-20 feet.
□ Ensure the dip switch settings are the same on the transmitter and receiver.
□ Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□ Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measure-
ment deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please contact
Customer Service and a balancing kit will be sent to you at no charge.
The fan moves
backwards and
forwards when
turned on.
□ This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC
motor aligning the internal magnetic poles for proper motor operation. This design saves electricity and allows
the fan to operate much more quietly than standard AC motor fans.
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
16
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
