Frigidaire.com USA 1-800-944-9044 Frigidaire.ca Canada 1-800-265-8352
use
&
care
Dehumidifier
Introduction .....................................................2
Important Safety Instructions ...................3
FCC Statement .............................................10
Location ........................................................... 11
How It Works.................................................. 11
Dehumidifier Features................................ 13
Operating Instructions............................... 13
Care And Cleaning ...................................... 17
Storage ............................................................ 17
Normal Sounds ............................................. 18
Before You Call............................................. 19
Major Appliance Limited Warranty......20
Model:
FHDD5033Y1
2 INTRODUCTION
Welcome to our
family
Model Number
Serial Number
Purchase Date
Thank you for bringing Frigidaire® into your
home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use and
care of your product. Please read it before
using your appliance. Keep it handy for quick
reference. If something doesn’t seem right,
the troubleshooting section will help you
with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website, chat
with an agent, or call us if you need help. We
may be able to help you avoid a service visit.
If you do need service, we can get that
started for you.
Let’s make it ocial! Be sure to register your
product.
Keep your product info here so it’s easy to
find.
3
For Your Safety
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Electrical Information
WARNING
• For your safety and protection, this
dehumidifier is equipped with a
three-prong grounding plug on the power
cord. Do not, under any circumstances,
cut or remove the round ground prong
from the plug.
• Your dehumidifier must be plugged
directly into a properly grounded and
polarized three-prong receptacle. lf the
wall receptacle you intend to use will not
accept a three-prong plug, or if you are
not sure the outlet is adequately grounded
or protected by a time delay fuse or circuit
breaker, have a qualified electrician install
the proper outlet according to the
National Electrical Code and applicable
local codes and ordinances. Do not use an
extension cord or an adapter plug.
• Never unplug the dehumidifier by pulling
on the power cord. Always grip the plug
firmly and pull straight out from the
receptacle.
• Do not pinch, bend, or knot the power
cord.
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
Read product labels for flammability and
other warnings.
• Discard water from bucket. Water is not
potable and cannot be used for drinking.
• Do not leave children unattended in an
area where the appliance is operating. Do
not allow them to sit or stand on the
appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for their
safety.
• Children should be supervised to ensure
that they do not play with the appliance.
Child Safety Precautions
WARNING
• Destroy the carton, plastic bags, and any
packing materials immediately after the
dehumidifier is unpacked. Children should
never use these items for play.
DANGER! Avoid Serious Injury or Death
SAFETY PRECAUTIONS
• This dehumidifier contains no
user-serviceable parts. Always call an
authorized Electrolux servicer for repairs.
• Do not insert or place fingers or objects
into the air discharge area or back grille of
the unit.
• Do not start or stop the dehumidifier by
unplugging the power cord or turning off
the power at the electrical box.
• Do not cut or damage the power cord. Do
not pull on the power cord.
• If the power cord is damaged, it should
only be replaced by an authorized
Electrolux servicer.
• In the event of a malfunction (sparks,
burning smell, etc.), immediately stop the
operation, disconnect the power cord, and
call an authorized Electrolux servicer.
• Do not operate the dehumidifier with wet
hands. Do not drink any water from the
dehumidifier.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
• The appliance shall be installed in
accordance with national wiring
regulations.
4 IMPORTANT SAFETY INSTRUCTIONS
CAUTION! Avoid Injury or damage to the
unit or other property
SAFETY PRECAUTIONS
• Do not direct airflow at fireplaces or other
heat related sources as this could cause
flare ups.
• Do not climb on or place objects on the
unit. Do not hang objects off the unit.
• Do not place containers with liquids on the
unit.
• Turn off the dehumidifier at the power
source when it will not be used for an
extended period of time.
• Operate the unit with air filter in place.
• Do not block or cover the intake grille,
discharge area and outlet ports.
• Ensure that any electrical/electronic
equipment is one yard away from the unit.
• Do not use or store flammable gases near
the unit.

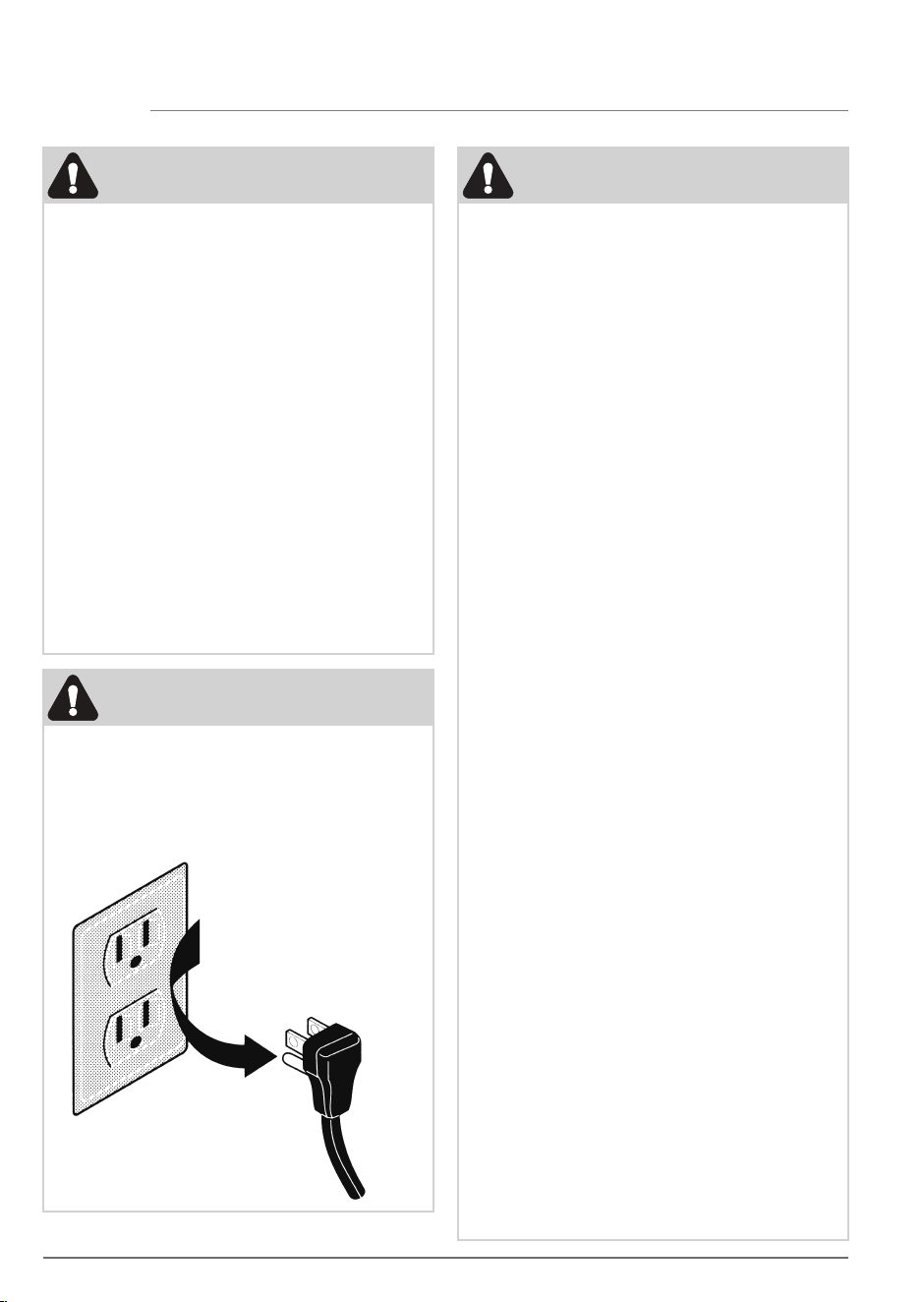

WARNING
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.
Power supply cord
with 3-prong grounding
plug
WARNING

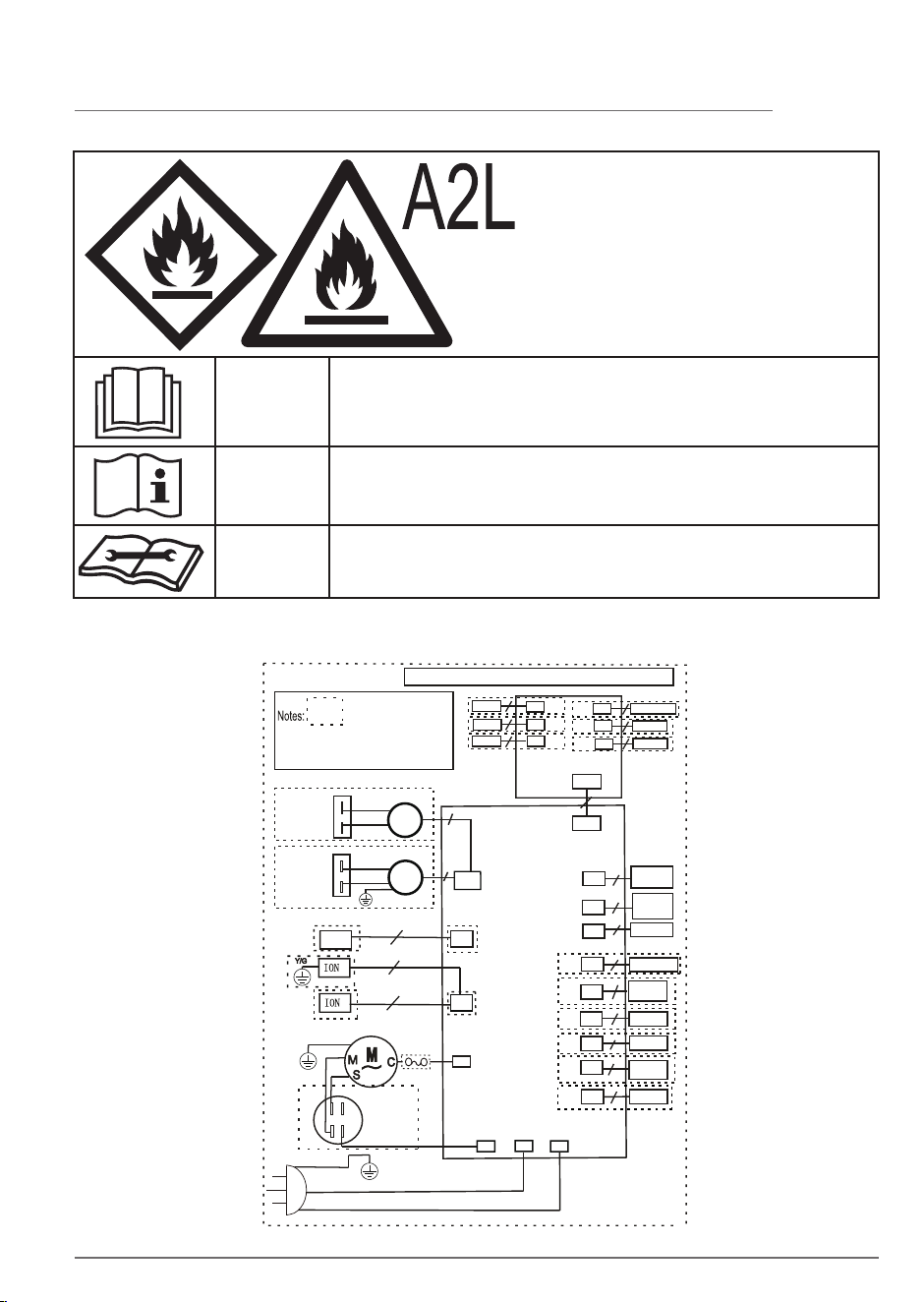

FOR FLAMMABLE REFRIGERANT
• Servicing shall only be performed as
recommended by the equipment
manufacturer. Maintenance and repair
requiring the assistance of other skilled
personnel shall be carried out under the
supervision of the person competent in
the use of flammable refrigerants.
• DO NOT modify the length of the power
cord or use an extension cord to power
the unit.
• DO NOT share a single outlet with other
electrical appliances. Improper power
supply can cause fire or electrical shock.
• Please follow the instruction carefully to
handle, install, clear, service the air
conditioner to avoid any damage or
hazard.
• Flammable Refrigerant R32 is used within
appliance. When maintaining or disposing
the appliance, the refrigerant (R32) shall
be recovered properly, shall not discharge
to air directly.
• Compliance with national gas regulations
shall be observed.
• Keep ventilation openings clear of
obstruction.
• The appliance shall be stored so as to
prevent mechanical damage from
occurring.
• The appliance shall be store in a
well-ventilated area where the room size
corresponds to the room area as specified
for operation.
• Any person who is involved with working
on or breaking into a refrigerant circuit
should hold a current valid certificate from
an industry-accredited assessment
authority, which authorises their
competence to handle refrigerants safely
in accordance with an industry recognised
assessment specification. All training shall
follow the ANNEX HH requirements of UL
60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation
to a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant
shall use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition
sources, including cigarette smoking,
should be kept sufficiently far away from
the site of installation, repairing,
removing and disposal, during which
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
• opening of ventilated enclosures.
• No any open fire or device like switch
which may generate spark/arcing shall be
around air conditioner to avoid causing
ignition of the flammable refrigerant used.
Please follow the instruction carefully to
store or maintain the air conditioner to
prevent mechanical damage from
occurring.
• Do not use means to accelerate the
defrosting process or to clean, other than
those recommended by the manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum number
of pieces of equipment permitted to be
stored together will be determined by
local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation
to a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant
shall use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition
sources, including cigarette smoking,
should be kept sufficiently far away from
the site of installation, repairing,
removing and disposal, during which
5IMPORTANT SAFETY INSTRUCTIONS
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation
to a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant
shall use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition
sources, including cigarette smoking,
should be kept sufficiently far away from
the site of installation, repairing,
removing and disposal, during which
flammable refrigerant can possibly be
released to the surrounding space. Prior
to work taking place, the area around the
equipment is to be surveyed to make sure
that there are no flammable hazards or
ignition risks. No Smoking signs shall be
displayed.
g) Ventilated area
Ensure that the area is in the open or that
it is adequately ventilated before
breaking into the system or conducting
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
6
IMPORTANT SAFETY INSTRUCTIONS
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation
to a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant
shall use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition
sources, including cigarette smoking,
should be kept sufficiently far away from
the site of installation, repairing,
removing and disposal, during which
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
7IMPORTANT SAFETY INSTRUCTIONS
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on
the nature of work being carried out.
Work in confined spaces shall be
avoided. The area around the workspace
shall be sectioned off. Ensure that the
conditions within the area have been
made safe by control of flammable
material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation
to a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant
shall use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition
sources, including cigarette smoking,
should be kept sufficiently far away from
the site of installation, repairing,
removing and disposal, during which
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
8 IMPORTANT SAFETY INSTRUCTIONS
9IMPORTANT SAFETY INSTRUCTIONS
Wiring Diagram
IMPORTANT NOTE: Read this manual
carefully before installing or operating
your new appliance unit. Make sure to
save this manual for future reference.
CAUTION: Risk of fire
flammable materials
CAUTION
CAUTION
CAUTION
This symbol shows that the operation manual should be read
carefully.
This symbol shows that information is available such as the
operating manual or installation manual.
This symbol shows that a service personnel should be
handling this equipment with reference to the installation
manual.
CN39
UV
P12
(or P10)
CN1
(or CN2/CN2A/CN2C)
CN1
(or CN10)
WATER
TEST
HEPA
SWING
CN5
CN2
P1
P6
SWITCH
16020100003115
WIRELESS
T2 PIPE
TEMP.
HUMI.
SENSOR
HALL
LIGHT
CN11
UV
CN7
CN3
CN5
CN10
CN12
CN13
CN14
CN17
CN19
CN21
P10
(or P12)
M
~
PUMP
Y/G(or GREEN)
①BLACK(or ②BROWN)(or ③RED)
①WHITE(or ②BLUE)( or ③BLACK)
WIRELESS
TP PIPE
TEMP.
M
~
Y/G
CN33
CN38
COMPRESSOR
RED
BLACK
BLUE
COMP.
CAPACITOR
BLUE
DISPLAY
BOARD
Notes:Display and Fan’s conntors must be match the actual indicates.
This symbol indicates the element is
optional,the actual shape shall prevail
CN16
TOUCH
PM2.5
CN15
BLUE
BLUE
BROWN
BROWN
FAN
CAPACITOR
FAN
CAPACITOR
POWER
MAIN BOARD
OverLoad
Protector
Y/G
10
FCC STATEMENT
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by tuning the device o and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) This
device must accept any interference
received, including interference that may
cause undesired operation.
FCC CAUTION: Any changes or
modifications not expressly approved by the
party responsible for compliance could void
the user’s authority to operate the
equipment.
Host device Labeling
This device includes the following module.
Contains FCC ID: 2ATEV-BL5026-P
INDUSTRY CANADA (IC) STATEMENT
This Class B digital apparatus complies with
Canadian ICES-003.
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en
compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed
so as to maintain at all times a distance
minimum of at least 20 cm between the
radiation source (antenna) and any
individual. This device may not be installed
or used in conjunction with any other
antenna or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installé
e de façon à maintenir à tout instant une
distance minimum de au moins 20 cm entre
la source de radiation (l’antenne) et toute
personne physique.
Host device Labeling
This device includes the following module.
Contains IC: 25062-BL5026P
Host dispositif d'étiquetage
Ce dispositif inclut le module suivant.
Contient module émetteur IC: 25062-BL5026P
FCC Interference Statement
• Reorient or relocate the receiving antenna.
• Increase the separation between the
device and receiver.
• Connect the equipment into an outlet
other than the one used for the receiver.
• Consult the dealer or an experienced
radio/TV technician for assistance.
RF exposure statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum 20 cm
between the radiator and your body. This
transmitter must not be collocated or
operating in conjunction with any other
antenna or transmitter unless authorized to
do so by the FCC.
This is the location
of the module.
11LOCATION & HOW IT WORKS
How It Works
When the unit is started, the fan begins to
pull moisture-laden air across the
dehumidifying coils. The coils condense or
draw moisture from the air, and air flows
through the air outlet louvers into the room
as dry, warm air. Moisture removed from air is
collected in a bucket on the front of the
dehumidifier.
The unit is designed to operate between 41°F
(5°C), and 89°F (32°C) and between
30%(RH) and 80%(RH). The unit will not
work properly if the temperature is out of this
temperature range, or the performance of
the unit will fall greatly.
The "Compressor" circuit has an automatic 3
minute time delayed start if the unit is turned
o and on quickly. This prevents overheating
of the compressor and possible circuit
breaker tripping. Make sure the tank is fitted
correctly otherwise unit will not turn on.
Unpacking
Slider out the water bucket.
Note: If the casters are not installed, wearing
gloves to prevent fingers from being scraped
by the ground.
IMPORTANT:
1. Dehumidifier must be operated in an
enclosed area to be most eective. Close
all doors, windows, and other outside
openings to the room. The eectiveness of
the dehumidifier depends on the rate at
which new moisture-laden air enters the
room.
2. Place dehumidifier in a location that does
not restrict the airflow of the air intake and
air outlet.
3. A dehumidifier operating in a basement
will have little or no eect in drying an
adjacent enclosed storage area, such as a
closet, unless there is adequate circulation
of air in and out of the area. lt may be
necessary to install a second dehumidifier
in the enclosed area for satisfactory drying.
4. The dehumidifier must be installed on a
level floor that will support it with a full
bucket of water.
5. There should be a minimum of 15.75 inches
clearance around the dehumidifier. The
unit will produce heat while in operation
and should not be operated in an enclosed
small space like a closet.

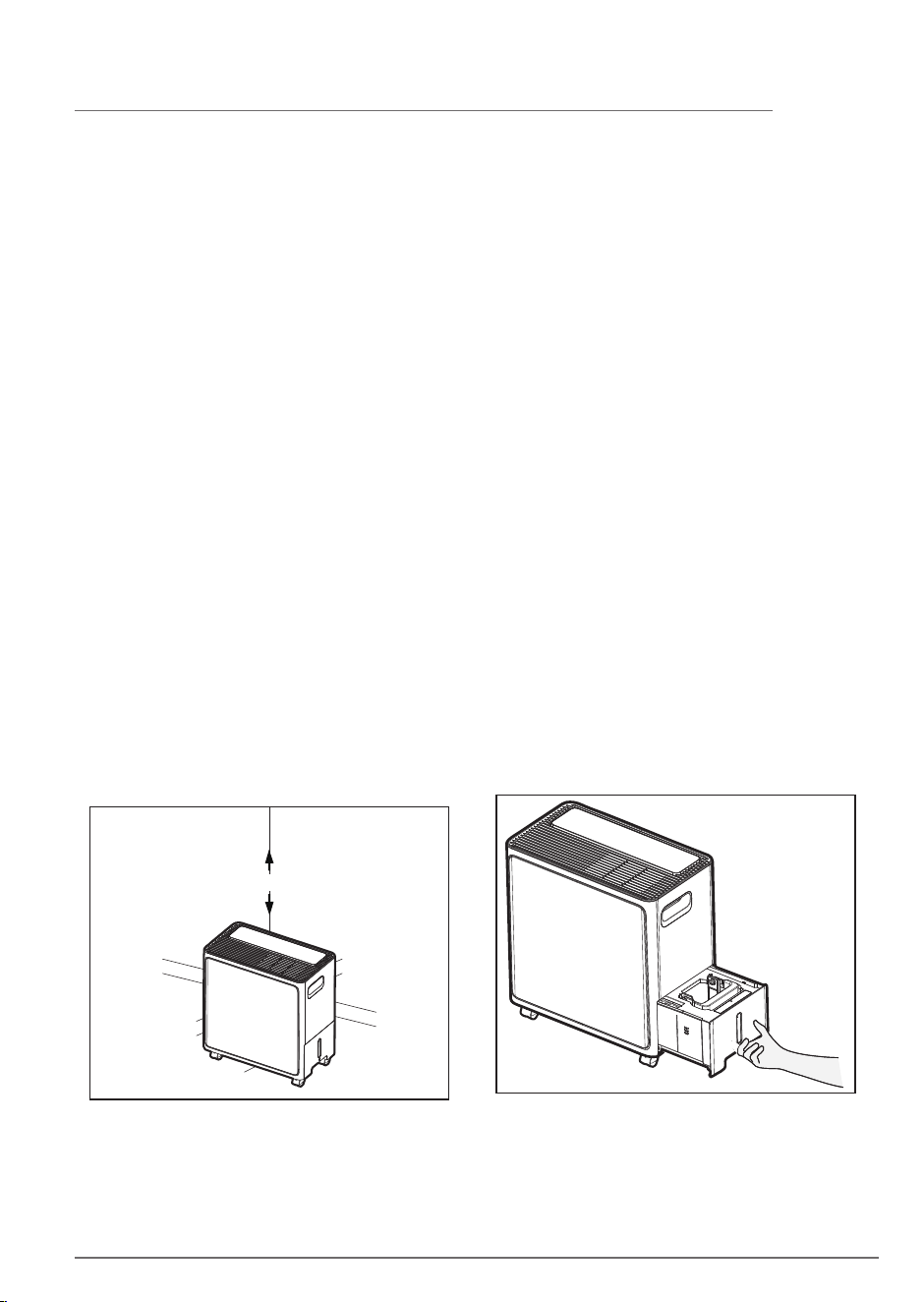

Location
Selecting a Location
Lift Here To Remove The Cover For Cleaning
12"
12"
Do not Block at least 15.75"
12 HOW IT WORKS

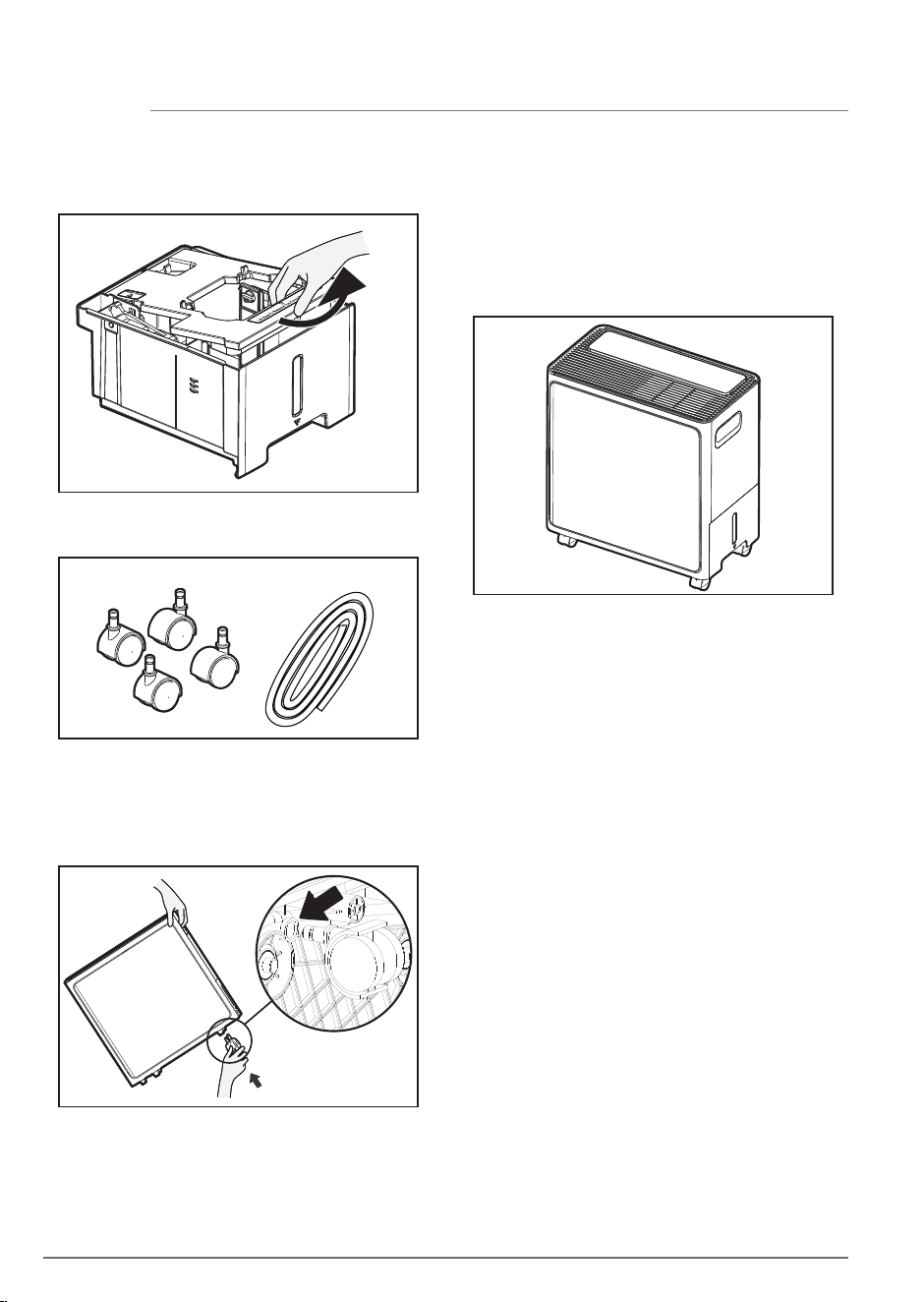

Install wheels
Open the cover of the water bucket.
Reinstall the water bucket cover. Then
replace the water bucket to the unit.
Tilt the unit on one side and hold it with one
hand, then insert two casters
Repeat on the other side to install the other 2
casters.
Note: The tilt Angle CAN NOT be larger than
30° when installing casters. All casters MUST
BE installed within 5 minutes.
Leave the unit in a vertical position for half an
hour before use.
Note: If the unit have been operated before,
drain all the water inside the water tank and
unit before installing casters. (Refer to
drainage instruction section for how to drain
water)
Take out four casters and drain hose inside
the water bucket.

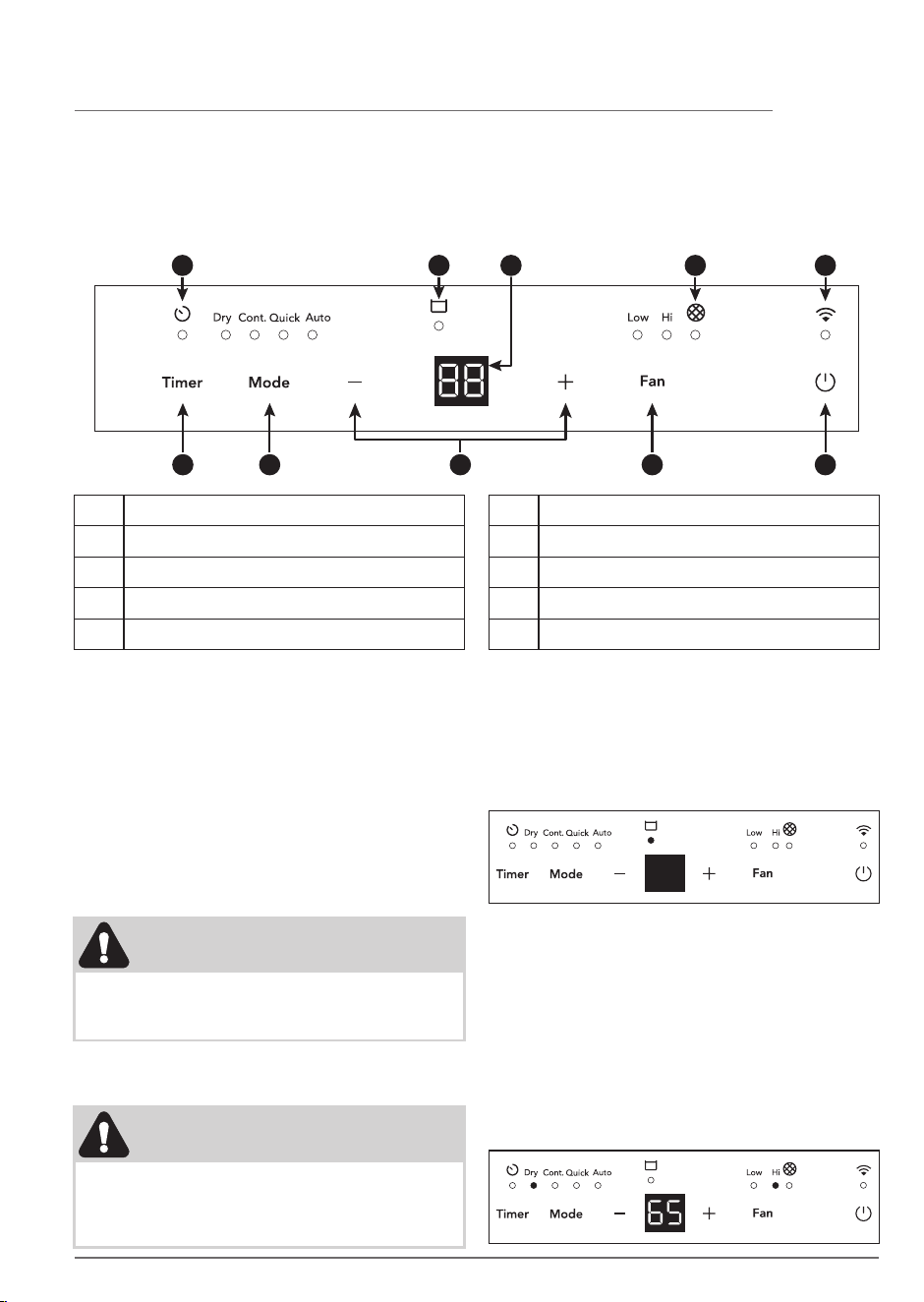

13DEHUMIDIFIER FEATURES & OPERATING INSTRUCTIONS
ELECTRONIC CONTROL
Before you begin, thoroughly familiarize yourself with the control panel and all its functions
(as shown below).
Dehumidifier Features
A Timer Button
B Mode Button
C Adjusts Humidity/Timer
D Fan Button
F WIFI Indicator*
G Dust Filter Indicator
H Display Screen
HI GJ F
CA B D E
I Bucket Full Indicator
E ON/OFF Button J Timer Indicator
NOTE
Unit must be upright for one hour prior to
operating.
NOTE
If the "BUCKET FULL" light is on, remove
the bucket and re-install to reset the float
switch.
Allow the unit to reach room temperature
before operating.
To begin operating the dehumidifier, follow
these steps:
Operating Instructions
Plug the power cord into a properly
grounded 115 volt AC outlet.
Dry Mode
Press the Mode button to choose Dry mode.
In this mode, the set humidity can be
changed by pressing “ - ” or “ + ” buttons in a
range between 35% to 85%. The set humidity
will be changed in 5% increments. 5 seconds
after you have set the desired humidity, the
display will show the actual room humidity.
Press the Fan button to choose the desired
fan speed.
*Refer to the Quick Start Guide for detailed instructions on setting up your air conditioner for
connected operation from your smart phone or tablet.
The software in the <PRODUCT/appliance> is partly based on free and open source software. To see the
full copyright information and applicable license terms, please visit:
https://emtech.delta.electrolux.com/license

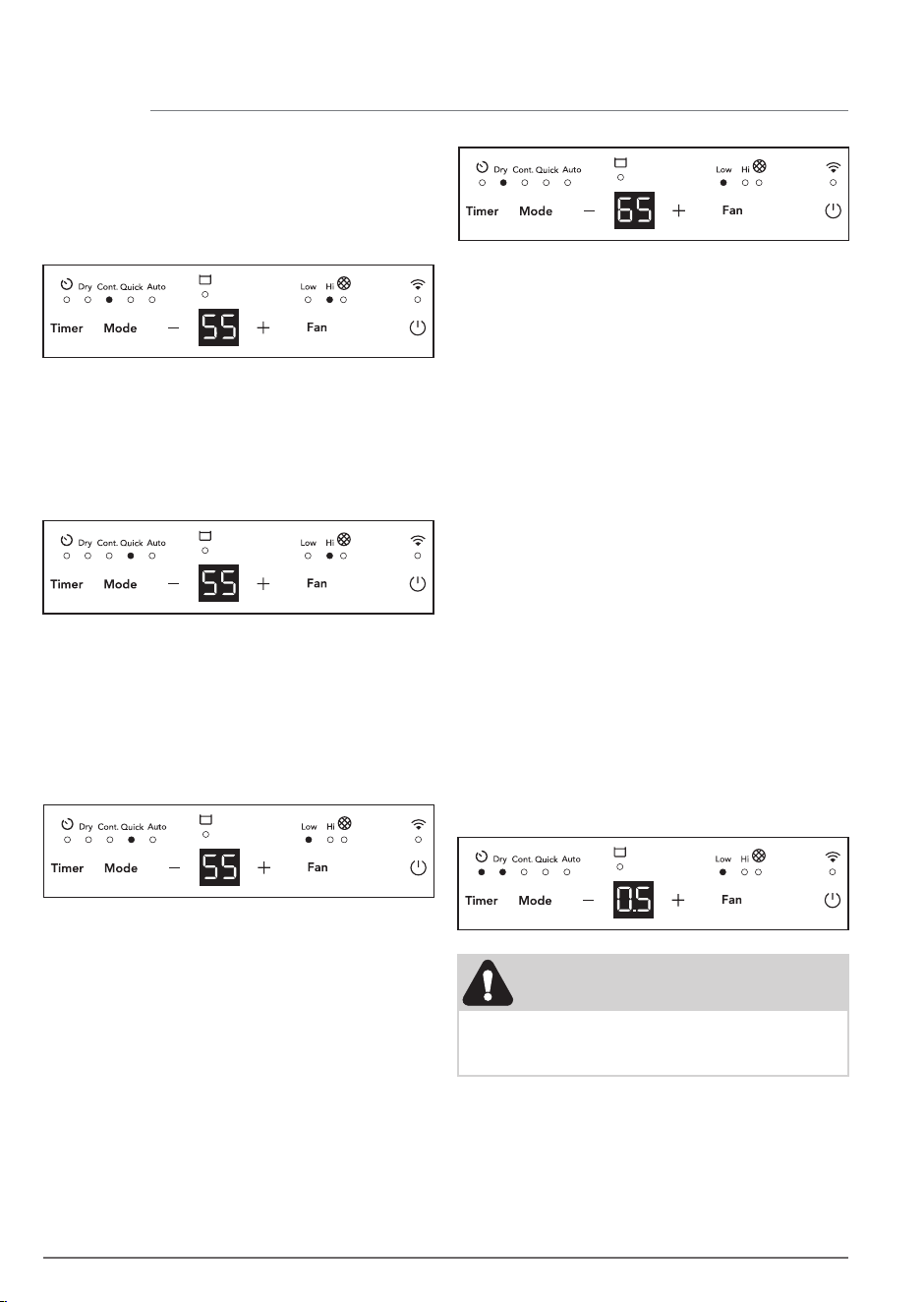

14 OPERATING INSTRUCTIONS
NOTE
Before entering TIMER setting, make sure
power is being supplied to the unit.
Note: Fan speed can only be changed
manually during Dry, AUTO and Cont. mode.
Quick Mode
Press the Mode button to choose Quick
mode. In this mode, the unit will operate in
continuous dehumidifying and High fan
speed mode. Display will show actual room
humidity. Fan speed will be fix in “Hi”.
Cont. Mode
Press the Mode button to choose Cont.
mode. In this mode, the set humidity cannot
be changed. Display will show actual room
humidity.
Fan Speed
Press the FAN button to change the fan
speed to Hi, Low. The indicator light will
show the setting you have selected. A higher
fan speed will result in quicker moisture
removal.
Auto Mode
Press the Mode button to choose Auto mode.
In this mode, humidity cannot be adjusted.
The unit will automatically control room
humidity in a comfortable range 45%~55%
according to the room temperature. Display
will show actual room humidity.
Timer function
The TIMER function enables you to either
Delay Start or Delay Stop the unit in the
choice from 0.5 hour to 24 hours. If the unit is
running, then selecting Timer will turn the
unit o in the hours that will be set (Delay
Stop). If the unit is o, then selecting Timer
will turn the unit on in the hours that will be
set (Delay Start). TIMER setting: First press
TIMER button, then adjust timer setting, by
tapping or holding the “ - ” or “ + ” button to
change the delay timer at 0.5 hour
increments, up to 10 hours, then by 1 hour
increments up to 24 hours. Press the TIMER
button again to confirm. The control will
count down the time remaining (8h, 7.5h, 7h
etc.) until the unit either starts or stops. For
the Delay Start, the fan speed and humidity
maintained will be the same as previous
setting. After TIMER setting finishes, pressing
and hold the TIMER button for 5 seconds at
any time will stop the TIMER function. The
Delay Start/Stop Feature will work until the
unit either starts or stops. Once that happens
the above steps have to be repeated.
15OPERATING INSTRUCTIONS

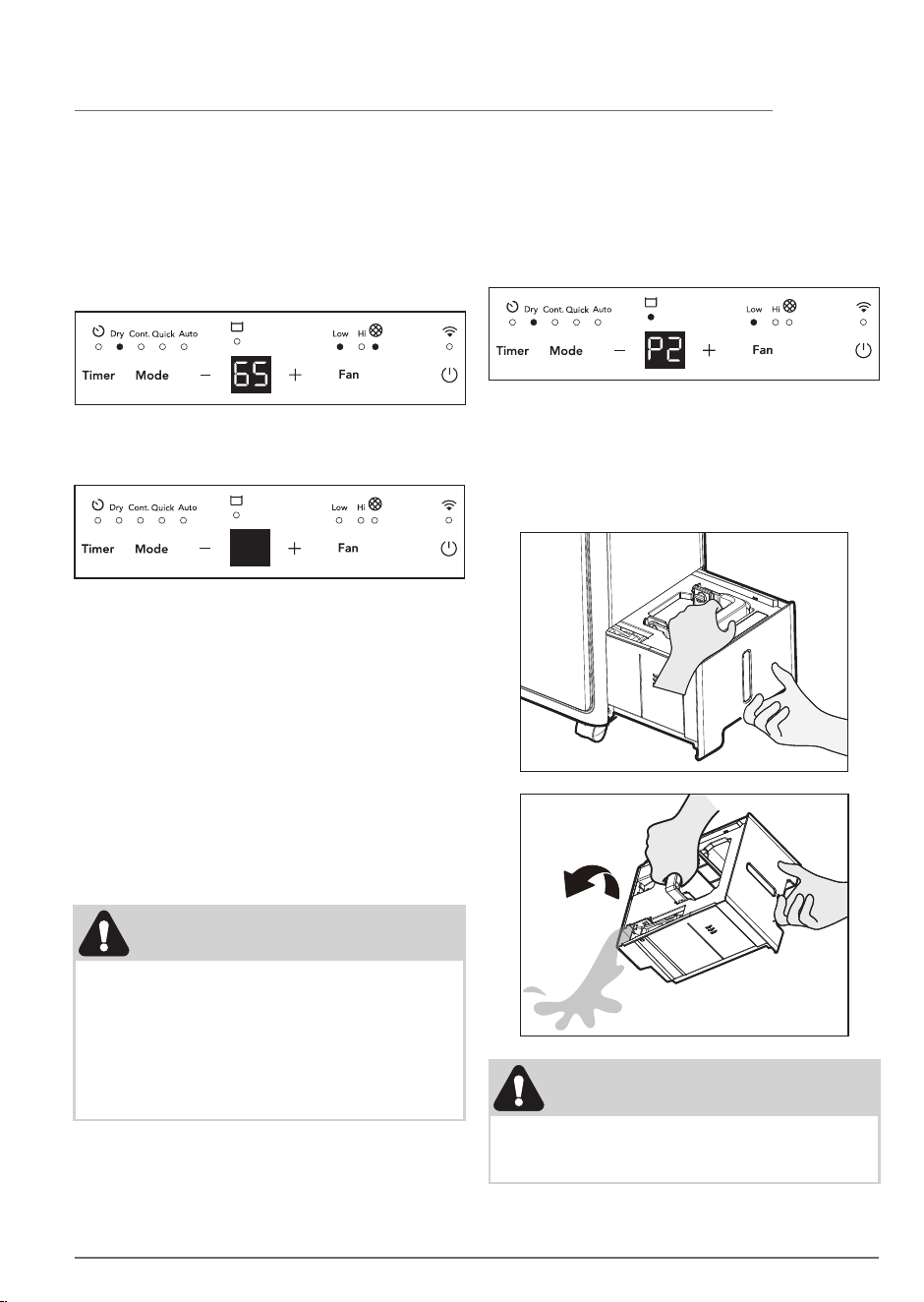

To shut the unit down, press the ON/OFF
button.
Note: After a power outage, the unit will
memorize the last setting and return the unit
to the same setting once power is restored.
Dust Filter Reset
The Dust Filter reset light will illuminate after
250 hours of operation. At this time refer to
the care and cleaning section to remove and
clean the filter. Once the filter has been
cleaned and replaced, press and hold the Fan
button for 3 seconds to reset.
2. If the display reads “EH00”, indoor
EEPROM error. Unplug the unit and plug it
in again, if the code persists, contact your
Authorized Frigidaire® Service Center.
Fault Codes
1. If the display reads "EH60" or “EH61” , a
sensor has failed. Contact your Authorized
Frigidaire® Service Center.
NOTE:
1. Please follow the steps described in
“Emptying the Bucket” to remove and
empty the water bucket.
2. Please follow the steps described in “Care
and Cleaning” to clean the unit regularly
to prevent dirt or alge.
b. Do not move the unit at this time otherwise
water may spill on the floor.
c. Pull the bucket out halfway, then pull up the
handle and lift the bucket slowly vertically
to prevent spatter.
Removing Collected Water
1. Emptying the Bucket:
a. When the bucket is full, the unit will shut
down and the BUCKET FULL indicator will
illuminate.
Lift Here To Remove The Cover For Cleaning
WARNING
Discard water from bucket. Water is not
potable and cannot be used for drinking.
16 OPERATING INSTRUCTIONS
d. Replace the empty bucket back into the
unit and once seated correctly, the unit will
start up again.
e. You should hear a click when the bucket is
in the correct position.
NOTE:
If the bucket full light does not extinguish,
check that the float is correctly snapped in
place.
When you remove the bucket, do not touch
any parts inside of the unit. Doing so may
damage the product.
When you remove the bucket, if there is some
water in the unit dry it before replace bucket.
When the unit is on, if the bucket is removed,
the compressor and the fan turn off, then the
unit will beep 8 times and the digital display
shows “P2”.
If the pump hose drops when you remove the
bucket, you must reinstall the pump hose
properly to the unit before replace the bucket
into the unit.

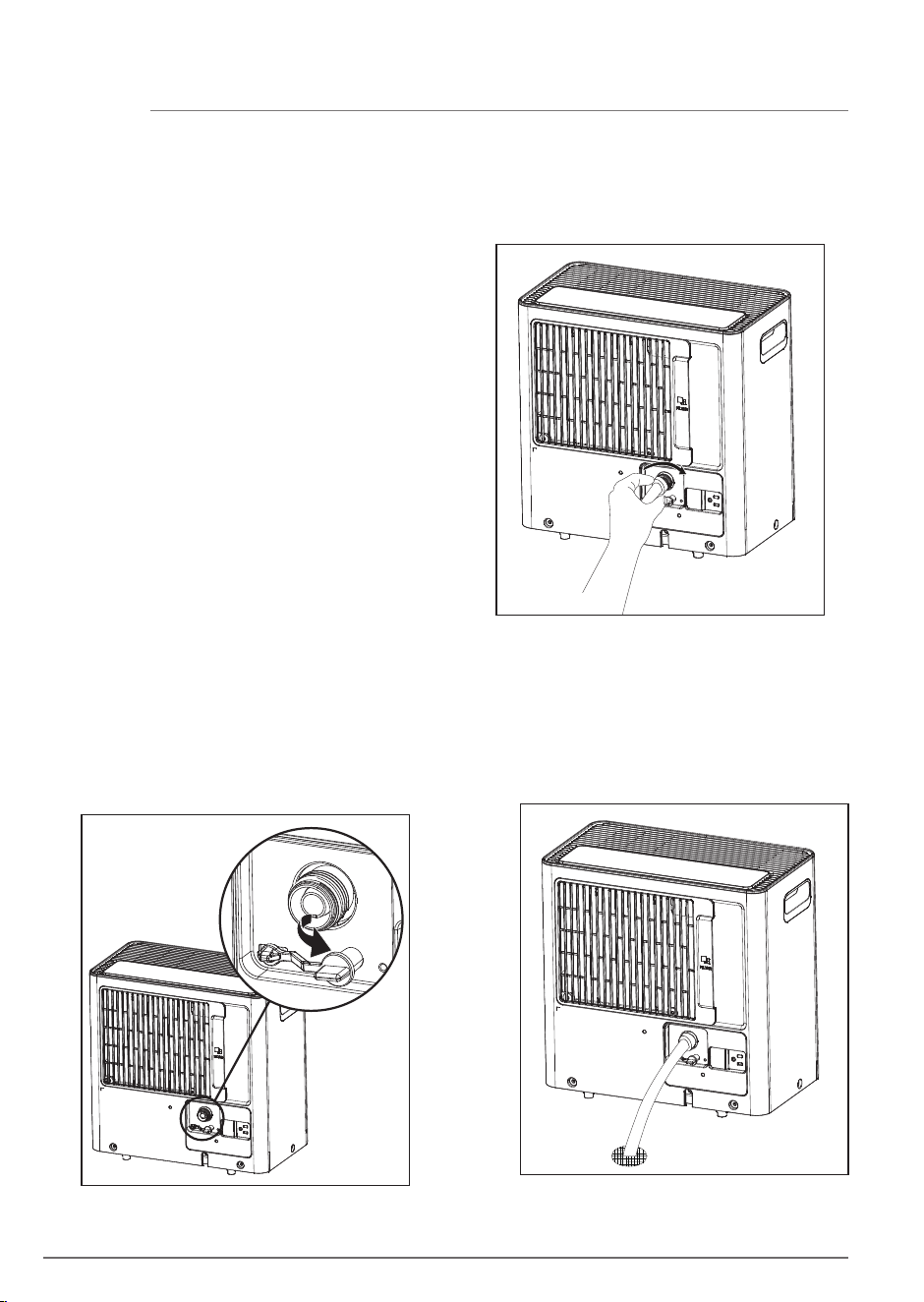

2. Continuous Drainage:
a. For continuous drainage operation, you will
need a garden hose and a drain nearby to
discharge the water into.
b. Remove the water plug from the back drain
outlet of the unit (fig.1)
fig. 1
c. Insert the female threaded end of the hose
onto the drain connector of the unit.
d. Screw the garden hose onto the threaded
portion of the drain connector. (fig.2)
fig. 2
e. Make sure the hose is secure so there are no
leaks.
f. Direct the hose toward the drain, making
sure that there are no kinks that will stop
the water flowing.
g. Place the end of the hose into the drain.
(fig.3)
fig. 3
17CARE AND CLEANING & STORAGE
h. Select the desired humidity setting and fan
speed on the unit for continuous draining
to start.
NOTE
1. Check the seal between the hose and the
drain connector. If there is a small leak
then replace the hose gasket and
re-tighten the hose.
2. It is recommended that a Dehumidifier
Drain Hose - 1/2" (12.7 mm) or larger be
used. Make sure there are no kinks or
elevations in the hose.
3. When a hose is not attached to the drain
connector, please ensure drain cap is
screwed securely to the connector to
prevent leakages.

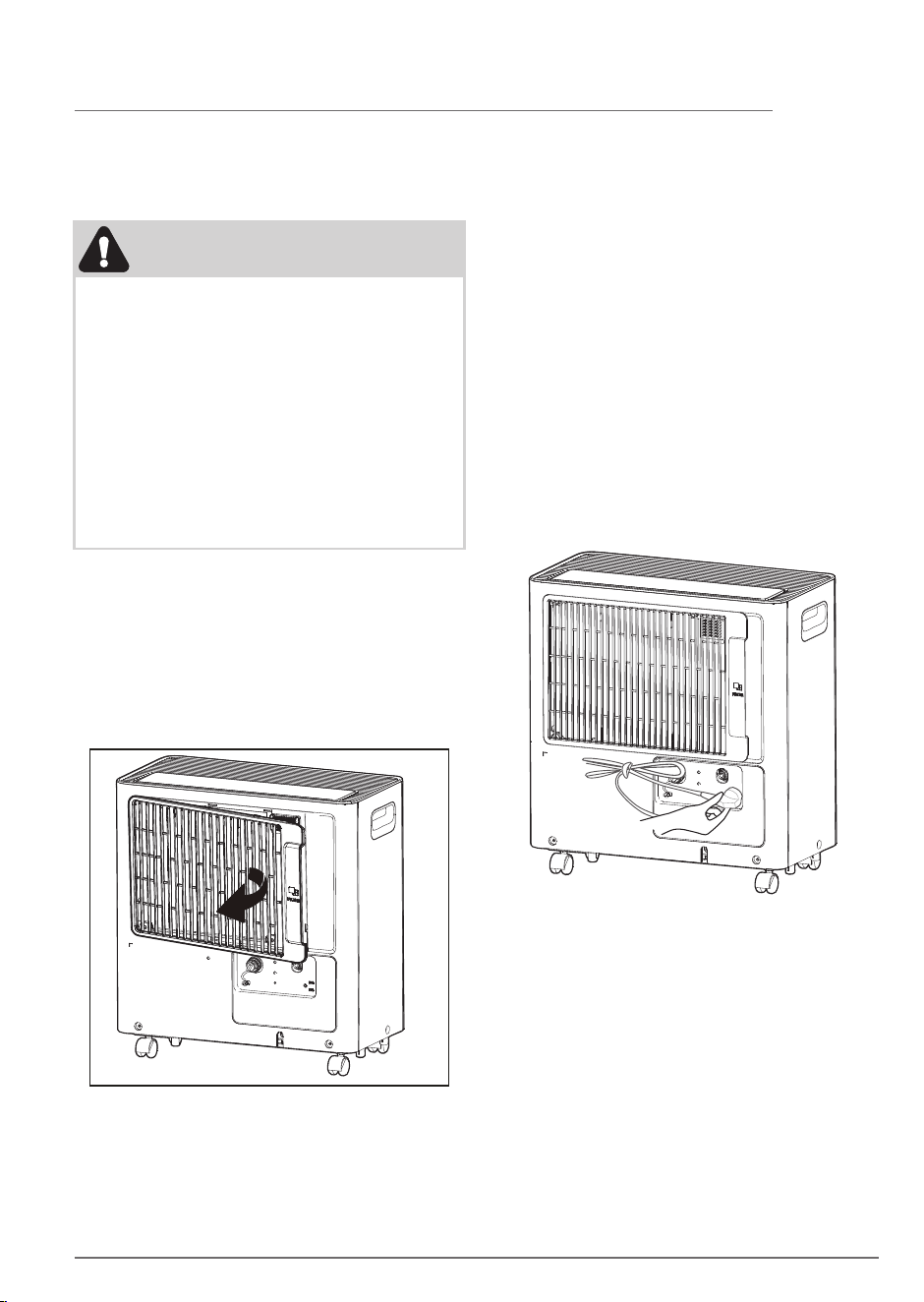

Care and Cleaning
b. Wash the filter with clean water then dry.
c. Re-install the filter.
1. Filter
Clean the filter every two weeks based on
normal operating conditions.
To remove the filter:
a. Open the back grille.
2. Cabinet
a. Dust cabinet with an oil-free cloth, or using
a damp cloth.
b. Vacuum grill using brush attachment.
3. Water Bucket
Clean the Water Bucket every two weeks
based on normal operating conditions.
a. Clean bucket with warm water and
detergent.
b. Clean the pump filter at the same time in
cleaning the bucket.
Storage
When unit is not in use, unplug and use the
cord wrap shown for your model type.

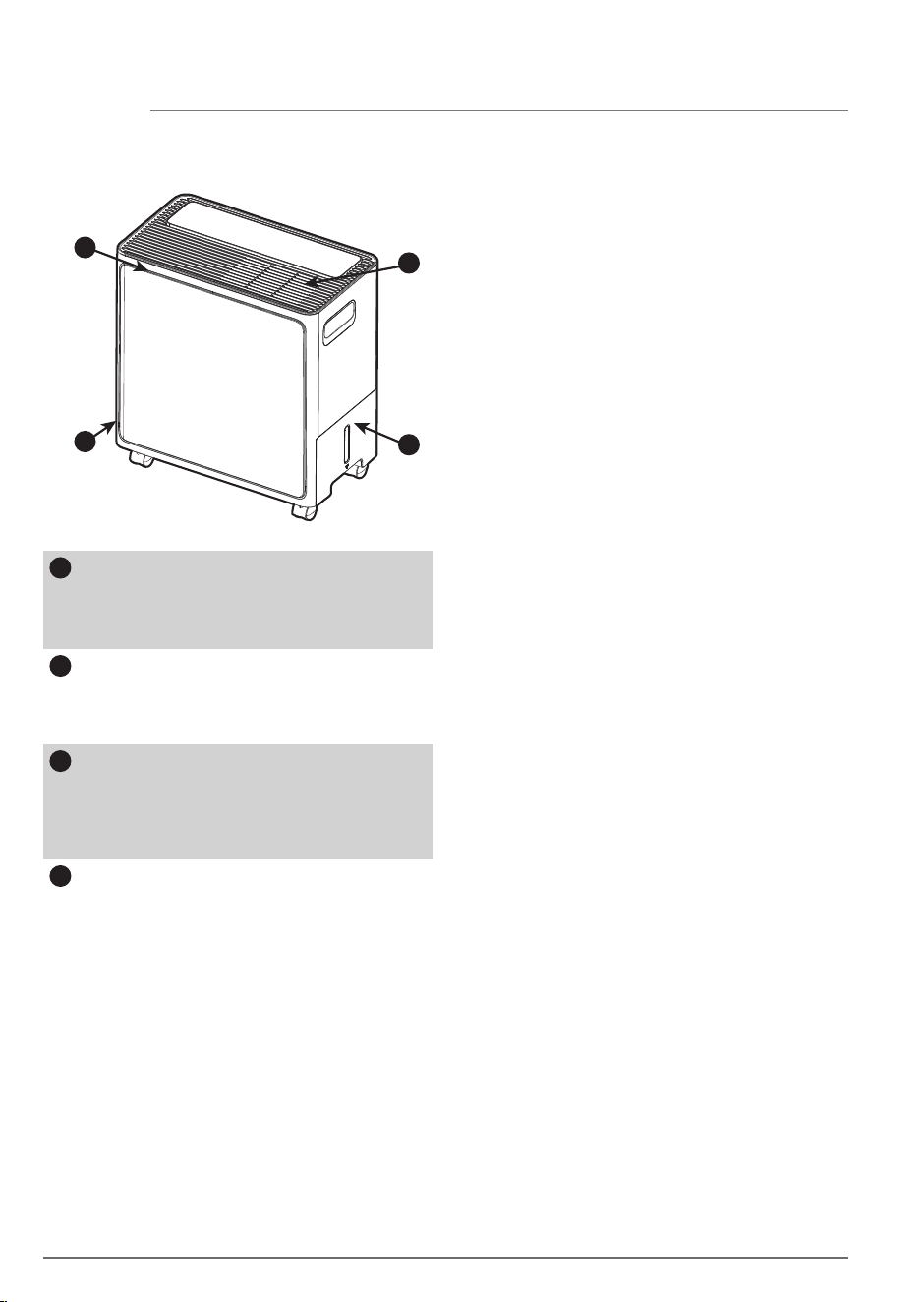

18 NORMAL SOUNDS
Dripping Sound
The sound of dripping water may be
heard during the dehumidification
cycle.
1
Sound of Rushing Air
At the top of the unit, you may hear the
sound of rushing air being moved by
the fan.
2
Gurgle/Hiss
“Gurgling or hissing” noise may be
heard due to refrigerant passing
through evaporator during normal
operation.
3
High pitched Chatter
Today’s high eciency compressors
may have a high pitched chatter during
the dehumidification cycle.
4
Normal Sounds
4
3
2
1
19BEFORE YOU CALL
Fan noise.
• Air is moving through the dehumidifier. This is a normal sound.
Frost appears on coils
behind the filter
• Dehumidifier has been turned on recently. This is normal due to refrigerant
rushing through the coil. Frost will usually disappear within 60 minutes.
• Room Temperature is too low. All models will operate satisfactorily at
temperatures greater than 41°F (5°C).
Dehumidifier is
operating but room is
not dry enough.
• Humidity setting is too high. Press the HUMIDITY button or rotate knob to a
lower setting or choose CONTINUOUS for maximum dryness.
• Dehumidifier has been installed or restarted recently. The higher the moisture
in the room air, the longer it takes for the room air to become dry.
• Dehumidifier does not have sucient clearance to operate. Air flow to the air
outlet is blocked. See “Selecting a Location”.
• Room temperature is too low. Unit will not operate satisfactorily if the room
temperature is below 41°F(5°C). See “Operating Conditions”.
• Refer to causes under DEHUMlDIFIER RUNS TOO MUCH.
Before calling for service, review this list. It may save you time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this
appliance.
SOLUTIONOCCURRENCE
Dehumidifier does not
operate.
• Wall plug disconnected. Push plug firmly into wall outlet.
• House fuse blown or circuit breaker tripped. Replace fuse with time delay
type or reset circuit breaker.
• The dryness level you selected has been reached. Dehumidifier automatically
shuts o when selected amount of moisture has been removed from the air.
If you want to remove more moisture, Select 'CONTINUOUS' by using the
humidity button or knob. After the dehumidifier starts, reset the control to
the desired setting.
• Bucket not installed properly. See “Removing Collected Water“.
• Water in the bucket has reached its preset level. Dehumidifier automatically
turns o when this occurs. Empty bucket and return bucket to position.
• Dehumidifier is not turned on. Turn unit on.
• “BUCKET FULL“ light is on. Remove bucket, empty water and re-install
correctly.
Dehumidifier runs too
much.
• Windows or doors near dehumidifier are open to outdoors. Close all windows
or doors to outside.
• Area to be dehumidified is too large. Check with your dealer to see if capacity
is adequate.
• Air movement through dehumidifier is blocked. Grill may be dirty. Use brush
attachment of vacuum cleaner to clean grill. See “Care and Cleaning”.
Dehumidifier must be placed in a space that does not restrict air flowing into
the rear coil or out of the front grill.
• Dehumidifier has been installed or restarted recently. The higher the
moistuire in the room, the longer the dehumidifier will operate.
• Dehumidifier is in the CONTINUOUS mode and will remain on in this mode,
use the humidity button or knob to set a RH% higher level.
If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada)
For Frigidaire® Service.
20MAJOR APPLIANCE LIMITED WARRANTY
Exclusions
This warranty does not cover the following:
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
If You Need
Service
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
USA
1.800.944.9044
Electrolux Consumer Products, Inc.
10200 David Taylor Drive
Charlotte, NC 28262
Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your
original date of delivery, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions. After one year from your original date of delivery, the consumer
will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and
reinstallation expenses which are incurred during service on components.
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR
ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest to
obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Consumer Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for
service and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
welcome
home
Frigidaire.com
1-800-944-9044
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
16120300A36293 (July 2025)
