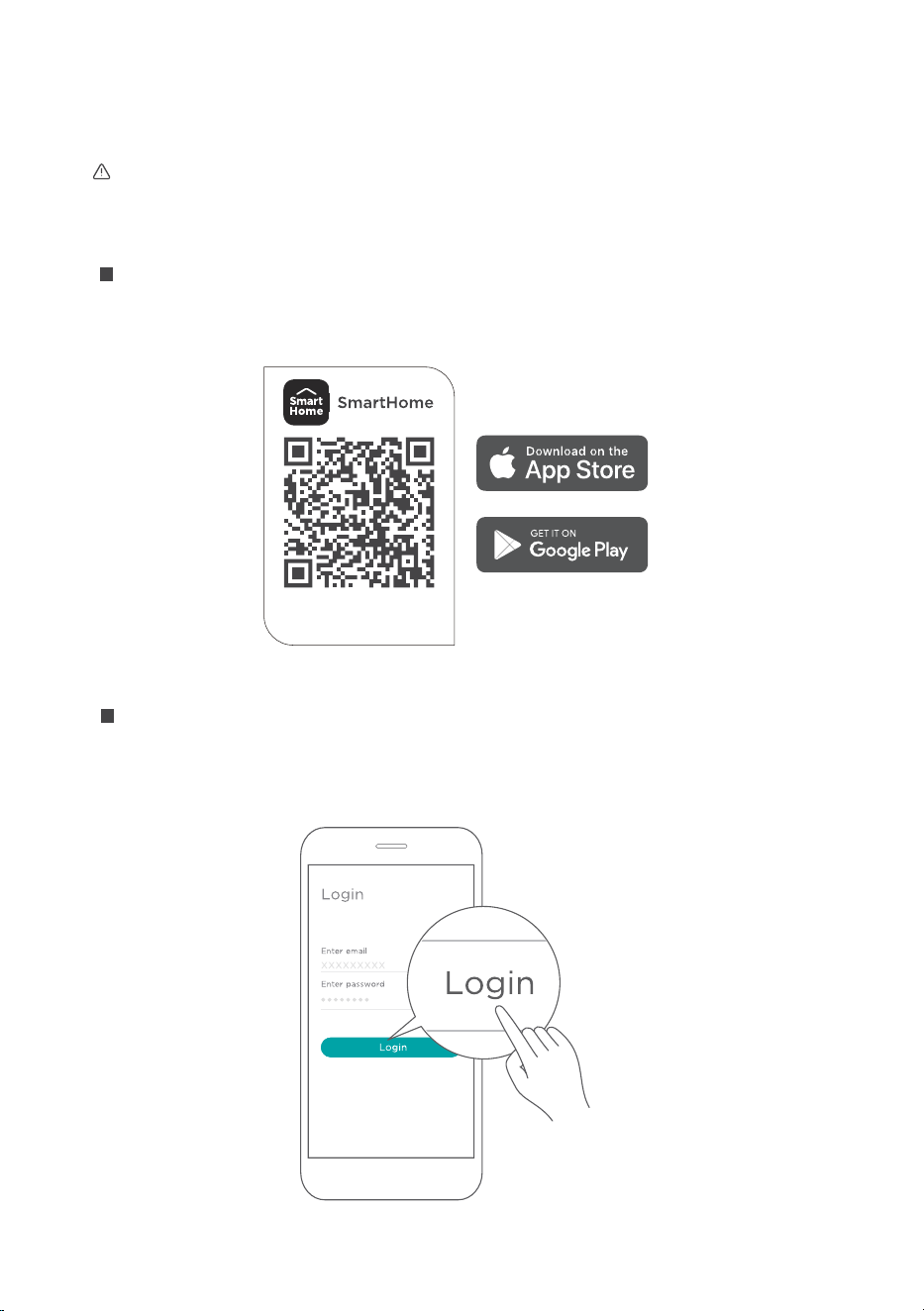

Download the app
& activate product
MAP07S1XWT-S
USER MANUAL
Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or the manufacturer for details.
PORTABLE AIR CONDITIONER
2
CONTENTS
Read This Manual
Inside you’ll find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventative care on your part can save you a great deal of time
and money over the life of your air conditioner. You’ll find many answers to common
problems in the troubleshooting tips - you should be able to fix most of them quickly
before calling service. These instructions may not cover every possible condition
of
use, so c
ommon sense and attention to safety is required when installing, operating
and maintaining this product.
• For support, please call the Service Center at 1-866-646-4332.
• This appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction conce
rning use of t
he appliance by
a person responsible for their safety.
• Children shou
ld be supervised to ensure that they do not play with the air conditioner.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a humid room such as a bathroom or laundry
room.
CAUTION
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please
read this manual thoroughly to ensure that you know how to operate the
THANK YOU LETTER.................................................................................................................2
SAFETY PRECAUTIONS...........................................................................................................3
BEFORE YOU GET STARTED.................................................................................................11

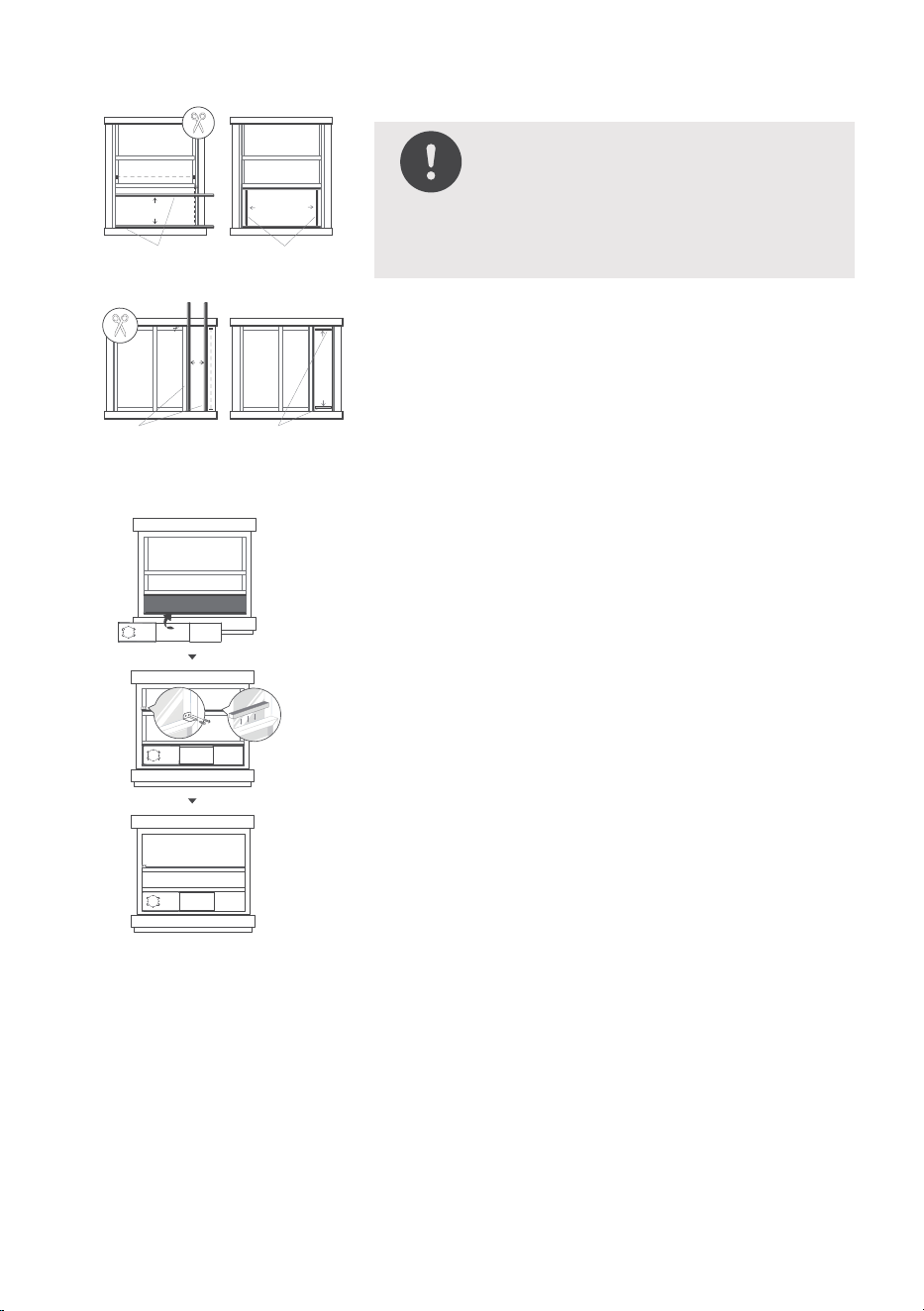

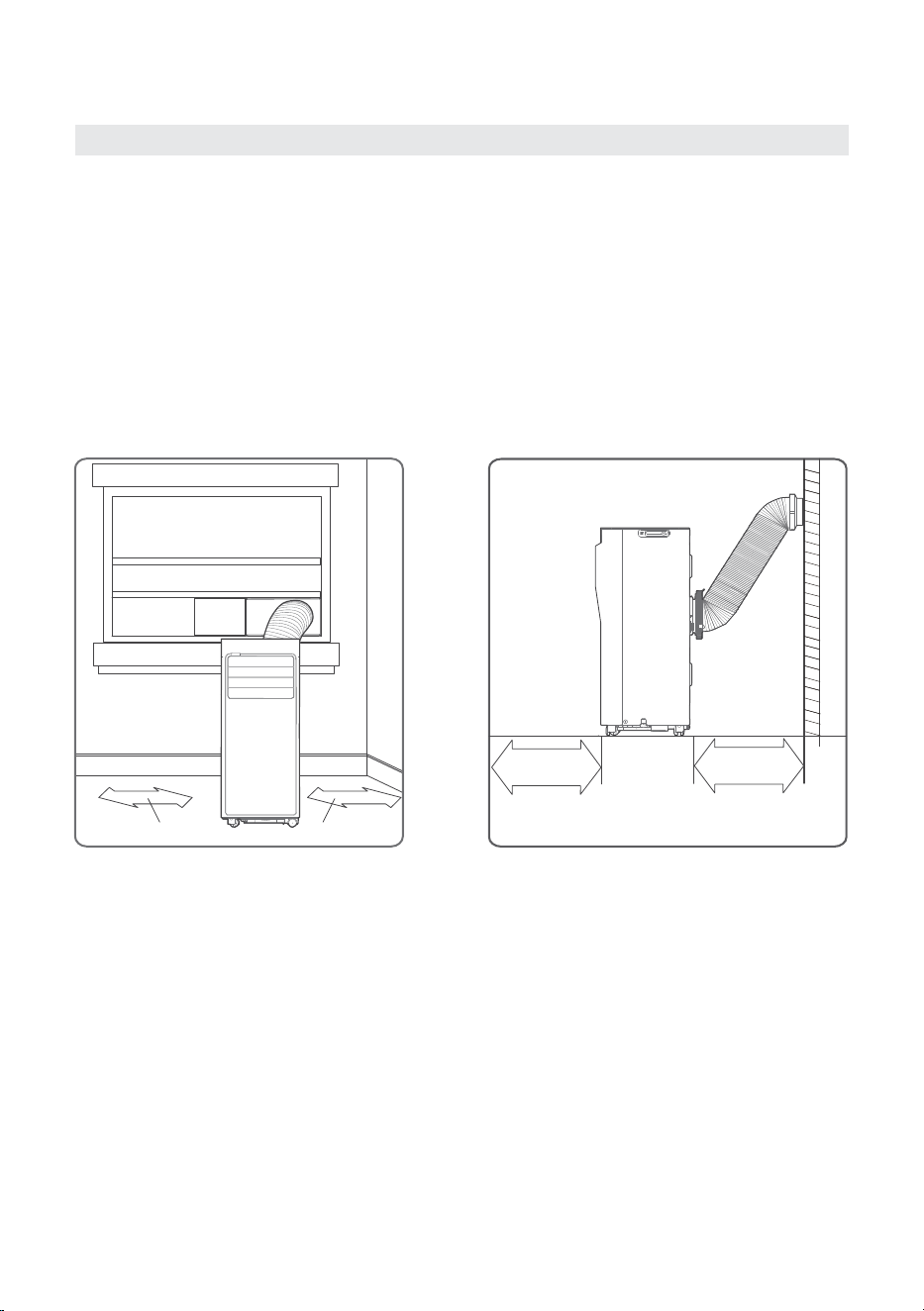

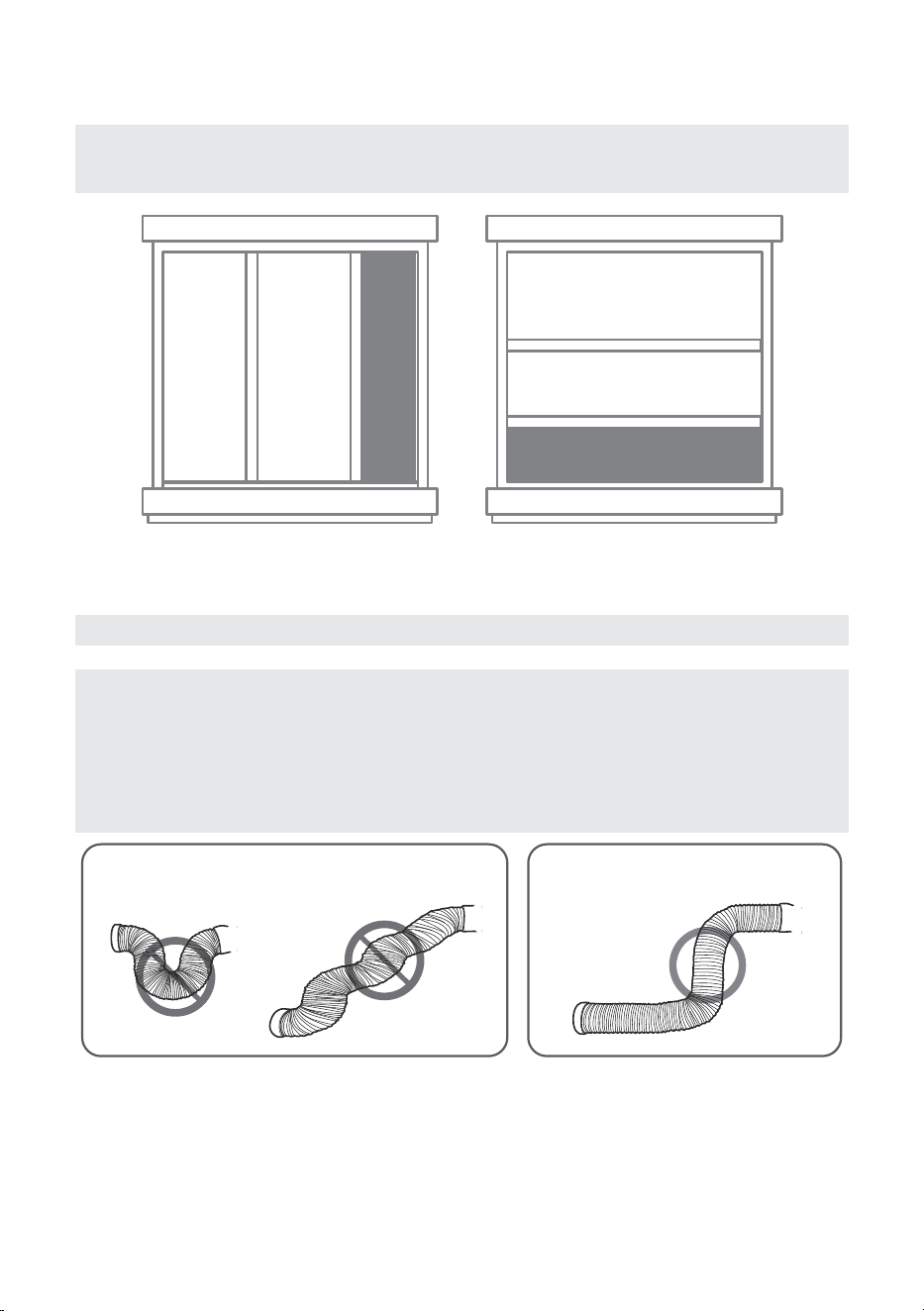

INSTALLATION INSTRUCTIONS...........................................................................................13
OPERATING INSTRUCTIONS.................................................................................................21
CLEANING & MAINTENANCE ...............................................................................................24
TROUBLESHOOTING TIPS......................................................................................................26

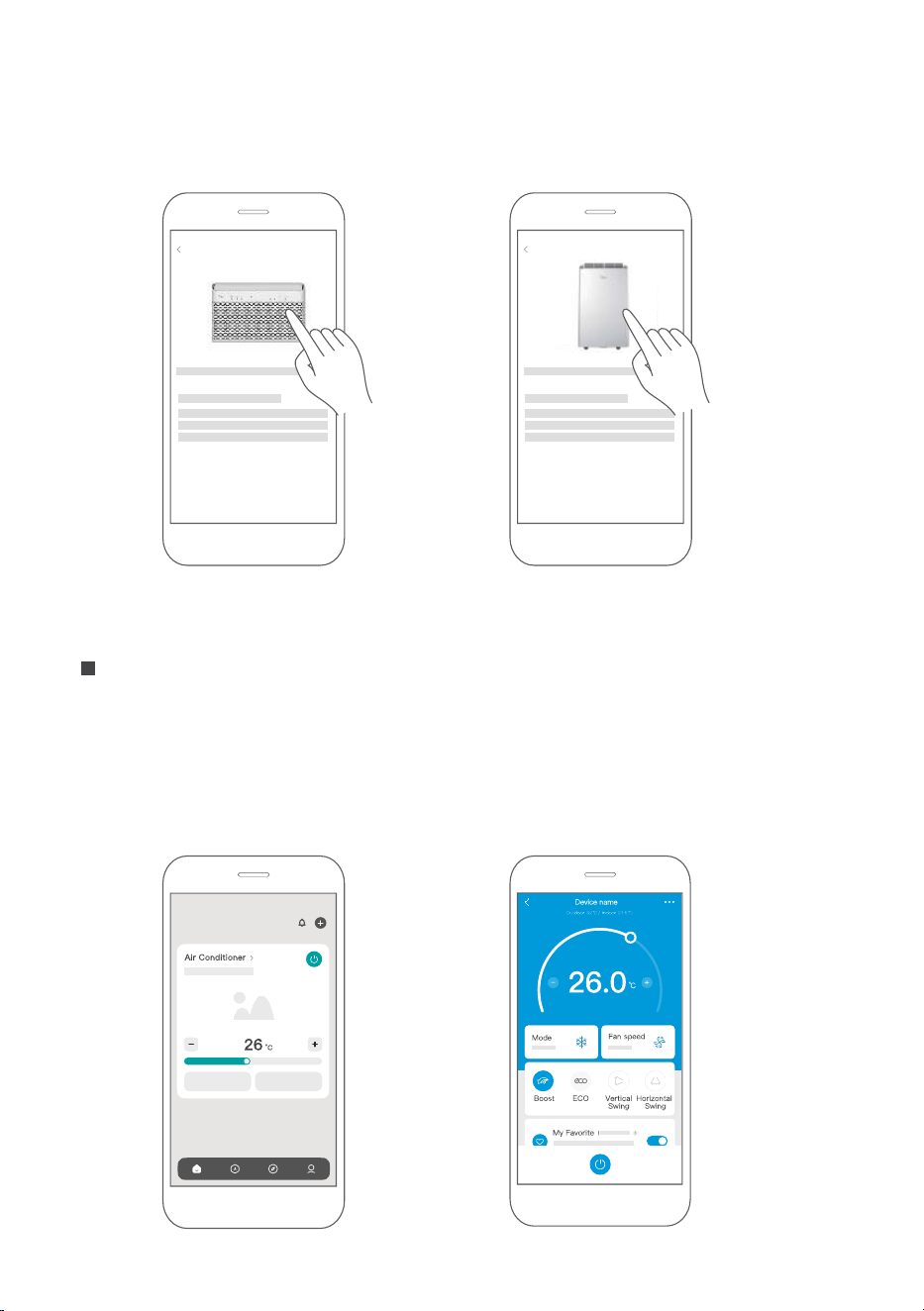

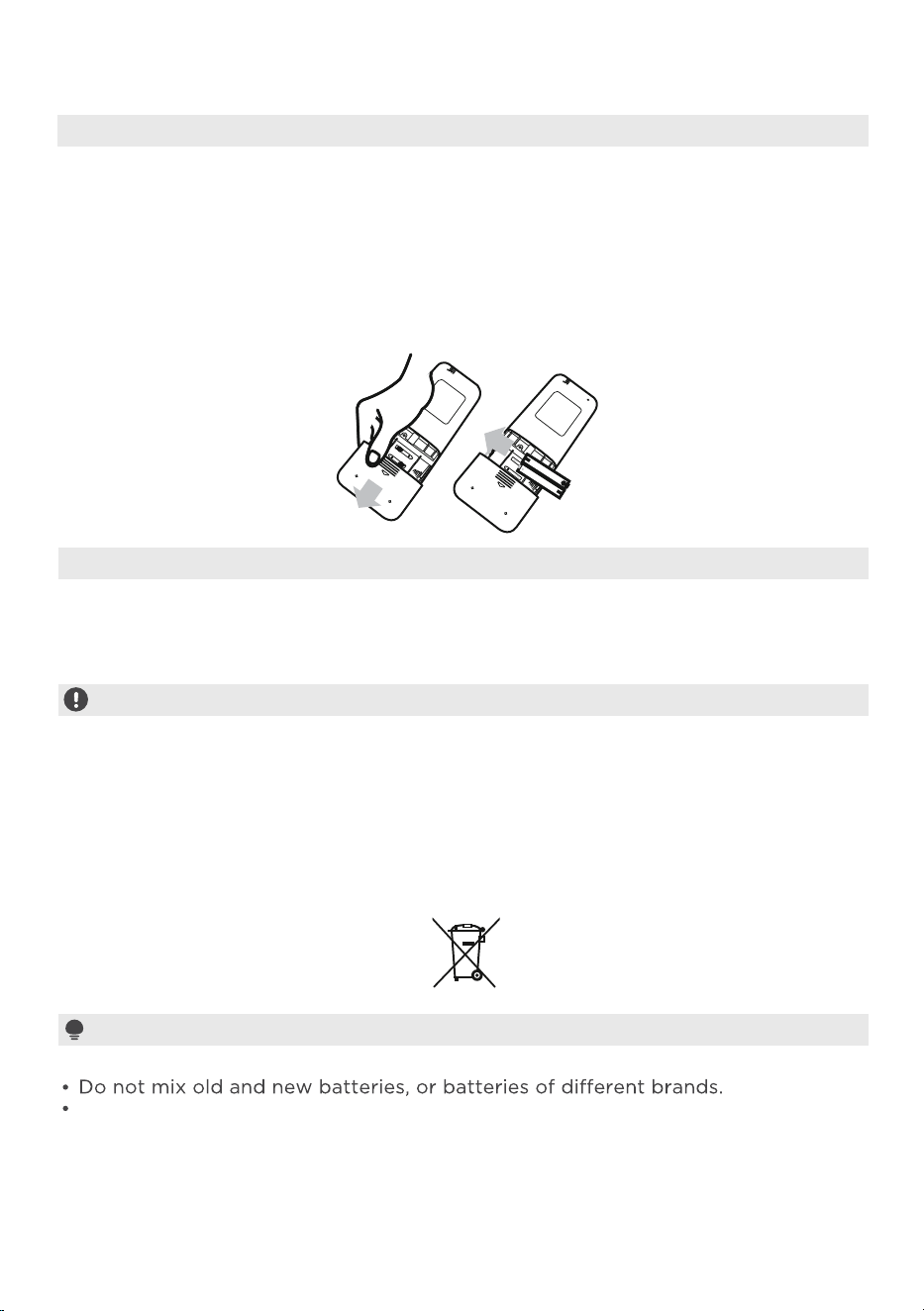

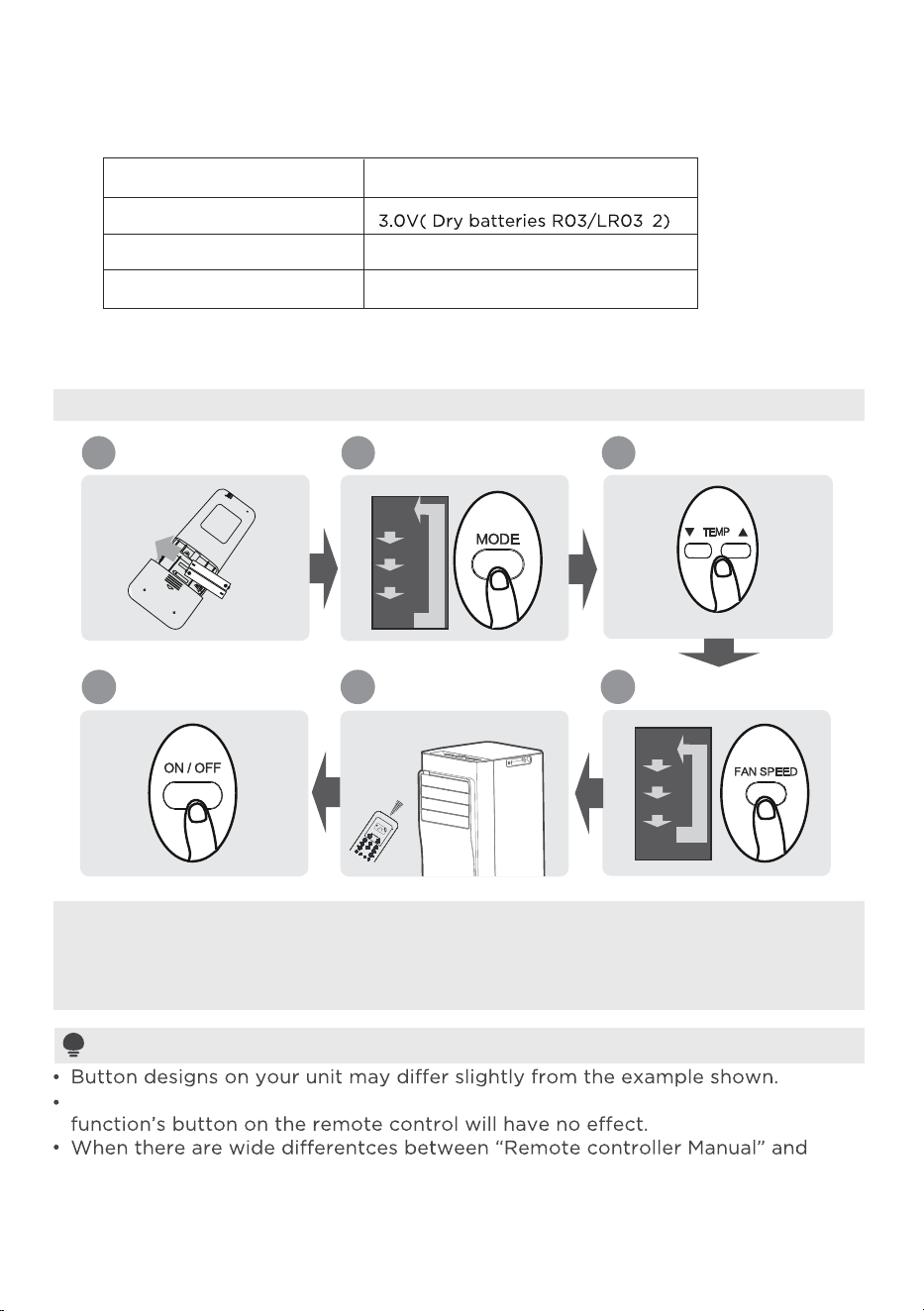

REMOTE CONTROL AND APP INSTRUCTIONS............................................................. 27
WARRANTY.................................................................................................................................. 46
Read Safety Precautions Before Operation and Installation
To prevent death or injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause death, harm or damage.
Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation.
Using nonstandard parts can cause water leakage, electrical shock, fire, and injury or
property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against shock.
Voltage information can be found on the nameplate of the unit.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit
breake (the fuse or circuit breaker needed is determined by the maximum current of the
unit. The maximum current is indicated on the nameplate located on unit), have a qualified
electrician install the proper receptacle.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to mitigate
safety hazards.
Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room.
Too much exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet
or to roll over objects, as these could cause tipping.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the unit and unplug it from the
main power supply immediately. Visually inspect the unit to ensure there is no damage.
If you suspect the unit has been damaged, contact a technician or customer service for
assistance.
WARNING
WARNING CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
This symbol indicates the possibility
of personnel injury or loss of life.
In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning.
3
SAFETY PRECAUTIONS
All wiring must be performed strictly in accordance with the wiring diagram located inside
of the unit.
The unit's circuit board (PCB) is designed with a fuse to provide overcurrent protection.
The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain plug
firmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully
to prevent children from choking.
If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from the
supply mains.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if
it has been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit
or return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction manual.
Before cleaning, turn off the power and unplug the unit.
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if
it has been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Your air conditioner should be used in such a way that it is protected from moisture. e.g.
condensation, splashed water, etc. Do not place or store your air conditioner where it can
fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
This appliance is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Children must be supervised around the unit at all times. (be applicable for other countries
except the European Countries)
CAUTION
4
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use
the unit in the presence of inflammable substances or vapour such as alcohol, insecticides,
petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable, level
surface during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord
must be replaced with a new power supply cord obtained from the product manufacturer
and not repaired.
Hold the plug by the head of the power plug when taking it out.
Turn off the product when not in use.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
No open fire or device like switch which may generate spark/arcing shall be around
appliance to avoid causing ignition of the flammable refrigerant used. Please follow the
instructions carefully when storing or maintaining the appliance to prevent mechanical
damage from occurring.
Appliance shall be installed, operated and stored in a room with a floor area larger than 4 m
2
.
Appliance shall not be installed in an unvertilated space, if that space is smaller than 4 m
2
.
Appliance should be installed, operated and stored in a room with a floor area according
to the amount of refrigerant to be charged. For specific information on the type of gas and
the amount, please refer to the relevant label on the unit itself. When there are differences
between the lable and the manual on the Min. room area description, the description on
label shall prevail.
WARNING for Using R32 Refrigerant
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE
MAIN POWER TO THE SYSTEM.
Please strictly follow the wiring
label attached to the machine
for all wiring connections.
The wiring diagram may vary
for different unit. Please refer
to the wiring diagram on the
machine you have purchased.
The above wiring diagram is a
simplified version for preliminary
illustration purposes only.
5
WARNING
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried
out under the supervision of the person competent in the use of flammable refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the appliance to avoid
any damage or hazard.
- When maintaining or disposing the appliance, the refrigerant shall be recovered properly,
shall not discharge to air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
- Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specification. All training shall follow the ANNEX HH requirements
of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
CAUTION:
Risk of fire
flammable materials
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be
read carefully.
CAUTION
This symbol shows that a service personnel should be handling
this equipment with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the
operating manual or installation manual.
6
7
See transport regulations.
1. Transport of equipment containing flammable refrigerants
See local regulations.
2. Marking of equipment using signs
See national regulations.
3. Disposal of equipment using flammable refrigerants
The storage of the appliance should be in accordance with the applicable regulations
or instructions, whichever is more stringent.
4. Storage of equipment/appliances
Storage package protection should be constructed such that mechanical damage to
the equipment inside the package will not cause a leak of the refrigerant charge. The
maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
5. Storage of packed (unsold) equipment
6. Information on servicing
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on the
system.
1) Checks to the area
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
flammable gas or vapour being present while the work is being performed.
2) Work procedure
All maintenance staff and others working in the local area shall be instructed on the nature
of work being carried out. Work in confined spaces shall be avoided. The area around the
workspace shall be sectioned off. Ensure that the conditions within the area have been
made safe by control of flammable material.
3) General work area
The area shall be checked with an appropriate refrigerating detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that
the leak detection equipment being used is suitable for use with flammable refrigerants, i.e.
non-sparking, adequately sealed or intrinsically safe.
4) Checking for presence of refrigerant
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or
CO
2 fire extinguisher adjacent to the charging area.
5) Presence of fire extinguisher
No person carrying out work in relation to a refrigerating system which involves exposing
any pipe work that contains or has contained flammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of fire or explosion. All possible
ignition sources, including cigarette smoking, should be kept sufficiently far away from the
site of installation, repairing, removing and disposal, during which flammable refrigerant
can possibly be released to the surrounding space. Prior to work taking place, the area
around the equipment is to be surveyed to make sure that there are no flammable hazards
or ignition risks. No Smoking signs shall be displayed.
6) No ignition sources
Ensure that the area is in the open or that it is adequately ventilated before breaking into
the system or conducting any hot work. A degree of ventilation shall continue during the
period that the work is carried out. The ventilation should safely disperse any released
refrigerant and preferably expel it externally into the atmosphere.
7) ventilated area
8
7. Sealed electrical components shall be replaced.
8. Intrinsically safe components must be replaced.
9. Cabling
Where electrical components are being changed, they shall be fit for the purpose and to
the correct specifications. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using flammable
refrigerants: the actual refrigerant charge is in accordance with the room size within which
the refrigerant containing parts are installed; the ventilation machinery and outlets are
operating adequately and are not obstructed; if an indirect refrigerating circuit is being
used, the secondary circuit shall be checked for the presence of refrigerant; marking to the
equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to any
substance which may corrode refrigerant containing components, unless the components
are constructed of materials which are inherently resistant to being corroded or are
suitably protected against being so corroded.
8) Checks to the refrigerating equipment
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised. Initial
safety checks shall include: That capacitors are discharged: this shall be done in a safe
manner to avoid possibility of sparking; that there no live electrical components and
wiring are exposed while charging, recovering or purging the system; that there is
continuity of earth bonding.
9) Checks to electrical devices
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental effects. The check shall also take into
account the effects of aging or continual vibration from sources such as compressors or
fans.
10. Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
The following leak detection methods are deemed acceptable for systems containing
flammable refrigerants. Electronic leak detectors shall be used to detect flammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25%
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of
shut off valves) in a part of the system remote from the leak. Removal of refrigerant shall
be according to Removal and evacuation.
9
When breaking into the refrigerant circuit to make repairs—or for any other purpose -
conventional procedures shall be used. However, for flammable refrigerants it is important
that best practice be followed, since flammability is a consideration. The following
procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-continuously flush or purge with inert gas when using flame to
open circuit; and
-open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is
not allowed by local and national codes. For appliances containing flammable refrigerants,
the system shall be purged with oxygen-free nitrogen to render the appliance safe for
flammable refrigerants. This process might need to be repeated several times. compressed
air or oxygen shall not be used for purging refrigerant systems.
For appliances containing flammable refrigerants, refrigerants purging shall be achieved
by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill
until the working pressure is achieved, then venting to atmosphere, and finally pulling
down to a vacuum (optional for A2L).
This process shall be repeated until no refrigerant is within the system (optional for A2L).
When the final oxygen-free nitrogen charge is used. the system shall be vented down to
atmospheric pressure to enable work to take place. The outlet for the vacuum pump shall
not be close to any potential ignition sources, and ventilation shall be available.
11. Removal and evacuation
In addition to conventional charging procedures, the following requirements shall be
followed.
Ensure that contamination of different refrigerants does not occur when using charging
equipment.
Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained
in them.
Cylinders shall be kept in an appropriate position according to the instructions. Ensure that
the refrigeration system is earthed prior to charging the system with refrigerant. Label the
system when charging is complete (if not already). Extreme care shall be taken not to
overfill the refrigeration system. Prior to recharging the system it shall be pressure tested
with OFN. The system shall be leak tested on completion of charging but prior to
commissioning. A follow up leak test shall be carried out prior to leaving the site.
12. Charging procedures
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case
analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment is
available, if required, for handling refrigerant cylinders;all personal protective equipment
is available and being used correctly; the recovery process is supervised at all times by a
competent person; recovery equipment and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if possible.
13. Decommissioning
10
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it
has been cleaned and checked.
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains flammable refrigerant.
14. Labelling
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant
and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
Cylinders shall be complete with pressure relief valve and associated shut-off valves in
good working order. Empty recovery cylinders are evacuated and, if possible, cooled
before recovery occurs. The recovery equipment shall be in good working order with a
set of instructions concerning the equipment that is at hand and shall be suitable for the
recovery of the flammable refrigerant. If in doubt, the manufacturer should be consulted.
In addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good condition.
The recovered refrigerant shall be processed according to local legislation in the correct
recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to
be removed, ensure that they have been evacuated to an acceptable level to make certain
that flammable refrigerant does not remain within the lubricant. The compressor body
shall not be heated by an open flame or other ignition sources to accelerate this process.
When oil is drained from a system, it shall be carried out safely.
15. Recovery
11
BEFORE YOU GET STARTED
Energy Rating Information
The energy rating and noise information for this unit is based on the standard installation
using an un-extended exhaust duct without window slider adaptor (as shown in the
Installation section of this manual). With the unit operating on COOL MODE and HIGH
FAN SPEED.
The installation
must be carried
out in strict
accordance with
the instructions
in this manual.
We recommend
doing this with
a helper.
Installing
your AC
should take
about
30 minutes.
We’re here if
you need us,
please contact
1-866-646-4332
Preparations Before Installation
Manual
Temperature RangeMode
16~35°C (60~95°F)Cool
13~35°C (55~95°F)Dry
Ambient Temperature Range For Unit Operating:
Know your Portable Air Conditioner
How to Stay Cool with a New Portable Air Conditioner (For the models comply with the
requirements of Department Of Energy in US)
Because of a new federal test procedure for Portable Air Conditioners, you may notice
that the cooling capacity claims on portable air conditioner packaging are significantly
lower than that of models produced prior to 2017. This is due to changes in the test
procedure, not to the portable air conditioners themselves.
12
What Should I Look For First When Purchasing A Portable Air Conditioner?
The right air conditioner helps you cool a room efficiently. An undersized unit won’t cool
adequately while one that’s too large will not remove enough humidity, leaving the air
feeling damp. To find the proper air conditioner, determine the square footage of the
room you want to cool by multiplying the room length by its width. You also need to
know the air conditioner’s BTU (British Thermal Unit) rating, which indicates the amount
of heat it can remove from a room. A higher number means more cooling power for a
larger room. (Be sure you are comparing only newer models to each other. Older models
may appear to have a higher capacity, but are actually the same). Be sure to “size up” if
your portable air conditioner will be placed in a very sunny room, in a kitchen, or in a room
with high ceilings. After you’ve found the right cooling capacity for your room, you can
look at other features.
Why Newer Products Have Lower Cooling Capacity Than Older Models
Federal regulations require manufacturers to calculate cooling capacity based on a specific
test procedure, which was changed just this year. Models manufactured before 2017 were
tested under a different procedure and cooling capacity was measured differently in prior
year’s models. So, while the BTUs may be lower now, the actual cooling capacity of the air
conditioners has not changed.
What is SACC?
SACC is the representative value of Seasonally Adjusted Cooling Capacity, in Btu/h, as
determined in accordance with the DOE test procedure at title 10 Code of Federal
Regulations (CFR) 430, subpart B, appendix CC and applicable sampling plans.
13
INSTALLATION INSTRUCTIONS
Product Installation Location
Your Installation Location Should Meet The Following Requirements:
• Make sure that you install your unit on an even surface to minimize noise and vibration.
• The unit must be installed near a grounded plug, and the Collection Tray Drain (found
on the back of the unit) must be accessible.
• The unit should be located at least 30cm (12”) from the nearest wall to ensure proper
air conditioning. The air outlet of the unit should be at least 50cm (19.7”) away from
obstacles.
• DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this could
cause damage to the unit.
Unit Installation Location Restricted Space Requirements
≥30cm (12’’)
≥30cm (12’’)
≥50cm
19.7’’
≥50cm
19.7’’
14

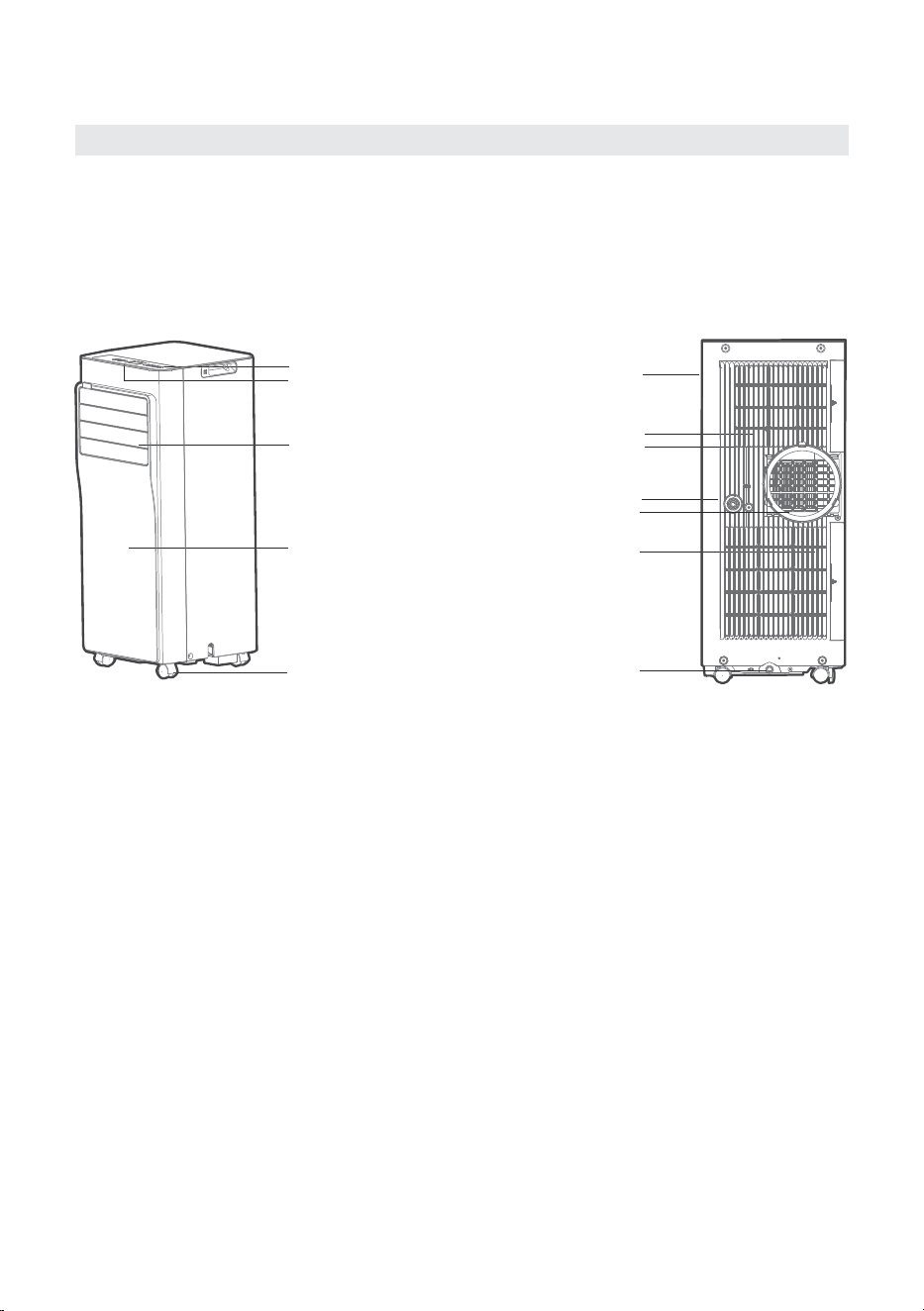

Product Overview
DESIGN NOTICE
In order to ensure the optimal performance of our products, the design specifications
of the unit and remote control are subject to change without prior notice.
NOTICE
All the illustrations in the manual are for explanation purpose only. Your machine may
be slightly different. The actual shape shall will remain the same.
The unit can be controlled by the unit control panel alone or with the remote control.
Rear View
Handle
(both sides)
Air filter
upper air intake
Air outlet
Lower air intake
Drain outlet
Bottom tray
drain outlet
Front View
Caster
Front panel
Vertical louver control
lever-manual adjustment
(On some models)
Control panel
Remote signal receptor
15
Installation Overview
NOTE
Illustrations in this manual are
for explanatory purposes.
The actual shape of your
indoor unit may be slightly di
erent. The actual shape shall
prevail.
Installation Completion Display
Tools Needed
Screwdriver
& wrench
A tape
measure
Scissors
or Knife
Pencil Saw (On some models,
to shorten window adaptor
for narrow windows)
Sliding Window Installation Hung Window Installation
1
5
2
1 2
5
3
4
4
3
Window Slider A
Security Bracket and 2 Screws
Window Slider B
Exhaust Hose
Air Conditioner
1
2
3
4
5
Remote Controller
and Battery
(1 set*)
I SENSE
SHORT CUT

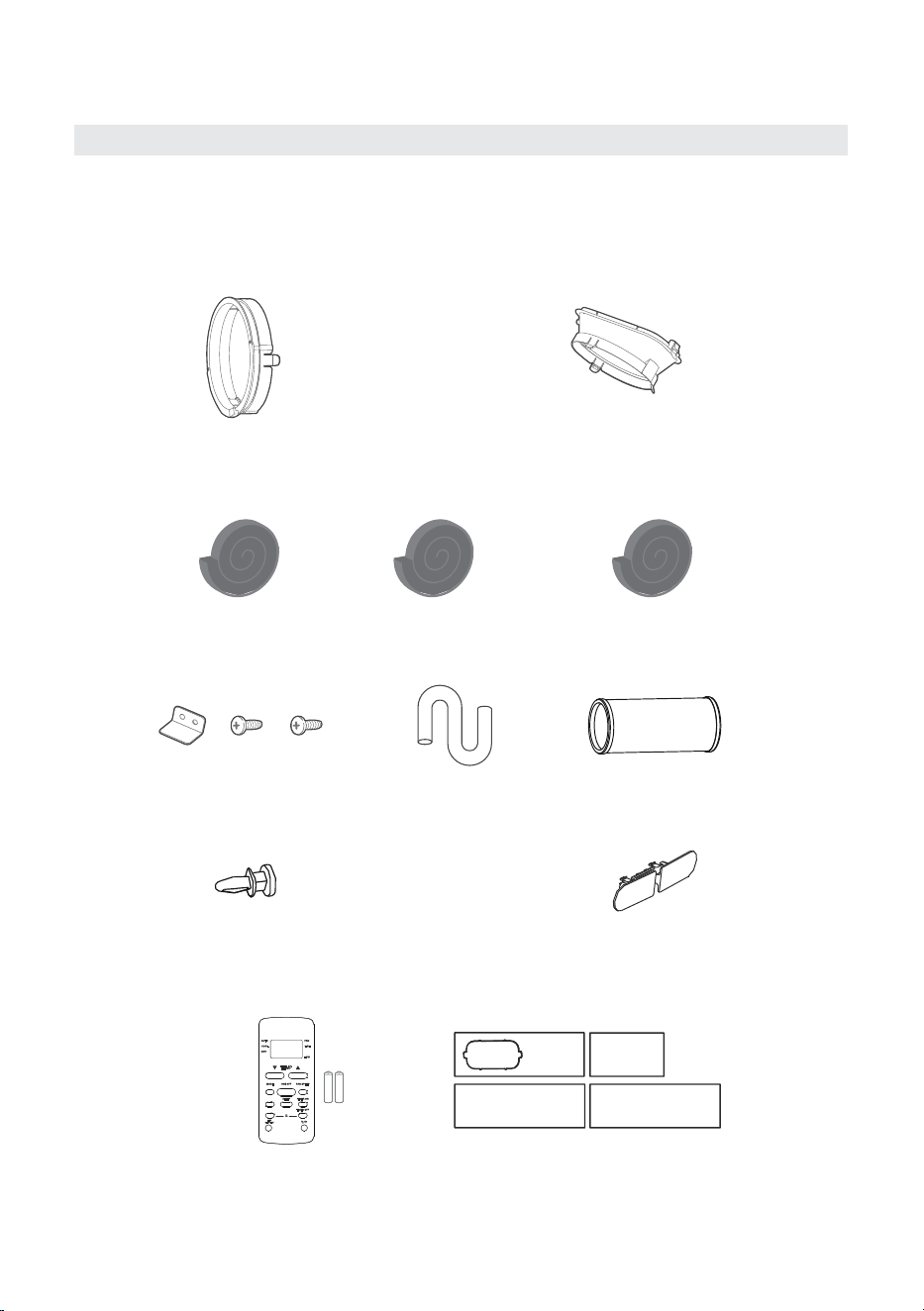

Installation Accessories
NOTICE
Items with (*) are on some models. Slight variations in design may occur.
Your Window Installation Kit fits windows 19.4”-62.2”(49.3-158.1cm) and can be shortened
for smaller windows.
Bolt (3 pc)
Security Bracket
and 2 Screws (1 set)
(1 pc)
Exhaust Hose
Drain Hose
(1 pc)
Foam Seal A
(Adhesive) 4 pc(*)
Foam Seal B
(Adhesive) 2 pc
Foam Seal C
(Non-adhesive) 2 pc(*)
Power Cord
Buckle ( 1 pc)
Air exhaust
passage (1 pc*)
(1pc)
Unit Adaptor
Window Sliders
1 set(*)
16
17
For Optimal Performance In Operation
Confirm Your Window Type (Window Type And Opening Size Of
Different Types)
Sliding Window Installation Hung Window Installation
NOTICE
To ensure proper function, DO NOT overextend or bend the hose. Make sure that there
is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in
order to ensure the exhaust system works properly. All the illustrations in this manual
are for explanation purpose only. Your air conditioner may be slightly different. The
actual shape shall prevail.
CORRECTINCORRECT
18

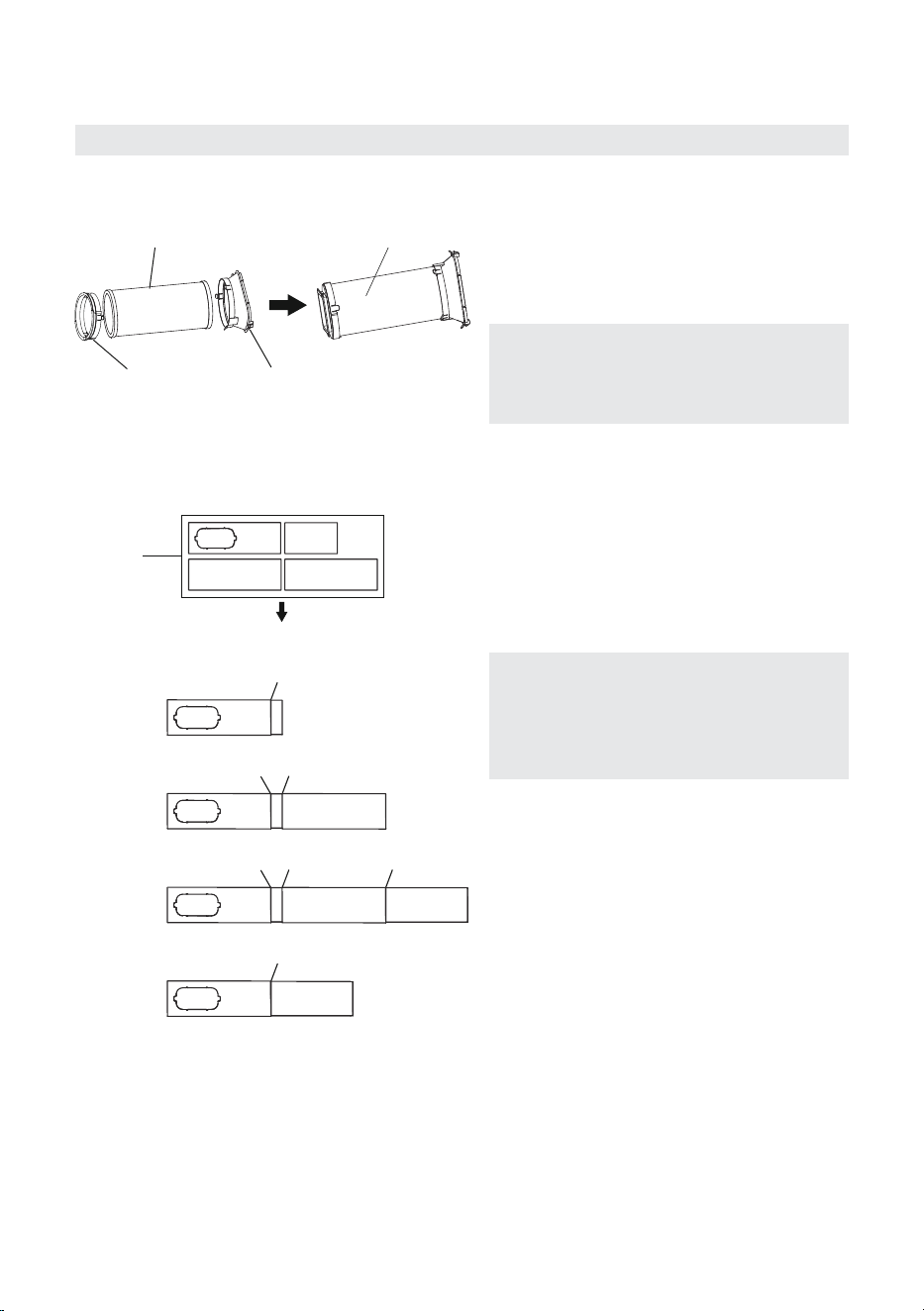

Exhaust Hose And Adaptors Installation
1 - The Exhaust Hose Assembly Installation (Window Type):
2 - Preparing the Adjustable Window Slider:
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
Press the exhaust hose (or extended
exhaust hose) into the window slider
adaptor and unit adaptor. The pieces
will clip together using the tabs on the
adaptors.
NOTICE
Please install the exhaust hose assembly
according to the fittings in your kit.
Choose the window sliders according to
the size of your window. Some of the sliders
may need to be cut to fit the exact window
size, make sure to cut the sliders carefully if
this is required.
Use bolts to fasten the window sliders once
they are adjusted to the proper length.
NOTICE
Please base your window slider
installation on the accessories in your
kit and the size of your window.
1+2 ：
Bolt
1+2+3 ：
Bolt
Bolt
1+2+3+4 ：
Bolt
BoltBolt
1+4 ：
Bolt
Window
Sliders
After assembly
Before assembly
19
3. Complete sealing of window
4. Hung Window Installation
NOTE: Once the exhaust hose
assembly and adjustable window
slider are prepared, choose one
of the two installation methods
based on your window type.
Insert the window slider assembly into the window
opening.
If desired, install the security bracket with 2 screws as
shown.
Cut the non-adhesive foam seal C strip to match the
width of the window. Insert the seal between the glass
and the window frame to prevent air and insects from
getting into the room.
:2 petS
:1 petS
Step 3:
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Hung Window Installation
Sliding Window Installation
Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window
sash and frame as shown.
20
Hook Hook Seat
Lower
groove
Adapter Make sure the
adaptor is inserted
into the lower groove
of the air outlet.
5. Sliding Window Installation
6. Install The Exhaust Hose Assembly To The Unit:
Push the exhaust hose into the air outlet opening of
the unit along the arrow direction.
7. Connect The Adaptor To The Unit And The Window:
Insert the window slider adapter into the hole of the
window slider.
Insert the window slider assembly into the window
opening.
If desired, install the security bracket with 2 screws as
shown.
Cut the non-adhesive foam seal C strip to match the
height of the window. Insert the seal between the glass
and the window frame to prevent air and insects from
getting into the room.
:2 petS
:1 petS
Step 3:
Hung Window Installation Sliding Window Installation
21
OPERATING INSTRUCTIONS
Electronic Control Operating Instructions
1. POWER button
Power switch on/off.
Wireless operation(on some models)
Used to initiate the wireless connection
mode.
For the first time to use wireless function,
press the POWER button for 3 seconds
to initiate the wireless connection mode.
The LED DISPLAY shows 'AP' to indicate
you can set wireless connection. If
connection(router) is successful within
8 minutes, the unit will exit wireless
connection mode automatically and the
wireless indicator illuminates. If connection
is failure within 8 minutes, the unit exits
wireless connection mode automatically.
NOTE: In AUTO mode, the FAN speed
will be adjusted automatically.
NOTE: Keep windows and doors closed
for the best dehumidifying effect. Do not
put the duct to window.
NOTE: When you restart the wireless
function, it may take a period of time to
connect to the network automatically.
AUTO mode
2. FAN button
Press to control the fan speed in three steps
AUTO,HIGH and LOW. The fan speed
indicator light illuminates under different
fan settings.
Press the "MODE" button until the "Auto"
indicator light comes on. In this mode, the
fan speed or the temperature will be
adjusted automatically.
DRY mode
Press the "MODE" button until the "Dry"
indicator light comes on. In this mode, the
fan speed or the temperature cannot be
adjusted. The fan motor operates at Auto
speed.
COOL mode
Continuous Fan function
In COOL or DRY mode, press the Fan
button for 3 seconds to turn on or off the
continuous fan function. When the function
is turned on, the Cont. fan light will
illuminate, indicating the fan will run
continuously. When the function is turned
off, the Cont. fan light will go out, indicating
that the fan will stop when the compressor
stops.
3. MODE button
Selects the appropriate operating mode.
Each time you press the button, the mode
is selected in a sequence that goes from
AUTO, DRY, COOL and FAN, The mode
indicator light illuminates under the
different mode setting.
12
5
4
3
Press the "MODE" button until the "COOL"
indicator light comes on.
Press the UP and DOWN buttons " " or " "
to select your desired room temperature.
The temperature can be set within a range of
16°C~30°C/60°F~86°F.
Press the "FAN " button to choose the fan
speed.
22
FAN mode
Press the "MODE" button until the"FAN "
indicator light comes on.
Press the "FAN SPEED" button on the
remote controller to choose the fan speed.
The temperature can not be adjusted.
Do not put the duct to window.
NOTE: When one of the above
malfunctions occurs, turn off the unit, and
check for any obstructions. Restart the
unit, if the malfunction is still present, turn
off the unit and unplug the power cord.
Contact the manufacturer, its service
agents or a similar qualified person for
service.
6. Other features
I SENSE/TEMP SENSING feature
(On some models)
This feature can be activated from the
remote control ONLY. There is no indicator
light on the control panel. The remote
control serves as a remote thermostat
allowing for the precise temperature control
at its location.
To activate the I SENSE/Temp Sensing
feature, point the remote control towards
the unit and press the I SENSE/Temp
Sensing button. The remote control will send
this signal to the AC until press the I SENSE
/Temp Sensing button again. If the unit does
not receive the I SENSE/Temp Sensing
signal during any 7 minutes interval, the unit
will exit the I SENSE/Temp Sensing mode.
NOTE: This feature is unavailabe under FAN
or DRY mode.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius. To convert from one to
the other, press and hold the Up and
Down buttons at the same time for 3
seconds.
4. UP and DOWN buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/2°F (or 1°F)
increments in a range of 16°C/60°F to
30°C/88°F (or 86°F).
5. Display
Shows Error codes:
Shows the set temperature while on Cool,
or Auto mode. It shows the room
temperature on DRY and FAN modes.
EH00-EEPROM error.
EH60-Room temperature sensor error.
EH61-Evaporator temperature sensor error.
EC52-Condenser temperature sensor error
(on some models).
EH0b-Display panel communication error.
Shows protection code:
P1-Bottom tray is full--Connect the drain
hose and drain the collected water away.
If protection repeats, call for service.
23

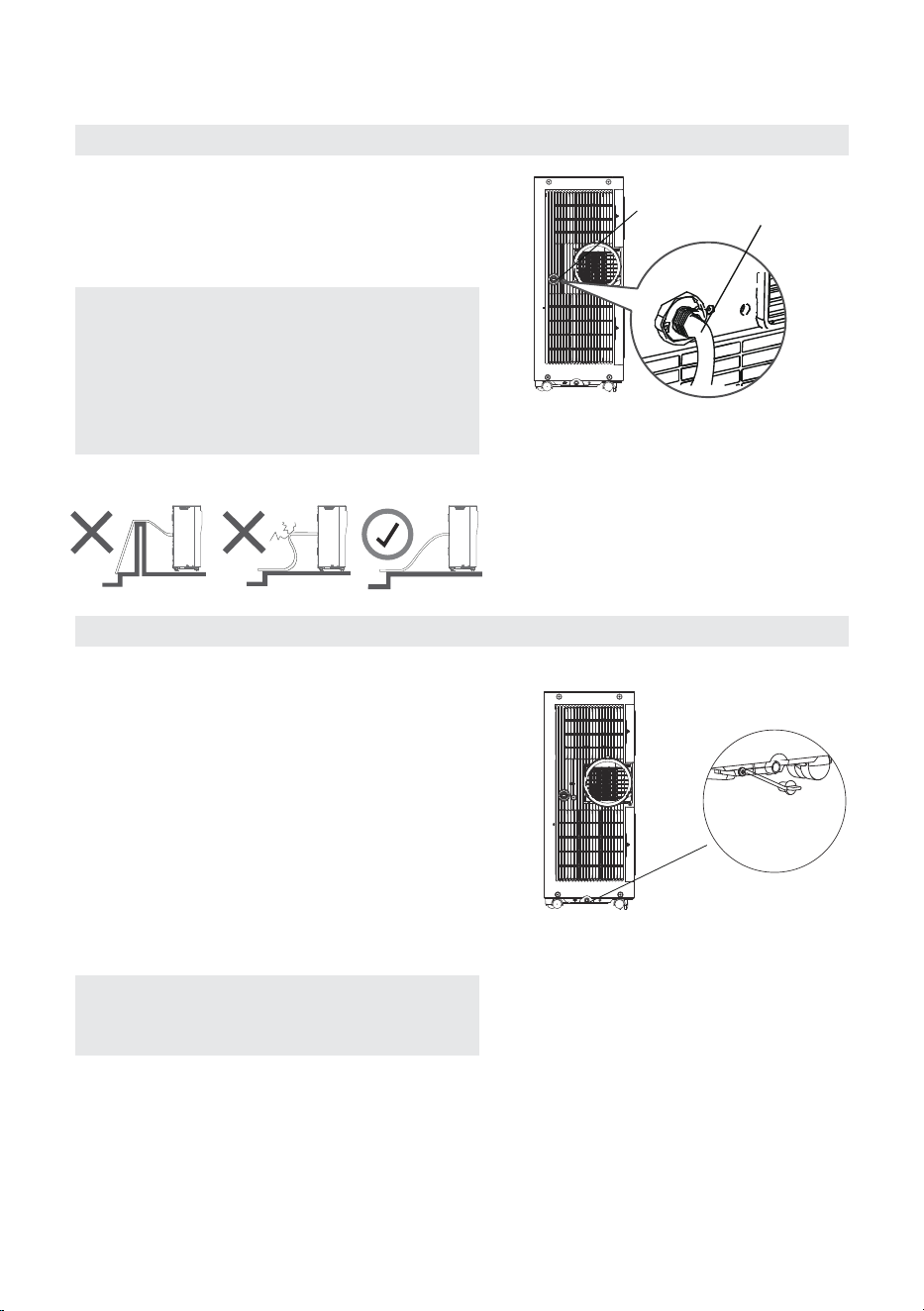

Drainage Guide in DRY Mode
Water Collection Tray Drainage Guide
NOTE: Ensure the drain hose is securely
connected to avoid leaks.
Position the drain hose towards the drain,
making sure there are no kinks that could
block water flow. When not using the
continuous drain hose, firmly reinstall the
upper drain plug to prevent any leakage.
NOTE: Be sure to reinstall the bottom drain
plug rmly to prevent leakage before using
the unit. The bottom tray cannot be removed.
In DRY mode, remove the upper drain plug from
the back of the unit, and attach the drain hose to
the outlet. Place the open end of the hose into
the drain, ensuring it is directed downward to
allow proper water flow.
When the water level of the bottom tray reaches
a predetermined level, the unit beeps 8 times, the
digital display area shows "P1". At this time the air
conditioning/dehumidication process will
immediately stop.
However, the fan motor will continue to operate
(this is normal).
Carefully move the unit to a drain location,
remove the bottom drain plug and let the water
drain away. Reinstall the bottom drain plug and
restart the machine until the "P1" symbol
disappears. If the error repeats, see
Troubleshooting section.
Step 1:
Remove the
drain plug
Step 2:
Install the
continuous
drain hose
Remove the
bottom
drain plug
24
CLEANING & MAINTENANCE
Cabinet Cleaning
Clean the cabinet using a damp, lint-free cloth and mild detergent. Dry the cabinet with a
dry, lint-free cloth.

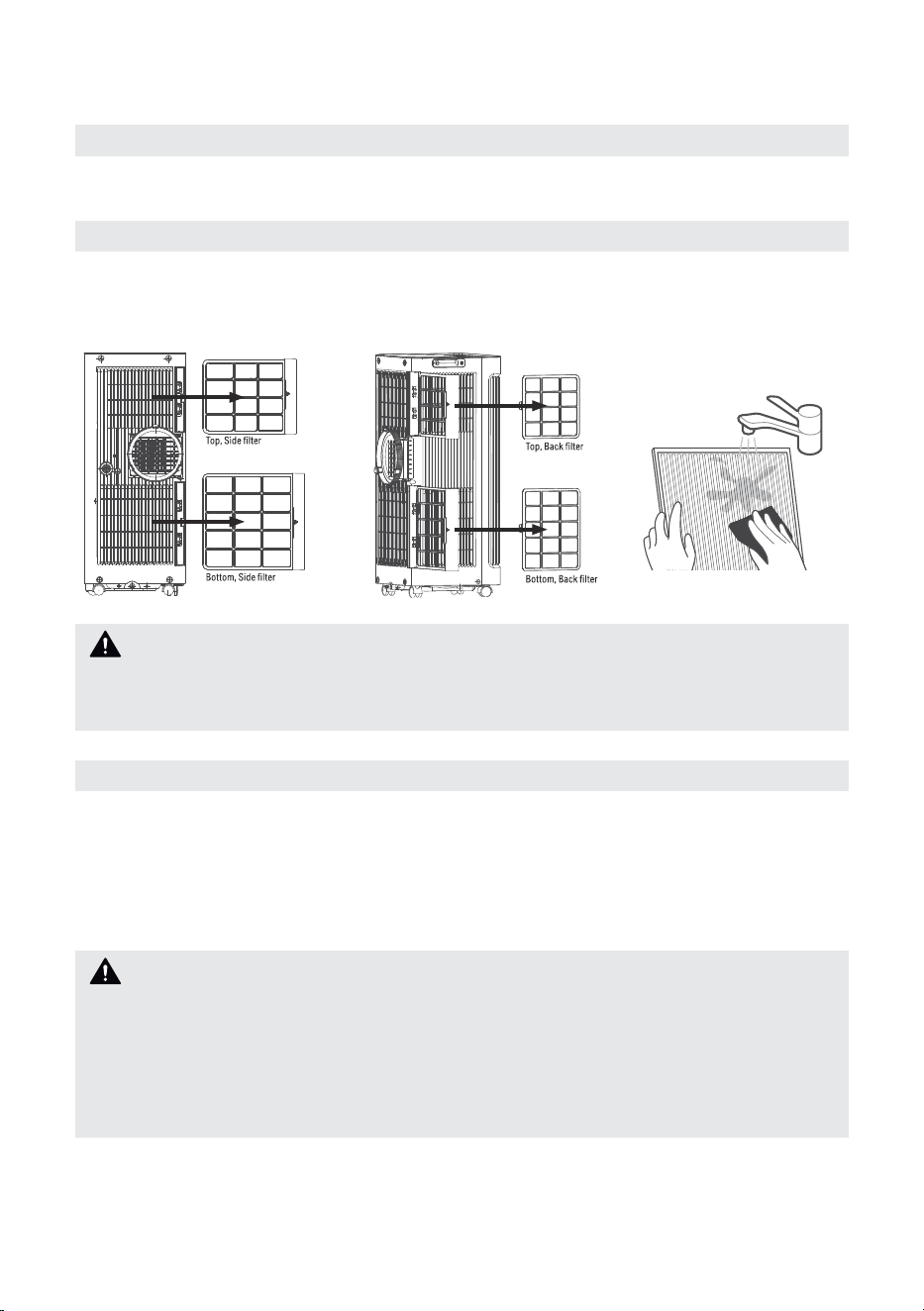

Air Filter Cleaning
Take out the filter in the direction of the arrow shown. Gently immerse it in warm water
with a mild detergent. Rinse thoroughly and allow the filter to dry completely before
reinstalling. You may also clean the filter by vacuuming it instead of washing.
Maintenance Tips
• Be sure to clean the air lter every 2 weeks for optimal performance.
• The water collection tray should be drained immediately after P1 error occurs, and before
storage to prevent mold.
• In households with pets, periodically wipe down the grille to prevent airflow blockage
caused by animal hair.
CAUTION
DO NOT operate the unit without filter because dirt and lint will clog it and reduce
performance.
CAUTION
• Always unplug the unit before cleaning or servicing.
• DO NOT use flammable liquids or chemicals to clean the unit.
• DO NOT wash the unit under running water. Doing so causes electrical danger.
• DO NOT operate the machine if the power supply was damaged during cleaning.
A damaged power cord must be replaced with a new cord from the manufacturer.
25

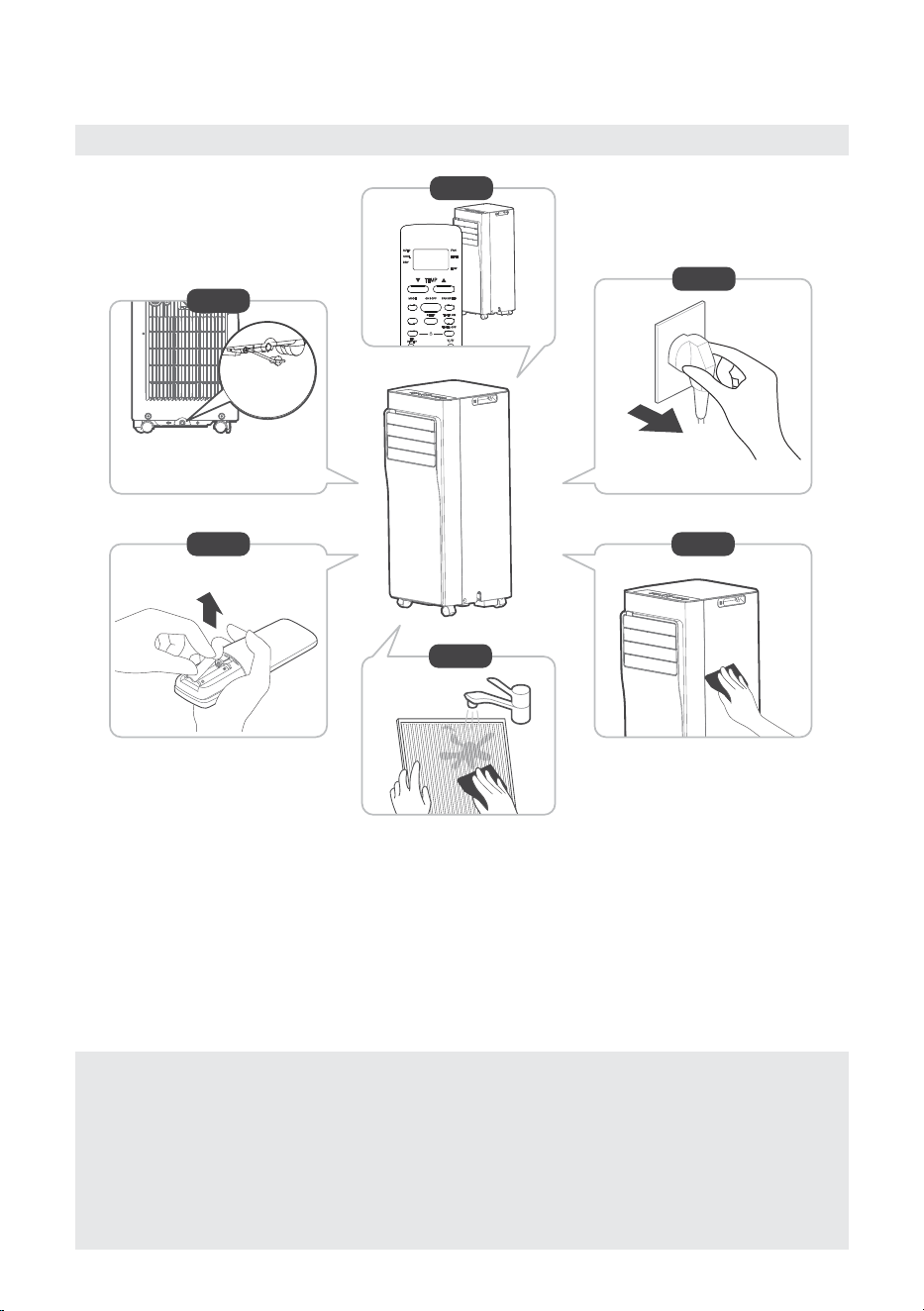

End of season storage & maintenance
Step 1: Drain the unit’s water collection tray according to the instructions on page 23.
Step 2: Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent
mold.
Step 3: Turn off the appliance and unplug it.
Step 4: Clean the machine.
Step 5: Clean the air filter according to the instructions in the previous section. Reinstall the
clean, dry filter before storing.
Step 6: Remove the batteries from the remote control.
NOTICE
• Store the unit in a cool, dark place. Exposure to direct sunlight or extreme heat may
shorten its lifespan.
• The cabinet and front can be dusted with an oil-free cloth or cleaned with a cloth
dampened in a solution of warm water and mild dishwashing detergent. Rinse
thoroughly and wipe dry.
Never use harsh cleaners, wax, or polish on the cabinet. Be sure to wring out excess
water from the cloth before wiping around the controls. Excess water near the controls
may damage the unit.
12hours
Step6
Step 3
Step4
Step 1
Step 2
Step 5
Please refer to the actual
plug; the diagram is only
for reference.
*Drain the unit‘s water collection
tray then reinstall the bottom
drain plug back in.
I SENSE
SHORT CUT
26
Decrease the set temperature.
Call a service technician to inspect
the unit and top off refrigerant.
The water collection tray is full.
Turn off the unit, drain the water from
the Water Collection Tray and restart
the unit.
Common Issues
The following problems are not a malfunction and in most situations will not require repairs.
Proble Solution
Unit does not
turn on when
pressing
ON/OFF button
P1 Protection Code.
In COOL mode: room temperature
is lower than the set temperature.
Check the set temperature.
Unit does not
cool well
The air filter is blocked with dust
or animal hair.
Turn off the unit and clean the filter
according to instructions.
Exhaust hose is not connected or
is blocked.
Turn off the unit, disconnect the hose,
check for blockage and reconnect the
hose.
The unit is low on refrigerant.
Temperature setting is too high.
The windows and doors in the
room are open.
Make sure all windows and doors are
closed.
The room area is too large.
There are heat sources inside the
room.
Remove the heat sources if possible.
The unit is noisy
and vibrates too
much
The ground is not level Place the unit on a flat, level surface.
The air filter is blocked with dust
or animal hair.
Turn off the unit and clean the filter
according to instructions.
The unit makes a
gurgling sound
This sound is caused by the
refrigerant flow inside the unit.
This is normal.
Double-check the cooling area.
TROUBLESHOOTING TIPS
REMOTE CONTROL AND APP INSTRUCTIONS
Model
Rated Voltage
8m
Environment
Signal Receiving Range
-5°C~60°C(23°F~140°F)
RG51H2(2)/CEFU1-M
NOT SURE WHAT A FUNCTION DOES?
Refer to the How to Use Basic Functions and How to Use Advanced Functions
sections of this manual for a detailed description of how to use your air
conditioner.
FIT BATTERIES
POINT REMOTE
TOWARD UNIT
PRESS POWER BUTTON
SELECT MODE
SELECT TEMPERATURE
SELECT FAN SPEED
1
6
2
5
4
3
AUTO
COOL
DRY
FAN
AUTO
LOW
MED
HIGH
27
SPECIAL NOTE
If the indoor unit does not have a particular function, pressing that
“USER’ S MANUAL” on function description, the description of “USER’S
MANUAL” shall prevail.
Quick Start Guide
My Mode
F
ollo
w
Me
LED Tur
bo
Ionise
r
S
wi
ng
T
i
mer
Self Cl
e
a
n
Mod
e
On/Off
Fan
Sl
eep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
Inserting and Replacing Batteries
Your air conditioning unit may come with two batteries(some units).
Put the batteries in the remote control before use.
1. Slide the back cover from the remote control downward, exposing the battery
compartment.
Insert the batteries, paying attention to match up the (+) and (-) ends of the
batteries with the symbols inside the battery compartment.
Slide the battery cover back into place.
2.
3.
HANDLING THE REMOTE CONTROLLER
Remote Control
Direct sunlight can interfere with the infrared signal receiver.
There must be a clear line of sight between the remote and the appliance.
If the signals from the remote control happen to control another appliance, move
the appliance to another location or contact customer service.
•
•
•
•
•
•
Battery Disposal
Pb
Do not dispose of batteries as unsorted municipal waste. Refer to local laws for
proper disposal of batteries.
Batteries may have a chemical symbol at the bottom of the disposal icon. This
chemical symbol means that the battery contains a heavy metal that exceeds a
certain concentration. An example is Pb: Lead (>0.004%).
Appliances and used batteries must be treated in a specialized facility for reuse,
recycling and recovery. By ensuring correct disposal, you will help avoid possible
negative consequences for the environment and human health.
For optimal product performance:
Do not leave batteries in the remote control if you don’t plan on using the device
for more than 2 months.
Battery Performance
28
Notes For Using Remote Control
•
•
The device could comply with the local national regulations.
In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
In USA, this device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for compliance
could void user’s authority to operate the equipment.
•
•
•
•
•
29

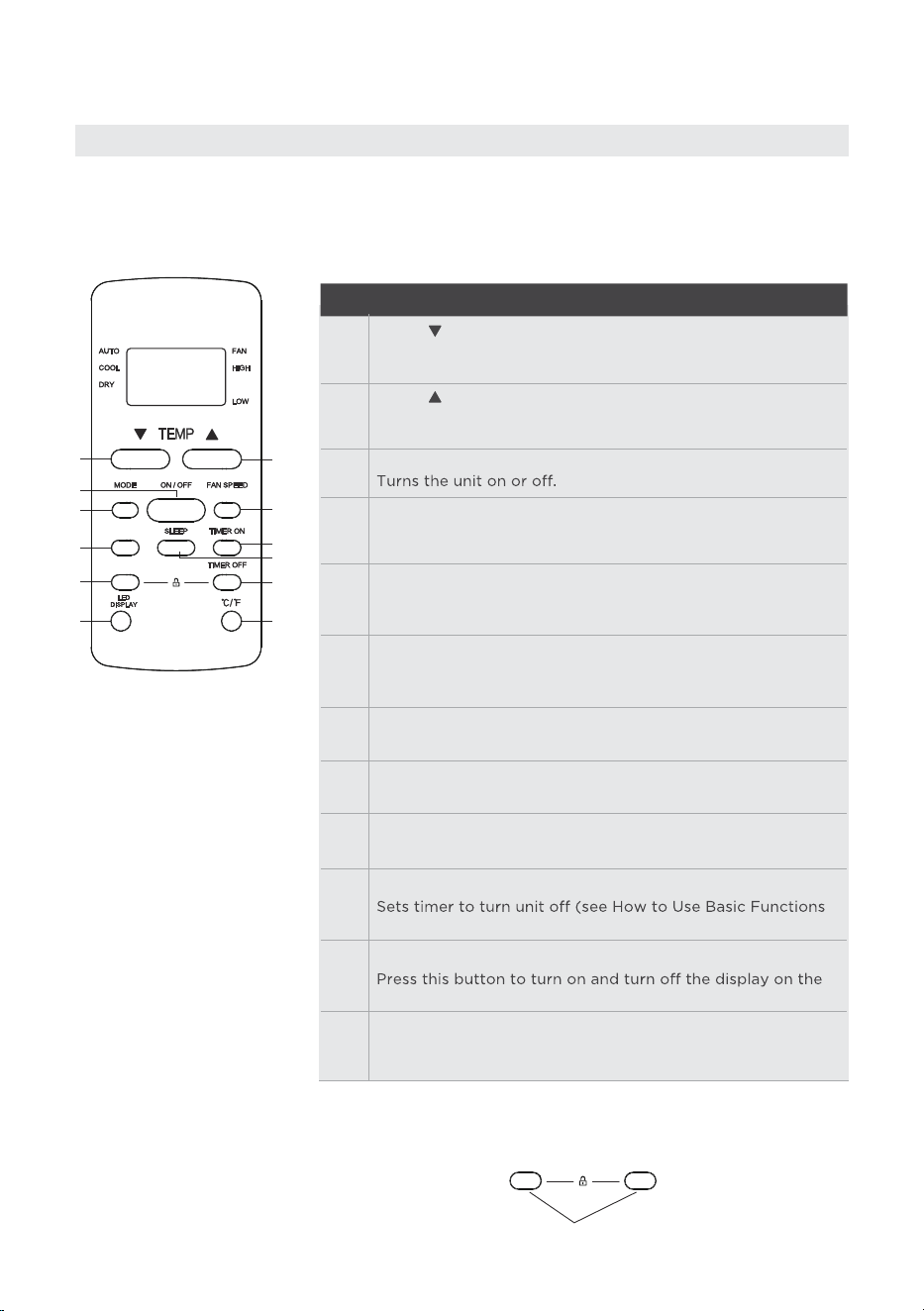

Model: RG51H2(2)/CEFU1-M
1
3
5
7
9
11
2
4
6
8
10
12
I SENSE
SHORT CUT
No.1
No.2
No.3
No.4
No.5
No.6
No.7
No.8
No.9
ON/OFF
FAN SPEED
MODE
TIMER ON
SLEEP
SHORT CUT
No.10
TIMER OFF
No.11
No.12
LED DISPLAY
°C/°F
Description
TEMP
TEMP
Decreases temperate in 1°C/1°F increments.
Min. temperature is 16°C/60°F.
Increases temperate in 1°C/1°F increments.
Max. temperature is 30°C/86°F.
Selects fan speeds in the following order:
AUTO
LOW
HIGH
Scrolls through operation modes as follows:
AUTO
COOL
DRY
HEAT
FAN
Sets timer to turn unit on (see How to Use Basic Functions
for instructions).
Press together simultaneously
Saves energy during sleeping hours .
Sets and activates your favorite pre-settings
for instructions).
I SENSE
Temperature sensing and room temperature display button.
indoor unit.
Press this button to alternate the temperature display
between the °C & °F.
NOTE: Press together the two buttons simultaneously
for 5 seconds to lock the keyboard. Press together the
two buttons for 2 seconds to unlock the keyboard.
30
Before you begin using your new air conditioner, make sure to familiarize yourself with
its remote control. The following is a brief introduction to the remote control itself. For
instructions on how to operate your air conditioner, refer to the How to Use Basic
Functions section of this manual.
Buttons and Functions
31
Information are displayed when the remote controller is power up.
Remote Screen Indicators
Note:
All indicators shown in the figure are for the purpose of clear presentation. But
during the actaul operation, only the relative function signs are shown on the
display window.
AUTO
COOL
DRY
FAN
HIGH
MED
LOW
No.1
No.2
No.3
No.4
FAN SPEED indication
Mode display
2
3
1
1
4
AUTO
COOL
FAN
DRY
Displayed when data transmitted.
Displayed when remote controller is ON.
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Shows set temperature or room temperature, or time
under TIMER setting.
Indicated all the current settings are locked.
Displayed when I SENSE feature is activated.
(some units)
Displayed when SLEEP feature is activated.
Low speed
NO display
Medium speed(some units)
High speed
Auto fan speed
HIGH
MED
LOW
32

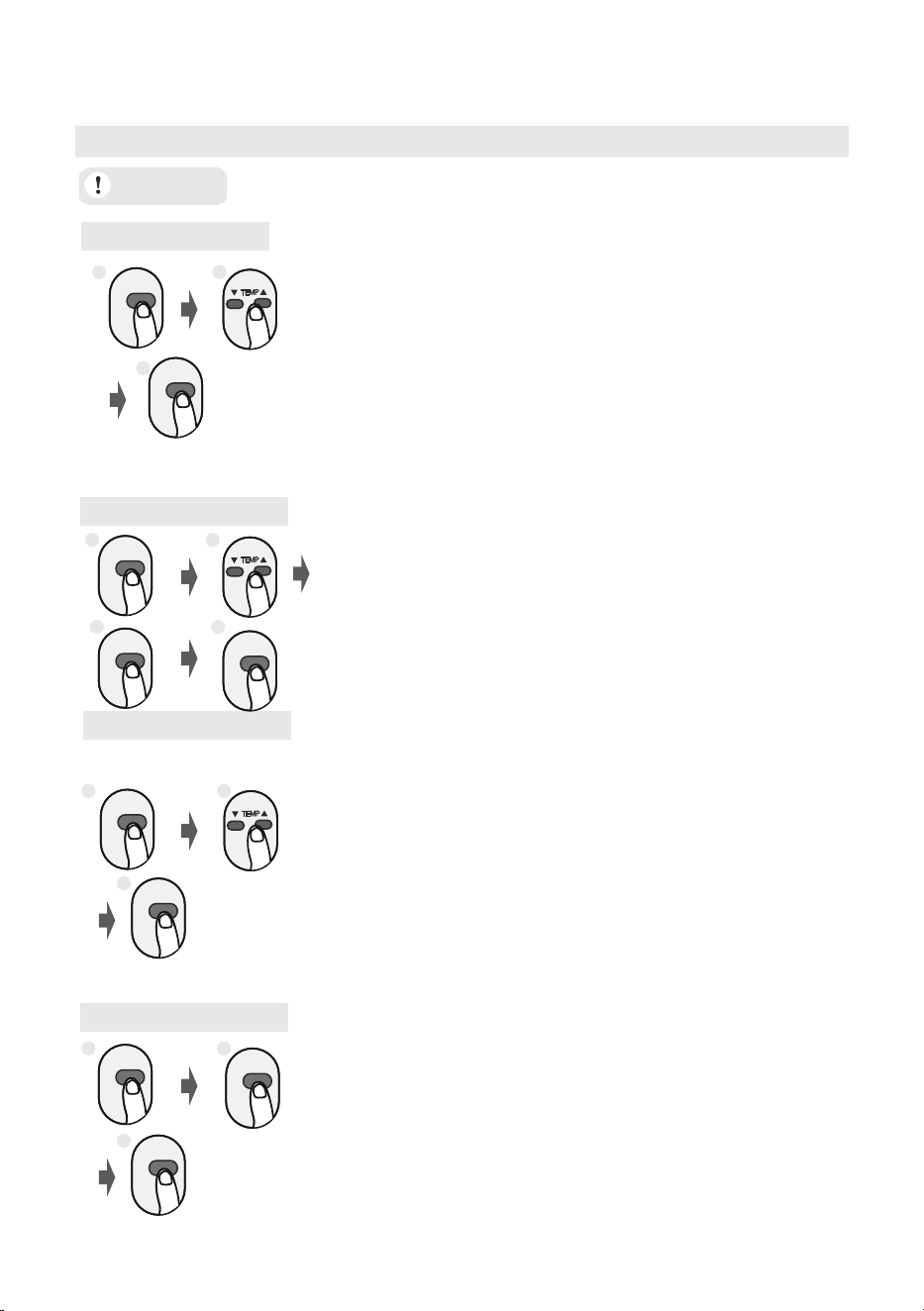

AUTO Mode
COOL Mode
DRY Mode
MODE
1. Select AUTO mode
2. Set your desired temperature
NOTE:
1. In AUTO mode,
the unit will automatically
select the COOL, or FAN function based on
the set temperature.
2. In AUTO mode, fan speed can not be set.
ON/OFF
3. Turn on the air conditioner
MODE
ON/OFF
1. Select DRY mode
2. Set your desired temperature
3. Turn on the air conditioner
FAN Mode
1. Select FAN mode
3. Turn on the air conditioner
1. Select COOL mode
2. Set the temperature
MODE
FAN SPEED
ON/OFF
4. Turn on the air conditioner
3. Set the fan speed
MODE
ON/OFF
FAN SPEED
2. Set the fan speed
NOTE: In DRY mode, fan speed can not be
set since it has already been automatically
controlled.
NOTE: In FAN mode, you can’t set the
temperature. As a result , no temperature
displays in remote screen.
Before operation, please ensure the unit is plugged in and power is available.
ATTENTION
How to Use Basic Functions
1 2
3
1 2
3 4
1 2
3
1 2
3

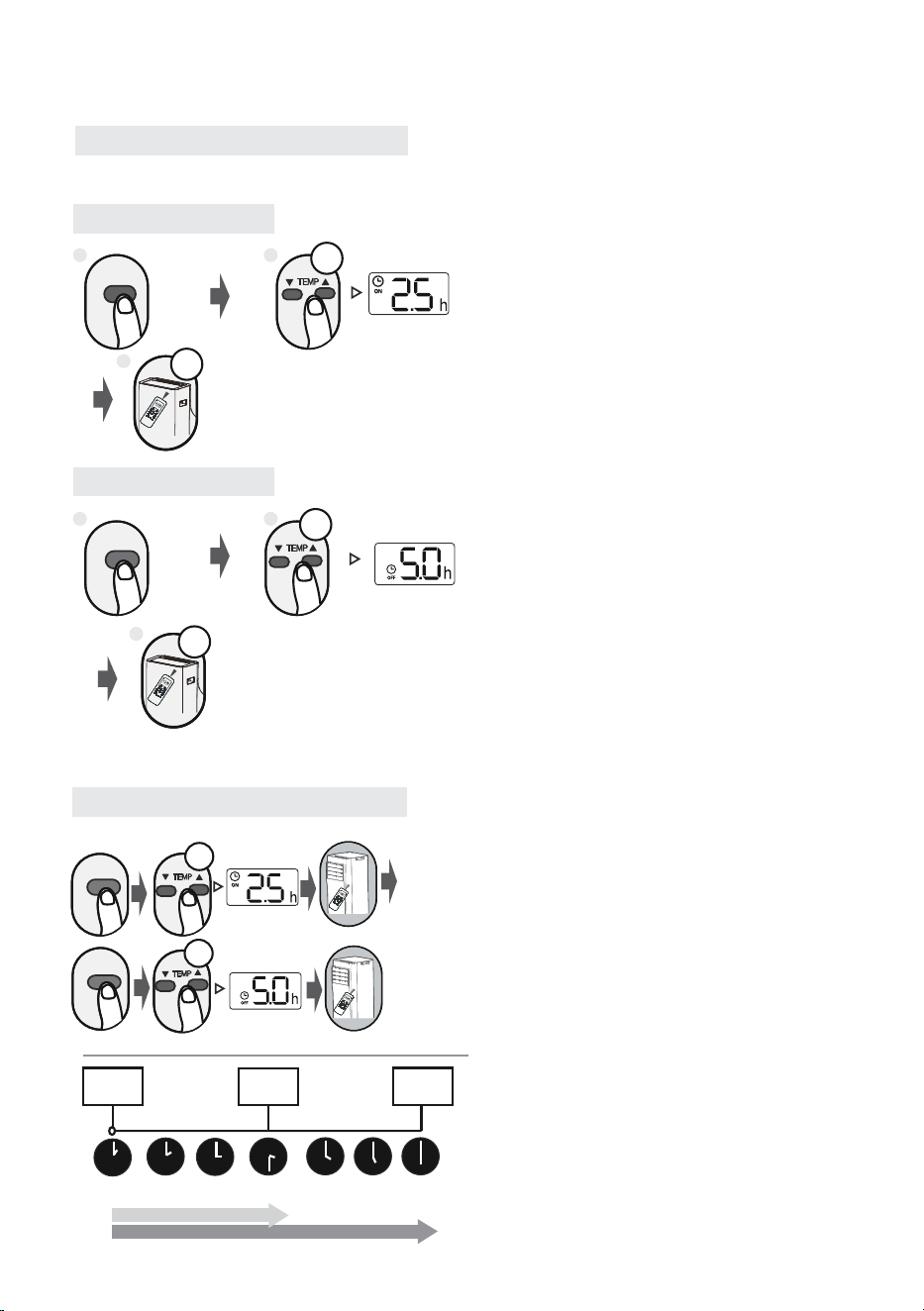

Setting the TIMER
TIMER ON setting
TIMER OFF setting
TIMER ON & OFF setting(example)
TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.
1. Press TIMER ON button to initiate the ON
time sequence.
2. Press Temp. up or down button for for
multiple times to set the desired time to
turn on the unit.
2. Press Temp. up or down button for for
multiple times to set the desired time to
turn off the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF,
the time will increase by 30 minutes
increments with each press, up to 10 hours.
After 10 hours and up to 24, it will increase
in 1 hour increments. (For example, press 5
times to get 2.5h, and press 10 times to get
5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer
to 0.0h.
3. Point remote to unit and wait 1sec, the
TIMER ON will be activated.
1. Press TIMER OFF button to initiate the
OFF time sequence.
3. Point remote to unit and wait 1sec, the
TIMER OFF will be activated.
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer starts
Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
Example: If current timer is 1:00PM,
to set the timer as above steps, the
unit will turn on 2.5h later (3:30PM)
and turn off at 6:00PM.
Keep in mind that the time periods
you set for both functions refer to
hours after the current time.
x5
TIMER ON
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
TIMER OFF
x10
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
TIMER OFF
xnxn
TIMER ON
xn
1 2
1 2
3
3
33
My Mode
Follow Me
LED Turbo
Ioniser
S
w
ing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
My ModeFollow Me
LE
D
Turbo
I
onis
er
S
w
ing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
If the memory feature is activated, “ ” displays for 3 seconds on the screen.
If the memory feature is stopped, “ ” displays for 3 seconds on the screen.
How to Use Advanced Functions
I SENSE function(some units)
SLEEP function
SLEEP
The SLEEP function is used to decrease energy use while
you sleep (and don’t need the same temperature settings
to stay comfortable). This function can only be activated
via remote control.
The sleep function is not available in Fan or Dry mode.
Please refer to the OWNER’S MANUAL for more details.
When the I SENSE function is activated, the remote
display is actual temperature at its location.
The remote control will send this signal to the air
conditioner every 3 minutes interval until press the
I SENSE button again.
OF
While the memory feature is activated, press the ON/OFF button, shift the mode or
power failure will not cancel I SENSE function.
NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.
On
34
I SENSE
SHORT CUT function(some units)
SHORT CUT
Used to restore the current settings
or resume previous settings.
Push this button when remote controller is on, the system will automatically revert
back to the previous settings including operating mode, setting temperature,
fan speed level and sleep feature(if activated).
If pushing more than 2 seconds, the system will automatically restore the current
operation settings including operating mode, setting temperature, fan speed level
and sleep feature(if activated ).
NOTES
• Button design is based on a typical model and may slightly vary from the actual
one you purchased.
• This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
•
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modifications not approved by the party responsible for compliance
could void users authority to operate the equipment.
Battery Warning:
Do not mix old and new batteries and Do not mix alkaline, standard (carbon-zinc)
or rechargeable (ni-cad, ni-mh, etc.) batteries
Unique Identifier: Midea brand，RG51H2(2)/CEFU1-M
Responsible Party U.S. Contact Information
Midea America Corporation
300 Kimball Dr
Parsippany NJ
07054
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Telephone number or internet contact information: Midea.com/us
FCC Compliance Statement ( products subject to Part 15)
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
35
Declaration of Conformity
We hereby declare that this AC is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Specification of Wireless Module
Model: US-SK109 Dimensions: 41 x 24 x 5 (mm)
Operation Temperature: 0°C ~ 45°C / 32°F ~ 113°F
Antenna Type: Printed PCB Antenna
Operation Humidity: 10% ~ 85%
Frequency: WLAN 2400-2483.5 MHz
Power Input: DC 5V/500 mA
Maximum Transmitted Power: <20 dBm Max
1. Supports operating systems: Please refer to page 35.
2. In the event of a OS update, th
ere may be a delay between the update of the OS
and a related software update during which your OS may or may not be supported
until a new version is released. Your specific mobile phone or problems in your
network may prevent the system from working and Midea will not be responsible
for any problems that could be caused by incompatibility or network issues.
3. This Smart AC
only supports WPA-PSK/WPA2-PSK (recommended) encryption.
4. To ensure proper scanning of t
he QR code, your smart phone must have at least a
5-megapixel camera.
5. Due to unstable network connectivity, requests may time out. If this happens, rerun
the network configuration.
6. Due to unstable network connectivity, commands may time out. If this happens,
the smartphone app and the actual product may display conflicting information.
The information displayed on the actual product is always the most accurate
available. Refresh the app to re-sync.
Midea will not be responsible for any problems that could be caused by
incompatibility or network issues, your wireless router and mobile phone.
NOTICE
PRECAUTIONS
36
1
How to use SmartHome App
Ensure that your mobile phone is connected to the wireless network. Bluetooth must
be turned on.
The device must also be powered up.
Scan the QR code below to download the SmartHome app from app store or search
for it directly on the Google Play Store or Apple's App Store.
Step 1: Download the SmartHome app
Open the SmartHome app. Log in directly if you have an existing SmartHome account
or create a new account. Alternatively, you can also use a 3rd party login platform.
Step 2: Log in
Download the app
& activate product
37
1) When you log in, you may see the message "Smart devices discovered nearby".
Tap to add your device.
2) If no such message appears, proceed as follows: Tap on "+" and select your device
in the list of nearby available devices.
If your device is not listed, please add your device manually, first selecting the device
category e.g. Window
AC.
Step 3: Connecting the device
38
39
After pairing successfully, a card will be created for the device in the SmartHome app.
Shortcuts for basic functions will appear on the card such as changing the temperature
or switching the device on or off.
Tapping on the card, will reveal additional features and settings. The actual UI design
may look different from examples due to app updates.
Step 4: Controlling the device
SmartHome
3) Follow the steps in the app to connect your device to the wireless network. If
your device fails to connect, follow the additional instructions in the app.
Add device
For Window AC For Portable
AC
Add device
40
2
How to use Matter
Connect Your Air Conditioner through Matter
Make sure your mobile device is connected to your wireless router.
Wireless router should support and turn on IPv6. Please make sure your smartphone
connects to 2.4G but not 5G network.
Matter is a connectivity technology that unifies the smart home by allowing devices and
ecosystems (such as Alexa, Google Home and Apple Home) to speak the same language
thus creating exciting new features and use cases.
To use Matter, you will need at least one Matter enabled smart speaker from Amazon,
Google or Apple, and it's respective app.
-- If you have a Matter enabled smart speaker, please proceed to the "How to use
Matter" instructions on the following pages.
-- If you don't have a Matter enabled smart speaker, you won't be able to use
Matter right now. However, you can still achieve full functionality of the product by
using our SmartHome app. To do this, proceed to the "How to use SmartHome app"
section back on page 35.
Step 1: Connect to smart speaker
Select your preferred ecosystem (Alexa, Google Home or Apple Home) and make sure
you’ve got one of their Matter enabled products (such as their smart speakers)
connected to your wireless router.
Apple Home Google Home Alexa
For best Matter compatibility, connect the AC to the Alexa, Google Home or Apple Home
ecosystems along with at least one of their respective Matter enabled smart speakers.
41

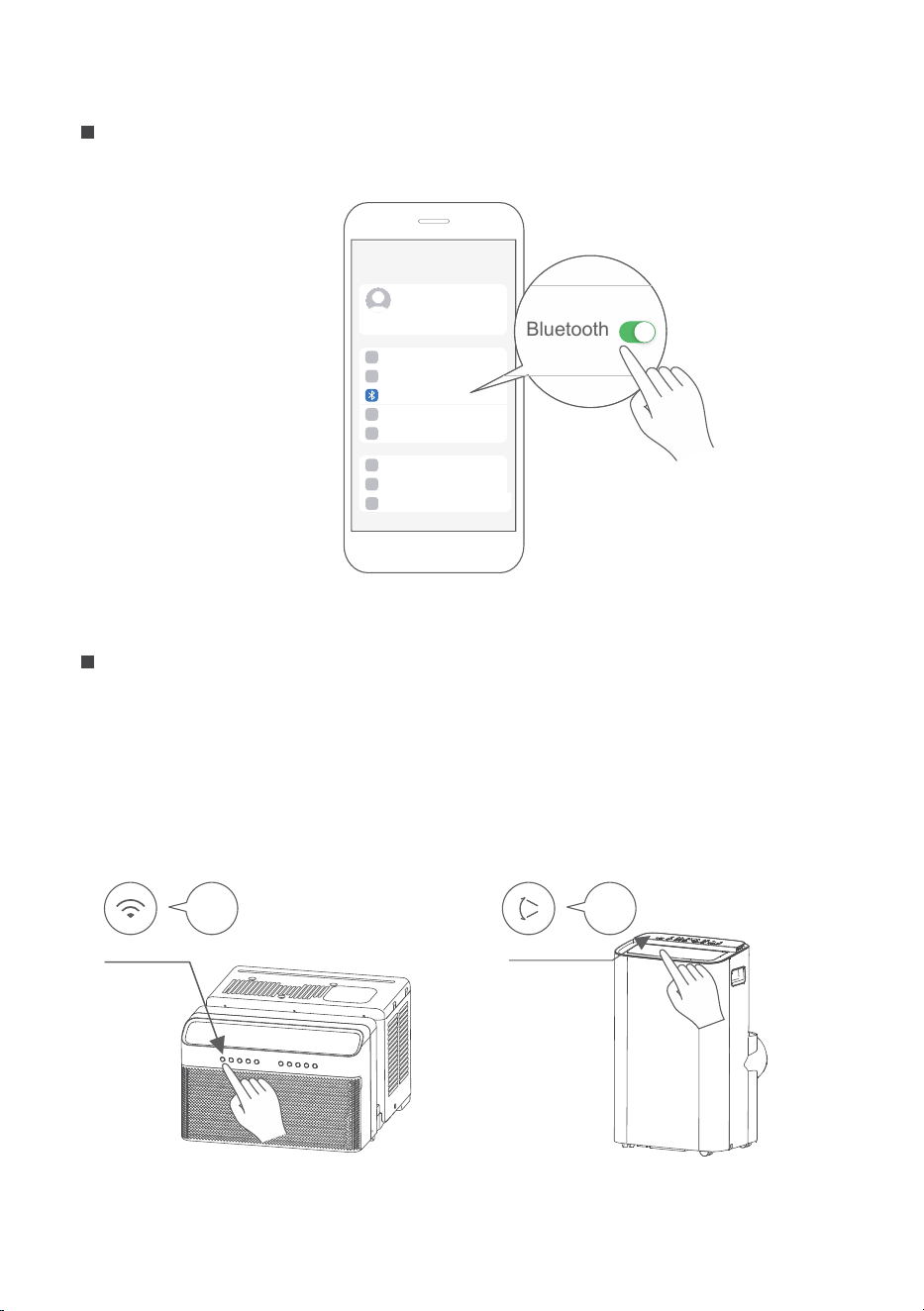

Turn on Bluetooth on your mobile device.
Step 2: Turn on Bluetooth
Settings
Bluetooth
Bluetooth
Window AC: Hold down the CONNECT / Power button for 3 seconds to begin the
pairing process (“AP” will appear on the AC’s display).
Portable AC: Hold down the SWING / Power button for 3 seconds to begin the pairing
process (“AP” will appear on the AC’s display).
Note: Entering AP pairing mode may vary between different AC, please follow
instruction of AC panel.
Step 3: Enter AP mode
AP
CONNECT
AP
SWING
Window AC Portable AC
42

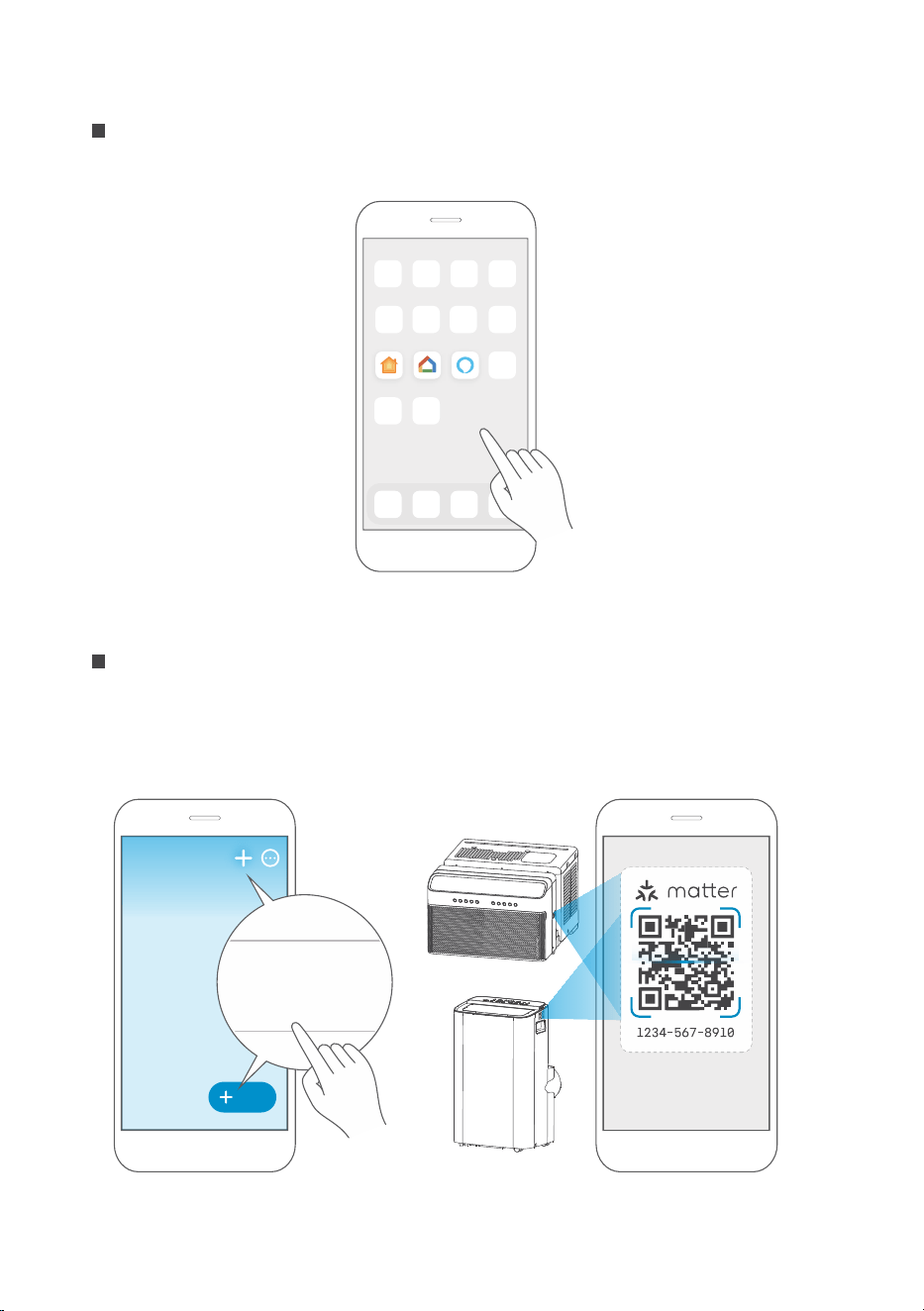

Open the Alexa, Google Home, Apple Home app on your mobile device.
Step 4: Open app
Apple Home Google Home Alexa
Tap the “+” and “Add Device/Accessory” or tap "+Add" in your app and then select
Matter device and scan the Matter QR code found on the side of the AC device.
Follow the respective instructions in the Alexa, Google Home or Apple Home app to
complete the pairing process.
Step 5: Scan matter QR code
Add
Add Device/Accessory
scan
Matter QR code
43
After pairing is successful, you can control your AC’s temperature and mode settings,
etc. through the respective ecosystem app and smart speaker.
Due to a compatibility issue, the temperature value shown in the Alexa, Google Home
or Apple Home app may be 1 degree different from that displayed on the air conditioner.
However, this will not impact the device's ability to cool the room.
Step 6: Control device
Air conditioner
44
NOTE:
The functions shown in the Alexa, Google Home or Apple Home apps may change
with updates to their products or apps.
Setup processes and features may vary between ecosystems.
Make sure the Matter enabled app is up to date to ensure the best experience.
Periodically, we will update the device’s software to improve the experience.
Device software updates can be accomplished through the SmartHome app.
is developed by the Connectivity Standards Alliance TM. This brand,
related logos, and marks are trademarks of the Alliance, all rights reserved.
Use of the Works with Apple badge means that an accessory has been designed to
work specifically with the technology identified in the badge and has been certified
by the developer to meet Apple’s performance standards.
Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards.
App & Smart Speakers can support Matter only when using these
versions or above.
9094439556
Google Play services min version: 22.36.15
Google Home app (GHA) min version: 2.58.24.1-dogfood
Google Hub firmware min version: 1.56.324896
(appears on hub as Chromecast firmware version)
2.2.536317
16.5
Device Version
iOS 16.5iPhone
Apple Home
Pod
Alexa Echo
Device
Android
Google
Home Hub
Alexa App
45
This device complies with Part 15 of the FCC Rules and Industry Canada’s licenceexempt
RSSs.
Operation is subject to the following two conditions:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Hereby, we declare that this AC is in compliance with the essential requirements and
other relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached
(European Union products only).
Only operate the device in accordance with the instructions supplied. Changes or
could void the user's authority to operate the equipment.This device complies with FCC
radiation exposure limits set forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during normal operation.
(1) This device may not cause interference;and
(2) This device must accept any interference,including interference that may cause
undesired operation of the device.
Declaration of conformity
FCC ID: 2ADQOMDNA23
IC: 12575A-MDNA23
NOTE:
46
WARRANTY
Air Conditioner Limited Warranty
Your product is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
•
•
Midea, through its authorized servicers will:
• Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials or
workmanship.
Consumer will be responsible for:
• Diagnostics, removal, transportation and reinstallation cost required because of service.
• Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSABILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in acordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and
in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of loosen
connections or defects in house wiring.
5. Expenses for making the a
ppliance accessible for servicing.
6. Damages to finish after intallation.
EXCLUSIONS
This warranty does not cover the following:
1) Failure caused by damage to the unit while in your possesion (other than damage caused by defect or
malfunction), by its improper installation, or by unreasonable use of the unit, including without limitation, failure to
provide reasonable and necessary maintenance or to follow the written Installation and Operating Instructions.
2) Damages caused by serviced performed by persons other than those authorized by Midea customer service; or
external causes such as abuse, misuse, inadequate power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make
no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness
for use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered or cannot
be readily determined.
NOTICE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this
limitation or exclusion may not apply to you.
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, its your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Departament.
Two Year Full warranty from the date of delivery or the purchase date, whichever is later.
The date of delivery establishes the warranty period, should service be required.
CP001UI-PA（DZ）4.0
16122000A83067
20251106
2025
