N.WDIMENSION
MAX
MOUNTING
HEIGHT
PROJECTED
AREA
BODY
TYPE
IK
RATING
3m1550g 20-30m²
30-40m²
40-50m²
1700g
1850g
4m
5m
Aluminium IK06
IK06
IK06
Aluminium
Aluminium
244x244x105mm
286x286x105mm
326x326x105mm
240756
240746
100W 13500 Lm
90° 50,000
≥0.9
>70
>70
>70
≥0.9
≥0.9
50,000
50,000
90°
90°
20200 Lm
27000 Lm
150W
200W
240776
240766
240796
240786
INPUT
VOLTAGE
CRIDF
LIFE
SPAN
[HOURS]
BEAM
ANGLE
LUMENS
WATTSMODEL SKU
INTRODUCTION & WARRANTY
TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installing and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 6 years from the date of purchase. The warranty does
not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty
against damage to any surface due to incorrect removal and installation of the product. The products are suitable
for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
The operating temperature range for these items is -20°C to +40°C.
INSTRUCTION MANUAL
LED FLOOD LIGHT
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
AC: 220-240V,
50/60Hz
AC: 220-240V,
50/60Hz
AC: 220-240V,
50/60Hz
@WIDE CONE
6
6 YEAR
WARRANTY*
VT-91102
VT-91152
VT-91202
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the
cord is damaged, the luminaire shall be destroyed.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
• For outdoor use.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.

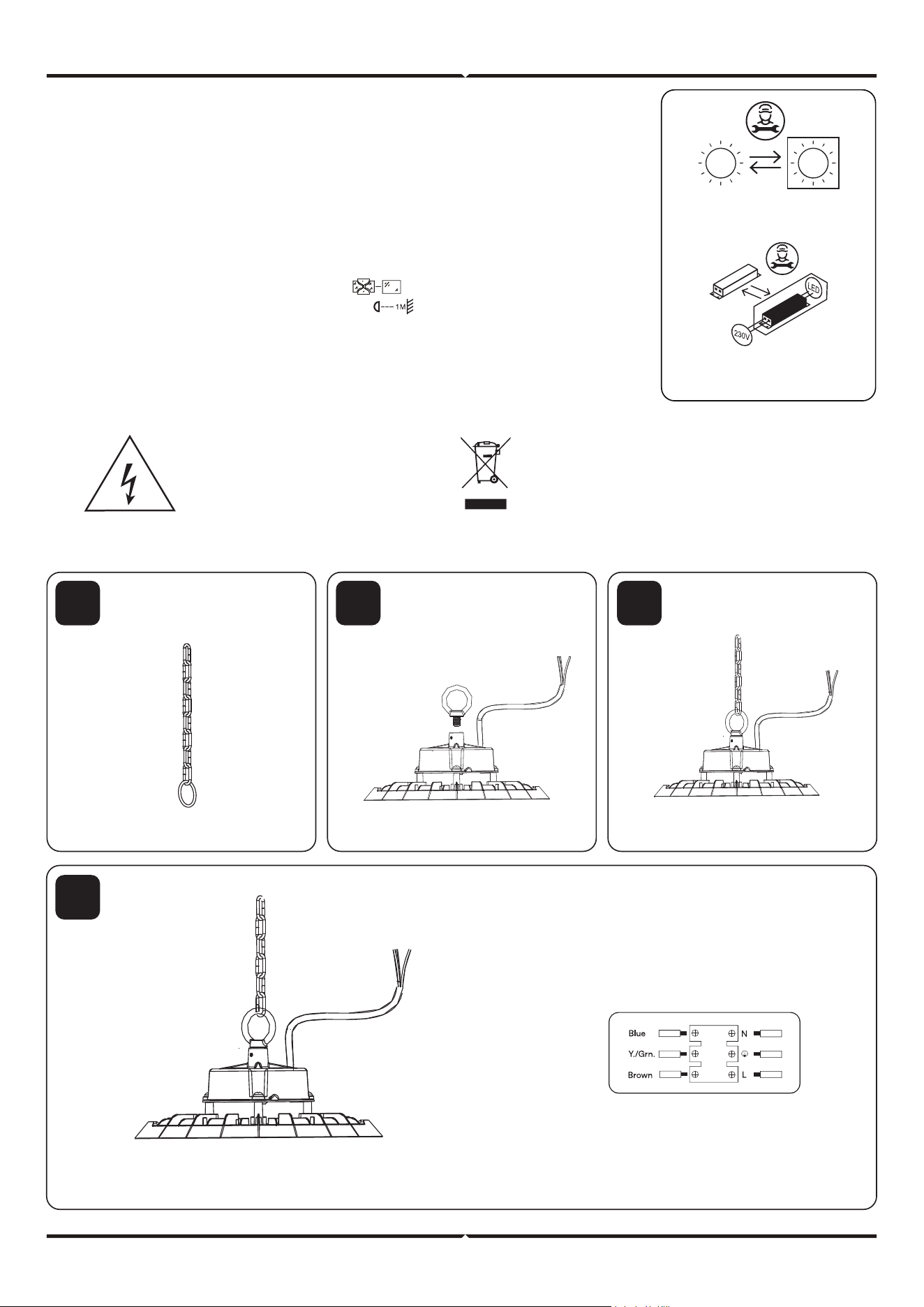

INSTALLATION DIAGRAM
1 2 3
4
WARNING
WIRE LENGTH: 120mm
WIRING DIAGRAM
NOTE
• To reduce the risk of strangulation the flexible wiring connected to this luminaire shall
be eectively fixed to the wall if the wiring is within arm's reach.
• In order to maintain the IP protection of the product, the cable entry/gland should be
installed on the bottom side.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
Replaceable light source
by a professional
Replaceable control gear
by a professional
VT-105ST - x13
• Ensure the power is turned o before starting the installation.
• Install the hanging parts (derrick or chain hoist). Ensure that the hanging parts
are strong and securely fixed.
• Attach the hook to the housing of the highbay light.
• Hang the highbay light onto the installed hanging parts.
• Connect the wiring of the highbay light according to the wiring diagram.
• Turn on the power and test the light.

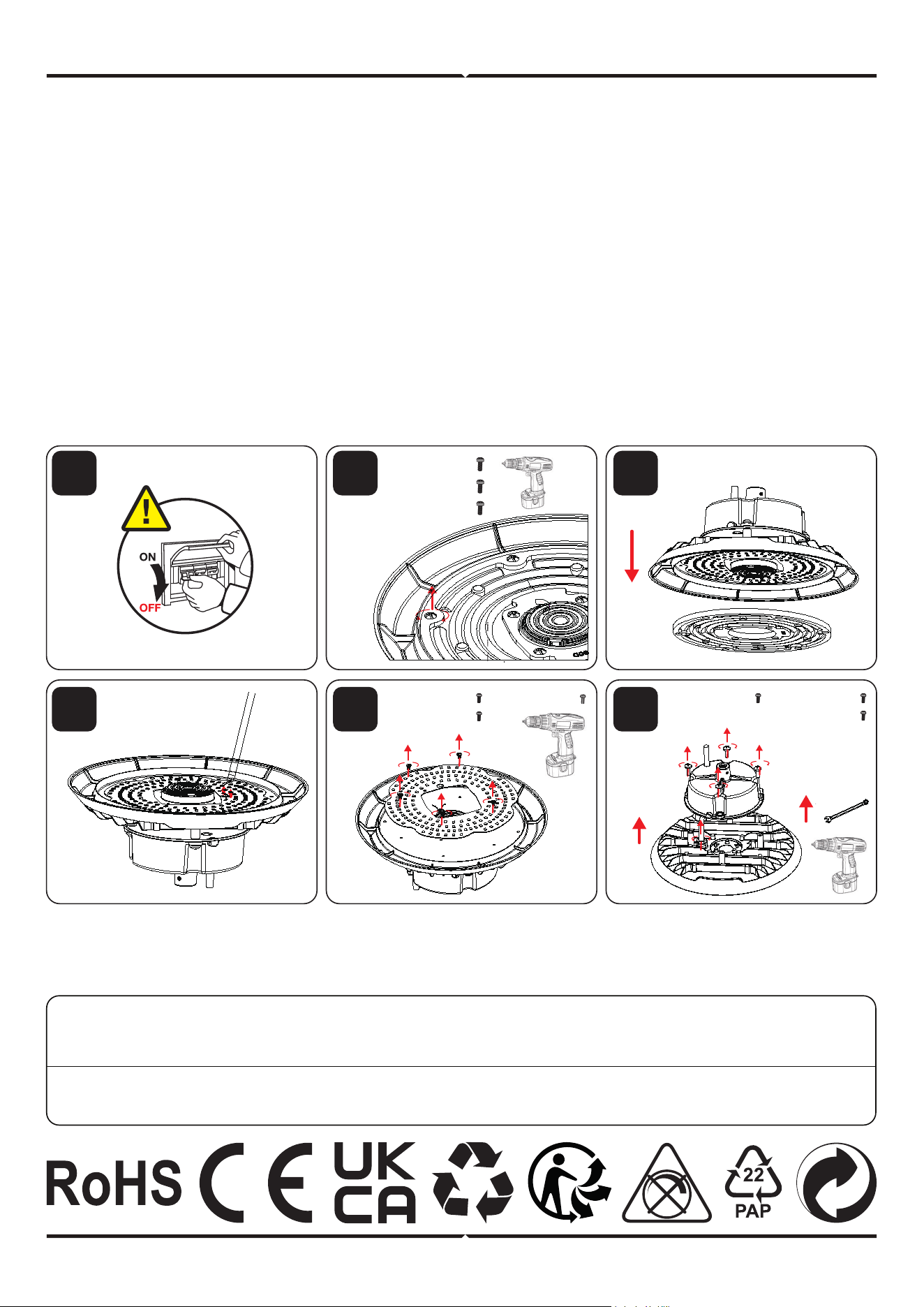

DISMANTLING INSTRUCTIONS
(For Market surveillance team only)
Note: Light source removal will void the warranty
1 2 3
4 5 6
INSTALLATION INSTRUCTIONS
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
Important: Strictly follow the instructions below during installation. Avoid applying excessive force to
the power cable. The supply connection and other external wiring conductors must be at least 3 × 1.0
mm².
VT-91152
- x10
VT-91102
- x14
VT-91202 - x14
VT-91152
-
x5
VT-91102
-
x6
VT-91202
-
x6
-
x4
-
x4
VT-91152
VT-91102
VT-91202
-
x4
