Operating and in‐
stallation instruc‐
tions
ORIGINAL OPERATOR'S MANUAL
Contents
1 Safety information and warnings......................... 3
1.1 Intended use................................................................. 3
1.2 Climate classes............................................................ 3
1.3 User group..................................................................... 3
1.4 Installation and commissioning................................ 3
1.5 Safe handling of the appliance.................................. 4
1.6 Cleaning......................................................................... 4
1.7 Faults, damage and repairs........................................ 4
1.8 Disposal......................................................................... 4
1.9 Conformity..................................................................... 4
1.10 SVHC substances in accordance with the REACH
Regulation..................................................................... 4
1.11 EPREL database........................................................... 4
1.12 Open source licences.................................................. 4
1.13 Spare parts.................................................................... 4
1.14 Symbols on the appliance.......................................... 4
1.15 Warning levels.............................................................. 5
2 Appliance at a glance............................................ 5
2.1 Scope of delivery.......................................................... 5
2.2 Overview of appliances and equipment................... 5
2.3 SmartDevice.................................................................. 5
3 Setting up and connecting.................................... 6
3.1 Installation requirements........................................... 6
3.2 Integration into a kitchen unit................................... 6
3.3 Appliance dimensions................................................. 6
3.4 Ventilation requirements............................................ 7
3.5 Connection dimensions for the power supply........ 7
3.6 Water connection......................................................... 7
3.7 Transporting the appliance........................................ 8
3.8 Unpacking the appliance............................................ 8
3.9 Explanation of symbols used..................................... 8

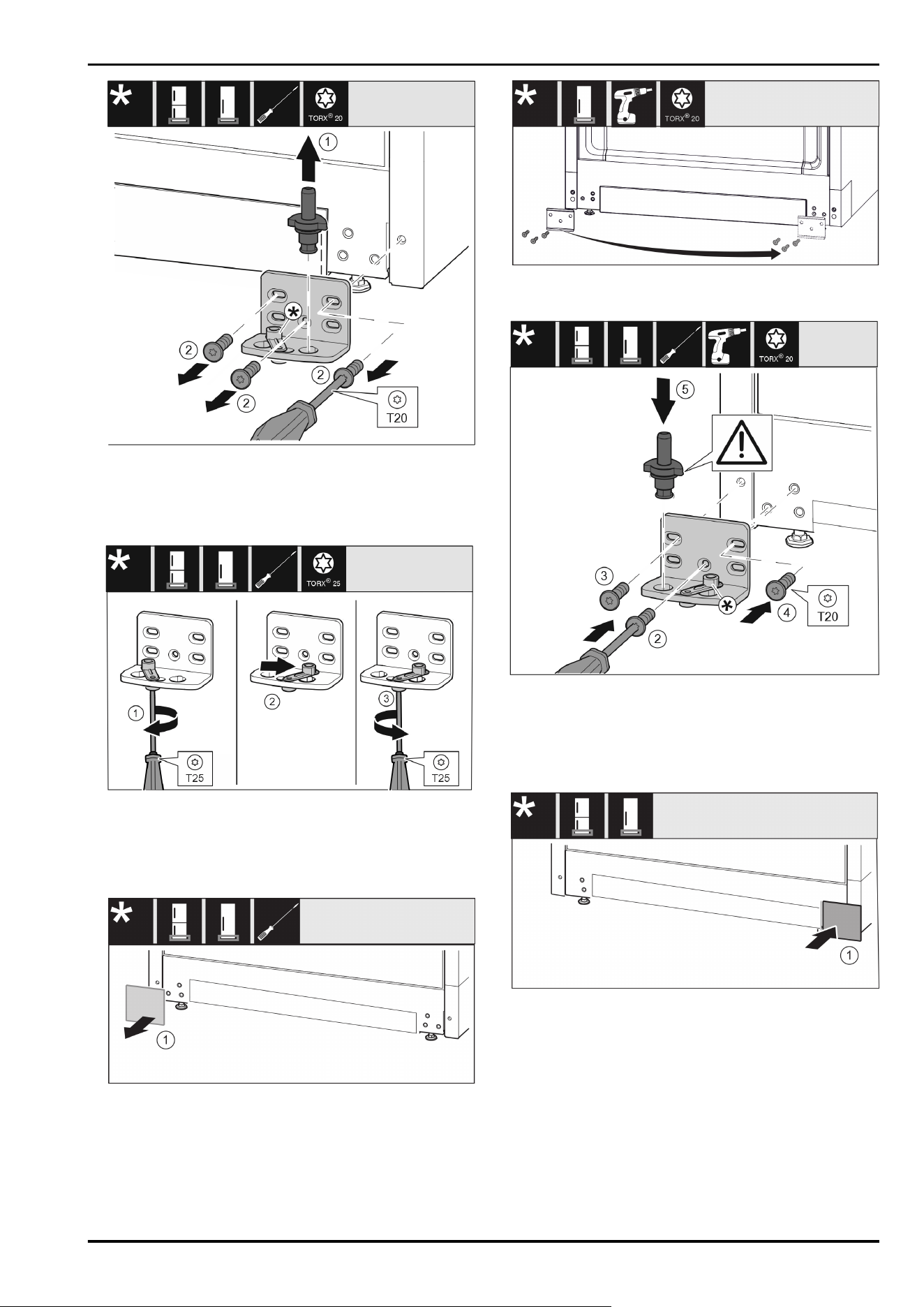

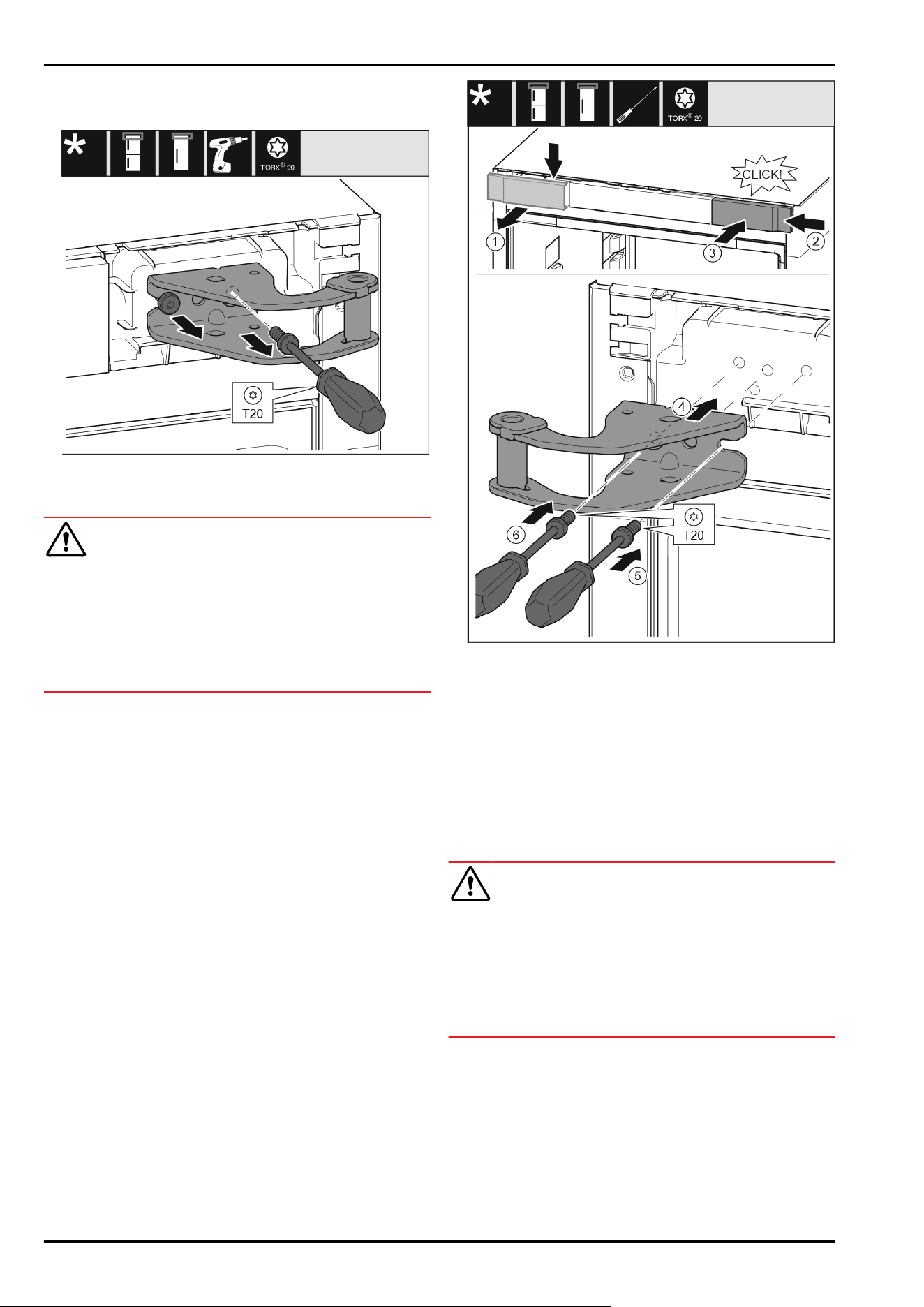

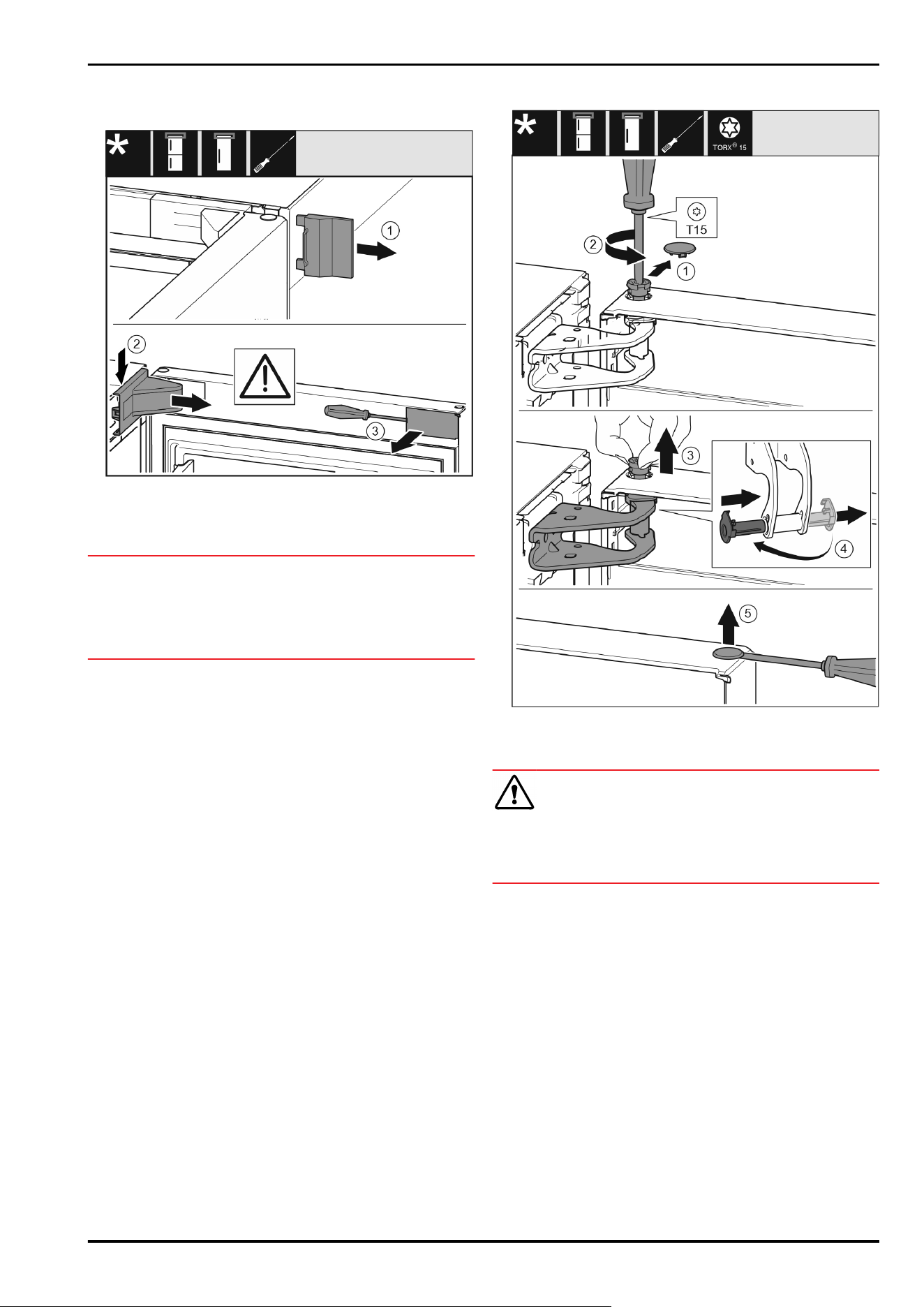

3.10 Door hinge change....................................................... 9
3.11 Connecting the appliance to the water supply....... 14
3.12 Mounting wall spacers*.............................................. 15
3.13 Setting up the appliance............................................ 15
3.14 Setting up the appliance so that it is level.............. 15
3.15 After setting up............................................................ 15
3.16 Installing multiple appliances.................................... 15
3.17 Integrating the appliance into a kitchen unit.......... 16
3.18 Disposing of packaging............................................... 17
3.19 Connecting the appliance to the power supply...... 17
4 Functionality of the Touch display....................... 17
4.1 Navigation and symbol explanation......................... 17
4.2 Menus............................................................................. 18
4.3 Sleep mode................................................................... 18
5 Putting into operation........................................... 19
5.1 Switching on appliance (first use)............................ 19
5.2 Starting the IceMaker for the first time................... 19
6 Storage.................................................................. 19
6.1 Information regarding storage................................... 19
6.2 Freezer compartment.................................................. 19
6.3 Storage times............................................................... 20
7 Saving energy........................................................ 20
8 Controls................................................................. 20
8.1 Controls and displays.................................................. 20
8.1.1 Status display........................................................... 20
8.1.2 Display symbols........................................................20
8.2 Appliance functions..................................................... 21
8.2.1 Notes on the appliance functions..........................21
Switching the appliance off and on......................21
Temperature..............................................................21
SuperFrost.................................................................21
PartyMode ................................................................22
SabbathMode........................................................... 22
E-Saver ..................................................................... 23
IceMaker ...................................................................23
IceMaker water supply............................................24
MaxIce....................................................................... 24
TubeClean ................................................................ 25
Input lock.................................................................. 25
Reminder...................................................................25
Temperature unit..................................................... 26
Display brightness...................................................26
WiFi............................................................................ 26
Device information...................................................27
Software....................................................................27
Start defrosting cycle............................................. 28
Door alarm................................................................ 28
Demo mode...............................................................28
Resetting to factory settings.................................29
8.3 Messages...................................................................... 29
8.3.1 Overview of warnings.............................................. 29
8.3.2 Ending warnings.......................................................30
8.3.3 Overview of reminders.............................................30
8.3.4 Ending reminders...................................................... 31
9 Features................................................................. 31
9.1 Drawers.......................................................................... 31
9.2 Pull-out board with IceTower..................................... 32

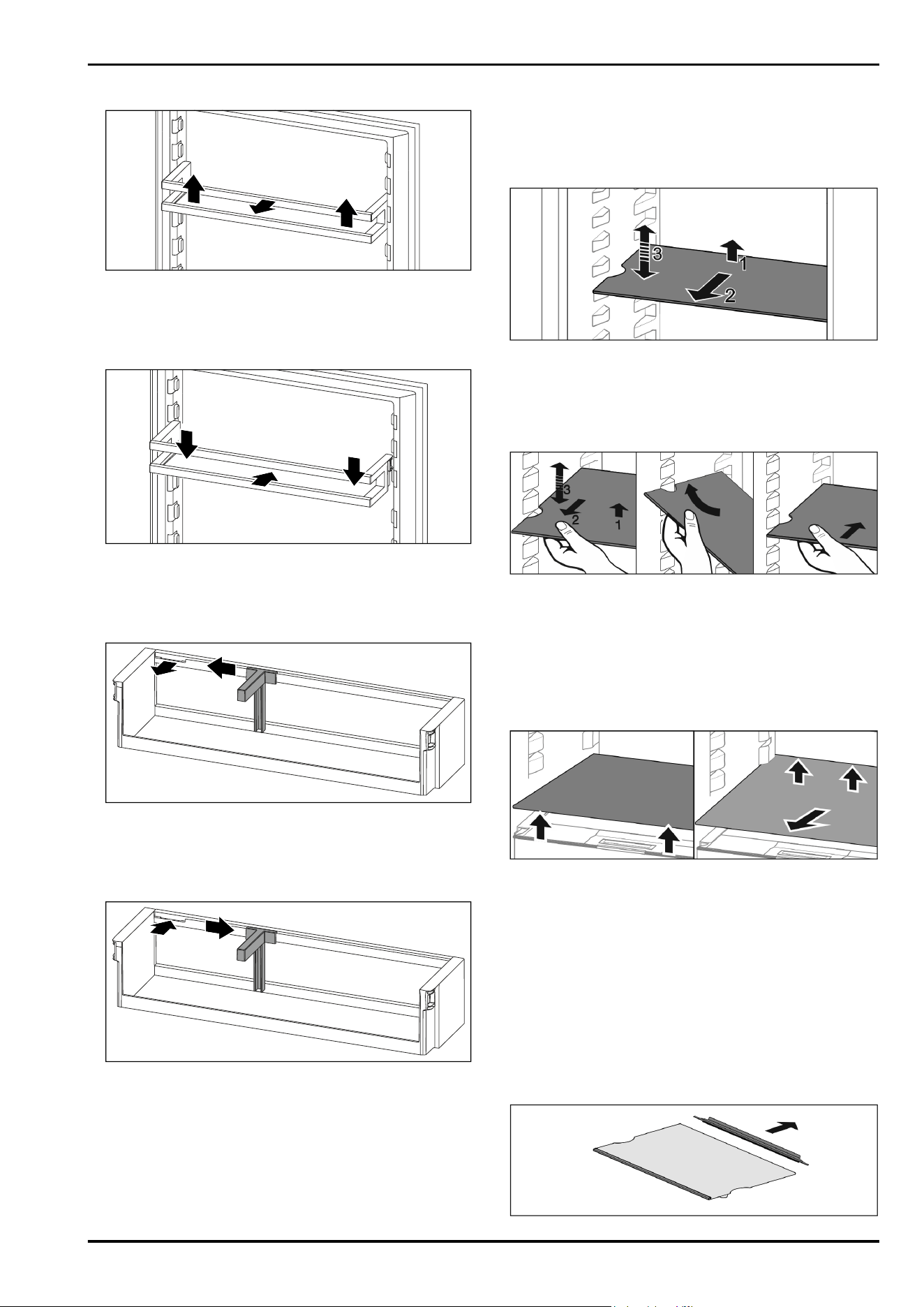

9.3 Glass shelves................................................................ 34
9.4 IceMaker........................................................................ 34
9.5 VarioSpace.................................................................... 34
10 Maintenance.......................................................... 34

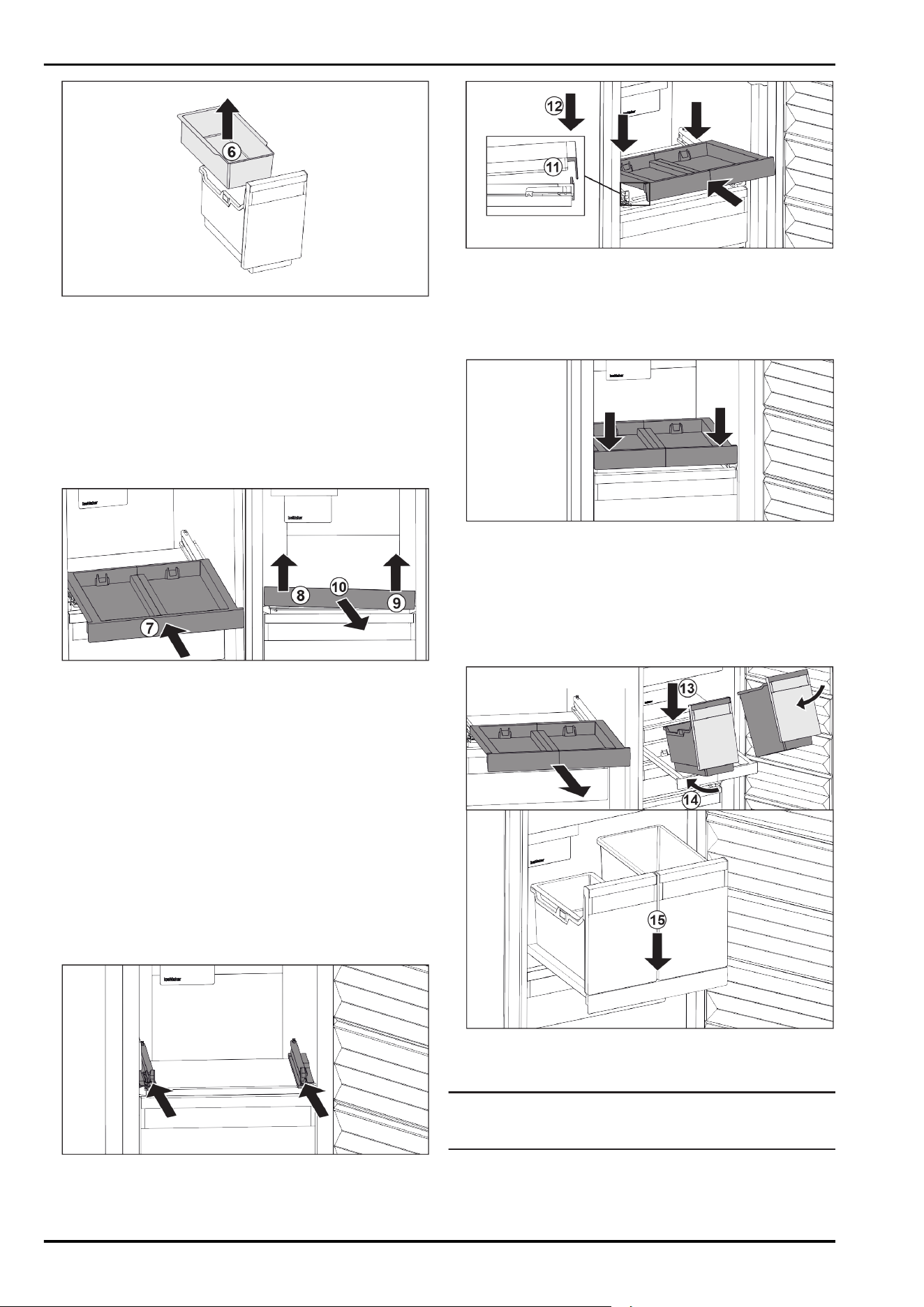

10.1 Disassembling / assembling pull-out systems...... 34
10.2 Defrosting the appliance............................................ 36
10.3 Cleaning the appliance............................................... 36
11 Customer help....................................................... 37
11.1 Technical specifications............................................. 37
11.2 Operating noises.......................................................... 38
11.3 Technical fault.............................................................. 38
11.4 Customer Service......................................................... 39
11.5 Model plate................................................................... 40
12 Shutting down....................................................... 40
13 Disposal................................................................. 40
13.1 Preparing the appliance for disposal........................ 40
2 * Depending on model and options
13.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 40
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

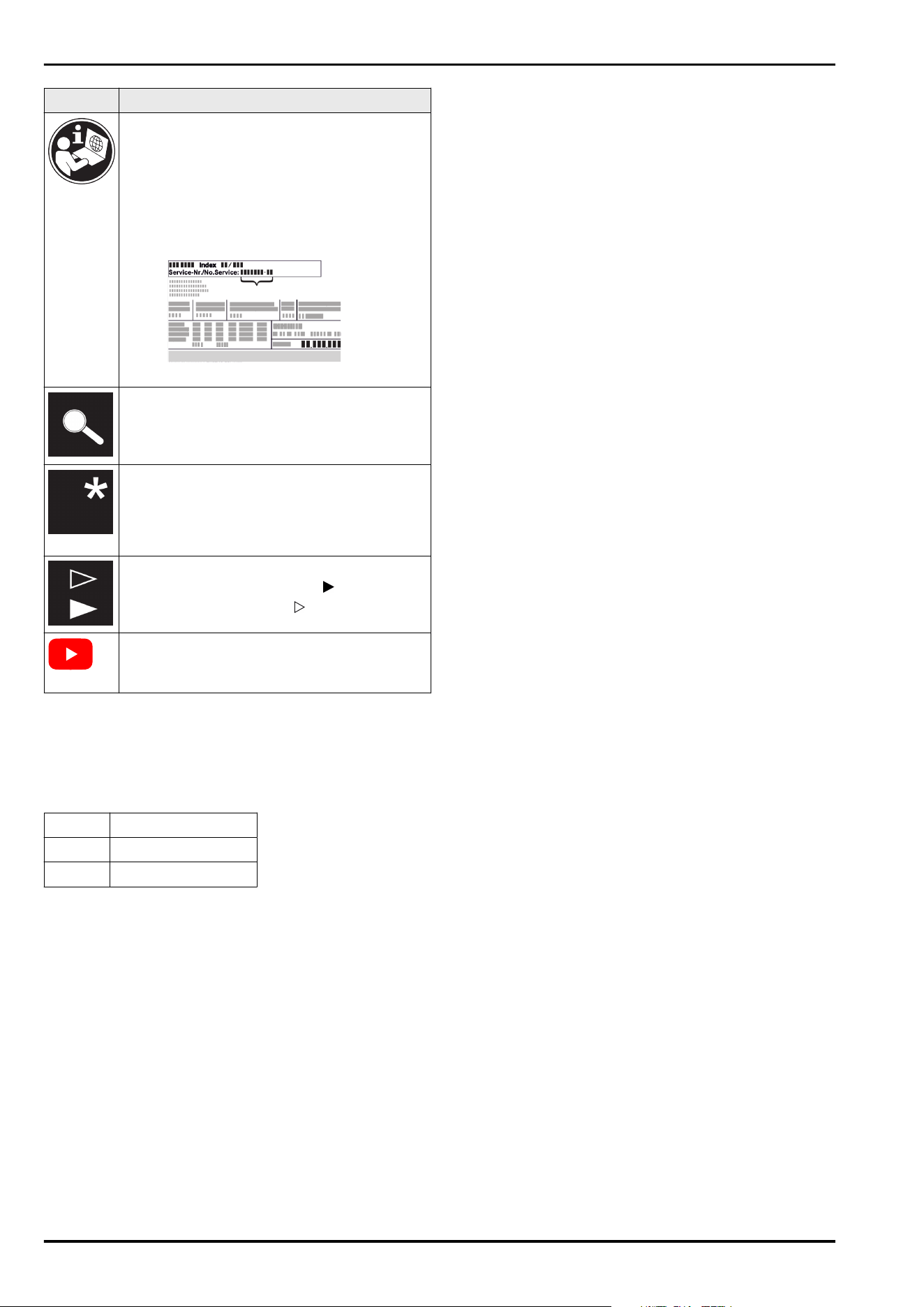

Symbol Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.

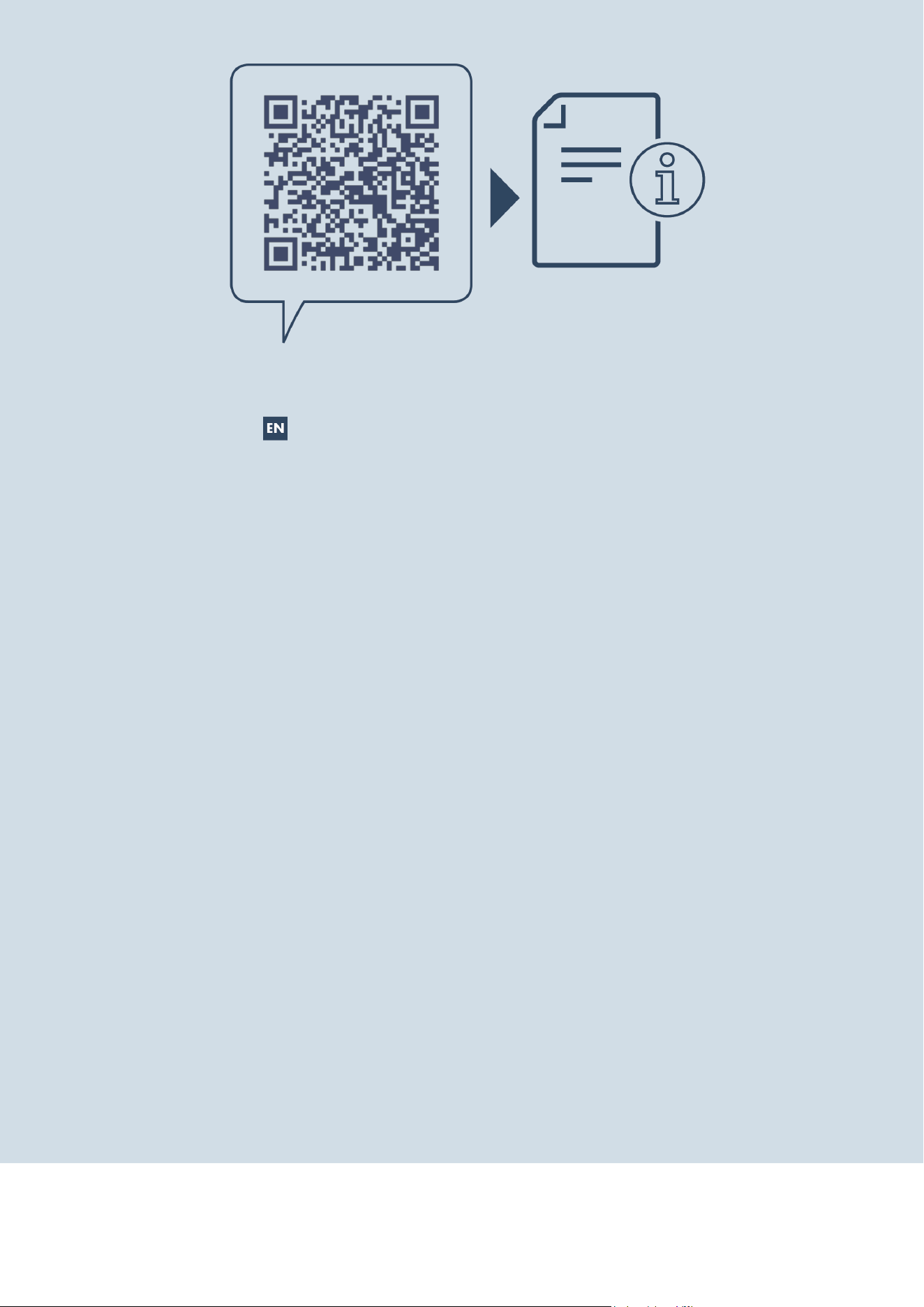

Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.

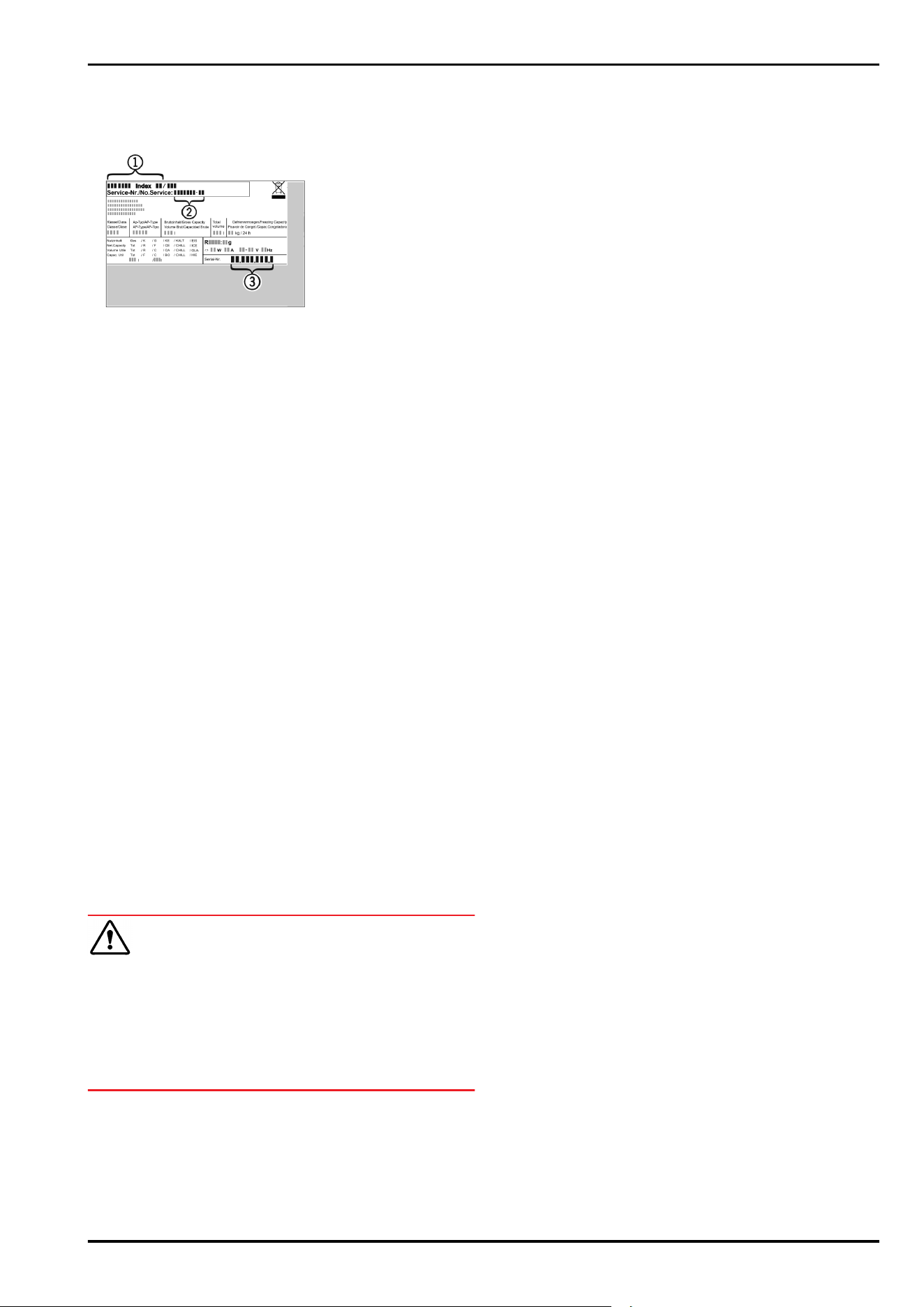

The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
This user information applies to the following appliances:
SFN..
52..
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.
1 Safety information and warnings
Keep this user information in a safe place so that you can
refer to it at any time.
If you pass on the appliance, pass this user information on
to subsequent owners.
To use the appliance properly and safely, read this user
information carefully before installation and use. Always
follow the instructions, safety instructions and warnings
contained therein. They are important so that you can install
and operate the appliance safely and properly.
1.1 Intended use
This appliance is intended for household use and similar
applications such as:
-
in staff kitchen areas in shops, offices and other work
areas
-
in agricultural environments and by guests in hotels,
motels and other accommodation
-
in bed and breakfasts
-
in catering and similar wholesale operations
All other types of application are impermissible.
1.2 Climate classes
Depending on its climate class, the appliance is designed
for operation within certain ambient temperature limits. The
climate class for your appliance is printed on the type plate.
Note
► In order to guarantee fault-free operation comply with
the specified ambient temperatures.
Climate class for ambient temperatures from
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.3 User group
-
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowl‐
edge if they have been given supervision or instruction
concerning use of the appliance in a safe way and under‐
stand the hazards involved.
-
Children must not play with the appliance.
-
Children must not carry out cleaning and user mainte‐
nance without supervision.
-
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
1.4 Installation and commissioning
-
Only set up and connect the appliance in accordance
with the instructions in the user information.
-
Do not close the ventilation openings in the appliance
housing or in the installation housing.
-
Do not damage the mains cable. The appliance must not
be operated with a defective mains cable.
-
Do not place portable multiple sockets or power supply
units at the rear of the appliance.
-
It must be easy to access the socket so that the appli‐
ance can be quickly disconnected from the power supply
in case of an emergency. It must not be behind the appli‐
ance.
Safety information and warnings
* Depending on model and options 3
Appliances with fixed water connection:
-
Only connect the fixed water connection to the drinking
water supply to avoid poisoning from contaminated
water.
-
Only connect the appliance to the drinking water supply
using the new hose set supplied with the appliance. Do
not reuse old hose sets, dispose of them instead.
1.5 Safe handling of the appliance
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. These types of aerosol can be identified by the
list of contents printed on it, or by a flame symbol. Any
leaking gas may ignite due to electrical parts.
-
Keep burning candles, lamps and other objects with
naked flames away from the appliance, so that these do
not set fire to the appliance.
-
Alcoholic beverages and other containers bearing alcohol
must be sealed tight for storage. Any leaking alcohol may
ignite due to electrical parts.
-
Avoid prolonged skin contact with cold surfaces or with
cold/frozen food. Use gloves for protection, for example.
-
The refrigerant contained (information on the type plate)
is environmentally friendly but flammable. Leaking refrig‐
erant may ignite.
•
Do not damage the refrigeration circuit.
•
Do not use any ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer service.
-
Only open the door for a short time. This prevents the
temperature inside the appliance from rising.
-
Do not reach between the door and the appliance when
opening and closing. Fingers may become trapped.
-
The temperature in the warmest part of the appliance
may be higher than the set temperature.
1.6 Cleaning
-
Regularly clean surfaces that come into contact with
food.
-
Do not use an electric heater or steam cleaner, naked
flames or defrost spray to speed up the defrosting
process.
-
Do not remove the ice with sharp objects.
1.7 Faults, damage and repairs
-
If the mains connection cable of the appliance is
damaged, replace the mains connection cable.
-
Repairs and interventions on the appliance may only be
carried out by the customer service or by other qualified
personnel trained for this purpose.
-
In the event of malfunctions and appliance faults, pull
out the mains plug or switch off the fuse. Always hold
the plug when pulling out the mains plug. Never tug on
the cable.
1.8 Disposal
-
The appliance contains valuable materials and is marked
with the appropriate symbol. (see 1.14 Symbols on the
appliance)
•
Do not dispose of the appliance in the household
waste.
•
Dispose of the appliance free of charge at your
local recycling centre using the Class 1 collection
containers.
•
When purchasing a new appliance, return the old
appliance to the retailer free of charge.
•
Provide information about return options.
-
Your appliance may contain personal data.
•
Delete personal data before disposal.
-
The appliance contains refrigerant (information on the
type plate) and oil. The refrigerant inside the appliance
is environmentally friendly, but flammable. The oil it
contains is also flammable. Escaping refrigerant and oil
can ignite in high concentrations and in contact with an
external heat source.
•
Do not damage the refrigeration circuit.
•
Only dispose of the appliance in accordance with the
instructions in the user information.
1.9 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations and
directives.
The full text of the EU Declaration of Conformity is available
at the following web address: www.liebherr.com
1.10 SVHC substances in accordance
with the REACH Regulation
You can use the following link to check whether your appli‐
ance contains SVHC substances in accordance with the
REACH Regulation:
home.liebherr.com/en/en/liebherr-experience/sustaina‐
bility/environment/scip/scip.html
1.11 EPREL database
From 1 March 2021, the information on energy labelling and
eco-design requirements will be available in the European
product database (EPREL). The product database can be
accessed via the following link https://eprel.ec.europa.eu/.
Here, you are asked to enter the model identifier. You will
find the model identifier on the type plate.
1.12 Open source licences
The appliance contains software components that use open
source licences. Information on the open source licences
used can be found here:
home.liebherr.com/open-source-licences
1.13 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.

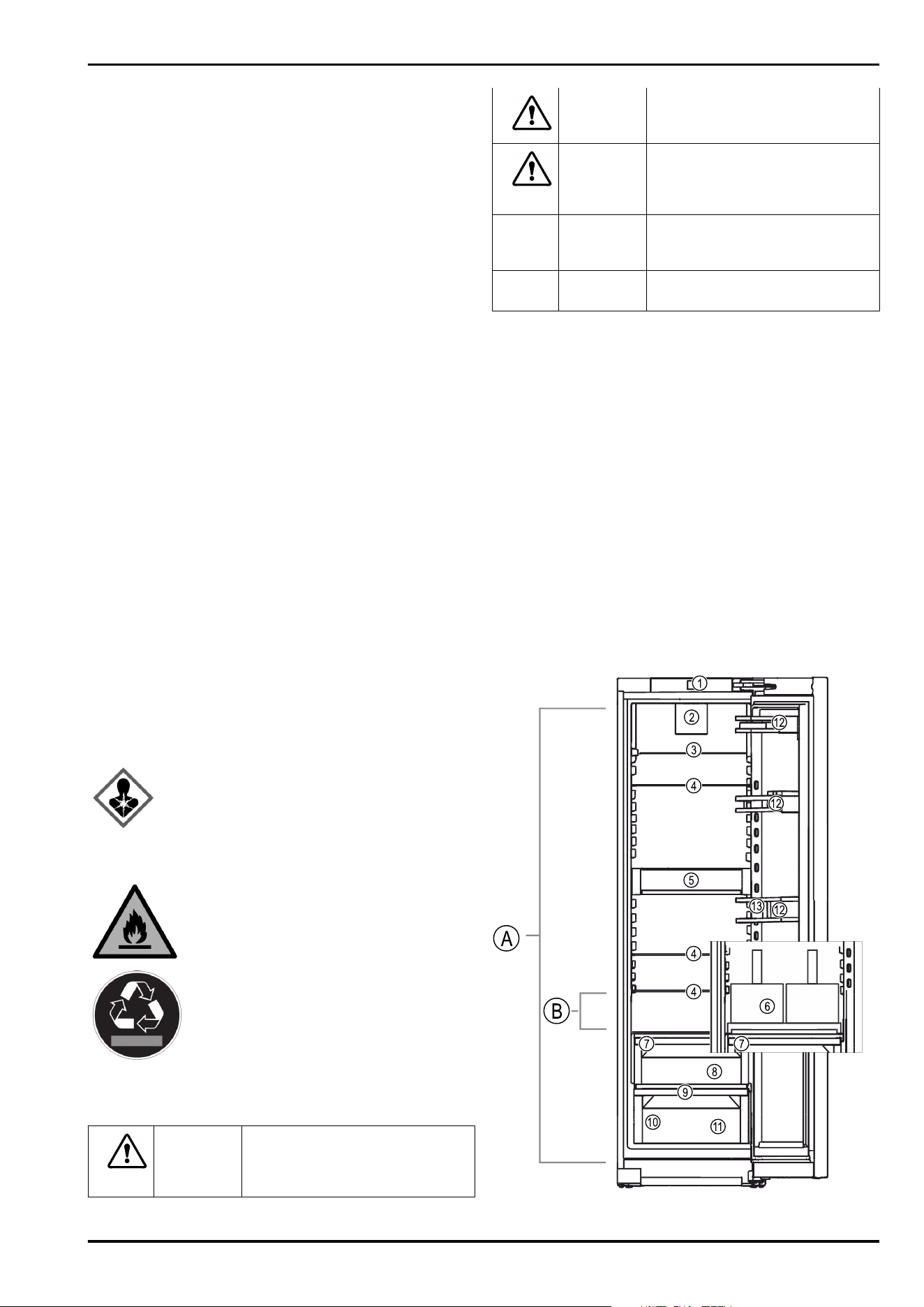

1.14 Symbols on the appliance
This symbol may be found on the
compressor. It pertains to the oil in the
compressor and indicates the following
danger: Can be fatal if swallowed or with
penetration of the respiratory tract. This
information is only significant for recycling.
No risk exists with normal use. Do not
remove this symbol.
Safety information and warnings
4 * Depending on model and options
Warning: Fire hazard due to flammable
substances. This symbol is located on the
compressor and can also be found in other
places on the appliance. This symbol warns
of flammable substances. Do not remove
this symbol.
This or a similar symbol may be on the rear
of the appliance. It indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
information is only significant for recycling.
Do not remove this symbol.
This symbol is located on the type plate.
It indicates that the appliance contains
valuable materials and that you must not
dispose of it with household waste.
(see1.8Disposal)
1.15 Warning levels
DANGER
Identifies an immediately
dangerous situation that will
result in death or serious bodily
injuries if it is not prevented.
WARNING
Identifies a dangerous situation
that could result in death or
serious bodily injury if it is not
prevented.
CAUTION
Identifies an immediately
dangerous situation that could
result in slight or moderate injuries
if it is not prevented.
ATTENTION Identifies a hazardous situation
that could result in property
damage if it is not prevented.
Note Identifies useful information and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see11.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
Service Brochure
2.2 Overview of appliances and equip‐
ment

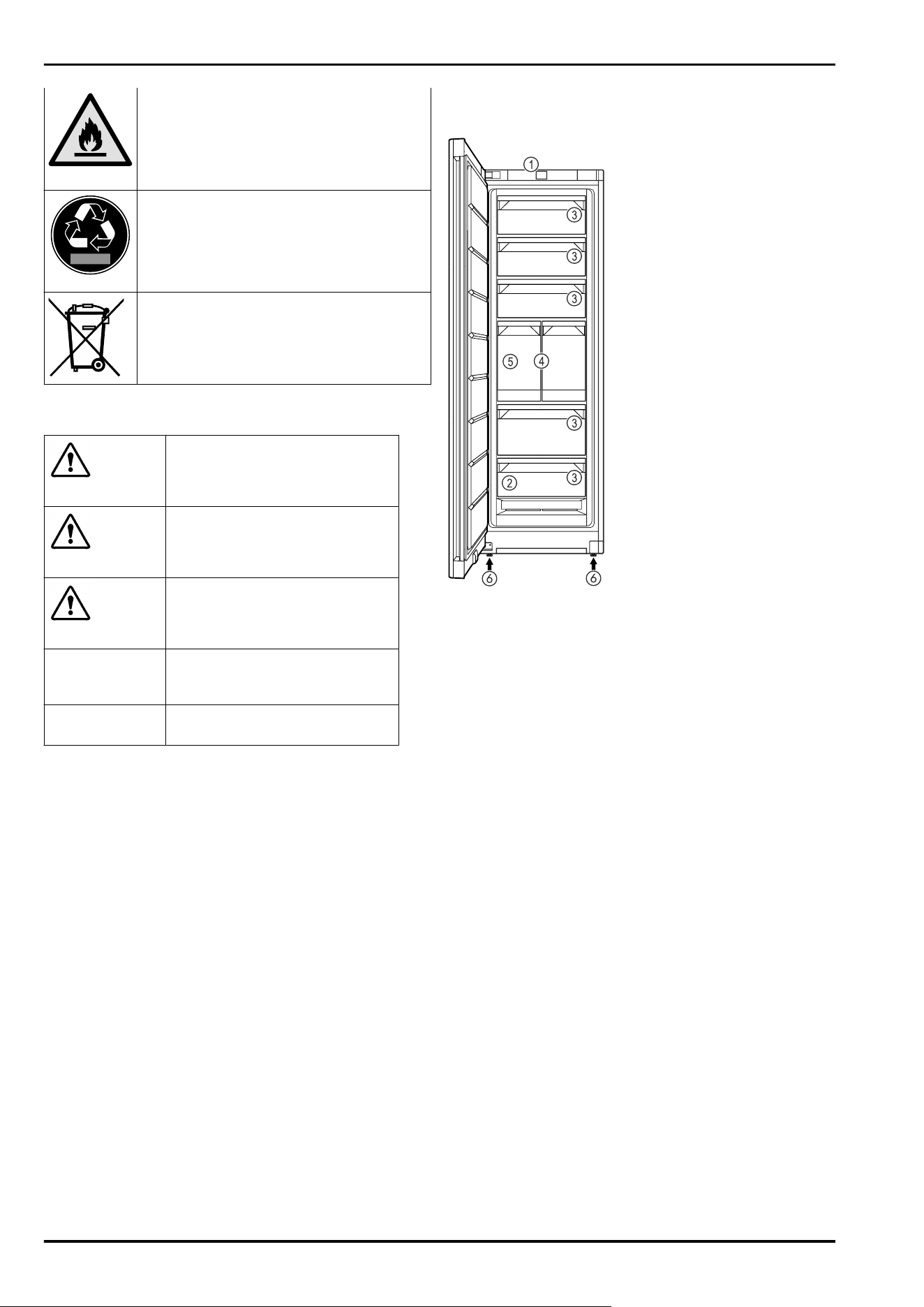

Fig. 1 Example illustration
(1)
Controls (4) IceTower
(2) Type plate (5) IceMaker
(3) Drawer (6) Adjustable foot
2.3 SmartDevice
SmartDevice is the networking solution for your freezer.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Appliance at a glance
* Depending on model and options 5
Downloading the
SmartDevice app:
After installing and configuring
the SmartDevice app, you can
connect your appliance to your Wi-Fi
(see WiFi) using the SmartDevice app
and the appliance's Wi-Fi function.
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
3 Setting up and connecting
3.1 Installation requirements
The installation conditions are crucial to ensure that you
can operate your appliance safely, efficiently and without
problems.
-
Observe all safety instructions.
-
Consider the location and position in the room.

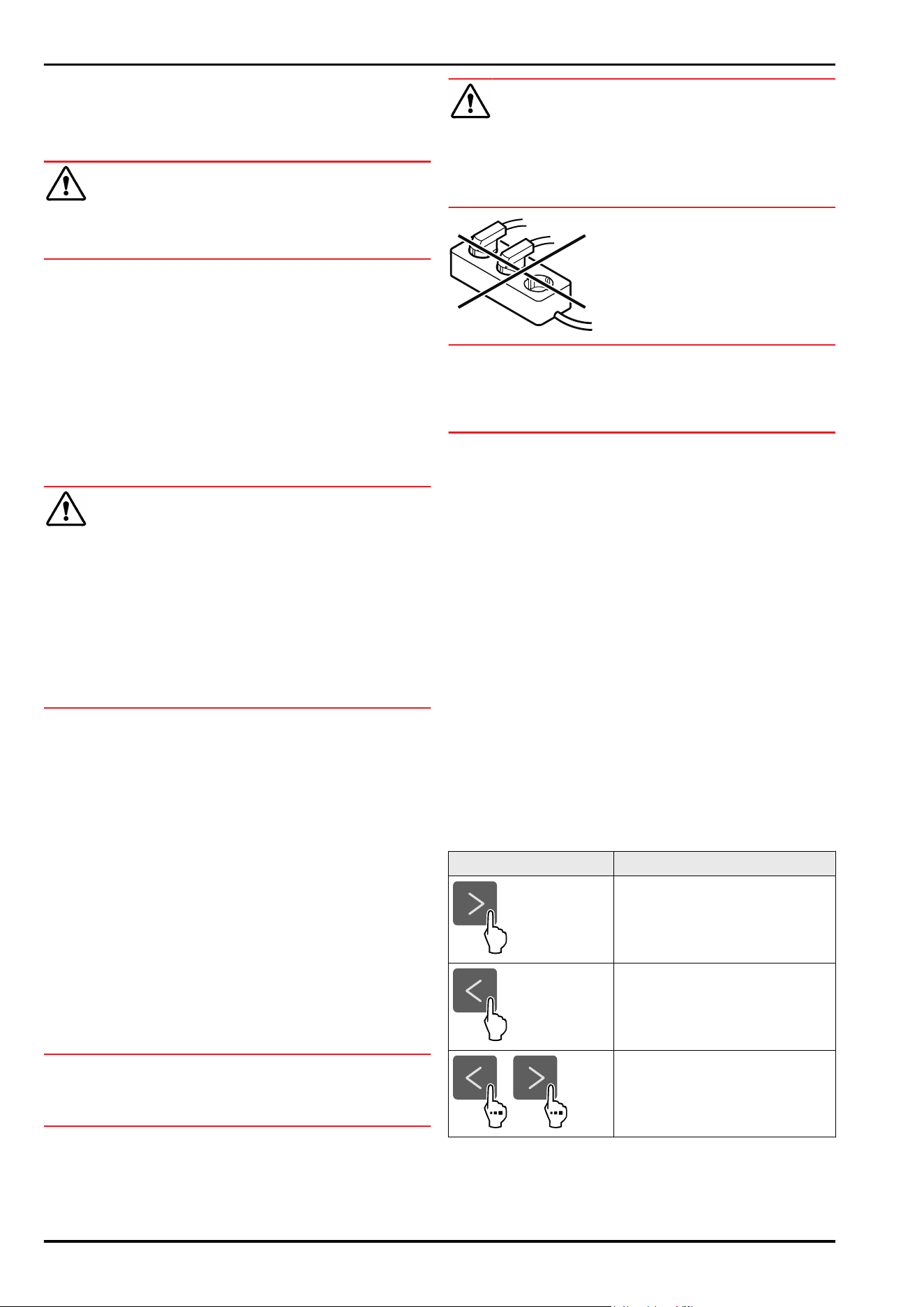

WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
► Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
► Stand the appliance so that it is not touched by connec‐
tors or main cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
► The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
3.1.1 Installation site
-
Only set up and use the appliance in enclosed spaces.
-
A dry and well-ventilated room is an optimum installation
location.
-
If the appliance is installed in a very damp environment,
condensation may form on the appliance exterior.
Always make sure there is good ventilation and aeration
at the installation site.
-
The more refrigerant there is in the appliance, the larger
than room must be in which it is located. In rooms that
are too small, a leak can product a flammable gas/air
mixture. For every 8g of refrigerant, the installation room
must be at least 1 m
3
in size. Information on the refrig‐
erant contained is given on the type plate inside the
appliance.
-
The floor on which the appliance stands must be hori‐
zontal and level.

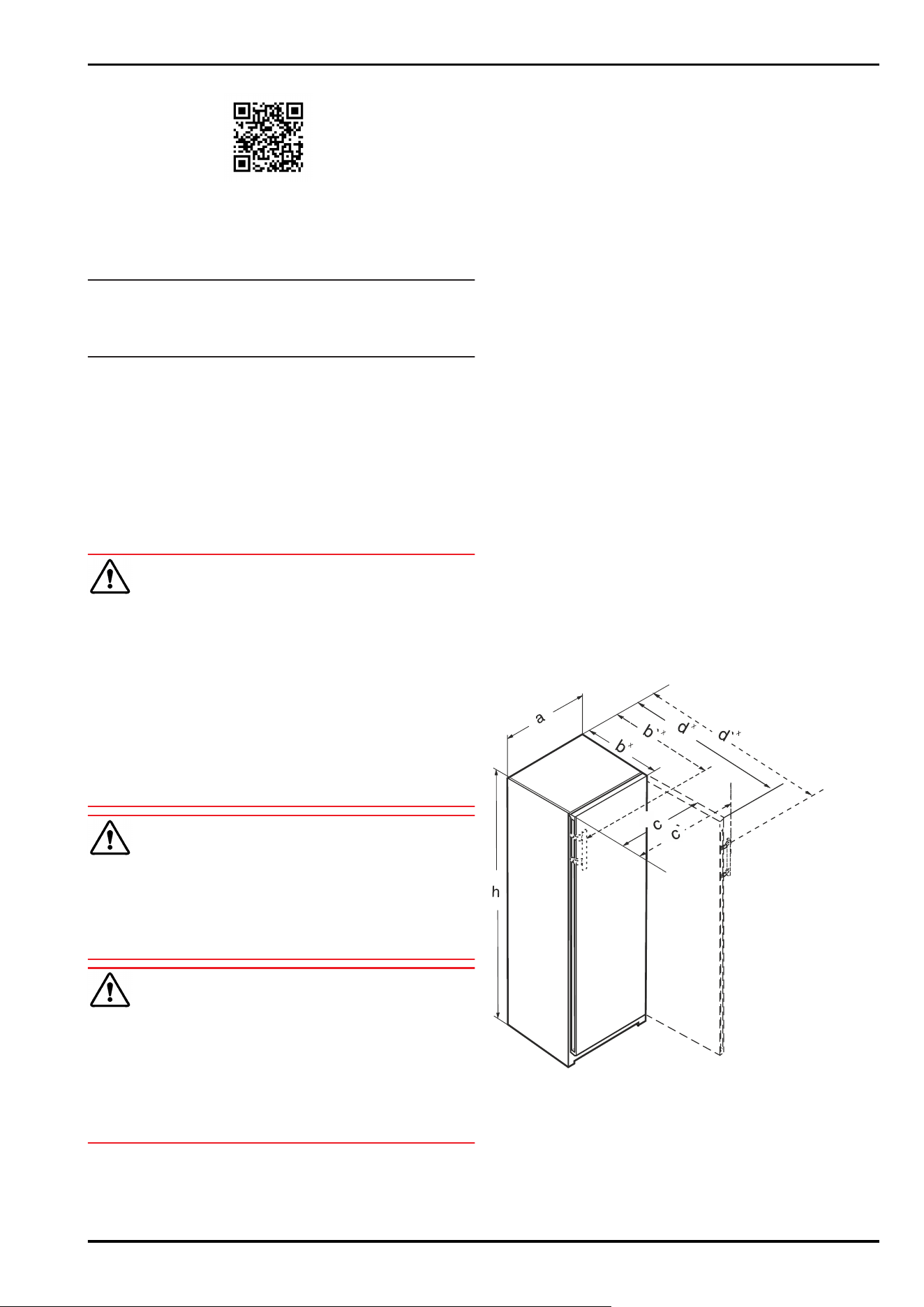

3.1.2 Position in space
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
You can place the appliance directly next to an oven.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Always position the appliance with the rear directly
against the wall, or with wall spacer brackets attached
(see below) then with these directly against the wall.*
-
Always position the appliance with the rear directly on
the wall.*
-
Use in hazardous areas is not permitted.
3.2 Integration into a kitchen unit
-
You can convert the appliance with kitchen cabinets.
3.3 Appliance dimensions
Fig.2
(a)
Appliance width (d) Appliance depth with
door open
(b) Appliance depth (') Dimensions with lever
handle
(c) Appliance width with
door open
Setting up and connecting
6 * Depending on model and options
3.3.1 Appliances with a recessed grip
FN.. 42.. / GN 42Vd24
a (mm) 597
b (mm)
675
x
c (mm) 609
d (mm)
1215
x
h (mm) 1255
With a recessed grip
FN.. 46../
GN 46Ve05/
GN 46Vd25
FN..66..
a (mm) 597 698
b (mm)
675
x
760
x
c (mm) 609 710
d (mm)
1215
x
1402
x
h (mm) 1455 1455
With a recessed grip
FN.. 50../
GN 50Ve06/
GN 05Vd26
FN.. 70../
LTGN-314
a (mm) 597 698
b (mm)
675
x
760
x
c (mm) 609 710
d (mm)
1215
x
1402
x
h (mm) 1655 1655
With a recessed grip
(S)FN.. 52../
GN 52Vd2i/
SGN 52Vd27
FN..72..
a (mm) 597 698
b (mm)
675
x
760
x
c (mm) 609 710
d (mm)
1215
x
1402
x
h (mm) 1855 1855
With a recessed grip

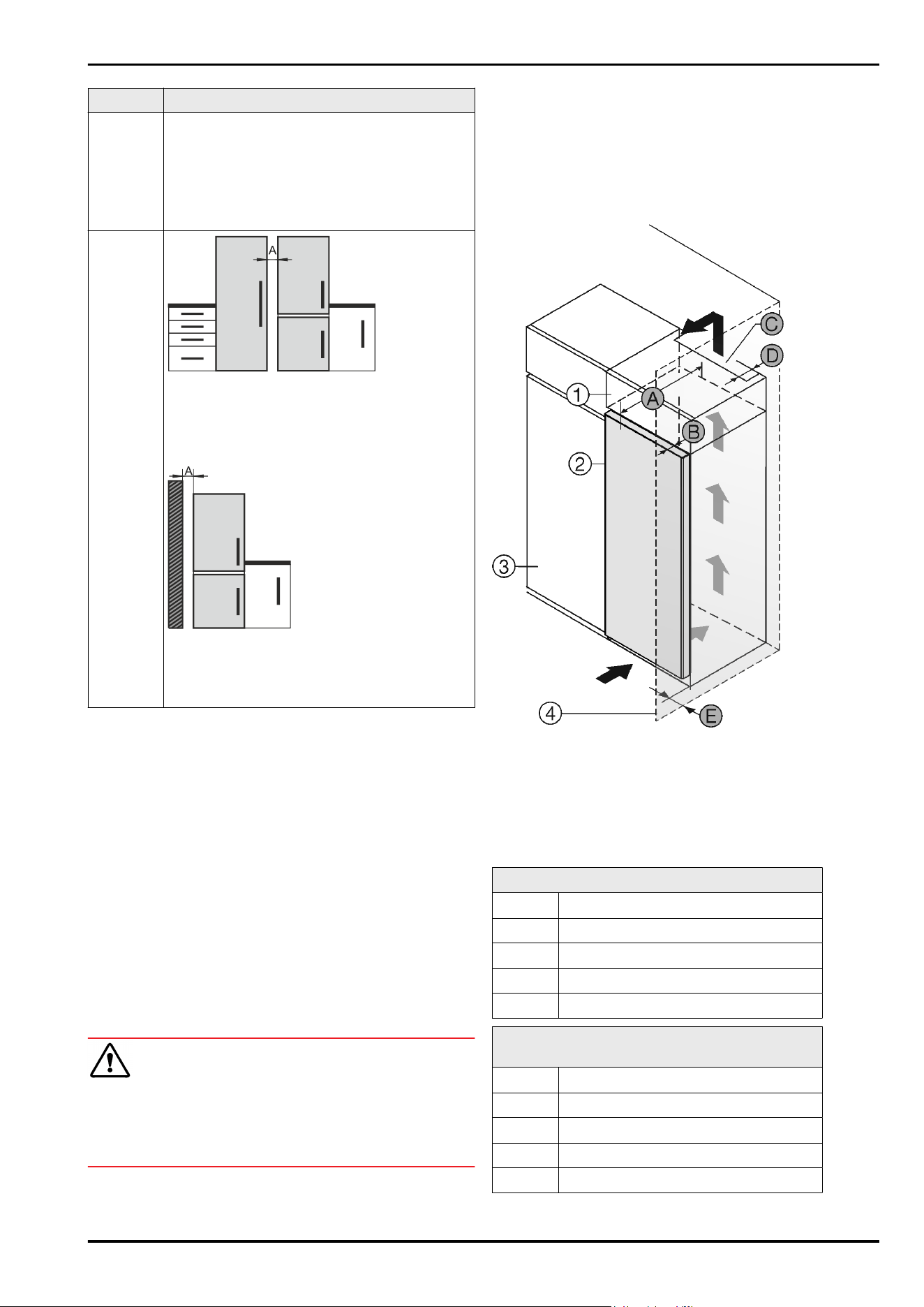

3.4 Ventilation requirements
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
► Take care to ensure adequate air ventilation.
► Observe the ventilation requirements.
If the appliance is integrated into a kitchen unit, the
following ventilation requirements must be observed:
-
As a general rule: the larger the ventilation cross section,
the more energy the appliance will be able to save.
Note
If the spacing between the rear of the appliance and the
wall is less than 51mm, energy consumption may increase.*
3.5 Connection dimensions for the
power supply
The connection to the power supply is on the rear of the
appliance. To connect your appliance safely, ensure that the
following requirements are met:
❑
Dimensions for the connection to the power supply are
known and are adhered to. See table below.
❑
Connection to the power supply according to the instruc‐
tions. (see 3.19 Connecting the appliance to the power
supply)
Fig. 3 Fridge/freezer combinations / freezers / full-capacity
BioFresh appliances
(a)
Maximum available
length of the mains
connection cable
(d) Gap between appliance
plug and floor
(b) Maximum available
length of the mains
connection cable
(G) Appliance plug
(c) Maximum available
vertical length of
the mains connection
cable
For 600mm wide appliances:
a ~ 1800mm
b ~ 1400mm
c ~ 2100mm
d ~ 200mm
3.6 Water connection
If your appliance has a fixed water connection, a hose is
supplied with it.
Note
You can purchase a hose of a different length as an acces‐
sory.
Overview of dimensions
for the water connec‐
tion:
(see 3.6.1 Dimensions for the
water connection)
Requirements for the
water pressure:
(see 3.6.2 Water pressure)
Make the water connec‐
tion:
(see 3.11 Connecting the appli‐
ance to the water supply)
Setting up and connecting
* Depending on model and options 7

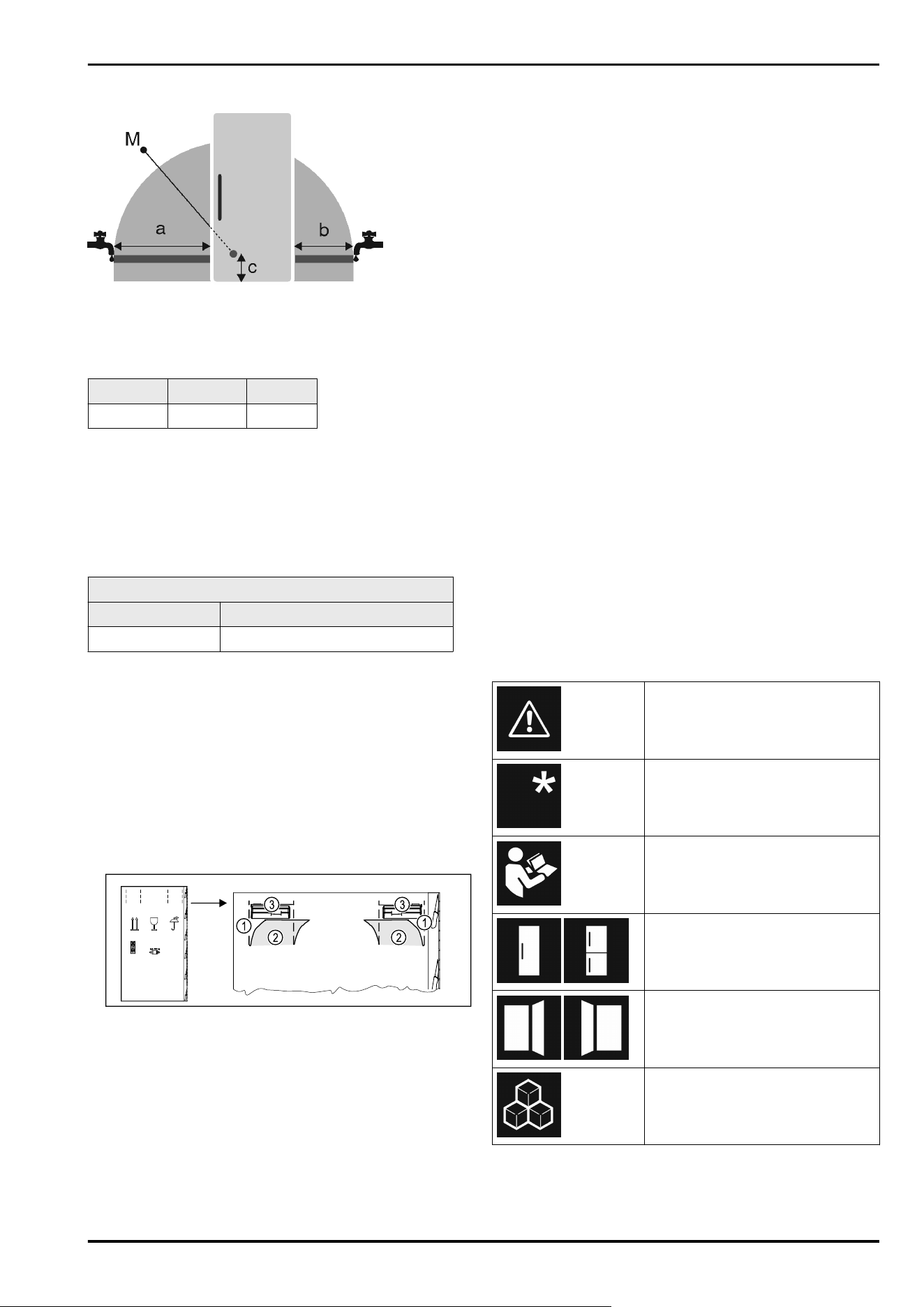

3.6.1 Dimensions for the water connection
Fig.4
(a)
Maximum available
hose length
(c) Distance of solenoid
valve to floor
(b) Maximum available
hose length
(M) Solenoid valve
a b c
~ 1800mm ~ 1450mm ~ 150mm
3.6.2 Water pressure
The water connection line and solenoid valve of the appli‐
ance are suitable for a water pressure of up to 1 MPa
(10bar).
To ensure that the appliance functions correctly (flow rate,
ice cube size, noise level), maintain the following water
pressure:
Water pressure:
bar MPa
1.5 to 6.2 0.15 to 0.62
If the pressure is higher than 6.2bar:
► Fit a pressure reducer.
► Make the water connection. (see 3.11 Connecting the
appliance to the water supply)
3.7 Transporting the appliance
3.7.1 Transporting the appliance for initial use
Ensure that the following requirements are met:
❑
The appliance is packaged.
❑
The appliance is upright.
Fig.5
► Press the packaging cardboard into the perforation
Fig.5(1) at the top.
► Pull out any tabs Fig.5(2) that have been pushed in.
▷ Carrying handle Fig.5(3) visible on the right and left.
► Hold the appliance by the carrying handles Fig.5(3).
► Transport the appliance with the help of two people.
► Unpacking the appliance. (see 3.8 Unpacking the appli‐
ance)
3.7.2 Transporting the appliance after initial
use
Observe the following instructions if you wish to transport
or move the appliance again after initial use.
Ensure that the following requirements are met:
❑
The appliance is emptied.
❑
The appliance is upright.
❑
Appliance with door(s): Door is secured against acci‐
dental opening.
❑
Appliance with telescopic unit: The telescopic unit is
secured against accidental opening.
❑
Appliance with adjustable feet: Adjustable feet are
screwed in.
► Hold the appliance by the carrying handles.
► Transport the appliance with the help of two people.
After transport:
► Unscrew the adjustable feet on the appliance.
► Align the appliance. (see 3.14 Setting up the appliance so
that it is level)
3.8 Unpacking the appliance
Before you connect the appliance, report any damage imme‐
diately to the delivery company.
► Check the appliance and the packaging for damage
during transport. Contact the supplier immediately if you
suspect any level of damage.
► Remove all materials from the back or the side walls
of the appliance that may prevent proper installation or
ventilation.
► Remove all protective films from the appliance. Do not
use sharp or pointed objects for this.
3.9 Explanation of symbols used
There is a danger of injury during
this step! Observe the safety
instructions!
The instruction is valid for several
models. Only perform this step if it
applies to your appliance.
For installation, please refer to the
detailed description in the text
section of the instructions.
Section is valid for either a single-
door appliance or a double-door
appliance.
Choose between the following
options: Appliance with door hinge
on the right or appliance with door
hinge on the left.
Installation step required for
IceMaker and/or InfinitySpring.
Setting up and connecting
8 * Depending on model and options

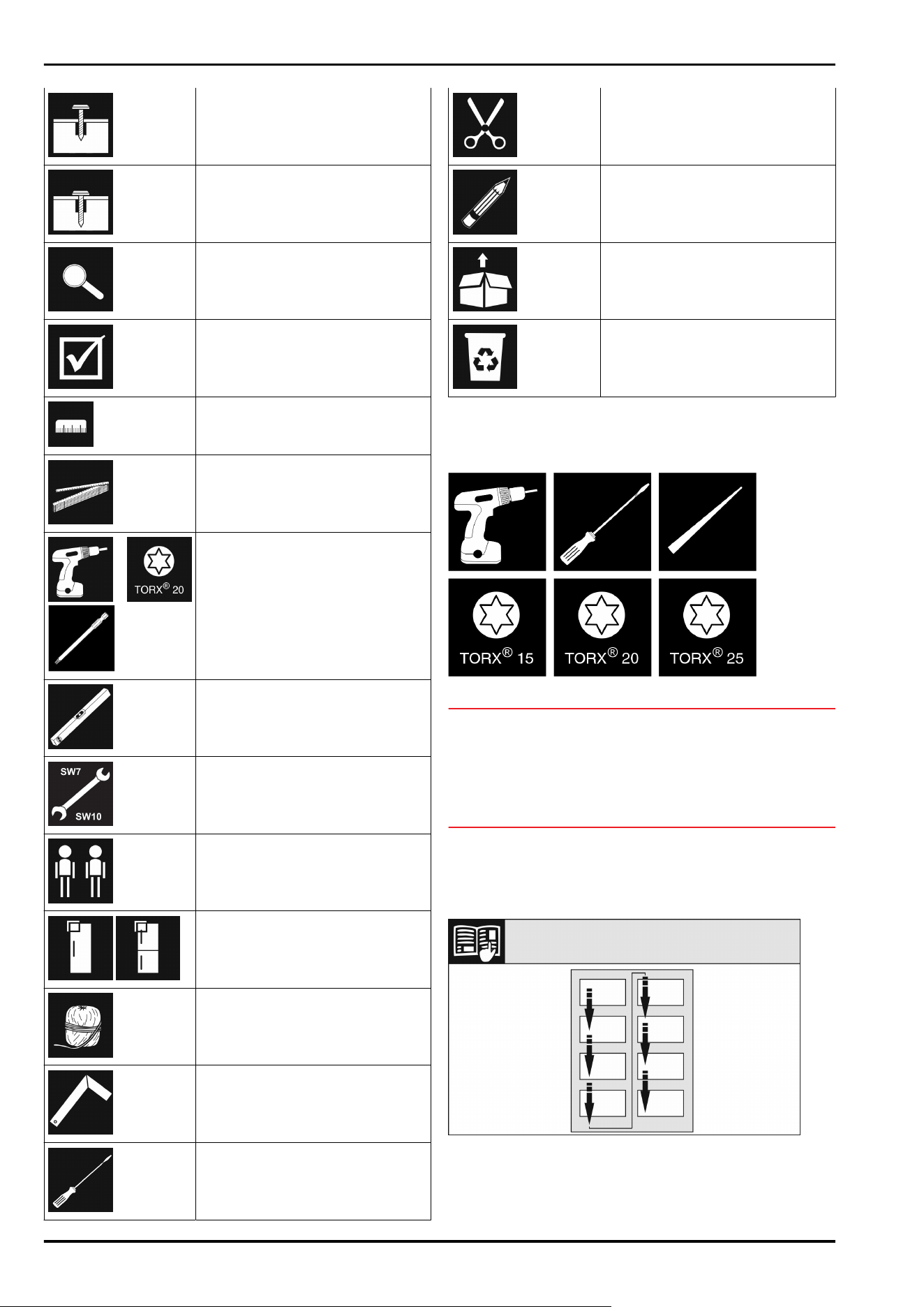

Only loosen or lightly tighten the
screws.
firmly tighten the screws.
Check whether the following step
is necessary for your model.
Check that the components used
are correctly installed/fitted.
Measure the specified dimension
and correct if necessary.
Tool for installation: Metre stick
Tool for installation: Cordless
screwdriver and use
A lengthwise bit insert is recom‐
mended for good access to the
screws.
Tool for installation: Spirit level
Tool for installation: Open-end
wrench with AF 7 and AF 10
Two people are required for this
step.
The step takes place at the marked
location on the appliance.
Aid for installation: String
Aid for installation: Protractor
Aid for installation: Screwdriver
Aid for installation: Scissors
Aid for installation: Marking pen,
wipeable
Included: Remove components
Dispose of components that are no
longer required in accordance with
local regulations.
3.10 Door hinge change
Tools
Fig.6
NOTICE
Risk of damage due to door collision!
Damage to the appliances with Side-by-Side positioning. If
you set up two appliances next to each other in a specific
Side-by-Sidearrangement, the door hinge of both appliances
is preset at the factory.
► Side-by-Side positioning: Do not change the door hinge.
These sections apply for appliances without a soft stop
mechanism:
❑
For appliances without a soft stop mechanism
❑
For all appliances
Fig.7
Remember the reading direction.
Setting up and connecting
* Depending on model and options 9
3.10.1 Appliances without closing damper:
Removing covers
Fig.8
► Open the door.
► Remove the outer cover(1).
► Disengage and remove the swap bearing block cover(2).
NOTICE
Risk of damage from screwdrivers!
If you damage the door seal, the door will not close properly
resulting in inadequate cooling.
► Use a screwdriver carefully as an aid.
► Do not damage the door seal with the screwdriver.
► Use a screwdriver to disengage the cover (3) on the
outside of the door and swivel it to the side.
3.10.2 Detaching the door
Fig.9
► Carefully remove the cover(1).
► Use screwdriver to loosen the bolts(2) a little.
CAUTION
Danger of injury due to door tipping out!
If you remove the bolt on the door completely, the door may
tilt out and you may injure yourself.
► Hold the door firmly before removing the bolt.
► Hold door in place.
► Pull out the bolt(3) with your fingers.
► Pull the bearing bush(4) out of the guide.
► Insert the bearing bush(4) on the other side and engage.
► Lift the door and put it to one side.
► Carefully lift and remove the cover(5) with a screwdriver.
Setting up and connecting
10 * Depending on model and options
3.10.3 Relocating the upper bearing compo‐
nents
Fig. 10
► Unscrew the screws.
► Lift and remove the swap bearing block.
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw on the bearing brackets/bearing pins tightly with
4Nm.
► Check all screws and retighten them if necessary.
Fig.11
► Remove the cover(1) from above towards the front.
► Turn the cover (2) by 180° and attach to the other side
from the right.
► Engage the cover(3).
► Place the top swap bearing block(4).
► Screw the screw(5) tight.
► Screw the screw(6) tight.
3.10.4 Moving the lower bearing parts to the
other side
For all appliances:
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw on the bearing brackets/bearing pins tightly with
4Nm.
► Check all screws and retighten them if necessary.
Setting up and connecting
* Depending on model and options 11
Fig.12
► Pull the bearing bolt Fig.12(1) out upwards completely.
► Use screwdriver to unscrew the screws Fig. 12 (2) and
remove the swap bearing block.
For appliances without a soft stop:
Fig.13
► Use screwdriver to loosen the screw Fig.13(1).
► Lift the door closing aid Fig.13(2) and turn 90° clockwise
in the hole.
► Tighten screw Fig.13(3) with screwdriver.
For all appliances:
Fig. 14
► Remove cover Fig. 14(1).
Fig. 15
► Unscrew the plate Fig. 15 (1), move it to the other side
and screw it back on.
Fig. 16
► Place the swap bearing block on the other side and use a
screwdriver to screw it on. Start with the screw Fig. 16(2)
at the bottom in the middle.
► Tighten screw Fig. 16(3) and screw Fig. 16(4).
► Insert the bearing bolt Fig. 16 (5) completely. Ensure that
the latching cam is pointing towards the rear.
Fig.17
► Re-attach the cover Fig.17(1) to the other side.
3.10.5 Moving the door bearing parts to the
other side
For appliances without a soft stop:
Setting up and connecting
12 * Depending on model and options
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw on the bearing brackets/bearing pins tightly with
4Nm.
► Check all screws and retighten them if necessary.

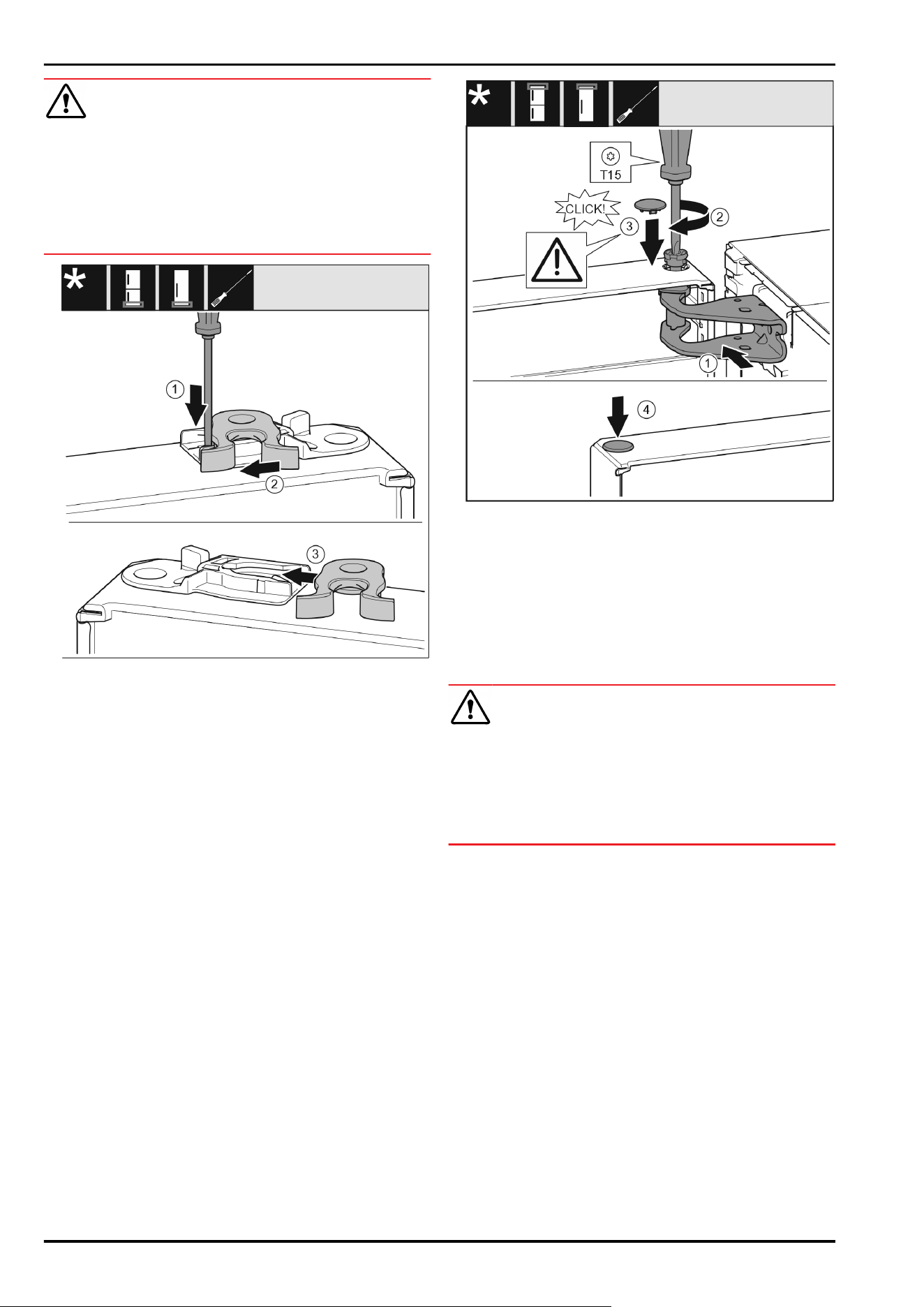

Fig. 18
► The bottom side of door faces upwards: Turn the door.
► Use a slotted screwdriver to push the tab Fig. 18 (1)
downwards.
► Pull the closing hook Fig. 18(2) out of the guide.
► Insert the closing hook Fig. 18 (3) into the guide on the
other side.
► The upper side of door faces upwards: Turn the door.
3.10.6 Fitting the door
► Place the door on the lower bearing pins.
Fig. 19
► Align the top door with the opening in the swap bearing
block Fig. 19(1).
► Insert the bolt Fig. 19(2) and use screwdriver to tighten it.
► Insert the cover Fig. 19(3).
► Check that the cover Fig. 19(3) is resting on the door.
► Insert the cover Fig. 19(4).
3.10.7 Aligning the door
For all appliances:
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
► Screw the bearing brackets on firmly with 4Nm.
► Check all screws and retighten them if necessary.
► Align the doors flush with the appliance housing using
the two slots in the bearing bracket if needed. To do
this undo the middle screw in the bottom bearing bracket
with the T20 tool supplied. Undo the remaining screws
a little with the T20 tool or with a T20 screwdriver and
align using the slotted holes.
► Prop up the door: Take off the adjustable foot on the
bearing bracket using the open-ended wrench SW10 until
it comes into contact with the floor, then turn an addi‐
tional 90°.
3.10.8 Fitting the covers
For appliances without a soft stop:
Setting up and connecting
* Depending on model and options 13

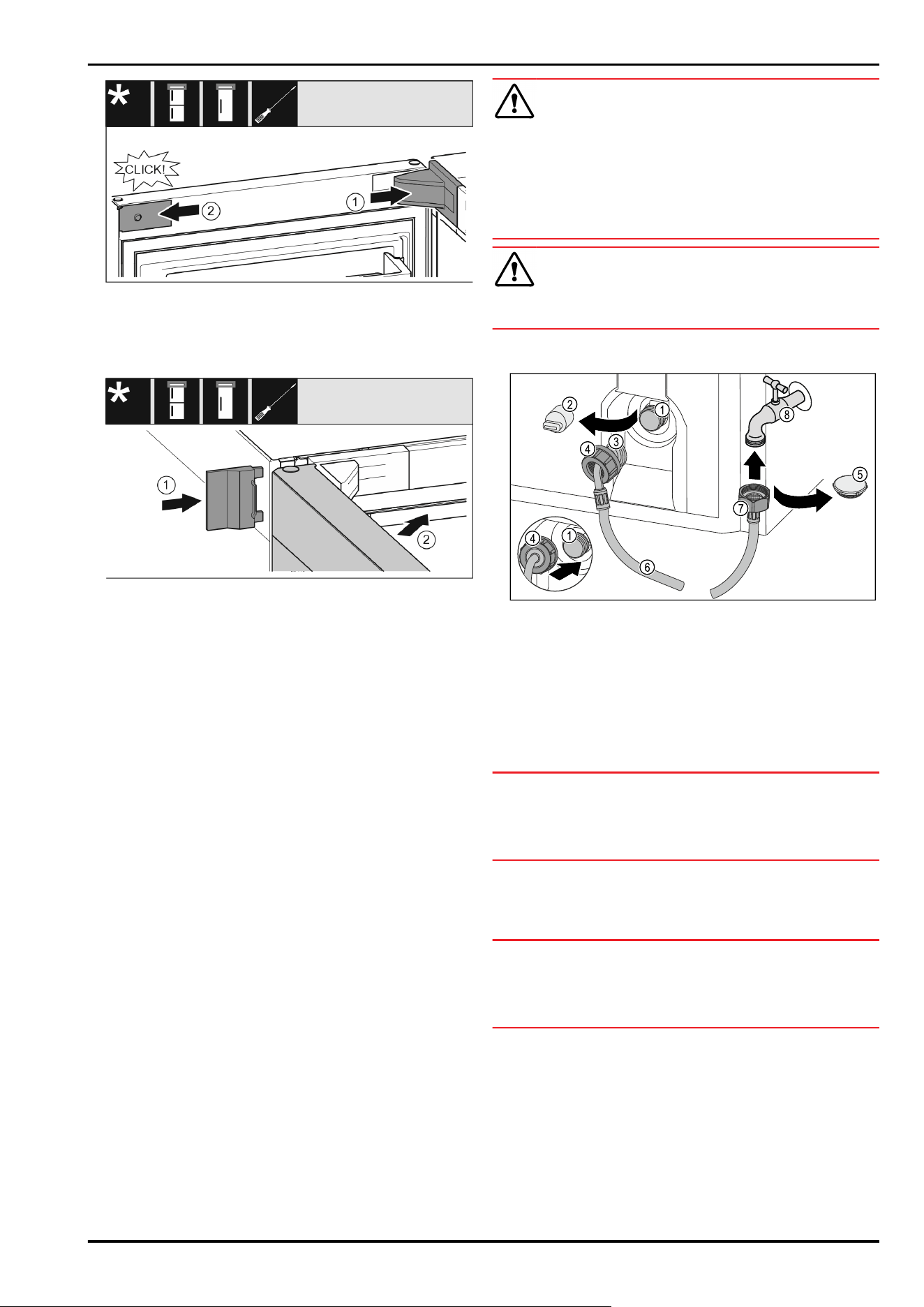

Fig.20
The door is open 90°.
► Put the swap bearing block cover Fig. 20 (1) on and
engage, push apart carefully if required.
► Place the trim Fig.20(2) on the side and engage.
Fig.21
► Push the outer cover Fig.21(1) on.
► Close the upper door Fig.21(2).
3.11 Connecting the appliance to the
water supply
Make sure that the following requirements are fulfilled:
❑
The dimensions for the water supply connection are
known and complied with.
❑
The correct water pressure is maintained.
❑
Water is supplied to the appliance via a cold water
pipe which can withstand the operating pressure and is
connected to the drinking water supply.
❑
All equipment and devices used to supply water must
comply with the regulations in force in the respective
country.
❑
The rear of appliance is accessible so that you can
connect the appliance to the drinking water supply.
❑
The supplied hose is used. Old hoses have been disposed
of.
❑
The hose connector contains a filter with a seal.
❑
There is a tap between the hose line and the domestic
water connection so that you can turn off the water
supply if necessary.
❑
The tap is not directly behind the appliance and is easily
accessible. This way, you can push the appliance as close
as possible to the wall and can quickly turn off the tap if
necessary.
WARNING
Risk of electric shock from water!
► Before connecting to the water pipe: Disconnect the
appliance from the mains.
► Before connecting to water supply lines: Shut off the
water supply.
► Make sure that only qualified personnel connect the
device to the drinking water supply.
WARNING
Risk of poisoning due to contaminated water!
► Only connect to the drinking water supply.
3.11.1 Connecting the hose
Fig.22
(1)
Solenoid valve: The
solenoid valve is
located at the bottom
rear of the appliance.
It has an R3/4 connec‐
tion thread.
(5) Closure cap
(2) Cover (6) Hose
(3) Angled hose end (7) Straight hose end
(4) Nut (8) Tap
NOTICE
Risk of damage from incorrect installation!
► Do not damage or kink the hose.
► Do not damage or kink the hose when setting up the
appliance.
Connecting the hose to the appliance:
► Pull off the cover(2).
► Push and hold the nut (4) all the way over the angled
hose end(3).
NOTICE
The solenoid valve will not be tight if the thread is damaged!
If the solenoid valve is not tight, water may leak out.
► Observe the following instructions for fitting the nut on
the solenoid valve.
► Carefully position and hold the nut (4) on the solenoid
valve(1).
► Screw the nut(4) by hand straight onto the thread until it
is securely and firmly seated.
▷ The hose is connected to the appliance.
Connecting the hose to the tap:
► Remove the closure cap Fig.22(5).
► Place the straight end of the hose Fig. 22 (7) on the tap
Fig.22(8).
► Tighten the nut at the straight end of the hose Fig. 22 (7)
in a clockwise direction.
Setting up and connecting
14 * Depending on model and options
▷ The hose is connected to the tap.
3.11.2 Checking the water system
Before you completely install the appliance, Liebherr recom‐
mends checking the water system for leaks.
► Slowly turn on the tap.
► Check the hose, water feed and connections for leaks.
▷ The water system has now been checked for leaks.
▷ The water system is not leaking: You can install up the
appliance completely.
Note
IceMaker: Before the first use, you must clean the IceMaker.
(see Quick Start Guide or operating instructions)
3.12 Mounting wall spacers*
With wall spacers, your device achieves the declared energy
consumption and no condensation forms in high ambient
humidity. The device is fully functional without the spacer
brackets, but its energy consumption will be slightly higher.
If you insert the wall spacers, then the device depth
increases by approx.15mm.*
*
► Appliance with enclosed wall spacers: Insert the wall
spacers on the rear of the appliance at the bottom left
and right.
3.13 Setting up the appliance
CAUTION
Risk of injury due to heavy appliance!
► Have two people transport the appliance to its installa‐
tion site.
WARNING
Risk of fire due to short circuit!
► When you set the appliance up: do not kink, jam or
damage the mains cable.
► The appliance must not be operated with a defective
mains cable.
WARNING
Fire hazard and danger of damage!
► Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Ensure that the following conditions are met:
❑
Only move the device when it is not loaded.
❑
Only install the appliance with help.
► Remove the mains cable from the package.
► Plug the mains cable’s IEC socket completely into the
appliance plug on the back of the appliance. Ensure that
the IEC socket is tight.
►
Use a cord to lay the mains plug to a freely accessible
socket if required.
3.14 Setting up the appliance so that it
is level

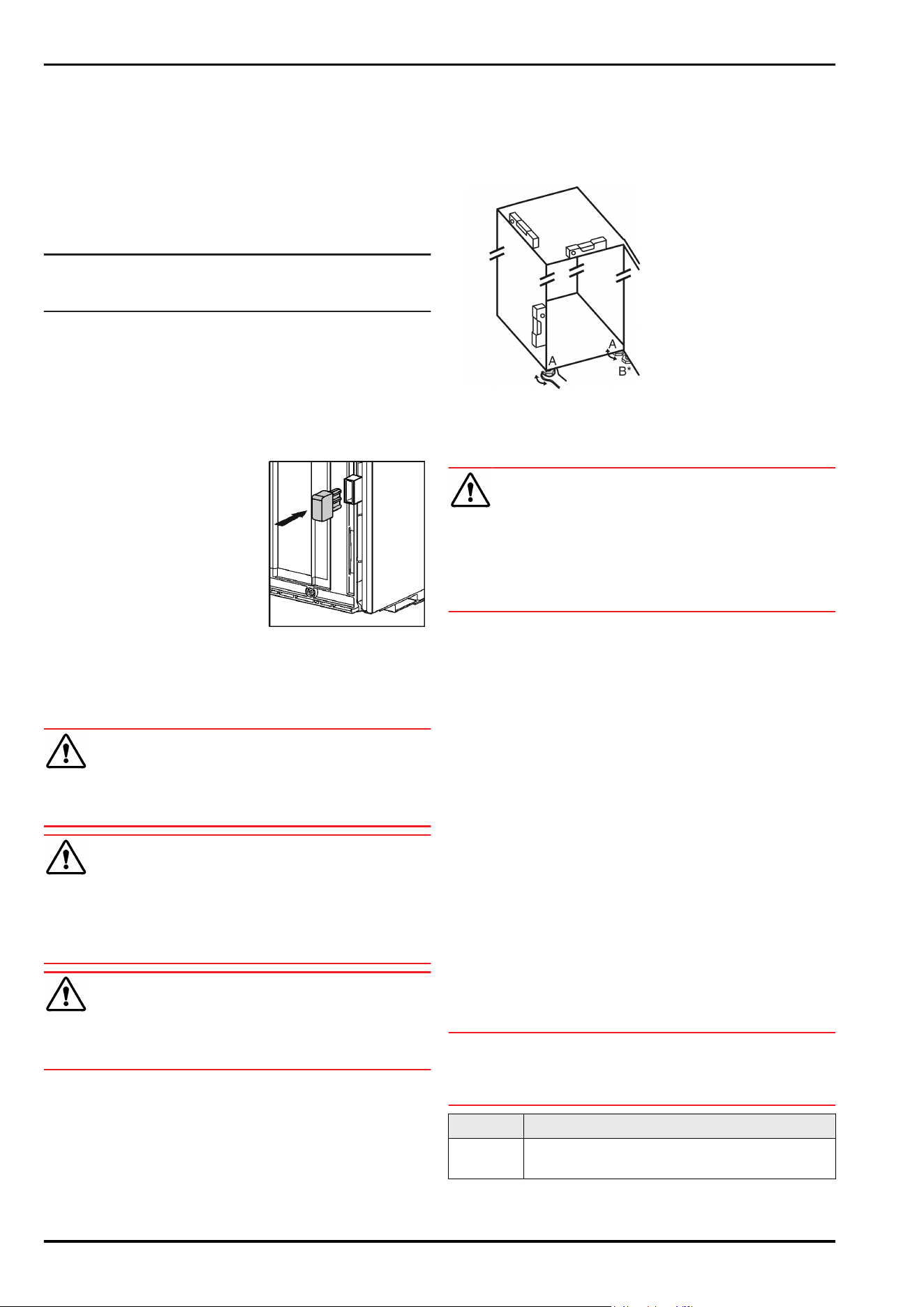

Fig.23
► Unscrew the adjustable feet Fig. 23 (A) using the
enclosed open-end spanner and a spirit level until the
appliance is firmly aligned and level.
CAUTION
Risk of injury and damage due to the appliance tipping over!
If the additional adjustable foot on the lower swap bearing
block does not rest properly on the floor, the appliance may
tip over. This can lead to property damage and injuries.
► Unscrew the additional adjustable foot on the swap
bearing block as instructed.
► Unscrew the adjustable foot Fig. 23 (B) on the swap
bearing block with the enclosed open-end spanner until it
rests on the floor.
► Turn the adjustable foot Fig.23(B) 90° further.
▷ The appliance is aligned.
3.15 After setting up
► Remove all transport safety components.
► Take off the protective film from the exterior of the appli‐
ance.
► Clean the appliance. (see operating instructions)
► Note the type (model, number), appliance designation,
appliance/serial number, purchase date and dealer’s
address.
3.16 Installing multiple appliances
The appliances have been developed for different installa‐
tion methods. If you wish to install several appliances next
to each other or on top of each other, ensure that the
following requirements are met:
❑
Only install appliances next to or on top of each other if
they have been developed for this.
❑
Observe notices and the following table.
NOTICE
Risk of damage due to condensate!
► Do not place the appliance directly next to another
cooling/refrigeration unit.
Model Installation method
All
models
Standalone
Setting up and connecting
* Depending on model and options 15
Model Installation method
Models
with a
model
designa‐
tion
starting
with S....
Side-by-Side (SBS)
Models
without
side wall
heating
Next to each other: Install with gap A of
70mm between the appliances.
If you do not comply with this gap, condensa‐
tion will form on the side walls between the
appliances.
On an exterior wall: Install with gap A as with
installation next to each other.
If you do not comply with this gap, condensa‐
tion may form on the appliance’s side wall.
Models and their installation method
Assemble the appliances according to the separate installa‐
tion instructions.
3.17 Integrating the appliance into a
kitchen unit
The appliance can be integrated into a kitchen unit. Please
observe the following installation conditions:
-
If you fit a stacking cabinet above the appliance, you
must allow for a ventilation cross-section with the appro‐
priate depth at the rear of the stacking cabinet.
-
If you place the appliance with the hinges next to a wall,
you must take the distance to the side of the appliance
into account.
-
To ensure that the door can be opened fully, the
appliance must protrude beyond the front thickness.
Depending on the niche depth, the appliance may
protrude further.
WARNING
Risk of fire due to short circuit!
► When you set the appliance up: do not kink, jam or
damage the mains cable.
► The appliance must not be operated with a defective
mains cable.
Ensure that the following requirements are met:
❑
The socket is easily accessible and is not behind the
appliance.
❑
Ventilation requirements are met. (see 3.4 Ventilation
requirements) .
❑
Connection dimensions are taken into account.
(see 3.19 Connecting the appliance to the power supply)
❑
Wall spacers are fitted.*
3.17.1 Niche dimensions for appliances with
recessed handles
Fig. 24
(1)
Top Unit (B) Door depth
(2) Appliance (C) Ventilation cross-section
(3) Kitchen cupboard (D) Distance from rear of the
appliance
(4) Wall (E) Distance to the side of
the appliance
(A) Appliance depth
Appliances with a recessed grip:
A
675mm
x
B 75mm
C
min. 300cm
2
D min. 50mm
E min. 13mm
Appliances with recessed handle and glass
front / stone front:
A
682mm
x
B 82mm
C
min. 300cm
2
D min. 50mm
E min. 20mm
Setting up and connecting
16 * Depending on model and options
x
On devices with wall spacer brackets, this dimension
increases by 15mm.*
3.18 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
► Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
► Take the packaging material to an official collecting
point.
3.19 Connecting the appliance to the
power supply
WARNING
Danger of electric shock and injury due to damaged appli‐
ance or damaged mains cable!
Danger of cuts and fatal injuries. If the appliance or the
mains cable is damaged during transport, you may be elec‐
trocuted. You could also cut yourself on damaged parts of
the appliance housing.
► Check the appliance and the mains cable for damage
after transport.
► Never put the appliance into operation if the appliance or
the mains cable are damaged.
► Contact Customer Service.
You can connect your appliance to the mains using the
power cable supplied separately. The mains power cable
has an appliance coupler at one end and a mains plug at the
other end.
Make sure that the following requirements are fulfilled:
-
The appliance and power cable are undamaged.
-
The appliance is set up in accordance with the regula‐
tions. (see 3.12 Mounting wall spacers*)
-
Requirements for the electrical connection are met.
-
Dimensions for connection in accordance with regula‐
tions are known and observed. (see 3.5 Connection
dimensions for the power supply)
-
Mains voltage and frequency correspond to the specifica‐
tions on the type plate.
-
The socket is earthed according to the regulations and
fused.
-
The fuse tripping current is between 10A and 16A.
-
The socket is easily accessible and is not behind the
appliance. (see 3.5 Connection dimensions for the power
supply)
NOTICE
Danger of damage to incorrect operation!
Damage to the electrical components of the appliance.
► Only use the supplied mains cable.
WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
► Do not use an extension cable.
► Do not use distributor blocks.
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
► Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
► Connect the mains cable plug to the power supply.
Ensure that the plug is tightly in the socket.
▷ The Liebherr logo appears in the display.
▷ The display switches to the standby symbol.
▷ If no action occurs within 60 seconds: The standby
symbol fades or disappears.
▷ The appliance is connected. For information regarding
first use, see the following section or the operating
instructions.
4 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.

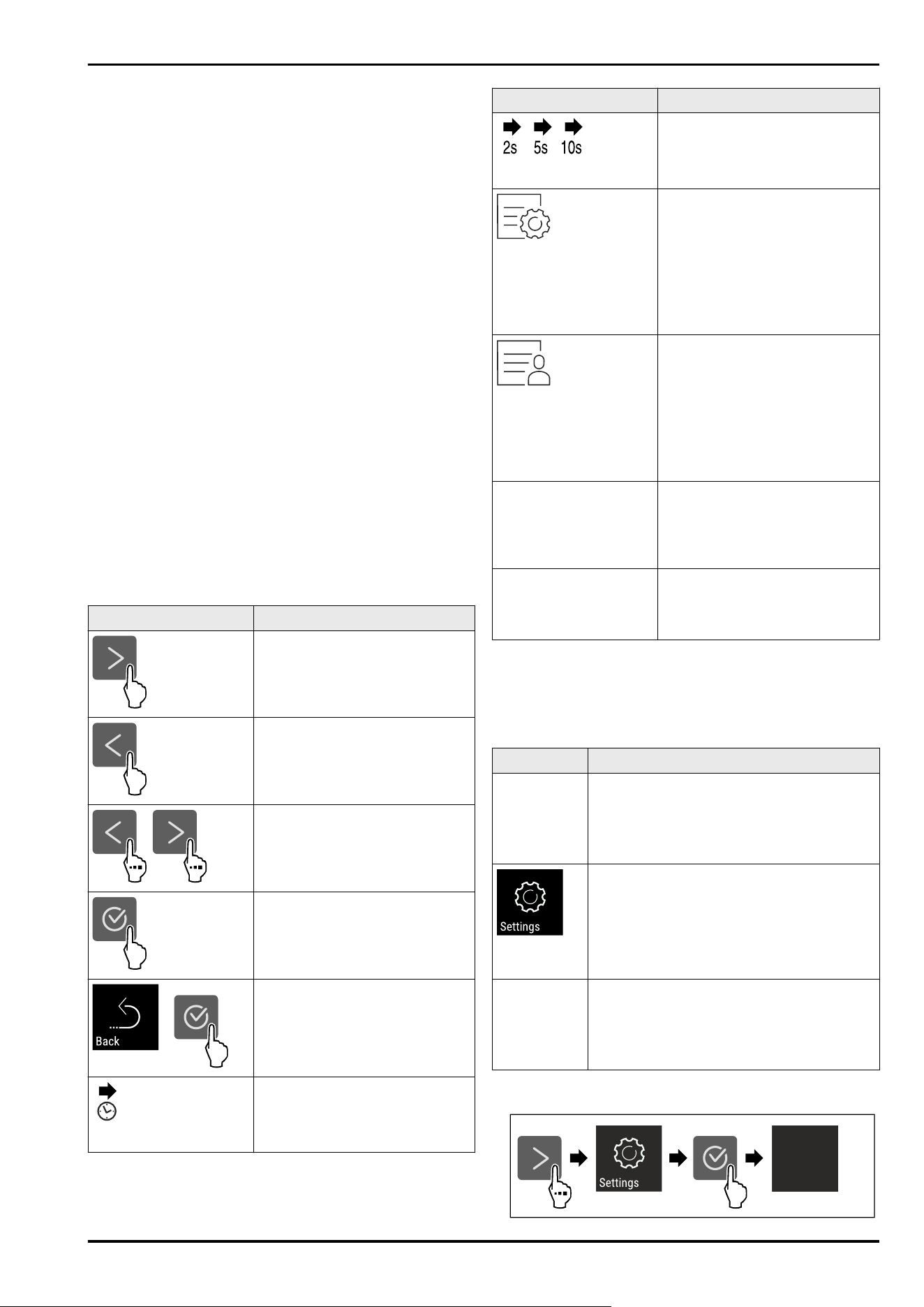

4.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Functionality of the Touch display
* Depending on model and options 17

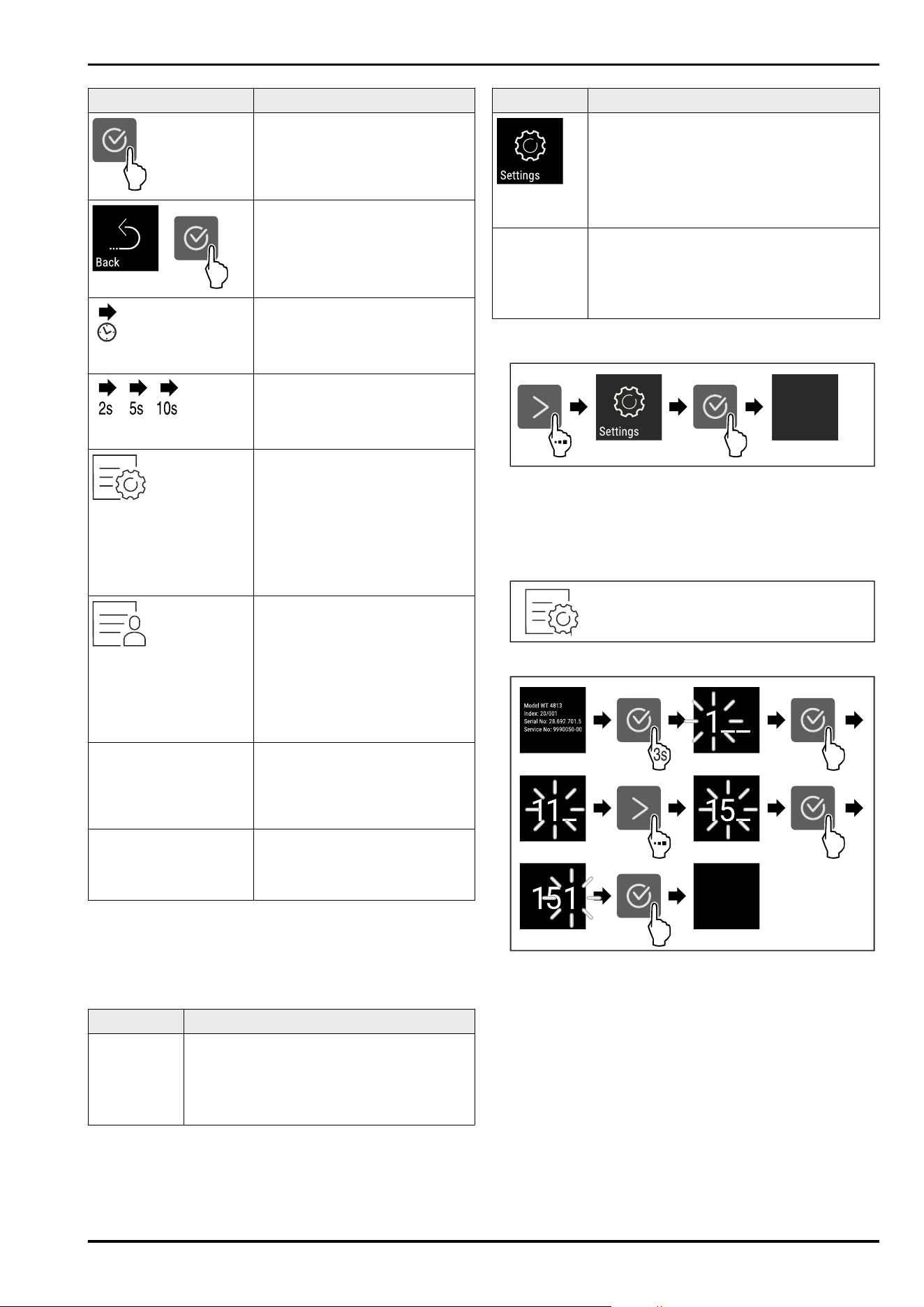

Symbol Description
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 4.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 4.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
4.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Menu Description
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see4.2.1 Opening the Settings menu)
Advanced
menu
The advanced menu contains special appli‐
ance functions for setting up your appli‐
ance. Access to the Advanced menu is
protected by the numerical code 151.
(see4.2.2 Opening the Advanced menu)
4.2.1 Opening the Settings menu
Fig. 25 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.

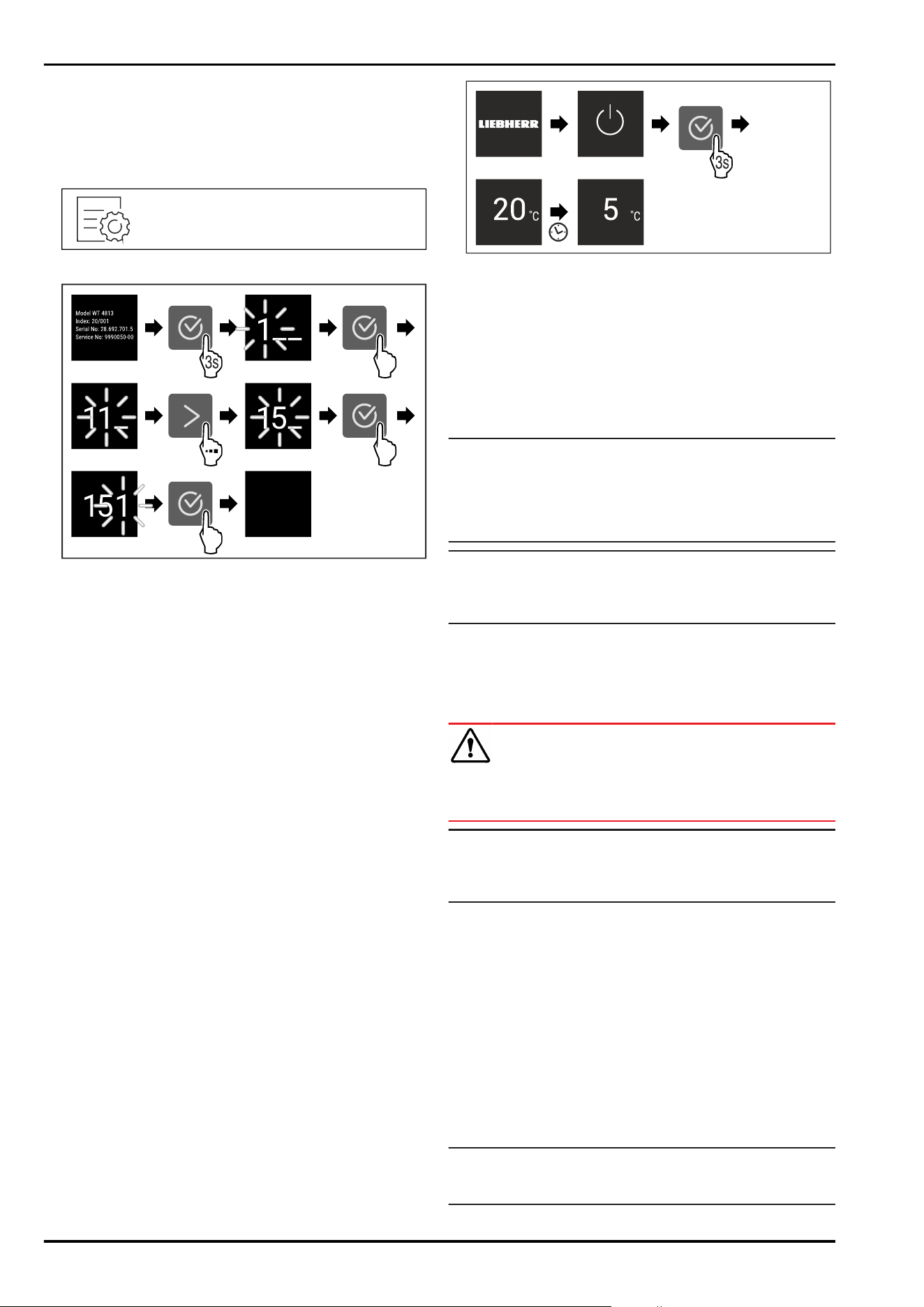

4.2.2 Opening the Advanced menu
Fig. 26
Fig. 27 Example illustration, access with numerical code
151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
4.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
4.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
Functionality of the Touch display
18 * Depending on model and options
5 Putting into operation
5.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance has been installed and connected in
accordance with the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see4 Functionality of the Touch display)
Switch on the appliance using the Touch display:
► If the display is in sleep mode: Press the confirmation
symbol.
► Carry out action steps according to the illustration.
Fig. 28 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the IceMaker for the first time. (see 5.2 Starting the
IceMaker for the first time)
-
Start the SmartDevice for the first time. (see 2.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
► Store frozen foods at -18°C or colder.
► Observe the notes on storing food. (see 6.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
5.2 Starting the IceMaker for the first
time
If your appliance is equipped with IceMaker, you must clean
the IceMaker before using it for the first time.
Make sure that the following requirements are fulfilled:
❑
The water supply has been connected. See Installation
Guide or mounting instructions.
❑
The appliance is properly connected.
► Clean the IceMaker. (see 10.3.5 Cleaning the IceMaker)
6 Storage
6.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Package food properly.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
6.2 Freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
6.2.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 11.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the quantity to be frozen, you can activate
SuperFrost before freezing in order to achieve lower freezing
temperatures. (see SuperFrost)
► Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
As soon as the appliance automatically
deactivates SuperFrost, you can rear‐
range the food.
Putting into operation
* Depending on model and options 19
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
As soon as the appliance automatically
deactivates SuperFrost, you can rear‐
range the food.
Arranging your food properly
CAUTION
Risk of injury from broken glass!
Bottles and cans with beverages can burst during freezing.
This applies in particular to carbonated beverages.
► Only freeze bottles and cans with beverages if you have
activated the BottleTimer function in the SmartDevice
app.
Freezing quan‐
tity
Arranging your food properly
Small amount of
food to freeze
Place packaged food in the top drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
Maximum
amount of food
to freeze
Distribute packaged groceries
throughout all drawers, but only place
frozen food in the bottom drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
6.2.2 Defrosting food
WARNING
Risk of food poisoning!
► Do not re-freeze thawed food.
► Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In a fridge
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
► Take out only as much food as necessary.
6.2.3 Freezer tray
You can freeze berries, herbs, vegetables and other small
frozen food in the freezer tray without it all freezing
together. The frozen food is less likely to get squashed and
subsequent portioning is easier.
► Distribute food on the freezer tray without packaging and
well spaced out.
6.3 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
Recommended storage period for various types of food
Ice cream at -18°C 2 to 6 months
Sausages, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Recommended storage period for various types of food
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
7 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature . A warmer ambient
temperature can increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
8 Controls
8.1 Controls and displays
8.1.1 Status display
Fig.29
(1)
Temperature display
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
8.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Saving energy
20 * Depending on model and options

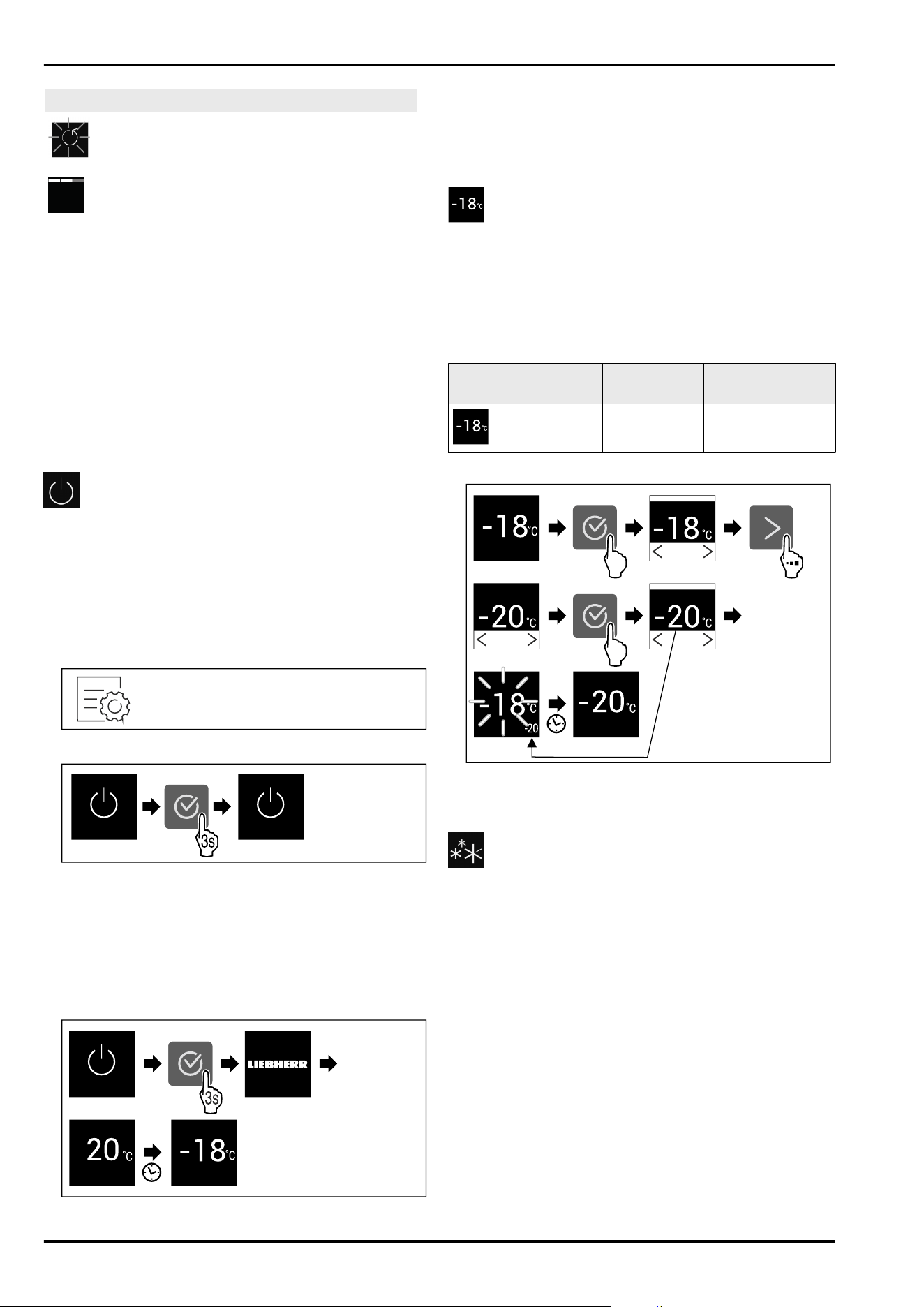

Symbol Appliance status
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
8.2 Appliance functions
8.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 4 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 12 Shutting down) are carried
out.
Fig.30
Fig.31
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Press any navigation key.
Fig. 32 Example illustration
►
Carry out action steps according to the illustration.
When the appliance starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
▷ The appliance cools to the target temperature set.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Freezer compartment
Factory-set
temperature
Recommended
setting
-18°C -18°C
Setting the temperature
Fig. 33 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
SuperFrost
You can use this function to activate or deactivate
SuperFrost. If SuperFrost is activated, then the appliance
increases the freezing capacity. It allows you to achieve
lower freezing temperatures.
Application:
-
Quickly freeze fresh food through to the core.
This ensures that the nutrition, appearance and taste of
frozen food is maintained.
-
Increase the cold reserve in stored frozen food before
defrosting the appliance.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Controls
* Depending on model and options 21
If the door is open for too long, e.g. because you are
putting food in, the appliance automatically checks whether
the actual temperature in the appliance matches the set
temperature. If the difference exceeds a certain value, the
appliance automatically cools more vigorously. As a result,
the temperature shown on the display may be higher than
the actual temperature in the appliance. This is normal and
your appliance is working correctly.*
Activating SuperFrost
Make sure that the following requirements are fulfilled:
❑
Freezing quantity and time for activation of SuperFrost
are taken into account. (see Freezing food using
SuperFrost)

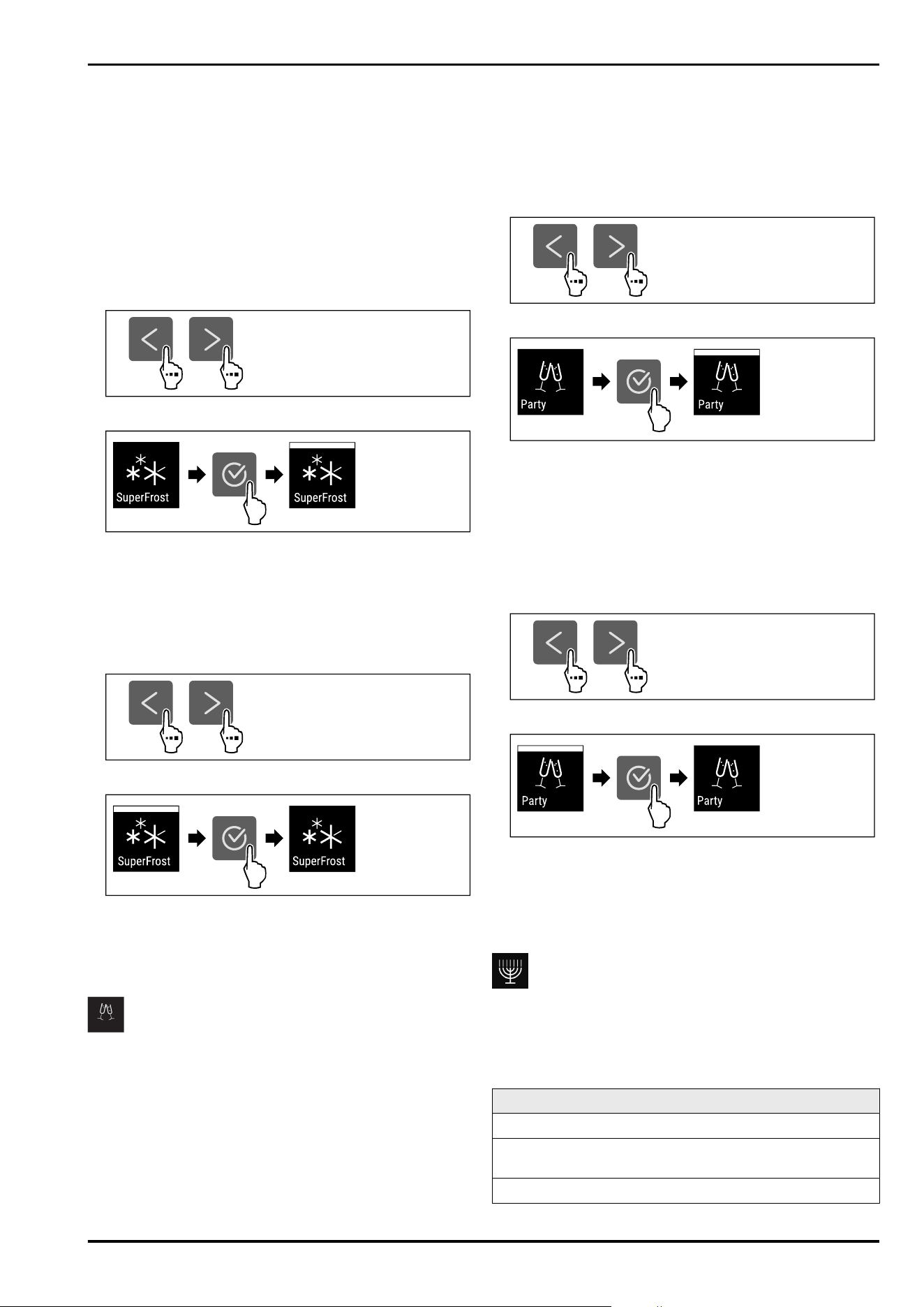

Fig.34
Fig.35
► Carry out action steps according to the illustration.
▷ SuperFrost is activated.
Deactivating SuperFrost
SuperFrost is automatically deactivated after 56 to 72 hours
depending on the quantity of the food inserted. However,
you can also deactivate SuperFrost manually at any time:
Fig.36
Fig.37
► Carry out action steps according to the illustration.
▷ SuperFrost is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperFrost (see SuperFrost)
-
IceMaker (see IceMaker ) and MaxIce (seeMaxIce)
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Make sure that the following requirements are fulfilled:
❑
The IceMaker has been started. (see 5.2 Starting the
IceMaker for the first time)
Fig.38
Fig. 39
► Carry out action steps according to the illustration.
▷ PartyMode and the associated functions are activated.
▷ The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig.40
Fig. 41
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷ The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
Controls
22 * Depending on model and options
Device status when SabbathMode is active
The display remains bright when you close the door.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The IceMaker is switched off.
The defrosting cycle operates only for the specified time,
without considering the appliance consumption.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.

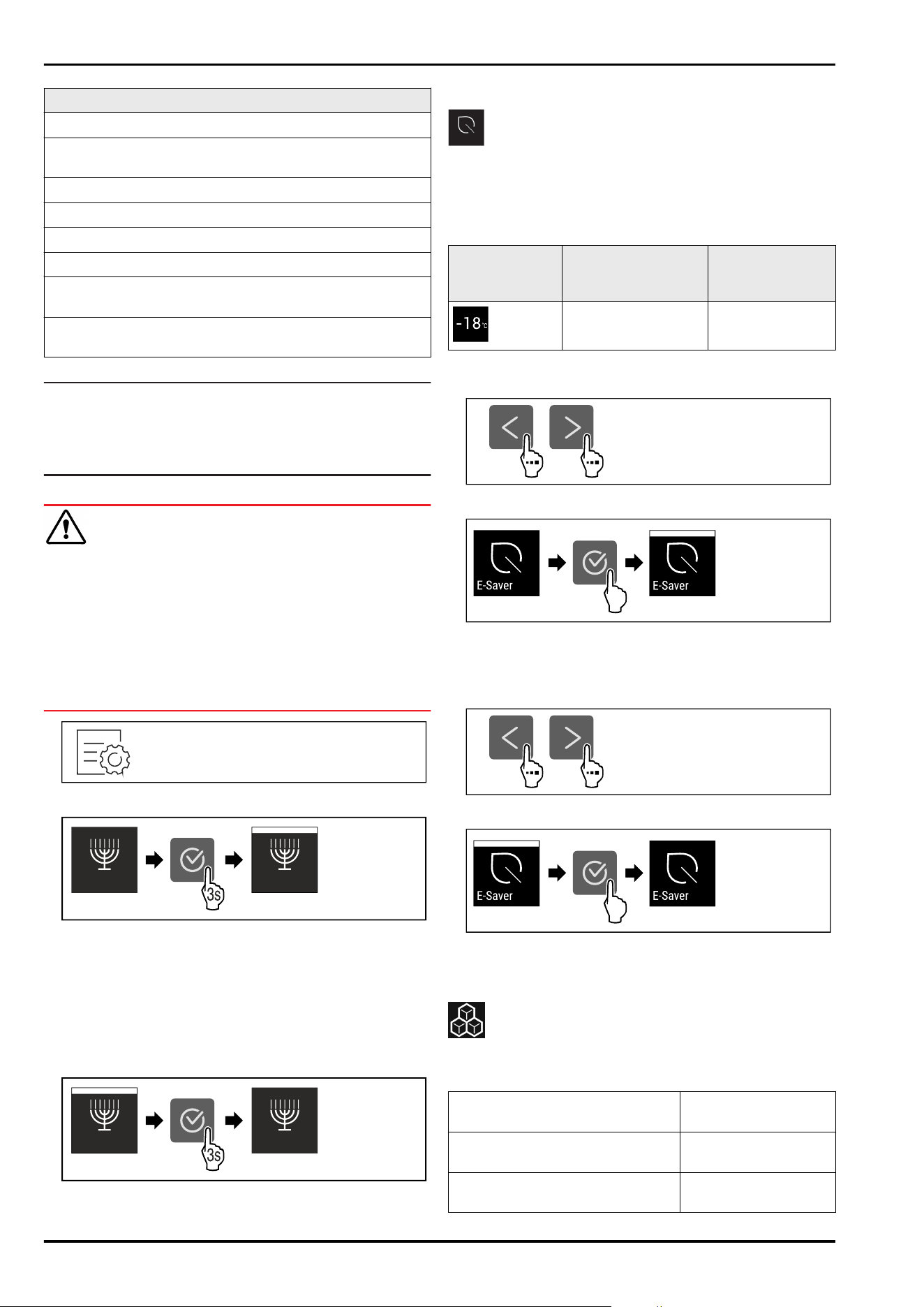

Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig. 42
Fig.43
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.44
► Carry out action steps according to the illustration.
▷
SabbathMode is deactivated.
E-Saver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature
zone
Recommended
setting (see Setting
the temperature)
Temperature with
active E-Saver
-18°C -16°C
Temperatures
Activating E-Saver
Fig.45
Fig.46
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating E-Saver
Fig. 47
Fig.48
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
IceMaker
You can activate or deactivate ice cube production with this
function.
More information on the number
of ice cubes:
(see 11.1 Technical
specifications)
More information on increasing
the number of ice cubes:
(seeMaxIce)
Further information on the
IceMaker water supply:
(see IceMaker water
supply)
Controls
* Depending on model and options 23

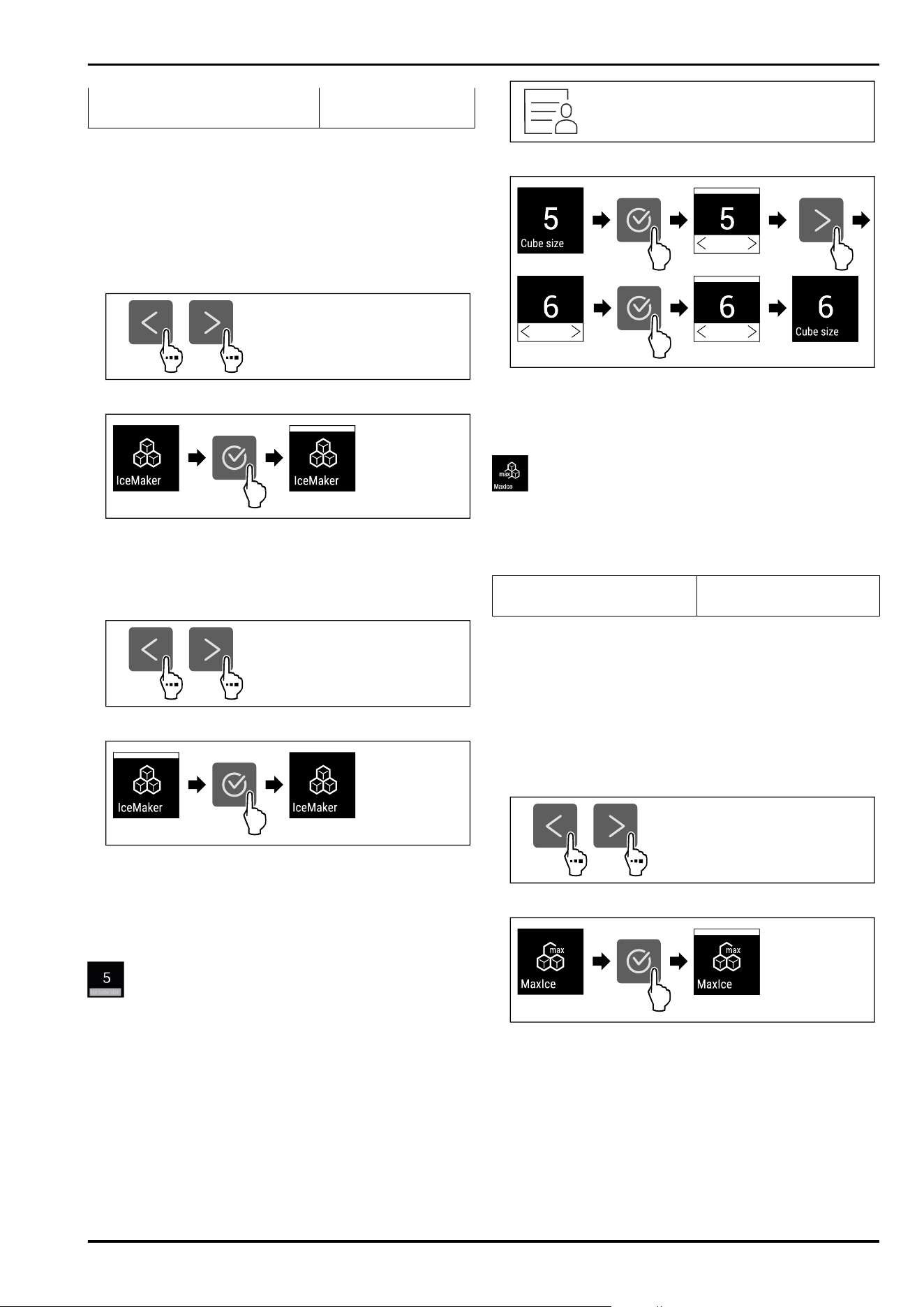

More information on cleaning the
lines of the IceMaker:
(see TubeClean )
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating IceMaker
Make sure that the following requirements are fulfilled:
❑
The water supply is established at the fixed water
connection. See installation instructions.
❑
IceMaker is put into operation. (see 9.4 IceMaker)
Fig. 49
Fig.50
► Carry out action steps according to the illustration.
▷ IceMaker is activated. It can take up to 24 hours for the
IceMaker to produce the first ice cubes.
Deactivating IceMaker
Fig.51
Fig.52
► Carry out action steps according to the illustration.
▷ IceMaker is deactivated.
▷ If ice cubes are currently being made, the system
completes the process.
▷ The IceMaker goes off automatically.
IceMaker water supply
Use this function to set the water supply. The water supply
regulates the amount of water supplied. The water supply
can be changed if it does not match the water pressure and
the ice cube size dispensed.
The water supply is pre-set to value 4 as delivered. A value
from 1 (smallest inflow volume) to 8 (largest inflow volume)
can be selected.
Setting water supply
Make sure that the following requirements are fulfilled:
❑
The IceMaker has been started. (see 5.2 Starting the
IceMaker for the first time)
❑
IceMaker is activated. (see IceMaker )
Fig.53
Fig. 54 Example illustration: Switch from value 5 to
value6.
► Carry out action steps according to the illustration.
▷ The water supply is set.
MaxIce
Use this function to increase the amount of ice cubes
produced by the IceMaker. MaxIce is automatically deacti‐
vated after 48 hours. However, you can also deactivate
MaxIce manually at any time: (see Deactivating MaxIce) .
More information on the
number of ice cubes:
(see 11.1 Technical specifi‐
cations)
Activating MaxIce
If you activate MaxIce and have not previously activated the
IceMaker (see IceMaker ) function, then by pressing MaxIce
you can also automatically activate the IceMaker function.
If you have not yet activated the IceMaker function, make
sure that the following requirements are met:
❑
The water supply is established at the fixed water
connection. See installation instructions.
❑
IceMaker is put into operation. (see 9.4 IceMaker)
Fig.55
Fig.56
► Carry out action steps according to the illustration.
▷ MaxIce is activated.
▷ If you have not activated the IceMaker function before:
IceMaker is activated.
Deactivating MaxIce
If you deactivate MaxIce, then the IceMaker function is still
activated.
Controls
24 * Depending on model and options

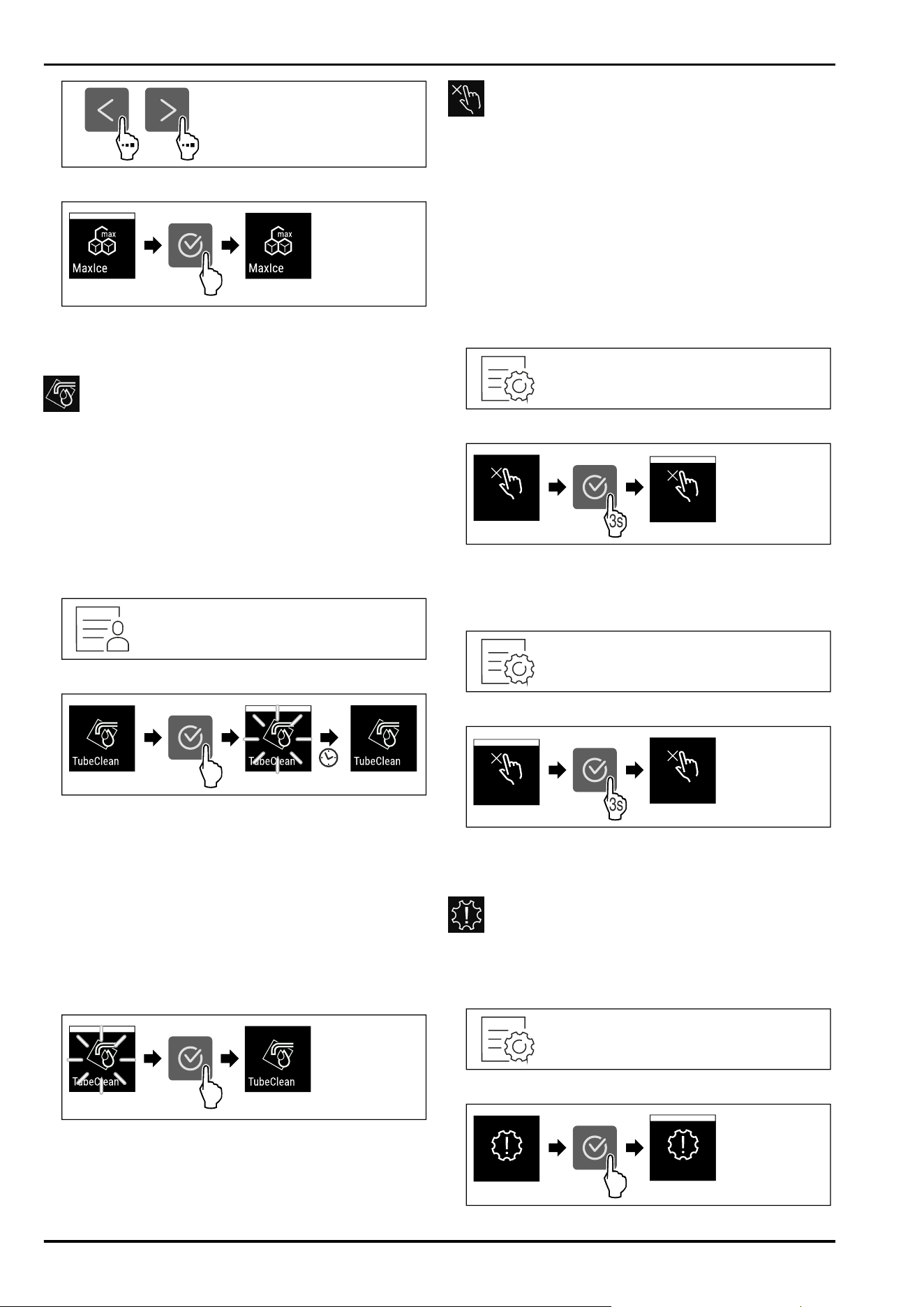

Fig.57
Fig.58
► Carry out action steps according to the illustration.
▷ MaxIce is deactivated.
TubeClean
You can use this function to activate or deactivate Tube‐
Clean. If TubeClean is activated, it cleans the IceMaker lines.
Activating TubeClean
Make sure that the following requirements are fulfilled:
❑
IceMaker cleaning is prepared. (see 10.3.5 Cleaning the
IceMaker)
❑
Empty container with a capacity of 1.5 l and with a
maximum height of 10cm is ready.
► Place the container in the drawer under the IceMaker.
Fig. 59
Fig.60
► Carry out action steps according to the illustration.
▷ TubeClean is activated.
▷ The cleaning process has started: Icon flashes until
the cleaning process is automatically completed after
60 minutes.
▷ When the cleaning process is complete: The device
continues to run in normal mode.
Deactivating TubeClean
TubeClean is automatically ended after 60 minutes.
However, TubeClean can also be deactivated at any time
during the cleaning process:
Fig.61
► Carry out action steps according to the illustration.
▷ TubeClean is deactivated: Cleaning process is aborted.
▷ The device continues to run in normal mode.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig. 62
3s
Displ. Lock
Displ. Lock
Fig.63
► Carry out action steps according to the illustration.
▷ Input lock is activated.
Deactivating the input lock
Fig.64
3s
Displ. Lock
Displ. Lock
Fig.65
► Carry out action steps according to the illustration.
▷ Input lock is deactivated.
Reminder
Use this function to activate or deactivate the reminders.
The function is activated on delivery.
Activating the reminder
Fig.66
Controls
* Depending on model and options 25

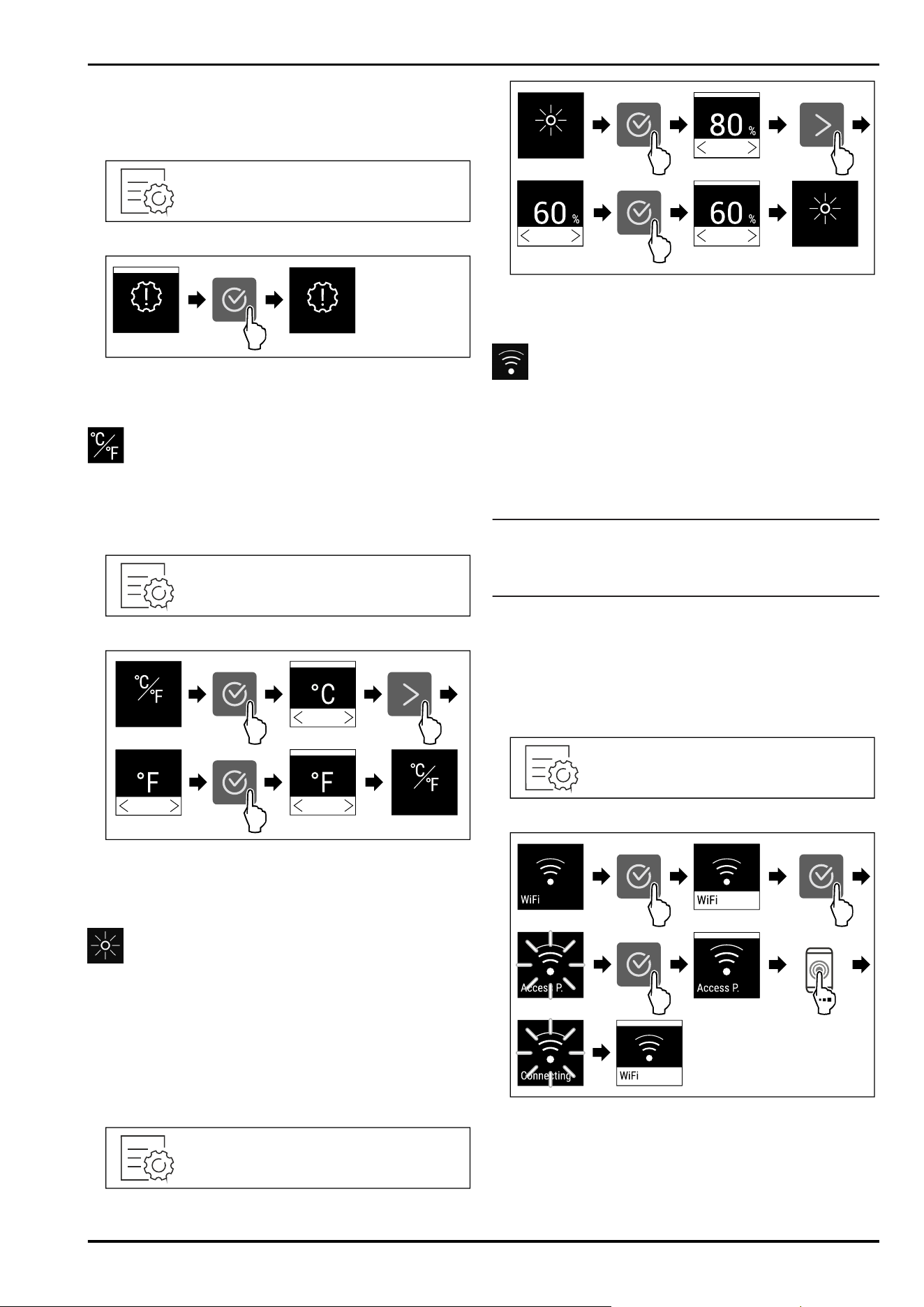

Fig. 67
► Carry out action steps according to the illustration.
▷ Reminder is activated.
Deactivating the reminder
Fig.68
Fig. 69
► Carry out action steps according to the illustration.
▷ Reminder is deactivated.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.70
Fig. 71 Example illustration: Switch from degrees Celsius to
degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness

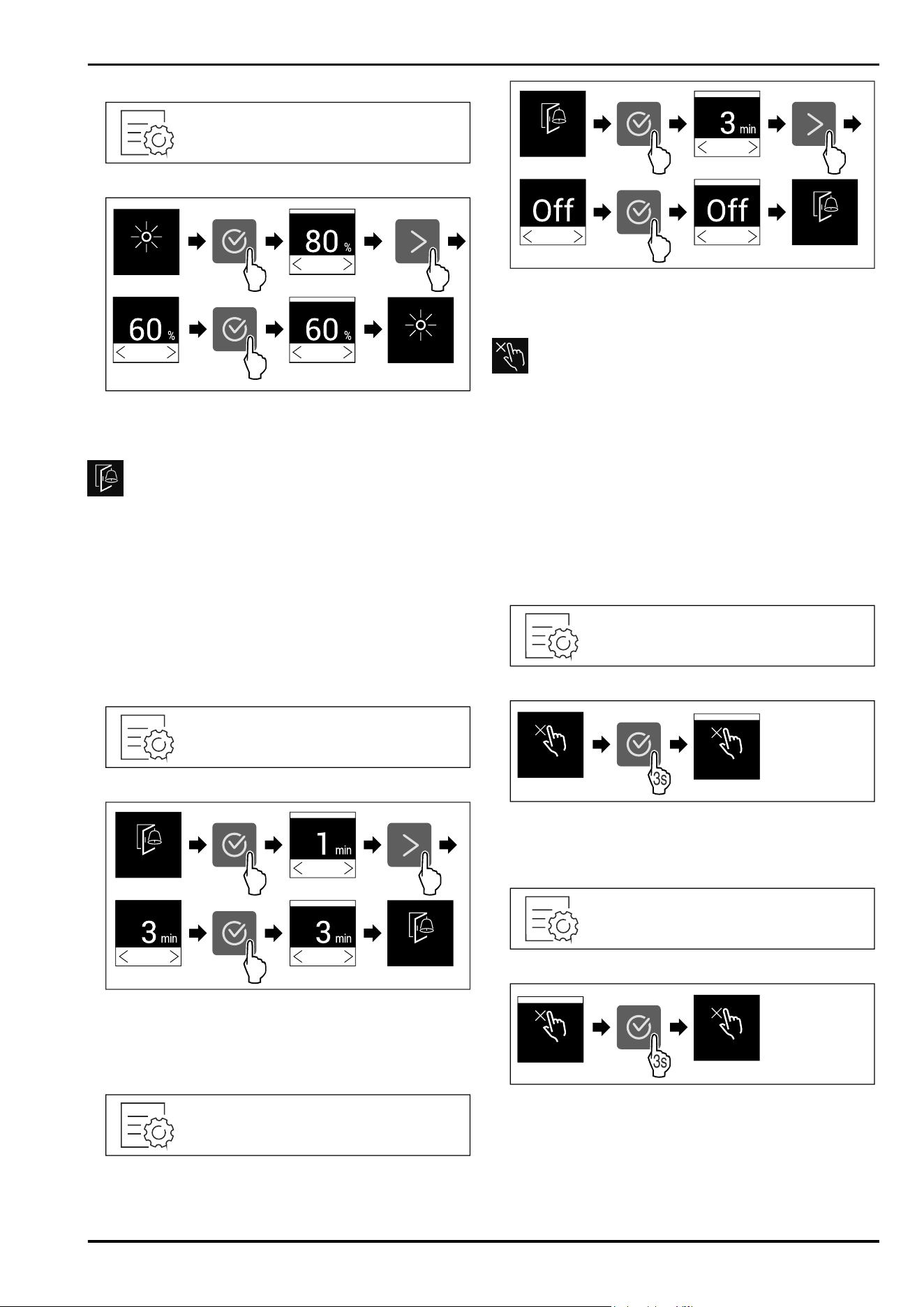

Fig.72
Fig. 73 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see 2.3 SmartDevice)
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig. 74
Fig.75
► Carry out action steps according to the illustration.
▷ Connection is established.
Controls
26 * Depending on model and options

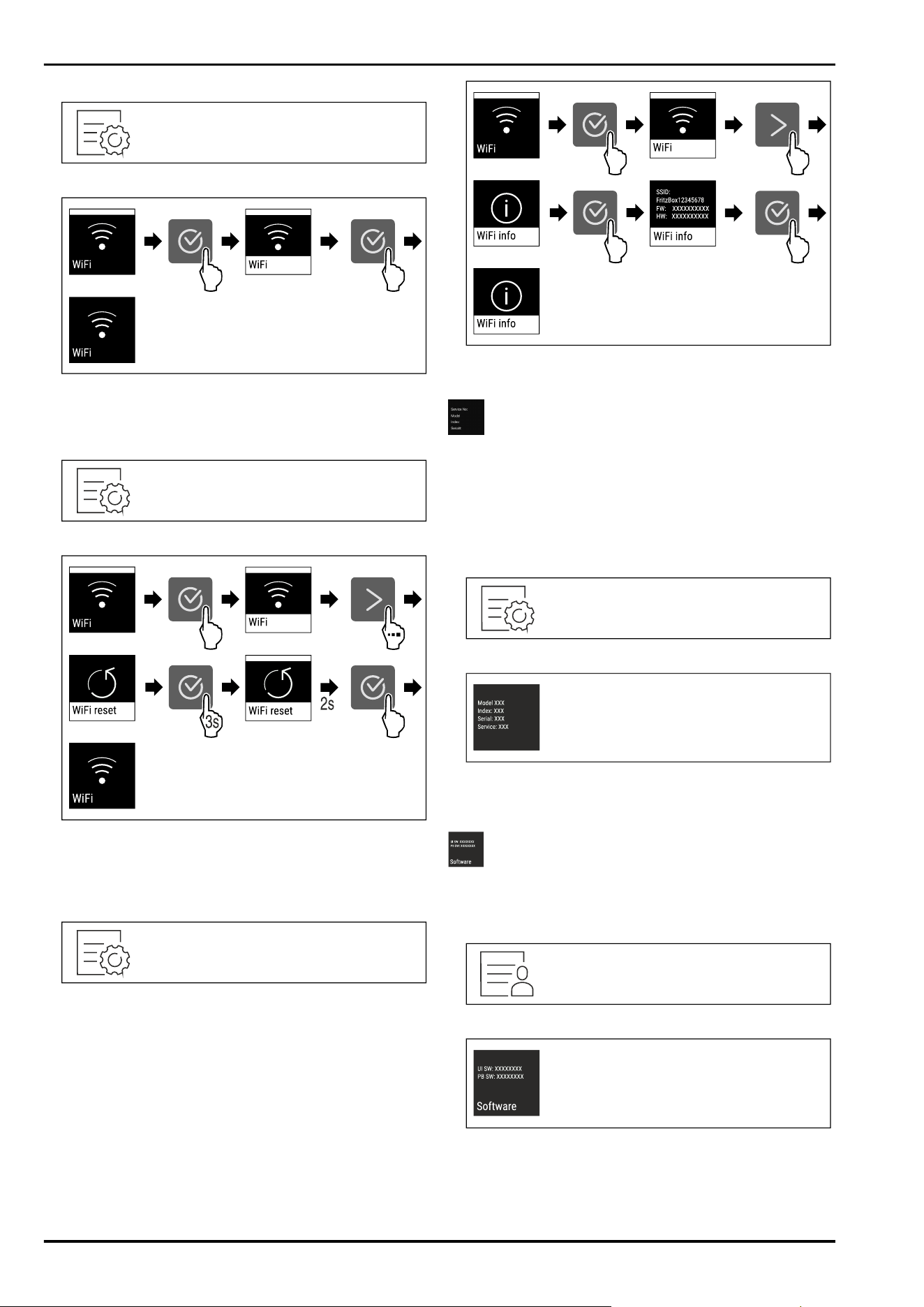

Disconnecting from the WiFi
Fig. 76
Fig.77
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig.78
Fig.79
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig.80
Fig.81
► Carry out action steps according to the illustration.
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see11.4 Customer Service)
This function also opens the Advanced menu. (see 4 Func‐
tionality of the Touch display)

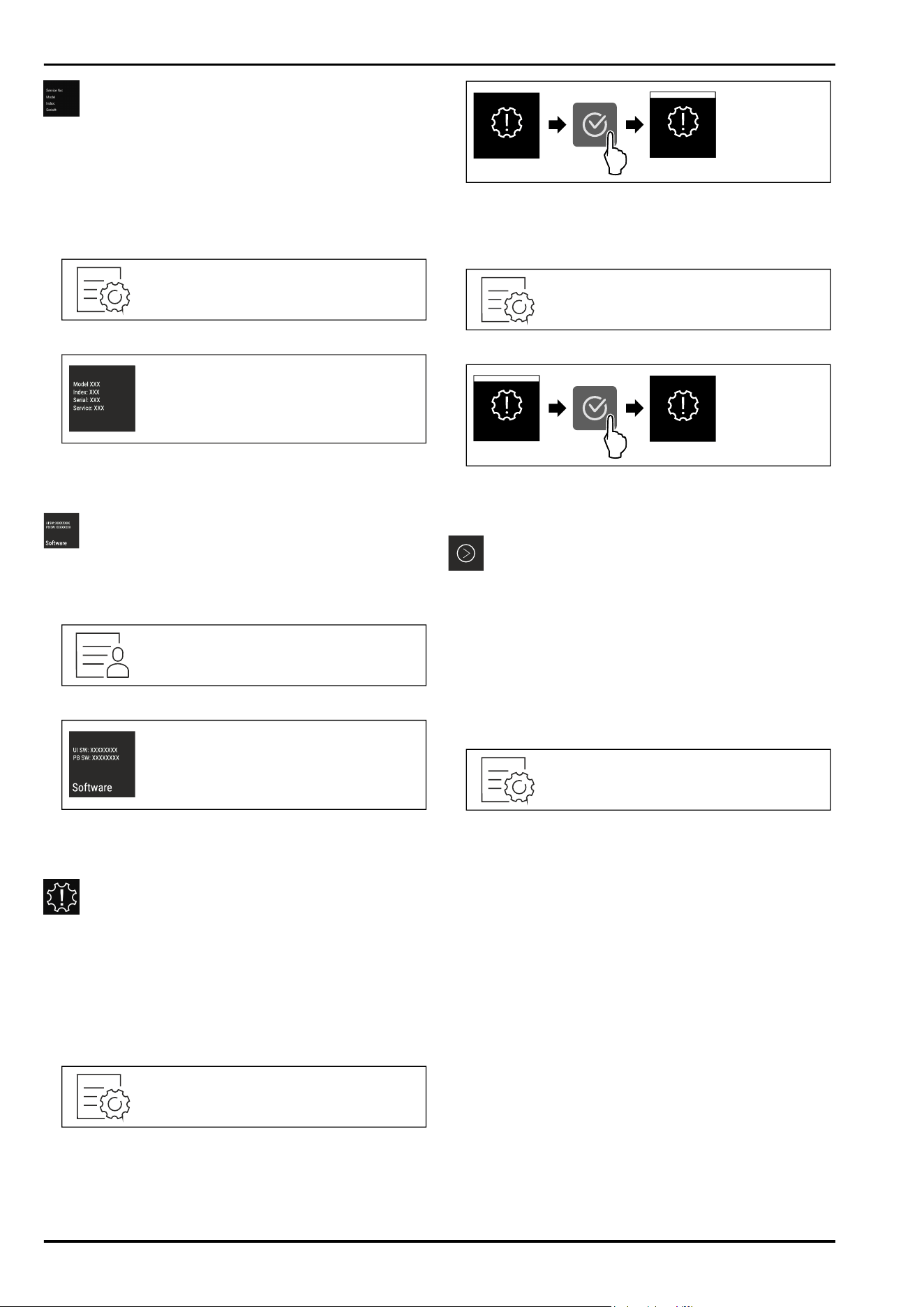

Indicating the device information
Fig.82
Fig.83
► Carry out action steps according to the illustration.
▷ Display indicates device information.
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.84
Fig.85
► Carry out action steps according to the illustration.
▷ Display indicates software version.
Controls
* Depending on model and options 27

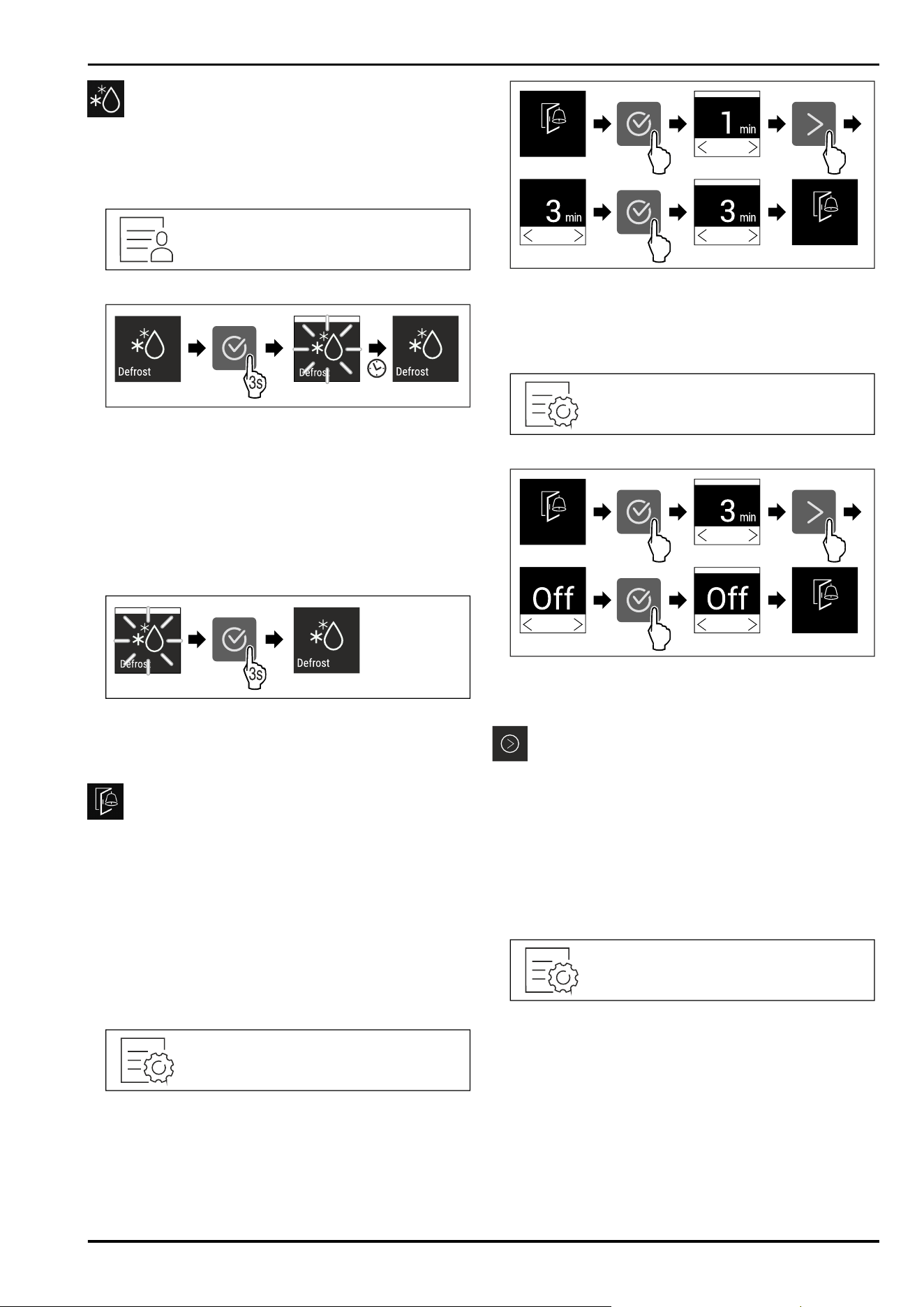

Start defrosting cycle
Use this function to start the automatic defrosting cycle
manually if it does not start automatically in the event of a
fault.
Starting defrosting cycle
Fig.86
Fig. 87
► Carry out action steps according to the illustration.
▷ Defrosting cycle has started: Icon flashes until defrosting
cycle is automatically completed.
▷ When defrosting cycle is finished: The device continues
to run in normal mode.
Cancelling defrosting cycle
The defrosting cycle will be stopped automatically. However,
you can also cancel the defrosting cycle at any time during
the defrosting process:
Fig.88
► Carry out action steps according to the illustration.
▷ Defrosting cycle is cancelled.
▷ The device continues to run in normal mode.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.89
Fig. 90 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.92
Fig. 93
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig. 94
Controls
28 * Depending on model and options

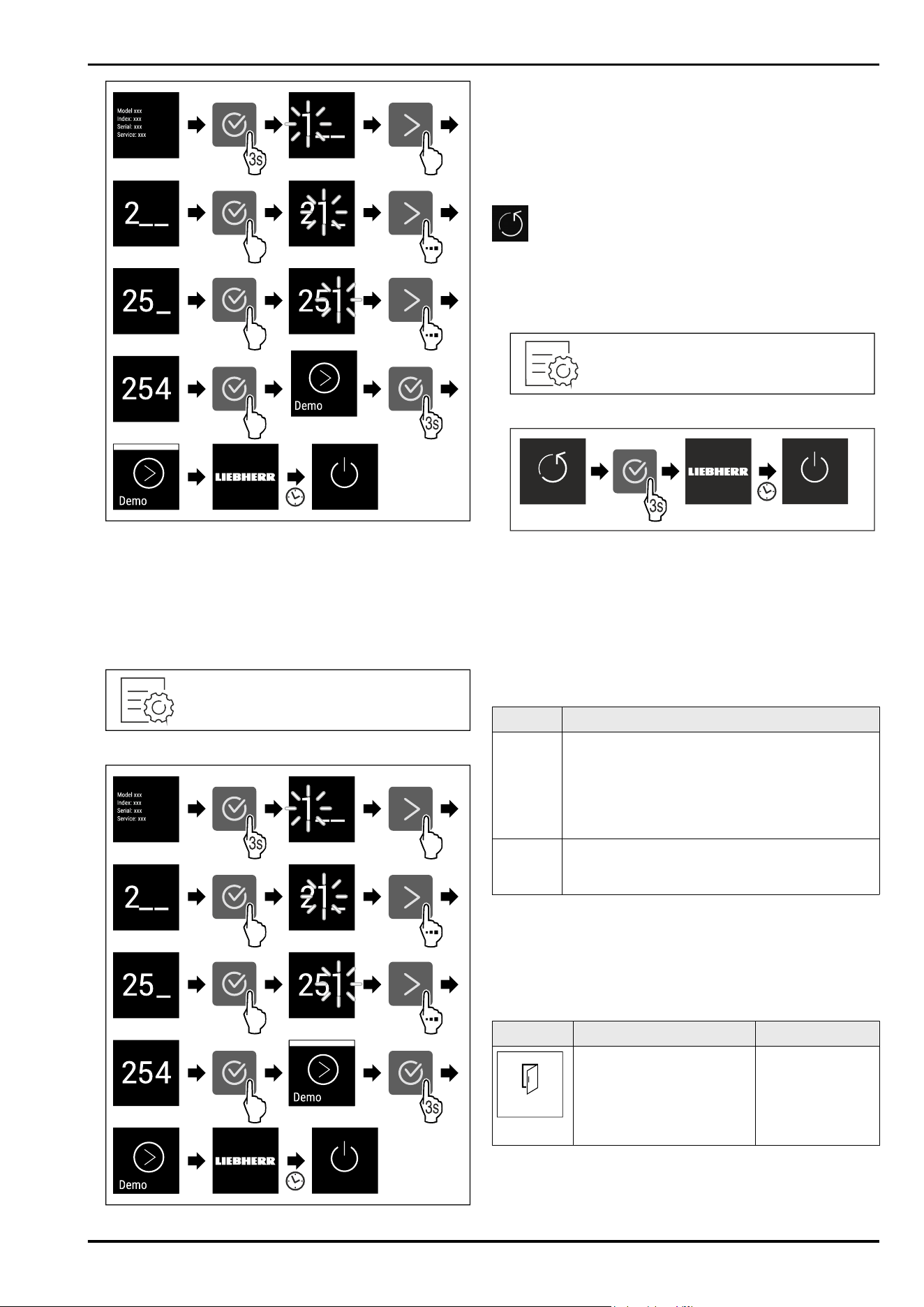

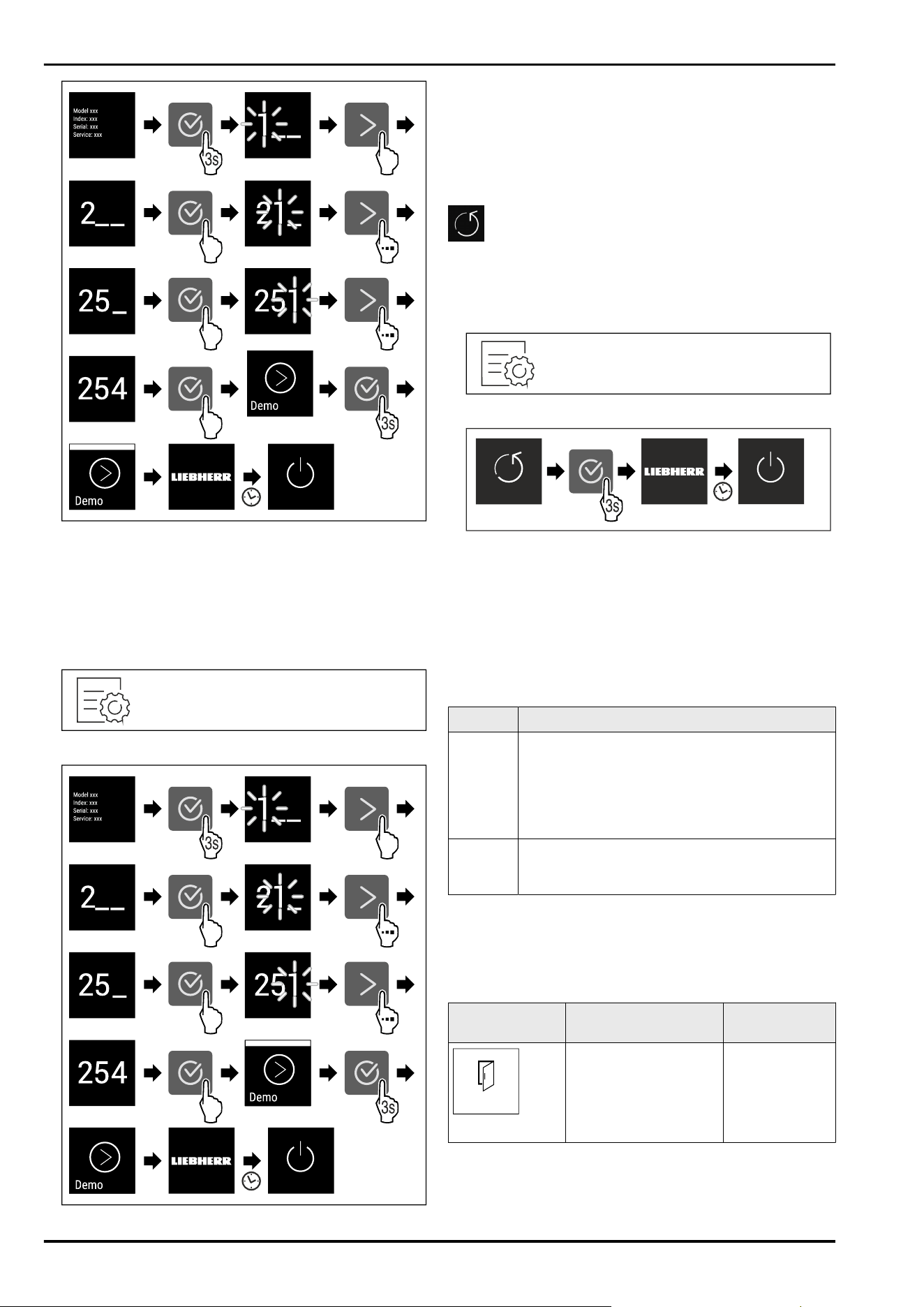

Fig.95
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on appliance
(first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.96
Fig.97
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.98
Fig.99
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 5.1 Switching on appliance (first
use))
8.3 Messages
There are two categories of messages:
Category
Importance
Warning Warnings appear in the event of a door alarm or
malfunction.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 11.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
8.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears on the display.
-
The alarm tone sounds at an ever-increasing volume.
Message
Cause Exit the
message
Door alarm
The message appears
if the door is open for
too long.
Carry out action
steps.
(see Door
alarm)
Controls
* Depending on model and options 29

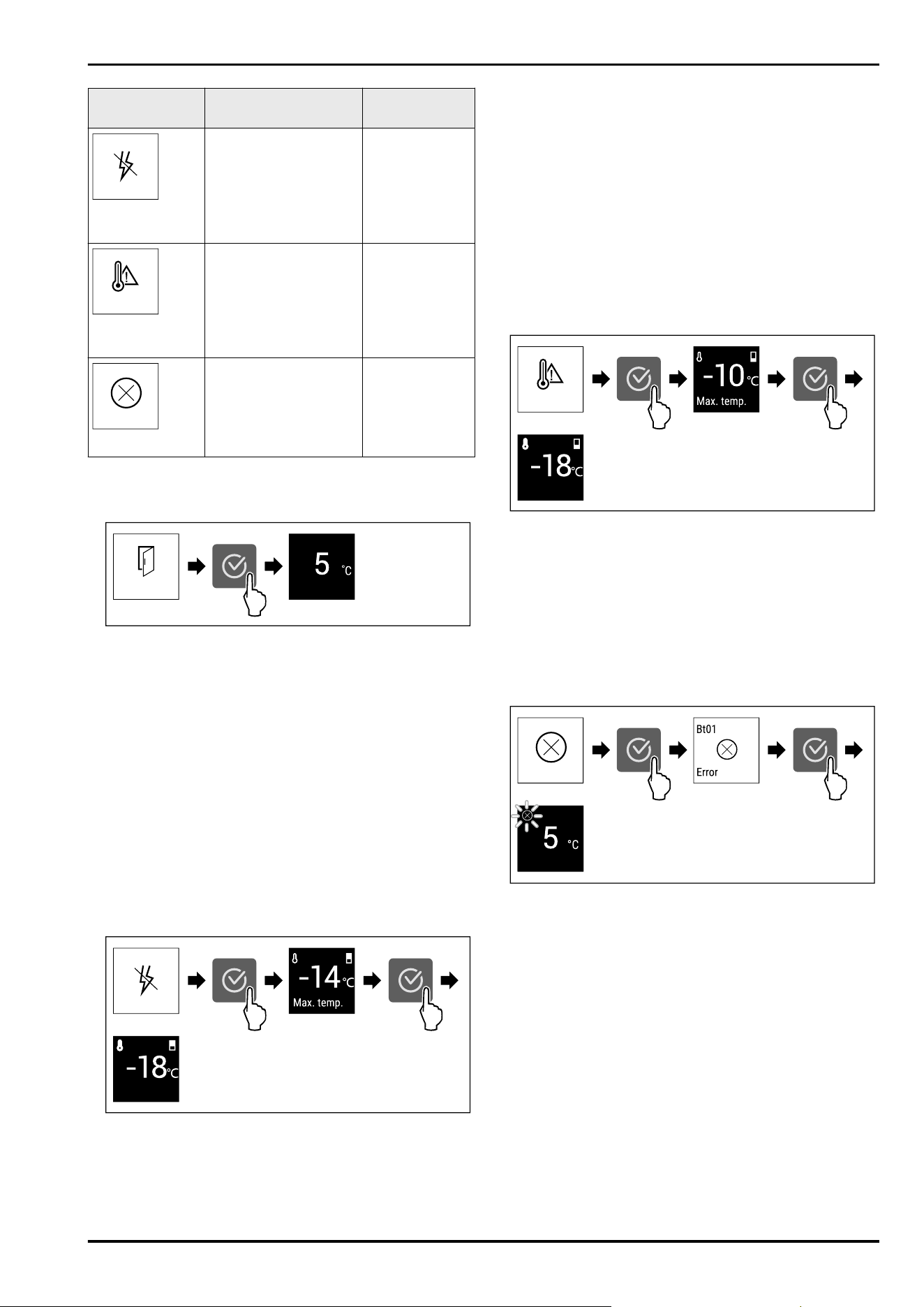

Message Cause Exit the
message
Power outage
alarm
The message appears
if the freezing temper‐
ature has risen due to
a power failure.
Carry out action
steps.
(see Power
outage alarm)
Temperature
alarm
The message appears
if the freezing temper‐
ature does not corre‐
spond to the set
temperature.
Carry out action
steps.
(see Tempera‐
ture alarm)
Error
The message appears
if there is an appliance
error. A component of
the appliance has a
fault.
Carry out action
steps.
(see Error)
8.3.2 Ending warnings
Door alarm
Fig. 100 Example illustration
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ The display returns to the status indicator.
▷ The appliance cools more vigorously, which means that
the temperature shown on the display may be higher
than the actual temperature inside the appliance.*
▷ Appliance noises can be louder.*
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
Power outage alarm
When the power failure has ended, the appliance will auto‐
matically cool down to the previously set target tempera‐
ture without you having to confirm the message. However,
for the message to disappear from the display, you must
confirm it.
Fig. 101 Example illustration
► Press the confirmation symbol.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
►
Check the food.
► Press the confirmation symbol.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Temperature alarm
Temperature differences can be caused by:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The appliance is faulty.
► Eliminate causes.
▷ The appliance cools to the target temperature set previ‐
ously.
Fig. 102 Example illustration
► Press the confirmation symbol.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Press the confirmation symbol.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Error
Fig. 103 Example illustration
► Press the confirmation symbol.
▷ Error code is displayed.
► Note the error code.
► Press the confirmation symbol.
▷ The display returns to the status indicator.
► Contact Customer Service. (see11.4 Customer Service)
8.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears on the display.
-
Alarm tone sounds.
The following reminders can be deactivated (see Deacti‐
vating the reminder) :
Controls
30 * Depending on model and options

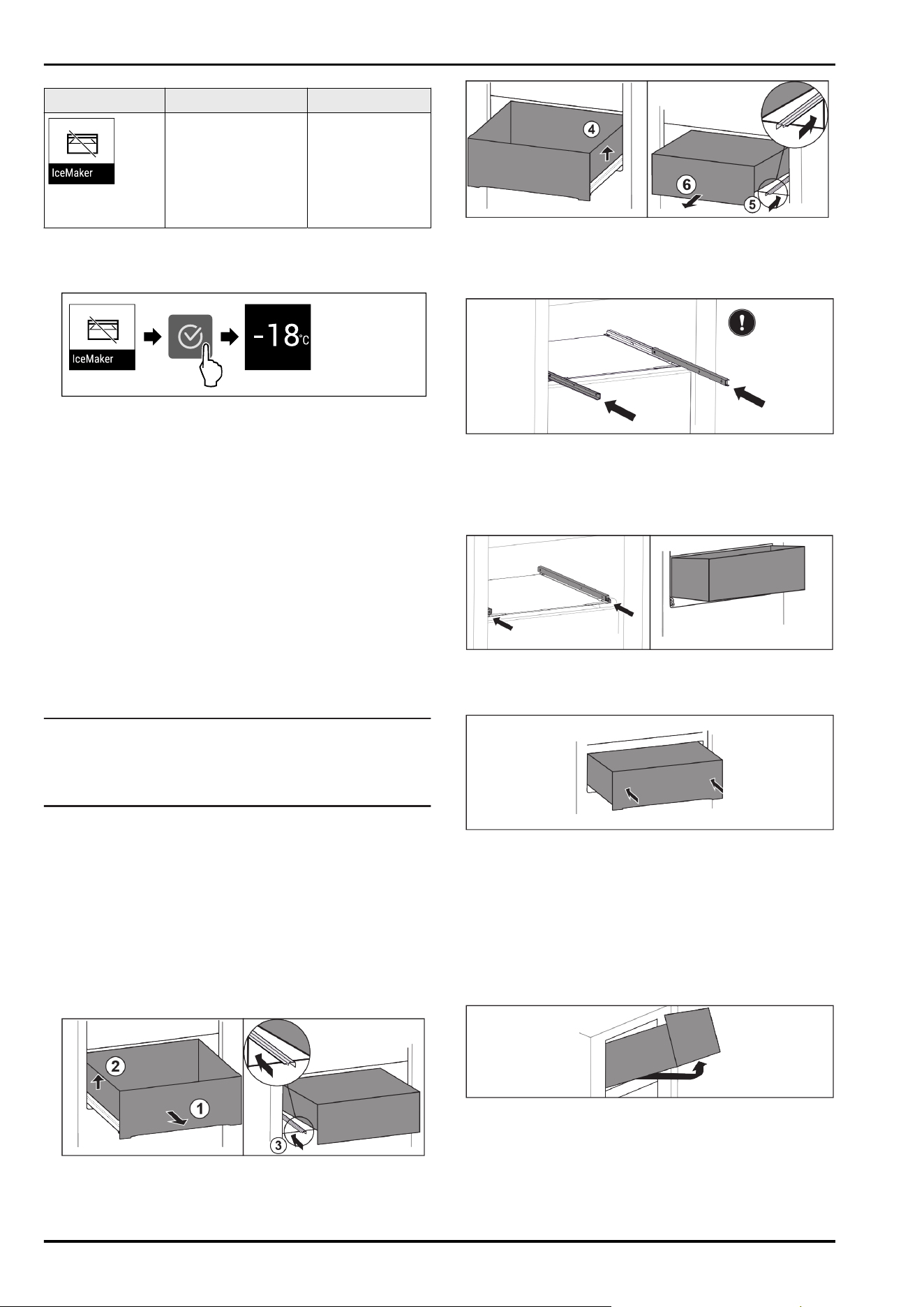

Message Cause Exit the message
Insert the
IceMaker drawer
The message
appears if the
IceMaker is acti‐
vated but the
IceMaker drawer is
open.
Carry out action
steps. (see Insert
the IceMaker
drawer)
8.3.4 Ending reminders
Insert the IceMaker drawer
Fig. 104 Example illustration
► Press the confirmation symbol.
► Insert the IceMaker drawer.
-or-
► Deactivate IceMaker. (see IceMaker )
▷ If IceMaker drawer is inserted and IceMaker is activated:
IceMaker produces ice cubes.
9 Features
9.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Leave the bottom drawer in the appliance!
► Always leave the fan air vents clear on the back wall!
9.1.1 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Drawer on glass shelf
The drawer guided on a glass shelf is a partial pull-out.
Removing drawer

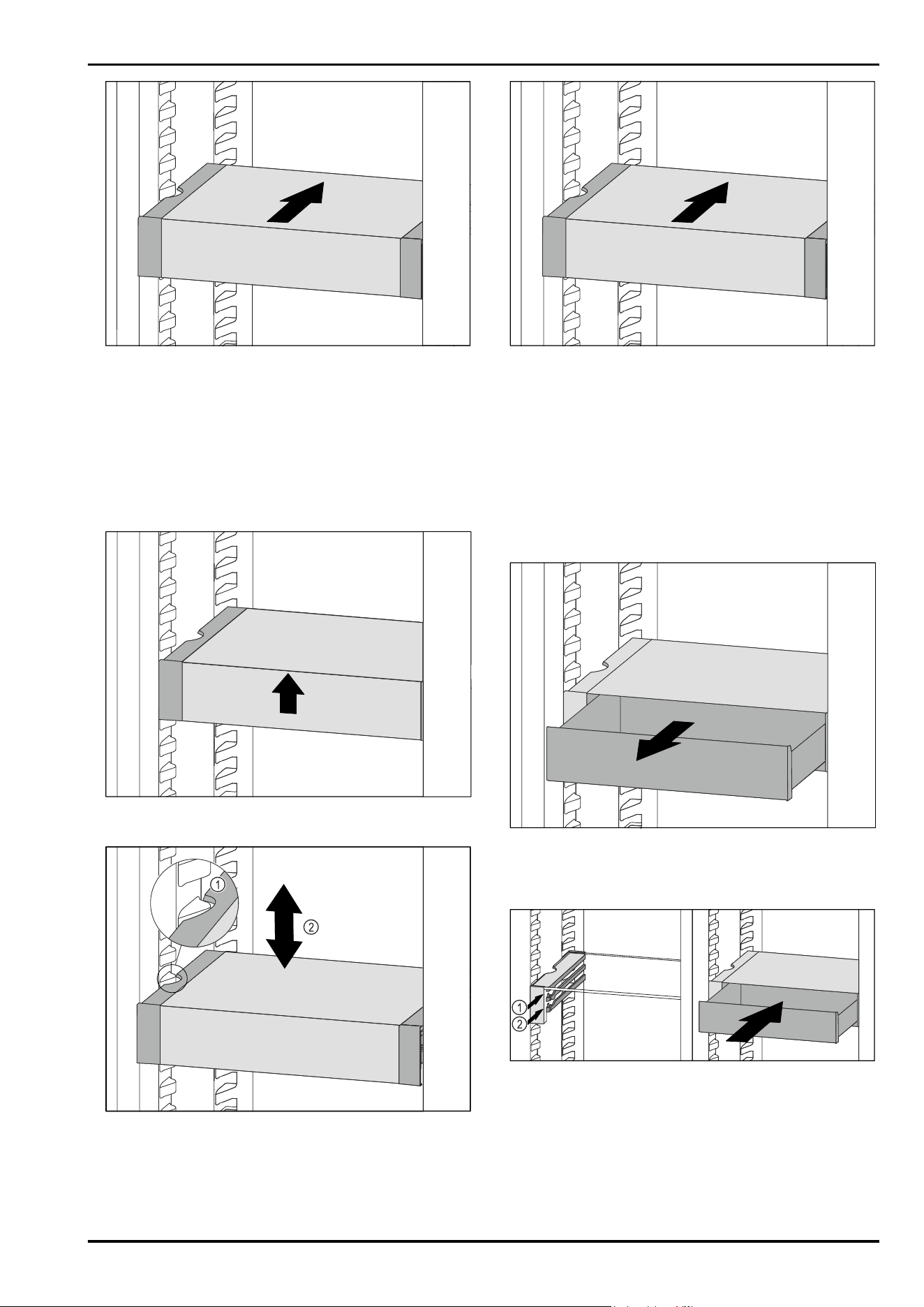

Fig. 105
► Pull out drawer as far as it will go. Fig. 105(1)
► Lift drawer on the left. Fig. 105(2)
► Insert left rail. Fig. 105(3)
Fig. 106
► Lift drawer on the right. Fig. 106(4)
► Insert right rail. Fig. 106(5)
► Remove drawer to the front. Fig. 106(6)
Fig. 107
If the rails are not yet fully inserted after removing the
drawer:
► Push rails in completely.
Inserting drawer
Fig. 108
► Slide rails in.
► Place drawer on rails at an angle.
Fig. 109
► Lower drawer.
► Slide in drawer to the back.

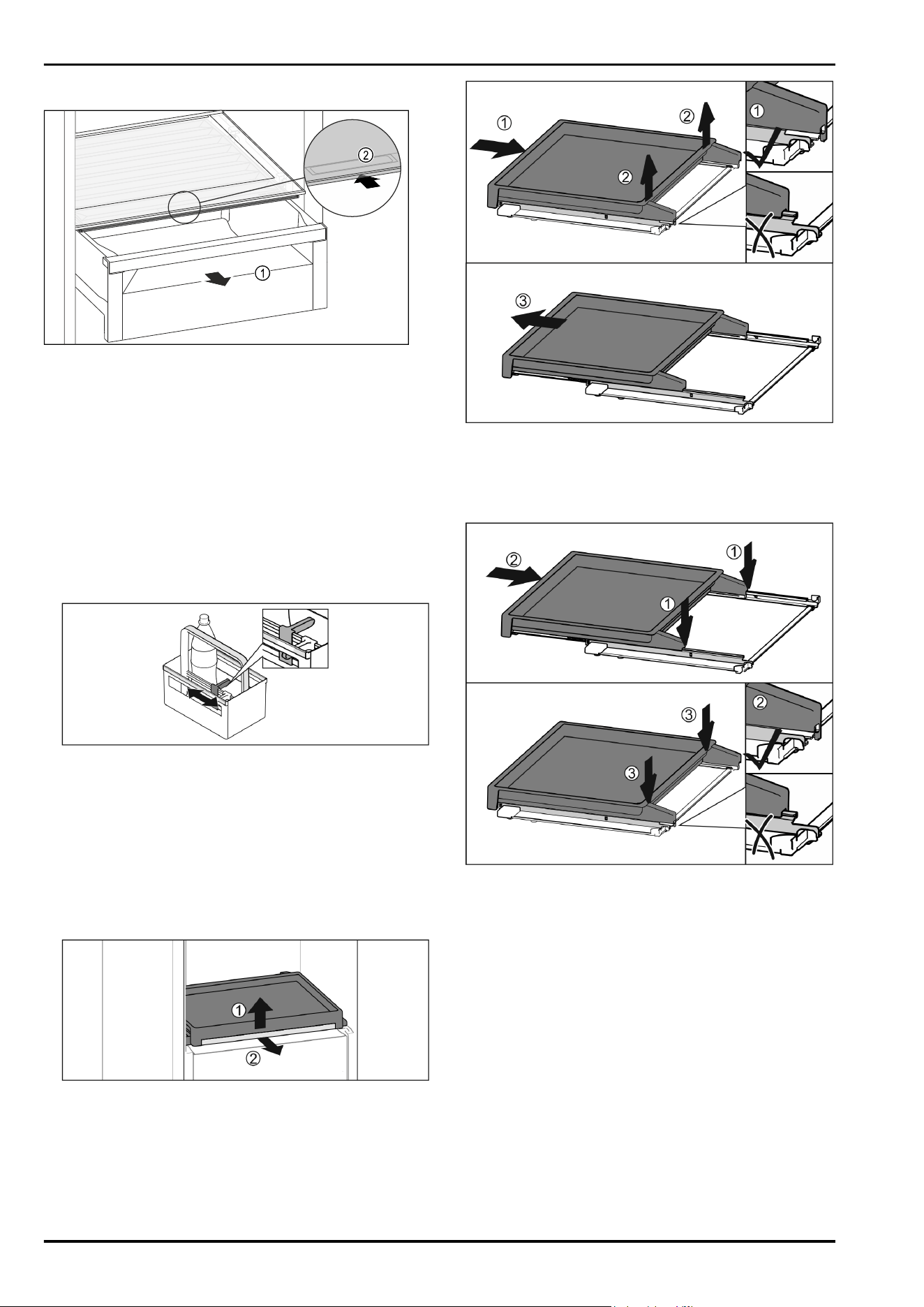

9.1.2 Top tilting drawer
When you pull out the top drawer, it tilts forward. This gives
you a better view into the drawer. The function depends on
the height of the appliance.
Removing drawer
Fig. 110
► Pull out drawer as far as it will go.
► Lift drawer at the front.
► Lift drawer from below.
► Remove drawer to the front.
Features
* Depending on model and options 31

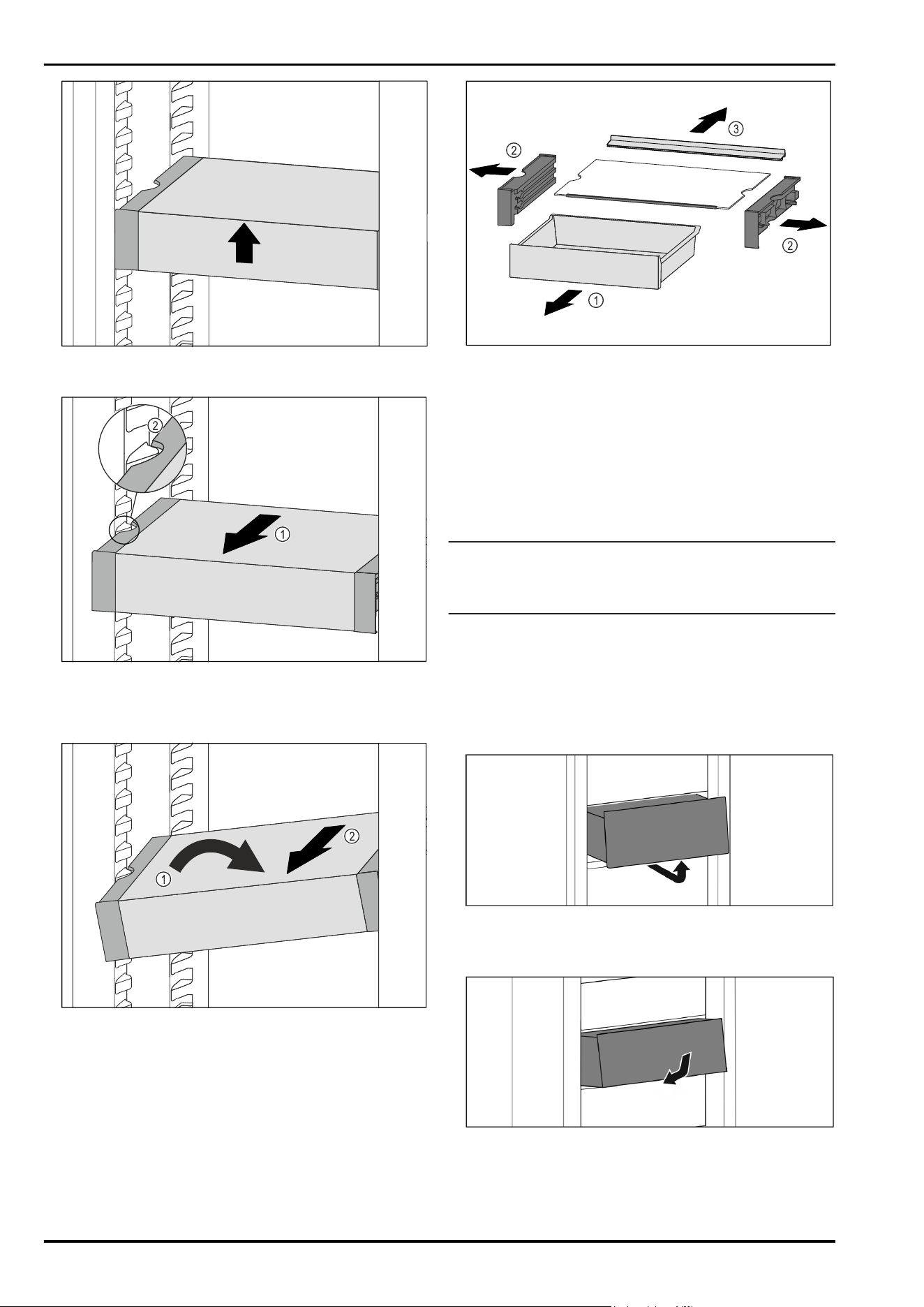

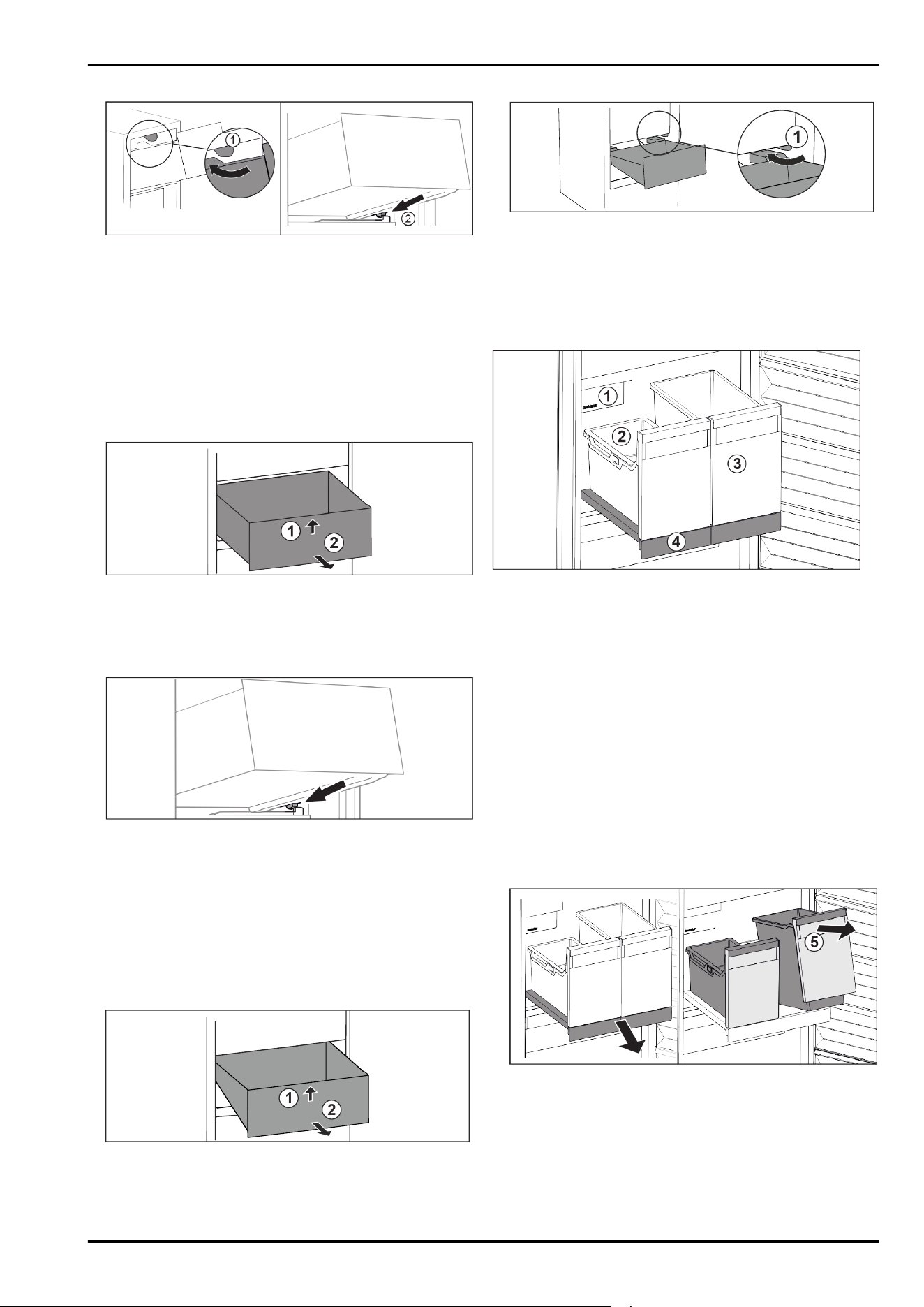

Inserting drawer
Fig.111
► Guide drawer around the upper stoppers. Fig.111(1)
► Place drawer at an angle behind the lower stoppers onto
moulded rib. Fig.111(2)
► Lower drawer.
► Slide to the back.
9.1.3 Drawer on moulded rib
The drawer runs directly on the moulded rib. There are no
rails.
Removing drawer
Fig.112
► Pull out drawer as far as it will go.
► Lift up drawer at the front. Fig.112(1)
► Remove drawer to the front. Fig.112(2)
Inserting drawer
Fig.113
► Place drawer at an angle behind the stoppers on the
moulded rib. (see Fig.113)
► Lower drawer.
► Slide in drawer to the back.
9.1.4 Bottom drawer
The drawer is the lowest drawer in the appliance. It runs
directly on the moulded rib. There are no rails.
Removing drawer
1
2
Fig. 114
► Pull out drawer as far as it will go.
► Lift up drawer at the front. Fig. 114(1).
► Remove drawer to the front. Fig. 114(2).
Inserting drawer
1
Fig. 115
► Guide drawer in at an angle around the stoppers
Fig. 115(1).
► Lower drawer.
► Slide in drawer to the back.
9.2 Pull-out board with IceTower
Fig. 116 Pull-out board with IceTower
(1)
IceMaker (3) Container for pizza or
alcoholic beverages, for
example
(2) Hang-on tray for ice
cubes
(4) Pull-out board
There are two high (IceTower) containers on the pull-out
board. Ice cubes from the IceMaker are collected and stored
in the Fig. 116 (2) container. The container Fig. 116 (3) is suit‐
able for storing tall foodstuffs or beverages such as pizzas
or alcoholic drinks.
The pull-out board with IceTower is mounted on a glass
shelf with pull-out rails. You can dismantle the pull-out
board for cleaning.
9.2.1 Dismantling the pull-out board with
IceTower
Removing the container
Fig.117
► Pull out the pull-out board.
► Lift the container Fig.117(5) at the front.
► Remove the container.
Features
32 * Depending on model and options
Fig. 118
► Remove the hang-on tray Fig. 118(6).
► If there are ice cubes in the hang-on tray: Empty the
hang-on tray.
▷ The container and hang-on tray have been removed and
you can clean them. (see 10.3.4 Clean the components)
Removing the pull-out board
Ensure that the following conditions are met:
❑
Containers have been removed. (see Removing the
container)
Fig. 119
► Slide in the pull-out board. Fig. 119(7)
► Lift the pull-out board on the front left. Fig. 119(8)
► Lift the pull-out board on the front right. Fig. 119(9)
▷ Pull-out board is detached from the attachment at the
front.
► Take out the pull-out board to the front. Fig. 119(10)
▷ The pull-out board has been removed and you can clean
it. (see 10.3.4 Clean the components)
Removing the glass shelf from under the pull-out board
(see 9.3 Glass shelves)
9.2.2 Inserting the pull-out board with IceTower
Inserting the glass shelf from under the pull-out board
(see 9.3 Glass shelves)
Inserting the pull-out board
Fig.120
► Slide the rails in.
Fig.121
► Place the pull-out board in at an angle behind the front
lug.
► Slide in at an angle. Make sure that the stop is behind the
lug on both sides. Fig.121(11)
► Lower the pull-out board at the front. Fig.121(12)
Fig.122
► Push the pull-out board down at the front.
▷ Pull-out board clicks into place.
Inserting the container
Ensure that the following conditions are met:
❑
The pull-out board is inserted. (see Inserting the pull-out
board)
Fig.123
► Pull out the pull-out board.
► Hold the pull-out board with one hand.
Note
The containers are shaped in a way that they cannot be
interchanged.
► Place the container at an angle on the pull-out board.
Fig.123(13)
► Slide the container to the back at an angle. Fig.123(14)
► Place container in the front. Fig.123(15)
Features
* Depending on model and options 33

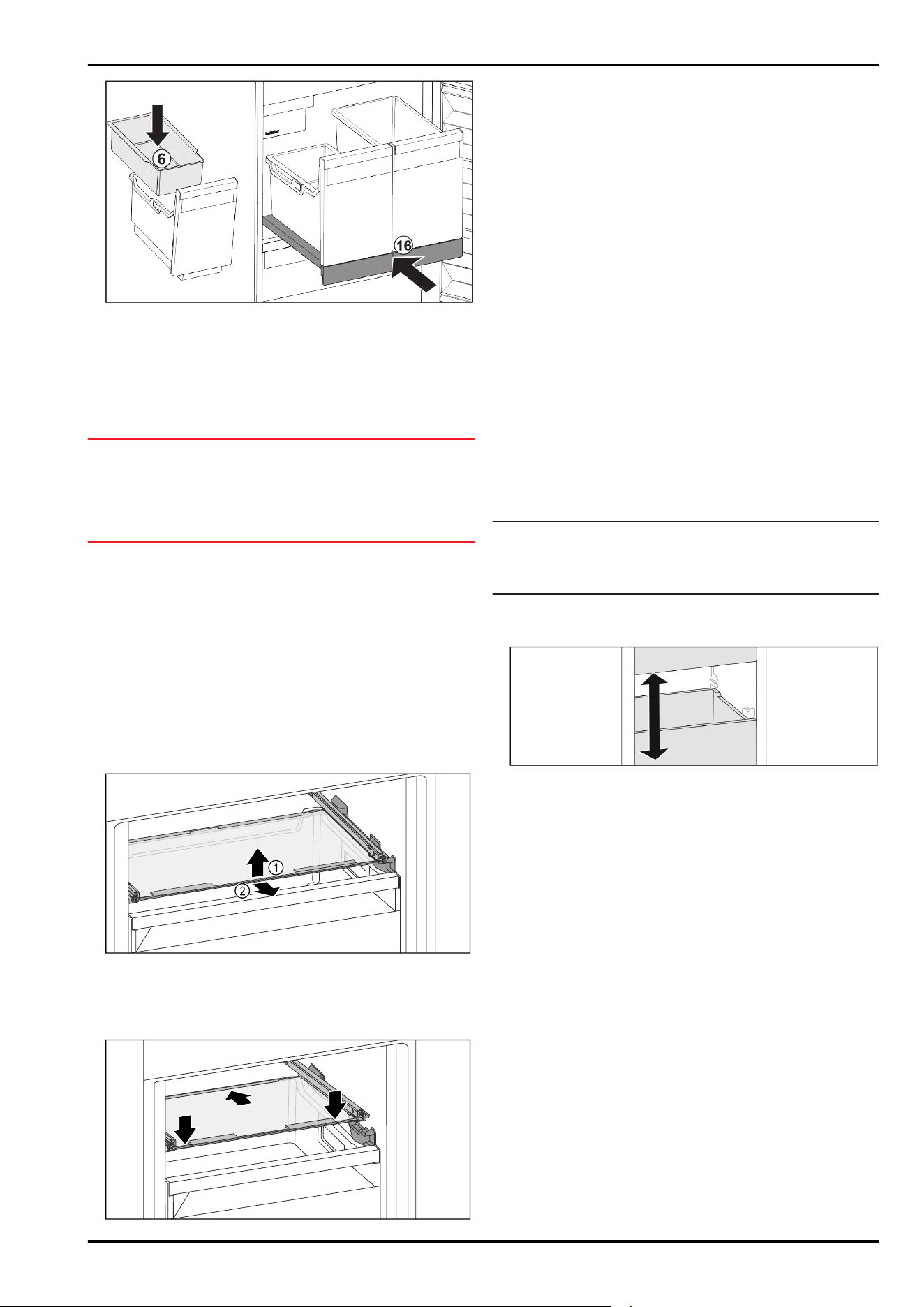

Fig. 124
► Insert hang-on tray Fig. 124(6) for ice cubes.
► Slide in the pull-out board with (IceTower) container.
Fig. 124(16)
▷ Pull-out shelf with IceTower is fully inserted.
9.3 Glass shelves
NOTICE
Impermissible removal of the glass panel above the
IceTower!
Damage to the IceMaker. The IceMaker is attached to the
glass panel above the IceTower.
► Do not remove the glass panel above the IceTower.
You can remove the glass shelves under the drawers for
cleaning.
You can remove the glass shelves under the drawers to use
VarioSpace.
9.3.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
❑
Glass shelf under the drawer: The drawer has been
removed. (see 9.1 Drawers)
❑
Pull-out board under IceTower: IceTower has been
removed. (see 9.2 Pull-out board with IceTower)
Removing glass shelf
Fig. 125 Example illustration, glass shelf
► Lift the glass shelf forwards.
► Remove the glass shelf forwards.
Inserting glass shelf
Fig. 126 Example illustration, glass shelf
► Place the glass shelf at an angle behind the stoppers.
► Lower glass shelf.
► Slide in glass shelf to the back.
9.4 IceMaker
The IceMaker will produce ice cubes for household use only.
Ensure that the following conditions are met:
-
The IceMaker is clean. (see 10 Maintenance)
-
IceMaker drawer is cleaned.
-
IceMaker drawer is fully inserted.
9.4.1 Producing ice cubes
The volume depends on the freezing temperature. The
colder the temperature, the more ice cubes the system can
produce in a certain time period.
After the IceMaker is turned on for the first time, it can take
up to 24 hours for the first ice cubes to be made.
► Activate the IceMaker function.
► Producing many ice cubes: Activate the MaxIce function.
► Distribute the ice cubes evenly in the drawer to increase
the capacity.
► Closing the drawer: IceMaker starts making ice cubes
again automatically.
Note
When a certain level is reached in the IceMaker drawer, it
stops producing ice cubes. The IceMaker does not fill the
drawer all the way to the top.
9.5 VarioSpace
Fig.127
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
► Note the weight limits on the drawers and glass panels
(see11.1 Technical specifications) .
10 Maintenance
10.1 Disassembling / assembling pull-
out systems
10.1.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Maintenance
34 * Depending on model and options

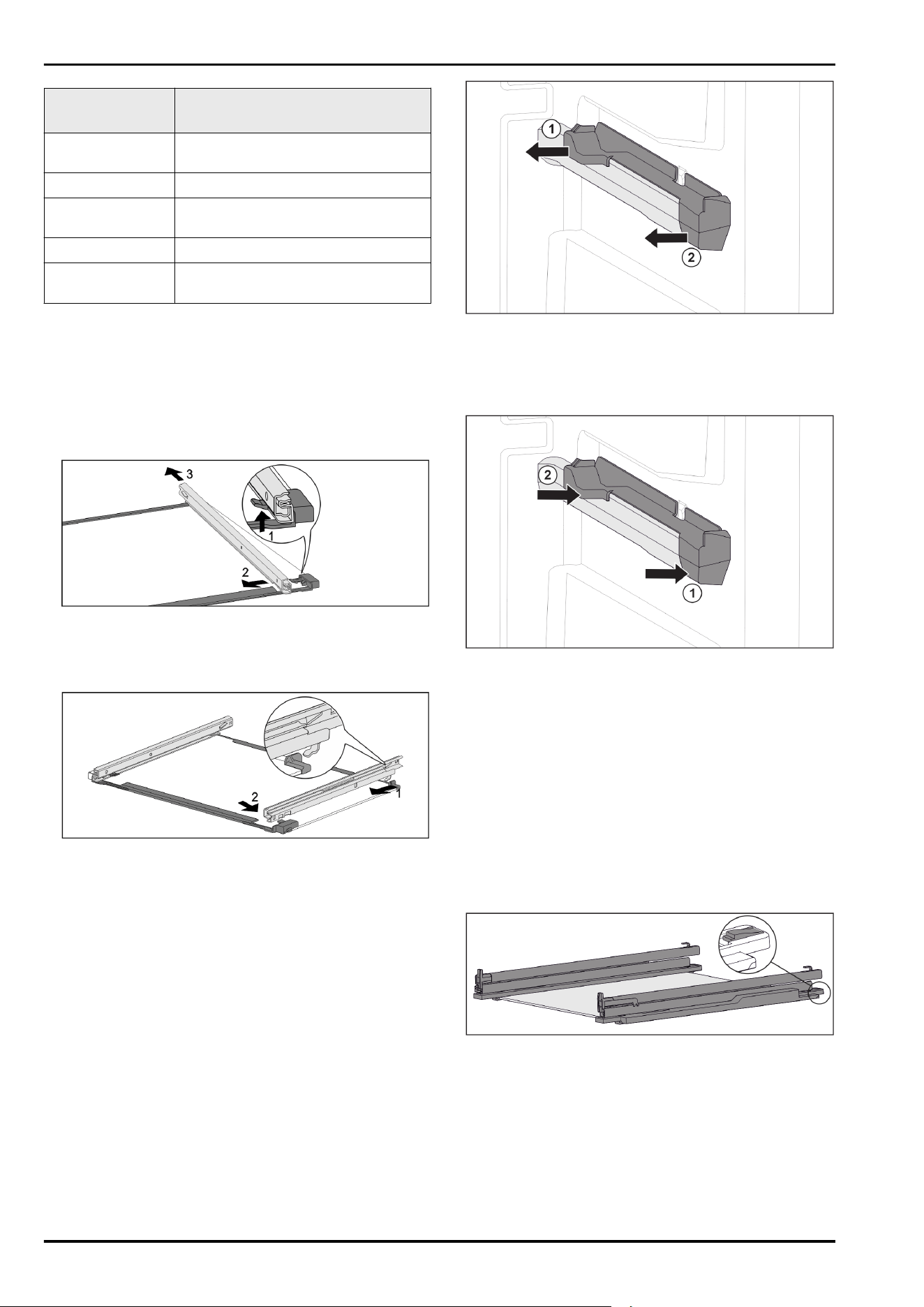

Pull-out system can be disassembled/
cannot be disassembled
Drawer guided on
glass shelf
can be disassembled (see Drawer on
glass shelf)
Top tiltable drawer cannot be disassembled
Drawer guided on
container rib
can be disassembled
(see 10.1.3 Drawer on moulded rib)
Bottom drawer cannot be disassembled
IceTower can be disassembled
(see 10.1.4 IceTower)
10.1.2 Drawer on telescopic rails
Drawer on glass shelf
Disassembling pull-out system
Make sure the following prerequisites are met:
❑
Drawer has been removed.
❑
Glass shelf has been removed. (see 9.3 Glass shelves)
Fig. 128 Glass shelf with rails
► Push up front click-in hooks. (1)
► Move pull-out rails to the side (2) and to the rear (3).
Installing pull-out system
Fig. 129 Glass shelf with rails
► Hook in rail at the back. (1)
► Hook in rail at the front. (2)
10.1.3 Drawer on moulded rib
Disassembling pull-out system
Make sure the following prerequisites are met:
❑
Drawer has been removed. (see 9.1.3 Drawer on moulded
rib)
Fig. 130 Attachment on the right moulded rib
► Grab attachment at the back from below.
► Pull off attachment at the back sideways. Fig.130(1)
► Pull off attachment at the front sideways. Fig.130(2)
Installing pull-out system
Fig. 131 Attachment on the right moulded rib
► Position attachment on moulded rib at the front.
Fig.131(1)
► Press on attachment at the back. Fig.131(2)
10.1.4 IceTower
Disassembling pull-out system
Make sure the following prerequisites are met:
❑
IceTower has been removed. (see 9.2 Pull-out board with
IceTower)
❑
Glass shelf has been removed. (see 9.3 Glass shelves)
► Place pull-out board on a table.
▷ You are able to remove the rails more easily from the
glass shelf.
Fig. 132 Glass shelf with rails and retaining parts
► Press down retaining part at the rear (see Fig.132) and at
the same time push the rail back.
Maintenance
* Depending on model and options 35

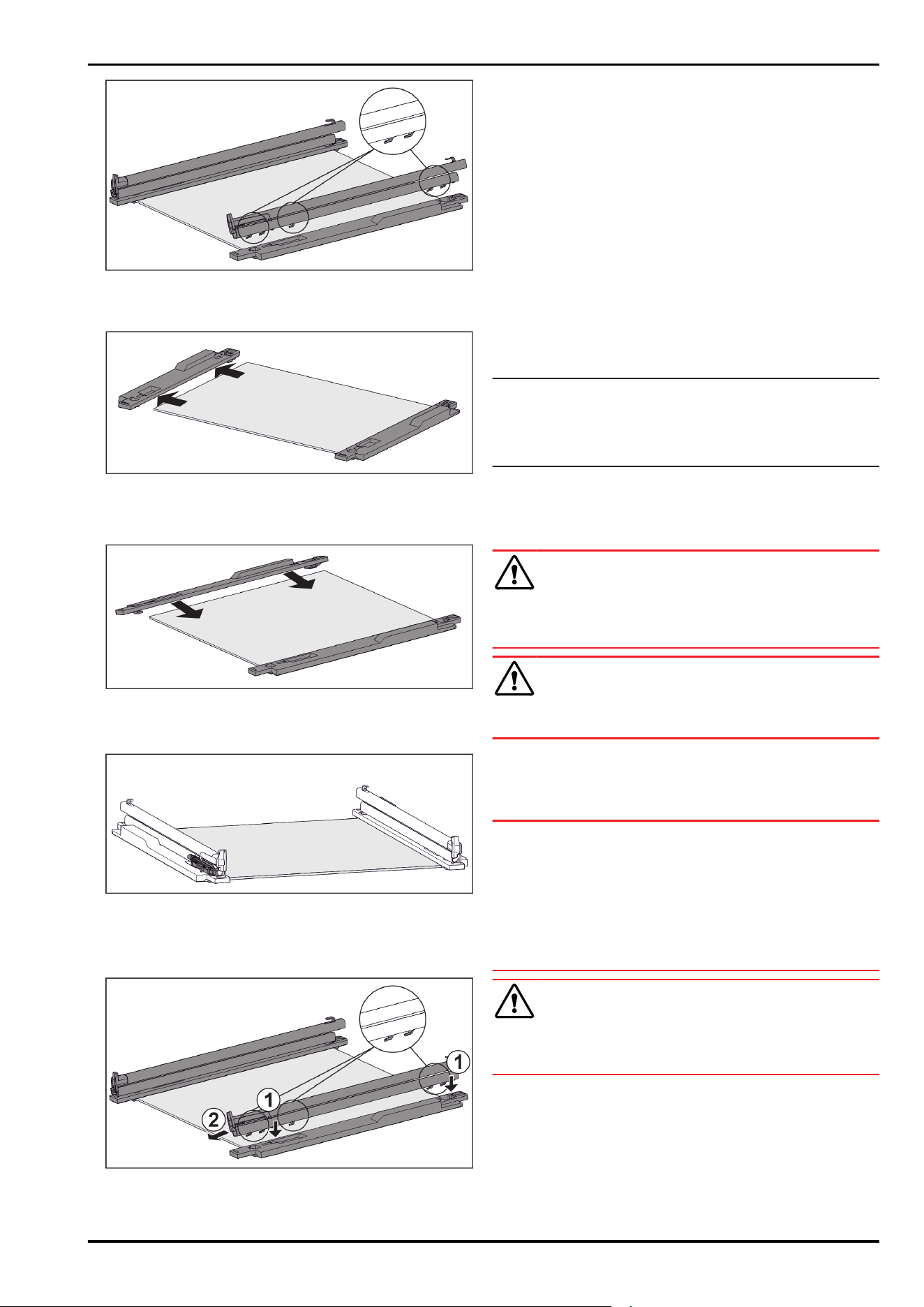

Fig. 133 Glass shelf with rails and retaining parts
▷ The rail hooks are released from the retaining part.
► Remove rail from retaining part.
Fig. 134 Glass shelf with retaining part
► Remove retaining part from glass shelf sideways.
Installing pull-out system
Fig. 135 Glass shelf with retaining part
► Fit retaining part on glass shelf.
► Push retaining part onto glass shelf as far as it will go.
Fig.136Damping mechanism
The damping mechanism is attached to the left rail. (see
Fig. 136) There is no damping mechanism attached to the
right rail.
Fig. 137 Glass shelf with rails and retaining parts
Install rail with damping mechanism:
►
Place rail hooks onto the openings of the left retaining
part. Fig.137(1)
► Push rail forwards. Fig.137(2)
▷ Rail latches in audibly.
Install rail without damping mechanism:
► Place rail hooks onto the openings of the right retaining
part. Fig.137(1)
► Push rail forwards. Fig.137(2)
▷ Rail latches in audibly.
10.2 Defrosting the appliance
10.2.1 Defrosting with NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not have to be defrosted.
Note
Water droplets may collect on the bottom of the appliance.
When you take the appliance out of operation:
► Place a towel in front of the appliance to catch any water
droplets that escape. (see12Shutting down)
10.3 Cleaning the appliance
10.3.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
10.3.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
Maintenance
36 * Depending on model and options
10.3.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
10.3.4 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- IceTower pull-out board
- Drawer
Please note: Do not remove the magnet on the drawer.
The magnet ensures the functionality of the IceMaker.
- Freezer tray
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60°C:
- Ice cube scoop
► To disassemble components: see the relevant section.
► Clean the components.
10.3.5 Cleaning the IceMaker
There are various options for cleaning the IceMaker.
Cleaning is required in the following cases:
❑
Initial operation
❑
With mains connection:
If out of use for more than 5 days.
Ensure that the following conditions are met:
❑
IceMaker drawer is emptied.
❑
IceMaker drawer is in place.
❑
The IceMaker is activated.
First use or after a long period of non-use
Clean the IceMaker with the TubeClean function.
► Put an empty 1.5 l vessel (max. height 10 cm) in the
drawer under the IceMaker.
► Activate the TubeClean function.
▷ The rinse process is prepared (max. 60 min.): Symbol
flashes.
▷ Water pipes are rinsed: Symbol flashes.
▷ Rinsing process is complete: Function turns off automati‐
cally.
► Remove the IceMaker drawer and remove the container.
► Clean the IceMaker drawer with warm water and a little
detergent.
►
Push the IceMaker drawer in.
▷ The system starts making ice cubes automatically.
Without a water filter
► Dispose of any ice cubes that were made 24 hours after
the first ice cubes.
If cleaning is required
Clean the IceMaker by hand.
► Remove the IceMaker drawer and clean with warm water
and a little detergent.
► Push the IceMaker drawer in.
▷ The system starts making ice cubes automatically.
10.3.6 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Activate SuperFrost (see8.2Appliance functions) .
The temperature is cold enough:
► Place the food inside.
► Repeat cleaning regularly.
11 Customer help
11.1 Technical specifications
Temperature range
Freeze -28°C to -15°C
Maximum ice cube quantity / 24 hours
Freezer compart‐
ment
see type plate under “Freezing
capacity …/ 24 h”
Maximum loading weight for the equipment
Equipment Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
device
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions,
device
dimen‐
sions)
Appliance
width
750 mm
(see
installa‐
tion
instruc‐
tions,
device
dimen‐
sions)
Drawer on
container rib
(see 9.1.3 Drawer
on moulded rib)
19 kg 25 kg --
Drawer guided on
glass shelf
(see 9.1.1 Drawer on
telescopic rails)
15 kg 22 kg 22 kg
Bottom drawer
(see 9.1.4 Bottom
drawer)
11 kg 19 kg
Top tiltable drawer
(see 9.1.2 Top tilting
drawer)
19 kg 19 kg --
Ice cube production with IceMaker
Ice cube produc‐
tion / 24 hours
At a temperature of -18 °C: 0.8 kg of
ice cubes
Customer help
* Depending on model and options 37
Ice cube production with IceMaker
maximum ice
cube produc‐
tion / 24 hours
With the MaxIce function on: 1.2 kg of
ice cubes
11.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see8.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Noise Possible cause Type of noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Faint knocking,
humming or
buzzing*
The valve is active. Normal operating
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
11.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
11.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
► Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.
► Do not re-freeze defrosted food,
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ The ambient temperature is too
high.
► Problem solution:
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 11.4 Customer
Service)
Customer help
38 * Depending on model and options
Defect Cause Remedy
→ Too much fresh food was placed
inside without SuperFrost.
► Solution: (see SuperFrost)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
The temperature
shown on the
display is higher
than the actual
temperature in the
appliance.*
→ Appliance door was open for a long
time and the door alarm was trig‐
gered automatically. This causes
the appliance to cool more vigo‐
rously.
► Close appliance door.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see11.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
The exterior
surfaces of the
appliance are
warm.*
→ The heat of the refrigeration circuit
is used to avoid condensation.
► This is normal.
11.3.2 Features
Defect Cause Remedy
You cannot acti‐
vate the IceMaker.
→ The appliance and therefore the
IceMaker are not connected.
► Connect the appliance (see the Installation Guide).
The IceMaker is
not producing ice
cubes.
→ The IceMaker is not on. ► Activate the IceMaker.
→ The drawer of the IceMakers is not
connected properly.
► Push the drawer in correctly.
→ The water connection is not open. ► Open the water connection.
11.4 Customer Service
First check whether you can rectify the fault yourself
(see 11 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 10 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
11.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
(see Device information)
-or-
► Refer to the type plate for appliance information.
(see 11.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
Customer help
* Depending on model and options 39

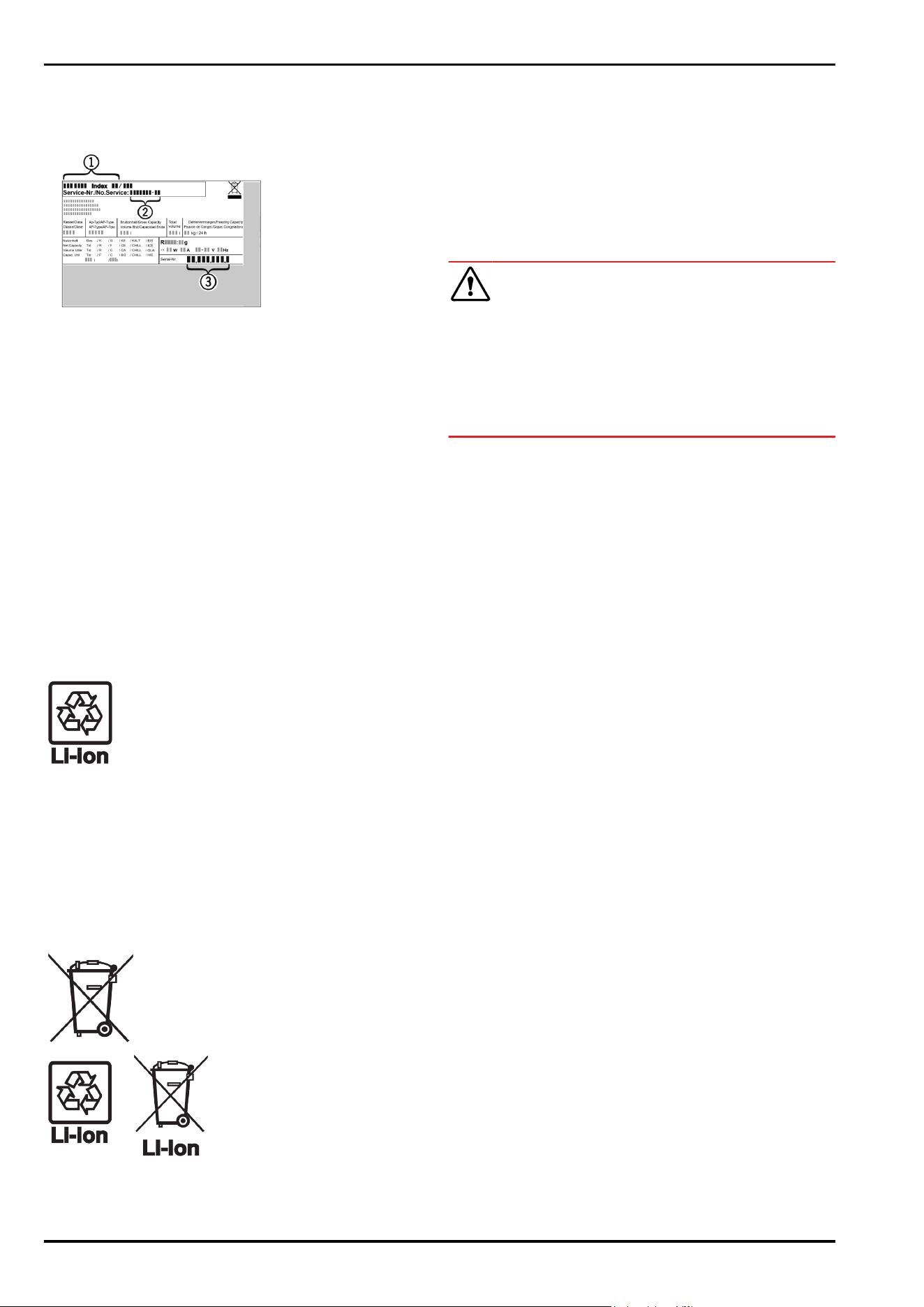

11.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig.138
(1)
Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
12 Shutting down
► Empty the appliance.
► Deactivate IceMaker. (see Deactivating IceMaker )
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Place a towel in front of the appliance to catch any drops
of water that may run out.
► Clean appliance. (see 10.3Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
13 Disposal
Ensure that the following requirements are met:
❑
Meaning of the symbols on the appliance: are familiar.
(see 1.14Symbols on the appliance)
❑
Notes on disposal are familiar. (see1.8Disposal)
13.1 Preparing the appliance for
disposal
► Shutting your appliance down.
13.2 Disposing of the appliance in an
environmentally friendly manner
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Remove the appliance without damaging it.
► Dispose of appliance according to specifications.
Shutting down
40 * Depending on model and options
Disposal
* Depending on model and options 41
Scan QR Code and find
digital operating and
installation instructions.
⸺
home.liebherr.com
1 2 3
20251107
7088644-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 3
2 Appliance at a glance............................................ 4
2.1 Scope of delivery.......................................................... 4
2.2 Overview of the appliance and equipment.............. 4
2.3 SmartDevice.................................................................. 5
2.4 Appliance range of use............................................... 5
2.5 Conformity..................................................................... 5
2.6 SVHC substances according to REACH regulation. 5
2.7 EPREL database........................................................... 6
2.8 Spare parts.................................................................... 6
3 Functionality of the Touch display....................... 6
3.1 Navigation and symbol explanation......................... 6
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 7
4 Putting into operation........................................... 7
4.1 Switching on appliance (first use)............................ 7
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Fridge compartment.................................................... 8
5.3 EasyFresh..................................................................... 8
5.4 Storage times............................................................... 8
6 Saving energy........................................................ 8
7 Controls................................................................. 8
7.1 Controls and displays.................................................. 8
7.1.1 Status display............................................................. 8
7.1.2 Display symbols..........................................................8
7.2 Appliance functions..................................................... 8
7.2.1 Notes on the appliance functions........................... 8
Switching the appliance off and on....................... 8
WiFi.............................................................................. 9
Temperature..............................................................10
Temperature unit......................................................10
SuperCool..................................................................10
PowerCool .................................................................11
PartyMode *...............................................................11
HolidayMode............................................................. 12
SabbathMode............................................................12
E-Saver ......................................................................13
CleaningMode...........................................................13
Display brightness................................................... 13
Door alarm.................................................................14
Input lock...................................................................14
Device information...................................................15
Software.................................................................... 15
Reminder................................................................... 15
Demo mode............................................................... 15
Resetting to factory settings................................. 16
7.3 Messages...................................................................... 16
7.3.1 Overview of warnings...............................................16
7.3.2 Ending warnings........................................................17
7.3.3 Overview of reminders..............................................17
7.3.4 Ending reminders.......................................................17
8 Features................................................................. 17
8.1 Door rack....................................................................... 17
8.2 Shelves.......................................................................... 18
8.3 Dividing shelf*.............................................................. 19
8.4 VarioSafe *.................................................................... 19
8.5 Drawers.......................................................................... 21
8.6 Compartment lid for EasyFresh Safe........................ 22
8.7 Pull-out board with bottle basket*........................... 23
8.8 Glass shelves*.............................................................. 23
8.9 Bottle holder................................................................. 24
8.10 FlexCube*...................................................................... 24
9 Maintenance.......................................................... 24
9.1 FreshAir carbon filter................................................... 24
9.2 Disassembling / assembling pull-out systems...... 25
9.3 Compartment lid for EasyFresh Safe........................ 25
9.4 Defrosting the appliance............................................ 26
9.5 Cleaning the appliance............................................... 26
10 Customer help....................................................... 27
10.1 Technical specifications............................................. 27
10.2 Operating noises.......................................................... 27
10.3 Technical fault.............................................................. 27
10.4 Customer Service......................................................... 28
10.5 Model plate................................................................... 29
11 Shutting down....................................................... 29
12 Disposal................................................................. 29
12.1 Preparing appliance for disposal.............................. 29
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 29
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
2 * Depending on model and options
Symbol Explanation
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
R / RD ...
42.. / 46.. / 50.. / 52..
K .. 46.. / 52..
SR ... 52..
1 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the next user.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards.
Children must not play with this appliance.
Cleaning and user maintenance work must
not be carried out by children without adult
supervision. Children aged between 3 and
8 are allowed to load and unload the appli‐
ance. Children below the age of 3 must be
kept away from the appliance unless they
are under continuous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
Fire hazard:
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
General safety instructions
* Depending on model and options 3
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”
-
Service Brochure
2.2 Overview of the appliance and
equipment
Appliance at a glance
4 * Depending on model and options
Fig. 1 Example illustration
Temperature range
(A) Fridge section
(B) Coldest area
Equipment
(1) Controls (8) EasyFresh Safe
(2) Fan with FreshAir acti‐
vated charcoal filter
(9) Drain opening
(3) Divisible shelf* (10) Type plate
(4) Shelf (11) Vegetable drawer*
(5) VarioSafe* (12) Door rack
(6) Bottle rack* (13) Bottle holder
(7) Compartment lid for
EasyFresh Safe
2.3 SmartDevice
SmartDevice is the networking solution for your refrigerator.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (seeWiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
2.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable for freezing
food;
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
►Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
2.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
Appliance at a glance
* Depending on model and options 5
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.7 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2.8 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Symbol Description
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 3.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
Advanced
menu
The advanced menu contains special appli‐
ance functions for setting up your appli‐
ance. Access to the Advanced menu is
protected by the numerical code 151.
(see 3.2.2 Opening the Advanced menu)
3.2.1 Opening the Settings menu
Functionality of the Touch display
6 * Depending on model and options
Fig. 2 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.2.2 Opening the Advanced menu
Fig.3
Fig. 4 Example illustration, access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance has been installed and connected in
accordance with the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see3 Functionality of the Touch display)
Switch on the appliance using the Touch display:
► If the display is in sleep mode: Press the confirmation
symbol.
► Carry out action steps according to the illustration.
Fig. 5 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the SmartDevice for the first time. (see 2.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
► Stock with food: Wait for around 6 hours until the set
temperature is reached.
► Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire
► Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
Putting into operation
* Depending on model and options 7
5.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview. (see 2.2 Overview of
the appliance and equipment)
5.2.1 Arranging your food properly
► Upper area and door: Store butter, cheese, tinned food
and tubes.
► Coldest temperature zone: Store perishable foods such
as pre-cooked meals, meat and lunch meats.
► Bottom shelf: Store raw meat or fish.
5.3 EasyFresh
EasyFresh is great for non-packaged foods, such as fruit
and vegetables.
The humidity in the compartment depends on the moisture
content of the chilled goods placed in it, and also depends
on how often the compartment is opened. You can regulate
the humidity level.
5.3.1 Arranging your food properly
► Store unpackaged fruit and vegetables.
If the humidity is too high:
► Regulate the humidity.
5.4 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
5.4.1 Fridge section
Always follow the best-before date stated on the packaging.
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 2.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
7 Controls
7.1 Controls and displays
7.1.1 Status display
Fig.6
(1)
Temperature display of
the fridge section
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 11 Shutting down) are carried
out.
Saving energy
8 * Depending on model and options
Fig.7
Fig.8
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Press any navigation key.
Fig. 9 Example illustration
► Carry out action steps according to the illustration.
When the appliance starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
▷ The appliance cools to the target temperature set.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see 2.3 SmartDevice)
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig. 10
Fig.11
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig.12
Fig.13
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 14
Fig. 15
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Controls
* Depending on model and options 9

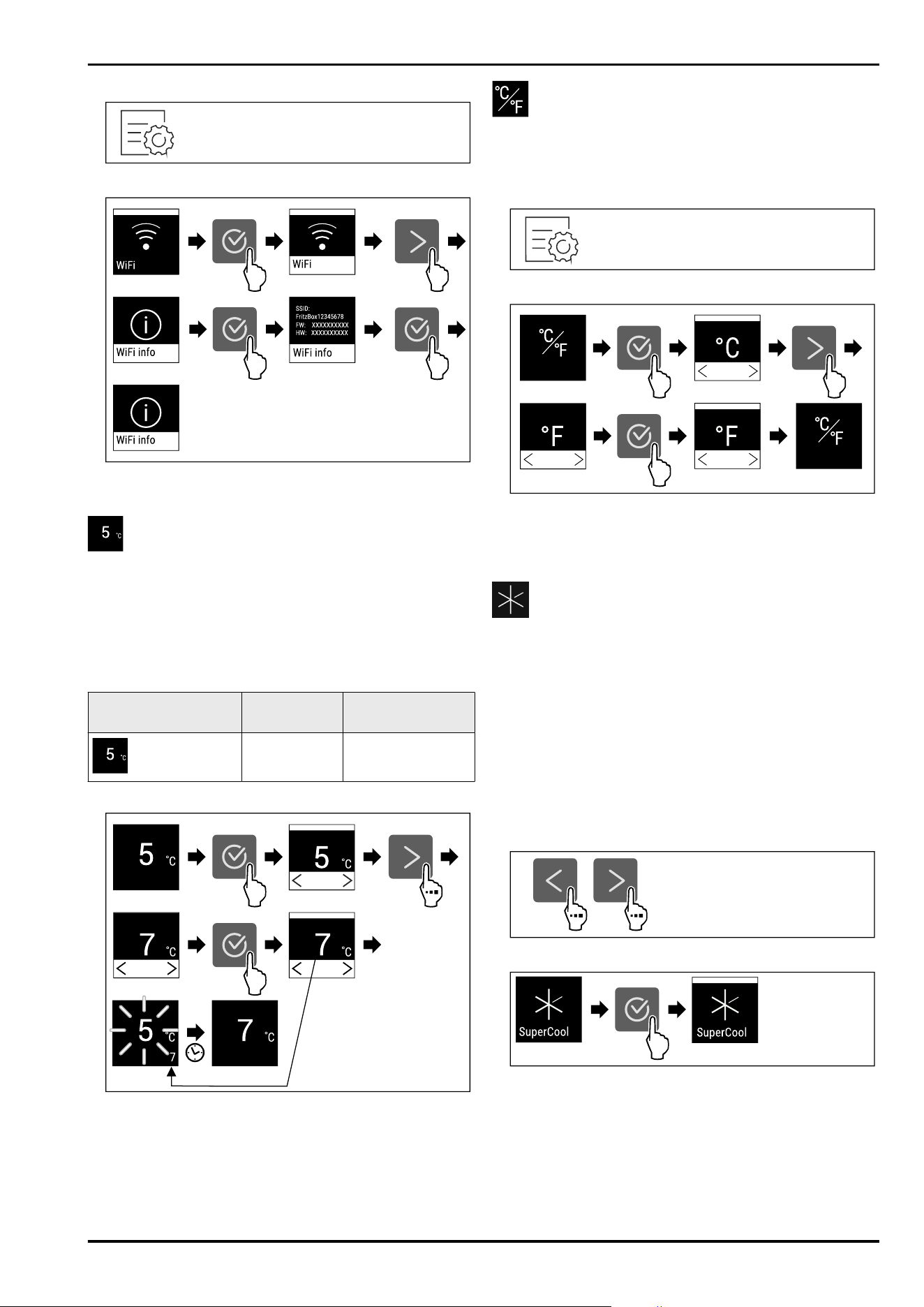

Showing information about the WiFi connection
Fig. 16
Fig.17
► Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Temperature zone
Factory-set
temperature
Recommended
setting
Fridge section
5°C 4°C
Setting the temperature
Fig. 18 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig. 19
Fig. 20 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperCool
Time for activation of the function:
-
When you would like to store fresh food in the fridge
section: Activate the function when inserting food.
Fig.21
Fig.22
► Carry out action steps according to the illustration.
▷ SuperCool is activated.
Deactivating SuperCool
SuperCool is deactivated automatically after 18 hours.
However, you can also deactivate SuperCool manually at
any time:
Controls
10 * Depending on model and options

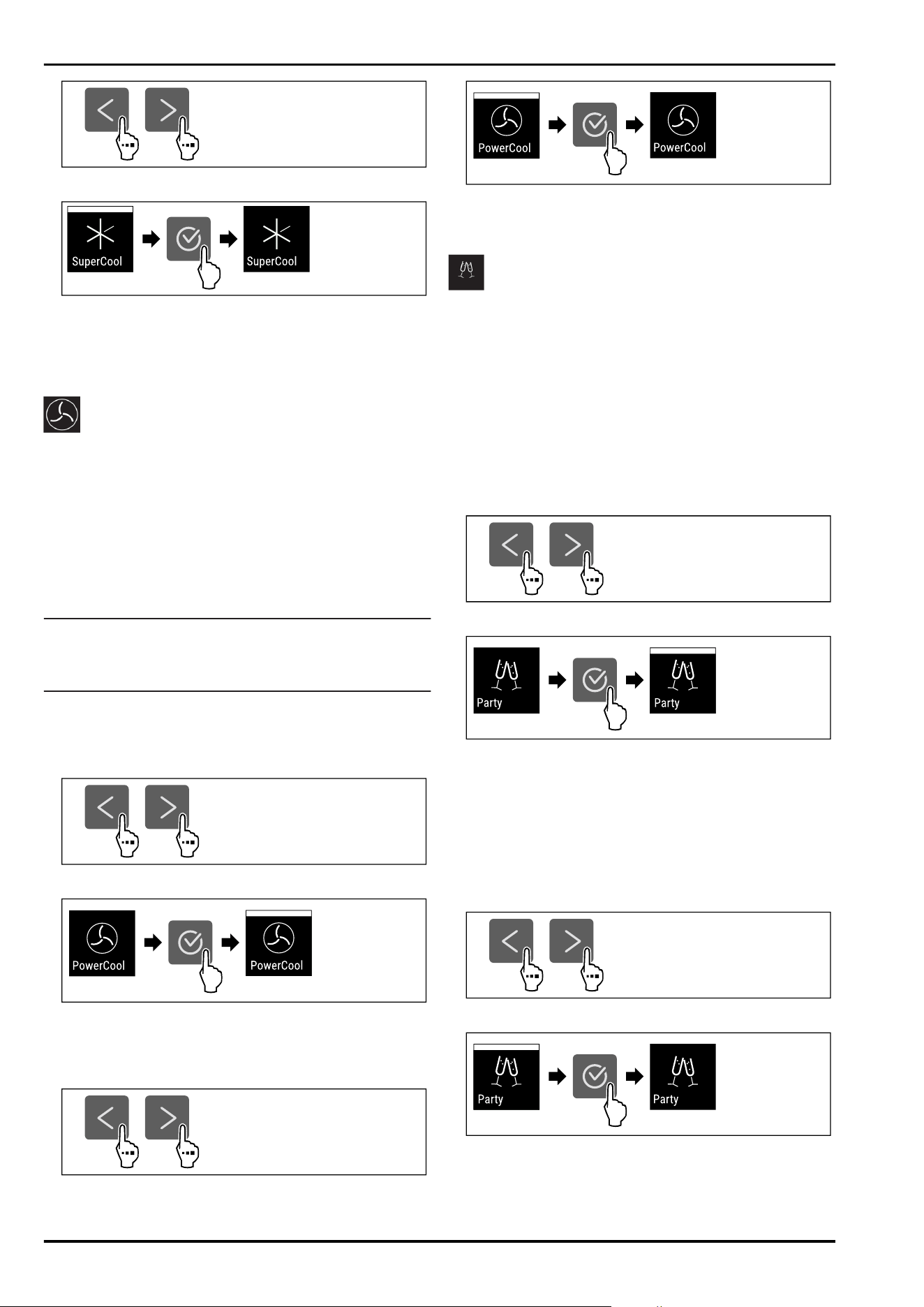

Fig.23
Fig. 24
► Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
PowerCool
You can use this function to activate or deactivate Power‐
Cool. PowerCool ensures optimised temperature layers for
cooling your food.
The function applies to the fridge section.
Application:
-
At higher room temperatures (as of approx.35°C)
-
At high humidity, e.g. on summer days
-
When storing moist food, in order to prevent condensate
forming in the interior
Note
The fan may also run even if the function is deactivated.
It therefore ensures even temperature distribution in the
appliance.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PowerCool
Fig.25
Fig. 26
► Carry out action steps according to the illustration.
▷ PowerCool is activated.
Deactivating PowerCool
Fig.27
Fig.28
► Carry out action steps according to the illustration.
▷ PowerCool is deactivated.
PartyMode *
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Fig.29
Fig.30
► Carry out action steps according to the illustration.
▷ PartyMode and the associated functions are activated.
▷ The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig.31
Fig.32
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
Controls
* Depending on model and options 11

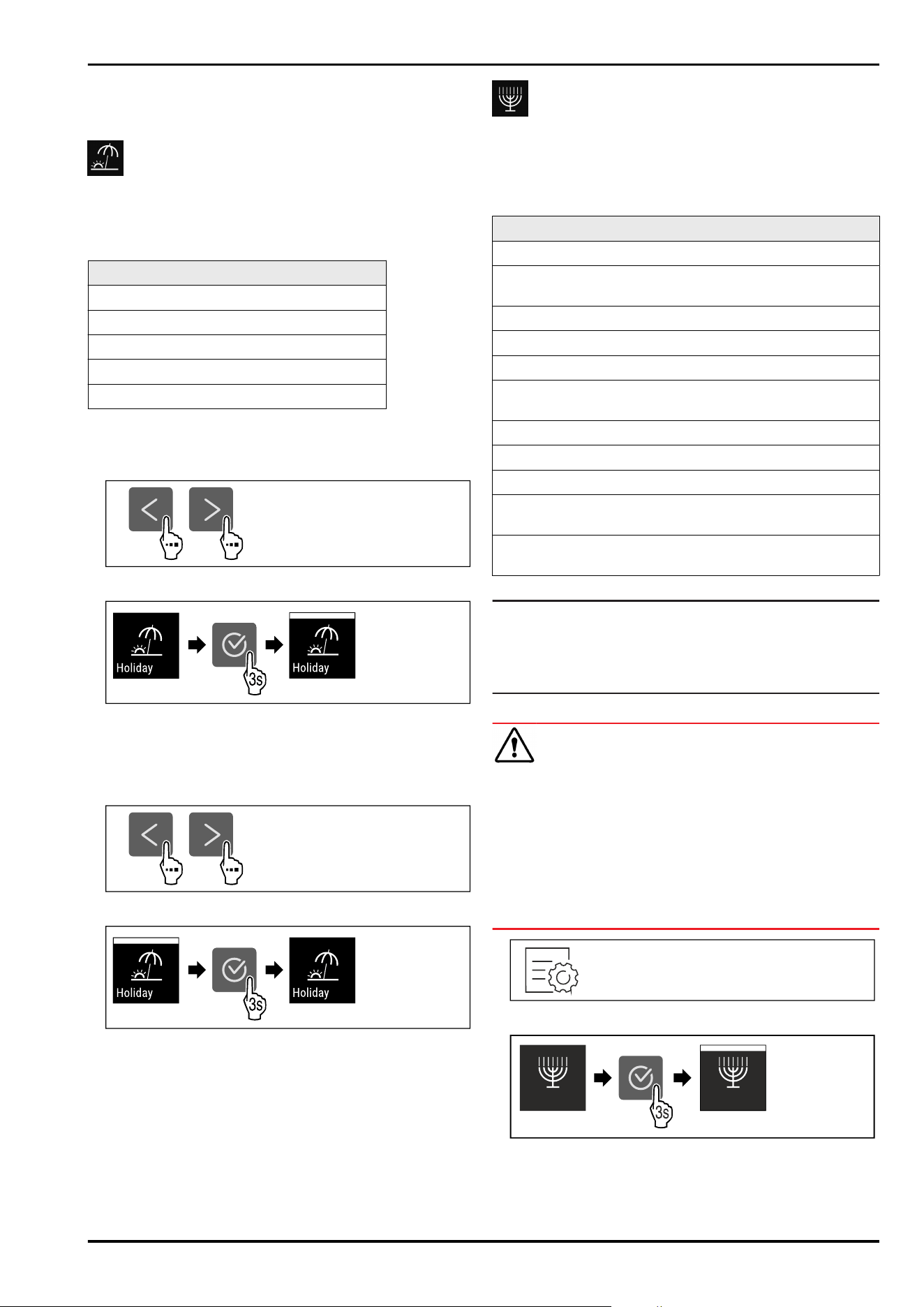

▷ The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.
HolidayMode
You can use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode, the fridge section is set
to 15 °C. This saves you energy during longer periods of
absence and prevents bad odours and growth of mould.
Appliance status when HolidayMode is active
Fridge section cools to 15°C.
EasyFresh cools to 15°C.
PartyMode is deactivated.*
SuperCool is deactivated.
PowerCool is deactivated.
Activating HolidayMode
► Empty the fridge section completely.
► Empty EasyFresh completely.
Fig.33
Fig.34
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display shows HolidayMode symbol.
Deactivating HolidayMode
Fig.35
Fig.36
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance cools to the temperature set previously.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrosting cycle operates only for the specified time,
without considering the appliance consumption.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Controls
12 * Depending on model and options
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig. 39
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
E-Saver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature zone
Recommended
setting
(see Setting the
temperature)
Temperature
with active E-
Saver
Fridge section
4°C 7°C
Temperatures
Activating E-Saver
Fig.40
Fig. 41
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating E-Saver
Fig. 42
Fig.43
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
CleaningMode
You can use this function to activate or deactivate Cleaning‐
Mode. CleaningMode enables the appliance to be cleaned
conveniently.
This setting applies to the fridge section.
Application:
-
Clean the fridge section. (see 9.5Cleaning the appliance)
Device status when CleaningMode is active
The status display shows CleaningMode permanently.
The fridge section is switched off.
Interior lighting is activated.
The reminders and warnings are not displayed. No signal
tone sounds.
Device status
Activating CleaningMode
Fig.44
Fig.45
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷ The status display shows CleaningMode permanently.
Deactivating CleaningMode
CleaningMode is deactivated automatically after
60 minutes. However, you can also deactivate Cleaning‐
Mode manually at any time:
Fig.46
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance cools to the temperature set previously.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Controls
* Depending on model and options 13
Setting the brightness
Fig. 47
Fig. 48 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig. 49
Fig. 50 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.52
Fig.53
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.54
3s
Displ. Lock
Displ. Lock
Fig.55
► Carry out action steps according to the illustration.
▷ Input lock is activated.
Deactivating the input lock
Fig.56
3s
Displ. Lock
Displ. Lock
Fig.57
► Carry out action steps according to the illustration.
▷ Input lock is deactivated.
Controls
14 * Depending on model and options
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch display)
Indicating the device information
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Display indicates device information.
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.60
Fig.61
► Carry out action steps according to the illustration.
▷ Display indicates software version.
Reminder
Use this function to activate or deactivate the reminders.
The function is activated on delivery.
If the function is activated, the following reminders will
appear:
-
Replace the FreshAir activated carbon filter (see Replace
the FreshAir activated carbon filter)
Activating the reminder
Fig. 62
Fig.63
► Carry out action steps according to the illustration.
▷ Reminder is activated.
Deactivating the reminder
Fig.64
Fig.65
► Carry out action steps according to the illustration.
▷ Reminder is deactivated.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig.66
Controls
* Depending on model and options 15
Fig. 67
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.68
Fig. 69
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.70
Fig.71
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Messages
There are two categories of messages:
Category
Importance
Warning Warnings appear in the event of a door alarm or
malfunction.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears on the display.
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the message
Door alarm
The message appears if
the door is open for too
long.
Carry out action
steps (see Door
alarm) .
Controls
16 * Depending on model and options
Message Cause Exit the message
Error
The message appears if
there is an appliance error.
A component of the appli‐
ance has a fault.
Carry out action
steps (see Error) .
7.3.2 Ending warnings
Door alarm
Fig. 72 Example illustration
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ The display returns to the status indicator.
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
Error
Fig. 73 Example illustration
► Press the confirmation symbol.
▷ Error code is displayed.
► Note the error code.
► Press the confirmation symbol.
▷ The display returns to the status indicator.
► Contact Customer Service. (see 10.4 Customer Service)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears on the display.
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
Message
Cause Exit the message
Replace the Fres‐
hAir activated
carbon filter
The message
appears when the
activated carbon
filter needs to be
replaced.
Carry out action
steps (see Replace
the FreshAir acti‐
vated carbon
filter) .
7.3.4 Ending reminders
Replace the FreshAir activated carbon filter
Liebherr recommends: Replace the FreshAir activated
carbon filter every 6 months.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
Fig. 74 Example illustration
► Press the confirmation symbol.
► Replace the activated carbon filter. (see 9.1 FreshAir
carbon filter)
▷ Activated carbon filter ensures optimum air quality in the
cooling unit.
▷ Reminder appears again after 6 months.
If you no longer wish to receive this reminder, you can deac‐
tivate it. (see Deactivating the reminder)
8 Features
8.1 Door rack
Door racks are suitable for storing drinks and food. You can
move door racks for your own individual use and take them
apart for cleaning. However, Liebherr recommends using the
door racks in the position in the door as delivered from the
factory.
Fig. 75 Example illustration, Door rack
(1)
Shelf
Fig. 76 Example illustration, Door rack with bottle holder
(1)
Shelf (2) Bottle holder
The following table shows examples of what can be stored
in each door rack. Do not exceed the maximum loading
weight of the door.
Door rack
Food
Door rack (see Fig.75) Butter, cheese, tinned food,
tubes
Door rack with bottle
holder (see Fig. 76)
Bottles
The sliding bottle holder
secures the bottles in the door
rack.
Features
* Depending on model and options 17
8.1.1 Removing the door rack
Fig. 77 Example illustration
► Push the door rack upwards.
► Pull the door rack forward.
8.1.2 Inserting the door rack
Fig. 78 Example illustration
► Slide in the door rack.
► Press the door rack down.
8.1.3 Removing the bottle holder
Fig.79
► Slide the bottle holder to the side as far as the recess.
► Remove the bottle holder forwards.
8.1.4 Inserting the bottle holder
Fig.80
► Insert the bottle holder in the recess.
► Push the bottle holder to the desired position to the side.
8.2 Shelves
8.2.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.81
► Lift the shelf and pull forward.
▷ Line up the side runner.
► Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
-or-
Fig.82
► Remove the shelf completely: Pull it out to the front.
► Easier removal: Set the shelf at an angle.
► Insert the shelf again: Slide it in all the way.
▷ The pull-out stoppers point downwards.
▷ The pull-out stoppers are behind the front support.
You can also remove the shelf above the EasyFresh
compartments.
Fig.83
Removing the shelf:
► Lift the shelf at the front and back.
► Pull it out towards you.
Do not store any goods on the compartment cover below!
Inserting the shelf:
► Place the shelf at an angle, sloping down towards the
back.
▷ The pull-out stoppers point downwards.
► Slide the shelf into place.
8.2.2 Dismantling the shelves
The shelves can be dismantled for cleaning.
Features
18 * Depending on model and options

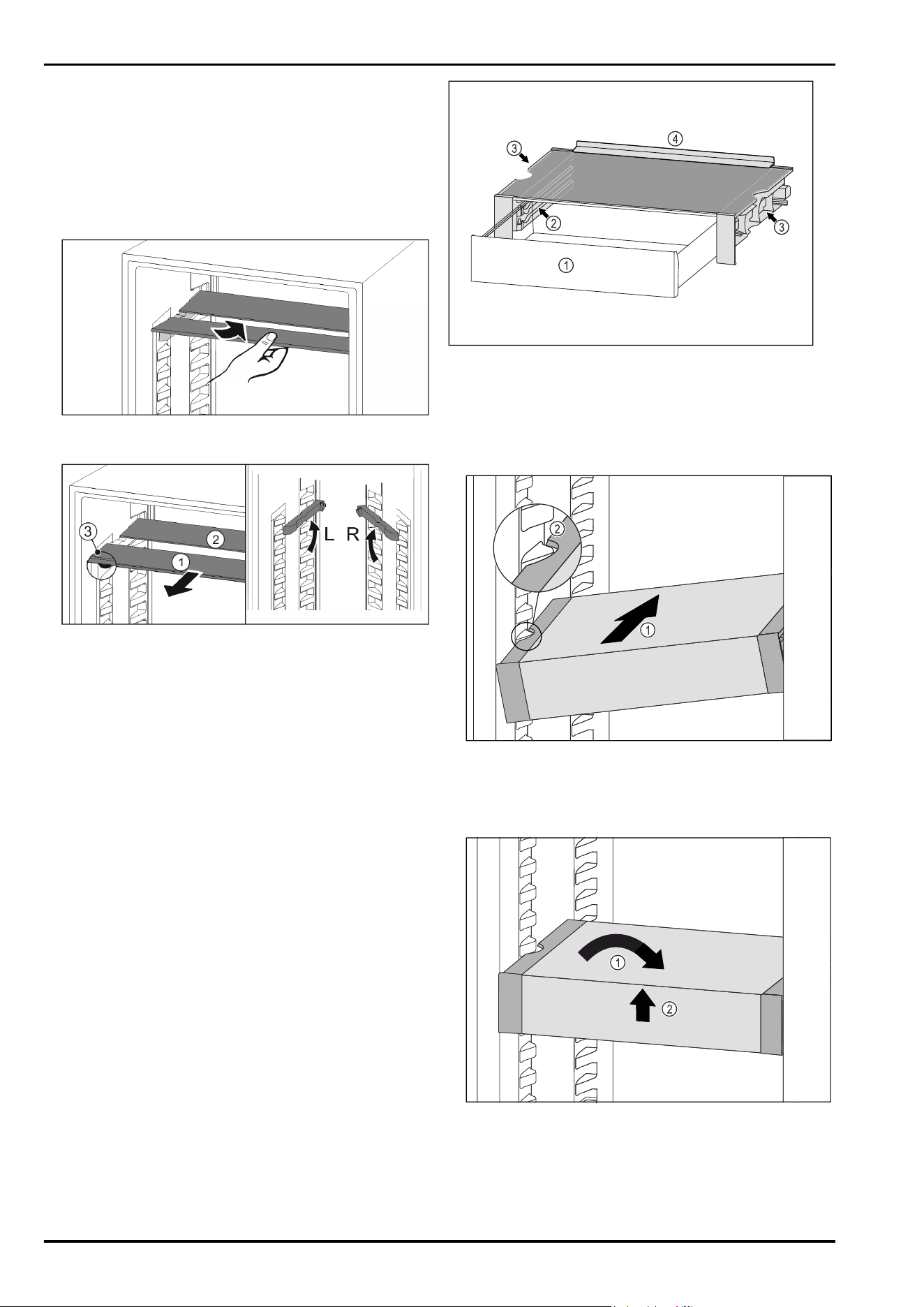

Fig.84
► Dismantling the shelf.
8.3 Dividing shelf*
8.3.1 Using the dividing shelf
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.85
► Push the dividing shelf underneath as shown.
Fig.86
Adjusting the height:
► Pull the glass panels out Fig. 86 (1) from the front, one at
a time.
► Release the support rails and click in at the height you
want.
► Slide in the glass panels one at a time.
▷ Flat pull-out stoppers at the front, right behind the
support rails.
▷ High pull-out stoppers at the back.
Using both shelves:
► Hold the glass panel with one hand and pull it to the
front.
▷ The glass panel Fig.86(1) and trim strip are at the front.
▷ The stops Fig.86(3) point down.
8.4 VarioSafe *
The VarioSafe offers space in the refrigerator compartment
for small groceries, packages, tubes and jars, for example.
Fig. 87
(1)
VarioSafe drawer (3) Recesses on the left and
right side panel
(2) Side panels with ribs
for VarioSafe drawer
(4) Stop edge
8.4.1 Inserting the VarioSafe
Fig.88
► Insert the VarioSafe into the fridge section at an angle
Fig. 88 (1) until the recesses in the side Fig. 88 (2) of the
VarioSafe are at the level of the support rib in the fridge
section.
Fig.89
► Set VarioSafe straight. Fig.89(1)
► Lift VarioSafe at the front. Fig.89(2)
Features
* Depending on model and options 19
Fig.90
► Lift VarioSafe up toward the front.
► Push VarioSafe in to the rear.
► Lower VarioSafe.
▷ VarioSafe audibly engages.
▷ VarioSafe is inserted.
8.4.2 Repositioning the VarioSafe
You can move the VarioSafe as a whole in the refrigerator
compartment.
Fig. 91
► Lift VarioSafe at the front.
Fig.92
► Pull VarioSafe forwards until the recesses in the side of
the VarioSafe are at the level of the support rib in the
refrigerator compartment. Fig.92(1)
► Move VarioSafe up or down in the refrigerator compart‐
ment until the desired height is reached. Fig.92(2)
Fig. 93
► Lift VarioSafe at the front.
► Push VarioSafe in to the rear.
▷ VarioSafe audibly engages.
▷ VarioSafe is offset in height.
8.4.3 Moving the VarioSafe drawer
You can use the VarioSafe drawer at two different heights.
If you would like to store taller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the bottom rib. If
you would like to store smaller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the top rib.
Fig. 94
► Pull out the VarioSafe drawer as far as it will go.
► Lift the VarioSafe drawer up at the front.
► Remove the VarioSafe drawer to the front.
Fig.95
► Lift the VarioSafe drawer up at the front.
► Place the VarioSafe drawer behind the stoppers on
desired rib Fig.95(1) or Fig.95(2).
▷ VarioSafe drawer is offset in height.
8.4.4 Removing the VarioSafe
You can remove the VarioSafe as a whole.
Features
20 * Depending on model and options
Fig.96
► Lift VarioSafe at the front.
Fig.97
► Pull VarioSafe forwards Fig. 97 (1) until the recesses in
the side of the VarioSafe are at the level of the support
rib in the fridge section. Fig.97(2)
Fig.98
► Set VarioSafe in refrigerator compartment at an angle.
Fig.98(1)
► Take VarioSafe out to the front. Fig.98(2)
▷ VarioSafe is removed.
8.4.5 Disassembling the VarioSafe
You can disassemble the VarioSafe into its individual parts if
you want to clean the VarioSafe or if you need to install or
remove parts.
Fig.99
► Remove VarioSafe as a whole. (see 8.4.4 Removing the
VarioSafe )
► Disassemble VarioSafe according to the illustration.
8.5 Drawers
You can remove the drawers for cleaning.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always leave the fan air vents clear on the back wall!
8.5.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
When you remove the drawers, you can use the glass
shelves below them as storage shelves.*
Removing drawer
Fig. 100
► Remove drawer as shown in the illustration.
Inserting drawer
Fig. 101
► Insert drawer as shown in the illustration.
Features
* Depending on model and options 21

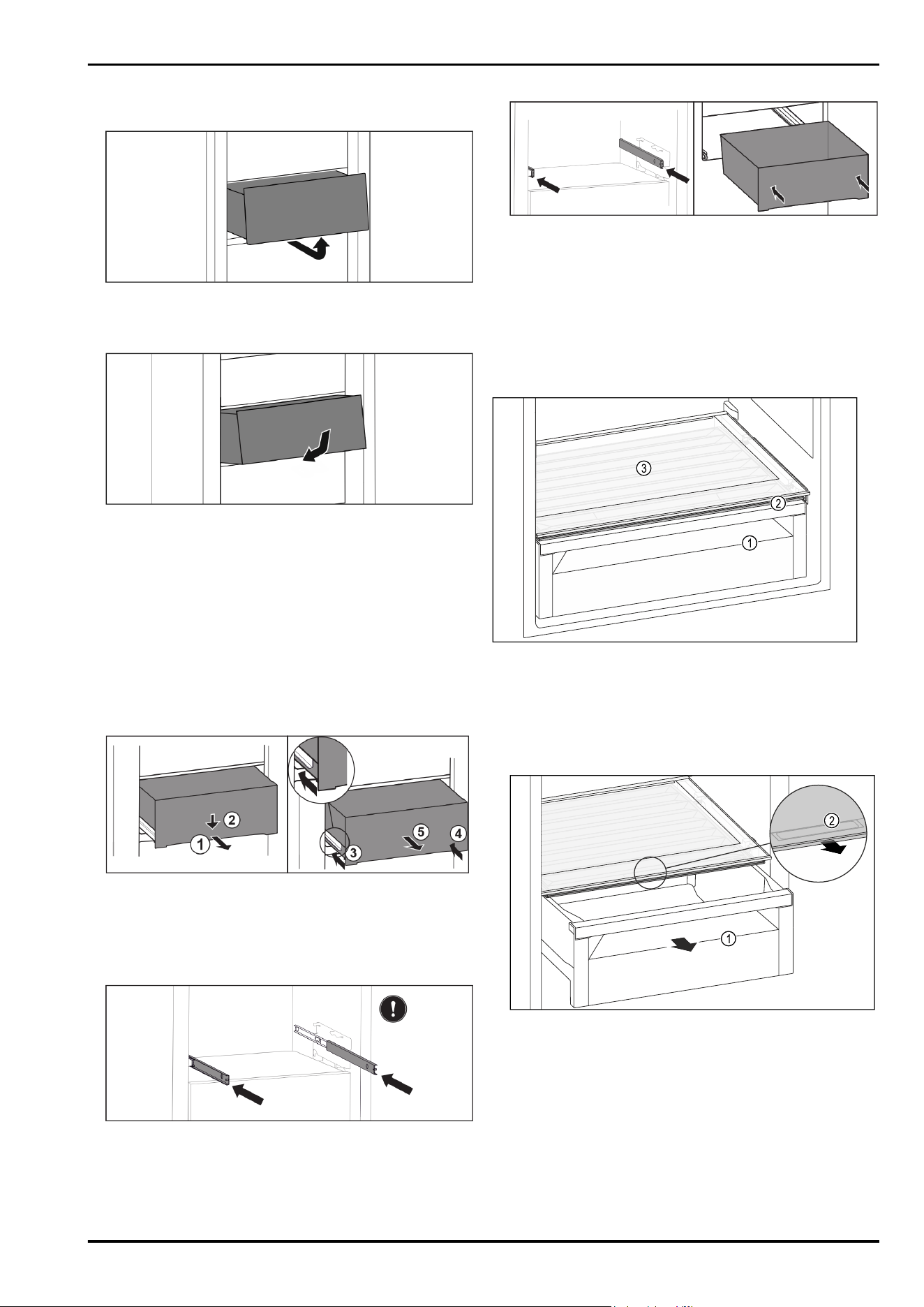

8.5.2 Drawer on rails
Removing drawer
Fig. 102
► Remove drawer as shown in the illustration.
Inserting drawer
Fig. 103
► Insert drawer as shown in the illustration.
8.5.3 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Partial pull-out fridge compartment
Removing drawer
Fig. 104
► Pull out drawer half-way. Fig. 104(1)
► Push the drawer down at the front. Fig. 104(2)
► Push the left rail in by about 2cm. Fig. 104(3)
► Push the right rail in by about 2cm. Fig. 104(4)
► Remove drawer to the front. Fig. 104(5)
Fig. 105
If the rails are not yet fully inserted after removing the
drawer:
► Push rails in completely.
Inserting drawer
Fig. 106
► Slide rails in.
► Place drawer on rails.
► Slide in drawer to the back.
8.6 Compartment lid for EasyFresh Safe
The compartment lid ensures constant levels of humidity.
The compartment lid is directly on the drawer and can be
covered by shelves or additional drawers.
Fig. 107 Example illustration, compartment lid for EasyFresh
Safe
(1)
EasyFresh Safe (3) Shelf
(2) Compartment lid for
EasyFresh Safe
8.6.1 Reducing the air humidity in the drawer
Fig. 108
► Pull out the drawer Fig. 108(1).
► Grasp the recessed grip Fig. 108 (2) on the compartment
lid and pull the compartment lid forwards at the same
time.
▷ When the drawer is closed, there is a small gap between
the compartment lid and the drawer.
Features
22 * Depending on model and options
8.6.2 Increasing the air humidity in the drawer
Fig. 109
► Pull out the drawer Fig. 109(1).
► Grasp the recessed grip Fig. 109 (2) on the compartment
lid and push the compartment lid backwards at the same
time.
▷ When the drawer is closed, the compartment lid seals
with the drawer.
8.7 Pull-out board with bottle basket*
Removable bottle baskets on the pull-out board offer plenty
of space to store bottles. You can remove the bottle baskets
to make room for a drinks crate in the pull-out board.
8.7.1 Using the bottle basket
Fig. 110
► Slide the bottle rack at the edges.
▷ The bottles are prevented from falling over.
8.7.2 Disassembling the pull-out board
The pull-out board is mounted on a glass panel with pull-out
rails.
You can dismantle the pull-out board for cleaning.
Removing the pull-out board
► Remove the bottle baskets.
Fig.111
► To remove the pull-out board with glass panel: Gently lift
the glass panel at the front Fig. 111 (1) and pull out to the
front Fig.111(2).
Fig.112
► Slide the pull-out board all the way in Fig.112(1).
► Release the clips at the back Fig.112(2).
► Remove the pull-out board from the front Fig.112(3).
Inserting the pull-out board
Fig.113
► Place centrally on the rails Fig.113(1).
► Slide the pull-out board all the way in Fig.113(2).
► Press down at the back until it clicks into place
Fig.113(3).
► To insert the pull-out board with glass panel: Slide to the
rear.
8.8 Glass shelves*
You can remove the glass shelves under the drawers for
cleaning.
8.8.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
❑
Pull-out board under the bottle basket: Bottle basket
has been removed. (see 8.7 Pull-out board with bottle
basket*) *
Features
* Depending on model and options 23

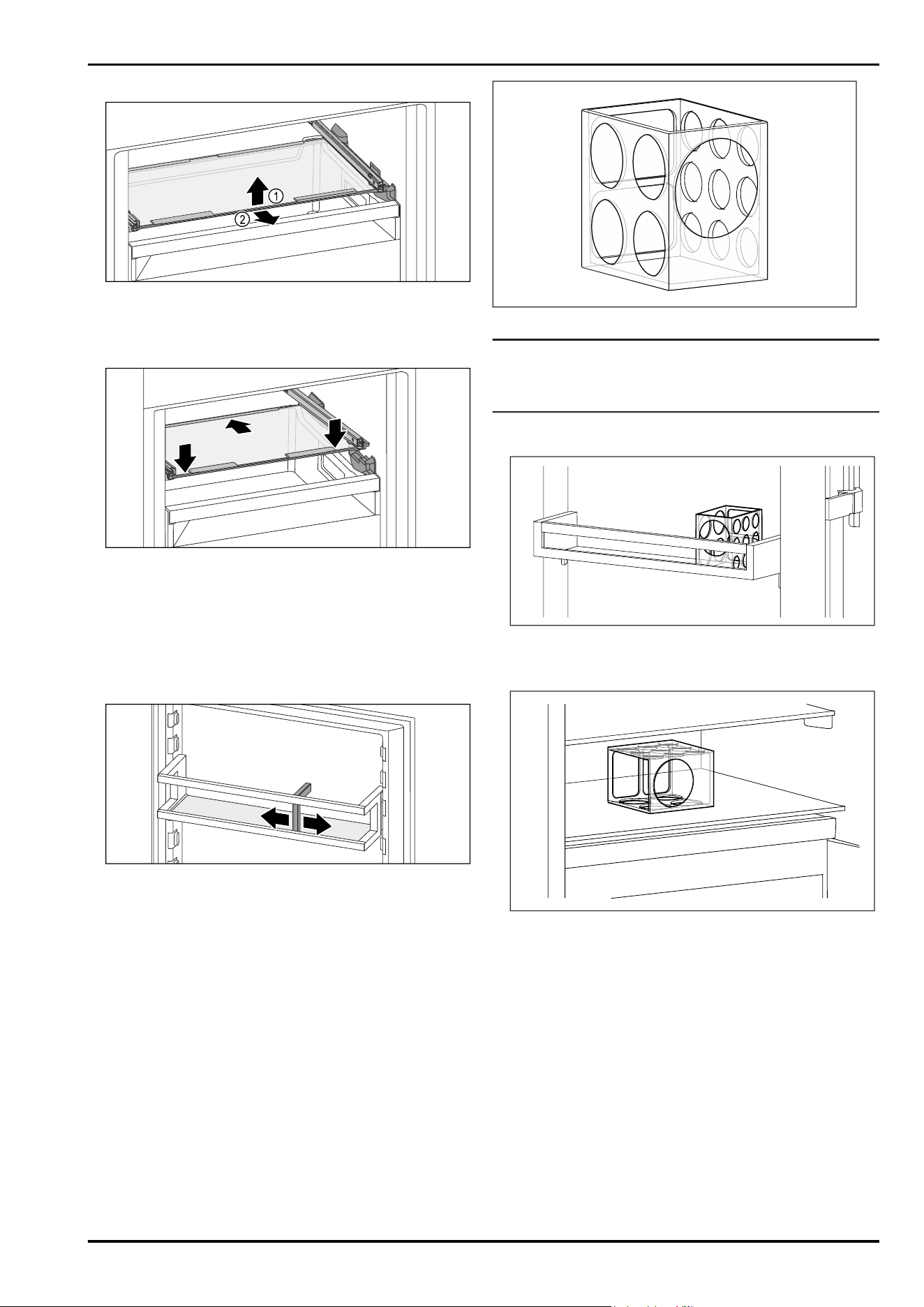

Removing glass shelf
Fig. 114 Example illustration, glass shelf
► Lift the glass shelf forwards.
► Remove the glass shelf forwards.
Inserting glass shelf
Fig. 115 Example illustration, glass shelf
► Place the glass shelf at an angle behind the stoppers.
► Lower glass shelf.
► Slide in glass shelf to the back.
8.9 Bottle holder
8.9.1 Using the bottle holder
Fig. 116
► Push the bottle holder onto the bottles.
▷ The bottles are prevented from falling over.
8.10 FlexCube*
The FlexCube has different sized openings, so you can store
small items such as tubes, open yoghurt pots or quail
eggs in it. The FlexCube fits into all Liebherr door racks,
for example. If necessary, you can also set up several Flex‐
Cubes next to each other.
Fig. 117 Example illustration
Note
These accessories can be purchased from the Liebherr-
Hausgeräte shop at home.liebherr.com/shop/de/deu/
zubehor.html.
8.10.1 Using the FlexCube
Fig. 118 Example illustration
► Insert the FlexCube in the door rack.
-or-
Fig. 119 Example illustration
► Place FlexCube on shelf.
► Sort small parts into the FlexCube for storage.
9 Maintenance
9.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the
fan.
It guarantees the best air quality.
❑
Replace the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
❑
The carbon filter can be disposed of with the regular
household waste.
Maintenance
24 * Depending on model and options
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
9.1.1 Removing the FreshAir carbon filter
Fig.120
► Pull out the compartment Fig.120(1).
► Remove the carbon filter Fig.120(2).
9.1.2 Inserting the FreshAir carbon filter
Fig.121
► Insert the carbon filter as shown in the diagram
Fig.121(1).
▷ The carbon filter clicks into place.
If the carbon filter is pointing downwards:
► Push the compartment in Fig.121(2).
▷ The carbon filter is now ready for use.
9.2 Disassembling / assembling pull-
out systems
9.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Drawer on appliance
base or glass shelf
cannot be disassembled
Drawer on rails cannot be disassembled
Fridge section partial
pull-out
cannot be disassembled
Pull-out system can be disassembled/
cannot be disassembled
Pull-out shelf with
bottle basket*
can be disassembled
(see 9.2.2 Pull-out board with
bottle basket*) *
9.2.2 Pull-out board with bottle basket*
Disassembling pull-out system
Make sure the following prerequisites are met:
❑
Bottle basket has been removed. (see 8.7 Pull-out board
with bottle basket*)
❑
Glass shelf has been removed. (see8.8 Glass shelves*)
Fig. 122 Glass shelf with rails
► Push up front click-in hooks. Fig.122(1)
► Move the pull-out rails to the side Fig. 122 (2) and to the
rear Fig.122(3).
Installing pull-out system
Fig. 123 Glass shelf with rails
► Hook in rail at the back. Fig.123(1)
► Hook in rail at the front. Fig.123(2)
9.3 Compartment lid for EasyFresh Safe
You can remove the compartment lid for cleaning.
9.3.1 Removing the compartment lid
Ensure that the following requirements are met:
❑
The shelf directly above the drawer has been removed.
(see8.2 Shelves)
❑
The drawer directly below the compartment lid has been
removed. (see 8.5 Drawers)
Fig. 124
► Push the compartment lid backwards.
► Lift the compartment lid forwards.
Maintenance
* Depending on model and options 25
► Remove the compartment lid forwards and upwards at an
angle.
9.3.2 Inserting the compartment lid

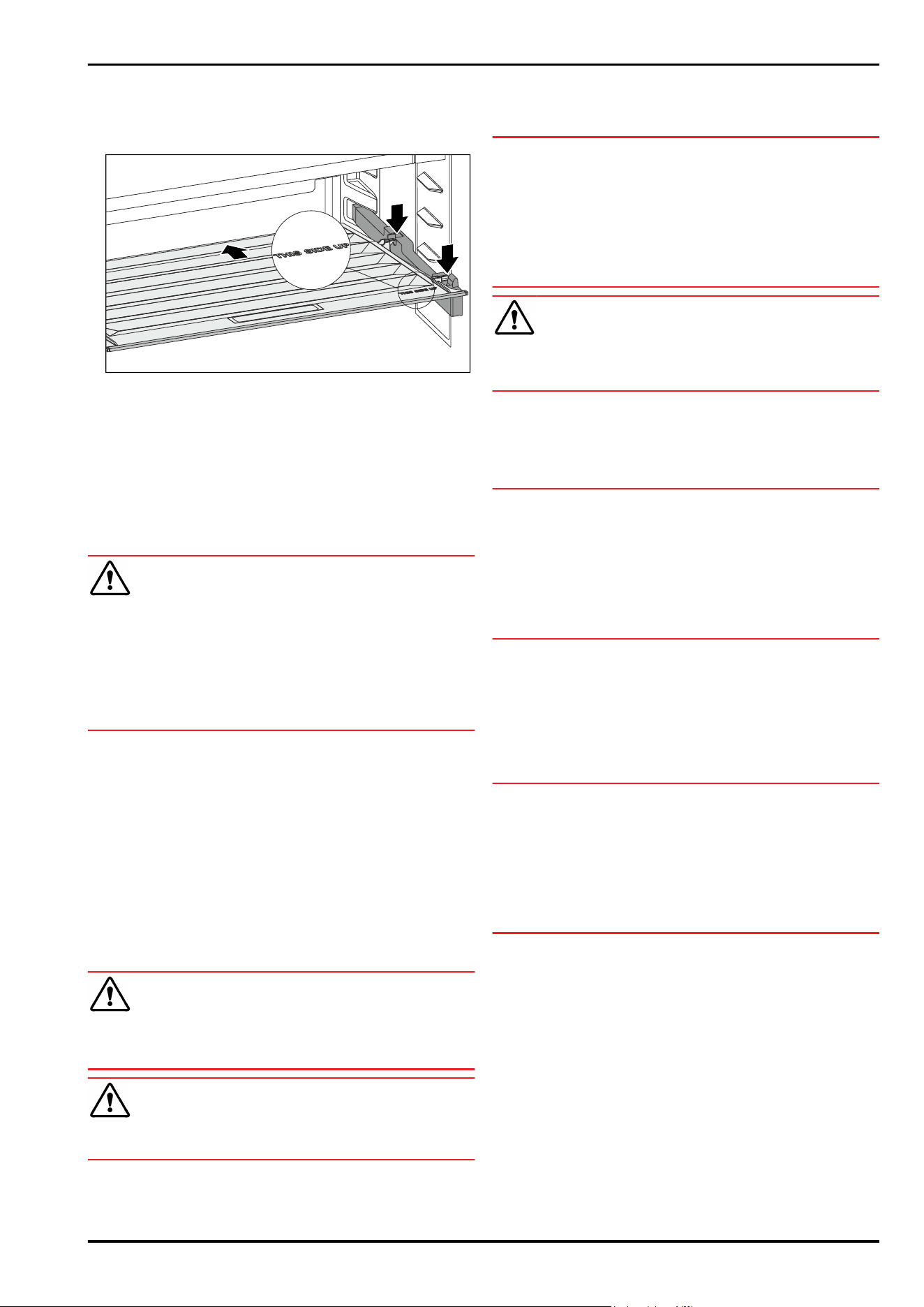

Fig.125
If the THIS SIDE UP lettering is at the top:
► Insert the rear retaining parts into the relevant rear open‐
ings.
► Push the compartment lid backwards.
► Lower the compartment lid forwards and engage the
front retaining parts into the openings.
► Move the compartment lid into the required position.
9.4 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
A layer of frost or ice can from briefly due to the energy-
optimised control of the device.
► Clean the drain opening at regular intervals.
(see 9.5Cleaning the appliance)
9.5 Cleaning the appliance
9.5.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
-or-
►
Activate CleaningMode. (seeCleaningMode)
9.5.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
►
Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
9.5.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove deposits using a thin item (for
example a cotton bud).
9.5.4 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Door rack
- Shelf
- Dividing shelf*
- VarioSafe*
- Bottle basket and pull-out panel*
- Compartment lid for EasyFresh Safe
- Drawer
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60°C:
- Bottle rack
Maintenance
26 * Depending on model and options
- Holder of the dividing shelf*
- FlexCube*
► To disassemble components: see the relevant section.
► Clean the components.
9.5.5 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
The temperature is cold enough:
► Place the food inside.
► Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Cooling 2°C to 9°C
Maximum loading weight for the equipment
Equipment Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
device
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions,
device
dimen‐
sions)
Appliance
width
750 mm
(see
installa‐
tion
instruc‐
tions,
device
dimen‐
sions)
Pull-out shelf* 20 kg* 20 kg* --*
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
Customer help
* Depending on model and options 27
Defect Cause Remedy
→ Power cut ► Keep the appliance closed.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ The ambient temperature is too
high.
► Problem solution: (see2.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
The exterior
surfaces of the
appliance are
warm.*
→ The heat of the refrigeration circuit
is used to avoid condensation.
► This is normal.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
(see Device information)
-or-
► Refer to the type plate for appliance information.
(see 10.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
Customer help
28 * Depending on model and options
10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 126
(1)
Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 9.5Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
►
Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Shutting down
* Depending on model and options 29
home.liebherr.com/fridge-manuals
fridge
Issue date: 20250611
Part number index: 7083572-00
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
