Pan Racks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of pan
storage and transport and the like. ADVANCE TABCO
®
does not recommend product use for
activities employing harsh and active chemicals. Please consult factory regarding unusual applications.
Installation Instructions for
FSS-W SERIES
WALL MOUNTED TABLES
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
© ADVANCE TABCO MARCH 2018
STEP 1:
Place Wall Mount Table face down on a protected surface, exposing the hat
channel on the bottom of the unit.
STEP 2:

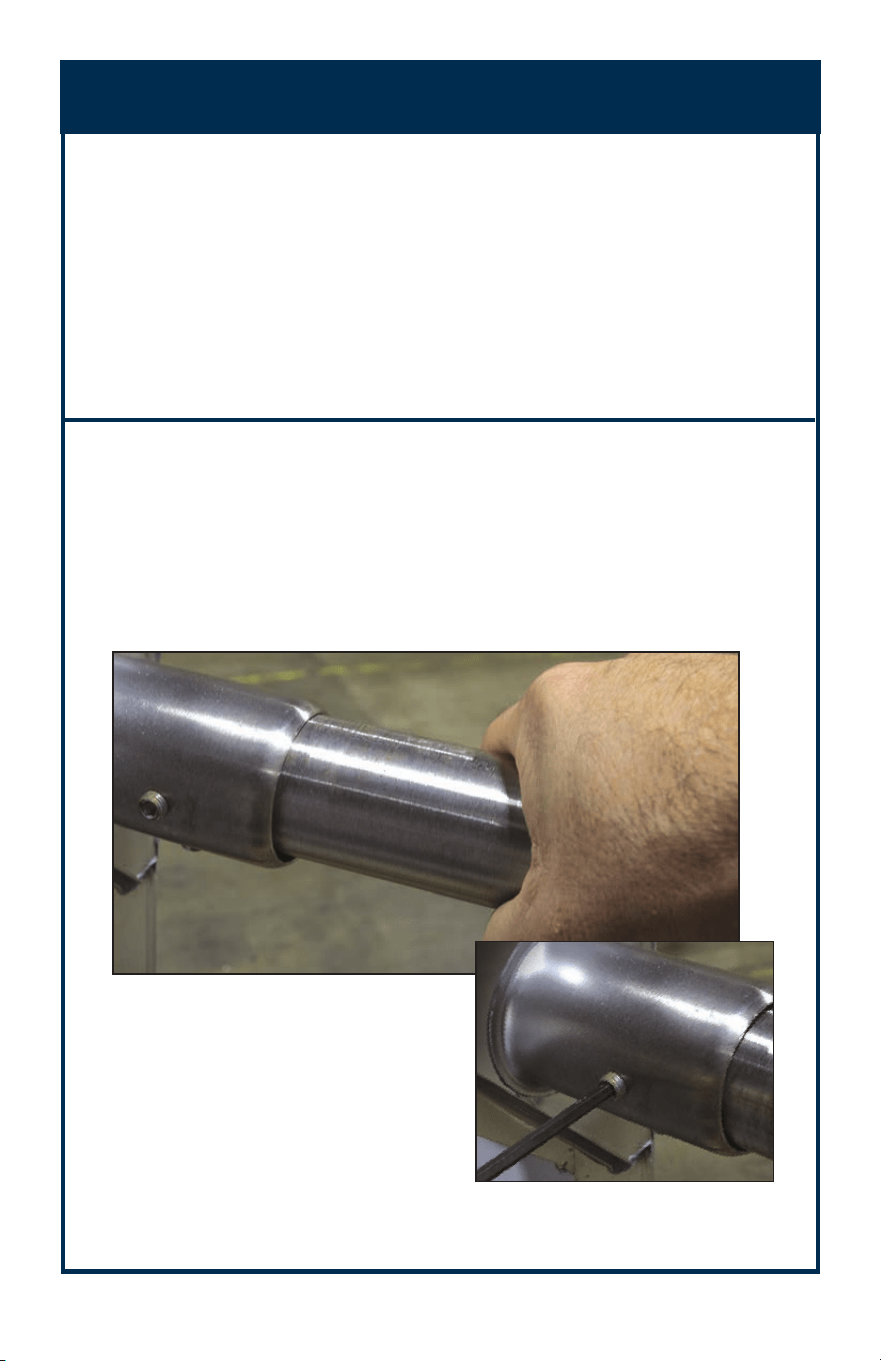

Insert all Tubular Support Brackets into each Gusset (Figure 1).
Lightly tighten set screws using a 5/32” Allen Wrench (Figure 2).
Quantity Part Description
(1) Wall Mount Table
(2-4) Tubular Support Brackets
TOOLS REQUIRED: One 5/32” Allen Wrench, One Open End
Wrench or Ratchet, level and pencil
CONTENTS IN BOX
WWW.ADVANCETABCO.COM • 800-645-3166
2
Figure 2
Figure 1
STEP 3:
Have partner(s) hold up table against the wall were to be installed and mark
each Support Bracket Flange and Wall Angle Bracket holes on wall for drilling
(See Figure 3 For Diagram). Level at this time. Loosen or tighten Wall Flange
until it sits properly against the wall. Drill proper holes to accommodate mounting
hardware (Not included).
STEP 4:
Have partner(s) hold up table against the wall, lining up pre-drilled holes, and
secure wall flanges and Angle Brackets to wall. Tighten all set screws in all
Support Brackets.
3
WWW.ADVANCETABCO.COM • 800-645-3166
WALL
Adjustable Wall Flange
Wall Mount Table
Gusset Plate
Tubular Support Brackets
Wall Angle Bracket
Hat Channels
Figure 3
