The equipment can be connected to the control system or
management system, and obtain the data of the equipment
within the system through CAN communication to achieve
remote control. By accessing, you can monitor the current
system operation status and historical operation data from
anywhere in the world, as well as control the on/off status of
devices, etc.
①Supports CAN 2.0A/B protocol, connecting industrial
equipment (such as PLC, sensors, vehicle systems, etc.)
②Support uploading data to cloud platforms or local servers
via protocols such as MQTT/HTTP/WebSocket
③Rich expansion interfaces, supporting the access of
peripheral devices such as fuel consumption sensors,
temperature and humidity sensors, load sensors, forward and
reverse sensors, and door sensors;
④Single chip design, integrating ADAS, DMS, BSD and other
intelligent early warning systems;
⑤Built-in G-sensor can collect vehicle acceleration
information;
⑥Support overspeed alarm and other functions;
⑦AHD/CVBS/VGA 3 kinds of video signal output;

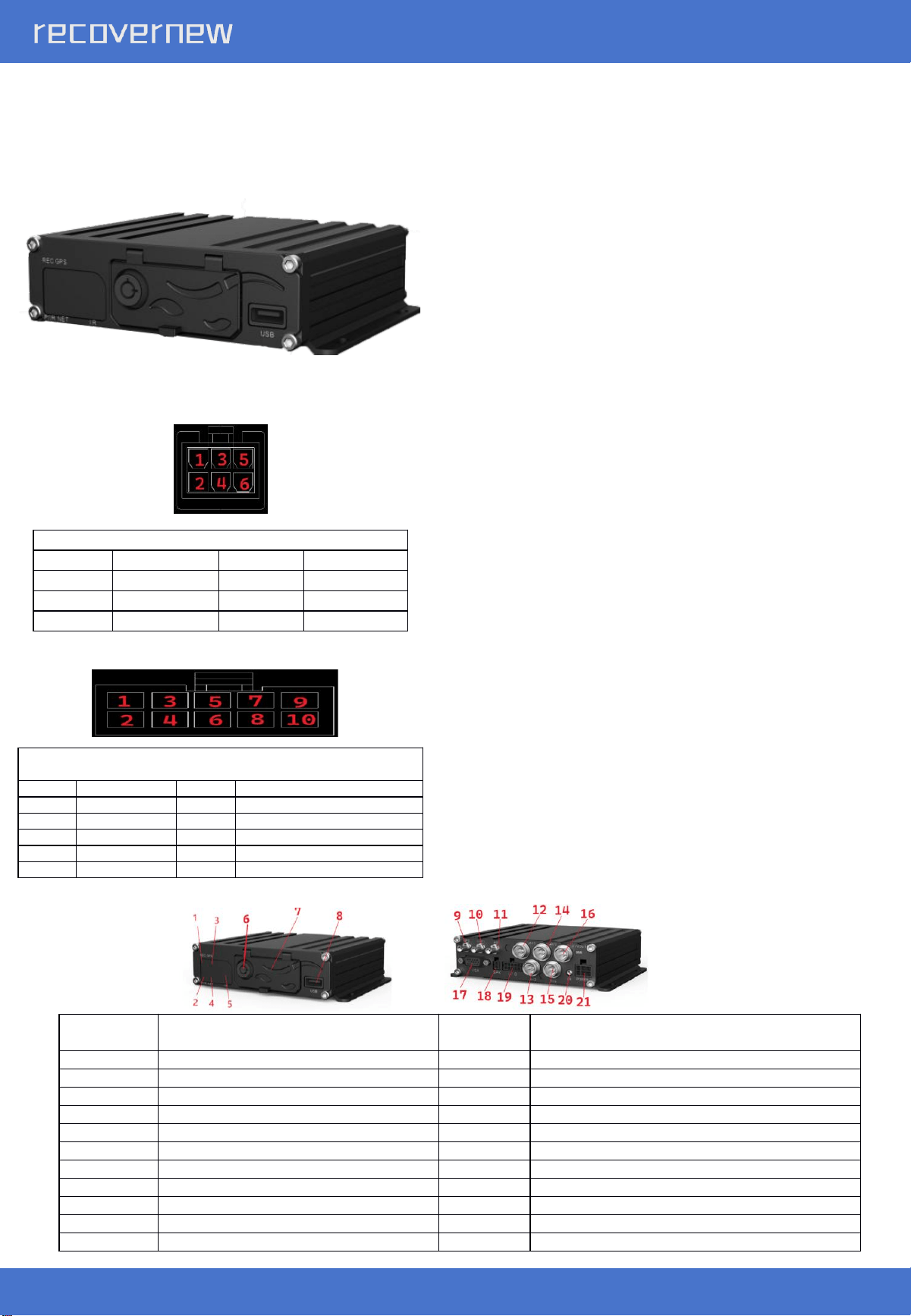

Serial
number
Description Serial
number
Description
1 REC recording indicator 12 CAM1/DMS interface
2 PWR power indicator 13 CAM2/ADAS Interface
3 GPS indication 14 CAM3/BSD interface
4 15 CAM4 interface
5 Infrared receiver 16 AVOUT/DMR output interface
6 Power lock 17 VGA output interface
7 18 Speaker interface
8 USB interface 19 IO/serial port expansion function interface
9 20 Infrared extension interface
10 21 Power Interface
11 22
Power
PIN Definition PIN Definition
1 DC IN+ 2 DC IN-
3 NC 4 NC
5 ACC 6 NC
IO/serial port expansion function interface
PIN Definition PIN Definition
1 RJ45_TX- 2 RJ45_TX+
3 RJ45_RX- 4 RJ45_RX+
5 RS232_RX 6 RS232_TX
7 GND 8 ALARM-OUT/12V/5V
9 ALARM-IN L 10 ALARM-IN H
Remote linker
Product introduction
2
Items Equipment parameters Performance indicators
Systems
Operating system
Embedded Linux operating system
Operation language
Chinese/English (customizable)
Operation interface
Graphical menu operation interface
Password security
Two
-level management of user password and administrator password
Intelligent algorithms
1.5 T computing power, can support 4 BSD channels or 1 ADAS + 1 DMS + 2
BSD channels at the same time
Audio and
video
Video format
PAL/NTSC
Compression standard
H.264/265
Monitor image resolution in real time
1080P/720P/D1
Video resolution
1080P, 720P, D1, CIF
Playback quality
1080P/720P/D1/CIF
Combination
Cameras with different resolutions can be mixed and connected, and the
equipment is adaptive
Screen display
Support 1, 2, 3, 4 screen display
Audio compression
G.711A
Recording method
Synchronous recording of sound and video
Character overlay
Support (such as license plate number, time, driving information, etc.)
Software
upgrade
Upgrade mode
Manual upgrade, automatic upgrade, remote upgrade
Upgrade Method
Wireless network, SD card
Interface
Audio and video input
4 analog/AHD HD, 1 digital HD (backward compatible with AHD720P and CVBS)
Audio and video output
1 CVBS compatible AHD, 1 VGA
Alarm input
1 alarm high input, 1 alarm low input
Alarm output
1 alarm output (12V or 5V)
SD Card
2 x SDXC high
-speed cards (up to 512G support)
Ignition input
1 ACC signal
Serial port
1 x RS232
One
-way CAN interface, add four-
screen switching CAN protocol, connect to RV
platform protocol
LED indicator
PWR/REC/NET/GPS
Voice intercom
1 channel, supports two
-way intercom/supports cluster intercom
USB interface
1 x USB 2.0 (support USB to WIFI adapter, for device debugging)
other
Power input
DC 9
-36V
Power output
DC12V 2A or DC5V 2A
Power consumption
< 10W
Operating temperature
-
20℃～＋75℃
Dimensions (width * depth * height)
126mm (W) X115mm (D) x38mm (H)
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body: Use
only the supplied antenna.
