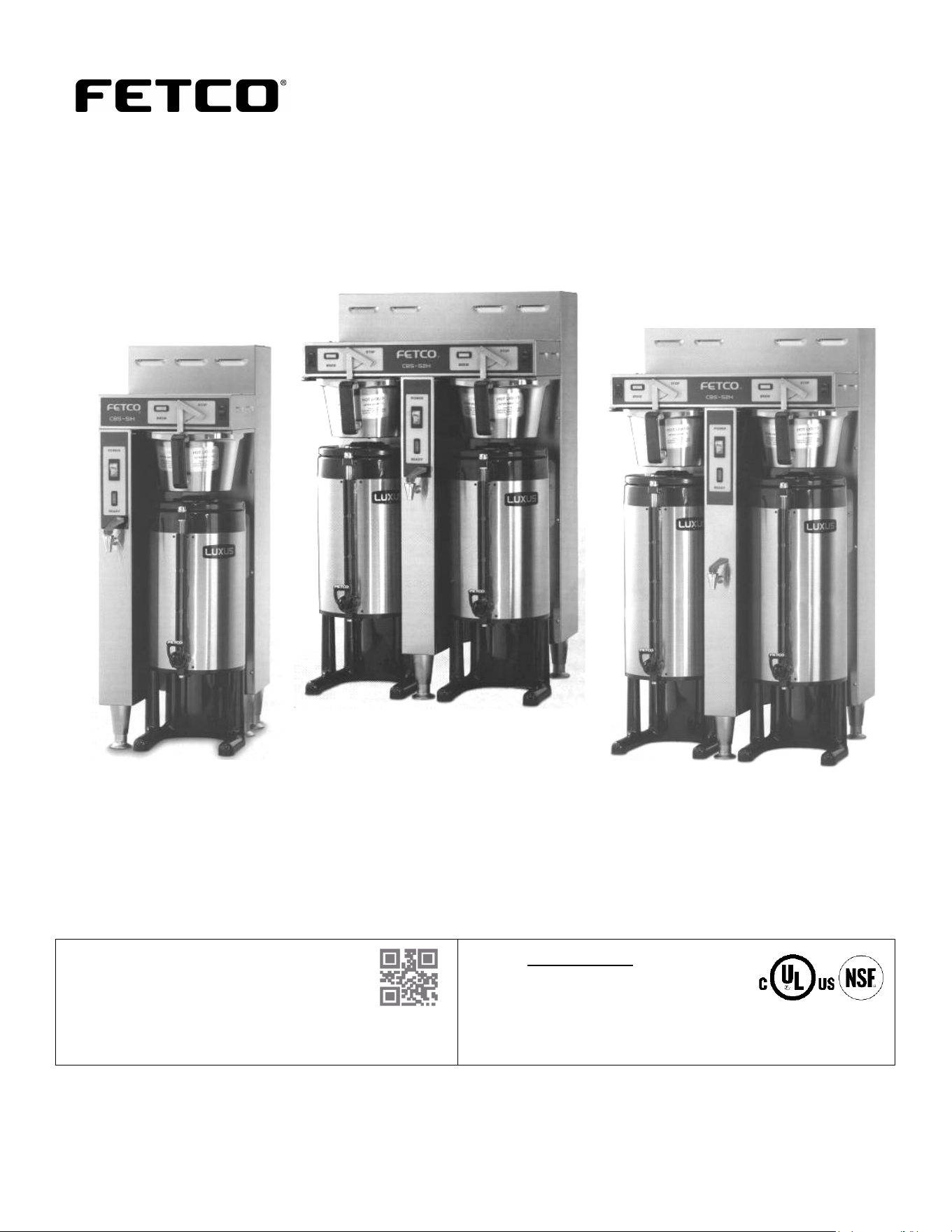

User’s Guide and Operator Instructions
CBS-5000H Series Coffee Brewers
Models:CBS-51H15;CBS-52H15; CBS-52H20
FETCO Commercial Beverage Equipment
Center: Dual 1½ Gal CBS-52H15
Left: Single1½ Gal CBS-51H15 Right: Dual 2 Gal CBS-52H20
Contact Information
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL • 60047-1560 • USA
© 2008-2019 Food Equipment Technologies Company
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
Email: sales@fetco.com
techsupport@fetco.com
CBS-5000H Legacy Handle Operated Brewers P183 MARCH 2019
fetco.com
2
Table of Contents
Introduction ................................................................... 2
Product Description/Features ....................................... 2
Specifications ............................................................... 2
Dimensions & Utility Connections ................................ 4
Installation ..................................................................... 5
Operating Procedures................................................... 7
Service .......................................................................... 8
Brewer Parts ............................................................... 13
Troubleshooting .......................................................... 20
Introduction
This manual applies only to CBS-5000H 1½ gallon and 2 gallon series brewers manufactured after 2006
The 1gallon CBS-51H10 was discontinued in 2010. The steam powered option was discontinued in 2011
Refer to User’s Guide # P102 CBS-51H10 one gallon versions and for steam powered versions.
Refer to User’s Guide # P004 for mercury relay versions.
Product Description/Features
CBS-51H15 - Single 1.5 Gallon
Coffee Brewer
CBS-52H15 - Twin 1.5 Gallon
Coffee Brewer
CBS-52H20 - Twin 2.0 Gallon
Coffee Brewer
•
Thermal, portable, beverage dispensers
•
Optional Features:
•
Stainless steel, gourmet size brew baskets
•
Export voltage
•
Brew basket double safety locks
•
3.0 liter airpots, with stands,
•
Open type, leak free dispense system
•
Half batch brewing capability*
•
Fully automatic, with electronic temperature control
•
Iced tea brewing capability*
•
Two level tank drain system
•
Total serviceability from the front
* Can be added at any time.
Specifications
Brew Volume: CBS-51H15 & CBS-52H15 CBS-52H20
Temperature:
Full Batch 1 ½ gal. (5.7 lit.) 2 gal. (7.6 lit.)
205°F inside water tank (at sea level)
Half Batch ½ gal. ¾ gal. (2.8 lit.) 1 gal. (3.8 lit.)
195°F ± 5° at sprayhead
Brew Time: CBS-51H15 & 52H15 CBS-52H20
Bypass Range: 0 to 33%
Full Batcn. 4 - 4 ½ min. 5 ½ - 6 min.
(factory set at 0% unless specified)
Half Batch 2 - 2 ¼ min. 2 ¾ - 3 min.
(Allow an extra 2-4 minutes for coffee to finish dripping)
Coffee Filter Size: CBS-51H15, CBS-52H15, & CBS-52H20
Water Requirements: 20-75 psig
15” X 5 ½ ” – standard
13” X 5” – optional half batch
CBS-51H ½ gpm
CBS-52H 1 ¼ gpm
Weights and Capacities
Brewer
Model
Weight
(empty)
Water tank
Capacity & Weight.
Weight
(filled)
Dispenser
Weight, ea.
Dispenser
Filled, ea..
Total Weight Brewer &
Dispensers, Filled
CBS-51H15
55 lbs.
3.7 gal.
31 lbs.
86 lbs.
8.5 lbs.
21 lbs.
107 lbs.
CBS-52H15
82 lbs.
7.6 gal.
63 lbs.
145 lbs.
8.5 lbs.
21 lbs.
187 lbs.
CBS-52H20
87 lbs.
7.6 gal.
63 lbs.
150 lbs.
10 lbs.
26.6 lbs.
203.2 lbs.
Go to fetco.com for the latest versions of all information Page 3 P183 March 2019
Electrical Configuration and Brewing Efficiency
CBS-51H15 1.5 gallons per batch
Electrical
Heater
Voltage
Maximum
Batches per Hour
(max 11)
Config. Code
Configuration
Connection
Phase
Wires
KW
Amp draw
Cold
Water
Hot
Water
C51016
1 X 1800 watt
120
1 ph.
2 + ground
1.9
15.5
3.0
6.8
120/208
1 ph.
3 + ground
2.3
11.3
3.7
8.6
C51026
1 X 3000 watt
120/220
1 ph.
3 + ground
2.6
12.0
4.3
10.0
120/240
1 ph.
3 + ground
3.1
13.0
5.0
11.0
120/208
1 ph.
3 + ground
3.1
14.9
5.0
11.0
C51036
1 X 4000 watt
120/220
1 ph.
3 + ground
3.4
15.8
5.8
11.0
120/240
1 ph.
3 + ground
4.1
17.2
6.6
11.0
120/208
1 ph.
3 + ground
4.6
22.1
7.4
11.0
C51046
2 X 3000 watt
120/220
1 ph.
3 + ground
5.2
23.4
8.6
11.0
120/240
1 ph.
3 + ground
6.1
25.5
9.9
11.0
C51056
2 X 4000 watt
120/208*
1 ph.
3 + ground
6.1
29.3
9.9
11.0
CBS-52H15 1.5 gallons per batch
Electrical
Heater
Voltage
Maximum
Batches per Hour
(max 22)
Config. Code
Configuration
Connection
Phase
Wires
KW
Amp draw
Cold
Water
Hot
Water
120/208
1 ph.
3 + ground
4.6
22.4
7.4
17.2
C52016
2 X 3000 watt
120/220
1 ph.
3 + ground
5.2
23.7
8.6
19.9
120/240
1 ph.
3 + ground
6.1
25.8
9.9
22.0
120/208
1 ph.
3 + ground
6.1
29.6
9.9
22.0
C52026
2 X 4000 watt
120/220
1 ph.
3 + ground
6.8
31.3
11.5
22.0
120/240
1 ph.
3 + ground
8.1
34.1
13.2
22.0
120/208
3 ph.
4 + ground
6.9
19.5
11.2
22.0
C52036
3 X 3000 watt
120/220
3 ph.
4 + ground
7.7
20.6
12.9
22.0
120/240
3 ph.
4 + ground
9.1
22.4
14.9
22.0
120/208
3 ph.
4 + ground
9.1
25.8
14.9
22.0
C52046
3 X 4000 watt
120/220
3 ph.
4 + ground
10.3
27.3
17.3
22.0
120/240
3 ph.
4 + ground
12.1
29.7
19.8
22.0
C52186
3 X 4000 watt
480
3 ph.
3 + ground
12.1
15.2
19.8
22.0
CBS-52H20 2.0 gallons per batch
Electrical
Heater
Voltage
Maximum
Batches per Hour
(max 18)
Config.
Code
Configuration
Connection
Phase
Wires
KW
Amp
draw
Cold
Water
Hot
Water
120/208
1 ph.
3 + ground
4.6
22.4
5.6
12.9
C53016
2 X 3000 watt
120/220
1 ph.
3 + ground
5.2
23.7
6.5
14.9
120/240
1 ph.
3 + ground
6.1
25.8
7.4
17.2
120/208
1 ph.
3 + ground
6.1
29.6
7.4
17.2
C53026
2 X 4000 watt
120/220
1 ph.
3 + ground
6.8
31.3
8.6
18.0
120/240
1 ph.
3 + ground
8.1
34.1
9.9
18.0
120/208
3 ph.
4 + ground
6.9
19.5
8.4
18.0
C53036
3 X 3000 watt
120/220
3 ph.
4 + ground
7.7
20.6
9.7
18.0
120/240
3 ph.
4 + ground
9.1
22.4
11.2
18.0
120/208
3 ph.
4 + ground
9.1
25.8
11.2
18.0
C53046
3 X 4000 watt
120/220
3 ph.
4 + ground
10.3
27.3
12.9
18.0
120/240
3 ph.
4 + ground
12.1
29.7
14.9
18.0
C53186
3 X 4000 watt
480
3 ph.
3 + ground
12.1
15.2
19.8
22.0
Go to fetco.com for the latest versions of all information Page 4 P183 March 2019

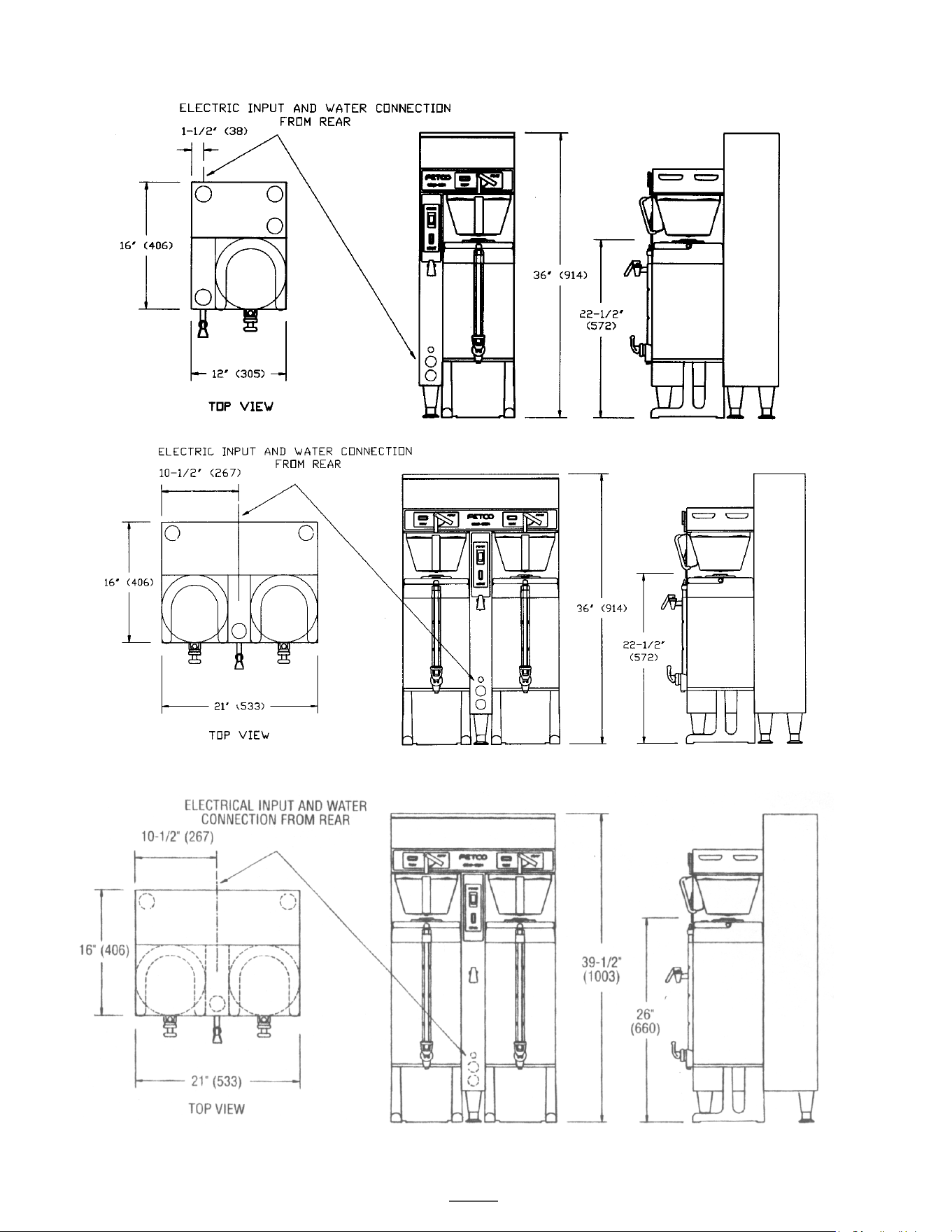

Dimensions & Utility Connections
CBS-51H15
CBS-52H15
CBS-52H20
Go to fetco.com for the latest versions of all information Page 5 P183 March 2019
Installation
(For Qualified Service Technicians Only)
Keys To A Successful Installation
If not installed correctly by qualified personnel, the brewer may not operate properly, and damage may result.
Damages resulting from improper installation are not covered by the warranty.
All FETCO Hot Beverage Equipment is designed and sold for commercial use only.
Here are the key points to consider before installation:
Electrical:
• All FETCO brewers require NEUTRAL. Ground is not an acceptable substitute. Installation without neutral
may cause damage to the electronic components.
• The power connection to L2 on the terminal block must be at least 105 volts. Less than 105 volts will
cause erratic behavior from the brewer.
• The power switch has a built-in circuit breaker. To reset it, turn to the power switch to the “off” position, and
then back to the “on” position.
• The electrical drawing for the brewer is located on the inside of the lower cover of the brewer.
Plumbing:
• This equipment is to be installed to comply with the applicable federal, state, or local plumbing codes.
• The water line must be flushed thoroughly prior to connecting it to the brewer to prevent debris from
contaminating the machine.
• Verify that the water line will provide at least ½ gallons per minute for the CBS-51H, and 1¼ gallons per
minute for the CBS-52H before connecting it to the brewer.
General:
• Utilize only qualified beverage equipment service technicians for installation. A Service Company Directory
may be found on our web site, http://www.fetco.com.
Installation Instructions
Brewer Setup
1. Review the Dimensions for the unit you are installing. Verify that the brewer will fit in the space intended
for it, and that the counter or table will support the total weight of the brewer and dispensers when filled.
2. The brewer’s legs are shipped inside the brew baskets. Remove the brew basket(s) and the coffee
dispenser(s). Place the brewer on its back and screw in the legs.
3. Place the brewer on the counter or stand.
4. When the brewer is in position, level it front to back
and side to side by adjusting the legs.
5. Remove the lower cover to access the water and
electrical connections. Knock-outs are provided in the
back and base of the brewer body for the connections.
Water Connection
1. Water inlet is a 3/8 inch male flare fitting.
2. The brewer can be connected to a cold or hot water line. Cold water is preferred for best coffee flavor, but
hot water will allow for faster recovery times.
3. Install a water shut off valve near the brewer to facilitate service. If an in-line water filter is used, it should
be installed after the water shut off valve and in a position to facilitate filter replacement.
4. Flush the water supply line and filter before connecting it to the brewer.
5. Verify that the water line will provide at least ½ gallons per minute for the CBS-51H, and 1¼ gallons per
minute for the CBS-52H, and that the water pressure is between 20 and 75 psig.
6. Use a wrench on the factory fitting when connecting the incoming water line. This will reduce stress on the
internal connections and reduce the possibility of leaks developing after the install has been completed.
7. Commercial beverage equipment requires filtered water and an user installed backflow prevention valve.
Most municipalities require a recognized backflow preventer. The WATTS® SD-2 or SD-3 is usable on all
hot beverage and cold beverage equipment. The WATTS spring loaded double check valve models are
accepted by most Authorities Having Juristiction (AHJ)
Go to fetco.com for the latest versions of all information Page 6 P183 March 2019
Electrical Connection
1. Verify that the actual voltage at the electrical service connection is compatible with the specifications on the
brewer’s serial number label. Make sure the electrical service includes neutral.
2. The temperature and water tank fill level are pre-set at the factory. There is no need to turn off the heaters
during the installation process. The control board disables the heaters until the tank is full of water. The
heating process will start automatically when the tank has filled.
3. Only 120VAC powered units are shipped from the factory with power cords and plugs attached. For other
voltages, a terminal block is provided for connecting the incoming power wires. Consult local codes to
determine if a cord and plug can be installed, or if the unit must be hard wired.
4. A fused disconnect switch or circuit breaker on the incoming power line must be conveniently located near the
brewer, and its location and markings known to the operators.
5. The body of the brewer must be grounded to a suitable building ground.
A ground lug is provided in the brewer next to the power terminal
block. Use only 10 gauge copper wire for grounding.
6. Electrical connections must be secured in-place within the unit to meet
national and local standards.

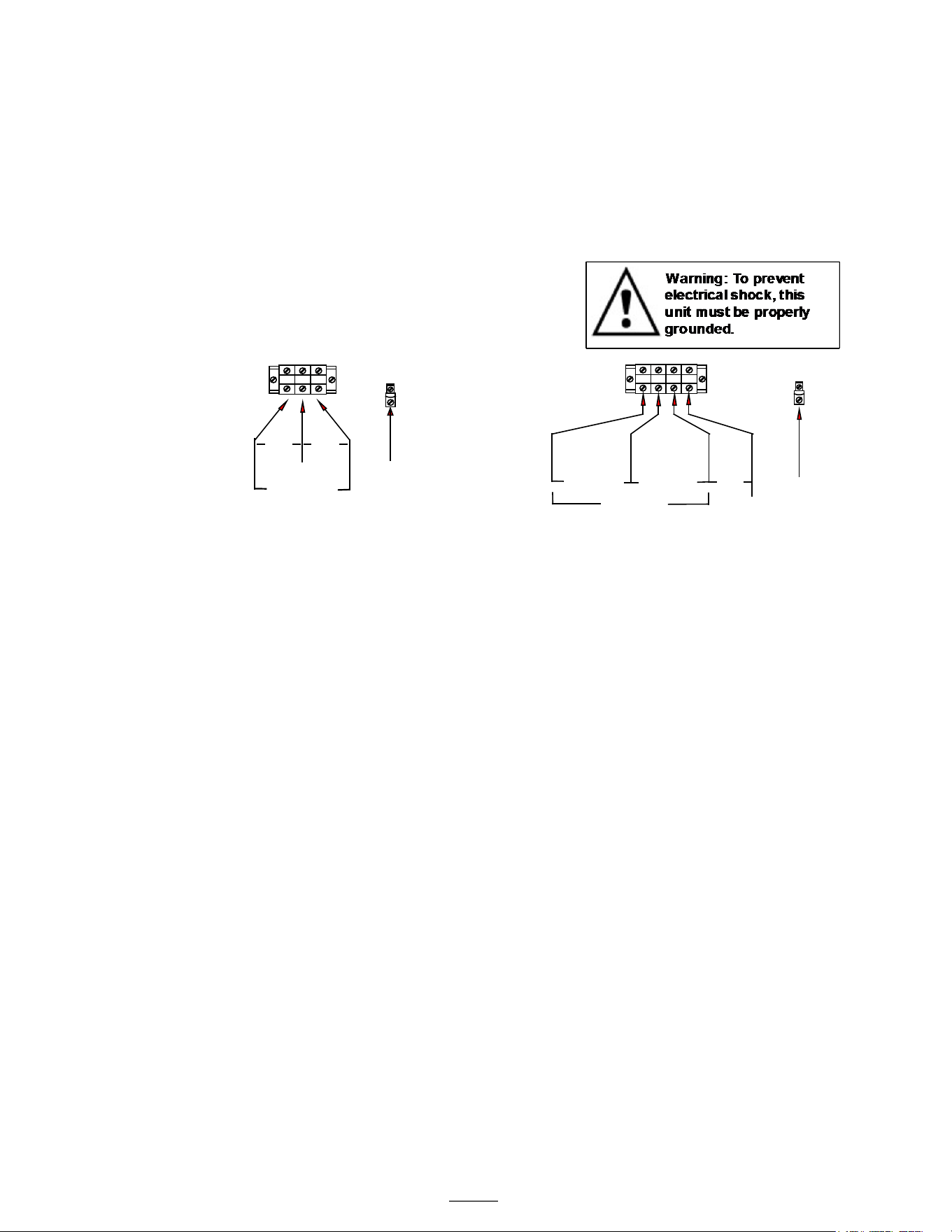

L1
L2
N
GROUND LUG
GROUND
WIRE
SINGLE PHASE
TERMINAL BLOCK
N
208-240V
120V
120V
3 PHASE
TERMINAL BLOCK
GROUND LUG
GROUND
WIRE
L1
L2
L3
N
N
120V
208-240V
208-240V
208-240V
Electrical Configurations – US & Canada
7. Finally, connect the incoming power wires to the terminal block in accordance with applicable codes.
Final Setup
1. Turn on the incoming water supply line and inspect both inside and outside of the brewer for leaks in all fittings
and tubes
2. Turn on the incoming power.
3. Turn on the brewer’s main power switch.
4. Within 6 seconds, the hot water tank will begin filling until the probe at the top of the tank senses the water.
5. The control board will disable the heaters until the tank is full.
6. The brewer will be ready for operation as soon as the ready light comes on to signify that the water tank is up to
temperature. The time required to reach brewing temperature will vary according to the electrical configuration
ordered.
7. Review the Operating Instructions. Brew one full batch (water only) on each side to confirm proper fill levels.
The brewer is factory set with water only (no coffee) to dispense the correct amount of water.
8. Re-attach the covers after one final inspection for leaks. Look closely in the top of the brewer at the dispense
fittings during this inspection.
Operator Training
Review the operating procedures with whoever will be using the brewer. Pay particular attention to the following
areas:
1. Always pre-heat the dispensers before the first use of each day by filling them half way with hot water, and
letting them stand for at least 15 minutes.
2. Don't remove the brew basket until it has stopped dripping.
3. Make sure the dispenser is empty before brewing into it.
4. Show how to attach covers, close, and or secure the thermal dispensers for transporting.
5. Show the location and operation of the water shut off valve as well as the circuit breaker for the brewer.
6. Steam from the tank will form condensation in the vent tubes. This condensation will drip into and then out of
the brew baskets. 1/4 cup discharging overnight is possible. Place an appropriate container under each brew
basket when not in use.
7. We recommend leaving the power to the brewer on overnight. The water tank is well insulated and will use very
little electricity to keep the tank hot. Leaving the brewer in the on position will also avoid delays at the
beginning of shifts for the brewer to reach operating temperature.
Go to fetco.com for the latest versions of all information Page 7 P183 March 2019
Operating Procedures
1. Turn brewer on/off switch (
E) to the on position
• The power switch will illuminate to indicate that the brewer has power and is
operating.
• When the ready light (F) illuminates, the brewer is fully up to temperature.
The amount of time required to gain full operating temperature will vary
depending on the electrical configuration that was ordered, and the
temperature of the incoming water.
2. Pre-heat the dispensers.
This step is very important to the overall success of the brewing operation.
FETCO avoids the damaging affects of heat on fresh brewed coffee by using
highly insulated dispensers. The dispenser must be pre-heated with hot water
from the brewer. This preheating process ensures that the coffee in the first
brew starts out hot. Significant heat loss will occur when brewing coffee into a
cold dispenser. Preheating is not required for subsequent brews unless the
dispenser remains empty for an extended period of time and has cooled down.
• Slide the empty brew basket(s) (D) into their rails and put the empty
dispenser(s) in position under the basket for preheating. Select the half batch
mode,
(A) if you have this option.
• When the ready light illuminates, start a brew cycle by rotating the brew lever
(B) to the brew position. This starts clean hot water flowing into the brew
basket and then into the dispenser.
• Stop the cycle when each dispenser is approximately 1/2 full by moving the
brew lever to the off position. This interrupts the brew cycle and resets the
brewer.
• Let the dispensers stand 10-15 minutes, or until use, to allow the heat from
the water to be absorbed by the dispensers.
3. Remove the brew baskets from the brewer when you are certain that the flow of hot water has stopped
from the bottom of the basket.
• H model brewers will have a safety bar (C) in front of the brew basket to make removing the brew basket a
2-handed operation. This was done to help draw attention to the basket so the operator will notice any
residual hot water or coffee.
• Place a paper filter in each basket to be used. Pour into the paper filter the appropriate amount of pre-
measured, ground coffee. The amount of coffee used will depend on your personal tastes and the
recommendation of your roaster.
• Slide the brew basket back into the rails on the brewer. Insure the latch is outside of the basket.
4. Carefully drain any coffee or preheating water from the dispensers through the faucets before starting
a coffee brewing cycle.
• Overflowing of the dispensers may result if the dispensers are not completely empty when the brew cycle
begins. Verify by opening the faucet over an appropriate container or drain. The last several cups cannot be
seen in the sight gauge tube.
• CAUTION: both the coffee or water may still be hot enough to cause burns, so be careful when draining the
dispensers
5. Place the thermal dispenser(s) in position under the brew baskets.
• Ensure that the brew funnel is in place, the dispenser is empty, and the faucet is closed. If you are using
TPD-1.5 dispensers, also make sure the vent cap on the sight gauge is open.
• The twist lock cover (TPD-1.5 dispensers) is for transporting the dispenser only. It must be removed before
placing the dispenser under the brew basket.
6. Start the brew cycle in the same manner used to start the water used to preheat the dispensers.
• It will not be necessary to interrupt the cycle while brewing coffee. The brewer will return to the stopped and
ready status automatically.
• It is normal for the ready light to go out after the start of the brew cycle. On twin brewers, there is enough
hot water in the brewer to support a second brew, even if the ready light is off. After brewing on both sides,
you must wait for the ready light to come back on.
• The electrical configuration and the electrical power connected to the brewer will determine how long before
the ready light comes back on for the next brew.
(Continued on next page)
Legend:
A-Full/half batch switch
B-Brew lever
C-Safety bar
D-Brew basket
E-On/off switch
F-Ready light
G- Brew light
H-
Hot water faucet
Go to fetco.com for the latest versions of all information Page 8 P183 March 2019
CAUTION
• Do not remove the brew basket immediately after the brew cycle has finished. Wait until
dripping from the bottom of the brew basket has stopped. Carefully remove the brew basket
while inspecting the inside of the basket for hot coffee that may have been trapped or has not
finished draining.
Service
Warranty
All FETCO brewers come with a limited warranty. All warranty service must be pre-authorized by calling the
FETCO Service Department at (800) 338-2699.
Principles of Operation
Fill System
The fill system consists of a liquid level control board, a water level probe at the top of the tank, a fill valve, and a fill
tube. As the water rises and touches the probe, continuity is established between the probe tip and the tank body,
and the fill valve closes.
When water is dispensed, the water level drops below the probe. After a 5 second delay, the fill valve opens until
the water touches the probe again.
The 5 second delay, and the speed that water refills the tank during brewing, results in many short bursts of water.
The sound made by these repetitive bursts will let you know the fill system is functioning normally.
The fill system is designed to protect the heaters during both the installation and a loss of the water supply. During
initial installation, or whenever the power switch is turned on, voltage will not be supplied to the thermostat until the
tank fills and water touches the water level probe.
During operation, when water is dispensed and the water level drops below the probe, a fill signal is sent to the fill
valve. If the probe senses no water after 40 seconds, the voltage to the thermostat and the heaters is removed.
Water enters the tank through the fill tube. A hole is drilled in the upper portion of the fill tube to prevent water from
being siphoned from the tank. The fill tube extends to the bottom area of the tank. This introduces cold incoming
water directly to the heaters and away from the dispense assembly.
The water tank can be drained through a valve located inside the lower compartment of the brewer.
Temperature System:
The temperature system consists of an electronic thermostat, a temperature probe, solid state relays (SSR), and
heating elements, and is enabled by the liquid level control board. (See the previous section - Fill Circuit.)
When the water level probe is in contact with water, power is delivered to the thermostat through the liquid level
control board. If the temperature probe senses that the water is not hot enough, the thermostat energizes the
heating elements through the solid state relay (SSR), the water is heated, and the ready light goes off.
Once the water temperature reaches the set point, the thermostat disengages power to the heaters and the ready
light illuminates.
The thermostat is adjusted to 205° F ± 2° at the factory. (Slightly lower for high altitude installations.)
Go to fetco.com for the latest versions of all information Page 9 P183 March 2019
Timing System:
The timing system consist of the timer and the dispense latch assembly.
When the brew handle is rotated from the stop to the brew position, it pushes the plunger in the latch coil and
closes the micro switch, and the timer starts the timed cycle. It also starts the hot water flowing.
The timer energizes the dispense latch coil, which acts as a magnet, to hold the brew handle in the brew position.
It also lights the brew light. The coil remains energized throughout the brew cycle timed sequence.
When the timer finishes its cycle, it removes voltage from the latch coil. The latch coil then releases the brew
handle, a spring returns it to the stop position, and the flow of water stops. This return opens the micro switch,
stopping voltage from going to the timer. The brew light and the timer are disabled, and wait for the brew handle to
engage the next brew cycle.
Dispense System:
The dispense system is completely mechanical. It is one of the areas that makes FETCO's brewer truly unique.
(See the illustration in this section.)
When you rotate the brew lever down to brew, the end of the dispense tube is submerged in the hot water tank. It
is held in the brew position by the magnetic action of the dispense latch coil.
The brew water travels down the dispense tube to the sprayhead assembly. The flow disc above the spray cutter
controls the rate of flow over the coffee. The standard hole in the flow disc is .240”, except for the CBS-51H10,
which is .219”. Other flow discs are available for special situations like high levels of by-pass.
The sprayhead can be assembled incorrectly during cleaning. Refer to the cleaning label on the brewer for proper
assembly. The flow disc has the flange down, flat side up. The six triangle spray cutter has the flange up. The
eight hole spray cutter used in place of the triangle cutter goes bumps down.
A bypass valve and tube are connected to the sprayhead. This valve directs brew water around the outside edge of
the filter paper. The by-pass valve is shipped in the closed position from the factory. Each time the valve is
adjusted, the brew volume is affected. Adjustment of the by-pass valve is for flavor only.
When the timer circuit releases the brew latch, the dispense tube pops back above the hot water level. The
remaining brew water drains from the dispense system leaving it free of standing water. Steam escaping from the
brew tank through this tube inhibits the formation of lime in the brew system.
The dispense system is clean & semi dry for all but the brief time required for the brew cycle. This eliminates any
chance of lime build-up affecting the brew cycle.
It is very easy to dislodge the dispense tube seals while servicing the dispense system. If you see it leaking
profusely, remove the nut and dispense tube. Reset the seal fully into the recess and carefully insert the dispense
tube. Then secure the locknut before you back the tube into position. (See detailed instructions on page 10.)
Go to fetco.com for the latest versions of all information Page 10 P183 March 2019

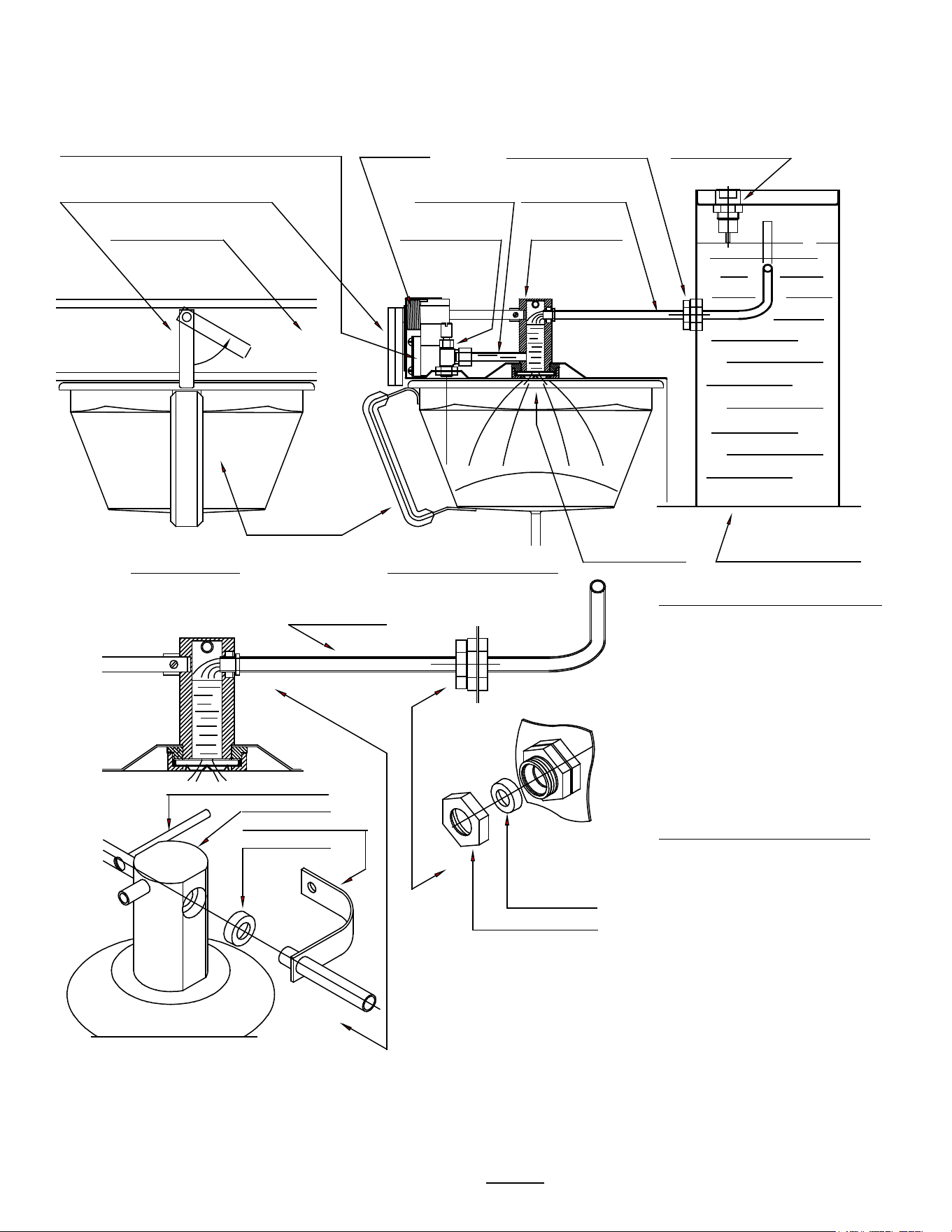

Mechanical Illustration - Dispense System
STOP
BREW
SIDE (SECTION) VIEW
FRONT VIEW
BREW BASKET
CONTROL PANEL
HOT WATER TANK
DISPENSE TUBE
SPRAY HEAD
BY-PASS TUBE
FLOW DISC
SPRAY CUTTER
LOCKNUT
BY-PASS VALVE
DISPENSE LATCH ASSEMBLY:
SOLENOID ASSY, PUSH ROD, MICROSWITCH,
SOLENOID LATCH PLATE ASSY
WATER LEVEL PROBE
BREW START/STOP HANDLE
BREW START/STOP
HANDLE RETURN
SPRING
DISPENSE FITTING ASSY:
DISPENSE FITTING
DISPENSE FITTING LOCKNUT
SEAL
SEAL LOCKNUT
TEFLON SEAL
SEAL LOCKNUT
TEFLON SEAL
SPRAY HEAD
DRIVE SCREW
DISPENSE TUBE SHAFT
DISPENSE TUBE
To remove the dispense tube:
1.
Unscrew seal locknut and
release the drive screw from
dispense tube shaft.
2.
Turn the dispense tube
slightly back and forth, while
pushing the tube into the hot
water tank until it is free from
the sprayhead.
Pull the dispense tube out of
the tank. Remember the tube is
bent inside the tank. The seal
will come out with the tube.
To install the dispense tube:
1.
Clean any lime build up off
the tube and then slide the seal
off. Push the seal carefully
into its chamber in the
fitting.(spring towards
the hot
water tank.)
2.
Place the seal locknut onto
the tube and slide the tube into
the seal. Tighten the seal
locknut.
3.
Work the tube back into the
sprayhead seal.
4.
Join the dispense tube
shaft and the brew handle
shaft with the drive screw.
Go to fetco.com for the latest versions of all information Page 11 P183 March 2019
Adjustments
Thermostat Adjustment:
During normal operation, the digital readout displays the last two digits of the actual water temperature. When the
adjustment tool is turned, the readout begins flashing to indicate the set point, not the actual temperature. After the
tool is released, the readout stops flashing and displays the actual temperature again.
A red LED lights when the power to the thermostat is on. A yellow LED lights when the thermostat is calling for
heat.
To adjust, turn the adjustment tool. If no adjustment tool is present, a small flat-head screwdriver may be used. The
display will flash, indicating that the display is showing the set point, not the actual temperature.
The dots below the numbers indicate the temp range.
0 dots – less than 100° F
1 dot – between 100° and 200° F
2 dots – over 200° F
Examples:
7
5
= 75°F
8
7
= 187°F
0
3
=
203°F
Chart to correct for altitude boiling point difference
in tank water temperature.
[ft] [m]
Suggested
Setting[°F]
Boiling
point[°F]
Suggested
Setting[°C]
Boiling
point [°C]
0
0
205
212.0
96
100.0
500
152
205
211.0
96
99.5
1000
305
200
210.1
93
98.9
2000
610
200
208.1
93
97.8
2500
762
200
207.2
93
97.3
3000
914
200
206.2
93
96.8
3500
1067
197
205.3
92
96.3
4000
1219
195
204.3
91
95.7
4500
1372
194
203.4
90
95.2
5000
1524
194
202.4
90
94.7
5500
1676
193
201.5
89
94.2
6000
1829
192
200.6
89
93.6
6500
1981
191
199.6
88
93.1
7000
2134
190
198.7
87
92.6
7500
2286
188
197.8
86
92.1
8000
2438
187
196.9
86
91.6
8500
2591
185
196.0
85
91.1
Go to fetco.com for the latest versions of all information Page 12 P183 March 2019
Timer Adjustment:
The timer has two independent settings, with three dials for each setting. The first dial in each group sets 100
second increments, the second dial sets 10 second increments, and the third dial sets 1 second increments.
A red LED lights when the power to the timer is on. A yellow LED lights when the timer is running.
A small flat head screwdriver is required to adjust the dials.
part # K034, digital timer, 100-120 VAC
part # K036, digital timer, 200-240 VAC (export versions only)
Water Level Control Board:
The board features a jumper to adjust its’ sensitivity for reverse osmosis or other types of ultra-pure water.
The default jumper setting is LO (50K ohms) for normal water. If the brewer tank overfills because of ultra-
pure water, the jumper should be set to HI (100K ohms).
A red LED lights when the power to the board is on.
A green LED lights when the water level probe detects that the tank is full.
A yellow LED lights when the FILL circuit is energized.
A second yellow LED lights when the HEAT circuit is energized.
Bypass Adjustment:
The purpose of the bypass valve is to allow a portion of the brewing water to flow between the brew basket and the
wire insert, directly into the server, without coming in contact with the coffee grounds. The bypass can be adjusted
from 0% to 33% of the total brewing water. Dual brewers (CBS-52H), have separate bypass valves on each side.
Unless requested at the time of order, all brewers are shipped with the bypass valves closed (0%). Adjusting the
bypass always changes the total brew volume, so the timer setting must always be checked and adjusted.
To adjust the bypass:
• Remove the brewer’s upper cover.
• The bypass valve is located above the brew basket, to the right and to the front, as you are facing it.
• Remove the brew basket.
• Place a container under the spray head, and a separate container under the bypass hole.
• Turn the bypass valve clockwise to decrease, and counter-clockwise to increase the bypass amount.
A good starting point would be one full turn for each 5% change.
• Brew a full cycle and measure the amount of water in both containers.
• The ratio of the bypass water to the total in both containers is the bypass percentage.
example: ½ gal. bypass + 1 gal. from spray head = 1 ½ gal. total. Bypass = 33.3%.
• Several adjustments may be necessary until the desired results are achieved.
Go to fetco.com for the latest versions of all information Page 13 P183 March 2019

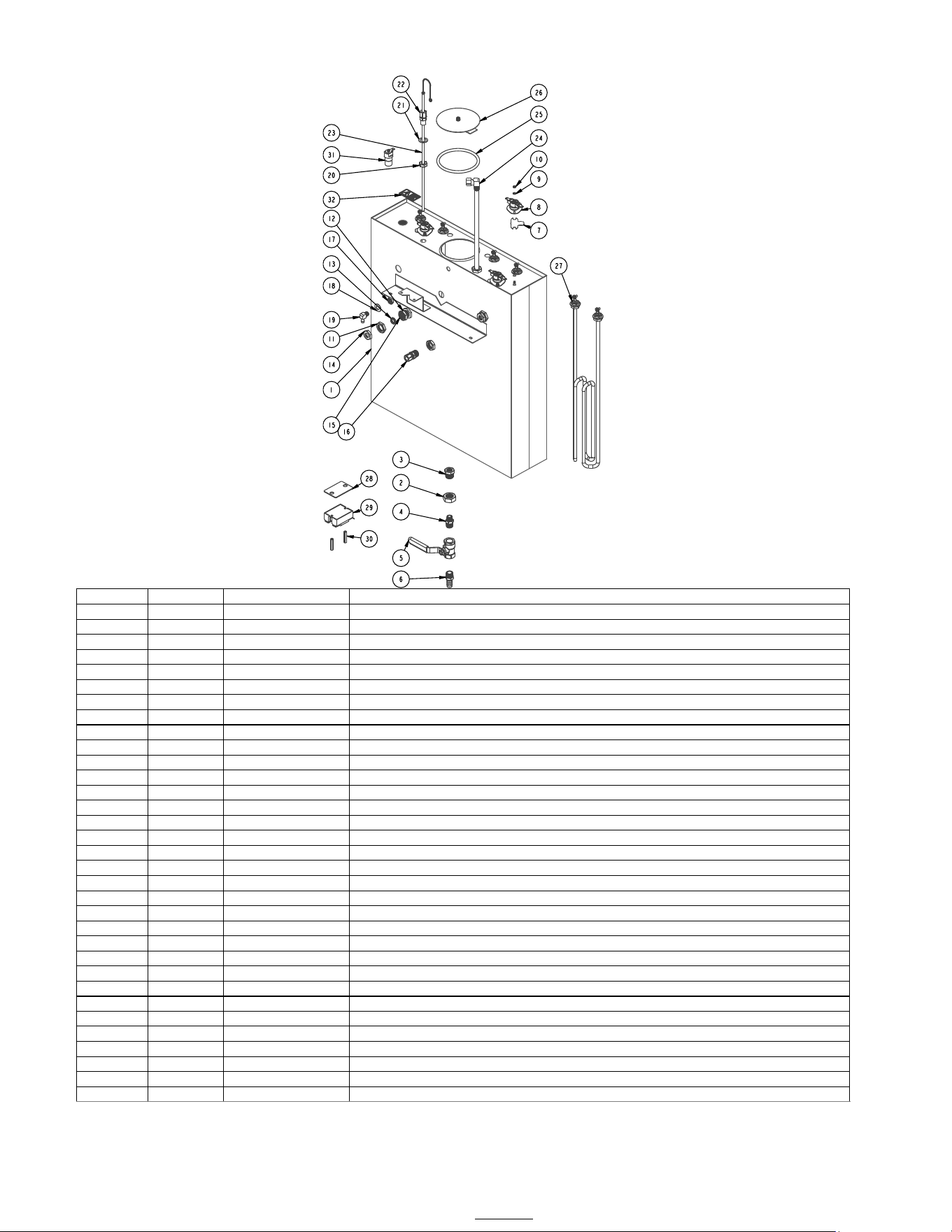

Brewer Parts Figure 1 – CBS-51H15 Tank Assembly
REF
QTY
PART NO
DESCRIPTION
1
1
004072
WELDMENT, TANK, CBS-51H15 SRR
2
2
1031.00029.00
BUSHING, 3/4-16 X 1/4 NPSM, HEX HEAD
3
1
1084.00022.00
NUT, 3/4-16 HEX JAM, 18-8SS
4
1
1031.00026.00
FITTING, HEX NIPPLE, 3/8 NPT X 1/4 NPT
5
1
1034.00002.00
VALVE, BALL 3/8 FPT X 3/8 FPT
6
1
1031.00025.00
FITTING, BARB, 1/2 HOSE ID X 3/8 NPT
7
1
1003.00140.00
ALUMINUM BRACKET FOR SSR
8
1
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
9
2
1081.00042.00
STANDOFF, 1/4" HEX
10
1
1031.00020.00
LOCKNUT 1/8" STRAIGHT PIPE THREAD
11
1
1083.00014.00
WASHER, .812"OD X 0.412"ID FLAT
12
1
1031.00032.00
FITTING, BARB, ELBOW 90°, 1/4 HOSE ID X 1/8 NPT
13
1
1013.00029.00
FITTING, DISPENSE, 7/16" DIA.
14
1
1013.00030.00
LOCKNUT, 7/16, DISPENSE FITTING
15
1
1024.00024.00
SEAL, DISPENSE TUBE, 7/16"DIA
16
1
1012.00003.00
LOCKNUT, SEAL, 7/16" DIA KEEPER
17
2
1031.00033.00
LOCKNUT, 3/8"-18 NPT THREAD
18
1
1031.00022.00
FITTING, ELBOW, 3/8" TUBE OD X 3/8" NPT
19
1
1023.00003.00
LOCKNUT, MODIFIED THREAD, 1/4-18 NPT
20
1
1083.00006.00
WASHER, .875" OD X 0.562" ID FLAT
21
1
1025.00001.00
FITTING, COMPRESSION MALE CONNECTOR
22
1
1112.00333.00
WELDMENT, TANK FILL TUBE
23
1
1024.00007.00
O-RING, DASH #344, TANK COVER
24
1
1102.00007.00
TANK COVER ASSEMBLY
25
1
107005
HEATER ASSEMBLY, IMMERSION 1800W, 120VAC
25
1 or 2
1107.00005.00
HEATER ASSEMBLY, IMMERSION 3000W, 240VAC
25
1 or 2
1107.00010.00
HEATER ASSEMBLY, IMMERSION 4000W/240VAC
26
1
1003.00005.00
BRACKET, ONE SHOT THERMOSTAT
27
1
1053.00004.00
THERMOSTAT, SINGLE SHOT, 25A
28
2
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
29
2
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
30
1
30 1 102198
ASSEMBLY, DIGITAL TEMP. PROBE, 14.0"LG W/34" CABLE
31
1
102381
ASSEMBLY, LEVEL PROBE, 1.75" LG. X 0.25" DIA
32
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
For tank assembly and wiring diagram part numbers, call Tech Support at 800-338-2699. Provide the brewer serial number when calling
Drawing No. 104076
CBS-51H TANK ASSEMBLY
Go to fetco.com for the latest versions of all information Page 14 P183 March 2019

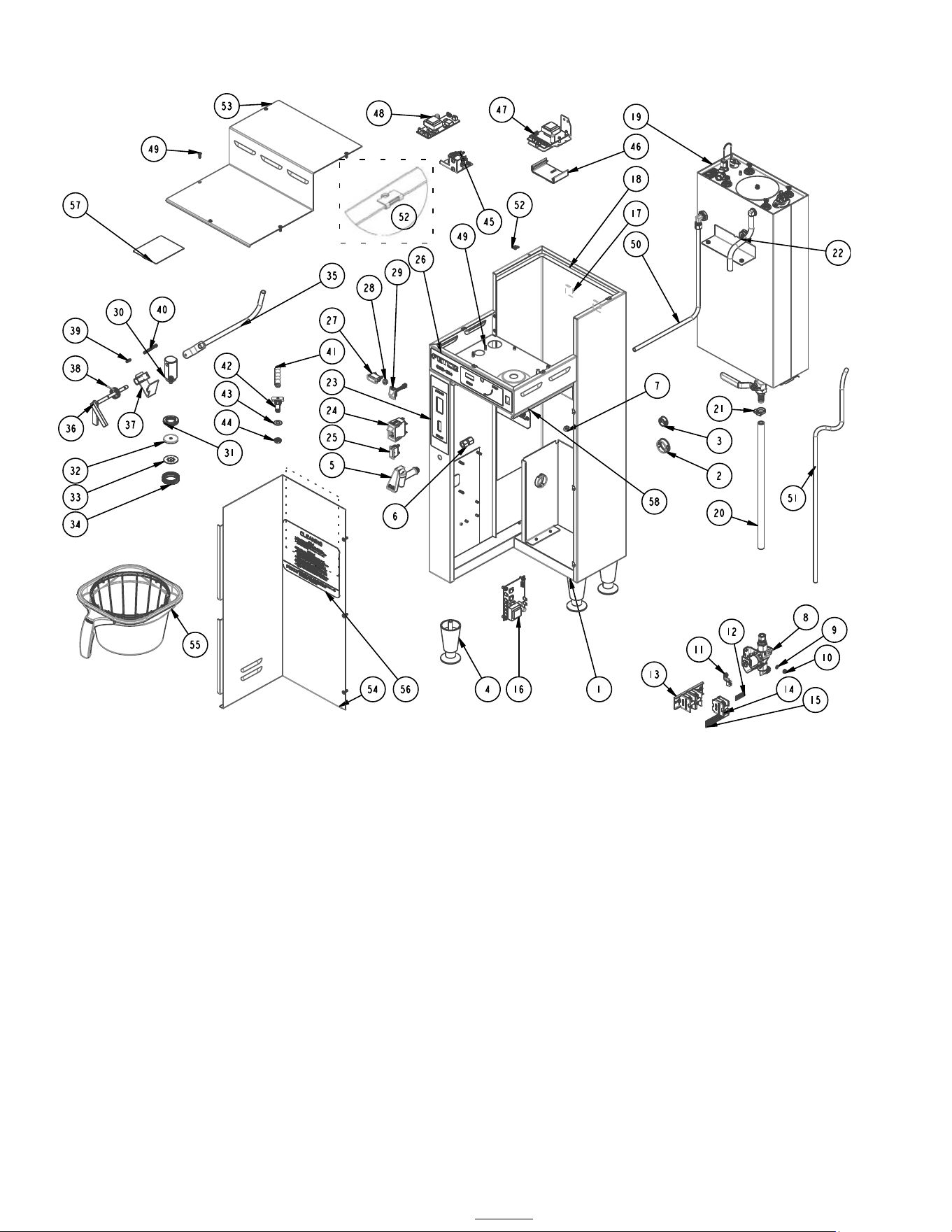

Figure 2 – CBS-51H15 Main Assembly
Drawing No
. 1101
.00268.00 CBS-51 H
Go to fetco.com for the latest versions of all information Page 15 P183 March 2019
REF
QTY
PART NO
DESCRIPTION DRAWING NO. 1101.00268.00
NOTES
1
1
001009
WELDMENT, CBS-51H
2
5
1086.00011.00
BUSHING, SNAP, 1.375 MTG HOLE
3
1
86002
PLUG, DOME, .875 MOUNTING HOLE
4
4
1073.00007.00
LEG, FLANGE FOOT, 4" HIGH
5
1
1071.00010.00
FAUCET HPSC-BR-8 REGULAR HANDLE
6
1
31023
FITTING, COMPR., CONNECTOR, 3/8 TUBE OD X 1/4 FPT
7
1
86013
SNAP IN PLUG, 7/16" ID, SS
71039
FAUCET, UPPER ASSY.
71003
FAUCET SEAT CUP
8
1
1102.00107.00
VALVE ASSEMBLY, S-45/1.4 GPM, 120VAC
8
1
1057.00026.00
VALVE ASSEMBLY, S-45/1.4 GPM, 240VAC
EXPORT ONLY
9
12
1083.00011.00
WASHER, #8 SCREW SIZE, INTERNAL TOOTH LOCK
10
12
1084.00006.00
NUT, 8-32 18-8 HEX MACHINE SCREW
11
1
1065.00002.00
CONNECTOR, COPPER LUG
12
1
1044.00003.00
LABEL GROUND
13
1
1052.00005.00
TERMINAL BLOCK TRACK
14
3
1052.00004.00
TERMINAL BLOCK
15
1
1044.00015.00
LABEL, CONNECTION WARNING
16
1
1108.00003.00
BOARD, ASSEMBLY, WATER LEVEL CONTROL, SELECTABLE
16
1
108035
BOARD, ASSEMBLY, WATER LEVEL CONTROL, SELECTABLE 200-240VAC
EXPORT ONLY
17
2
1029.00035.00
HOOK - VELCRO, 1" LG
18
1
1022.00093.00
INSULATION TANK BACK, 24" X 24", CBS-51H
19
1
104116
TANK ASSEMBLY, CBS-51H15 SSR, 1X1.8kW/120VAC
19
1
104026
TANK ASSEMBLY, CBS-51H15 SSR, 1X3kW/240VAC
19
1
104076
TANK ASSEMBLY, CBS-51H15 SSR, 2X3kW/240VAC
19
1
104118
TANK ASSEMBLY, CBS-51H15, SSR, 4KW, 240VAC
19
1
104162
TANK ASSEMBLY, CBS-51H15, SSR, 2 x 4KW, 240VAC
20
1
1025.00010.00
TUBE, 5/8"OD X 3/8"ID, DRAIN/FILL
21
1
1086.00002.00
CLAMP, HOSE, SIZE "G" NYLON
22
1
25021
SILICONE TUBE, 1/2" OD x 1/4" OD x 6-1/2" LG.
23
1
1045.00021.00
OVERLAY, VERTICAL PANEL, CBS-51/52H
24
1
1052.00003.00
BREAKER, CIRCUIT, 240VAC, ROCKER SWITCH, 6AMP
25
1
1058.00009.00
LAMP, READY INDICATOR, GREEN, 110VAC
25
1
1058.00018.00
LAMP, READY INDICATOR, GREEN 220VAC
EXPORT ONLY
26
1
1045.00022.00
OVERLAY, CONTROL PANEL, CBS-51H
27
1
1058.00011.00
LAMP, BREW INDICATOR, CLEAR, 110VAC
27
1
58004
LAMP, BREW INDICATOR, CLEAR 220VAC
EXPORT ONLY
28
1
1086.00036.00
BUSHING, .312 X .500" HEAD DIA. SHORTY
29
1
1102.00053.00
ASS'Y., SWITCH SLIDE, FULL/HALF W/ TERMINALS
30
1
102320
ASSEMBLY SPRAY HEAD, CBS-50's
31
1
1013.00094.00
LOCKNUT, SPRAY HEAD
32
1
1005.00016.00
FLOW DISC, .240 DIA
33
1
1005.00003.00
SPRAY CUTTER, 8+1, .075" CENTER
34
1
1012.00004.00
LOCKNUT, SPRAY CUTTER
35
1
1112.00041.00
DISPENSE TUBE, WELDMENT, CBS-50'S
36
1
102010
BREW HANDLE START/STOP ASS'Y.
37
1
102022
ASSEMBLY, DISPENSE LATCH, CBS-50'S
38
1
85004
SPRING, BREW HANDLE RETURN
39
1
1082.00093.00
SCREW, ROUND HD. PHIL. MACH., #6-32 X 5/8" LG., 18-8 SS
40
1
1082.00092.00
SCREW, PAN HD. PHIL. MACH., #8-32 X 2-1/4" LG., 18-8 SS
41
1
25001
TUBE SILICONE, 1/2" x 1/4" ID x 2-7/8" LG.
42
1
1102.00296.00
ASSEMBLY, BYPASS, CBS-50/60
43
1
1083.00014.00
WASHER, .812"OD X 0.412"ID FLAT
44
1
1031.00020.00
LOCKNUT 1/8" STRAIGHT PIPE THREAD
45
1
1102.00295.00
ASSEMBLY DISPENSE SOLENOID LATCH, CBS-50/60
45
1
102039
ASSEMBLY DISPENSE SOLENOID LATCH, CBS-50/60, 240VAC
EXPORT ONLY
46
1
1102.00298.00
ASSEMBLY PLASTIC TRACK 2", TIMER
47
1
102270
ASSEMBLY, DIGITAL TIMER 100-120VAC
47
1
1000.00036.00
ASSEMBLY, DIGITAL TIMER 200-240VAC
EXPORT ONLY
48
1
108032
ASSEMBLY, BOARD THERMOSTAT DIGITAL/ANALOG 100-120VAC
48
1
1000.00035.00
Kit THERMOSTAT DIGITAL/ANALOG 200-240VAC
EXPORT ONLY
49
10
41082.00017.00
SCREW, TRUSS HD. PHIL. MACHINE, # 6-32 X 1/2 LG.
50
1
1032.00030.00
TUBE TANK TO FAUCET, CBS-51H15
51
1
1032.00031.00
TUBE FILL VALVE, TANK, CBS-51H15
52
8
1084.00011.00
NUT, CLIP ON (J-NUT), #6-32, 22-20 GA., BLK-PH FINISH
53
1
01133
COVER, UPPER CBS-51H
54
1
002023
WELDMENT, LOWER COVER CBS-50'S
55
1
B001280B1
BB ASSY, 16" X 6", 0.280 DIA HOLE, BLACK
56
1
46013
LABEL, CLEANING INSTRUCTIONS
57
1
46035
LABEL, HOW TO ADJUST DIGIT. TIMER, THERMOSTAT & L.L.C.B.
58
1
1046.00020.00
TAG, INFORMATION
Go to fetco.com for the latest versions of all information Page 16 P183 March 2019

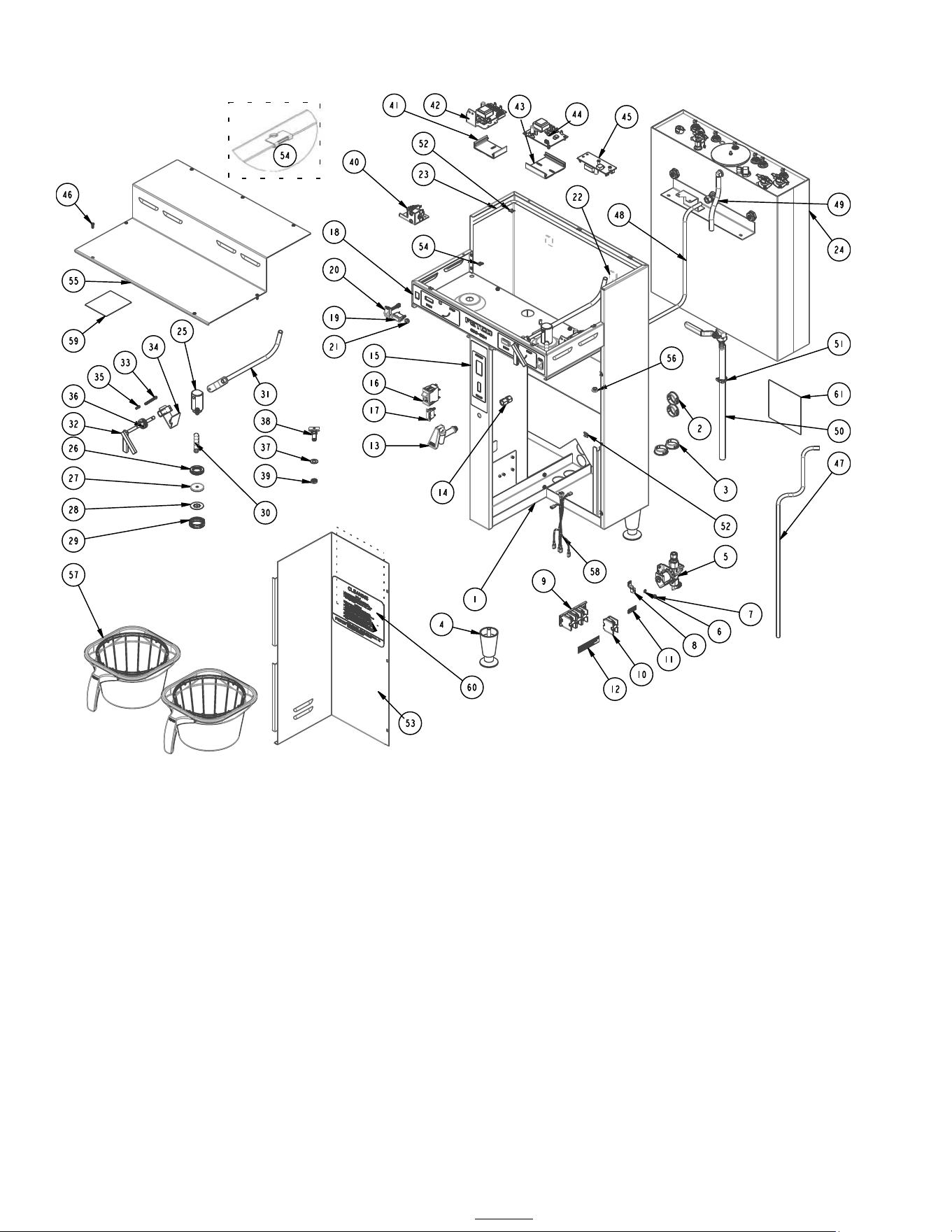

Figure 3 – CBS-52H15 & CBS-52H20 Main Assembly
Drawing No. 1101.00262.00 CBS-52H
Go to fetco.com for the latest versions of all information Page 17 P183 March 2019
REF
QTY
PART NO
DESCRIPTION
Notes
1
1
001008
WELDMENT CBS-52H15
2
4
1086.00011.00
BUSHING, SNAP, 1.375 MTG HOLE
3
2
1086.00019.00
PLUG, DOME, 1.375 MOUNTING HOLE
4
3
1073.00007.00
LEG, FLANGE FOOT, 4" HIGH
5
1
1102.00107.00
VALVE ASSEMBLY, S-45/1.4 GPM, 120VAC
5
1
1057.00026.00
VALVE ASSEMBLY, S-45/1.4 GPM, 240VAC
EXPORT ONLY
6
11
1083.00011.00
WASHER, #8 SCREW SIZE, INTERNAL TOOTH LOCK
7
11
1084.00006.00
NUT, 8-32 18-8 HEX MACHINE SCREW
8
1
1065.00002.00
CONNECTOR, COPPER LUG
9
1
1052.00005.00
TERMINAL BLOCK TRACK
10
4
1052.00004.00
TERMINAL BLOCK
11
1
1044.00003.00
LABEL GROUND
12
1
1044.00015.00
LABEL, CONNECTION WARNING
13
1
1071.00010.00
FAUCET HPSC-BR-8 REGULAR HANDLE
71039
FAUCET, UPPER ASSY. (SUBCOMPONENT OF #7)
71003
FAUCET SEAT CUP (SUBCOMPONENT OF #7)
14
1
31023
FITTING, COMPR., CONNECTOR, 3/8 TUBE OD X 1/4 FPT
15
1
1045.00021.00
OVERLAY, VERTICAL PANEL, CBS-51/52H
16
1
1052.00003.00
BREAKER, CIRCUIT, 240VAC, ROCKER SWITCH, 6AMP
17
1
1058.00009.00
LAMP, READY INDICATOR, GREEN, 110VAC
17
1
1058.00018.00
LAMP, READY INDICATOR, GREEN 220VAC
EXPORT ONLY
18
1
1045.00020.00
OVERLAY, CONTROL PANEL, CBS-52H
19
2
1058.00011.00
LAMP, BREW INDICATOR, CLEAR, 110VAC
19
2
58004
LAMP, BREW INDICATOR, CLEAR 220VAC
EXPORT ONLY
20
2
1102.00053.00
ASS'Y., SWITCH SLIDE, FULL/HALF W/ TERMINALS
21
2
1086.00036.00
BUSHING, .312 X .500" HEAD DIA. SHORTY
22
2
1029.00035.00
HOOK - VELCRO, 1" LG
23
1
1022.00091.00
INSULATION TANK BACK, 24"X34", CBS-52H15
24
1
104123
ASS'Y. TANK, CBS-52H, SSR, 2x3KW, 240VAC
24
1
104075
ASS'Y. TANK, CBS-52H, SSR, 3X3kW/240VAC
24
1
104124
ASS'Y. TANK, CBS-52H, SSR, 2 x 4KW, 240VAC
24
1
104161
ASS'Y. TANK, CBS-52H, SSR, 3 x 4KW, 240VAC
25
2
102320
ASSEMBLY SPRAY HEAD, CBS-50's
26
2
1013.00094.00
LOCKNUT, SPRAY HEAD
27
2
1005.00016.00
FLOW DISC, .240 DIA
28
2
1005.00003.00
SPRAY CUTTER, 8+1, .075" CENTER
29
2
1012.00004.00
LOCKNUT, SPRAY CUTTER
30
2
25001
TUBESILICONE, 1/2" x 1/4" ID x 2-7/8" LG.
31
2
1112.00041.00
DISPENSE TUBE, WELDMENT, CBS-50'S
32
1
102010
BREW HANDLE START/STOP ASS'Y.
33
2
1082.00092.00
SCREW, PAN HD. PHIL. MACH., #8-32 X 2-1/4" LG., 18-8 SS
34
2
102022
ASSEMBLY, DISPENSE LATCH, CBS-50'S
35
2
1082.00093.00
SCREW, ROUND HD. PHIL. MACH., #6-32 X 5/8" LG., 18-8 SS
36
2
85004
SPRING, BREW HANDLE RETURN
37
2
1083.00014.00
WASHER, .812"OD X 0.412"ID FLAT
38
2
1102.00296.00
ASSEMBLY, BYPASS, CBS-50/60
39
2
1031.00020.00
LOCKNUT 1/8" STRAIGHT PIPE THREAD
40
2
1102.00295.00
ASSEMBLY DISPENSE SOLENOID LATCH, CBS-50/60
40
2
102039
ASSEMBLY DISPENSE SOLENOID LATCH, CBS-50/60, 240VAC
EXPORT ONLY
41
2
1102.00298.00
ASSEMBLY PLASTIC TRACK 2", TIMER
42
2
102270
ASSEMBLY, DIGITAL TIMER 100-120VAC
42
2
1000.00036.00
ASSEMBLY, DIGITAL TIMER 200-240VAC
EXPORT ONLY
43
1
1102.00299.00
ASSEMBLY PLASTIC TRACK, 3"LG. LLC
44
1
1108.00003.00
BOARD, ASSEMBLY, WATER LEVEL CONTROL, SELECTABLE
44
1
108035
BOARD, ASSEMBLY, WATER LEVEL CONTROL, SELECTABLE 200-240VAC
EXPORT ONLY
45
1
108032
ASSEMBLY, BOARD THERMOSTAT DIGITAL/ANALOG 100-120VAC
45
1
1000.00035.00
Kit THERMOSTAT DIGITAL/ANALOG 200-240VAC
EXPORT ONLY
46
13
1082.00017.00
SCREW, TRUSS HD. PHIL. MACHINE, # 6-32 X 1/2 LG.
47
1
1032.00027.00
TUBE FILL VALVE, TANK, CBS-52H15
48
1
1032.00026.00
TUBE, TANK TO FAUCET, CBS-50H
49
1
25021
TUBE SILICONE, 1/2" OD x 1/4" OD x 6-1/2" LG.
50
1
1025.00010.00
TUBE, 5/8"OD X 3/8"ID, DRAIN/FILL
51
1
1086.00002.00
CLAMP, HOSE, SIZE "G" NYLON
52
6
1084.00024.00.
NUT, CLIP ON (J-NUT), #6-32, 1050 SPR. STL
53
1
002023
WELDMENT, LOWER COVER CBS-50'S
54
4
1084.00011.00
NUT, CLIP ON (J-NUT), #6-32, 22-20 GA., BLK-PH FINISH
55
1
01056
UPPER COVER, CBS-52H
56
2
86013
SNAP IN PLUG, 7/16" ID, SS
57
2
B001280B1
BB ASSY, 16" X 6", 0.280 DIA HOLE, BLACK
58
1
402083
HARNESS LOW AMP, SSR VERSION, CBS-52H, UNIVERSAL
59
1
46035
LABEL, HOW TO ADJUST DIGIT. TIMER, THERMOSTAT & L.L.C.B.
60
1
46013
LABEL, CLEANING INSTRUCTIONS
61
1
1046.00035.00
LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE"
Go to fetco.com for the latest versions of all information Page 18 P183 March 2019

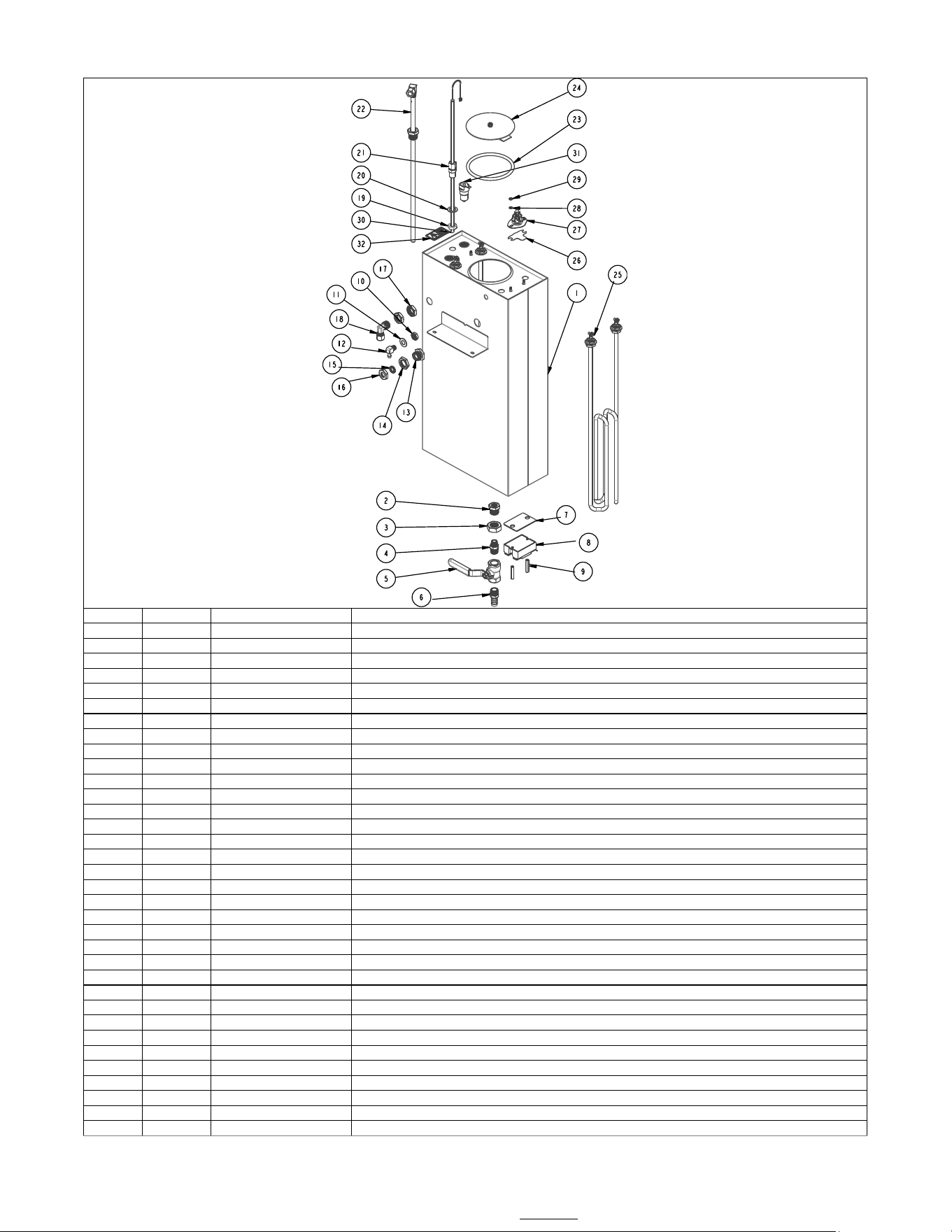

Figure 4 – CBS-52H15 & CBS-52H20 Tank Assembly
REF
QTY
PART NO
DESCRIPTION
1
1
1114.00133.00
WELDMENT TANK, CBS-52H
2
1
1084.00022.00
NUT, 3/4-16 HEX JAM, 18-8SS
3
2
1031.00029.00
BUSHING, 3/4-16 X 1/4 NPSM, HEX HEAD
4
1
1031.00026.00
FITTING, HEX NIPPLE, 3/8 NPT X 1/4 NPT
5
1
1034.00002.00
VALVE, BALL 3/8 FPT X 3/8 FPT
6
1
1031.00025.00
FITTING, BARB, 1/2 HOSE ID X 3/8 NPT
7
1-3
1003.00005.00
BRACKET, ONE SHOT THERMOSTAT
8
1-3
1053.00004.00
THERMOSTAT, SINGLE SHOT, 25A
9
6
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
10
6
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
11
2
1013.00030.00
LOCKNUT, 7/16, DISPENSE FITTING
12
2
1013.00029.00
FITTING, DISPENSE, 7/16" DIA.
13
2
1024.00024.00
SEAL, DISPENSE TUBE, 7/16"DIA
14
2
1012.00003.00
LOCKNUT, SEAL, 7/16" DIA KEEPER
15
2
1031.00033.00
LOCKNUT, 3/8"-18 NPT THREAD
16
1
1031.00024.00
FITTING, COMP., MALE CONN., 3/8 TUBE X 3/8
17
1
1031.00020.00
LOCKNUT 1/8" STRAIGHT PIPE THREAD
18
1
1083.00014.00
WASHER, .812"OD X 0.412"ID FLAT
19
1
1031.00032.00
FITTING, BARB, ELBOW 90°, 1/4 HOSE ID X 1/8 NPT
20
1
1023.00003.00
LOCKNUT, MODIFIED THREAD, 1/4-18 NPT
21
1
1083.00006.00
WASHER, .875" OD X 0.562" ID FLAT
22
1
1025.00001.00
FITTING, COMPRESSION MALE CONNECTOR
23
1
1102.00291.00
ASSEMBLY DIGITAL TEMP. PROBE, 14.0"LG.
24
1
1112.00333.00
WELDMENT, TANK FILL TUBE
25
1
1024.00007.00
O-RING, DASH #344, TANK COVER
26
1
1102.00007.00
TANK COVER ASSEMBLY
27
1-3
1107.00005.00
HEATER ASSEMBLY, IMMERSION 3000W, 240VAC
27
1-3
1107.00010.00
HEATER ASSEMBLY, IMMERSION 4000W/240VAC
28
1-3
1003.00140.00
ALUMINUM BRACKET FOR SSR
29
1-3
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
30
6
1081.00042.00
STANDOFF, 1/4" HEX
31
1
1102.00292.00
ASSEMBLY, LEVEL PROBE, 1.75" LG. X 0.25" DIA
32
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
For tank assembly and wiring diagram part numbers, call Tech Support at 800-338-2699. Provide the brewer serial number when callin
Drawing No. 104075
TANK ASSEMBLY, CBS-52H
Go to fetco.com for the latest versions of all information Page 19 P183 March 2019

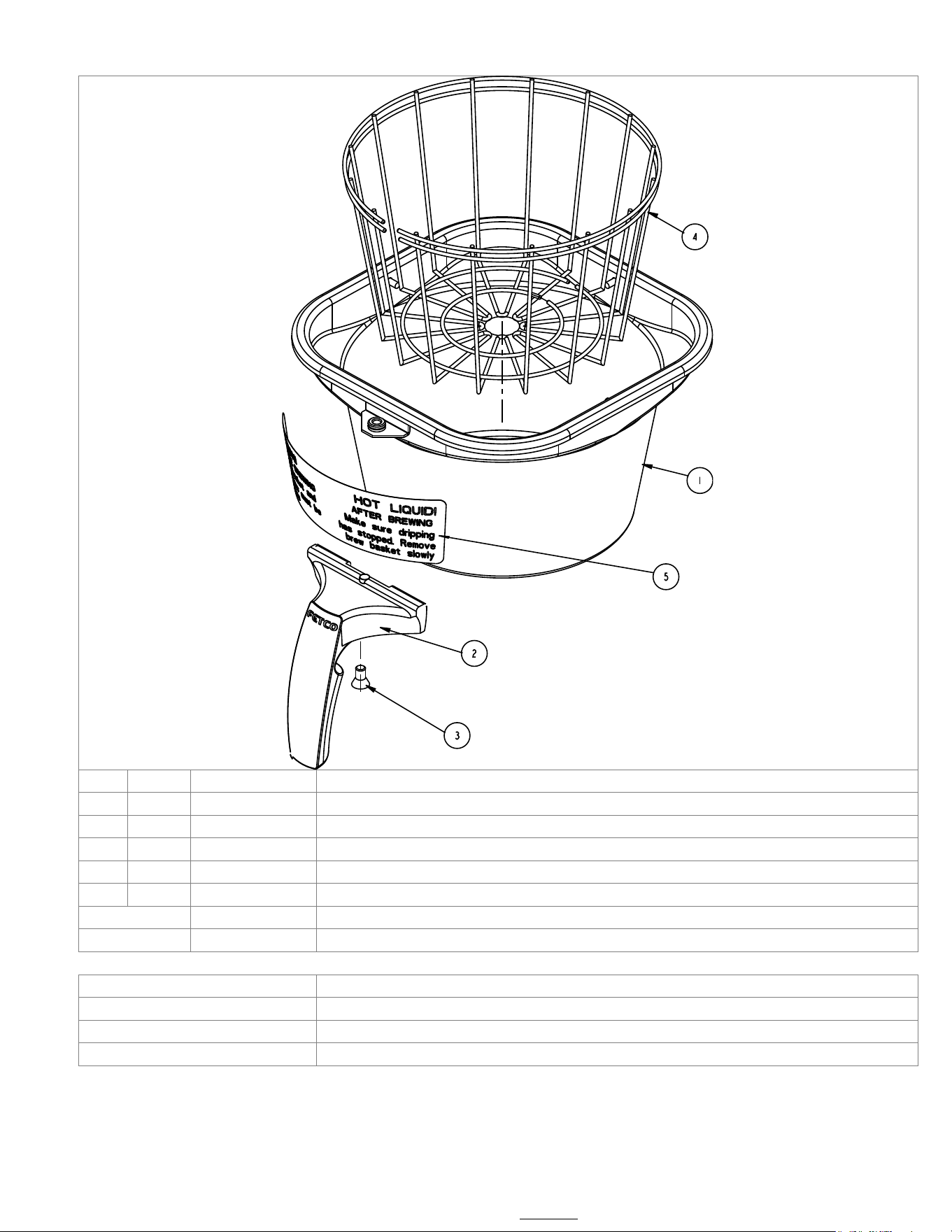

Figure 5 – Brew Basket Assembly, 16” X 6”, Part # B001280B1
ITEM
QTY
PART #
DESCRIPTION
1
1
1112.00058.00
BB WDMT, 16"X6", SQUARE, 0.280 ınˇ HOLE
2
1
1102.00064.00
BREW BASKET HANDLE, BLACK (includes magnet)
3
1
1082.00040.00
HANDLE SCREW
4
1
1009.00005.00
WIRE INSERT, 16 X 6
5
1
1046.00025.00
WARNING LABEL
NOT SHOWN
F001
PAPER FILTERS, 15” X 5.5” 500 PER CASE
NOT SHOWN
F002
PAPER FILTERS, 13” X 5” Optional -Half Batch 500 PER CASE
COLOR BREW BASKET HANDLES (optional)
PART #
DESCRIPTION
1023.00087.00
BREW BASKET HANDLE, GREEN
1023.00088.00
BREW BASKET HANDLE, ORANGE
1023.00090.00
BREW BASKET HANDLE, RED
Go to fetco.com for the latest versions of all information Page 20 P183 March 2019
Troubleshooting
Brewing Problem
Possible Cause
Solution
Brew handle will not stay down
Power switch off.
-Turn switch on.
No power to the brewer
(Brewer lights are not illuminated)
-Make sure the brewer is plugged in.
-Check the wall circuit breaker / reset
-Turn the brewer power switch off then back on (it has an
internal breaker)
Bad timer or dispense latch
assembly.
(Brew light does not come on and
handle won’t stay down)
-Check for voltage reaching the timer from the dispense
latch assembly if yes replace timer. If no, replace latch
assy.
Bad dispense latch assy.
(Brew light does come on and
handle won’t stay down)
-Replace the dispense latch assembly
Bad dispense latch assembly
(brewer buzzes when in brew cycle)
-Replace the dispense latch assembly
Brew handle stays down but no water is
dispensed
No water reaching the brewer
-Make sure the shut off valve is open.
-Check water line for kinks; replace line if necessary
-Check to see if filter is clogged by changing it.
Short brew levels EVERY BREW
Flow discs in spray heads in upside
down
-Reassemble spray heads - bumps on spray cutter face ↓
with flange on flow disc facing ↓
Water filter clogged
(See details in next section)
Spray head clogged
-Clean and or replace the sprayhead
(One or Both sides are
Timer/s are set too low
-Advance timers to proper level.
affected and levels are consistent)
Incoming Voltage is too low for
timers to function at proper time
sequences
-Reset wall circuit breaker as one side may drop out & not
flag the breaker.
-Call an electrician to find loose connections in the building
Short brew levels SOME BREWS
Water filter clogged.
(problem is worse during
simultaneous brews)
-Replace water filter
Weak dispense latch assembly
(usually buzzes during cycle)
-Replace dispense latch assembly.
(One or Both sides are affected and
levels are erratic)
Water pressure or flow rate is too
low or fluctuates too much to
support a full brew.
(problem is worse in simultaneous
brews)
-Make sure brewer has a dedicated water line
-Ensure that the shut off valve is open all the way (Never
use needle saddle valves)
-Increase the diameter of the water line to the brewer and
or find stable source.
Brew Time required to fill LUXUS are
not the same for both sides
Brewer is not level
-With an accurate level, level the brewer front to back and
left to right by adjusting the feet.
High brew levels EVERY BREW
(overfills but does stop)
Timer/s are set too high
-Adjust timers down to appropriate level
SOME BREWS
Thermal server not empty
-Empty the server and try again
Brew basket or filter overflows
-Call FETCO Service Dept. to discuss.
(800) 338-2699
Weak Coffee
Spray head missing
-Attach spray head assembly.
Improper dose
-Measure and confirm correct dose
Filter papers
-Make sure only one paper is used
Cracked dispense tube
-See “spray head drips MAJOR”, below
Low brew temperature
(Temperature inside the hot water
tank is set to 205° F, the metal
delivery system drops the temp.)
-Adjust thermostat so the water stream measured at the
bottom of the brew basket, 1/3 of the way through the brew
cycle, equals 190 degrees + or - 5 degrees
Grounds not saturated
Spray head missing
-Replace spray head
Half batch used incorrectly
-Use smaller “half batch” brew basket
-Discourage half batch use
-Investigate the need for a smaller brewer
Water Softener in use
-Move brewer water feed to a non-softened source.
Degassing - extremely fresh coffee
-Call FETCO Service Dept. to discuss.
(800) 338-2699
No bypass EVERY BREW →
Bypass valve closed
-Open bypass valve
SOME BREWS→
Flow disc wrong size or missing
-Correct or replace flow disc
Spray head / brew basket drips either
side or both
MINOR
Condensation around the
sprayhead area
-Wipe sprayhead area after brewing; place an empty
container under brew cone when not in use.
Condensation from water tank
dripping through dispense tube
-Insert an empty brew basket and server under brew heads
when not in use
Go to fetco.com for the latest versions of all information Page 21 P183 March 2019
Brewing Problem
Possible Cause
Solution
Spray head / brew basket drips either
side or both
MAJOR
Cracked dispense tube/s
(This problem starts out minor but
gets steadily worse)
-Replace both dispense tubes even if other side is not
dripping
Fill valve not sealing
(Will drip even with power off.)
-See next section - “Brewer won’t stop brewing”, “Bad or
stuck fill valve”.
Brewer won’t stop brewing
Dispense tube cracked
-See “sprayhead drips MAJOR” above
(not same as high brew levels)
Mechanical binding
(brew handle stays down / brew light
turns off at normal time)
-Re-align the brew handle / brass sprayhead tower / and
dispense tube into a straight line by moving brass tower
Water pressure over 75psi
-Place a water pressure regulator on the line and reduce to
20-75 psi
Dispense tube drive screw off. A
2.5” screw that connects the handle
to the dispense tube at the brass
sprayhead tower.
(handle returns up and brew lamp
turns off but brewing continues)
-Ensure that the drive screw is straight (can be straightened
by hand while still in the brew handle) and reconnect to the
dispense tube. The flange that the drive screw engages
MUST be held flat against the brass sprayhead tower,
without being able to back out.
Water level probe bad or encrusted
with lime.
(causes brewer to continue filling hot
water tank which will overflow into
the brew baskets)
-Clean lime build up on the probe tip
and/or tank wall. (Holding the probe wire (green) from the
probe end to the body of the brewer should stop the fill if
the probe is bad but the liquid level board is good)
Bad liquid level control board
-Replace the LLC board if grounding the probe end of the
(green) probe wire to the body of brewer does not remove
the voltage at the fill terminal on the LLC board.
Bad or stuck fill valve
-Rebuild or replace the fill valve if no voltage is on the coil
(it is not magnetic) and it still passes water to the tank.
(Disconnect the outlet side to see if it leaks water to the
tank)
Coffee tastes too strong
Incorrect dosage
-Measure and confirm the correct amount of coffee required
Short brew levels
-See “Short brew levels”, above.
Temperature Problem (brewer
only)
Possible Cause
Solution
See also LUXUS problems
Brew water is cold / not hot enough,
ready light is OFF.
(Before proceeding, make sure water tank
refills when water is dispensed. The
brewer will not heat unless the tank is full.)
No power to brewer.
-Make sure power switch is on.
-Reset machine circuit breaker.
-Check power connection. (plug or hard wire connection).
-Check building circuit breaker. (Always reset breaker by
switching off, then on.)
Defective liquid level control board.
(No power to thermostat).
-With power on, and water tank full, check LLC board for
120 volts on brown wire and neutral. Replace LLC board if
there is no voltage.
Bad connections on solid state relay.
(No power to heaters).
-Check relay for burned or loose connections. Replace
with high temperature connectors if necessary.
Defective solid state relay.
(No power to heaters).
-Check input and output voltages on relay. 120 volts on
blue wire (input) but no voltage out to heaters indicates a
bad relay.
Bad heating element/s.
-Check amperage draw on heater wires. 0 amps = bad
heater.
Brew water is cold / not hot enough,
ready light is ON.
Bad Thermostat
(the thermostat believes that it is at
set temperature)
-Replace the thermostat and or thermal probe. It’s not
possible to trouble shoot the probe.
Low brew temperature setting on
thermostat
-See “Low brew temperature” under “Weak Coffee”
section.
Slow to recover temperature
Brewers with more than one heater
can have just one fail
-Check amperage draw on heater wires. 0 amps = bad
heater.
(Ready light takes along time to come
back on after brewing.)
Hot water tank limed up
-Remove access cover to the hot water tank and inspect
for lime. Remove the brewer for shop de-liming if build up
is thick.
Boiling
Thermostat set too high for altitude
(Denver etc.)
-Reduce temperature setting to 3 degrees below boiling at
your altitude
Defective thermostat
-Replace the thermostat and or thermal probe. It’s not
possible to trouble shoot the probe.
End of section notes
N
