INSTRUCTIONS FOR USE
Tumble Dryer
EN
TD76
T3VW.U
Carefully read the instructions for use before using the dryer.
3Introduction ................................................
4Important safety instructions ...................
13
Electrical hazard warning during
servicing .....................................................
14
Before using the appliance for the first
time ..............................................................
14Packing material ..........................................
14Transport protection ....................................
15Care and maintenance instructions .............
16Installation and connection ......................
17Selecting the room .......................................
17Dryer placement ..........................................
19Adjusting the dryer feet ...............................
20Installation under the counter ......................
21Stacking on top of a washing machine ........
24Built-in ..........................................................
26Changing the door opening direction ..........
27Opening the Door ........................................
28Air exhaust ...................................................
31Connecting to the household power ............
32
ASKO Laundry Care - Hidden helpers
(Hidden helpers) ..........................................
33Dryer description .......................................
33Control unit ...................................................
34Initial settings before use ..........................
35
Connecting the appliance to the ConnectLife
application ...................................................
38Advice before drying .................................
38Laundry sorting ............................................
38Clothing ........................................................
39
Materials (fabrics) suitable for drying in a
tumble dryer .................................................
39
Materials (fabrics) that may not be dried in a
tumble dryer .................................................
39
Materials that are not suitable for drying in a
tumble dryer .................................................
40Laundry symbols .........................................
41
Operating instructions - Drying step by
step (1–7) ....................................................
41STEP 1: Sort the fabrics ...............................
41STEP 2: Turn on the main switch .................
41
STEP 3: Open the dryer door and insert the
laundry. ........................................................
43Drying in a basket ........................................
44STEP 4: Choose the drying program. ..........
45STEP 5: Choosing the program settings ......
48
STEP 6: Close the door and start the drying
process. .......................................................
49STEP 7: End of program ..............................
50Appliance settings .....................................
50System settings ............................................
54Cleaning and Maintenance ........................
54Cleaning the exterior of the appliance .........
54Special Notes on Cleaning ..........................
55Cleaning the lint filter ...................................
56Errors: what to do? ....................................
57Failure display ..............................................
59Service and warranty .................................
59
Limited Warranty – Residential and
Professional Appliances ..............................
61Service ........................................................
61Before calling customer service ..................
62
Electrical Hazard – Warning During
Servicing ......................................................
63Technical information ................................
63Typeface License Notice .............................
64Declaration of conformity .............................
65Table of consumption values ...................
67DISPOSAL ...................................................
Contents
Dear Customer,
We thank you for purchasing this quality ASKO product.
We hope it meets all your expectations. Scandinavian design combines pure lines, everyday
functionality, and high quality. These are the key characteristics of all our products, and the reason
why they are highly appreciated across the globe.
We kindly recommend that you read these instructions before using the appliance for the first time.
The instruction manual also includes information on how you can help protect the environment.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – Risk of Fire
Original instructions
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
3
Introduction
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE!
WARNING!
To reduce the risk of fire, electric shock, or injury to persons
when using your appliance, follow basic precautions,
including the following:
Read all instructions before using the appliance.1.
Risk of Suffocation and Injury from Entrapment: Do
not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance
is used near children.
2.
WARNING: Risk of Fire – Do not dry articles that have
been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off
vapours that could ignite or explode.
3.
WARNING: Risk of Fire – Do not heat dry items
containing vinyl, plastic, foam rubber or similarly textured
rubberlike materials, fiberglass, or wool unless the label
specifies “washable”.
4.
WARNING: Risk of Fire – Do not place items exposed
to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that
could cause a load to catch fire. To reduce the risk of
fire due to contaminated loads, the final part of a tumble
dryer cycle occurs without heat (cool down period). Avoid
stopping a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
5.
4
Important safety instructions
WARNING: Keep the ventilation slits on the housing
unobstructed.
6.
Before the appliance is removed from service or
discarded, remove the door to the drying compartment.
7.
Do not reach into the appliance if the drum is moving.8.
Do not install or store this appliance where it will be
exposed to the weather.
9.
Do not tamper with controls.10.
Do not repair or replace any part of the appliance or
attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published
user-repair instructions that you understand and have
the skills to carry out.
11.
Do not use spare parts that have not been recommended
by the manufacturer (e.g. parts made at home using a
3D printer).
12.
WARNING: PROPOSITION 65 FOR CALIFORNIA
RESIDENTS
Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
13.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
14.
Clean lint screen before or after each load.15.
Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
16.
5
Important safety instructions
The interior of the appliance and exhaust duct should be
cleaned periodically by qualified service personnel.
17.
Do not operate appliance while away from the home.18.
GROUNDING INSTRUCTIONS
a) For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
representative or personnel if you are in doubt as to whether
the appliance is properly grounded.
Do not modify the plug provided with the appliance: if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
b) For a grounded, permanently connected appliance:
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
6
Important safety instructions
INFORMATION!
This manual does not cover every possible condition and
situation that may occur. Use common sense and caution
when installing, operating, and maintaining any appliance.
General
Carefully read the instructions for use before using the
dryer.
Please, do not use the dryer without reading and
understanding these instructions for use first.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
These instructions for use of a dryer are supplied with
different types or models of dryers. Therefore, they may
include descriptions of settings or equipment that are not
available in your dryer.
Failure to observe the instructions for use or inappropriate
use of the dryer may result in damage to the laundry or the
appliance, or injury to the user. Keep the instruction manual
handy, near the dryer.
Your dryer is intended solely for household use. If the dryer
is used for professional, for-profit purpose or purpose
exceeding normal use in a household, or if the dryer is used
by a person who is not a consumer, the warranty period shall
be equal to the shortest warranty period required by relevant
legislation.
7
Important safety instructions
Follow the instructions for correct installation of the dryer and
connection to the power mains (see chapter Installation and
connection).
All and any repairs or maintenance tasks on the dryer should
only be done by trained experts. Unprofessional repair may
result in an accident or major malfunction.
To avoid danger, a damaged power cord may only be
replaced by the manufacturer, a service technician, or an
authorized person.
WARNING!
The dryer may not be connected to the hosehold power
using an extension cord.
Do not connect the dryer to household power using an external
switching device such as a program timer, or connect it to
power mains that is regularly switched on and off by the power
supply provider.
WARNING!
In case of a defect, only use approved spare parts by
authorized manufacturers.
WARNING!
In case of incorrect dryer connection, incorrect use, or
servicing by an unauthorized person, the user shall bear the
cost of any damage as such damage shall not be covered
by warranty.
Always use the ducts or hoses supplied with the dryer.
8
Important safety instructions
WARNING!
As this is an evacuation dryer, it does not have a condensate
tank. The handle has solely a decorative purpose and it is
fixed; it is not intended for opening. If excessive force is
applied, the handle may break.
Install the dryer in a room with adequate ventilation and a
temperature between 50°F (10°C) and 77°F (25°C).
Place the dryer on a level and stable solid (concrete) base.
After installation, the dryer should stand still for two hours
before it is connected to the household power.
At least two persons are required to install the tumble dryer
on top of a washing machine.
WARNING!
Do not place the dryer behind lockable or sliding door, or
door with a hinge on the opposite side of the dryer door
hinge. Install the dryer in such way that the door can always
be freely opened.
Never block the air exhaust (evacuation opening).
WARNING!
Do not place the dryer on a carpet with long fibers as this
may impede air circulation.
Do not connect the dryer to a chimney or a duct that is also
used to extract products of combustion of natural gas or other
fuels from other appliances.
Air in the dryer environment should not contain dust
particles. The air where the dryer is installed should be
thoroughly ventilated to prevent reverse flow of gases
9
Important safety instructions
released from the gas appliances with open fire (e.g. a
fireplace).
Make sure the fibers do not accumulate around the dryer.
Do not evacuate the air from the dryer through channels or
ducts used for appliances or devices that use natural gas or
other fuels for their operation.
The appliance may not be in contact with a wall or adjacent
furniture.
Do not use the dryer to dry any laundry that has not been
washed.
Laundry stained with oil, acetone, alcohol, oil derivatives, stain
removers, turpentine, wax, and wax removers should be
washed in a washing machine with hot water and detergent
before it is dried in the dryer.
Clothing that includes latex, rubber parts, shower and bathing
caps, and laundry or covers with rubber foam may not be
dried in the dryer.
Use laundry conditioners or similar products in compliance
with manufacturer's instructions.
DANGER OF FIRE!
Remove all objects such as lighters and matches from the
pockets.
If the dryer is connected to an air exhaust system already used
for another appliance, a non-return valve must be installed.
Return flow into the dryer could damage the appliance and
the non-return valve prevents such flow.
Clean the dryer filter after each drying cycle. If you have
removed the filter, replace it before the next drying cycle.
10
Important safety instructions
WARNING!
Do not use any solvents or cleaning agents that could
damage the dryer (please observe the recommendations
and warnings provided by the manufacturers of the cleaning
agents).
After the drying process, unplug the dryer power cord from
the power outlet.
The warranty does not cover consumables, minor deviations
in color, increased noise that results from appliance age and
which does not affect the functionality of the dryer, and
aesthetic defects on components, which do not affect the
dryer's functionality and safety.
To reduce the risk of severe injury or death, follow all
installation instructions.
The maximum amount of laundry in lbs/kg is indicated on the
washing machine rating plate.
Child safety
WARNING!
Do not allow children to play with the dryer.
Do not let children younger than three years to come
near the tumble dryer, unless they are under constant
supervision.
Prevent your children and pets from entering the dryer drum.
Before closing the dryer door and running the program, make
sure there is nothing except laundry in the drum (e.g. if a child
climbed into the dryer drum and closed the door from the
inside).
Activate the Child lock. See chapter Lock .
11
Important safety instructions
The dryer is made in compliance with all relevant safety
standards.
This dryer may be used by children aged 8 years and above
and by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, but only if
they are supervised during the use of the appliance, if they
have been provided relevant instructions regarding safe use
of the dryer, and if they understand the hazards of
inappropriate use.
Make sure children do not play with the dryer.
Children may not clean the dryer or perform any maintenance
tasks without supervision.
Danger of hot surface
HOT SURFACE!
At higher drying temperatures, the door glass will heat up.
Be careful to avoid burns. Make sure children do not play
near the door glass.
The back of the dryer may get very hot during operation.
Wait for the dryer to cool down completely before
touching its back side.
If you open the dryer door during the drying process, the
clothes may be very hot and there is a risk of burning.
Never stop the drying process before it is completed; if you
do interrupt the cycle for any reason, be careful when
removing the laundry from the drum as it is very hot. Quickly
remove the laundry from the drum and spread it to allow it
to cool down as quickly as possible.
12
Important safety instructions
Safe use
DANGER OF FIRE!
If you have cleaned your clothes with industrial cleaners or
chemical substances, do not dry them in the dryer.
The dryer is protected with an automatic switch-off system
in case of overheating. This system will switch off the dryer
if the temperature is too high.
If the lint filter is clogged, the overheating automatic
switch-off system may be activated. Clean the filter, wait for
the dryer to cool down, and try running it again. If the dryer
still fails to start, call a service technician.
Electrical hazard warning during servicing
ELECTRIC SHOCK!
Certain internal parts are intentionally not grounded and
may present a risk of electric shock only during
servicing. Service Personnel – Do not contact the
following parts while the appliance is energized: motor,
pump and control unit.
13
Important safety instructions
INFORMATION!
When you run the dryer for the first time, or if the dryer has been out of use for a long time, slight
rumbling noise may appear. This is normal and it will disappear after a few drying cycles.
Packing material
Remove all packaging. When removing the packaging, be careful not to injure yourself or damage
the dryer with sharp objects.
Please sort the materials in compliance with local waste management recommendations (see chapter
DISPOSAL).

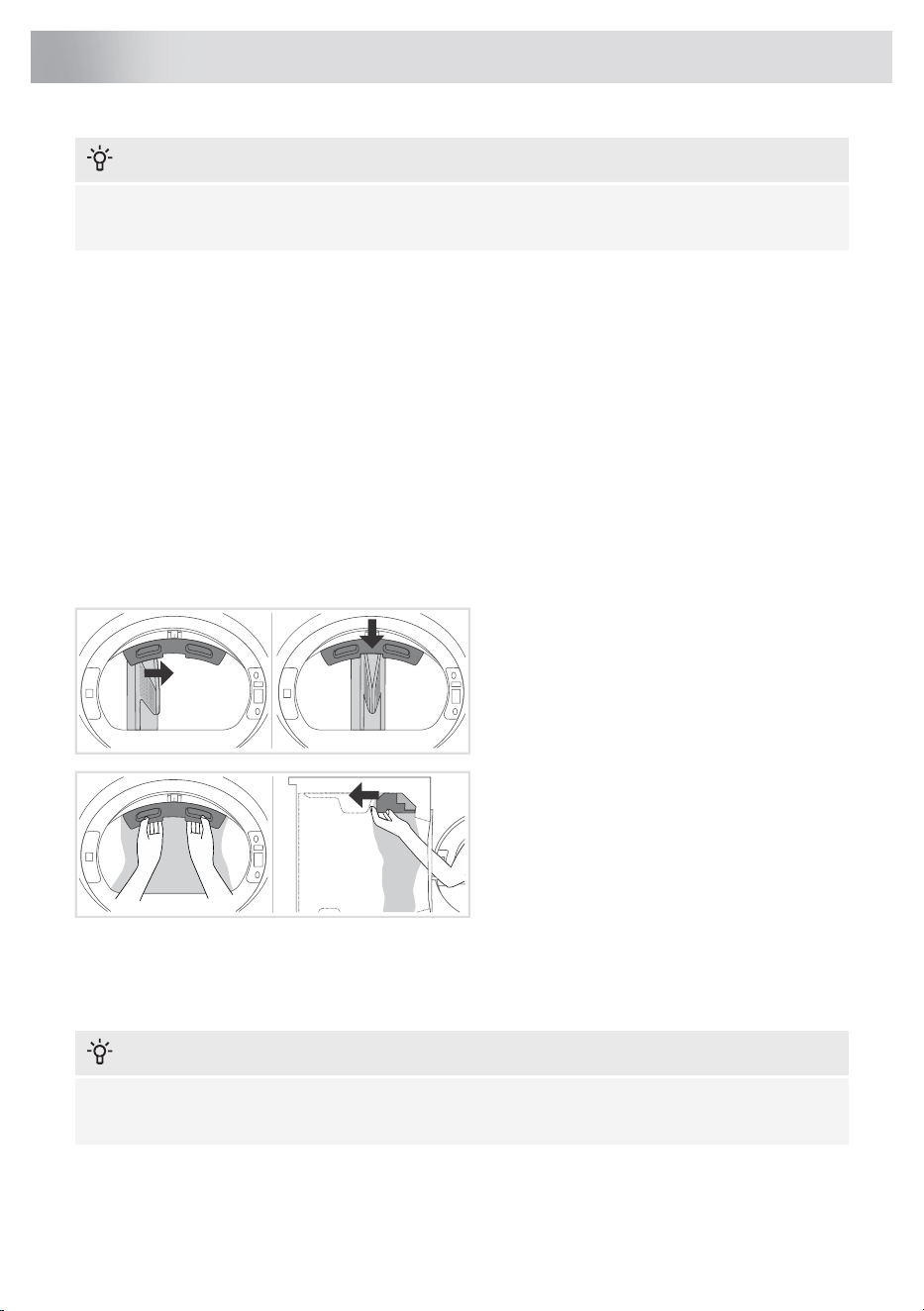

Transport protection
Before using the appliance, remove the transport protection designed to secure the appliance during
transport.
The transport protection is placed inside the drum of the dryer and secured at the top in a protective
bag.

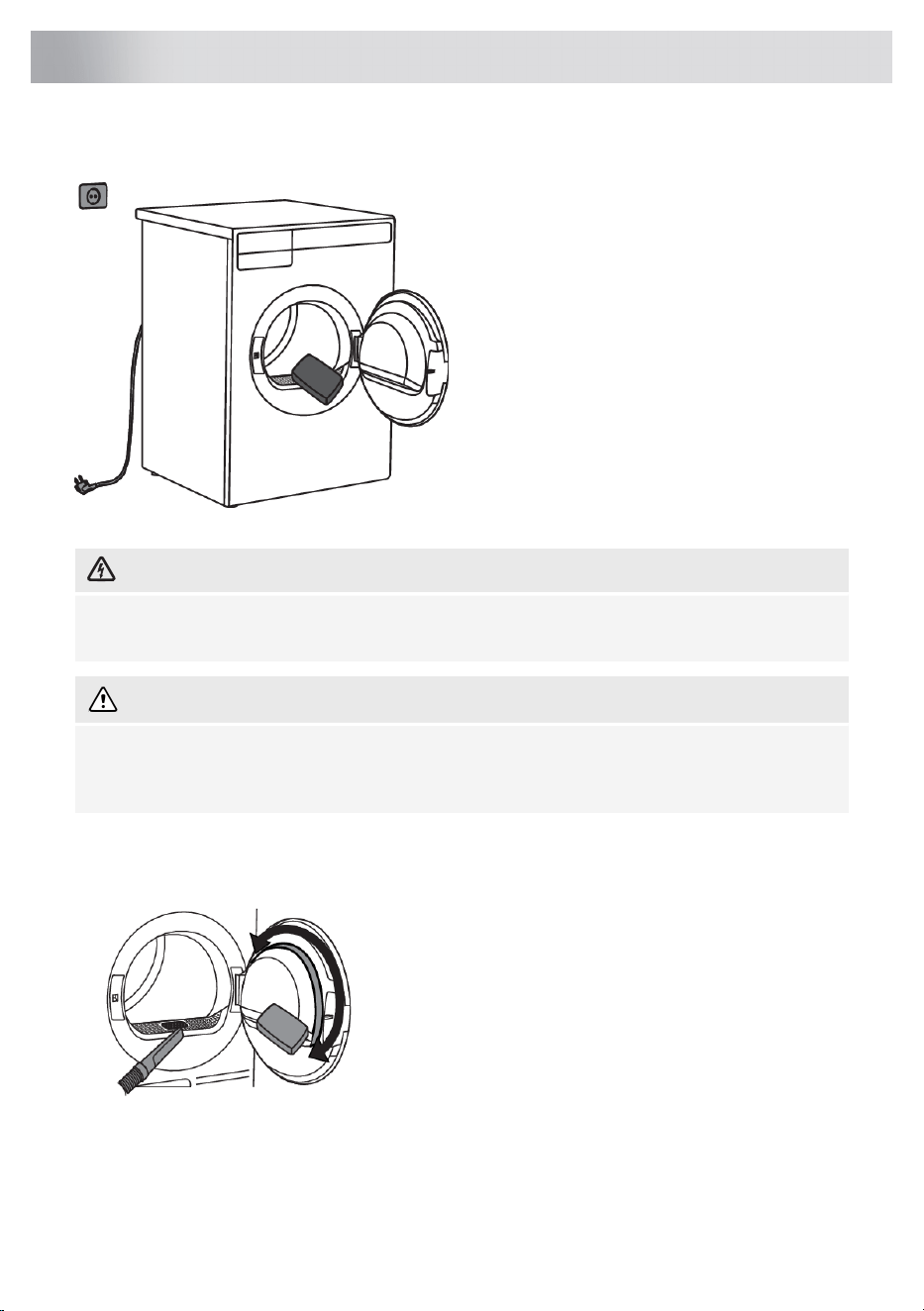

1 Open the dryer door.
2 With one hand hold the transport protection,
and with the other hand one of the drum ribs.
Turn the rib toward the center of the transport
protection where the cutout (alignment recess)
is located.
3 Firmly hold the transport protection with
both hands to avoid damaging it during
removal.
4 With even pressure, push it straight into the
machine to remove it completely.
If you need to transport the appliance, reinstall the transport protection to prevent damage caused
by shaking during transit. When reinstalling the transport protection, slightly lift the drum from the
inside and press the protection firmly between the drum and the door frame on the inside, ensuring
that the drum is properly aligned.
INFORMATION!
In case the transport protection is lost, the appliance may be damaged during transportation,
and such damage will not be covered by the warranty.
14
Before using the appliance for the first time

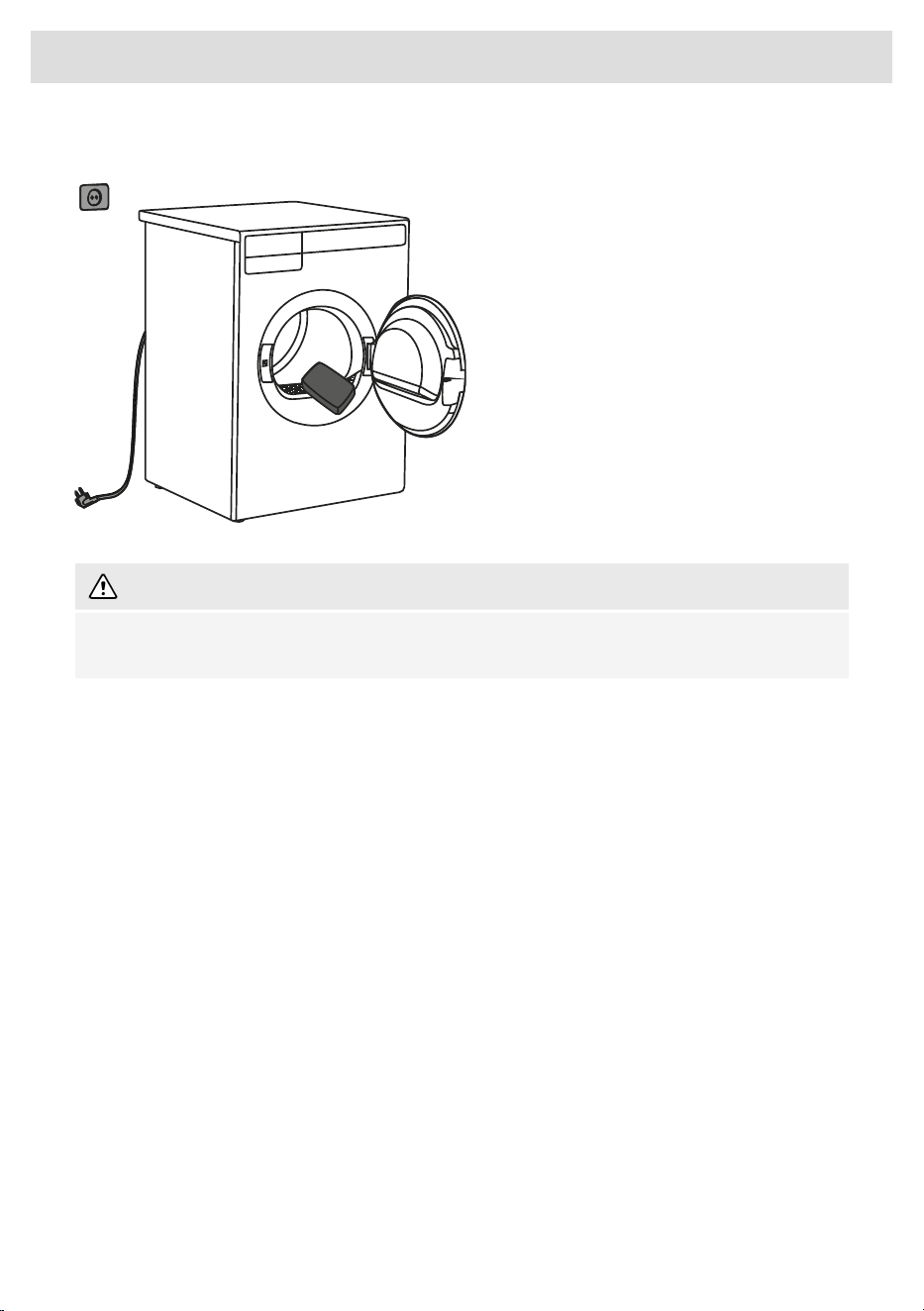

Care and maintenance instructions
Unplug the dryer from the outlet and open the
door towards you.
Before using the dryer for the first time, clean
the dryer drum using a soft damp cotton cloth
and water.
WARNING!
Do not use any solvents or cleaning agents that could damage the dryer (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
15
Before using the appliance for the first time
DANGER OF FIRE!
To reduce the risk of fire, do not dry articles containing foam rubber or similarly textured rubber-like
materials.
WARNING!
Install the clothes dryer according to the manufacturer’s instructions and local regulations.
WARNING!
Clothes dryer installation must be performed by a qualified installer.
WARNING!
To reduce the risk of severe injury or death, follow all installation instructions.
WARNING!
The appliance shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space,
or a concealed space of a building.
Only rigid or flexible metal duct shall be used for exhausting.
• Canada: Only foil-type flexible ducts that are specifically identified for use with this appliance
by the manufacturer shall be used.
• United States: Only foil-type flexible ducts that are specifically identified for use with this
appliance by the manufacturer and comply with UL 2158A shall be used.
• Canada: The exhaust duct must have a diameter of 4 inches (102 mm).
• United States: The exhaust duct diameter must comply with the manufacturer’s specifications
and applicable local building codes. These requirements may vary by location and must be
followed to ensure compliance and safety.
Maximum duct length shall be 8 feet (2.4 m) and maximum number of bends shall be 4.
The total length of flexible metal duct shall not exceed 8 feet (2.4 m).
The duct shall not be assembled with screws or other fastening means that extend into the duct
and catch lint.
WARNING!
Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct
is installed, it must be of a specific type identified by the appliance manufacturer as suitable for
use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and
trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
16
Installation and connection
WARNING!
Save these instructions.
Selecting the room
INFORMATION!
Do not place the dryer in a room where temperature can drop below 32 °F (0 °C), as the machine
may not operate correctly at such low temperatures or may freeze, which can result in damage
to the machine.
Install the dryer in a room with adequate ventilation and a temperature between 50 °F (10 °C)
and 77 °F (25 °C).
WARNING!
Do not place the dryer behind lockable or sliding doors, or doors with a hinge on the opposite
side of the dryer door hinge. Install the dryer in such way that the door can always be freely
opened.
Dryer placement
The dryer can be either free standing or installed on top of a washing machine.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may be
longer due to limited amount of ambient air.
WARNING!
Never block the air exhaust (ventilation opening).
17
Installation and connection
Clearance around the dryer for optimum operation
WARNING!
The dryer must not be in contact with a wall or adjacent furniture. For optimal dryer performance,
we recommend maintaining the clearances from the walls as shown in the figure. Failure to
observe the required minimum clearance may cause the dryer to overheat.

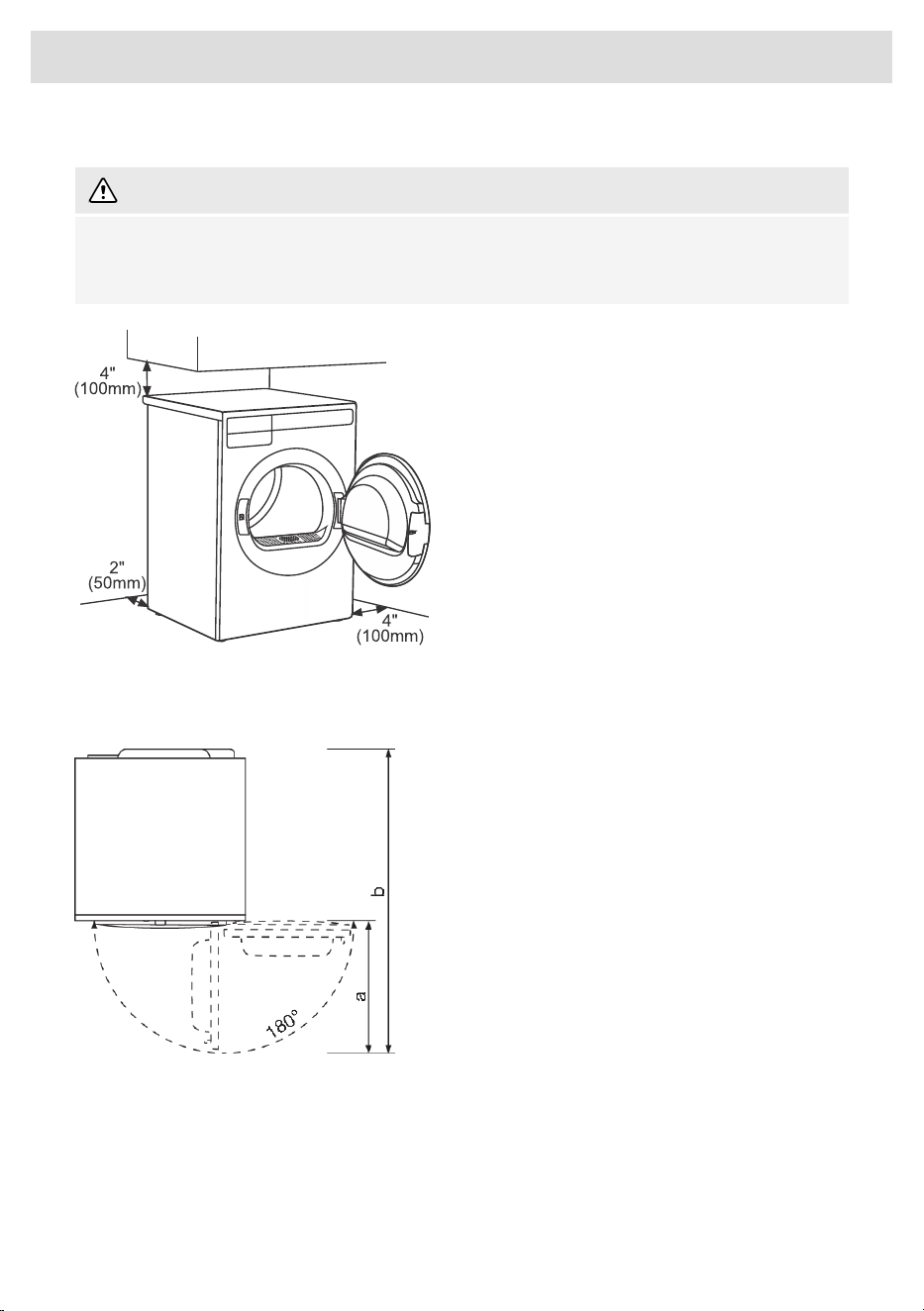

For safety reasons, maintain a minimum
clearance of 1" (25 mm) between the back of
the appliance and the wall, and at least 1 5/8"
(40 mm) between the top of the appliance and
any overhead structure.
For installing the dryer into a cabinet, refer to
the special installation requirements in section
Built-in.
Opening the dryer door (top view)
The dryer door width (a) is 19 13/16" (503 mm).
The dryer depth with door open (b) is 39" (989
mm).
The dryer door can be opened up to the angle
of 180°.
18
Installation and connection

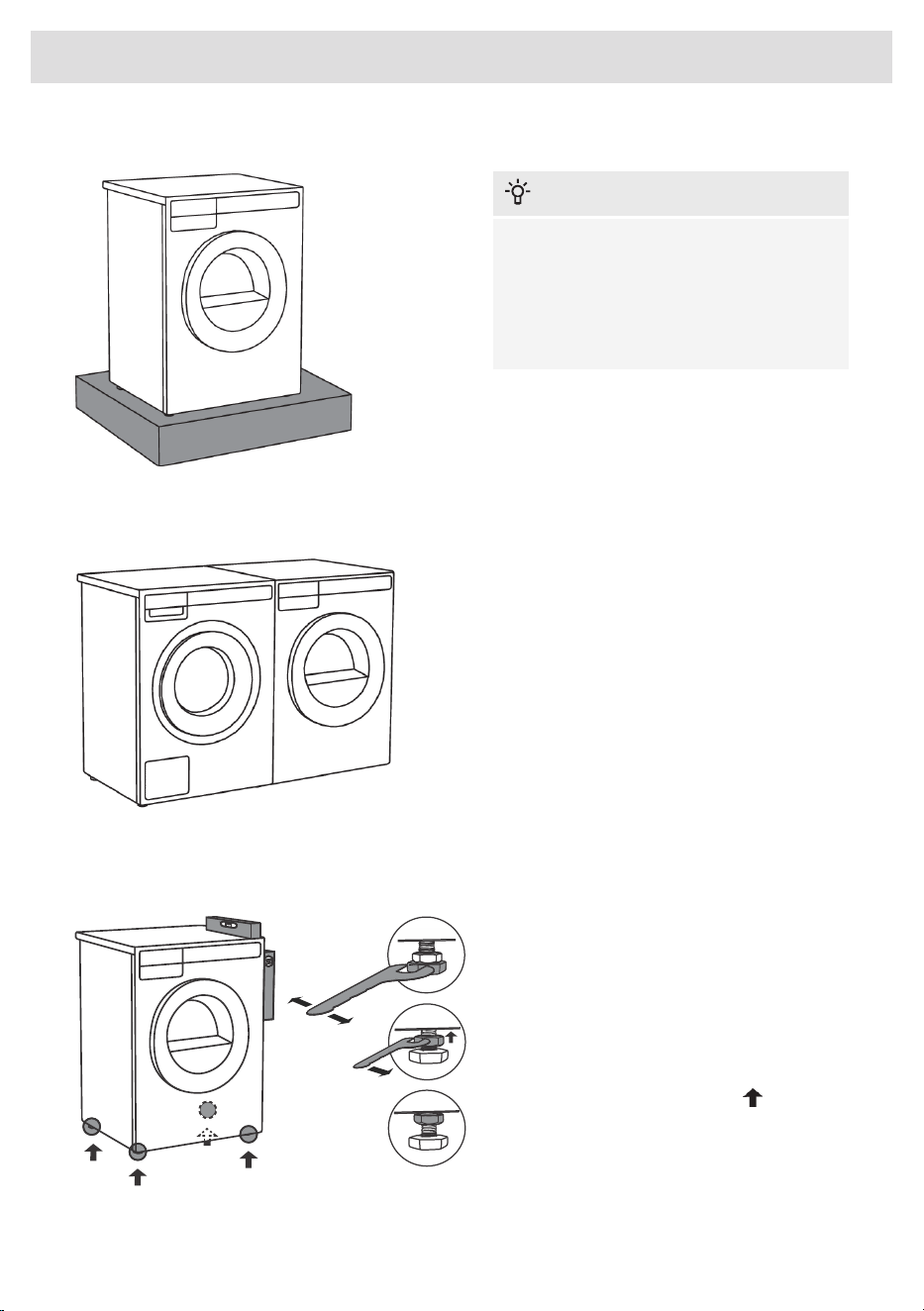

Placement on a pedestal
INFORMATION!
If the appliance is installed on a platform
or a similar structure, then the appliance
must be fixed to it, to avoid the risk of
falling. ASKO original accessories are
available for this purpose, complete with
mounting instructions.
Freestanding appliance
The dryer may be placed adjacent to a
washing machine.
If the friction between the dryer feet and the
floor is not sufficient, the dryer may move
during operation.
To prevent sliding, use anti-slip mat or attach
the supplied suction feet to both front legs.
Adjusting the dryer feet
Place the dryer so that it is stable.
Use a spirit level to level the dryer both
front-to-back and side-to-side by rotating the
adjustable feet with a No. 7/8" (22) wrench
(max. 9/16" (15 mm)).
Then, firmly tighten the jam nuts (counter nuts)
by rotating them towards the appliance bottom
using a No. 11/16'' (17) wrench .
19
Installation and connection
INFORMATION!
Incorrect leveling of the dryer with the adjustable legs may cause vibration, appliance sliding
across the floor, and loud operation. Incorrect leveling of the dryer is not covered by the warranty.
INFORMATION!
Sometimes, unusual or louder noises may occur during appliance operation; these are mostly
the result of improper installation.
Installation under the counter
ASKO dryers can be installed under a counter
or a countertop that is at least 34" (864 mm)
high, measured from the floor to the underside
of the countertop. There must be a clearance
of at least 1/2" (12 mm) on all sides of the
appliance. There must be a minimum
clearance of 1" (25 mm) between the rear edge
of the appliance's top panel and the wall
behind it. The width of the opening or niche
where the appliance is to be installed must be
at least 24 1/2" (624 mm), measured between
the side walls of the niche.
INFORMATION!
The height adjustment for the dryer is between 33 1/2" (850 mm) to 34 1/2" (876 mm). Do not
raise the appliance higher than 34 1/2" (876 mm).
It is very important to avoid a buildup of heat.
The warm air which is expelled from the rear of the dryer must be able to dissipate.
Warm air which cannot dissipate could cause a fault.
A buildup of heat can be avoided by:
• Creating a gap for the dryer in the kitchen cabinet toe space.
• Creating ventilation gaps in the surroundings.
When built in, drying times may be longer.
20
Installation and connection
INFORMATION!
The dryer should not be installed next to a refrigeration appliance. The warm air expelled from
the back of the dryer can increase the temperature around the refrigeration appliance’s heat
exchanger, causing the compressor to run continuously. If it is not possible to install the dryer
elsewhere, the refrigeration appliance must be properly sealed off from the dryer.
Stacking on top of a washing machine
WARNING!
At least two people are required to install the tumble dryer on top of a washing machine.

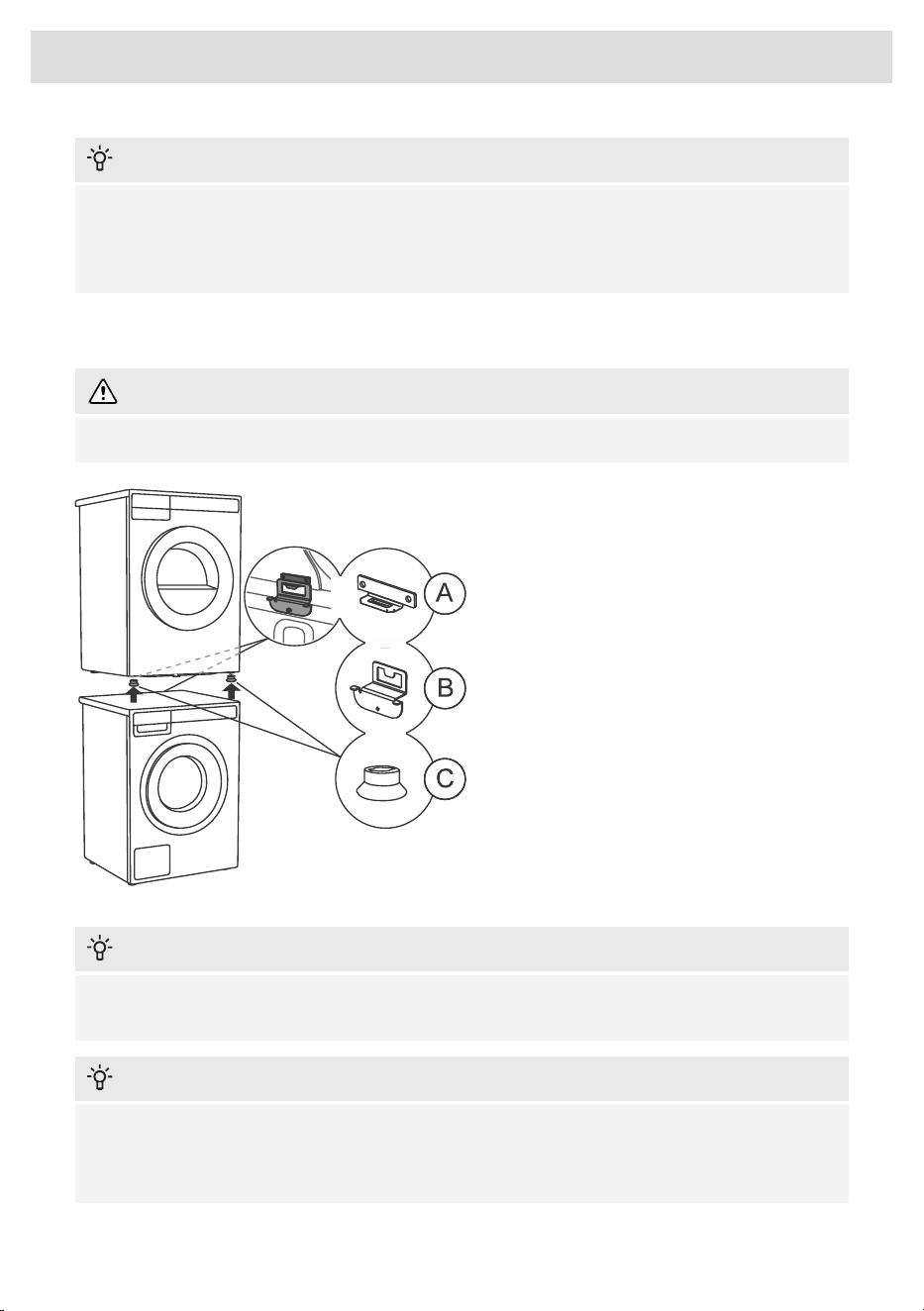

To stack the dryer on top of a washing
machine, use the front feet attachments
(suction feet (C)) and the tipping guard (A+B)
supplied inside the dryer drum.
If the washing machine and dryer are not the
same dimensions, you can purchase a
connecting plate designed for the WM86–TD76
combination from your dealer.
INFORMATION!
The tipping guard (B) is designed for ASKO washing machines and cannot be installed on washing
machines from other brands
INFORMATION!
The washing machine on which you wish to install the dryer must be able to bear the weight of
the dryer (see washing machine’s rating plate or technical information).
All ASKO washing machines can bear the weight of the ASKO dryer.
21
Installation and connection
How to stack a dryer onto the washing machine (ASKO)
A cardboard box inside the dryer drum contains the tipping guards (A, B), suction feet (C), and
screws.

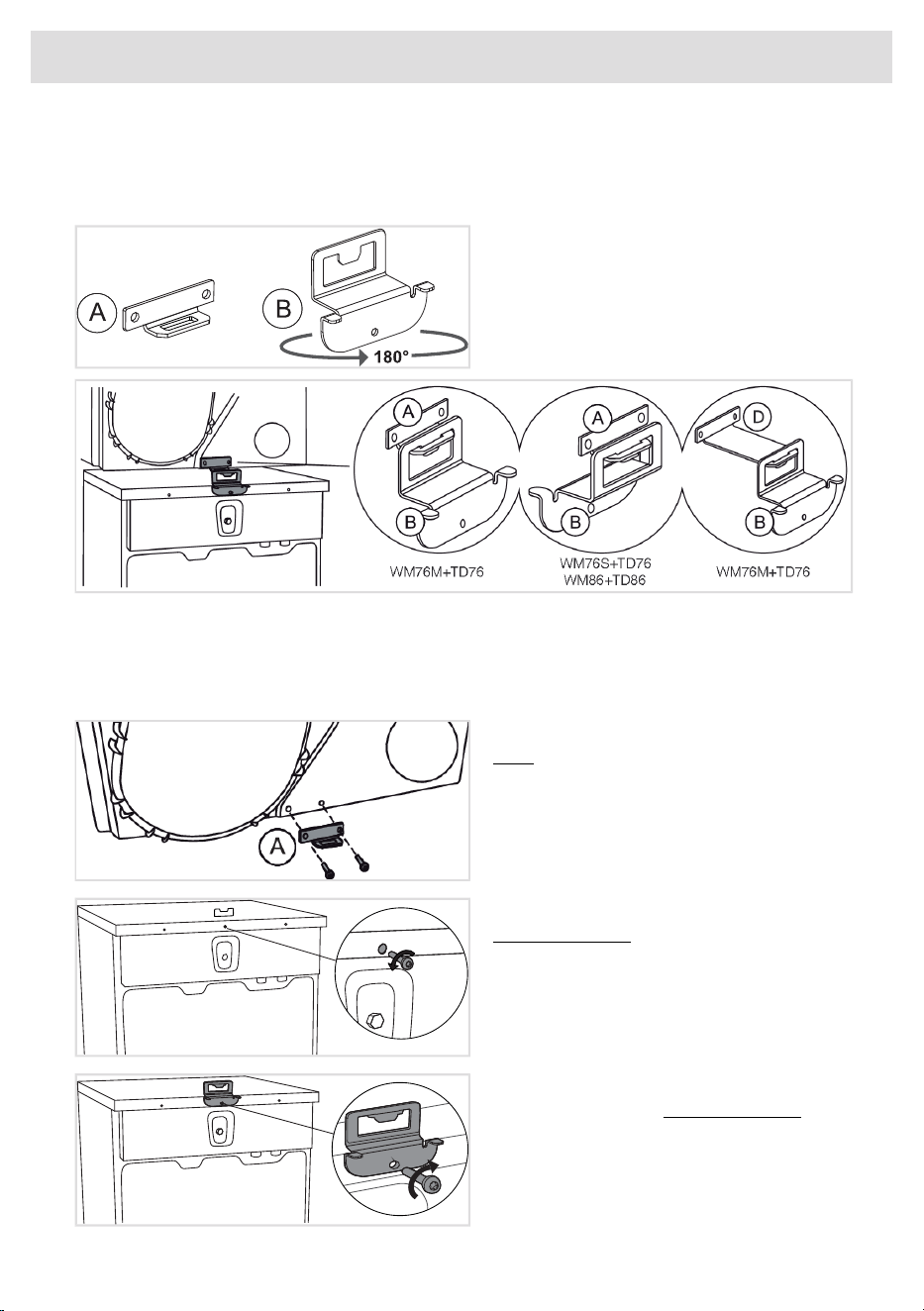

1 The tipping guard consists of two metal
parts (A + B).
Part (B) can be rotated 180°. Turn it according
to the depth of the washing machine and dryer.
Select the correct combination according to the type of washing machine and dryer, as indicated
on the rating plate located on the inner side of each appliance’s door (see chapter Service).
If your dryer is shallower than the washing machine, you can purchase a suitable longer guard (D)
from your dealer (ART. No.: 924231 OVERTURNING PROTEC.TD-76/WM-86).
2 Attach part (A) to the rear bottom of the
dryer using the two screws included in the
package.
3 Undo the screw on the back side of the
washing machine.
4 Use the screw to attach the tipping guard
(B) to the back of the washing machine.
Turn the part (B) according to the depth of
your dryer and washing machine (see point
1).
22
Installation and connection

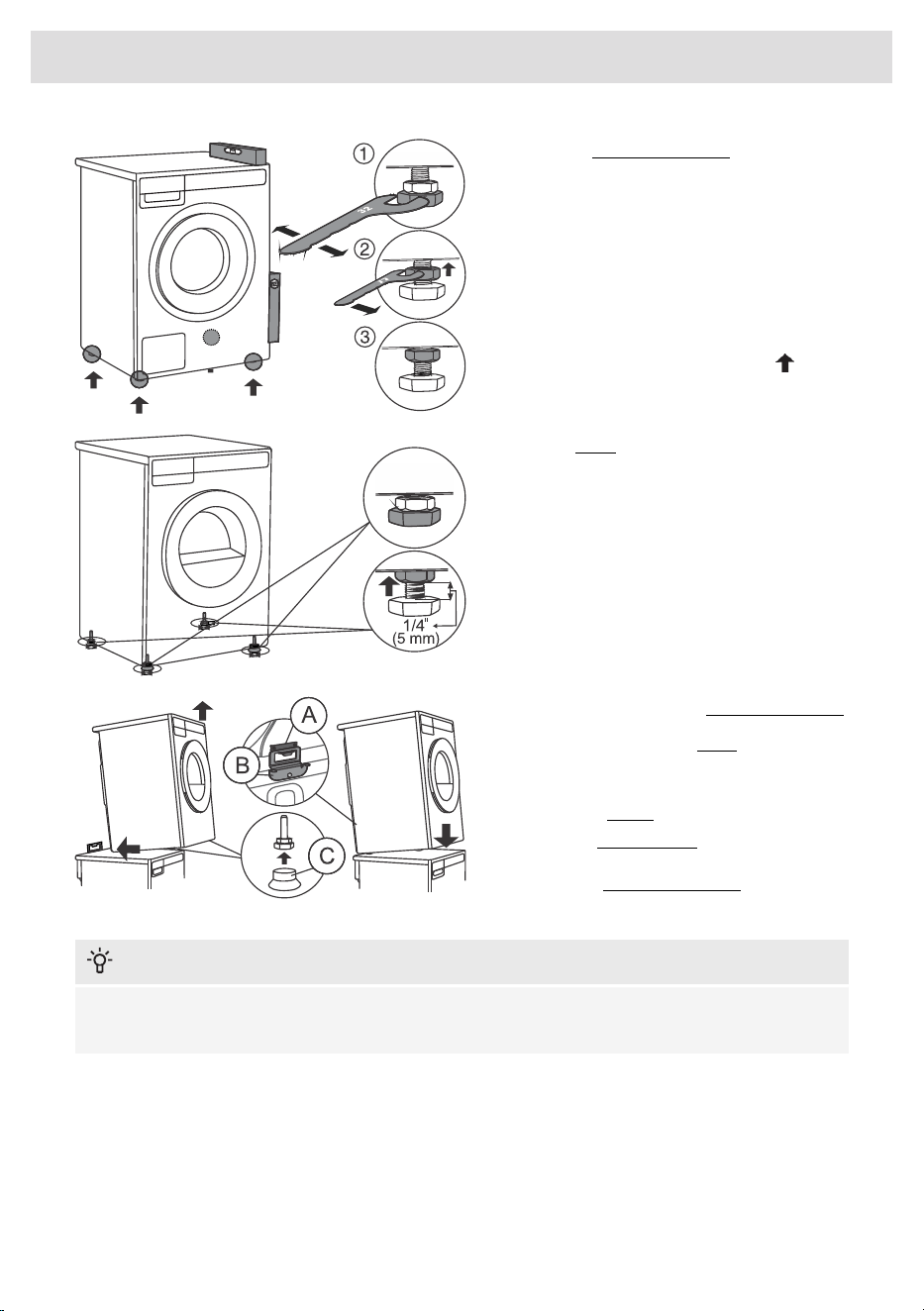

5 Level the washing machine so that it is
stable.
1. Level the washing machine by rotating the
adjustable feet using a No. 32 (1.26")
wrench. The feet allow levelling by +/- 3/8"
(1 cm).
2. After adjusting the height of the feet, firmly
tighten the jam nuts using a spanner No
17 (11/16"), by turning them towards the
bottom of the washing machine .
3. Tighten the jam nuts.
6 Set the dryer feet:
1. Tighten the front two feet all the way in.
2. Loosen the rear feet by 3.5 turns or 1/4" (5
mm); then tighten the jam nuts toward the
bottom of the appliance
7 Place the dryer onto the washing machine.
1. Lift the front part of the dryer by 2"–4" (5–10
cm).
2. Attach the vacuum feet (C) onto the front
feet of the dryer.
3. Push the tumble dryer into the tipping
guard (part B into part A) and install it on
top of the washing machine.
INFORMATION!
Ensure that both parts of the tipping guard (A + B) are locked. The front of the washing machine
and dryer must be aligned!
23
Installation and connection
Built-in
Closet Install- Ventilation
Requirements

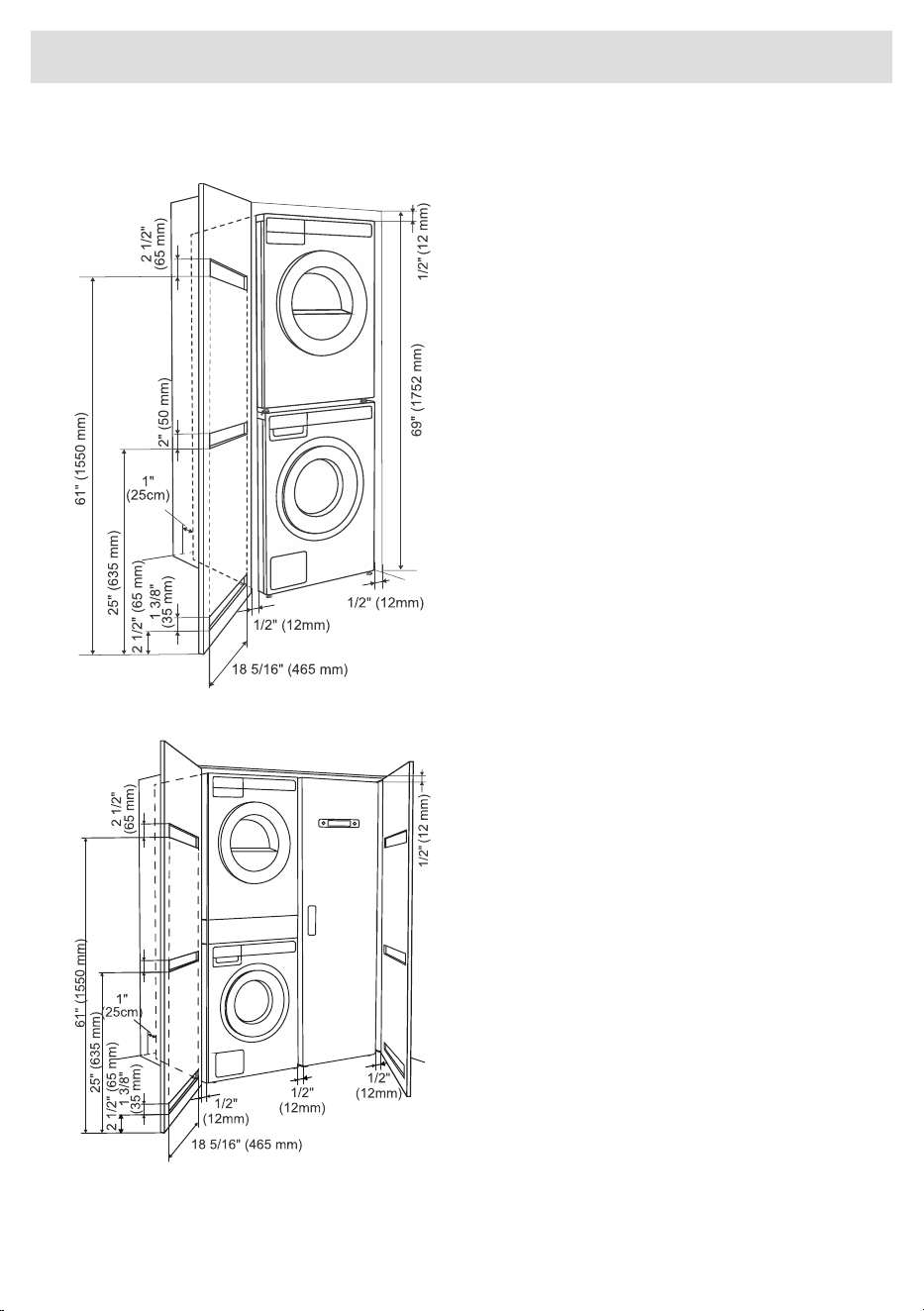

ASKO's front panel controls make it possible
to install the washers and dryers in a cabinet
or closet.
The distance between the left or right side of
the appliance and the surface of the side of
the cabinet or the surface of the wall of the
recess in which the appliance is installed must
be at least 1/2" (12 mm). The distance between
the back of the appliance (note the deepest
point of the appliance) and the surface of the
back of the cabinet or the wall of the recess
must be at least 1" (25 mm). See figure.
Ventilation Requirements of ASKO
laundry concept (when installing the
appliance in a closet)
Make sure there is space between the
appliance and the furniture element or wall,
and at least 1" (25) mm of space between the
back edge of the top panel of the appliance
and the furniture element or wall.

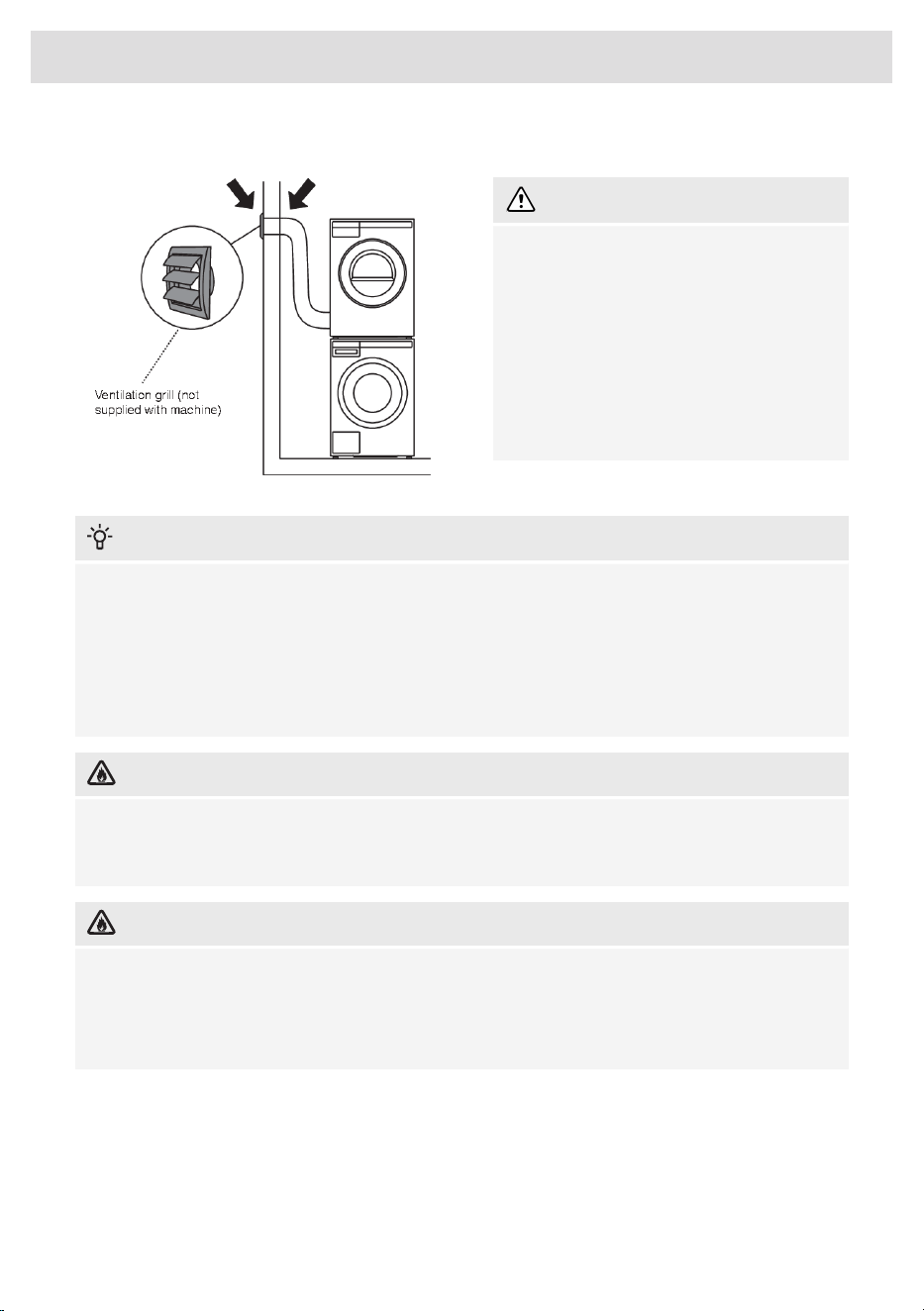

When the closet or cabinet is closed with a
door, we recommend using louvered doors to
ensure proper ventilation.
Otherwise, the door must have ventilation
gaps. See the figure for the dimensions of the
ventilation openings.
24
Installation and connection
INFORMATION!
Ensure the dryer door can be opened without hindrance after installation.
The cool air intake panel at the front of the dryer must not be blocked or covered. Doing so could
cause an error.
WARNING!
Failure to follow these instructions can negatively impact the appliance performance and may
also result in failure of the appliance.
25
Installation and connection
Changing the door opening direction
WARNING!
Before changing the door opening direction, the appliance must be disconnected from the power
supply! See chapter Important safety instructions.
WARNING!
Changing the door opening direction should be done by an installer, service provider, or similarly
qualified persons in order to avoid any hazards.

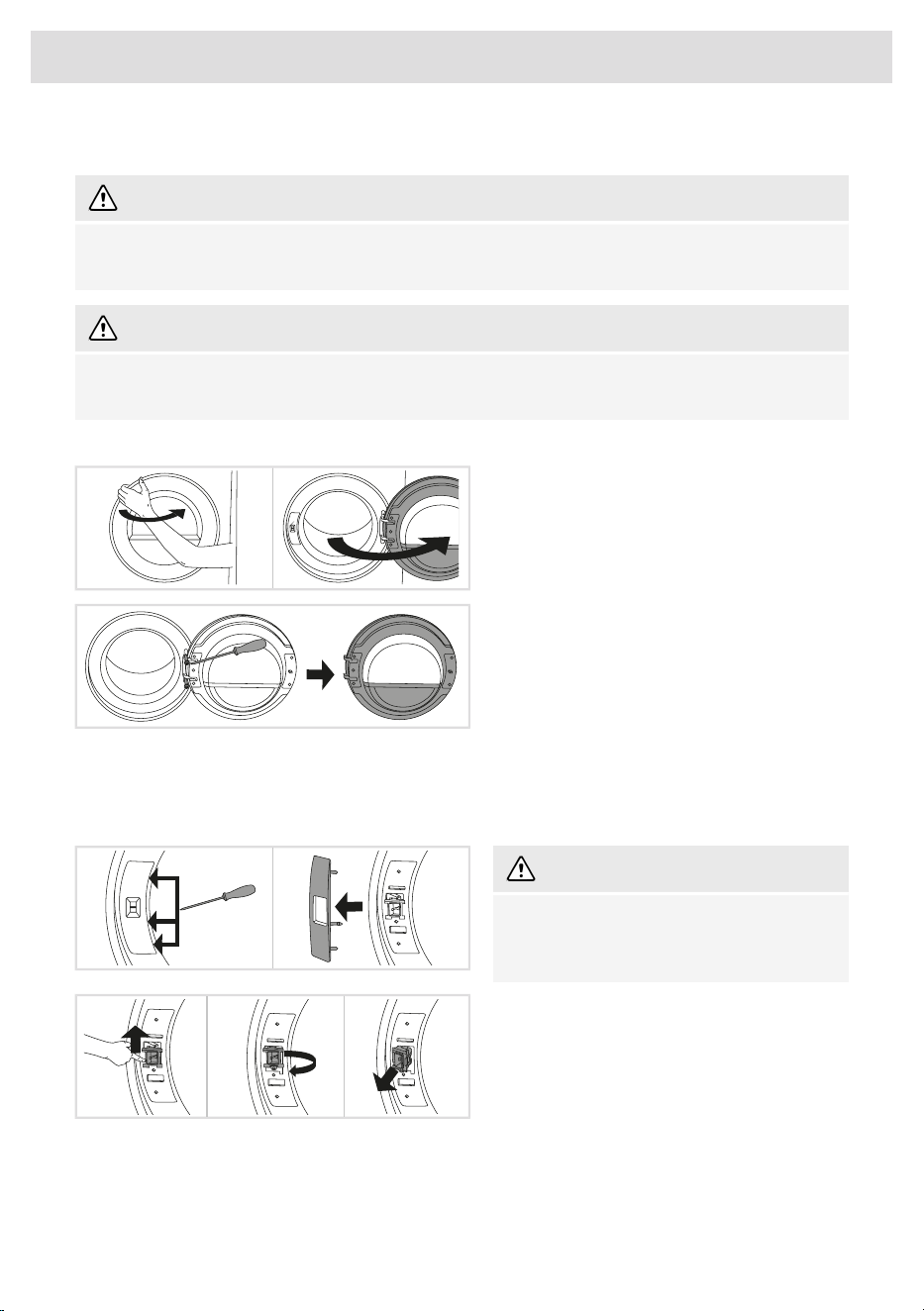

To change the direction of door opening, proceed as follows:
1 Open the door fully.
2 Undo the screws and remove the door.
3 Carefully remove the door lock cover with
a narrow, blunt object.
Release the latches on the door lock cover in
the indicated order.
WARNING!
When removing, make sure not to bend the
cover or its latches, as they may get
damaged.
4 Push the door lock up, slide it to the left and
remove it from the appliance in a rotating
motion.
26
Installation and connection
5 Remove the connector from the lock.
Insert the connector into the rib of the plastic
housing to prevent the appliance from rattling
when the connector is not plugged in.

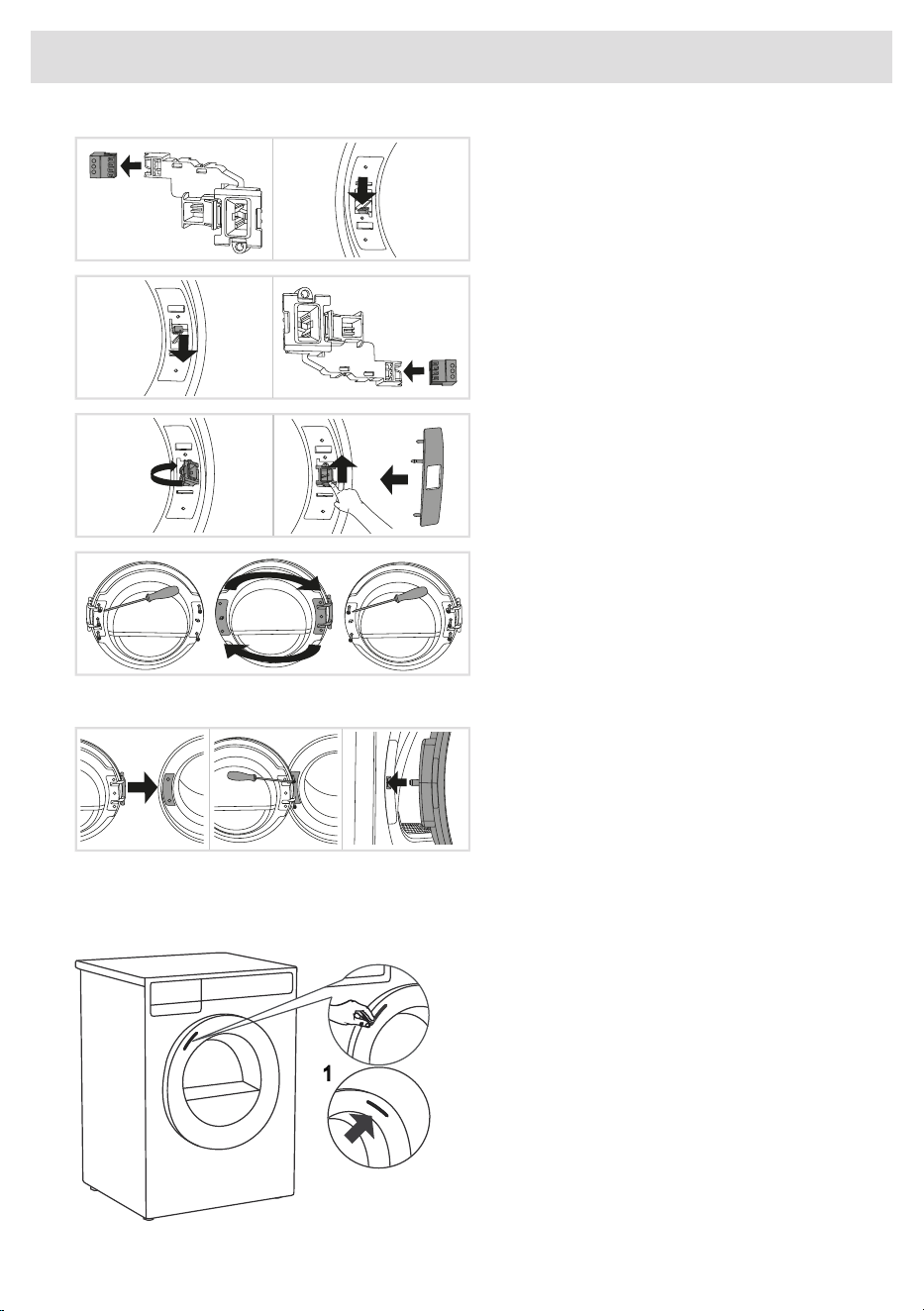

6 On the opposite side where the door has
come off, remove the connector from the rib,
pull it out of the appliance and connect it to
the door lock.
7 Place the door lock in the appliance in the
reverse order of its removal from the appliance.
Remount the door lock cover.
8 Undo the door hinge assembly (left) and
the door latch assembly (right), switch their
positions, and replace the screws (door hinge
assembly to the right-hand side, door latch
assembly to the left-hand side).
Use a screwdriver to remove the plastic part
more easily.
9 Install the door on the front wall and screw
it in.
Install the door in a fully open position and
do not lift it while screwing. It is correctly
installed only if the door latch is aligned
with the center of the door catch or slightly
above it!
Opening the Door
The tumble dryer door is designed to open on
the left side, with a visual indicator in the form
of a sticker placed on the front of the door,
clearly marking the spot for gripping and
opening.
1 In case of changing the door opening
direction, you can move the sticker to the
opposite side. Carefully remove the sticker
and attach it to the right side of the door,
ensuring it is positioned at the same height.
27
Installation and connection

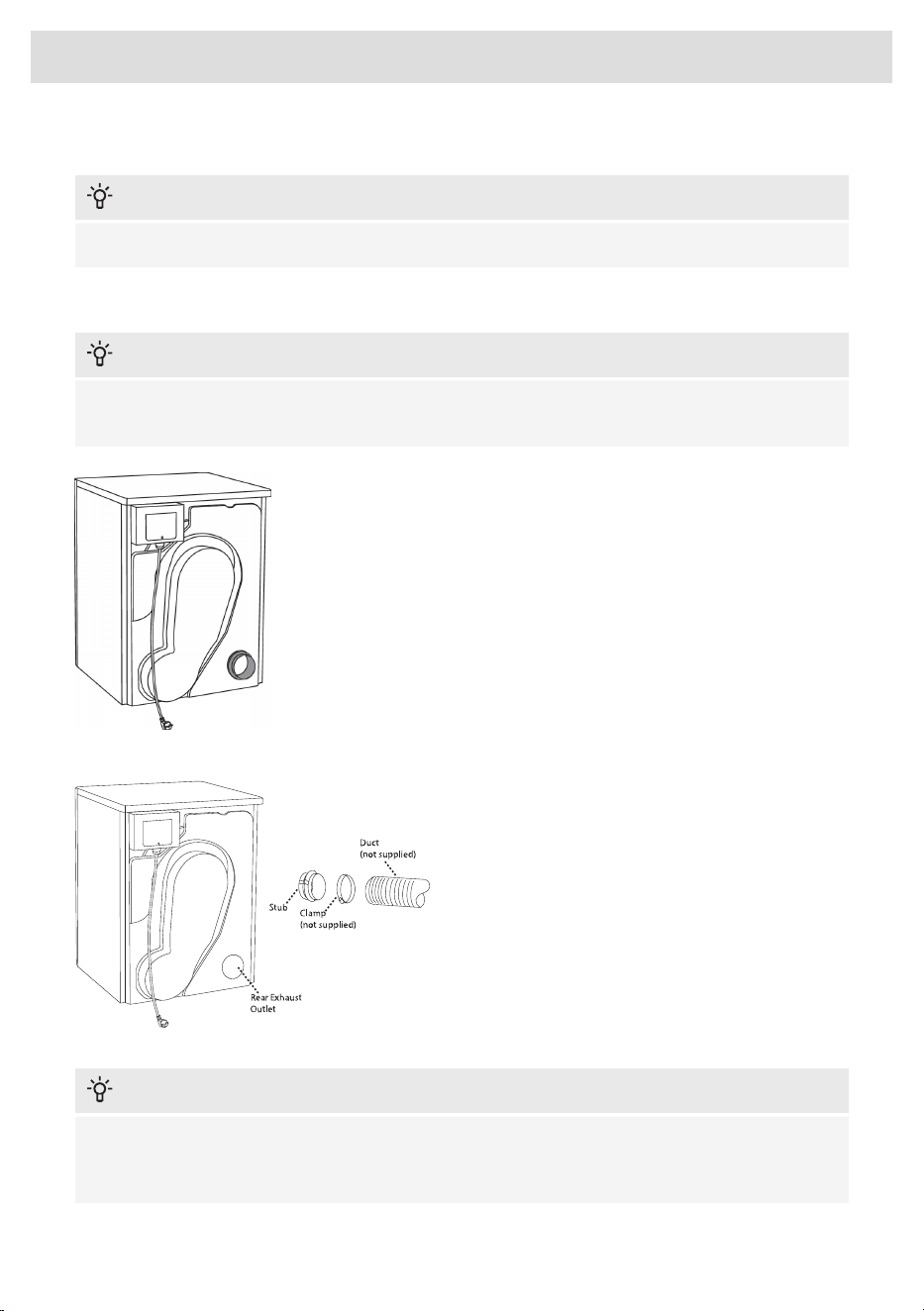

Air exhaust
INFORMATION!
The tumble dryer must only be operated when it is correctly fitted with exhaust duct.
Connecting the exhaust duct to the dryer
INFORMATION!
You will need to purchase a UL-CSA-approved 4" ridged metal exhaust duct. The dryer is delivered
with the stub pipe attached to the rear exhaust outlet.
To connect the exhaust duct to the rear outlet,
follow the steps below:
• Using a flat-head screwdriver, remove the
exhaust outlet cover from the rear exhaust
outlet.
• Attach the stub pipe to the rear exhaust
outlet.
• Use the exhaust outlet cover you removed
to cover any unused openings or areas, if
applicable.
The duct must not be assembled with screws
or other fasteners that extend into the duct and
catch lint.
To connect the exhaust duct to the outlet,
follow the steps below:
• Push the duct onto the stub pipe and
secure it with a clamp.
• After you push the dryer into place, check
for kinks in the duct.

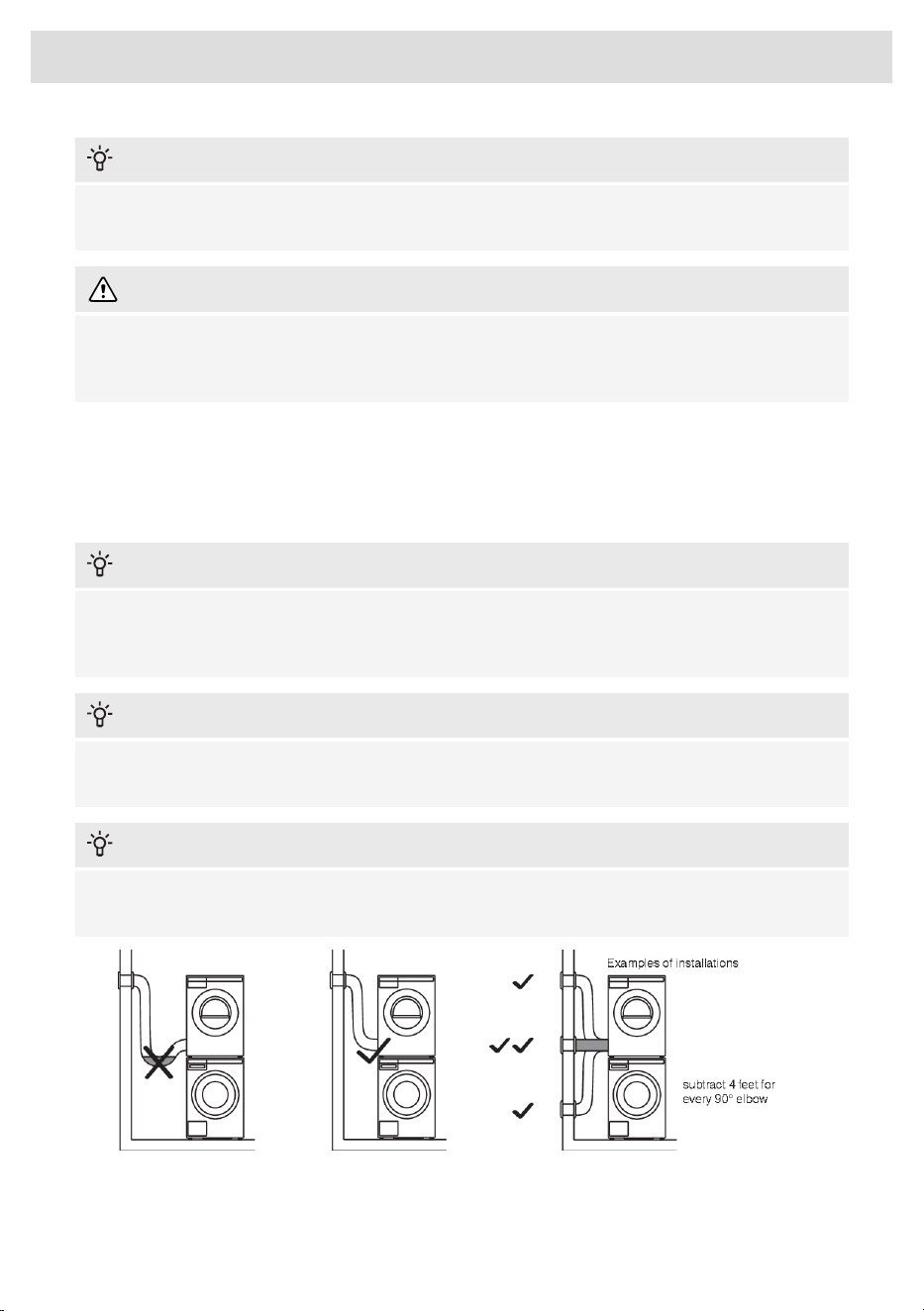

INFORMATION!
Excessive duct length and too many bends can impede drying performance. We recommend
that you cut off any excess exhaust duct and run the duct with as few bends as possible. Make
any necessary bends as gentle as possible.
28
Installation and connection
INFORMATION!
Maximum duct length of 60 feet (18 m). A maximum of 4 elbows may be used, but 4 feet (1,21
m) of duct must subtracted from the total vent length for every 90° elbow used.
WARNING!
To reduce the risk of fire, this appliance must be exhausted OUTDOORS or the equivalent. Never
cover the end of the dryer stub or exhaust duct with anything to catch lint, except for UL approved
vent basket.
Connecting to a ventilation duct
You will need a UL-CSA-approved, 4-inch (101.6 m) ridged metal exhaust duct. If a flexible duct is
used, it must comply with the Outline for Clothes Dryer Transition Duct. Subject 2158A and maximum
length of 94 1/2" (2.4 m).
INFORMATION!
The more bends and the longer the duct, the less air will circulate through the machine, which
will impede drying performance. We recommend that you cut off any excess exhaust duct and
run the duct with as few bends as possible. And make any necessary bends as gentle as possible.
INFORMATION!
Maximum duct length of 60 feet (18 m). A maximum of 4 elbows may be used, but 4 feet (1,21
m) of duct must subtracted from the total vent length for every 90° elbow used.
INFORMATION!
When installing in warm climates (77° F and above) with high humidity levels, do not route the
air exhaust duct upwards.
To connect the exhaust duct to a ventilation outlet, follow the steps below:
• Connect the exhaust duct to a ventilation exhaust fitting or to a discharge through the wall.
• Secure the duct joint to the outlet stub on the machine.
29
Installation and connection
• Run the duct with as few bends as possible to the point of discharge.
WARNING!
This appliance shall not be exhausted into
a chimney, a wall, a ceiling, an attic, a crawl
space or a concealed space of a building.
Only a rigid or flexible metal duct shall be
used for exhausting. Only a metal
ventilation grill shall be used. If the duct is
taken to a wall outlet, a ventilation grill shall
be fitted to prevent reverse flow of cold air.
Fit the ventilation grill to the outside of the
wall.
INFORMATION!
Avoid:
• very long exhausting systems
• too many corners
• tight corners
These reduce efficiency and increase time and energy consumption.
DANGER OF FIRE!
A clothes dryer produces combustible lint. The dryer must be connected to an exhaust to the
outdoors. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint
around the outdoor exhaust opening and in the surrounding area.
DANGER OF FIRE!
Do not install a booster fan in the exhaust duct.
Note: The booster fan warning does not apply to clothes dryers intended to be installed in a
multiple clothes dryer system, with an engineered exhaust duct system that is installed per the
clothes dryer manufacturer’s guidelines.
30
Installation and connection
Connecting to the household power
INFORMATION!
This appliance must be properly grounded. Refer to the “Important Safety Instructions” for
grounding instructions. The power supply cord must be grounded. If the machine is to be used
in a wet area, the supply must be protected by a residual current device. Connection to a
permanently wired supply point must be made only by a qualified electrician.
ELECTRIC SHOCK!
After installation, the dryer should stand still for two hours before it is connected to the household
power.
ELECTRIC SHOCK!
The receptacle on the rear of the machine is designed to accommodate ASKO washers ONLY
(rated 208–240 V.) To use this receptacle, you must use the ready-fitted plug supplied with the
washing machine or an equivalent. ASKO washers rated 208–240 V have two internal fuses of
15 A each. The machine should only be connected to a grounded wall socket.
Connect the appliance to a grounded power outlet. After installation, the wall outlet should be freely
accessible. The outlet should be fitted with a ground contact (in compliance with the relevant
regulations).
Connection upon delivery

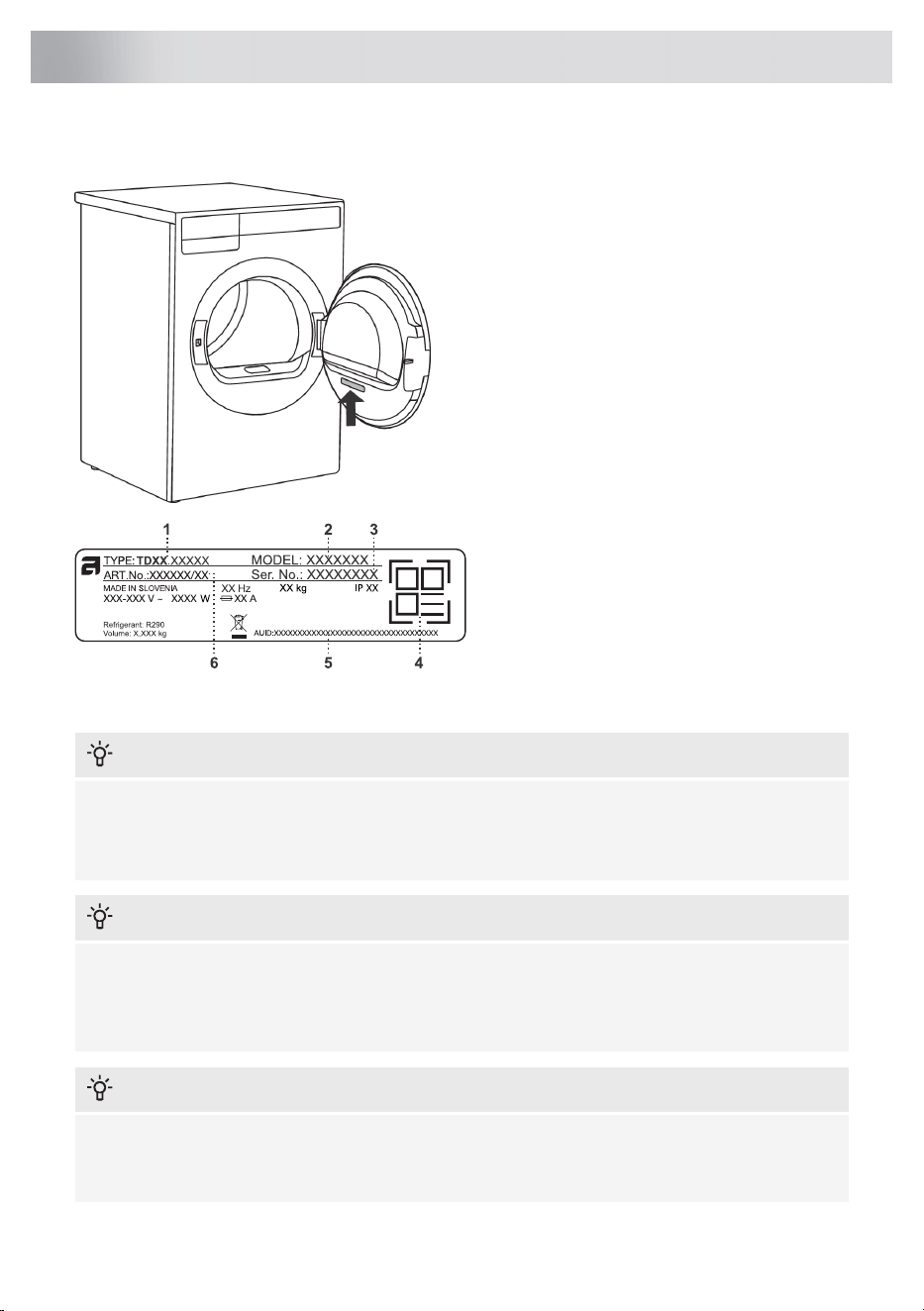

1 - Model type
2 - Model
3 - Serial number
4 - QR code
5 - AUID code
6 - Article number
Information about your dryer is indicated on the rating (type) plate.
Use type A ground fault circuit interrupter
WARNING!
The dryer shall not be connected to the power mains using an extension cord.
INFORMATION!
Any repair and maintenance pertaining to safety or performance should be done by trained
experts.
31
Installation and connection
ASKO Laundry Care - Hidden helpers (Hidden helpers)

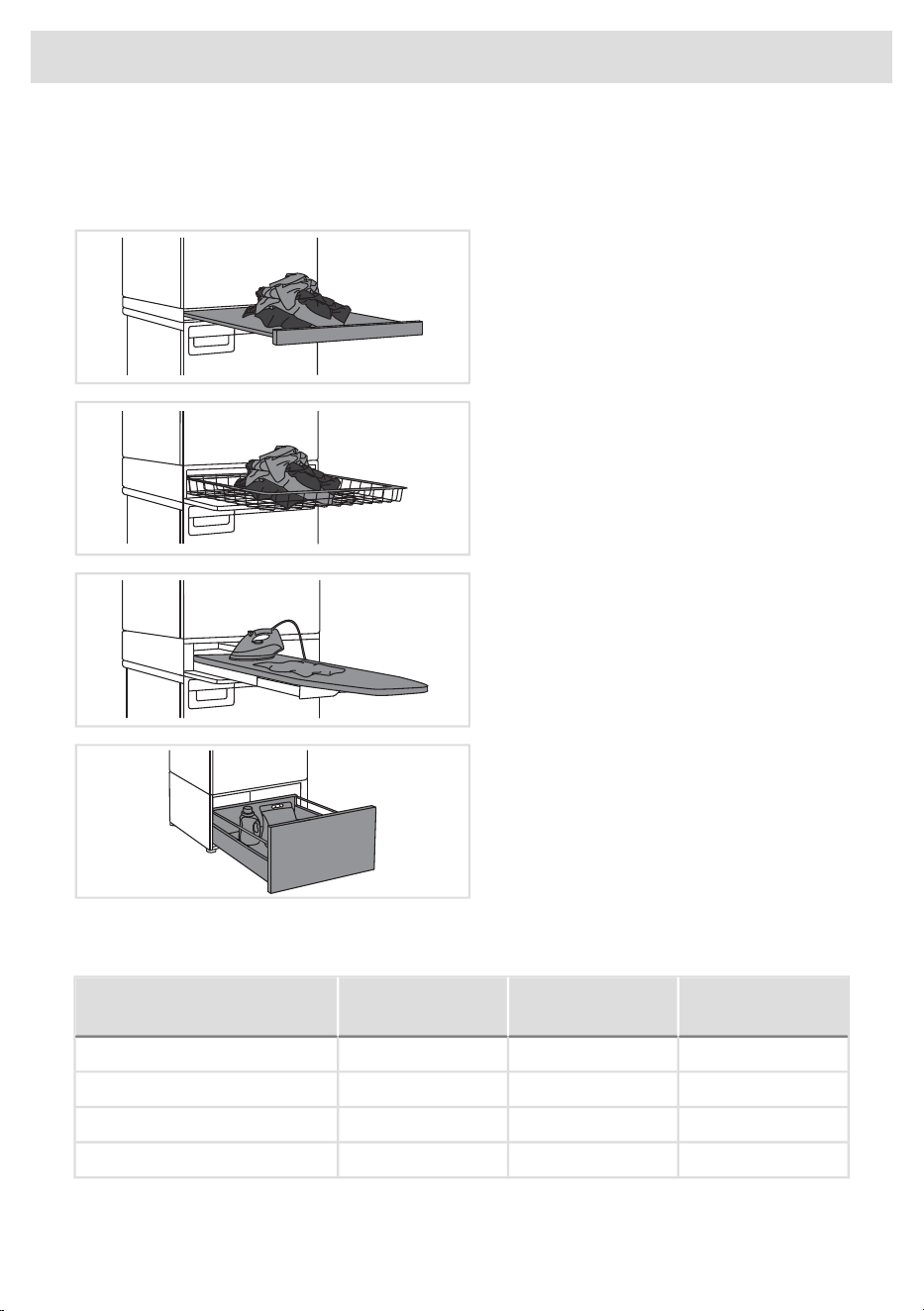

The Hidden Helper (single shelf, basket, or ironing board) can be installed between the washing
machine and the dryer, or on top of either appliance.
SLIM - Single Shelf
Pull-out shelf. It can be used as an additional
surface when folding clothes and sorting socks
or for storage. It also makes loading and
unloading your laundry much easier. It can be
installed between your washer and dryer.
BASKET
A large pull-out basket that is easily accessible
via a push-pull door opening. Useful for
removing laundry and carrying it to the
wardrobe or workbench for ironing and folding.
IRONING BOARD
The ironing board is a clever solution. It is
always handy when you need to iron your
clothes, and it can be easily, safely and
invisibly stored away when not in use.
A PEDESTAL DRAWER
A useful storage drawer with a height of 11
13/16" 30 cm. Ideal for storing your detergent,
softener, coat hangers, pegs, user manuals
and other useful items in the laundry area.
The pedestal drawer is installed under the washing machine or the dryer.
Availability depending on market
Graphite black
ART. No.
Titanium
ART. No.
White
ART. No.
DENOMINATION
HS60G - 746297HS60T - 746296HS60W - 746295SLIM
HB150G - 746300HB150T - 746299HB150W - 746298BASKET
HI150G - 746314HI150T - 746312HI150W - 746311IRONING BOARD
HP320G - 746317HP320T - 746316HP320W - 746315A PEDESTAL DRAWER
32
Installation and connection

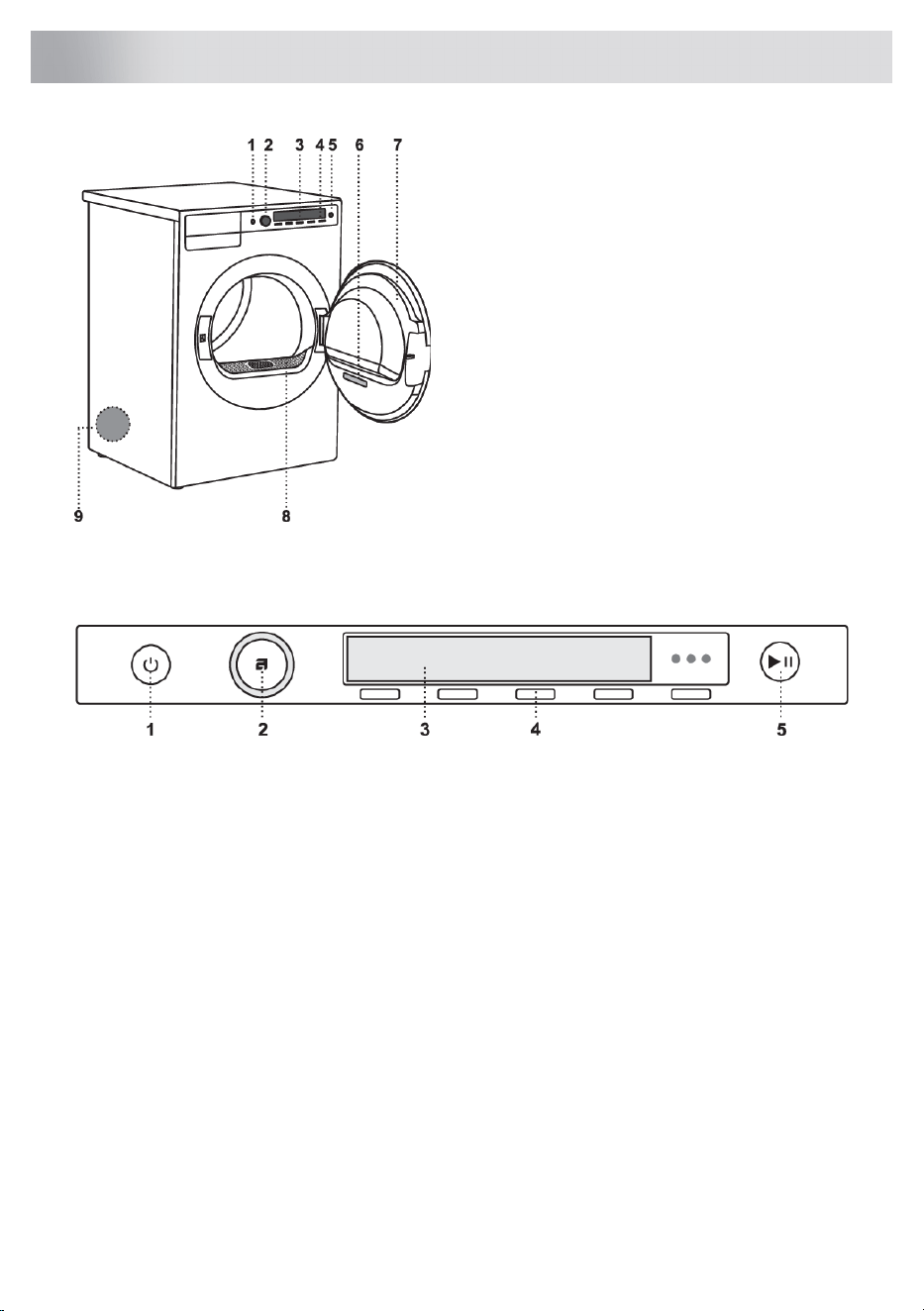

1. Main switch for turning On/Off
2. Program selector knob
3. Display unit
4. Program selector buttons
5. Button (Start/Pause)
6. Rating plate with information about the
dryer (on the inside of the dryer door) and
QR and AUID code (on the inside of the
dryer door)
7. Dryer door
8. Lint filter
9. Air exhaust hose opening
Control unit
1. Main switch for turning On/Off
2. Program selector knob
3. Display unit
4. Program selector buttons
5. Button (Start/Pause)
33
Dryer description
When the appliance is connected and switched on for the first time (see chapter Installation and
connection), first perform the following settings:
1. Choose language (Language)
Use the buttons 2 and 3 to navigate the list of
languages and select the desired language.
Confirm your selection by pressing 4 Save.
2
3
4
2. Wi-Fi settings
You can turn on the Wi-Fi connection by
pressing 3 and confirm your selection by
pressing 4 Save.
If you do not want to set the Wi-Fi connection
at this time, use the programe selector knob
to move forward.
If you have enabled the Wi-Fi connection, see setup procedure in chapter How to enable remote
start of the appliance?.
To save your settings, turn the program
selector knob all the way down and press
4 Ok.
Your dryer is now set up and ready to use.
34
Initial settings before use
Connecting the appliance to the ConnectLife application
The ConnectLife app is an advanced smart home platform that enables seamless connectivity
between people, devices, and services. With the ConnectLife app you can easily monitor and manage
your smart devices, receive notifications directly to your smart device and update software (available
functions depend on your appliance and region).
To connect your smart device to the ConnectLife platform, you need a home Wi-Fi network (2,4 GHz
networks are supported) and a smart device with the ConnectLife app.

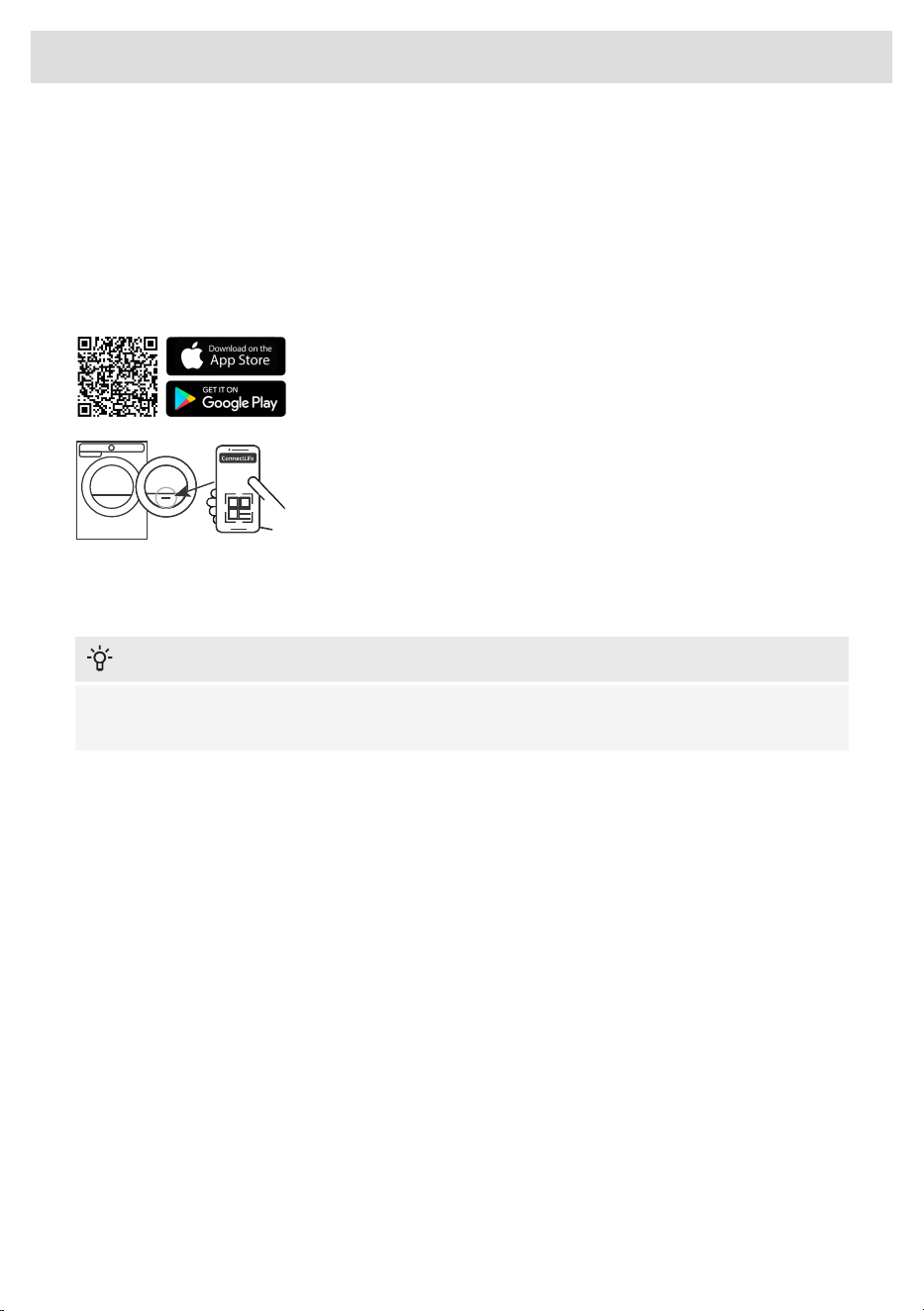

STEP 1: Download the ConnectLife app by scanning the included QR
code or searching for it in your favorite app store.
STEP 2: Install the ConnectLife app and create an account.
STEP 3: In the ConnectLife app, go to the »Add device« menu and
select the appropriate type of device. Then scan the QR code (it can
be found on the rating plate of the appliance; you can also enter the
AUID/SN number manually).
STEP 4: The application then guides you through the entire process of
connecting the appliance to your smart device.
After a successful connection, the appliance can be operated remotely via the application.
Useful tips for your smart device
INFORMATION!
The QR code of the device required by the app during the installation process can be found on
the rating plate of the appliance (see chapter Service).
How to enable Wi-Fi on the device?
1. Turn on the appliance. In the main menu, use the program selector knob to select System settings.
Confirm your selection by pressing (4) Enter.
2. Turn the program selector knob to the right and select Wi-Fi settings. Confirm your selection by
pressing (4) Enter.
3. If the Wi-Fi system is not switched on, turn it on by pressing (3).
4. Use the program selector knob to select Connection setup, and press (3) Enter. Then
press (4) Next.
5. If you do not yet have the ConnectLife app installed on your smartphone (or any other smart
device), install it now (scan the QR code on the screen), create your user account and login.
• In the ConnectLifeapp, open the add device menu.
• Follow the instructions in ConnectLife.
- Select the type of appliance.
- Scan the QR code (it can be found on the rating plate of the appliance).
• On the appliance, press (4) Next.
- The 5 minute countdown will begin. During this time, connect the app to the appliance.
35
Initial settings before use
• In the ConnectLife app, instructions will guide you through the process of entering the
appropriate data for your appliance to connect to your home network.
How to enable remote start of the appliance?
In the main menu, turn the program selector knob to the left to select Remote start . To activate,
press the Start/Pause button (the door must be closed). The display will showRemote start/Activated.
The appliance is now ready for remote control through ConnectLife app.
INFORMATION!
Remote start will remain active for the next 24 hours unless cancelled. During this time, the
appliance can enter standby mode and switch off the display. If this happens, the logo will remain
lit, which means that Remote start is still active.
How to add another user or multiple users?
See chapter How to enable Wi-Fi on the device? and observe points 1 and 2.
Use the program selector knob to select Add device , and press (3) Enter. If you are a new user and
do not yet have the ConnectLife app installed, install it on your smart device.
• In the ConnectLife app, go to the Add device menu and follow the instructions.
• On the appliance, press (4) Next.
- The 3 minute countdown will begin. During this time, connect the app to the appliance.
• Complete and confirm the setting in the app.
How to remove the users?
How to remove a user (Remove device)?
See chapter How to enable Wi-Fi on the device? and observe points 1 and 2.
Use the program selector knob to select Remove device, and press (3) Enter. Press (4) Ok. Follow
the instructions on the appliance screen.
INFORMATION!
This step will remove all active users of the appliance. If you want to operate the appliance
remotely again you will need to repeat the process of adding a user.
Which Wi-Fi router can be used?
Only 2.4 GHz networks are supported. If the ConnectLife app cannot find your local network during
the connection set-up process, check the following:
• your router is operating at the frequency of 2.4 GHz,
• your network is not hidden, and
• your signal is strong enough.
36
Initial settings before use
Do you have more questions?
Remote software upgrade
When you receive a software update notification, you can choose to update your software from the
app menu in your settings. Upon confirmation, the update is performed, the appliance must be in
standby mode during this time (more on standby mode in chapter Table of consumption values).
Check the software update options in the ConnectLife app.
37
Initial settings before use
This chapter includes several advice on how to prepare the laundry for drying.
Laundry sorting
Sort the laundry according to the type and thickness of the fabric.
For the most even drying, make sure the laundry is made of a similar material.
Clothing
1. Sort the laundry by type and thickness of the fabric (see Program table).

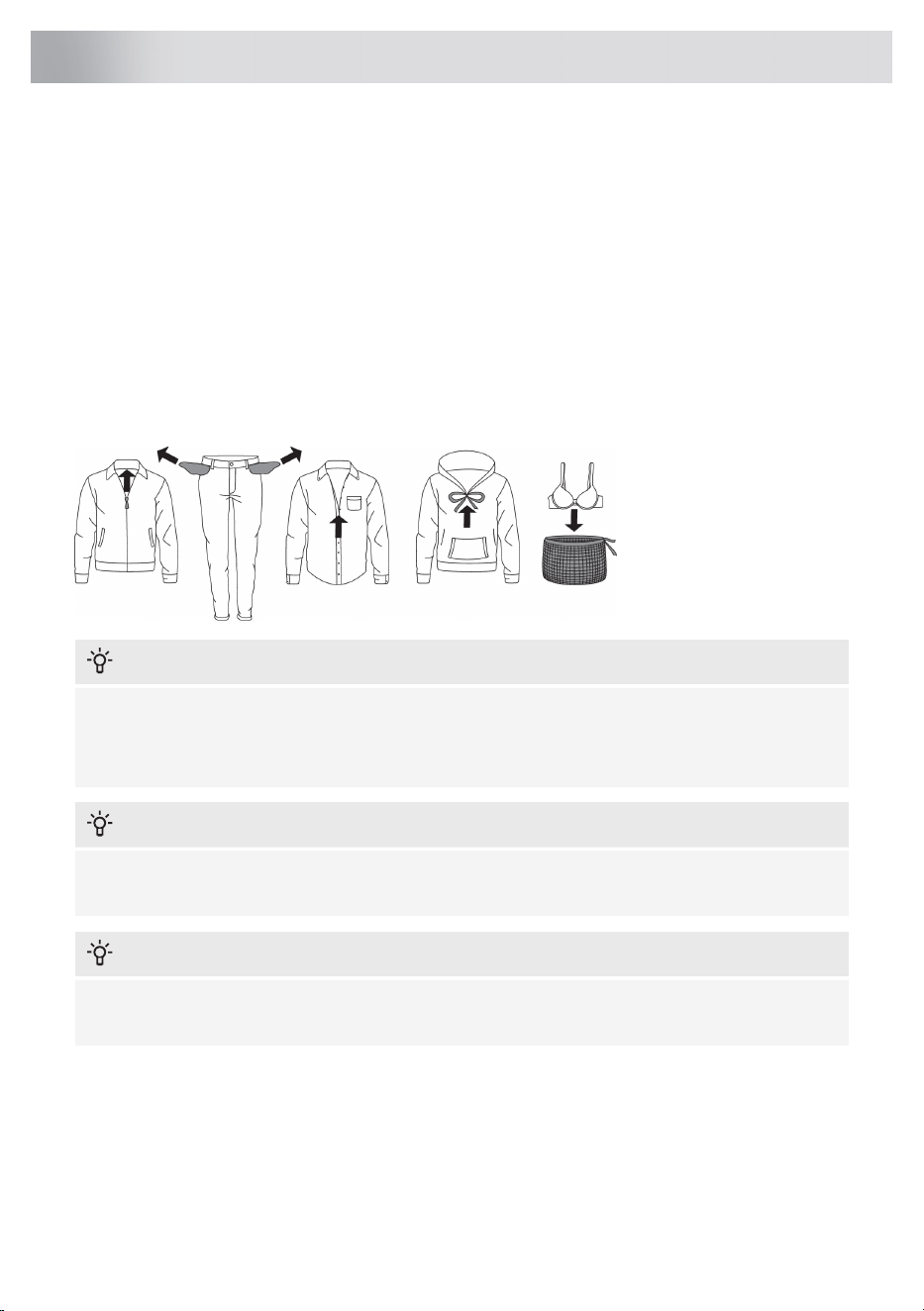

2. Close the buttons and zippers, tie any ribbons, and turn the pockets inside out; remove any
metal clips that could damage the laundry and tumble dryer interior.
3. Place very sensitive clothes and small items in a special-purpose laundry washing bag.
INFORMATION!
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum
spinning cycle: 800 rpm).
Higher spinning speeds will save energy and cut drying time.
INFORMATION!
If a mixed load contains a single, particularly large item, we recommend drying it separately from
smaller items of laundry.
INFORMATION!
Turn printed garments inside out before drying. To reduce the risk of heat damage to the prints,
use the Delicate drying mode.
38
Advice before drying
Materials (fabrics) suitable for drying in a tumble dryer
This symbol indicates the material is suitable for tumble drying. Clothes dried in a tumble
dryer will be softer and lighter than air-dried clothes.
INFORMATION!
The dryer does not cause any considerable wear of the fabric. The lint collected in the lint filter
consists of dust and fabric fragments collected during the use of the laundry.
Materials (fabrics) that may not be dried in a tumble dryer
This symbol means that the material is not suitable for drying in a tumble dryer.
Never tumble dry the following:
• clothing that was chemically cleaned (or drycleaned) at home,
• foam,
• glass fibers.
Materials that are not suitable for drying in a tumble dryer
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
The following types of laundry may not be dried in the dryer as this may cause your garments to
deform:
• leather garments and other leather products,
• garments that are waxed or treated in any other way,
• garments with major wooden, plastic, or metal parts,
• garments with sequins or similar decorations,
• garments with metal parts subject to rusting.
39
Advice before drying

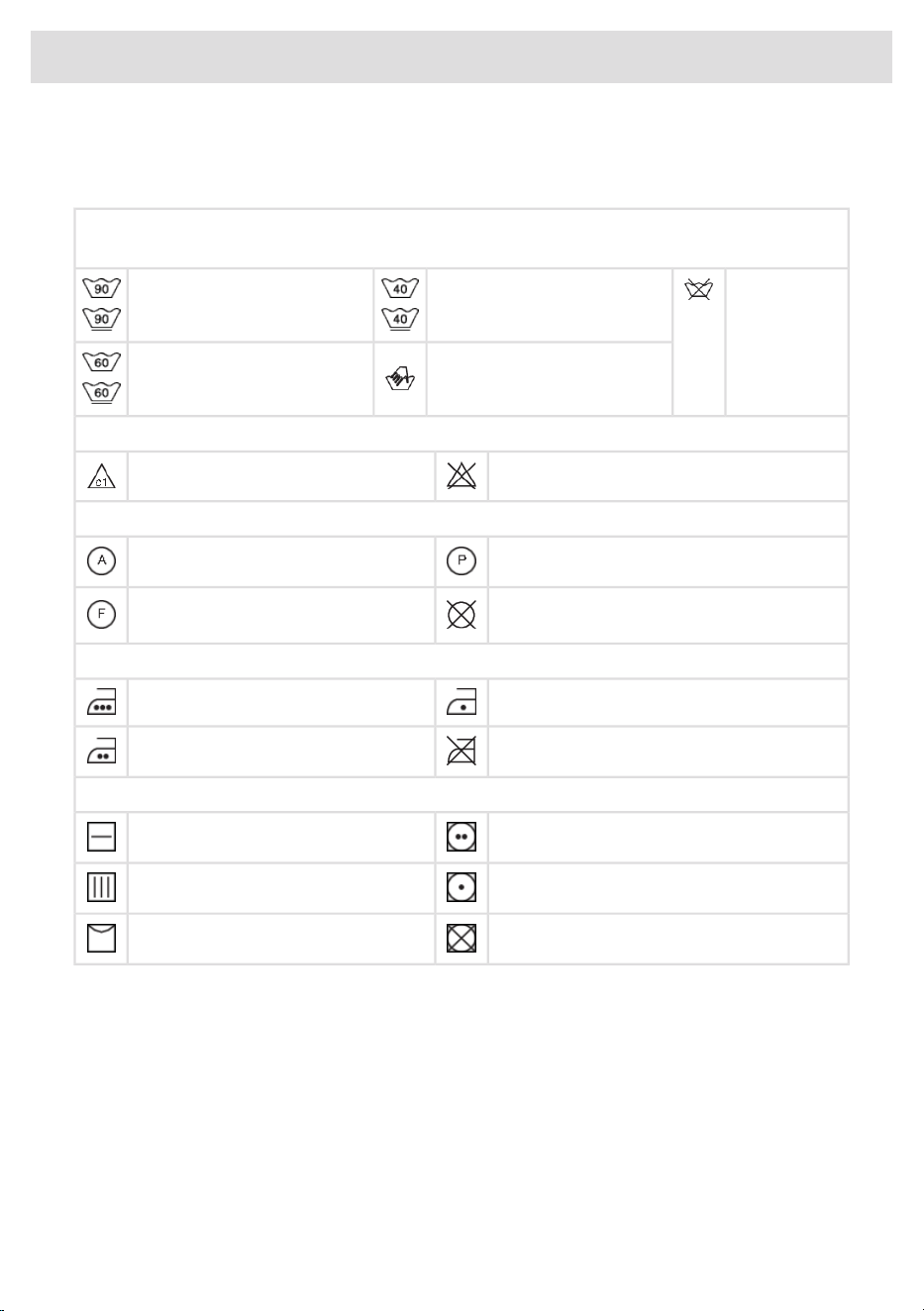

Laundry symbols
Always follow the garment manufacturer's recommendations before drying in the dryer.
Cotton Normal wash;
Sensitive laundry;
Do not wash
Max. washing temperature
WARM
Max. washing temperature
EX. HOT
Hand wash only
Max. washing temperature
HOT
Bleaching
Bleaching not allowedBleaching in cool water
Dry cleaning
Perchloroethylene R11, R113, petroleumDry cleaning with all agents
Dry cleaning not allowed
Dry cleaning in kerosene, pure alcohol,
and R113
Ironing
Hot ironing, max. LOW temperatureHot ironing, max. HIGH temperature
Ironing not allowedHot ironing, max. MEDIUM temperature
Drying
Drying at high temperaturesDrying on a flat surface
Drying at low temperaturesDrying without prior spinning
Tumble drying not allowedDrying on a clothes line or a hanger
40
Advice before drying

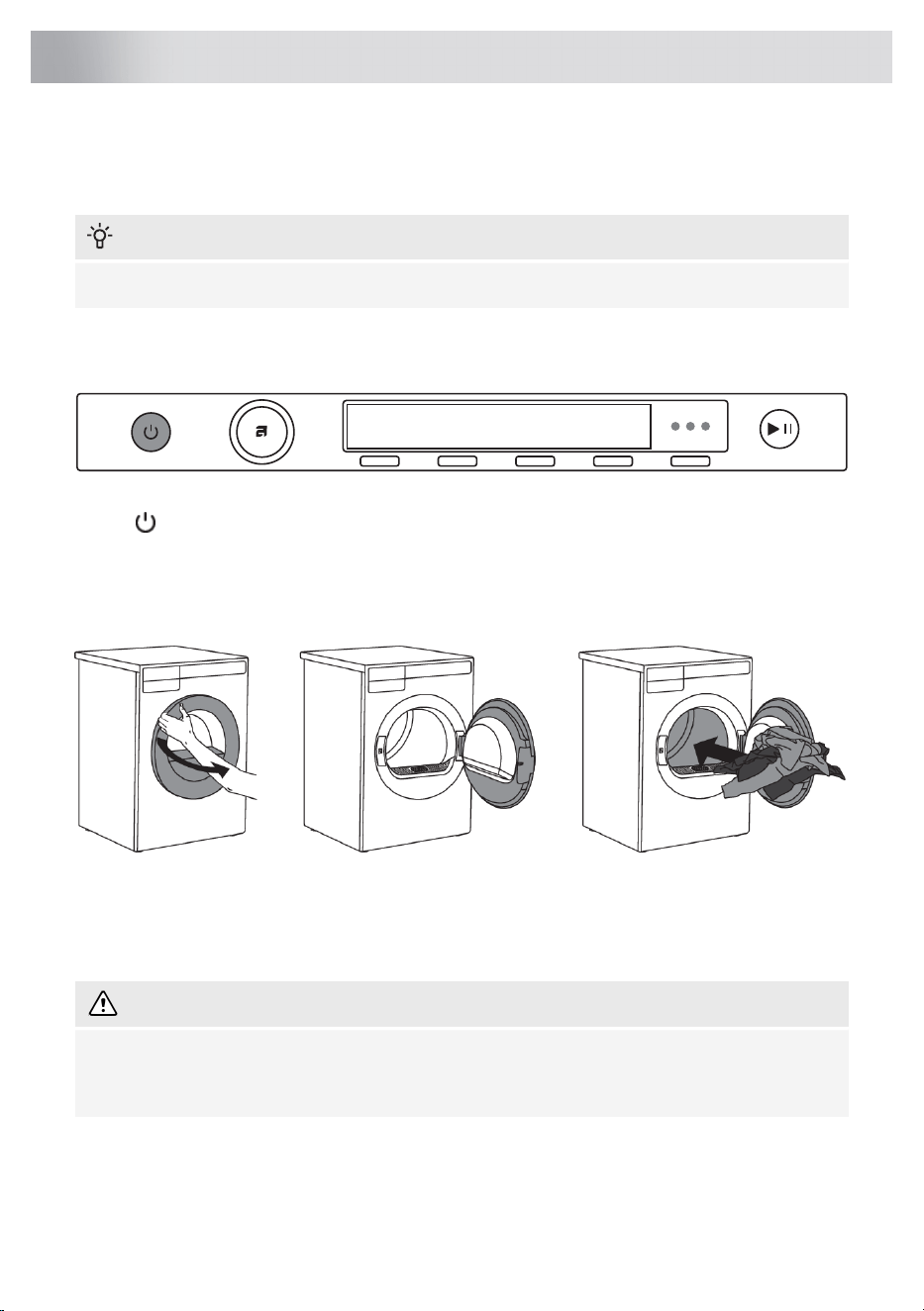

STEP 1: Sort the fabrics
See chapter Advice before drying.
INFORMATION!
Empty the pockets. Coins, nails etc. could damage the machine and the fabric.
STEP 2: Turn on the main switch
On / Off
Press the On/Off button.
STEP 3: Open the dryer door and insert the laundry.
Open the dryer door towards you.
Place the laundry into the empty dryer drum. Make sure there aren't any other objects among the
laundry. Such objects could melt and cause damage to the dryer or your laundry.
Do not overload the drum! (See the program table on the rating plate and adjust the load accordingly.)
If the dryer drum is overloaded, the laundry will be more wrinkled and not dried as thoroughly.
WARNING!
Before inserting or removing fabrics, we recommend that the lint filter is always placed in its
designated opening. This is the only way to prevent a piece of clothing or other fabric from falling
into the open space.
41
Operating instructions - Drying step by step (1–7)
INFORMATION!
There is an LED light inside the dryer drum.
The light in the dryer drum is not suitable for any other use.
The light in the dryer drum may only be replaced by the manufacturer, a service technician or
an authorized person.
42
Operating instructions - Drying step by step (1–7)

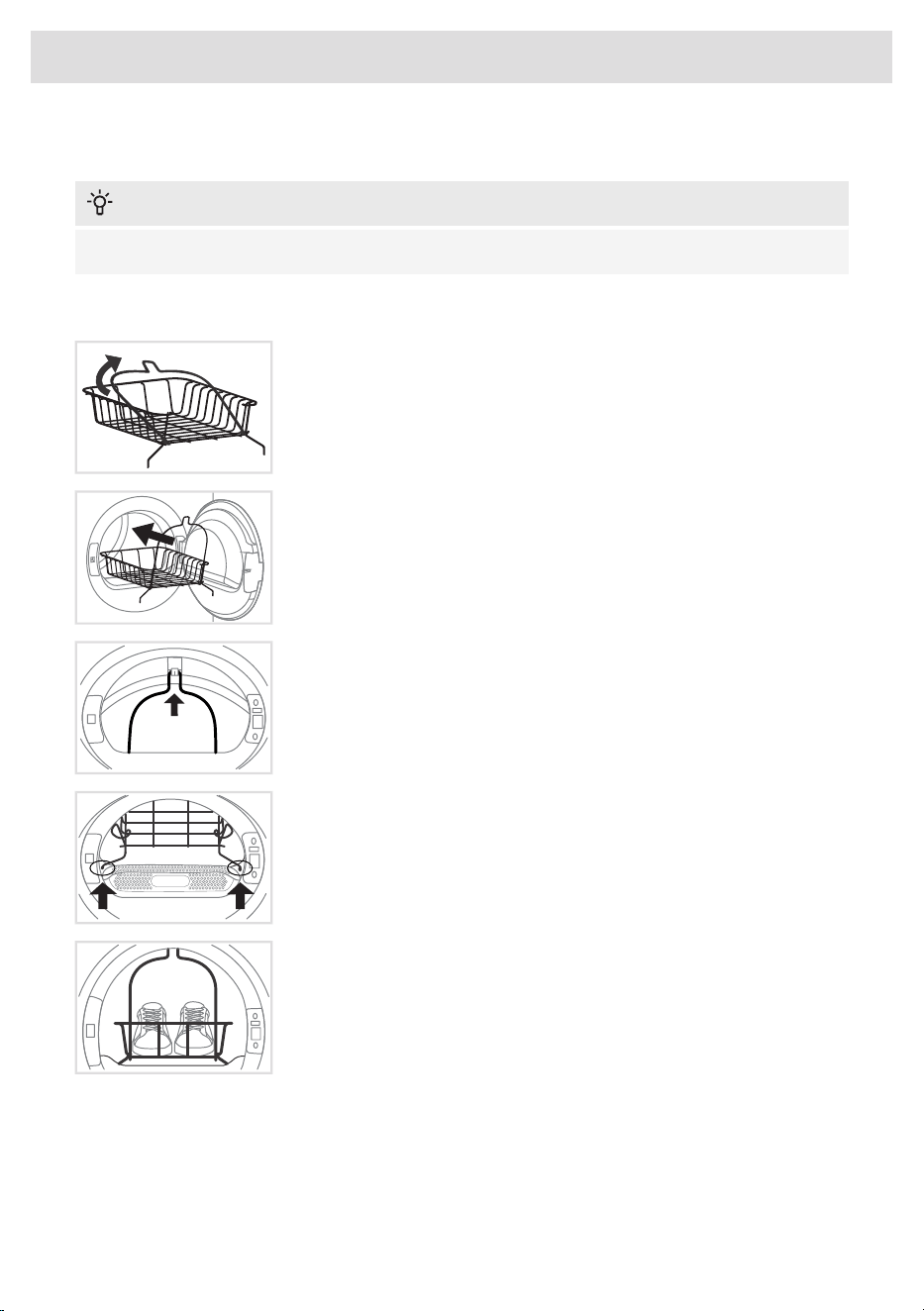

Drying in a basket
INFORMATION!
Before the first drying cycle, remove the basket and all packaging from the drum.
Laundry may only be dried in the basket when using Time program. The basket is available for
purchase as an optional accessory from your dealer (ART. No.: 914908).
The drying basket consists of two connected parts; before installation,
it must be unfolded into its final shape.
1 Open the dryer door and insert the drying basket. If you attempt to
insert the basket straight in, it will not fit properly into the dryer.
For easier installation, we recommend removing the lint filter beforehand.
Simply pull the lint filter upward to remove it. See chapter Cleaning the
lint filter.
2 Once the drying basket is inside the dryer, first attach it to the
designated holder on the upper part of the rim, located inside the dryer,
as shown in the figure.
3 After securing the basket at the top, position the lower part by pulling
the left and right sides into place until the basket locks into the
designated openings near the lint filter.
If you have removed the lint filter, reinsert it now.
Once the basket is correctly installed, check that it is securely and firmly
attached.
4 The basket can be used to dry sports shoes, slippers, or items that
you do not want to be tumbled inside the dryer drum (max. load: 4 kg).
After the drying process, remove the drying basket and close the dryer door.
Only dry clean sports shoes or slippers that have been sufficiently wrung out after washing to prevent
water from dripping. The basket remains stationary while the drum rotates, so ensure that the items
being dried do not touch the drum to avoid potential damage to both the items and the dryer.
43
Operating instructions - Drying step by step (1–7)
STEP 4: Choose the drying program.
Choose the program by rotating the Program selector knob in either direction.
With the selected program, you can press key
5 and then key 3 Information to display a brief
description of the program.
Select the programe based on the type and remaining moisture of the laundry you wish to dry. The
anticipated program duration is shown on the display.
Extra program settings can also be selected for each program. See STEP 5.
Choose between the following programs:
Program table
Description
Max.
loadProgram
Use this program for thicker multi-layered non-sensitive cotton laundry.
After drying, it will be completely dry and ready to be stored in the
cupboard.
Full
load
Normal Cotton
The program is intended for drying wet cotton laundry. It is the most
energy-efficient program for drying cotton laundry. The energy usage
data is determined using the program cycle setting and medium
dryness setting per CAN/CSA-C361-16 Standard and DOE test
procedure methods specified at 10 CFR 430, Subpart B, Appendix
D2.
Use this program for thicker, non-sensitive laundry, which will be
completely dry after drying.
Full
load
Storage dry cotton
Use this program for non-sensitive laundry. After drying, it will be
ready for ironing.
Full
load
lron Dry cotton
The program is used for drying synthetic and blended textiles.1/2
load
Synthetics
Use this programe to dry delicate laundry, which may be slightly
damp after drying. We recommend using a dedicated laundry bag.
1/4
load
Delicates
This programe is used to dry wool and clothing according to the
manufacturer's instructions specified on the label.
1/4
load
Wool
The program is used for drying cotton and synthetic laundry at the
same time.
1/2
load
Mixed laundry
44
Operating instructions - Drying step by step (1–7)
Description
Max.
loadProgram
Use this programe for larger items. When the programe is complete,
they will be completely dry.
1/2
load
Bedding/ Towels
Dry fitted sheets separately or together with similar large items. Shake
them out before drying.
Use this program to dry textiles stuffed or padded with down (pillows,
duvets, jackets etc.). Dry large items separately and use the extra
dry function or the time program if necessary.
1/4
load
Down/ Bulky Items
The program is suitable for smaller amounts of laundry that you wish
to dry quickly and efficiently.
1/2
load
Quick Pro
Use this program for non-sensitive laundry that is still slightly damp
and has to be thoroughly dried. In the time program, remaining
moisture is not detected automatically. If the laundry is still damp
after the program is complete, repeat the program; if it is too dry and
therefore creased and rough to touch, the drying time you selected
was too long. Program duration can be adjusted from 30 minutes to
4 hours (in 15-minute steps).
1/2
load
Time program
This program does not use a heater. Use it to refresh your clothes.
Program duration can be adjusted from 15 minutes to 4 hours (in
15-minute steps).
1/2
load
Airing
You can save energy by filling up the household tumble dryer to the maximum capacity specified
for each programe.
INFORMATION!
If your laundry is not dried to the desired dryness level, use extra program settings or use a more
suitable program.
INFORMATION!
No program can be started while the door is open.
STEP 5: Choosing the program settings
Using the program settings, the drying programs can be further adjusted to your wishes.
Some program settings may not be available for your selected program.
Using the program settings, the drying programs can be further adjusted to your preferences.
45
Operating instructions - Drying step by step (1–7)
1. Drying modes (Mode)
2. Dryness level/Extra dry
3. Load
4. Delay start
5. Extra functions
Choose the program settings before pressing the Start/Pause button.
When the drying program is in progress, program settings cannot be changed.
INFORMATION!
By pressing 5 Information you can display details about the program setting.
Following are the program settings that may be selected using the buttons 1 to 4:
1. Drying modes (Mode)
You can choose between additional drying modes: Default or Low temperature (Delicate).
The final level of laundry dryness and drying time will be changed.
2. Dryness level/Extra dry
You can choose between the following laundry dryness levels (+, ++, +++).
The final level of laundry dryness and drying time will be changed.
3. Load
By pressing (3) you can choose between three dryer loads (Full, Medium and Low).
Selection of actual load affects the initially displayed anticipated drying time.
4. Delay start
Select delayed start by pressing (4) when you want the drying program to start after a certain period
of time.
Use the programe selector knob or buttons (2)
and (3) to move from 30 minutes to 6 hours
in 30-minute steps, and then from 6 hours to
24 hours in 1-hour steps.
By pressing (4) Ok you confirm your selection.
Press Start to start the operation. When the countdown reaches zero, the selected drying programe
will start automatically.
46
Operating instructions - Drying step by step (1–7)
If you want to cancel the delay and start the
drying process immediately, press the button
(4). Use the programe selector knob or buttons
(2) and (3) to switch to 00:00 and confirm your
selection by pressing (4) Ok.
Press the Start button to start drying.
When the Delayed start is already set, it can be cancelled by pressing the Start/Pause button for 3
seconds to return to initial selection.
If you do not take any action for 5 minutes, the display will switch to standby mode (Standby).
Press the On/Off button to reactivate it. The display will show the countdown to the start of the drying
cycle.
If the dryer is in the standby mode, the display will switch on 1 minute before the start of the drying
cycle.
After the countdown, the drying time will appear on the display.
To access additional program settings within the selected program, press button (5), then button
(1), labeled (More Options).
Choose between:
Anti crease
To prevent creasing, select the Anti-crease
function (gentle tumbling). This function is
recommended for delicate laundry.
4
3
Confirm the selection by pressing 3. Confirm the selection by pressing 4 OK.
You may choose the duration of the anti-crease program from 0 hours to 4 hours, in 1-hour steps.
Add to favorite
You can add programs to Favorites. Press
button (3) to add the program to Favorites.
Confirm your selection by pressing button (4)
OK.
4
3
An icon will be added to the main menu for the selected program. The program will be saved.
Press button (4) Ok to return to the previous menu.
You can store up to 6 favorite programs.
• Removing a favorite program
When all 6 slots are taken, it is not possible to set a new program.
To add a new favorite program, you need to delete an existing one beforehand.
To remove a favourite programe, select the programe you want to delete. Select the setting Add
to favourite and confirm the removal of the favourite program by touching (4)Yes. The programe
will be removed.
47
Operating instructions - Drying step by step (1–7)
To select System settings, turn the program selector knob all the way to the right and confirm the
selection by pressing 4 Enter.
If no action is taken for 5 minutes, the display will switch to standby mode (Stand by).
You activate it by pressing the On/Off button or by opening the dryer door.
INFORMATION!
Some settings may not be available on drying programes.
STEP 6: Close the door and start the drying process.
Close the dryer door and press the Start/Pause button.
Start (pressed briefly – start/resume)
Pause (short press of the button - pause)
Cancel (press and hold the button for 3 seconds)
Time remaining
Depending on the selected program and load, the anticipated drying time will be displayed in hours
and minutes.
Actual drying time will depend on the selected program, load, type of laundry, spinning rate etc.
Actual drying time may be longer or shorter than initially displayed.
Pausing, stopping or changing the program
To pause the programe, briefly press the Start/Pause button.
To resume a programe, press again the Start/Pause.
You can also temporarily interrupt the drying programe be interrupted opening the door.
To resume the programe, simply close the door and press Start/Pause.
If you want to cancel the drying programe, press the Start/Pause button and hold it for 3 seconds.
The selected programe will be stopped and the cooling stage will begin. Cooling time will depend
on the selected programe and the temperature in the drum.
Only after the cooling is complete, can you select a new programe and press Start/Pause.
WARNING!
The final drying cycle includes a cooling down stage without heater operation. It makes sure the
laundry is of suitable temperature at the end of the program and that it can be taken from the
dryer without risk of touching hot clothes.
The drying programe can be interrupted by pressing the On/Off button.
48
Operating instructions - Drying step by step (1–7)
The dryer will switch off. After the dryer is switched on, press the Start/Pause button to resume the
program.
STEP 7: End of program
After the drying program is complete, the display will indicate that the program finished successfully.
If you have selected the setting Anti-crease , the dryer will continue to operate after the end of the
drying cycle for the amount of time specified upon selection of this programe setting.
After the end of the drying cycle, you have the option to save the program as a favorite program
(see chapter STEP 5: Choosing the program settings).
Open the door towards you and remove the laundry from the dryer.
Clean the lint filter in the door (see chapter Cleaning and Maintenance).
Make sure the dryer drum is empty, then close the door.
5 minutes after the end of the program or last activation, the display will switch off to standby mode
in order to save power.
The display will light up again if you press the On/Off button or open the dryer door.
If the lint filter is clogged, airflow will be reduced, which will increase drying time. If you notice
extended drying time, clean the filter and restart the appliance.
WARNING!
After the drying process, unplug the dryer power cord from the power outlet.
WARNING!
When the door is opened, notification will appear on the display that lint filter needs to be cleaned.
49
Operating instructions - Drying step by step (1–7)
System settings
Enter the System settings by rotating the program selector knob in the main menu all the way to the
right.
Confirm your selection by pressing (4) Enter .
Press the (1) Exit in any setting to return to the main menu.
Certain settings allow a short description to be
displayed by pressing (4) Information.
Then, use the program selector knob to scroll through the list of settings that can be changed.
Choose Language
By pressing 2 or 3 you can navigate the list of
languages.
Confirm your selection by pressing 4 Save.
2
3
4
Lock
This setting disables the on-screen buttons to
prevent children from accidentally starting or
changing the cycle.
You can Lock the appliance by pressing 2 or
3. For further information, press 4 Information.
Choose between turning on or turning off the lock.
By pressing 4 Information brief information about the setting will appear on the display unit.
When this option is on, you can activate and
deactivate it by pressing 2 and 4 and hold
them for 3 seconds.
When the lock is activated, no other function can be selected.
After 1 minute of inactivity on the appliance, the lock will activate automatically.
50
Appliance settings
Program management
The Main menu includes the full list of
programs that can be selected using the
program selector knob. Press button (3) to
select or deselect programs you do not want
to appear in the main menu.
This setting allows only the selected programs
to be shown in the main menu. Once you have
selected all the desired programs, press
button (4) to return to the previous menu.
Press (4) Enter to display a set of programs.
Use the program selector knob to choose
between programs. Confirm your selection by
pressing 3. This defines whether the program
will be displayed in the main menu.
Symbol will appear next to the selected
program.
When you have selected a set of programs, confirm the change by pressing 4 Save.
If you have not made any changes, press 4 Exit.
Only programs marked with will appear on the display unit.
Display brightness
You can set the Brightness of the display.
By pressing 2 or 3 you can adjust the display
brightness from 1 to 5.
Confirm your selection by pressing 4 Save.
Sound volume
By pressing 2 or 3 you may choose the
acoustic signal volume.
During selection, the acoustic signal will be
played with the currently highlighted volume.
Confirm your selection by pressing 4 Save.
Display logotype
By pressing 2 or 3 or you can choose between
switching the logo On/Off.
On = display the logo at switch-on
Off = do not display the logo at switch-on
51
Appliance settings
Wi-Fi settings
For settings, press 4 Enter.
Refer to the setting procedure in the chapter
"Initial setting before use": "How to enable Wi-Fi
on the device?".
To return to "System settings" press 4 Exit.
Shop mode
The machine simulates the display and
operation of a standard cycle for
demonstration purposes. This setting can only
be activated in retail stores.
By pressing 2 or 3 you can choose between
turning on or turning off.
For further information, press 4 Information.
Cleaning reminder
By pressing the button 2 or 3, you can choose
between turning On or Off .
For best performance, clean the filters and
empty the condensation tray.
The selection must be confirmed by
pressing (4) OK.
Error (Failure read out)
The last three errors shown to the user are
listed in the failure read-out menu.
4
Reset program list
By pressing 4 Enter you will access the Reset
program list, which means that all favorite
programs will be deleted. Other settings will
not be affected.
Confirm the reset by pressing 4 OK.
52
Appliance settings
Factory reset
By pressing 4 Enter you access Factory
settings, which means the settings will return
to their original values (your personal settings
and all favorite programs will be deleted).
Confirm the reset by pressing 4 OK.
53
Appliance settings
Cleaning the exterior of the appliance
Wipe all parts of the dryer dry with a soft cloth
Keep the area around the dryer clean and
cool; dust, heat, and humidity can extend the
drying time.
ELECTRIC SHOCK!
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains
(unplug the power cord from the outlet).
WARNING!
Clean the exterior of the appliance and the display using a soft, damp cotton cloth and water.
Do not use solvents or abrasive cleaners, as they may damage the appliance. (Please follow the
recommendations and warnings provided by the cleaning product manufacturers.)
Special Notes on Cleaning
If necessary, the lint filter housing and the opening into
which the lint filter is inserted must be cleaned.
If necessary, clean the door gasket as well.
54
Cleaning and Maintenance

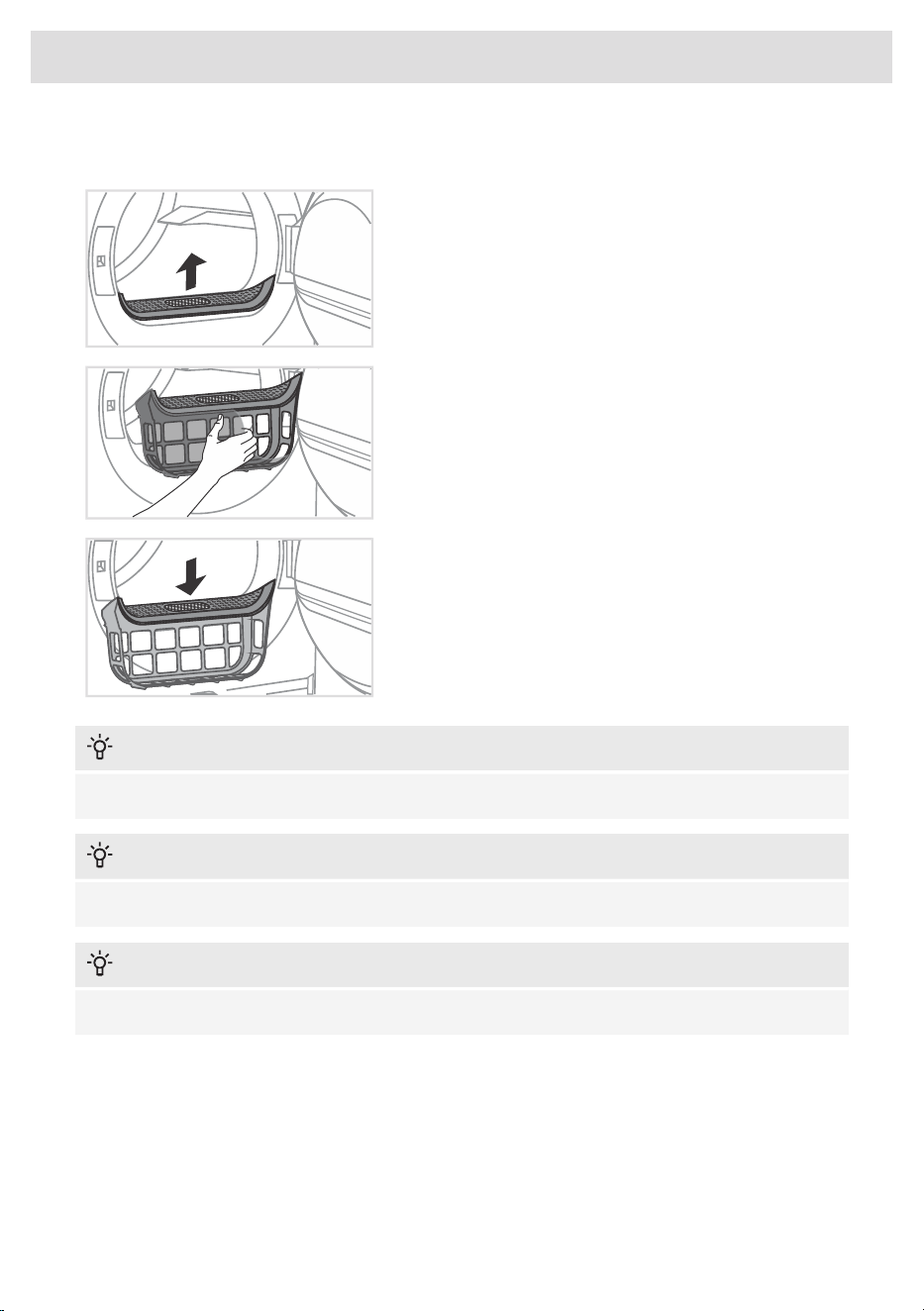

Cleaning the lint filter
1 Pull out the lint filter.
2 Carefully remove fibers and threads from the lint filter
using your hand or a vacuum cleaner.
3 Reinstall the lint filter.
INFORMATION!
Make sure the lint filter is correctly inserted.
INFORMATION!
Clean the lint filter after each drying cycle.
INFORMATION!
Never operate the dryer without a lint filter or if the lint filter is damaged.
55
Cleaning and Maintenance
Disturbances from the environment (e.g. the power grid) may result in various error reports (see
Troubleshooting table). In such case:
• Switch off the appliance, wait for 1 minute, switch the appliance back on, and repeat the drying
program.
• If the error persists, call an authorized service center.
• You will be able to solve most of the problems in dryer operation by yourself (see troubleshooting
table below).
• Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be
covered by the warranty. In such cases, the costs of repair shall be charged to the user.
INFORMATION!
The warranty does not cover the errors or failures resulting from disturbances from the environment
(lightning strike, power grid failures, natural disasters etc.).
The following lists all the errors that the user can see on the user interface.
What to do?CauseProblem/
Error
Check whether the main switch is on.The main switch is not switched
on.
The machine will
not start.
Check the breaker.There is no voltage in the power
outlet.
Check if the power cord plug is correctly
inserted into the power outlet.
Re-read the instructions for use again.Program was not started in
accordance with the
instructions.
There is voltage
in the outlet, but
the drum does
not spin ... The
dryer does not
work.
Check if the door is closed properly.Door might be open.
To cancel the Delayed Start option, press 5
the (Skip) button.
Delayed start might be
activated.
The dryer does
not work.
Clean the lint filter (see chapter Cleaning and
Maintenance).
The lint filter may be clogged.
As a result, the temperature in
the dryer increases, leading to
overheating, which causes the
heating element to switch off.
The machine
stops operating
completely
during a program.
Wait for the appliance to cool down, and try
running it again. If the dryer still doesn't dry,
call a service technician.
The noise will subside without any intervention.If the dryer is out of use for a
long period of time, the drum
can cause temporary dimples
on the rubber drum rollers.
A slight rumbling
noise appears.
Reduce the amount of laundry.Excessive load on the door (too
much laundry in the drum).
The door opens
during drying.
56
Errors: what to do?
What to do?CauseProblem/
Error
Make sure you have sorted the laundry by
type and thickness, whether you have added
a suitable amount of laundry to the drum, and
whether you have selected a suitable program.
Laundry of varying types,
thickness, and excessive
amount of laundry.
Unevenly dried
laundry.
Clean the filter (see chapter Cleaning and
Maintenance).
Filter is not clean.Laundry not dried
or drying takes
too long.
Make sure there is adequate supply of fresh
air to the dryer; for example, open the door
and/or window.
Dryer is placed in a closed
room; room that is too cold; or
room that is too small and the
air overheats as a result.
Check if the temperature in the room where
the dryer is installed is too high or too low.
If the load is still wet after completed drying
cycle, an appropriate drying program should
be run again (after cleaning filter).
Laundry was not sufficiently
wrung or spun.
Use a suitable program or extra functions.Amount of laundry dried in the
appliance is too large or
insufficient.
Close the buttons or zippers on the laundry
before drying. Select a suitable program (e.g.
the bedding program). After the drying
process, loosen the laundry and select an
additional drying program (e.g. timed drying
program).
Laundry (such as bedding) gets
tangled.
Failure display
If a failure occurs while a program is running, Error X will be shown on the display. Press and hold
the INFO (4) button to view the error description on the display. Switch off the dryer and turn it back
on.
The following errors may appear on the display (depending on the model):
What to do?Error indication on the displayProblem/
Error
Control unit failure.Control unit failure.E0
Call service center.
Temperature sensor failure.Thermistor error.E1.1, E1.2, E1.3
Call service center.
Communication error.Communication error.E2
Call service center.
57
Errors: what to do?
What to do?Error indication on the displayProblem/
Error
Pump error when draining condensed water
into the water tank.
Pump error.E3
Call service center.
Control unit failure.Relay failure.E6
Call service center.
Control unit failure.Door failure.E7
Call service center.
Control unit failure.Button failure.E8
Call service center.
Call service center.PB/UI software versions are not
compatible.
E9
Call service center.Error in BLDC motor
communication.
E11
INFORMATION before, during, and after the program (depending on the model)
What to do?Error indication on the display
Close the dryer door before starting or
resuming the program.
Please close the door before pressing start.
Press the Start/Pause button to restart or
resume the program.
Cycle was interrupted by power failure. Please
resume.
See chapter Cleaning and Maintenance.Clean the lint filter.
See chapter System settings.The lock is active. Press and hold the (2) and (4)
buttons for 3 seconds to unlock.
58
Errors: what to do?
Limited Warranty – Residential and Professional Appliances
This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. Service
must be provided by an authorized ASKO service company. YOUR SOLE AND EXCLUSIVE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This
Limited Warranty is valid only when the ASKO Product is used in the country in which it was
purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.
This warranty only applies to the original purchaser and is non-transferable.
Residential ASKO Products Used Exclusively for Household/Personal Purposes:
Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must
be filed with ASKO within two (2) years from date of purchase. Service will be provided during normal
business hours. ASKO Dishwashers eligible under 2024-2025 5-Year Warranty Promotion must be
registered via us.asko.com website within ninety (90) days of the date of purchase.
Residential ASKO Products Not Used Exclusively for Household/Personal Purposes or used
Commercially or used in Marine, Mobile or Aeronautical Applications:
One (1) Year limited Warranty – Any warranty service claims for ASKO Products not used exclusively
for household and personal use, or used commercially or used in marine, mobile, or aeronautical
applications must be filed with ASKO within one (1) year from date of purchase. Service will be
provided during normal business hours.
Professional ASKO Products Used In Residential or Commercial Applications:
Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must
be filed with ASKO within two (2) years from date of purchase. Service will be provided during normal
business hours.
Items excluded from warranty
This limited warranty does not cover:
1. Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent
with published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of the ASKO Product, to instruct you on how to use the
ASKO Product, to replace or repair house fuses, or to correct house wiring or plumbing.
3. Consumable items and parts, such as filters.
4. Damage resulting from accident, alteration, misuse, abuse, negligence, fire, flood, natural
disasters, improper use, improper installation, installation not in accordance with electrical or
plumbing codes, or use of products not approved by ASKO, as well as any attempted repair by
other than authorized ASKO service companies.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of the ASKO
Product, unless such damage results from defects in materials or workmanship and is reported
to ASKO within 5 days from date of purchase.
6. Pickup and delivery. The ASKO Product is intended to be repaired in your home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the ASKO Product.
8. Expenses for travel and transportation for product service if the ASKO Product is located in a
remote area where service by an authorized ASKO service company is not available.
9. The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location
or is not installed in accordance with ASKO’s published installation instructions.
10. Replacement parts or repair labor on ASKO Products with original model/serial numbers that
have been removed, altered or cannot be easily determined.
59
Service and warranty
Disclaimer
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow exclusion or limitations regarding
warranty rights. This Limited Warranty gives you specific legal rights and you may have other rights
that vary from jurisdiction to jurisdiction. Attempted repair by any person other than an authorized
ASKO service company will void this Limited Warranty.
Limitation of liability
IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS,
SUBSIDIARIES AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, EXEMPLARY,
PUNITIVE OR SPECIAL DAMAGES. IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND
THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER
THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID
FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the
exclusion or limitation of incidental, consequential or other damages, so these limitations and
exclusions may not apply to you. This Limited Warranty gives you specific legal rights. You also may
have other rights that vary from jurisdiction to jurisdiction.
ASKO Customer Care
Read the chapter Errors: what to do? before contacting the service department. If you have
encountered a problem that you cannot resolve, please contact your nearest dealer.
us.asko.com, +1-800-898-1879USA
Service after expiration of limited warranty
For information about obtaining parts and labor after expiration of this Limited Warranty or arising
outside the scope of this Limited Warranty, please contact ASKO Customer Care.
60
Service and warranty
Before calling customer service
See the chapters Errors: what to do? and
Cleaning and Maintenance and see if you can
resolve the problem yourself.
When you contact a service centre, please
state the model (2), type (1), and serial number
(3) of your dryer.
Model, type, and serial number are indicated
on the rating (type) plate located on the interior
side of the dryer door.
The QR and AUID codes are also located on
the rating plate.
1 - Model type
2 - Model
3 - Serial number
4 - QR code
5 - AUID code
6 - Article number
INFORMATION!
A list of spare parts and repair tips in accordance with the current Ecodesign Directive can be
found by scanning the QR code located on the inside of the door of the dryer.
Or on the following link: https://auid.connectlife.io
INFORMATION!
Report any malfunction to your local call center; all information can be found in the enclosed
warranty statement. Contact details of your authorized service center are available in the warranty
statement supplied with the appliance and on the website by scanning the QR code on the rating
plate (see chapter Service).
INFORMATION!
Some simple faults described in the chapter Errors: what to do? can be fixed by the user himself
by taking into account the instructions without risk to their own safety and without affecting the
warranty conditions.
61
Service
WARNING!
In case of a failure, only use approved spare parts by authorized manufacturers.
WARNING!
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be
covered by the warranty. In such cases, the costs of repair shall be charged to the user.
Electrical Hazard – Warning During Servicing
ELECTRIC SHOCK!
Certain internal parts are intentionally not grounded and may present a risk of electric
shock only during servicing. Service Personnel – Do not contact the following parts while
the appliance is energized: motor, pump, and control unit.
62
Service
Technical data
33 1/2" (850 mm)Height
23 1/2" (595 mm)Width
24 3/4" (628 mm)Depth
4.20 cu.ft. (119 L)Drum capacity
See the rating plateMaximum drying load
See the rating plateRated power
Stainless steelDrum material
Hot-dip galvanized and powder coated sheet metal, or stainless steel sheet.Housing material
Typeface License Notice
This product includes the Noto Sans font, which is licensed under the SIL Open Font License, Version
1.1.
The full text of the license is available at: https://openfontlicense.org
Noto Sans is an open-source typeface developed by Google, and it may be used, modified, and
redistributed under the terms of the SIL Open Font License.
63
Technical information
Radio equipment type
HL3215STG(depending on the model)
HLW3215-TG
HLW3215-TG01
Wi-Fi
2.4000 GHz - 2.4835 GHzOperating frequency range
≤10 dBm/MHz (EIRP) (Antenna gain <10 dBi)Maximum output power
Gain: 0 dBiMaximum antenna gain
Bluetooth
2.400 GHz - 2.4835 GHzOperating frequency range
6 dBm (≤ 10 dBm)Carrier output
F1DEmission type
Declaration of conformity
The company declares that the device with the ConnectLife function complies with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of
Conformity can be found at the web address https://auid.connectlife.io on your device page under
additional documents.
64
Technical information
The table shows the drying time and power consumption values for drying a test load of laundry
spun at various spin speeds in the washing machine.
The following requirements apply to the consumption values specified below.
room temperatureInlet air temperature
50–60%Inlet air humidity
NormalDrying temperature
Energy consumption
(kWh/cycle)
Program duration
(h:min)
Spin speed
(rpm)
Load
Program
3,2501:401400Full
Normal Cotton 2,3401:091400Partial
1,7200:501400Small
3,4901:491400Full
Storage dry cotton 2,7901:251400Partial
1,9601:031400Small
2,4501:151400Full
lron Dry cotton 1,7800:541400Partial
1,3100:401400Full
1,4200:451000PartialSynthetics
2,0900:511200PartialMixed laundry
All values in the table are provided per drying cycle.
INFORMATION!
You can save energy by filling up the household tumble dryer to the maximum capacity specified
for each programe.
65
Table of consumption values
INFORMATION!
Due to variations in the type and amount of laundry, power supply fluctuations, and ambient
temperature and humidity, the values measured by the end user may differ from those listed in
the table.
66
Table of consumption values
Packaging is made of environmentally friendly materials that can be
recycled, disposed of, or destroyed without any hazard to the environment.
To this end, packaging materials are labelled appropriately.
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. Take the product to an
authorized collection center for waste electric and electronic equipment
processing.
When disposing of the appliance at the end of its useful life, remove all
power cords, and destroy the door latch and switch to prevent the door
from locking or latching (child safety).
Correct disposal of the product will help prevent any negative effects on
the environment and health of people, which could occur in case of
incorrect product removal. For detailed information on removal and
processing of the product, please contact the relevant municipal body in
charge of waste management, your waste disposal service, or the store
where you bought the product.
67
DISPOSAL
924761
www.us.asko.com
We reserve the right to make changes.
-a2
