ZJE0066 8‑Port Shared Power Bank Cabinet
Specification Sheet
1. Product Overview
Product Name: 8-Port Shared Power Bank Cabinet
Model: ZJE0066
Application: Shared power bank rental service
Scenarios: Shopping malls, airports, stations, restaurants, hotels, public places
2. Physical & Appearance

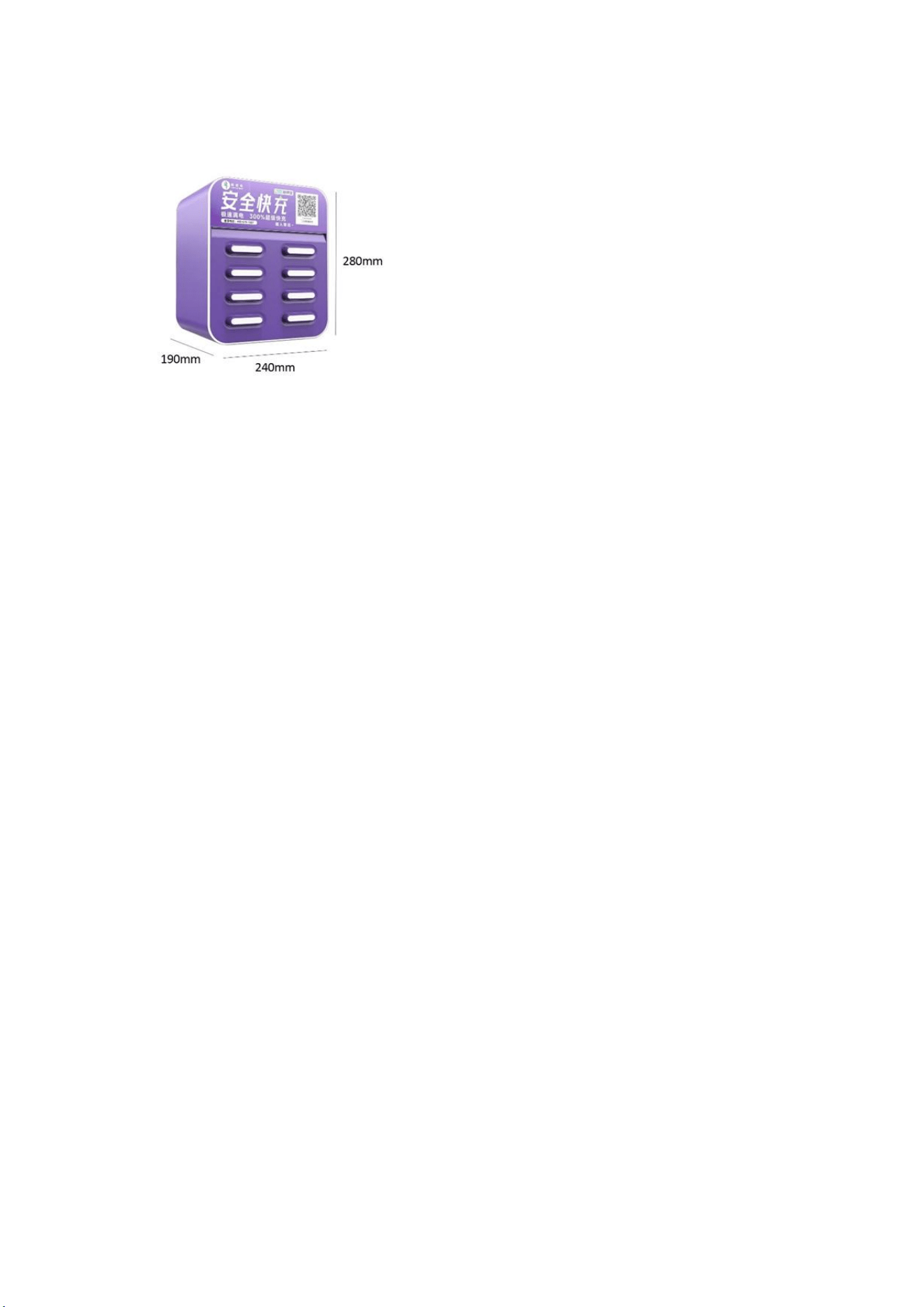

Dimensions: 240mm × 190mm × 280mm
Material: ABS+PC, Fireproof V0
Color: Customizable
Display: 8-inch screen with acrylic cover
3. Structure & Charging
Slots: 8
Compatible power banks: ZJE0075 / 75A / 75B, ZJE0067A / 67B
Per-slot output: 5V 2A
Charging mode: 2 units charged simultaneously
4. Electrical Parameters
Input: AC 100–240V, 50/60Hz
Single output: DC 5V 2A
Total power: 36W
Power adapter: Built-in
5. Network & Communication
Module: China Mobile ML307A
Network: 4G
Protocols: TCP / MQTT
Support: Remote monitoring & management
6. Software & Payment
OS: Embedded system
Payment: WeChat Pay, Alipay
Functions: Data statistics, fault alarm, remote upgrade
7. Safety Features
Fireproof: Complies with national standards
Anti-theft: Anti-pry design
Protection: Over-voltage, over-current, short-circuit
Data: Encrypted storage
8. Environment
Operating temp: -10°C ~ 50°C
Storage temp: -20°C ~ 60°C
Humidity: 10% ~ 90% non-condensing
9. Installation & Maintenance
Install: Wall-mounted / Vertical
Mounting bracket: Optional (sold separately)
Maintenance: Recommended monthly
10. Packaging
Package size: 280mm × 240mm × 350mm
Package weight: 2.4kg (without power banks)
Transport: Land / Sea / Air
11. Service
Warranty: 1 year
Support: 7×24 online
Repair: Factory repair service
Accessory: Power cable
Manufacturer: Shenzhen Zhongju Dianneng Technology Co., Ltd.Address: 3rd Floor, No.24
Tongyu Road, Heping Street, Bao’an District, ShenzhenTel: 186 8212 9528
FCC Warning
15.19 Labeling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
15.21 Information to user.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled
environment.
3. This equipment should be installed and operated with minimum distance 20cm between
the radiator and your body.
