• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source contained in this luminaire shall only be replaced by the manufac-
turer or his service agent or a similar qualified person.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclu-
sively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard.
• Proper grounding should be ensured throughout the installation.
• To be connected with waterproof cable hose.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Terminal block not included.
LED LINEAR HIGHBAY
INSTRUCTION MANUAL
TECHNICAL DATA
INTRODUCTION AND WARRANTY
WARNING
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 6 years from the date of purchase. The warranty does
not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warran-
ty against damage to any surface due to incorrect removal and installation of the product. The products are
suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC
EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
6
6 YEAR
WARRANTY*
LED LINEAR HIGHBAY
INSTRUCTION MANUAL
MODEL
SKU
INPUT VOLTAGE
POWER
COLOR TEMPERATURE
USEFUL LUMEN
BEAM ANGLE
VT-9-157
242816
AC 220-240V,50/60Hz
150/200/240W (Selectable)
3000K/4000K/6500K(Selectable)
32000Lm(@WIDE CONE)
90°
CRI
DF
LIFE SPAN
MATERIAL
RATING
DIMENSION
≥80
0.9
50,000H
PC+AL
IK06
1060x65x101mm
VARIABLE CCT
VARIABLE WATTS
3000K | 4000K | 5000K
150W | 200W | 240W
3

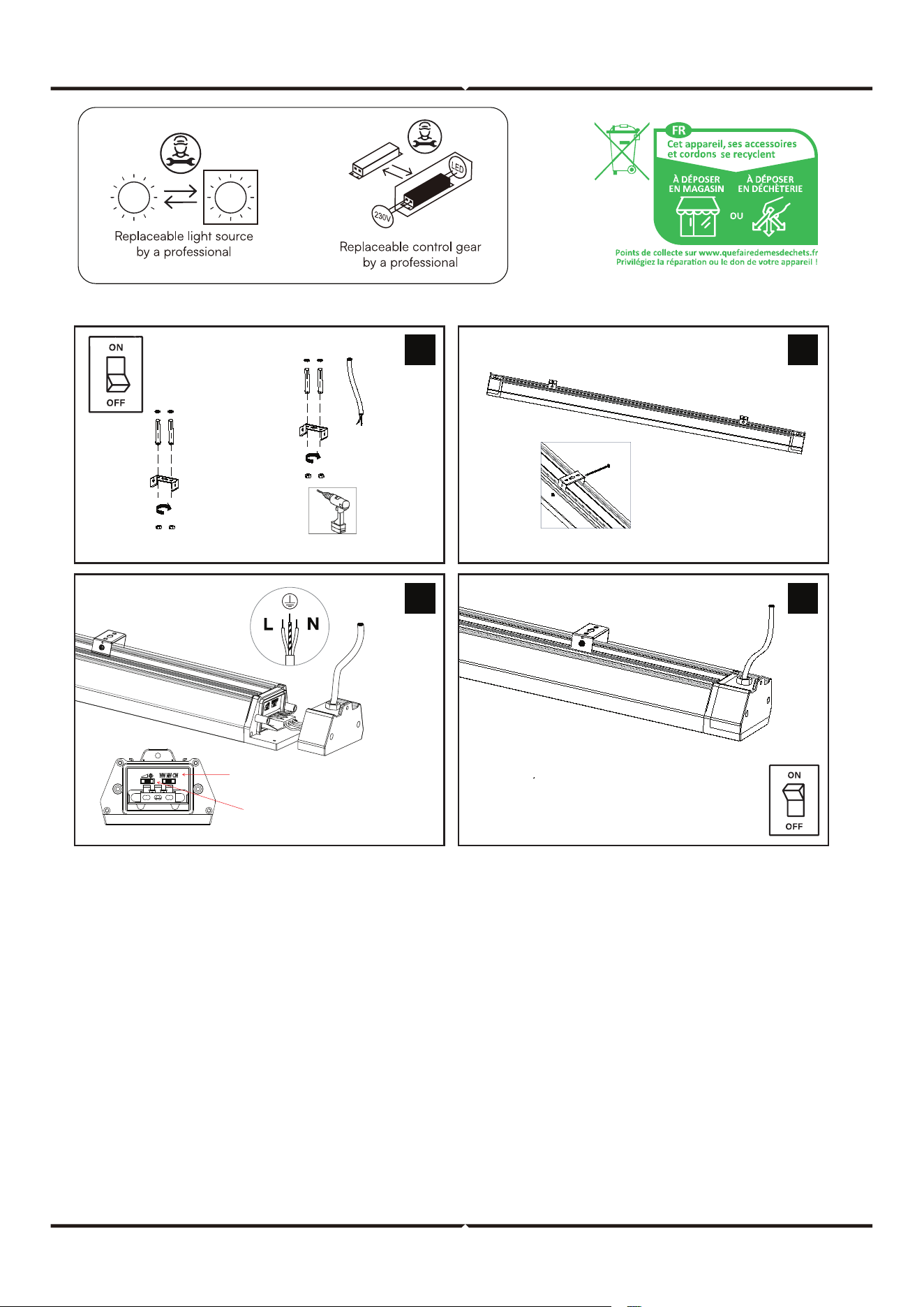

INSTALLATION DIAGRAM
INSTALLATION INSTRUCTION
CCT DIP Switch
Power DIP Switch
• Turn o the power before starting the installation
• Remove the two stainless steel brackets from the accessory pack and securely fasten them to
the ceiling using the provided expansion bolts.
• Mount the high bay light onto the installed brackets and secure it firmly using the supplied
bolts and nuts.
• Using a screwdriver, open the outer end cover. Pass the cable through the waterproof connec-
tor and connect it to the terminal, ensuring that the Live (L), Neutral (N), and Ground wires are
connected to their respective terminals correctly.
• Close the outer end cover with the screwdriver, tighten the cable gland clockwise to ensure a
proper seal, and then switch on the power supply to verify that the light is operating correctly.
• Turn on the power and test the lamp.
Please follow all installation instructions carefully. Avoid applying excessive force to the power cable
during installation. The supply connection and any external wiring must use conductors with a mini-
mum size of 3 × 1.0 mm².
1
2
3
4

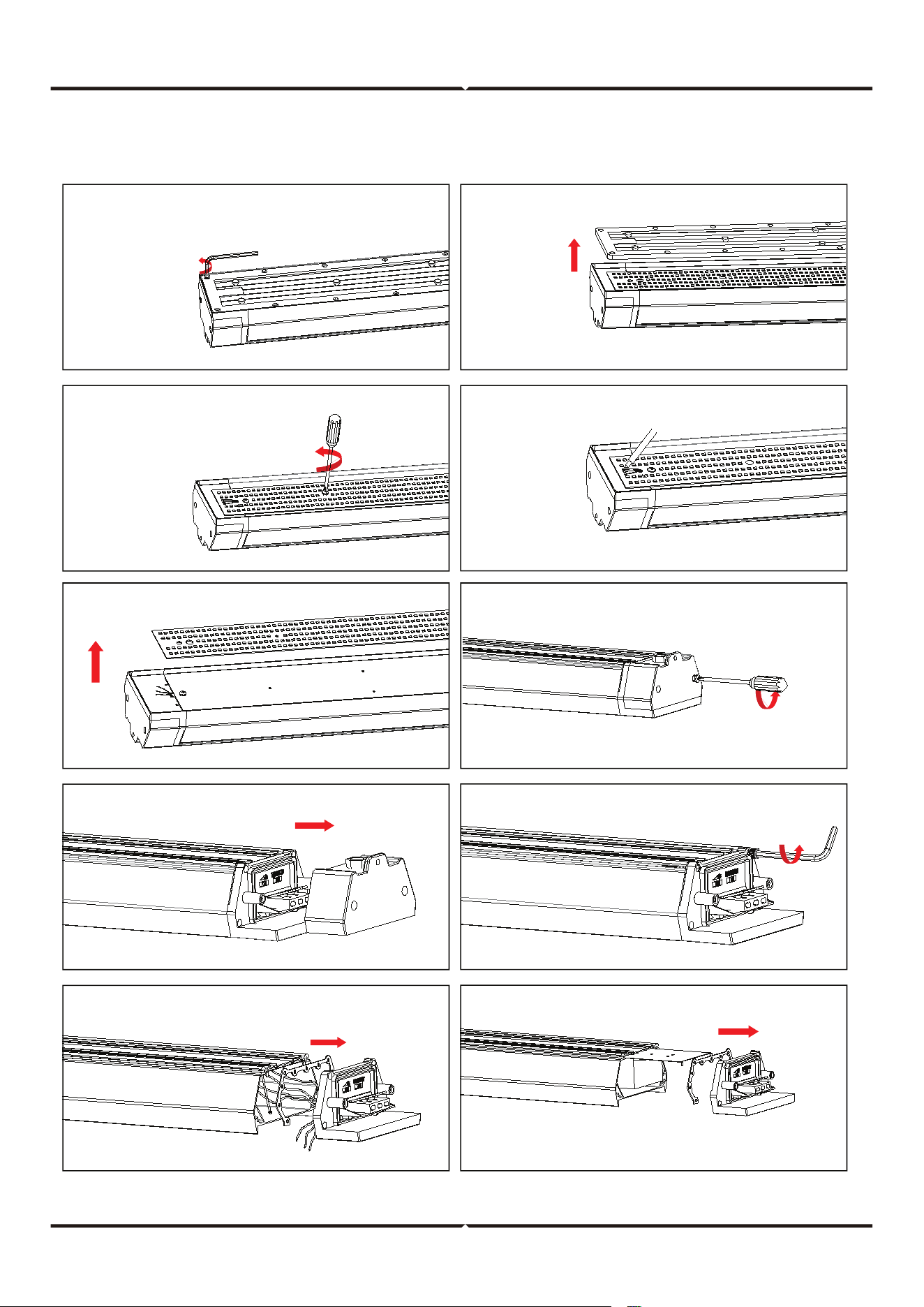

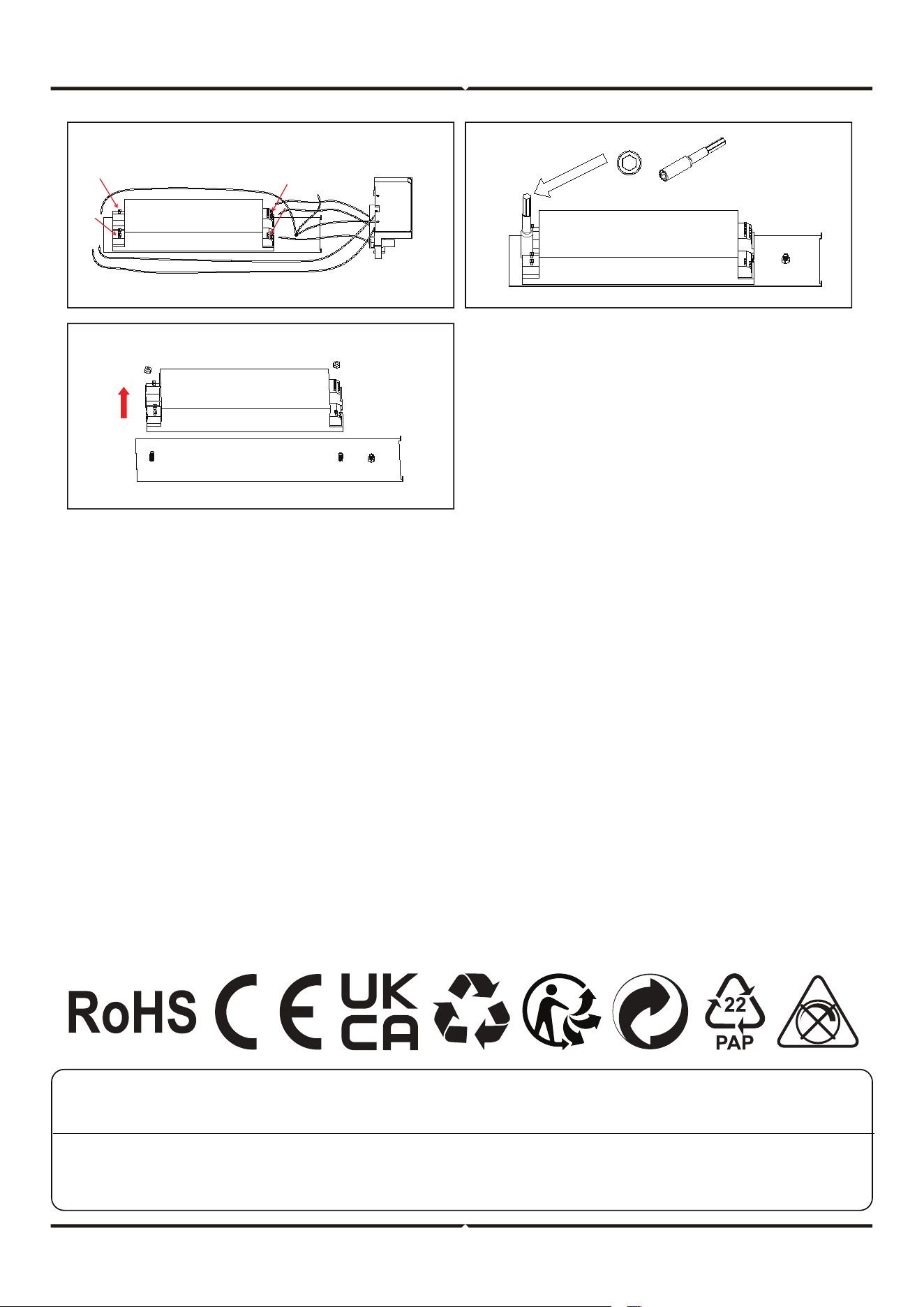

DISMANTLING INSTRUCTIONS
(For Market surveillance team only)
1
2
3 4
5
6
7 8
9 10
Note: Light source removal will void the warranty
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
11
12
13
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
