Federal ECSS60SC Industries Specialty Display End Cap User Manual

ECSS E3335-20

E3335-20

REV B 2/19/26

FEDERAL INDUSTRIES

ECSS40 & ECSS60 MODELS

INSTALLATION & OPERATIONS MANUAL

KEEP THIS MANUAL FOR FUTURE REFERENCE

Engineering and technical data are subject to change without notice.

FEDERAL INDUSTRIES 215 Federal AVE Belleville, WI 53508

Toll Free 1(800) 356-4206 WI Phone (608) 424-3331 Fax: (608) 424-3234

ECSS E3335-20

CONTENTS

INTRODUCTION ....................................................................................................................................................... 3

WARNING LABELS & SAFETY INSTRUCTIONS .............................................................................................. 4

REFRIGERATION WARNING (INSTALL-REPAIR-DECOMMISSIONING) ................................................5-10

PRE-INSTALLATION PROCEDURES ................................................................................................................. 11

INSPECTION FOR SHIPPING DAMAGE ............................................................................................ 11

INSTALLATION INSTRUCTIONS .................................................................................................................. 11-23

LOCATING THE DISPLAY CASE ....................................................................................................... 11

ELECTRICAL CONNECTION .............................................................................................................. 12

PERMANENT CONNECTED ............................................................................................................... 12

STANDARD BASE ELECTRICAL CONNECTION........................................................................... 12

TOP ELECTRICAL CONNECTION .................................................................................................... 12

CORD CONNECTED ............................................................................................................................. 13

ELECTRICAL DATA ............................................................................................................................... 13

REMOVING CASE FROM SHIPPING SKID ....................................................................................... 14

REMOVING PACKAGING MATERIAL .............................................................................................. 14

LEVELING THE CASE .......................................................................................................................... 14

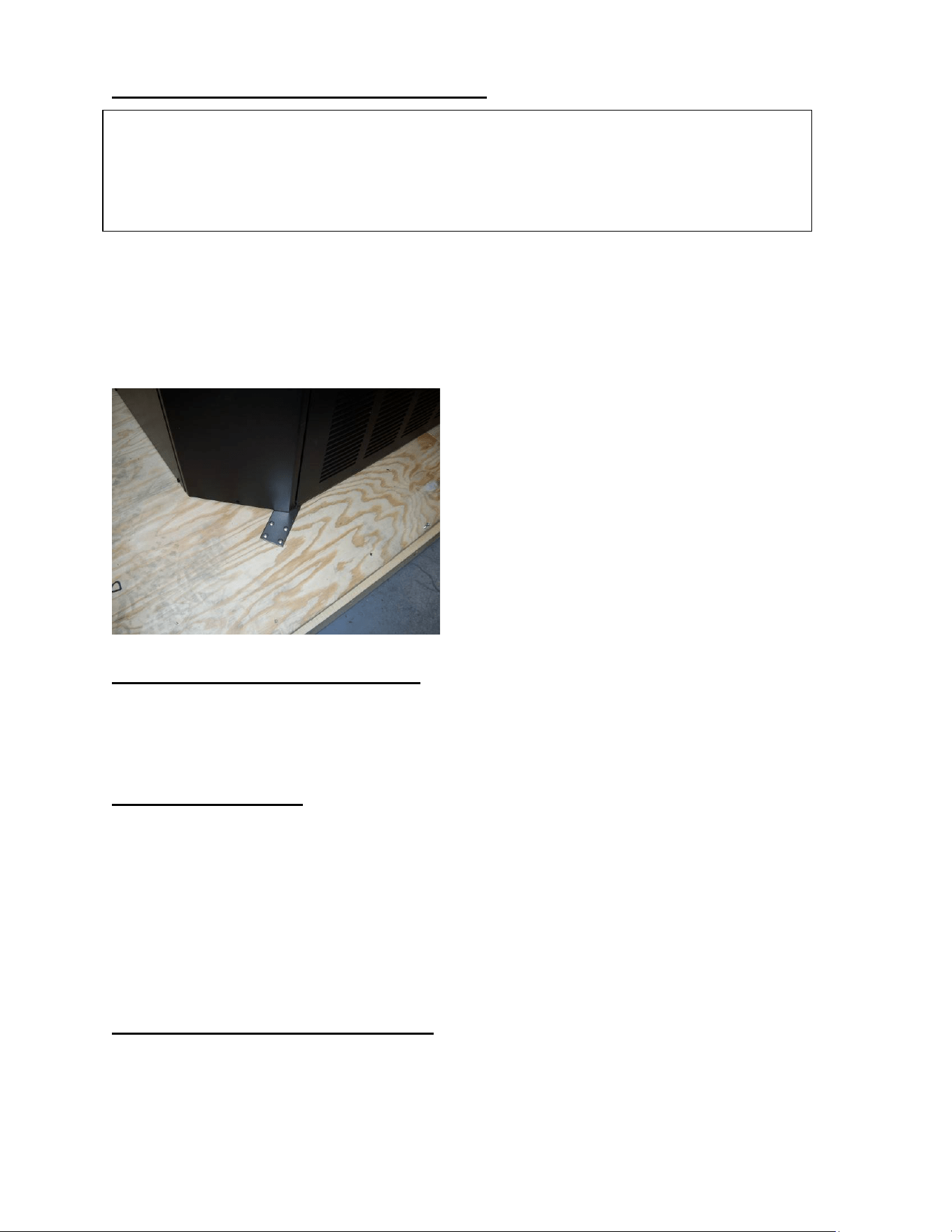

SEALING THE UNIT TO THE FLOOR ................................................................................................ 14

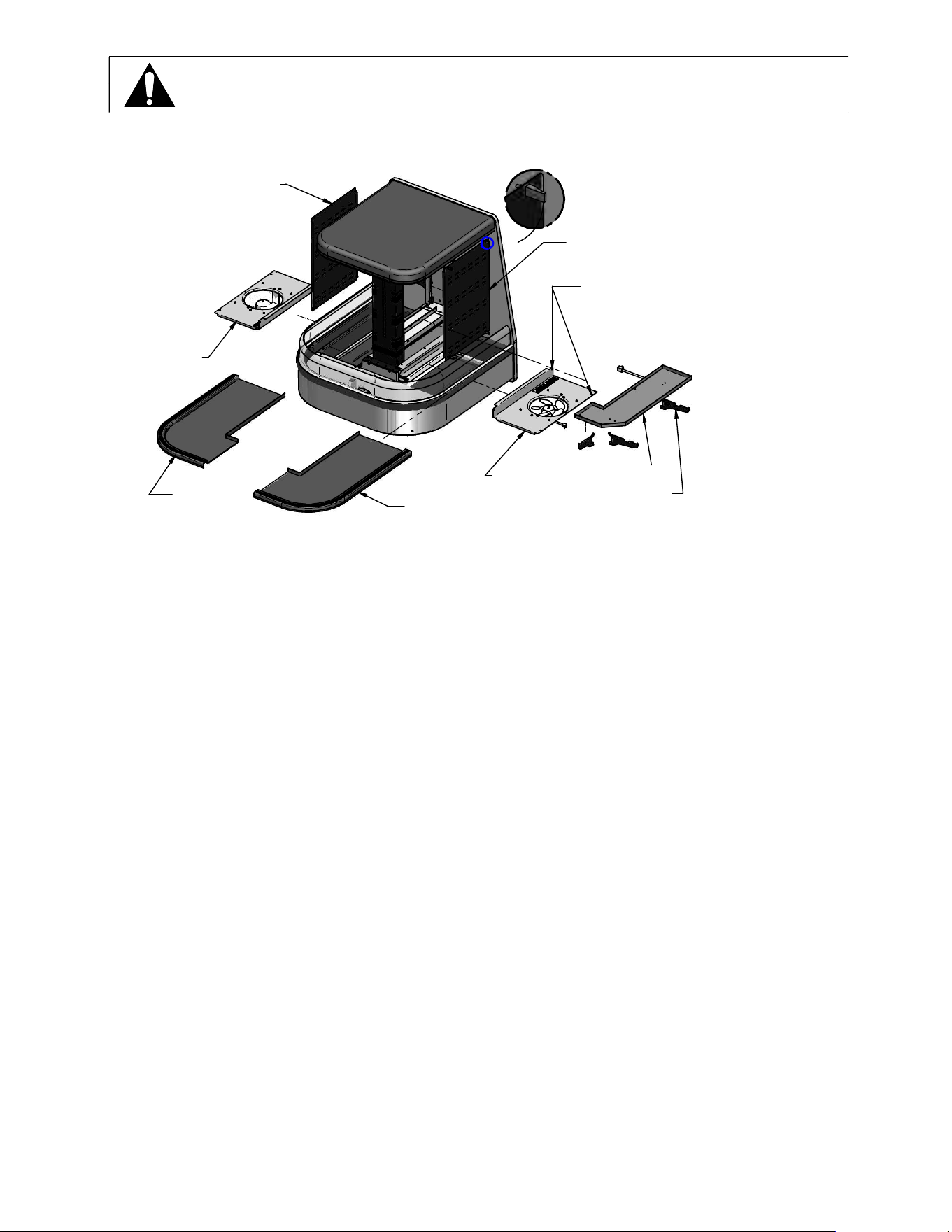

BASE PANELS REMOVAL................................................................................................................... 15

SIDE PANELS ....................................................................................................................................... 15

END PANELS ........................................................................................................................................ 15

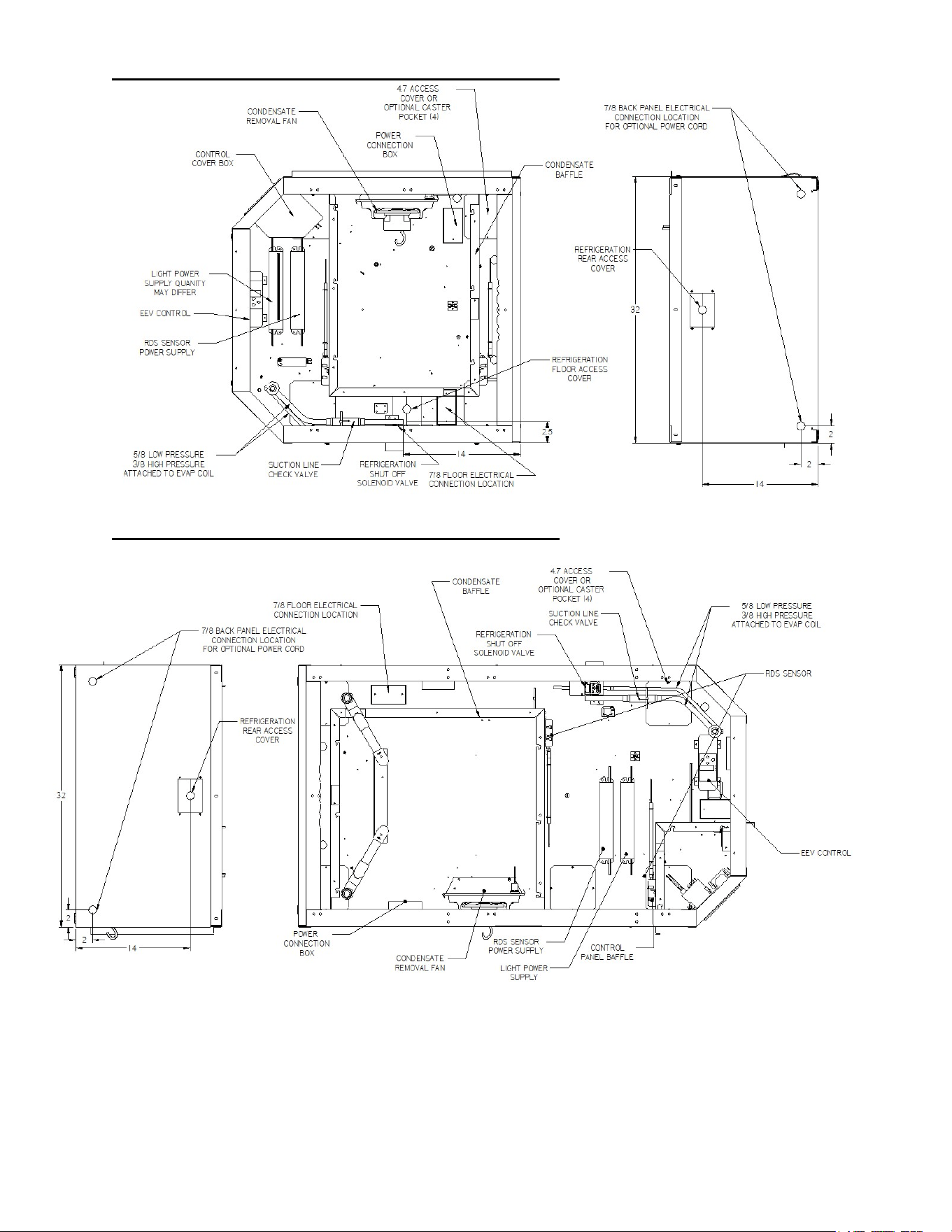

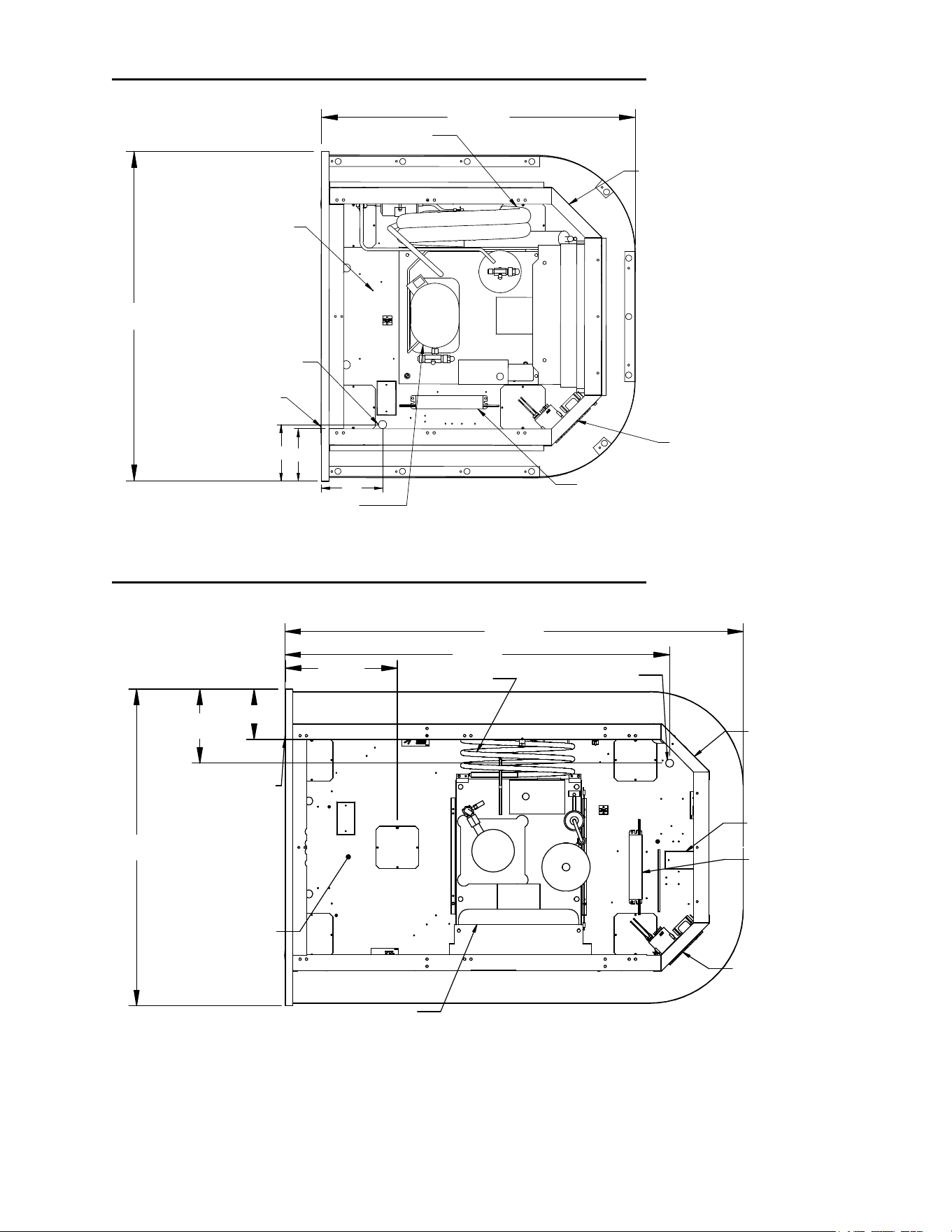

BASE COMPONENT LAYOUT SELF CONTAINED .......................................................................... 16

BASE COMPONENT LAYOUT REMOTE ...................................................................................... 17-18

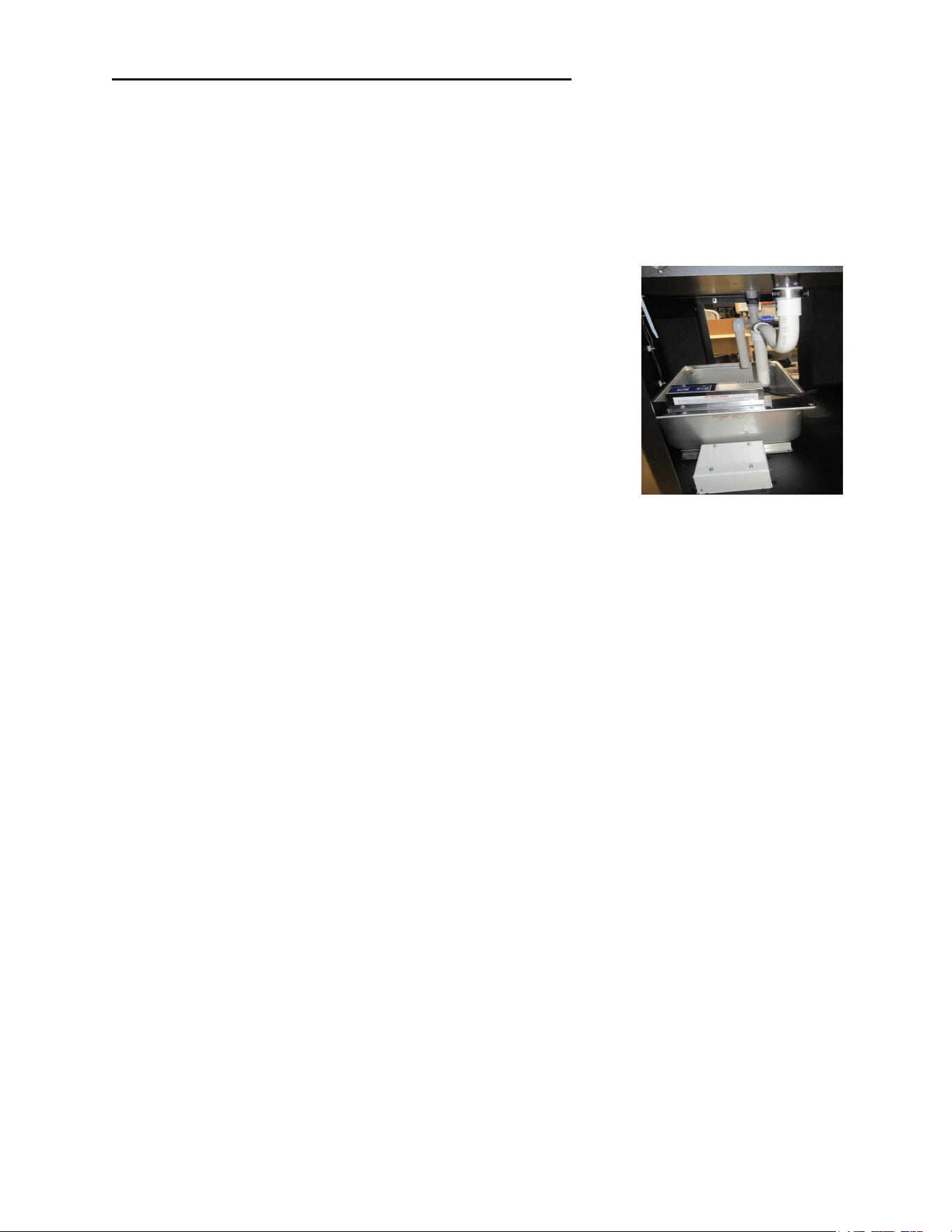

CONDENSATE PUMP STANDARD .................................................................................................... 19

CONDENSATE EVAPORATOR PAN .................................................................................................. 19

SHELVES ........................................................................................................................................... 20-21

REMOTE UNITS ............................................................................................................................... 21-23

OPERATING INSTRUCTIONS ......................................................................................................................... 24-26

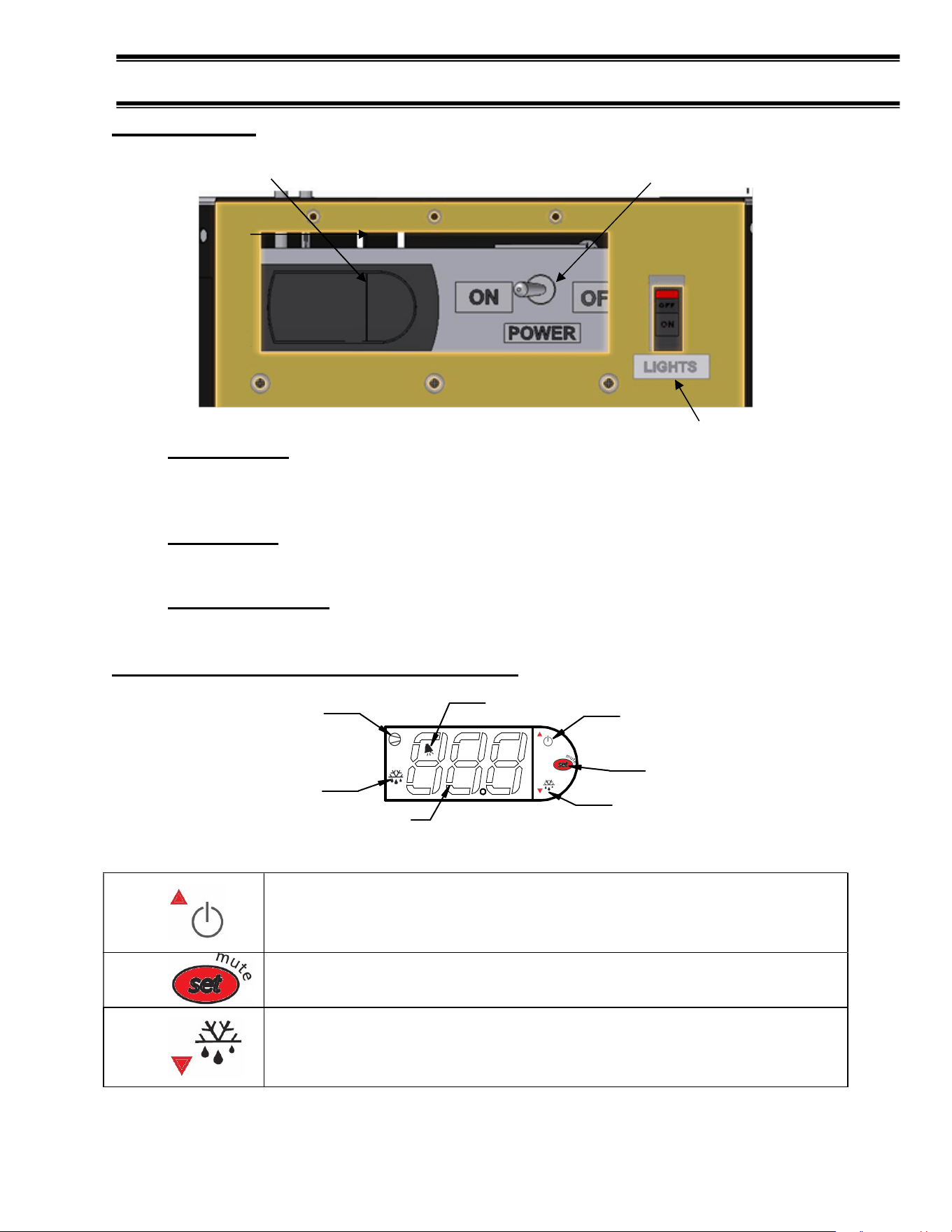

USER CONTROLS ................................................................................................................................. 24

POWER SWITCH ................................................................................................................................... 24

LIGHT SWITCH ..................................................................................................................................... 24

ELECTRONIC CONTROL ..................................................................................................................... 24

REFRIGERANT DETECTION AND MITIGATION

SYSTEM……………………………………….25

CONTROL OPERATION ........................................................................................................................................ 28

ELECTRONIC CONTROL .................................................................................................................... 28

OPERATION .......................................................................................................................................... 28

DEFROST CYCLE ................................................................................................................................. 28

MAXIMUM RUN TIMER ....................................................................................................................... 28

CONTROL PARAMETERS SELF-CONTAINED ................................................................................ 29

CONTROL PARAMETERS REMOTE ................................................................................................. 30

REFRIGERATION OPERATION .......................................................................................................................... 31

SELF CONTAINED OPERATION ....................................................................................................... 31

REMOTE OPERATION ........................................................................................................................ 31

REMOTE CONDENSING UNIT INSTALLATION .............................................................................. 32

ELECTRONIC EXPANSION VALVE (EEV)……………………………...………………………….33

INITIAL START UP ............................................................................................................................... 34

PLACING PRODUCT IN CASE ............................................................................................................ 34

CLEANING INSTRUCTIONS ........................................................................................................................... 34-36

ACRYLIC AIR DEFLECTOR ................................................................................................................... 32

DAILY CLEANING & WEEKLY CLEANING .................................................................................. 35-36

MAINTENANCE ...................................................................................................................................................... 37

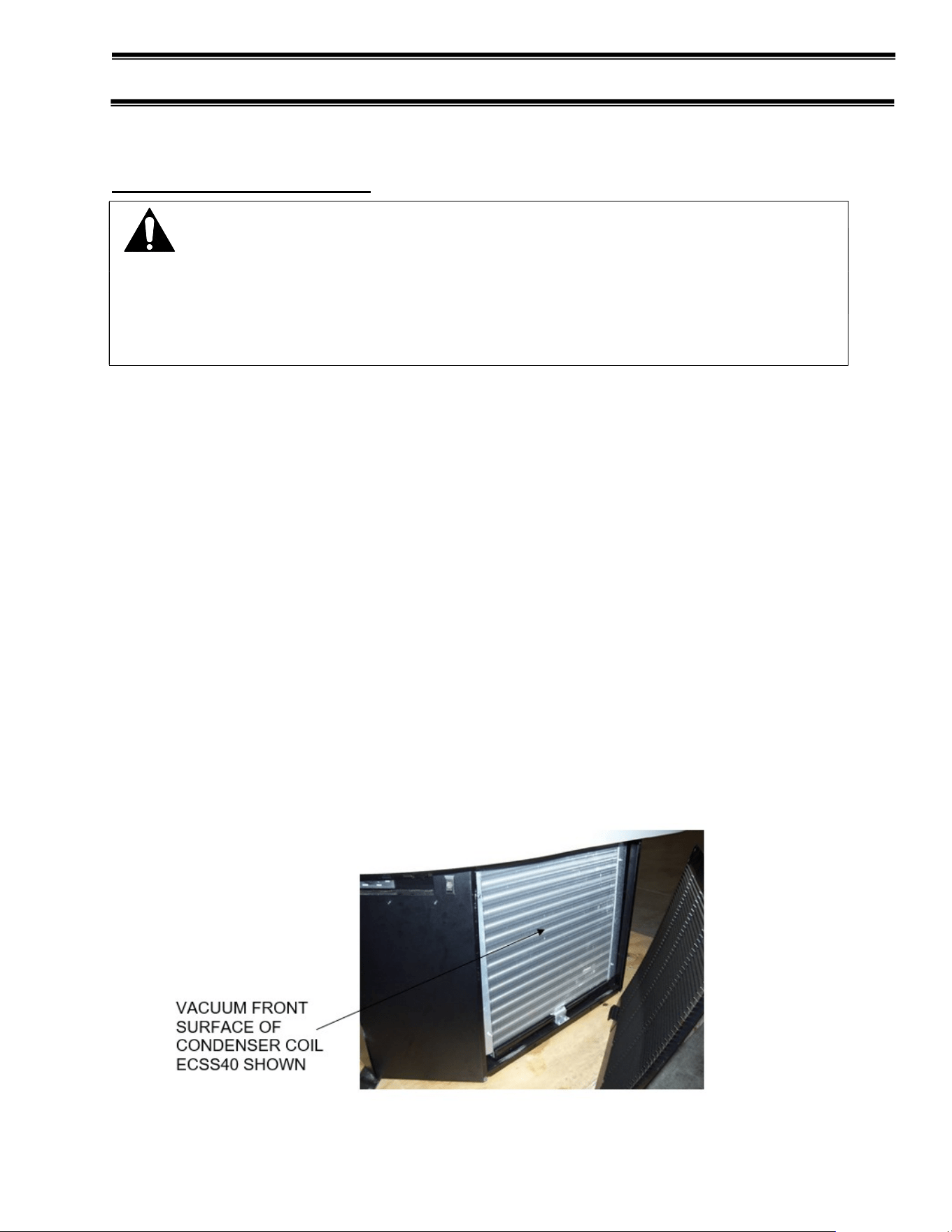

CLEANING CONDENSER COIL ......................................................................................................... 37

SERVICE INFORMATION ................................................................................................................................ 38-39

PRE-SERVICE CHECKLIST ................................................................................................................. 38

SPECIAL SERVICE SITUATIONS ....................................................................................................... 39

SALE & DISPOSAL ............................................................................................................................................ 40-41

REPLACEMENT PARTS - ...................................................................................................................................... 42

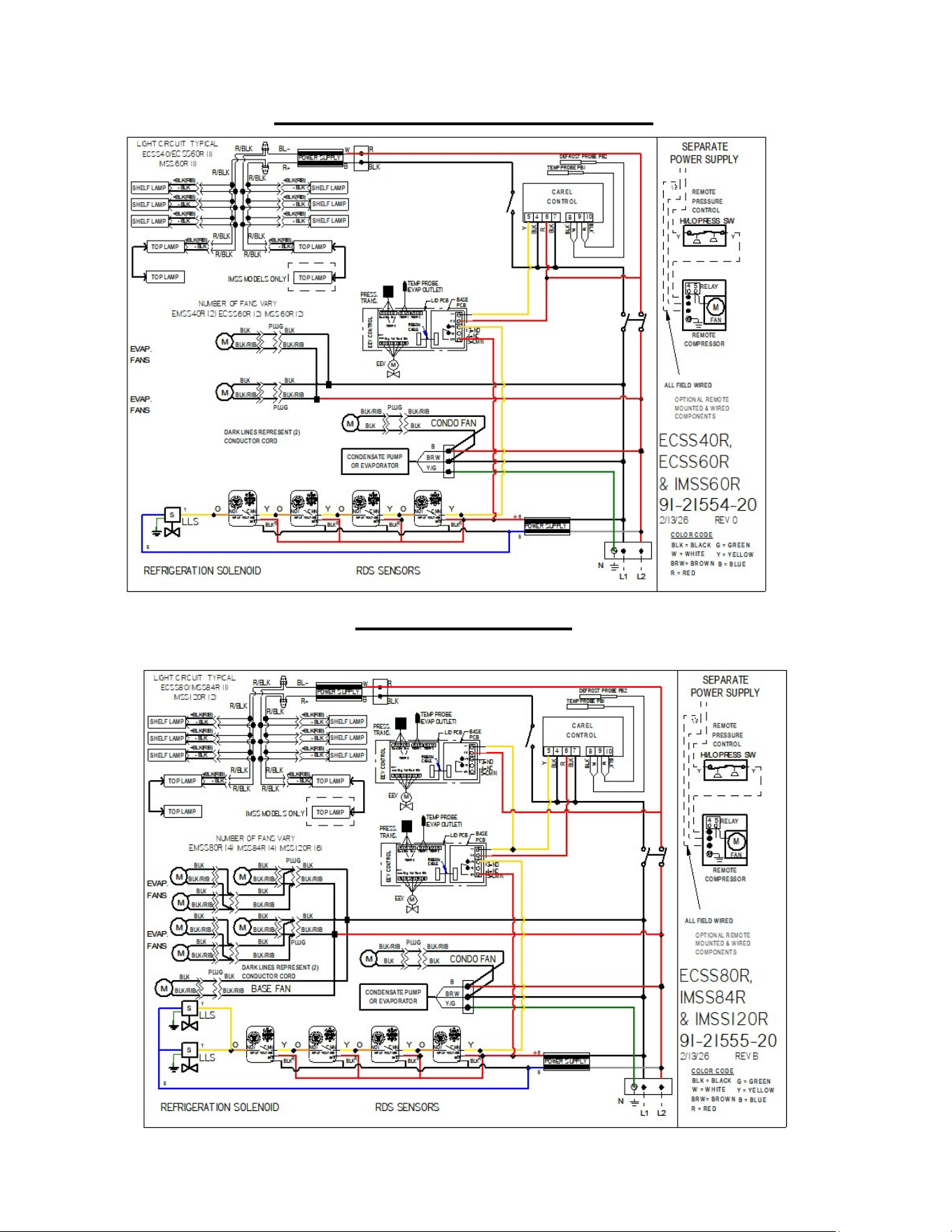

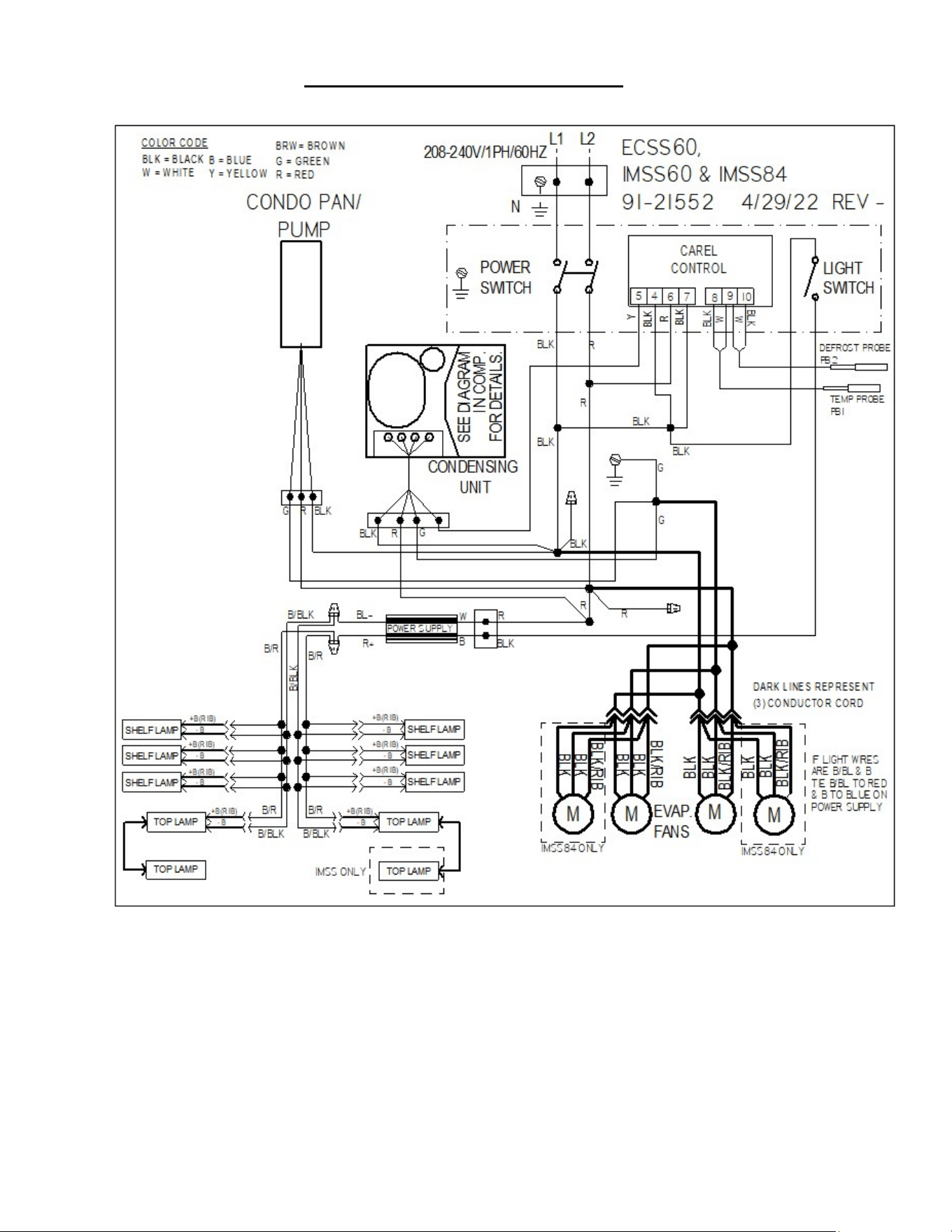

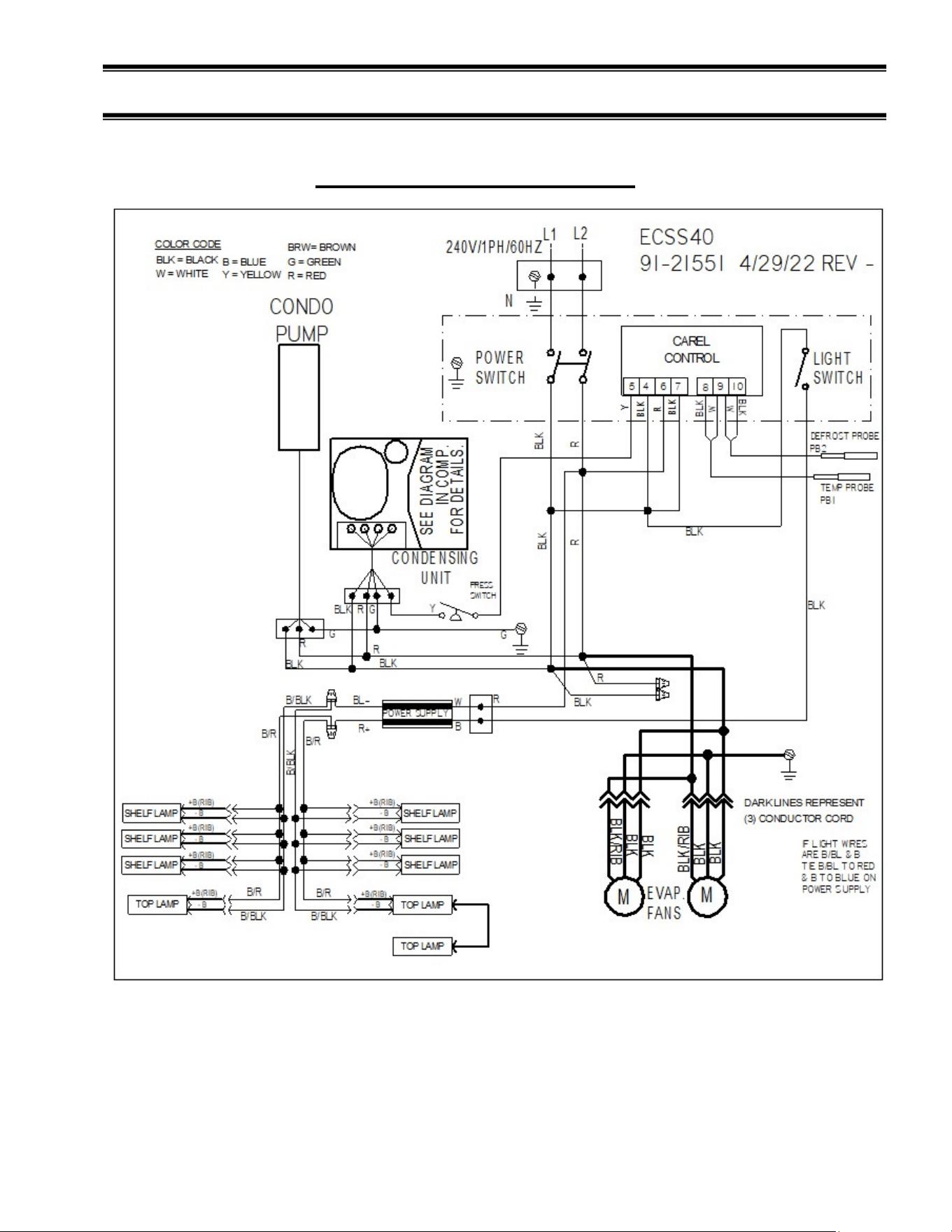

WIRING DRAWING ........................................................................................................................................... 43-45

ECSS E3335-20

INTRODUCTION

Thank you for purchasing a Federal Industries Merchandiser. This manual contains important

instructions for installing and servicing the RSSM, Refrigerated Self-Service Merchandisers. A

repair parts list is also included in the manual. Read all of these documents carefully before

installing or servicing your case.

NOTICE

Read this manual before installing your case. Keep this manual and refer to it before

doing any service on the equipment. Failure to do so could result in personal injury or

damage to the case.

NOTICE

Installation and service of the electrical components in the case must be performed by a

licensed electrician.

The portions of this manual covering components contain technical instructions intended only

for persons qualified to perform electrical work.

DANGER

Improper or faulty hookup of electrical components in the case can result in severe

injury or death.

All electrical wiring hookups must be done in accordance with all applicable local,

regional, or national standards.

NOTE: UNIT MUST BE GROUNDED

REGISTRATION & SERIAL NUMBER

It’s important to keep a record of the model and serial number of your merchandiser for warranty

and part identification. Please write them here for your quick reference.

your product today.

Case Model__________________________ Serial Number______________________

We’re here to provide you with the best possible experience with your new product, however, we

cannot cover everything about your merchandiser in this manual, so if you have any additional

questions or issues, please see the SERVICE INFORMATION PAGE to find who you should

contact.

ECSS E3335-20

WARNING LABELS & SAFETY

INSTRUCTIONS

This is the safety-alert symbol. When you see this symbol on your case or

in the manual, be alert to the potential for personal injury or damage to

your equipment.

Be sure you understand all safety messages and always follow recommended precautions and safe

operating procedures.

NOTICE TO EMPLOYERS

You must make sure that everyone who installs, uses, or services your case is thoroughly familiar

with all safety information and procedures.

Important safety information is presented in this section and throughout the

manual. The following signal words are used in the warning and safety messages:

DANGER: Severe injury or death will occur if you ignore the message.

WARNING: Severe injury or death can occur if you ignore the message.

CAUTION: Minor injury or damage to your case can occur if you ignore the message.

NOTICE: This is important installation, operation, or service information. If you ignore the message,

you may damage your case.

The warning and safety labels shown throughout this manual are placed on your Federal

Industries case at the factory. Follow all warning label instructions. If any warning or

safety labels become lost or damaged, call our customer service department at 1(800)

356-4206 for replacements.

This label is located behind the removable base This label is located below panels

and under the display deck pans. display deck pans.

CAUTION

POWER BEFORE

RISK OF ELECTRIC

SHOCK DISCONNECT

91-12340

SERVICING UNIT.

C A U T IO N

H A Z A R D O U S M O V ING PART S

D O N O T O P E R A T E U N IT W IT H

D ISP LA Y PANS R EM O V E D .

ECSS E3335-20

REFRIGERATION WARNING

INSTALLATION-REPAIR-DECOMMISSIONING

This is the Danger-Flammable symbol. When you see this symbol on your case

or in the manual, be alert to the potential for risk of fire or explosion.

Be sure you understand all safety messages and always follow recommended

precautions and safe operating procedures.

DANGER

Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained

service personnel. Do not puncture refrigerant tubing. Dispose of properly in accordance

with federal or local regulations

Consult repair manual/owner’s guide before attempting to service this product. All safety

precautions must be followed.

Follow handling instructions carefully in compliance with national regulations.

Auxiliary devices which may be ignition sources shall not be installed in the ductwork,

other than auxiliary devices listed for use with the specific appliance.

Do not store explosive substances (such as aerosol cans with a flammable propellant) in

this case.

Do not use an electrical appliance INSIDE the food storage compartments unless its type

is recommended by manufacturer.

Flammable refrigerant type specified on case nameplate is on the serial label.

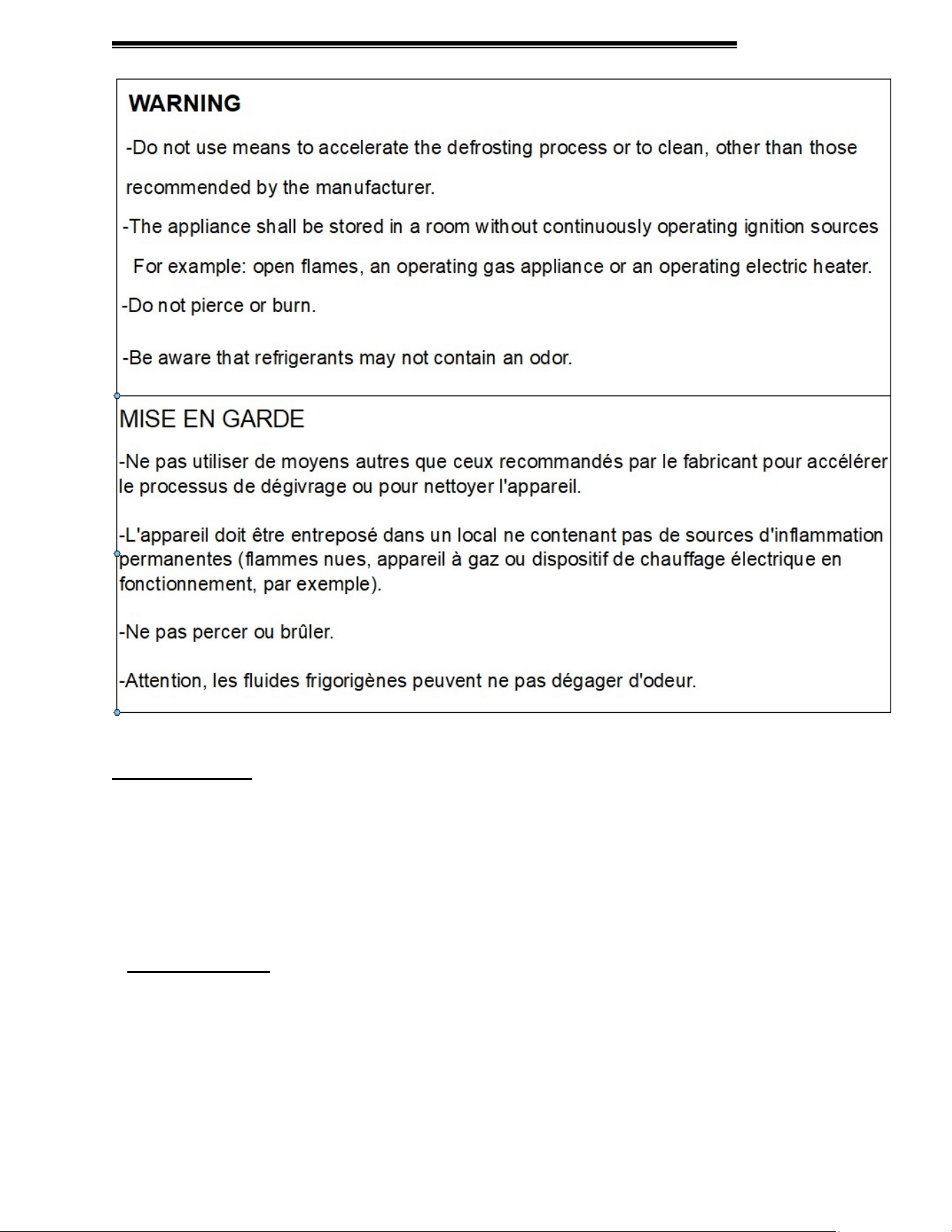

APPLIES TO R290 REFRIGERANT MODELS ONLY! Contains a charge of R290 refrigerant

with a lower flammability limit (LFL) of .038kg/m³. See table for amount of charge.

ECSS E3335-20

1. Qualification: All refrigeration and electrical maintenance, service, and repair must

be performed by a Certified Technician that is trained in the required flammable

refrigerants safety procedures. Technicians must read the entire section

“REFRIGERATION WARNINGS SECTION” of this manual.

Including but not limited to the following:

a) breaking into the refrigerating circuit.

b) opening of sealed components.

c) opening of ventilated enclosures.

2.Checks to Area: Prior to beginning work on systems containing FLAMMABLE

REFRIGERANTS, safety checks are necessary to ensure that the risk of ignition is

minimized prior to conducting work on the system.

-Capacitors are discharged: this shall be done in a safe manner to avoid possibility of

sparkling.

- No live electrical components and wiring are exposed while charging, recovering or

purging the system.

- Continuity of earth bonding.

ECSS E3335-20

-Work shall be undertaken under a controlled procedure to minimize the risk of a

flammable gas or vapor being present while the work is being performed.

-All maintenance staff and others working in the local area shall be instructed on the

nature of the work being carried out. Work in confined spaces shall be avoided.

-The area shall be checked with an appropriate refrigerant detector prior to and during

work, to ensure the technician is aware of potentially toxic or flammable atmospheres.

Ensure that the leak detection equipment being used is suitable for use with all

applicable refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe.

-If any hot work is to be conducted on the refrigerating equipment or any associated

parts, appropriate fire extinguishing equipment shall be available on hand. A dry

chemical or CO2 fire extinguisher should be adjacent to the charging area.

-No person carrying out work in relation to a REFRIGERATING SYSTEM which

involves exposing any pipe work shall use any sources of ignition in such a manner that

it may lead to the risk of fire or explosion. All possible ignition sources, including

cigarette smoking, should be kept sufficiently far away from the site of installation,

repairing, removing and disposal, during which refrigerant can possibly be released to

the surrounding space. Prior to work taking place, the area around the equipment shall

be surveyed to make sure that there are no flammable hazards or ignition risks. “No

Smoking” signs shall be displayed.

-Ensure that the area is in the open or that it is adequately ventilated before breaking

into the system or conducting any hot work. A degree of ventilation shall continue during

the period that the work is carried out. The ventilation should safely disperse any

released refrigerant and preferably expel it externally into the atmosphere.

-Where electrical components are being changed, they shall be fit for the purpose and

to the correct specification so as to minimize the risk of possible ignition due to incorrect

parts. At all times, the manufacturer’s maintenance and service guidelines shall be

followed. If in doubt, consult the manufacturer’s technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

a) the actual REFRIGERANT CHARGE is in accordance with the room size within

which the refrigerant containing parts are installed.

b) The ventilation machinery and outlets are operating adequately and are not

obstructed.

c) Markings of the equipment continue to be visible and legible. Markings and signs

that are illegible shall be corrected.

d) Refrigerating pipes or components are installed in a position where they are

unlikely to be exposed to any substance which may corrode refrigerant containing

-Repair and maintenance to electrical components shall include initial safety checks and

component inspection procedures. If a fault exists that could compromise safety, then

no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If

the fault cannot be corrected immediately but it is necessary to continue operation, an

An adequate temporary solution should be used. This shall be reported to the owner of

the Initial safety checks shall include:

ECSS E3335-20

3. Repairs to sealed components

-During repairs to sealed components, all electrical supplies shall be

disconnected from the equipment being worked upon prior to any removal of sealed

covers, etc. If it is necessary to have an electrical supply to equipment during

servicing, then a permanently operating form of leak detection shall be located at the

most critical point to warn of a potentially hazardous situation.

-Particular attention shall be paid to the following to ensure that by working on

electrical components, the casing is not altered in such a way that the level of protection

is affected. This shall include damage to cables, excessive number of connections,

terminals not made to original specification, damage to seals, incorrect fitting of glands,

etc. Ensure that the apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded to the point that they no

longer serve the purpose of preventing the egress of flammable atmospheres.

Replacement parts shall be in accordance with the manufacturer’s specifications.

-Do not apply any permanent inductive or capacitance loads to the circuit without

ensuring that this will not exceed the permissible voltage and current permitted for the

equipment in use.

NOTE The use of silicon sealants can inhibit the effectiveness of some types of leak

detection equipment. Intrinsically safe components do not have to be isolated prior to

working on them.

4. Detection of flammable refrigerants: Under no circumstances shall potential

ignition sources be used in the searching for or detection of refrigerant leaks. A halide

torch (or any other detector using a naked flame) shall not be used.

The following leak detection methods are deemed acceptable for all refrigerant

systems:

-Electronic leak detectors may be used to detect refrigerant leaks but, in the case of

FLAMMABLE REFRIGERANTS, the sensitivity might not be adequate or might need

recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.)

Ensure that the detector is not a potential source of ignition and is suitable for the

refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of

the refrigerant and shall be calibrated to the refrigerant employed, and the appropriate

percentage of gas (25 % maximum) is confirmed.

-Leak detection fluids are also suitable for use with most refrigerants but the use of

detergents containing chlorine shall be avoided as the chlorine can react with the

refrigerant and corrode the copper pipework.

NOTE Examples of leak detection fluids are

– bubble method,

– fluorescent method agents.

If a leak is suspected, all naked flames shall be removed/extinguished.

If a leakage of refrigerant is found which requires brazing, all the refrigerants shall be

recovered from the system, or isolated (by means of shut off valves) in a part of the

system

ECSS E3335-20

remote from the leak.

5. Removal and Evacuation: When breaking into the refrigerant circuit to make

repairs-or for any other purpose-conventional procedures shall be used. However, for

flammable refrigerants it is important that the best practice be followed, since

flammability is a consideration. The following procedure shall be adhered to:

a. Safely remove refrigerant following local and national regulations.

b. Purge the circuit with inert gas.

c. Evacuate (optional for A2L).

d. Purge with inert gas (optional for A2L).

e. Open the circuit by cutting or brazing.

The refrigerant change shall be recovered into the correct recovery cylinders if venting

is not allowed by local and national codes. For appliances containing flammable

refrigerants, the system shall be purged with oxygen-free nitrogen to render the

appliance safe for flammable refrigerants. This process might need to be repeated

several times. Compressed air or oxygen shall not be used for purging refrigerant

systems. For appliances containing flammable refrigerants, refrigerant purging shall be

achieved by breaking the vacuum in the system with oxygen-free nitrogen and

continuing to fill until the working pressure is achieved, then venting to atmosphere, and

finally pulling down to a vacuum (optional for A2L). This process shall be repeated until

no refrigerant is within the system (optional for A2L). When the final oxygen-free

nitrogen change is used, the system shall be vented down to atmospheric pressure to

enable work to take place. Ensure that the outlet for the vacuum pump is not close to

any potential ignition sources and that ventilation is available.

6. Charging procedures: In addition to conventional charging procedures, the following

requirements shall be followed.

a. Ensure that contamination of different refrigerants does not occur when using

charging equipment. Hoses or lines shall be as short as possible to minimize the

amount of refrigerant contained in them.

b. Cylinders should be kept in an appropriate position according to the instructions.

c. Ensure that the REFRIGERATING SYSTEM is earthed prior to charging the system

with refrigerant.

d. Label the system when charging is complete (if not already).

e. Extreme care shall be taken not to overfill the REFRIGERATING SYSTEM.

7. Decommissioning: Before carrying out this procedure, it is essential that the

technician is completely familiar with the equipment and all its details. It is

recommended good practice that all refrigerants are recovered safely. Prior to the task

being carried out, an oil and refrigerant sample shall be taken in case analysis is

required prior to re-use of recovered refrigerant. It is essential that electrical power is

available before the task commences.

a. Become familiar with the equipment and its operation.

b. Isolate the system electrically.

c. Before attempting the procedure, ensure that:

i. Mechanical handling equipment is available, if required, for handling refrigerant

cylinders.

ii. All personal protective equipment is available and is being used correctly.

iii. The recovery process is supervised at all times by a competent person.

iv. Recovery equipment and cylinders conform to the appropriate standards.

ECSS E3335-20

d. Pump down the refrigerant system, if possible.

e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from

various parts of the system.

f. Make sure that the cylinder is situated on the scales before recovery takes place.

g. Start the recovery machine and operate in accordance with instructions.

h. Do not overfill cylinders (no more than 80% volume liquid charge).

i. Do not exceed the maximum working pressure of the cylinder, even temporarily.

j. When the cylinders have been filled correctly and the process completed, make sure

that the cylinders and the equipment are removed from the site properly and all isolation

valves on the equipment are closed off.

k. Recovered refrigerant shall not be charged into another refrigerating system unless it

has been cleaned and checked.

8. Labeling: Equipment shall be labeled stating that it has been de-commissioned and

emptied of refrigerant. The label shall be dated and signed. For appliances containing

flammable refrigerants, ensure that there are labels on the equipment stating the

equipment contains flammable refrigerant.

9.Recovery: When removing the refrigerant from a system, either for servicing or

decommissioning, it is recommended good practice that all refrigerants are removed

safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant

recovery cylinders are employed. Ensure that the correct number of cylinders for

holding the total system charge is available. All cylinders to be used are designated for

the recovered refrigerant and labeled for that refrigerant (i.e., special cylinders for the

recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and

associated shut-off valve in good working order. Empty recovery cylinders are

evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions

concerning the equipment that is at hand and shall be suitable for the recovery of all

appropriate refrigerants including, when applicable, FLAMMABLE REFRIGERANTS. In

addition, a set of calibrated weighing scales shall be available and in good working

order. Hoses shall be complete with leak-free disconnect coupling and in good

condition. Before using the recovery machine, check that it is in satisfactory working

order, has been properly maintained and that any associated electrical components are

sealed to prevent ignition in the event of refrigerant release. Consult manufacturer if in

doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct

recovery cylinder, and the relevant waste transfer note arranged. Do not mix

refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been

evacuated to an acceptable level to make certain that FLAMMABLE REFRIGERANT

does not remain within the lubricant. The evacuation process shall be carried out prior

to returning the compressor to the suppliers. Only electric heating to the compressor

body shall be employed to accelerate this process. When oil is drained from a system, it

shall be carried out safely.

ECSS E3335-20

PRE-INSTALLATION PROCEDURES

Inspection For Shipping Damage

You are responsible for filing all freight claims with the delivering truck line.

Inspect all cartons and crates for damage as soon as they arrive. If damage is

noted to shipping crates, cartons, or if a shortage is found, note this on the bill of

lading (all copies) prior to signing.

If damage is discovered when the case is uncrated, immediately call the

delivering truck line and follow-up the call with a written report indicating

concealed damage to your shipment. Ask for an immediate inspection of your

concealed damaged item. Crating material must be retained to show the

inspector from the truck line.

INSTALLATION INSTRUCTIONS

IMPORTANT: Read this Section of this manual located on page 5.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

The installation of the appliance and the refrigerant must only be performed by Federals

approved Service or suitably qualified person.

Appliance to be installed in accordance with safety standards ANSI/ASHREA 15.

The appliance shall not be installed in public corridors or lobbies.

This case is designed for a class 2 environment.

Test room

climate

class

Dry bulb

temperature

[°F]

Relative

Humidity

[%] Dew point [°F]

Water vapour

mass in dry air

[lbm

water/lbm air]

Required

Test Lab

Temperature

[°F]

2.0 71.6 65 59.36 0.0108 89.6

NSF TYPE 1 Temperature cannot exceed 75 deg F and 55% humidity.

Locating The Display Case

The case should be located where it is not subjected to the direct rays of the sun,

heating ducts, grills, radiator, or ceiling fans, nor should it be located near open

doors or main door entrances. Also, avoid locations where there is excessive air

movement or air disturbances and avoid high humidity locations such as near

cases with water misting or fogging devices. Failure to locate this case as stated

will reduce the performance of your Island display and will affect temperature of

interior of case and product.

The case requires a minimum of 48” of clearance on the three service sides of

unit. The paneled side can be placed directly against wall.

ECSS E3335-20

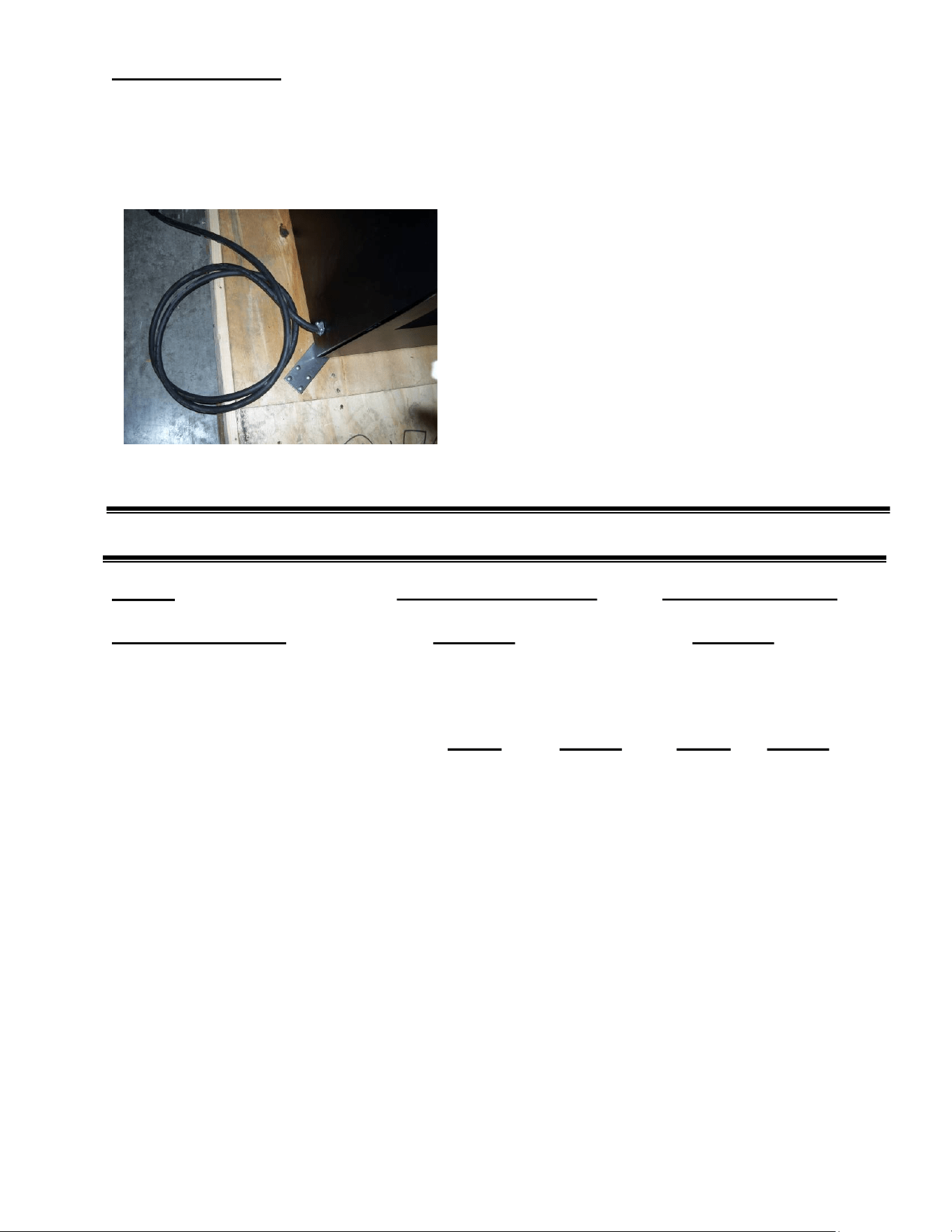

Electrical Connection

IMPORTANT: Read this Section of this manual located on page 5.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

DANGER: Improper or faulty hookup of electrical components in the

display case can result in severe injury or death.

Permanent Connected (Standard)

-Only a licensed electrician must perform all case electrical connections.

-All electrical wiring hookups must be done in accordance with all applicable local,

regional, or national electrical standards.

-A separate circuit for each display case is required to prevent other appliances on the

same circuit from overloading the circuit and causing malfunction.

-The electrical service must be grounded upon installation.

See the electrical data plate located on the base end, for proper circuit size and wire

ampacity.

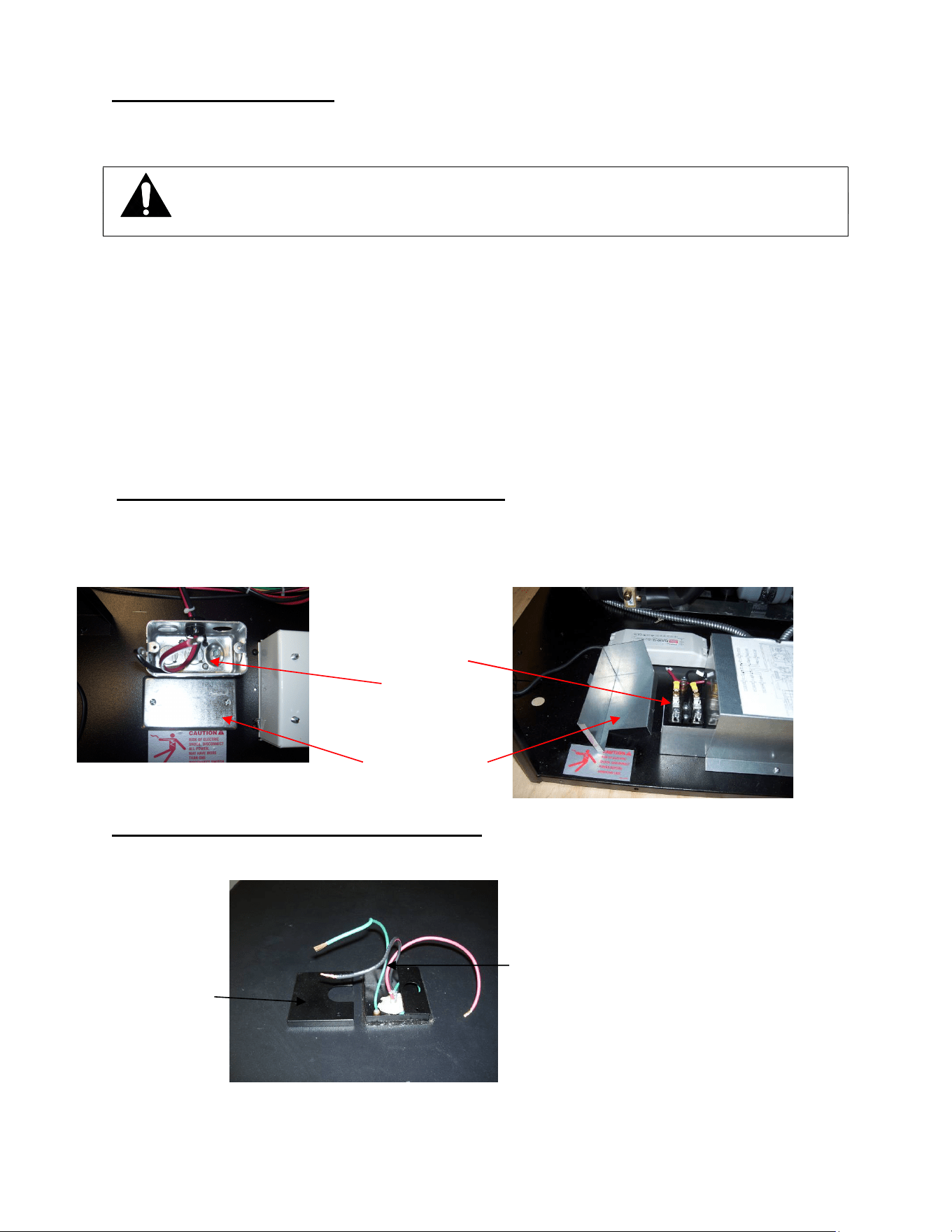

.Standard Base Electrical Connection: There are (2) different styles of

electrical box connections as shown in pictures below. The electrical connection box is

in the base for floor electrical connection. The box is accessible by removing the base

panel. See “Panel Removal Section” of this manual for panel removal instructions.

Remove electrical box cover to access electrical connection.

Optional Top Electrical Connection: The electrical connection box is

accessible on the top of the case for ceiling drop electrical connection. Remove

electrical box cover to access electrical connection.

PERMANENT

CONNECTION

TERMINAL

BLOCK

OR WIRE

PERMANENT

CONNECTION

ELECTRICAL

BOX COVER

PERMANENT

CONNECTION

ELECTRICAL

BOX COVER

PERMANENT

CONNECTION

WIRES

ECSS E3335-20

Cord Connected (OPTION)

-A factory installed optional power cord is properly sized to the amperage requirements

of the case. See the electrical data plate located on the rear exterior of the case for the

proper circuit size for each case.

- The cord is factory installed protruding from the corner of the case.

-A separate circuit for each display case is required to prevent other appliances on the

same circuit from overloading the circuit and causing malfunction.

ELECTRICAL DATA

Model ECSS40SC/ECSS60SC ECSS40R/ECSS60R

Power Suppy, Volts 230 Volts 230 Volts

Frequency 60 Hertz 60 Hertz

Phase 1 Phase 1 Phase

Number of Wires 2 + GND 2 + GND

AMPS VOLTS AMPS VOLTS

Compressor 9.0 / 11.0 230V - -

Condenser Fan 2.6 230V - -

Base Fan - - .15 230V

Evaporator Fan Motor (EACH) 0.15 ea. 230V 0.15 ea. 230V

Lights Power Supply 24V .8 230V .8 ea 230V

Condensate Heater 7.8 230V 7.8 230V

Opt. Condensate Pump .75 240V .75 240V

Refer to the rating plate data attached to side of base for Maximum Fuse Size and

Minimum Circuit Ampacity.

ECSS E3335-20

Removing Case From Shipping Skid

Remove the screws and brackets that secure the case to the skid. Remove the

brackets from the case.

Note that the case may have optional wheels installed and once the brackets

holding the case to the skid are removed the case will roll.

Removing Packaging Material

Remove bubble wrap and packing material for all shelves and panel, brackets,

etc. If it is necessary to remove tape residue from plastic materials, use cleaning

compounds recommended in the cleaning section of this manual.

Leveling The Case

The case must be level for proper drainage of defrost water to the condensate

pump.

Check the level of the case where the display overhangs the base.

Adjust levelers as needed to level the case side to side.

A wrench is included to aid in adjusting leg levelers.

NOTE: Use a wood or plastic shim under each leg leveler to avoid scratching the

tile floor.

SEALING THE UNIT TO FLOOR

After the unit is positioned and the leg levelers are turned out, the unit needs to be

sealed to the floor for NSF approved installation.

CAUTION: Do not push against the clear acrylic deflector around the sides and nose.

Doing so can cause the acrylic to break.

Do not lift or push on the top canopy located on top of the case.

Doing so can permanently damage the tower frame.

Care must be taken not to damage or tip the case when removing it from the

skid or moving the case.

ECSS E3335-20

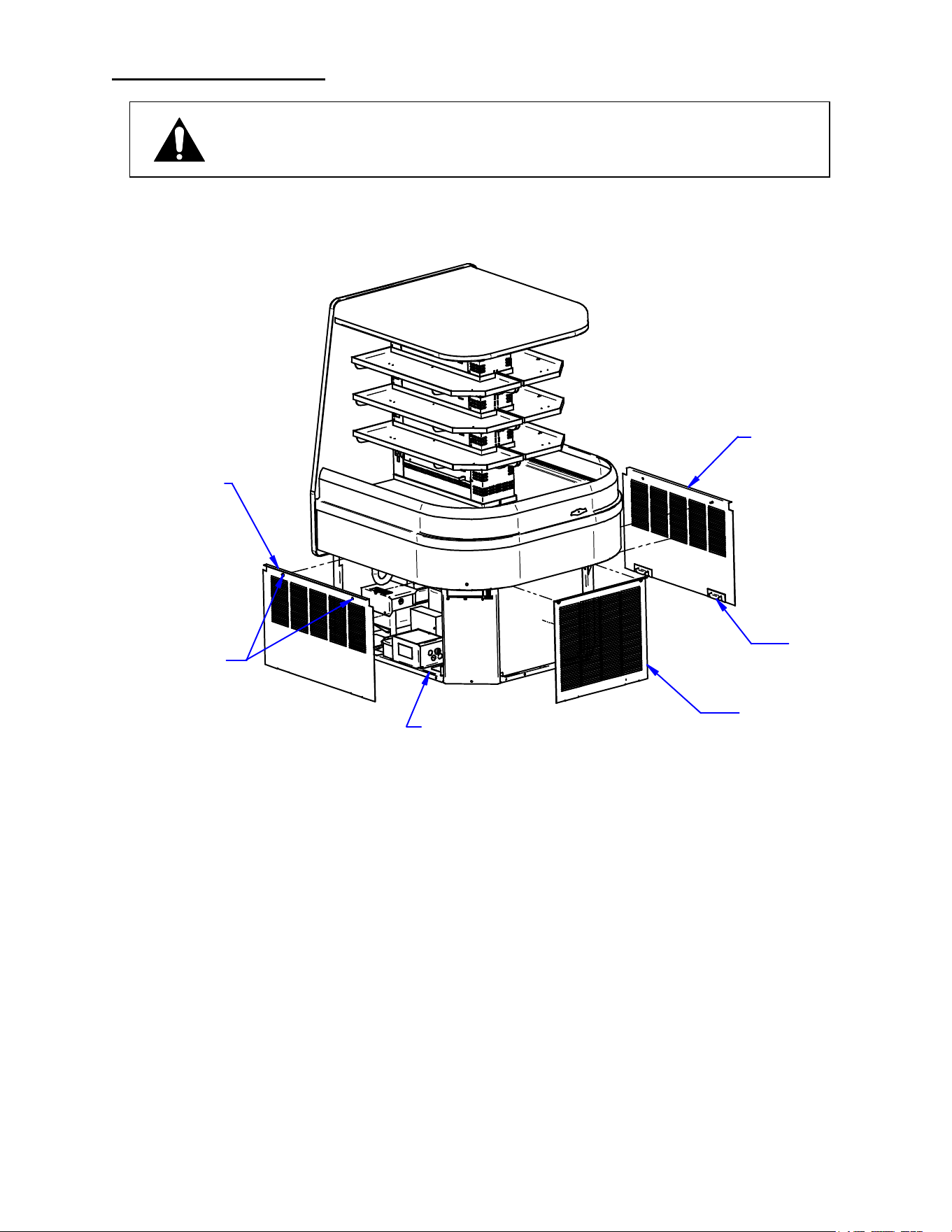

Base Panel Removal

Panels must be in place when operating the case.

FRONT NOSE

PANEL

LEFT SIDE PANEL

PANEL BOTTOM RETAINING

SLOTS (TYPICAL)

SIDE PANEL HOOK

1/4 TURN PANEL

RETAINER SCREWS

(TYPICAL)

RIGHT SIDE PANEL

Typical Panels Removal

1. Loosen the (2) ¼ turn retainer screws from top of panel.

(The screws will stay on the panel even after they are detached from base)

2. Tilt the top of the panel away from the base and pull up on panel to allow the

side panel hooks to pull out of the side panel slots.

3. Set the panel in safe place to prevent damage.

4. Reinstall panels in the reverse order.

DANGER: Electric shock hazard. Do not operate unit with panels removed.

ECSS E3335-20

Base Component Layout ECSS40SC Self Contained

DATA PLATE

LOCATION

CONTROL PANEL

LOCATION

CONDENSING

UNIT

CONDENSING

COIL

LIGHT POWER SUPPLY

7/8 FLOOR ELECTRICAL

CONNECTION LOCATION

CONDENSATE EVAPORATOR

OR OPTIONAL CONDENSATE

PUMP

7/8 BACK PANEL

ELECTRICAL CONNECTION

LOCATION FOR OPTIONAL

POWER CORD

6.5

7.0

7.6

Base Component Layout ECSS60SC Self Contained

7/8 FLOOR ELECTRICAL

CONNECTION LOCATION

DATA PLATE

LOCATION

POWER

CONNECTION

BOX

LIGHT POWER

SUPPLY

CONTROL PANEL

LOCATION

SLIDE OUT

CONDENSING UNIT

CONDENSING COIL

CONDENSATE

EVAPORATOR

OR OPTIONAL

CONDENSTAE

PUMP

7/8 BACK PANEL ELECTRICAL

CONNECTION LOCATION

FOR OPTIONAL POWER CORD

49.7

6.5

9.58

14.5

ECSS E3335-20

Base Component Layout ECSS40R Remote

Base Component Layout ECSS60R Remote

ECSS E3335-20

Condensate Pump Standard

The pump is mounted in the base compartment and is designed to automatically

remove the condensate water that collects from defrosting the evaporator coil. The

pump has a built-in tank that collects water from the evaporator coil defrost cycle. When

the pump tank is full the pump switches on and pumps water to a remote location for

disposal. When the tank is empty the pump automatically switches off.

The pump is capable of lifting water to a maximum of 20’.

Condensate Discharge Hose.

The case is provided with a 25’ of 3/8ID clear flexible tubing. Depending on options it is

either coiled up on top of the case or in the base compartment.

Hose Coiled in Base

Disconnect Power: Access the hose located in base compartment by removing one

of the base side panels. The hose can be routed to the nearest remote drain through

one of the provided openings or holes Do not run hose in heavy traffic areas and be

sure hose does not get kinked or pinched.

Hose Coiled on Top

Hose coiled on top of the unit is designed to be run vertical to the ceiling before

being routed to the nearest remote drain. The maximum vertical height the hose can

run is 20’ from floor. Once the hose turns to a horizontal direction the hose must

have a downward slope to avoid low spots that water can collect. Be sure the hose

does not get kinked or pinched.

ECSS E3335-20

Condensate Evaporator Pan Shipped Loose (OPTION)

If the optional high output condensate pan was ordered it will be shipped loose in a

separate box. This high output pan must be field mounted and wired by a licensed

electrician.

If there is already a factory condensate pan and mounting brackets installed in the base

compartment they must be removed before installing the optional high output pan.

Unwire the heater wires from the 2x 4 electrical box and cap remaining wire ends with

UL approved wire nuts. NOTE: THESE WIRES CAN NOT BE CONNECTED TO THE FIELD

INSTALLED HIGH OUTPUT PAN.

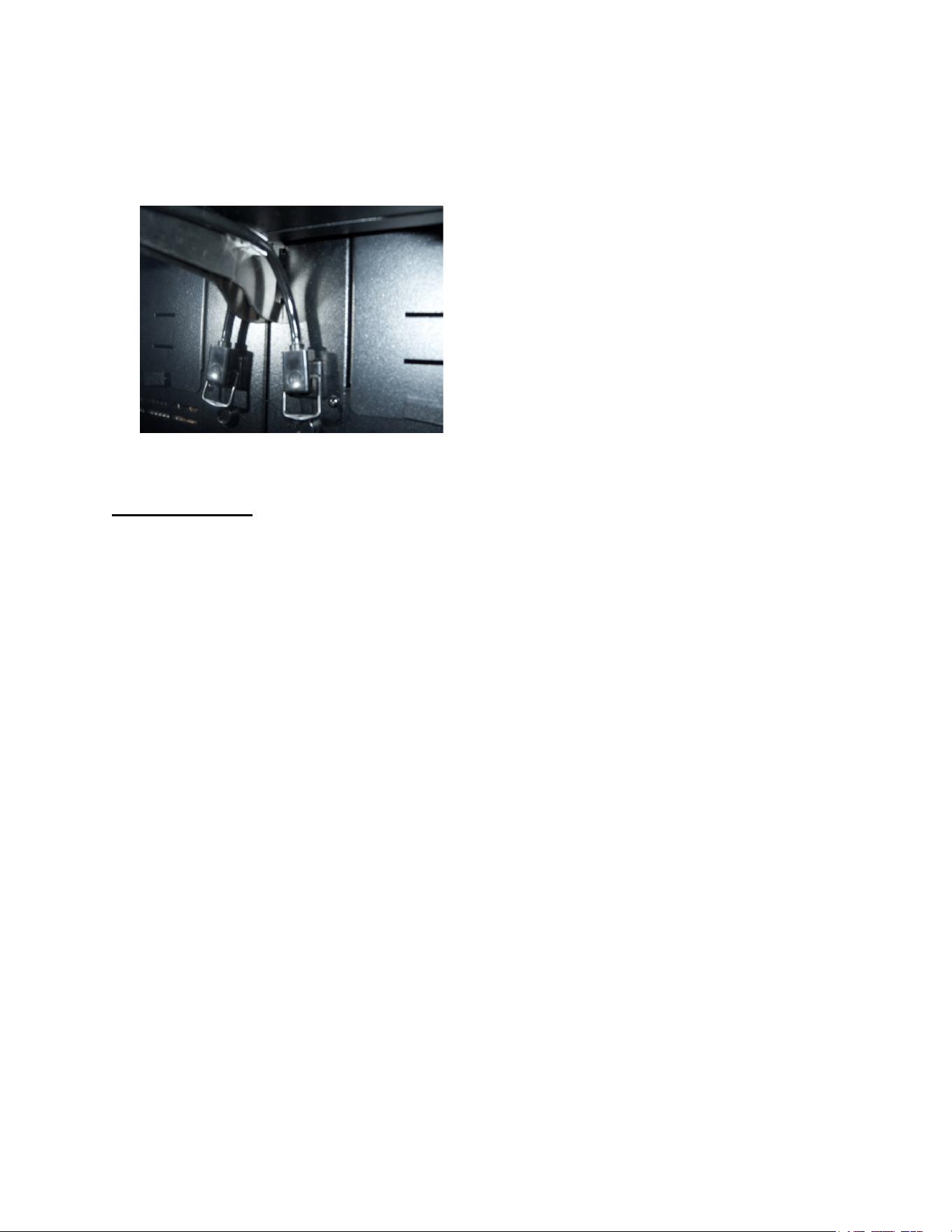

Mount the high output condensate pan inside the base

compartment so that the (2) condensate drain tubes drain

directly into the pan as shown in photo.

The field installed high output condensate pan must be wired

to its own designated circuit breaker and cannot be wired into

the same circuit breaker that the display case uses. The

display case circuit and wiring are not sized to handle the

extra amperage of the high output condensate pan.

See label on condo pan for proper circuit sizing.

- Bottom Electrical (standard): There is cord and plug provided on the high output

condensate pan. a licensed electrician must provide a designated receptacle to plug in

the high output condensate pan. There are access holes in various locations in the base

enclosure to run wires out of the case to electrical source.

-Top Electrical (optional): There is also a top wiring condensate pan option that provides

a top electrical box on the top side of the canopy. This allows wires to be run to the

store ceiling. There are (2) sets of wires, “main case wiring” and “condensate pan

wiring”. Each circuit is labeled and must run to separate circuits. The condensates pan

wires run down through the case into a 2 x 4 electrical box in the base compartment. A

licensed electrician will need to provide a designated receptacle to plug in the high

output condensate pan.

ECSS E3335-20

Shelves

The ECSS has solid metal shelves with LED lighting as standard.

There are (3) brackets required for each shelf (2) long brackets and (1) short

brackets. The long brackets are for the long side of case and the short brackets

are at the short end of case. The long bracket with cord retainer clip must be

used at the panel end back of case where the light cord plugs in.

The shelves are adjustable in ~ 1 1/16” increments.

Allow a minimum of 2” between the top of product and bottom of shelf.

LONG SHELF

BRACKET WITH

CORD CLIP

LONG SHELF BRACKETS

SHORT SHELF

BRACKET

RIGHT SIDE

SHELF ASSEMBLY

SHELF CORD

FEMALE LIGHT SOCKET

LEFT SIDE

SHELF ASSEMBLY

1. Turn the light switch to the off position.

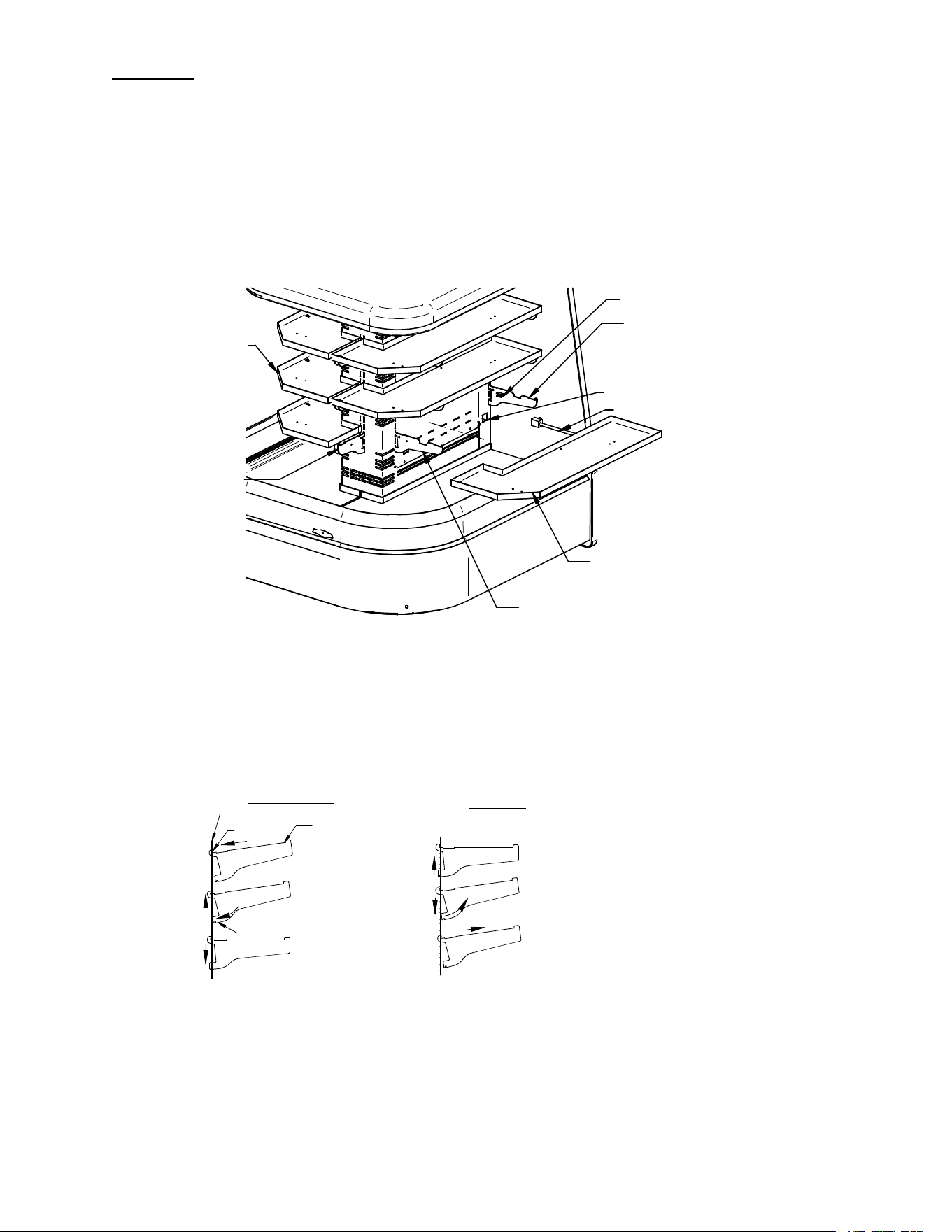

2. Follow the instruction in the illustration below and insert (1) of the (3) shelf brackets

in the desired tower slot on one side of the case. Place the additional shelf brackets

in the same height level on the opposite end of case. The short brackets must go on

the short end and (2) long brackets must go on the long end. The long bracket with a

shelf light cord retainer clip must be on the back side next to the shelf light

receptacle.

INSTALLATION

REMOVAL

TOP HOOK

BOTTOM TAB

SHELF BRACKET

TOWER

1. Place shelf bracket top hook into desired slot in

the tower.

2. Lift shelf bracket top hook to allow shelf bracket

bottom tab to clear slot in tower.

3. Swing shelf bracket bottom tab into tower slot.

4. Place the shelf bracket notch onto bottom of tower

slot.

1. Lift shelf bracket up to allow shelf bracket notch

to clear the bottom of slot in tower.

2. Swing shelf bracket bottom tab out of slot in tower.

3. Drop shelf bracket down to allow shelf bracket top

hook to clear the slot in tower.

4. Remove shelf bracket top from slot in tower.

3. Set the shelf on to the brackets and place the bracket retainer tip into slots on shelf.

ECSS E3335-20

4. Push shelf light cords into plastic shelf cord retainer clip located on inside of shelf

bracket.

5. The shelf light cords are attached to the tower and there is no longer a female

connector in the tower. Once the shelf is in the desired location the shelf light cord

can be plugged into the LED light. The shelf light cord is adjustable, the cord can be

pushed into or pulled out of the tower to get desired length.

6. Place extra cord into cord clip as shown to keep it out of the way.

7. Removal of shelving is performed by following steps in reverse order.

Remote Units

There are special requirements for A2L refrigerants such as R454C

Piping material, pipe routing, and installation shall include protection from physical

damage in operation and service, and be in compliance with national and local codes

and standards, such as ANSI/ASHRAE 15, IAPMO Uniform Mechanical Code, ICC

International Mechanical Code, or CSA B52. All field joints shall be accessible for

inspection prior to being covered or enclosed

The installation of pipe work shall be kept to a minimum.

Federal remote units are charged with dry nitrogen only. Joints made in the installation

where any part is precharged shall be made in accordance with the following:

a) A brazed, welded or mechanical connection shall be made before opening the

valves to permit refrigerant to flow between the refrigerating system parts. A

vacuum valve shall be provided to evacuate the interconnecting pipe and/or any

uncharged refrigerating system part.

b) Mechanical connectors used indoors shall comply with ISO14903 or UL 207 or

CSA C22.2 No.140.3. When mechanical connectors are reused indoors, sealing

parts shall be renewed. When flared joints are reused indoors, the flare part shall

be refabricated.

c) Refrigerant tubing shall be protected or enclosed to avoid damage. Flexible

refrigerant connectors (such as connecting lines between the indoor and outdoor

unit) that might be displaced during normal operation shall be protected against

mechanical damage.

Mechanical connections shall be accessible for maintenance purposes.

Provisions shall be made for expansion and contraction of long runs of pipes. Protection

devices, piping, and fittings shall be protected as far as possible against adverse

environmental effects, for example, the danger of water collecting and freezing in relief

pipes or the accumulation of dirt and debris.

ECSS E3335-20

Piping in refrigeration systems shall be designed and installed to minimize the likelihood

of hydraulic shock damaging the system

Do not use steel refrigeration lines with Federal products.

Flexible pipe elements shall be protected against mechanical damage, excessive stress

by torsion, or other forces, and that they should be checked for mechanical damage

annually.

Precautions shall be taken to avoid excessive vibration or pulsation. Use vibration

dampening tubing clamps as necessary, especially near sources of vibration.

This unit requires a minimum room area size to operate in. See table below for

minimum room areas (engineer to remove unneeded models from this table)

ECSS40

150

ECSS60

200

After completion of field piping for split systems, the field pipework shall be pressure

tested with dry nitrogen and then vacuum tested prior to refrigerant charging according

to the following requirements:

1) The minimum test pressure for the low side of the system shall be the low side

design pressure and the minimum test pressure for the high side of the system shall be

the high side design pressure, unless the high side of the system cannot be isolated

from the low side of the system in which case the entire system shall be pressure tested

to the low side design pressure. See the unit data plate for applicable pressures.

2) The test pressure after removal of pressure source shall be maintained for at least 1

h with no decrease of pressure indicated by the test gauge, with test gauge resolution

not exceeding 5 % of the test pressure.

3) During the evacuation test, after achieving a vacuum level of 250 microns or less, the

refrigeration system shall be isolated from the vacuum pump, and the pressure shall not

rise above 500 microns within 10 min. The vacuum pressure level shall be the lessor of

500 microns or the value required for compliance with national and local codes and

standards, which may vary between residential, commercial, and industrial buildings.

Always follow local codes during installation.

Be sure that any refrigeration line running through an occupied space is protected

against damage by using line set covers, sleeving, etc. As little line set as possible

should be run through an occupied space. Run refrigeration line sets through building

floors, ceilings, walls, or mechanical rooms as much as possible. Be sure to follow all

local codes.

The maximum releasable charge may be required to comply with local codes. This must

be calculated for the complete system as follows:

ECSS E3335-20

The table below shows various maximum releasable charge values for line sets.

Liquid Line Maximum Releasable Line Charge By Length

1/4" (6.35mm) 3/8" (9.53) 1/2" (12.7mm) 1/4" (6.35mm)

Line

Length

[ft]

Line

Length

[m] lbs kg lbs kg lbs kg lbs kg

3.0

0.6

0.3

0.8

0.4

1.1

0.5

0.6

0.3

15.2

1.1

0.5

2.1

1.0

3.5

1.6

1.1

0.5

100

30.5

1.8

0.8

3.8

1.7

6.5

3.0

1.8

0.8

250

76.2

3.8

1.7

8.8

4.0

15.6

7.1

3.8

1.7

Suction Line Maximum Releasable Line Charge By Length

1/2" (12.7mm) 5/8" (15.9mm) 3/4" (19.1mm) 7/8" (22.2)

Line

Length

[ft]

Line

Length

[m] lbs kg lbs kg lbs kg lbs kg

3.0

1.0

0.4

1.3

0.6

1.7

0.8

2.2

1.0

15.2

3.1

1.4

4.8

2.2

6.8

3.1

9.2

4.2

100

30.5

5.8

2.6

9.2

4.2

13.2

6.0

17.9

8.1

250

76.2

13.9

6.3

22.3

10.1

32.4

14.7

44.1

20.1

ECSS E3335-20

OPERATING INSTRUCTIONS

User Controls

Power Switch

The unit has a power switch that turns off power to the entire unit, including the

condensate evaporator and the lights. This switch is located behind a lift-up

panel on the unit base.

Light Switch

The unit has a light switch that turns on and off the interior lights of unit. This

switch is located below the lift up panel on the unit base.

Electronic Control

This control is located behind a lift-up panel on the unit base.

Using Electronic Temperature Control (Refrigerated Models Only)

DIGITAL DISPLAY

SET POINT ADJUST MODE

POWER TO CONTROL ON/OFF

AND SET POINT UP ADJUST

MANUAL DEFROST AND

SET POINT DOWN ADJUST

COMPRESSOR RUN

INDICATOR

DEFROST MODE INDICATOR

ALARM INDICATOR

Button Overview

Press and hold this button for 3 seconds to turn

system on (if off) or off (if on).

Also used to adjust set point when in set point

adjust mode

Press to enter set point adjust mode, confirm set

point changes, and mute alarms.

Press and hold this button for 3 seconds to initiate

a manual defrost (and cancel defrost if initiated),

also adjusts set point down when in set point

adjust mode

POWER SWITCH

ELECTRONIC

CONTROL

/ DISPLAY

LIGHT SWITCH

ECSS E3335-20

Refrigerant Detection and Mitigation System

The refrigerant detection system (RDS) shuts down the operation of the refrigerator

when a leak is detected. The system is comprised of 2 or more sensors, a low voltage

power supply, 1-2 safety shutoff solenoid valves, and 1-2 refrigerant check valves.

When a leak is detected by one of the sensors, the internal sensor relay opens to shut

off the safety solenoid valve(s). The refrigeration check valve prevents any back flow

from the rest of the external system from entering the unit that would further contribute

to a leak.

Please note that once a leak is detected and the flow of refrigerant is stopped, the

display case will stop cooling, and any temperature sensitive products must be removed

from the unit.

This display case’s fans are a part of the leak mitigation system and are required to

remain powered on as long as there is power to the display case. In the event of a

refrigerant leak, the unit’s fans are required to run to reduce the concentration of

flammable refrigerant in and around the unit. When replacing gas detection sensors,

only replace with the original model of sensor provided by Federal.

To replace a faulty sensor, simply remove unplug the electrical quick connection and

unscrew the sensor fasteners and attach the new sensor to the original sensor location

in the original orientation.

After replacing installing the new sensor, power on the display case. After a few

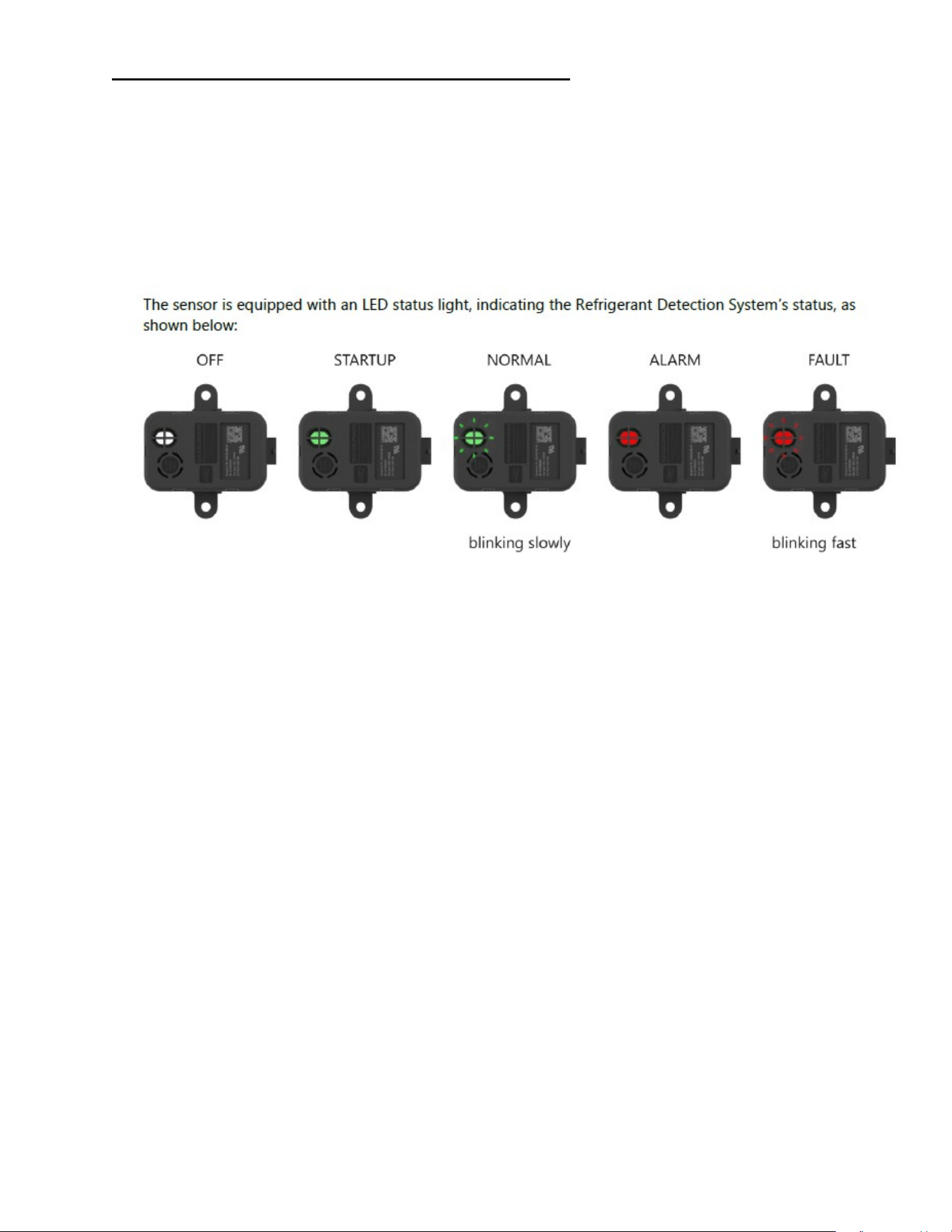

seconds, the sensor light will begin to blink green. See illustration above. The

refrigeration system will be allowed to run as normal.

The sensor is capable of a long life and will monitor its condition to ensure functionality.

If the sensor’s self-monitoring system detects an issue it will go into a fault state and

shut off the flow of refrigerant to the appliance. See above illustration for fault indication

on LED.

The gas inlet exposes the sensing element of the sensor to surrounding gases. The

opening in the sensor housing exposes the humidity and temperature sensors inside the

sensor to the environment and makes them susceptible to pollutants such as volatile

ECSS E3335-20

chemicals, acids, bases, cleaning and foaming agents. Exposure to those pollutants

should be avoided. Cleaning products might damage the sensor or temporarily block its

gas inlet, inhibiting or delaying the response to the refrigerant.

The use of solvent emitting materials near the sensor, such as PVC cement glues, may

lead to nuisance trips. Solvent emitting materials can lead to high concentrations of

volatile gas in the nearby environment. The gas sensor may sense these

concentrations, and trigger a system mitigate response. Please note that the safety

shut-off valve system is installed at the factory. No safety shut-off valves are required to

be installed in the field on new equipment.

Powering on control

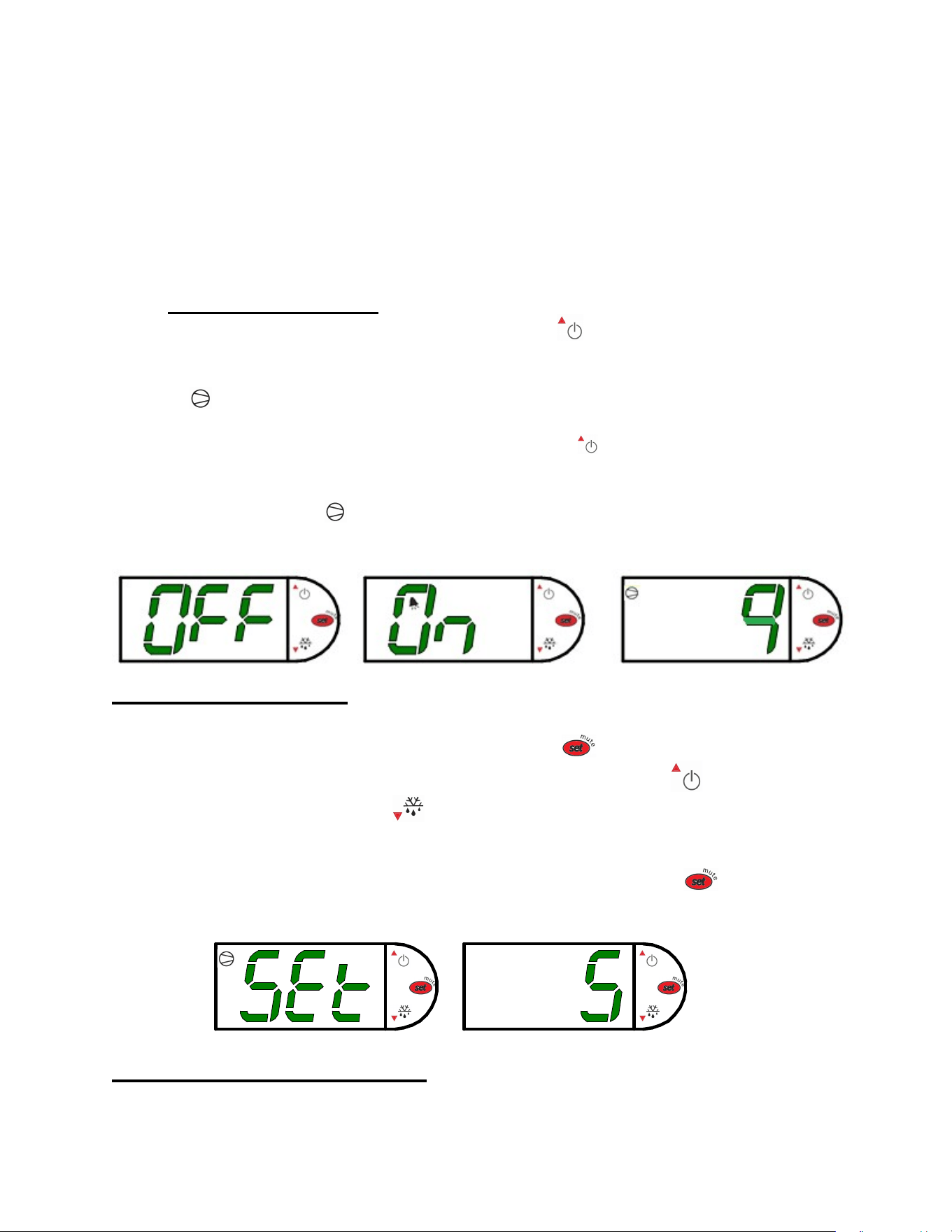

To turn refrigeration control power on, press and hold for approx. five seconds. The

display will read “On” while the button is depressed. When the control powers on, the

display will read the current set point numbers 1 thru 9. The compressor run

indicator will illuminate on the display, meaning that the compressor is running.

(Note: the control may already be in the on mode when shipped from factory).

To turn refrigeration control power to off, press and hold for approx. five seconds.

The display will read “Off” while the button is depressed. When the control powers off

the display will flash back and forth between the current set point and “Off”. The

compressor run indicator will be off on the display. When refrigeration control is in

the off-mode cabinet lights and evaporator fans will still operate, but the compressor

will not turn on causing the case to gradually reach room temperature.

Adjusting the set point

The set point is what determines how cold the display case will hold food and

beverage. To adjust the set point press and hold the button approx. 5 seconds

until the display begins to flash a number. Then press the use the button to scroll

number up (colder) or press the button to scroll number lower (warmer). There

are nine (9) available set point numbers, the higher the number of the set point, the

colder the display case will run, with setting “9” being the coldest and setting “1” being

the warmest. Once you have chosen your desired setting press the button again

to confirm your choice.

Entering manual defrost mode

ECSS E3335-20

To initiate a manual defrost press and hold the button approx. 5 seconds. The

control will read “dEF” while the button is being held. The defrost is initiated when the

defrost mode indicator illuminates on the display. The control display will then

return to reading the set point. when the defrost mode indicator turns off the defrost

is complete and the compressor will turn back on illuminating the compressor run

indicator .

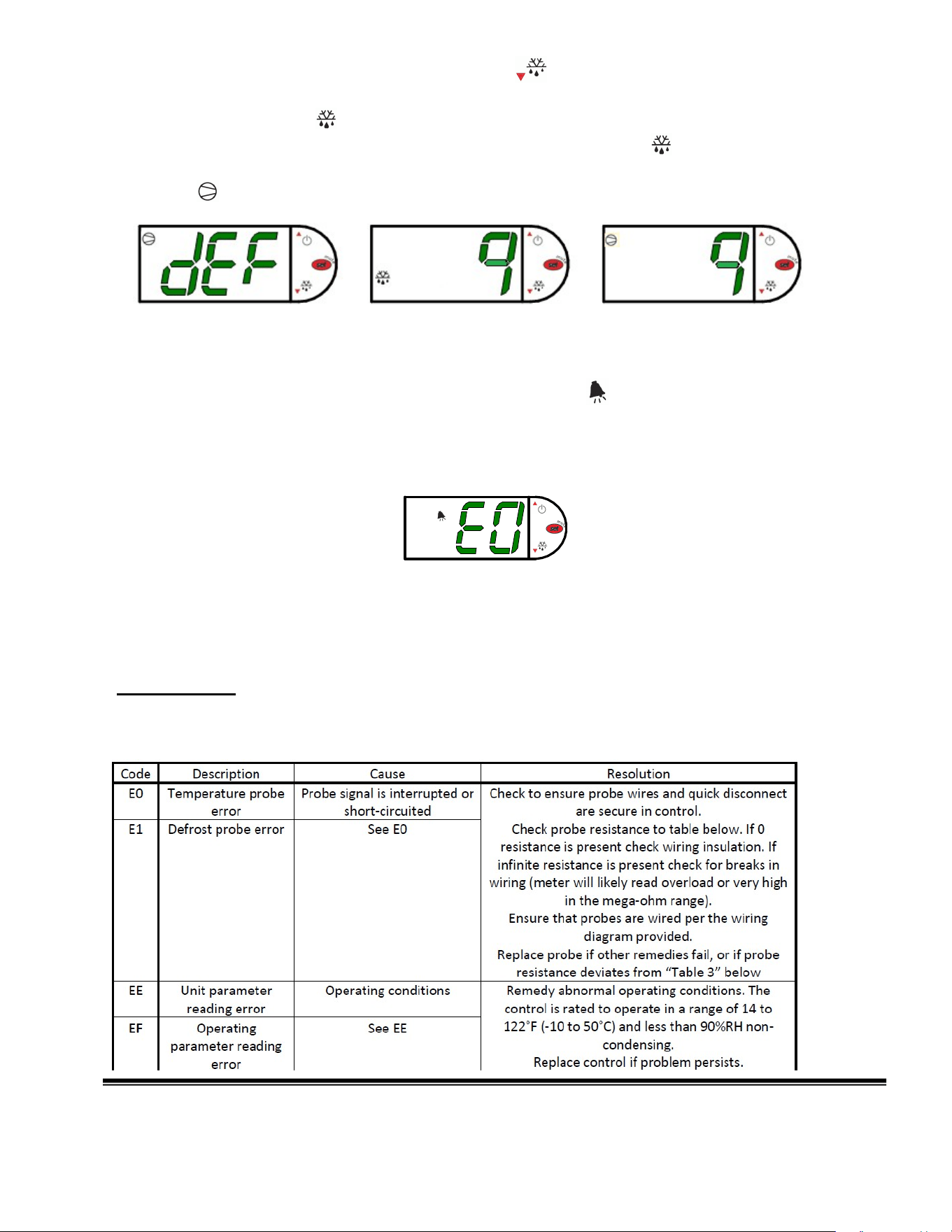

Error codes

It is possible for error codes to be displayed on the control screen. In the event of a

malfunction an alarm will sound and the alarm indicator will be displayed on the

display. An error code or codes will flash intermittently on the display. If there are

multiple codes, the display will continuously cycle through them. The following photo

shows error code “E0” as an example.

Mute: You may mute the alarm by pressing and releasing the wrench button. The red

ringing bell and all error codes will still be displayed. When the fault is remedied the

control will return to normal operation and will automatically clear the codes from the

display.

Carel Control

EO = Air sensing probe - Open or shorted

E1 = Evap. coil probe - Open or shorted

ECSS E3335-20

CONTROL OPERATION

Electronic Control

This unit is equipped with an electronic temperature control. The control parameters are

set at the factory and cannot be manually changed in the field. Control parameter

changes can only be made by downloading a new set of parameters via a program chip

supplied by Federal Industries.

Operation

The control uses two sensors, one located in the air stream and one located on the

evaporator coil. The sensor located in the air stream is referred to as the temperature

control sensor. The sensor located on the evaporator coil is referred to as the coil

sensor.

The temperature control sensor is located inside the center tower at the top. The sensor

location is critical for proper operation on the unit. Do not move or relocate this sensor.

The coil sensor is strapped to the evaporator coil. This sensor location is critical for

proper operation of the unit. Do not move or relocate this sensor.

The temperature control is set to cut in at 39 degrees F. The Temp control cuts out at

14 degrees F at the coldest setting “9” and 28 degrees F at the warmest setting, ‘1’ on

the control display.

The temp control turns off the refrigeration system when you “press and hold” the top

arrow / power button for approx. 3 seconds until “OFF” flashes on display.

Defrost Cycle

The CAREL control is programmed to initiate defrost via two different methods. There

are 3 programmed defrost cycles in the case which will initiate a defrost cycle every 8

hours. The unit does not have a time clock so the defrost cycles cannot be set for any

specific time of day.

The unit also has an ‘On demand’ defrost feature that will initiate a defrost when the

temperature differential between the evaporator temperature and the air temperature is

more than 15 degrees for 5 minutes after 30 minutes into the refrigeration cycle.

Do not use other means to accelerate the defrosting cycle process other than those

recommended by the manufacturer.

Maximum Run Timer

The unit is equipped with a maximum run timer that is preset at the factory for 75

minutes on. If the temperature control does not reach cut out set point after running for

one hour, the timer will turn the compressor off for a minimum of 2 minutes.

ECSS E3335-20

CONTROL PARAMETERS ECSS SELF-CONTAINED

Table 1 - Control Parameters

Parameter Description

Control Setpoint 

1 2 3 4 5 6 7 8 9

Compressor Cut out [°F]

28.0

26.2

24.5

22.7

21.0

19.2

17.5

15.7

14.0

Compressor Cut in [°F]

39.0°

Compressor Min On Time

5 min

Compressor Min Off Time

2 min

Compressor Max Run Time

75 min

Defrost Termination Temp [°F]

43.0

Time to first defrost

8 hr.

Time to subsequent defrost

8 hr.

Maximum Defrost duration

30 min

Defrost on demand differential [°F]

15.0

Delay for defrost on demand

5 min

Time delay to the next defrost on demand

30 min

\Table 2 - Temperature Probe Common Resistance Chart

Probe Temp

Maximum

Resistance [

]

Normal Resistance [Ω] Minimum Resistance [Ω]

32°F

(0°C)

27.83

27.28

26.74

77°F

(25°C)

10.1

9.9

212°F

(100°C)

0.97

0.94

ECSS E3335-20

CONTROL PARAMETERS ECSS REMOTE

Table 3 - Control Parameters

Parameter Description

Control Setpoint 

1 2 3 4 5 6 7 8 9

Compressor Cut out [°F]

30.0

28.0

26.0

24.0

22.0

20.0

18.0

16.0

14.0

Compressor Cut in [°F]

38.0°

Compressor Min On Time

5 min

Compressor Min Off Time

2 min

Compressor Max Run Time

60 min

Defrost Termination Temp [°F]

43.0

Time to first defrost

6 hr.

Time to subsequent defrost

6 hr.

Maximum Defrost duration

30 min

Defrost on demand differential [°F]

18.0

Delay for defrost on demand

5 min

Time delay to the next defrost on demand

30 min

\Table 4 - Temperature Probe Common Resistance Chart

Probe Temp

Maximum

Resistance [

]

Normal Resistance [Ω] Minimum Resistance [Ω]

32°F

(0°C)

27.83

27.28

26.74

77°F

(25°C)

10.1

9.9

212°F

(100°C)

0.97

0.94

ECSS E3335-20

REFRIGERATION OPERATION

Self-Contained Models

Refrigera

tion R

454c

Charge

ECSS40

2.8

Pounds

Refrigeration R

454c

Charge

ECSS60

4.5 Pounds

The self-contained models are shipped from the factory with a completely operational

R454c refrigeration system and require no modifications or adjustments upon

installation. Case must be installed as per the installation section of this manual to

provide proper condensing air cooling.

Dual Pressure Control (Self-Contained Models Only)

The dual pressure control is used as a safety device and is factory set. The pressure

control works on a differential. The low-pressure side is a safety to protect the

compressor in the case of refrigerant loss. The high-pressure side is a safety to protect

from system failure causing too high of system pressure. As of 8/1/14 ECSS60 only has

integrated dual pressure control on condensing unit.

The high side of the pressure control is factory set to 400psi and is not

adjustable. Low side setting for the R454c cases are set at 40psi differential for

the cutout and 60psi for the cut-in.

Self-Contained Refrigeration Operation

The unit temperature is controlled by the Electronic control and timers outlined in the

control section of this manual.

Note: The condenser fan runs continuously.

Remote Models

BTU Requirements

ECSS40R – 10,000 BTU’S @20F EVAP / 90F Ambient

ECSS60R – 14,000 BTU’S @20F EVAP / 90F Ambient

Pressure Control Settings

- Use pressure gauges to set pressure control.

Refrigeration R449A Charge

CHARGED IN FIELD

Remote Low Press. Switch Cut In

50 psi

Remote Low Press. Switch Cut Out

15 psi

Adjustable Head Master

200 psi

Remote High Press. Switch Cut Out

400 psi

The remote models are designed to use R449A refrigerant and shipped from the factory

with the evaporator coil, expansion valve, sight glass and refrigerant solenoid valve.

Drier filter most be installed in field for proper operation. Electronic control runs identical

ECSS E3335-20

to the Self-Contained models except the electronic control opens and closes a

refrigeration solenoid valve located on the suction line instead of turning on and off a

compressor. The solenoid valve closes and shuts off the refrigeration flow to the unit

and initiates a pump down cycle. This will allow the remote low-pressure switch to open

and shut off remote compressor.

The condensing unit and pressure controls are optionally supplied from the factory for

remote location installation. The condensing unit must be mounted and wired by the

installer. The high low-pressure switch must be wired in series with the compressor

power supply as shown in diagram below.

Remote Condensing Unit Installation

1. Mount condensing unit as close as possible to the remote display case as practical.

Follow condensing unit manufacturer guidelines for proper piping and distance

requirements.

2. All refrigeration and/or electrical materials between the condensing unit and display

case are to be supplied by installing contractor.

3. Route properly sized and designed refrigeration lines from the condensing unit to the

cabinet.

Horizontal suction lines should be pitched downward towards the condensing unit at

least ½” per 10’ run to aid the oil drainage. A “P” trap must be installed in the suction

line at the foot of every riser to insure oil return. Dry nitrogen must be used to flow

through tubing while brazing refrigeration lines.

4. Suction line must be insulated the entire length with Armaflex (or equivalent). Do not

run liquid line inside insulation with suction line.

5. The remote high/low-pressure control must be mounted, wired and set pressures by

the installer.

6. Leak check condensing unit, cabinet, and all connecting tubing. Cabinet and

condensing unit tubing should be checked to insure no leaks occurred during

shipping or from rough handling.

Make certain all refrigeration valves are opened and evacuate system to 500

microns. Charge the system with refrigerant type specified on the data plates.

REMOTE

HIGH LOW

PRESSURE

CONTROL

LIQUID LINE

SUCTION LINE (INSULATED)

REMOTE

CONDENSING

UNIT

EVAPORATOR

COILS

DISPLAY CASE

EXPANSION

VALVE

HIGH

LOW

LIQUID LINE

SOLENOID VALVE

SIGHT GLASS

DRIER/FILTER

FIELD CONNECTION

HOT

FUSED

POWER

SUPPLY

DEFROST

TERMINATE

PROBE

ELECTRONIC

CONTROL

AIR TEMP. CONTROL PROBE

FUSED

CASE

POWER

ECSS E3335-20

Electronic Expansion Valve (EEV)

A traditional TXV uses springs and a temperature bulb to open and close a valve port

that controls the flow of refrigerant entering the evaporator coil. An electronic expansion

valve (EEV) controls the refrigerant flow much more precisely, increasing the

performance and efficiency of the refrigeration system. The EEV controls the flow of

Refrigerant by opening and closing the valve port based on the response to signals sent

to the EEV by an electronic controller. The electronic Control bases these signals by

processing information provided from a temperature sensor and pressure transducer

located on the discharge side of the evaporator coil.

These sensors monitor the evaporator superheat and protects the compressor from any

liquid flood back under low superheat conditions.

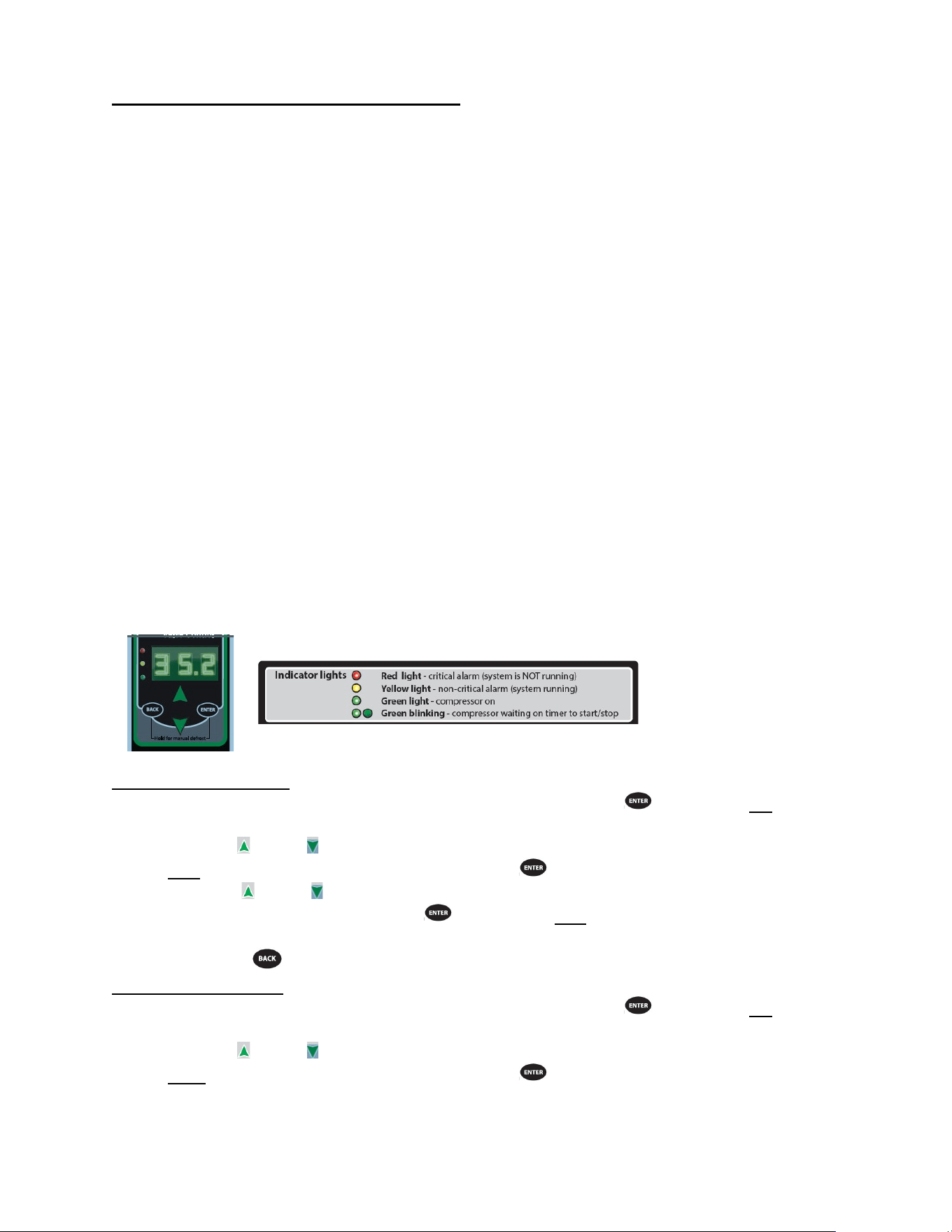

EEV Controller Settings

The electronic expansion valve controller also allows the use of different types of

refrigerants without the need to change the expansion valve.

The controller is set from the factory to run on 449A refrigerant and will not need any

changes to the control unless another refrigerant is used.

Note: Check your State and Local regulations for approved refrigerants for your

install location. Federal Industries is not liable for any alternate refrigerants used.

The control is located on the left side of the case.

Note: Never change any of the other setting other than the refrigerant type. It may

also be necessary to change the superheat setting only when using a different

refrigerant.

Changing Refrigerant

 Access the set point mode by pressing and holding the button until Ctl

displays on the screen.

 Use the up or down arrows to advance through the available set points until

rFG displays on the screen and press the botton.

 Use the up or down arrows until the desired refrigeration displays on the

screen and press and hold the button until rFG once again displays on the

screen.

 Press the to return to escape the settings menue.

Changing Superheat

 Access the set point mode by pressing and holding the button until Ctl

displays on the screen.

 Use the up or down arrows to advance through the available set points until

SSP displays on the screen and press the botton.

ECSS E3335-20

 Use the up or down arrows to set the desired superheat displays on the

screen and press and hold the button until SSP once again displays on the

screen.

 Press the to return to escape the settings menue.

Initial Start-Up

After all the checks outlined in the installation section of this manual have been made,

the case is ready to be put into service. Turn on the Power at the breaker box and flip

the Power Switch and Light Switch on unit to the on position. At start up from a warm

unit, it is recommended that the temperature control is set at a warm setting, such as

After the unit has gone through several cycles, change the control to a mid-range

setting, then to a colder setting if necessary to maintain desired product temperature

NOTICE: This refrigerated display case is designed to operate

in a maximum environment of 75 DEG. F and 55% relative

humidity. Exceeding these limits will cause poor case

performance, excessive sweating & overflow condensate pan.

Placing Product into Case

- Do not exceed 75 pounds of weight per shelf. Heavy product should be distributed

evenly across the entire shelving area.

- Determine desired shelving location before placing product in case. Product must be

removed to readjust shelf location.

- Allow a minimum of 2” between top of product and bottom of shelf.

- Do not overhang the front or rear of shelves with product. Improper clearance in

front and rear of shelf will block the refrigerated airflow and will cause product loss.

-Do not block the slots along the front and rear air discharge slots. Covering

these slots will block the refrigerated airflow and could cause product loss.

-The display deck is removable for cleaning and can become dislodged in shipment.

To ensure proper airflow and performance of the case, make sure that the display

deck is pushed completely down.

-Allow refrigerated models to run for at least two hours before placing pre-chilled

product into unit.

NOTICE: CASE MUST BE STOCKED WITH PRE-CHILLED PRODUCT

ONLY.

CLEANING INSTRUCTIONS

Acrylic Air Deflector Cleaning

NOTICE: Clear acrylic air deflector requires special washing procedures

to prevent hazing and yellowing of material.

NEVER USE paper towels (wet or dry) for cleaning or drying and never use a dry towel.

NEVER USE glass cleaner of any kind.

Lightly dust (not wipe) surface with a damp Micro Fiber towel or chamois. The surface

can then be washed using a small amount of dishwashing detergent such as Dawn or

ECSS E3335-20

Joy and lukewarm water. Use a Micro Fiber towel or chamois, applying only light

pressure. The cloth or chamois must be kept free of grit by frequently rinsing. Rinse

surface with clear water and dry by blotting with a damp Micro Fiber towel or chamois.

Daily Cleaning

The case should be cleaned thoroughly, as described in the weekly cleaning

section, before it is used for the first time.

NOTICE: Avoid splashing or soaking any electrical components

with water to prevent electrical damage to the case.

NOTICE: Shut off lights and power switches and remove all

products from case. Allow sufficient time for the unit to

reach room temperature before proceeding with

cleaning.

NOTICE: Remove all products from the case before proceeding

with cleaning procedure.

NOTICE: Acrylic air deflector requires special washing

procedures to prevent hazing and yellowing of material.

Clean as described in “Acrylic Air Deflector Cleaning”

section of this manual.

Note: For major spills or foreign material buildup use complete weekly

cleaning instructions.

Note: Detergents are not recommended and do not use abrasive cleaners or

pads to prevent scratching of surfaces.

1. Dip rag in warm soapy water and ring out thoroughly. Wipe complete interior

of case and dry with soft dry towel.

2. The remaining exterior surface should be wiped down using any ammoniated

cleaners or soapy warm water and dried with soft dry towel.

3. IMPORTANT: Cleaning the clear acrylic plastic front air deflector. Clean

as described in “Acrylic Air Deflector Cleaning” section of this manual.

Weekly Cleaning

NOTICE: Avoid splashing or soaking any electrical components with

water to prevent electrical damage to the case.

NOTICE: Shut off lights and power switches and remove all products

from case. Allow sufficient time for the unit to reach room

temperature before proceeding with cleaning.

NOTICE: Remove all products from case before proceeding with

cleaning procedure.

ECSS E3335-20

NOTICE: Acrylic front air deflector requires special washing procedures

to prevent hazing and yellowing of material.

Note: Detergents are not recommended and do not use abrasive cleaners or

pads to prevent scratching of surfaces.

TOWER SIDE PANEL

LATCH (4)

SHELVES (6)

SHELF BRACKETS

FAN SHROUD

RETAINER SCREWS (4)

DISPLAY DECK

TOWER SIDE PANEL

Remove interior shelving from unit as described in the “Shelving Installation and

Removal” section of this manual.

1. Dip rag in warm soapy water and ring out thoroughly. Clean all shelves and

shelf brackets and dry with soft dry towel.

2. Remove tower side panels by lifting (4) latch levers and pulling tower side panel

out away from tower.

3. Dip rag in warm soapy water and ring out thoroughly. Clean the tower side

panels and inside both tower ends. Dry with soft dry towel

4. Lift the display decks up and out of evaporator tub.

5. Remove the fan shroud assembly by removing (2) retaining screws from the

outer flange and the (2) from the inner flange. Lift the fan shroud assembly and

reach in and unplug the evaporator fan motor cord. Lift fan shroud assembly out

of tub.

6. Clean the display deck(s) using warm soapy water and a brush. Rinse

thoroughly and allow dry. Wipe off fan shroud assembly (do not rinse or

submerge fan motors).

7. Clean the entire interior of the case using warm soapy water. Wipe off all soapy

water with a damp cloth and allow to dry. (DO NOT use solvents such as

Acetone, Benzene, Carbon Tetrachloride, and Lacquer Thinners)

8. IMPORTANT: Cleaning the clear acrylic plastic front air deflector. Clean as

described in “Acrylic Air Deflector Cleaning” section of this manual.

9. Reassemble all components in reverse order.

NOTE: Depending on the amount of usage and spillage of foreign material, some

fasteners may have to be removed and parts disassembled to allow proper cleaning

of the unit.

ECSS E3335-20

MAINTENANCE

IMPORTANT: Read this Section of this manual located on page 5.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

Cleaning Condenser Coil

NOTICE: Condenser coil or optional air filter must be cleaned a

minimum of twice per month to insure proper refrigeration

performance and prevent compressor failure. In some

environments, it may be necessary to clean more frequently.

FAILURE TO CLEAN CONDENSER COIL WILL VOID

COMPRESSOR WARRANTY.

It is very important that the Condenser coil or optional air filter is cleaned twice

per month to insure proper refrigeration performance and to prevent compressor

failure. In some environments, it may be necessary to clean more frequently.

Failure to clean condenser coil will void condenser warranty. This procedure is

for Self-Contained models. The remote condenser coil must also be cleaned at

same intervals.

1. Disconnect power to the unit.

2. On ECSS40 Remove the nose panel and on ECSS60 remove the side panel on

left side of case next to the controls.

Carefully vacuum the front surface of condenser coil. Take care not to bend coil

fins with vacuum cleaner nozzle.

-If equipped with optional air filter remove filter and carefully vacuum the front

surface of condenser coil. Take care not to bend coil fins with vacuum cleaner

nozzle. Wash filter using warm soapy water, rinse, and let dry. Apply a generous

coat of filter coat adhesive to both sides of filter. (Filter coat adhesive is available

through any restaurant supply distributor.) Recommended Super Filter Coat

NOTE: Failure to coat filter with a fresh coat of filter adhesive after

cleaning will prevent filter from working properly. Failure to do so

will allow the condenser coil to plug, which will affect refrigeration

performance and could cause compressor failure.

3. Reinstall side panel(s).

ECSS E3335-20

SERVICE INFORMATION

Before any service work

is performed on the

case, make sure all

power is disconnected

to the case.

IMPORTANT: Read this Section of this manual located on page 5.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians.

To find a service company in your area, please visit our website at

www.federalindustries.com. There you can also find self-service tools to

help you get the answers you need faster!

For Warranty Service Requests & ALL Technical Support please contact:

- Phone: (800) 356-4206 and choose the Tech Support/Warranty Option

- Email: Service@federalind.com

For Warranty Compressors please contact the Parts Department:

- Phone: (800) 356-4206 and choose the Warranty Parts Option

- Email: Parts@Federalind.com

Federal Industries has partnered with Parts Town for ALL Non-Warranty Part

Identification, Pricing, Lead Times, Orders & Freight Quotes. Please contact

Parts Town directly if you need parts:

- Website: PartsTown.com

- Email: CustomerSer[email protected]

- Phone: 833-809-8188

…………………………………………………

CAUTION

RISK OF ELECTRIC SHOCK

DISCONNECT POWER BEFORE

SERVICING UNIT

ECSS E3335-20

Pre-Service Checklist

You may avoid the cost and inconvenience of an unnecessary service call by first

reviewing this checklist of frequently encountered situations that can cause

unsatisfactory case performance.

CAUTION: Before servicing case, turn off power at the main breaker of fuse

box.

Case Does Not Operate

Check for disconnected power supply.

Check for tripped breaker on blown fuse.

Check that the thermostat display is on and that the green indicator light

is lit.

Lights Do Not Operate

Check that power switch & light switch is on.

Check for tripped breaker or blown fuse.

Check that light housing cords are plugged in correctly to sockets in the

tower

Case Temperature Too Warm

Check that the cold air inlet and outlet slots are not blocked.

Check for a blocked or dirty condenser coil.

Check for cold airflow. Lack of adequate cold airflow could indicate a

defective evaporator fan or a blocked evaporator coil. Check that paper or

foreign materials are not blocking evaporator. If the evaporator coil is

blocked due to excessive frost, put into manual defrost. Excessive frost

can buildup overtime if the case is set too cold or if there is excessive

humidity in the store.

Check all the fans in the evaporator compartment and tower are running.

Case Sweating Note: Some interior sweating is normal on this case.

Check room ambient – Case is designed to operate in an environment not

to exceed 75ºF and 55% relative humidity.

Check all the fans in the evaporator compartment and tower are running.

Overflow of Condensate Pan

Check that drain in bottom of tub floor is not plugged.

Check that drain trap to the condensate pan is not plugged

Overflow of Optional Condensate Pump:

Check that drain in bottom of tub floor is not plugged.

Check that drain trap to the condensate pan is not plugged

Check that drain lines from pump is not plugged or pinched.

Check to see that pump float is operating correctly.

Verify that pump is plugged in and has power.

Replace pump if still not pumping condensate.

ECSS E3335-20

Special Service Situations

IMPORTANT: Read this Section of this manual located on page 5.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians

There are rare occasions when the refrigerant charge must be evacuated from a

case to perform service work. In those situations, Federal Industries

recommends that the refrigerant charge be evacuated into a recovery system to

prevent the possibility of hydrofluoro olefin (HFO) from being released into the

atmosphere.

The release of HFO into the atmosphere is a potential source of global warming.

Note the condensing unit that was supplied with this case has a receiver tank

large enough to hold all the charge you may be able to pump down the system

when service is required.

If moisture or liquid is observed around or under a Federal Industries case, an

immediate investigation should be made by qualified personnel to determine the

source of the moisture or liquid. The investigation made should determine if the

case is malfunctioning or if there is a simple housekeeping problem.

Moisture or liquid around or under a case is a potential slip /fall hazard for

persons walking by or working in the general area of the case. Any case

malfunction or housekeeping problem that creates a slip / fall hazard around or

under a case should be corrected immediately.

SALE & DISPOSAL

IMPORTANT: Read this Section of this manual located on page 5.

“REFRIGERATION WARNING &INSTALLATION-REPAIR-DECOMMISSIONING”

All refrigeration and electrical work must be performed by certified technicians

If you the owner sells or gives away this Federal Industries case it is the owner’s

responsibility to make sure that all safety labels and the Installation-Service

Manual are included with it. If you need replacement labels or manuals, Federal

Industries will provide them free of charge. Contact the customer service

department at Federal Industries at (800) 356-4206.

The customer service department at Federal Industries should be contacted at

the time of sale or disposal of your case so records may be kept of its new

location.

If you sell or give away your Federal Industries case, you should evacuate the

refrigerant charge before shipment. Federal Industries recommends that the

charge be evacuated into a recovery system to prevent the possibility of HFO’s

from being released into the atmosphere.

ECSS E3335-20

Refrigerant Recovery/Recycling/Disposal

When recycling or discarding case, refrigerants MUST BE handled according to

local, state and federal codes, requirements and regulations.

If disposing of a refrigerated case that uses ozone depleting chemicals in its

refrigeration system, make sure the refrigerant is removed by a qualified service

technician and properly disposed of.

If you intentionally release refrigerant into the atmosphere, you may be subject to

fines or other penalties (under regulation mandated by environmental regulators

and/or legislative edict.)

ECSS E3335-20

PARTS LIST

Refrigeration System

ECSS40 ECSS60

Condensing Unit Copeland (Self Contained) 30-21669 30-21669

Replacement Compressor

N/A

Safety Pressure Control 32-51009 N/A

Evaporator Coil Left/ Right

18810

L/33

18810

19285

L/33

19285

Expansion Valve TXV 32-20874 32-20874

Remote EEV

21226

Sight Glass

54011

Refrigerant Filter/Drier 32-19067 32-19067

Refrigeration Solenoid Valve (Remote)

21915

Refrigeration Solenoid Valve COIL (Remote) 32-21915-C24 32-21915-C24

Check Valve 32-21916-5 32-21916-5

Motor Evaporator Fan 41-19070 41-19070

Wire Harness Evaporator Motor 43-19083 43-19083

Blade Evaporator Fan 72-12254 72-12254

Electrical Components

Wire Harness

21207

21206

LED Strip Light 3500K (8)

20871

25C35

20871

42C35

LED Strip Light 3500K 18" (1) 42-20871-20C35 42-20871-20C35

Top & Shelf Lamp Cord

21543

Light power Supply 24V

20555

Power Switch 41-13733 41-13733

Light Switch

11066

Temp Control - Self Contained 32-19865-3 32-19865-3

Temp Control - Remote 32-19865-71 32-19865-71

Probe Temp (2) 32-19094 32-19094

Condensate Pan Ass'y SA4889-1 SA4889-1

Heater Condensate Pan 40-17861 40-17861

Condensate Evap Pan 47-12963 47-12963

High-Temp Safety Ass'y SA-1880 SA-1880

Float Switch Condensate Pan 41-13022 41-13022

Float Condensate Pan SA2928 SA2928

Optional Power Cord 43-19090 43-19090

Optional Field Installed Condensate Pan 120V/1600W

47-19541 47-19541

Optional Condensate Pump 230V 47-15687 47-15687

Optional Condensate Pump 120V 47-15686 47-15686

EEV Control 32-21223 32-21223

EEV Temperature Probe 32-21224 32-21224

EEV Pressure Transducer 32-21225 32-21225

Sensor, Ref. Detect. System (RDS) 32-21917 32-21917

RDS Harness,Leak Sensor, 8' 43-21921-8 43-21921-8

RDS Harness,Leak Sensor, 4' 43-21921-4 43-21921-4

Miscellaneous Components

Display Deck Plastic Left/Right 15-18857-L/ 15-18857-R 15-19293-L/ 15-19293-R

Fastener Pad Set Display Deck 77-17848/77-17849 77-17848/77-17849

Metal Shelf (SHELF ONLY) M20957-3L & 3R M20957-2L & 2R

Air Diffuser Honeycomb Air Discharge W11533-2 W11533-4

Shelf Bracket Long 67-21296 67-21296

Shelf Bracket Short 67-18727-1 67-18727-1

Thermometer 32-13662 32-13662

Replacement Optional Condenser Air Filter 16-19228 16-19228

Super Filter Coat – Filter Adhesive 22-21164 22-21164

ECSS E3335-20

Case Wiring Diagrams

Self-Contained ECSS40SC

ECSS E3335-20

Self-Contained ECSS60SC

ECSS E3335-20

Remote ECSS40R & ECSS60R

Remote ECSS80R

ECSS E3335-20

California Residents Only.

WARNING

This product can expose you to chemicals including chromium which is known to the State of

California to cause cancer and birth defects or other reproductive harm. For more information

go to www.P65Warnings.ca.gov

ECSS E3335-20

REV

CHANGE RECORD

APP’D

DATE

ECN#

RELEASE, R454c REFRIGERANT CHANGE FOR SC LPR 1/17/25 3913

UPDATED SECTIONS AS PER UL LPR 1/29/25 3913

UPDATED REMOTE SECTIONS PER UL LPR 2/19/26 3994

Federal ECSS60SC Industries Specialty Display End Cap Refrigerated Self-Serve Merchandiser

Product's Documents

Installationoperationsmanual

Specifications

Federal ECSS60SC Questions and Answers

Related Products

Federal CD3628/RSS3SC Industries Specialty Display Hybrid Merchandiser Refrigerated Self-Serve Bottom With Non-Refrigerated Service Top

Federal IMSS120SC-3 Industries Specialty Display Island Self-Serve Refrigerated Merchandiser

Federal LPRSS4 Industries Specialty Display Low Profile Self-Serve Refrigerated Merchandiser

Federal CRR4828/RSS4SC Industries Specialty Display Hybrid Merchandiser Refrigerated Self-Serve Bottom With Refrigerated Service Top

Federal IMSS60SC-2 Industries Specialty Display Island Self-Serve Refrigerated Merchandiser

Federal CD3628SS/RSS3SC Industries Specialty Display Hybrid Merchandiser Refrigerated Self-Serve Bottom With Non-Refrigerated Self-Service Top
