USER’S MANUAL
NÁVOD K POUŽITÍ
NÁVOD NA POUŽITIE
HASZNÁLATI ÚTMUTATÓ
INSTRUKCJA OBSŁUGI
SPORT CLIP MP4 PLAYER
MP4 PŘEHRÁVAČ SPORT CLIP
MP4 PREHRÁVAČ SPORT CLIP
SPORT CLIP MP4 LEJÁTSZÓ
ODTWARZACZ MP4 SPORT CLIP
EN CZ SK HU
M
ANUAL
SPORT CLIP M
SFP 6070
EN - 1
1. Key features
● 1.5 inch TFT screen
● Support MP3, WMA, WAV formats audio
● Support AMV format video
● Support FM Radio
● Support MicroSD card
● Lyric display synchronously
● Multi EQ modes and repeat modes
● Support JPG format picture view
● Built-in microphone for long time recording
● Support txt E-book reading
● Built-in Games
● Multi-Languages OSD menu
EN - 2
2. Player Layout
1. earphone port
2. microphone
3. USB port
4. volume +
5. volume -
6. power on/off
7. last/fast backward
8. next/fast forward
9. menu
10. play/pause/power on/off
11. MicroSD slot
12. neck strap
EN - 3
3. Operation instruction
● Power On/Off
In the status of power off push power button to on, then long
press to turn on the player
In the status of power on, long press to turn off, then
push power button to off.
● Basic Operation
In main menu interface, press ◄/► to select option, press
to enter. Long press to get back to main menu
interface. Short press to confi rm selection and short
press to play.
EN - 4
3.1 Music
In Main interface, short press ◄/► to select Music menu, then
short press to enter music play interface.
Play/Pause: short press to play or pause the music
playing.
Last/next: short press ◄ or ► to get to last music or next
music.
Fast backword/Fast forward: long press ◄ or ► to fast
backwards or forwards the music.
Volume: press + or - to adjust volume up or down.
A-B repeat: in playback interface, fi rstly must pause playing
music fi le, then short press button to get to sub-menu,
select “Replay mode”, . short press to enter and select
“Replay”, now in playback interface, short press ◄ and ► to
set Start point A and End point B. Short press to quit AB
repeat.
Lyric show: To show the lyric, the lyric fi le (eg. Abcde.lrc)
should be in same name as music fi le (eg. Abcde.mp3) and
both fi les should be in the same folder. While playing a music
fi le, long press to show lyric, short press to quit.
Music fi le list: in playback interface, fi rstly must pause playing
music fi le, then short press button to get to sub- menu,
select “Local folder” to show folder/fi le list. Press ◄/► to
select music fi le, press button to confi rm and press
to play.
EN - 5
Set EQ: in playback interface, fi rstly must play music fi le, then
short press
button to get to sub-menu, select “Equalizer”
and press
button to enter. There are “Natural, Rock, Pop,
Classic, Soft, Jazz, DBB” for selection.
Set Play/Repeat mode: in playback interface, fi rstly must
play music fi le, then short press button to get to sub-
menu, select “Repeat” and press
button to enter. There
are “Normal, Repeat one, Folder, Repeat folder, Repeat all,
Random, Intro” for selection.
3.2 Movie
In Main interface, short press ◄/► to select movie menu, then
short press to enter movie playback interface.
Play/Pause: short press to play or pause the video
playing.
Last/next: short press ◄ or ► to get last or next video.
Fast backword/Fast forward: long press ◄ or ► to fast
backwards or forwards the video.
Volume: press + or - to adjust volume up or down.
Video fi le list: Short press to show “Local folder” and
select, short press ◄/► to select movie fi les. Press to
select video fi le and press button to play it.
Remark: the player support video formats of .amv. Resolution
should be 128x128. Convert video into a format supported by
this player using the video conversion tool found in the memory
of this player (*see point 5).
EN - 6
3.3 Radio
In Main interface, short press ◄/► to select Radio menu,
then short press to enter FM radio interface.
Manual Scan: Short press ◄ or ► to select frequency
manually. Long press ◄ or ► player will auto scan and stop till
it fi nd channel.
Auto Scan: press to show submenu, press ◄/► to
select Auto Search then press button. Then the player
will scan channels and set the found channels to Preset one by
one. After auto scan, it’ll get to the fi rst preset channel. Press
◄ or ► to get to preset channels one by one.
Save Channel: press to show submenu, short press
◄/► to select Save then press button.
Delete Channel: press to show submenu, short press
◄/► to select Delete then press button. Select Delete
All will delete all saved channels.
Volume: press + or - to adjust volume up or down.
FM Record: press to show submenu, short press ◄/►
to select Record then press button to enter, press
to start record or pause, long press to save and quit FM
Record.
Remark: Earphone should connect to player as an antenna.
Otherwise the player can not receive channels.
EN - 7
3.4 Photo
In Main interface, short press ◄/► to select Photo menu, then
short press button to enter picture list. Press ◄/► to
select picture fi le, press button to view the picture, press
again to quit viewing.
Last/next: short press ◄ or ► to display last or next picture.
Auto Browse: in picture list interface, short press to
show submenu, select “Playback set” and then select “Auto
play” to set the auto browse seconds time, press to
confi rm setting.
Photo fi le list: in picture list interface, press button to
show submenu, select “Local folder” to show folder/fi le list.
Press ◄/► to select folder, press button to enter and
press display it.
3.5 Record
In Main interface, short press ◄/► to select Record menu,
then short press button to enter recording interface.
Record/Pause: short press to record or pause.
Stop: long press to save fi le and get to main interface,
File of recorded voice are saved in folder of VOICE.
EN - 8
3.6 Voice
In Main interface, short press ◄/► to select Voice menu,
then short press button to enter recording fi le playback
interface.
FM radio record fi le and Voice record fi le can be played under
this menu.
Record fi le list: in playback interface, fi rstly must pause
playing music fi le, then short press button to get to sub-
menu, select “Local folder” to show folder/fi le list. Press ◄/►
to select music fi le, press button to confi rm and press
to play.
3.7 Text
In Main interface, short press ◄/► to select Text menu, then
short press button to enter E-book fi le list. Press ◄/► to
select E-book fi le, press button to view the text.
Manual Browse: short press ◄/► to browse up or down page
by page.
Auto Browse: in Ebook fi le list interface, short press to
show submenu, select “Playback set” and short press to
enter, select “Auto play” to set the auto browse seconds time,
then press to confi rm setting.
EN - 9
Text fi le list: in Ebook fi le list interface, short press
button to get to sub-menu, select “Local folder” to show folder/
fi le list. Press ◄/► to select Ebook fi le, press button to
confi rm and press to read.
3.8 Game
In Main interface, short press ◄/► to select Game menu,
then short press button to enter game list. Press ◄/► to
select game, press button to enter the game options.
During game playing, short press to quit game and enter
game options.
3.9 Search
In Main interface, short press ◄/► to select Search menu,
then short press button to list folders/fi les in memory.
Play/Open fi le: press ◄/► to select fi le/folder, press to
play or open it. If the fi le is not supported by this player, it can
not play or open.
Delete fi le: in each function sub-menu, there is option of
“Delete fi le” and “Delete all”. Select fi le want to delete, then
press
there will be a warning, select Yes to delete fi le, or
select No to cancel deleting.
EN - 10
3.9 Setup
In Main interface, short press ◄/► to select Setup menu, then
short press button to enter setting options. (In submenu,
press to get to upper menu.)
3.10.1 System time:
Set the system time and date, short press +/- to select time or
date, short press ◄/► to adjust number, short press to
confi rm setting.
3.10.2 Restore Default:
Short press to select “OK” to restore default setting.
3.10.3 LCD set:
Set the LCD turn off time.
Short press to enter and select “Dark Mode”, then adjust
the number by pressing ◄/► to set, press to confi rm
setting.
“0” mean not auto turn off LCD.
3.10.4 Language:
Set the system language.
3.10.5 Power off:
Set the Auto Power off time and Sleep time.
Short press to enter and select “Off time” or “Sleep time”,
then adjust the number by pressing ◄/► to set, press
to
confi rm setting.
“0” mean not auto power off or not sleep.
EN - 11
3.10.6 Online mode:
Set player driver status among “Multiply driver”, “Normal only”,
“Encrypted only”, “Card only”.
3.10.7 Memory info:
View the fl ash memory status.
3.10.8 Format Device:
Format the player fl ash memory and it become empty. (*Please
do remember to save fi les before format player, to avoid fi les
loss)
3.10.9 Firmware version:
View the player fi rmware version.
3.10.10 Firmware upgrade:
Upgrade the player fi rmware, do connect the player
to computer via USB cable, while upgrade the player.
(*Reference to point 4)
3.10.11 Key tone:
Set key tone volume.
3.10.12 Exit:
Exit settings.
EN - 12
4. Firmware upgrade
Note: Within the scope of technical innovation, a CD is no
longer included with the product and all documentation can
be found in the memory of the player. Prior to updating or
upgrading, backup all the data contained on the player to
prevent its accidental deletion.
If the player doesn’t work or works sub normally, fi nd the
fi rmware upgrade tool and fi rmware in gift CD to upgrade the
player. Processes as bellow:
Note before updating: a. Don’t upgrade fi rmware if playing
properly. b. Backup fi les to other storage before upgrade.
A. Use a USB cable to connect with computer, the player show
interface:
B. Installation upgrade tooling is completed on the computer,
then go to PC Start→ Program →media player utilities.
Open the “media player upgrade tool”, in computer show
below interface.
EN - 13

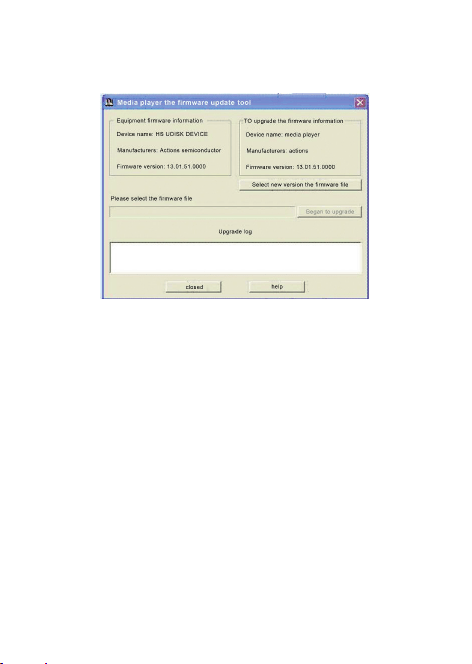

C. Click “select new version the fi rmware fi le”, to load the
fi rmware fi le from computer. Click “start” button, starts to
upgrade software.
D. During the fi rmware updating process, don’t interrupt the
player with PC connection. When upgrading is complete,
the software will have a message box that “the fi rmware
update successful, program will automatically exit!”. Then
player would automatically shut off and restart, the whole
upgrade work is completed.
EN - 14
5. Video Convert
Note: Within the scope of technical innovation, a CD is no longer
included with the product and all documentation can be found in
the memory of the player.
The player support video of AMV format in resolution of
128x128. Please use the software in gift CD to convert the
video. The AMV&AVI Converter supports multi kind of video
formats (AVI, RM, RMVB, MPG, MPG4, ASF, DAT, WMV, etc)
convert to AVI format.
5.1 AVI Converter Tool Setup
Click folder EndUserTools to fi nd and click software setup.exe
in gift CD; follow the steps to install to PC.
5.2 Convert Video to AVI format
From PC>Program to run AMV&AVI Converter as below
picture and steps for converting
2) Select saving
Location
1) Click Add fi le
4) Click to start converting, wait until success.
3) Set resolution
to 128x128,
set quality.
After converting, copy the converted video fi le to the player,
then enjoy it through player.
EN - 15
6. Specifi cation
Items: SFP 6070
Dimensions 43.5 x 43.5 x 12.5 mm (W x H x D)
Colour TFT display: 1.5-inch TFT display; 65,000 true colours,
resolution (128 x 128)
Language support: Multi-language system (EN, CZ, SK, HU, PL)
Data transfer speed: High-speed USB 2.0
Reading: 4 Mb/s, Writing: 1 Mb/s
S
upported fi le formats
Audio:
MP3: 8 kb/s – 320 kb/s
WMA: 32 kb/s – 320 kb/s
WAV: 64 kb/s/256 kb/s
Images: JPEG
Supported video formats: AMV (All formats should be
converted to the .AMV format using the provided software)
Text: For letters with diacritic symbols use UNICODE coding
Noise to signal ratio: (S/N) 85 dB
Frequency range: 20 Hz - 20 kHz
Max. output power: 10 mW + 10 mW
Flash memory: 8 GB
Slot for a micro SDHC card (max 16GB)
Power supply: Lithium-polymer battery 3.7 V
Battery operation time: Playback of video: 4 to 5 hours
Playback of MP3: 12 to 13 hours (power-saving mode)
Operating temperature: 5°C to 40°C
Supported operating system: WINDOWS 2000/XP, Mac OS 10.4.6
Weight: Approximately 23 g
Accessories: User‘s manual, headphones, USB cable
EN - 16
INSTRUCTIONS AND INFORMATION REGARDING THE
DISPOSAL OF USED PACKAGING MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC
APPLIANCES
The meaning of the symbol on the product, its accessory
or packaging indicates that this product shall not be treated
as household waste. Please, dispose of this product at your
applicable collection point for the recycling of electrical &
electronic equipment waste. Alternatively in some states of
the European Union or other European states you may return
your products to your local retailer when buying an equivalent
new product. The correct disposal of this product will help save
valuable natural resources and help in preventing the potential
negative impact on the environment and human health, which
could be caused as a result of improper liquidation of waste.
Please ask your local authorities or the nearest waste collection
centre for further details. The improper disposal of this type of
waste may fall subject to national regulations for fi nes.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device,
request the necessary information from your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary
information about the correct disposal method from local
government departments or from your seller.
This product meets all the basic EU regulation requirements
that relate to it.
Changes to the text, design and technical specifi cations may occur without
prior notice and we reserve the right to make these changes.
