User Manual
Product Parameter:
Product Name: Qi2 25W 2-in-1 Pocket Charging Stand
Material: ABS +PC +Zinc alloy

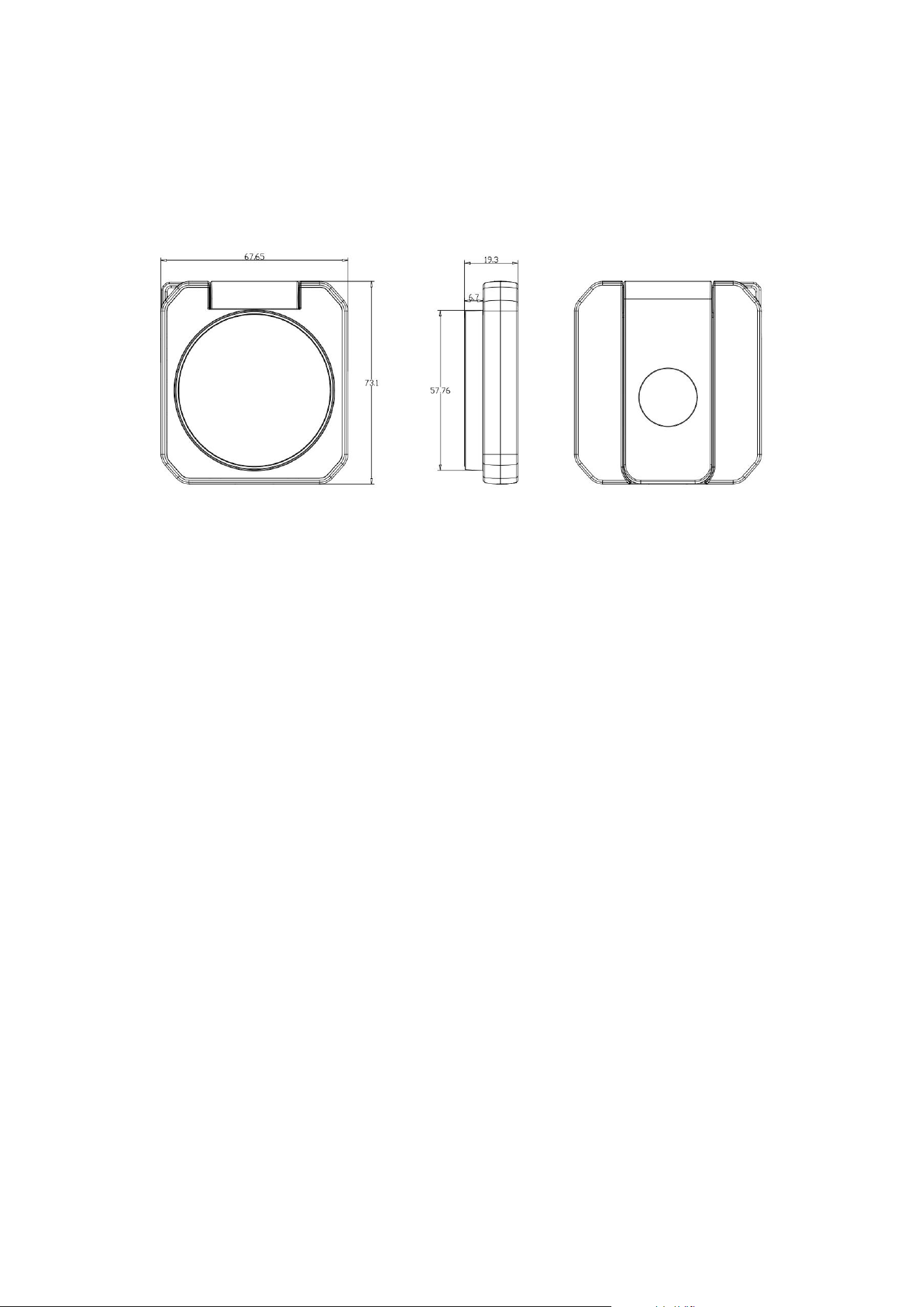

Dimension: 73.1MM x 67.65MM x 19.3MM
Interface: USB-C
Input: DC9V/3A ,15V/2.33A
Mobile phone output: 5W, 7.5W, 10W, 15W ,25W
watch output: 2.5W
Compatible with PD 35W charger or above
Step for usage:
1. Connect USB C Cable to PD Power Adaptor, plug one end of the USB C
cable into a USB Power adaptor.
2. Connect USB C Cable to wireless charger, plug another end of the USB
C cable into the Qi2 Wireless Charger.
3. Place the device that supports Qi function in the corresponding
charging area. The charge icon will appear at the top of your device's
screen.
Indicators:
Power on --
The indicator light turns white for three seconds and then goes off.
Standby mode --
The indicator light is off.
Charging mode --
When the phone is charging, the white light stays on.
FOD Abnormal status --
The white light flashing.
FCC Statement:
This device comlplies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1] This device hay not cause harmful interference, and (2) this device
must accept any interference received, induding interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party
respansible for compliance could vold the user's suthority to operate the
equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules,
These limits are designed to provide reasonable protection against
harmful interference in a residential instalation.
This equipment' generates, uses, and can radiate radia frequency energy
and, if not installed and used in accordance with the instrudtions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
recepition, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the intepference by one or
more of the following measures:
(1) Rearient or pelocate the recehing antenna.
[2] Increase the separation between the equipment and receiver,
(3) Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
[4] Consuit the jdealer or an experienced radio / TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrollied environment. This equipment should be installed and
aperated with minimum distance 20cm between the radiator & your
body.
Packaging accessories:
Qi2 wireless charge stand *1
USB-C charging cable *1
User manual *1
