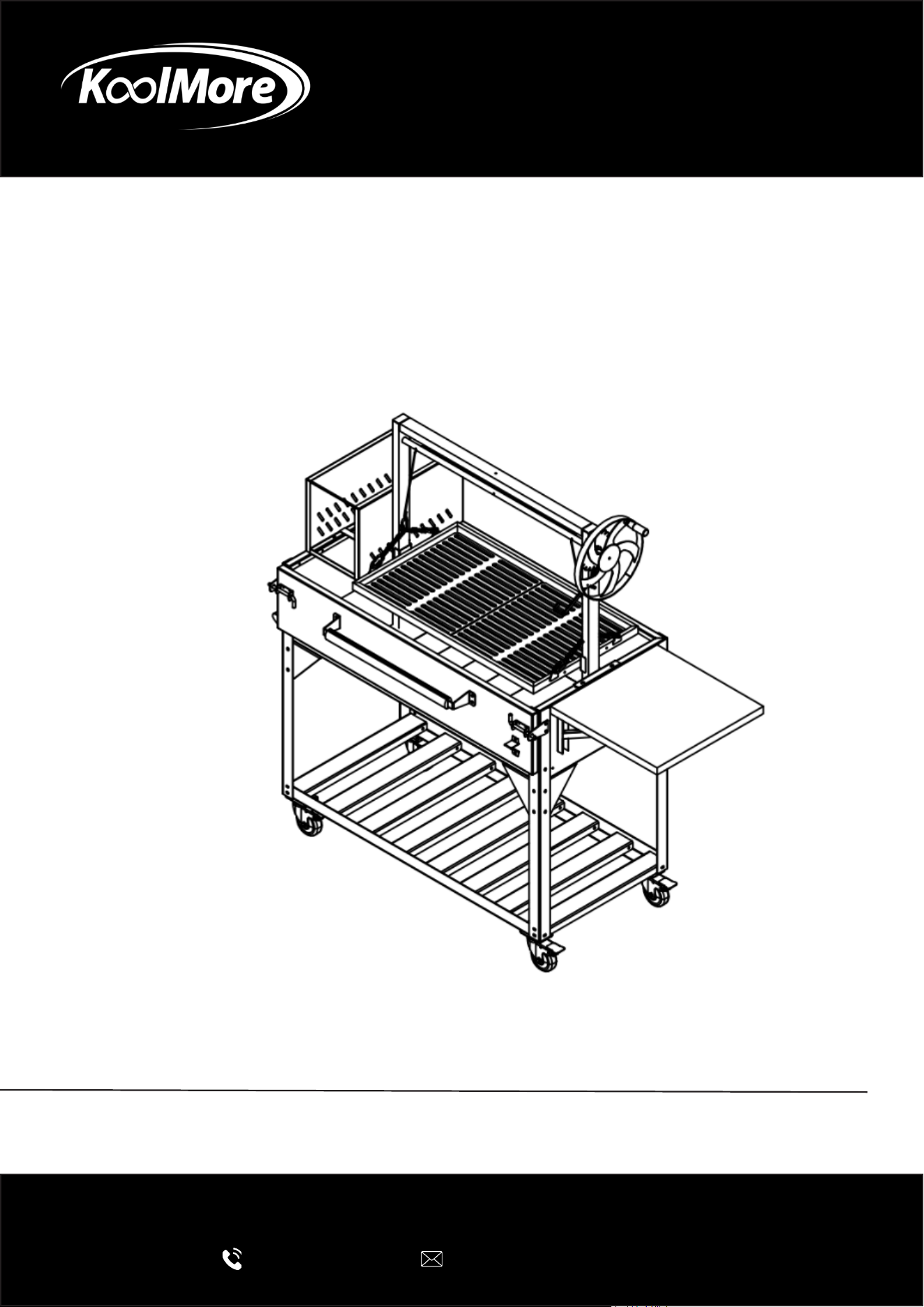

BBQ GRILL
72 in. Argentine Santa Maria Live Fire, Char-
coal BBQ Grill in Black.
INSTALLATION MANUAL
Please read these installation instructions carefully to ensure the
appliance is installed correctly and operates safely.
For any service related issues, please contact us:
718-576-6342
suppor[email protected]
Model KM-OG-AW-72
Stay informed with the latest information for your
KoolMore Appliance.
Scan the QR code below to access the most recent Installation Manual
on our website, which is constantly being updated and improved.
If you need any assistance or have questions, our customer support
team is here to help.
Phone- 718-576-6342 Email- suppor[email protected]
Please write down the model number and serial number below for future reference. Both numbers are located on the
rating label on the back of your unit or inside of the unit and are needed to obtain warranty service. You may also
want to staple your receipt to this manual as it is your proof of purchase and may also be needed for service
under warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that sold you the product.
Read and follow this Installation Manual carefully to help you install, use, and maintain your unit.
Refer to the Troubleshooting section of this manual as it will help you diagnose and solve many common issues.
Contents
Safety ............................................................................................ 4
Parts .............................................................................................. 6
Installation ..................................................................................... 8
Warranty ......................................................................................... 10
Safety
IMPORTANT SAFETY INFORMATION
WARNING
Failure to follow these instructions may result in fire, explosion, serious injury, or death. Read and
understand all safety information before assembling or using this grill.
Fuel Restrictions
• This grill is designed for use with wood and charcoal only.
• DO NOT use propane, natural gas, liquid alcohol fuels, gasoline, lighter fluid, or any other accel-
erants.
• Use of unapproved fuels may cause fire, explosion, or serious injury.
Location & Installation Safety
• Outdoor Use Only: This grill is intended for outdoor use only in a well-ventilated area. DO NOT
use indoors, in garages, under awnings, carports, or near enclosed structures.
• Clearance: Maintain a minimum clearance of 5 feet on all sides and above the grill from com-
bustible materials, including walls, fences, trees, decks, and furniture.
• Stable Surface: Place the grill on a solid, level, non-combustible surface such as concrete or
stone. DO NOT place on grass, wood, or other flammable surfaces.
• Wind Conditions: Do not operate the grill in strong or gusty winds, as embers and ash may be
carried and create a fire hazard.
Fuel & Fire Safety
• Approved Fuels Only: Use natural lump charcoal, charcoal briquettes, and small amounts of
dry, seasoned hardwood chunks or chips.
• Lighting Method: A charcoal chimney starter is strongly recommended.
• Allow charcoal to fully ash over and turn gray before cooking.
• Never add fuel to hot or burning coals.
• Never Use Lighter Fluid: Pouring lighter fluid or accelerants onto hot or warm coals can cause
a flash fire.
Ash Management
• Cool Before Disposal: Allow ashes to cool completely for 24–48 hours before handling or dis-
posing of them.
• Proper Disposal: Place cooled ashes in a metal container with a tight-fitting lid and store away
from buildings or combustible materials.
• Fire Preparedness: Keep a fire extinguisher, water source, or sand nearby at all times.
General Operating Safety
• Never Leave Unattended: Always supervise the grill while in use or while coals are hot.
• Children & Pets: Keep children and pets at a safe distance from the grill at all times.
• Hot Surfaces: All grill surfaces become extremely hot during use and remain hot after shut-
down.
• Use heat-resistant gloves or oven mitts.
• Avoid touching metal surfaces.
• Use Proper Tools: Always use long-handled grilling utensils to prevent burns.
• Do Not Lean Over Grill: Especially during lighting or when adjusting fuel.
• No Modifications: Do not alter the grill in any way. Modifications may result in injury and will
void the warranty.
• Inspect Before Use: Check the grill for loose hardware, damage, or excessive wear before each
use.
Maintenance & Fire Prevention
• Clean cooking grates and remove grease buildup after each use.
• Excess grease or ash accumulation can cause flare-ups or fire.
• Ensure all ashes are fully cooled before cleaning the firebox.
IMPORTANT NOTE
Always follow the assembly instructions specific to your model. Improper assembly or misuse can
result in unsafe operation and void the warranty.

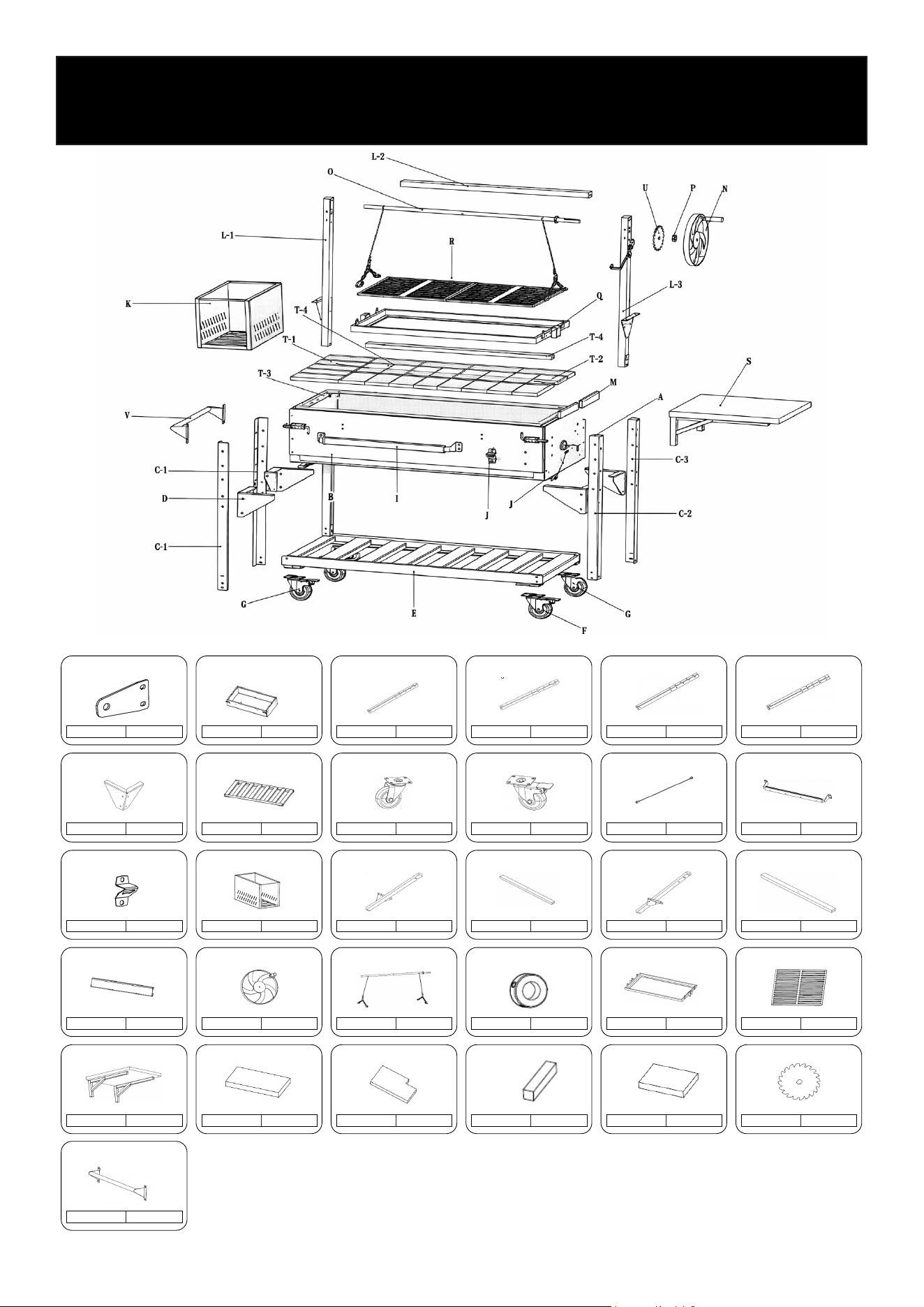

Parts
Locking Plate
A 2
Stove Tub
B 1
Leg
C-1 1
Leg
C-2 1
Leg
C-3 1
Leg
C-4 1
Couplers
D 4
Bottom Tray
E 1
Caster
F 2
Casters
G 2
Steel Wire Rope
H 2
Wooden Handle
I 1
Bottle Opener
J 1
Fire Box
K 1
Left Post
L-1 1
Top Beam
L-2 1
Right Post
L-3 1
Bottom Beam
L-4 1
Gap Filler
M 2
Flywheel
N 1
Axle System
O 1
Axle System
P 2
Grill Frame
Q 1
Cooking Grill
R 2
Side Shelf
S 1
Fire Brick
T-1 40
Fire Brick
T-2 2
Fire Brick
T-3 10
Fire Brick
T-4 8
Gear
U
1
230*115*20
230*115*20
30*115*20 150*115*20
Tool Bar
V 1
Parts List
Screws
DD
8
AA 72
M6*14
BB 17
M8*12
CC 2
M6*10 M6*40
Installation

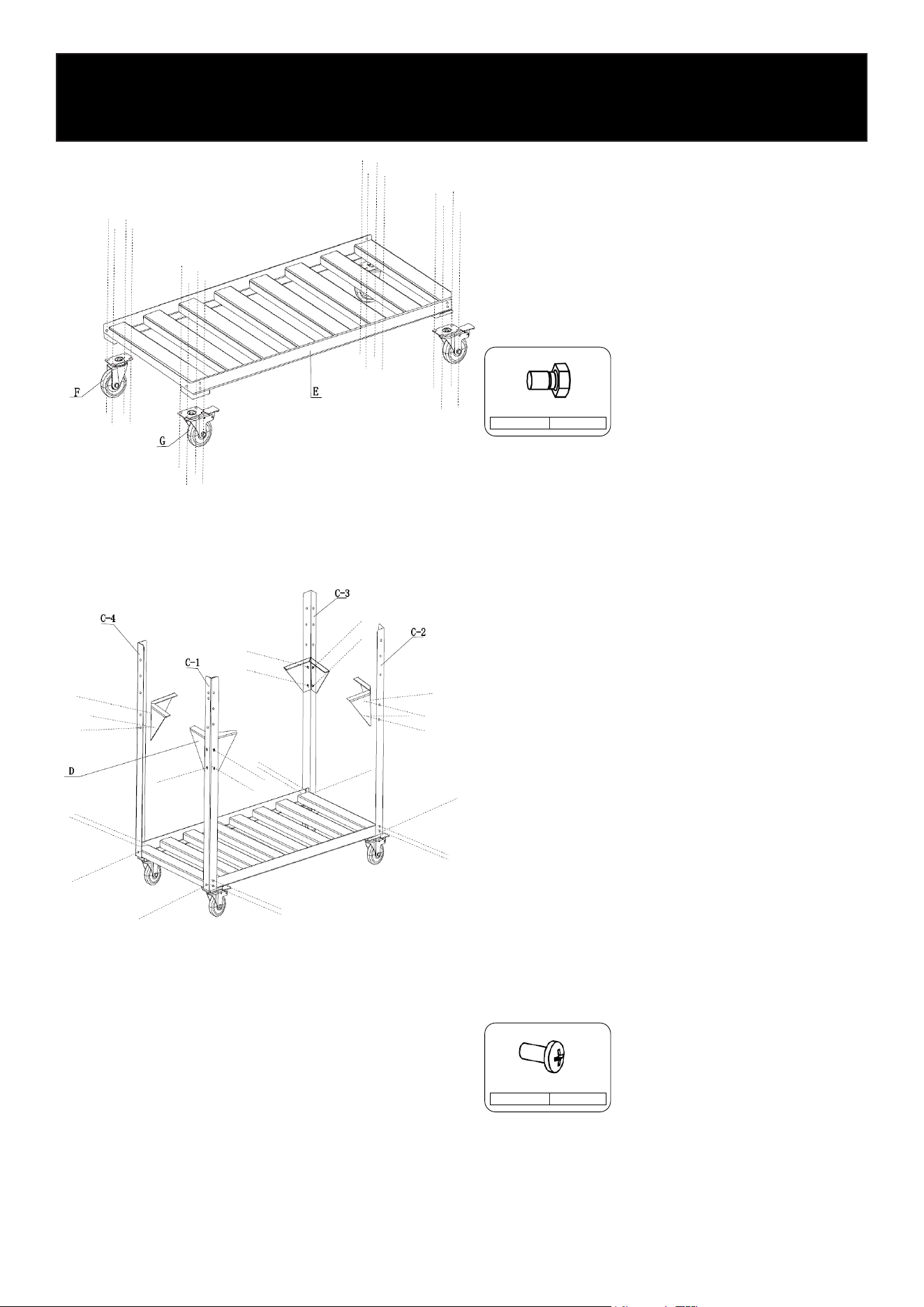

STEP 1 – Install Casters
1. Attach two (2) casters (G) to the front side
of the bottom tray (E).
2. Attach two (2) casters (F) to the rear side
of the bottom tray (E).
3. Secure each caster (G and F) using four (4)
M8 × 12 screws (BB).
BB 16
M8*12
STEP 2 – Install Legs and Couplers
1. Install four (4) legs (C) onto the bottom
tray (E), matching each leg to its corre-
sponding number marking (C-1, C-2, C-3,
C-4).
2. Secure each leg (C) to the bottom tray us-
ing three (3) M6 × 14 screws (AA). Do not
fully tighten at this time.
3. Attach one (1) coupler (D) to each leg (C),
aligning the coupler with the pre-drilled
holes.
4. On the corner legs (C-1 and C-4), insert
the first screw of each coupler together
with the adjustment tool bar (V), ensuring
proper alignment for later assembly steps
(Step 7).
5. Secure each coupler (D) using four (4) M6
× 14 screws (AA).
AA 26
M6*14
STEP 3 – Install Stove Tub and Locking Com-
ponents
1. Before installing the stove tub (B), remove
the locking plates (A) and steel wire rope
(H) from the frame. Set them aside for
reinstallation.
2. Position the stove tub (B) above the frame
and carefully lower it onto the four (4) legs
(C), ensuring the mounting holes align at
all four corners.
3. Secure the stove tub (B) at each corner
using six (6) M6 × 14 screws (AA).
4. On the corner legs (C-1 and C-4), install the
final screw together with the tool bar (V)
as required for proper alignment.
5. Once the stove tub is fully installed and
aligned, fully tighten all screws previously
installed in Steps 2 and 3.
6. Reinstall the locking plates (A) and steel
wire rope (H).
7. Secure each locking plate (A) using two (2)
M6 × 14 screws (AA).
8. Once all parts are aligned, fully tighten all
the screws from Step 2
AA 20
M6*14
STEP 4 – Install Axle System, Beams, and
Gear Assembly
1. Insert the axle system (O) through the
mounting holes in the left post (L-1) and
right post (L-3), ensuring the axle is proper-
ly seated and level within both posts.
2. Install the top beam (L-2) and bottom
beam (L-4) as shown in the diagram, align-
ing them with the posts on both sides.
3. Secure each beam using four (4) M6 × 40
screws (DD) per side. Do not fully tighten
at this stage to allow for final alignment.
4. Slide the gear (U) onto the axle system (O)
through the side opening, positioning it as
shown.
5. Secure the gear in place using the axle
fastener (P).
6. Once the axle, beams, and gear are proper-
ly aligned, fully tighten all M6 × 40 screws
(DD).
DD 8
M6*40

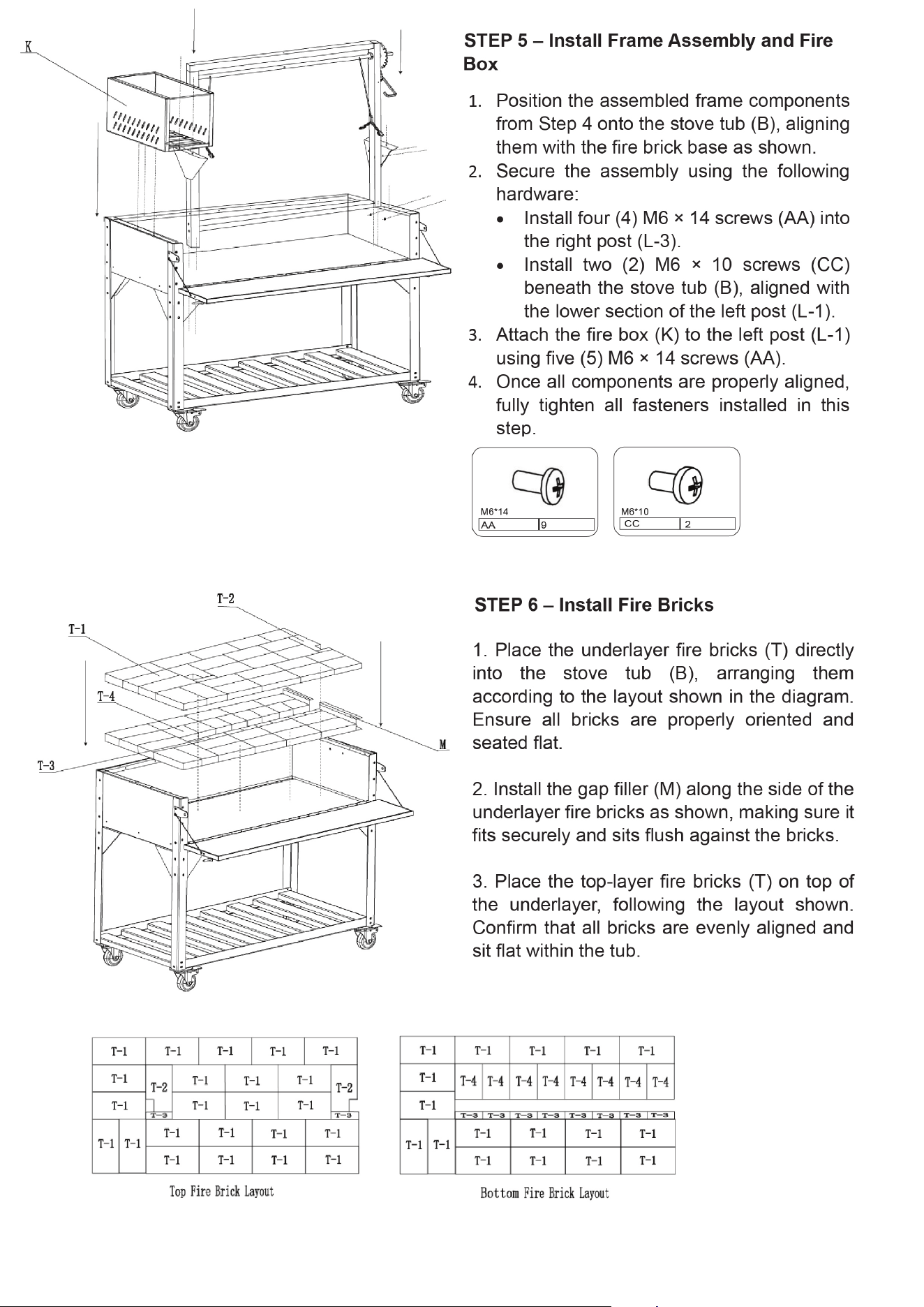

STEP 6 – Install Fire Bricks
1. Assemble the underlayer fire bricks (T) and
top-layer fire bricks (T) according to the
layout shown in the diagram, ensuring all
bricks are properly oriented and seated.
2. Carefully place the assembled fire brick
layers into the stove tub (B), making sure
the bricks sit flat and are evenly aligned
within the tub.
STEP 5 – Install Frame Assembly and Fire
Box
1. Position the assembled frame compo-
nents from Step 4 onto the stove tub (B),
aligning them with the fire brick base as
shown.
2. Secure the assembly using the following
hardware:
• Install four (4) M6 × 14 screws (AA)
into the right post (L-3).
• Install two (2) M6 × 10 screws (CC) be-
neath the stove tub (B), aligned with the
lower section of the left post (L-1).
3. Attach the fire box (K) to the left post (L-1)
using five (5) M6 × 14 screws (AA).
4. Once all components are properly aligned,
fully tighten all fasteners installed in this
step.
AA 9
M6*14
CC 2
M6*10
10

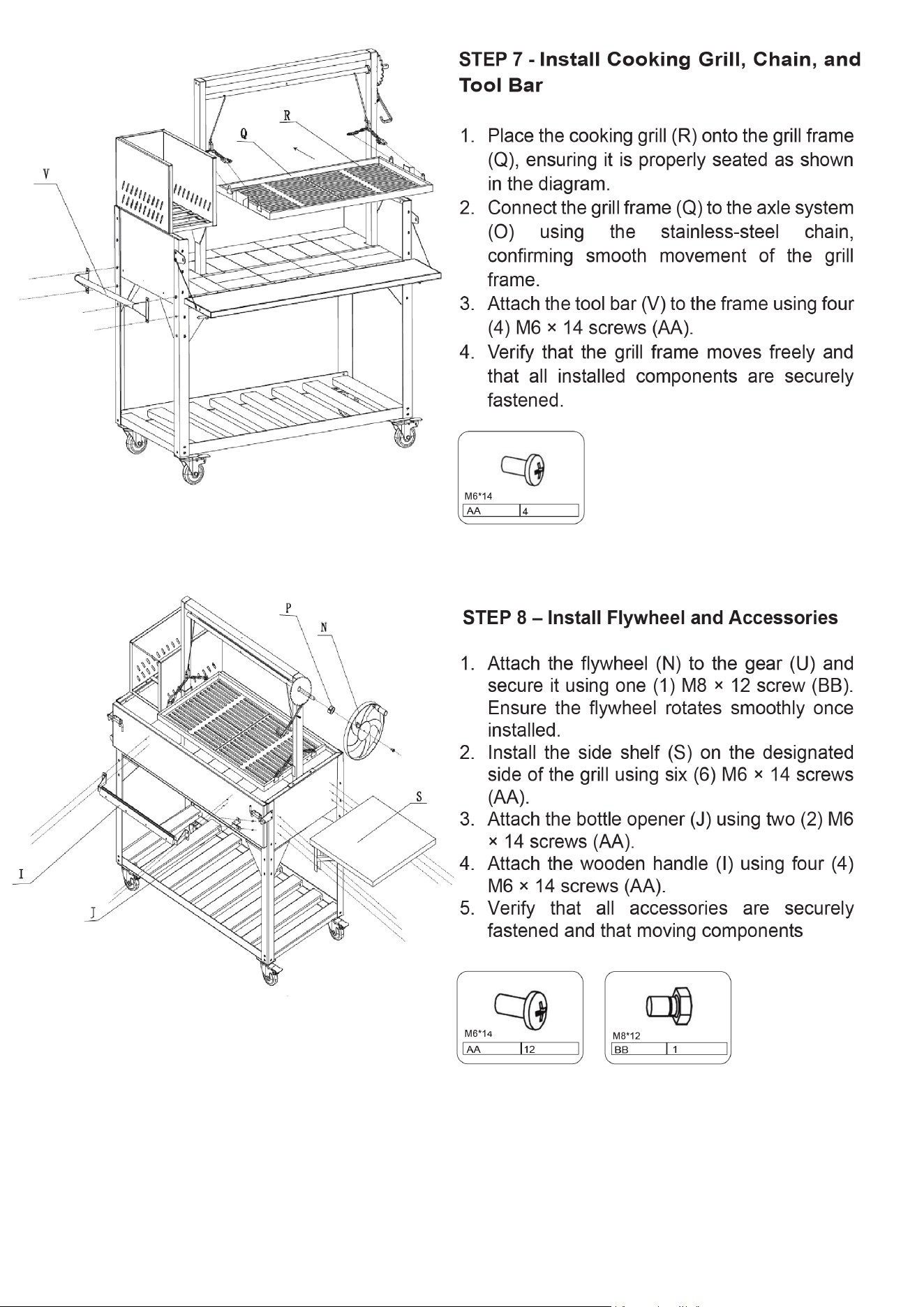

STEP 7 – Install Cooking Grill, Chain, and Tool
Bar
1. Place the cooking grill (R) onto the grill
frame (Q), ensuring it is properly seated as
shown in the diagram.
2. Connect the grill frame (Q) to the axle
system (O) using the stainless-steel chain,
confirming smooth movement of the grill
frame.
3. Attach the tool bar (V) to the frame using
four (4) M6 × 14 screws (AA).
4. Verify that the grill frame moves freely and
that all installed components are securely
fastened.
AA 4
M6*14
STEP 8 – Install Flywheel and Accessories
1. Attach the flywheel (N) to the gear (U)
and secure it using one (1) M8 × 12 screw
(BB). Ensure the flywheel rotates smoothly
once installed.
2. Install the side shelf (S) on the designat-
ed side of the grill using six (6) M6 × 14
screws (AA).
3. Attach the bottle opener (J) using two (2)
M6 × 14 screws (AA).
4. Attach the wooden handle (I) using four
(4) M6 × 14 screws (AA).
5. Verify that all accessories are securely
fastened and that moving components
AA 12
M6*14
BB 1
M8*12
LIMITED WARRANTY
KoolMore Supply Inc. extends a limited warranty to the original purchaser, guaranteeing that this KoolMore product is
free from manufacturing defects in material or workmanship for one year from the date of purchase.
Should you discover any such defect within the warranty period, KoolMore Supply Inc. reserves the right to repair or re-
place the product without charge, or to cover the cost of replacement parts and repair labor needed to correct defects
present at the time of purchase or resulting from regular usage, when the appliance has been installed, operated, and
maintained as per the instructions provided.
At its sole discretion, KoolMore Supply Inc. may decide to replace the product. In such an event, your replacement
appliance will carry the warranty for the remaining term of the original unit’s warranty period.
This warranty is valid exclusively to the original purchaser of the product and only applicable within the United States.
The warranty commences from the date of original consumer purchase. Proof of the original purchase date will be
required to obtain service under this warranty.
Under this limited warranty, your sole and exclusive remedy will be product repair, as outlined above. All services must
be provided by a KoolMore designated service company.
To claim warranty or request repair service:
Email [email protected]. Please include your name, address, phone number, warranty repair request, and a copy
of your proof of purchase receipt. Alternatively, visit koolmore.com and use the Contact Us page. A KoolMore custom-
er service representative will promptly arrange service for your appliance.
We thank you for choosing KoolMore.
WARRANTY EXCLUSIONS
This limited warranty will not cover:
1. Failure of the product to perform during power failures or interruptions,
or due to inadequate electrical service.
2. Damage incurred during transportation or handling.
3. Damage caused by accidents, vermin, lightning, winds, fire, floods, or acts of God.
4. Damage resulting from accidents, alterations, misuse, abuse, improper installation, repair, or maintenance. This
includes using any external device that alters or converts the voltage or frequency of electricity.
5. Unauthorized product modifications, repairs by unauthorized centers, or use of non-approved replacement parts.
6. Abnormal cleaning and maintenance not aligned with the user’s manual.
7. Use of incompatible accessories or components.
8. Any costs associated with repairs or replacements under these excluded circumstances shall be the responsibility
of the consumer.
WARRANTY
